保险丝的参数选择及其应用
保险丝的参数选择及其应用保险丝的参数选择及其应用在很多电子设备中，都离不开保险丝(Fuse)。
自从十九世纪九十年代爱迪生发明了把细导线封闭在台灯座里的第一个插塞式保险丝之后，保险丝的种类越来越多，应用越来越广。
本文给大家介绍保险丝的参数、选择及应用，希望大家能有所收益。
保险丝的各项额定值及其性能指标是根据实验室条件及验收规范测定的。
国际上有多家权威的测试和鉴定机构，如美国的保险商实验室公司的UL认证，加拿大标准协会的CSA认证、日本国际与贸易工业部的MTTI认证和国际电气技术委员会的IEC认证。
保险丝的选择涉及下列诸多因素：1 正常的工作电流。
2 施加在保险丝上的外加电压。
3 要求保险丝断开的不正常电流。
4 允许不正常电流存在的最短和最长时间。
5 保险丝的环境温度。
6 脉冲、冲击电流、浪涌电流、启动电流和电路瞬变值。
7 是否有超出保险丝规范的特殊要求。
8 安装结构的尺寸限制。
9 要求的机构认证。
10 保险丝座件：保险丝夹、安装盒、面板安装等。
下面把保险丝选用中常见的参数和术语作一些说明。
1.正常工作电流在25℃条件下运行，保险丝的电流额定值通常要减少25％以避免有害熔断。
大多数传统的保险丝其采用的材料具有较低的熔化温度。
因此，该种保险丝对环境温度的变化比较敏感。
例如一个电流额定值为10A的保险丝通常不推荐在25℃环境温度下在大于7.5A的电流下运行。
.电压额定值保险丝的电压额定值必须等于或大于有效的电路电压。
一般标准电压额定值系列为32V、125V、250V、600V。
3.电阻保险丝的电阻在整个电路中并不重要。
由于安培数小于1的保险丝电阻只有几个欧姆，所以在低压电路中采用保险丝时应考虑这个问题。
大部分的保险丝是用温度系数为正的材料制造的，因此，就有冷电阻和热电阻之分。
4.环境温度保险丝的电流承载能力，其实验是在25℃环境温度条件下进行的，这种实验受环境温度变化的影响。
环境温度越高，保险丝的工作温度就越高，其寿命也就越短。
保险丝(FUSE)选型分析
关于FUSE的选择一、介绍每个产品都有保护电路，大部分的电流保护基本都是用FUSE来进行保护，而FUSE的选择关系到产品的正常运行，如果没有选择合适的FUSE将会导致对电路起不到保护作用或总是熔断FUSE。
由于在不同的实际电路中存在各种其他因素，所以选择FUSE需通过具体测试验证来选型。
二、选型需要参数选择一个FUSE需要知道以下参数：1、最大稳态工作电流；2、最大工作温度；3、最大瞬态脉冲电流的波形（峰值、脉冲宽度）；4、应用中可能出现的最大故障电流；5、过载电流和在该电流下的熔断时间；6、所需耐受脉冲电流的次数；7、最大工作电压；8、封装尺寸；9、安规认证标准。
三、参数定义1、工作温度与温度折减保险管都有一个温度范围，但保险管数据手册上宣称的熔断特性等电气特性都是在25°环境下测试的，如果保险丝不是工作在25°，那么选型时，需根据厂家给出的温度折减曲线来进行对保险丝的温度折减，例如此图是每上升25°，保险丝就折减5%。
2、工作电压（Operating Voltage）与额定电压（Rated Voltage）保险丝的最大工作电压应该在额定电压之内，不能超过额定电压。
保险丝的额定电压是与保险丝的分断能力相关的安全指标。
在这个电压下，保险丝可以安全的截断不大于标称分断能力的电流。
3、分断能力分断能力是指在额定电压下保险丝可以安全截断的最大电流。
保险丝的分断电流是一个安全参数，它必须达到或者大于最大故障电流，这样保险丝才会安全熔断，不会产生燃烧、飞弧、爆炸等不安全现象。
4、工作电流（Operating Current）与额定工作电流(Rated current)工作电流是指电路在稳定工作状态下的最大工作电流；额定电流是规格书中宣称的电流。
保险丝在额定工作电流下工作必须大于4小时才能断开（25°环境条件下）。
为保证保险丝长期稳定工作，工作电流需小于保险丝额定电流的75%。
Fuse设计选型详解

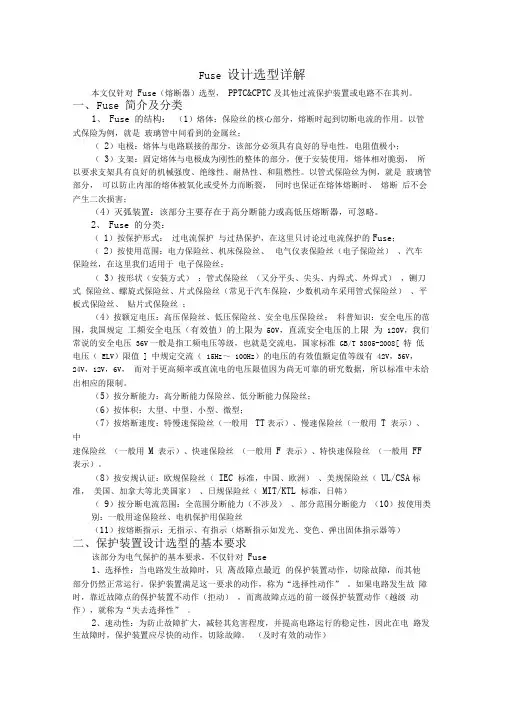

Fuse 设计选型详解本文仅针对Fuse（熔断器）选型，PPTC&CPTC及其他过流保护装置或电路不在其列。
一、F use 简介及分类1、Fuse 的结构：（1）熔体：保险丝的核心部分，熔断时起到切断电流的作用。
以管式保险为例，就是玻璃管中间看到的金属丝；（2）电极：熔体与电路联接的部分，该部分必须具有良好的导电性，电阻值极小；（3）支架：固定熔体与电极成为刚性的整体的部分，便于安装使用，熔体相对脆弱，所以要求支架具有良好的机械强度、绝缘性、耐热性、和阻燃性。
以管式保险丝为例，就是玻璃管部分，可以防止内部的熔体被氧化或受外力而断裂，同时也保证在熔体熔断时、熔断后不会产生二次损害；（4）灭弧装置：该部分主要存在于高分断能力或高低压熔断器，可忽略。
2、Fuse 的分类：（1）按保护形式：过电流保护与过热保护，在这里只讨论过电流保护的Fuse；（2）按使用范围：电力保险丝、机床保险丝、电气仪表保险丝（电子保险丝）、汽车保险丝，在这里我们适用于电子保险丝；（3）按形状（安装方式）：管式保险丝（又分平头、尖头、内焊式、外焊式），铡刀式保险丝、螺旋式保险丝、片式保险丝（常见于汽车保险，少数机动车采用管式保险丝）、平板式保险丝、贴片式保险丝；（4）按额定电压：高压保险丝、低压保险丝、安全电压保险丝；科普知识：安全电压的范围，我国规定工频安全电压（有效值）的上限为50V，直流安全电压的上限为120V，我们常说的安全电压36V一般是指工频电压等级，也就是交流电，国家标准GB/T 3805-2008[ 特低电压（ELV）限值] 中规定交流（15Hz～100Hz）的电压的有效值额定值等级有42V，36V，24V，12V，6V，而对于更高频率或直流电的电压限值因为尚无可靠的研究数据，所以标准中未给出相应的限制。
（5）按分断能力：高分断能力保险丝、低分断能力保险丝；（6）按体积：大型、中型、小型、微型；（7）按熔断速度：特慢速保险丝（一般用TT表示）、慢速保险丝（一般用T 表示）、中速保险丝（一般用M 表示）、快速保险丝（一般用F 表示）、特快速保险丝（一般用FF 表示）。
保险丝的选择

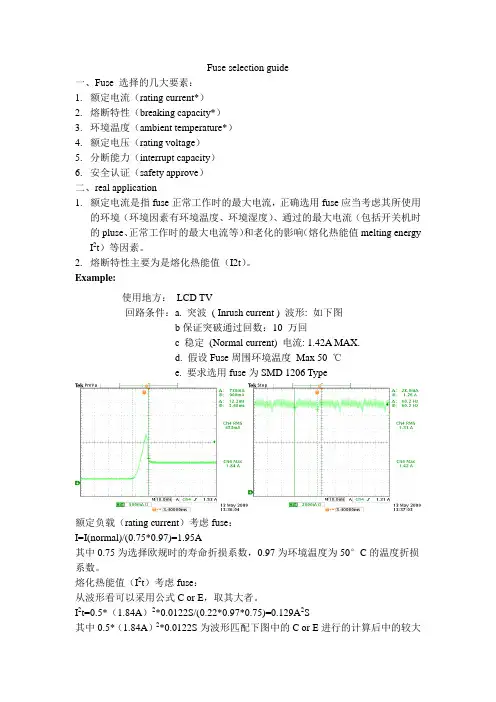

Fuse selection guide一、Fuse 选择的几大要素：1.额定电流（rating current*）2.熔断特性（breaking capacity*）3.环境温度（ambient temperature*）4.额定电压（rating voltage）5.分断能力（interrupt capacity）6.安全认证（safety approve）二、real application1.额定电流是指fuse正常工作时的最大电流，正确选用fuse应当考虑其所使用的环境（环境因素有环境温度、环境湿度）、通过的最大电流（包括开关机时的pluse、正常工作时的最大电流等）和老化的影响（熔化热能值melting energy I2t）等因素。
2.熔断特性主要为是熔化热能值（I2t）。
Example:使用地方：LCD TV回路条件：a. 突波( Inrush current ) 波形: 如下图b保证突破通过回数：10 万回c 稳定(Normal current) 电流: 1.42A MAX.d. 假设Fuse周围环境温度Max 50 ℃e. 要求选用fuse为SMD 1206 Type额定负载（rating current）考虑fuse：I=I(normal)/(0.75*0.97)=1.95A其中0.75为选择欧规时的寿命折损系数，0.97为环境温度为50°C的温度折损系数。
熔化热能值（I2t）考虑fuse：从波形看可以采用公式C or E，取其大者。
I2t=0.5*（1.84A）2*0.0122S/(0.22*0.97*0.75)=0.129A2S其中0.5*（1.84A）2*0.0122S为波形匹配下图中的C or E进行的计算后中的较大者，0.22为寿命折损系数，0.95为温度折损系数，0.75为UL折损系数，与fuse spec进行比较知道fuse选用合理。
如果突波为多次上升波形则需分别分开进行计算最后求和。
熔断器的结构、特性及选用介绍
熔断器的结构、特性及选用介绍摘要熔断器也被称为保险丝，IEC127标准将它定义为"熔断体（fuse-link)"。
它是一种安装在电路中，保证电路安全运行的电器元件。
熔断器其实就是一种短路保护器，广泛用于配电系统和控制系统，主要进行短路保护或严重过载保护。
熔断器-正文熔断器利用金属导体作为熔体串联于电路中，当过载或短路电流通过熔体时，因其自身发热而熔断，从而分断电路的一种电器。
熔断器结构简单，使用方便，广泛用于电力系统、各种电工设备和家用电器中作为保护器件。
结构和特性熔断器主要由熔体、外壳和支座3部分组成，其中熔体是控制熔断特性的关键元件。
熔体的材料、尺寸和形状决定了熔断特性。
熔体材料分为低熔点和高熔点两类。
低熔点材料如铅和铅合金，其熔点低容易熔断，由于其电阻率较大，故制成熔体的截面尺寸较大，熔断时产生的金属蒸气较多，只适用于低分断能力的熔断器。
高熔点材料如铜、银，其熔点高，不容易熔断，但由于其电阻率较低，可制成比低熔点熔体较小的截面尺寸，熔断时产生的金属蒸气少，适用于高分断能力的熔断器。
熔体的形状分为丝状和带状两种。
改变变截面的形状可显著改变熔断器的熔断特性。
熔断器具有反时延特性，即过载电流小时，熔断时间长；过载电流大时，熔断时间短。
所以，在一定过载电流范围内，当电流恢复正常时，熔断器不会熔断，可继续使用。
熔断器有各种不同的熔断特性曲线（见图），可以适用于不同类型保护对象的需要。
熔断器分类熔断器根据使用电压可分为高压熔断器和低压熔断器。
根据保护对象可分为保护变压器用和一般电气设备用的熔断器、保护电压互感器的熔断器、保护电力电容器的熔断器、保护半导体元件的熔断器、保护电动机的熔断器和保护家用电器的熔断器等。
根据结构可分为敞开式、半封闭式、管式和喷射式熔断器。
敞开式熔断器结构简单，熔体完全暴露于空气中，由瓷柱作支撑，没有支座，适于低压户外使用。
分断电流时在大气中产生较大的声光。
半封闭式熔断器的熔体装在瓷架上，插入两端带有金属插座的瓷盒中，适于低压户内使用。
