屋面工程之一鲁班奖细部做法集锦
鲁班奖屋面工程细部做法(图片丰富
2023/5/24
22
22.女儿墙压顶面砖排砖合理，立 杆设置不锈钢圆台美观实用
2023/5/24
23
23.女儿墙压顶增加 线脚
2023/5/24
24
24.女儿墙檐口下端应做出鹰
嘴和滴水线
2023/5/24
25
25.不锈钢压条，精致耐用
2023/5/24
26
26.异型屋面泛水采用 与屋面砖同色的小规 格面砖，排砖整齐， 弧度一致
2023/5/24
27
27.泛水高度符合设计要求顺直 流畅
2023/5/24
28
28.屋面平整，分格缝清 晰通顺，排水天沟弧度自 然，排水流畅
2023/5/24
29
29.屋面转角及变形部位用 塑料线槽分格断开
2023/5/24
3030Βιβλιοθήκη 屋面泛水圆弧流畅均匀美 观2023/5/24
31
31.弧行泛水施工 精细
76
2023/5/24
76.面砖饰面的屋面构架
77
77.构架施工精良，角线 到位
2023/5/24
78
78.梁底上凹20mm, 有效防止雨水在梁 底积垢
2023/5/24
79
79.屋面雨水口采用平 箅子
2023/5/24
80
80.排气孔距屋面高 度小于25cm ，不符 合规范要求
2023/5/24
81
81.上人屋面通气 管高度不足2m ,不 符合规范要求
2023/5/24
82
82.上人屋面通气管不 牢固、不垂直
2023/5/24
83
2023/5/24
83.水落口设置位 置不当
鲁班奖优质工程之细部做法(图片很多)
室内细部处理之:
室内细部处理之:
三.设备安装工程部分
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
屋面细部处理之一：
屋面排气管的造 型与处理
屋面细部处理之一：
屋面抽气管根部 的造型及处理
屋面细部处理之一：
屋面排汽管根部 的造型及处理
屋面细部处理之一：
屋面细部处理之一：
屋面泛水口处的 细部处理
屋面细部处理之一：
上人屋面及抽气 管根部的处理
屋面细部处理之一：
出屋面结构的细 部处理
屋面细部处理之一：
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
设备安装之:
四．外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
外装饰及其它参考照片
鲁班奖屋面工程细部做法(图片丰富
天沟、檐沟应增设附加层，采用合成高分子防水卷材时， 宜空铺，空铺的宽度不应小于200mm。
泛水收头处理
泛水收头处应使用金属压条固定，并使用密封材料封严。
金属屋面细部做法
金属板材连接构造
金属板材应采用咬合、铆钉或自攻螺钉等连接方式，连接处应设 置防水垫圈和密封材料。
金属天沟、檐沟防水构造
坡屋面图片展示
STEP 02
STEP 01
瓦片铺设与固定
坡屋面构造层次
展示坡屋面的构造层次， 包括防水层、保温层、瓦 片等。
STEP 03
檐口与屋脊处理
展示坡屋面檐口和屋脊的 处理方式，包括防水和装 饰效果。
展示瓦片的铺设和固定方 式，以及不同种类瓦片的 铺设效果。
金属屋面图片展示
01
02
03
金属板材种类
随着消费者需求的多样化，定 制化服务将在建筑领域得到更 多的关注和发展，包括在屋面 工程的设计、施工等方面提供 个性化、定制化的服务。
随着全球化的加速推进，国际 化合作将在建筑领域得到更多 的关注和发展，包括在屋面工 程的设计、施工等方面加强与 国际先进理念和技术的交流与 合作。
THANKS
感谢您的观看
智能化和自动化程度将不断提高
随着科技的进步和智能化技术的发展，未来屋面工程的智能化和自动化程度将不断提高。例如，通过物联网技术实现 远程监控和管理，提高运行效率和管理水平。
绿色环保将成为核心竞争力
随着环保意识的提高和政策的推动，绿色环保将成为屋面工程企业的核心竞争力。未来，企业将更加注 重采用环保材料和设备，降低能耗和排放，推动行业的可持续发展。
鲁班奖意义
代表了中国建筑业最高荣誉，获 奖项目代表着国内建筑行业最高 水平和最新发展方向。
二、楼地面之一(鲁班奖细部做法集锦)
（ 二 ） 地 毯 地 面
会议室地毯地面，色泽高贵典雅，庄重严肃
鲁班奖工程细部做法集锦
二、楼地面
（ 二 ） 地 毯 地 面
公共走道地毯地面，铺 贴流畅，地毯表面平整 洁净，拼缝粘贴牢固， 严密平整
鲁班奖工程细部做法集锦
二、楼地面
（ 二 ） 地 毯 地 面
阻燃地毯，接头平整、 接缝平顺一致
鲁班奖工程细部做法集锦
二、楼地面
（ 二 ） 地 毯 地 面
地毯平整，拼缝粘贴牢固
鲁班奖工程细部做法集锦
二、楼地面
（ 二 ） 地 毯 地 面
块材地毯地面接缝严密粘贴平整美观
鲁班奖工程细部做法集锦
二、楼地面
（ 三 ） 水 磨 石 地 面
预制水磨石地面与预制水磨石踢脚线对缝铺贴
鲁班奖工程细部做法集锦
地面弧形块材分块合理，拼缝严密
鲁班奖工程细部做法集锦
二、楼地面
（ 一 ） 块 材 地 面
室内地砖对称铺贴
鲁班奖工程细部做法集锦
二、楼地面
（ 一 ） 块 材 地 面
墙、地砖对缝
鲁班奖工程细部做法集锦
二、楼地面
（ 一 ） 块 材 地 面
弧形走廊地砖铺贴曲线顺畅、平整
鲁班奖工程细部做法集锦
二、楼地面
二、楼地面
（ 一 ） 块 材 地 面
花岗岩地面大面平整，踢脚线轮廓分明
鲁班奖工程细部做法集锦
二、楼地面
（ 一 ） 块 材 地 面
室内玻化砖地面平整光滑，形同整体
鲁班奖工程细部做法集锦
二、楼地面
（ 一 ） 块 材 地 面
室内花岗岩地面平整光滑，石材缝隙严密
鲁班奖工程细部做法集锦
鲁班奖精品工程细部作法之一：屋面工程
鲁班奖精品工程细部作法之一：屋面工程屋面是鲁班奖精品工程创奖控制重点，屋面工程的总体要求是：颜色协调明亮，设施排布有序，细部做工精细，防水不渗不漏，排水便捷顺畅。
排水推荐采用有组织排水沟方式排水，排水坡向正确、坡度明显；屋面构造做法、防水设防应符合规范和设计要求，无渗漏、倒坡、积水现象；瓷砖面层应整砖排布、缝隙均匀，无空鼓、开裂、缺棱掉角，酸冼清洁瓷砖面层时不应造成瓷砖缝隙返砂；突出屋面的房间和烟风道挑檐应做滴水；楼梯间、电梯机房等进出屋面的房间应设置雨棚，门口高度不低于2m,门口下部应高出屋面250mm,以满足屋面防水泛水高度要求；突出屋面的房间外窗台应内高外低，女儿墙顶部应外高内低，坡度不低于5%；屋面透气孔造型美观，横竖成线，设在屋面瓷砖十字缝处；屋面设备基础采用清水混凝土或涂料面层，不建议镶贴面砖，以防止设备运行产生振动导致瓷砖空鼓脱落；上小屋面的爬梯下部可采取上锁等防止检修以外的人员随意攀爬，爬梯上部应突出小屋面1m以上，便于检修人员攀爬，爬梯中上部应设置不少于3道安全护圈；屋面上花篮梁、烟风道顶部、设施基础等部位线角应顺直；突出屋面房间外墙应平整，瓷砖墙面整砖镶贴，勾缝宽窄一致、平滑顺直、颜色均匀；屋面通风、太阳能等各种设施应排列有序，横竖成线；屋面上不同装饰面层交接应清晰，无交叉污染；落水口、排气孔、泛水、栈桥等细部构造做工精细；女儿墙防裂分隔缝顺直、间距均匀，与屋面避雷带支腿对齐；屋面避雷带设置合理，安装顺直，固定点支撑件间距均匀、高度一致、固定可靠。
保定市第一中心医院门诊综合楼项目（2018年度鲁班奖）——屋面整砖排布、整体美观石家庄传媒大厦（2017年度鲁班奖工程）——花园式种植屋面栈道亭台造型别致，休闲舒适——屋面坡向正确，分缝合格，排水通畅；顶部花蓝梁顺直。
内蒙古自治区自然历史博物馆工程（2019年度鲁班奖）——防滑砖双曲屋面保定市第一中心医院门诊综合楼项目（2018年度鲁班奖）——天沟排水，整体美观，排水畅通——屋面分隔缝合理，女儿墙分缝与地面分缝贯通一致。

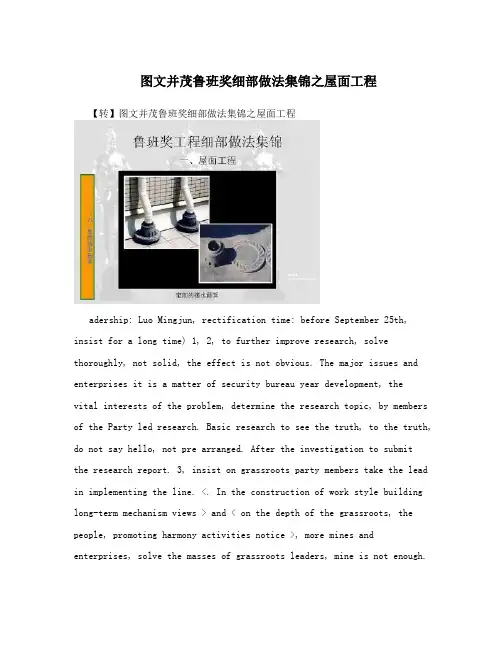

图文并茂鲁班奖细部做法集锦之屋面工程
图文并茂鲁班奖细部做法集锦之屋面工程【转】图文并茂鲁班奖细部做法集锦之屋面工程adership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough.4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, byadership: Luo Mingjun, rectification time: before September 25th, insist for a long time) 1, 2, to further improve research, solve thoroughly, not solid, the effect is not obvious. The major issues and enterprises it is a matter of security bureau year development, thevital interests of the problem, determine the research topic, by members of the Party led research. Basic research to see the truth, to the truth, do not say hello, not pre arranged. After the investigation to submitthe research report. 3, insist on grassroots party members take the lead in implementing the line. <. In the construction of work style building long-term mechanism views > and < on the depth of the grassroots, the people, promoting harmony activities notice >, more mines and enterprises, solve the masses of grassroots leaders, mine is not enough. 4, contact a crowd. Combined with the "grassroots cadres contact farmers" activities and each cadres to contact a people, by。
鲁班奖细部做法集锦(安装工程)
离心铸铁排水管，节套式柔性连接.具有安装快速、简便、 抗震性能强、调整简便等特点
鲁班奖工程细部做法集锦
十、安装工程
（ 四 ） 配 电 箱 、 开 关 、 插 座 、 灯 具 安 装
配电柜安装排列整齐，接地良好。盘面平整，标高一致
鲁班奖工程细部做法集锦
设备配管合理规范，保温平整美观，固定支架位置正确
鲁班奖工程细部做法集锦
十、安装工程
（ 五 ） 机 房 管 线 设 备 安 装
设备配管合理规范，保温平整美观，固定支架位置正确
鲁班奖工程细部做法集锦
十、安装工程
（ 五 ） 机 房 管 线 设 备 安 装
标识齐全、正确，保温平整美观，阀门标高一致
鲁班奖工程细部做法集锦
鲁班奖工程细部做法集锦
十、安装工程
（ 五 ） 机 房 管 线 设 备 安 装
管道保温光滑平整，标识清晰，指示明确
鲁班奖工程细部做法集锦
十、安装工程
（ 五 ） 机 房 管 线 设 备 安 装
配管合理规范，管道附件成排成线
鲁班奖工程细部做法集锦
十、安装工程
（ 五 ） 机 房 管 线 设 备 安 装
（ 一 ） 屋 面 上 的 安 装
屋面进水管管道标识清晰与墙面交接处理细致
鲁班奖工程细部做法集锦
十、安装工程
（ 二 ） 吊 顶 内 管 线 安 装
桥架安装美观牢固
鲁班奖工程细部做法集锦
十、安装工程
（ 二 ） 吊 顶 内 管 线 安 装
桥架零部件使用正确
鲁班奖工程细部做法集锦
十、安装工程
（ 二 ） 吊 顶 内 管 线 安 装
十、安装工程
鲁班奖屋面工程做法
一、常规做法屋面工程
防水层-基层处理
穿屋面管道 找平层
卓 越 ·勤 俭 ·务 实 ·诚 信
R=50 R=50
屋面
工艺说明： 基层表面保持干燥，并要平整、牢固、阴阳角转角处做成圆弧。干燥程
度的简易检测方法，将1㎡卷材平坦地平铺在找平层上，静置3-4h后掀开 检查，找平层与卷材上未见水印即可涂刷基层处理剂，铺贴。
开始断开至防水层止。排气道应无砂浆、水泥、砂等粉料掺入，确保气体畅通 排至排气管。
一、常规做法屋面工程
保温隔热工程-排气口
卓 越 ·勤 俭 ·务 实 ·诚 信
工艺说明： 排气出口应埋设排气管，排气管应设置在结构层上；穿过保温层的管
壁应打排气孔，屋面排气孔应做到做法一致、排列整齐、外形美观，应设 置在纵横分隔缝的相交点处。
卓 越 ·勤 俭 ·务 实 ·诚 信
工艺说明： 保温层设于防水层之上，上部为35mm（设计确定）厚C15细石混凝
土找平层（配ø6@500mmX600mm钢筋网与屋面预留的钢筋固定） 。
二、其他做法屋面工程
瓦屋面-挂瓦层
卓 越 ·勤 俭 ·务 实 ·诚 信
工艺说明： 挂瓦采用木方，底层为顺水条，上层为挂瓦条，顺水条与挂瓦条形成
一、常规做法屋面工程
保温隔热工程-管根固定
细石混凝土
卓 越 ·勤 俭 ·务 实 ·诚 信
管根固定
工艺说明： 穿过屋面和墙面的管根部位，应用内掺3%膨胀剂的细石混凝土填塞密实，
将管根固定。
一、常规做法屋面工程
保温隔热工程-屋面排气道
卓 越 ·勤 俭 ·务 实 ·诚 信
工艺说明： 排气道通常设置间距小于6m，排气道所围面积小于36㎡。排气道从保温层
鲁班奖工程细部做法经验集锦
鲁班奖工程细部做法经验集锦第一节、基本要求一、项目部要依据本细则并结合工程的具体情况，加强施工技术交底管理，技术交底中应有细部工艺的具体要求.二、加强过程控制和检查监督的力度,发现问题及时解决,检查验收要高标准、严要求，切实把技术交底和细部工艺处理要点落到实处,达到工艺精湛。
三、施工过程中,按标准工艺施工，消除质量通病。
四、每一种细部工艺处理都要先做样板,征得建设单位认可,经质检部门验收合格后方可展开大面积施工。
五、进行细部工艺处理，要求选用技术素质高、认真负责、细心的专业人员做此项工作。
六、工具、材料要提前准备齐全，如勾缝、钻孔的专用工具，橡胶密封条、塑料分格条等。
七、成品、半成品及外购件购置要进货验收，不合格的材料严禁使用。
八、凡没有按细部处理方案施工、不符合规定的一律无条件返工重做。
九、落实各项成品保护措施，防止成品污染和损坏.第二节、细部工艺细则一、主体结构㈠钢筋工程：1。
钢筋绑扎应采取定位措施，柱、剪力墙的钢筋定位卡设置于模板上口；钢筋的混凝土保护层采用专用垫块控制，清水砼柱、墙体结构宜选用与砼颜色一致的塑料卡环，梁、板可以采用混凝土成品垫块。
2.板上、下层钢筋间应设置专用马凳，马凳采用钢筋时,钢筋直径应确保承受荷载不变形，间距不大于1000㎜，梅花形布置。
3。
钢筋绑扎时绑扎结应与最外层钢筋平齐,绑扎丝尾部压向钢筋内侧，钢筋应横平竖直，绑扎牢固。
剪力墙、板钢筋绑扎采用八字扣,柱箍筋绑扎宜采用缠扣,梁上部纵向筋的箍筋绑扎宜采用套扣法绑扎。
绑扎时水平挂线,竖向吊线，控制水平度、垂直度。
4。
墙、柱等竖向构件的外露钢筋在浇筑砼前应采取套好塑料保护管或包裹彩布条等措施，并且在砼浇筑后，及时用布或棉纱沾水将被污染的钢筋擦净，确保钢筋不被污染.5。
钢筋保护层厚度按正偏差控制，提高钢筋防腐蚀能力。
㈡模板工程：1。
模板体系的选择：a）镜面砼：可采用优质木胶合板粘贴pvc板，宜选用塑料模板或成品覆塑板；b）清水砼：建议采用优质覆膜木胶合板或全钢大模板：c）楼梯、洞口:建议采用易装拆的定制钢模板：d) 高层建筑竖向构件、楼梯间：建议采用定型全钢大模板;电梯井建议采用专用钢模板；e）基础及地下沟道:模板种类可适当放宽，若使用钢模板，必须使用优质普通钢模板。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
屋面管道处设置天桥；
架空隔热屋面铺贴瓷
砖，屋面分区域设缝，
嵌填密封胶
屋面工程之一鲁班奖细部做法集锦
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
上人屋面排砖合理，缝隙均匀，排气孔新颖别致 满足装饰屋和面使工程用之功一能鲁班奖细部做法集锦
鲁班奖工程细部做法集锦
一、屋面工程
（ 二 ） 女 儿 墙
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
露天屋面大平台，板材铺贴平整
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
花园屋面面砖屋平面整工方程之正一，鲁泛班水奖细部部位做面法集砖锦镶贴高度一致
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
鲁班奖工程细部做法集锦
一、屋面工程
（ 二 ） 女 儿 墙
屋面工程之一鲁班奖细部做法集锦
不锈钢压条，精致耐用
鲁班奖工程细部做法集锦
一、屋面工程
（ 三 ） 屋 面 泛 水
异型屋面泛水采用屋与面屋工程面之砖一同鲁班色奖的细小部规做法格集面锦砖，排砖整齐，弧度一致
鲁班奖工程细部做法集锦
一、屋面工程
（ 三 ） 屋 面 泛 水
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
外悬挑6m的金属坡屋面通顺、整齐、美观
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
五层种植屋面
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
表面平整、无花脸、泛碱、渗潮迹象
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
上人屋面屋瓷面砖工排程之砖一分鲁格班合奖细理部、做铺法集贴锦美观
鲁班奖工程细部做法集锦
一、屋面工程
（
一
）
屋
面
大
面
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
架空隔热板铺设屋平面整工、程稳之一固鲁，班缝奖细隙部勾做填法密集锦实、均匀，架空隔热板离 女儿墙大于250mm
鲁班奖工程细部做法集锦
一、屋面工程
（
一
）
屋
面
大
平板青灰琉璃瓦
面
斜屋面造型，异
型琉璃板瓦装
饰，17种、3万块
瓦均用铜丝绑扎
屋面工程之一鲁班奖细部做法集锦
上人屋面表面屋平面工整程、之坡一鲁度班符奖合细要部做求法，集分锦缝合理
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
形屋态面各工异程之的一坡鲁屋班奖顶细，部错做落法集有锦致
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
半开敞式花园屋面走道，色泽协调一致
鲁班奖工程细部做法集锦
一、屋面工程
（ 三 ） 屋 面 泛 水
屋面工程之一鲁班奖细部做法集锦
屋面泛水圆弧流畅均匀美观
鲁班奖工程细部做法集锦
色泽均匀、拼缝顺直、表面平整；无花脸、泛碱、渗潮迹象
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
色泽鲜明、表屋面面工平程整之；一鲁线班角奖平细直部做、法平集整锦 、美观
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
色泽均匀、拼缝顺直、表面平整
7.1.5 平瓦必须铺置牢固。地震设防地区或坡度大于50%的屋面，应采取固定 加固措施；
7.3.6 金属板材的连接和密封处理必须符合设计要求，不得有渗漏现象；
8.1.4 架空隔热制品的质屋量面工必程须之符一鲁合班设奖计细要部做求法，集严锦禁有断裂和露筋等缺陷；
鲁班奖工程细部做法集锦
一、屋面工程
（一） 屋 面 大 面
屋面平整、线屋条面工通程顺之，一分鲁班格奖均细匀部做，法排集气锦道、透气孔、 屋面管道等细部处理精细，整体观感效果好
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
卷屋材面铺工贴程之色一泽鲁一班奖致细，部平做坦法集美锦观
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
屋面分色与分格整齐，面砖平整，分格缝油膏嵌填密实顺直
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
屋面工程之一鲁班奖细部做法集锦
屋面不锈钢排气管布置成排成线
鲁班奖工程细部做法集锦
一、屋面工程
（ 一 ） 屋 面 大 面
异型上屋人面屋工面程之排一砖鲁合班奖理细（部没做有法集一锦块破砖）
鲁班奖工程细部做法集锦
一、屋面工程
（一）屋面大面
（二）女儿墙
（三）屋面泛水
（四）天沟、檐沟、过水口
（五）排气管、通气管
（六）屋面接水簸箕
（七）屋面栈桥
（八）屋面爬梯
（九）屋面支墩
（十）屋面构架
（十一）存在问题
屋面工程之一鲁班奖细部做法集锦
1鲁Biblioteka 奖工程细部做法集锦一、屋面工程
《屋面工程质量验收规范》（GB50207-2002）
泛水屋面高工度程符之合一鲁设班计奖要细部求做顺法直集流锦 畅
鲁班奖工程细部做法集锦
一、屋面工程
（ 三 ） 屋 面 泛 水
屋面平整，分格屋缝面清工程晰之通一顺鲁，班奖排细水部天做法沟集弧锦度自然，排水流畅
鲁班奖工程细部做法集锦
一、屋面工程
（ 三 ） 屋 面 泛 水
屋面转角及屋面变工形程部之位一鲁用班塑奖料细线部做槽法分集格锦 断开
女儿墙压顶面砖屋排面砖工合程之理一，鲁立班奖杆细设部置做不法集锈锦钢圆台美观实用
鲁班奖工程细部做法集锦
一、屋面工程
（ 二 ） 女 儿 墙
屋面女工儿程之墙一压鲁顶班奖增细加部线做脚法集锦
鲁班奖工程细部做法集锦
一、屋面工程
（
二
）
女
儿
墙
鹰
嘴
滴水线
女儿墙屋檐面工口程下之端一鲁应班做奖出细鹰部做嘴法和集滴锦 水线
3.0.6 屋面工程所采用的防水、保温隔热材料应有产品合格证和性能检测报 告，材料的品种、规格、性能等应符合现行国家产品标准和设计要求；
4.1.8 屋面（含天沟、檐沟）找平层的排水坡度，必须符合设计要求； 强 制 4.2.9 保温层的含水率必须符合设计要求； 性 4.3.16;5.3.10；6.1.8 防水层不得有渗漏或积水现象； 标 6.2.7 密封材料嵌填必须密实、连续、饱满，粘结牢固，无气泡、开裂、脱落 准 等缺陷；
