基于51单片机的音乐播放器

合集下载

毕业设计(论文)-基于单片机控制的音乐播放器[管理资料]

单片机音乐播放器设计报告学生：XXX 指导教师：XXX内容摘要：单片机具有体积小、功能强、成本低、应用面广等优点，可以说，智能控制与自动控制的核心就是单片机。

根据要求设计一款音乐播放器，能实现音乐播放的简单功能，同时为了美化，添加了韵律闪烁彩灯，设计时采用Keil软件编程，用protues软件仿真，核心器件采用灵活性高且价格低廉的AT89C51芯片。

设计完成后系统可播放自编歌曲，同时发光二极管随着歌曲韵律闪烁。

关键词：单片机 AT89C51 音乐播放英文标题Abstract: SCM has small, strong function, low cost, application, advantages and intelligent control and automatic control of the core is the microcontroller. According to the requirements of a music player, design of music broadcast can realize simple function, and to beautify, added rhythm flashing lights, design is used when Keil C software programming, with protues software simulation, the core device adopts high flexibility and the price is cheap AT89C51 chip. The design is completed system can play Wrote songs, and leds with songs rhythm flicker.Keywords:SCM Temperature AT89C51 Music broadcast前言:微机原理和接口技术是一门实践性强的学科，不但要求有较高的理论水平，而且还要求有实际的动手能力，其中很多的原量、规则、现象等仅仅靠学习教科书是无法完全掌握的，必须通过实践才能比较直观和深刻的理解。

基于51单片机的MP3播放器设计毕业论文

目录前言 (I)第1章绪论 (2)§1.1课题研究背景和意义 (2)§1.2研究的主要内容 (5)第2章设计方案选择 (7)§2.1设计方案 (7)§2.2选定最终设计方案 (8)第3章MP3系统硬件设计 (9)§3.1 MP3系统硬件设计的原则 (9)§3.2主控CPU的性能介绍和原理图 (10)§3.3调试接口电路 (13)§3.4 Flash存储系统 (14)§3.5电源系统部分 (15)§3.6音频和功率放大电路 (17)§3.7 MP3的原理图和PCB图 (18)第4章MP3系统软件设计 (22)第5章实验结果 (25)结论 (26)参考文献 (27)致谢 (28)附录 (29)外文资料译文 (59)摘要随着科学技术的发展，带数字语音功能的嵌入式终端类产品在日常生活中得到了广泛的使用，这也促进了与该功能相关的数字音频压缩技术的发展，在数字音频压缩技术中，MP3以其优异的性能得到了广泛的使用。

现在，具备MP3功能已成为嵌入式终端类产品的发展趋势之一。

本文介绍了一种基于51单片机的MP3播放器设计方案。

它采用ATMEL 公司专门针对MP3设计需求出品的AT89C51SND1C芯片。

文章详细论述了MP3播放器的硬件和软件结构设计流程，采用Protel99se软件画出原理图、制做印刷电路板，通过Keil编程软件对MP3软件设计中的文件解码程序、按键控制程序、USB通讯控制程序和FAT文件管理程序进行编程，通过电脑的串口和相应的软件进行调试,实现MP3实时解码过程。

实验表明，该系统工作达到了设计要求，为后续的嵌入式系统研发打下了基础，具有一定的实用价值。

关键词：单片机，MP3，AT89C51SND1C，USB，FATMP3 PLAYER DESIGN BASED ON 51 SINGLE-CHIPABSTRACTAlong with the development of science and technology, the embedded terminal products with digital audio function is widely used in our daily life, and the associated digital audio compression technologies are also highly developed, MP3 is the most popular one in various digital audio compression technologies according it’s excellent performance. Now, with MP3 function have became the trends of the embedded terminal products.This paper introduce a MP3 player design based on 51microcontroller.It uses AT89C51SND1C chip,which ATMEL company produce for MP3 design requiresments.We detailed discuss the MP3 player hardware and software design process,use Protel99se software to draw MP3 schematic, make printed circuit boards, through Keil programming software design MP3 software,such as file decoding procedures, key control procedures, USB communication and control procedures,and FAT file management procedures and programming procedures, use the computer's serial port and the corresponding software debug programs, realize real-time MP3 decoding. The experiment results show that the system meets the design requirements, creat the condition of the subsequent development of embedded systems, and has some practical value.KEY WORDS:Single chip,MP3,AT89C51SND1C,USB,FAT前言嵌入式技术作为在信息、网络与服务等支撑发展中最重要的实用技术之一，已经开始广泛应用于移动通信、消费电子、无线网络、工业控制和军事国防等社会生活的各个领域。

C51单片机的MP3播放器

基于C51单片机的MP3播放器的硬件系统设计原理相关专题：电子应用时间：2012-04-01 09:11 来源：icbuy亿芯网便携式MP3播放器作为一种集音频播放、数据存储为一身的数码产品，其功能结构为电子设计人员所津津乐道。

MP3是MPEG一1音频III(1ayerIII)的简称。

MPEG一1音频(ISO／IECll 172―3)是目前普遍应用的音频压缩标准，其中层III的算法最为复杂，但压缩比最大，效果也最好，在低码率的条件下基本能达到CD的音质效果。

MP3标准用尽可能低的码流实现CD音质的声音而不会产生数据损失。

如果对于一段声音不进行压缩的话，那么每存储一秒钟的立体声CD音质音乐必须用1．4Mbit，这是个十分大的开销。

通过运用MPEG音频标准的压缩技术，我们可以把存储空间压缩到原来的1／12而不会降低声音的音质。

即使使用1／24的压缩因子，仍然比单纯降低采样率的音质要好。

低数据量和高播放品质的优点使其成为音乐存储、数字广播、网上音乐传输的主要方式。

人们不仅可以使用计算机软件，还可以通过数字随身听来欣赏音乐。

本设计以C51内核单片机为核心，设计了MP3播放器。

1 MP3硬件设计在该硬件系统的设计中，采用Atme 1公司生产的AT89C51SNDlC作为主控MCU。

AT89C5lSNDlC是ATMEL公司专门针对MP3的需求而设计的一款多媒体8位微处理器，使用通用的C51内核，片上集成了多种外设，为MP3产品提供了一套方便的解决方案。

该芯片对电路的高度集成大大降低了系统的耗电和发热，提高了系统的稳定性和速度，抗干扰能力也显著增强。

AT89C51SNDlC具有如下外设的集成，大大简化了电路的设计：a．MP3硬件解码器；b．可编程音频输出接口DAC；c．8位MCU C51：d．USBl．1控制器；e．内建锁相环PLL；f．多媒体卡接口适配器；g．SPI接口适配器；h．IDE／ATAPI接口；i．两路10位ADC，8kHz；j．44个通用I／0；k．两个16位定时器／计数器；1．硬件看门狗定时器；m．标准全工UART；n．两线主被动模式控制器；o．SPI主被动模式控制器；p．电源管理模块。

(精品)51单片机音乐播放器程序【整理】

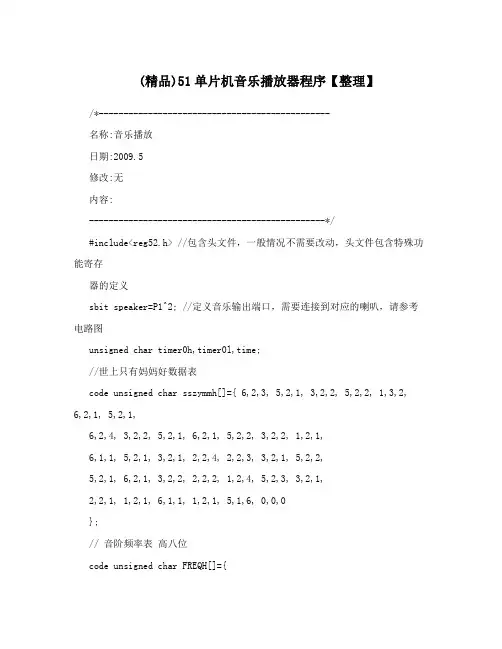

(精品)51单片机音乐播放器程序【整理】/*-----------------------------------------------名称:音乐播放日期:2009.5修改:无内容:------------------------------------------------*/#include<reg52.h> //包含头文件，一般情况不需要改动，头文件包含特殊功能寄存器的定义sbit speaker=P1^2; //定义音乐输出端口，需要连接到对应的喇叭，请参考电路图unsigned char timer0h,timer0l,time;//世上只有妈妈好数据表code unsigned char sszymmh[]={ 6,2,3, 5,2,1, 3,2,2, 5,2,2, 1,3,2, 6,2,1, 5,2,1,6,2,4, 3,2,2, 5,2,1, 6,2,1, 5,2,2, 3,2,2, 1,2,1,6,1,1, 5,2,1, 3,2,1, 2,2,4, 2,2,3, 3,2,1, 5,2,2,5,2,1, 6,2,1, 3,2,2, 2,2,2, 1,2,4, 5,2,3, 3,2,1,2,2,1, 1,2,1, 6,1,1, 1,2,1, 5,1,6, 0,0,0};// 音阶频率表高八位code unsigned char FREQH[]={0xF2,0xF3,0xF5,0xF5,0xF6,0xF7,0xF8,0xF9,0xF9,0xFA,0xFA,0xFB,0xFB,0xFC,0xFC, //1,2,3,4,5,6,7,8,i0xFC,0xFD,0xFD,0xFD,0xFD,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFF,} ;// 音阶频率表低八位code unsigned char FREQL[]={0x42,0xC1,0x17,0xB6,0xD0,0xD1,0xB6,0x21,0xE1,0x8C,0xD8,0x68,0xE9,0x5B,0x8F, //1,2,3,4,5,6,7,8,i0xEE,0x44, 0x6B,0xB4,0xF4,0x2D,0x47,0x77,0xA2,0xB6,0xDA,0xFA,0x16,};/******************************************************************/ /* 延时函数 *//******************************************************************/ void delay(unsigned char t){unsigned char t1;unsigned long t2;for(t1=0;t1<t;t1++){for(t2=0;t2<8000;t2++){;}}TR0=0;}/******************************************************************/ /* 定时器中断函数 *//******************************************************************/ void t0int() interrupt 1{TR0=0;speaker=!speaker;TH0=timer0h;TL0=timer0l;TR0=1;}/******************************************************************/ /* 音乐处理函数 *//******************************************************************/ void song(){TH0=timer0h;TL0=timer0l;TR0=1;delay(time);}/******************************************************************/ /* 主函/******************************************************************/ void main(void){unsigned char k,i;TMOD=1; //置CT0定时工作方式1EA=1;ET0=1;//IE=0x82 //CPU开中断,CT0开中断while(1){i=0;while(i<100){ //音乐数组长度，唱完从头再来k=sszymmh[i]+7*sszymmh[i+1]-1;timer0h=FREQH[k];timer0l=FREQL[k];time=sszymmh[i+2];i=i+3;song();}}}。

基于51单片机的音乐播放器设计

题目：音乐播放器课程设计（论文）任务书课程设计（论文）题目：音乐播发器基本内容：利用单片机的定时器产生各种频率的方波，信号经过放大后送到喇叭从而产生各种音调。

自行定义键盘，每按一键，可选择一首歌曲进行演奏，至少能够存储并播放十首歌曲，在LCD上显示演奏歌曲的名称并滚动显示歌词，单片机可连续播放这首歌曲，演奏可通过按键停止。

课程设计（论文）专题部分：题目：音乐播放器基本内容：通过单片机设计可以播放十首歌曲的音乐播放器，同步显示歌曲名称和歌词。

学生接受毕业设计（论文）题目日期第19 周指导教师签字：2009年7月摘要随着电子技术的发展和计算机越来越普遍的使用，单片机作为这两项技术的有机结合也得到了广泛的应用，在某些领域具有不可替代的作用。

音乐播放功能随处都会用到，如，在开发儿童智力的玩具中，等等。

目前，基于单片机实现音乐播放，其体积小、价格低、编程灵活等特点在这一领域独领风骚。

单片机的英文名称为single chip microcomputer，最早出现在20世纪70年代，国际上现在已逐渐被微控制器（Microcontroller Unit 或MCU）一词所取代。

它体积小，集成度高，运算速度快，运行可靠，功耗低，价格廉，因此在数据采集、智能化仪表、通讯设备等方面得到了广泛应用。

而8051单片机在小到中型应用场合很常见，已成为单片机领域的实际标准。

随着硬件的发展，8051单片机系列的软件工具也有了C级编译器和实时多任务操作系统RTOS，为单片机编程使用C语言提供了便利的条件；并针对单片机常用的接口芯片编制通用的驱动函数，可针对常用的功能模块，算法等编制相应的函数；C语言模块化程序结构特点，可以使程序模块大家共享，不断丰富，这样就使得单片机的的程序设计更简单可靠，实时性强，效率高。

作为测控技术与仪器的学生，掌握8051单片机硬件基础及其相关软件操作，将其应用于现代电子产品中是必要而且重要的，这次课程设计我们的题目是用单片机实验箱系统制作音乐播放器。

基于51单片机的音乐盒的设计

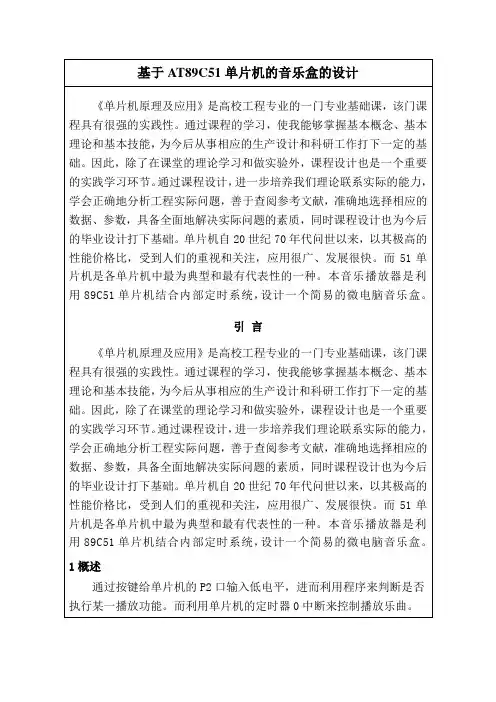

图2 蜂鸣器电路控制电路图4 仿真调试6.2性能分析用AT89C51单片机的I/O口产生一定频率的方波，驱动蜂鸣器，出不同的音调，从而演奏乐曲。

共有4支乐曲，每首乐曲都由相应的按键控制，并且有开关键、暂停键、上一曲以及下一曲控制键。

将源程序导入单片机后，在proteus软件中进行仿真。
