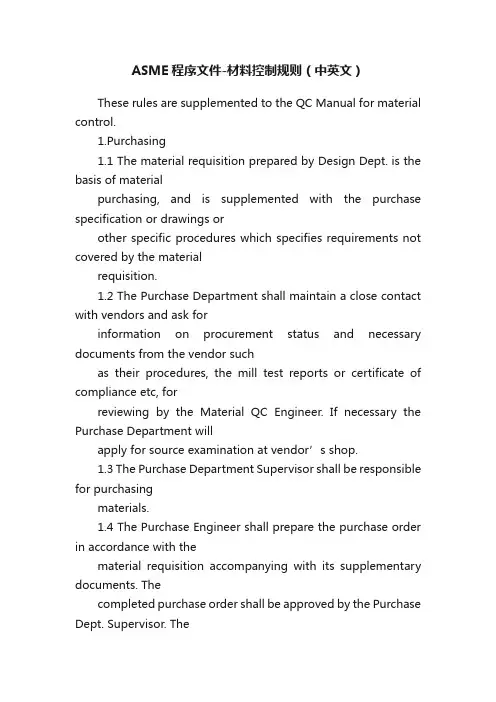

ASME程序文件-材料控制规则（中英文）These rules are supplemented to the QC Manual for material control.1.Purchasing1.1 The material requisition prepared by Design Dept. is the basis of materialpurchasing, and is supplemented with the purchase specification or drawings orother specific procedures which specifies requirements not covered by the materialrequisition.1.2 The Purchase Department shall maintain a close contact with vendors and ask forinformation on procurement status and necessary documents from the vendor suchas their procedures, the mill test reports or certificate of compliance etc, forreviewing by the Material QC Engineer. If necessary the Purchase Department willapply for so urce examination at vendor’s shop.1.3 The Purchase Department Supervisor shall be responsible for purchasingmaterials.1.4 The Purchase Engineer shall prepare the purchase order in accordance with thematerial requisition accompanying with its supplementary documents. Thecompleted purchase order shall be approved by the Purchase Dept. Supervisor. ThePurchase Engineer shall send the purchase order, accompanying with purchasespecification as required, to the contracted vendor and also a copy to theExamination Section.1.5 When any part of the specifications or contract conditions is amended, the revisedPurchase Order shall be prepared in the same manner as the original. If theamendment is limited to condition which does not affect the quality or thetechnical matter, such as delivery date, the amended condition may be informedto the vendor by telephone or telex, and shall be noted on a copy of the PurchaseOrder retained by the Purchase Dept..1.6 All of the purchase orders shall be filed for reference.2. Receiving Inspection and Storage2.1 When materials are received, the Material Warehouse Keeper shall place thein-coming material and parts in designated area and request the Material QCEngineer for receiving inspection.2.2 The receiving inspection/。
2017最新ASME取证中英文程序文件最终完整版
ASME程 序 文 件ASMEPROCEDURE DOCUMENT上海XXXXXX 有限公司Shanghai XXXXXX Co., Ltd0类 别 TYPE □受 控 本CONTROLLED COPY□非受控本UNCONTROLLED COPY 编号SERIAL NO.LANGS EN程序文件清单PROCEDURE DOCUMENTLISTLANGSENAP000页Page 1 of 1修订号Revision 0程序文件清单PROCEDURE DOCUMENT LIST文件号DOC NO.文件名称DESCRIPTION修订号REVLANGSENAP 001通用材料控制程序GENERAL MATERIAL CONTROLLANGSENAP 002材料标记程序MATERIAL CODED MARKING PROCEDURELANGSENAP 003制造和检验程序MANUFACTURING AND EXAMINATION PROCEDURELANGSENAP 004压力试验程序PRESSURE TEST PROCEDURELANGSENAP 005通用返修程序GENERAL REPAIR PROCEDURELANGSENAP 006焊材控制程序WELDING MATERIAL CONTROL PROCEDURELANGSENAP 007无损检测人员培训大纲NDE PERSONNEL WRITTEN PRACTICE PROCEDURELANGSENAP 008压力容器对接焊缝射线探伤程序RADIOGRAPHIC EXAMINATION PROCEDURE FOR BUTTWELD OF PRESSURE VESSELLANGSENAP 009渗透检验程序LIQUID PENETRANT EXAMINATION PROCEDURELANGSENAP 010无损检测人员培训程序TRAINING PROGRAM PROCEDURE FOR NDE PERSONNELEN页Page 1 of 5修订号Revision 0通用材料控制程序GENERAL MATERIAL CONTROL编制＿＿＿＿＿＿日期＿＿＿＿PREPARED BY Date批准＿＿＿＿＿＿日期＿＿＿＿APPROVED BY DateAI认可＿＿＿＿＿日期＿＿＿＿ACCEPTED BY AI Date受控本编号CONTROLLED COP/NO.上海XXXXXX有限公司Shanghai XXXXXX Co., LtdEN页Page 2 of 5修订号Revision 01 范围1.1 编制建立对材料特别对板材、管材和包括焊接材料在内的其它材料，从接货到发放等全过程的,通用材料控制程序。
ASME-BPE-中英对照
AMSE BPE Bioprocessing Equipment生物加工设备生物加工设备GR部分一般要求GR-1简介INTRODUCTION此标准所规定的要求，在生物处理﹑制药和个人保健品行业设备的设计非常实用，所涉及方面包括灭菌﹑清洁﹑材质﹑尺寸﹑公差﹑表面抛光﹑材料接合和密封等。
主要应用于：This Standard provides the requirements applicable to the design of equipment used in the bioprocessing,pharmaceutical,and personal care product industries,including aspects related to sterility and cleanability,materials,dimensions and tolerances, surface finish,material joining,and seals.These apply to:（a）在制造﹑改进和提高过程中与产品﹑原料﹑产品介质直接接触的关键部件;（b）产品制造中主要部件系统（如WFI，清洁蒸汽，过滤和半成品贮存等）(a)components that are in contact with the product,raw materials,or productintermediates during manufacturing,development,or scale-up;(b)systems that are a critical part of product manufacture[e.g.,water-for-injection(WFI),clean steam,filtration,and intermediate product storage].此标准不能应用于以下部分：不与成品或制造阶段介质部分直接接触的系统（如计算机系统，电气导管以及外部系统支撑结构）。
ASME取证资料-ASME中英文程序文件质量手册

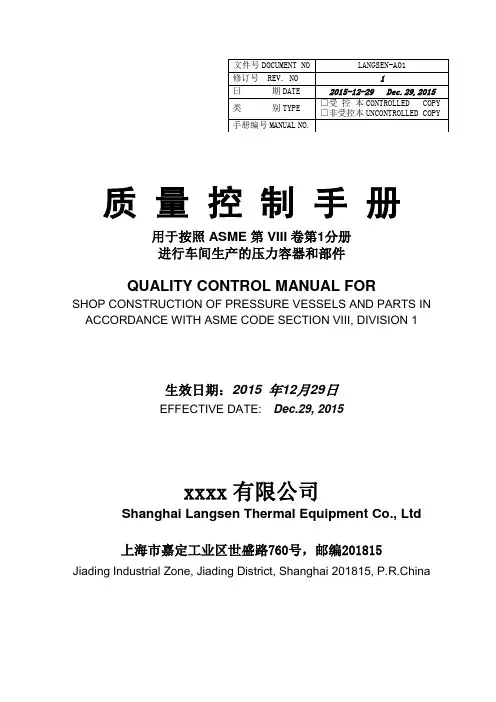

质量控制手册用于按照ASME第VIII卷第1分册进行车间生产的压力容器和部件QUALITY CONTROL MANUAL FORSHOP CONSTRUCTION OF PRESSURE VESSELS AND PARTS IN ACCORDANCE WITH ASME CODE SECTION VIII, DIVISION 1生效日期：2015 年12月29日EFFECTIVE DATE: Dec.29, 2015xxxx有限公司Shanghai Langsen Thermal Equipment Co., Ltd上海市嘉定工业区世盛路760号，邮编201815Jiading Industrial Zone, Jiading District, Shanghai 201815, P.R.ChinaGeneral Manager:__________________________ Date:______ _______质量控制手册QUALITY CONTROL MANUAL 章号Section No. 2修订号Rev. No. 0组织机构及其职责权限ORGANIZATION, AUTHORITY AND RESPONSIBILITY 共2页Page第1页1 of 21 组织机构公司“规范项目”质控体系的组织机构和管理、联络关系如图2-1。
