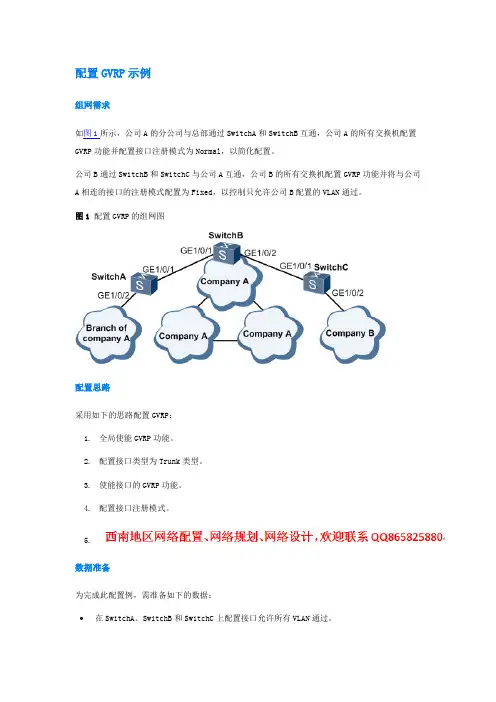

配置GVRP示例组网需求如图1所示,公司A的分公司与总部通过SwitchA和SwitchB互通,公司A的所有交换机配置GVRP功能并配置接口注册模式为Normal,以简化配置。

公司B通过SwitchB和SwitchC与公司A互通,公司B的所有交换机配置GVRP功能并将与公司A相连的接口的注册模式配置为Fixed,以控制只允许公司B配置的VLAN通过。

图1 配置GVRP的组网图配置思路采用如下的思路配置GVRP:1.全局使能GVRP功能。

2.配置接口类型为Trunk类型。

3.使能接口的GVRP功能。

4.配置接口注册模式。

5.数据准备为完成此配置例,需准备如下的数据:在SwitchA、SwitchB和SwitchC上配置接口允许所有VLAN通过。

∙在SwitchA和SwitchB上配置接口的注册模式为Normal。

∙在SwitchC上配置接口GE1/0/1的注册模式为Fixed,配置接口GE1/0/2的注册模式为Normal。

∙在SwitchC上创建属于公司B的VLAN101~VLAN200。

操作步骤1.配置交换机SwitchA# 全局使能GVRP功能。

<SwitchA>system-view[SwitchA] gvrp# 配置接口为Trunk类型,并允许所有VLAN通过。

[SwitchA] interface gigabitethernet 1/0/1[SwitchA-GigabitEthernet1/0/1] port link-type trunk[SwitchA-GigabitEthernet1/0/1] port trunk allow-pass vlan all[SwitchA-GigabitEthernet1/0/1] quit[SwitchA] interface gigabitethernet 1/0/2[SwitchA-GigabitEthernet1/0/2] port link-type trunk[SwitchA-GigabitEthernet1/0/2] port trunk allow-pass vlan all[SwitchA-GigabitEthernet1/0/2] quit# 使能接口的GVRP功能,并配置接口注册模式。

华为三层交换机配置

华为三层交换机配置

#q
可以通过 #dis ip pool 查看IP地址池的情况
五.Telnet远程登录设置
#system-view
#aaa (进入aaa视图)
#local-user tcwq password cipher tcwq ( cipher 是暗号的意思, password cipher 就是指密码显示出来的是乱码,在用 dis cur 命令时,看到的密码是乱码)
#quit
二.删除vlan
1. #undo int vlan 10
在系统视图下,用“ undo int vlan 2 ”命令删除 vlan 2 的 3 层口,这样 vlan 2 就没有了,但是划分给 vlan 2 的那些端口依然还处于 vlan 2 里,这时可以将那些端口释放出来,让他们不再属于任何 vlan
操作:现在对第2个端口进行限速,让下载速度不超过128KB/s
#int gigabitethernet 0/0/2
#qos lr outbound cir 1024 cbs 204800 (1024代表1M的带宽,理论下载速度就是128,cbs代表突发信息速率,cir代表承诺信息速率)
#local-user tcwq privilege level3 ( privilege level :权限级别, 3 为最高级别,拥有最高权限)
#q
#user-interfacevty 0 4 ( vty :虚拟终端, 0 4 代表有 0 到 4 一共最多 5 个终端可以同时登录到交换机)
#authentication-mode aaa ( authentication :认证,验证。验证模式设置为 aaa 模式)
#q

华为三层交换机配置总结

华为三层交换机配置总结

一、基本命令: (1)保存当前配置:save [ configuration-file ] (1)清除当前配置:<core s9303-1>reset saved-configuration (1)重启当前设备:<core s9303-1>reboot (1)取消单条配置:undo +要取消的配置命令 (1)[SwitchA-Ethernet0/3]undo port link-type trunk (1)显示命令: (2)配置静态路由:ip route-static 目标网段子网掩码下一跳地址 (2)设置trunk: (2)telnet登陆设置: (2)二、配置实例 (3)1.实例说明 (3)2拓扑图如下: (4)交换机名为zuo的配置:(华为5328设置) (4)9300的配置: (8)交换机you的设置:(华为5328设置) (9)4.测试 (12)(1)vrrp正常状态下测试 (12)(2)只断a,查看俩个交换机vrrp状态并测试pc1如何到pc2 (13)(3)只断c,查看vrrp状态并测试pc1如何到pc2 (16)一、基本命令:保存当前配置:save [ configuration-file ]清除当前配置:<core s9303-1>reset saved-configuration重启当前设备:<core s9303-1>reboot取消单条配置:undo +要取消的配置命令例:[SwitchA-Ethernet0/3]port link-type trunk[SwitchA-Ethernet0/3]undo port link-type trunk显示命令:display interface brief ;查看端口状态display current-configuration ;显示当前设备的所有配置信息配置静态路由:ip route-static 目标网段子网掩码下一跳地址例:ip route-static 192.168.1.0 255.255.255.0 192.168.1.2例:ip route-static 0.0.0.0 0.0.0.0 172.16.1.2设置trunk:[core s9303-1]interface GigabitEthernet 1/0/5[core s9303-1-GigabitEthernet1/0/5]combo copper ;9300端口默认是光模式,改为电模式[core s9303-1-GigabitEthernet1/0/5]port link-type trunk---------------------------------------------------------------------------------------[huawei5328]interface GigabitEthernet 0/0/2[huawei5328-GigabitEthernet0/0/2]undo port default vlan[huawei5328-GigabitEthernet0/0/2]port link-type trunk[huawei5328-GigabitEthernet0/0/2]port trunk allow-pass vlan all; 允许所有的vlan 从g 0/0/2端口透传通过,也可以指定具体的vlan值telnet登陆设置:1.<S9300-A> system-view2.[S9300-A] vlan 603.[S9300-A-vlan2] quit4.[S9300-A] interface GigabitEthernet 1/0/15.[S9300-A-GigabitEthernet1/0/1] combo copper6.[S9300-A-GigabitEthernet1/0/1] port link-type access7.[S9303-A-GigabitEthernet1/0/1]port default vlan 608.[S9300-A-GigabitEthernet1/0/1] quit9.[S9300-A] interface vlanif 6010.[S9300-A-Vlanif60] ip address 10.10.10.8 255.255.255.011.[S9300-A-Vlanif60] quit12.[S9300-A]13. [S9300-A] user-interface vty 0 414.[S9300-A-ui-vty0-4] authentication-mode password15.[S9300-A-ui-vty0-4] set authentication password simple 12345616.[S9300-A-ui-vty0-4] quit17.[S9300-A]二、配置实例1.实例说明此实例测试华为三层交换机vrrp以及rip路由协议的启用,2拓扑图如下:Pc1Ip Ip 组组3.配置命令交换机名为zuo 的配置:(华为5328设置)<Quidway>system-view[Quidway]sysname zuo ;给设备命名[zuo]vlan 20 ;创建vlan[zuo-vlan20]port GigabitEthernet 0/0/20 ;进入端口模式[zuo-vlan20]quit[zuo]interface Vlanif 20 ;进入vlanif接口模式[zuo-Vlanif20]ip address 20.20.20.1 24 ;添加ip[zuo-Vlanif20]quit[zuo]display ip int brief ;显示接口i p配置[zuo]interface Vlanif 1[zuo-Vlanif1]ip address 10.10.10.1 24[zuo-Vlanif1]quit[zuo]vlan 60[zuo-vlan60]port GigabitEthernet 0/0/6 ;把端口加到vlan中[zuo-vlan60]quit[zuo]interface Vlanif 60[zuo-Vlanif60]ip address 60.60.60.1 24[zuo-Vlanif60]quit[zuo]interface Vlanif 1[zuo-Vlanif1]vrrp vrid 1 virtual-ip 10.10.10.111[zuo-Vlanif1]vrrp vrid 1 priority 120 ;设置vrrp组1的优先级[zuo-Vlanif1]vrrp vrid 1 preempt-mode timer delay 20 ;[zuo-Vlanif1]vrrp vrid 2 virtual-ip 10.10.10.112[zuo-Vlanif1]display vrrp ;显示vrrp配置状态[zuo]rip ;启用rip动态路由协议[zuo-rip-1] version 2[zuo-rip-1]network 10.0.0.0[zuo-rip-1]network 20.0.0.0[zuo-rip-1]network 60.0.0.0[zuo-rip-1]quit[zuo-Vlanif1]display ip routing-table ;查看路由表Route Flags: R - relay, D - download to fib------------------------------------------------------------------------------Routing Tables: PublicDestinations : 10 Routes : 12Destination/Mask Proto Pre Cost Flags NextHop Interface10.10.10.0/24 Direct 0 0 D 10.10.10.1 Vlanif110.10.10.1/32 Direct 0 0 D 127.0.0.1 InLoopBack020.20.20.0/24 Direct 0 0 D 20.20.20.1 Vlanif2020.20.20.1/32 Direct 0 0 D 127.0.0.1 InLoopBack050.50.50.0/24 RIP 100 1 D 20.20.20.2 Vlanif20RIP 100 1 D 10.10.10.2 Vlanif1RIP 100 1 D 60.60.60.2 Vlanif6060.60.60.0/24 Direct 0 0 D 60.60.60.1 Vlanif6060.60.60.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0100.100.100.0/24 RIP 100 1 D 60.60.60.2 Vlanif60 127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0<zuo>display vrrp;显示vrrp状态Vlanif1 | Virtual Router 1state : MasterVirtual IP : 10.10.10.111 PriorityRun : 120 PriorityConfig : 120 MasterPriority : 120Preempt : YES Delay Time : 20 Accept_mode : NOV2v3interop : NOTimer : 1Master adver Timer : 1Auth Type : NONECheck TTL : YESVlanif1 | Virtual Router 2state : BackupVirtual IP : 10.10.10.112 PriorityRun : 100 PriorityConfig : 100 MasterPriority : 120Preempt : YES Delay Time : 0 Accept_mode : NOV2v3interop : NOTimer : 1Master adver Timer : 1Auth Type : NONECheck TTL : YES9300的配置:<core s9303-1>system-view[core s9303-1]vlan 60[core s9303-1-vlan60]quit[core s9303-1]vlan 50[core s9303-1-vlan50]quit[core s9303-1]interface GigabitEthernet 1/0/6[core s9303-1-GigabitEthernet1/0/6]combo copper ;9300端口默认是光模式,改成电模式[core s9303-1-GigabitEthernet1/0/6]port link-type access ;设接口类型为接入模式[core s9303-1-GigabitEthernet1/0/6]port default vlan 60 ;把端口添加到vlan60中[core s9303-1-GigabitEthernet1/0/6]quit[core s9303-1]display vlan 60 ;查看vlan60的配置[core s9303-1]interface GigabitEthernet 1/0/5[core s9303-1-GigabitEthernet1/0/5]combo copper[core s9303-1-GigabitEthernet1/0/5]port default vlan 50[core s9303-1-GigabitEthernet1/0/5]quit[core s9303-1]interface Vlanif 50[core s9303-1-Vlanif50]ip address 50.50.50.2 24[core s9303-1-Vlanif50]quit[core s9303-1]interface Vlanif 60[core s9303-1-Vlanif60]ip address 60.60.60.2 24[core s9303-1-Vlanif60]quit[core s9303-1]display vlan 50VLAN ID Type Status MAC Learning Broadcast/Multicast/Unicast Property--------------------------------------------------------------------------------50 common enable enable forward forward forwarddefault----------------Untagged Port: GigabitEthernet1/0/5----------------Tagged Port: GigabitEthernet1/0/1----------------Interface PhysicalGigabitEthernet1/0/1 DOWNGigabitEthernet1/0/5 UP[core s9303-1]interface GigabitEthernet 1/0/0[core s9303-1-GigabitEthernet1/0/0]port default vlan 100[core s9303-1-GigabitEthernet1/0/0]quit[core s9303-1]rip[core s9303-1-rip-1]network 50.0.0.0[core s9303-1-rip-1]network 60.0.0.0[core s9303-1-rip-1]network 100.0.0.0------------------------------------------------------------------------------------------------------- 交换机you的设置:(华为5328设置)<you>system-view[you]vlan 20[you-vlan20]port GigabitEthernet 0/0/20 ;把端口加到vlan中[you-vlan20]quit[you]interface Vlanif 20[you-Vlanif20]ip address 20.20.20.2 24[you-Vlanif20]quit[you]vlan 50[you-vlan50]port GigabitEthernet 0/0/5[you-vlan50]quit[you]interface Vlanif 50[you-Vlanif50]ip address 50.50.50.1 24[you-Vlanif50]quit[you]interface Vlanif 1[you-Vlanif1]ip address 10.10.10.2 24[you-Vlanif1]vrrp vrid 1 virtual-ip 10.10.10.111 [you-Vlanif1]vrrp vrid 2 virtual-ip 10.10.10.112 [you-Vlanif1]vrrp vrid 2 priority 120[you-Vlanif1]vrrp vrid 2 preempt-mode timer delay 20 [you-Vlanif1]quit[you]rip ;启用rip[you-rip-1] version 2 ;用rip版本2[you-rip-1] network 10.0.0.0 ;公布网段[you-rip-1]network 20.0.0.0[you-rip-1]network 50.0.0.0[you-rip-1]quit<you>display vrrp ;查看vrrpVlanif1 | Virtual Router 1state : BackupVirtual IP : 10.10.10.111PriorityRun : 100PriorityConfig : 100MasterPriority : 120Preempt : YES Delay Time : 0Accept_mode : NOV2v3interop : NOTimer : 1Master adver Timer : 1Auth Type : NONECheck TTL : YESVlanif1 | Virtual Router 2state : MasterVirtual IP : 10.10.10.112PriorityRun : 120PriorityConfig : 120MasterPriority : 120Preempt : YES Delay Time : 20Accept_mode : NOV2v3interop : NOTimer : 1Master adver Timer : 1Auth Type : NONECheck TTL : YES<you>you>display ip routing-table ;查看路由表Route Flags: R - relay, D - download to fib------------------------------------------------------------------------------Routing Tables: PublicDestinations : 10 Routes : 12Destination/Mask Proto Pre Cost Flags NextHop Interface10.10.10.0/24 Direct 0 0 D 10.10.10.2 Vlanif110.10.10.2/32 Direct 0 0 D 127.0.0.1 InLoopBack020.20.20.0/24 Direct 0 0 D 20.20.20.2 Vlanif2020.20.20.2/32 Direct 0 0 D 127.0.0.1 InLoopBack050.50.50.0/24 Direct 0 0 D 50.50.50.1 Vlanif5050.50.50.1/32 Direct 0 0 D 127.0.0.1 InLoopBack060.60.60.0/24 RIP 100 1 D 20.20.20.1 Vlanif20RIP 100 1 D 10.10.10.1 Vlanif1RIP 100 1 D 50.50.50.2 Vlanif50 100.100.100.0/24 RIP 100 1 D 50.50.50.2 Vlanif50 127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0<you>4.测试+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ (1)vrrp正常状态下测试pc1网关设置:10.10.10.10.111C:\Users\0173>tracert 100.100.100.2通过最多30 个跃点跟踪到LJ-2400 [100.100.100.2] 的路由:1 3 ms 1 ms 7 ms 10.10.10.12 2 ms 2 ms 2 ms 60.60.60.23 <1 毫秒<1 毫秒 1 ms LJ-2400 [100.100.100.2]跟踪完成。

华为三层交换机的配置案例【建筑工程类独家文档首发】

华为三层交换机的配置案例【建筑工程类独家文档首发】

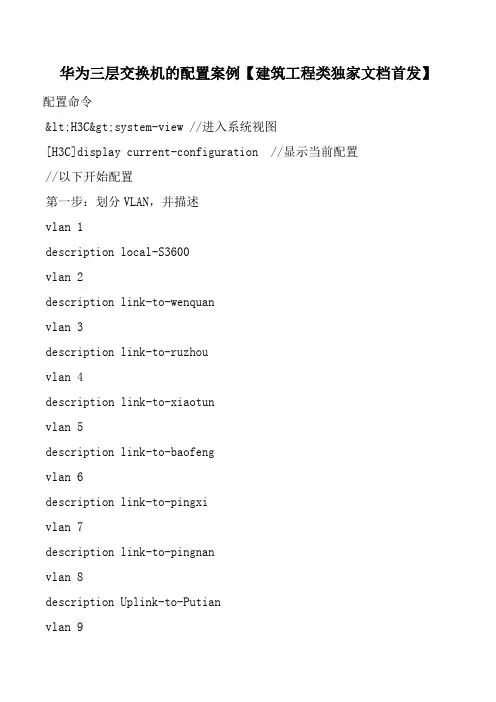

华为三层交换机的配置案例【建筑工程类独家文档首发】配置命令&lt;H3C&gt;system-view //进入系统视图[H3C]display current-configuration //显示当前配置//以下开始配置第一步:划分VLAN,并描述vlan 1description local-S3600vlan 2description link-to-wenquanvlan 3description link-to-ruzhouvlan 4description link-to-xiaotunvlan 5description link-to-baofengvlan 6description link-to-pingxivlan 7description link-to-pingnanvlan 8description Uplink-to-Putianvlan 9description link-to-pingxicentre第二步:给VLAN 划网关interface Vlan-interface2description link to wenquanip address 10.41.77.41 255.255.255.192 interface Vlan-interface3description link to ruzhouip address 10.41.77.105 255.255.255.192 interface Vlan-interface4description link to xiaotunip address 10.41.77.169 255.255.255.192 interface Vlan-interface5description link to baofengip address 10.41.77.233 255.255.255.192 interface Vlan-interface6description link to pingxiip address 10.41.78.41 255.255.255.192 interface Vlan-interface7description link to pingnanip address 10.41.78.105 255.255.255.192 interface Vlan-interface8description uplink to putianip address 10.41.244.102 255.255.255.252interface Vlan-interface9description link to pingxicentreip address 10.41.80.233 255.255.255.192 第三步:给VLAN 指定端口interface Ethernet1/0/2description link to wenquanport access vlan 2interface Ethernet1/0/3description link to ruzhouport access vlan 3interface Ethernet1/0/4description link to xiaotunport access vlan 4interface Ethernet1/0/5description link to baofengport access vlan 5interface Ethernet1/0/6description link to pingxiport access vlan 6interface Ethernet1/0/7description link to pingnanport access vlan 7interface Ethernet1/0/8description uplink to putianport access vlan 8interface Ethernet1/0/9 to Ethernet1/0/24description link to pingxicentreport access vlan 9第四步:配置路由协议//(1)用RIP配动态路由ripnetwork 10.41.77.41network 10.41.77.105network 10.41.77.169network 10.41.77.233network 10.41.78.41network 10.41.78.105network 10.41.80.233network 10.41.244.102//(2)配静态路由(只用对远端设备配一条路由即可,本地自通)---推荐用此协议ip route 0.0.0.0 0.0.0.0 10.41.244.101案例:华为S3600三层交换机配置方法结语:任何一个人,都要必须养成自学的习惯,即使是今天在学校的学生,也要养成自学的习惯,因为迟早总要离开学校的!自学,就是一种独立学习,独立思考的能力。

华为三层交换机配置步骤解释资料

华为三层交换机配置步骤解释资料

华为三层交换机配置步骤解释资料第一步:连接设备首先,将电脑与三层交换机通过网线连接起来。

可以通过一根网线将电脑的网络接口与三层交换机的任意一个接口连接起来。

第二步:登录设备打开浏览器,在浏览器的地址栏输入三层交换机的默认管理地址,例如:192.168.1.1、按下回车键,会弹出登录页面。

输入正确的用户名和密码,点击登录按钮。

第三步:配置基本信息登录成功后,首先需要进行一些基本的配置。

点击左侧导航栏的“基本设置”,在这里可以修改设备的名称、管理地址、时间等基本信息。

一般来说,建议将管理地址配置为内网地址,同时设定好设备的名称和时区。

第四步:配置VLANVLAN(Virtual Local Area Network)用于将一个大的局域网划分为多个虚拟局域网,每个VLAN可以独立配置。

点击左侧导航栏的“VLAN管理”,在这里可以创建、修改和删除VLAN。

点击“添加”按钮,输入VLAN的ID和名称,点击保存按钮完成VLAN的创建。

第五步:配置接口第六步:配置静态路由静态路由是手动配置的路由信息,用于指定数据包的转发路径。

点击左侧导航栏的“路由管理”,在这里可以配置和管理静态路由。

点击“添加”按钮,输入目的网段的IP地址和子网掩码,以及下一跳的IP地址,点击保存按钮完成静态路由的配置。

第七步:配置ACLACL(Access Control List)是用于控制网络流量的一种策略,可以根据源IP地址、目的IP地址、端口号等条件进行过滤和限制。

点击左侧导航栏的“ACL管理”,在这里可以配置和管理ACL规则。

点击“添加”按钮,输入ACL规则的名称、匹配条件和动作,点击保存按钮完成ACL的配置。

第八步:保存和应用配置在进行完上述配置后,需要点击页面的“保存”按钮将配置保存到设备中。

然后,点击页面的“应用”按钮,设备会自动将新的配置应用到系统中。

完成配置后,可以通过ping命令或其他方式进行网络连通性测试,确保配置的正确性。

华为三层交换机S5700-28C-EI配置文档

华为三层交换机S5700-28C-EI配置文档

华为三层交换机S5700-28C-EI配置文档华为三层交换机S5700-28C-SI配置文档温馨提示:新买的设备默认情况设备是没有任何地址。

连接方式:用超级终端连接相关属性将线和ETH口连接好之后关掉电源重新上电,等进入到to continue press ENTER,按ENTER键回车。

输入原始密码admin进入正式配置界面第一步:设置METH口管理地址system-view 进入系统调试模式[quidway]interface METH 0/0/1 进入到管理接口[quidway-METH 0/0/1]ip address 192.168.1.1 255.255.255.0 配置IP地址[quidway]quit第二步:由于设备本身支持web但是没有加载文件,需加载web 文件dir 显示当前路径和相及web等相关文件在dir下面信息找到xxxxxx.web.zipsystem-view[quidway]http server load xxxxxx.web.zip 加载系统本身自带的web文件加载成功后开启web服务[quidway]http server enable 开启http服务第三步:新建web用户登录用户名和密码及赋予权限system-view[quidway]aaa[quidway-aaa]local-user xxx password cipher|simper xxx 设置用户名和密码[quidway-aaa]local-user xxx server-type http 给xxx用户设置http登录模式[quidway-aaa]local-user xxx priviledge level 3-15 给xxx用户设置http登录等级否则只有ping和Tracert功能[quidway-aaa]quit即可第四步:保存命令以保证断电后配置不会丢失进入到模式输入save然后按Y等待一会即可设置完成之后既可以登陆电脑指定IP地址如192.168.1.100/255.255.255.0Ping 192.168.1.1是否通如果通打开浏览器输入192.168.1.1输入第三步创建或者修改的用户名和密码登陆即可附:查看相关版本命令:display cur-configuation查看接口对于的IP地址display arp将设备恢复出厂设置reset saved-configuation查看端口位置:display interface brief查看光模块display transc eiver interace 端口verbose //查看光模块光信息。

华为三层交换机配置教程

华为三层交换机配置教程

华为三层交换机配置教程华为三层交换机是一种高性能的网络设备,用于构建大型企业网络。

配置这种交换机需要一定的技术知识和经验。

下面是一个简单的华为三层交换机配置教程,帮助您快速入门。

第一步:连接交换机首先,将交换机与电源连接,并使用网线将交换机与计算机连接。

确保连接正常后,打开计算机的网卡设置界面,将IP地址设置为和交换机同一网段的地址。

第二步:登录交换机打开计算机上的终端软件,比如SecureCRT等,通过网线连接的方式登录交换机。

在终端软件中输入交换机的IP地址,选择正确的端口,并设置登录协议为SSH。

第三步:配置基本信息成功登录交换机后,需要进行一些基本配置。

首先,设置交换机的主机名,可以使用命令“sysname [主机名]”来进行设置。

然后,设置管理接口的IP地址和子网掩码,可以使用命令“interface Vlanif1”和“ip address [IP地址] [子网掩码]”来进行配置。

第四步:配置VLAN配置VLAN是三层交换机的重要功能。

通过VLAN,可以将网络划分为几个独立的虚拟局域网。

首先,创建VLAN,使用命令“vlan [VLAN编号]”创建一个新的VLAN。

然后,将端口加入到VLAN中,使用命令“port-group [端口组号]”将端口加入到指定的VLAN中。

第五步:配置路由三层交换机可以进行路由功能的配置,实现不同子网之间的通信。

首先,创建一个静态路由表,使用命令“ip route-static [目的网络] [子网掩码] [下一跳地址]”将目的网络、子网掩码和下一跳地址添加到路由表中。

然后,启用路由功能,使用命令“ip routing”来开启路由功能。

第六步:配置接口配置接口是三层交换机的另一个重要功能。

通过配置接口,可以对接口进行管理和控制。

使用命令“interface [接口名称]”进入指定接口的配置模式。

然后,可以配置接口的IP地址、子网掩码、MTU等属性,使用命令“ip address [IP地址] [子网掩码]”、“mtu [MTU值]”来进行配置。

华为三层交换机配置步骤(最新修改版20130517)

华为三层交换机配置步骤(最新修改版20130517)

华为三层交换机配置步骤一. VLAN配置1.建立VLAN<Quidway>sys /进入特权模式[Quidway]vlan 1 /建立vlan 1[Quidway]ctrl+z /退出vlan1 到普通模式[Quidway]vlan 2 /建立vlan 2[Quidway]ctrl+z /退出vlan2 到普通模式【注】划分VLAN,并描述vlan 1description local-s3600 //本交换机使用vlan 2description link-to-shanxicentre //陕西省中心vlan 3description link-to-shangjiecentre //商界分中心内部使用2.配置端口加入到VLAN[Quidway]vlan 1 /进入vlan 1[Quidway-vlan 1]port Ethernet 0/1 /将端口E0/1加入到vlan1[Quidway-vlan 1] ctrl+z /退出vlan1 到普通模式[Quidway]vlan 2 /进入vlan 2[Quidway-vlan 2]port Ethernet 0/2 /将端口E0/2加入到vlan2[Quidway-vlan 2] ctrl+z /退出vlan2 到普通模式3.配置VLAN的IP地址[Quidway]interface vlan 1 /进入接口视图[Quidway-Vlan-interface1]ip address 13.1.1.130 255.255.255.0 /配置VLAN1的IP地址[Quidway-Vlan-interface1] ctrl+z /退出vlan1 到普通模式[Quidway]interface vlan 2 /进入接口视图[Quidway-Vlan-interface2]ip address 192.168.2.1 255.255.255.0 /配置VLAN2的IP地址[Quidway-Vlan-interface1] ctrl+z /退出vlan2 到普通模式4.配置静态路由[Quidway]ip route-static 0.0.0.0 0.0.0.0 10.65.1.2 /静态路由=网关5.配置上行端口为trunk[Quidway -Ethernet0/1]port link-type trunk /实际当中一般将上行端口设置成trunk属性,允许vlan透传[Quidway -Ethernet0/1]port trunk permit vlan all /允许所有的vlan从E0/3端口透传通过,也可以指定具体的vlan值5.端口汇聚配置(1)进入端口E0/1[Quidway]interface Ethernet 0/1(2)汇聚端口必须工作在全双工模式[Quidway -Ethernet0/1]duplex full(3)汇聚的端口速率要求相同,但不能是自适应[Quidway -Ethernet0/1]speed 100(4)进入端口E0/2[Quidway]interface Ethernet 0/2(5)汇聚端口必须工作在全双工模式[Quidway -Ethernet0/2]duplex full(6)汇聚的端口速率要求相同,但不能是自适应[Quidway -Ethernet0/2]speed 100(7)根据源和目的MAC进行端口选择汇聚[Quidway]link-aggregation Ethernet 0/1 to Ether【补充说明】(1)同一个汇聚组中成员端口的链路类型与主端口的链路类型保持一致,即如果主端口为Trunk端口,则成员端口也为Trunk端口;如主端口的链路类型改为Access端口,则成员端口的链路类型也变为Access端口。

三层交换机 H3C交换机配置(三层交换机配置流程)

三层交换机 H3C交换机配置(三层交换机配置流程)

登录3100,输入如下命令:System-viewInterface vlan-interface 1 //进入默认的VLAN端口,vlan 1 Ip address 24 //设置本机在VLAN 1 中的IP 地址Quitsave登录5100,输入如下命令:System-viewInterface vlan-interface 1Ip address 24Quitsave登录5600,输入如下命令:System-viewInterface vlan-interface 1Ip address 24Quitsave在3100上输入:PingPing同理在5100上也输入:PingPing同理在5600上也输入:PingPing至此,交换机之间的管理vlan 就可以互相通信。

三、开启TELNET登录3100,输入如下命令:System-viewUser-interface vty 0 4 //进入用户端口Authenticate-mode scheme //设置认证模式Protocol inbound all //允许telnet 和RSH 访问User privilege level 3 //设置访问级别QuitLocal-user iamcat //创建本地用户Password simple xxxxxx //设置密码Service-type telnet //访问服务类型:telnetLevel 3 //设置授权访问级别Save在5100或5600上,即可用telnet 配置3100交换机。

登录5100,输入如下命令:System-viewUser-interface vty 0 4Authenticate-mode schemeProtocol inbound allUser privilege level 3QuitLocal-user iamcatPassword simple xxxxxxService-type telnetLevel 3QuitSave在3100或5600上,即可用telnet 配置5100交换机。

最新整理华为三层交换机配置教程

最新整理华为三层交换机配置教程

华为三层交换机配置教程按照网络O S I七层模型来划分,可以将交换机划分为二层交换机、三层交换机、多层交换机。

下面是学习啦小编收集整理的华为三层交换机配置教程,希望对大家有帮助~~华为三层交换机配置教程工具/原料s3600三层交换机P C机交换机c o n s o l e线一根方法/步骤l a n g u a g e-m o d e c h i n e s e//切换到中文模式s y s t e m-v i e w//进入系统视图[H3C]d i s p l a y c u r r e n t-c o n f i g u r a t i o n//显示当前配置三层交换配置三层交换机第一步:划分V L A N,并描述v l a n1d e s c r i p t i o n l o c a l-s3600//本交换机使用#v l a n2d e s c r i p t i o n l i n k-t o-j i l i n c e n t r e//吉林省中心#v l a n3d e s c r i p t i o n l i n k-t o-s h a n g j i e c e n t r e//商界分中心内部使用#v l a n4d e s c r i p t i o n l i n k-t o-c h a o y a n g s u o//朝阳所#v l a n5d e s c r i p t i o n l i n k-t o-n a n g u a n s u o//南关所配置三层交换机第二步:给V L A N划网关#i n t e r f a c e V l a n-i n t e r f a c e2d e s c r i p t i o n l i n k t o j i l i n c e n t r ei p a d d r e s s 10.61.242.110 255.255.255.252//省中心指定广域网关、子网掩码#i n t e r f a c e V l a n-i n t e r f a c e3d e s c r i p t i o n l i n k t o s h a n g j i e c e n t r ei p a d d r e s s10.161.134.65255.255.255.192//商界分中心局域网关、子网掩码#i n t e r f a c e V l a n-i n t e r f a c e4d e s c r i p t i o n l i n k t o c h a o y a n g s u oi p a d d r e s s10.61.242.113255.255.255.252//朝阳所广域网关、子网掩码#i n t e r f a c e V l a n-i n t e r f a c e5d e s c r i p t i o n l i n k t o n a n g u a n s u oi p a d d r e s s10.61.242.117255.255.255.252//南关所广域网关、子网掩码配置三层交换机第三步:给V L A N指定端口#i n t e r f a c e E t h e r n e t1/0/2//将交换机的端口2指定给省中心使用d e s c r i p t i o n l i n k t o j i l i n c e n t r ep o r t a c c e s s v l a n2#i n t e r f a c e E t h e r n e t1/0/15-24//将交换机的端口15-24指定给分中心内部使用d e s c r i p t i o n l i n k t o s h a n g j i e c e n t r ep o r t a c c e s s v l a n3#i n t e r f a c e E t h e r n e t1/0/3//将交换机的端口3指定给朝阳所使用d e s c r i p t i o n l i n k t o c h a o y a n g s u op o r t a c c e s s v l a n4#i n t e r f a c e E t h e r n e t1/0/4//将交换机的端口4指定给南关所使用d e s c r i p t i o n l i n k t o n a n g u a n s u op o r t a c c e s s v l a n5配置三层交换机第四步:配置路由协议//配静态路由(只用对远端设备配一条路由即可,本地自通)i p r o u t e 0.0.0.0 0.0.0.0 10.61.242.109//指定所有网段到朝阳所的路由//配置三层交换机朝阳所的反向路由i p r o u t e10.161.134.0255.255.255.010.61.242.114i p r o u t e10.161.135.0255.255.255.010.61.242.114//配置三层交换机南关所的反向路由i p r o u t e10.161.135.0255.255.255.010.61.242.118i p r o u t e10.161.136.0255.255.255.010.61.242.118//省中心配置三层交换机:i p r o u t e10.61.242.0255.255.255.010.61.242.110//朝阳所242.114和南关所242.118共属的242.0指向分中心网关i p r o u t e10.161.134.0255.255.255.010.61.242.110//分中心内部网段指向分中心网关//i p r o u t e10.161.134.0255.255.255.010.61.242.110//i p r o u t e10.161.135.0255.255.255.010.61.242.110//i p r o u t e10.161.136.0255.255.255.010.61.242.110华为三层交换机配置教程。

华为三层交换机配置步骤解释

华为三层交换机配置步骤解释

华为三层交换机配置步骤1.给交换机划分VLANVlan是虚拟局域网的意思,它相当于一个局域网工作组。

“vlan几”可以理解成编号为几的vlan,比如vlan 2就是编号为2的vlan,只是一个编号而已,并不是说vlan 2的网段一定要是2网段,vlan 2的IP地址是可以随便设置的。

下面我将三层交换机的第20个端口添加到vlan 10里,步骤如下:A.在交换机里添加VLAN 10system-view (一般用缩写:sys)[Quidway] vlan10 (添加编号为10的vlan)[Quidway-vlan10] quit (一般缩写:q)B.设置vlan 10的IP地址为192.168.66.66 网关为255.255.255.0[Quidway]interface vlanif 10(interface一般可以缩写为:int ;vlanif也可以只写vlan)[Quidway-vlanif10] ip address 192.168.66.66 255.255.255.0 (address缩写add)[Quidway-vlanif10]quitC.设定交换机上第20个端口模式为access(默认为trunk,需在将端口划入VLAN前转为ACCESS)[Quidway]int gigabitethernet 0/0/20(gigabitethernet:千兆以太网口)[Quidway-GigabitEthernet0/0/20]port link-type access (port:端口)[Quidway-GigabitEthernet0/0/20]quitD.将第20个端口加入到vlan 10里[Quidway] vlan 10[Quidway-vlan10] port gigabitethernet 0/0/20(如果是多个连续端口,用XX to XX)[Quidway-Vlan10] quit这样就是成功的将交换机上的第20个端口添加到了编号为10的Vlan 里,划分VLAN就是这4个步骤,2个步骤设置vlan,2个步骤设置端口。

华为三层交换机如何配置

华为三层交换机如何配置

华为三层交换机如何配置推荐文章华为交换机邻居如何配置热度:华为H3C交换机内网如何限制网速热度:华为交换机邻居如何配置及作用热度:交换机如何配置TRUNK口热度:交换机的端口聚合如何配置热度:交换机划分为二层交换机、三层交换机、多层交换机。

那么华为三层交换机如何配置你?下面是店铺收集整理的华为三层交换机如何配置,希望对大家有帮助~~华为三层交换机的配置方法工具/原料s3600三层交换机PC机交换机console线一根方法/步骤language-modechinese//切换到中文模式 system-view//进入系统视图[H3C]displaycurrent-configuration//显示当前配置三层交换配置三层交换机第一步:划分VLAN,并描述vlan1description local-s3600//本交换机使用#vlan2description link-to-jilincentre//吉林省中心#vlan3description link-to-shangjiecentre//商界分中心内部使用#vlan4description link-to-chaoyangsuo//朝阳所#vlan5description link-to-nanguansuo//南关所配置三层交换机第二步:给VLAN划网关#interfaceVlan-interface2description linktojilincentreipaddress 10.61.242.110 255.255.255.252//省中心指定广域网关、子网掩码#interfaceVlan-interface3description linktoshangjiecentreipaddress 10.161.134.65255.255.255.192//商界分中心局域网关、子网掩码#interfaceVlan-interface4description linktochaoyangsuoipaddress 10.61.242.113255.255.255.252//朝阳所广域网关、子网掩码#interfaceVlan-interface5description linktonanguansuoipaddress 10.61.242.117255.255.255.252//南关所广域网关、子网掩码配置三层交换机第三步:给VLAN指定端口#interfaceEthernet1/0/2//将交换机的端口2指定给省中心使用description linktojilincentreport access vlan2#interfaceEthernet1/0/15-24//将交换机的端口15-24指定给分中心内部使用description linktoshangjiecentreport access vlan3#interfaceEthernet1/0/3//将交换机的端口3指定给朝阳所使用description linktochaoyangsuoport access vlan4#interfaceEthernet1/0/4//将交换机的端口4指定给南关所使用description linktonanguansuoportaccessvlan5配置三层交换机第四步:配置路由协议//配静态路由(只用对远端设备配一条路由即可,本地自通)iproute 0.0.0.0 0.0.0.0 10.61.242.109//指定所有网段到朝阳所的路由//配置三层交换机朝阳所的反向路由iproute 10.161.134.0 255.255.255.0 10.61.242.114iproute 10.161.135.0 255.255.255.0 10.61.242.114//配置三层交换机南关所的反向路由iproute 10.161.135.0 255.255.255.0 10.61.242.118iproute 10.161.136.0 255.255.255.0 10.61.242.118//省中心配置三层交换机:iproute 10.61.242.0 255.255.255.0 10.61.242.110//朝阳所242.114和南关所242.118共属的242.0指向分中心网关iproute 10.161.134.0 255.255.255.0 10.61.242.110//分中心内部网段指向分中心网关//iproute 10.161.134.0 255.255.255.0 10.61.242.110//iproute 10.161.135.0 255.255.255.0 10.61.242.110//iproute 10.161.136.0 255.255.255.0 10.61.242.110。

华为三层交换机配置方法、命令及实例

华为三层交换机配置方法、命令及实例

华为三层交换机配置方法(1)(2008-07-21 11:27:34)转载标签:分类:工作汇报杂谈本文以河南平临高速所使用的华为华三通信的H3C S3600-28P-SI为例,配置前首先要确定型号后缀是SI还是EI,EI的支持所有协议,SI的不支持OSPS动态协议,因此SI配置路由时可以使用静态协议和RIP协议,具体配置如下:<H3C>system-view //进入系统视图[H3C]display current-configuration //显示当前配置//以下开始配置//第一步:划分VLAN,并描述vlan 1description local-S3600vlan 2description link-to-wenquanvlan 3description link-to-ruzhouvlan 4description link-to-xiaotunvlan 5description link-to-baofengvlan 6description link-to-pingxivlan 7description link-to-pingnanvlan 8description Uplink-to-Putianvlan 9description link-to-pingxicentre//第二步:给VLAN 划网关interface Vlan-interface2description link to wenquanip address 10.41.77.41 255.255.255.192 interface Vlan-interface3description link to ruzhouip address 10.41.77.105 255.255.255.192 interface Vlan-interface4description link to xiaotunip address 10.41.77.169 255.255.255.192 interface Vlan-interface5description link to baofengip address 10.41.77.233 255.255.255.192 interface Vlan-interface6description link to pingxiip address 10.41.78.41 255.255.255.192 interface Vlan-interface7description link to pingnanip address 10.41.78.105 255.255.255.192 interface Vlan-interface8description uplink to putianip address 10.41.244.102 255.255.255.252 interface Vlan-interface9description link to pingxicentreip address 10.41.80.233 255.255.255.192//第三步:给VLAN 指定端口interface Ethernet1/0/2description link to wenquanport access vlan 2interface Ethernet1/0/3description link to ruzhouport access vlan 3interface Ethernet1/0/4description link to xiaotunport access vlan 4interface Ethernet1/0/5description link to baofengport access vlan 5interface Ethernet1/0/6description link to pingxiport access vlan 6interface Ethernet1/0/7description link to pingnanport access vlan 7interface Ethernet1/0/8description uplink to putianport access vlan 8interface Ethernet1/0/9 to Ethernet1/0/24 description link to pingxicentreport access vlan 9//第四步:配置路由协议//(1)用RIP配动态路由ripnetwork 10.41.77.41network 10.41.77.105network 10.41.77.169network 10.41.77.233network 10.41.78.41network 10.41.78.105network 10.41.80.233network 10.41.244.102//(2)配静态路由(只用对远Enable //进入私有模式Configure terminal //进入全局模式service password-encryption //对密码进行加密hostname Catalyst 3550-12T1 //给三层交换机定义名称enable password 123456. //enable密码Enable secret 654321 //enable的加密密码(应该是乱码而不是654321这样)Ip subnet-zero //允许使用全0子网(默认都是打开的)Ip name-server 172.16.8.1 172.16.8.2 //三层交换机名字Catalyst 3550-12T1对应的IP地址是172.16.8.1 Service dhcp //提供DHCP服务ip routing //启用三层交换机上的路由模块ExitVtp mode server //定义VTP工作模式为sever模式Vtp domain centervtp //定义VTP域的名称为centervtpVlan 2 name vlan2 //定义vlan并给vlan取名(如果不取名的话,vlan2的名字应该是vlan002)Vlan 3 name vlan3Vlan 4 name vlan4Vlan 5 name vlan5Vlan 6 name vlan6Vlan 7 name vlan7Vlan 8 name vlan8Vlan 9 name vlan9Exitinterface Port-channel 1 //进入虚拟的以太通道组1Interface gigabitethernet 0/1 //进入模块0上的吉比特以太口1channel-group 1 mode on //把这个接口放到快速以太通道组1中Interface gigabitethernet 0/2 //同上channel-group 1 mode onport-channel load-balance src-dst-ip //定义快速以太通道组的负载均衡方式(依靠源和目的IP的方式)interface gigabitethernet 0/3 //进入模块0上的吉比特以太口3interface gigabitethernet 0/4 //同上interface gigbitethernet 0/5 //同上interface gigbitethernet 0/6 //同上interface gigbitethernet 0/7 //进入模块0上的吉比特以太口7no shutdownspanning-tree vlan 6-9 cost 1000 //在生成树中,vlan6-9的开销定义为10000interface range gigabitethernet 0/8 –10 //进入模块0上的吉比特以太口8,9,10no shutdownspanning-tree portfast //在这些接口上使用portfast(使用portfast以后,在生成树的时候不参加运算,直接成为转发状态)interface gigabitethernet 0/11 //进入模块0上的吉比特以太口11interface gigabitethernet 0/12 //同上interface vlan 1 //进入vlan1的逻辑接口(不是物理接口,用来给vlan做路由用)ip address 172.16.1.7 255.255.255.0 //配置IP地址和子网掩码no shutdownstandby 1 ip 172.16.1.9 //开启了冗余热备份(HSRP),冗余热备份组1,虚拟路由器的IP地址为172.16.1.9 standby 1 priority 110 preempt //定义这个三层交换机在冗余热备份组1中的优先级为110,preempt是用来开启抢占模式interface vlan 2 //同上ip address 172.16.2.252 255.255.255.0no shutdownstandby 2 ip 172.16.2.254standby 2 priority 110 preemptip access-group 101 in //在入方向上使用扩展的访问控制列表101interface vlan 3 //同上ip address 172.16.3.252 255.255.255.0 no shutdownstandby 3 ip 172.16.3.254standby 3 priority 110 preemptip access-group 101 ininterface vlan 4 //同上ip address 172.16.4.252 255.255.255.0 no shutdownstandby 4 ip 172.16.4.254standby 4 priority 110 preemptip access-group 101 ininterface vlan 5ip address 172.16.5.252 255.255.255.0 no shutdownstandby 5 ip 172.16.5.254standby 5 priority 110 preemptip access-group 101 ininterface vlan 6ip address 172.16.6.252 255.255.255.0 no shutdownstandby 6 ip 172.16.6.254standby 6 priority 100 preemptinterface vlan 7ip address 172.16.7.252 255.255.255.0 no shutdownstandby 7 ip 172.16.7.254standby 7 priority 100 preemptinterface vlan 8ip address 172.16.8.252 255.255.255.0 no shutdownstandby 8 ip 172.16.8.254standby 8 priority 100 preemptinterface vlan 9ip address 172.16.9.252 255.255.255.0no shutdownstandby 9 ip 172.16.9.254standby 9 priority 100 preemptaccess-list 101 deny ip any 172.16.7.0 0.0.0.255 //扩展的访问控制列表101access-list 101 permit ip any anyInterface vlan 1 //进入vlan1这个逻辑接口Ip helper-address 172.16.8.1 //可以转发广播(helper-address的作用就是把广播转化为单播,然后发向172.16.8.1)Interface vlan 2Ip helper-address 172.16.8.1Interface vlan 3ip helper-address 172.16.8.1interface vlan 4ip helper-address 172.16.8.1interface vlan 5ip helper-address 172.16.8.1interface vlan 6ip helper-address 172.16.8.1interface vlan 7ip helper-address 172.16.8.1interface vlan 9ip helper-address 172.16.8.1router rip //启用路由协议RIPversion 2 //使用的是RIPv2,如果没有这句,则是使用RIPv1network 172.16.0.0 //宣告直连的网段exitip route 0.0.0.0 0.0.0.0 172.16.9.250 //缺省路由,所有在路由表中没有办法匹配的数据包,都发向下一跳地址为172.16.9.250这个路由器line con 0line aux 0line vty 0 15 //telnet线路(路由器只有5个,是0-4)password 12345678 //login密码loginendcopy running-config startup-config 保存配置cisco 3550Switch# configure terminalSwitch(config)#vtp mode transparentSwitch(config)#vlan 10Switch(config-vlan)# name vlan10Switch(config)#exitSwitch(config)#vlan 11Switch(config-vlan)name vlan11Switch(config-vlan)endSwitch#configure terminalSwitch(config)#interface fastethernet0/9Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 10Switch(config-if)#exitSwitch(config)#interface fastethernet0/10Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 10Switch(config-if)#exitSwitch(config)#interface fastethernet0/11Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 11Switch(config-if)#exitSwitch(config)#interface fastethernet0/12Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 11Switch(config-if)#exitSwitch(config)#interface vlan10Switch(config-if)#ip address 192.168.0.1 255.255.255.0 Switch(config-if)#no shutdownSwitch(config-if)#exitSwitch(config)#interface vlan11Switch(config-if)#ip address 192.168.1.1 255.255.255.0 Switch(config-if)#no shutdownSwitch(config-if)#exitSwitch(config)#ip routingSwitch(config)#ip forward-protocol udpSwitch(config)#inter vlan 10ip helper 172.16.11.255 //这个命令又是什么意思?是不是转发整个网段的UDP协议?为什么用到了172.16.11.255这个地址?Switch(config)#exitSwitch(config)#inter vlan 11Switch(config-if)#ip helper 172.16.10.255 //同上?Switch(config-if)#exitSwitch(config)#ip route 0.0.0.0 0.0.0.0 Vlan10Switch(config)#ip route 0.0.0.0 0.0.0.0 Vlan11Switch(config)#conf tSwitch(config)#access-list 103 permit ip 172.16.11.0 0.0.0.255 172.16.10.0 0.0.0.255Switch(config)#access-list 103 permit udp any any eq bootpcSwitch(config)#access-list 103 permit udp any any eq tftpSwitch(config)#access-list 103 permit udp any eq bootpc anySwitch(config)#access-list 103 permit udp any eq tftp anySwitch(config)#inter vlan 10Switch(config-if)#ip directed-broadcast 103 //请解释一下这个的具体含义,本人不是太明白,懂一点意思(直接广播这个列表?是不是)Switch(config-if)#exitSwitch(config)#access-list 104 permit ip 172.16.10.0 0.0.0.255 172.16.11.0 0.0.0.255Switch(config)#access-list 104 permit udp any any eq bootpcSwitch(config)#access-list 104 permit udp any any eq tftpSwitch(config)#access-list 104 permit udp any eq bootpc anySwitch(config)#access-list 104 permit udp any eq tftp anySwitch(config)#inter vlan 11Switch(config-if)#ip directed-broadcast 104 //同上Switch(config)#endSwitch#copy run star华为三层交换机配置实例一例网络技术2008-07-25 06:08:28 阅读243 评论0 字号:大中小订阅华为三层交换机配置实例一例服务器1双网卡,内网IP:192.168.0.1,其它计算机通过其代理上网PORT1属于VLAN1PORT2属于VLAN2PORT3属于VLAN3VLAN1的机器可以正常上网配置VLAN2的计算机的网关为:192.168.1.254配置VLAN3的计算机的网关为:192.168.2.254即可实现VLAN间互联如果VLAN2和VLAN3的计算机要通过服务器1上网则需在三层交换机上配置默认路由系统视图下:ip route-static 0.0.0.0 0.0.0.0 192.168.0.1然后再在服务器1上配置回程路由进入命令提示符route add 192.168.1.0 255.255.255.0 192.168.0.254route add 192.168.2.0 255.255.255.0 192.168.0.254这个时候vlan2和vlan3中的计算机就可以通过服务器1访问internet了~~华为路由器与CISCO路由器在配置上的差别"华为路由器与同档次的CISCO路由器在功能特性与配置界面上完全一致,有些方面还根据国内用户的需求作了很好的改进。

华为三层交换机配置教程

华为三层交换机配置教程

华为三层交换机配置教程按照网络OSI七层模型来划分,可以将交换机划分为二层交换机、三层交换机、多层交换机。

下面是小编收集整理的华为三层交换机配置教程,希望对大家有帮助~~华为三层交换机配置教程工具/原料s3600三层交换机PC机交换机console线一根方法/步骤language-modechinese//切换到中文模式system-view//进入系统视图[H3C]displaycurrent-configuration//显示当前配置三层交换配置三层交换机第一步:划分VLAN,并描述vlan1descriptionlocal-s3600//本交换机使用#vlan2descriptionlink-to-jilincentre//吉林省中心#vlan3descriptionlink-to-shangjiecentre//商界分中心内部使用#vlan4descriptionlink-to-chaoyangsuo//朝阳所#vlan5descriptionlink-to-nanguansuo//南关所配置三层交换机第二步:给VLAN划网关#interfaceVlan-interface2descriptionlinktojilincentreipaddress10.61.242.110255.255.255.252//省中心指定广域网关、子网掩码#interfaceVlan-interface3descriptionlinktoshangjiecentreipaddress10.161.134.65255.255.255.192//商界分中心局域网关、子网掩码#interfaceVlan-interface4descriptionlinktochaoyangsuoipaddress10.61.242.113255.255.255.252//朝阳所广域网关、子网掩码#interfaceVlan-interface5descriptionlinktonanguansuoipaddress10.61.242.117255.255.255.252//南关所广域网关、子网掩码配置三层交换机第三步:给VLAN指定端口#interfaceEthernet1/0/2//将交换机的端口2指定给省中心使用descriptionlinktojilincentreportaccessvlan2#interfaceEthernet1/0/15-24//将交换机的端口15-24指定给分中心内部使用descriptionlinktoshangjiecentreportaccessvlan3#interfaceEthernet1/0/3//将交换机的端口3指定给朝阳所使用descriptionlinktochaoyangsuoportaccessvlan4#interfaceEthernet1/0/4//将交换机的端口4指定给南关所使用descriptionlinktonanguansuoportaccessvlan5配置三层交换机第四步:配置路由协议//配静态路由(只用对远端设备配一条路由即可,本地自通)iproute0.0.0.00.0.0.010.61.242.109//指定所有网段到朝阳所的路由//配置三层交换机朝阳所的反向路由iproute10.161.134.0255.255.255.010.61.242.114iproute10.161.135.0255.255.255.010.61.242.114//配置三层交换机南关所的反向路由iproute10.161.135.0255.255.255.010.61.242.118iproute10.161.136.0255.255.255.010.61.242.118//省中心配置三层交换机:iproute10.61.242.0255.255.255.010.61.242.110//朝阳所242.114和南关所242.118共属的242.0指向分中心网关iproute10.161.134.0255.255.255.010.61.242.110//分中心内部网段指向分中心网关//iproute10.161.134.0255.255.255.010.61.242.110//iproute10.161.135.0255.255.255.010.61.242.110//iproute10.161.136.0255.255.255.010.61.242.110 华为三层交换机配置教程相关文章:1.三层交换机配置的实例教程2.华为路由器配置详细教程3.h3c交换机配置步骤教程4.华为交换机如何配置端口镜像5.华为交换机配置命令。

华为三层交换机配置命令

华为三层交换机配置命令

华为三层交换机配置命令Enable //进入私有模式Configure terminal //进入全局模式service password-encryption //对密码进行加密hostname Catalyst 3550-12T1 //给三层交换机定义名称enable password 123456. //enable密码Enable secret 654321 //enable的加密密码(应该是乱码而不是654321这样)Ip subnet-zero //允许使用全0子网(默认都是打开的)Ip name-server 172.16.8.1 172.16.8.2 //三层交换机名字Catalyst 3550-12T1对应的IP地址是172.16.8.1Service dhcp //提供DHCP服务ip routing //启用三层交换机上的路由模块ExitVtp mode server //定义VTP工作模式为sever模式Vtp domain centervtp //定义VTP域的名称为centervtpVlan 2 name vlan2 //定义vlan并给vlan取名(如果不取名的话,vlan2的名字应该是vlan002)Vlan 3 name vlan3Vlan 4 name vlan4Vlan 5 name vlan5Vlan 6 name vlan6Vlan 7 name vlan7Vlan 8 name vlan8Vlan 9 name vlan9Exitinterface Port-channel 1 //进入虚拟的以太通道组1Interface gigabitethernet 0/1 //进入模块0上的吉比特以太口1channel-group 1 mode on //把这个接口放到快速以太通道组1中Interface gigabitethernet 0/2 //同上channel-group 1 mode onport-channel load-balance src-dst-ip //定义快速以太通道组的负载均衡方式(依靠源和目的IP的方式)interface gigabitethernet 0/3 //进入模块0上的吉比特以太口3interface gigabitethernet 0/4//同上interface gigbitethernet 0/5 //同上interface gigbitethernet 0/6 //同上interface gigbitethernet 0/7 //进入模块0上的吉比特以太口7no shutdownspanning-tree vlan 6-9 cost 1000 //在生成树中,vlan6-9的开销定义为10000interface range gigabitethernet 0/8 – 10 //进入模块0上的吉比特以太口8,9,10no shutdownspanning-tree portfast //在这些接口上使用portfast(使用portfast以后,在生成树的时候不参加运算,直接成为转发状态)interface gigabitethernet 0/11 //进入模块0上的吉比特以太口11 interface gigabitethernet 0/12 //同上interface vlan 1 //进入vlan1的逻辑接口(不是物理接口,用来给vlan做路由用)ip address 172.16.1.7 255.255.255.0 //配置IP地址和子网掩码no shutdownstandby 1 ip 172.16.1.9 //开启了冗余热备份(HSRP),冗余热备份组1,虚拟路由器的IP地址为172.16.1.9standby 1 priority 110 preempt //定义这个三层交换机在冗余热备份组1中的优先级为110,preempt是用来开启抢占模式interface vlan 2 //同上ip address 172.16.2.252 255.255.255.0no shutdownstandby 2 ip 172.16.2.254standby 2 priority 110 preemptip access-group 101 in //在入方向上使用扩展的访问控制列表101interface vlan 3 //同上ip address 172.16.3.252 255.255.255.0no shutdownstandby 3 ip 172.16.3.254standby 3 priority 110 preemptip access-group 101 ininterface vlan 4//同上ip address 172.16.4.252 255.255.255.0 no shutdownstandby 4 ip 172.16.4.254standby 4 priority 110 preemptip access-group 101 ininterface vlan 5ip address 172.16.5.252 255.255.255.0 no shutdownstandby 5 ip 172.16.5.254standby 5 priority 110 preemptip access-group 101 ininterface vlan 6ip address 172.16.6.252 255.255.255.0 no shutdownstandby 6 ip 172.16.6.254standby 6 priority 100 preemptinterface vlan 7ip address 172.16.7.252 255.255.255.0 no shutdownstandby 7 ip 172.16.7.254standby 7 priority 100 preemptinterface vlan 8ip address 172.16.8.252 255.255.255.0 no shutdownstandby 8 ip 172.16.8.254standby 8 priority 100 preemptinterface vlan 9ip address 172.16.9.252 255.255.255.0 no shutdownstandby 9 ip 172.16.9.254standby 9 priority 100 preemptaccess-list 101 deny ip any 172.16.7.00.0.0.255 //扩展的访问控制列表101access-list 101 permit ip any anyInterface vlan 1 //进入vlan1这个逻辑接口Ip helper-address 172.16.8.1 //可以转发广播(helper-address的作用就是把广播转化为单播,然后发向172.16.8.1)Interface vlan 2Ip helper-address 172.16.8.1Interface vlan 3ip helper-address 172.16.8.1interface vlan 4ip helper-address 172.16.8.1interface vlan 5ip helper-address 172.16.8.1interface vlan 6ip helper-address 172.16.8.1interface vlan 7ip helper-address 172.16.8.1interface vlan 9ip helper-address 172.16.8.1router rip //启用路由协议RIPversion 2 //使用的是RIPv2,如果没有这句,则是使用RIPv1 network 172.16.0.0 //宣告直连的网段exitip route 0.0.0.0 0.0.0.0 172.16.9.250 //缺省路由,所有在路由表中没有办法匹配的数据包,都发向下一跳地址为172.16.9.250这个路由器line con 0line aux 0line vty 0 15 //telnet线路(路由器只有5个,是0-4)password 12345678 //login密码loginendcopy running-config startup-config 保存配置cisco 3550Switch# configure terminalSwitch(config)#vtp mode transparentSwitch(config)#vlan 10Switch(config-vlan)# name vlan10Switch(config)#exitSwitch(config)#vlan 11Switch(config-vlan)name vlan11Switch(config-vlan)endSwitch#configure terminalSwitch(config)#interface fastethernet0/9Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 10Switch(config-if)#exitSwitch(config)#interface fastethernet0/10Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 10Switch(config-if)#exitSwitch(config)#interface fastethernet0/11Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 11Switch(config-if)#exitSwitch(config)#interface fastethernet0/12Switch(config-if)#switchport mode accessSwitch(config-if)#switchport access vlan 11Switch(config-if)#exitSwitch(config)#interface vlan10Switch(config-if)#ip address 192.168.0.1 255.255.255.0Switch(config-if)#no shutdownSwitch(config-if)#exitSwitch(config)#interface vlan11Switch(config-if)#ip address 192.168.1.1 255.255.255.0Switch(config-if)#no shutdownSwitch(config-if)#exitSwitch(config)#ip routingSwitch(config)#ip forward-protocol udpSwitch(config)#inter vlan 10ip helper 172.16.11.255 //这个命令又是什么意思?是不是转发整个网段的UDP协议?为什么用到了172.16.11.255这个地址?Switch(config)#exitSwitch(config)#inter vlan 11Switch(config-if)#ip helper 172.16.10.255 //同上?Switch(config-if)#exitSwitch(config)#ip route0.0.0.0 0.0.0.0 Vlan10Switch(config)#ip route 0.0.0.0 0.0.0.0 Vlan11Switch(config)#conf tSwitch(config)#access-list 103 permit ip 172.16.11.0 0.0.0.255 172.16.10.0 0.0.0.255Switch(config)#access-list 103 permit udp any any eq bootpcSwitch(config)#access-list 103 permit udp any any eq tftpSwitch(config)#access-list 103 permit udp any eq bootpc anySwitch(config)#access-list 103 permit udp any eq tftp anySwitch(config)#inter vlan 10Switch(config-if)#ip directed-broadcast 103 //请解释一下这个的具体含义,本人不是太明白,懂一点意思(直接广播这个列表?是不是)Switch(config-if)#exitSwitch(config)#access-list 104 permit ip 172.16.10.0 0.0.0.255 172.16.11.0 0.0.0.255Switch(config)#access-list 104 permit udp any any eq bootpcSwitch(config)#access-list 104 permit udp any any eq tftpSwitch(config)#access-list 104 permit udp any eq bootpc anySwitch(config)#access-list 104 permit udp any eq tftp anySwitch(config)#inter vlan 11Switch(config-if)#ip directed-broadcast 104 //同上Switch(config)#endSwitch#copy run star(注:可编辑下载,若有不当之处,请指正,谢谢!)。

华三华为交换机-路由器配置常用命令

华三华为交换机-路由器配置常用命令

H3C交换机配置命令大全1、system-view 进入系统视图模式2、sysname 为设备命名3、display current-configuration 当前配置情况4、 language-mode Chinese|English 中英文切换5、interface Ethernet 1/0/1 进入以太网端口视图6、 port link-type Access|Trunk|Hybrid 设置端口访问模式7、 undo shutdown 打开以太网端口8、 shutdown 关闭以太网端口9、 quit 退出当前视图模式10、 vlan 10 创建VLAN 10并进入VLAN 10的视图模式11、 port access vlan 10 在端口模式下将当前端口加入到vlan 10中12、port E1/0/2 to E1/0/5 在VLAN模式下将指定端口加入到当前vlan中13、port trunk permit vlan all 允许所有的vlan通过H3C路由器配置命令大全1、system-view 进入系统视图模式2、sysname R1 为设备命名为R13、display ip routing-table 显示当前路由表4、 language-mode Chinese|English 中英文切换5、interface Ethernet 0/0 进入以太网端口视图6、 ip address 192.168.1.1 255.255.255.0 配置IP地址和子网掩码7、 undo shutdown 打开以太网端口8、 shutdown 关闭以太网端口9、 quit 退出当前视图模式10、 ip route-static 192.168.2.0 255.255.255.0 192.168.12.2 description To.R2 配置静态路由11、 ip route-static 0.0.0.0 0.0.0.0 192.168.12.2 description To.R2 配置默认的路由H3C S3100 SwitchH3C S3600 SwitchH3C MSR 20-20 Router1、调整超级终端的显示字号;2、捕获超级终端操作命令行,以备日后查对;3、 language-mode Chinese|English 中英文切换;4、复制命令到超级终端命令行,粘贴到主机;5、交换机清除配置 :<H3C>reset save ;<H3C>reboot ;6、路由器、交换机配置时不能掉电,连通测试前一定要检查网络的连通性,不要犯最低级的错误。
