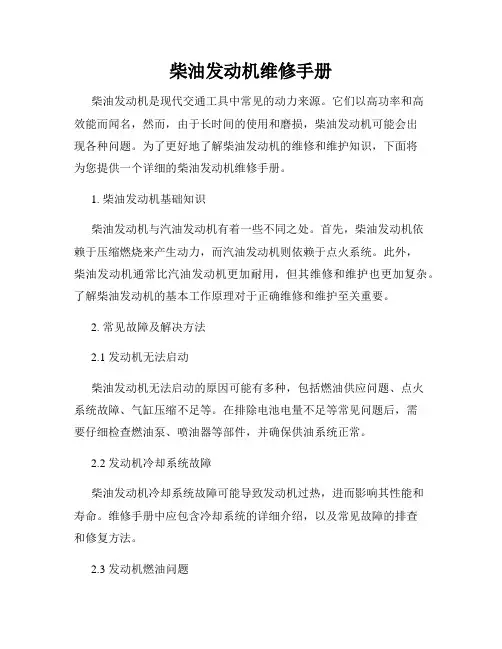

柴油发动机维修手册柴油发动机是现代交通工具中常见的动力来源。
它们以高功率和高效能而闻名，然而，由于长时间的使用和磨损，柴油发动机可能会出现各种问题。
为了更好地了解柴油发动机的维修和维护知识，下面将为您提供一个详细的柴油发动机维修手册。
1. 柴油发动机基础知识柴油发动机与汽油发动机有着一些不同之处。
首先，柴油发动机依赖于压缩燃烧来产生动力，而汽油发动机则依赖于点火系统。
此外，柴油发动机通常比汽油发动机更加耐用，但其维修和维护也更加复杂。
了解柴油发动机的基本工作原理对于正确维修和维护至关重要。
2. 常见故障及解决方法2.1 发动机无法启动柴油发动机无法启动的原因可能有多种，包括燃油供应问题、点火系统故障、气缸压缩不足等。
在排除电池电量不足等常见问题后，需要仔细检查燃油泵、喷油器等部件，并确保供油系统正常。
2.2 发动机冷却系统故障柴油发动机冷却系统故障可能导致发动机过热，进而影响其性能和寿命。
维修手册中应包含冷却系统的详细介绍，以及常见故障的排查和修复方法。
2.3 发动机燃油问题柴油发动机的燃油系统是其正常运行的关键。
维修手册应涵盖燃油泵、喷油器、燃油滤清器等关键部件的维护和维修，以解决燃油供应不足、燃油泄露等常见问题。
2.4 发动机排放问题柴油发动机的排放问题受到环境保护的高度关注。
维修手册应提供有效的排放控制方法，以确保发动机排放符合相关标准。
3. 维修和维护技巧维修手册的重要部分是列出柴油发动机的日常维修和维护技巧。
这些技巧包括更换机油、清洁空气滤清器、定期更换燃油滤清器等。
正确的维护可以延长发动机的使用寿命和性能。
4. 安全措施在维修手册中，应该特别强调安全措施。
柴油发动机可能涉及到高压燃料和旋转部件，因此维修人员必须严格遵守相关操作规程和安全建议，以避免事故发生。
总结：柴油发动机维修手册是一本非常重要的工具，对于维修人员和车主来说都具有实际意义。
通过了解柴油发动机的基础知识、常见故障及解决方法、维修和维护技巧以及安全措施，可以更好地保持柴油发动机的正常运行和提高其寿命。
潍柴发动机维修专用工具手册—故障诊断柴油机动力不足
潍柴发动机维修专用工具手册—故障诊断柴油机动力不足潍柴发动机维修专用工具手册—故障诊断与案例分析：第五类故障：柴油机动力不足。
第五类故障：柴油机动力不足
检查步骤
第一步：配装多功率省油开关的车辆，检查开关档位是否在正确位置
第二步：读取闪码，若无闪码转入下一步
第三步：检查低压油路与油质是否正常，若正常转下一步。
第四步：检查空气滤芯、进气管路、增压器工作是否正常，若正常转下一步。
第五步：检查气门间隙是否正常，若正常转下一步
第六步：检查各传感器插头、油门踏板插头、整车线束是否接触良好，若正常转下
检查步骤
第七步：联系特约维修站维修人员，使用专业设备按以下步骤检测。
使用故障诊断仪检查飞轮信号盘与油泵凸轮信号盘是否同步（数据流检测同步信号48）。
若仍动力不足转下一步。
使用故障诊断仪检查进一步检查是否正常建立轨压，如轨压不正常，有可能是喷油器、共轨管、高压油泵、ECU引起，请参考《部件故障分析》。
配装多功率省油开关的车辆，检查开关档位是否失效。
潍柴天然气发动机故障案例分析——【潍柴天然气发动机】

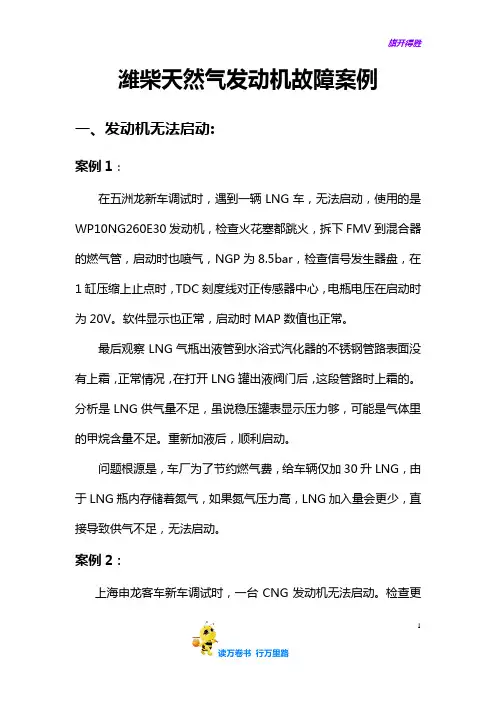

潍柴天然气发动机故障案例一、发动机无法启动:案例1：在五洲龙新车调试时，遇到一辆LNG车，无法启动，使用的是WP10NG260E30发动机，检查火花塞都跳火，拆下FMV到混合器的燃气管，启动时也喷气，NGP为8.5bar，检查信号发生器盘，在1缸压缩上止点时，TDC刻度线对正传感器中心，电瓶电压在启动时为20V。
软件显示也正常，启动时MAP数值也正常。
最后观察LNG气瓶出液管到水浴式汽化器的不锈钢管路表面没有上霜，正常情况，在打开LNG罐出液阀门后，这段管路时上霜的。
分析是LNG供气量不足，虽说稳压罐表显示压力够，可能是气体里的甲烷含量不足。
重新加液后，顺利启动。
问题根源是，车厂为了节约燃气费，给车辆仅加30升LNG，由于LNG瓶内存储着氮气，如果氮气压力高，LNG加入量会更少，直接导致供气不足，无法启动。
案例2：上海申龙客车新车调试时，一台CNG发动机无法启动。
检查更1换了发动机线束、点火线束、ECU线束、ECU、点火模块、点火垫圈、高压线、火花塞、电瓶、喷射阀；并检查了发动机进气管路、中冷管路、排气管路、节气门、点火正时、缸压等，发动机仍然无法启动。
最后更换发动机气瓶中天然气，发动机顺利启动。
据了解，申龙公司把气瓶买来装车之前，都要做保压试验，即往气瓶中充氮气，试验完毕之后会排空氮气。
这两台车无法启动，是由于气瓶中的氮气未能排净，导致瓶中天然气纯度不够造成。
案例3：内蒙古一卡车用户无法启动。
首先检查点火系统，拆下火花塞后，发现缸内有水，经确定认为是发动机清洗液。
启动打火把缸内水吹出，同时发现火花塞打火正常。
再检查供气系统，启动过程中检查FMV后喷气，喷气正常。
最后检查检查点火正时：将发动机盘车至一缸上止点，检查信号盘，发现点火提前角不对。
调节点火提前角后发动机可正常启动。
二、发动机启动困难案例1：新疆矿用车配WP12NG350E40发动机在冬季-30℃时，启动困难。
发动机起动转速开始时没有，起动几秒后会出现，但偏低80-290r/min，起动电源电压低14v左右，机油使用潍柴专用CH级15w-40，发动机冷却液使用的是潍柴专用-35度，环境温度：-30度。
