SH/T 3503-J315
卧式设备安装检验记录
Horizontal Equipment
Installation Inspection Record
工程名称：
Project：
单元名称：
Unit：
Description Item No.
Specification

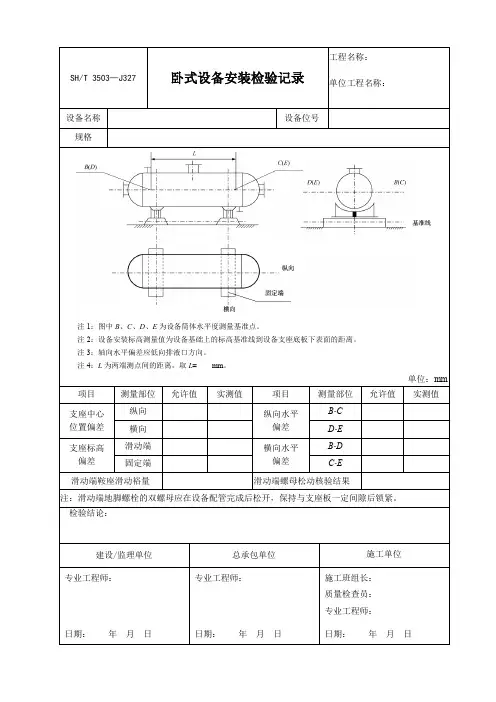

Note 1：B、C、D、E shown in the sketch are bench marks for measuring the equipment shell levelness.
Note 2：The elevation of equipment installed shall be measured from the baseline on the equipment foundation to the lower surface of the base plate of the equipment support.
Note 3：The deviation in axial levelness shall be in line with the drain direction.
Note 4：L is the distance between two end check points. L= mm.
Unit：mm
Item Measuring
Point
Allowable
Value
Actual
Value
Item
Measuring
Point
Allowable
Value
Actual
Value
Deviation in Central Position of Support Longitudinal Deviation in
Longitudinal
Levelness
B- C Horizontal D- E
Deviation in Elevation of Support Sliding Side Deviation in
Horizontal
Levelness
B- D Fixed Side C- E
Slide tolerance of the support at the sliding side mm Nut loosening and tightening status
Inspection Conclusion：
Owner/Supervision Contractor General Contractor Construction Contractor
Discipline engineer：Date：Discipline engineer：
Date：
Discipline engineer：
Quality inspector：
Construction foreman：
Date：
SH/T 3503—2007
C.19 SH/T3503－J315“卧式设备安装检验记录”，表格中“滑动端鞍座滑动裕量”与“螺母松动核验结果”栏应在设备配管完成之后核查确认。
