3M4932胶带
3M胶带型号分类与用途
3M胶带型号分类1、3M双面光学透明胶带OCA：8142A、8212、8141、8161、8185、8187、9483、8172、8195、81972、3M导电胶带/3M导电纯胶膜9712、9713、9719、9703、9705、9708、9709；异方性导电胶膜：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R等最新型号3MACF导电胶膜、异方性导电胶膜、异方性导电胶带、ACF胶带3、3M热熔胶膜:3M615,3M615S,3M615ST,3M406,3M583,3M688,3M690,3M690T,3MAF-111,3MAF-434、3M导热胶膜:3M8805;3M8810;3M8815;3M8820;5、3M导热垫片:3M9889FR,3M9894FR,3M9879Fr6、3M导热接口垫片:3M5516,3M5591,3M5591S,3M5592S,3M5595S,3M5589H,3M5590H7、3M硅胶和亚克力双面胶带：9731，9731B，9731RW一面是硅胶,一面是亚克力胶8、3M遇水指示标签\质保和安全胶带：3M5557,3M5557NP,3M5558,3M55599、3M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、4040、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9632、936BK、9313B、9005、4362S、4363S、4364S10、3MVHB胶带：此系列产品可以广泛用于金属，塑料，玻璃，陶瓷等多种材料的架构粘结，如电子产品塑料部件的固定，夹层玻璃等。

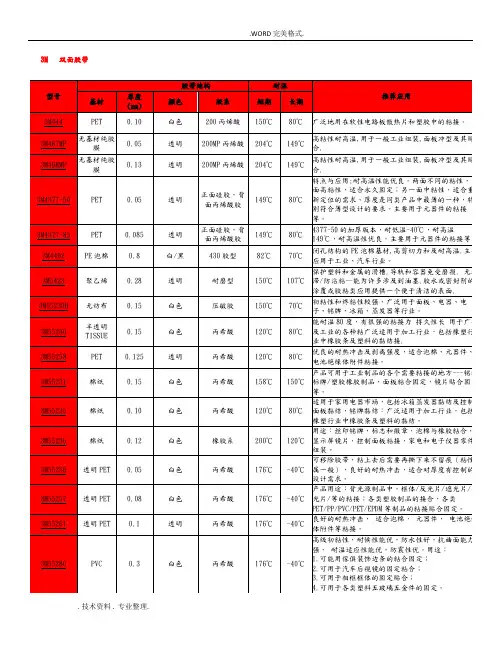

3M双面胶型号和特点介绍
3M双面胶带3M胶带型号列表3M VHB胶带主要3M双面胶产品列表:产品型号/ 产品名称/ 标准规格/ 一般用途3M 9495LE 300LSE 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 9690 300MP 双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9495MP 200MP双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9492MP 200MP双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9009 300 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 9019 300 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 966 100MP 双面胶带 , 耐260度高温（FPC适用）3M 9079 3M耐高温双面胶带, 耐260度高温（FPC适用）9461P 100MP 双面胶带 , 耐260度高温（FPC适用）3M 9485PC 350 双面胶带 , 耐260度高温（FPC适用）3M 9482PC 350双面胶带 , 耐260度高温（FPC适用）3M 9460PC VHB 双面胶 , 0.05MM厚纯胶膜耐高温,FPC用3M 9469PC VHB 双面胶 , 0.13MM厚纯胶膜耐高温,FPC用3M 9473PC VHB 双面胶 , 0.25MM厚纯胶膜耐高温,FPC用3M 8142 光学透明双面胶带 , 0.13MM厚适用于触摸屏等需光透明之场合3M 467MP 468 双面胶带 , 一般工业用途3M 8008 8018 8608 988T 52330 55256 , 一般工业用途之双面胶带3M 7952MP 200MP 双面胶带 , 双面离型纸之467MP胶带3M 7945MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7956MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7957MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7959MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7961MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7993MP 200MP PET单面胶带 , 适用手机电话等便携电子产品按键3M 7997MP 200MP PET单面胶带 , 适用手机电话等便携电子产品按键3M 9672LE 300LSE 双面胶带 , 无基材胶膜，适用于难粘表面,3M 9075 丙烯酸系算面胶 , 无纺布基材3M 6408 丙烯酸系算面胶 , 无纺布基材,纸基,3M 9448 橡胶系双面胶 , 无纺布双面胶3M 9080 丙烯酸系双面胶 , 无纺布双面胶3M 4930 VHB, 0.4MM厚特强粘性泡绵双面胶3M 4920 VHB ,0.4MM厚特强粘性泡绵双面胶3M 4615 丙烯酸泡绵双面胶 , 0.4MM厚高柔性,3M 4945 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 4941 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 4611 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 5413 Kapton 胶带 , PCB波峰焊保护用, made in USA;3M 7413 Polyimide 胶带 , PCB波峰焊保护用,made in China;8402 PET胶带 600MMX33M PCB波峰焊保护用;8952,8951,851,850,853 PET胶带,3M 471 pvc胶带 , 标示胶带多种颜色3M 5702 , , 黄黑相间标示胶带3M 5453 PTFE 胶带 12"X60YD heat seal tape3M 5421 5423 5425 UHMW-PE 1"X18YD 抗磨降低摩擦胶带3M 425 铝箔胶带 1"X60YD 一般性用途3M 9703 自粘导电双面胶带 12"X36YD EL片、薄膜开关FPC等用3M 9713 热压导电双面胶带 12"X36YD EL片、薄膜开关FPC等用3M 331T 蓝色保护胶带 1.2MX100M PCB电镀保护胶带，不锈钢表2K10,3K04,332,保护膜;3M 2142 美纹纸遮蔽胶带 400mmX 50m PCB过锡炉（波峰焊）等遮蔽场合使用3M 244 美纹纸遮蔽胶带 400mmX 50m PCB过锡炉（波峰焊）等遮蔽场合使用8152,8902, PCB电镀绿胶带 1000MMX50M PCB电镀等遮蔽场合使用3M 610,600 测试胶带 1 "X36YD3M 616 遮光胶带 1"X36YD3M 810 隐形胶带 3/4"X36YD 一般性用途3M 811 半透明胶带 1/2"X36YD 一般性用途3M 665,666 双面胶带 1"X25YD 一面低粘性其他型号总览3M 胶带:410,415,444,465,467MP,468MP,469,665,666,920XL,924,926,927,950,966,969,471,500,610,810,600,#588,583,615,615S, 3M 脚垫,粘扣:SJ3562,SJ3527,SJ3440,SJ3441,sJ3540,3541,SJ3550,3551, SJ5302,5312,SJ5816,SJ5608,3M 双面泡绵胶带:4004,4008,4016,4026,4032,CP66,4052,4085,4416,4432,1600T;3M VHB胶带:4905,4910,4920,4921,4926,4929,4930,4932,4936,4941,4914,4945,4949,4950,4951,4952,4955,4959,4962,4965,4974,4951,4210,5392,4604,4608,4615,4630,4609,4627,5925,4008,4032,4026,4016,5952,4952,4979,4993,5408,5552,7303,7951MP,7953MP,7979,3M 双面胶带:9045MP,9056,9057,9059,9185MP,9415,9420,9425,9429,9449,9458,9459W,F9460PC,9461,9462,9465,9469,9471,55235,55230,6408,9472,9473,9482,9485PC,9490LE,9495MP,9495B,9495LE,9500PC,9505,9552,9589,9665,9667,300LSE,9671LE,9672LE,9690,9690B,9692,9695,9703,9713,9731,9752,9755,9820,9828,9885,9890,9925XL,8008,8018,8004,988T,55230,55231,55256m55257, 55280,55258,cip66,cip60,cip-47,cip-36,cip-01,cip-02, #9795，#9795B，966, #ST416,9079,#9609,#7303,#7816,7818,#7881,3M 标签材料:#7811,7812,7603,#3921,#77,1280,#851,#850,616,910,920, 402,8401,332T,5419,SuZhouDaTong,7413,8141,8142,9448,9448B,55230,55256,8008,8018,8608,988T,9080,9075,9070,6408;3M 汽车胶带:4229P,4211,4210,4211,4215,4016,4615,4611,4609,5314,4124,CP5008,cp5012,4218,GT6008,4229p,3M 铝箔胶带:425,427,#471,5702,#5421,5423,#5425,#5491, #5490,5480,5481,8952,#1020,#1115,#1040, 411,3M 保护膜:2124C,2104C,#3K04,2K10,332, 331T,336,361,375,371,373,401,411,415,420,3M 水溶性胶带:900,#9069,#9996,#913,#906,9974,9979,900B,906,#9996,#9979, #SJ3526,3527,SJ3551,3550,3M 封箱带:301,309,#371,#375,#373,3M 纸胶带:#232,#2307,2308,2309,200,2214, 244,2444,#2364,#6969,Kapton高温胶带:7413T,7413D,5413,7419,5419,2132,92,42,403M 纤维胶带:#8898,#898,893,89152517,336,8952,8402,950,8902,367FR, 369FR,3M 电气绝缘胶带:5,10,#11,27,40,42,#69,#60,#92,1350,1554,61,62,12,40,42,54,56,74,1298,1318,79,90,94,44,46,1276,1312,1339,1170,1181,1194,1245,1345,1190,AL-35FR,77,23,2228,2517,2157,13,24,70,130C,2220,2229,2166,1500,1600,1712,1700,1750, 33+,35,88,22,66R,2000,22, #610,#600,810,811,#8915,#5413,#5451,3M 柔印胶带:1015,1020,1120,1115,1040,1614,1640,1815,1820M,1915,1920M,1181,1190,1205,1245,1170,1281,1285,1290,1318,1345,1350, 200,2214,244,213,2310,214,232,2307,2308,2309,243J,217,236,241, 2517,250,.WORD 完美格式.3M 胶水:DP100,DP420,190,2216,2214,125DP,DP190,CA40H,TE230,TE100,200,LC1110,2000NF,1357,5,10,4693,826,2262,4475,847,1300,4799,560, 847,2214,3M 喷胶:77,90,75,polygun-TC,3762,3749,3779,3747,3764,3748,695,620,70,23,13,24,2220,2157,2228,2229,1500, 1600,1750,1712,22,33+,35,88,2000,3M 研磨:7447,7440,7448,96,8440,5010,5020,509,8698,86,261U,734,241Q,161X,268L,372L,6450J,3M砂纸::263X,264,265,461X,468L,861X,261X,6001J,661X,200A,251U,261U,321A,361F,401Q,461F,577F,237AA,241D,307EA,577F,777F,248D,281W,431Q,983C,011K,211Q,216U,235U,236U,255P,734,415U,PN82482,PN05941,241D,GJRA46,6050,610, 2214,740,741,745,746,718,718A,709,701,702,963,963E,等3M 口罩:#8210,N95,8246,8247; 9001,9002,3M 防毒面具:6000,6200, 6001,6003,6057, ,3200, 6800,7800,3M 耳塞:1100,1110, 1270.1260, 14253M 安全防护眼镜:1621,1711,1722,. 技术资料 . 专业整理.。
3M胶带型号及用途
用于LCM，LED发光二极管，FV太阳能电池组件，TP触摸屏，PCB，FPC，光通讯器件，电子标签，电子纸，智能卡封装，EL冷光片，无源器件，封装测试，SMT表面贴装，摄像头，手机组装，电脑装配，DVD，数码产品，半导体芯片，传感器，电气绝缘，汽车电子，医疗器械等行业等3M胶带种类包括以下部分：其中红色字体部分为模切常用胶带1、3MVHB泡绵胶带：4920/4930/4950/4955/4959s2、3M双面丙烯酸泡绵胶带：Y-4615/Y-4609/ 4618/46223、3M双面聚氨酯泡绵胶带：4016/4026/40324、3M双面聚乙烯泡绵胶带：4462/4466/4492/44965、3M双面聚氯乙烯泡绵胶带：4408/4416/44326、3M双面氯丁泡绵胶带：4962/4965/49927、3MDualLockTM工业扣件：SJ3550/SJ3551/SJ3552/SJ35608、3M ScotchmateTM工业扣件：SJ3526/SJ3527/SJ3571/SJ35729、3M双面无纺布胶带：9Y9448/908010、3M双面胶带：415/444/9495/9500/9690/973111、3M ATG打胶系统：924/926/92812、3M双面转移胶膜：467MP/468MP13、3M夹片：7945MP/7956MP/7957MP/7993MP14、3M双面导热胶带：9882/9885/989015、3M双面导电胶带：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R16、3M双面光学透明胶带OCA：8212A、8212、8141、8161、8185、8187、8171、8172、8195、819717、3M PolymaskTM保护胶带：3112/4178/511218、3M金属箔胶带：261/271/281/291/300PL/1115/1120/143619、3M BumponTM和RollstockTM脚垫：5012/5302A20、3M标签：7815/7816/7847/7613/7868/793021、3M水溶性胶带：906B/910/917B/9952/9969/997422、3M柔印贴版胶带：1015/1020/1115/1915/192023、3M地面标识胶带：471/5700/570224、3M高分子材料表面滑爽胶带：5451/5480/5490/5491/549825、3MPET线路板电镀保护胶带：331T/335/336/850/851/85326、3M波峰焊保护胶带：5413/5419/7413/7413T27、3M玻璃布胶带：361/36728、3M遮蔽胶带：200/232/244/2308/2310/2364/269329、3M纤维胶带：8915/893430、3M丙烯酸减震泡棉3M5060-02，3M5060-03，3M5060-05，3M5060S-02，3M5060SR-03，3M5060SR-0531、3M医用胶带：单面薄膜胶带、双面胶带和转移胶带、无纺布和织造布胶带、水胶体胶带、泡沫胶带长期优势现货供应3M以下产品：3M导热界面材料8805、8810、8815、8820、9889FR、5506、5591S、55033M导电纯胶膜9712、9713、9719、9703、9705、9708、9709异方性导电胶膜：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R等最新型号3MACF导电胶膜、异方性导电胶膜、异方性导电胶带、ACF胶带3M高温胶带851、1278、1279、1280、5413、7414、5414、5419、5433、7413、7412、851ST、852ST3M光学透明胶带8212A、8212、8141、8161、8185、8187、8171、8172、8195、81973M遇水指示标签产品5557、5557NP、5558、55593M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、40、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9313B、9005、4362S、4363S、4364S,用于液晶显示器及背光模组用3M电磁屏蔽胶带电磁吸波材料：3M300PL铝箔胶带；3M508SN铜箔胶带；3M电磁屏蔽胶带/EMI/RFI胶带：9703,9705,9706,9708,9709,9709S,9709SL,9712，9713，9719，7761，7763，7765，7805，7810等；3M导电铜箔胶带：3M1181，3M1182，3M1183，3M1194，3MCU-35C，3M1245，3M1345，3M2245；3M导电铝箔胶带：3M1120,3M1170;3M1172,3M1178,3M1267;3MAL-25BT,3MAL-50BT,3MAL-25DC3M电磁吸波材料：3MAB5000电磁吸波材料；3MHigh-u磁场屏蔽片：1380；手机，CRT等；3M导电丙烯酸衬垫：eCAP7830,eCAP7830N；3MCN3190铜镍导电布；3M2191FR抗撕裂导电胶带；3MCN4190双面铜镍导电布胶带；3MAU2190导电金织物胶带；3MAG2300导电银织物胶带；3M电磁屏蔽套管：3MDS-5,DS-7,DS-10,DS-14,DS-30-DS-37。
3M产 品 型 号 产 品 名 称 标 准 规 格 一 般 用 途
产品型号/ 产品名称/ 标准规格/ 一般用途3M 9495LE 300LSE 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 9690 300MP 双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9495MP 200MP双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9492MP 200MP双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9009 300 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 9019 300 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 966 100MP 双面胶带 , 耐260度高温（FPC适用）3M 9079 3M耐高温双面胶带, 耐260度高温（FPC适用）9461P 100MP 双面胶带 , 耐260度高温（FPC适用）3M 9485PC 350 双面胶带 , 耐260度高温（FPC适用）3M 9482PC 350双面胶带 , 耐260度高温（FPC适用）3M 9460PC VHB 双面胶 , 0.05MM厚纯胶膜耐高温,FPC用3M 9469PC VHB 双面胶 , 0.13MM厚纯胶膜耐高温,FPC用3M 9473PC VHB 双面胶 , 0.25MM厚纯胶膜耐高温,FPC用3M 8142 光学透明双面胶带 , 0.13MM厚适用于触摸屏等需光透明之场合3M 467MP 468 双面胶带 , 一般工业用途3M 8008 8018 8608 988T 52330 55256 , 一般工业用途之双面胶带3M 7952MP 200MP 双面胶带 , 双面离型纸之467MP胶带3M 7945MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7956MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7957MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7959MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7961MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7993MP 200MP PET单面胶带 , 适用手机电话等便携电子产品按键3M 7997MP 200MP PET单面胶带 , 适用手机电话等便携电子产品按键3M 9672LE 300LSE 双面胶带 , 无基材胶膜，适用于难粘表面,3M 9075 丙烯酸系算面胶 , 无纺布基材3M 6408 丙烯酸系算面胶 , 无纺布基材,纸基,3M 9448 橡胶系双面胶 , 无纺布双面胶3M 9080 丙烯酸系双面胶 , 无纺布双面胶3M 4930 VHB, 0.4MM厚特强粘性泡绵双面胶3M 4920 VHB ,0.4MM厚特强粘性泡绵双面胶3M 4615 丙烯酸泡绵双面胶 , 0.4MM厚高柔性,3M 4945 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 4941 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 4611 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 5413 Kapton 胶带 , PCB波峰焊保护用, made in USA;3M 7413 Polyimide 胶带 , PCB波峰焊保护用,made in China;8402 PET胶带 600MMX33M PCB波峰焊保护用;8952,8951,851,850,853 PET胶带,3M 471 pvc胶带 , 标示胶带多种颜色3M 5702 , , 黄黑相间标示胶带3M 5453 PTFE 胶带 12"X60YD heat seal tape3M 5421 5423 5425 UHMW-PE 1"X18YD 抗磨降低摩擦胶带3M 425 铝箔胶带 1"X60YD 一般性用途3M 9703 自粘导电双面胶带 12"X36YD EL片、薄膜开关FPC等用3M 9713 热压导电双面胶带 12"X36YD EL片、薄膜开关FPC等用3M 331T 蓝色保护胶带 1.2MX100M PCB电镀保护胶带，不锈钢表2K10,3K04,332,保护膜;3M 2142 美纹纸遮蔽胶带 400mmX 50m PCB过锡炉（波峰焊）等遮蔽场合使用3M 244 美纹纸遮蔽胶带 400mmX 50m PCB过锡炉（波峰焊）等遮蔽场合使用8152,8902, PCB电镀绿胶带 1000MMX50M PCB电镀等遮蔽场合使用610,600 测试胶带 1 "X36YD3M 616 遮光胶带 1"X36YD3M 810 隐形胶带 3/4"X36YD 一般性用途3M 811 半透明胶带 1/2"X36YD 一般性用途3M 665,666 双面胶带 1"X25YD 一面低粘性5952,5925,5962,465,ST-416,55256,55257,8018,8008,8004,4032,1600T,CIP-66,CIP-01; 4210,4214,5344,4229P,4211,CP5008,5012;7413T,7413D,5413,5419,7419;7816,7815, 57816,4950,4951,4609,4612,4611,4032,4008;5300,4799,471,5702,2328,2214,200,244,21 42,9996j,917,r3227,906b,900b,405,9022;9969b;1020,1015,1040,8592,8591,55230,8411, 5491;3M VHB胶带：4926， 4963，4941，4956，4919，4979，4991，5925，5952，5962，4943，4957，4604，4608，4612，4620，4630，4609，4615，4611，4646，4655，4920，4930，4950，4955，4945，4946，4905，4910，4951，4932。
3M各类常用胶带型号及其简介
VHB 胶带3M™ VHB™ 胶带为全丙烯酸材料，在条件苛刻的应用中能够提供所需的强度和耐候性，而且其优异的粘弹性，可吸收冲击力。
且看不见的胶带帮助保持表面平整度和清洁，改善设计和外观。
产品名描述4604 产品编号:4604厚度:0.400基材:白色泡棉特点与应用:厚双面胶带。
低温环境下，初粘性也不错。
胶带较柔软，比较适合粘接凹凸表面。
4608 产品编号:4608厚度:0.800基材:白色泡棉特点与应用:厚双面胶带。
低温环境下，初粘性也不错。
胶带较柔软，比较适合粘接凹凸表面。
4914 产品编号:4914厚度:0.250基材:白/黑/灰/透明泡棉特点与应用:高粘接强度，高剪切强度，及优异的防水性能。
用于塑料外框粘接，固定电池于电池座，扫描仪外壳与玻璃的粘接。
4920 产品编号:4920厚度:0.375基材:白/黑/灰/透明泡棉特点与应用:高粘接强度，高剪切强度，及优异的防水性能。
用于塑料外框粘接，固定电池于电池座，扫描仪外壳与玻璃的粘接。
4930 产品编号:4930厚度:0.625基材:白色泡棉特点与应用:通用型的厚双面胶带，相对于薄双面胶带更为优异的剥离强度和耐UV性。
4941 产品编号:4941厚度:1.100基材:灰色泡棉特点与应用:高粘接强度，贴附性好，对许多涂料金属的贴附性强。
耐增塑剂。
适合粘接窗框条，管道等。
4945 产品编号:4945厚度:1.100基材:白色泡棉特点与应用:高粘接强度，贴附性好，对许多涂料金属的贴附性强。
耐增塑剂。
适合粘接乙烯装饰物等。
4951 产品编号:4951厚度:1.100基材:白色泡棉特点与应用:高粘接强度,使用温度最低可达０摄氏度。
适用于粘接面板到建筑物,卡车或拖车的铝框架上。
双面胶带3M™ 双面胶带，对塑料和金属材料，甚至粉末喷涂(如：UV喷涂的表面)或一些难粘表面具有优异的粘附性以两面相同胶粘剂之双面胶带产品名描述4801 产品编号:4801厚度:0.100-0.150基材:白色TISSUE透明特点与应用:两面不同的胶层厚度，适合粘UV 涂层的表面。
3M胶带型号分类与用途
3M胶带型号分类与用途3M是一个知名的多国企业，也是世界上最大的胶带制造商之一、3M 的胶带产品有许多不同的型号和用途，下面是一些常见的3M胶带型号分类与用途的介绍：1. 螺旋式胶带（Scotch Tape）：最常见的一种胶带，用于文具、办公用品和一般家庭用途，如封口信封、粘贴文件和卡片等。
2. 包装胶带（Packaging Tape）：用于包装、封箱和邮寄。
这种胶带通常有很强的粘性和耐用性，以确保包装箱的安全和完整性。
3. 双面胶带（Double-sided Tape）：一面粘在物体上，另一面粘在其他物体上。
常用于家居装饰、工艺品制作和贴合材料等。
4. 聚酰胺胶带（Polyimide Tape）：也称为Kapton胶带，具有高温耐受性和电绝缘性能，常用于电子器件的保护和固定。
5. 电子胶带（Electrical Tape）：用于电气和电子设备的绝缘和保护，以防止电流泄露和损坏。
6. 室内装饰胶带（Decorative Tape）：一种用于装饰和DIY项目的胶带，具有各种花纹和颜色可供选择。
7. 透明胶带（Clear Tape）：透明的胶带，可在一些需要透明粘合的场合使用，如图纸、照片的修补和封口。
8. 防滑胶带（Anti-slip Tape）：具有磨砂表面的胶带，用于防滑和增加地面摩擦力，在楼梯和斜坡等区域广泛使用。
9. 警示胶带（Warning Tape）：通常具有醒目的颜色和印刷标识，用于警示危险区域、区分不同区域和标记管道等。
10. 重型粘贴胶带（Heavy-duty Mounting Tape）：具有很高粘性的胶带，适用于固定和粘贴重型物品，如镜子、画框和装饰品等。
11. 剥离胶带（Removable Tape）：具有可移除性的胶带，适用于不会损坏表面的临时粘贴，如海报和临时标记。
12. 钩子胶带（Hook and Loop Tape）：也称为Velcro胶带，由一个钩和一个环组成，用于固定和连接物体，特别适用于布料和纺织品。

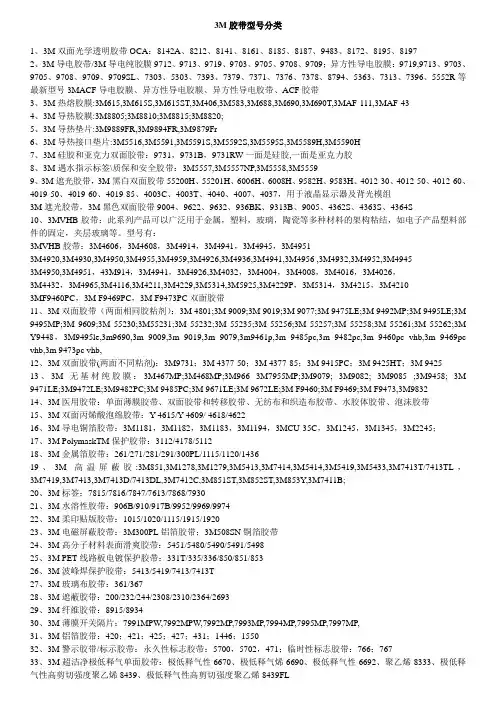

3M胶带型号分类
３M胶带型号分类1、3Ｍ双面光学透明胶带ＯCＡ:８1４2A、８2１2、8141、8161、81８5、８18７、９４83、8１72、８１9５、81972、３M导电胶带/３M导电纯胶膜9712、9713、9７1９、９７03、970５、9708、９709;异方性导电胶膜:97１９,９713、9７0３、９７05、9７0８、9７0９、97０9ＳL、7３０3、５303、７３93、7379、７371、7376、7３７8、8７94、53６３、7313、７39６、55５２R等最新型号3MACF导电胶膜、异方性导电胶膜、异方性导电胶带、ACF胶带3、3M热熔胶膜:3M61５，3M６15S，3M６1５ST,3M４06,3Ｍ５83，3Ｍ688,3Ｍ69０,3M６９0T,３ＭAＦ-11１,3MＡF－4３4、3M导热胶膜：3M８8０5；3M8810;3M8815;3Ｍ8820；5、３M导热垫片：３M988９FR，3M９894FR，3Ｍ9879Fr6、3M导热接口垫片:3Ｍ55１６，３M5591,３M5591S，3M5592Ｓ,3Ｍ5595S,3M5589H，3M５59０H７、3M硅胶和亚克力双面胶带：９7３1,973１Ｂ,97３1RＷ一面是硅胶,一面是亚克力胶8、3M遇水指示标签＼质保和安全胶带:3M5５57,3M5557NP,3M５５58,3M5５599、3M遮光胶带,３M黑白双面胶带55200H、55201H、６006H、60０８H、9５82H、9583H、401２-3０、4０12-50、４012-６0、4０19-50、４0１9-60、4０19-85、４００３C、４0０3T、4０40、4００7、4037，用于液晶显示器及背光模组3Ｍ遮光胶带,3M黑色双面胶带90０４、962２、9６32、936BＫ、93１3B、9005、4362S、４363S、４3６4Ｓ１0、3MVHB胶带：此系列产品可以广泛用于金属，塑料，玻璃，陶瓷等多种材料的架构粘结,如电子产品塑料部件的固定，夹层玻璃等。
3M胶带型号分类
3M胶带型号分类1、3M双面光学透明胶带OCA：8142A、8212、8141、8161、8185、8187、9483、8172、8195、81972、3M导电胶带/3M导电纯胶膜9712、9713、9719、9703、9705、9708、9709；异方性导电胶膜：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R等最新型号3MACF导电胶膜、异方性导电胶膜、异方性导电胶带、ACF胶带3、3M热熔胶膜:3M615,3M615S,3M615ST,3M406,3M583,3M688,3M690,3M690T,3MAF-111,3MAF-434、3M导热胶膜:3M8805;3M8810;3M8815;3M8820;5、3M导热垫片:3M9889FR,3M9894FR,3M9879Fr6、3M导热接口垫片:3M5516,3M5591,3M5591S,3M5592S,3M5595S,3M5589H,3M5590H7、3M硅胶和亚克力双面胶带：9731，9731B，9731RW一面是硅胶,一面是亚克力胶8、3M遇水指示标签\质保和安全胶带：3M5557,3M5557NP,3M5558,3M55599、3M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、4040、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9632、936BK、9313B、9005、4362S、4363S、4364S10、3MVHB胶带：此系列产品可以广泛用于金属，塑料，玻璃，陶瓷等多种材料的架构粘结，如电子产品塑料部件的固定，夹层玻璃等。
3M胶带型号及用法
用于LCM，LED发光二极管，FV太阳能电池组件，TP触摸屏，PCB，FPC，光通讯器件，电子标签，电子纸，智能卡封装，EL冷光片，无源器件，封装测试，SMT表面贴装，摄像头，手机组装，电脑装配，DVD，数码产品，半导体芯片，传感器，电气绝缘，汽车电子，医疗器械等行业等 3M胶带种类包括以下部分：1、3MVHB泡绵胶带：4920/4930/4950/4955/4959s2、3M双面丙烯酸泡绵胶带：Y-4615/Y-4609/ 4618/46223、3M双面聚氨酯泡绵胶带：4016/4026/40324、3M双面聚乙烯泡绵胶带：4462/4466/4492/44965、3M双面聚氯乙烯泡绵胶带：4408/4416/44326、3M双面氯丁泡绵胶带：4962/4965/49927、3M Dual LockTM工业扣件：SJ3550/SJ3551/SJ3552/SJ35608、3M ScotchmateTM工业扣件：SJ3526/SJ3527/SJ3571/SJ35729、3M双面无纺布胶带：9Y9448/908010、3M双面胶带：415/444/9495/9500/9690/973111、3M ATG打胶系统：924/926/92812、3M双面转移胶膜：467MP/468MP13、3M夹片： 7945MP/7956MP/7957MP/7993MP14、3M双面导热胶带：9882/9885/989015、3M双面导电胶带：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R16、3M双面光学透明胶带OCA：8212A、8212、8141、8161、8185、8187、8171、8172、8195、819717、3M PolymaskTM 保护胶带：3112/4178/511218、3M金属箔胶带：261/271/281/291/300PL/1115/1120/143619、3M BumponTM和RollstockTM 脚垫：5012/5302A20、3M标签：7815/7816/7847/7613/7868/793021、3M水溶性胶带：906B/910/917B/9952/9969/997422、3M柔印贴版胶带：1015/1020/1115/1915/192023、3M地面标识胶带：471/5700/570224、3M高分子材料表面滑爽胶带：5451/5480/5490/5491/549825、3MPET线路板电镀保护胶带：331T/335/336/850/851/85326、3M波峰焊保护胶带：5413/5419/7413/7413T27、3M玻璃布胶带：361/36728、3M遮蔽胶带：200/232/244/2308/2310/2364/269329、3M纤维胶带：8915/893430、3M丙烯酸减震泡棉3M5060-02，3M5060-03，3M5060-05，3M5060S-02，3M5060SR-03，3M5060SR-0531、3M医用胶带：单面薄膜胶带、双面胶带和转移胶带、无纺布和织造布胶带、水胶体胶带、泡沫胶带长期优势现货供应3M以下产品：3M导热界面材料8805、8810、8815、8820、9889FR、5506、5591S、55033M导电纯胶膜9712、9713、9719、9703、9705、9708、9709异方性导电胶膜：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R等最新型号3MACF导电胶膜、异方性导电胶膜、异方性导电胶带、ACF胶带3M高温胶带851、1278、1279、1280、5413、7414、5414、5419、5433、7413、7419、7413、7412、851ST、852ST 3M光学透明胶带8212A、8212、8141、8161、8185、8187、8171、8172、8195、81973M遇水指示标签产品5557、5557NP、5558、55593M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、4040、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9632、936BK、9313B、9005、4362S、4363S、4364S,用于液晶显示器及背光模组用3M电磁屏蔽胶带电磁吸波材料：3M300PL铝箔胶带；3M508SN铜箔胶带；3M电磁屏蔽胶带/EMI/RFI胶带：9703,9705,9706,9708,9709,9709S,9709SL,9712，9713，9719，7761，7763，7765，7805，7810等；3M导电铜箔胶带：3M1181，3M1182，3M1183，3M1194，3MCU-35C，3M1245，3M1345，3M2245；3M导电铝箔胶带：3M1120,3M1170;3M1172,3M1178,3M1267;3MAL-25BT,3MAL-50BT,3MAL-25DC3M电磁吸波材料：3MAB5000电磁吸波材料； 3MHigh-u磁场屏蔽片：1380；手机，CRT 等；3M导电丙烯酸衬垫：eCAP7830,eCAP7830N；3MCN3190铜镍导电布；3M2191FR抗撕裂导电胶带；3MCN4190双面铜镍导电布胶带；3MAU2190导电金织物胶带；3MAG2300导电银织物胶带；3M电磁屏蔽套管：3MDS-5,DS-7,DS-10,DS-14,DS-30-DS-37。
3M VHB 胶带 物性表
Tape NumberColorThickness in. (mm)Tape NumberColorThickness in. (mm)4930 (F) White 0.025 (0.64) 4955 White 0.080 (2.0) 4932 White 0.025 (0.64) 4956 (F) Gray 0.062 (1.55) 4936 (F) Gray 0.025 (0.64) 4957F Gray 0.062 (1.55) 4941 (F) Gray 0.045 (1.1) 4959 (F) White 0.120 (3.0) 4943F Gray 0.045 (1.1) 4979F Black 0.062 (1.55) 4945 White 0.045 (1.1) 4991 Gray 0.090 (2.3) 4946 White 0.045 (1.1) 5915 (P) Black 0.016 (0.4) 4947F Black 0.045 (1.1) 5925 (P) Black 0.025 (0.64) 4949 Black 0.045 (1.1) 5930 (P) Black 0.032 (0.8) 4950 White 0.045 (1.1) 5952 (P) Black 0.045 (1.1) 4951 White 0.045 (1.1) 5958FR Black 0.040 (1.0) 4952 White 0.045 (1.1)5962 (P) Black 0.062 (1.55)VHB ™T apesTechnical DataMay, 2013Product Description:3M ™ VHB ™ Tapes provide the convenience and simplicity of a tape fastener and are ideal for use in many interior and exterior bonding applications. In many situations, they can replace rivets, spot welds, liquid adhesives and other permanent fasteners.These 3M ™ VHB ™ Tapes are made with acrylic foam which is viscoelastic in nature. This gives the foam energy absorbing and stress relaxing properties which provides these tapes with their unique characteristics. The acrylic chemistry provides outstanding durability performance.These tapes utilize a variety of specific foam, adhesive, color and release liner types to provide each product/family with specific features. These features can include adhesion to specific or a broad range of materials, conformability, high tensile strength, high shear and peel adhesion, resistance to plasticizer migration, and UL746C recognition. All 3M ™ VHB ™ Tapes have excellent durability and excellent solvent and moisture resistance.Note: All 3M ™ VHB ™ Tapes should be thoroughly evaluated by the end user under actual use conditions with intended substrates to determine whether a specific tape is fit for a particular purpose and suitable for user ’s method of application, especially if expected use involves extreme environmental conditions or high dead load stress.3M ™ VHB ™ T ape ProductsTape NumberColorThickness in. (mm)4611 Dk Gray 0.045 (1.1) 4618 White 0.025 (0.64) 4622 White 0.045 (1.1) 4624 White 0.062 (1.55) 4646 Dk Gray 0.025 (0.64) 4655 Dk Gray 0.062 (1.55) 4905 Clear 0.020 (0.5) 4910 Clear 0.040 (1.0) 4914 White 0.010 (0.25) 4919F Black 0.025 (0.64) 4920 White 0.015 (0.4) 4926 Gray 0.015 (0.4) 4929 Black 0.025 (0.64) (F) or (P) after the product number designate that both a paper and film liner product version are available. [e.g. 4930 (paper liner) and 4930F (film liner),5915 (film liner) and 5915P (paper liner). See page 3 for specific details.3M ™ VHB ™ Tapes Adhesive Types:Multi-Purpose Acrylic: This adhesive bonds to a wide range of materials including metals, glass, and high and medium surface energy plastics and paints. This unique adhesive also has the ability to resist migration of plasticizers in vinyl substrates. Modified Acrylic: This adhesive bonds to medium low surface energy paints and plastics, including many powder coated paints in addition to the substrates listed with the multi-purpose acrylic adhesive (except plasticized vinyl).General Purpose Acrylic: This adhesive bonds to most higher surface energy substrates including metal, glass and high surface energy plastics.Low Temperature Appliable Acrylic: This adhesive can make bonds down to 32°F (0°C), compared to 50°F (10°C) for most acrylic adhesives. This adhesive system bonds to most high surface energy substrates including metal, glass and high surface energy plastics.Low Surface Energy: This high performance synthetic adhesive bonds to many lower surface energy substrates, including many plastics and power coated paints, plus smooth general purpose substrates.3M ™ VHB ™ Tapes Foam Types:Conformable: This foam provides high strength with the capability of conforming to the irregularities of rigid substrates, even when there might be slight mismatch.Very Conformable: This foam provides the highest level of conformability while maintaining high internal strength. Firm: This foam provides the highest level of foam strength in the 3M ™ VHB ™ Tapes family. Clear: Not technically a foam, this solid acrylic material provides excellent clarity.3M™VHB™Tapes3M™ VHB™ Tape Families:4941 This family utilizes multi-purpose acrylic adhesive on both sides of conformable foam. The adhesive provides excellent adhesion to a broad range of high and medium surface energy substrates including metals, glass, and awide variety of plastics, as well as plasticized vinyl. The conformable foam provides good contact, even withmismatched substrates. Available in gray and black.5952 This family matches the modified acrylic adhesive on both sides of very conformable foam, providing adhesion to the broadest range of substrates, including most powder coated paints. Available in black.4950 This family has general purpose adhesive on both sides of firm type foam. This family is typically used on metal, glass and high surface energy plastic substrates. Available in white and black.4945 This family has multi-purpose adhesive on both sides of firm foam. Available in white.4910 This family of clear tapes is excellent for applications where clear or colorless is desired. The general purpose adhesive on both sides is suitable for high surface energy substrates.4951 This family of tapes is based around the low temperature appliable acrylic adhesive system, utilized on both firm and conformable foam types. These products are suitable for high surface energy substrates. Available inwhite (firm foam) and gray (conformable foam).4952 This family utilizes the low surface energy adhesive on a firm foam. Available in white.4611 This family has a general purpose adhesive on both sides of firm foam. This family of tapes is typically used on metal substrates, and has the added feature of high temperature resistance, making it often suitable for bondingprior to high temperature paint processing. Available in dark gray.4622 This family has general purpose adhesive on the face side (the side that typically would be bonded first) and multi-purpose adhesive on the liner side (the side exposed when the release liner is removed) of a conformablefoam. Available in white.3M™ VHB™ Tape Product Family GuideNOTE: For easy product comparison, data in this product information page will be organized by product family.3M ™ VHB ™ TapesTypical Physical PropertiesNote: The following technical information and data should be consideredrepresentative or typical only and should not be used for specification purposes.3M ™ VHB ™ TapesTypical Performance CharacteristicsNote: The following technical information and data should be consideredrepresentative or typical only and should not be used for specification purposes.90° Peel Adhesion - Based on ASTM D3330 -T o stainless steel, room temperature, jaw speed 12 in/min (305 mm/min). Average force to remove is measured. 72 hour dwell.Normal Tensile (T-Block T ensile) - ASTM D-897 - T o aluminum, room temperature, 1 in 2 (6.45 cm 2), jaw speed 2 in/min (50 mm/min.) Peak force to separate is measured. 72 hour dwell.Dynamic Overlap Shear - ASTM D-1002 - T o stainless steel, room temperature, 1 in 2 (6.45 cm 2), jaw speed 0.5 in/min (12.7 mm/min.) Peak force to separate is measured. 72 hour dwell.3M ™ VHB ™ TapesTypical Performance CharacteristicsNote: The following technical information and data should be consideredrepresentative or typical only and should not be used for specification purposes.Static Shear - ASTM D3654 - To stainless steel, tested at various temperatures and gram loadings. 0.5 in 2 (3.22 cm 2). Will hold listed weight for 10,000 minutes (approximately 7 days). Conversion: 1500 g/0.5 in 2 equals 6.6 lb/in 2; 500 g/0.5 in 2 = 2.2 lb/in 2.Short Term Temperature Tolerance - No change in room temperature dynamic shear properties following 4 hours conditioning at indicated temperature with 100 g/static load. (Represents minutes, hours in a process type temperature exposure).Long Term Temperature Tolerance - Maximum temperature where tape supports at least 250 g load per 0.5 in 2 in static shear for 10,000 minutes. (Represents continuous exposure for days or weeks).3M™VHB™Tapes*Exception – 5915 (P) max. width 46 inches (1170 mm); 5925 (P) max. width 47 inches (1195 mm).Slitting T oleranceStandard slitting tolerance ± 1/32 inch (± 0.031 inch, ± 0.8 mm).Precision slitting with slitting tolerance of ± 1/64 inch (± 0.016 in., ± 0.44 mm) is available on select products with minimum order of full web increments.Core SizeAll products are provided on a 3 inch ID Core (76.2 mm).Converted PartsIn addition to standard and custom roll sizes available from 3M through the distribution network, 3M™VHB™ Tapes are also available in limitless shapes and sizes through the 3M Converter network. For additional information, contact 3M Converter Markets at 1-800-223-7427 or on the web at /converter.Shelf LifeAll 3M™VHB™ Tapes have a shelf life of 24 months from date of manufacture when stored at 40°F to 100°F (4°C to 38°C) and 0-95% relative humidity. The optimum storage conditions are 72°F (22°C) and 50% relative humidity.Performance of tapes is not projected to change even after shelf life expires; however, 3M does suggest that3M™VHB™ Tapes are used prior to the shelf life date whenever possible.The manufacturing date is available on all 3M™VHB™ Tape cores as the lot number. The lot number, typically a 4 digit code, is a Julian date (Y D D D). The first digit refers to the year of manufacture, the last 3 digits refer to the days after January 1. Example: A lot number of 9266 would translate to a date of manufacture of Sept. 22 (266th day of year) in 2009. On most products this is found as the 4 digits after the “9” following the product number. For tapes printed continuously around the core (e.g. 3M™VHB™ Tape 5952 family) the lot number typically will be the string of 4 digits preceding the product number.3M ™ VHB ™ TapesTapesConstant Factor 4941 at 1 kHz2.29 0.0245 Tapes 4941 hr ft °F 0.53 (w/mK) (0.08) 5952 0.37 (0.05) at 1 MHz 1.95 0.0506 4950/4945 0.63 (0.09) 4950 at 1 kHz 2.28 0.0227 4910 1.09 (0.16) at 1 MHz 1.99 0.0370 46110.77(0.11)5952 at 1 kHz2.14 0.00654910 at 1 kHz 3.21 0.0214 at 1 MHz 2.68 0.0595 4611 at 1 kHz 2.80 0.0130 at 1 MHz2.430.0564nAdditional Typical Performance CharacteristicsNote: The following technical information and data should be considered representative or typical only and should notbe used for specification purposes.Outgassing: 3M ™ VHB™ Tapes % TML %VCM %WVR Dielectric Breakdown Strength (ASTM D149)3M ™ VHB™ Tapes (in volts/mil)3M ™ VHB ™ TapesUL746C Listings - File MH 17478Category QOQW2 Component - Polymeric Adhesive Systems, Electrical Equipment4930 0.77 0.01 0.214932 2.41 0.66 0.23 49451.240.010.19TML - Total Mass LossVCM - Volatile Condensible Materials WVR - Water Vapor RegainedNASA Reference Publication, “Outgassing Data for Selecting Spacecraft Materials”, (11/18/2004) Available online at 4941 360 4926 330 5952 455 5925 520 4950 460 4920 640 4910 630 4611330Dielectric Constant (ASTM D150) 3M ™ VHB ™ Dielectric DissipationThermal Conductivity - K-value 3M™ VHB™ BTU in/at 1 MHz1.990.0374Resistivity (ASTM D257)R-Value = thicknessK-value(When units of K-value are BTU-in/hr ft °F and thickness is given in inches.)3M ™ VHB ™ Volume Resistivity Surface Resistance Tapes (in ohm-cm)(in ohms/square)4914 1.7 x 10>104941 2.1 x 10 2.7 x 105952 2.5 x 10>10 4950 1.5 x 10>10 4920 1.7 x 10>10 4910 3.1 x 10>10 46111.4 x 10>10Water Vapor Transmission Rate (WVTR) (ASTM F1249) at 38°C/100% RH 3M ™ VHB ™ Tapes 4950 14.0 g/(m 2 day) 4941 25.6 g/(m 2 day) 595237.1 g/(m 2 day)Solvent and Fuel ResistanceTypical 3M ™ VHB ™ Tape Properties for Modeling %R100 90 Thermal Coefficient Ae 8080 of Expansion1 x 10in/in/°F1.8 x 10mm/mm/°C Shear Modulus (@25°C, 1 Hz)d t 7070 he 6060 en 5050 s t 4040 i i 3030 4950 Family: 6 x 10Pa 4941 Family: 3 x 10Pa(Shear Modulus is both temperature and frequency dependent).Youngs Modulus: For VHB tapes the YoungsModulus will be about 3 times the Shear Modulus. v o 20e Salt WaterHydraulic Fluid10W30 Motor Oil KeroseneIsopropyl AlcoholJet Fuel20 10 0Poisson ’s Ratio T est MethodGlycol Antifreeze0.49Burn Characteristics 3M ™ VHB ™ Tape 5958FR Meets FAR 25.853 (a) 12 second vertical burn, Appendix F, Part I (a)(ii).Meets NBS Smoking Density (ASTM F814/E662). Meets Toxicity (Draeger Tube ABD0031, AITM 3.0005)• T ape between stainless steel and aluminum foil. • 72 hours dwell at room temperature. • Solvent immersion for 72 hours.• T est within 45 minutes after removing from solvent. • 90° peel angle.• 12 in./min. rate of peel.• Peel adhesion compared to control.Note: Continuous submersion in chemical solutions is not recommended. The above information is presented to show thatoccasional chemical contact should not be detrimental to tape performance in most applications in ordinary use.3M ™ VHB ™ TapesE s t i m a t e o f % o f M a x i m u m 3M ™ V H B ™ T a p e A d h e s i o nDesign and T ape Selection ConsiderationsChoose the right tape for the substrate: Adhesives must flow onto the substrate surfaces in order to achieve intimate contact area and allow the molecular force of attraction to develop. The degree of flow of the adhesive on the substrate is largely determined by the surface energy of the substrate.AdhesiveHigh surface energy— SubstrateLow surface energy— SubstrateThis illustration demonstrates the effect of surface energy on adhesive interfacial contact. High surface energy materials draw the adhesive closer for high bond strength.Relationship of Adhesion and Surface Energy for 3M ™ VHB ™ Tape Adhesive FamiliesHIGHMEDIUMLOW400-1100 Aluminum42-50 PolyimideABS38-39PVA36-37EVA18-33 Stainless Steel Copper Zinc Tin LeadAnodized Aluminum GlassPhenolic NylonAlkyd Enamel Polyester Epoxy Paint PolyurethanePolycarbonate (Lexan ®) PVC Noryl ® AcrylicPolane ® Paint Powder PaintPolystyrene AcetalKynar ® Paint Powder PaintPolyethylene Polypropylene Tedlar ® Silicone PTFENOTES: There are a wide variety of formulations, surfaces finishes and surface treatments available on substrate materials which can affect adhesion. This chart is intendedto provide only a rough estimate of the adhesion levels which can be expected on some common materials relative to a reference surface such as aluminum.Light abrasion of surface will significantly increase adhesion levels on many materials, except when using tapes 4952/4932.Use the right tape thickness: The necessary thickness of tape depends on the rigidity of substrates and their flatness irregularity. While the 3M ™ VHB ™ Tapes will conform to a certain amount of irregularity, they will not flow to fill gaps between the materials. For bonding rigid materials with normal flatness, consider use of tapes with thickness of 45 mils (1.1 mm) or greater. As the substrate flexibility increases thinner tapes can be considered.Use the right amount of tape: Because 3M ™ VHB ™ Tapes are viscoelastic by nature their strength and stiffness is a function of the rate at which they are stressed. They behave stronger with relatively faster rate of stress load (dynamic stresses) and will tend to show creep behavior with stress load acting over a long period of time (static stresses). As a general rule, for static loads, approximately four square inches of tape should be used for each pound of weight to be supported in order to prevent excessive creep. For dynamic loads, the dynamic performance characteristics provided on page 4 should be useful, factoring in the appropriate safety factors.Allow for thermal expansion/contraction: 3M ™ VHB ™ Tapes can perform well in applications where two bonded surfaces may expand and contract differentially. Assuming good adhesion to the substrates, the tapes can typically tolerate differential movement in the shear plane up to 3 times their thickness.Bond Flexibility: While an advantage for many applications where allowing differential movement is a benefit, the tape bonds are typically more flexible than alternative bonding methods. Suitable design modifications or periodic use of rigid fasteners or adhesives may be needed if additional stiffness is required.Severe Cold Temperature: Applications which require performance at severe cold temperatures must be thoroughly evaluated by the user if the intended use will subject the tape product to high impact stresses. A technical bulletin “3M™ VHB ™ Tape Cold Temperature Performance ” (70-0707-3991-0) is available for additional information.3M ™ VHB ™ TapesApplication T echniquesClean: Most substrates are best prepared by cleaning with a 50:50 mixture of isopropyl alcohol (IPA*) and water prior to applying 3M™ VHB™ Tapes.Exceptions to the general procedure that may require additional surface preparation include:• Heavy Oils: A degreaser or solvent-based cleaner may be required to remove heavy oil or grease from a surface and should be followed by cleaning with IPA/water.• Abrasion: Abrading a surface, followed by cleaning with IPA/water, can remove heavy dirt or oxidation and can increase surface area to improve adhesion.• Adhesion Promoters: Priming a surface can significantly improve initial and ultimate adhesion to many materials such as plastics and paints.• Porous surfaces: Most porous and fibered materials such as wood, particleboard, concrete, etc. need to be sealed to provide a unified surface.• Unique Materials: Special surface preparation may be needed for glass and glass-like materials, copper and copper containing metals, and plastics or rubber that contain components that migrate (e.g. plasticizers).Refer to 3M Technical Bulletin “Surface Preparation for 3M™ VHB™ Tape Applications” for additional details and suggestions. (70-0704-8701-5)*Note: These cleaner solutions contain greater than 250 g/l of volatile organic compounds (VOC). Pleaseconsult your local Air Quality Regulations to be sure the cleaner is compliant. When using solvents, be sure to follow the manufacturer ’s precautions and directions for use when handling such materials.Pressure: Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firmapplication pressure develops better adhesive contact and helps improve bond strength. Typically, good surface contact can be attained by applying enough pressure to insure that the tape experiences approximately 15 psi (100 kPa) pressure. Either roller or platen pressure can be used. Note that rigid surfaces may require 2 or 3 times that much pressure to make the tape experience 15 psi.Temperature: Ideal application temperature range is 70°F to 100°F (21°C to 38°C). Pressure sensitiveadhesives use viscous flow to achieve substrate contact area. Minimum suggested application temperatures:• 50°F (10°C): 3M™ VHB™ Tapes 4950, 5952, 4910, 4952, 4611, 4622 families. • 60°F (15°C): 3M™ VHB™ Tapes 4941, 4945 families. • 32°F (0°C): 3M ™ VHB ™ Tape 4951 families.Note: Initial tape application to surfaces at temperatures below these suggested minimums is notrecommended because the adhesive becomes too firm to adhere readily. However, once properly applied, low temperature holding is generally satisfactory. To obtain good performance with all 3M™ VHB™ Tapes, it is important to ensure that the surfaces are dry and free of condensed moisture.Time: After application, the bond strength will increase asthe adhesive flows onto the surface (also referred to as “we t out”). Bond Typical Build vs. TimeAt room temperature approximately 50% of ultimate bond strength will be achieved after 20 minutes, 90% after 24 hours 80and 100% after 72 hours. This flow is faster at higher temperatures and slower at lower temperatures. Ultimate bond strength can be achieved more quickly (and in some cases bond strength can be increased) by exposure of the bond to elevated temperatures (e.g. 150°F [66°C] for 1 hour). This can provide better adhesive wetout onto the substrates. Abrasion of the surfaces or the use of primers/ adhesion promoters can also have the effect of increasing bond strength and achieving ultimate bond strength more quickly.20 MIN 1 HOUR24 HOURS3M ™ VHB ™ TapesSpecial Cases:Rough Surfaces with 3M™ VHB™ Tapes 4932/4952 – 3M™ VHB™ Tapes 4932/4952 were designed to adhere to many low surface energy substrates. Rough surfaces created by light abrasion or textured molds are typically detrimental to bond strength with this tape family.Plasticized Vinyl – Plasticizers compounded in soft vinyl can migrate into adhesives and significantly change their performance characteristics. 3M™ VHB™ Tapes 4941 and 4945 families have very good plasticizer resistance and adhesion to many vinyl formulations. Because of the wide variation in vinyl formulations,however, evaluation by the user must be conducted with the specific vinyl used to ensure that performance will be satisfactory over time. Problems related to plasticizer migration can often be predicted by accelerated aging of assembled parts at 150°F (66°C) for one week).Technical InformationThe technical information, recommendations and other statements contained in this document arebased upon tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not guaranteed.Product UseMany factors beyond 3M ’s control and uniquely within user ’s knowledge and control can affect the use and performance of a 3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user ’s method of application.Limited Warranty3M warrants for 24 months from the date of manufacture that 3M™ VHB™ Tape will be free of defects in material and manufacture. 3M MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This limited warranty does not cover damage resulting from the use or inability to use 3M ™ VHB™ Tape due to misuse, workmanship in application, or application or storage not in accordance with 3M recommended procedures. AN APPLICATIONWARRANTY EXPRESSLY APPROVED AND ISSUED BY 3M IS AN EXCEPTION. THE CUSTOMER MUST APPLY FOR A SPECIFIC APPLICATION WARRANTY AND MEET ALL WARRANTY ANDPROCESS REQUIREMENTS TO OBTAIN AN APPLICATION WARRANTY . CONTACT 3M FOR MORE INFORMATION ON APPLICATION WARRANTY TERMS AND CONDITIONS.Limitation of Remedies and LiabilityIf the 3M ™ VHB ™ T ape is proved to be defective within the warranty period stated above. THE EXCLUSIVE REMEDY , AT 3M’S OPTION, SHALL BE TO REFUND THE PURCHASE PRICE OF OR TO REPAIR OR REPLACE THE DEFECTIVE 3M ™ VHB ™ TAPE. 3M shall not otherwise be liable for loss or damages, whether direct, indirect, special, incidental, or consequential, regardless of the legal theory asserted, including negligence, warranty, or strict liability.This Industrial Adhesives and Tapes Division product was manufactured under a 3M quality system registered to ISO 9001: 2008 standards.Industrial Adhesives and Tapes Division3M Center, Building 225-3S-06 St. Paul, MN 55144-1000800-362-3550 • 877-369-2923 (Fax) /vhbRecycled Paper 40% pre-consumer 10% post-consumer3M and VHB are trademarks of 3M Company. Tedlar is a registered trademark of E.I. Dupont De Nemours & Co. Inc.Kynar is a registered trademark of Arkema.Lexan and Noryl are registered trademarks of Sabic Innovative Plastics IP BV.Polane is a registered trademark of Swimc, Inc. Printed in U.S.A.©3M 2013 70-0709-3863-7(6/11)。
3M胶资料-很齐全的背胶资料
100多种3M胶的规格产品名称：3M============================================产品名称：3M 4926/4936/4936F/4941/4941F/4956/4956F/4979F胶的厚度不含离型纸mm（Mils）：0.4(15)/0.64(25)/0.64(25)/1.1(45)/1.1(45)/1.6(62)/1.6(62)/1.6(62)特性：灰黑色，闭孔结构丙烯酸泡绵基材，服贴性高，适用一般涂漆表面，抗增塑剂。
通过UL746认证。
/黑色4956胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：中主要用途：卡车子总装，电力机柜，广告标志，LCD，玻璃窗离型纸：A/A/B/A/D/A/B/B注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4932/4952胶的厚度不含离型纸mm（Mils）：0.64(25)/1.1(45)特性：白色闭孔结构丙烯酸基材，适用于PP或粉末喷涂表面胶型：合成短期耐温性：93`C(200°F)长期耐温性：71`C(160°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：高主要用途：办公家具，车辆总装，建筑标志离型纸：A/A注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4951胶的厚度不含离型纸mm（Mils）：1.1(45)特性：白色闭孔结构丙烯酸基材，适用施工温度可低至0`C胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：低主要用途：建筑低温操作的应用离型纸：C注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4943F/4957F胶的厚度不含离型纸mm（Mils）：1.1(45)/1.6(62)特性：灰色，高贴服性泡绵胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：低主要用途：蜂窝电话天线，电子收费装置离型纸：C/C注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4905/4910胶的厚度不含离型纸mm（Mils）：0.5(20)/1.0(40)特性：透明闭孔结构基材非常适用于透明材质之粘接胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：低主要用途：阳光顶内外层密封，玻璃门把手离型纸：D/D注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4920/4930/4950/4955/4959胶的厚度不含离型纸mm（Mils）：0.4(15)/0.64(25)/1.1(45)/2.0(80)/3.0(120)特性：白色，闭孔结构丙烯酸基材，通用型号。
3M胶带=3M双面胶带选型
3M胶带＝3M双面胶带＝3M单面胶带上海常祥实业有限公司是3M顶级合作伙伴，同时代理3M第一，二，六，七组的各种产品，包括各种单双面胶带，胶粘剂，各种光学薄膜等。
上海常祥实业是集研发、生产、服务为一体的企业集团，公司定位为PV太阳能电池组件，TP触摸屏，汽车电子，汽车组装，LCM，LED发光二极管，PCB，FPC，光通讯器件，电子标签，电子纸，智能卡封装，EL冷光片，无源器件，封装测试，SMT表面贴装，摄像头，手机组装，电脑装配，DVD，数码产品，半导体芯片，传感器，电气绝缘，汽车电子，医疗器械等行业的高端客户提供整合解决方案和服务。
公司在全球拥有141家世界500强客户。
为了更好的为尊崇的您提供优质服务，公司在上海、深圳、东莞、广州、北京、成都、西安、厦门、武汉、苏州等地设有分支机构。
上海常祥实业代理的3M胶带种类包括：0、3M光学胶OCA：8142ACL、8212、8141、8161、8185、8187、9483、8172、8195、8197、X10771、3M异方性导电膜ACF：9703、9705、9706、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R2、3M导电胶带：7761、7763、7765、7769、7805、7810、9725、9740、9764、9830、9780、9719、9712、9713、9708、9709、9709S、9709SL3、3M热熔胶膜:3M615,3M615S,3M615ST,3M406,3M583,3M688,3M690,3M690T,3MAF-111,3MAF-434、3M导热胶带:3M8805;3M8810;3M8815;3M88203M8940,3M89435、3M导热垫片:3M5516,3M5591,3M5591S,3M5592S,3M5595S,3M5589H,3M5590H6、3M导热垫片:3M9889FR,3M9894FR,3M9879Fr7、3M硅胶和亚克力双面胶带：9731，9731B，9731RW一面是硅胶,一面是亚克力胶8、3M遇水指示标签\质保和安全胶带：3M5557,3M5557NP,3M5558,3M55599、3M金属箔胶带：300PL,508SN10、3M接地散热粘结薄膜：737311、3M导电铜箔胶带：3M1181，1182，1183，1194，1188，1189，1245，1345，2245，3245,CU-10S，CU-35C12、3M导电铝箔胶带：3M1120,1170，1172，1178，1179，1267，AL-25BT，AL-50BT，AL-25DC，CEA-1,CEA-2,AL-40BLK13、3M电磁吸波材料：3M AB2000，AB5000，AB6000，AB700014、3MHigh-u磁场屏蔽片：138015、3M导电丙烯酸衬垫：7805，7806，7810，7850，7830，7830N，eCAP7830，eCAP7830N16、3M铜镍导电布：CN319017、3M抗撕裂导电胶带：2191FR18、3M铜镍导电布胶带：CN3190,CN4190,CN449019、3M导电金织物胶带：AU219020、3M导电银织物胶带：AG230021、3M金属箔胶带：AL-35FR,AL-36FR,AL-36NC,CEAP-1,AL-37BLK,AL-40BLK22、3M铜镍导电布胶带：CEF-1,CEF-2,CEF-3,CEF-6,CEF-823、3M导电泡棉：FOF系列，形状有：矩形,D型,C型,L型,P型等24、3M电磁屏蔽套管：3MDS-5,DS-7,DS-10,DS-14,FS-30-FS-3725、3M玻璃布电气绝缘胶带：CIG－126、3M防静电胶带：4027、3M聚酯薄膜胶带：＃5、＃5K、＃54、＃56、＃57、＃74、＃75、＃1350F－1、＃1350F－2、＃1350T－1、＃1351－1、＃1351－2、＃1388、129828、3M醋酸布绝缘胶带：3M11#、3M28#、3M1554#、3M1554K、155829、3M环氧薄膜胶带：3M#1、Super10、Super2030、3M聚酰亚胺薄膜胶带：＃92、＃1205、＃1206、＃98C－1、＃98C－2、＃98C－1231、3M附膜铝箔胶带：CEAP－132、3M双面胶带（两面相同胶粘剂）：3M4801，3M9009，3M9019，3M9077，3M9475LE，3M9492MP，3M9495LE，3M9495MP，3M9609，3M55230，3M55231，3M55232，3M55235，3M55256，3M55257，3M55258，3M55261，3M55262，3M Y9448，3M9495le，3m9690，3m9009，3m9019，3m9079，3m9461p，3m9485pc，3m9482pc，3m9460pc vhb，3m9469pc vhb，3m9473pc vhb33、3M双面胶带(两面不同粘剂)：3M9731，3M4377-50，3M4377-85，3M9415PC，3M9425HT，3M942534、3M无基材纯胶膜：3M467MP，3M468MP，3M966，3M7955MP，3M9079，3M9082，3M9085，3M9458，3M9471LE，3M9472LE，3M9482PC，3M9485PC，3M9671LE，3M9672LE，3M F9460，3M F9469，3M F9473，3M983235、3M医用胶带：单面薄膜胶带、双面胶带和转移胶带、无纺布和织造布胶带、水胶体胶带、泡沫胶带36、3M双面丙烯酸泡棉胶带：Y-4615/Y-4609/4618/462237、3M电信电气绝缘胶带：3m80T,3m88T,3m电缆芯线绑扎膜,3m油灰胶带,3m DR胶带38、3M PolymaskTM保护胶带：3112/4178/511239、3M金属箔胶带：261/271/281/291/300PL/1115/1120/143640、3M高温屏蔽胶带:3M851,3M1278,3M1279,3M5413,3M7414,3M5414,3M5419,3M5433,3M7413T/7413TL，3M7419,3M7413,3M7413D/7413DL,3M7412C,3M851ST,3M852ST,3M853Y,3M7411B41、3M标签：7815/7816/7847/7613/7868/793042、3M水溶性胶带：906B/910/917B/9952/9969/997443、3M柔印贴版胶带：1015/1020/1115/1915/192044、3M扣件：SJ-3526，SJ-3527，SJ-3571，SJ-3572，SJ-3541，SJ-3542，SJ-3550，SJ-3551，SJ-3552，SJ-356045、3M高分子材料表面滑爽胶带：5451/5480/5490/5491/549846、3MPET线路板电镀保护胶带：331T/335/336/850/851/85347、3M波峰焊保护胶带：7413T,5413,5419,741348、3M玻璃布胶带：361，36749、3M遮蔽胶带：200，232，244，2308，2310，2364，269350、3M纤维胶带：8915，893451、3M薄膜开关胶带：7991,7992P,7993,7994,7995,799752、3M铝箔胶带、铅箔胶带、抗腐蚀胶带胶带：420，421，425，427，431，1446，155053、3M地面标识胶带/警示胶带：永久性标志胶带：471，5700，5702；临时性标志胶带：766；76754、3M超洁净极低释气单面胶带：极低释气性6670、极低释气烯6690、极低释气性6692、聚乙烯8333、极低释气性高剪切强度聚乙烯8439、极低释气性高剪切强度聚乙烯8439FL55、3M超洁净薄性胶带：3M501FL，502FL，504FL56、3M洁净标签材料：3M5770（NF），5771，5775，5776NF57、3M阻尼聚合物：3M110P02，110P05，112P02，112P0558、3M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、4040、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9632、936BK、9313B、9005、4362S、4363S、4364S59、3M双面聚氨酯泡棉胶带：4016，4026，403260、3M双面聚乙烯泡棉胶带：4462，4466，4492，449661、3M双面聚氯乙烯泡棉胶带：4408，4416，443262、3M双面氯丁泡棉胶带：4962，4965，499263、3M双面无纺布胶带：9448，908064、3M电工胶带：1500,1700,171265、3M双面胶带：415，444，9495，950，9500，9690，973166、3M丙烯酸减震泡棉：3M5060-02，3M5060-03，3M5060-05，3M5060S-02，3M5060SR-03，3M5060SR-0567、3M双面导热胶带：9882，9885，989068、3M波峰焊保护胶带：3m5413kapton，3m7413polyimide，3m8201kapton，3m8130kapton，3m2142，3m24469、3M特氟龙胶带：355,850B,5423,8915,9381L,7993mp,7997mp,ptfe5480,5481,5490,5491,5451,545370、3M无纺布丙烯酸胶带：3m9075，3m6408，3m9080，3m9448橡胶系双面胶71、3M保护胶带；3M331t蓝色保护胶带3m8152电镀绿色保护胶带72、3M测试胶带：3M610,3M600透明胶带；3m810半透明胶带73、3M双面绵纸胶带55230、55230H、55231、55235、5523674、3M双面PET胶带55256、55257、55258、55260、55261、55262、917875、3M乙烯胶带：471，472，474，477，4731，764，76576、3M电镀胶带：470，484，49577、3M聚乙烯胶带：480，481，481178、3M防黏贴表面和隔离纸拼接胶带：8901，8905，8402，8911，8952，8952L，895379、3M胶片拼接胶带：8421，8422，8429，844580、3M电路板制造胶带：851，1728，1280，1285，129081、3M铝箔/加强型胶带：363，1430，363382、3M减振箔：434，435，436，2552；83、3M阴极防护产品-锌水凝胶：472784、3M结构胶带：9244，9245，924685、3M热粘胶带：4237，5403，5404，5406，4233，5408，4974，498186、3M泡棉胶带：4004，4008，4016，4032，4052，4056，4085，4408，4416，4432，4921，4462，4466，4492，4496，4965，4992，4658F等87、3M防滑胶带，防滑贴，防滑垫：610黑色,620透明,630黄色,510黑色,530黄色,370灰色,310黑色,220透明,280白色88、3MVHB胶带：此系列产品可以广泛用于金属，塑料，玻璃，陶瓷等多种材料的架构粘结，如电子产品塑料部件的固定，夹层玻璃等。
3M胶带目录大全
一、3M双面泡绵胶带3M弹性泡绵基材可以可以填补缝隙及黏结不平整表面，可以起到密封，缓冲，减振，抗冲击，耐温差及绝缘等功能。
聚氨酯（PU）：4004,4008,4016,4026,4032,4052,4056,4085聚氯乙烯（PVC）：4408,4416,4432粘弹体：4921氯乙烯（PE）：4462,4466,4492,4496氯丁橡胶（Neoprene）：4962,4965,4992丙烯酸：4658F二、3M VHB柔性胶带3M VHB胶带4926,3M4936,3M4936F,3M4941,3M4941F,3M4956,3M4956F,3M4919,4947F,4979F,4991 粘合窗框条，镜头和LCM粘结密封；贴合预涂漆金属；装配乙烯管道和导管；弧行面的黏结软质PVC材料的固定3M VHB胶带3M5915,3M5925,3M5930,3M5952,3M5962,3M4943F,3M4957F,贴合手机天线，车辆自动通行税标签,各种塑料和油漆系统的贴合。
3M VHB胶带4604,3M4608,3M4612,3M4609,3M4615,3M4620,3M4630贴合金属装饰物和面板三、3M VHB胶带3M VHB胶带4611,3M4646,3M4655预选喷涂粉末应用，型材和加强筋贴合3M VHB胶带3M4920,3M4930,3M4950, 空调加强筋贴合，办公家具和电信设备粘合，粘结卡车火车的铝到不锈钢支架，广告牌粘合到框架等3M VHB胶带4945,3M4955,3M4959贴合乙烯装饰物和压延物，贴合预涂漆拖车和卡车的外壳等3M VHB胶带4946,3M4905,3M4910用于粘结透明物质:如密封天窗内外窗顶，装配透光广告牌，贴合树脂玻璃的边沿等3M VHB胶带4951 可在低至0度下操作，如面板装配到建筑物、卡车、拖车的铝框架上，装饰物装配到可移动建筑物上3M VHB胶带4932,3M4952 PP聚苯乙烯，PE聚丙烯等低表面能材料的黏结。
3MTM双面胶带
型号94489448H 白色胶带9448B 黑色胶带厚度0.15（mm）宽度 1.2（mm）基材不织布短期耐温性120（℃）长期耐温性80（℃）适用范围金属，铭牌，橡胶胶性：耐高温，耐候性佳，粘性强。
用途铭牌，橡胶，泡棉与橡胶粘合。
型号9080厚度0.16（mm）宽度 1.2（mm）基材：绵纸上短期耐温性200（℃）长期耐温性120（℃）适用范围金属，铭牌，橡胶丝印铭牌，标志和徽章控制面板粘接泡棉与橡胶粘合家电和电子仪器零件组装显示屏镜片产品型号9075厚度0.08（mm）宽度 1.2（mm）基材：绵纸上短期耐温性120（℃）长期耐温性80（℃）适用范围显示屏镜片标志和徽章型号9495MP胶的厚度不含离型纸mm(Mils)：0.13基材：PET离型纸：58#PCK特性：在高表面能之塑料胶及金属表面有良好的剥离力耐温性：140℃抗溶：(300)℉剂性相对粘性：120℃(250)℉主要用途：图案铭板行动电话或传呼器之LCD视窗型号3M9495LE高强度双面胶带胶的厚度（不含离型纸）：0.2mm，基材：PET；离形纸：58#PCK耐高温：短期140度，长期120度。
特点：双面涂布300LSE胶，针对低表面，能量表面。
主要用途：挤出成型塑胶型号3M9690白色0.13MM厚，PET基材，9690B为黑色PET，针对一般塑胶及泡棉有极佳粘度，短期耐温140摄氏度，长期耐温65摄氏度。
主要用于泡棉背胶及垫圈。
移动电话等电子产品之LCD视窗。
型号3M467MP无基材双面胶带(即胶膜)厚度0.05MM,耐高温：短期180度，长期120度。
高性能丙烯酸胶膜,可用于一般工业组装,面板冲型及其贴合3M双面胶部分3M热熔胶膜：3M615 无基材系列：3M467MP、3M468MP、3M927、3M950、3M966、3M 9460、3M9469、3M9473、3M9471、3M9472LE 、3M9472、3M9472、3M9471LE、3M9472LE、3M9671LE、3M9672LE、3M9458、3M9485、3M9703、3M9502、3M有基材系列不织布基材类：3M9448H、3M9448B、3M 9080、3M9075、3M9070、3M6408、3M9888TPET基材类：3M9495MP、3M9495LE、3M9690、3M9690B、3M9609、3M9425、3M9415、3M9500PC、3M9713、3M9731、3M9742、3M9795、3M9795B、3M9799、3M9882、3M444、3M9009、3M9888T、3M9019、3M9079、3M7945MP、3M7952MP、3M7953MP、3M7956MP、3M7959MP、3M7961MP、3M9465PC、3M9492MP、3M615、3M615S 、耐高温标签：7812、高柔性压克力泡棉类：3M4604、3M4608、3M4609、3M4615、VHB压克力泡棉类：3M4910、3M4914、3M4920、3M4926、3M4929、3M4930、3M4932、3M4941、3M4945、3M4950、3M4951、3M4952、3M4906 、3M4968、3M4955、3M4956、3M4959、PU压克力泡棉类：3M4008、3M4026、3M4032、3M4052、3M4038、3M4039、汽车用压克力泡棉类：3M4211、3M4212、3M4213、3M4215、3M4218P、3M4229P、3M4611、商标印刷类：3M7323、3M7381、3M7384、3M7600、3M7603、3M7815、3M7616、3M7818、3M7875、3M7881、3M7887、3M单面胶电工用绝缘胶带：3M1350、3M1318、3M5# 、3M10#、3M20#、3M44#、3M56#、3M1205、3M850B、3M44DA 、3M44TA、封箱用纤维胶带：3M893 、3M897、3M898、3M8915、3M8934、贴地板用标识胶带：3M471、保护膜：3M3K04电路板印刷用高温胶带：3MS10、3M69#、3M5413、3M5419、3M5490、3M7413、测试胶带：3M600# 、3M610# 、3M810、3M保护膜：3M331T、3M3112C、3M5112C、3MCPF-10、3M美纹胶带：3M244、3M2142、3M铜铝箔：3M1170、3M1181、3M1182、3M1183 3M1194 、3M1245 、3M胶水及喷胶：3M7533 WSP-1、3M75#、3M77#、3M94#、3M脚垫：3MSJ-5816、3MSJ-5808。
3M VHB胶带简介
3M V H B双面胶带
高密度的丙烯酸泡绵基材，丙烯酸背胶，优异的黏结强度，良好的密封性能，可代替铆，焊等传统机械连接方式起结构固定作用，抗紫外线，抗溶剂，可用于户外。
应用：
金属，塑料，玻璃，陶瓷等多种材料的结构黏结。
如金属的加强筋，电子产品塑料部件的固定，夹层玻璃等。
3M 4920,4930,4950,4955,4959 VHB胶带：基本型号，适用于金属，玻璃及大多数塑料等高表面能材质的黏结。
3M4926,3M4936,3M4941,3M4956 VHB胶带：
贴服性好，抗增塑剂，适用于不平整面，如弧行面的黏结，和软质PVC材料的固定。
3M4932,3M4952 VHB胶带：
适用于PP，PE等低表面能材料的黏结。
3M4945 VHB胶带：
抗增塑剂，适用于软质PVC材料的黏结。
3M4951 VHB胶带：
低温操作型，可在低至0摄氏度的情况下操作，适合冬季室外的施工。
3M F9460PC/F9469PC/F9473PC VHB胶带：
超高强度丙烯酸转移胶膜适用于电子行业及高表面能材料黏结。
3m VHB胶带产品信息。
3M双面胶带的型号和基本用途
3M双面胶带的型号和基本用途，供尊崇参考：一、双面胶带(两面不同粘剂) 3M 9731厚度:0.140;基材:半透明PET特点与应用:丙烯酸/有机硅双面胶带，适合一面粘接硅树脂，一面塑料材料的粘接。
3M 4377-50厚度:0.050 基材:透明PET特点与应用:耐高温性能优良。
两面不同的粘性，一面高粘性，适合永久固定；另一面中粘性，适合重新定位的需求。
厚度是同类产品中最薄的一种，特别符合薄型设计的要求。
主要用于元器件的粘接等。
3M 4377-85 厚度:0.085;基材:透明PET特点与应用:是4377-50的加厚版本，同样耐高温性优良，但不如9731的耐高温性。
3M 9415PC 厚度:0.050;基材:透明PET特点与应用:主要用于一面重新定位的功能。
3M 9425HT 厚度:0.125;基材:透明PET特点与应用:耐高温性能优良。
两面不同的粘性，一面高粘性，适合永久固定；另一面中粘性，适合重新定位的需求。
例如：元器件的粘接，特别是对温度有一定要求的元器件。
3M 9425 厚度:0.140;基材:透明PVC特点与应用:耐高温性能不如9425HT，也是两面不同的粘性，一面高粘性，适合永久固定；另一面中粘性，抗UV 性能优异。
适合重新定位的需求，例如：普通元器件的粘接二、双面胶带(两面相同胶粘剂) 3M 4801 厚度:0.100-0.150 ;基材:白色TISSUE透明特点与应用:两面不同的胶层厚度，适合粘UV涂层的表面。
3M 9009厚度:0.05;基材:透明PET 特点与应用:薄PET胶带，良好的耐热冲击，特别适合于缓震垫片的粘接。
3M 9019 厚度:0.03;基材:透明PET 特点与应用:超薄PET胶带，良好的耐热冲击，特别适合于对厚度有要求的缓震垫片或LCD 背光模组片材的粘接。
3M 9077厚度:0.05;基材:白色TISSUE 特点与应用:优异的耐热冲击，可用于的高温无铅工艺，其离型纸也可以过回流焊，还具有低挥发性，易模切的特点。
双面胶及泡棉材质规格性能一览表
Poron
品名 4701-92-25031-04 4701-92-25041-04 4701-92-20081-04 SR-S-24P SR-S-32P SR-S-40P SR-S-48P SR-S-70P LE 20 L32 L24 MS-40 ML-32 MH32 MH48 H48C HH48C 厚度（mm) 0.79 1.04 2.06 2 1.5/2 0.5/0.7/1 0.3 0.2 3.0-5.0 1.5-6.0 3.0-15 2 2/3 2/2.5 0.8-4 0.8-4 0.8-4 柔软度 特别柔软 特别柔软 特别柔软 特别柔软 特别柔软 特别柔软 特别柔软 特别柔软 非常柔软 柔软 柔软 非常柔软 柔软 中等硬度 中等硬度 中等硬度 中等硬度 回弹性 慢回弹 慢回弹 慢回弹 慢回弹 慢回弹 慢回弹 慢回弹 慢回弹 通用 通用 通用 通用 通用 通用 通用 通用 通用 20 80 80 60 70 130 284 250 390 25%Compression Load Deflection(Kpa) 8-58 8-58 7-35 8 11 15 22 密度(KG/M ) 400 400 320 240 320 400 480 700 200 320 240 400 320 320 480 480 480
泡绵双面胶带
产品名称 3M4914 3M4920 3M4930 3M4932 3M4941 3M4945 3M4211 3M4213 3M4218 3M4026 3M4032 Tesa 4952 基材 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 丙烯酸泡绵 PU泡绵 PU泡绵 PE泡绵 胶粘剂 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 丙烯酸 总厚度 (mm) 0.25 0.4 0.64 0.64 1.1 1.1 1.2 0.8 1.1 1.6 0.8 0.1 工作温度℃(低 相对粘性 相对粘性 /高)长期 (高表面能) (低表面能) –40/93 –40/93 –40/93 –40/71 –40/93 –40/93 –40/93 –40/93 –40/93 –40/104 –40/104 NA/80 高 高 高 高 高 高 高 高 高 高 高 高 低 低 低 高 中 低 低 低 低 低 低 低 应用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 高强度丙烯酸泡绵胶带，可户外使用 通用型泡绵胶带，户外使用 通用型泡绵胶带，户外使用 通用型泡绵胶带，户外使用
3M胶资料-很齐全的背胶资料
100多种3M胶的规格产品名称：3M============================================产品名称：3M 4926/4936/4936F/4941/4941F/4956/4956F/4979F胶的厚度不含离型纸mm（Mils）：0.4(15)/0.64(25)/0.64(25)/1.1(45)/1.1(45)/1.6(62)/1.6(62)/1.6(62)特性：灰黑色，闭孔结构丙烯酸泡绵基材，服贴性高，适用一般涂漆表面，抗增塑剂。
通过UL746认证。
/黑色4956胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：中主要用途：卡车子总装，电力机柜，广告标志，LCD，玻璃窗离型纸：A/A/B/A/D/A/B/B注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4932/4952胶的厚度不含离型纸mm（Mils）：0.64(25)/1.1(45)特性：白色闭孔结构丙烯酸基材，适用于PP或粉末喷涂表面胶型：合成短期耐温性：93`C(200°F)长期耐温性：71`C(160°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：高主要用途：办公家具，车辆总装，建筑标志离型纸：A/A注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4951胶的厚度不含离型纸mm（Mils）：1.1(45)特性：白色闭孔结构丙烯酸基材，适用施工温度可低至0`C胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：低主要用途：建筑低温操作的应用离型纸：C注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4943F/4957F胶的厚度不含离型纸mm（Mils）：1.1(45)/1.6(62)特性：灰色，高贴服性泡绵胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：低主要用途：蜂窝天线，电子收费装置离型纸：C/C注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4905/4910胶的厚度不含离型纸mm（Mils）：0.5(20)/1.0(40)特性：透明闭孔结构基材非常适用于透明材质之粘接胶型：丙烯酸短期耐温性：149`C(300°F)长期耐温性：93`C(200°F）抗溶剂性：高相对粘性HSE：高相对粘性LSH：低主要用途：顶外层密封，玻璃门把手离型纸：D/D注：离型纸种类A-3mil 54#高密度牛皮离型纸B-5mil 透明PE膜C-2mil PET膜D-5mil 红色PE膜E-4mil 58# PE涂布牛皮离型纸……………………………………………………………………………………………………………………………………………………………产品名称：3M 4920/4930/4950/4955/4959胶的厚度不含离型纸mm（Mils）：0.4(15)/0.64(25)/1.1(45)/2.0(80)/3.0(120)特性：白色，闭孔结构丙烯酸基材，通用型号。
3M胶带型号及用途
用于LCM，LED发光二极管，FV太阳能电池组件，TP触摸屏，PCB，FPC，光通讯器件，电子标签，电子纸，智能卡封装，EL冷光片，无源器件，封装测试，SMT表面贴装，摄像头，手机组装，电脑装配，DVD，数码产品，半导体芯片，传感器，电气绝缘，汽车电子，医疗器械等行业等3M胶带种类包括以下部分：其中红色字体部分为模切常用胶带1、3MVHB泡绵胶带：4920/4930/4950/4955/4959s2、3M双面丙烯酸泡绵胶带：Y-4615/Y-4609/ 4618/46223、3M双面聚氨酯泡绵胶带：4016/4026/40324、3M双面聚乙烯泡绵胶带：4462/4466/4492/44965、3M双面聚氯乙烯泡绵胶带：4408/4416/44326、3M双面氯丁泡绵胶带：4962/4965/49927、3M Dual LockTM工业扣件：SJ3550/SJ3551/SJ3552/SJ35608、3M ScotchmateTM工业扣件：SJ3526/SJ3527/SJ3571/SJ35729、3M双面无纺布胶带：9Y9448/908010、3M双面胶带：415/444/9495/9500/9690/973111、3M ATG打胶系统：924/926/92812、3M双面转移胶膜：467MP/468MP13、3M夹片： 7945MP/7956MP/7957MP/7993MP14、3M双面导热胶带：9882/9885/989015、3M双面导电胶带：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R16、3M双面光学透明胶带OCA：8212A、8212、8141、8161、8185、8187、8171、8172、8195、819717、3M PolymaskTM 保护胶带：3112/4178/511218、3M金属箔胶带：261/271/281/291/300PL/1115/1120/143619、3M BumponTM和RollstockTM 脚垫：5012/5302A20、3M标签：7815/7816/7847/7613/7868/793021、3M水溶性胶带：906B/910/917B/9952/9969/997422、3M柔印贴版胶带：1015/1020/1115/1915/192023、3M地面标识胶带：471/5700/570224、3M高分子材料表面滑爽胶带：5451/5480/5490/5491/549825、3MPET线路板电镀保护胶带：331T/335/336/850/851/85326、3M波峰焊保护胶带：5413/5419/7413/7413T27、3M玻璃布胶带：361/36728、3M遮蔽胶带：200/232/244/2308/2310/2364/269329、3M纤维胶带：8915/893430、3M丙烯酸减震泡棉3M5060-02，3M5060-03，3M5060-05，3M5060S-02，3M5060SR-03，3M5060SR-0531、3M医用胶带：单面薄膜胶带、双面胶带和转移胶带、无纺布和织造布胶带、水胶体胶带、泡沫胶带长期优势现货供应3M以下产品：3M导热界面材料8805、8810、8815、8820、9889FR、5506、5591S、55033M导电纯胶膜9712、9713、9719、9703、9705、9708、9709异方性导电胶膜：9719,9713、9703、9705、9708、9709、9709SL、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R等最新型号3MACF导电胶膜、异方性导电胶膜、异方性导电胶带、ACF胶带3M高温胶带851、1278、1279、1280、5413、7414、5414、5419、5433、7413、7419、7413、7412、851ST、852ST3M光学透明胶带8212A、8212、8141、8161、8185、8187、8171、8172、8195、81973M遇水指示标签产品5557、5557NP、5558、55593M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、4040、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9632、936BK、9313B、9005、4362S、4363S、4364S,用于液晶显示器及背光模组用3M电磁屏蔽胶带电磁吸波材料：3M300PL铝箔胶带；3M508SN 铜箔胶带；3M电磁屏蔽胶带/EMI/RFI胶带：9703,9705,9706,9708,9709,9709S,9709SL,9712，9713，9719，7761，7763，7765，7805，7810等；3M导电铜箔胶带：3M1181，3M1182，3M1183，3M1194，3MCU-35C，3M1245，3M1345，3M2245；3M导电铝箔胶带：3M1120,3M1170;3M1172,3M1178,3M1267;3MAL-25BT,3MAL-5 0BT,3MAL-25DC3M电磁吸波材料：3MAB5000电磁吸波材料； 3MHigh-u磁场屏蔽片：1380；手机，CRT等；3M导电丙烯酸衬垫：eCAP7830,eCAP7830N；3MCN3190铜镍导电布；3M2191FR抗撕裂导电胶带；3MCN4190双面铜镍导电布胶带；3MAU2190导电金织物胶带；3MAG2300导电银织物胶带；3M电磁屏蔽套管：3MDS-5,DS-7,DS-10,DS-14,DS-30-DS-37。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
加工定制：是品牌：3M 型号：4932
规格：610MM*33M 基材：丙烯酸厚度：0.64（mm）
颜色：白色适用范围：车辆总装，建
筑标志.
宽度：610（mm）
本公司现货供应3M4932VHB/3M4932泡绵双面胶，致力于经营3M工业胶带，诚心服务、兢兢业业打造全3M9075等双面胶带系列产品，涵盖积水双面胶带、索尼双面胶带、日东双面胶带、3M双面胶带等模切加工，请使用该产品的客户来电联系
类型VHB泡棉基材VHB丙烯酸泡棉
厚度0.64（mm）宽度610（mm）
颜色白色短期耐温性93（℃）
长期耐温性71（℃）
3M VHB超强粘性双面胶带的全丙烯酸结构，可以取代铆钉，螺丝及其他机械式固定,不仅可密封隔绝潮气及多数溶剂，更可长期抗紫外线及冷热循环，独特的泡绵可做为极佳的缓冲材料。
不同于机械固定之点受力，VHB胶带能够平均分散受力，使用者得以使用较轻薄的材料而无材料变形，金属疲劳等问题。
3M VHB 高贴服性胶带还具备更多的特性：服贴性高，优异的填缝效果，独特的背胶亦适用于不同表面及低温施工使用。
3M 4932,灰色，闭孔结构丙烯酸基材。
通用型号，通过UL746C认证。
可用于空调器、办公家具，通讯设备中的加强筋，车辆总装，建筑标志.。
