锂电池使用说明书
12V锂电池使用说明书
12V锂电池使用手册感谢您使用本产品，为了更好、更安全地使用本产品，请认真阅读使用手册。
锂电池的使用环境:温度在0~40℃，相对湿度不大于75%的清洁、干燥、通风的环境中，应避免与腐蚀性物质接触，远离火源及热源。
充电注意事项：本产品严禁从放电接线柱充电，必须使用配套的专用充电器从充电插座进行充电。
当充电器上的充电指示条停止滚动时，请及时移除充电插头以免电池过充。
放电注意事项：本产品具有过流保护功能，当用电设备的使用电流超出本产品的最大输出电流时，过流保护电路动作而令用电设备看起来不能正常工作。
日常使用注意事项：放电接线柱的输出不受面板上的开关控制，只有电池电压低于9.0V时放电接线柱才关闭输出。
面板上的开关控制的是显示屏及USB插座输出，当开关打开且电池电压≤9.1V时显示屏会以亮一秒灭一秒的频率闪烁提醒您应及时充电，当电池电压≤9.0V 时显示屏熄灭且USB插座关闭输出，目的是保护锂电池不致于过度放电，这是控制板上的微处理器进入休眠的过程，您需要手动关闭开关，在电池电压≥9.1V时打开开关才能将微处理器唤醒，显示屏才能显示电池电压值、USB才有5V输出。
虽然本产品具有输出短路保护功能，但在日常使用中不应频繁地短路+、-电源输出。
与环境保护相关：锂电池的正常循环充放电次数大约在500～800次，到了寿命终结的锂电池要依照当地的法律进行相应的回收和处理。
锂电池的正确使用方法之电池保养电池是一种易耗品，其寿命是一定的（充放电次数通常为300-500次），因此掌握正确的使用方法是电池“延年益寿”的秘诀。
不同类型的电池有不同的充电要求，镍氢电在充电中容易出现发热及高温的问题，如热量无法及时散出，极易造成电池性下降或不可逆的损坏甚至爆炸。
一般来说按说明书之要求用电池附带之充电器（或原装充电器）对电池进行充电即可达到要求，忌长时间不间断充电和用不符合要求的充电器进行充电（特别是低档的充电器无保护功能），以免造成损坏或发生危险，正确的做法应是用合格的或原装充电器进行充电，达到充满时间后即取下。
锂电池使用说明书
锂电池使用说明书一、引言锂电池是一种常见的电池类型，广泛用于移动设备、电动车辆和储能系统等领域。
本使用说明书将详细介绍锂电池的正确使用方法、注意事项和安全操作规范，以确保用户正常、安全地使用锂电池，并最大程度地延长其使用寿命。
二、锂电池概述1. 类型：锂电池主要分为锂离子电池（Li-ion）和聚合物锂离子电池（Li-polymer）两种常见类型。
前者具有高能量密度和较长的使用寿命，后者则具有更小的尺寸和更高的安全性能。
2. 电压：锂电池的标准电压一般为3.7伏（V），但实际使用中，电压可能会在充放电过程中有所波动。
3. 容量：锂电池的容量一般以毫安时（mAh）为单位。
容量越大，电池存储的电能越多，使用时间也相应延长。
三、使用方法1. 充电：使用专用的锂电池充电器进行充电，确保使用正确的充电电压和电流。
避免使用不兼容、低质量的充电器，以免引发充电事故。
2. 放电：在使用锂电池时，请避免将电池放空至完全放电状态，以免损害电池性能。
适当提前进行充电，避免电池电量过低而无法正常工作。
3. 储存：长时间不使用锂电池时，请将电池储存在干燥、阴凉的环境中，并保持电池电量处于50%左右的状态。
避免高温环境和过度放电，以防止锂电池损坏。
四、注意事项1. 温度：锂电池对温度非常敏感。
请避免将锂电池暴露在极端的高温或低温环境中，以免影响电池性能和安全性能。
2. 碰撞：请避免对锂电池进行剧烈碰撞或挤压，以免导致电池损坏、电池液泄漏或短路，并可能引发火灾或爆炸等危险。
3. 液体接触：请避免将锂电池浸入液体中，如水或其他溶液，以防止电池短路、电池液泄漏或发生火灾等意外情况。
牧田 18V 锂电池 产品说明书
手电筒
真空泵
电筒收音机
往复锯
混凝土 震动机
码钉枪
复合斜断锯
电锤
填缝枪 钢筋捆扎机
LED 手电筒
蚊钉枪 直钉枪
组合电锤
曲头钉枪
LED 照明灯
手推车
扭剪扳手
电风扇
后置把手电圆锯
电链锯
角向磨光机 电圆锯
角向电钻
草坪机 多功能动力头
割草机
电圆锯
切割机
背负式 吸尘机
工业吸尘机
18V x2
果树剪
绿篱机
角向电钻
自动送料 螺丝刀
吹风机
螺丝刀 油压起子机
电热夹克
电热背心 咖啡机
收音机
电链锯
吹风机
割草机 割草机
绿篱机 园林喷雾机
扫地机器人
吸尘机
音响
270+
剪草机
T O O L S 冲击起子电钻
1.5Ah
1
8V Lithium-ion
真空吸尘机
修边机
往复锯
53..00AAhh 42.0.0AAhh
盘式轨道砂光机
钢筋切割机 多功能工具
便携式真空 吸尘机
电刨
石膏板切割机
石膏板切割机
曲线锯
电磨 盘式抛光机
电圆锯
角向扳手 角向冲击起子机
起子电钻
电剪刀
电剪刀
电锤 搅拌机
电冲剪 螺纹钢切割机
带锯
电扳手 4模式 冲击起子机
冲击起子机
组合电锤 金属切割机
吸尘机
木工接合机
滑动复合 斜断锯
角向磨光机 复合斜断锯
壮大您的锂电池阵容
锂电池使用说明书
锂电池使用说明书
一、电池介绍：
电池型号：48V45A
电池容量：45A
电池标称电压：48V
电池限制电压：54.6V
充电器电流：6A
充电器电压：54.6V
电池尺寸：290*170*155
适用功率：0-1200W
二、充电说明：
1、锂电池组保护系统支持额定电流25A，瞬间最大不超过40A，
额定功率不超过1200W，不得超负荷使用，超负荷使用会导致
保护系统损坏。
2、锂电池的正极与负极（粗红线与粗黑线）只能用于充电与放电，
不得短路。
3、锂电池体积小重量轻，装入电池仓时，应用泡沫等轻软物垫衬，
防震动防倾倒，不得倒立，歪倒放置。
4、为延长电池使用寿命，提高效能，锂电池使用中，最好随用随
充，不要等电全部放完再充电。
三、绝对禁止事项；
1、严禁超过电池额定功率使用电池，严禁将电池的正负极短
路
2、禁止超过24小时的过充，如发现连续充电10小时后还没有转灯，检测电池的温度是否发热。
3、禁止闲置时间过长，长时间不用，应将锂电池组充满后放置，放置时应在2个月内及时补充电量。
4、充电时电池严禁靠近易燃易爆，具有腐蚀性物品，周边15米内不得放置杂物，不得多个电池进行充电，以防线路超负荷使用造成电线发热。
5、严禁电池放到木质，塑料等物品上进行充电。
该电池组保护系统，具有过充，过放等功能，当充到满电时，保护系统会起到保护作用，自动断电，充电器设有过充保护功能，当充到一定电压后，充电器自动断电，不再继续充电，停止工作。
18V 锂电池电池组使用说明书 RB18L15 RB18L40
RB18L15/RB18L4018V LITHIUM-ION BATTERY PACK ORIGINAL INSTRUCTIONS1. Latches2. Charge level indicator3. Charge level indicator buttonImportant!It is essential that you read the instructions in this manual before operating this machine.Subject to technical modifications.Save all warnings and instructions for future reference.The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety. Children should be supervised to ensure that they do not play with the product.Please read and observe these instructions before using the product.⏹When battery pack is not in use, keep it away fromother metal objects such as paper clips, coins, keys,nails, screws or other small metal objects that canmake a connection from one terminal to another.Shorting the battery terminals together may causesparks, burns or fire.⏹Do not place battery tools or their batteries near fireor heat. This will reduce the risk of explosion andpossible injury.⏹Do not crush, drop or damage battery pack. Do not usea battery pack or charger that has been dropped orreceived a sharp blow. A damaged battery is subject toexplosion. Properly dispose of a dropped or damagedbattery immediately.⏹Batteries can explode in the presence of a sourceof ignition, such as a pilot light. To reduce the riskof serious personal injury, never use any cordlessproduct in the presence of open flame. An explodedbattery can propel debris and chemicals. If exposed,flush with water immediately.⏹Do not charge battery tool in a damp or wet location.Following this rule will reduce the risk of electric shock.⏹For best results, charge the battery tool in a locationwhere the temperature is more than 10°C but less than37°C. To reduce the risk of serious personal injury, donot store outside or in vehicles.⏹Under extreme usage or temperature conditions,battery leakage may occur. If liquid comes in contactwith the skin, wash immediately with soap and water,then neutralize with lemon juice or vinegar. If liquidgets into the eyes, flush them with clean water forat least 10 minutes, then seek immediate medicalattention. Following this rule will reduce the risk ofserious personal injury.Use the battery pack for Ryobi One+ 18V cordlessproducts only.BATTERY PROTECTION FEATURESRyobi One+ 18V lithium-ion battery packs are designedwith features that monitor and protect the lithium-ion cells(active, standby, shut off and sleep modes ) and maximizebattery life.⏹The tool may stop during use to prevent overheating oroverloading of the battery (active mode). In this case,release the trigger to reset and resume operation.⏹If this does not reactivate the tool, the battery iscompletely discharged (stand-by or sleep mode) andneeds to be charged in a compatible charger.⏹The battery can be recharged in stand-by or sleepmode. It is not necessary to completely discharge thebattery pack before recharging.NOTE: A completely discharged battery (sleep mode)needs reactivation before the charging process begins. Toreactivate a battery in sleep mode, place the battery in thecharger and wait for 90 seconds. If the charging processdoes not begin, please remove the battery and wait for 30seconds. Then start a second attempt to re-activate thebattery by placing it in the charger. If the charging processdoes not begin after 3 attempts, the battery may be faulty.In this case, have the battery serviced by a qualifi ed repairperson using only identical replacement parts.NOTE: The LED charge indicator light will not work if thebattery protection feature has caused the battery pack tostop powering the tool (sleep mode). When the chargerresets the battery pack, the LED will again function.⏹The One+ 18V lithium-ion battery packs are equippedwith an additional SHUT-OFF mode, minimizing self-discharge of the battery while the battery is not in use.It will be reactivated automatically when used with atool or by pressing the LED gauge.NOTE: In SHUT-OFF mode, the battery will show lowvoltage when tested with a volt-meter. Use the batteryin a tool or press the LED gauge for read-out of theactual voltage.COLD WEATHER OPERATIONThe lithium-ion battery pack can be used in temperaturesdown to -10°C. Put the battery pack on a tool and use thetool in light duty application. After a while, the battery packwill warm up and begin operating normally.CHARGING THE BATTERY PACKBattery packs are shipped in a low charge condition toprevent possible problems. Therefore, they should becharged prior to fi rst use.NOTE: If the charger does not charge the battery packunder normal circumstances, return both the battery pack and charger to the nearest Ryobi authorised service centre for electrical check.Battery packCompatible charger(not included)RB18L15RB18L40RB18LL40BCL-1418BCL14181HBCL14183HBCL1418IV*BCS-618BCL1800BCS618G* for vehicles' 12V DC outlets⏹Press down on the battery pack to ensure contacts onthe battery pack engage properly with the contacts inthe charger.⏹Connect the charger to the power supply. Make sure itis the required power supply.⏹Make sure the latches on each side of the battery packsnap into place and the battery pack is secured in thecharger before beginning operation.⏹Place the battery pack in the charger aligning raisedrib on the battery pack with the groove in the charger.⏹The battery pack will become slightly warm to thetouch while charging. This is normal and does notindicate a problem.NOTE: Do not place the charger and battery pack in anarea of extreme heat or cold. They will work best at normalroom temperature.⏹Place charger on hard surface not soft (carpet, etc.),when charging batteries.⏹When batteries become fully charged, unplug thecharger from power supply and remove the batterypack.⏹To remove battery pack from the charger, depress thelatches on each side of the battery pack.⏹After normal usage, a minimum of 1 hour chargingtime is required to fully recharge the battery pack.CHARGING A HOT BATTERY PACKWhen using a tool continuously, the battery pack willbecome hot. A hot battery pack should be let to cool beforeattempting to recharge. When a hot battery pack is placedon the charger, the charger may indicate the battery packis not ready to charge. When the battery pack cools, thecharger will automatically begin charging.CHARGING A COOL BATTERY PACKIf the battery is below normal temperature range, the redLED will begin flashing and the green LED will be off.When the battery warms to a temperature of more than0°C, the charger will automatically begin charge mode.CHARGE STATUSSee Fig. 1.To display the amount of charge left in the battery, pressthe Charge level indicator button.MAINTENANCEThe batteries have been designed to provide maximumtrouble-free life. However, like all batteries, they willeventually wear out. DO NOT disassemble battery packand attempt to replace the batteries. Handling of thesebatteries, especially when wearing rings and jewellery,could result in serious burns.To obtain the longest possible battery life, remove thebattery pack from the charger once it is fully charged andready for use.STORAGEFor battery storage longer than 30 days:⏹Store the battery pack where the tem p er a t ure is below27°C.⏹Store battery packs in a "charged" condition (minimumof 30%-50% charged).⏹To charge the battery pack after a six months storageperiod, it is recommended to discharge the battery about 10%-20% (by running it in a tool) and charge afterwards to maximize the battery lifetime.waste. Please recycle where facilities exist.Check with your local authority or retailer forrecycling advice.Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster RoadDoncaster, VIC 3108, AustraliaTechtronic Industries New Zealand Ltd. 27 Clemow DriveMt. Wellington, Auckland 1060, New Zealand。

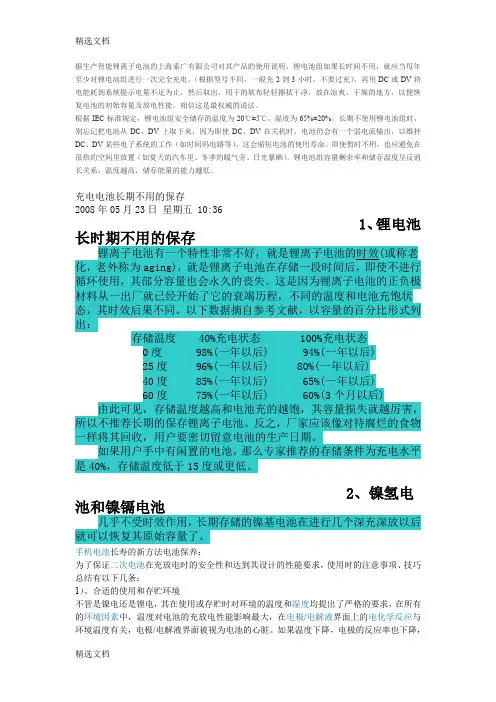

2020年锂离子电池使用说明精品版
据生产智能锂离子电池的上海索广有限公司对其产品的使用说明，锂电池组如果长时间不用，就应当每年至少对锂电池组进行一次完全充电，（根据型号不同，一般充2到3小时，不要过充），再用DC或DV将电能耗到系统提示电量不足为止，然后取出，用干的软布轻轻擦拭干净，放在凉爽、干燥的地方，以便恢复电池的初始容量及放电性能。
相信这是最权威的说法。
根据IEC标准规定，锂电池组安全储存的温度为20℃±5℃，湿度为65%±20%。
长期不使用锂电池组时，别忘记把电池从DC、DV上取下来，因为即使DC、DV在关机时，电池仍会有一个弱电流输出，以维持DC、DV某些电子系统的工作（如时间码电路等），这会缩短电池的使用寿命。
即使暂时不用，也应避免在很热的空间里放置（如夏天的汽车里、冬季的暖气旁、日光暴晒）。
锂电池组容量剩余率和储存温度呈反消长关系，温度越高，储存能量的能力越低。
充电电池长期不用的保存2008年05月23日星期五 10:361、锂电池长时期不用的保存锂离子电池有一个特性非常不好，就是锂离子电池的时效(或称老化，老外称为aging)，就是锂离子电池在存储一段时间后，即使不进行循环使用，其部分容量也会永久的丧失。
这是因为锂离子电池的正负极材料从一出厂就已经开始了它的衰竭历程，不同的温度和电池充饱状态，其时效后果不同。
以下数据摘自参考文献，以容量的百分比形式列出：存储温度 40%充电状态 100%充电状态0度 98%(一年以后) 94%(一年以后)25度 96%(一年以后) 80%(一年以后)40度 85%(一年以后) 65%(一年以后)60度 75%(一年以后) 60%(3个月以后)由此可见，存储温度越高和电池充的越饱，其容量损失就越厉害，所以不推荐长期的保存锂离子电池。
反之，厂家应该像对待腐烂的食物一样将其回收，用户要密切留意电池的生产日期。
如果用户手中有闲置的电池，那么专家推荐的存储条件为充电水平是40%，存储温度低于15度或更低。
锂电池使用说明
锂电池使用说明锂电池与同样大小体积、尺寸的铅酸电池、银氢电池、银铭电池相比较，锂电池体积最小、容量最高、寿命最长、自放电最小、无记忆效应，且可随时补电，可快速充电、快速放电等优点；缺点是价格高、对充电器要求较高，为防止电池爆炸的可能，必须配置专用锂电池保护板，避免过充、过放、短路等。
非专用人员禁止进行拆卸或破解等。
一、电性能：1、电池型号：12V25AH;2、工作电压范围：9V~14.6V3、标准充电电流：0.5C(12A)4、标准放电电流：IC(25A)5、标称容量：25AH6、充放电环境温度：0~40℃二、电池存储及搁置环境要求：1、电池存储需要阴凉干燥环境中，最佳温度15~35℃；2、长期搁置需要每3个月进行一次充放电(禁止长时间满电放置时间周期6个月；3、电池需要开路状态搁置，电池长期不用时需要从设备上取下，避免长时间过放电状态而引起损坏；三、安全警告：1、切勿将电池存储在高温、高湿环境；2、切勿将电池投入到火中，以免引起爆炸；3、请勿将电池的正负极直接短接或反充电；4、请勿自行拆解电池或解剖电池；5、请勿将电池投入水中或雨天淋水测试；6、请勿撞击、挤压电池，否则引起电池着火、爆炸；7、当电池出现温度高、鼓壳或者漏液时，请停止使用；8、请勿过充、过放、短路、非专用充电器等实验，否则引起电池冒烟、爆炸、着火等。
四、品质保证：1、电池的电芯都是经过单体性能合格评估挑选产品；2、电池组组装经过分容配对工艺核对，做到每一个电芯容量、电压、电阻等信息符合相关标准选配，更好发挥整组产品性能；3、电池的生产过程，经过点焊、组装、成品检验、出货测试、，避免不良产品流出；4、电池的有效使用寿命：标准充放电，2000次循环测试后，容量不低于初始容量的80%；5、公司向客户提供12个月的有效使用寿命，若非人为故障给予及时维修或更换。
锂电池专业制造商提示您。
锂电池使用说明书
锂电池使用说明书锂电池的电芯，选用的电芯有锂离子和锂聚合物两种，目前我们对讲机选用的电芯绝大部分是锂离子电芯。
锂离子电芯与同样体积大小的镍氢、镍镉电芯相比较：体积小、重量轻、容量高、自放电小、使用寿命长，而且可快速充电、随时补充电、无记忆效应等优点；缺点是：单价贵、对配套使用的充电器要求高、为防止电池爆炸的可能必需配有锂电保护线路，避免电池的过充、过放、短路等。
以EB-HNN9013电池为例，下面简述一下锂离子电池的使用说明一、电池性能:（电池充放电电压、电流、时间和环境温度）1、电池型号：EB-HNN90132、电池规格：103450 1800mAH3、标称电压：7.4V4、标称容量：1800mAh5、充电电流：标准充电0.5C （充电方式为恒流恒压充电,恒定充电电流900mA,恒定充电电压8.4V，充电截止电流90mA）6、放电电流：放电电流0.5C （放电以900mA恒定电流放电到终止电压6.0V）7、充、放电限制：最高充电电压8.4V、限制电流0.01C；放电终止电压6.0V8、充放电环境温度：充电标准模式（0.5C）在温度为20±5℃，湿度为85%环境下进行，否则可能充不满电；工作温度-20℃～+60℃电池放电温度性能：在-20℃（可放电容量≥标称容量的30%）；在负10度（放电容量≥标称容量的70%）；在0 ℃（可放电容量≥标称容量的75%）-10℃（放电容量≥标称容量的85%）；在20℃（可放电容量达标称容量的95以上%）二、电池搁置、贮存的环境和时间注意事项：1、电池贮存应该在阴凉干燥的环境中，最佳温度为-20℃～35℃；2、搁置或存放的电池至少六个月进行一次检查，进行一次补充电；3、电池应该开路状态搁置，电池不用时应该从机器上取下来，以防止电池长时间处于过放状态而引起损坏三、电池对应配置及充电说明1、电池装入对讲机或从对讲机上取下时请在关机状态下进行2、请使用专用配套锂电充电器，否则有可能充不进电或充不满电以及损坏电池的可能，严重者有可能造成事故；3、充电时，应该在20±5℃的环境温度下进行，否则可能充不满额定电量4、充满电的电池，应从充电器上取下，以免过充，缩短电池寿命，降低性能。
胜科诺锂电池使用说明书
胜科诺锂电池使用说明书第一章产品介绍1.1 产品概述胜科诺锂电池是一种高性能、高能量密度的可充电电池，广泛应用于移动设备、电动车辆、储能系统等领域。
本产品采用先进的锂离子技术，具有较长的使用寿命和稳定的性能。
1.2 产品特点胜科诺锂电池具有以下特点：（1）高能量密度：相比传统的镍镉电池和镍氢电池，锂电池具有更高的能量密度，能够提供更长的使用时间。
（2）轻巧便携：锂电池具有较小的体积和重量，便于携带和安装。
（3）低自放电率：锂电池的自放电率低，即使长时间不使用，仍能保持较高的电荷状态。
（4）快速充放电：锂电池具有较高的充放电效率，能够快速充电和释放电能。
（5）环保可持续：锂电池不含重金属污染物，对环境友好，可以进行循环使用。
第二章安全注意事项2.1 充电前的准备（1）请使用原装充电器进行充电，确保充电器电压和电流符合锂电池的要求。
（2）在充电之前，请确保锂电池没有受到损坏，如有变形、漏液等情况，请勿使用。
（3）请将锂电池置于干燥、通风良好的环境中进行充电。
2.2 充电时的注意事项（1）请勿使用不符合要求的充电器进行充电，以免引起过充、过放等危险情况。
（2）请不要将锂电池长时间处于高温环境中，以免影响电池的性能和寿命。
（3）在充电过程中，请保持充电器与电池之间的良好接触，避免充电不良或发热等问题。
2.3 使用时的注意事项（1）请勿将锂电池放置在高温、潮湿或易燃易爆的环境中，以免引起短路、漏电等安全问题。
（2）请勿将锂电池拆卸、损坏或投入火中，以免引起爆炸或火灾。
（3）在使用锂电池时，请注意电池的正负极连接，避免反接或短路。
第三章充电与放电指南3.1 充电指南（1）请使用原装充电器进行充电，避免使用不符合要求的充电设备。
（2）在充电之前，请确保电池电量不低于20%，以免影响充电效果。
（3）充电时，请确保充电器与电池之间连接良好，避免充电不良或过热问题。
（4）充电过程中，如发现异常情况（如电池发热、冒烟等），请立即停止充电并与售后服务联系。
锂电池存储及使用说明
锂电池存储及使用说明standalone； self-contained； independent； self-governed；autocephalous； indie； absolute； unattached； substantive锂电池存储及使用说明一、锂电池存储说明1、锂离子电池应被储存于比较清凉，干燥，通风的环境中，应远离火源和高温的地方。
电池储存温度必须在 -10℃~ 45 ℃的范围内, 湿度为65±20％RH.2、存储电压及电量：电压为~（标准电压体系）；电量为30%-70%3、长期存储电池（超过 3 个月）须置于温度为23±5℃、湿度为65±20％RH 的环境中。
4、电池应按储存要求存放, 3 个月进行1次完整充放电并补电至70%电量。
5、不要在环境温度高于 65℃时运输电池。
二、锂电池使用说明1、需使用专用充电器或在整机内进行充电，不要使用被改装过的或者损坏的充电器。
使用大电流货高电压充电将可能引起电芯的充放电性能、机械性能和安全性能的问题，并可能会导致发热、泄漏或起鼓。
2、电池必须在 0℃~45 ℃的环境温度范围内进行充电。
超过此温度范围，将会引起电池性能及寿命降低，存在起鼓等问题。
3、电池必须在 -10℃~50 ℃的环境温度范围内进行放电。
4、需要注意的是，在电池长期未使用期间（超过 3 个月），它可能会用其自放电特性而处于某种过放电状态。
为防止过放电的发生，电池应定期充电，将其电压维持在至之间。
过放电会导致电芯性能、电池功能的丧失。
三、特殊注意点1、勿将电池投入水中或将其弄湿！2、禁止在火源或极热条件下给电池充电！勿在热源（如火或加热器）附近使用或贮存电池！如果电池泄漏或发出异味，应立即将其从接近明火处移开；3、电池出现起鼓、漏液等问题时，应立即停止使用4、勿将电池直接连接到墙上插座或车载点烟式插座上！5、勿将电池投入火中或给电池加热！6、禁止用导线或其它金属物体将电池正负极短路，禁止将电池与项链、发夹或其它金属物体一起运输或贮存！7、禁止用钉子或其它尖锐物体刺穿电池壳体，禁止锤击或脚踏电池！8、禁止撞击、投掷或者使电池受到机械震动9、禁止以任何方式分解电池！10、禁止将电池置入微波炉或压力容器中！11、禁止与一次电池（如干电池）或不同容量、型号、品种电池组合使用！12、如果电池发出异味、发热、变形、变色或出现其它任何异常现象时不得使用，如果电池正在使用或充电，应立即从用电器中或充电器上取出并停止使用！。
储控一体锂电池接线使用说明
储控一体锂电池接线使用说明一、接线前准备工作1.确保储控一体锂电池处于禁用或断电状态，确保安全。
2.确认储控一体锂电池的电压和功率，以便进行正确的接线操作。
避免电压不匹配或功率过载等情况。
3.准备好接线所需的工具，如电工螺丝刀、电缆、绝缘胶带等。
二、储控一体锂电池的接线步骤1.接线前，先了解储控一体锂电池的端子定义。
一般来说，锂电池会有正极（+）和负极（-）两个端子，有些还会有额外的输出端子。
2.根据需要，选择合适的电缆，根据储控一体锂电池的端子定义进行正确的接线。
3.进行接线时，首先将电缆插入储控一体锂电池的对应端子上。
一般来说，正极接正极，负极接负极。
4.在插入电缆后，使用电工螺丝刀将电缆固定在端子上，确保接线牢固可靠。
可以使用螺丝或者卡扣等方式进行固定。
5.在接线固定好后，使用绝缘胶带或者其他绝缘材料进行绝缘处理。
尤其是在正负极接线点附近，需要特别注意绝缘，避免短路或其他安全问题。
6.完成以上步骤后，再次确认接线是否正确，确保电池极性正确、接线稳固、绝缘良好，以保证后续使用的安全和可靠性。
三、注意事项1.在接线过程中，应注意避开高温或者潮湿环境，以免影响接线质量和电池性能。
2.接线时要避免产生火花或者短路，防止导致电池燃烧或爆炸等安全事故的发生。
3.在接线前提前阅读产品说明书和安全手册，确保操作正确。
4.如果不熟悉接线操作，建议请专业人士进行接线，以确保安全。
5.在使用储控一体锂电池的过程中，要定期进行检查和维护，如电池的接线是否松动、绝缘是否完好等，确保电池系统的可靠性和安全性。
总结：储控一体锂电池的接线使用说明主要包括接线前的准备工作、接线步骤和注意事项。
正确的接线可以保证储控一体锂电池的安全使用，提高其可靠性和寿命。
在进行接线时，应严格按照产品说明进行操作，并遵守相关安全规范，确保人身安全和设备安全。
锂电池操作指南说明书
Observe operating instructions and affix close within sight of the battery! Work on batteries only under instructions of skilled personel! Smoking prohibited! Do not expose battery to open fame, glowing fire or sparks as explosion and fire hazard exists! When working on batteries wear protective glasses and clothing! Explosion and fire hazard! Avoid short circuits! Caution! Metal parts of the battery cells are always live, therefore do not place items or tools on the battery!Electrolyte is strongly corrosive! Monoblock batteries / cells are very heavy! Ensure secure installation! Only use suitable transport equipment! Dangerous voltage! Acid splashes in the eyes or on the skin must be washed out or off with plenty of water. Then see a doctor immediately. Acid on clothing should be washed out with water! Safety requirements according to EN 50272-31. Commissioninga) Filled and charged batteriesBefore commissioning all blocks must be inspected for mechanical damage, cells must be connected with the correct polarity and connectors firmly seated. The following torque apply for M10 screw connectors is:20 ± 1 Nm If necessary the terminal covers must be put on. Check the electroiyte level in all cells. If necessary top up to maximum level with purified water as under DIN 43530 Part 4. Before putting the battery in operation, plastic transport vent caps must be removed and replaced with ceramic cell plugs. With charger off and loads isolated connect battery to the direct current power supplies maintaining correct polarity (positive terminal to positive post). Switch on the charger and charge as under section 2.2.b) Dry charged (DC) batteries Instructions for the initial charging of a dry charged stationary OPzS and SOLAR (TOPzS) batteries: - Unscrew the sealed vent plugs and fill the cells with pure dilute sulphuric acid, specific gravity 1,230 0,01kg/1 read at 20 (68 F), up to about 25 mm below top of lid for SPgBG multi-block hard rubber containers and 50 mm below of lid for OPzS translucent containers or max level marked on the label. The temperature of the filling acid should be between 10°C and 25°C (50 - 77 F). - Insert the original plastic vent plug with Removed sealing foil on the top or place the special ceramic ventplug. - Start charging for not less than 2and not more than 12 hours elapsed after the last cell has been filled with the acid. - Apply the 0,5 x 110(5A/100Ah)current. - Charge for 8 hours and then keepthe battery on open circuit for 1-2 hours. - Continue the charging for a fewhours, until the battery is fullycharged, i.e. until constant voltage and constant specific gravity have been reached. The specific gravity of the acid in a fully charged celi is 1,240 0,01 kg/I read at 20°C (68 F), If during the charging thetemperature of the acid exceeds 55°C (131 F) reduce the charging current by 50%. - 0,5 h after charging discharge thebattery at 10 hour rate of current until the cell voltage drops toaverage value 1.80 Volts. Allowable minimum voltage of a single cell is 1,70V.- Recharge the battery according tothe operating instructions 2.2. - 24 hours after recharging adjustelectrolyte level to the “max” mark on the label.Activation and test results must be kept as part of batterydocumentation. Non-compliance with this request renders the warranty null and void.2. OperationFor the operation of stationary battery, installations EN 50272-2 apply2.1 DischargingNever allow the final discharge voltage of the battery to drop below that assigned for the discharge current. Chargeimmediately after discharge as well as partial discharge. Recommended DOD (Depth Of Discharge) for normal operating is up to 80% of CN.2.2 ChargingAll charging procedures with their limit values may be employed as stated below:DIN 41773 (lU characteristic) DIN 41774 (W characteristic) DIN 41776 (I characteristic).Depending on charger type and charging characteristic alternating currents flow through the battery superimposing onto the direct current. These alternating currents and the reaction of the loads lead to an additional warming of the battery and strain on the electrodes with possible resulting damage (see 2.5). Depending on the system at hand, charging may be carried out under the following modes:a) Stand-by parallel operation and floating operation.Here the load, direct current and battery are continuously connected in parallel. There by the charging voltage is at the same time the operating voltage of the system. With stand-by-parallel operation the direct current is at any time capable of supplying the maximum load current and the battery charging current. The battery only supplies current when the direct current source fails. The charge volt age should be set at 2,23 V +/-1% x number of cells measured at the battery’s terminals. To reduce therecharging time a charging stage can be applied in which the charging voltage is 2,35 to 2,4 V xnumber of cells (stand-by parallel operation with recharging stage).Automatic changeover to the charging voltage of 2,23 V+/- 1% x number of cells follows after few hours on the voltage 2,35-2,4 V x number of cells. With the floating operation the direct current source is not able to supply the maximum load current at all times. The load current intermit tentlysupersedes the nominal current of the direct current source. During this period the battery supplies power. It is not fully charged at all times. Therefore, depending on the load the chargevoltage must be set at 2.23 to 2.30 V x number of cells.b) Switch mode operationWhen charging the battery is separated from the load. Towards the end of the charging process the charge voltage of the battery is 2,6 - 2,75 V/cell. The charging process and parameters must be monitored (see Sections 2.4, 2.5 and 2.6).On reaching a fully charged state the charging process must be stopped or switched to float charge as under Section 2.3.OPERATING INSTRUCTIONS for stationary vented lead-acid OPzS SOLAR batteriesc) Battery operation (charge/discharge operation)Only the battery supplies the load. Hereby the charge voltage of the battery towards the end of the charging process is 2,6-2,75 V/cell. The charging process and parameters must be monitored (see Sections 2.4, 2.5 and 2.6). When reaching a fully charged state the charging process must be switched off. The battery can be switched to the load as necessary.2.3 Maintaining the full charge(float charging)Devices complying with the stipulations under DIN 41773 (lU characteristic) must be used. They are to be set so that the average cell voltage is 2,23V +/- 1% (2,25 V +/- 1% for UPS) cell at 20°C and the electrolyte density does not decrease over a protracted period(otherwise see 2.8).2.4 Equalizing chargeEqualizing charges are required after exhaustive discharges and after inadequate charges; they can be carried out as follows:- Up to 72 hours at constant voltage ofmax. 2.4 V/ celI,- With the I or W characteristic as under 2.6. If during equalizingcharging permitted load voltagesare exceeded, appropriatemeasures must be taken, e. g.disconnection of the load. Ifexceeding the maximumtemperature of 55°C the chargingmust either be stopped, proceedwith reduced current, or be switchedto float charge to allow thetemperature to drop. The equalizingcharge is completed when theelectrolyte densities no longerincreases within a period of 2 hours.2.5 Alternating currents with periodic deviationsOn recharging up to 2,4 V/cell as under operation modes a) to c) the actual value of the alternating current is occasionally permitted to reach max. 20 A per 100 Ah nominal capacity. Above 2,4 V/cells 10 A per 100 Ah nominal capacity may not be exceeded. In a fully charged state with a charge voltage of 2,23 to 2,30 V/cell the actual value of the alternating current must not exceed 5 A per 100 Ah nominal capacity.2.6 Charging currentsThe charging currents are not limited up to 2,4 V/ celI. When exceeding the charging voltage of 2,4 V/cell, greater water decomposition occurs. The charging currents per 100 Ah nominal capacity shown in Table 1 must not be exceeded.Charging procedure CellmodelCellvoltageI-charact. 5,0 A 2,6 -2,75W-charact. 7,0 A3,5 A at 2,4 V at 2,65V2.7 TemperatureThe recommended operatingtemperature for Lead-acid batteries is10°C to 30°C. The technical data applyfor the nominal temperature 20°C. Theideal operating temperature is 20 +/- 5°C.Higher temperatures shorten the servicelife. Lower temperatures reduce theavailable capacity. The maximumtemperature of 55°C must not beexceeded.2.8 Temperature-related chargevoltageA temperature-related adjustment of thecharge voltage within the operatingtemperature of 15°C to 25°C is notnecessary. Should the temperaturerange be lower than 15°C and/or higherthan 25°C a temperature relatedadjustment of the charge voltage shouldbe made. The temperature correctionfactor is (-0.004 V/Cell per °K).Should the temperature constantly riseabove 40°C then the factor is (-0.003V/Celi per °K).2.9 ElectrolyteThe electrolyte is diluted sulphuric acid.The nominal electrolyte density is basedon 20°C and the nominal electrolyte levelwhen fully charged with maximumdeviation +/ - 0.01 kg/I. Highertemperatures reduce the electrolytedensity; lower temperatures increase theelectrolyte density. The associatedcorrection factor is 0.0007 kg/I per °K.Example: electrolyte density of 1.23 kg/Iat 35°C corresponds to a density of 1.24kg/I at 20°C or electrolyte density of 1.25kg/I at 5°C corresponds to a density of1.24 kg/I at 20°C.3. Battery maintenance and controlThe electrolyte level must be checkedregularly. If it dropped to the lowestelectrolyte level mark, purified watermust be added as under DIN 43530 Part4, maximum conductivity 30 µS/cm. Toavoid leakage currents keep the batteryclean and dry (especially inter cellconnections). Plastic batterycomponents, in particular the vent caps,must only be cleaned with water thatcontains no additives. At least every 6months the following must bemeasured and recorded:- Battery voltage- Voltage of a few selectedcells/mono block batteries- Electrolyte density of a few selectedcells/mono block batteries- Electrolyte temperature of a fewselected cells/mono block batteries.The following must be measured andrecorded annually:- Voltage of all cells/mono blockbatteries- Electrolyte density of all cells/monoblock batteries- Electrolyte temperature of a fewselected cells/mono block batteries- Should the float charge voltage inone celi deviate more than + 0.1 Vor - 0.05 V from the average value(see 2.3), equalizing chargingshould be done (see 2.4.). Annualvisual checks:- on bolted connectors (check thatunsecured bolt connectors arefirmly seated)- on battery installation orarrangement- on ventilation of battery room.4. TestsTests must be performed on fully chargedbatteries according to EN 60896-1.ln addition, special test instructionssuch as EN 50272-2 must be observed.5. FaultsShould faults be detected in the batteryor the charging device, customerservices should be called in immediately.Measurement records under Section 3are necessary for fast fault detection andremoval.6. Storage and taking out of operationShould cells/batteries be stored or takenout of operation for a longer period oftime, they must be stored fully charged ina dry, frost-free room with max.temperature of 25°C. Direct sunlight orother heat sources mustbe avoided. To avoid damage thefollowing charging methods can bechosen:a. Equalizing charges on a quarterlybasis as under Section 2.4. In average,ambient temperatures of more than 30°Cmonthly equalizing charges may benecessary.b. Float charging as under Section2.3.above.7. TransportBatteries, wet, filled with acid requiretransport under demands of EuropeanAgreement concerning the internationalcarriage of dangerous goods (ADR andRID). ADR special provision No. 598:New batteries are not subject to therequirements of ADR, when:- they are secured in such a way thatthey can not slip, fall or bedamaged;- they are provided with carryingdevices, unless they are suitablystacked, e.g. on pallets;- there are no dangerous traces ofalkalis or acids on the outside;- they are protected against shortcircuits.8. Technical dataThe nominal voltage, the number ofblocks, the nominal capacity (C10 = CN)and the battery type are obtained fromthe type plate.Victron Energy bv / De Paal 35 / 1351 JG ALMERE / The NetherlandsPhone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / /e-mail:***********************。
添可锂离子电池说明书
添可锂离子电池说明书
添可锂离子电池是一款高性能、高容量的电池产品。
使用锂离子技术，该电池具有高效率、长寿命、轻便、安全等特点。
本说明书将详细介
绍添可锂离子电池的使用方法、注意事项以及维护保养等内容，以确
保您使用电池时的安全与便捷。
一、使用方法：
1.首次使用前，请确保电池已充满电。
2.在使用电池时，请使用合适的充电器，并在充电过程中保持通风良好。
3.避免过度放电，以免损坏电池。
4.严禁将电池放置在高温或低温环境中，以及接触水或火源。
二、注意事项：
1.请勿将电池在充电箱或引线处短路。
2.严禁将电池处理成垃圾或淋漓，以免污染环境或对人体造成伤害。
3.如果使用中发现电池变形或发生泄漏，请及时停止使用，并将电池放在不易燃、氧气充足的地方妥善处理。
4.长时间不使用的电池应在低温下保存，以提高其寿命。
三、维护保养：
1.每次使用后，请及时给电池充电，保持足够的电量。
2.定期检查电池的表面是否有损伤或散热孔是否受阻。
3.电池长期存放时，应定期进行充电和放电，以保持其性能。
总之，添可锂离子电池是一款高性能、高容量的电池产品，使用起来非常方便。
然而，为了确保使用时的安全与便捷，我们必须严格遵守使用方法、注意事项以及维护保养等要求。
只有这样，才能最大限度地发挥电池的作用，让我们的生活更加便捷。
锂电池使用说明书
Security Instruction (01)Chapter One Product Introduction1. Product Characteristics (02)2. Main Applications (03)3. Battery Structure (03)4. Type and Dimensions (04)5. Working Principle (05)Chapter Two Technical Characteristics1. Discharge Curve (06)2. Charge Curve (08)3. Internal Resistance and Short Circuit Current (10)Chapter Three Operation and maintenance1. Parameters (11)2. Factors Influencing capacity (11)3. Charge (13)4. Storage (13)5. Maintenance (14)S e c u r i t y I n s t r u c t i o nSecurity InstructionPlease read these instructions carefully in order to make correct, safe, and effective operation. This manual provides you with very important installation and operation guidelines, which will guarantee 01your equipment an optimal performance and longer service life.For your safety,please do not open battery by yourself, only professionals shall be allowed to open and maintain the battery;Due to battery be potential harmful to the environment and health,battery shall be replaced by manufacturer ’s service center.If there is need to replace and maintain,please contact after-sale service center.Used battery is recyclable, and improper disposal of battery may be great harmful to the environment and health.So,used battery shall be proper disposed following relative regulations and law or shall be returned to our company for disposal.Please choose the batteries of the same model for replacement, and batteries produced by different manufacturers shall be strictly forbidden for connecting in one system.NoticesP r o d u c t I n t r o d u c t i o nChapter One Product IntroductionProduct Characteristics02Basic CharacteristicsAGM valve regulated technology, high-tin-low-calcium multielement special alloy, poor electrolyte design, negative adsorptive theory, restrain hydrogen separate out effectively, reduce the electrolyte loss during usage, there is no need to add electrolyte among battery service life.Reliable sealing technologyPatent multi-layer electrode pole sealing structure ensure sealing safety and relialbility, exceptupside down, any other installation orientation is allowed.Long service lifePatent grid structure design preventing grid prolongation, special 4BS lead paste technology and tight assembly and container formation technology prolong battery service life.Low self-discharge rateHigh purity raw material, clean production environment, ensure low self-discharge rate of battery.Good consistencyDuring plate production,cell assembling and finished products test,one homogenizationprocedure added in each process,thus ensure battery quality consistency.Applicable for wide temperature rangeSpecial electrolyte formula and special active substance formula,enhence good high and low temperature performance.P r o d u c t I n t r o d u c t i o nMain ApplicationsUPS/EPS03Telecommunication and power supply equipmentSecurity system Alarm system Medical treatment Electrical tool Portable instrument Signal lightSolar and wind energy storageBattery Str uctureType and DimensionsCustomed series2 24 2 4 42 2P r o d u c t I n t r o d u c t i o nW orking Principle05DischargePbO2 +2H2SO4 + Pb PbSO4 + 2H2O + PbSO4ChargeIn the final stage of charge process, active substance in positive plate transformed to leaddioxide,negative plate has not reached fully charged stage,the process of active substance innegative plate transformed to spongy lead has not finished, oxygen gas generated in positiveplate reaches the negative plate through separator pores and reacts active substance in negativeplate,resulting depolarized state in negative plate, and restraining the generation of hydrogen.The reaction in positive plate (oxygen generated)1 O +4H++4eMove to the surface of negative plate through the separatorThe reaction in negative plate (oxygen absorbed)2 2Pb+O23 2PbO+2H2SO4 4+2H2O (PbO reacts with electrolyte)4 2PbSO +4H++4e Pb+2H SO (PbSO reduction)The whole reaction in the negative plate is: 2 + 3 + 4: O +4H++4e=2H OThe final production returns to 1 , and recycles like this.In general, in charging process oxygen gas generated in positive plate could quickly reach thenegative plate and recombine into water through react with active substance in negative plate,no gas escape and water loss, achieving the sealing.T e c h n i c a l C h a r a c t e r i s t i c sChapter Two Technical CharacteristicsDischarge Curve06All series common curvesFigure 2-1 Discharge capacity and temperature curveFigure 2-2 Discharge capacity and storage time curveT e c h n i c a l C h a r a c t e r i s t i c sAll series characteristic curvesFigure 2-3 Discharge characteristic curve under different discharge rates(25 ℃)073CFigure 2-4 Cycle times and depth of discharge curveT e c h n i c a l C h a r a c t e r i s t i c sCharge Curve08Figure 2-5Charge characteristic curvepeace)ChargeFigure 2-6 Floating charge service life characteristic curve---below 24Ah batteriesV/cellT e c h n i c a l C h a r a c t e r i s t i c sFigure 2-7 Floating charge service life characteristic curve---24Ah and above batteries09V/cellT e c h n i c a l C h a r a c t e r i s t i c s10Internal Resistance and Short Circuit CurrentThe internal resistance is dynamic nolinear parameter, it continuously varies with the temperature,charge state and service duration. The internal resistance is the lowest when the battery is fullycharged.Below tables present the internal resistance and short circuit current of the battery which the internal resistance is measured by HIOKI 3551 BATTERY HITESTER resistance tester at an ambient temperature of 25 5℃ , in the fully charged state.)O p e r a t i o n a n d m a i n t e n a n c eChapter Three Operation and maintenanceParameters11Ambient temperature is -15℃~45℃ and the optimal operation temperature is 25℃±5℃.Ambient humidity less than RH92%Altitude less than 4500m,if operation altitude more than 4500m,please make special reminder whenconfirm order.Factors Influencing capacityQuantity of electricity battery discharge under certain condition is called battery capacity,symbol is C ,normal unit is Ampere Hour,in short is Ah.Battery capactiy contains rated capacity and actual capactiy,for rated capacity please refer to Table1-1.Actual capacity is real quantity of electricity battery discharge under certain condition,it is equalto discharge current multiply discharge time.High temperature will speed up battery grid corrosion and water loss, thus greatly shorten the battery life, when the temperature is over 25℃, the service life of the battery will be shortened by half as the temperature increasing by 10℃. The optimal operation temperature is 25℃±5℃, charge voltage shoud be adjusted according to ambient temperature.O p e r a t i o n a n d m a i n t e n a n c eFigure 3-1 Service life and temperature curve---SP seriesFigure 3-2 Service life and temperature curve---SSP series12O p e r a t i o n a n d m a i n t e n a n c eChargeFloating charge13Charge method: 2.27V / cell with limited current of 0.3 C 20 (A).Charge voltage should be adjusted according to ambient temperature,temperature compensationcoefficient is -3mV / cell / ℃.Floating charge voltage at different ambient temperature, as below tableCycle applicationCharge method: 2.45V / cell with limited current of 0.25 C 20 (A).Charge voltage should be adjusted according to ambient temperature,temperature compensation coefficient is -4mV / cell / ℃.Setting charge capacity as 105-110% of discharge capacity, when the constant charge current keep as same value for 3hrs, charge end.St orageThe battery should be fully charged before storage, and then be stored in clean, ventilate and dry environment without corrosive gas or explosive gas nearby.Supplementary charge is required in storage period, the method as follows.O p e r a t i o n a n d m a i n t e n a n c e14MaintenanceTo ensure the performance of battery, the battery should be correctly inspected and maintained. Themaintenance methods are recommended as follows.Monthly MaintenanceMeasure and record the ambient temperature of the battery-room,battery container and electrode pole temperature.Check battery cleanliness,terminal damage track and temperature,container and lid damage and temperature.Measure and record the total voltage and floating current of the battery system.Quarterly MaintenanceRepeat every item of monthly inspection.Measure and record the floating voltage of each on-line battery.Annually MaintenanceRepeat every item of quarterly maintenance and inspection. Check whether connectors are loose or not.O p e r a t i o n a n d m a i n t e n a n c eCheck whether safety valve is twisted tightly or notPerform a discharge test to check the exact load every year, discharge 30%-40% of the rated capacity. 15Three yearly maintenanceAfter three years operation,battery capacity should be tested,if battery bank actual capacity is below 80% of rated capacity,battery bank is considered life over.No.1,Shengyang Road,Qufu City,Shandong Province,273100,P.R.ChinaT el:0086-537-4438666-6028Fax:0086-537-4411936E-mail:******************。
锂电池存储及使用说明
锂电池存储及使用说明锂电池是一种常见的储能设备，广泛应用于手机、电动车、电子产品等领域。
它具有能量密度高、使用寿命长、自放电率低等优点，成为现代生活中不可或缺的电池。
本文将为大家介绍锂电池的储存及使用说明。
1.储存(1)温度：锂电池最佳存储温度为15℃-25℃，存储期间温度不应超过40℃。
避免长时间存储在高温环境下，以免对电池的性能和寿命造成不良影响。
(2)电量：锂电池建议存储在50%-60%的电量，过低或过高的电量都会对电池的寿命有所影响。
(3)环境：存储锂电池时，应避免阳光直射、高湿度及严重振动的环境，以免影响电池性能。
(4)防撞击：在储存期间，锂电池应避免受到严重的物理撞击，以免造成电池损坏。
2.使用(1)充电：在使用锂电池之前，建议先进行一次完全充电，以激活电池。
选择合适的充电设备进行充电，避免使用不符合标准的充电器。
(2)充电环境：充电时应避免高温环境，以免影响电池寿命。
不适用的充电器及充电线也应避免使用，以防短路或过压等安全问题。
(3)放电：锂电池不宜完全放电，建议在电量降至20%-30%时进行充电。
长时间放置不用的电池应及时充电恢复电量，以提高电池的寿命。
(4)避免过充：尽量避免电池过度充电，以免损坏电池容量。
充电器应具备过充保护功能，当电池充满时自动停止充电。
(5)避免过放：不要将电池放置在长时间未使用的情况下，以免导致电池过度放电，造成电池损坏。
(6)避免过热：锂电池充电时会产生一定的热量，要注意避免过度放热，避免高温环境，以免对电池性能和寿命造成影响。
(7)注意防潮：使用电池的环境应尽量干燥，避免电池受潮。
潮湿的环境会导致电池内部短路，使电池无法正常工作。
3.安全提示(1)严禁将锂电池投入火源或进行烧毁，以免引发燃烧或爆炸事故。
(2)避免将锂电池强行损坏、开启或拆卸，以免导致短路或电池内部发生其他危险。
(3)避免将锂电池直接暴露在阳光下，避免高温环境，避免电池自燃或爆炸。
(4)避免将锂电池与金属物质直接接触，以免发生短路。
