PKS培资料整理

1、容错以太网是PKS的控制网络，FTE不但提供了容错的特点，也提供了快速网络的相应，及工业以太网的控制应用的安全性。

FTE（Fault Tolerant Etherent）容错以太网，是冗余网络结构的单网，通过Honeywell的FTE驱动，及商用的网络设备实现的。

FTE网络包括冗余的交换机和电缆。

拓扑：双重并行树形网络在顶部接在一起。

2、交换机之间的级联线（cross link）构成单网。

商用的网络设备指交换机、双口单网卡或单口双网卡。

FTE网络通讯检测画面检测画面启动3、系统必须有控制器、服务器、操作站组成。

4、FTE网络包括冗余交换机和电缆。

树网：连接到A交换机上A口形成的网叫A网（Y ellow tree）。

连接到B交换机上B口形成的网叫B网（Green tree）。

Localhost 接收数据节点。

5、PKS系统服务器心脏部分是实时数据库RTDB( real time database)，实时数据库主要存储过程数据、历史数据、组态数据、用户数据、报警和事件、系统状态。

6、操作站类型：FLEX操作站、Console和Console Extension操作站。

服务器中的过程数据及相关的报警和事件，直接来自于控制器。

FLEX操作站（F站）：过程数据及相关的报警和事件，还有其他数据信息，直接来自服务器；组态ES-F两种连接方法：固定连接方法（Static）：提供了特定ES-F的一种永久性专用连接。

轮替连接方法（Rotary）：提供了一种按需的连接，适用不需要全日制操作访问时。

Console操作站（C站）：过程数据及相关的报警和事件，直接来自于控制器；其他数据信息来自于服务器；Console Extension操作站（CE）：过程数据及相关的报警和事件，还有其他数据信息，全部信息都来自与C站。

7、一个C300控制器带有两个IOLINK，每个IOLINK最多支持40个IO卡件，而一个控制器最多支持64个IO卡件。

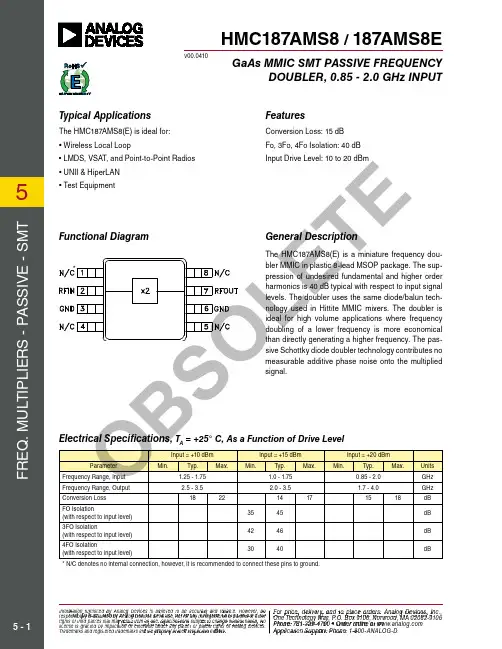

希捷HMC187AMS8 187AMS8E 0.85-2.0GHz GaAs MMIC SMT 被动

For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at Application Support: Phone: 978-250-3343 or apps@F r e q . M u l t i p l i e r s - p A s s i V e - s M t55 - 1HMC187AMS8 / 187AMS8EGaAs MMIC SMT PASSIVE FREQUENCYDOUBLER, 0.85 - 2.0 GHz INPUTv00.0410General DescriptionFeaturesFunctional DiagramConversion loss: 15 dB Fo, 3Fo, 4Fo isolation: 40 dB input Drive level: 10 to 20 dBmElectrical Specifications, T A = +25° C, As a Function of Drive LevelTypical Applicationsthe HMC187AMs8(e) is ideal for:•Wireless local loop•lMDs, VsAt, and point-to-point radios •uNii & HiperlAN•test equipmentthe HMC187AMs8(e) is a miniature frequency dou-bler MMiC in plastic 8-lead MsOp package. the sup-pression of undesired fundamental and higher order harmonics is 40 dB typical with respect to input signal levels. the doubler uses the same diode/balun tech-nology used in Hittite MMiC mixers. the doubler is ideal for high volume applications where frequency doubling of a lower frequency is more economical than directly generating a higher frequency. the pas-sive schottky diode doubler technology contributes no measurable additive phase noise onto the multiplied signal.input = +10 dBminput = +15 dBminput = +20 dBmparameterMin.typ. Max.Min.typ. Max.Min.typ. Max.units Frequency range, input 1.25 - 1.75 1.0 - 1.750.85 - 2.0GHz Frequency range, Output 2.5 - 3.5 2.0 - 3.5 1.7 - 4.0GHz Conversion loss182214171518dB FO isolation(with respect to input level)3545dB 3FO isolation(with respect to input level)4246dB 4FO isolation(with respect to input level)3040dB* N/C denotes no internal connection, however, it is recommended to connect these pins to ground.*Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.Trademarks and registered trademarks are the property of their respective owners.For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at Application Support: Phone: 1-800-ANALOG-DOBS OL E T EFor price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at ApplicationSupport:Phone:******************************F r e q . M u l t i p l i e r s - p A s s i V e - s M t55 - 2Conversion Gain @ +15 dBm Drive LevelIsolation @ +15 dBm Drive Level*Input Return Loss vs. Drive LevelOutput Return Lossfor Several Input Frequencies*With respect to input level-35-30-25-20-15-10-50123456+85 C +25 C -40 CC O N V E R S I O N G A I N (d B )OUTPUT FREQUENCY (GHz)-25-20-15-10-52468102.50 GHz 1.75 GHz 1.00 GHzR E T U R N L O S S (d B )OUTPUT FREQUENCY (GHz)-90-75-60-45-30-1500246810121F03F04F0I S O L A T I O N (d B )FREQUENCY (GHz)-30-25-20-15-10-500.51 1.52 2.5317 dBm 15 dBm 13 dBm 10 dBmR E T U R N L O S S (d B )INPUT FREQUENCY (GHz)DOUBLER, 0.85 - 2.0 GHz INPUTOBS OL E T EFor price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at Application Support: Phone: 978-250-3343 or apps@F r e q . M u l t i p l i e r s - p A s s i V e - s M t55 - 3Conversion Gain @ 25°C vs. Drive LevelOutput Return Loss with 1 GHz InputConversion Gain @ -40°C vs. Drive LevelOutput Return Loss with 2.5 GHz InputConversion Gain @ +85°C vs. Drive LevelOutput Return Loss with 1.75 GHz Input-20-15-10-512345617 dBm 15 dBm 10 dBmR E T U R N L O S S (d B )OUTPUT FREQUENCY (GHz)-35-30-25-20-15-10-5012345620 dBm 17 dBm 15 dBm13 dBm 11 dBm 9 dBmC O N V E R S I O N G A I N (d B )OUTPUT FREQUENCY (GHz)-20-15-10-5012345617 dBm 15 dBm 10 dBmR E T U R N L O S S (d B )OUTPUT FREQUENCY (GHz)-35-30-25-20-15-10-5012345620 dBm 17 dBm 15 dBm13 dBm 11 dBm 9 dBmC O N V E R S I O N G A I N (d B )OUTPUT FREQUENCY (GHz)-20-15-10-5012345617 dBm 15 dBm 10 dBmR E T U R N L O S S (d B )OUTPUT FREQUENCY (GHz)-35-30-25-20-15-10-5012345620 dBm 17 dBm 15 dBm13 dBm 11 dBm 9 dBmC O N V E R S I O N G A I N (d B )OUTPUT FREQUENCY (GHz)DOUBLER, 0.85 - 2.0 GHz INPUTOBS OL E T EFor price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at ApplicationSupport:Phone:******************************F r e q . M u l t i p l i e r s - p As s i V e - s M t55 - 4Absolute Maximum RatingsOutline DrawingeleCtrOstAtiC seNsitiVe DeViCeOBserVe HANDliNG preCAutiONs[2] Max peak reflow temperature of 260 °C [3] 4-Digit lot number XXXXPackage InformationNOtes:1. leADFrAMe MA teriAl: COpper AllOY2. DiMeNsiONs Are iN iNCHes [MilliMeters].3. DiMeNsiON DOes NOt iNCluDe MOlDFlAsH OF 0.15mm per siDe.4. DiMeNsiON DOes NOt iNCluDe MOlDFlAsH OF 0.25mm per siDe.5. All GrOuND leADs Must Be sOlDereD tO pCB rF GrOuND.DOUBLER, 0.85 - 2.0 GHz INPUTT EFor price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at Application Support: Phone: 978-250-3343 or apps@F r e q . M u l t i p l i e r s - p A s s i V e - s M t55 - 5Pin Descriptionpin Number Function Descriptioninterface schematic1, 4, 5, 8N/Cthese pins are not connected internally; however, all data shown herein was measured with these pins connected to rF/DC groundexternally.3, 6GNDAll ground leads must be soldered to pCB rF/DC ground.2rFiNpin is DC coupled and matched to 50 Ohms.7rFOutpin is DC coupled and matched to 50 Ohms.DOUBLER, 0.85 - 2.0 GHz INPUTOBS OL E T EFor price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at ApplicationSupport:Phone:******************************F r e q . M u l t i p l i e r s -p A s s i V e -sMt55 -6 Evaluation PCBList of Materials for Evaluation PCB 103313[1][1] reference this number when ordering complete evaluation pCB[2] Circuit Board Material: rogers 4350the circuit board used in the application shouldbe generated with proper rF circuit design tech-niques. signal lines should have 50 ohm imped-ance while the package N/C and ground leadsshould be connected directly to the ground planesimilar to that shown. the evaluation circuit boardshown is available from Hittite upon request.DOUBLER, 0.85 - 2.0 GHz INPUT BSO。

雷卡生物系统氨氨酸酶活性试验试剂盒说明书

Leica IP C
3
目录
1. 重要信息 ............................................................................................................................................... 6
4. 仪器安装 .............................................................................................................................................26
以印刷、影印、缩影、网络摄像或其他方法 — 包括任何电子系统和媒介 — 复制本文档的文本和插图 (或其任何部分) 需要事先征得 Leica Biosystems Nussloch GmbH 的明确书面许可。
欲知仪器序列号和制造年份，请参阅仪器背面的铭牌。
Leica Biosystems Nussloch GmbH Heidelberger Str. 17 - 19 69226 Nussloch Germany 电话： +49 - (0) 6224 - 143 0 传真： +49 - (0) 6224 - 143 268 网站：
4.1 安装地要求..........................................................................................................................................................................26 4.2 仪器拆箱 ...............................................................................................................................................................................26 4.2.1 安装打印机..........................................................................................................................................................................28 4.3 标准配置 ...............................................................................................................................................................................29 4.4 安装手动卸载站点...........................................................................................................................................................30 4.5 自动卸载站点 (选配) .......................................................................................................................................................31 4.6 安装/更换闪光灯泡 .........................................................................................................................................................32 4.7 填充和插入储存条...........................................................................................................................................................35 4.8 电气连接 ...............................................................................................................................................................................40 4.9 将运输墨盒更换为油墨墨盒 ......................................................................................................................................41 4.10 安装打印机驱动程序......................................................................................................................................................48

赛米控丹佛斯 SEMITRANS IGBT模块 SKM300GB12T4 数据表

SEMITRANS ®3Fast IGBT4 ModulesSKM300GB12T4Features•IGBT4 = 4. generation fast trench IGBT (Infineon)•CAL4 = Soft switching 4. generation CAL-diode•Isolated copper baseplate using DBC technology (Direct Bonded Copper) •Increased power cycling capability •With integrated gate resistor•For higher switching frequenzies up to 20kHz•UL recognized, file no. E63532Typical Applications*•AC inverter drives •UPS•Electronic welders at fsw up to 20 kHzRemarks•Case temperature limited to T c = 125°C max.•Recommended T op = -40 ... +150°C •Product reliability results valid for T j = 150°CAbsolute Maximum Ratings SymbolConditions Values UnitIGBT V CES T j =25°C 1200V I C T j =175°CT c =25°C 422A T c =80°C324A I Cnom 300A I CRMI CRM = 3xI Cnom 900A V GES -20...20V t psc V CC =800V V GE ≤ 15V V CES ≤ 1200VT j =150°C10µs T j-40...175°C Inverse diode I F T j =175°CT c =25°C 353A T c =80°C 264A I Fnom300A I FRM I FRM = 3xI Fnom900A I FSM t p =10ms, sin 180°, T j =25°C1548A T j -40 (175)°C Module I t(RMS)T terminal =80°C500A T stg -40...125°C V isolAC sinus 50 Hz, t =1min4000VCharacteristics SymbolConditions min.typ.max.UnitIGBT V CE(sat)I C =300A V GE =15V chiplevel T j =25°C 1.85 2.10V T j =150°C 2.25 2.45V V CE0chiplevel T j =25°C 0.80.9V T j =150°C 0.70.8V r CE V GE =15V chiplevel T j =25°C 3.50 4.00m ΩT j =150°C5.17 5.50m ΩV GE(th)V GE =V CE , I C =12mA55.86.5V I CES V GE =0V V CE =1200V T j =25°C 4.0mA T j =150°C mA C ies V CE =25V V GE =0Vf =1MHz 17.6nF C oes f =1MHz 1.16nF C res f =1MHz0.94nF Q G V GE =- 8 V...+ 15 V 1700nC R Gint T j =25°C 2.5Ωt d(on)V CC =600V I C =300A V GE =±15V R G on =1.5ΩR G off =1.5Ωdi/dt on =7500A/µs di/dt off =3350A/µs T j =150°C 200ns t r T j =150°C 44ns E on T j =150°C 27mJ t d(off)T j =150°C 450ns t f T j =150°C 90ns E off T j =150°C 29mJ R th(j-c)per IGBT0.11K/WCharacteristics SymbolConditionsmin.typ.max.UnitInverse diodeV F = V EC I F =300AV GE =0V chiplevelT j =25°C 2.17 2.49V T j =150°C 2.11 2.42V V F0chiplevel T j =25°C 1.3 1.5V T j =150°C 0.9 1.1V r FchiplevelT j =25°C 2.9 3.3m ΩT j =150°C4.0 4.4m ΩI RRM I F =300A di/dt off =7300A/µs V GE =±15VV CC =600VT j =150°C 345A Q rr T j=150°C54µC E rr T j =150°C 23mJR th(j-c)per diode0.17K/W Module L CE 1520nH R CC'+EE'terminal-chip T C =25°C 0.25m ΩT C =125°C0.5m ΩR th(c-s)per module 0.020.038K/W M s to heat sink M635Nm M t to terminals M62.55Nm Nm w325gSEMITRANS ® 3Fast IGBT4 ModulesSKM300GB12T4Features•IGBT4 = 4. generation fast trench IGBT (Infineon)•CAL4 = Soft switching 4. generation CAL-diode•Isolated copper baseplate using DBC technology (Direct Bonded Copper) •Increased power cycling capability •With integrated gate resistor•For higher switching frequenzies up to 20kHz•UL recognized, file no. E63532Typical Applications*•AC inverter drives •UPS•Electronic welders at fsw up to 20 kHzRemarks•Case temperature limited to T c = 125°C max.•Recommended T op = -40 ... +150°C •Product reliability results valid for T j = 150°CFig. 1: Typ. output characteristic, inclusive R CC'+ EE'Fig. 2: Rated current vs. temperature I C = f (T C )Fig. 3: Typ. turn-on /-off energy = f (I C )Fig. 4: Typ. turn-on /-off energy = f (R G )Fig. 5: Typ. transfer characteristic Fig. 6: Typ. gate charge characteristicFig. 7: Typ. switching times vs. I C Fig. 8: Typ. switching times vs. gate resistor R GFig. 9: Transient thermal impedance Fig. 10: Typ. CAL diode forward charact., incl. R CC'+ EE'Fig. 11: CAL diode peak reverse recovery current Fig. 12: Typ. CAL diode peak reverse recovery chargeThis is an electrostatic discharge sensitive device (ESDS), international standard IEC 60747-1, Chapter IX* The specifications of our components may not be considered as an assurance of component characteristics. Components have to be tested for the respective application. Adjustments may be necessary. The use of SEMIKRON products in life support appliances and systems is subject to prior specification and written approval by SEMIKRON. We therefore strongly recommend prior consultation of our staff.。

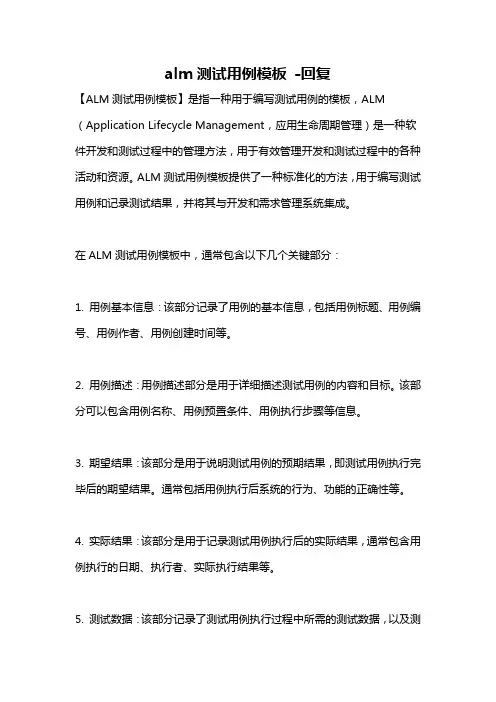

alm测试用例模板 -回复
