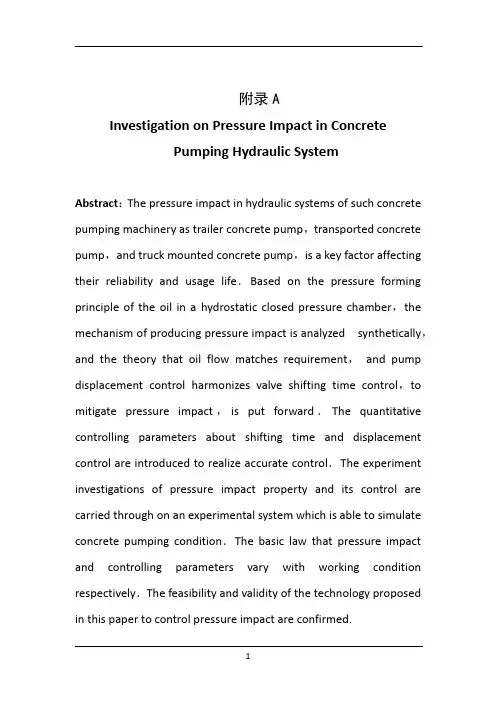

机械毕业设计英文外文翻译201混凝土运输车中液压泵压力的影响 (2)
附录AInvestigation on Pressure Impact in ConcretePumping Hydraulic SystemAbstract:The pressure impact in hydraulic systems of such concrete pumping machinery as trailer concrete pump,transported concrete pump,and truck mounted concrete pump,is a key factor affecting their reliability and usage life.Based on the pressure forming principle of the oil in a hydrostatic closed pressure chamber,the mechanism of producing pressure impact is analyzed synthetically,and the theory that oil flow matches requirement,and pump displacement control harmonizes valve shifting time control,to mitigate pressure impact,is put forward.The quantitative controlling parameters about shifting time and displacement control are introduced to realize accurate control.The experiment investigations of pressure impact property and its control are carried through on an experimental system which is able to simulate concrete pumping condition.The basic law that pressure impact and controlling parameters vary with working condition respectively.The feasibility and validity of the technology proposed in this paper to control pressure impact are confirmed.Keywords: Pressure impact;Hydraulic system;Concrete pumping machinery.1 IntroductionDuring working process of such concrete machinery as trailer concrete pump,transported concrete pump,and truck mounted concrete pump,two oil cylinders drive two concrete delivery cylinders respectively,and quickly switch direction with the possible highest frequency of more than 30 times per minute,which generates serious hydraulic impact.It is an important factor resulting in bad performance and low use reliability of the machine,and vibration,noise and overheating etc.so it’s a key of improving concrete pumping machinery’s reliability to gain a mastery of pressure impact property in concrete pumping hydraulic system and its controlling technology.Such technological measures as follows were taken to reduce pressure impact:(1)installation of a hydraulic accumulator or unloading valves,(2) change of sliding spool’s structure,(3)control of the switching speed of sliding spool,etc[1].Though these measures play an important role in absorption of pressure surges,there are obvious limitations,and they are passive measures.Literature.2. investigated the switching process of concrete pumping hydraulic system,and put forward active measure of regulating oil pump’s displacement to reduce pressureimpact.Literature[3]studied the intrinsic relationship between shifting time and pressure impact,and proposed a new concept of optimal shifting time.Therefore,in this paper, experiments were conducted to find out pressure impact forming law,and both oil pump’s displacement and directional—control valve’s shifting time were controlled simultaneously to seek optimal control scheme for effective reduction of pressure impact.2 Experimental principleThe pressure variation of the oil in a pressure chamber depends upon the difference between volumes of the oil flowing in and out the chamber[2].It’s obvious that effective reduction of this difference is of positive significance for depressing pressure impact.As far as concrete pumping hydraulic system is concerned, the pressure impact resulting from the main oil cylinders’stroke terminal lies upon the suitability of shifting time to a great extent[3].So it’s feasible and effective for absorbing pressure impact to accurately control oil pump’s displacement according to hydraulic system’s requirement,and combine it with shifting time control technique.What is shown in Fig.1 is the principle drawing of the experimental system sued to study characteristics of pressure impact in concrete pumping hydraulic system and its controlling techniques.The main oil pump(1)is a swash-plate type axial piston pump,which is provided with the function of constant horsepower control。
液压系统外文文献翻译中英文
外文文献翻译(含:英文原文及中文译文)英文原文Hydraulic systemW Arnold1 IntroductionThe hydraulic station is called a hydraulic pump station and is an independent hydraulic device. It is step by step to supply oil. And control the direction of hydraulic oil flow, pressure and flow, suitable for the host and hydraulic equipment can be separated on the various hydraulic machinery.After the purchase, the user only needs to connect the hydraulic station and the actuator (hydraulic or oil motor) on the mainframe with different tubings. The hydraulic machine can realize various specified actions and working cycles.The hydraulic station is a combination of manifolds, pump units or valve assemblies, electrical boxes, and tank electrical boxes. Each part function is:The pump unit is equipped with a motor and an oil pump, which is the power source of the hydraulic station and can convert mechanical energy into hydraulic oil pressure energy.V alve combination - its plate valve is mounted on the vertical plate, and the rear plate is connected with the same function as the manifold.Oil manifolds - assembled from hydraulic valves and channel bodies. It regulates hydraulic oil pressure, direction and flow.Box--a semi-closed container for plate welding. It is also equipped with an oil screen, an air filter, etc., which is used for cooling and filtering of oil and oil.Electrical box - divided into two types: one is to set the external lead terminal board; one is equipped with a full set of control appliances.The working principle of the hydraulic station: The motor drives the oil pump to rotate, then the pump sucks oil from the oil tank and supplies oil, converts the mechanical energy into hydraulic pressure energy, and the hydraulic oil passes through the manifold (or valve assembly) to adjust the direction, pressure and flow and then passes through the external tube. The way to the hydraulic cylinder or oil motor in the hydraulic machinery, so as to control the direction of the hydraulic motor, the strength of the speed and speed, to promote all kinds of hydraulic machinery to do work.(1) Development history of hydraulic pressureThe development history of hydraulics (including hydraulic power, the same below), pneumatics, and seals industry in China can be roughly divided into three stages, namely: the starting stage in the early 1950s to the early 60s; and the professional in the 60s and 70s. The growth stage of the production system; the 80-90's is a stage of rapid development. Among them, the hydraulic industry began in the early 1950s with thedevelopment of hydraulic machines such as Grinding Machines, broaching machines, and profiling lathes, which were produced by the machine tool industry. The hydraulic components were produced by the hydraulic workshop in the machine tool factory, and were produced for self use. After entering the 1960s, the application of hydraulic technology was gradually promoted from the machine tool to the agricultural machinery and engineering machinery. The original hydraulic workshop attached to the main engine plant was independent and became a professional manufacturer of hydraulic components. In the late 1960s and early 1970s, with the continuous development of mechanization of production, particularly in the provision of highly efficient and automated equipment for the second automobile manufacturing plant, the hydraulic component manufacturing industry witnessed rapid development. The batch of small and medium-sized enterprises also began to become specialized manufacturers of hydraulic parts. In 1968, the annual output of hydraulic components in China was close to 200,000 pieces. In 1973, in the fields of machine tools, agricultural machinery, construction machinery and other industries, the professional factory for the production of hydraulic parts has grown to over 100, and its annual output exceeds 1 million pieces. Such an independent hydraulic component manufacturing industry has taken shape. At this time, the hydraulic product has evolved from the original imitation Su product intoa combination of imported technology and self-designed products. The pressure has been developed towards medium and high pressures, and electro-hydraulic servo valves and systems have been developed. The application of hydraulics has been further expanded. The pneumatic industry started a few years later than hydraulics, and it was only in 1967 that it began to establish a professional pneumatic components factory. Pneumatic components began to be manufactured and sold as commodities. Its sealing industry including rubber seals, flexible graphite seals, and mechanical seals started from the production of common O-rings, oil seals, and other extruded rubber seals and asbestos seal products in the early 1950s. In the early 1960s, it began to develop and produce flexible products. Graphite seals and mechanical seals and other products. In the 1970s, a batch of batches of professional production plants began to be established one after another in the systems of the former Ministry of Combustion, the Ministry of Agriculture, and the Ministry of Agricultural Machinery, formally forming the industry, which laid the foundation for the development of the seal industry.In the 1980s, under the guidance of the national policy of reform and opening up, with the continuous development of the machinery industry, the contradiction between the basic components lags behind the host computer has become increasingly prominent and caused the attention of all relevant departments. To this end, the former Ministry of Machinesestablished the General Infrastructure Industry Bureau in 1982, and unified the original pneumatic, hydraulic, and seal specialties that were scattered in the industries of machine tools, agricultural machinery, and construction machinery, etc. The management of a piece of office, so that the industry in the planning, investment, the introduction of technology and scientific research and development and other aspects of the basic parts of the bureau's guidance and support. This has entered a period of rapid development, it has introduced more than 60 foreign advanced technology, of which more than 40 hydraulic, pneumatic 7, after digestion and absorption and technological transformation, are now mass production, and has become the industry's leading products . In recent years, the industry has intensified its technological transformation. From 1991 to 1998, the total investment of national, local, and corporate self-raised funds totaled about 2 billion yuan, of which more than 1.6 billion were hydraulic. After continuous technological transformation and technological breakthroughs, the technical level of a group of major enterprises has been further improved, and technological equipment has also been greatly improved, laying a good foundation for forming a high starting point, specialization, and mass production. In recent years, under the guidance of the principle of common development of multiple ownership systems in the country, various small and medium-sized enterprises with different ownership have rapidly emerged and haveshown great vitality. With the further opening up of the country, foreign-funded enterprises have developed rapidly, which plays an important role in raising industry standards and expanding exports. So far China has established joint ventures with famous manufacturers in the United States, Germany, Japan and other countries or directly established piston pumps/motors, planetary speed reducers, hydraulic control valves, steering gears, hydraulic systems, hydrostatic transmissions, and hydraulic components. The company has more than 50 manufacturing enterprises such as castings, pneumatic control valves, cylinders, gas processing triplets, rubber seals, and mechanical seals, and has attracted more than 200 million U.S. dollars in foreign capital.(2) Current statusBasic profileAfter more than 40 years of hard work, China's hydraulics, pneumatics and seals industry has formed a complete industrial system with a certain level of production capacity and technical level. According to the statistics of the third n ational industrial census in 1995, China’s state-owned, privately-owned, cooperative, village-run, individual, and “funded enterprises” have annual sales income of more than 1 million yuan in hydraulic, pneumatic, and seal industrial townships and above. There are a total of more than 1,300 companies, including about 700 hydraulics, and about 300 pneumatic and sealing parts. According to thestatistics of the international industry in 1996, the total output value of the hydraulic industry in China was about 2.448 billion yuan, accounting for the 6th in the world; the total output value of the pneumatic industry was about 419 million yuan, accounting for the world’s10 people.2. Current supply and demand profileWith the introduction of technology, independent development and technological transformation, the technical level of the first batch of high-pressure plunger pumps, vane pumps, gear pumps, general hydraulic valves, oil cylinders, oil-free pneumatic components and various types of seals has become remarkable. Improve, and can be stable mass production, provide guarantees for all types of host to improve product quality. In addition, certain achievements have also been made in the aspects of CAD, pollution control, and proportional servo technology for hydraulic pneumatic components and systems, and have been used for production. So far, the hydraulic, pneumatic and seal products have a total of about 3,000 varieties and more than 23,000 specifications. Among them, there are about 1,200 types of hydraulic pressure, more than 10,000 specifications (including 60 types of hydrodynamic products, 500 specifications); about 1350 types of pneumatic, more than 8,000 specifications; there are also 350 types of rubber seals, more than 5000 The specifications are now basically able to adapt to the general needs ofvarious types of mainframe products. The matching rate for major equipment sets can reach more than 60%, and a small amount of exports has started.In 1998, the domestic production of hydraulic components was 4.8 million pieces, with sales of about 2.8 billion yuan (of which mechanical systems accounted for 70%); output of pneumatic components was 3.6 million pieces, and sales were about 550 million yuan (including mechanical systems accounting for about 60%) The production of seals is about 800 million pieces, and the sales volume is about 1 billion yuan (including about 50% of mechanical systems). According to the statistics of the annual report of the China Hydraulic and Pneumatic Sealing Industry Association in 1998, the production and sales rate of hydraulic products was 97.5% (101% of hydraulic power), 95.9% of air pressure, and 98.7% of seal. This fully reflects the basic convergence of production and sales.Although China's hydraulic, pneumatic and sealing industries have made great progress, there are still many gaps compared with the development needs of the mainframe and the world's advanced level, which are mainly reflected in the variety, performance and reliability of products. . Take hydraulic products as an example, the product varieties are only 1/3 of the foreign country, and the life expectancy is 1/2 of that of foreign countries. In order to meet the needs of key hosts, imported hosts, and majortechnical equipment, China has a large number of imported hydraulic, pneumatic, and sealing products every year. According to customs statistics and relevant data analysis, in 1998, the import volume of hydraulic, pneumatic and seal products was about 200 million U.S. dollars, of which the hydraulic pressure was about 140 million U.S. dollars, the pneumatics were 30 million U.S. dollars, and the seal was about 0.3 billion U.S. dollars. The year is slightly lower. In terms of amount, the current domestic market share of imported products is about 30%. In 1998, the total demand for hydraulic parts in the domestic market was about 6 million pieces, and the total sales volume was 4 billion yuan; the total demand for pneumatic parts was about 5 million pieces, and the total sales volume was over 700 million yuan; the total demand for seals was about 1.1 billion yuan. Pieces, total sales of about 1.3 billion yuan. (3) Future developments1. The main factors affecting development(1) The company's product development capability is not strong, and the level and speed of technology development can not fully meet the current needs for advanced mainframe products, major technical equipment and imported equipment and maintenance;(2) Many companies have lagged behind in manufacturing process, equipment level and management level, and their sense of quality is not strong, resulting in low level of product performance, unstable quality,poor reliability, and insufficiency of service, and lack of user satisfaction. And trusted branded products;(3) The degree of professional specialization in the industry is low, the power is scattered, the duplication of the low level is serious, the product convergence between the region and the enterprise leads to blind competition, and the prices are reduced each other, thus the efficiency of the enterprise is reduced, the funds are lacking, and the turnover is difficult. Insufficient investment in development and technological transformation has severely restricted the overall level of the industry and its competitive strength.(4) When the degree of internationalization of the domestic market is increasing, foreign companies have gradually entered the Chinese market to participate in competition, coupled with the rise of domestic private, cooperative, foreign-funded, and individual enterprises, resulting in increasing impact on state-owned enterprises. .2. Development trendWith the continuous deepening of the socialist market economy, the relationship between supply and demand in the hydraulic, pneumatic and sealed products has undergone major changes. The seller market characterized by “shortage” has basically become a buyer’s market characterized by “structured surplus”. Replaced by. From the perspective of overall capacity, it is already in a trend of oversupply, and in particular,general low-grade hydraulic, pneumatic and seals are generally oversupply; and like high-tech products with high technological content and high value and high value-added products that are urgently needed by the host, Can not meet the needs of the market, can only rely on imports. After China's entry into the WTO, its impact may be greater. Therefore, during the “10th Five-Y ear Plan” period, the growth of the industry’s output value must not only rely on the growth of quantity. Instead, it should focus on the structural contradiction of the industry and intensify efforts to adjust the industrial structure and product structure. It should be based on the improvement of quality. Product technology upgrades in order to adapt to and stimulate market demand, and seek greater development.2. Hydraulic application on power slide(1) Introduction of Power Sliding TableUsing the binding force curve diagram and the state space analysis method to analyze and study the sliding effect and the smoothness of the sliding table of the combined machine tool, the dynamics of the hydraulic drive system of the sliding table—the self-regulating back pressure regulating system are established. mathematical model. Through the digital simulation system of the computer, the causes and main influencing factors of the slide impact and the motion instability are analyzed. What kind of conclusions can be drawn from those, if we canreasonably design the structural dimensions of hydraulic cylinders and self-regulating back pressure regulators ——The symbols used in the text are as follows:s 1 - flow source, that is, the flow rate of the governor valve outlet;S el —— sliding friction of the sliding table;R - the equivalent viscous friction coefficient of the slide;I 1 - quality of slides and cylinders;12 - self-adjusting back pressure valve core quality;C 1, c 2 - liquid volume without cylinder chamber and rod chamber;C 2 - Self-adjusting back pressure valve spring compliance;R 1, R2 - Self-adjusting back pressure valve damping orifice fluid resistance;R 9 - Self-adjusting back pressure valve valve fluid resistance;S e2——initial pre-tightening force of self-adjusting back pressure valve spring;I 4, I5 - Equivalent liquid sense of the pipeline;C 5, C 6 - equivalent liquid capacity of the pipeline;R 5, R7 - Equivalent liquid resistance of the pipeline;V 3, V4 - cylinder rodless cavity and rod cavity volume;P 3, P4—pressure of the rodless cavity and rod cavity of the cylinder;F - the slide bears the load;V - speed of slide motion;In this paper, the power bond diagram and the state space splitting method are used to establish the system's motion mathematical model, and the dynamic characteristics of the slide table can be significantly improved.In the normal operation of the combined machine tool, the magnitude of the speed of the slide, its direction and the load changes it undergoes will affect its performance in varying degrees. Especially in the process of work-in-process, the unsteady movement caused by the advancing of the load on the slide table and the cyclical change of the load will affect the surface quality of the workpiece to be machined. In severe cases, the tool will break. According to the requirements of the Dalian Machine Tool Plant, the author used the binding force curve diagram and the state space analysis method to establish a dynamic mathematical model of a self-adjusting back pressure and speed adjustment system for the new hydraulic drive system of the combined machine tool slide. In order to improve the dynamic characteristics of the sliding table, it is necessary to analyze the causes and main influencing factors of the impetus and movement of the sliding table. However, it must pass the computer's digital simulation and the final results obtained from the research.(2) Dynamic Mathematical ModelThe working principle diagram of the self-adjusting back pressure speedregulation system of the combined machine tool slide hydraulic drive system is shown in the figure. This system is used to complete the work-cycle-stop-rewind. When the sliding table is working, the three-position four-way reversing valve is in the illustrated position. The oil supply pressure of the oil pump will remain approximately constant under the effective action of the overflow valve, and the oil flow passes through the reversing valve and adjusts the speed. The valve enters the rodless chamber of the cylinder to push the slide forward. At the same time, the pressurized oil discharged from the rod chamber of the cylinder will flow back to the tank through the self-regulating back pressure valve and the reversing valve. During this process, there was no change in the operating status of both the one-way valve and the relief valve. The complex and nonlinear system of the hydraulic drive system of the self-adjusting back pressure governor system is a kind of self-adjusting back-pressure governor system. To facilitate the study of its dynamic characteristics, a simple and reasonable dynamic mathematical model that only considers the main influencing factors is established. Especially important [1][2]. From the theoretical analysis and the experimental study, we can see that the system process time is much longer than the process time of the speed control valve. When the effective pressure bearing area of the rodless cavity of the fuel tank is large, the flow rate at the outlet of the speed control valve is instantaneous. The overshoot is reflected in thesmall change in speed of the slide motion [2]. In order to further broaden and deeply study the dynamic characteristics of the system so that the research work can be effectively performed on a miniature computer, this article will further simplify the original model [2], assuming that the speed control valve is output during the entire system pass. When the flow is constant, this is considered to be the source of the flow. The schematic diagram of the dynamic model structure of this system is shown in Fig. 2. It consists of a cylinder, a sliding table, a self-adjusting back pressure valve, and a connecting pipe.The power bond graph is a power flow graph. It is based on the transmission mode of the system energy, based on the actual structure, and uses the centralized parameters to represent the role of the subsystems abstractly as a resistive element R, a perceptual element I, and a capacitive element. Three kinds of role of C. Using this method, the physical concept of modeling is clear, and combined with the state-space analysis method, the linear system can be described and analyzed more accurately. This method is an effective method to study the dynamic characteristics of complex nonlinear systems in the time domain. According to the main characteristics of each component of the self-adjusting back pressure control system and the modeling rules [1], the power bond diagram of the system is obtained. The upper half of each key in the figure represents the power flow. The two variables that makeup the power are the force variables (oil pressure P and force F) and the flow variables (flow q and velocity v). The O node indicates that the system is connected in parallel, and the force variables on each key are equal and the sum of the flow variables is zero; 1 The nodes represent the series connection in the system, the flow variables on each key are equal and the sum of the force variables is Zero. TF denotes a transformer between different energy forms. The TF subscripted letter represents the conversion ratio of the flow variable or the force variable. The short bar on the key indicates the causal relationship between the two variables on the key. The full arrow indicates the control relationship. There are integral or differential relationships between the force and flow variables of the capacitive and perceptual elements in the three types of action elements. Therefore, a complex nonlinear equation of state with nine state variables can be derived from Fig. 3 . In this paper, the research on the dynamic characteristics of the sliding table starts from the two aspects of the slide's hedging and the smoothness of the motion. The fourth-order fixed-length Runge-Kutta is used for digital simulation on the IBM-PC microcomputer.(3) Slide advanceThe swaying phenomenon of the slide table is caused by the sudden disappearance of the load acting on the slide table (such as drilling work conditions). In this process, the table load F, the moving speed V, and thepressure in the two chambers of the cylinder P3 and P4 can be seen from the simulation results in Fig. 4. When the sliding table moves at a uniform speed under the load, the oil pressure in the rodless cavity of the oil cylinder is high, and a large amount of energy is accumulated in the oil. When the load suddenly disappears, the oil pressure of the cavity is rapidly reduced, and the oil is rapidly reduced. When the high-pressure state is transferred to the low-pressure state, a lot of energy is released to the system, resulting in a high-speed forward impact of the slide. However, the front slide of the sliding table causes the pressure in the rod cavity of the oil cylinder to cause the back pressure to rise, thereby consuming part of the energy in the system, which has a certain effect on the kicking of the slide table. We should see that in the studied system, the inlet pressure of the self-adjusting back pressure valve is subject to the comprehensive effect of the two-chamber oil pressure of the oil cylinder. When the load suddenly disappears, the pressure of the self-adjusting back pressure valve rapidly rises and stably exceeds the initial back pressure value. It can be seen from the figure that self-adjusting back pressure in the speed control system when the load disappears, the back pressure of the cylinder rises more than the traditional speed control system, so the oil in the rod cavity of the cylinder absorbs more energy, resulting in the amount of forward momentum of the slide It will be about 20% smaller than traditionalspeed control systems. It can be seen from this that the use of self-adjusting back-gear speed control system as a drive system slider has good characteristics in suppressing the forward punch, in which the self-adjusting back pressure valve plays a very large role.(4) The smoothness of the slideWhen the load acting on the slide changes periodically (such as in the case of milling), the speed of the slide will have to fluctuate. In order to ensure the processing quality requirements, it must reduce its speed fluctuation range as much as possible. From the perspective of the convenience of the discussion of the problem, assume that the load changes according to a sine wave law, and the resulting digital simulation results are shown in Figure 5. From this we can see that this system has the same variation rules and very close numerical values as the conventional speed control system. The reason is that when the change of the load is not large, the pressure in the two chambers of the fuel tank will not have a large change, which will eventually lead to the self-regulating back pressure valve not showing its effect clearly.(5) Improvement measuresThe results of the research show that the dynamic performance of a sliding table with self-regulating back pressure control system as a drive system is better than that of a traditional speed control system. To reduce the amount of kick in the slide, it is necessary to rapidly increase the backpressure of the rod cavity when the load disappears. To increase the smoothness of the sliding table, it is necessary to increase the rigidity of the system. The main measure is to reduce the volume of oil. From the system structure, it is known that the cylinder has a large volume between the rod cavity and the oil discharge pipe, as shown in Fig. 6a. Its existence in terms of delay and attenuation of the self-regulating back pressure valve function, on the other hand, also reduces the rigidity of the system, it will limit the further improvement of the propulsion characteristics and the smoothness of the motion. Thus, improving the dynamic characteristics of the sliding table can be handled by two methods: changing the cylinder volume or changing the size of the self-regulating back pressure valve. Through the simulation calculation of the structural parameters of the system and the comparison of the results, it can be concluded that the ratio of the volume V4 between the rod cavity and the oil discharge pipe to the volume V3 between the rodless cavity and the oil inlet pipe is changed from 5.5 to 5.5. At 1 oclock, as shown in the figure, the diameter of the bottom end of the self-adjusting back pressure valve is increased from the original 10mm to 13mm, and the length of the damper triangle groove is reduced from the original lmm to 0.7mm, which will enable the front of the slide table. The impulse is reduced by 30%, the transition time is obviously shortened, and the smoothness of the slide motion will also be greatly improved.中文译文液压系统W Arnold1. 绪论液压站称液压泵站,是独立的液压装置。
机械设计外文文献翻译、中英文翻译
机械设计外文文献翻译、中英文翻译unavailable。
The first step in the design process is to define the problem and XXX are defined。
the designer can begin toXXX evaluated。
and the best one is XXX。
XXX.Mechanical DesignA XXX machines include engines。
turbines。
vehicles。
hoists。
printing presses。
washing machines。
and XXX and methods of design that apply to XXXXXX。
cams。
valves。
vessels。
and mixers.Design ProcessThe design process begins with a real need。
Existing apparatus may require XXX。
efficiency。
weight。
speed。
or cost。
while new apparatus may be XXX。
To start。
the designer must define the problem and XXX。
ideas and concepts are generated。
evaluated。
and refined until the best one is XXX。
XXX.XXX。
assembly。
XXX.During the preliminary design stage。
it is important to allow design XXX if some ideas may seem impractical。
they can be corrected early on in the design process。
泵外文翻译
The pump in pumping station selection problem Rotary pumpsThese are built in many different designs and are extremely popular in modern fluid-power system. The most common rotary-pump designs used today are spur-gear, generated-rotary , sliding-vane ,and screw pump ,each type has advantages that make it the most suitable for a given application .Spur-gear pumps. these pumps have two mating gears are turned in a closely fitted casing. Rotation of one gear ,the driver causes the second ,or follower gear, to turn . the driving shaft is usually connected to the upper gear of the pump .When the pump is first started ,rotation of gears forces air out the casing and into the discharge pipe. this removal of air from the pump casing produces a partial vacuum on the pump inlet ,here the fluid is trapped between the teeth of the upper and lower gears and the pump casing .continued rotation of the gears forces the fluid out of the pump discharge .Pressure rise in a spur-gear pump is produced by the squeezing action on the fluid ad it is expelled from between the meshing gear teeth and casing ,.a vacuum is formed in the cavity between the teeth ad unmesh, causing more fluid to be drawn into the pump ,a spur-gear pump is a constant-displacement unit ,its discharge is constant at a given shaft speed. the only way the quantity of fluid discharge by a spur-gear pump of type in figure can be regulated is by varying the shaft speed .modern gear pumps used in fluid-power systems develop pressures up to about 3000psi.Figure shows the typical characteristic curves of a spur-gear rotary pump. These curves show the capacity and power input for a spur-gear pump at various speeds. At any given speed the capacity characteristic is nearly a flat line the slight decrease in capacity with rise in discharge pressure is caused by increased leakage across the gears from the discharge to the suction side of the pump. leakage in gear pumps is sometimes termed slip. Slip also increase with arise pump discharge pressure .the curve showing the relation between pump discharge pressure and pump capacity is often termed the head-capacity or HQ curve .the relation between power input and pump capacity is the power-capacity or PQ curve .Power input to a squr-gear pump increases with both the operating speed and discharge pressure .as the speed of a gear pump is increased. Its discharge rate in gallons per minute also rise . thus the horsepower input at a discharge pressure of 120psi is 5hp at 200rpm and about 13hp at 600rpm.thecorresponding capacities at these speed and pressure are 40 and 95gpm respectively, read on the 120psi ordinate where it crosses the 200-and 600-rpm HQ curves .Figure is based on spur-gear handing a fluid of constant viscosity , as the viscosity of the fluid handle increases (i.e. ,the fluid becomes thicker and has more resistance to flow ),the capacity of a gear pump decreases , thick ,viscous fluids may limit pump capacity t higher speeds because the fluid cannot into the casing rapidly enough fill it completely .figure shows the effect lf increased fluid biscosity on the performance of rotary pump in fluid-power system .at 80-psi discharge pressure the pp has a capacity lf 220gpm when handling fluid of 100SSU viscosity lf 500SSU . the power input to the pump also rises ,as shown by the power characteristics.Capacity lf rotary pump is often expressed in gallons per revolution of the gear or other internal element .if the outlet of a positive-displacement rotary pump is completely closed, the discharge pressure will increase to the point where the pump driving motor stalls or some part of the pump casing or discharge pipe ruptures .because this danger of rupture exists systems are filled with a pressure –relief valve. This relief valve may be built as of the pump or it may be mounted in the discharge piping.Sliding-Vane Pumps,These pumps have a number of vanes which are free to slide into or out of slots in the pup rotor . when the rotor is turned by the pump driver , centrifugal force , springs , or pressurized fluid causes the vanes to move outward in their slots and bear against the inner bore of the pump casing or against a cam ring . as the rotor revolves , fluid flows in between the vanes when they pass the suction port. This fluid is carried around the pump casing until the discharge port is reached. Here the fluid is forced out of the casing and into the discharge pipe.In the sliding-vane pump in Figure the vanes in an oval-shaped bore. Centrifugal force starts the vanes out of their slots when the rotor begins turning. The vanes are held out by pressure which is bled into the cavities behind the vanes from a distributing ring at the end of the vane slots. Suction is through two ports A and AI, placed diametrically opposite each other. Two discharge ports are similarly placed. This arrangement of ports keeps the rotor in hydraulic balance, reliving the bearing of heavy loads. When the rotor turns counterclockwise, fluid from the suction pipe comes into ports A and AI is trapped between the vanes, and is carried around and discharged through ports B and BI. Pumps of this design are built for pressures up to 2500 psi. earlier models required staging to attain pressures approximating those currently available in one stage. Valving , uses to equalize flow and pressure loads as rotor sets areoperated in series to attain high pressures. Speed of rotation is usually limited to less than 2500rpm because of centrifugal forces and subsequent wear at the contact point of vanes against the cam-ring surface..Two vanes may be used in each slot to control the force against the interior of the casing or the cam ring. Dual vanes also provide a tighter seal , reducing the leakage from the discharge side to the suction side of the pump . the opposed inlet and discharge port in this design provide hydraulic balance in the same way as the pump, both these pumps are constant-displacement units.The delivery or capacity of a vane-type pump in gallons per minute cannot be changed without changing the speed of rotation unless a special design is used. Figure shows a variable-capacity sliding-vane pump. It dose not use dual suction and discharge ports. The rotor rums in the pressure-chamber ring, which can be adjusted so that it is off-center to the rotor. As the degree of off-center or eccentricity is changed, a variable volume of fluid is discharged. Figure shows that the vanes create a vacuum so that oil enters through 180 of shaft rotation. Discharge also takes place through 180 of rotation. There is a slight overlapping of the beginning of the fluid intake function and the beginning of the fluid discharge.Figure shows how maximum flow is available at minimum working pressure. As the pressure rises, flow diminishes in a predetermined pattern. As the flow decreases to a minimum valve, the pressure increases to the maximum. The pump delivers only that fluid needed to replace clearance floes resulting from the usual slide fit in circuit components.A relief valve is not essential with a variable-displacement-type pump of this design to protect pumping mechanism. Other conditions within the circuit may dictate the use of a safety or relief valve to prevent localized pressure buildup beyond the usual working levels.For automatic control of the discharge , an adjustable spring-loaded governor is used . this governor is arranged so that the pump discharge acts on a piston or inner surface of the ring whose movement is opposed by the spring . if the pump discharge pressure rises above that for which the by governor spring is set , the spring is compressed. This allows the pressure-chamber ring to move and take a position that is less off center with respect to the rotor. The pump theb delivers less fluid, and the pressure is established at the desired level. The discharge pressure for units of this design varies between 100 and 2500psi.The characteristics of a variable-displacement-pump compensator are shown in figure. Horsepowerinput values also shown so that the power input requirements can be accurately computed. Variable-volume vane pumps are capacity of multiple-pressure levels in a predetermined pattern. Two-pressure pump controls can provide an efficient method of unloading a circuit and still hold sufficient pressure available for pilot circuits.The black area of the graph of figure shows a variable-volume pump maintaining a pressure of 100psi against a closed circuit. Wasted power is the result of pumping oil at 100psi through an unloading or relief valve to maintain a source of positive pilot pressure. Two-pressure –type controls include hydraulic, pilot-operated types and solenoid-controlled, pilot-operated types. The pilot oil obtained from the pump discharge cannot assist the governor spring. Minimum pressure will result. The plus figure shows the solenoid energized so that pilot oil assists compensator spring. The amount of assistance is determined by the small ball and spring, acting as a simple relief valve. This provides the predetermined maximum operating pressure.Another type of two-pressure system employs what is termed a differential unloading governor. It is applied in a high-low or two-pump circuit. The governor automatically, Through pressure sensing, unloads the large volume pump to a minimum deadhead pressure setting. Deadhead pressure refers to a specific pressure level established as resulting action of the variable-displacement-pump control mechanism. The pumping action and the resulting flow at deadhead condition are equal to the leakage in the system and pilot-control flow requirements. No major power movement occurs at this time, even though the hydraulic system may be providing a clamping or holding action while the pump is in deadhead positionThe governor is basically a hydraulically operated, two-pressure control with a differential piston that allows complete unloading when sufficient external pilot pressure is applied to pilot unload port.The minimum deadhead pressure setting is controlled by the main governor spring A. the maximum pressure is controlled by the relief-valve adjustment B. the operating pressure for the governor is generated by the large-volume pump and enters through orifice C.To use this device let us assume that the circuit require a maximum pressure of 1000psi, which will be supplied by a 5-gpm pump. It also needs a large flow (40gpm) at pressure up to 500psi; it continues to 1000pso at the reduced flow rate. A two-pump system with an unloading governor on the 40-gpm pump at 500psi to a minimum pressure setting of 200psi (or another desired value) , which the 5-gpm pump takes the circuit up to1000psi or more.Note in figure that two sources of pilot pressure are required. One ,the 40-gpm pump, provides pressure within the housing so that maximum pressure setting can be obtained. The setting of the spring, plus the pressure within the governor housing, determines the maximum pressure capacity of the 40-gpm pump. The second pilot source is the circuit proper, which will go to 1000psi. this pilot line enters the governor through orifice D and acts on the unloading piston E . the area of piston E is 15 percent greater than the effective area of the relief poppet F. the governor will unload at 500psi and be activated at 15percent below 500psi, or 425psi. By unloading, we mean zero flow output of the 40-gpm pump.As pressure in the circuit increases from zero to 500psi, the pressure within the governor housing also increases until the relief-valve setting is reached, at which time the relief valve cracks open, allowing flow to the tank.The pressure drop in the hosing is a maximum additive value, allowing the pump to deadhead. Meanwhile, the system pressure continues to rise above 700psi, resulting in a greater force on the bottom of piston E than on the top. The piston then completely unseats poppet F, which results in a further pressure drop within the governor horsing to zero pressure because of the full-open position of the relief poppet F. flow entering the housing through orifice is directed to the tank pass the relief poppet without increasing the pressure in housing. The deadhead pressure of the 40-gpm pump then decreases to the lower set value. Thus , at the flow rate to the unloading governor ,the 40gpm pump goes to deadhead. The flow rate to the circuit decreases to 5gpm as the pressure to 1000psi, the 5-gpm pump is also at its deadhead setting, thus only holding system pressure.The 4-gpm pump unloads its volume at 500psi. It requires a system pressure of 600psi to unload the 40-gpm pump to its minimum pressure of 200psi. the 600-psi pilot supply enters through orifice D and acts on the differential piston E. The pumps volume is reduced to zero circuit-flow output at 500psi. The additional 100-psi pilot pressure is required to open poppet F completely and allow the pressure within the housing to decrease to zero.As circuit pressure decreases ,both pumps come back into service in a similar pattern.Axial Piston PumpsIn axial piston pumps of the in-line type, where the cylinders and the drive shaft are parallel ,the reciprocating motion is created by a cam plate, also known as a wobble plate ,tilting plate ,or swash plate .This plate lies in a plane plate that cuts across the center line of the drive shaft and cylinder barrel and does not rotate .In a fixed-displacement pump ,the cam plate will be rigidly mounted in a positionso that it intersects the center line of the cylinder barrel at an angle approximately 25 degrees from perpendicular .Variable-delivery axial piston pumps are designed ,so that the angle that the cam plate makes with a perpendicular to the center line of the cylinder barrel may be varied from zero to 20 or 25 degrees to one or both sides. One end of each piston rod is held in contact with the cam plate as the cylinder block and piston assembly rotates with the drive shaft This causes the pistons to reciprocate within the cylinders .The length of the piston stroke is proportional to the angle that the cam plate is set from perpendicular to the center line of the cylinder barrel .A variation of axial piston pump is the bent-axis type is shown in 1-1 .This type does not have a tilting cam plate as the in-line pump does .Instead ,the cylinder block axial is varied from the drive shaft axis .The ends of the connecting rods are retained in sockets on a disc that turns with the drive shaft .The cylinder block is turned with the drive shaft by a universal joint assembly at the intersection of the drive shaft and the cylinder block shaft ,In order to vary the pump displacement ,the cylinder block shaft and valve plate are mounted in a yoke and the entire assembly is swung in an are around a pair of mounting pintles attacked to the pump housing .Figure 1-1 Bent –axis axial piston pumpThe pumping action of the axial piston pump is made possible by a universal joint or link .Figure1-2is a series of drawings that illustrates how the universal joint is used in the operation of this pump .First ,a rocker arm is installed on a horizontal shaft .(See fig 1-1view A )The arm is joined to the shaft by a pin so that it can be swung back and forth ,as indicated in view B。
毕业设计水利水电工程英文文献翻译
外文文献:hydraulicturbines and hydro—electric powerAbstractPower may be developed from water by three fundamental processes :by action of its weight, of its pressure,or of its velocity,or by a combination of any or all three。
In modern practice the Pelton or impulse wheel is the only type which obtains power by a single process the action of one or more high-velocity jets. This type of wheel is usually found in high—head developments. Faraday had shown that when a coil is rotated in a magnetic field electricity is generated. Thus, in order to produce electrical energy, it is necessary that we should produce mechanical energy,which can be used to rotate the ‘coil’。
The mechanical energy is produced by running a prime mover (known as turbine )by the energy of fuels or flowing water. This mechanical power is converted into electrical power by electric generator which is directly coupled to the shaft of turbine and is thus run by turbine. The electrical power, which is consequently obtained at the terminals of the generator,is then transited to the area where it is to be used for doing work.he plant or machinery which is required to produce electricity (i.e。
机械 外文翻译 外文文献 英文文献 液压机械及泵
Hydraulic machinery and pumpHydraulic machinery are machines and tools which use fluid power to do work. Heavy equipment is a common example.In this type of machine, high-pressure liquid - called hydraulic fluid - is transmitted throughout the machine to various hydraulic motors and hydraulic cylinders. The fluid is controlled directly or automatically by control valves and distributed through hoses and tubes.The popularity of hydraulic machinery is due to the very large amount of power that can be transferred through small tubes and flexible hoses, and the high power density and wide array of actuators that can make use of this power.Hydraulic machinery is operated by the use of hydraulics, where a liquid is the powering medium. Pneumatics, on the other side, is based on the use of a gas as the medium for power transmission, generation and control.Hydraulic circuitsFor the hydraulic fluid to do work, it must flow to the actuator and or motors, then return to a reservoir.The fluid is then filtered and re-pumped. The path taken by hydraulic fluid is called a hydraulic circuit of which there are several types. Open center circuits use pumps which supply acontinuous flow. The flow is returned to tank through the control valve's open center; that is, when the control valve is centered, it provides an open return path to tank and the fluid is not pumped to a high pressure. Otherwise, if the control valve is actuated it routes fluid to and from an actuator and tank. The fluid's pressure will rise to meet any resistance, since the pump has a constant output. If the pressure rises too high, fluid returns to tank through a pressure relief valve.Hydraulic pumps supply fluid to the components in the system. Pressure in the system develops in reaction to the load. Hence, a pump rated for 5,000 psi is capable of maintaining flow against a load of 5,000 psi.Pumps have a power density about ten times greater than an electric motor (by volume). They are powered by an electric motor or an engine, connected through gears, belts, or a flexible elastomeric coupling to reduce vibration.Common types of hydraulic pumps to hydraulic machinery applications are;Gear pump: cheap, durable, simple. Less efficient, because they are constant displacement, and mainly suitable for pressures below 20 MPa (3000 psi).Vane pump: cheap and simple, reliable (especially in g-rotor form). Good for higher-flow low-pressure output.Axial piston pump: many designed with a variable displacement mechanism, to vary output flow for automatic control of pressure. There are various axial piston pump designs, including swashplate and checkball. The most common is the swashplate pump.Radial piston pump: A pump that is normally used for very high pressure at small flows.Piston pumps are more expensive than gear or vane pumps, but provide longer life operating at higher pressure, with difficult fluids and longer continuous duty cycles. Piston pumps make up one half of a hydrostatic transmission.Control valvesDirectional control valves route the fluid to the desired actuator. They usually consist of a spool inside a cast iron or steel housing. Directional control valves are usually designed to be stackable, with one valve for each hydraulic cylinder, and one fluid input supplying all the valves in the stack.The spool position may be actuated by mechanical levers, hydraulic pilot pressure, or solenoids which push the spool left or right.The main valve block is usually a stack of off the shelf directional control valves chosen by flow capacity and performance. Some valves are designed to be proportional (flow rate proportional to valve position), while others may be simply on-off. The controlvalve is one of the most expensive and sensitive parts of a hydraulic circuit.Pressure relief valves are used in several places in hydraulic machinery; on the return circuit to maintain a small amount of pressure for brakes, pilot lines, etc... On hydraulic cylinders, to prevent overloading and hydraulic line rupture. On the hydraulic reservoir, to maintain a small positive pressure which excludes moisture and contamination.Pressure reducing valves reduce the supply pressure as needed for various circuits.Check valves are one-way valves, allowing an accumulator to charge and maintain its pressure after the machine is turned off, for example.Counterbalance valves are in fact a special type of pilot controlled check valve. Whereas the check valve is open or closed, the counterbalance valve acts a bit like a pilot controlled flow control. Hydraulic pump typesGear pumpsGear pumps (with external teeth) (fixed displacement) are simple and economical pumps. The swept volume or displacement of gearpumps for hydraulics will be between about 1 cm3 (0.001 litre) and 200 cm3(0.2 litre). These pumps create pressure through the meshing of the gear teeth, which forces fluid around the gears to pressurize the outlet side. Some gear pumps can be quite noisy, compared to other types, but modern gear pumps are highly reliable and much quieter than older models.Rotary vane pumpsRotary vane pumps(fixed and simple adjustable displacement) have higher efficiencies than gear pumps, but are also used for mid pressures up to 180 bars in general. Some types of vane pumps can change the centre of the vane body, so that a simple adjustable pump is obtained. These adjustable vane pumps are in general constant pressure or constant power pumps: the displacement is increased until the required pressure or power is reached and subsequently the displacement or swept volume is decreased until an equilibrium is reached.Screw pumpsScrew pumps (fixed displacement) are a double Archimedes' screw, but closed. This means that two screws are used in one body. The pumps are used for high flows and relatively low pressure (max 100 bar). They were used on board ships where the constant pressure hydraulic system was going through the whole ship,especially for the control of ball valves, but also for the steering gear and help drive systems. The advantage of the screw pumps is the low sound level of these pumps; the efficiency is not that high. Bent axis pumpsBent axis pumps, axial piston pumps and motors using the bent axis principle, fixed or adjustable displacement, exists in two different basic designs. The Thoma-principle (engineer Hans Thoma, Germany, patent 1935) with max 25 degrees angle and the Wahlmark-principle (Gunnar Axel Wahlmark, patent 1960) with spherical-shaped pistons in one piece with the piston rod, piston rings, and maximum 40 degrees between the driveshaft centerline and pistons (Volvo Hydraulics Co.). These have the best efficiency of all pumps. Although in general the largest displacements are approximately one litre per revolution, if necessary a two-liter swept volume pump can be built. Often variable-displacement pumps are used, so that the oil flow can be adjusted carefully. These pumps can in general work with a working pressure of up to 350–420 bars in continuous work.Axial piston pumps swashplate principleAxial piston pumps using the swashplate principle (fixed and adjustable displacement) have a quality that is almost the same as the bent axis model. They have the advantage of being morecompact in design. The pumps are easier and more economical to manufacture; the disadvantage is that they are more sensitive to oil contamination.Radial piston pumpsRadial piston pumps(fixed displacement) are used especially for high pressure and relatively small flows. Pressures of up to 650 bar are normal. In fact variable displacement is not possible, but sometimes the pump is designed in such a way that the plungers can be switched off one by one, so that a sort of variable displacement pump is obtained.Peristaltic pumpsPeristaltic pumps are not generally used for high pressures. Pumps for open and closed systemsMost pumps are working in open systems. The pump draws oil from a reservoir at atmospheric pressure. It is very important that there is no cavitation at the suction side of the pump. For this reason the connection of the suction side of the pump is larger in diameter than the connection of the pressure side. In case of the use of multi-pump assemblies, the suction connection of the pump is often combined. It is preferred to have free flow to the pump (pressure at inlet of pump at least 0.8 bars). The body of the pump is often in open connection with the suction side of the pump.In case of a closed system, both sides of the pump can be at high pressure. The reservoir is often pressurized with 6-20 bars boost pressure. For closed loop systems, normally axial piston pumps are used. Because both sides are pressurized, the body of the pump needs a separate leakage connection.Multi pump assemblyIn a hydraulic installation, one pump can serve more cylinders and motors. The problem however is that in that case a constant pressure system is required and the system always needs the full power. It is more economic to give each cylinder and motor its own pump. In that case multi pump assemblies can be used. Gearpumps can often be obtained as multi pumps. The different chambers (sometimes of different size) are mounted in one body or built together. Also vane pumps can often be obtained as a multi pump. Gerotor pumps are often supplied as multi pumps. Screw pumps can be built together with a gear pump or a vane pump. Axial piston swashplate pumps can be built together with a second pump of the same or smaller size, or can be built together with one or more gear pumps or vane pumps (depending on the supplier). Axial plunger pumps of the bent axis design can not be built together with other pumps.翻译液压机械及泵液压机械是机械和工具,它使用流体的力量去做的工作。
研究的可靠性,滑动轴承支撑斜盘式轴向柱塞泵型水液压外文翻译、外文文献翻译、中英文翻译
Research on the reliability of sliding bearing support in a swash-plate type axial piston water hydraulic pumpYin F.L., Nie S.L.College of Mechanical Engineering and AppliedElectronicsTechnologyRuan J.Logistics department of the 92962th armyPeople's Liberation Army of ChinaBeijing University of TechnologyBeijing 100124, Chinayinfanglong89@Ruan J.Logistics department of the 92962th armyPeople's Liberation Army of ChinaBeijing University of TechnologyBeijing 100124, Chinayinfanglong89@Guangzhou 510700, Chinahlrj84@Abstract—In this paper, two kinds of different sliding bearing support structure including a traditional cross-shaft and a semi-shaft are designed for a water hydraulic pump.The characteristics of the two sliding bearings in each structure are calculated. By comparison, it is found that the working conditions of the two sliding bearings, especially the pv value, in the semi-shaft support structure are near to be identical in the cross-shaft one, which will be helpful to prolong their service life. Based on the Stress-strength interference theory, a reliability calculation model of the friction pair between the shaft and sliding bearings is proposed. The analysis results indicate that the semi-shaft sliding bearing support is beneficial to largely raise the inherent reliability of the water hydraulic pump as well as the service life of the pump.Keywords—water hydraulic pump; sliding bearing; pv value;ReliabilityⅠ.IntroductionWater hydraulic system is operated with raw water(pure tap water) substituting for mineral oil. Such systems are becoming more and more popular, especially in the fields of steel and glass production, nuclear power generation, coal and gold mining, food and medicine processing, ocean exploration, and underwater pared with conventional mineral oil, raw water that acts as hydraulic fluid has several inherent advantages,including low operating cost, sound environmental compatibility, non-flammability, and low pollution potential to products [1-2].Water hydraulic axial piston pump (WHAP) is one of key power components in water hydraulic systems. There are several challenging issues associated with the pump,such as conflicts between lubrication and wear, and between sealing and leakage. Especially, shaft and bearings form key friction pairs, which will result in significant influences on the pump’s performance.Generally, the hydrodynamic sliding bearing is extensively used for supporting the water hydraulic pump’s shaft. Therefore, in order to improve the pump’s efficiency and reliability, it is crucial to study the force distribution of sliding bearings thoroughly. According to hydrodynamic lubrication theory, the critical points,which satisfies the wear resistance for sliding bearing and shaft of WHAP includes: (1) An optimal load distributed strategy should be used to determine optimal dimensions for achieving the even distributing of the load. (2) Several suitable materials should be selected to meet the water lubrication working conditions and to ensure a long life with lower friction losses [3].The concepts of both stress and strength relating to reliability design are generalized. In this paper, thereliability of sliding bearing support will be investigated using Stress-strength interference model to calculate the reliability value of the sliding bearings, which will include the effect of the flow fluctuation in WHAP.II. Description of sliding bearing supportFigure (a) shows a schematic of a typical cross-shaft supporting structure. The cylinder block is supported on the shaft. Two sliding bearings are located on the cylinder’s left and right ends to support the shaft. Figure (b) shows a schematic of a novel design, where a semi-shaft supportingstructure is employed. The front sliding bearing is used to support the input shaft (spline shaft). And the rear sliding bearing inside the cylinder is used to support the cylinder block. In the semi-shaft support structure, the spline shaft and cylinder are interference fit, and they are combined by a spline.During pump running, the motor drives input shaft rotating, bringing along the rotation of the cylinder.Because of the presence of the angle of swash plate, the whirling motion of the cylinder is translated into straight reciprocating motion of the pistons. When the cylinder rotated a period, the pistons reciprocate a round-trip to complete a process of suction and discharge of the pump.(a)cross-shaft support(b) semi-shaft supportFig. 1 Schematic diagram of sliding bearing supportIII. Theoretical analysesA. Load characteristics of the bearings.As shown in Figure 1, the reaction component force that act on a single slipper along X-axis and Z-axis can be respectively described as follows:In terms of the axial piston pump, the hydraulic pressure in each piston hole can be represented as:Then the radial resultant force is located in point O (as shown in Figure 1), and the radial resultant force can be expressed as:Furthermore, with the radial force equilibrium along the X-axis of the supporting structure, we have:The torque equilibrium along the X-axis can be written as:Through solving Eqs. (4) –(6), the supporting force of the front and rear bearings can be obtained, respectively:B. PV value of the bearingsFor the valve plate distribution of axial piston pump,the number of pistons within the discharge pressure area (Zg) during one operating period is variably along with the reciprocatingmotion of the pistons. Ignoring the influence of the pressure pulsation in the pre-loading and pre-unloading areas, and the cylinder weight, affected by the alternative vibration of the number of piston in the discharge pressure area, the sliding bearing is subjected to periodic unstable loads. Water is characterized by very low dynamical viscosity, which is regarded as poor lubricating properties affecting the performance of sliding and rolling contacts [4]. Here it appears that it is impossible to obtain an acceptable film thickness in water lubricated sliding bearings. Consequently, in practical work, the sliding bearings in WHAP are usually working under the condition of an incomplete liquid lubrication. Especially, at the points of turn on / off, the direct contacts between the matching pairs of the shaft and sliding bearings may take place. Moreover, since it is necessary for the sliding bearings the surface hardness should be as high as possible in order to sustain contacting pressure, and thus, the abrasion between the shaft and bearings would be as low as possible in order to improve the sliding bearings’ reliability.It is essential to select several suitable materials and matching pair. The siding bearings in this paper are made of WR525, which is a thermoplastic composite consisting of carbon fiber in a PEEK matrix. Due to its unique thermal expansion properties, WR525 is ideal for use as impeller wear rings, bushings and case wear rings.WR525 allows the pump user to increase pump efficiency by running tighter wear ring clearances, while decreasing potential pump damage when pumps are cavitated or experience down-line bearing failures. WR525 bearings are specified as standard material on all HGM/HGM-RO boiler feed pumps.As it is known, the critical pv value is a very important parameter for polymers or their composites in tribological applications, and has been widely used in investigation of ploymers’ sliding wear behaviors. Besides, pv limits are affected by variations in temperature, speed,loading,lubrication and surface finish. Exceeding pv limits will result in accelerated wear and premature bearing failure, where p is the intensity of pressure applied to a bearing surface and v is the relative velocity [5]. Furthermore, the pv value is proportional to bearing’s wear, friction power loss and friction heat [6]. Wear, friction power loss and temperature conditions are the three key index of the service life of the bearings. Therefore, the pv value can be used to preliminarily evaluate the sliding bearings’working life in a WHAP. Generally speaking, in order to guarantee the boundary lubricated bearing running reliably, it is necessary to meet the following three conditions [7]:Bearing’s average working specific pressure is:Substituting Eqs. (7) and (8) into Eq. (10), average working specific pressure of the front bearing can be obtained as:And average working specific pressure of the rear bearing can be represented as:Radial circumferential velocity of the shaft is:The friction specific work rate of sliding bearing can be expressed asSubstituting Eqs. (11) – (13) into Eq. (14), the friction specific work rate of the front bearing can be obtained as follows:And the friction specific work rate of the rear bearing is calculated as follows:Based on the structure parameters of the WHAP, taking the peak number of pistons in the discharge pressure area (Zg), the working conditions of the bearings under the two different structures are calculated in Table1.C. Scale factorActually, analyzing Eqs. (10), (11), (14) and (15), it is found that the dz, Band influence the match of the two bearings’ working conditions. Define the bearing s’linear velocity ratio as a verage specific work rate ratio as Then we have:The three parameters mentioned above can be calculated (as shown in Table 2).D. Reliability model and evaluationIn terms of a WHAP, design of the sliding bearing is an important part for raising its reliability. In this paper, the pv value is defined as the stress between the sliding bearing friction pair-Y, and it is a random variable. The allowable pv value [pv] can be defined as the strength-X.Generally speaking, the contact stress p between the friction pair and the relative linear velocity v are mutually independent random variables, and they are all distributed normally, so the product pv is also distributed normally.Thus, according to the formula when the stress and strengthare all distributed normally, the reliability coefficient can be determined by means of the equation:In fact, the pv or allowable pv value can be expressed by the two random variables Pd and :K is constant coefficient. Pd is the working pressure of the pump and ω is the relative angular velocity. Based on probability theory, the average value and the standard deviation can be obtained, respectively:Through solving Eqs. (22) and (23), we have:The rated pressure of the WHAP can be allowed for fluctuating within ±5%. According to the definition of mean value and the principle of3σ , we have:The allowable pv value [pv] of WR 525 is 8.89MPa m/s, and its standard deviation [ pv] s is 0.315.Substituting Eqs. (24) –(28) and their corresponding data into Eq. (20), the reliability coefficient R u of the two kinds of structure can be calculated respectively. Hence, the corresponding reliability R for each structure can be obtained, as listed in Table 3.IV. DiscussionIn terms of the WHAP, the failure of any sliding bearing could destroy the pump’s supporting and balance to cause severe noise and vibration. It also could lead to the invalidation of the flow distribution and make the volumetric efficiency decrease sharply. Thus, service life of WHAP is determined by the bearing which has the severe working condition.Table 1 presents the calculated results of the key parameters in two different sliding bearings distribution structure. It indicates that the working conditions of the sliding bearings in each distribution structure are different.Firstly, the center distance L2 in the semi-shaft structure is smaller than the cross-shaft one. This means that the rear bearing in the semi-shaft structure is closer to the center point of the resultant force, and the distance between the front and bearing is also smaller. Thus it is favorable to balance the torque of F1 and F2 so that making the sliding bearings work smoothly. Secondly, the loads on the sliding bearings in each structure are different.In the cross-shaft structure, the loads on the front bearing are much larger than on the rear one. However, in the semi-shaft structure, the loads on the front bearing reduced, while the loads on the rear bearing increased, so as to make the bearings’ supported load condition in the front and rear location closely and their loads distributed evenly. Additionally, th e front bearing’s average working specific pressure (pz) and its pv value in the cross-shaft structure, are much larger than the rear one. However, in the semi-shaft structure, the front bearing’s pz and pv value reduced slightly, for which the rear bearing increases a little. Comparing the results listed in Table 2, it can be seen that the value of the semi-shaft structure are smaller than which are in the cross-shaft structure. Moreover, these values are close to 1. It is revealed that in the semi-shaft structure, the working conditions of the two sliding bearings are near to be identical.From Table 3, the reliability value of the siding bearings support in the semi-shaft structure are higher. It is indicated that the sliding bearings of the semi-shaft have longer service life than those in the cross-shaft.Consequently, it can be concluded that the distribution of sliding bearings in the semi-shaft structure is beneficial to make the bearings’ working conditions equilibrium and to improve the reliability of the pump.V. ConclusionIn this research, two sliding bearings of the WHAP which have the same size work in the same water medium in same time. So the change law of loads on the bearings similar. Besides, they are made of the same material:WR525. Hence, the life of the two sliding bearing support structure depends on the bearing which has higher working conditions especially the pv value. So it is important to design a rational structure arrangement to make the two bearings’ working conditions as equal a s possible. Consequently, for the sake of raising the sliding bearing’s life in the WHAP, the scalefactors must be close to 1. Additionally, the degree of reliability is a main indicator for the reliability of the sliding bearing support structure. So the reliability value of the sliding bearing support structure should be as large as possible for improving the WHAP’s reliability.By comparing the working conditions of the sliding bearings in each structure, it is found thatthe pv value of the two sliding bearings in the semi-shaft structure are closer than in thecross-shaft one. And the scale factor of the semi-shaft structure are closer to 1, compared to the cross-shaft one. Additionally, the reliability value of the sliding bearings in the semi-shaft structure is higher than which in the cross-shaft one.Obviously, all the comparisons mentioned above show that the arrangement of sliding bearings in the semi-shaft structure does a better job in achieve the purpose of distributing the load averagely and raising the service life of the sliding bearings in the water hydraulic piston pump as well as improving the reliability of WHAP.ACKNOWLEDGMENTThis research was funded by Natural Science Foundations of China (№s 50675074 and 51075007), NCET of State Education Ministry (№ NCET-07-0330), and PHR (IHLB) 20090203.REFERENCESNomenclatureThe author;Yin F.L. Nie S.L. Ruan J.Nationality:ChinaSource:The 2011 International Conference on Fluid Power and Mechatronics, Beijing, August 16-17, 2011, 282-286.研究的可靠性,滑动轴承支撑斜盘式轴向柱塞泵型水液压Yin F.L., Nie S.L.大学的机械工程和应用ElectronicsTechnologyRuan J.中国北京北京科技大学中国人民解放军物流部门的92962部队 100124 Yinfanglong89@中国广州 hlrj84@ 510700文摘-在本文中,两种不同的滑动轴承支撑结构包括一个传统的十字轴和半轴,被设计为--水液压泵。
利用被困体积提高轴向柱塞泵的容积效率-外文翻译
附件1:外文资料翻译译文利用被困体积提高轴向柱塞泵的容积效率研究分析结果显示,标准配流盘设计因为有不受控制地膨胀和压缩的流体发生经过插槽本身而产生一种容积损失。
通过去除这些插槽同时采用被困容积式,真正起到改善柱塞泵的容积效率的结果。
虽然目的并不在于研究适合所有柱塞泵的理想配流盘设计,但是该报告的确在被困容积的应用方面提供了理论依据,并且也对解决配流盘的整体设计中的问题进行了进一步的探索。
柱塞泵的工作和受力在这一节中,推导出了和轴向柱塞泵操纵效率有关的方程。
注意:这里的效率在通篇中仅指和流体压缩损失有关的效率。
这次分析由泵的单一柱塞的机械和液压力图表展开。
利用该图表,分析计算了作用在柱塞上的机械力和作用在泵排油区一液体单元的液压力。
通过输出功率和输入功率的比值,推导出了泵的瞬时功率的表达式。
该表达式表明,为了计算泵的效率,必须考虑到必须的动力学、柱塞腔内的压力和流入流出柱塞腔的体积。
这些数值来源于本文接下来的章节中。
N个柱塞X周正方向的力Fn。
这个力是由于斜盘对滑靴的反作用力而使柱塞挤入。
同理,在柱塞排油的一腔流体上也作用了一压力Pn。
该压力驱使流体流出腔体或被认为是流体的排出力。
把输入的机械力Fn转换为输出的液压力Pn,是该柱塞泵的工作的基础。
液压力容积流量说明瞬时流线从第n个腔流出混入泵的排油腔。
用Q0表示泵的众多容积流量网合成系统的排油。
每个柱塞腔的压力是各不相同的,但是泵排油区一条流线上的压力是一个常数Pd。
液压系统排油区的压力为P0。
在以下的分析中,我们来考虑一个流体单元。
这个单元是封闭的从而可以代表第n个柱塞腔到系统排油区的流线。
液压力(Pn Po)An作用于此单元,这里Pn是第n个柱塞腔的压力,Po 是系统排油腔的压力,An是代表着从第n个柱塞腔流出的流线的流体单元的瞬时横截面。
被困体积柱塞泵的设计。
图5是修饰后的配流盘的图解,它省去了最顶点和最底点的卸荷槽。
(intake port:吸入口 discharge port:排出口 kidney-shaped flow passage from a single piston chamber: 从单个柱塞腔引出来的肾脏形状的流道)和图4同理,图5同样给出了从单个柱塞腔引出来的肾脏形状的流道配合着配流盘上的弓形门状几何体。
【最新】大流量柱塞泵Hydraulicpump毕业设计文献翻译整理
翻译部分英文原文Hydraulic pumpAbstract:A hydraulic pump unit is encased between a pump body and a pump cover. A bearing hole passes through the pump body and is formed in the pump body. A drive shaft and a bearing bush are inserted into the bearing hole. The drive shaft drives the hydraulic pump unit and the bearing bush supports the drive shaft. At an end portion of the bearing hole, aseal chamber is formed. The seal chamber encases a seal member. An oil groove is formed inside the bearing hole. The oil groove connects the hydraulic pump unit side with the seal chamber and carries hydraulic oil for lubrication. The oil groove is formed in such a mannerthat a sectional area in the seal chamber side is greater than a sectional area in the hydraulic pump unit side. The bearing bush comprises a plurality of bush pieces arranged at a predetermined interval in an axial direction of the bearing hole.SUMMARY OF THE INVENTIONThe following is an explanation of one embodiment applied to a hydraulic pump of a power steering of the present invention with reference to the drawings.In the drawings, a reference numeral 1 denotes a pump body made of metallic materials such as aluminum alloy and so on and a reference numeral 2 denotes a pump cover made of metallic materials. The pump body 1 and the pump cover 2 encase a hydraulic pump unit 3. That is, an annular concave portion 4 is formed between the pump body 1 and the pump cover 2. The hydraulic pump unit 3 is installed in the annular concave portion 4.In this embodiment, the hydraulic pump unit 3 is a vane hydraulic pump unit. The hydraulic pump unit 3 includes a cam ring 7 encasing a rotor 6. The rotor 6 comprises a plurality of vanes 5 which are radially movable in and out. Both sides of the cam ring 7 are guided by side plates 8 and 9. A pumping chamber 10 is formed by two adjacent one of the vanes 5 between the cam ring 7 and the rotor 6. The volume of the pumping chamber 10 varies by the rotation of the rotor 6. With this variation, an inhaling zone is formed in a portion increasing in volume and a discharging zone is formed in a portion decreasing in volume. Notch passages 8a and 8b are formed in the side plates 8 and 9. The side plates 8 and 9 face the discharging zone. The notch passages 8a and 9a open radially and outwardly. The oil discharged from the pump is discharged into a discharging chamber (a high pressure chamber) 11 of the annular concave portion 4 of the outer circumference of the cam ring 7.An inhaling port not shown in the drawing is formed in the side plate 9 facing the inhalingzone and passes therethrough.A bearing hole 12 is formed in the pump body 1 and passes through the pump body 1.A seal chamber 13 is formed in an end portion of the bearing hole 12.An oil groove 14 communicating from the hydraulic pump unit 3 side to the seal chamber 13 is formed in the bearing hole 12. The section of the oil groove 14 is a circular arc. the sectional area of the oil groove 14 in the seal chamber 13 side is greater than the sectional area of the oil groove 14 in the hydraulic pump unit 3 side and it is easy to form the oil groove 14 in a casting mold.The oil groove 14 in this embodiment is divided at a substantially center position of the bearing hole 12. However, because the substantially center position of the bearing hole 12 is positioned between a plurality of bush pieces later-mentioned, the substantially center position of the bearing hole 12 is substantially communicated with an interval between thebush pieces. Because the oil groove 14 is divided at the substantially center position of the bearing hole 12, this divided part becomes a so-called labyrinth and a flow resistance is applied to hydraulic oil flowing in the oil groove 14. Therefore, it is possible to decrease the energy of the hydraulic oil flowing into the seal chamber 13.The oil groove 14 can be continuously formed without dividing at the substantially center position of the bearing hole 12. The oil groove 14 can be continuously formed in ataper shape so that the sectional area increases gradually from the hydraulic pump unit 3 side to the seal chamber 13 side.With this structure, the oil groove 14 can lead the leakage oil from the bearing hole 12of the hydraulic pump unit 3 to the seal chamber 13. The leakage oil from the hydraulic pump unit 3 is the hydraulic oil leaking between the rotor 6 and the side plates 8 and 9 and is a littlehydraulic oil leaking from the joint between the pump body 1 and the side plate 9.An inhaling passage 15, a discharging passage 16 and a spool valve receiving bore 17 are formed in the pump body 1. The inhaling passage 15 connects each pumping chamber 10 of the inhaling zone with a storage tank not shown in the drawing. The discharging passage16 connects each pumping chamber 10 of the discharging zone with the actuator of the power steering not shown in the drawing. One end of the spool valve receiving bore 17 is sealed.The inhaling passage 15 is branched into two directions at the joint facing the side plate 9. At the end portion of the inhaling passage 15, a circular arc shape inhaling port 18 is formed. The inhaling port 18 is formed so that the inhaling port 18 faces the inhaling port,not shown in the drawing, formed in the side plate 9. The inhaling passage 15 is connected with the seal chamber 13 through a low pressure passage 19. The low pressure passage 19 is substantially parallel with the bearing hole 12.The discharging passage 16 is bent radially and outwardly at the joint facing the side plate 9. An orifice passage 21 connected with an inhaling port 20 formed in the side plate 9 is formed in the discharging passage 16.A reference numeral 22 denotes a bearing bush inserted into the bearing hole 12. The bearing bush 22 comprises a plurality of bush pieces 23 positioned at a predetermined interval in the axial direction of the bearing hole 12. In this embodiment, the bearing bush 22 comprises two bush pieces 23 positioned at the interval 1 in the axial direction of the bearing hole 12. The bush piece 23 is formed into a cylindrical shape by rounding a plate member.The inner surface of the bearing bush 22 is smooth. The oil groove is not formed in the bearing bush 22.The interval 1 between the two-bush pieces 23 forming the bearing bush 22 is preferable to be substantially 1/3 of the axial length L of the bearing bush 22 in order to secure the area for supporting the bearing bush 22. In this embodiment, the interval 1 between the bush pieces 23 is substantially 1/5 of the axial length L of the bearing bush 22.A reference numeral 25 denotes a drive shaft for driving the hydraulic pump unit 3. The drive shaft 25 is inserted into the bearing hole 12 in such a manner that the drive shaft 25 is supported by the bearing bush 22. The drive shaft 25 has serrations 26 formed near the forward end. The serrations 26 pass through the through hole 9b of the side plate 9 and are fitted in the serration hole 27 of the rotor 6. With this, the drive shaft 25 is capable of drivingthe rotor 6 of the hydraulic pump unit 3. The forward end portion of the drive shaft 25 is tapered and loosely fitted in the through hole 8b of the side plate 8.A spool valve 30 controlling the quantity of the oil is slidably movable and is fitted inthe spool valve receiving bore 17. The spool valve 30 divides the inside of the spool valve receiving bore 17 into a first pressure chamber 17a and a second pressure chamber 17b. The spool valve 30 is normally biased toward the first pressure chamber 17a side by a spring force of a control spring 31. The control spring 31 is encased in the second pressure chamber 17b. The spool valve 30 closes a drain passage 33 connecting the inhaling passage 15 in a normal condition.In the pump body 1, a passage 35 is formed. The passage 35 is connected with a discharging lot not shown in the drawing in order to connect with the discharging passage 16 and to lead hydraulic oil to the power steering, that is, the actuator not shown in the drawing. The passage 35 is connected with the second pressure chamber 17b through a passage 36. The pressure in the discharging passage 16 is led into the second pressure chamber 17b.A reference numeral 39 denotes a pressure switch mounted on the pump cover 2. The pressure switch 39 comprises a fixed contact 39a and a moving contact 39b. The pressure switch 39 is able to operate according to the pressure of the discharging chamber 11 because the end portion of the moving contact 39b faces a passage 40 connecting with the discharging chamber 11. The pressure switch 39 is thrust into and fixed in the inside of a concave portion 41. The inside of the concave portion 41 is connected with the through hole 9b of the sideplate 9 through a radial passage 42 and an axial passage 43.The pump body 1 and the pump cover 2 are connected and fixed with each other by bolts not shown in the drawing. The joint between the pump body 1 and the pump cover 2 is sealed by a seal ring 44 so as to prevent the hydraulic oil discharged into the discharging chamber 11 from leaking to the outside.A reference numeral 45 denotes a seal ring installed between the pump cover 2 and the side plate 8. The seal ring 45 separates the discharging chamber 11 from the through hole 8b of the side plate 8. A reference numeral 46 denotes a seal member. The seal member 46 is installed in the seal chamber 13 and seals the drive shaft 25.With this structure, the drive shaft 25 is rotationally driven through the pulley not shownin the drawing and the rotor 6 connected with the drive shaft 25 is rotationally driven. Whenthe rotor 6 is rotationally driven, with the rotation of the rotor 6, the volume of the inhalingzone increases and the volume of the discharging zone decreases. Hydraulic oil is inhaled from the inhaling passage 15 through the inhaling port 18 into the pumping chamber 10 inthe inhaling zone, passes through the pump and is discharged from the pumping chamber 10in the discharging zone into the discharging chamber 11. The hydraulic oil discharged intothe discharging chamber 11 is led to the first pressure chamber 17a through the leading passage 34. The hydraulic oil led into the first pressure chamber 17a is led into the actuator of the power steering not shown in the drawing through the orifice passage 21, the discharging passage 16 and the passage 35.In a normal condition, the spool valve 30 is urged toward the first pressure chamber17a side by the control spring 31 and closes the drain passage 33 by the land portion 32 of the main body of the spool valve 30. All of the discharged oil led into the first pressure chamber17a is led into the actuator not shown in the drawing through the orifice passage 21. Whenthe rotational speed of the pump increases, the quantity of the oil discharged from the pump increases and the quantity of the oil discharged from the pump led into the first pressure chamber 17a increases, the hydraulic oil in the first pressure chamber 17a is led into the discharging passage 16 under the limitation of flow by the orifice passage 21, the spool valve 30 moves rightward and compresses the control spring 31 to a predetermined lengthaccording to the front and rear differential pressure of the orifice passage 21, opens the drain passage 33 and returns surplus oil from the drain passage 33 to the inhaling passage 15 and the storage tank not shown in the drawing.As the hydraulic pump unit 3 is driven, the hydraulic oil is discharged into the discharging chamber 11 and leaks from a gap formed among the rotor 6 and the side plates 8 and 9 for lubrication. A small amount of the hydraulic oil also leaks from the joint betweenthe pump body 1 and the side plate 9.The leakage oil from the hydraulic pump unit 3 is collected into the bearing hole 12 of the hydraulic pump unit 3 side. That is, the leakage oil from the joint between the rotor 6 and the side plate 9 is led into the through hole 8b and is collected into the bearing hole 12 throughthe engaging gaps of the serrations 26 and 27 and the through hole 9b of the side plate 9. The leakage oil from the joint between the rotor 6 and the side plate 9 is collected into the bearing hole 12 through the through hole 9b of the side plate 9. The oil collected into the bearing hole 12 of the side plate 9 lubricates the bearing hole 12 and is led into the seal chamber 13 through the oil groove 14 formed in the bearing hole 12. The hydraulic oil led tothe seal chamber 13 is sealed by the seal member 46 in the seal chamber 13 and is returned to the inhaling passage 15 and the storage tank not shown in the drawing through the low pressure passage 19.At this time, the leakage oil led into the bearing hole 12 from the hydraulic pump unit 3is directly supplied from the bearing hole 12 of the hydraulic pump unit 3 side into the inner surface of the bearing bush 22, is led into the seal chamber 13 through the oil groove 14 formed in the bearing hole 12 and is supplied from the seal chamber 13 side into the inner surface of the bearing bush 22. Because a part of the leakage oil led along the oil groove 14 is supplied from the oil groove 14 to spaces neighboring one another, the part of the leakage oilis supplied from the spaces between the bush pieces 23 into the inner surface of the bearing bush 22.The oil supplied to the inner surface of the bush pieces 22 is led into the bearing gap ina state of a wedge. The bearing gap becomes narrower in a rotational direction with the rotation of the drive shaft 25. The oil film pressure caused by the wedge action forms a satisfactory lubricating oil film so that the drive shaft 25 is smoothly supported.The hydraulic oil led from the oil groove 14 into the seal chamber 13 is sealed by the seal member 46 encased in the seal chamber 13.The sectional area of the oil groove 14 in the seal chamber 13 side is formed so as to be greater than the sectional area of the oil groove 14 in the hydraulic pump unit 3 side. The oil groove 14 leads the leakage oil from the hydraulic pump unit 3 to the seal chamber 13. Therefore, when the quantity of the leakage oil from the hydraulic pump unit 3 increases, the flow speed in the oil groove 14 in the hydraulic pump unit 3 side becomes slower than theflow speed in the seal chamber 3 side and the energy of the hydraulic oil led into the seal chamber 13 decreases.Thus, because it is possible to prevent the energy of the hydraulic oil led into the sealchamber 13 from exceeding the sealing ability of the seal member 46, the seal member 46 securely seals the hydraulic oil in the seal chamber 13.Therefore, it is possible to provide a hydraulic pump which can prevent the hydraulicoil from leaking to the outside.When the drive shaft 25 drives the hydraulic pump unit 3, the drive shaft 25 is supported by the bearing bush 22. Because a moderate bearing gap is formed between the bearing bush 22 and the drive shaft 25, the drive shaft 25 can incline in the cylindrical bearing bush 22. This embodiment forms a stable lubricating oil film at both end sides of the bearing bush 22 and prevents an inferior lubrication without letting both end sides of the bearing bush 22 firmly contact the drive shaft 25.That is, because the bearing bush 22 is formed in such a manner that a plurality of bush pieces 23 are positioned at the predetermined interval 1 in the axial direction of the bearing hole 12, a gap (the interval 1) is formed at a substantially center portion of the bearing bush 22. However, the bush pieces 23 are respectively arranged at both end sides of the bearing bush 22. The drive shaft 25 firmly contacts the end sides of the bearing bush 22. The oil groove preventing the lubricating oil film from being formed is not formed at the inner circumference of the bush pieces 23. The oil for lubricating is sufficiently supplied from both end sides of the bearing bush 22 and the bush pieces 23 neighboring with one another to the inner circumference of the bearing bush 22 comprised of each bush piece 23. Therefore, especially at both end sides of the bearing bush 22 the drive shaft 25 firmly contacts, the stable lubricating oil film is formed and the inferior lubrication is prevented.In this embodiment, at the inner circumference of the bearing bush 22, the oil groove 14 is formed. The oil groove 14 connects the hydraulic pump unit 3 side with the seal chamber 13 and flows the hydraulic oil for lubrication.That is, the bearing bush 22 is formed by rounding a plate member. At the inner circumference of this bearing bush 22, the oil groove 14 is formed. The oil groove 14 is obliquely formed as one straight line or two oil grooves 14 are formed so as to cross eachother at a substantially center position in such a manner that the bearing bush 22 is expanded into a plate shape. Each oil groove 14 is formed in a taper shape so that each sectional area increases gradually from the hydraulic pump unit 3 side to the seal chamber 13 side.According to this constitution, the leakage oil led into the bearing hole 12 from the hydraulic pump unit 3 is directly supplied from the bearing hole 12 of the hydraulic pumpunit 3 side into the inner surface of the bearing bush 22, is led into the seal chamber 13 through the oil groove 14 formed in the inner circumference of the bearing bush 22 and is supplied from the oil groove 14 and the seal chamber 13 side into the inner surface of the bearing bush 22. With this, the drive shaft 25 is smoothly supported.Therefore, in this embodiment, it is possible to provide a hydraulic pump which can prevent the hydraulic oil from leaking to the outside.Because the oil groove 14 is formed in the inner surface of the bearing bush 22, it is possible to decrease the manufacturing man-hour of the bearing hole 12.The above-mentioned description is an explanation of the embodiments of the present invention with reference to the drawings. The present invention is not limited to these embodiments. The present invention can change without departing from the spirit of the present invention. For example, the oil groove 14 formed inside the bearing hole 12 is formedin a substantially straight line in the axial direction of the bearing hole 12, but can be spiral or can be multiple threads.The bush 22 can comprise more than three bush pieces. In this case, each of bush pieces can be positioned at an equal or unequal interval.According to the present invention, it is possible to provide the hydraulic pump which can prevent the hydraulic oil from leaking to the outside中文译文液压泵摘要:液压泵构件被装在泵体和泵盖之间。
外文文献及翻译_压缩机,泵,制冷工程
Chemical and Petroleum Engineering, Vol. 40, Nos. 11–12, 2004COMPRESSORS, PUMPS, REFRIGERATION ENGINEERING UPDATING PISTON PUMPS FOR OILPRODUCTIONB. S. Zakharov,1 G. N. Sharikov,2and E. G. Kormishin2The three-plunger acid treatment pump SIN32 and the two-cylinder double-acting pump NPTs-32 with four working chambers (for cementing units) have been updated to control pump delivery. The fluid delivery diagrams for pumps of various designs are examined and the test results are reported.In drilling and oil production, single-acting three-plunger (triplex) pumps or double-acting two-cylinder (duplex) pumps are used.In injecting reagents (clay drilling mud, water, cement, acid, etc.) into wells, depending on the technology applied,it is required to inject the fluid in amounts ranging from the maximum to the minimum in a single operation. If the bed accepts the injected fluid well, it becomes necessary to maximize pump delivery for quick completion of the operation. If on the other hand, the bed does not accept the fluid well, it becomes necessary to reduce pump delivery so as to restrict the injection pressure to the safe limit. At present, because of wear of well (down-hole) equipment, the permissible injectionpressure is not higher than 10–15 MPa..The delivery of a piston (reciprocating) or a plunger (displacement) type of pump can be controlled in the following ways:• by installing several pumps with identical or different pumping capacities;• by changing the drive rotation speed;• by using cylinders (plungers) of the required size;• by channeling a part of the fluid into a bypass; and• by dismounting one or several valves.The first version is used essentially in drilling. In oil production, generally all versions are used either individually or in some combination.All pumping units designed for injection of various fluids (fluidal materials) for cementing, hydraulic formation fracturing, hydraulic sand-jet flushing of sand bridges, and other flushing operations in oil and gas wells are mounted on the chassis of motor vehicles (trucks), tractors, caterpillar (tracked) carriers, and specially made carriages.The operating parameters of the pumps (delivery and injection pressure) depend on the power of the drive and maximum and minimum speed of the engine and the pump. The pump delivery can be changed by changing the number of pump strokes without stopping the engine with the help of a gearbox (by gear shifting) and with stopping of the engine by installing cylinders of the required size. Replacement of the cylinders takes a lot of time and is not always possible in a continuous echnological process. In the existing pumping plants, the delivery variation range is inadequate. At the minimum rotation speed and cylinder diameter, the delivery remains extremely high, and for injecting the fluid into the bed the pressure has to be raised above what is permissible.Assigned by NGDU Zainskneft’, Ékogermet carried out updating of two types of pumps, namely, SIN32 and NPTs-32.In the three-plunger (triplex) acid treatment pump SIN32, for reducing the minimum delivery down to 1.0 m3/h,plungers having a diameter of 125 mm were replaced with plungers having a diameter of 55 mm. As a result, the theoretical pump delivery was reduced from 16 down to 3.3 m3/h. Further reduction of the pump delivery was achieved by reducing the rotation speed of the vehicle engine to the possible minimum (500–600 rpm).Simultaneously with this, a new design of packing glands (sealing devices) of plungers of the UPN55 type was developed.It was based on Zakharov mechanical seal [1], which demonstrated high reliability and durability in sucker-rod (oil) pumps. The sealing units and the pistons with a diameter of 55 mm were made for the SIN32 pump by ÉLKAMneftemash in Perm. Its finishing and testing were done by Ékogermet jointly with NGDU Zainskneft’.The design of the UPN55-type plunger seal is shown in Fig. 1. The combined seal consists of the main threestage mechanical seal 4 and an elastic sealingcollar 2. Each stage of the mechanical seal consists of ten rings that are elastically pressed against each other and simultaneously against the plunger surface. The rings are pressed against theplunger in pairs from the opposite sides. The next pair is turned relative to the preceding one by 90º. The rings are pressed in the axial direction by rubber rings of round cross section and in the radial direction, by rubber girdles with eccentric collars. The plunger 5 is made of steel 45 and is chromium-plated and the sealing rings are of bronze. Threecartridges with mechanical seals were installed in the housing bore 3 with a clearance that helps self-centering of the seals relative to the plunger. The cartridges are pressed together by a round nut 1 through a bushing with the sealing collar 2. There are holes in the housing for injecting oil and draining out the overflow into the receiving (suction) line of the pump.In contrast to the well-known elastic glands, the mechanical seal does not require periodic adjustments and ensures reliable operation of the assembly over a long period [2]. Use of the updated SIN32 pump having a UPN55 type of mechanical plunger seals confirmed that the proposed design operationally fit.From August through December 2003, NGDU Zainskneft’ carried out s even bottom-hole treatments (BHT) of six wells using the updated SIN32 pump. Different types of technological operations were carried out in the wells: mud acid BHT, muriatic (hydrochloric) acid BHT, injection of the reagents SNPKh-9021, MIAPROM, and RMD, for which SIN32 and ATs-32 pumping units were generally used. If acid or any other reagent could not be forced through (injected) at 12–15 MPa pressure, a low-capacity unit was connected with the SIN32 pump. In that case, the injection pressure dropped by 2–4 MPa。
柱塞泵的毕业设计
河南工业职业技术学院毕业设计(论文)柱塞泵设计学生姓名:曹晓龙学生学号:020*******院(系):河南工业职业技术学院年级专业:数控0902班指导教师:曲令晋二〇一一年九月摘要液压泵是向液压系统提供一定流量和压力的油液的动力元件,它是每个液压系统中不可缺少的核心元件,合理的选择液压泵对于液压系统的能耗﹑提高系统的效率﹑降低噪声﹑改善工作性能和保证系统的可靠工作都十分重要。
本设计对往复式柱塞泵(容积泵)进行了分析,主要分析了柱塞泵部分主要的结构,例如,柱塞的结构型式﹑泵体的结构型式﹑阀体的结构型式等进行了分析,还有对零件的材料选用;工艺的制定与实施,计算机仿真模拟,并通过仿真模拟得出了数控加工程序。
并对部件进行草图绘制、CAD画图、三维建模。
该设计最后对柱塞泵的优缺点进行了整体的分析,对今后的发展也进行了展望。
关键词:柱塞泵,工艺路线,程序。
柱塞泵毕业设计1.摘要2.关键词3.绪论4.论文内容4.1 柱塞泵的简介及参数的设定4.2零件简介4.3 零件的分析4.4 工艺的制定4.5 工艺的实施4.6 夹具的设计4.7 计算机仿真5 总结与展望6 参考文献7 致谢绪论随着工业技术的不断发展,液压传动也越来越广,而作为液压传动系统心脏的液压泵就显得更加重要了。
在容积式液压泵中,惟有柱塞泵是实现高压﹑高速化﹑大流量的一种最理想的结构,在相同功率情况下,径向往塞泵的径向尺寸大、径向力也大,常用于大扭炬、低转速工况,做为按压马达使用。
而轴向柱塞泵结构紧凑,径向尺寸小,转动惯量小,故转速较高;另外,轴向柱塞泵易于变量,能用多种方式自动调节流量,流量大。
由于上述特点,轴向柱塞泵被广泛使用于工程机械、起重运输、冶金、船舶等多种领域。
航空上,普遍用于飞机液压系统、操纵系统及航空发动机燃油系统中。
是飞机上所用的液压泵中最主要的一种型式。
本设计对柱塞泵的结构作了详细的研究,在柱塞泵中有阀配流﹑轴配流﹑端面配流三种配流方式。
压力之源——泵和压缩机外文文献翻译、中英文翻译
Sources of Pressure -Pumps and CompressorsFundamentally most pumps suitable for pumping hydraulic fluid will operate with air or gas, although most oil pumps make poor air compressors, and some compressors will not operate with incompressible fluid without modification.General considerations. The main requirements of a hydraulic pump capable of delivering sufficiently great a pressure to be of practical use, are:a. Means for controlling fluid leakage either by special seals of close working clearances.b. A substantially uniform, non-pulsating delivery.c. The absence of trapping of fluid during rotation, since the fluid is for all practical purpose incompressible.d. Mechanical balance to a sufficient degree to enable the pump to be run as fast as possible, to reduce bulk for a given output.e. Adequate provision for minimizing the effect of distortion of the working parts, casings, ect., due to the internal pressure in the pump.f. Low clearance volumes so that the pump will act momentarily during priming, or with aerated fluid, as a compressor, to discharge the air through the delivery line, instead of leaving It trapped in the pump.g. Adequate inlet valve or port provision to enable the pump to creat a good suction, or alternatively, as in the case of aircraft, to operate at high altitude, and with relatively thick fluids. It should be noted that the time of opening of the inlet valve or port is almost as important as the size of the port.The main requirements of a good compressor are:a. The smallest possible clearance volume compatible with mechanical clearance; this is because any gas compressed in the clearance volume will expand again instead of being discharged, and will thus adversely affect not only the output of the pump, but the maxium pressure that can be achieved.b. Except on low-pressure pumps, two or more stages of compression with as much intercooling between stages as possible. This is desirable, firstly, to reduce the wastage of work and output due to the gas being compressed adiabatically instead of isothermally, and, secondly, to reduce the overall loss of output due to clearance volume.c. Pre-compression of the air in the pump up to the pressure of the delivery line. Although the normal reciprocating pump with an automatic or spring-load delivery valve will ensure this, some of the rotary compressors have to be ported specially to obtain pre-compression, and with some it is nor possible at into the pump, and thewhole volume has again to be compressed. A rotary compressor with pre-compression cannot be operated with hydraulic fluid.d. Provision for air or water cooling of the cylinder so that the temperature of the air in the compression cannot be operated with hydraulic pump.e. Means for controlling gas leakages during compression either by pistonrings on a reciprocating piston compressor, or fine clearance on the rotary types.f. Adequate inlet valve area to prevent throttling of the incoming air, with the consequent loss of volumetric efficiency.The main types of pump and compressor use pistons, meshing gears or rotating vanes, these having been found to give good high pressure performance. Other types of pumps, such as centrifugal pumps or turbo-compressors, are not used for pressure systems as they do not produce high enough pressure to be useful.Variable Speed Hydraulic SystemsIt is particularly important on many hydraulic systems, as on machine tools, to be able to vary the speed of operation at will. This can be carried out in the following ways, sometimes more than one way being combined:a. By varying the pump output manually;b. By using several pumps in combinations;c. By restricting or throttling the output of a automatically variable delivery pump, or a pump accumulator system, or by throttling the inlet;d. By by-passing part of the pump output with a flow dividing valve;e. By varying the volume of the operating jack.1.Variation in pump delivery. Pump delivery can be varied bya. Alteration in its speed;b. Alteration of its stroke in a variable stroke type of pump;c. Using two or more pumps of different delivery in parallel so that by stopping and starting the pumps in various combinations different total deliveries can obtained.The first system is an easy one when the pump is electrically driven, although the electric motor involved is comparatively complicated for normal requirements. Mechanical variable speed gear boxes have been used successfully with constant speed electric drive.Several of the pump mechanisms previously described can readily be adapted to give a varying output by reducing the working strok manually by means of a controlwheel, etc.The third system is simple enough, but varies the output in fixed steps. Two pumps in parallel can give three ranges of output corresponding toPump A, Pump B, Pump A plus B.Three pumps in parallel can give seven steps corresponding toPump A, Pump A plus B, Pump B plus C,Pump B, Pump A plus C, Pump A plus B plus C.Pump C.Since, however, variable stroke pumps are readily available, such a complication as three pumps in parallel hardly seems worthwhile although the two-pump system is probably excellent for such duties as presses, etc. where a great of the working stroke is at low pressure, where a pump for the final working stroke. Automatic isolation of the low pump can be effected by a valve. Any normal type of automatic cut-out will operate in the low-pressure system to by-pass it, without interference from the other pump.2. Restriction of Pump Output. With a variable delivery pump the flow of oil to the system proper can be metered through a restriction, the delivery of the pump automatically adjusting itself to the reduced flow. An automatic flow control valve or throttle is to be preferred to a simple restrictor. This is an extremely simple system, but is liable to variation of speed owing to change in viscosity of the oil, temperature effects, etc. And the metering restriction may have to be adjusted from time to time to keep the speed constant. On the other hand, it is possible to evolve a restriction compensated for changes. By fitting the flow control valve in either jack line, control in one directions only can be exercised, but note that as the volumes of the jack returning to tank may not be same in both directions, the degree of speed control may not be similar.e of Flow dividing Valves. The flow dividing valves of various types are used to control the speed of a system by –passing part of the pump output, even if at the expense of a slight wastage of power. It is possible to use a selector incorporating several ports, which in turn control of fluid past several different flow dividing valves, giving different rates of flow for each position of the selector.4.Variation in hack volume. Another means of obtaining variable speed from a constant delivery pump is use jacks of different volumes (i.e. at different pressures), either in parallel, or using a multi-volume construction. If, for example, the machinetool side, etc, is filled with two operating jacks, by suitable selection varying speed of operation can be obtained corresponding toa. Use of jack A;b. Use of jack B;c. Use of jack A and B.If B=2A, the speeds are in the order 1,2,3. The combination of two pumps can obviously give 9 speeds, but at the expense of considerably more complication than would appear to be present with a variable delivery pump.Electrohydraulic Servo Systems1.Electrohydraulic systems use low-power electrical signals (of less than say 1 W) for precisely controlling the movements of large power hydraulic pistons and motors (which may be rated at say 7460W or more). The ‘interface’ between the electrical (control) equipment and the hydraulic (power) equipment is the so-called ‘electrohydraulic servo value’. These values are used on systems which must respond both quickly and accurately: aircraft controls are one example and numerically controlled machine tools another, although increasingly stringent specifications for other types of plant are extending their use into most fields. Many mechanisms which use other method s of control particulary if they already employ hydraulics could benefit from incorporating electrohydraulic techniques.Aseessing the suitability of an electronhydraulic servo value for a particular application requires some insight into the features of different valve types which this paper aims to give by explaining their dynamic characteristics. At the end of this paper are also some comments about electrical (control) supplies for such valves.The dynamics analysis of the hydraulic components within a value follows from the previous text and an outline of the dynamic featuresassociated with electromagnetic actuators will be included here a combination of both analyses would simulate a complete valve. However, it is rarely necessary to take full account of most valve s’ dynamic characteristics because their response is usually much more rapid than those of the systems they are used to control. This paper is intended more to give sufficient background information for effectively using such valves than for designing them.2.Flow Control ValveElectrohydraulic flow control valves have a moving coil or moving iron device which positions a main control spool with a high degree of accuracy. The moving coil or moving iron component is called the ‘armature’ and small deflections of the armature cause displacements of the spool either directly by a mechanical link or indirectly via pilot pressure. The main spool can be of the three–way or four-way type and maxium spool displacements are commonly less than 2mm. The widths of spool lands and valve and bore may be as small as 5μm. Particles of ‘dirt’in the fluid should be smaller than the radial clearance, for example smaller than 5μm or 0.0002 in. Each port opening caused by movement of the spool acts as an orifice metering fluid to and from the load.压力之源——泵和压缩机从原理上讲,泵送流体的大多数泵都可以泵送空气或气体,尽管大多数油泵几乎不作为空气压缩机来用,而某些压缩机未作调整则不可以输送非压缩性流体。
轴向柱塞泵英文文献及翻译
Modeling and Simulation on Axial Piston Pump Based on VirtualPrototype TechnologyAbstract: A particular emphasis is placed on the virtual prototype technology (VPT) of axial piston pump. With this technology it isconvenient and flexible to build a complicated 3D virtual based on real physical model. The actual kinematics pairs of the parts wereadded on the model. The fluid characters were calculated by hydraulic software. The shape of the parts, the flexible body of parts, etc. were improved in this prototype. So the virtual prototype of piston pump can work in computer like a real piston pump, and the flowripple, pressure pulsation, motion principle, stress of parts, etc. can be investigated. The development of the VPT is introduced at thebeginning, and the modeling process of the virtual prototype is explained. Then a special emphasis is laid on the relationship betweenthe dynamics model and the hydraulic model, and the simulations on the flow ripple, pressure pulsation, motion principle, the stress andstrain distribution of the middle shaft and piston are operated. Finally, the advantages and disadvantages of the VPT are discussed. Theimproved virtual prototype of piston pump more tally with the real situation and the VPT has a great potential in simulation on hydrauliccomponents.Key words: virtual prototype, axial piston pump, dynamics1 IntroductionAxial piston hydrostatic pump is an important hydrauliccomponent, which is widely applied both in industry andmobile machine. As the piston pump has complicatedstructure and compositehigh-speed motion, so it is difficultto do exactly research on the pump. The pump model isalways simplified to a great degree. And the simplificationsbring considerable deviation. With the development ofcomputer and multi-body dynamics, the virtual prototypetechnology (VPT) is used for studying hydraulic systemand components.Virtual prototype technology is a new engineeringtechnology. With the VPT complex mechanism systemmodel can be made and its dynamicscharacteristic can besimulated at a very real condition by integrating modelingtools from several different fields and simulation methods.The core of VPT is the dynamics model, which haveseveral interfaces to connect other models, such as hydraulicmodel and fitness element method (FEM) model. So thevirtual prototype built based on VPT can simulate most ofthe pump performances, and the simulation results of thevirtual prototype are very close to the testresults of thephysics prototype. Sometimes the simulation can evenreplace physics test and save the development cost[1].Hydraulic virtual prototype technology integrate theadvanced 3D CAD modeling method and hydraulicsimulation technology to predict performance and studycharacteristics of amachine[1]. Because of the complicatedstructure and nonlinear characteristics of thehydraulic-solid coupling, it is time-consuming andexpensive with traditional try-and-error design way, and theanalysis results of traditional way are not accurate enough[2].The virtual prototype of hydraulic machine, such as theaxial piston pump, is a better way to predict theperformance of hydraulic component[3].With the commercial hydraulic and dynamic softwares, avirtual prototype of piston pump was made by AachenTechnique University, Germany, in 2002[4]. The hydrauliccharacteristics and frictions between the key tribo-pairswere analyzed[5−6]. In order to optimize the incline angle ofthe swash plate, a virtual prototype of a bent axis pistonpump was made in 2003[7]. The concept of virtual prototypeof piston pump was proposed in 2004, the output pressureand flow ripple, the strain and stress of the key parts wereall analyzed[8]. It is very useful for the optimization ofpump. The flow ripple of a swash plate piston pump wasstudied using VPT in2006[9]. All these researches provedthe effectivity of this technology, but these models are stillsimple and need further improving.In this research, a virtual prototype of axial piston pumpis developed, which combines 3D model, flexible FEMmodel and hydraulic modeling together. The performanceof the pump is analyzed, and the optimization of the indexangle of swash plate by VPT shows thepotential ofimproving products.2 Modeling of the Piston PumpThe validity of the simulation results lay on therationality of its model, so the modeling of piston pump iscrucial. The virtual prototype of piston pump connectsseveral different models, including hydraulic system, 3Dstructural model and FEM parts model, which are builtrespectively andconnected each other in simulation.2.1 Analysis of dynamic relationshipsBefore building the dynamic model and making theinterfaces to connect other models, the real kineticrelationships and motion parameters of the necessary partsshould be analyzed. There are several hypotheses asfollows.(1) In order to simply the simulation, only necessaryparts are considered. Some accessories models, such asmechanism of variable displacement and slipper hold-down,are ignored.(2) The rotation of middle shaft is stable and the speed isdefined as constant.(3) The angle of swash plate changes in a defined workrange by rotation drive.(4) The oil film between piston and cylinder, swash plateand slipper, cylinder and valve plate is stable, and itsfriction coefficient is constant.As shown in Fig. 1, the middle shaft of swash plate typepiston pump rotates around its axis and drives the cylinder,pistons and correspond slippers rotating at a samespeed[10−11].The coordinates of point B′ of intersection between thecenter line of piston and the surface of swash plate isdescribed as follows:βϕϕϕtancoscossinRzRyRx===(1)From Eq. (1), it is shown that piston moves along z-axisand rotates around the middle shaft. The track of point B can describe the motion of the piston. Based on Eq. (1), thespeed and accelerate of point B′ are as follows:ϕβωϕφωcostansintan2RdtdvaRdtdzv==-==(2)The slipper is connected with piston by spherical joint.The track of point B in the spherical joint can describe themotion of slipper. The coordinates of the point B arecoscoscossin111====zRyyRxϕββϕ(3)The motion track of the slipper is ellipse, the vectordiameter ρ isϕβρ222121costan1+=+=Ryx(4)The angle θ between ρ and the Lang-axis of ellipse is)tanarctan(costancostan11ϕβθϕβθ=⇒==yx(5)The rotation speed of the point B around the point O isωβϕϕβθω222cos sin cos cos +==dt d h (6) The velocity of the point B isϕββωρω222cos sin cos +==R v h h (7)Based on the equations above, the motion of basic partscan be defined.2.2 Structural and dynamic modelAs for swash plate type piston pump, showed in Fig. 2(a),the 3D structural model (Fig. 2(b))wasmadeinacomericalCADsoftware.To simplify the analysis, only necessaryparts modelwere made. The joints and constraints between connectingparts were added.According to the real dynamic relationship betweendifferent parts, the proper joints and motion parameters areshown in Table 1 and Table 2. In the dynamic software, allthese joints and motions were added to corresponding parts.Then the basic dynamic model was finishied with a 3Dstructural model adding dynamic relationships.Besides, the ration speed of the middle shaft should beadded, then the basic model of piston pump can be droveand all parts can move just like a real pump without oil.2.3 Hydraulic model of piston pumpAs there is no fluid force and motion in the basicdynamic model, so the dynamic model can only simulatethe motion of piston pump and don’t have the function ofsucking oil and charging oil to drive load. In order to buildthe hydraulic model, there are some hypotheses as follows,(1) The piston pump works stably and therotation speedof middle shaft is defined constant.(2) The oil film in the gap between piston and cylinder,slipper and swash plate, cylinder and valve plate is stable.And there is only leakage of laminar flow.(3) There is hydrostatic balance in the gap betweencylinder and valve plate, slipper and swash plate, and thepressure ratio λ is constant (λ=0.9).(4) The viscidity of the fluid oil is invariable. Based on the motion relationship between the pump partsand the flow influence on the pump, the hydraulic model ofthe piston pumpstarts with the basic flow model.As shown in Fig. 3, the low pressure oil is sucked to thecylinder bore when the piston moves to the right. While thepiston moves to the left, the piston charges the oil out todrive loads.The model shown in Fig. 3 is the basic unit of one piston.And this unit including three important leakages, q v1between piston and cylinder, q v2 between slipper and swashplate and q v3 between cylinder and valve plate, which are described in Eqs. (8)−(10)[11]:))(5.11(12)(0121311p p l h d p f q rr r v v -+==εηπ,(8))(ln 6)(01122322p p r r h p f q r v v -==ηπλ, (9)⨯⎥⎥⎥⎥⎦⎤⎢⎢⎢⎢⎣⎡+==)ln(1)ln(16)(34123333R R R R h p f q r v v ηπλ)()(0112p p --ϕϕ, (10)where d r —Diameter of piston,h r1—Gap height between piston andcylinder,l r —Contact length between cylinderand piston,η —Dynamic viscidity of the fluid, ε —Eccentricity ratio of piston, p 1 —Pressure inside piston chamber, p 0 —Environment pressure insidepump,λ —Pressure ratio,h r2—Gap height between the swashplate andslipper,r 1, r 2 —Structural parameters of slipper,h r3—Gap height between valve plate and cylinder,φ1, φ2, R 1,R 2, R 3, R 4 —Structural parameters of valveplate.The input oil and output oil in the cylinder bore aresupplied through the valve plate, so the open area of thekidney bore in valve plate is used for controlling oilsucking and charging. Fig. 4(a) shows the open areacoefficient curves with changing of rotation angle. Becausethe angle difference of the two different bore is 180°(Fig.4(b)), so it can be modeled with a throttle valve controlledby the open area size. The distributed flow is controlled bythe cylinder bore open area size, which is shown in Fig. 4(b).Fig.4. Model of valve plateTo simplify the modeling, the flow model and the valveplate model were combined to an integrated unit (Fig. 5).As one pump has nine pistons, so the whole pump modelincludes nine integrated piston models, which is shown inFig.6.Fig. 5. Encapsulation of the flow modelandvalve plate modelFig. 6. The whole hydraulic model of the pump 2.4 Finite element method of the key partsThe stress and deformation of some key parts in pumpworking process should be researched by flexible bodyanalysis [8]. The middle shaft and the piston are two typicalparts needed to considerthe flexibility character. It isnecessary to analyze the model with FEM and to convertthe rigid body to flexible one.In an FEM software environment, the flexible body ofpiston can be read to the dynamic model and be assembledto the whole pump model. Fig. 7 shows the finite elementmodel of the piston with flexiblecharacteristics. Themiddle shaft model was also made in the same way. Fig. 8shows the two flexible parts in the assemble pump. Thenthe solver can simulate the pump and get the stress resultsand deformation results of the piston and the shaft. Theintensity of corresponding parts is analyzed in this way.Fig. 7. Flexible body model of the pistonFig. 8. Assemble pump with flexible bodyof piston and middle shaftAccording to the above analysis, the virtual prototype ofpiston pump includes several different models. Sointerfaces are needed toconnect these models into one unit.Thereby, the hydraulic interface, the dynamic interface andflexible body interface are built according tothe workingenvironment. Fig. 9 shows the relationship of these models.The virtual prototype of piston pump are built byassembling all these models together.Fig. 9. Models relationship of pump virtualprototype3 Results and DiscussionMany aspects of the piston pump can be investigatedbased on the pump virtual prototype, such as the outputcharacters, the force of pistons, the stress and deformationof the pistons and the middle shaft, etc.3.1 Output characters of pumpThe output flow and pressure of pump are used directlyfor driving loads in the hydraulic system. So the outputcharacter is one of the most important performances of thepump. With the virtual prototype of piston pump, it is easilyto get the output characters.Fig. 10 shows the output flow changing with angle of theswash plate. The flow ripple is clearly shown in the resultcurves. The cycle time of flow ripple is the same based onthe rotation speed. The flow ripple amplitude is gettinghigher with the swash plate angle increasing. Besides, theflow condition in each piston chamber can also bepresented with the simulation.Fig. 10. Output flow with angle of swash plate As there are gaps between the two kidney bores in thevalve plate, the output flow is discontinues. So the pressureripple and corresponding noise are produced during fluiddistribution process. One new structured valve plate withno-symmetrical kidney bores is developed [12]. This valveplate has a difference angle (index angel) between the twokidney bores. With this structure, the pressure ripple of thepump can be reduced obviously, shown in Fig.11. Fig. 11presents the comparison of pressure condition inside pistonchamber between valve plates with difference angle andwithout difference angel.Fig. 11. Output pressure of the pump3.2 Force on the pistonsIn the piston pump, the pistons are used for sucking andcharging oil. So the fluid force on the pistons is variableand complex. With the virtual prototype of piston pump,the force on the backside of the pistons can be investigated.With different angle of swash plate (including 0°, 2.5°,5°,7.5°, 10°, 12.5°, 15°) at the same load condition, the forceon each of the nine pistons is different and the forcepresents a periodic change with time, shown in Fig. 12. Thevibration amplitude of force is getting higher with theswash plate angle increasing.In order to analyze the influence of the swash plate angle,the fluid force was simulated with the angle changingcontinuously. The curve in Fig. 13 shows the trend of theforce. It starts with a very small value, and the value of theforce rises quickly while the angle of swash plate reaches5°.Fig. 12. Fluid force on the pistonsFig. 13. Pressure with the angle of swashplate changing3.3 Stress and deformation of the pistonsand middle shaftWith the FEM technology, the middle shaft and pistonsmodel are improved from rigid body to flexible body,which is more tally with the actual situation. In dynamicenvironment, the stress and strain of the flexible body canbe simulated when the virtual prototype is running. And theintensity of the flexible body parts can be investigated.The stress and strain can describe the intensity anddeformation to a degree. Fig. 14 shows the stress and strainwhen the simulation time is at 0.135 s. The maximum stressat this state is about 196 MPa and the maximum strain isabout 0.002 mm. The most serious deformationregionappears nearby the spline.(a) Stress of the middle shaft at 0.135 s (MPa)(b) Strain of the middle shaft at 0.135 s (10–4) Fig. 14. Stress and strain of the middle shaftFig. 15 gives the simulation result of the piston. Themaximum stress in the piston is about 222 MPa and themaximum strain is about 0.005 mm. So the result is in aproper range. Besides, the stress also can be used foranalyzing thefriction on the outside of the piston.(a) Stress of the pistons(MPa)(b) Strain of the pistons (10–8)Fig. 15. Stress and strain of the piston4 Conclusions(1) On the basis of different models and the interfaces, itis feasible to make the virtual prototype of piston pump.According to the type of the model (such as the dynamicmodel and hydraulic model), corresponding simulationresults are shown to predict the performance of the pistonpump, so more characteristics can be studied by VPT.(2) When the valve plate is mounted on the end cap, adifference angle (index angle) is set. This angle helps toreduce the pressure ripple. And the effect of the virtualprototype is also proved based on the simulation results.(3) The piston pump is one of the most complexhydraulic components, so the modeling and simulation alsoneed several hypotheses to simply modeling.(4) Compared with the traditional simulation on pistonpump, the VPT concentrated on more factors, such as theshape of the parts, the flexible body of parts, etc. Sosimulation model more tally with the actual situation andthe result is more effective and useful to optimize thestructure.(5) Because of the connection of so many models, it isdifficult and complicated to make the effective interface.But with the development of the modeling and computation,the VPT has the potential to help to develop the newgeneration piston pump prototype with higher performance. References[1] ZHANG B F. Dynamic simulation of transmission system of mobilepower station based on virtualprototype technology[D]. Luoyang:Henan University of Science and Technology, 2004. (in Chinese)[2] ZHENG J R. ADAMS——Introduction andapplication of virtualprototype technology[M]. Beijing: People’s Medical PublishingHouse, 2002. (in Chinese)[3] YANG Z W, XU B, ZHANG B. Simulation of axial piston pumpbased on virtual prototype[J]. Hydraulics Pneumatics & Seals, 2006,3: 33−36. (i n Chinese) [4] DEEKEN M. Simulation of the reversing effects of axial pistonpumps using conventional CAE tools[J]. Ölhydraulik undPneumatik (O+P), 2002, 46: 6−12. [5] YU X K, WANG J. Virtual prototype of a hydraulic system based onADAMS[M]. Beijing: Construction Machinery and Equipment, 2003.(in Chinese)[6] DEEKEN M. Simulation of the tribological contacts in an axialpiston machine[J]. Ölhydraulik und Pneumatik (O+P), 2003, 47:11−12.[7] PETER A, MARTIN P. Simulation of a hydraulic variable axialpiston double pump of bent axis design with subsystems[C]//The 1stMSC.ADAMS European User Conference, London, November13−14, 2002: 10−17.[8] ZHANG H, KASPER L, RICH K. Development ofa virtualprototype of piston pump for hydrostatictransmission[C]//Proceedings of the 6th International Conferenceon Fluid Power Transmission and Control, Hangzhou, China, April5−8, 2005: 485−489.[9] YANG Z W. Research of virtual prototype simulation technology foraxial piston pump[D]. Hangzhou: Zhejiang University, 2006. (inChinese) [10] ZHAI P X. Axial piston pump[M]. Beijing: China Coal IndustryPublishing House, 1978. (in Chinese) [11] JAROSLAV I, MONIKA I. Hydrostatic pumps and motors[M].India: Academia Books International, 2001.[12] NA C L. The distribution principles ofcompressible fluid in axialpiston pump[M]. Beijing: The Publishing House of OrdnanceIndustry, 2003. (inChinese)基于虚拟样机技术的轴向柱塞泵的建模与仿真文摘:一个特定的重点放在轴向活塞泵的虚拟样机技术(VPT)。
柱塞泵毕业设计外文文献翻译
柱塞泵毕业设计外⽂⽂献翻译利⽤神经⽹络预测轴向柱塞泵的性能Mansour A Karkoub a, Osama E Gad a, Mahmoud G Rabie ba--就读于科威特的科威特⼤学⼯程与⽯油学院b--就读于埃及开罗的军事科技⼤学摘要本⽂推导了应⽤于轴向柱塞泵(斜轴式)的神经⽹络模型。
该模型采⽤的数据是由⼀个实验装置获得的。
这个正在进⾏的研究的⽬的是降低柱塞泵在⾼压下⼯作时的能量损耗。
然⽽,在最初我们要做⼀些研究来预测当前所设计的泵的响应。
神经⽹络模型具有前反馈的结构,并在测验过程中使⽤Levenberg-Marquardt优化技术。
该模型能够准确地预测柱塞泵的动态响应。
1、简介可变排量轴向柱塞泵是在流体动⼒系统中经常要⽤到的重要设备,如液压动⼒供应控制和静液压传动驱动器的控制。
本装置具有变量机制和功率-重量⽐特性,使其最适合于⾼功率电平的控制。
所设计的这种轴向柱塞泵拥有可靠性和简便的特点,然⽽其最重要的特征是可以变量输出。
⼈们在轴向柱塞泵领域已经做了很多研究,但是本⽂将只论述⼀下少数⼏⼈所做的贡献。
Kaliafetis和Costopoulos[5]⽤调压器研究了轴向柱塞变量泵的静态和动态特性。
所提出的模型的精确度依赖于制造商提供的动态运⾏曲线等数据。
他们得出结论,运⾏条件对泵的动态⾏为是⾮常关键的,⽽泵的动态⾏为可以通过减⼩压⼒设定值进⾏改善。
Harris等⼈[4]模拟和测量了轴向柱塞泵的缸体压⼒和进油流量脉动。
Kiyoshi和Masakasu[7]研究了斜盘式变量输送的轴向柱塞泵在运⾏时刻的实验上和理论上的静态和动态特性。
并提出了⼀种新的⽅法来预测泵在运⾏过程中的响应。
也对研究泵特性的新⽅法的有效性进⾏了实验验证,实验中使⽤了⼀个有宽、短⽽深的凹槽的配流盘。
Edge和Darling[2]研究了液压轴向柱塞泵的缸体压⼒和流量。
这个得出的模型经过了实验检验。
对于配流盘、缸体上设计的退⼑槽和泵的流量脉动对泵特性的影响都进⾏了验证。
偏心柱柱塞泵英文资料
偏心柱柱塞泵英文资料Single-acting eccentric column plunger pump is a type of pump that is widely used in various fields. It has the characteristic of simple structure, reliable performance, and low cost, which makes it popular in the market. In this article, we will introduce you to the structure, working principle, and advantages of the eccentric column plunger pump.Structure of Eccentric Column Plunger PumpThe eccentric column plunger pump consists of a pump body, a plunger, an eccentric column, a suction valve, a discharge valve, and a drive mechanism. The pump body is made of high-quality cast iron or steel, and its internalstructure is simple and easy to assemble. The plunger is a cylindrical piston that slides up and down in the pump body. The eccentric column is mounted on the plunger and rotates around the axis of the plunger. The suction valve and the discharge valve are located in the pump body, and they open and close alternately with the movement of the plunger. The drive mechanism drives the eccentric rotation of the column and the reciprocating movement of the plunger.Working Principle of Eccentric Column Plunger PumpWhen the eccentric column plunger pump is working, the drive mechanism drives the eccentric column to rotate, and the plunger moves up and down in the pump body. When the plunger moves downward, the suction valve opens, and the liquid in the storage tank enters the pump body. When the plunger moves upward, the suction valve closes, and thedischarge valve opens. The liquid in the pump body is discharged through the discharge valve. In this way, the pump can continuously suck and discharge the liquid.Advantages of Eccentric Column Plunger PumpFirstly, the eccentric column plunger pump has the characteristic of simple structure, which makes it easy to operate and maintain. Secondly, it has a high efficiency, which ensures the smooth running of the equipment. Thirdly, it is reliable and durable, which can ensure the long-term operation of the equipment. Fourthly, it is easy to install, which saves time and effort. Fifthly, it has a low cost, which makes it affordable for users.ConclusionThe eccentric column plunger pump is a simple and reliable pump that is widely used in various fields. Its characteristic of simple structure, high efficiency, reliability, durability, and low cost makes it popular among users. We hope that this article can help you understand more about the eccentric column plunger pump.。
液压专业毕业设计外文翻译有译文外文文献值得收藏哦
外文原文:The Analysis of Cavitation Problems in the Axial Piston Pumpshu WangEaton Corporation,14615 Lone Oak Road,Eden Prairie,MN 55344This paper discusses and analyzes the control volume of a piston bore constrained by the valve plate in axial piston pumps。
The vacuum within the piston bore caused by the rise volume needs to be compensated by the flow; otherwise, the low pressure may cause the cavitations and aerations。
In the research, the valve plate geometry can be optimized by some analytical limitations to prevent the piston pressure below the vapor pressure。
The limitations provide the design guide of the timings and overlap areas between valve plate ports and barrel kidneys to consider the cavitations and aerations。
_DOI: 10。
1115/1.4002058_ Keywords: cavitation ,optimization, valve plate,pressure undershoots 1 IntroductionIn hydrostatic machines,cavitations mean that cavities or bubbles form in the hydraulic liquid at the low pressure and collapse at the high pressure region, which causes noise,vibration,and less efficiency.Cavitations are undesirable in the pump since the shock waves formed by collapsed may be strong enough to damage components. The hydraulic fluid will vaporize when its pressure becomes too low or when the temperature is too high. In practice,a number of approaches are mostly used to deal with the problems:(1) raise the liquid level in the tank,(2)pressurize the tank, (3)booster the inlet pressure of the pump,(4) lower the pumping fluid temperature,and (5) design deliberately the pump itself.Many research efforts have been made on cavitation phenomena in hydraulic machine designs。
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
利用神经网络预测轴向柱塞泵的性能Mansour A Karkoub a, Osama E Gad a, Mahmoud G Rabie ba--就读于科威特的科威特大学工程与石油学院b--就读于埃及开罗的军事科技大学摘要本文推导了应用于轴向柱塞泵(斜轴式)的神经网络模型。
该模型采用的数据是由一个实验装置获得的。
这个正在进行的研究的目的是降低柱塞泵在高压下工作时的能量损耗。
然而,在最初我们要做一些研究来预测当前所设计的泵的响应。
神经网络模型具有前反馈的结构,并在测验过程中使用Levenberg-Marquardt优化技术。
该模型能够准确地预测柱塞泵的动态响应。
1、简介可变排量轴向柱塞泵是在流体动力系统中经常要用到的重要设备,如液压动力供应控制和静液压传动驱动器的控制。
本装置具有变量机制和功率-重量比特性,使其最适合于高功率电平的控制。
所设计的这种轴向柱塞泵拥有可靠性和简便的特点,然而其最重要的特征是可以变量输出。
人们在轴向柱塞泵领域已经做了很多研究,但是本文将只论述一下少数几人所做的贡献。
Kaliafetis和Costopoulos[5]用调压器研究了轴向柱塞变量泵的静态和动态特性。
所提出的模型的精确度依赖于制造商提供的动态运行曲线等数据。
他们得出结论,运行条件对泵的动态行为是非常关键的,而泵的动态行为可以通过减小压力设定值进行改善。
Harris等人[4]模拟和测量了轴向柱塞泵的缸体压力和进油流量脉动。
Kiyoshi和Masakasu[7]研究了斜盘式变量输送的轴向柱塞泵在运行时刻的实验上和理论上的静态和动态特性。
并提出了一种新的方法来预测泵在运行过程中的响应。
也对研究泵特性的新方法的有效性进行了实验验证,实验中使用了一个有宽、短而深的凹槽的配流盘。
Edge和Darling[2]研究了液压轴向柱塞泵的缸体压力和流量。
这个得出的模型经过了实验检验。
对于配流盘、缸体上设计的退刀槽和泵的流量脉动对泵特性的影响都进行了验证。
人们已证实了一种可替代的建模技术——神经网络(NN)能取得良好的效果,特别是对于高度非线性的系统。
这种技术是模仿人脑获取信息的功能。
Karkoub 和Elkamel[6]用神经网络模型预测了一个长方形的气压轴承的压力分布。
所设计的这种模型在预测压力分布和承载能力方面比其他可用的工具更加精确。
Gharbi 等人[3]利用神经网络预测了突破采油。
其表现远远优于常见的回归模型或有限差分法。
李等人[8]用神经网络模型NNS和鲍威尔优化技术对单链路和双链路的倒立摆进行了建模和控制。
研究者们取得了理想的结果。
Panda等人[9]应用NNS在普拉德霍湾油田对流体接触进行了建模。
所得到的模型预测的目标油井中的流量分配比传统的以回归为基础的技术更准确。
Aoyama等人[1]已经推导出一个神经网络模型来预测非最小相系统的响应。
所开发出的的模型被应用于Van de Vuss反应器和连续搅拌式生物反应器,所得到的结果是令人满意的。
本文研究利用神经网络解决轴向柱塞泵(斜轴式)在一定的供油压力下的建模。
本文首先会描述用于收集实验数据的实验装置,然后将会简要介绍神经网络建模程序。
2、实验装置实验数据是从这个将在本节中进行讨论的实验装置上得到的。
该装置的主要组成部分是轴向柱塞泵。
在下面的章节中,我们将描述泵的工作原理,然后描述如何收集实验数据。
2.1、斜轴式轴向柱塞泵示意图2显示出了在实验中使用的轴向柱塞泵的基本组件,而此泵的控制单元如图3所示。
该泵由两个主要部分组成。
第一部分是旋转组,其中包括驱动轴(31)、柱塞(32)、缸体(33)和配流盘(34)。
七个柱塞安装在一个位于前表面的球形组件上,并且他们同时动作使缸体旋转。
缸体通过弹簧(35)推压控制区域的配流盘。
在运行过程中,带有柱塞的配流盘和缸体可以在一个球形的滑动表面(36)上移动。
配流盘采用了在进油口和出油口的前缘和后缘都带有半圆形凹槽的双向配流盘。
第二部分是泵的控制部分,其中包含了控制柱塞(37)、控制元件(38、39和40)、调节弹簧(41)和控制弹簧(42)和(43)。
两个主要部分是用调节销(44)连接在一起的。
体积为V的泵出口腔与体积为V1和V2的控制腔通过孔(45)和(46)分别连通。
控制柱塞连通开口孔(47)、该开口孔的大小是由活塞(40)(参照图2和图3)控制的。
当操作压力P超过了弹簧(41)的预设值,控制元件(38、39和40)就会推压弹簧。
与此同时,液压油通过节流孔(45)和(46)从泵的出口流出。
在体积为V1的腔体内的高压油就从开口孔(47)流到了控制柱塞(37)的大端面上。
如果作用在控制柱塞上的压力大于弹簧力,控制柱塞(37)就会移动,直到液压力和机械力恢复平衡。
缸体、柱塞和配流盘在球形滑动表面(36)以相反的方向移动,以减少旋转角度αmax<α<αmax。
此运动会导致泵的流速降低。
2.2、数据测量装置利用神经网络设计的模型必须要使用从上述系统获得的一些实际数据进行检验。
检验的过程对于神经网络了解它试图预测的模型是必要的。
数据是从图1所示的实验装置中收集的。
此数据是通过测量图2所示的轴向柱塞泵的稳态和瞬态响应获得的。
图1 实验装置的照片图 2 斜轴式轴向柱塞泵的示意图图3 柱塞泵的控制单元的示意图实验研究是在如图1所示的测试平台上进行的,液压回路图如图4所示。
试验泵的进油管和出油管分别与吸油管和高流量计的端口(24)和(25)直接连接在一起。
试验泵(16)是由一个高功率的可控速度的液压马达(13)驱动的。
液压回路的工作过程如下:油从油箱(1)流入增压泵(4)的进油口。
减压阀(7)是用来保护增压泵回路以避免其压力过高。
增压泵溢出的液压油通过一个单向阀(6)流入主泵(3)的吸油和供油线路。
减压阀(8)是用于保护主泵回路防止压力过高。
从主泵流出的液压油通过用于控制主泵流向的方向控制阀(9)和(10)流入主驱动马达回路(12)。
试验泵的流速由数字式的流量计(20)显示。
试验泵的从动轴的转速是由转速计(15)测量的,可以通过改变电动机(5)的速度来控制从动轴的速度。
在操作过程中工作油的温度要保持在50±5℃的范围内。
图4 液压系统示意图在稳态测量期间,当开关阀(30)完全关闭时供给压力P的变化是由控制阀(29)调节的。
压力计(23)用来测量进油管路中的油压,数字压力计(21)测量出油线路中的油压。
减压阀(28)是用来保护试验泵回路以防过载。
而在瞬态测量期间,阀(30)是完全打开的而阀(29)是完全关闭的。
2.3、泵的稳态响应的测量所研究的泵的稳态性能的实验测定是通过测量不同的供给压力P下的泵的排出流量Qp来进行的。
试验泵的参数如表1所示。
供给压力P是由节流阀(29)控制的,其压力值由数字压力计(21)测得。
相应的泵排量Qp是由数字流量计(20)测量的。
测量时预设压力相同而泵的转速不同,泵的转速分别为550、800和1000 rpm。
泵的排量Qp也是在不同的预设压力值下测量的。
测量值如图7和图8所示。
表1 泵的参数参数描述数值A控制柱塞的大端面0.000531 m2cA柱塞面积0.000531 m2pA控制元件(38)的面积0.0000246 m2ppA控制柱塞的小端面面积0.0000785 m2sV泵输油管道体积 2.6×10−3 m3V第一控制腔的体积8.2×10−6 m31V第二控制腔的体积 1.7×10−7 m32V第三控制腔的体积 1.6×10−5 m33α缸体最小倾斜角4°minα缸体最大倾斜角23°max2.4 泵的瞬态响应的测量图2所示的待研究的泵的瞬态响应的实验测定是通过测量不同控制腔的工作压力来进行的。
在泵体的不同位置安装着三个电控压力传感器,该泵体是和体积分别为V1、V2和V3的控制腔直接连接在一起的,如图3所示。
另一个压力传感器被安装在泵出口体积V的管路上来测量供给压力P。
这些传感器都是压阻式的,可以测量的压力范围为0.1到400bar之间。
每个传感的输入电压为10〜30V,而输出电压是在0到5V之间。
这些传感器是用来测量控制压力P1、P2、P3和P (参照图3)的。
压力信号的时域图谱是使用PC机和数据采集板采集的。
转换时间为12μs的12位逐次逼近转换器的数据采集板能实现70 kHz的最大吞吐率。
泵的出口管路上安装有节流口大小固定的节流阀(18)和方向控制阀DCV(17)(参照图1和图4)。
这些阀可以使泵的出口管路的压力P快速变化。
当DCV的电磁阀通电时,阀门迅速关闭,泵的排出流量Qp就被迫流经节流阀。
这样设置试验台就能使电磁阀中的电流能触发数据采集系统,从而拾取瞬间变化的压力P1、P2、P3和P的值。
这些数据的测量是在泵的转速为550、800和1000 rpm的情况下进行。
测量结果如图9、图10和图11所示。
3、神经网络在本文中,用于预测斜轴式轴向柱塞泵的动作的装置是一个被称为神经网络的计算工具。
这些网络都只是一些相互联接在一起的被称为神经元的元素。
这些神经元或处理单元是精心挑选的线性或非线性函数,这些函数可以处理任何应用输入以得到其输出。
神经元的输入是外部输入的加权总和,或是紧挨着它的上一个神经元的输出。
一个小的加权施加到神经元的输出上就会使接下来的神经元不能处理其输入。
人们就能以这种方式建立每个模式或输入的具体路线图。
这种类型的模型就能使神经网络能够捕捉通常未能被普通建模技术发现的非线性信号。
一个特定的神经元的输出是关于三个主要因子:加权输入、该神经元的偏压和传递函数(参见图5)的函数。
任何神经元的输出都可按下式计算:a=f(x+β)其中传递函数f可以选自一组现成可用的函数。
在我们的研究中所选用的是S型函数:该函数以能得到理想的结果而著名,特别是对于给定的输入其输出是已知的情况。
图5 单个神经元的示意图任何网络通常都可划分为各个子网或我们通常所称呼的层。
每个网络包含两个基本层即输入层和输出层,而且如果任务需要就会有一个或多个隐藏层。
图6显示出了一种典型的前馈式结构的神经网络。
输出层的输出是网络中所有神经元的组合效果的结果。
图6 多层、前馈式神经网络的示意图3.1、测验设计一个神经网络至少需要四个主要步骤:(1)确定网络层的层数:(2)确定神经元数量:(3)确定传递函数的类型:(4)确定一个能描述系统行为实验数据组。
测验过程非常耗费时间但对于网络的成功非常关键。
测验中要应用几项技术,其中有一项是势能的反向传播。
每一个神经元的每一个输入的权重都是从输出层和工作反馈开始连续变化更新的。
在此过程中,要使目标函数最小化,而目标函数通常是误差的平方和函数。
文献中应用到了几项优化技术,包括鲍威尔算法和Levenberg-Marquardt算法。
