常用功率MOS管代换

MOS管全参数代换大全

MOS管全参数代换大全Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET)是现代电子领域中广泛使用的一种晶体管。

MOSFET具有多个参数，这些参数用于描述其性能和特性。

下面将介绍一些常见的MOSFET参数。

1. 阈值电压（Threshold voltage）: 这是MOSFET开始导通的电压。

当控制电压高于阈值电压时，MOSFET开始导通电流。

2. 饱和漏极电流（Saturation drain current）: 这是MOSFET在饱和区时的漏极电流。

饱和区是指当控制电压高于阈值电压时，MOSFET的漏极电流保持恒定的区域。

3. 转导（Transconductance）: 这是MOSFET的输出电流（漏极电流）与输入电压（栅极电压）之间的比率。

转导可以描述MOSFET的电流放大能力。

4. 输出电阻（Output resistance）: 这是MOSFET的输出电压与输出电流之间的比率。

输出电阻是用来描述MOSFET的输出特性和负载能力的。

5. 共栅电容（Gate capacitance）: 这是MOSFET的栅极电容。

由于MOSFET的栅极与通道之间存在一个绝缘层，所以栅极电容对于MOSFET的电性能和开关速度至关重要。

6. 漏极电流（Drain current）: 这是MOSFET的漏极电流。

漏极电流受到控制电压和输入信号的影响。

7. 最大漏极电流（Maximum drain current）: 这是MOSFET能够承受的最大漏极电流。

超过这个电流值，MOSFET可能会被损坏。

8. 漏极-源极电阻（Drain-source resistance）: 这是MOSFET的漏极电压与漏极电流之间的比率。

漏极-源极电阻通常很小，可以忽略不计。

9. 网络延迟（Propagation delay）: 这是MOSFET在输入信号变化到输出信号变化之间的时间延迟。

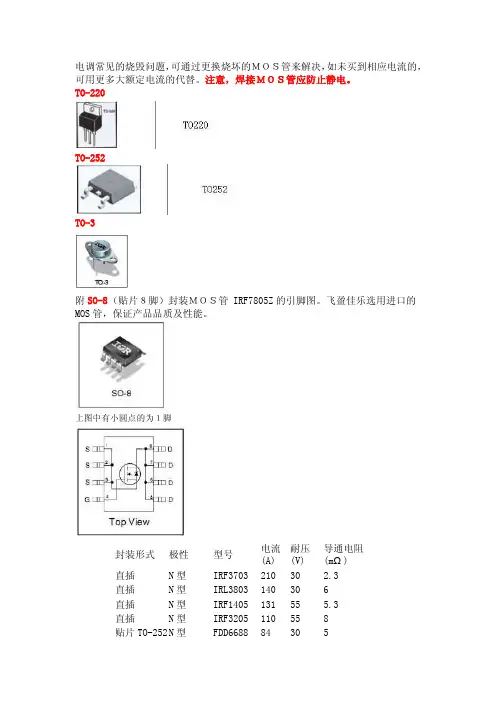

电调常用功率MOS管互用参考手册

电调常见的烧毁问题，可通过更换烧坏的ＭＯＳ管来解决，如未买到相应电流的，可用更多大额定电流的代替。

注意，焊接ＭＯＳ管应防止静电。

TO-220TO-252TO-3附SO-8（贴片８脚）封装ＭＯＳ管 IRF7805Z的引脚图。

飞盈佳乐选用进口的MOS管，保证产品品质及性能。

上图中有小圆点的为１脚封装形式极性型号电流(A)耐压(V)导通电阻(mΩ)直插N型IRF3703 210 30 2.3 直插N型IRL3803 140 30 6 直插N型IRF1405 131 55 5.3 直插N型IRF3205 110 55 8 贴片TO-252 N型FDD6688 84 30 5直插N型BUZ111S 80 55 8 直插N型5N05 75 50 9.5 直插N型IRF2804 75 40 2 直插N型60N06 60 60 14 铁壳非直插N型IRF150 40 100 55 直插N型50N03L 28 25 21 贴片N型SI4336 22 30 4.2 贴片N型IRF7831 21 30 3.6 贴片N型IRF7832 20 30 4 直插N型BTS120 19 100 100 贴片N型IRF7822 18 30贴片N型IRF7836 17 30 5.7 贴片N型IRF8113 17 30 5.6 贴片N型SI4404 17 30 8 贴片N型FDS6688 16 30 6 贴片N型IRF7805Z 16 30 6.8 贴片N型IRF7831 16 30 4 贴片N型IRF7477 14 30 8.5 贴片N型IRF8721 14 30 8.5 贴片N型IRF7805 13 30贴片N型IRF7805Q 13 30 11 贴片N型IRF7413 12 30 18 贴片N型TPC8003 12 30 6 贴片N型IRF7477 11 30 20 贴片N型IRF7811 11 30 12 直插N型BTS110 10 100 200 贴片N型IRF7466 10 30 15 贴片N型SI4410 10 30 14 贴片N型SI4420 10 30 10 贴片N型A2700 9 30 7.3 贴片N型IRF7807 8.3 30贴片N型SI4812 7.3 30 28 贴片N型SI9410 6.9 30 50 贴片N型IRF7313 6 30 29 直插N型6N60 5.5 600 750 贴片P型SI4405 17 30 7.5 贴片P型STM4439A 14 30 18 贴片P型FDS6679 13 30 9 贴片P型SI4411 13 30 8 贴片P型SI4463 12.3 20 16贴片P型SI4407 12 30贴片P型IRF7424 11 30 13.5 贴片P型IRF7416 10 30 20 贴片P型IRF7416Q 10 30 20 贴片P型SI4425 9 30 19 贴片P型IRF7424 8.8 30 22 贴片P型SI4435 8 30 20 贴片P型SI4435DY 8 30 20 贴片P型A2716 7 30 11.3 贴片P型IRF7406 5.8 30 45 贴片P型SI9435 5.3 30 50 贴片P型IRF7205 4.6 30 70 贴片N型TPC8003 30 12 6。

MOS管代换表

电脑主板场管代换表（MOS管代换）如无特别说明，同一条内的管子可以相互替换1、SD9435 SOP-8 < 5.3A 30V 50 mΩ >，可替代市面上各类型9435 APM9435、CEM9435、AP9435、SSM9435 、TM9435、MT9435、GE9435、SDM9435、STM9435、H9435、FDS9435、Si9435、STP9435、SPP9435、Si9435DY、SM9435、iTM9435、MI9435、ME9435、ME4405 等等! 2、SD9926 SOP-8 <6A 20V 28 mΩ>，可替代市面上各类型9926 ：APM9926、CEM9926、AP9926、SSM5N20V 、SDM9926、STM9926、MT9926 TM9926 、GE9926、iTM9926、MI9926、TF9926 、AFT9926 、FDS9926、GT9926 等等!//3、SG9926 TSSOP-8 <6A 20V 28 mΩ>：暂无4、SD4953 SOP-8 <30V 5A 53mΩ>，可替代市面上各类型4953 ：GE4953、iTM4953、AF4953P、H4953、MT4953 、SSM4953、CEM4953、STS4953、AP4953、TM4953、STM4953、SDM4953、STP4953、AO4801、AO4801A、AO4803、AO4803A、AFT4953、SPP4953、STP4953A、SPP4953A、GT4953、Si4953DY、MI4953、ME4953、SM4953、TF4953、AKE4953 等等! SD4953BDY替代APM4953、Si4953、FDS4953、CEM4953 5、SD4435 SOP-8 <30V 8A 20mΩ>，可替代市面上各类型4435 ：APM4435、Si4435DY、CEM4435、SDM4435、SSM4435、GE4435 、MT4435、H4435、STM4435、AP4435、TM4953、AO4411、STP4435、GT4435、MI4435、ME4435、SPP4435、SM4435 等等! 6、SD4410 SOP-8 <10A 13.5mΩ 30V>，替代各型4410：APM4410、CEM4410、AP4410、FDS4410、AO4406、SSM4410、SDM4410、STM4410、MT4410、iTM4410、STS4410、H4410、P4410、GE4410、AF4410N STN4410、STP4410、SPN4410、MI4410、SM4410、GT4410、AFT4410 等等！7、SD2300 SOT-23-3L <20V 4A 28mΩ>，替代各型2300：APM2300、Si2300、CEM2300、STS2300、AP2300、MT2300、MI2300、ST2300 SSS2300、GT2300、GE2300、GE2312、iTM2300、SM2300、TM2300、ME2314 等等! 8、SD2301 SOT-23-3L <20V , 2.6A , 130mΩ>，替代各类2301 APM2301 、Si2301、CEM2301 、STS2301 、AP2301 、MT2301、IRLML6401、ST2301、ST2301A、STS2301A、SSS2301、SSS2301A、MI2301、ST2301M、ME2301、TM2301、CES2301、KI2301DY 等等! 9、SD2301 SOT-23-3L <20V , 2.6A , 130mΩ>，可替代市面上各类型2301M、2301A、2301S : APM2301A、SSS2301A、STS2301A、ST2301M 等等! 10、SD2302 SOT-23-3L <20V 3.2A 85mΩ>，可替代市面上各类型2302 : APM2302 、SSS2302 、AP2302 、STS2302 、MT2302、ST2302 等等! 11、锂电保护板MOS 管：SD8205 (SD8205G TSSOP-8；SD8205S TSOP-6 ) SD8205S TSOP-6 <4A 20V 28 mΩ>，可替代市面上所有TSOP-6 封装的8205；SD8205G TSSOP-8 <6A 20V 28 mΩ>，可替代市面上所有TSSOP-8 封装的8205、5N20V、9926。

MOS管替换大全

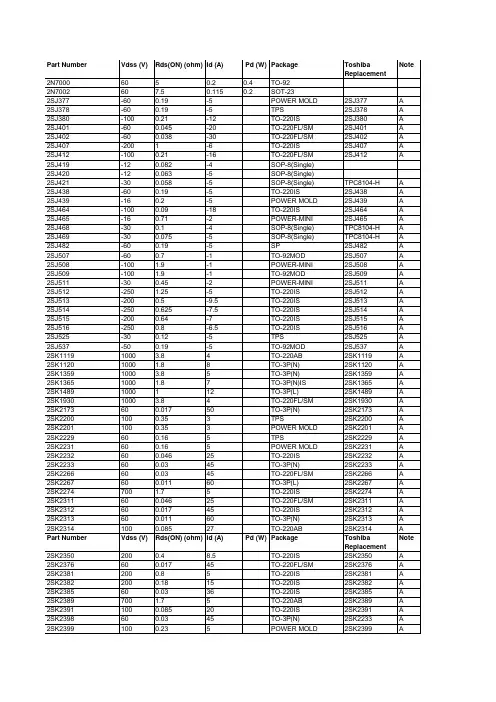

Part V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2N70006050.20.4TO-92Fairchild 2N7002607.50.1150.2SOT-23Fairchild 2SJ377-600.19-5POWER MOLD2SJ377A Toshiba 2SJ378-600.19-5TPS2SJ378A Toshiba 2SJ380-1000.21-12TO-220IS2SJ380A Toshiba 2SJ401-600.045-20TO-220FL/SM2SJ401A Toshiba 2SJ402-600.038-30TO-220FL/SM2SJ402A Toshiba 2SJ407-2001-6TO-220IS2SJ407A Toshiba 2SJ412-1000.21-16TO-220FL/SM2SJ412A Toshiba 2SJ419-120.082-4SOP-8(Single)Sanyo 2SJ420-120.063-5SOP-8(Single)Sanyo 2SJ421-300.058-5SOP-8(Single)TPC8104-H A Sanyo 2SJ438-600.19-5TO-220IS2SJ438A Toshiba 2SJ439-160.2-5POWER MOLD2SJ439A Toshiba 2SJ464-1000.09-18TO-220IS2SJ464A Toshiba 2SJ465-160.71-2POWER-MINI2SJ465A Toshiba 2SJ468-300.1-4SOP-8(Single)TPC8104-H A Sanyo 2SJ469-300.075-5SOP-8(Single)TPC8104-H A Sanyo 2SJ482-600.19-5SP2SJ482A Toshiba 2SJ507-600.7-1TO-92MOD2SJ507A Toshiba 2SJ508-100 1.9-1POWER-MINI2SJ508A Toshiba 2SJ509-100 1.9-1TO-92MOD2SJ509A Toshiba 2SJ511-300.45-2POWER-MINI2SJ511A Toshiba 2SJ512-250 1.25-5TO-220IS2SJ512A Toshiba 2SJ513-2000.5-9.5TO-220IS2SJ513A Toshiba 2SJ514-2500.625-7.5TO-220IS2SJ514A Toshiba 2SJ515-2000.64-7TO-220IS2SJ515A Toshiba 2SJ516-2500.8-6.5TO-220IS2SJ516A Toshiba 2SJ525-300.12-5TPS2SJ525A Toshiba 2SJ537-500.19-5TO-92MOD2SJ537A Toshiba 2SK11191000 3.84TO-220AB2SK1119A Toshiba 2SK11201000 1.88TO-3P(N)2SK1120A Toshiba 2SK13591000 3.85TO-3P(N)2SK1359A Toshiba 2SK13651000 1.87TO-3P(N)IS2SK1365A Toshiba 2SK14891000112TO-3P(L)2SK1489A Toshiba 2SK19301000 3.84TO-220FL/SM2SK1930A Toshiba 2SK2173600.01750TO-3P(N)2SK2173A Toshiba 2SK22001000.353TPS2SK2200A Toshiba 2SK22011000.353POWER MOLD2SK2201A Toshiba 2SK2229600.165TPS2SK2229A Toshiba 2SK2231600.165POWER MOLD2SK2231A Toshiba 2SK2232600.04625TO-220IS2SK2232A Toshiba 2SK2233600.0345TO-3P(N)2SK2233A Toshiba 2SK2266600.0345TO-220FL/SM2SK2266A Toshiba 2SK2267600.01160TO-3P(L)2SK2267A Toshiba 2SK2274700 1.75TO-220IS2SK2274A Toshiba 2SK2311600.04625TO-220FL/SM2SK2311A Toshiba 2SK2312600.01745TO-220IS2SK2312A Toshiba 2SK2313600.01160TO-3P(N)2SK2313A Toshiba 2SK23141000.08527TO-220AB2SK2314A ToshibaPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2SK23502000.48.5TO-220IS2SK2350A Toshiba 2SK2376600.01745TO-220FL/SM2SK2376A Toshiba 2SK23812000.85TO-220IS2SK2381A Toshiba 2SK23822000.1815TO-220IS2SK2382A Toshiba 2SK2385600.0336TO-220IS2SK2385A Toshiba 2SK2389700 1.75TO-220AB2SK2389A Toshiba 2SK23911000.08520TO-220IS2SK2391A Toshiba 2SK2398600.0345TO-3P(N)2SK2233A Toshiba 2SK23991000.235POWER MOLD2SK2399A Toshiba 2SK24001000.235TPS2SK2400A Toshiba 2SK24012000.1815TO-220FL/SM2SK2401A Toshiba 2SK24172500.57.5TO-220IS2SK2417A Toshiba 2SK2440200.0386SOP-8(Single)TPC8008A Sanyo 2SK2441200.0327SOP-8(Single)TPC8008A Sanyo 2SK2442300.0297SOP-8(Single)TPC8006-H A Sanyo 2SK2445600.01850TO-3P(N)2SK2445A Toshiba 2SK24661000.04630TO-220IS2SK2466A Toshiba 2SK2493160.15POWER MOLD2SK2493A Toshiba 2SK2507500.04625TO-220IS2SK2507A Toshiba 2SK25082500.2513TO-220IS2SK2508A Toshiba 2SK25425000.858TO-220AB2SK2542A Toshiba 2SK25435000.858TO-220IS2SK2543A Toshiba 2SK2544600 1.256TO-220AB2SK2544A Toshiba 2SK2545600 1.256TO-220IS2SK2545A Toshiba 2SK2549160.292POWER-MINI2SK2549A Toshiba 2SK2550500.0345TO-3P(N)2SK2550A Toshiba 2SK2551500.01150TO-3P(N)2SK2551A Toshiba 2SK2556300.046SOP-8(Single)TPC8006-H A Sanyo 2SK2557300.0377SOP-8(Single)TPC8006-H A Sanyo 2SK25982500.2513TO-220FL/SM2SK2598A Toshiba 2SK259950032TPS2SK2599A Toshiba 2SK26005000.858TO-3P(N)IS2SK2600A Toshiba 2SK2601500110TO-3P(N)2SK2601A Toshiba 2SK2602600 1.256TO-3P(N)2SK2602A Toshiba 2SK2603800 3.63TO-220AB2SK2603A Toshiba 2SK2604800 2.25TO-3P(N)2SK2604A Toshiba 2SK2605800 2.25TO-220IS2SK2605A Toshiba 2SK2606800 1.28.5TO-3P(N)IS2SK2606A Toshiba 2SK2607800 1.29TO-3P(N)2SK2607A Toshiba 2SK2608900 4.33TO-220AB2SK2608A Toshiba 2SK2610900 2.55TO-3P(N)2SK2610A Toshiba 2SK2611900 1.49TO-3P(N)2SK2611A Toshiba 2SK26131000 1.78TO-3P(N)2SK2613A Toshiba 2SK2614500.04620DP2SK2614A Toshiba 2SK2615600.372POWER-MINI2SK2615A Toshiba 2SK2637200.0258SOP-8(Single)TPC8008A Sanyo 2SK2661500 1.55TO-220AB2SK2661A Toshiba 2SK2662500 1.55TO-220IS2SK2662A Toshiba 2SK2679400 1.2 5.5TO-220IS2SK2679A Toshiba 2SK26985000.415TO-3P(N)2SK2698A ToshibaPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2SK26996000.6512TO-3P(N)2SK2699A Toshiba 2SK2700900 4.33TO-220IS2SK2700A Toshiba 2SK2717900 2.55TO-220IS2SK2717A Toshiba 2SK2718900 6.4 2.5TO-220IS2SK2718A Toshiba 2SK2719900 4.33TO-3P(N)2SK2719A Toshiba 2SK273390091TO-220AB2SK2733A Toshiba 2SK2741600.165SP2SK2741A Toshiba 2SK27421000.353SP2SK2742A Toshiba 2SK2744500.0245TO-3P(N)2SK2744A Toshiba 2SK2745500.009550TO-3P(N)2SK2745A Toshiba 2SK2746800 1.77TO-3P(N)2SK2746A Toshiba 2SK274990027TO-3P(N)2SK2749A Toshiba 2SK2750600 2.2 3.5TO-220IS2SK2750A Toshiba 2SK27765000.858TO-220FL/SM2SK2776A Toshiba 2SK2777600 1.256TO-220FL/SM2SK2777A Toshiba 2SK2782600.05520DP2SK2782A Toshiba 2SK27891000.08527TO-220FL/SM2SK2789A Toshiba 2SK28352000.85TPS2SK2835A Toshiba 2SK283660091SP2SK2836A Toshiba 2SK28375000.2720TO-3P(N)2SK2837A Toshiba 2SK2838400 1.2 5.5TO-220FL/SM2SK2838A Toshiba 2SK2839300.0410SP2SK2839A Toshiba 2SK28402501 4.5TO-220IS2SK2840A Toshiba 2SK28414000.5510TO-220AB2SK2841A Toshiba 2SK28425000.5212TO-220IS2SK2842A Toshiba 2SK28436000.7510TO-220IS2SK2843A Toshiba 2SK2844300.0235TO-220AB2SK2844A Toshiba 2SK284590091DP2SK2845A Toshiba 2SK284660052TPS2SK2846A Toshiba 2SK2847900 1.48TO-3P(N)IS2SK2847A Toshiba 2SK28591000.42SOP-8(Single)Sanyo 2SK286250032TO-220IS2SK2862A Toshiba 2SK286560052POWER MOLD2SK2865A Toshiba 2SK28666000.7510TO-220AB2SK2866A Toshiba 2SK28821500.1218TO-220IS2SK2882A Toshiba 2SK2883800 3.63TO-220FL/SM2SK2883A Toshiba 2SK2884800 2.25TO-220FL/SM2SK2884A Toshiba 2SK2886500.0245TO-220IS2SK2886A Toshiba 2SK28896000.7510TO-220FL/SM2SK2889A Toshiba 2SK29142500.58.5TO-220AB2SK2914A Toshiba 2SK29156000.416TO-3P(N)2SK2915A Toshiba 2SK29165000.414TO-3P(N)IS2SK2916A Toshiba 2SK29175000.2718TO-3P(N)IS2SK2917A Toshiba 2SK29202000.85POWER MOLD2SK2920A Toshiba 2SK29494000.5510TO-220FL/SM2SK2949A Toshiba 2SK29524000.558.5TO-220IS2SK2952A Toshiba 2SK29536000.415TO-3P(N)IS2SK2953A Toshiba 2SK2961600.272TO-92MOD2SK2961A Toshiba 2SK29621000.71TO-92MOD2SK2962A Toshiba 2SK29631000.71POWER-MINI2SK2963A ToshibaPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2SK2964300.172POWER-MINI2SK2964A Toshiba 2SK29652000.2611TO-220IS2SK2965A Toshiba 2SK29662500.3210TO-220IS2SK2966A Toshiba 2SK29672500.0730TO-3P(N)2SK2967A Toshiba 2SK2968900 1.2510TO-3P(N)2SK2968A Toshiba 2SK2985600.005845TO-220IS2SK2985A Toshiba 2SK2986600.005845TO-220FL/SM2SK2986A Toshiba 2SK2987600.005870TO-3P(N)2SK2987A Toshiba 2SK2989500.155TO-92MOD2SK2989A Toshiba 2SK2991500 1.55TO-220FL/SM2SK2991A Toshiba 2SK2992200 3.51POWER-MINI2SK2992A Toshiba 2SK29932500.1120TO-220FL/SM2SK2993A Toshiba 2SK29952500.0730TO-3P(N)IS2SK2995A Toshiba 2SK2996600110TO-220IS2SK2996A Toshiba 2SK29978008 1.5DP2SK2997A Toshiba 2SK2998500180.5TO-92MOD2SK2998A Toshiba 2SK3017900 1.258TO-3P(N)IS2SK3017A Toshiba 2SK3051600.0345TO-220FL/SM2SK2266A Toshiba 2SK306760052TO-220IS2SK3067A Toshiba 2SK30685000.5212TO-220FL/SM2SK3068A Toshiba 2SK3085600 2.2 3.5TO-220AB2SK3085A Toshiba 2SK3088900 4.33TO-220FL/SM2SK3088A Toshiba 2SK3089300.0340TO-220FL/SM2SK3089A Toshiba 2SK3090300.0245TO-220FL/SM2SK3090A Toshiba 2SK31175000.2720TO-3P(SM)2SK3117A Toshiba 2SK3125300.00760TO-3P(SM)2SK3125A Toshiba 2SK31264500.6510TO-220IS2SK3126A Toshiba 2SK3127300.01145TO-220FL/SM2SK3127A Toshiba 2SK3128300.01160TO-3P(N)2SK3128A Toshiba 2SK31762000.05230TO-3P(N)2SK3176A Toshiba BS107200260.13TO-92Siemens BS1706050.50.83TO-92Fairchild BS1706050.3TO-92Siemens BS2706020.40.625TO-92Fairchild BSO307N300.075 4.2SOP-8(Single)TPC8004A Siemens BSO615N600.15 2.6SOP-8(Single)Siemens BSO615NV600.12 3.1SOP-8(Single)Siemens BSP123100 6.000.38 1.7SOT223Siemens BSP12560045.000.11 1.5SOT2232SK2836A Siemens BSP12924020.000.19 1.5SOT2232SK2836A Siemens BSP13560060.000.1 1.5SOT2232SK2836A Siemens BSP149200 3.500.44 1.5SOT223Siemens BSP17500.10 2.9 1.5SOT2232SK2741A Siemens BSP170-600.35 1.7SOT-2232SJ482A Siemens BSP171-600.35 1.7 1.5SOT2232SJ482A Siemens BSP295500.30 1.7 1.5SOT2232SK2741A Siemens BSP2961000.801 1.5SOT2232SK2742A Siemens BSP297200 2.000.6 1.5SOT223Siemens BSP298400 3.000.45 1.5SOT223Siemens BSP299500 4.000.4 1.5SOT223SiemensPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBSP300800200.19SOT-223Siemens BSP315-500.801 1.5SOT223Siemens BSP316-100 2.200.6 1.5SOT2232SJ508B Siemens BSP317-200 6.000.34 1.5SOT223Siemens BSP318600.15 2.4 1.5SOT2232SK2741A Siemens BSP318S600.15 2.6SOT-2232SK2741A Siemens BSP319500.07 3.8 1.5SOT2232SK2741A Siemens BSP320S600.12 2.9SOT-2232SK2741A Siemens BSP32440025.000.16 1.5SOT2232SK2836A Siemens BSP3721000.30 1.7 1.8SOT2232SK2742A Siemens BSP3731000.30 1.7 1.8SOT2232SK2742A Siemens BSP8824080.32SOT-2232SK2836A Siemens BSP8924060.36SOT-2232SK2836A Siemens BSP92-240200.2SOT-223Siemens BSS10010060.220.63TO-92Fairchild BSS10010060.22TO-92Siemens BSS101240160.13TO-92Siemens BSS110-5010-0.170.63TO-92Fairchild BSS110-50100.1TO-92Siemens BSS11910060.17SOT-23Siemens BSS12310060.170.36SOT-23Fairchild BSS12310060.17SOT-23Siemens BSS124400280.12TO-92Siemens BSS125600450.1TO-92Siemens BSS129240200.15TO-92Siemens BSS131240160.1SOT-23Siemens BSS135600600.08TO-92Siemens BSS13850 3.50.220.36SOT-23Fairchild BSS13850 3.50.22SOT-23Siemens BSS1392501000.04SOT-23Siemens BSS14565 3.50.22SOT-23Siemens BSS149200 3.50.35TO-92Siemens BSS1595080.16SOT-23Siemens BSS169100120.12SOT-23Siemens BSS192-24020.000.151SOT89Siemens BSS2292501000.07TO-92Siemens BSS284-50100.13SOT-23Siemens BSS295500.3 1.4TO-92Siemens BSS2961000.80.8TO-92Siemens BSS29720020.48TO-92Siemens BSS7728607.50.15SOT-23Siemens BSS84-5010-0.130.36SOT-23Fairchild BSS84-50100.13SOT-23Siemens BSS87240 6.000.291SOT89Siemens BSS92-240200.1TO-92Siemens BSS9850 3.50.3TO-92Siemens BUK444-200A2000.4 5.325TO-220IS2SK2350A Philips BUK444-200B2000.5 4.725TO-220IS2SK2350A Philips BUK444-800A8006 1.430TO-220IS2SK2603B Philips BUK444-800B8008 1.230TO-220IS2SK2997B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK445-200A2000.237.630TO-220IS2SK2382A Philips BUK445-200B2000.28730TO-220IS2SK2965A Philips BUK446-1000B10005 1.530TO-220IS2SK1119B Philips BUK446-800A8003230TO-220IS2SK2603B Philips BUK446-800B8004 1.730TO-220IS2SK2603B Philips BUK452-100A1000.251160TO220AB2SK2399B Philips BUK452-100B1000.31060TO220AB Philips BUK452-60A600.131560TO220AB2SK2231B Philips BUK452-60B600.151460TO220AB2SK2231B Philips BUK453-100A1000.161475TO220AB2SK2314A Philips BUK453-100B1000.21375TO220AB2SK2399B Philips BUK453-60A600.082275TO220AB2SK2232B Philips BUK453-60B600.12075TO220AB2SK2232B Philips BUK454-200A2000.49.290TO220AB YTA630A Philips BUK454-200B2000.58.290TO220AB YTA630A Philips BUK454-60H600.03841125TO220AB2SK2385B Philips BUK454-800A8006 2.4100TO220AB2SK2603A Philips BUK454-800B80082100TO220AB2SK2997B Philips BUK455-100A1000.0826125TO220AB2SK2314A Philips BUK455-100B1000.123125TO220AB2SK2314A Philips BUK455-200A2000.2314125TO220AB YTA640A Philips BUK455-200B2000.2813125TO220AB2SK2965B Philips BUK455-60A600.03841125TO220AB2SK2385B Philips BUK455-60B600.04538125TO220AB2SK2232B Philips BUK455-60H600.0343125TO220AB2SK2385B Philips BUK456-1000B10005 3.1125TO220AB2SK1119A Philips BUK456-100A1000.05734150TO220AB2SK2466B Philips BUK456-100B1000.06532150TO220AB2SK2314A Philips BUK456-200A2000.1619150TO220AB YTA640A Philips BUK456-200B2000.217150TO220AB YTA640A Philips BUK456-60A600.02852150TO220AB2SK2385B Philips BUK456-60B600.0351150TO220AB2SK2385B Philips BUK456-60H600.0260150TO220AB2SK2312B Philips BUK456-800A80034125TO220AB2SK2603A Philips BUK456-800B8004 3.5125TO220AB2SK2603A Philips BUK462-100A1000.251160D2PAK2SK2399B Philips BUK462-60A600.131560D2PAK2SK2231B Philips BUK463-100A1000.161475D2PAK2SK2789A Philips BUK463-60A600.082275D2PAK2SK2311A Philips BUK464-200A2000.49.290D2PAK2SK2401A Philips BUK464-60H600.03841125D2PAK2SK2266A Philips BUK465-100A1000.0826125D2PAK2SK2789A Philips BUK465-200A2000.2314125D2PAK2SK2401A Philips BUK465-60A600.03841125D2PAK2SK2266A Philips BUK465-60H600.0343125D2PAK2SK2266A Philips BUK466-100A1000.05734150D2PAK2SK2466B Philips BUK466-200A2000.1619150D2PAK2SK2401A Philips BUK466-60A600.02852150D2PAK2SK2266A Philips BUK466-60H600.0260150D2PAK2SK2376A Philips BUK472-100A1000.25 6.622TO-220IS2SK2399B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK472-100B1000.3 6.122TO-220IS Philips BUK472-60A600.131022TO-220IS2SK2231B Philips BUK472-60B600.159.222TO-220IS2SK2231B Philips BUK473-100A1000.16925TO-220IS2SK2391A Philips BUK473-100B1000.2825TO-220IS2SK2399B Philips BUK473-60A600.081325TO-220IS2SK2232A Philips BUK473-60B600.11225TO-220IS2SK2232A Philips BUK474-200A2000.4 5.325TO-220IS2SK2350A Philips BUK474-200B2000.5 4.725TO-220IS2SK2350A Philips BUK474-60H600.0382130TO-220IS2SK2385A Philips BUK475-100A1000.081430TO-220IS2SK2391A Philips BUK475-100B1000.11230TO-220IS2SK2391A Philips BUK475-200A2000.237.630TO-220IS2SK2382A Philips BUK475-200B2000.28730TO-220IS2SK2965A Philips BUK475-60A600.0382130TO-220IS2SK2385A Philips BUK475-60B600.0452030TO-220IS2SK2232A Philips BUK475-60H600.0322.530TO-220IS2SK2385A Philips BUK481-100A1000.81 1.5SOT2232SK2742A Philips BUK481-60A600.35 1.6 1.5SOT2232SK2741A Philips BUK482-100A1000.28 1.8 1.8SOT2232SK2742A Philips BUK482-200A2000.928.3SOT223Philips BUK482-60A600.13 2.5 1.7SOT2232SK2741A Philips BUK483-60A600.1 3.2 1.8SOT223Philips BUK542-100A1000.28 6.322TO-220IS2SK2399B Philips BUK542-100B1000.35 5.622TO-220IS Philips BUK542-60A600.159.222TO-220IS2SK2231B Philips BUK542-60B600.188.422TO-220IS2SK2231B Philips BUK543-100A1000.188.325TO-220IS2SK2391A Philips BUK543-100B1000.227.525TO-220IS2SK2399B Philips BUK543-60A600.0851325TO-220IS2SK2232A Philips BUK543-60B600.11225TO-220IS2SK2232A Philips BUK545-100A1000.0851330TO-220IS2SK2391A Philips BUK545-100B1000.111230TO-220IS2SK2391A Philips BUK545-200A2000.237.630TO-220IS2SK2382A Philips BUK545-200B2000.28730TO-220IS2SK2965A Philips BUK545-60A600.0422030TO-220IS2SK2232A Philips BUK545-60B600.0551830TO-220IS2SK2232A Philips BUK545-60H600.0382130TO-220IS2SK2385A Philips BUK552-100A1000.281060TO220AB2SK2399B Philips BUK552-100B1000.358.560TO220AB Philips BUK552-60A600.151460TO220AB2SK2231B Philips BUK552-60B600.181360TO220AB2SK2231B Philips BUK553-100A1000.181375TO220AB2SK2314A Philips BUK553-100B1000.221275TO220AB2SK2399B Philips BUK553-48C480.0852175TO220AB Philips BUK553-60A600.0852175TO220AB2SK2232B Philips BUK553-60B600.12075TO220AB2SK2232B Philips BUK554-200A2000.49.290TO220AB YTA630A Philips BUK554-200B2000.58.290TO220AB YTA630A Philips BUK554-60H600.04239125TO220AB2SK2232B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK555-100A1000.08525125TO220AB2SK2314A Philips BUK555-100B1000.1122125TO220AB2SK2314A Philips BUK555-200A2000.2314125TO220AB YTA640A Philips BUK555-200B2000.2813125TO220AB2SK2965B Philips BUK555-60A600.04239125TO220AB2SK2232B Philips BUK555-60B600.05535125TO220AB2SK2232B Philips BUK555-60H600.03841125TO220AB2SK2385B Philips BUK556-60A600.02650150TO220AB2SK2385B Philips BUK556-60H600.02260150TO220AB2SK2312B Philips BUK562-100A1000.281060D2PAK2SK2399B Philips BUK-562A600.151460D2PAK2SK2231B Philips BUK563-100A1000.181375D2PAK2SK2789A Philips BUK563-48C480.0852175D2PAK Philips BUK563-60A600.0852175D2PAK2SK2311A Philips BUK564-200A2000.49.290D2PAK2SK2401A Philips BUK564-60H600.04239125D2PAK2SK2311A Philips BUK565-100A1000.0851430D2PAK2SK2789A Philips BUK565-200A2000.2314125D2PAK2SK2401A Philips BUK565-60A600.04239125D2PAK2SK2311A Philips BUK565-60H600.03841125D2PAK2SK2266A Philips BUK566-60A600.02650150D2PAK2SK2266A Philips BUK566-60H600.02260150D2PAK2SK2376A Philips BUK573-48C480.0851350TO-220IS Philips BUK574-60H600.0422030TO-220IS2SK2232A Philips BUK581-100A1000.90.9 1.5SOT223Philips BUK581-60A600.4 1.5 1.5SOT2232SK2741A Philips BUK582-100A1000.31 1.7 1.8SOT2232SK2742A Philips BUK582-60A600.15 2.7 1.7SOT2232SK2741A Philips BUK583-60A600.1 3.2 1.8SOT223Philips BUK7508-55550.00875187TO220AB2SK2985B Philips BUK7514-55550.01468142TO220AB2SK2312B Philips BUK7518-55550.01857125TO220AB2SK2312B Philips BUK7520-55550.0252115TO220AB2SK2312B Philips BUK7524-55550.02445103TO220AB2SK2385B Philips BUK7530-55550.033075TO220AB2SK2385B Philips BUK7540-55550.0410.78.3SOT223Philips BUK7570-55550.071960TO220AB2SK2232B Philips BUK7608-55550.00875187D2PAK2SK2986A Philips BUK7614-55550.01468142D2PAK2SK2376A Philips BUK7618-55550.01857125D2PAK2SK2376A Philips BUK7620-55550.0252115D2PAK2SK2376A Philips BUK7624-55550.02445103D2PAK2SK2266A Philips BUK7630-55550.033075D2PAK2SK2266A Philips BUK7670-55550.071960D2PAK2SK2311A Philips BUK78150-55550.15 5.58.3SOT2232SK2741A Philips BUK7880-55550.087.58.3SOT223Philips BUK9508-55550.00875187TO220AB2SK2985B Philips BUK9514-55550.01468142TO220AB2SK2312B Philips BUK9518-55550.01857125TO220AB2SK2312B Philips BUK9520-55550.0252115TO220AB2SK2312B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK9524-55550.02445103TO220AB2SK2385B Philips BUK9530-55550.033075TO220AB2SK2385B Philips BUK9570-55550.071960TO220AB2SK2232B Philips BUK9608-55550.00875187D2PAK2SK2986A Philips BUK9614-55550.01468142D2PAK2SK2376A Philips BUK9618-55550.01857125D2PAK2SK2376A Philips BUK9620-55550.0252115D2PAK2SK2376A Philips BUK9624-55550.02445103D2PAK2SK2266A Philips BUK9630-55550.033075D2PAK2SK2266A Philips BUK9670-55550.071960D2PAK2SK2311A Philips BUK98150-55550.15 5.58.3SOT2232SK2741A Philips BUK9840-55550.0410.78.3SOT223Philips BUK9880-55550.087.58.3SOT223Philips BUZ10500.072375TO-220AB2SK2507B Siemens BUZ100500.01858TO-220AB2SK2886B Siemens BUZ100L500.01860TO-220AB2SK2886B Siemens BUZ100S550.01577TO-220AB2SK2312B Siemens BUZ100SL550.01870TO-220AB2SK2312B Siemens BUZ101500.0625100TO-220AB2SK2507B Siemens BUZ101L500.0629TO-220AB2SK2507B Siemens BUZ101S550.0623TO-220AB2SK2232B Siemens BUZ101SL550.0721TO-220AB2SK2232B Siemens BUZ102500.02342180TO-220AB2SK2886B Siemens BUZ102AL500.02842TO-220AB2SK2886B Siemens BUZ102S550.02352TO-220AB2SK2312B Siemens BUZ102SL550.02847TO-220AB2SK2385B Siemens BUZ103500.0440120TO-220AB2SK2385B Siemens BUZ103AL500.0535TO-220AB2SK2507B Siemens BUZ103S550.0431TO-220AB2SK2232B Siemens BUZ103SL550.0528TO-220AB2SK2232B Siemens BUZ104500.117.560TO-220AB2SK2507B Siemens BUZ104L500.117.5TO-220AB2SK2507B Siemens BUZ104S550.114TO-220AB2SK2232B Siemens BUZ104SL550.1212.8TO-220AB2SK2232B Siemens BUZ10L 500.072375TO-220AB2SK2507B Siemens BUZ10S2600.072375TO-220AB2SK2232B Siemens BUZ11500.043075TO-220AB2SK2507B Siemens BUZ110S550.01280TO-220AB Siemens BUZ110SL550.01580TO-220AB2SK2312B Siemens BUZ111S550.00880TO-220AB2SK2985B Siemens BUZ111SL550.0180TO-220AB Siemens BUZ11A500.0552675TO-220AB2SK2507B Siemens BUZ11AL500.0552675TO-220AB2SK2507B Siemens BUZ11FI500.042140TO-220IS2SK2385A ST BUZ11S2600.043075TO-220AB2SK2385B Siemens BUZ12500.02842125TO-220AB2SK2886B Siemens BUZ12A500.03542125TO-220AB2SK2886B Siemens BUZ12AL500.03542125TO-220AB2SK2886B Siemens BUZ171-500.3-840TO-220AB2SJ438B Siemens BUZ172-1000.6-5.540TO-220AB SiemensPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUZ173-200 1.5-340TO-220AB2SJ407B Siemens BUZ201000.213.575TO-220AB2SK2399B Siemens BUZ2054001675TO-220AB2SK2679B Siemens BUZ211000.0852175TO-220AB2SK2314A Siemens BUZ215500 1.5 5.175TO-220AB2SK2661A Siemens BUZ21L1000.0852175TO-220AB2SK2314A Siemens BUZ221000.05534125TO-220AB2SK2466B Siemens BUZ2552500.241395TO-220AB2SK2508B Siemens BUZ271-500.15-2240TO-220AB2SJ464B Siemens BUZ272-1000.3-1540TO-220AB2SJ380B Siemens BUZ30580017.5150TO-2182SK2607A Siemens BUZ3078003375TO-2182SK2603B Siemens BUZ3088004 2.675TO-2182SK2603B Siemens BUZ30A2000.1321125TO-220AB YTA640A Siemens BUZ312000.213.575TO-220AB YTA640A Siemens BUZ31010005 2.575TO-2182SK1359A Siemens BUZ31110006 2.375TO-2182SK1359A Siemens BUZ3121000 1.56150TO-2182SK2613A Siemens BUZ31L2000.213.575TO-220AB YTA640A Siemens BUZ322000.49.575TO-220AB YTA630A Siemens BUZ3234000.315170TO-2182SK2837A Siemens BUZ3254000.3512.5125TO-2182SK2698A Siemens BUZ3264000.510.5125TO-2182SK2841B Siemens BUZ3305000.69.5125TO-2182SK2842B Siemens BUZ3315000.88125TO-2182SK2601A Siemens BUZ3326000.88.5150TO-2182SK2699A Siemens BUZ332A6000.98150TO-2182SK2699A Siemens BUZ3335000.413.5170TO-2182SK2698A Siemens BUZ3346000.512180TO-2182SK2915A Siemens BUZ3385000.413.5TO-2182SK2698A Siemens BUZ3395000.511.5170TO-2182SK2698A Siemens BUZ3412000.0733170TO-2182SK3176A Siemens BUZ342500.0160400TO-2182SK2551A Siemens BUZ3441000.03546170TO-2182SK1381A Siemens BUZ3451000.04541150TO-2182SK2466B Siemens BUZ346500.01858125TO-2182SK2744A Siemens BUZ346S2600.01858170TO-2182SK2173A Siemens BUZ347500.0345125TO-2182SK2550A Siemens BUZ3491000.0632125TO-2182SK2466B Siemens BUZ3502000.1222125TO-2182SK2382B Siemens BUZ3514000.411.5TO-2182SK2698A Harris BUZ355800 1.56125TO-2182SK2746A Siemens BUZ35680025125TO-2182SK2604A Siemens BUZ357100025125TO-2182SK1120A Siemens BUZ3581000 2.6 4.5125TO-2182SK1120A Siemens BUZ38010002 5.5125TO-2182SK1120A Siemens BUZ3824000.412.5125TO-2182SK2698A Siemens BUZ3845000.610.5125TO-2182SK2842B Siemens BUZ3855000.89125TO-2182SK2601A Siemens BUZ40B5000.88150TO-220AB2SK2542A SiemensPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUZ41A500 1.5 4.575TO-220AB2SK2661A Siemens BUZ425002475TO-220AB2SK2661A Siemens BUZ50A10005 2.575TO-220AB2SK1119A Siemens BUZ50B10008275TO-220AB2SK1119A Siemens BUZ50C10006 2.375TO-220AB2SK1119A Siemens BUZ5110004 3.4125TO-220AB2SK1119A Siemens BUZ604001 5.575TO-220AB2SK2679B Siemens BUZ60B400 1.5 4.5TO-220AB2SK2679B Harris BUZ614000.412.5150TO-220AB2SK2841A Siemens BUZ61A4000.511150TO-220AB2SK2841A Siemens BUZ70600.151240TO-220AB2SK2231B Siemens BUZ70L600.151240TO-220AB2SK2231B Siemens BUZ71500.11440TO-220AB2SK2507B Siemens BUZ71A500.121340TO-220AB2SK2507B Siemens BUZ71AFI500.121135TO-220IS2SK2507A ST BUZ71AL500.121340TO-220AB2SK2507B Siemens BUZ71FI500.11235TO-220IS2SK2507A ST BUZ71L500.11440TO-220AB2SK2507B Siemens BUZ71S2600.11440TO-220AB2SK2232B Siemens BUZ721000.21040TO-220AB2SK2399B Siemens BUZ72A1000.25940TO-220AB2SK2399B Siemens BUZ72A1000.2511TO-2202SK2399B ST BUZ72AL1000.25940TO-220AB2SK2399B Siemens BUZ72L1000.21040TO-220AB2SK2399B Siemens BUZ732000.4740TO-220AB YTA630A Siemens BUZ73A2000.6 5.840TO-220AB YTA630A Siemens BUZ73AL2000.6 5.840TO-220AB YTA630A Siemens BUZ73L2000.4740TO-220AB YTA630A Siemens BUZ745003 2.440TO-220AB2SK2862B Siemens BUZ74A5004 2.140TO-220AB2SK2862B Siemens BUZ76400 1.8340TO-220AB2SK2679B Siemens BUZ76A400 2.5 2.640TO-220AB2SK2862B Siemens BUZ77A6004 2.775TO-220AB2SK3067B Siemens BUZ77B600 3.5 2.975TO-220AB2SK3085A Siemens BUZ788008 1.540TO-220AB2SK2997B Siemens BUZ808004 2.675TO-220AB2SK2603A Siemens BUZ80A8003375TO-220AB2SK2603A Siemens BUZ80AFI8003 2.440TO-220IS2SK2603B ST BUZ80FI8004 2.140TO-220IS2SK2603B ST BUZ81800 2.54125TO-220AB2SK2605B Siemens BUZ90600 1.6 4.575TO-220AB2SK2544A Siemens BUZ90A6002475TO-220AB2SK3085A Siemens BUZ916000.88.5150TO-220AB2SK2866A Siemens BUZ91A6000.98150TO-220AB2SK2866A Siemens BUZ926003 3.275TO-220AB2SK3085A Siemens BUZ93600 2.5 3.675TO-220AB2SK2750B Siemens F10H3N*300.01510SOP-8(Single)TPC8005-H A Shindengen F2H3ND300.18 2.5SOP-8(Dual)Shindengen F3H3C30/-300.18/0.2 2.5/-2.5SOP-8(P&N)Shindengen F3H3ND300.113SOP-8(Dual)TPC8201A ShindengenPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementF3H3P-300.2-2.5SOP-8(Single)Shindengen F3H3PD-300.2-2.5SOP-8(Dual)Shindengen F4H3C30/-300.07/0.154/-3.5SOP-8(P&N)TPC8401A Shindengen F4H3N300.074SOP-8(Single)TPC8004A Shindengen F4H3ND300.074SOP-8(Dual)TPC8201A Shindengen F4H3P-300.15-3.5SOP-8(Single)Shindengen F4H3PD-300.15-3.5SOP-8(Dual)TPC8301A Shindengen F5H2ND200.045SOP-8(Dual)TPC8202A Shindengen F5H3N300.055SOP-8(Single)TPC8004A Shindengen F5H3ND300.055SOP-8(Dual)TPC8201A Shindengen F5H3P-300.09-4.5SOP-8(Single)TPC8104-H A Shindengen F7H2N200.0227SOP-8(Single)TPC8008A Shindengen F7H3P*-300.05-6.5SOP-8(Single)TPC8105-H A Shindengen F8H3N300.038SOP-8(Single)TPC8006-H A Shindengen F9H4N400.039SOP-8(Single)Shindengen FA38SA50LC5000.1338500SOT-227IRFA57SA50LC5000.0857625SOT-227IR FDC6301N2540.220.9SSOT-6(Dual)Fairchild FDC6302P-2510-0.120.9SSOT-6(Dual)Fairchild FDC6303N250.450.680.9SSOT-6(Dual)Fairchild FDC6304P-25 1.1-0.460.9SSOT-6(Dual)Fairchild FDC6306P-200.16-1.90.9SSOT-6(Dual)Fairchild FDC6320C25/-254/100.22/-0.120.9SSOT-6(P&N)Fairchild FDC6321C25/-250.045/1.10.68/-0.460.9SSOT-6(P&N)Fairchild FDC6322C25/-254/1.10.22/-0.460.9SSOT-6(P&N)Fairchild FDC633N300.042 5.2 1.6SSOT-6(Single)Fairchild FDC634P-200.08-3.5 1.6SSOT-6(Single)Fairchild FDC636P-200.13-2.8 1.6SSOT-6(Single)Fairchild FDC638P-200.05-4.5 1.6SSOT-6(Single)Fairchild FDC6506P-300.165-1.80.9SSOT-6(Dual)Fairchild FDC653N300.0355 1.6SSOT-6(Single)Fairchild FDC654P-300.075-3.6 1.6SSOT-6(Single)Fairchild FDC655AN300.027 6.3 1.6SSOT-6(Single)Fairchild FDC6561AN300.095 2.50.9SSOT-6(Dual)Fairchild FDC658P-300.05-4 1.6SSOT-6(Single)Fairchild FDG6301N2540.220.3SC70-6(Dual)Fairchild FDG6302P-2510-0.140.3SC70-6(Dual)Fairchild FDG6303N250.450.50.3SC70-6(Dual)Fairchild FDG6304P-25 1.1-0.410.3SC70-6(Dual)Fairchild FDG6320C25/-254/100.22/-0.140.3SC70-6(P&N)Fairchild FDG6321C25/-250.45/1.100.50/-0.410.3SC70-6(P&N)Fairchild FDG6322C25/-254/1.100.22/-0.410.3SC70-6(P&N)Fairchild FDN336P-200.2-1.30.5SOT-23Fairchild FDN337N300.065 2.20.5SOT-23Fairchild FDN338P-200.13-1.60.5SOT-23Fairchild FDN340P-200.07-20.5SOT-23Fairchild FDN357N300.06 2.20.5SOT-23Fairchild FDN358P-300.125-1.50.5SOT-23Fairchild FDN359AN300.044 2.70.5SOT-23Fairchild FDN360P-300.085-20.5SOT-23FairchildPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementFDP4030L300.0352037.5TO-220AB2SK2844A Fairchild FDP6030L300.01355275TO-220AB2SK3127B Fairchild FDP6035AL300.01254858TO-220AB2SK3127B Fairchild FDP6035L300.0115875TO-220AB2SK3127B Fairchild FDP603AL300.0223350TO-220AB2SK2844A Fairchild FDP6670AL300.00658075TO-220AB Fairchild FDP7030BL300.0096065TO-220AB2SK3127B Fairchild FDP7030L300.007100125TO-220AB Fairchild FDP8030L300.003580187TO-220AB Fairchild FDPNDP6030300.0184675TO-220AB2SK2844A Fairchild FDR4410300.0139.3 1.8SSOT-8(Single)Fairchild FDR4420A300.00911 1.8SSOT-8(Single)Fairchild FDR8308P-200.05-3.20.8SSOT-8(Dual)Fairchild FDR835N300.0158.7 1.8SSOT-8(Single)Fairchild FDR836P-200.03-6.1 1.8SSOT-8(Single)Fairchild FDR838P-200.017-8.1 1.8SSOT-8(Single)Fairchild FDR8508P-300.052-30.8SSOT-8(Dual)Fairchild FDR856P-300.025-6.3 1.8SSOT-8(Single)Fairchild FDR858P-300.019-8 1.8SSOT-8(Single)Fairchild FDR9410A300.028 5.8 1.8SSOT-8(Single)Fairchild FDS4435-300.02-9 2.5SOP-8(Single)TPC8106-H A Fairchild FDS4953-300.053-4.92SOP-8(Dual)TPC8303A Fairchild FDS6575-200.013-10 2.5SOP-8(Single)TPC8103A Fairchild FDS6612A300.0228.4SOP-8(Single)TPC8001A Fairchild FDS6670A300.00813SOP-8(Single)TPC8007-H A Fairchild FDS6675-300.014-11 2.5SOP-8(Single)TPC8103A Fairchild FDS6680300.0111.5SOP-8(Single)TPC8007-H A Fairchild FDS6680A300.009512.5SOP-8(Single)TPC8007-H A Fairchild FDS6690A300.012511SOP-8(Single)TPC8005-H A Fairchild FDS6875-200.03-62SOP-8(Dual)Fairchild FDS6912A300.02862SOP-8(Dual)TPC8203A Fairchild FDS6930A300.042 4.62SOP-8(Dual)TPC8201A Fairchild FDS6961A300.09 3.52SOP-8(Dual)TPC8201A Fairchild FDS6975-300.032-62SOP-8(Dual)TPC8303A Fairchild FDS6990A300.0187.52SOP-8(Dual)TPC8203A Fairchild FDS8926A300.03 5.52SOP-8(Dual)TPC8203A Fairchild FDS8928A30/-200.03/0.055 5.5/-42SOP-8(P&N)Fairchild FDS8934A-200.055-4SOP-8(Dual)Fairchild FDS8936A300.0286SOP-8(Dual)TPC8203A Fairchild FDS8936S300.045SOP-8(Dual)TPC8201A Fairchild FDS8947A-300.052-42SOP-8(Dual)TPC8303A Fairchild FDS8958A30/-300.028/0.0527/-52SOP-8(P&N)TPC8401A Fairchild FDS9412300.0227.9SOP-8(Single)TPC8001A Fairchild FDS9435A-300.045-5.3SOP-8(Single)TPC8105-H A Fairchild FDS9933A-200.075-3.82SOP-8(Dual)Fairchild FDS9936A300.04 5.52SOP-8(Dual)TPC8201A Fairchild FDT457N300.0653SOT-2232SK2839A Fairchild FDT459N300.04 6.53SOT-2232SK2839A Fairchild FDT5060600.0573SOT-223Fairchild FDT5060L600.0463SOT-223Fairchild。

MOS管替代大全

TO-220IS
TO-220IS
TO-220IS
TO-220IS
TO-220IS
TPS
TO-92MOD
TO-220AB
TO-3P(N)
TO-3P(N)
TO-3P(N)IS
TO-3P(L)
TO-220FL/SM
TO-3P(N)
TPS
POWER MOLD
TPS
POWER MOLD
TO-220IS
TO-3P(N)
Toshiba Toshiba Toshiba Toshiba Toshiba Toshiba Toshiba Toshiba Toshiba
2SK2400 2SK2401 2SK2417 2SK2440 2SK2441 2SK2442 2SK2445 2SK2466 2SK2493 2SK2507 2SK2508 2SK2542 2SK2543 2SK2544 2SK2545 2SK2549 2SK2550 2SK2551 2SK2556 2SK2557 2SK2598 2SK2599 2SK2600 2SK2601 2SK2602 2SK2603 2SK2604 2SK2605 2SK2606 2SK2607 2SK2608 2SK2610 2SK2611 2SK2613 2SK2614 2SK2615 2SK2637 2SK2661 2SK2662 2SK2679 2SK2698 Part Number
200
0.4
8.5
60
0.017
45
200
0.8
5
200
0.18
15
60
0.03
36
700
1.7
5
100

场效应管代换大全

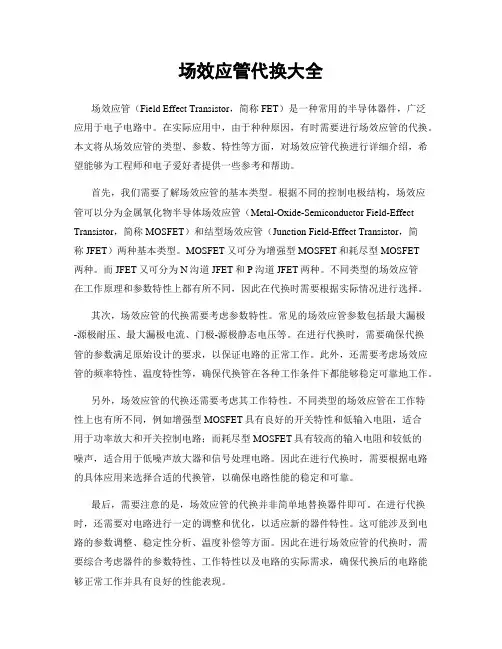

场效应管代换大全场效应管（Field Effect Transistor，简称FET）是一种常用的半导体器件，广泛应用于电子电路中。

在实际应用中，由于种种原因，有时需要进行场效应管的代换。

本文将从场效应管的类型、参数、特性等方面，对场效应管代换进行详细介绍，希望能够为工程师和电子爱好者提供一些参考和帮助。

首先，我们需要了解场效应管的基本类型。

根据不同的控制电极结构，场效应管可以分为金属氧化物半导体场效应管（Metal-Oxide-Semiconductor Field-Effect Transistor，简称MOSFET）和结型场效应管（Junction Field-Effect Transistor，简称JFET）两种基本类型。

MOSFET又可分为增强型MOSFET和耗尽型MOSFET两种。

而JFET又可分为N沟道JFET和P沟道JFET两种。

不同类型的场效应管在工作原理和参数特性上都有所不同，因此在代换时需要根据实际情况进行选择。

其次，场效应管的代换需要考虑参数特性。

常见的场效应管参数包括最大漏极-源极耐压、最大漏极电流、门极-源极静态电压等。

在进行代换时，需要确保代换管的参数满足原始设计的要求，以保证电路的正常工作。

此外，还需要考虑场效应管的频率特性、温度特性等，确保代换管在各种工作条件下都能够稳定可靠地工作。

另外，场效应管的代换还需要考虑其工作特性。

不同类型的场效应管在工作特性上也有所不同，例如增强型MOSFET具有良好的开关特性和低输入电阻，适合用于功率放大和开关控制电路；而耗尽型MOSFET具有较高的输入电阻和较低的噪声，适合用于低噪声放大器和信号处理电路。

因此在进行代换时，需要根据电路的具体应用来选择合适的代换管，以确保电路性能的稳定和可靠。

最后，需要注意的是，场效应管的代换并非简单地替换器件即可。

在进行代换时，还需要对电路进行一定的调整和优化，以适应新的器件特性。

这可能涉及到电路的参数调整、稳定性分析、温度补偿等方面。

常用场效应管参数及代换

常用场效应管参数及代换场效应管是一种常用的电子器件，常用于放大、开关和稳压等电路中。

场效应管的参数包括管子类型、三极管参数、特性参数等。

本文将介绍常用场效应管的参数及其代换关系。

1.场效应管的类型场效应管分为两种类型：N 沟道型（N-Channel）和 P 沟道型（P-Channel）。

N 沟道型的导电介质是负载，而 P 沟道型则是正载。

2.场效应管的三极管参数（1）漏源电流（ID）：场效应管导通时的电流。

（2）漏源电压（VD）：场效应管导通时的电压。

（3）栅极电压（VG）：用于控制场效应管导通和截止的电压。

（4）漏极电压（VDS）：场效应管导通时的漏极电压。

（5）栅源电压（VGS）：场效应管导通时的栅源电压。

3.场效应管的特性参数（1）漏源电流增益（gm）：当栅源电压变化时，漏源电流的变化率。

（2）输出电导（gds）：当栅源电压变化时，输出端漏源电流的变化率。

（3）输出电导增益（gm/gds）：输出电导与漏源电流的比值，表示场效应管的放大性能。

（4）输入电阻（Rin）：场效应管的输入端电阻，用于表示对输入信号的接受能力。

（5）输出电阻（Rout）：场效应管的输出端电阻，用于表示对输出信号的驱动能力。

（6）跨导电导增益（gm/rd）：跨导电导与输出电阻的比值，表示场效应管的放大性能。

（7）截止电压（VGSoff）：当栅源电压较低时，导通电流减小到很小的值。

4.场效应管的代换场效应管的代换常用于简化电路分析和设计。

常用的场效应管代换模型有三种：电流源代换、跨导电源代换和电阻代换。

（1）电流源代换：当场效应管工作在饱和区时，可以将电流源与场效应管并联，电流源的电流值等于场效应管漏源电流（ID），电压值等于场效应管的漏源电压（VD）。

（2）跨导电源代换：当场效应管工作在正常放大区时，可以将跨导电源与场效应管串联，跨导电源的电流值等于场效应管输电导（gm），电压值等于场效应管的栅源电压（VGS）。

（3）电阻代换：当输入电阻（Rin）和输出电阻（Rout）较大时，可以用电阻代替场效应管。

场效应管代换大全

场效应管代换大全场效应管（Field Effect Transistor，简称FET）是一种半导体器件，它具有电压控制电流的特性，因此在电子设备中有着广泛的应用。

在实际应用中，有时候我们需要根据特定的要求选择不同种类的场效应管进行代换。

本文将为大家介绍场效应管的代换大全，希望能够帮助大家更好地理解和应用场效应管。

首先，我们要了解场效应管的分类。

按照不同的工作原理，场效应管可以分为三种类型，MOSFET（金属氧化物半导体场效应管）、JFET（结型场效应管）和IGBT（绝缘栅双极型晶体管）。

每种类型的场效应管都有其特定的特性和应用场景，因此在代换时需要根据具体情况进行选择。

接下来，我们将分别介绍不同类型场效应管的代换原则。

首先是MOSFET的代换。

MOSFET主要分为N沟道MOSFET和P沟道MOSFET两种。

在代换时，需要根据电压、电流和功率等参数来选择合适的型号。

一般来说，N沟道MOSFET具有低电阻和高开关速度的特点，适合用于功率放大和开关控制；而P 沟道MOSFET则适合用于负载开关和电源反相器。

其次是JFET的代换。

JFET主要分为N沟道JFET和P沟道JFET两种。

N沟道JFET具有高输入阻抗和低噪声的特点，适合用于放大器和高频电路；而P沟道JFET则适合用于信号开关和混频器等电路。

在代换时，需要考虑输入输出阻抗、电压和频率等参数，选择合适的型号进行替换。

最后是IGBT的代换。

IGBT是一种集成了MOSFET和双极型晶体管特点的器件，具有高电压、高电流和高速度的特点，适合用于大功率开关和变频控制。

在代换时，需要考虑电压容忍度、开关速度和损耗等参数，选择合适的型号进行替换。

总的来说，场效应管的代换需要根据具体的应用场景和要求来进行选择。

在选择时，需要考虑电压、电流、功率、频率、阻抗等参数，并且要充分了解代换器件的特性和性能指标。

希望本文介绍的场效应管代换大全能够帮助大家更好地应用场效应管，提高电子设备的性能和可靠性。

常用功率MOS管代换品牌INFINEON型号09N03LA,IPS09N03L 封装TO-251极限电压25（V）极限电流50（A）沟道类型N沟道品牌INFINEON型号09N05，SPD09N05 封装TO-252极限电压55（V）极限电流9.2（A）沟道类型N沟道品牌MOT/ON型号20N03L,20N03HL 封装TO-252/TO-251极限电压20（V）极限电流30（A）沟道类型N沟道品牌MOT,ON,哈里斯型号MTP3055,MTP2955封装TO-220极限电压60（V）极限电流12（A）品牌NIKO型号P3057LD封装TO-252极限电压25（V）极限电流12（A）品牌ST型号D38NH02L,STD38NH02L 封装TO-252极限电压24（V）极限电流38（A）沟道类型N沟道品牌NIKO型号P45N02LD,P45N02LDG封装TO-252极限电压20（V）极限电流45（A）沟道类型N沟道型号50N03封装TO-252,TO-220极限电流50A（A）沟道类型N沟道品牌PHILIPS型号PHB55N03LTAS封装TO-263极限电压25（V）极限电流55（A）沟道类型N沟道品牌IR,ST,三星，MOT,东芝，哈里斯型号IRF630封装TO-220,TO-220F极限电压200V（V）极限电流9（A）沟道类型N沟道品牌MOT，IR，ST，FSC等型号IFR640封装TO-220，T0-263极限电压200V（V）极限电流18A（A）品牌FAIRCHILD型号603AL封装TO-252极限电压30（V）极限电流25（A）沟道类型N沟道品牌FAIRCHILD型号FDD6676封装TO-252极限电压30（V）极限电流78（A）沟道类型N沟道型号NTD60N02R，NTD60N02RG 封装TO-252极限电压24（V）极限电流62（A）沟道类型N沟道品牌ST型号D70N02L封装TO-252极限电压24（V）极限电流60（A）沟道类型N沟道品牌NIKO型号P70N02LDG封装TO-252极限电压25（V）极限电流70（A）沟道类型N沟道型号P75N02LD,P75N02LD 封装TO-252极限电压25（V）极限电流75（A）沟道类型N沟道品牌ST型号STP75NF75封装TO-220极限电压75（V）极限电流80（A）类型结型场效应管沟道类型N沟道型号80N02,80N02G封装TO-252极限电压24（V）极限电流80（A）沟道类型N沟道品牌ON型号85N02G,NTD85N02G封装TO-252极限电压24（V）极限电流85（A）沟道类型N沟道品牌FAIRCHILD型号FDD8896封装TO-252极限电压30（V）极限电流94（A）用途场效应管沟道类型N沟道品牌ST型号D90NH02L,STD90NH02L 封装TO-252极限电压24（V）极限电流60（A）沟道类型N沟道品牌APEC型号9918H,AP9918H 封装TO-252极限电压20（V）极限电流45（A）品牌ON/MOT型号10N10EL封装TO-252极限电压100（V）极限电流10（A）沟道类型N沟道品牌IR,MOT,PH,三星型号IRF9Z24,IRFZ24 封装TO-220极限电压60（V）极限电流17（A）类型结型场效应管品牌IR,三星型号IRF9Z34,IRFI9Z34 封装TO-220,TO-220F极限电压60（V）极限电流19（A）沟道类型P沟道品牌NEC型号2SJ132，J132 封装TO-252.TO-251 极限电压-30（V）极限电流2（A）沟道类型P沟道品牌NEC型号J128，2SJ128 封装TO-252极限电压100（V）沟道类型P沟道。

MOS管替换大全

Part V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2N70006050.20.4TO-92Fairchild 2N7002607.50.1150.2SOT-23Fairchild 2SJ377-600.19-5POWER MOLD2SJ377A Toshiba 2SJ378-600.19-5TPS2SJ378A Toshiba 2SJ380-1000.21-12TO-220IS2SJ380A Toshiba 2SJ401-600.045-20TO-220FL/SM2SJ401A Toshiba 2SJ402-600.038-30TO-220FL/SM2SJ402A Toshiba 2SJ407-2001-6TO-220IS2SJ407A Toshiba 2SJ412-1000.21-16TO-220FL/SM2SJ412A Toshiba 2SJ419-120.082-4SOP-8(Single)Sanyo 2SJ420-120.063-5SOP-8(Single)Sanyo 2SJ421-300.058-5SOP-8(Single)TPC8104-H A Sanyo 2SJ438-600.19-5TO-220IS2SJ438A Toshiba 2SJ439-160.2-5POWER MOLD2SJ439A Toshiba 2SJ464-1000.09-18TO-220IS2SJ464A Toshiba 2SJ465-160.71-2POWER-MINI2SJ465A Toshiba 2SJ468-300.1-4SOP-8(Single)TPC8104-H A Sanyo 2SJ469-300.075-5SOP-8(Single)TPC8104-H A Sanyo 2SJ482-600.19-5SP2SJ482A Toshiba 2SJ507-600.7-1TO-92MOD2SJ507A Toshiba 2SJ508-100 1.9-1POWER-MINI2SJ508A Toshiba 2SJ509-100 1.9-1TO-92MOD2SJ509A Toshiba 2SJ511-300.45-2POWER-MINI2SJ511A Toshiba 2SJ512-250 1.25-5TO-220IS2SJ512A Toshiba 2SJ513-2000.5-9.5TO-220IS2SJ513A Toshiba 2SJ514-2500.625-7.5TO-220IS2SJ514A Toshiba 2SJ515-2000.64-7TO-220IS2SJ515A Toshiba 2SJ516-2500.8-6.5TO-220IS2SJ516A Toshiba 2SJ525-300.12-5TPS2SJ525A Toshiba 2SJ537-500.19-5TO-92MOD2SJ537A Toshiba 2SK11191000 3.84TO-220AB2SK1119A Toshiba 2SK11201000 1.88TO-3P(N)2SK1120A Toshiba 2SK13591000 3.85TO-3P(N)2SK1359A Toshiba 2SK13651000 1.87TO-3P(N)IS2SK1365A Toshiba 2SK14891000112TO-3P(L)2SK1489A Toshiba 2SK19301000 3.84TO-220FL/SM2SK1930A Toshiba 2SK2173600.01750TO-3P(N)2SK2173A Toshiba 2SK22001000.353TPS2SK2200A Toshiba 2SK22011000.353POWER MOLD2SK2201A Toshiba 2SK2229600.165TPS2SK2229A Toshiba 2SK2231600.165POWER MOLD2SK2231A Toshiba 2SK2232600.04625TO-220IS2SK2232A Toshiba 2SK2233600.0345TO-3P(N)2SK2233A Toshiba 2SK2266600.0345TO-220FL/SM2SK2266A Toshiba 2SK2267600.01160TO-3P(L)2SK2267A Toshiba 2SK2274700 1.75TO-220IS2SK2274A Toshiba 2SK2311600.04625TO-220FL/SM2SK2311A Toshiba 2SK2312600.01745TO-220IS2SK2312A Toshiba 2SK2313600.01160TO-3P(N)2SK2313A Toshiba 2SK23141000.08527TO-220AB2SK2314A ToshibaPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2SK23502000.48.5TO-220IS2SK2350A Toshiba 2SK2376600.01745TO-220FL/SM2SK2376A Toshiba 2SK23812000.85TO-220IS2SK2381A Toshiba 2SK23822000.1815TO-220IS2SK2382A Toshiba 2SK2385600.0336TO-220IS2SK2385A Toshiba 2SK2389700 1.75TO-220AB2SK2389A Toshiba 2SK23911000.08520TO-220IS2SK2391A Toshiba 2SK2398600.0345TO-3P(N)2SK2233A Toshiba 2SK23991000.235POWER MOLD2SK2399A Toshiba 2SK24001000.235TPS2SK2400A Toshiba 2SK24012000.1815TO-220FL/SM2SK2401A Toshiba 2SK24172500.57.5TO-220IS2SK2417A Toshiba 2SK2440200.0386SOP-8(Single)TPC8008A Sanyo 2SK2441200.0327SOP-8(Single)TPC8008A Sanyo 2SK2442300.0297SOP-8(Single)TPC8006-H A Sanyo 2SK2445600.01850TO-3P(N)2SK2445A Toshiba 2SK24661000.04630TO-220IS2SK2466A Toshiba 2SK2493160.15POWER MOLD2SK2493A Toshiba 2SK2507500.04625TO-220IS2SK2507A Toshiba 2SK25082500.2513TO-220IS2SK2508A Toshiba 2SK25425000.858TO-220AB2SK2542A Toshiba 2SK25435000.858TO-220IS2SK2543A Toshiba 2SK2544600 1.256TO-220AB2SK2544A Toshiba 2SK2545600 1.256TO-220IS2SK2545A Toshiba 2SK2549160.292POWER-MINI2SK2549A Toshiba 2SK2550500.0345TO-3P(N)2SK2550A Toshiba 2SK2551500.01150TO-3P(N)2SK2551A Toshiba 2SK2556300.046SOP-8(Single)TPC8006-H A Sanyo 2SK2557300.0377SOP-8(Single)TPC8006-H A Sanyo 2SK25982500.2513TO-220FL/SM2SK2598A Toshiba 2SK259950032TPS2SK2599A Toshiba 2SK26005000.858TO-3P(N)IS2SK2600A Toshiba 2SK2601500110TO-3P(N)2SK2601A Toshiba 2SK2602600 1.256TO-3P(N)2SK2602A Toshiba 2SK2603800 3.63TO-220AB2SK2603A Toshiba 2SK2604800 2.25TO-3P(N)2SK2604A Toshiba 2SK2605800 2.25TO-220IS2SK2605A Toshiba 2SK2606800 1.28.5TO-3P(N)IS2SK2606A Toshiba 2SK2607800 1.29TO-3P(N)2SK2607A Toshiba 2SK2608900 4.33TO-220AB2SK2608A Toshiba 2SK2610900 2.55TO-3P(N)2SK2610A Toshiba 2SK2611900 1.49TO-3P(N)2SK2611A Toshiba 2SK26131000 1.78TO-3P(N)2SK2613A Toshiba 2SK2614500.04620DP2SK2614A Toshiba 2SK2615600.372POWER-MINI2SK2615A Toshiba 2SK2637200.0258SOP-8(Single)TPC8008A Sanyo 2SK2661500 1.55TO-220AB2SK2661A Toshiba 2SK2662500 1.55TO-220IS2SK2662A Toshiba 2SK2679400 1.2 5.5TO-220IS2SK2679A Toshiba 2SK26985000.415TO-3P(N)2SK2698A ToshibaPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2SK26996000.6512TO-3P(N)2SK2699A Toshiba 2SK2700900 4.33TO-220IS2SK2700A Toshiba 2SK2717900 2.55TO-220IS2SK2717A Toshiba 2SK2718900 6.4 2.5TO-220IS2SK2718A Toshiba 2SK2719900 4.33TO-3P(N)2SK2719A Toshiba 2SK273390091TO-220AB2SK2733A Toshiba 2SK2741600.165SP2SK2741A Toshiba 2SK27421000.353SP2SK2742A Toshiba 2SK2744500.0245TO-3P(N)2SK2744A Toshiba 2SK2745500.009550TO-3P(N)2SK2745A Toshiba 2SK2746800 1.77TO-3P(N)2SK2746A Toshiba 2SK274990027TO-3P(N)2SK2749A Toshiba 2SK2750600 2.2 3.5TO-220IS2SK2750A Toshiba 2SK27765000.858TO-220FL/SM2SK2776A Toshiba 2SK2777600 1.256TO-220FL/SM2SK2777A Toshiba 2SK2782600.05520DP2SK2782A Toshiba 2SK27891000.08527TO-220FL/SM2SK2789A Toshiba 2SK28352000.85TPS2SK2835A Toshiba 2SK283660091SP2SK2836A Toshiba 2SK28375000.2720TO-3P(N)2SK2837A Toshiba 2SK2838400 1.2 5.5TO-220FL/SM2SK2838A Toshiba 2SK2839300.0410SP2SK2839A Toshiba 2SK28402501 4.5TO-220IS2SK2840A Toshiba 2SK28414000.5510TO-220AB2SK2841A Toshiba 2SK28425000.5212TO-220IS2SK2842A Toshiba 2SK28436000.7510TO-220IS2SK2843A Toshiba 2SK2844300.0235TO-220AB2SK2844A Toshiba 2SK284590091DP2SK2845A Toshiba 2SK284660052TPS2SK2846A Toshiba 2SK2847900 1.48TO-3P(N)IS2SK2847A Toshiba 2SK28591000.42SOP-8(Single)Sanyo 2SK286250032TO-220IS2SK2862A Toshiba 2SK286560052POWER MOLD2SK2865A Toshiba 2SK28666000.7510TO-220AB2SK2866A Toshiba 2SK28821500.1218TO-220IS2SK2882A Toshiba 2SK2883800 3.63TO-220FL/SM2SK2883A Toshiba 2SK2884800 2.25TO-220FL/SM2SK2884A Toshiba 2SK2886500.0245TO-220IS2SK2886A Toshiba 2SK28896000.7510TO-220FL/SM2SK2889A Toshiba 2SK29142500.58.5TO-220AB2SK2914A Toshiba 2SK29156000.416TO-3P(N)2SK2915A Toshiba 2SK29165000.414TO-3P(N)IS2SK2916A Toshiba 2SK29175000.2718TO-3P(N)IS2SK2917A Toshiba 2SK29202000.85POWER MOLD2SK2920A Toshiba 2SK29494000.5510TO-220FL/SM2SK2949A Toshiba 2SK29524000.558.5TO-220IS2SK2952A Toshiba 2SK29536000.415TO-3P(N)IS2SK2953A Toshiba 2SK2961600.272TO-92MOD2SK2961A Toshiba 2SK29621000.71TO-92MOD2SK2962A Toshiba 2SK29631000.71POWER-MINI2SK2963A ToshibaPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)Replacement2SK2964300.172POWER-MINI2SK2964A Toshiba 2SK29652000.2611TO-220IS2SK2965A Toshiba 2SK29662500.3210TO-220IS2SK2966A Toshiba 2SK29672500.0730TO-3P(N)2SK2967A Toshiba 2SK2968900 1.2510TO-3P(N)2SK2968A Toshiba 2SK2985600.005845TO-220IS2SK2985A Toshiba 2SK2986600.005845TO-220FL/SM2SK2986A Toshiba 2SK2987600.005870TO-3P(N)2SK2987A Toshiba 2SK2989500.155TO-92MOD2SK2989A Toshiba 2SK2991500 1.55TO-220FL/SM2SK2991A Toshiba 2SK2992200 3.51POWER-MINI2SK2992A Toshiba 2SK29932500.1120TO-220FL/SM2SK2993A Toshiba 2SK29952500.0730TO-3P(N)IS2SK2995A Toshiba 2SK2996600110TO-220IS2SK2996A Toshiba 2SK29978008 1.5DP2SK2997A Toshiba 2SK2998500180.5TO-92MOD2SK2998A Toshiba 2SK3017900 1.258TO-3P(N)IS2SK3017A Toshiba 2SK3051600.0345TO-220FL/SM2SK2266A Toshiba 2SK306760052TO-220IS2SK3067A Toshiba 2SK30685000.5212TO-220FL/SM2SK3068A Toshiba 2SK3085600 2.2 3.5TO-220AB2SK3085A Toshiba 2SK3088900 4.33TO-220FL/SM2SK3088A Toshiba 2SK3089300.0340TO-220FL/SM2SK3089A Toshiba 2SK3090300.0245TO-220FL/SM2SK3090A Toshiba 2SK31175000.2720TO-3P(SM)2SK3117A Toshiba 2SK3125300.00760TO-3P(SM)2SK3125A Toshiba 2SK31264500.6510TO-220IS2SK3126A Toshiba 2SK3127300.01145TO-220FL/SM2SK3127A Toshiba 2SK3128300.01160TO-3P(N)2SK3128A Toshiba 2SK31762000.05230TO-3P(N)2SK3176A Toshiba BS107200260.13TO-92Siemens BS1706050.50.83TO-92Fairchild BS1706050.3TO-92Siemens BS2706020.40.625TO-92Fairchild BSO307N300.075 4.2SOP-8(Single)TPC8004A Siemens BSO615N600.15 2.6SOP-8(Single)Siemens BSO615NV600.12 3.1SOP-8(Single)Siemens BSP123100 6.000.38 1.7SOT223Siemens BSP12560045.000.11 1.5SOT2232SK2836A Siemens BSP12924020.000.19 1.5SOT2232SK2836A Siemens BSP13560060.000.1 1.5SOT2232SK2836A Siemens BSP149200 3.500.44 1.5SOT223Siemens BSP17500.10 2.9 1.5SOT2232SK2741A Siemens BSP170-600.35 1.7SOT-2232SJ482A Siemens BSP171-600.35 1.7 1.5SOT2232SJ482A Siemens BSP295500.30 1.7 1.5SOT2232SK2741A Siemens BSP2961000.801 1.5SOT2232SK2742A Siemens BSP297200 2.000.6 1.5SOT223Siemens BSP298400 3.000.45 1.5SOT223Siemens BSP299500 4.000.4 1.5SOT223SiemensPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBSP300800200.19SOT-223Siemens BSP315-500.801 1.5SOT223Siemens BSP316-100 2.200.6 1.5SOT2232SJ508B Siemens BSP317-200 6.000.34 1.5SOT223Siemens BSP318600.15 2.4 1.5SOT2232SK2741A Siemens BSP318S600.15 2.6SOT-2232SK2741A Siemens BSP319500.07 3.8 1.5SOT2232SK2741A Siemens BSP320S600.12 2.9SOT-2232SK2741A Siemens BSP32440025.000.16 1.5SOT2232SK2836A Siemens BSP3721000.30 1.7 1.8SOT2232SK2742A Siemens BSP3731000.30 1.7 1.8SOT2232SK2742A Siemens BSP8824080.32SOT-2232SK2836A Siemens BSP8924060.36SOT-2232SK2836A Siemens BSP92-240200.2SOT-223Siemens BSS10010060.220.63TO-92Fairchild BSS10010060.22TO-92Siemens BSS101240160.13TO-92Siemens BSS110-5010-0.170.63TO-92Fairchild BSS110-50100.1TO-92Siemens BSS11910060.17SOT-23Siemens BSS12310060.170.36SOT-23Fairchild BSS12310060.17SOT-23Siemens BSS124400280.12TO-92Siemens BSS125600450.1TO-92Siemens BSS129240200.15TO-92Siemens BSS131240160.1SOT-23Siemens BSS135600600.08TO-92Siemens BSS13850 3.50.220.36SOT-23Fairchild BSS13850 3.50.22SOT-23Siemens BSS1392501000.04SOT-23Siemens BSS14565 3.50.22SOT-23Siemens BSS149200 3.50.35TO-92Siemens BSS1595080.16SOT-23Siemens BSS169100120.12SOT-23Siemens BSS192-24020.000.151SOT89Siemens BSS2292501000.07TO-92Siemens BSS284-50100.13SOT-23Siemens BSS295500.3 1.4TO-92Siemens BSS2961000.80.8TO-92Siemens BSS29720020.48TO-92Siemens BSS7728607.50.15SOT-23Siemens BSS84-5010-0.130.36SOT-23Fairchild BSS84-50100.13SOT-23Siemens BSS87240 6.000.291SOT89Siemens BSS92-240200.1TO-92Siemens BSS9850 3.50.3TO-92Siemens BUK444-200A2000.4 5.325TO-220IS2SK2350A Philips BUK444-200B2000.5 4.725TO-220IS2SK2350A Philips BUK444-800A8006 1.430TO-220IS2SK2603B Philips BUK444-800B8008 1.230TO-220IS2SK2997B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK445-200A2000.237.630TO-220IS2SK2382A Philips BUK445-200B2000.28730TO-220IS2SK2965A Philips BUK446-1000B10005 1.530TO-220IS2SK1119B Philips BUK446-800A8003230TO-220IS2SK2603B Philips BUK446-800B8004 1.730TO-220IS2SK2603B Philips BUK452-100A1000.251160TO220AB2SK2399B Philips BUK452-100B1000.31060TO220AB Philips BUK452-60A600.131560TO220AB2SK2231B Philips BUK452-60B600.151460TO220AB2SK2231B Philips BUK453-100A1000.161475TO220AB2SK2314A Philips BUK453-100B1000.21375TO220AB2SK2399B Philips BUK453-60A600.082275TO220AB2SK2232B Philips BUK453-60B600.12075TO220AB2SK2232B Philips BUK454-200A2000.49.290TO220AB YTA630A Philips BUK454-200B2000.58.290TO220AB YTA630A Philips BUK454-60H600.03841125TO220AB2SK2385B Philips BUK454-800A8006 2.4100TO220AB2SK2603A Philips BUK454-800B80082100TO220AB2SK2997B Philips BUK455-100A1000.0826125TO220AB2SK2314A Philips BUK455-100B1000.123125TO220AB2SK2314A Philips BUK455-200A2000.2314125TO220AB YTA640A Philips BUK455-200B2000.2813125TO220AB2SK2965B Philips BUK455-60A600.03841125TO220AB2SK2385B Philips BUK455-60B600.04538125TO220AB2SK2232B Philips BUK455-60H600.0343125TO220AB2SK2385B Philips BUK456-1000B10005 3.1125TO220AB2SK1119A Philips BUK456-100A1000.05734150TO220AB2SK2466B Philips BUK456-100B1000.06532150TO220AB2SK2314A Philips BUK456-200A2000.1619150TO220AB YTA640A Philips BUK456-200B2000.217150TO220AB YTA640A Philips BUK456-60A600.02852150TO220AB2SK2385B Philips BUK456-60B600.0351150TO220AB2SK2385B Philips BUK456-60H600.0260150TO220AB2SK2312B Philips BUK456-800A80034125TO220AB2SK2603A Philips BUK456-800B8004 3.5125TO220AB2SK2603A Philips BUK462-100A1000.251160D2PAK2SK2399B Philips BUK462-60A600.131560D2PAK2SK2231B Philips BUK463-100A1000.161475D2PAK2SK2789A Philips BUK463-60A600.082275D2PAK2SK2311A Philips BUK464-200A2000.49.290D2PAK2SK2401A Philips BUK464-60H600.03841125D2PAK2SK2266A Philips BUK465-100A1000.0826125D2PAK2SK2789A Philips BUK465-200A2000.2314125D2PAK2SK2401A Philips BUK465-60A600.03841125D2PAK2SK2266A Philips BUK465-60H600.0343125D2PAK2SK2266A Philips BUK466-100A1000.05734150D2PAK2SK2466B Philips BUK466-200A2000.1619150D2PAK2SK2401A Philips BUK466-60A600.02852150D2PAK2SK2266A Philips BUK466-60H600.0260150D2PAK2SK2376A Philips BUK472-100A1000.25 6.622TO-220IS2SK2399B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK472-100B1000.3 6.122TO-220IS Philips BUK472-60A600.131022TO-220IS2SK2231B Philips BUK472-60B600.159.222TO-220IS2SK2231B Philips BUK473-100A1000.16925TO-220IS2SK2391A Philips BUK473-100B1000.2825TO-220IS2SK2399B Philips BUK473-60A600.081325TO-220IS2SK2232A Philips BUK473-60B600.11225TO-220IS2SK2232A Philips BUK474-200A2000.4 5.325TO-220IS2SK2350A Philips BUK474-200B2000.5 4.725TO-220IS2SK2350A Philips BUK474-60H600.0382130TO-220IS2SK2385A Philips BUK475-100A1000.081430TO-220IS2SK2391A Philips BUK475-100B1000.11230TO-220IS2SK2391A Philips BUK475-200A2000.237.630TO-220IS2SK2382A Philips BUK475-200B2000.28730TO-220IS2SK2965A Philips BUK475-60A600.0382130TO-220IS2SK2385A Philips BUK475-60B600.0452030TO-220IS2SK2232A Philips BUK475-60H600.0322.530TO-220IS2SK2385A Philips BUK481-100A1000.81 1.5SOT2232SK2742A Philips BUK481-60A600.35 1.6 1.5SOT2232SK2741A Philips BUK482-100A1000.28 1.8 1.8SOT2232SK2742A Philips BUK482-200A2000.928.3SOT223Philips BUK482-60A600.13 2.5 1.7SOT2232SK2741A Philips BUK483-60A600.1 3.2 1.8SOT223Philips BUK542-100A1000.28 6.322TO-220IS2SK2399B Philips BUK542-100B1000.35 5.622TO-220IS Philips BUK542-60A600.159.222TO-220IS2SK2231B Philips BUK542-60B600.188.422TO-220IS2SK2231B Philips BUK543-100A1000.188.325TO-220IS2SK2391A Philips BUK543-100B1000.227.525TO-220IS2SK2399B Philips BUK543-60A600.0851325TO-220IS2SK2232A Philips BUK543-60B600.11225TO-220IS2SK2232A Philips BUK545-100A1000.0851330TO-220IS2SK2391A Philips BUK545-100B1000.111230TO-220IS2SK2391A Philips BUK545-200A2000.237.630TO-220IS2SK2382A Philips BUK545-200B2000.28730TO-220IS2SK2965A Philips BUK545-60A600.0422030TO-220IS2SK2232A Philips BUK545-60B600.0551830TO-220IS2SK2232A Philips BUK545-60H600.0382130TO-220IS2SK2385A Philips BUK552-100A1000.281060TO220AB2SK2399B Philips BUK552-100B1000.358.560TO220AB Philips BUK552-60A600.151460TO220AB2SK2231B Philips BUK552-60B600.181360TO220AB2SK2231B Philips BUK553-100A1000.181375TO220AB2SK2314A Philips BUK553-100B1000.221275TO220AB2SK2399B Philips BUK553-48C480.0852175TO220AB Philips BUK553-60A600.0852175TO220AB2SK2232B Philips BUK553-60B600.12075TO220AB2SK2232B Philips BUK554-200A2000.49.290TO220AB YTA630A Philips BUK554-200B2000.58.290TO220AB YTA630A Philips BUK554-60H600.04239125TO220AB2SK2232B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK555-100A1000.08525125TO220AB2SK2314A Philips BUK555-100B1000.1122125TO220AB2SK2314A Philips BUK555-200A2000.2314125TO220AB YTA640A Philips BUK555-200B2000.2813125TO220AB2SK2965B Philips BUK555-60A600.04239125TO220AB2SK2232B Philips BUK555-60B600.05535125TO220AB2SK2232B Philips BUK555-60H600.03841125TO220AB2SK2385B Philips BUK556-60A600.02650150TO220AB2SK2385B Philips BUK556-60H600.02260150TO220AB2SK2312B Philips BUK562-100A1000.281060D2PAK2SK2399B Philips BUK-562A600.151460D2PAK2SK2231B Philips BUK563-100A1000.181375D2PAK2SK2789A Philips BUK563-48C480.0852175D2PAK Philips BUK563-60A600.0852175D2PAK2SK2311A Philips BUK564-200A2000.49.290D2PAK2SK2401A Philips BUK564-60H600.04239125D2PAK2SK2311A Philips BUK565-100A1000.0851430D2PAK2SK2789A Philips BUK565-200A2000.2314125D2PAK2SK2401A Philips BUK565-60A600.04239125D2PAK2SK2311A Philips BUK565-60H600.03841125D2PAK2SK2266A Philips BUK566-60A600.02650150D2PAK2SK2266A Philips BUK566-60H600.02260150D2PAK2SK2376A Philips BUK573-48C480.0851350TO-220IS Philips BUK574-60H600.0422030TO-220IS2SK2232A Philips BUK581-100A1000.90.9 1.5SOT223Philips BUK581-60A600.4 1.5 1.5SOT2232SK2741A Philips BUK582-100A1000.31 1.7 1.8SOT2232SK2742A Philips BUK582-60A600.15 2.7 1.7SOT2232SK2741A Philips BUK583-60A600.1 3.2 1.8SOT223Philips BUK7508-55550.00875187TO220AB2SK2985B Philips BUK7514-55550.01468142TO220AB2SK2312B Philips BUK7518-55550.01857125TO220AB2SK2312B Philips BUK7520-55550.0252115TO220AB2SK2312B Philips BUK7524-55550.02445103TO220AB2SK2385B Philips BUK7530-55550.033075TO220AB2SK2385B Philips BUK7540-55550.0410.78.3SOT223Philips BUK7570-55550.071960TO220AB2SK2232B Philips BUK7608-55550.00875187D2PAK2SK2986A Philips BUK7614-55550.01468142D2PAK2SK2376A Philips BUK7618-55550.01857125D2PAK2SK2376A Philips BUK7620-55550.0252115D2PAK2SK2376A Philips BUK7624-55550.02445103D2PAK2SK2266A Philips BUK7630-55550.033075D2PAK2SK2266A Philips BUK7670-55550.071960D2PAK2SK2311A Philips BUK78150-55550.15 5.58.3SOT2232SK2741A Philips BUK7880-55550.087.58.3SOT223Philips BUK9508-55550.00875187TO220AB2SK2985B Philips BUK9514-55550.01468142TO220AB2SK2312B Philips BUK9518-55550.01857125TO220AB2SK2312B Philips BUK9520-55550.0252115TO220AB2SK2312B PhilipsPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUK9524-55550.02445103TO220AB2SK2385B Philips BUK9530-55550.033075TO220AB2SK2385B Philips BUK9570-55550.071960TO220AB2SK2232B Philips BUK9608-55550.00875187D2PAK2SK2986A Philips BUK9614-55550.01468142D2PAK2SK2376A Philips BUK9618-55550.01857125D2PAK2SK2376A Philips BUK9620-55550.0252115D2PAK2SK2376A Philips BUK9624-55550.02445103D2PAK2SK2266A Philips BUK9630-55550.033075D2PAK2SK2266A Philips BUK9670-55550.071960D2PAK2SK2311A Philips BUK98150-55550.15 5.58.3SOT2232SK2741A Philips BUK9840-55550.0410.78.3SOT223Philips BUK9880-55550.087.58.3SOT223Philips BUZ10500.072375TO-220AB2SK2507B Siemens BUZ100500.01858TO-220AB2SK2886B Siemens BUZ100L500.01860TO-220AB2SK2886B Siemens BUZ100S550.01577TO-220AB2SK2312B Siemens BUZ100SL550.01870TO-220AB2SK2312B Siemens BUZ101500.0625100TO-220AB2SK2507B Siemens BUZ101L500.0629TO-220AB2SK2507B Siemens BUZ101S550.0623TO-220AB2SK2232B Siemens BUZ101SL550.0721TO-220AB2SK2232B Siemens BUZ102500.02342180TO-220AB2SK2886B Siemens BUZ102AL500.02842TO-220AB2SK2886B Siemens BUZ102S550.02352TO-220AB2SK2312B Siemens BUZ102SL550.02847TO-220AB2SK2385B Siemens BUZ103500.0440120TO-220AB2SK2385B Siemens BUZ103AL500.0535TO-220AB2SK2507B Siemens BUZ103S550.0431TO-220AB2SK2232B Siemens BUZ103SL550.0528TO-220AB2SK2232B Siemens BUZ104500.117.560TO-220AB2SK2507B Siemens BUZ104L500.117.5TO-220AB2SK2507B Siemens BUZ104S550.114TO-220AB2SK2232B Siemens BUZ104SL550.1212.8TO-220AB2SK2232B Siemens BUZ10L 500.072375TO-220AB2SK2507B Siemens BUZ10S2600.072375TO-220AB2SK2232B Siemens BUZ11500.043075TO-220AB2SK2507B Siemens BUZ110S550.01280TO-220AB Siemens BUZ110SL550.01580TO-220AB2SK2312B Siemens BUZ111S550.00880TO-220AB2SK2985B Siemens BUZ111SL550.0180TO-220AB Siemens BUZ11A500.0552675TO-220AB2SK2507B Siemens BUZ11AL500.0552675TO-220AB2SK2507B Siemens BUZ11FI500.042140TO-220IS2SK2385A ST BUZ11S2600.043075TO-220AB2SK2385B Siemens BUZ12500.02842125TO-220AB2SK2886B Siemens BUZ12A500.03542125TO-220AB2SK2886B Siemens BUZ12AL500.03542125TO-220AB2SK2886B Siemens BUZ171-500.3-840TO-220AB2SJ438B Siemens BUZ172-1000.6-5.540TO-220AB SiemensPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUZ173-200 1.5-340TO-220AB2SJ407B Siemens BUZ201000.213.575TO-220AB2SK2399B Siemens BUZ2054001675TO-220AB2SK2679B Siemens BUZ211000.0852175TO-220AB2SK2314A Siemens BUZ215500 1.5 5.175TO-220AB2SK2661A Siemens BUZ21L1000.0852175TO-220AB2SK2314A Siemens BUZ221000.05534125TO-220AB2SK2466B Siemens BUZ2552500.241395TO-220AB2SK2508B Siemens BUZ271-500.15-2240TO-220AB2SJ464B Siemens BUZ272-1000.3-1540TO-220AB2SJ380B Siemens BUZ30580017.5150TO-2182SK2607A Siemens BUZ3078003375TO-2182SK2603B Siemens BUZ3088004 2.675TO-2182SK2603B Siemens BUZ30A2000.1321125TO-220AB YTA640A Siemens BUZ312000.213.575TO-220AB YTA640A Siemens BUZ31010005 2.575TO-2182SK1359A Siemens BUZ31110006 2.375TO-2182SK1359A Siemens BUZ3121000 1.56150TO-2182SK2613A Siemens BUZ31L2000.213.575TO-220AB YTA640A Siemens BUZ322000.49.575TO-220AB YTA630A Siemens BUZ3234000.315170TO-2182SK2837A Siemens BUZ3254000.3512.5125TO-2182SK2698A Siemens BUZ3264000.510.5125TO-2182SK2841B Siemens BUZ3305000.69.5125TO-2182SK2842B Siemens BUZ3315000.88125TO-2182SK2601A Siemens BUZ3326000.88.5150TO-2182SK2699A Siemens BUZ332A6000.98150TO-2182SK2699A Siemens BUZ3335000.413.5170TO-2182SK2698A Siemens BUZ3346000.512180TO-2182SK2915A Siemens BUZ3385000.413.5TO-2182SK2698A Siemens BUZ3395000.511.5170TO-2182SK2698A Siemens BUZ3412000.0733170TO-2182SK3176A Siemens BUZ342500.0160400TO-2182SK2551A Siemens BUZ3441000.03546170TO-2182SK1381A Siemens BUZ3451000.04541150TO-2182SK2466B Siemens BUZ346500.01858125TO-2182SK2744A Siemens BUZ346S2600.01858170TO-2182SK2173A Siemens BUZ347500.0345125TO-2182SK2550A Siemens BUZ3491000.0632125TO-2182SK2466B Siemens BUZ3502000.1222125TO-2182SK2382B Siemens BUZ3514000.411.5TO-2182SK2698A Harris BUZ355800 1.56125TO-2182SK2746A Siemens BUZ35680025125TO-2182SK2604A Siemens BUZ357100025125TO-2182SK1120A Siemens BUZ3581000 2.6 4.5125TO-2182SK1120A Siemens BUZ38010002 5.5125TO-2182SK1120A Siemens BUZ3824000.412.5125TO-2182SK2698A Siemens BUZ3845000.610.5125TO-2182SK2842B Siemens BUZ3855000.89125TO-2182SK2601A Siemens BUZ40B5000.88150TO-220AB2SK2542A SiemensPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementBUZ41A500 1.5 4.575TO-220AB2SK2661A Siemens BUZ425002475TO-220AB2SK2661A Siemens BUZ50A10005 2.575TO-220AB2SK1119A Siemens BUZ50B10008275TO-220AB2SK1119A Siemens BUZ50C10006 2.375TO-220AB2SK1119A Siemens BUZ5110004 3.4125TO-220AB2SK1119A Siemens BUZ604001 5.575TO-220AB2SK2679B Siemens BUZ60B400 1.5 4.5TO-220AB2SK2679B Harris BUZ614000.412.5150TO-220AB2SK2841A Siemens BUZ61A4000.511150TO-220AB2SK2841A Siemens BUZ70600.151240TO-220AB2SK2231B Siemens BUZ70L600.151240TO-220AB2SK2231B Siemens BUZ71500.11440TO-220AB2SK2507B Siemens BUZ71A500.121340TO-220AB2SK2507B Siemens BUZ71AFI500.121135TO-220IS2SK2507A ST BUZ71AL500.121340TO-220AB2SK2507B Siemens BUZ71FI500.11235TO-220IS2SK2507A ST BUZ71L500.11440TO-220AB2SK2507B Siemens BUZ71S2600.11440TO-220AB2SK2232B Siemens BUZ721000.21040TO-220AB2SK2399B Siemens BUZ72A1000.25940TO-220AB2SK2399B Siemens BUZ72A1000.2511TO-2202SK2399B ST BUZ72AL1000.25940TO-220AB2SK2399B Siemens BUZ72L1000.21040TO-220AB2SK2399B Siemens BUZ732000.4740TO-220AB YTA630A Siemens BUZ73A2000.6 5.840TO-220AB YTA630A Siemens BUZ73AL2000.6 5.840TO-220AB YTA630A Siemens BUZ73L2000.4740TO-220AB YTA630A Siemens BUZ745003 2.440TO-220AB2SK2862B Siemens BUZ74A5004 2.140TO-220AB2SK2862B Siemens BUZ76400 1.8340TO-220AB2SK2679B Siemens BUZ76A400 2.5 2.640TO-220AB2SK2862B Siemens BUZ77A6004 2.775TO-220AB2SK3067B Siemens BUZ77B600 3.5 2.975TO-220AB2SK3085A Siemens BUZ788008 1.540TO-220AB2SK2997B Siemens BUZ808004 2.675TO-220AB2SK2603A Siemens BUZ80A8003375TO-220AB2SK2603A Siemens BUZ80AFI8003 2.440TO-220IS2SK2603B ST BUZ80FI8004 2.140TO-220IS2SK2603B ST BUZ81800 2.54125TO-220AB2SK2605B Siemens BUZ90600 1.6 4.575TO-220AB2SK2544A Siemens BUZ90A6002475TO-220AB2SK3085A Siemens BUZ916000.88.5150TO-220AB2SK2866A Siemens BUZ91A6000.98150TO-220AB2SK2866A Siemens BUZ926003 3.275TO-220AB2SK3085A Siemens BUZ93600 2.5 3.675TO-220AB2SK2750B Siemens F10H3N*300.01510SOP-8(Single)TPC8005-H A Shindengen F2H3ND300.18 2.5SOP-8(Dual)Shindengen F3H3C30/-300.18/0.2 2.5/-2.5SOP-8(P&N)Shindengen F3H3ND300.113SOP-8(Dual)TPC8201A ShindengenPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementF3H3P-300.2-2.5SOP-8(Single)Shindengen F3H3PD-300.2-2.5SOP-8(Dual)Shindengen F4H3C30/-300.07/0.154/-3.5SOP-8(P&N)TPC8401A Shindengen F4H3N300.074SOP-8(Single)TPC8004A Shindengen F4H3ND300.074SOP-8(Dual)TPC8201A Shindengen F4H3P-300.15-3.5SOP-8(Single)Shindengen F4H3PD-300.15-3.5SOP-8(Dual)TPC8301A Shindengen F5H2ND200.045SOP-8(Dual)TPC8202A Shindengen F5H3N300.055SOP-8(Single)TPC8004A Shindengen F5H3ND300.055SOP-8(Dual)TPC8201A Shindengen F5H3P-300.09-4.5SOP-8(Single)TPC8104-H A Shindengen F7H2N200.0227SOP-8(Single)TPC8008A Shindengen F7H3P*-300.05-6.5SOP-8(Single)TPC8105-H A Shindengen F8H3N300.038SOP-8(Single)TPC8006-H A Shindengen F9H4N400.039SOP-8(Single)Shindengen FA38SA50LC5000.1338500SOT-227IRFA57SA50LC5000.0857625SOT-227IR FDC6301N2540.220.9SSOT-6(Dual)Fairchild FDC6302P-2510-0.120.9SSOT-6(Dual)Fairchild FDC6303N250.450.680.9SSOT-6(Dual)Fairchild FDC6304P-25 1.1-0.460.9SSOT-6(Dual)Fairchild FDC6306P-200.16-1.90.9SSOT-6(Dual)Fairchild FDC6320C25/-254/100.22/-0.120.9SSOT-6(P&N)Fairchild FDC6321C25/-250.045/1.10.68/-0.460.9SSOT-6(P&N)Fairchild FDC6322C25/-254/1.10.22/-0.460.9SSOT-6(P&N)Fairchild FDC633N300.042 5.2 1.6SSOT-6(Single)Fairchild FDC634P-200.08-3.5 1.6SSOT-6(Single)Fairchild FDC636P-200.13-2.8 1.6SSOT-6(Single)Fairchild FDC638P-200.05-4.5 1.6SSOT-6(Single)Fairchild FDC6506P-300.165-1.80.9SSOT-6(Dual)Fairchild FDC653N300.0355 1.6SSOT-6(Single)Fairchild FDC654P-300.075-3.6 1.6SSOT-6(Single)Fairchild FDC655AN300.027 6.3 1.6SSOT-6(Single)Fairchild FDC6561AN300.095 2.50.9SSOT-6(Dual)Fairchild FDC658P-300.05-4 1.6SSOT-6(Single)Fairchild FDG6301N2540.220.3SC70-6(Dual)Fairchild FDG6302P-2510-0.140.3SC70-6(Dual)Fairchild FDG6303N250.450.50.3SC70-6(Dual)Fairchild FDG6304P-25 1.1-0.410.3SC70-6(Dual)Fairchild FDG6320C25/-254/100.22/-0.140.3SC70-6(P&N)Fairchild FDG6321C25/-250.45/1.100.50/-0.410.3SC70-6(P&N)Fairchild FDG6322C25/-254/1.100.22/-0.410.3SC70-6(P&N)Fairchild FDN336P-200.2-1.30.5SOT-23Fairchild FDN337N300.065 2.20.5SOT-23Fairchild FDN338P-200.13-1.60.5SOT-23Fairchild FDN340P-200.07-20.5SOT-23Fairchild FDN357N300.06 2.20.5SOT-23Fairchild FDN358P-300.125-1.50.5SOT-23Fairchild FDN359AN300.044 2.70.5SOT-23Fairchild FDN360P-300.085-20.5SOT-23FairchildPart V DSS R DS(ON)I D P D Package Toshiba Note Vender Number(V)(ohm)(A)(W)ReplacementFDP4030L300.0352037.5TO-220AB2SK2844A Fairchild FDP6030L300.01355275TO-220AB2SK3127B Fairchild FDP6035AL300.01254858TO-220AB2SK3127B Fairchild FDP6035L300.0115875TO-220AB2SK3127B Fairchild FDP603AL300.0223350TO-220AB2SK2844A Fairchild FDP6670AL300.00658075TO-220AB Fairchild FDP7030BL300.0096065TO-220AB2SK3127B Fairchild FDP7030L300.007100125TO-220AB Fairchild FDP8030L300.003580187TO-220AB Fairchild FDPNDP6030300.0184675TO-220AB2SK2844A Fairchild FDR4410300.0139.3 1.8SSOT-8(Single)Fairchild FDR4420A300.00911 1.8SSOT-8(Single)Fairchild FDR8308P-200.05-3.20.8SSOT-8(Dual)Fairchild FDR835N300.0158.7 1.8SSOT-8(Single)Fairchild FDR836P-200.03-6.1 1.8SSOT-8(Single)Fairchild FDR838P-200.017-8.1 1.8SSOT-8(Single)Fairchild FDR8508P-300.052-30.8SSOT-8(Dual)Fairchild FDR856P-300.025-6.3 1.8SSOT-8(Single)Fairchild FDR858P-300.019-8 1.8SSOT-8(Single)Fairchild FDR9410A300.028 5.8 1.8SSOT-8(Single)Fairchild FDS4435-300.02-9 2.5SOP-8(Single)TPC8106-H A Fairchild FDS4953-300.053-4.92SOP-8(Dual)TPC8303A Fairchild FDS6575-200.013-10 2.5SOP-8(Single)TPC8103A Fairchild FDS6612A300.0228.4SOP-8(Single)TPC8001A Fairchild FDS6670A300.00813SOP-8(Single)TPC8007-H A Fairchild FDS6675-300.014-11 2.5SOP-8(Single)TPC8103A Fairchild FDS6680300.0111.5SOP-8(Single)TPC8007-H A Fairchild FDS6680A300.009512.5SOP-8(Single)TPC8007-H A Fairchild FDS6690A300.012511SOP-8(Single)TPC8005-H A Fairchild FDS6875-200.03-62SOP-8(Dual)Fairchild FDS6912A300.02862SOP-8(Dual)TPC8203A Fairchild FDS6930A300.042 4.62SOP-8(Dual)TPC8201A Fairchild FDS6961A300.09 3.52SOP-8(Dual)TPC8201A Fairchild FDS6975-300.032-62SOP-8(Dual)TPC8303A Fairchild FDS6990A300.0187.52SOP-8(Dual)TPC8203A Fairchild FDS8926A300.03 5.52SOP-8(Dual)TPC8203A Fairchild FDS8928A30/-200.03/0.055 5.5/-42SOP-8(P&N)Fairchild FDS8934A-200.055-4SOP-8(Dual)Fairchild FDS8936A300.0286SOP-8(Dual)TPC8203A Fairchild FDS8936S300.045SOP-8(Dual)TPC8201A Fairchild FDS8947A-300.052-42SOP-8(Dual)TPC8303A Fairchild FDS8958A30/-300.028/0.0527/-52SOP-8(P&N)TPC8401A Fairchild FDS9412300.0227.9SOP-8(Single)TPC8001A Fairchild FDS9435A-300.045-5.3SOP-8(Single)TPC8105-H A Fairchild FDS9933A-200.075-3.82SOP-8(Dual)Fairchild FDS9936A300.04 5.52SOP-8(Dual)TPC8201A Fairchild FDT457N300.0653SOT-2232SK2839A Fairchild FDT459N300.04 6.53SOT-2232SK2839A Fairchild FDT5060600.0573SOT-223Fairchild FDT5060L600.0463SOT-223Fairchild。

mos管的判断和代换

常用的mos系列有fds441045004800668069619435有irf的71xx系列icp的8xxx系列等记本常用mos管主要分成2大记一表的管子有4410480044359435号44359435fds4410441244164800irf78097811tcp8002主要用于vcore5v3vddrvcc等pwm记路中记合型mos就是将2个mos集成在一个sop8等方法引脚定记也不相同在同一芯片上记路上完全分记的常用于163116321634199919021904等芯片记生的5v33vsus记记也常用于ddrd2和s1记接在一起4500用于隔记管的记志一般用4410或4435沟mos记记6961
双管带换

典型的pwm电路，用双管的n沟mos带换，6961等
特殊引脚

4816
笔记本常用MOS管的内部原理和判断

常用的mos系列有fds4410,4500,4800,6680,6961,9435还有 irf的71xx系列，icp的8xxx系列等
笔记本常用MOS管单管的极性分类

Mos管主要分成2大类，一个是p沟，另一种是n沟，比较代表的管子有4410，4800，4435，9435等
笔记本常用MOS管的内部结构

P沟道，主要代表型号4435，9435等主要用于隔离保护电路中
笔记本常用MOS的内部结构

N沟道，代表型号，fds4410，4412，4416，4800，irf7809，7811,tcp8002等主要用于vcore,5v,3v,ddr_vcc等pwm电路中
复合管4814的内部结构

内部的d2和s1连接在一起
双N沟复合管4816

4816
