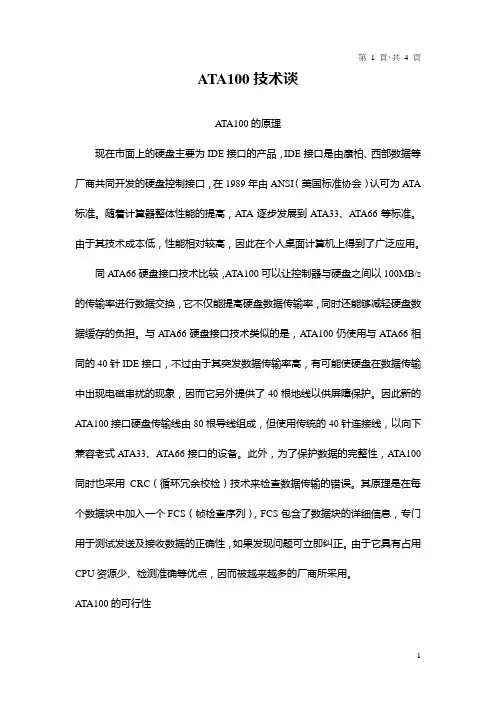

ATA100技术谈

AT A100技术谈A TA100的原理现在市面上的硬盘主要为IDE接口的产品，IDE接口是由康柏、西部数据等厂商共同开发的硬盘控制接口，在1989年由ANSI（美国标准协会）认可为A TA 标准。

随着计算器整体性能的提高，A TA逐步发展到A TA33、ATA66等标准。

由于其技术成本低，性能相对较高，因此在个人桌面计算机上得到了广泛应用。

同A TA66硬盘接口技术比较，ATA100可以让控制器与硬盘之间以100MB/s 的传输率进行数据交换，它不仅能提高硬盘数据传输率，同时还能够减轻硬盘数据缓存的负担。

与A TA66硬盘接口技术类似的是，ATA100仍使用与ATA66相同的40针IDE接口，不过由于其突发数据传输率高，有可能使硬盘在数据传输中出现电磁串扰的现象，因而它另外提供了40根地线以供屏障保护。

因此新的A TA100接口硬盘传输线由80根导线组成，但使用传统的40针连接线，以向下兼容老式A TA33、A TA66接口的设备。

此外，为了保护数据的完整性，A TA100同时也采用CRC（循环冗余校检）技术来检查数据传输的错误。

其原理是在每个数据块中加入一个FCS（帧检查序列），FCS包含了数据块的详细信息，专门用于测试发送及接收数据的正确性，如果发现问题可立即纠正。

由于它具有占用CPU资源少、检测准确等优点，因而被越来越多的厂商所采用。

A TA100的可行性IDE接口发展到A TA100这一标准对于硬盘整体速度的提升仍然不是十分明显，其原因是现在IDE硬盘的数据传输系统的瓶颈存在于硬盘本身。

A TA100虽然大大提高了硬盘的外部传输率，但硬盘内部传输率这个重要的瓶颈问题没有得到解决，虽然其外部传输率达到了理论上的100MB/s，但现在主流IDE硬盘的内部传输率多为33MB/s以下，就连最新的IBM腾龙Ⅱ代和希捷酷鱼Ⅱ内部传输率在理论上也只有44MB/s左右，这就需要对硬盘本身的物理内部传输率速度进一步改进，才能更有效地提升硬盘的整体速度。
