【BTS7960全桥驱动电路】
飞思卡尔智能车 电磁组 技术报告
//#define K10
//#define Kp 1;//PID的//#define Kd 1;
#include <hidef.h>
#include <stdio.h>
#include <math.h>
#include <MC9S12XS128.h>
3.1.3
考虑到适当增加力臂来提高舵机的灵敏度和为了赛车布局的的紧凑，采取了如图3.2所示的安装方法。
图3.2舵机安装结构
3.1.4
采用接插件与焊接结合的方式连接传感器、主控板、编码器、电机驱动电路、电机、赛道起始检测等单元，既考虑可靠性，又兼顾结构调整与安装的便利性。具体安装结构如图3.3所示，
图3.3主控板安装结构
[6]卓晴.基于磁场检测的寻线小车传感器布局研究[J].清华大学.2009
[7]杨延玲.载流直导线的电磁场特性分析[J].山东师范大学.2007
[8]王毅敏.马丽英等.一种改进的数字PID控制算法及其在励磁系统中的应用电网技术[J].1998
[9]高金源，夏洁.计算机控制系统[M].清华大学出版社.2007
本校积极组队参加第六届“飞思卡尔”杯全国大学生智能汽车竞赛。从2010年底着手准备，历时半年多，经过不断试验设计，最终设计出较为完整的智能赛车。在赛区比赛中获得了较好的综合性能和成绩。
在本次比赛中，采用大赛组委会统一提供的竞赛车模，采用飞思卡尔16位微控制器MC9S12XS128作为核心控制单元，构思控制方案及系统设计，进行包括机械结构的调整与优化，硬件的设计与组装、软件控制算法的编写与改进等过程（小车上的具体方案模块有传感器信号采集处理、控制算法及执行、动力电机驱动、转向舵机控制等）从而实现小车智能化的识别道路，最终实现智能化竞速。

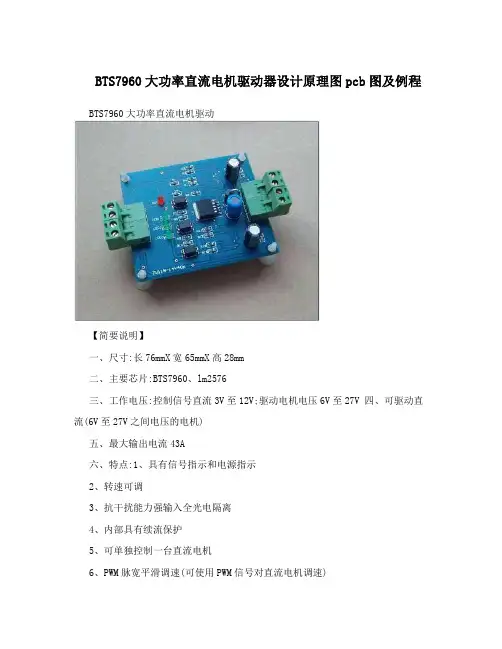

BTS7960大功率直流电机驱动器设计原理图pcb图及例程
BTS7960大功率直流电机驱动器设计原理图pcb图及例程BTS7960大功率直流电机驱动【简要说明】一、尺寸:长76mmX宽65mmX高28mm二、主要芯片:BTS7960、lm2576三、工作电压:控制信号直流3V至12V;驱动电机电压6V至27V 四、可驱动直流(6V至27V之间电压的电机)五、最大输出电流43A六、特点:1、具有信号指示和电源指示2、转速可调3、抗干扰能力强输入全光电隔离4、内部具有续流保护5、可单独控制一台直流电机6、PWM脉宽平滑调速(可使用PWM信号对直流电机调速)7、可实现正反转8、此驱动器非常适合控制飞思卡尔智能车，驱动器压降小，电流大，驱动能力强适用场合:单片机学习、电子竞赛、产品开发、毕业设计。
1【标注图片】【应用事例】BTS7960直流电机驱动器控制表接线表:序号标号接线1 VCC 接控制信号的电源正极22 EN 控制信号使能端3 IN1 控制信号14 IN2 控制信号25 OUT1 接直流电机线6 OUT2 接直流电机线7 GND 控制电机的电源负极8 VSS 控制电机的电源正极控制方式表:EN IN1 IN2 实际输出驱动电流电机工作状态 L L L OUT1和OUT2都流出电流电机不转 L L H OUT1流出，OUT2流入电机正转 L H L OUT1流入，OUT2流出电机反转 H L L 无电流流出电机停止 H L H 无电流流出电机停止 H H L 无电流流出电机停止【测试程序】/******************************************************************* *汇诚科技实现功能:BTS7960大功率直流电机驱动_调试程序使用芯片:AT89S52 或者 STC89C52晶振:11.0592MHZ编译环境:Keil作者:zhangxinchun淘宝店:汇诚科技【声明】此程序仅用于学习与参考，引用请注明版权和作者信息～3******************************************************************** */#include<reg52.h>#define uchar unsigned char//宏定义无符号字符型 #define uint unsigned int //宏定义无符号整型sbit P2_0=P2^0;//启动sbit P2_1=P2^1;//停止sbit P2_2=P2^2;//正转sbit P2_3=P2^3;//反转sbit P1_0=P1^0;//使能sbit P1_1=P1^1;//IN1 sbit P1_2=P1^2;//IN2/******************************************************************* *延时函数******************************************************************** */void delay(uchar t)//延时程序{uchar m,n,s;for(m=t;m>0;m--)for(n=20;n>0;n--)for(s=248;s>0;s--); }/******************************************************************* *主函数******************************************************************** */main(){while(1){if(P2_0==0){delay(3);if(P2_0==0)//启动{P1_0=0;}}if(P2_1==0){delay(3);if(P2_1==0)//停止{P1_0=1;}}if(P2_2==0){delay(3);if(P2_2==0)//正转4{P1_1=1;P1_2=0;}}if(P2_3==0){delay(3);if(P2_3==0)//反转{P1_1=0;P1_2=1;}}}}/******************************************************************* *结束******************************************************************** */【应用原理图】【PCB尺寸图】5BTS7960智能功率芯片中文资料BTS7960是NovalithIC家族三个独立的芯片的一部分:一是p型通道的高电位场效应晶体管，二是一个n型通道的低电位场效应晶体管，结合一个驱动晶片,形成一个完全整合的高电流半桥。
TBS7960四路直流电机驱动板数据手册(创智科技)
BTS7960四路直流电机 驱动板
技 术 手 册
v1.0
创智科技
BTS7960四路直流电机驱动板
电气性能
型号：TBS7960 输入电压：5.5V-27.5V 最大瞬间电流： 43A 控制方式：PWM 或电平 占空比：0-100%
创智科技
板子特点：
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 双 BTS7960最大电流（ 43A）H 驱动； 支持四路直流电机驱动； 跳帽使能控制，减少杜邦线的使用； 电源支持27.5V 电压； 单片机与驱动芯片使用芯片隔离； 采用进口芯片，保证原装、正规； 采用2P 插口减少接线麻烦； 单路电机仅需2根线控制； 72HC244采用直插形式，方便更换； 直插方式安装驱动芯片，半桥损坏后直接更换； 72HC244采用直插形式，方便更换； 驱动芯片配置散热片，更好的达到散热效果； 驱动芯片插在主板上，自然形成上下风道； 电机接口添加安规电容防止逆流损毁驱动；
4.
I 口使用杜邦线直接连接单片机即可
逻辑图
EN 高电平
Ix1 H L H/L 悬空 H L
Ix2 L H 悬空 H/L H L H/L H/L
电机状态 正转 反转 禁止 禁止 短路 停止 停止 禁止
低电平 悬空
H/L H/L
创智技
创智科技
BTS7960四路直流电机 驱动板
技 术
创智科技
红字部分是创智科技独创技术！ ！ ！
电机与电源接口
创智科技
电机驱动基本使用方法
1. 2.
最左侧5V、GND 为74HC244供电口 EN1是电机1号使能、EN2是电机2号使能、 EN3是电机3号使能、EN4是电机4号使能

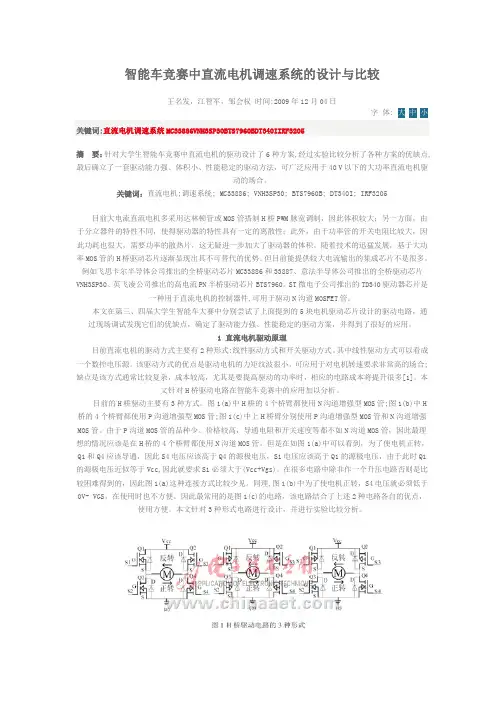

几种电机驱动的比较
智能车竞赛中直流电机调速系统的设计与比较王名发，江智军，邹会权 时间:2009年12月04日字 体:关键词:直流电机调速系统MC33886VNH3SP30BTS7960BDT340IIRF3205摘 要：针对大学生智能车竞赛中直流电机的驱动设计了6种方案,经过实验比较分析了各种方案的优缺点,最后确立了一套驱动能力强、体积小、性能稳定的驱动方法，可广泛应用于40 V以下的大功率直流电机驱动的场合。
关键词：直流电机;调速系统; MC33886; VNH3SP30; BTS7960B; DT340I; IRF3205目前大电流直流电机多采用达林顿管或MOS管搭制H桥PWM脉宽调制，因此体积较大；另一方面，由于分立器件的特性不同，使得驱动器的特性具有一定的离散性；此外，由于功率管的开关电阻比较大，因此功耗也很大，需要功率的散热片，这无疑进一步加大了驱动器的体积。
随着技术的迅猛发展，基于大功率MOS管的H桥驱动芯片逐渐显现出其不可替代的优势。
但目前能提供较大电流输出的集成芯片不是很多。
例如飞思卡尔半导体公司推出的全桥驱动芯片MC33886和33887、意法半导体公司推出的全桥驱动芯片VNH3SP30、英飞凌公司推出的高电流PN半桥驱动芯片BTS7960。
ST微电子公司推出的TD340驱动器芯片是一种用于直流电机的控制器件,可用于驱动N沟道MOSFET管。
本文在第三、四届大学生智能车大赛中分别尝试了上面提到的5块电机驱动芯片设计的驱动电路，通过现场调试发现它们的优缺点，确定了驱动能力强、性能稳定的驱动方案，并得到了很好的应用。
1 直流电机驱动原理目前直流电机的驱动方式主要有2种形式:线性驱动方式和开关驱动方式。
其中线性驱动方式可以看成一个数控电压源。
该驱动方式的优点是驱动电机的力矩纹波很小，可应用于对电机转速要求非常高的场合;缺点是该方式通常比较复杂，成本较高，尤其是要提高驱动的功率时，相应的电路成本将提升很多[1]。

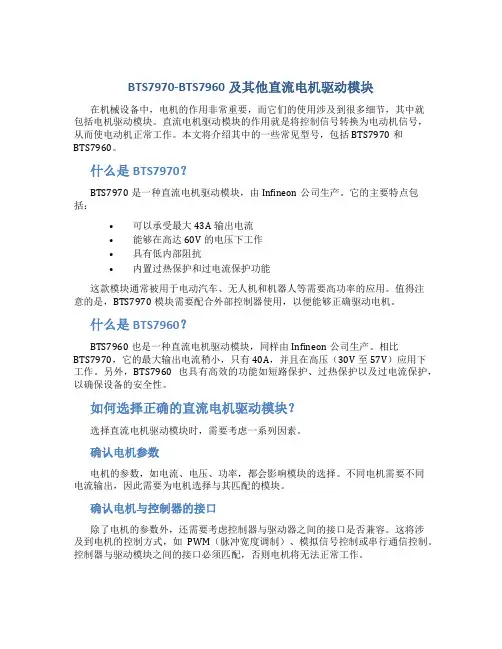

BTS7970-BTS7960及其他直流电机驱动模块
BTS7970-BTS7960及其他直流电机驱动模块在机械设备中，电机的作用非常重要，而它们的使用涉及到很多细节，其中就包括电机驱动模块。
直流电机驱动模块的作用就是将控制信号转换为电动机信号，从而使电动机正常工作。
本文将介绍其中的一些常见型号，包括BTS7970和BTS7960。
什么是BTS7970？BTS7970是一种直流电机驱动模块，由Infineon公司生产。
它的主要特点包括：•可以承受最大43A输出电流•能够在高达60V的电压下工作•具有低内部阻抗•内置过热保护和过电流保护功能这款模块通常被用于电动汽车、无人机和机器人等需要高功率的应用。
值得注意的是，BTS7970模块需要配合外部控制器使用，以便能够正确驱动电机。
什么是BTS7960？BTS7960也是一种直流电机驱动模块，同样由Infineon公司生产。
相比BTS7970，它的最大输出电流稍小，只有40A，并且在高压（30V至57V）应用下工作。
另外，BTS7960也具有高效的功能如短路保护、过热保护以及过电流保护，以确保设备的安全性。
如何选择正确的直流电机驱动模块？选择直流电机驱动模块时，需要考虑一系列因素。
确认电机参数电机的参数，如电流、电压、功率，都会影响模块的选择。
不同电机需要不同电流输出，因此需要为电机选择与其匹配的模块。
确认电机与控制器的接口除了电机的参数外，还需要考虑控制器与驱动器之间的接口是否兼容。
这将涉及到电机的控制方式，如PWM（脉冲宽度调制）、模拟信号控制或串行通信控制。
控制器与驱动模块之间的接口必须匹配，否则电机将无法正常工作。
确认被驱动的负载最后，需要确定被驱动的负载类型，如风扇、泵、飞行器或车辆。
这是因为不同的负载具有不同的动态特性，而电机驱动模块的选型也会受到这些因素的影响。
直流电机驱动模块的应用直流电机驱动模块广泛应用于自动化设备、电动车、轨道交通、船舶、机器人等方面。
以下是一些直流电机驱动模块的常见应用场景：电动车在电动车中，直流电机驱动模块做为中间设备，将电池组的直流电能转换为电机的转动动能。

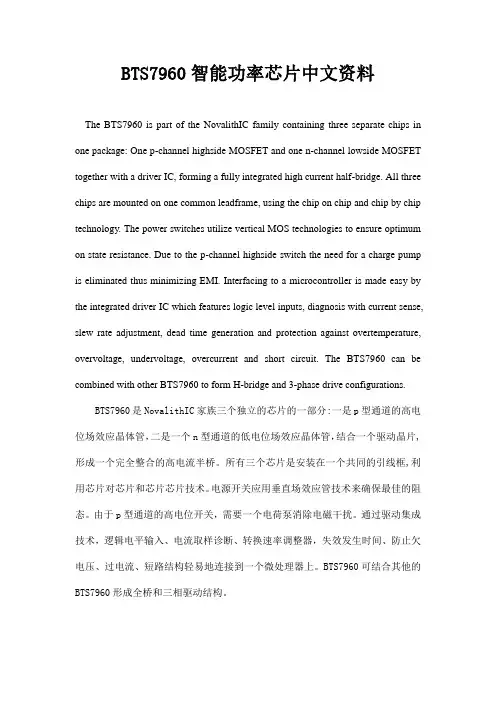

BTS7960中文数据手册
BTS7960智能功率芯片中文资料The BTS7960 is part of the NovalithIC family containing three separate chips in one package: One p-channel highside MOSFET and one n-channel lowside MOSFET together with a driver IC, forming a fully integrated high current half-bridge. All three chips are mounted on one common leadframe, using the chip on chip and chip by chip technology. The power switches utilize vertical MOS technologies to ensure optimum on state resistance. Due to the p-channel highside switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, undervoltage, overcurrent and short circuit. The BTS7960 can be combined with other BTS7960 to form H-bridge and 3-phase drive configurations.BTS7960是NovalithIC家族三个独立的芯片的一部分:一是p型通道的高电位场效应晶体管，二是一个n型通道的低电位场效应晶体管，结合一个驱动晶片,形成一个完全整合的高电流半桥。
常用电机驱动电路及原理
EN1 和 EN2 一般使用时我们直接接高电平，使整个电路始终处于工作状态！
通过对上面电路的了解，大家应该大致了解了 H 桥的基本工作原理，有没有更 好地驱动电路了呢？答案是肯定的！以下是直流电动机的机械特性表达式：
n 是电机的转速，U N 是电机的两端的电压，Ce 、CT 、φN 对于我们来说可以看成一 个定值，Tem 是负载转矩，车做好之后该值基本确定不变，剩下一个重要的参数 Ra 电 机电枢回路的阻值，电机本身的内阻很小，如果外部引入的电阻过大，此时直流电 动机转速降落较大，驱动电路效率较低，电机性能不能充分发挥。为了提高 电机的转速我们应该尽量减小电机电枢回路绕组的阻值，我们知道：N 沟道的 MOS FET 具有极低的导通电阻，IRF3205 导通电阻在 8mΏ左右，而 IRF4905 几乎是其两 倍，那么是不是可以考虑全部使用 N 沟道的 3205 来搭我们的驱动电路呢，答案也 是肯定的，只不过需要换一片栅极驱动芯片就行！
常用的电机驱动有两种方式：一、采用集成电机驱动芯片；二、采用 MOSFET 和专用栅极驱动芯片自己搭。集成主要是飞思卡尔自己生产的 33886 芯片，还有就是 L298 芯片，其中 298 是个很好的芯片，其内部可以 看成两个 H 桥，可以同时驱动两路电机，而且它也是我们驱动步进电机的 一个良选！由于他们的驱动电流较小（33886 最大 5A 持续工作，298 最大 2A 持续工作），对于我们智能车来说不足以满足，但是电子设计大赛的时 候可能会用到！所以想要详细了解他们的同学可以去查找他们的数据手册！ 在此只是提供他们的电路图，不作详细介绍！
BTS7960全桥电机驱动及调试程序
电路图如下：电机驱动板实物图如下如图所示：J1接电池；J5接电机；J6（黄色接头）提供5V电源；J6（白色接头）分别是1脚PWM口；2、3脚是控制方向和刹车单片机I/O口给01，是电机正转，10是电机反转，11是刹车。
注意：PWM是反逻辑，因为在单片机与电机驱动间加了反向驱动隔离，保护单片机。
所以占空比越小，方向后是越大，速度越快。
注意：PWM频率最大25KHZ，用在智能车上1KHZ就足够了。
MC9S12XS128测试程序如下I N H 3I N 2I S 6V S 7O U T4G N D 1S R 5J 3B T S 7960I N H 3I N 2I S 6V S7O U T4G N D1S R 5J 4B T S 7960R 31K R 4100R 71K R 8100R 101K R 61K 7.2V7.2VO U T 2O U T 1R 5 1K R 91KC 5100u F C 7100u F C 6104C 810412J 5M O T O RO U T 1O U T 212J 1P O W E RC 40.1u F C 20.1u F C 3100u F /16V C 1100u F /25VV i n 1G N D2+5V 3U 2L M 2940T -5.05VD 1LE D 3R 117.2V E N A B L EE N A B L EI N 1I N 2R T 2R T 1E N A B L E 1B 12B 23B 34B 45B 56B 67B 78B 8G N D 9C O M 108C 117C 126C 135C 144C 153C 162C 171C 18U 1U L N 2803A4132J 64P I NI N 1I N 2R 14K 7R 24K 75VR T 1R T 25V#include <hidef.h> /* common defines and macros */#include "derivative.h" /* derivative-specific definitions *//************************************************//*锁相环倍频*//************************************************/void pll_xs(void){SYNR=0x44;REFDV=0x81;//总线频率40Mwhile(!CRGFLG_LOCK);while(CLKSEL_PLLSEL!=1)CLKSEL_PLLSEL=1;}/***********************************************//*PWM初始化！*//************************************************/void PWM_int(void){PWMPOL|=0xaa;//PWM Polarity开始输出高电平,1、3、5、7 positive.PWMCLK|=0xaa;//Clock Select, Sn,B:7632.A:0145PWMPRCLK=0x22;//CLOCKA和CLOCKB是4分频是10MPWMCTL=0xf0;PWMSCLA=5;//1MPWMSCLB=5;//1MPWMCAE=0x00;PWMDTY01=900;PWMPER01=1000;PWME=0xaa; //PWM Enable,1、3、5、7 enable.}/************************************************/void main(void) {pll_xs();//倍频DDRB=0xff;PORTB|=0xff;PORTB&=0xfe;//PB0和PB1用来控制电机转向的EnableInterrupts;PWM_int();for(;;) {_FEED_COP(); /* feeds the dog */} /* loop forever *//* please make sure that you never leave main */}。
(完整word版)飞思卡尔智能车技术报告
集成化的设计思路的好处是原件密度高，系统可以小型化一体化，通过综合考虑各方面因素，在确定了系统最终硬件方案不做大的更改的情况下，在确保了系统可靠性的前提下，最终选择了一体化，集成化的硬件设计思路。使车体硬件电路布局紧凑，稳定可靠。
3、大前瞻，高分辨率方案。
在光电传感器的安装不影响赛车行驶的前提下，尽可能的提高传感器前瞻，更大的前瞻，能为赛车提供更多的信息，更能让赛车提前作出决策。
3.5.2主销内倾角
主销内倾角是指主销在汽车的横向平面内向倾斜一个角度，即主销轴线与地面垂直线在汽车横向断面内的夹角。主销内倾角也有使车轮自动回正的作用。通常汽车主销内倾角不大于80。
2.5.3前轮外倾角
通过车轮中心的汽车横向平面与车轮平面的交线与地面垂线之间的夹角称为“前轮外倾角”。轮胎呈现“八”字形张开时称为“负外倾”，而呈现“V”字形张开时称为“正外倾”。一般前轮外倾角为10左右。
4.5速度检测模块
为了使车在跑的过程中能快速加速，及时减速除了要有好的算法来控制，还依赖于速度闭环返回的速度脉冲值的可靠度和精确度，因此为了提高检测精度，最后选用了精度较高的光电编码器，光电编码器使用5V-24V电源，输出12.5%-85%VCC的方波信号。
9.2存在的不足
9.3可改进的方法
第十章参考文献
第一章引言
1.1方案介绍
系统硬件设计可以说是整个智能车设计的基础和重中之重。正确的硬件设计方向与思路，是系统稳定可靠的基础，功能强大的硬件系统，更为软件系统的发挥提供了强大的平台。、
1、整车低重心设计。
通过以往几届比赛的经验我们看到，往往重心低，体积小巧，布局紧凑的赛车更能取得好的成绩。、于是，我们通过合理布局电路板和各种传感器，尽可能地降低整车重心。在不影响传感器前瞻，或者不过度牺牲传感器性能的情况下，尽量降低光电传感器的高度，以提高赛车的侧翻极限。
基于半导体制冷片的温度控制系统的设计
基于半导体制冷片的温度控制系统的设计摘要:设计一种用于红外传感器工作温度调节控制的模块,使红外传感器在低温下工作,以提高红外传感器的探测性能。
通过以mega16芯片为核心,以半导体制冷片为制冷元件,以PID算法为基础构建了一套半导体温度调节系统[1]。
实验结果表明,半导体制冷温度控制系统能够为红外探测器提供所需的工作温度。
关键词:温度半导体制冷片PID算法温度对红外传感器有比较大的影响,当外界环境温度发生变化时,红外传感器对所测量的物理量会有较大的变动,影响其测量值的准确性[2],产生较大的外界噪声干扰,所以当进行精确测量时,将红外传感器控制在一个恒定的温度下,可以大大提高探测精度,减少误差。
1 半导体制冷器的工作原理半导体制冷也称热电制冷,是一门介于制冷技术和半导体技术边缘的学科,半导体制冷是以温差电现象为基础制冷方法,利用帕尔贴效应的原理达到制冷目的。
帕尔帖效应:当电流I通过由两种不同材料组合成的闭合回路时,在材料的接头处一端会吸收热量Qp,另一端会放出热量Qp。
这种吸收或放出的热量叫做帕尔帖热,其吸热或放热由电流的方向决定,大小由公式决定。
π为帕尔帖系数,与温差电动势率有关,为组成回路两种材料的温差电动势率,T为相关接头的温度。
作为一种制冷源,半导体冷片可连续工作,不需要制冷剂,没有污染源和机械运动部件,不会产生回转效应,是一种固体元件,工作时没有噪音、震动、寿命长,安装容易。
半导体制冷片是电流换能型器件,通过控制输入电流,可实现高精度的温度控制。
热惯性小,制冷制热时间比较快,在热端散热良好冷端空载的情况下,可迅速达到最大温差。
2 温度控制系统的组成半导体温度控制系统结构框图如图1,由制冷片引起的温度变化经温度传感器传送给控制器,与设定的温度进行比较,所得的信号偏差通过PID进行调整处理,由控制器发出命令信号,通过驱动电路驱动半导体制冷片进行制热或者制冷,以达到红外传感器的工作温度环境。
3 硬件系统设计本控制系统主控单元采用的是ATMEL公司A VR系列的Atmega16单片机。
BTS7960连接线路图
BTS7960接口连线图图中的引脚7960INH1、与7960INH2接在一起7960IN1、7960IN2分别连接到XS1 28的I/0口。
BTS7960是应用于电机驱动的大电流半桥高集成芯片，它带有一个P沟道的高边MOSFET、一个N沟道的低边MOSFET和一个驱动IC。
P沟道高边开关省去了电荷泵的需求, 因而减小了EMI。
集成的驱动IC具有逻辑电平输入、电流诊断、斜率调节、死区时间产生和过温、过压、欠压、过流及短路保护的功能。
BTS7960通态电阻典型值为16mΩ，驱动电流可达43A。
因此即使在北方寒冷的冬天，仍能保证车窗的安全启动。
由于7960是单桥驱动芯片，要想让点击能够正反转，就必须使用两片7960构成全桥，上图就是两片构成的全桥驱动，IN1、IN2分别为方向控制端口，INH1、INH2为使能端，接在一起接上单片机PMW输出口，例如：IN1接高电平，IN2接低电平电机正传，反之则电机反转。
PWM脉冲也可由IN1、IN2输入，此时INH1、INH2就是方向控制端口。
接在5引脚的电容的作用是使7960的通断速度更快，接在各引脚的电阻主要作用是限流电阻，也可不加，但加上对跟安全，在电源端口的电容耐压必须注意，由于电机存在反向电动势，电容的耐压应是电源电压的两倍，更高则不需要，不仅增加成本还会占用更大体积，否则会导致电容发生击穿甚至爆炸，本人亲身经历，造成后果相当严重，望各位注意。
与7960差不多的驱动芯片7970，相比较7970驱动电流更大，其他参数大致相同。
在做飞思卡尔比赛中使用此芯片较多，在汽车车窗驱动也用的较多。
在做板布线时引脚4与引脚8都是输出端口，引脚8是芯片背面金属部分，输出电流很大如果只用引脚4的输出将会使布线烧毁，因此应将引脚4与引脚8接在一起并使用引脚8输出接至电机。
