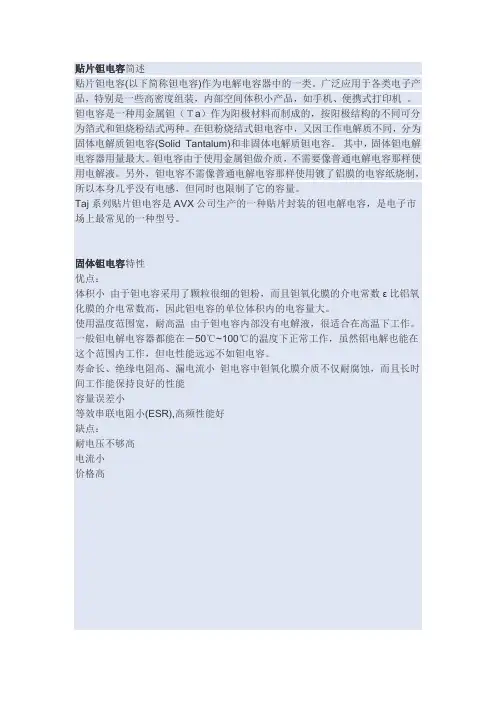

贴片钽电容规格参数
贴片钽电容简述贴片钽电容(以下简称钽电容)作为电解电容器中的一类。
广泛应用于各类电子产品，特别是一些高密度组装，内部空间体积小产品，如手机、便携式打印机。
钽电容是一种用金属钽（Ｔa）作为阳极材料而制成的，按阳极结构的不同可分为箔式和钽烧粉结式两种。
在钽粉烧结式钽电容中，又因工作电解质不同，分为固体电解质钽电容(Solid Tantalum)和非固体电解质钽电容。
其中，固体钽电解电容器用量最大。
钽电容由于使用金属钽做介质，不需要像普通电解电容那样使用电解液。
另外，钽电容不需像普通电解电容那样使用镀了铝膜的电容纸烧制，所以本身几乎没有电感，但同时也限制了它的容量。
Taj系列贴片钽电容是AVX公司生产的一种贴片封装的钽电解电容，是电子市场上最常见的一种型号。
固体钽电容特性优点：体积小由于钽电容采用了颗粒很细的钽粉，而且钽氧化膜的介电常数ε比铝氧化膜的介电常数高，因此钽电容的单位体积内的电容量大。
使用温度范围宽，耐高温由于钽电容内部没有电解液，很适合在高温下工作。
一般钽电解电容器都能在－50℃~100℃的温度下正常工作，虽然铝电解也能在这个范围内工作，但电性能远远不如钽电容。
寿命长、绝缘电阻高、漏电流小钽电容中钽氧化膜介质不仅耐腐蚀，而且长时间工作能保持良好的性能容量误差小等效串联电阻小(ESR),高频性能好缺点：耐电压不够高电流小价格高贴片钽电容封装、尺寸封装尺寸：毫米（英寸）封装尺寸：毫米（英寸）CodeEIACodeL±0.20(0.008)W+0.20(0.008)-0.10(0.004)H+0.20(0.008)-0.10 (0.004)W1±0.20(0.008)A+0.30(0.012)-0.20(0.008)S Min.A 3216-183.20(0.126)1.60(0.063)1.60 (0.063)1.20(0.047)0.80(0.031)1.80(0.071)B 3528-213.50(0.138)2.80(0.110)1.90 (0.075)2.20(0.087)0.80(0.031)1.40(0.055)C 6032-286.00(0.236)3.20(0.126)2.60 (0.102)2.20(0.087)1.30(0.051)2.90(0.114)D 7343-317.30(0.287)4.30(0.169)2.90 (0.114)2.40(0.094)1.30(0.051)4.40(0.173)E 7343-437.30(0.287)4.30(0.169)4.10 (0.162)2.40(0.094)1.30(0.051)4.40(0.173)V 7361-387.30(0.287)6.10(0.240)3.45±0.30(0.136±0.012)3.10(0.120)1.40(0.055)4.40(0.173)W1 dimension applies to the termination width for A dimensional area only.Taj系列贴片钽电容是AVX公司生产的一种贴片封装的钽电解电容，是电子市场上最常见的一种型号。
AVX钽电容规格书（精简版）
AVX钽电容规格书（精简版）CASE DIMENSIONS:millimeters (inches)HOW TO ORDERThe TA J standard series encompasses the five key sizes recognized by major OEMs throughout the world. The V case size has been added to the TA J range to allow high CVs to be offered. Theoperational temperature is -55°C to +85°C at rated voltage and up to +125°C with voltage derating in applications utilizingrecommended series resistance.Technical Data:All techn ical data relate to an ambient temperature of +25°C Capacitance Range:0.1μF to 1000μF Capacitance Tolerance:±10%; ±20%Rated Voltage (V R )?+85°C:24 6.3101620253550Category Voltage (V C )?+125°C: 1.3 2.7 4 71013172333Surge Voltage (V S )?+85°C: 2.7 5.28132026324665Surge Voltage (V S )?+125°C: 1.7 3.2581216202840Temperature Range:-55°C to +125°CReliability:1% per 1000 hours at 85°C, Vr with 0.1?/Vr series impedance, 60% confidence levelQualification:CECC 30801 - 005 issue 2EIA 535BAACFor part marking see page 93TAJTypeCCase Code See table above106Capacitance Code pF code: 1st two digits represent significant figures 3rd digit represents multiplier (number of zeros to follow)MT olerance K=±10%M=±20%035Rated DC Voltage002=2Vdc 004=4Vdc 006=6.3Vdc 010=10Vdc 016=16Vdc 020=20Vdc 025=25Vdc 035=35Vdc 050=50VdcRPackaging R = 7" T/R S = 13" T/R A = Gold Plating7" ReelB = Gold Plating13" Reel**Additionalcharacters may be added for special requirementsTECHNICAL SPECIFICATIONSCAPACITANCE AND RATED VOLTAGE, V R(VOLTAGE CODE) RANGE(LETTER DENOTES CASE SIZE)Capacitance Rated voltage DC (V R) to 85°CμF Code 2.5V (F)4V (G) 6.3V (J)10V (A)16V (C)20V (D)25V(E)35V (V)50V (T)0.10104A A0.15154A A/B0.22224A A/B0.33334A B0.47474A A/B C0.68684A A A/B C1.0105A A A A/B B/C1.5155A A A A/B A/B/C C/D2.2225A A A/B A/B A/B B/C C/D3.3335A A A/B A/B B/C B/C C/D4.7475A A A/B A/B A/B/C B/C B/C/D D6.8685A A/B A/B A/B/C B/C B/C C/D D10106A A/B A/B/C A/B/C B/C C/D C/D/E E 15156A/B A/B A/B/C B/C B/C/D C/D C/D22226A A/B/C A/B/C B/C/D B/C/D C/D D/E33336A/B A/B/C B/C/D B/C/D C/D D/E D/E47476A A/B B/C/D B/C/D C/D C/D/E D/E E68686A B/C B/C/D C/D C/D D/E E/V100107B/C B/C/D C/D/E D/E D/E/V150157B B C/D C/D/E D/E/V E/V220227B C/D C/D/E D/E D/E/V330337C/D/E C/D/E D/E/V E/V470477D/E D/E/V E/V680687D/E E/V V1000108E E/V V1500158ENon preferred Ratings - not recommended for new designs, higher voltage or smaller case size substitution are offered.Developmental Ratings - subject to change.Available RatingsNote: Voltage ratings are minimum values. AVX reserves the right to supplyhigher ratings in the same case size, to the same reliability standards.RATINGS & PART NUMBER REFERENCED F are measured at 120Hz, 0.5V RMS with a maximum D C bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes.*Insert K for ±10% and M for ±20%Capacitance Tolerance# Standard Plating– Insert R for 7" reel and S for 13" reel# Gold Plating – Insert A for 7" reel and B for 13" reelDevelopmental Ratings - subject to change.Available RatingsNOTE: AVX reserves the right to supply a higher voltage rating or tightertolerance part in the same case size, to the same reliability standards.RATINGS & PART NUMBER REFERENCEAll technical data relates to an ambient te mperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with amaximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes.*Insert K for ±10% and M for ±20%#Standard Plating– Insert R for 7" reel and S for 13" reelCapacitance Tolerance# Gold Plating – Insert A for 7" reel and B for 13" reelDevelopmental Ratings - subject to change.Available RatingsNOTE: AVX reserves the right to supply a higher voltage rating or tightertolerance part in the same case size, to the same reliability standards.Five additional case sizes are available in the TAJ range offering low profile solid tantalum chip capacitors. Designed for applications where maximum height of components above or below board are of prime consideration, this height of 1.2,1.5 and2.0mm equates to that of a stan-dard integrated circuit package after mounting. The S&T footprints are identical to the A&B case size parts and the W&Yfootprints to C&D case size parts.millimeters (inches)Technical Data:All technical data relate to an ambient temperature of +25°C Capacitance Range:0.1μF to 470μF Capacitance Tolerance:±10%; ±20% Rated Voltage (V R )?+85°C: 2.54 6.3101620253550Category Voltage (V C )?+125°C: 1.3 2.7 4 71013172333Surge Voltage (V S )?+85°C: 2.7 5.28132026324665Surge Voltage (V S )?+125°C: 1.7 3.2581216202840Temperature Range:-55°C to +125°CReliability: 1% per 1000 hours at 85°C, Vr with 0.1?/V series impedance,60% confidence levelTECHNICAL SPECIFICATIONSHOW TO ORDERFor part marking see page 108TAJTypeYCase Code See table above107Capacitance Code pF code: 1st two digits represent significant figures 3rd digit represents multiplier (number ofzeros to follow)MT olerance K=±10%M=±20%010Rated DC Voltage002=2.5Vdc 004=4Vdc 006=6.3Vdc 010=10Vdc 016=16Vdc 020=20Vdc 025=25Vdc 035=35Vdc 050=50VdcRPackaging R = 7" T/R S = 13" T/R A = Gold Plating7" ReelB = Gold Plating13" Reel Y = Lead Free7" Reel P = Lead Free13" Reel**Additionalcharacters may be added for special requirementsCAPACITANCE AND VOLTAGE RANGE (LETTER DENOTES CASE SIZE)Developmental Ratings - subject to change.Note: Voltage ratings are minimum values. AVX reserves the right to supply higherratings in the same case size, to the same reliability standards.RATINGS & PART NUMBER REFERENCEDCL is measured at rated voltage after 5 minutes.*Insert K for ±10% and M for ±20%# Standard Plating– InsertR for 7" reel and S for 13" reelCapacitance Tolerance# Gold Plating – Insert A for 7" reel and B for 13" reelNOTE: AVX reserves the right to supply a higher voltage rating or tightertolerance part in the same case size, to the same reliability standards.RATINGS & PART NUMBER REFERENCEAll technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with amaximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes.*Insert K for ±10% and M for ±20%# Standard Plating– Insert R for 7" reel and S for 13" reelCapacitance Tolerance# Gold Plating – Insert A for 7" reel and B for 13" reelNOTE: AVX reserves the right to supply a higher voltage rating or tightertolerance part in the same case size, to the same reliability standards.。

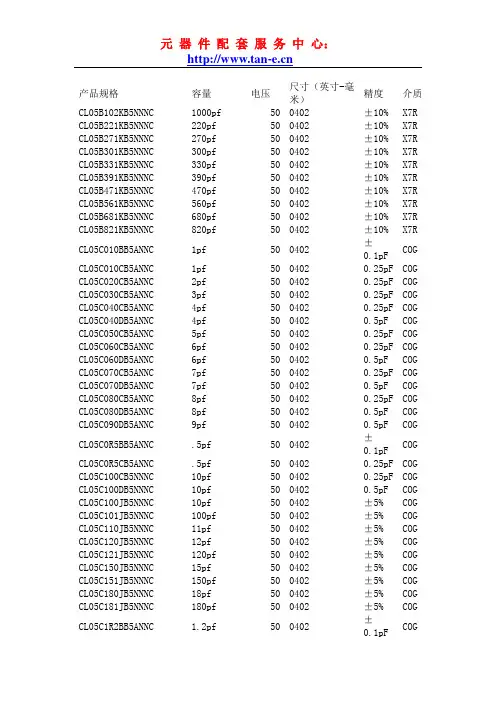

AVX钽质电容参数
