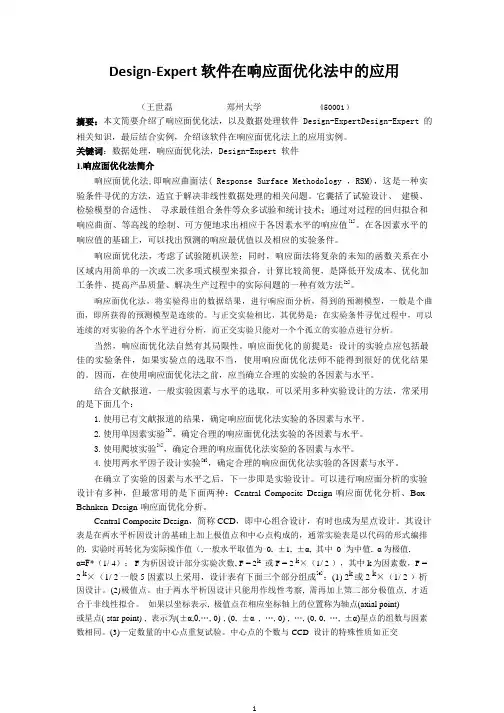

Design-Expert 软件在响应面优化法中的应用（王世磊郑州大学450001）摘要：本文简要介绍了响应面优化法，以及数据处理软件Design-ExpertDesign-Expert的相关知识，最后结合实例，介绍该软件在响应面优化法上的应用实例。
关键词：数据处理，响应面优化法，Design-Expert软件1.响应面优化法简介响应面优化法,即响应曲面法( Response Surface Methodology ，RSM)，这是一种实验条件寻优的方法，适宜于解决非线性数据处理的相关问题。
它囊括了试验设计、建模、检验模型的合适性、寻求最佳组合条件等众多试验和统计技术；通过对过程的回归拟合和响应曲面、等高线的绘制、可方便地求出相应于各因素水平的响应值[1]。
在各因素水平的响应值的基础上，可以找出预测的响应最优值以及相应的实验条件。
响应面优化法，考虑了试验随机误差；同时，响应面法将复杂的未知的函数关系在小区域内用简单的一次或二次多项式模型来拟合，计算比较简便，是降低开发成本、优化加工条件、提高产品质量、解决生产过程中的实际问题的一种有效方法[2]。
响应面优化法，将实验得出的数据结果，进行响应面分析，得到的预测模型，一般是个曲面，即所获得的预测模型是连续的。
与正交实验相比，其优势是：在实验条件寻优过程中，可以连续的对实验的各个水平进行分析，而正交实验只能对一个个孤立的实验点进行分析。
当然，响应面优化法自然有其局限性。
响应面优化的前提是：设计的实验点应包括最佳的实验条件，如果实验点的选取不当，使用响应面优化法师不能得到很好的优化结果的。
因而，在使用响应面优化法之前，应当确立合理的实验的各因素与水平。
结合文献报道，一般实验因素与水平的选取，可以采用多种实验设计的方法，常采用的是下面几个：1.使用已有文献报道的结果，确定响应面优化法实验的各因素与水平。
2.使用单因素实验[3]，确定合理的响应面优化法实验的各因素与水平。
