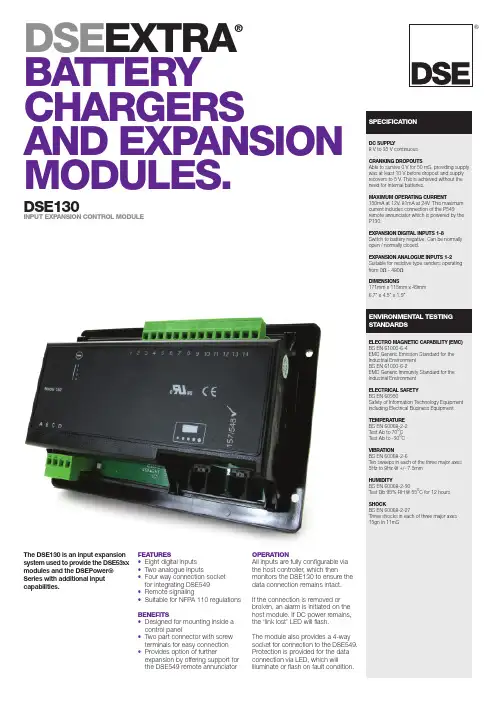

DSE130输入扩展系统说明书
®ENVIRONMENT AL TESTINGST ANDARDSThe DSE130is an input expansion system used to provide the DSE53xx modules and the DSEPower®Series with additional input capabilities.FEA TURES•Eight digital inputs•Two analogue inputs•Four way connection socketfor integrating DSE549•Remote signaling•Suitable for NFPA110regulationsBENEFITS•Designed for mounting inside acontrol panel•Two part connector with screwterminals for easy connection•Provides option of furtherexpansion by offering support forthe DSE549remote annunciatorOPERA TIONAll inputs are fully configurable viathe host controller,which thenmonitors the DSE130to ensure thedata connection remains intact.If the connection is removed orbroken,an alarm is initiated on thehost module.If DC power remains,the‘link lost’LED will flash.The module also provides a4-waysocket for connection to the DSE549.Protection is provided for the dataconnection via LED,which willilluminate or flash on fault condition.ELECTRO MAGNETIC CAP ABILITY(EMC)BS EN61000-6-4EMC Generic Emission Standard for theIndustrial EnvironmentBS EN61000-6-2EMC Generic Immunity Standard for theIndustrial EnvironmentELECTRICAL SAFETYBS EN60950Safety of Information Technology Equipmentincluding Electrical Business EquipmentTEMPERA TUREBS EN60068-2-2Test Ab to70o CTest Ab to-30o CVIBRA TIONBS EN60068-2-6Ten sweeps in each of the three major axes5Hz to8Hz@+/-7.5mmHUMIDITYBS EN60068-2-30Test Db95%RH@55o C for12hoursSHOCKBS EN60068-2-27Three shocks in each of three major axes15gn In11mSDC SUPPL Y8V to35V continuousCRANKING DROPOUTSAble to survive0V for50mS,providing supplywas at least10V before dropout and supplyrecovers to5V.This is achieved without theneed for internal batteries.MAXIMUM OPERA TING CURRENT150mA at12V.81mA at24V.This maximumcurrent includes connection of the P549remote annunciator which is powered by theP130.EXP ANSION DIGIT AL INPUTS1-8Switch to battery negative.Can be normallyopen/normally closed.EXP ANSION ANALOGUE INPUTS1-2Suitable for resistive type senders operatingfrom0Ω-480ΩDIMENSIONS171mm x115mm x49mm6.7”x4.5”x1.9”DSE EXTRA®BA TTERY CHARGERS AND EXP ANSION MODULES.DSE130INPUT EXP ANSION CONTROL MODULE®DEEPSEA ELECTRONICS INC3230Williams AvenueRockfordIL61101-2668USATELEPHONE+1(815)3168706FACSIMILE+1(815)3168708EMAIL********************WEBSITEDEEP SEA ELECTRONICS PLCHighfield HouseHunmanby Industrial EstateHunmanby,North YorkshireYO140PH EnglandTELEPHONE+44(0)1723890099FACSIMILE+44(0)1723893303EMAIL********************WEBSITERegistered in England&Wales No.01319649VAT No.316923457DEEP SEA ELECTRONICS PLC maintains a policy of continuous development and reserves the right tochange the details shown on this data sheet without prior notice.The contents are intended for guidance only.055-047/02/08(2) This data sheet is printed on9lives55Silk,which is produced with55%recycled fibrefrom both pre and post-consumer sources,together with45%virgin ECF fibre.RELA TED MA TERIALSTITLE P ART NO’SDSE5310&DSE5320Data sheet055-038DSE5310Manual057-013DSE5320Manual057-014DSE5510Data sheet055-039DSE5510Manual057-015DSE5520Data sheet055-040TITLE P ART NO’SDSE5520Manual057-016DSE5560Data sheet055-041DSE5560Manual057-017DSE549Data sheet055-04852/53xx Software Manual057-00655xx Software Manual057-007。

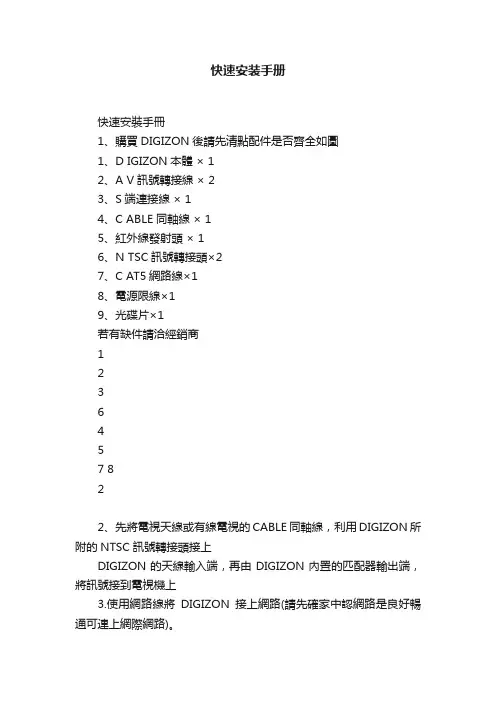

快速安装手册
快速安装手册快速安裝手冊1、購買DIGIZON後請先清點配件是否齊全如圖1、D IGIZON本體× 12、A V訊號轉接線× 23、S端連接線× 14、C ABLE同軸線× 15、紅外線發射頭× 16、N TSC訊號轉接頭×27、C AT5網路線×18、電源限線×19、光碟片×1若有缺件請洽經銷商1236457 822、先將電視天線或有線電視的CABLE同軸線，利用DIGIZON所附的NTSC訊號轉接頭接上DIGIZON的天線輸入端，再由DIGIZON內置的匹配器輸出端，將訊號接到電視機上3.使用網路線將DIGIZON接上網路(請先確家中認網路是良好暢通可連上網際網路)。
IP分享器或無線基地台4、將DIGIZON插上電源。
並將電源開啟(請按黃色按鍵)5.確定電源燈有亮(POWER)6.確定網燈有亮(NETWORK)7、完成硬體安裝如圖8、在PC或NB上安裝軟體請先確認你的電腦需具備之規格如下：作業系統：WINDOWS 2000，ME，XP(with Direct X9.0c or above C)CPU：Pentium 4, 1.2GHz or above (MMX，SSE and SSE2 support)記憶體Memory：256 MB above顯示卡Display：DirectX compatible音效卡Sound Card：DirectX compatible建議顯示器最佳設定：解析度1024×768 32-bits Color bit將所附軟體光碟放入光碟機開始安裝軟體如圖雙擊DIGIZON setup開始安裝。
9、選擇英文English或中文Chinese(Taiwan)按ok開始安裝10、開始安裝11、顯示安裝的路徑和資料夾若須更改請按瀏覽自行變更若不更改請按下一步繼續。
12、程式安裝中13、安裝成功圖示出現後請按結束(Finish)。
DSEE安装及Oracle EE Stage配置指南
中国XXXX有限公司建立ODS项目DSEE安装及Oracle EE Stage配置说明书项目编号:XXX8/21/2019文档信息修订记录文档审核/审批此文档需如下审核。
签署过的审批表将作为附件归入PCB的质量控制章节。
文档分发此文档将分发至如下各人目录目录 (1)1. 引言 (2)2. SERVER安装 (2)2.1.S ERVER安装准备 (2)2.1.1. 硬件及软件准备 (2)2.1.2. 创建用户及组 (3)2.1.3. 系统参数设置 (3)2.2.S ERVER安装步骤 (4)2.3.安装完毕，检查后台S ERVER是否启动正常 (16)3. CLIENT安装 (17)4. EE STAGE安装 (17)4.1.安装前准备 (17)4.2.安装步骤 (17)4.3.测试 (19)1.引言DataStage EE Server可以安装在AIX，HP UNIX，Linux等平台上，Client 端安装在Windows平台上。
我们以DataStage 7.5 for Aix 5.1/5.2为例，来详细说明其安装步骤。
2.Server安装2.1.Server安装准备2.1.1.硬件及软件准备2.1.2.创建用户及组2.1.2.1.AIX运行smit命令，启动管理界面在安装机器上创建dstage组, ADMINISTRATIVE USER 选项为true，创建用户dsadm，主属为dstage ，ADMINISTRATIVE USER 选项为true；Primary GROUP，Group SET，ADMINISTRATIVE GROUPS：均为dstage2.1.2.2.HP Unix运行sam命令，启动管理界面在安装机器上创建dstage组创建用户dsadm，主属为dstage组2.1.3.系统参数设置1)检查Server端paging space的空间，对于CPU数量少于20个的机器，最好整个Paging Space为500M×CPU数，如机器配置了8个CPU，则推荐至少需要配置4GB的Paging Space空间。
布施安全系统有限公司 GPT4 1200 1400系列标准iSCSI磁盘阵列快速安装指南说明书
Bosch Sicherheitssysteme GmbH
1200/1400 Series as standard iSCSI disk array
Setting the IP Address | en 7
2. When the system has started up, press Ctrl+Alt+Del, then type the default password WSS4Bosch once the disk array login window is displayed.
Setup Instruction
3
Setting the IP Address
3.1
Remote Desktop Connection
3.2
Physical Connection
4
Disabling the VRM Service
5
Standard System Configuration
6
Additional Software and Documentation
Bosch Sicherheitssysteme GmbH
Quick Installation Guide
- | V1 | 2011.02
8 en | Disabling the VRM Service
1200/1400 Series as standard iSCSI disk array
5. Click Properties, select Internet Protocol Version 4 (TCP/IPv4), then click Properties.
1200/1400 Series as standaHale Waihona Puke d iSCSI disk array
DSE控制器使用说明书
DSE5110控制器使用说明书一、概述英国深海DSE5110是一个柴油发电机组自动控制模块，该模块可被大多数OEM 商用于复杂的工业控制。
它能自动启动和停止发动机，指示发动机的工作状态和故障情况。
当发动机出现故障时，能自动停机并通过面板上的液晶显示屏和闪烁的LED 指示灯指示发动机的故障情况。
客户可在控制面板上进行编辑来改变操作定时时间和故障报警类型，而不用其它的特别设备。
用户可通过面板上的“停机”、“自动”和“手动”按钮来操作模块。
液晶显示旁边的向下滚动按钮用于察看更多的仪表测量数据。
控制器LED液晶显示功能：测量数据发电机组三相相电压L1-N，L2-N，L3-N发电机组三相线电压L1-L2，L2-L3，L3-L1发电机组三相电流L1，L2，L3发电机组频率 Hz发动机转速ＲＰＭ发动机机油压力ＫＰa或bar\psi（可选）发动机冷却水温度℃和℉电池电压显示信息及测量数据发动机运行小时模块报警保护功能超速／欠速充电故障紧急停车低油压高水温启动失败报警显示图标恢复停车失败转速信号丢失另外，指示、报警或停机等可设定的报警输入均能通过液晶显示屏和LED指示灯来标识。
二、功能特征1．基于微处理器的设计2．自动故障状态紧急停机3．用户化图形按钮显示模式4．LCD显示发动机、发电机数据5．显示发动机报警及状态信息6．前面板设定输入、输出、报警及时间三、控制器规格1．电源：直流8~35V连续。
2．启动电压下跌：在启动前提供的电压不小于10V，电压恢复电压达到5V的状况下，可以确保控制系统在0V电压经过50ms后维持正常。
完全没有必要加内置电池。
3．启动继电器输出：16Amp DC系统直流电压4．燃油继电器输出：16Amp DC系统直流电压5．辅助继电器输出：5Amp DC系统直流电压6．工作温度范围：-30~+70℃7．充电失败／励磁范围：0V~35V8．最大操作电流：425(12V);215MA(24V).9．最大备用电流：250(12V);125(24V).10．发电机输入范围：75V~277V三相四线AC（+20﹪）11．发电机输入频率：50~60Hz在额定发动机转速12．磁性转速探头输入电压范围：+/-0.5V~70V峰值四、控制器面板1.按钮图标图标功能说明图标功能说明图标功能说明停止/复位自动模式手动模式启动(在手动模式下) 滚动2．报警指示图标功能说明图标功能说明图标功能说明告警指示停机故障电气跳闸充电故障低油压超速紧急停机高水温欠速辅助报警启动失败辅助指示3．状态/仪表显示切断远程启动信号后，远程停机延时计时器开始计时，负载切换信号被分离，卸下负载。
DSE快速使用手册
数据安全专家(DSE)企业版快速使用手册1文档概要1.1目的根据软件的各种应用场景，提供具体的使用说明，方便管理员快速使用和熟悉DSE软件。
2 使用说明2.1登陆控制台管理员双击桌面快捷图标启动DSE控制台，管理员登录控制台时，需输入DSE服务器的IP地址和端口，默认端口：5558，默认用户名为：“admin”，密码“Admin@123”（注意：字母大小写敏感），具体操作界面如下所示：图2-1 控制台登陆控制台登陆以后主界面如下：图2-2 DSE主界面首次安装，客户端默认在根组“Computer Root”下面，并继承根组的设置。
2.2设置文件自动透明加解密登陆控制台，切换到“计算机管理”中的->文件加密策略：图2-3 文件加密策略首次安装完成，默认提供word，excel，ppt三种进程的自动透明加解密，安装成功并在线的客户端机器，新建或编辑word，excel，ppt时便会自动加密，文件加密以后，文件图标上自动显示盾牌的加密图标，以示为加密文件。
您可以点击上图中的“增加”按钮，授权新的加密进程，点增加弹出如下界面：图2-4增加加密进程列表中提供常用的加密程序，选中需要加密的进程，确定，即可添加成功。
下发策略，授权的加密进程重新启动后生效。
2.3 文件加密策略中的基本策略设置2.3.1根据单个进程设置是否允许打印选中图2-3中的“已授权加密程序列表”中的单个进程，双击或点“修改”，弹出修改加密程序策略界面，如下图所示：图2-5修改加密程序策略建议使用系统默认配置策略，无需修改，默认策略是最安全的加密策略，如需针对单个进程允许打印，勾选“允许打印”，还可以设置打印水印。
勾选对应选项，确定，下发策略生效。
2.3.2全局策略设置（禁止截屏、控制剪贴板等）图2-3中页面下方的基本策略，是针对所有加密进程的全局策略，建议使用默认配置，如下图所示：图2-6基本策略您可以根据需要启用和禁用相应的策略，勾选即为启用，不勾选为禁用；保存下发策略生效。
DSE快速安装手册
数据安全专家(DSE)企业版快速安装手册1.数据库DSE系统为C/S架构，由三大网络元素构成：客户端（client），服务器端（Server）和控制台（console）组成，基于数据库为微软SQL Server 2005及以上。
下面以SQL Server 2005 express为例介绍详细的部署操作。
1.1.数据库安装运行数据库安装程序SQLEXPR_CHS.EXE，如下图：勾选“我接受许可条款和条件”，点击“下一步”：点击“下一步”：点击“下一步”“下一步”直到出现如下界面：请注意下面的选择，将“隐藏高级配置选项”取消勾选，如上图所示，然后点击“下一步”：点击“浏览”可以选择安装路径，然后点击“下一步”：记下上面的实例名称，默认是“SQLExpress”，该名称将会在服务器配置中使用。
点击“下一步”：勾选上面的SQL Server和SQL Browser两个服务，点击“下一步”：这里需要特别注意，请选中“混合模式（Windows 身份验证和SQL Server身份验证）。
并且输入sa的密码，建议输入一个比较复杂的密码，建议不要将密码设为123456，记下该密码。
然后点击“下一步”“下一步”：点击“安装”：点击“下一步”：点击“完成”即完成数据库的安装。
1.2数据库配置a)数据库安装好后需要进行配置，因为安装后默认没有将TCP/IP打开，将导致DSE服务器不能进行连接。
b)配置步骤：点击开始->所有程序->Microsoft SQL Server 2005-> SQL Server 配置服务器：选择SQL Server 2005网络配置下的“SQLEXPRESS的协议”，双击“TCP/IP”：运行后将已启用改成“是”，点击“确定”，接下来重启数据库的服务，让数据库运行。
点击SQL Server管理器的“SQL Server 2005 服务”：点击“重新启动”，启动完毕后，点击SQL Server 2005网络配置下的“SQLEXPRESS 的协议”，双击“TCP/IP或右键点击“属性”：在属性框上，点击“IP地址”：记下IPAll下的TCP动态端口号，这一端口号在配置服务器时需要用到。
V03 英国深海控制器 DSE6020模块操作说明书 2012年8月10日 .pdf
3.7 仪表累计........................................................ ...............................................9
DSE Model 60xx系列控制和仪表系统操作手册
目录
章节
页码
1 参考书目.................................................................................... .5
1.1 安装说明.......................................................................................................5 1.2 使用手册.......................................................................................................5
3.3 发电机电压/频率检测................................. ..... ..... ...................................7
3.4 输入 ...............................................................................................................8 3.4.1 数字输入.................................................................Байду номын сангаас..............................8 3.4.2 模拟输入................................................................................................8 3.4.3 充电失效警告输入 ..............................................................................9 3.4.4 转速传感器（MPU）........................................................................9
DSE快速使用手册
数据安全专家(DSE)企业版快速使用手册1文档概要1.1目的根据软件的各种应用场景，提供具体的使用说明，方便管理员快速使用和熟悉DSE软件。
2 使用说明2.1登陆控制台管理员双击桌面快捷图标启动DSE控制台，管理员登录控制台时，需输入DSE服务器的IP地址和端口，默认端口：5558，默认用户名为：“admin”，密码“Admin@123”（注意：字母大小写敏感），具体操作界面如下所示：图2-1 控制台登陆控制台登陆以后主界面如下：图2-2 DSE主界面首次安装，客户端默认在根组“Computer Root”下面，并继承根组的设置。
2.2设置文件自动透明加解密登陆控制台，切换到“计算机管理”中的->文件加密策略：图2-3 文件加密策略首次安装完成，默认提供word，excel，ppt三种进程的自动透明加解密，安装成功并在线的客户端机器，新建或编辑word，excel，ppt时便会自动加密，文件加密以后，文件图标上自动显示盾牌的加密图标，以示为加密文件。
您可以点击上图中的“增加”按钮，授权新的加密进程，点增加弹出如下界面：图2-4增加加密进程列表中提供常用的加密程序，选中需要加密的进程，确定，即可添加成功。
下发策略，授权的加密进程重新启动后生效。
2.3 文件加密策略中的基本策略设置2.3.1根据单个进程设置是否允许打印选中图2-3中的“已授权加密程序列表”中的单个进程，双击或点“修改”，弹出修改加密程序策略界面，如下图所示：图2-5修改加密程序策略建议使用系统默认配置策略，无需修改，默认策略是最安全的加密策略，如需针对单个进程允许打印，勾选“允许打印”，还可以设置打印水印。
勾选对应选项，确定，下发策略生效。
2.3.2全局策略设置（禁止截屏、控制剪贴板等）图2-3中页面下方的基本策略，是针对所有加密进程的全局策略，建议使用默认配置，如下图所示：图2-6基本策略您可以根据需要启用和禁用相应的策略，勾选即为启用，不勾选为禁用；保存下发策略生效。
顺手指南 - Seagate 硬盘安装指南说明书
Technical support servicesPlease read this installation guide before you install your new drive. If you are not familiar with the proceduresoutlined here, have a qualified computer technician perform the drive installation. If you need assistance installing this drive, first consult your dealer, who can help you with system conflicts and other technical issues. If you need additional assistance, use one of the services listed below,SeaBOARD: USA 408-438-8771France Germany 49-89-140-9331England Singapore 65-292-6973Thailand Australia61-2-756-2359KoreaSeaFAX: USA 408-438-2620England SeaTDD:specialist.Internet Connections:Compuserve Forum:L I M I T E D W A R R A N T Y S T A T E M E N TS e a g a t e w a r r a n t s t h a t y o u r S e a g a t e d i s c d r i v e w i l l b e f r e e f r o m d e f e c t s i n m a t e r i a l a n d w o r k m a n s h i p a n d w i l l p e r f o r m t o S e a g a t e ’s a p p l i c a b l e s p e c i f i c a t i o n s f o r S e a g a t e ’s t h r e e -y e a r w a r r a n t y p e r i o d . T h e w a r r a n t y p e r i o d w i l l b e c a l c u l a t e d f r o m t h e d a t e o f o r i g i n a lp u r c h a s e .S e a g a t e w i l l r e p l a c e , a t n o c h a r g e , a n y d r i v e t h a t d o e s n o t m e e t o u r w a r r a n t y . T h e d r i v e m u s t b e r e t u r n e d i n t h e p a c k a g i n g p r o v i d e d b y S e a g a t e w i t h t r a n s p o r t a t i o n c h a r g e sp r e p a i d t o t h e a u t h o r i z e d S e a g a t e d e s t i n a t i o n .T h i s w a r r a n t y i s v o i d i f d e f e c t h a s r e s u l t e d f r o m a c c i d e n t , a b u s e , u n a u t h o r i z e d r e p a i r o rm i s a p p l i c a t i o n .W I T H R E G A R D T O T H E E Z -D R I V E S O F T W A R E , T H E R E A R E N O W A R R A N T I E S O F M E R C H A N T A B I L I T Y O R F I T N E S S F O R A P A R T I C U L A R P U R P O S E A N D A L L S U C HW A R R A N T I E S A R E E X P R E S S L Y A N D S P E C I F I C A L L Y D I S C L A I M E D .D I S C L A I M E R : E X C E P T F O R T H E A B O V E E X P R E S S L I M I T E D W A R R A N T I E S O R C O N D I T I O N S , S E A G A T E M A K E S N O W A R R A N T I E S O N T H E P R O D U C T S , E X P R E S S ,I M P L I E D , O R S T A T U T O R Y , A N D S E A G A T E S P E C I F I C A L L Y D I S C L A I M S A N Y I M P L I E D W A R R A N T Y O R C O N D I T I O N O F M E R C H A N T A B I L I T Y O R F I T N E S S F O R A P A R T I C U L A R P U R P O S E . T h i s l i m i t e d w a r r a n t y g i v e s y o u s p e c i f i c l e g a l r i g h t s . Y o u m a y h a v e o t h e r s ,w h i c h v a r y f r o m s t a t e t o s t a t e .I N N O E V E N T W I L L S E A G A T E ’S L I A B I L I T Y O F A N Y K I N D I N C L U D E A N Y L O S T P R O F I T S ,L O S S O F U S E , L O S S O F D A T A , O R A N Y S P E C I A L , I N C I D E N T A L , O R C O N S E Q U E N T I A L D A M A G E S , E V E N I F S E A G A T E H A S K N O W L E D G E O F T H E P O S S I B I L I T Y O F T H E P O T E N T I A L L O S S O R D A M A G E . S o m e s t a t e s d o n o t a l l o w f o r t h e e x c l u s i o n o r l i m i t a t i o n o f l i a b i l i t y f o r c o n s e q u e n t i a l o r i n c i d e n t a l d a m a g e s , a s s u c h , t h e a b o v e l i m i t a t i o n s m a y n o t a p p l y t o y o u .D o c u m e n t a t i o n : S e a g a t e T e c h n o l o g y m a k e s n o w a r r a n t y o f a n y k i n d w i t h r e g a r d t o t h i s m a t e r i a l , i n c l u d i n g , b u t n o t l i m i t e d t o , t h e i m p l i e d w a r r a n t i e s o f m e r c h a n t a b i l i t y a n d f i t n e s s f o r a p a r t i c u l a r p u r p o s e . S e a g a t e T e c h n o l o g y s h a l l n o t b e l i a b l e f o r e r r o r s c o n t a i n e d h e r e i n o r f o r i n c i d e n t a l c o n s e q u e n t i a l d a m a g e s i n c o n n e c t i o n w i t h t h e f u r n i s h i n g , p e r f o r m a n c e ,o r u s e o f t h i s m a t e r i a l. S e a g a t e r e s e r v e s t h e r i g h t t o c h a n g e , w i t h o u t n o t i c e , p r o d u c to f f e r i n g s o r s p e c i f i c a t i o n s .S e a g a t e ®, S e a g a t e T e c h n o l o g y ® a n d t h e S e a g a t e l o g o a r e r e g i s t e r e d t r a d e m a r k s o f S e a g a t e T e c h n o l o g y , I n c . S e a F O N E T M , S e a T D D T M , S e a B O A R D T M a n d S e a F A X T M a r e t r a d e m a r k s o f S e a g a t e T e c h n o l o g y , I n c . O t h e r p r o d u c t n a m e s a r e r e g i s t e r e d t r a d e m a r k s o rt r a d e m a r k s o f t h e i r o w n e r s .© 1996 S e a g a t e T e c h n o l o g y , I n c . A l l r i g h t s r e s e r v e d .N o p a r t o f t h i s p u b l i c a t i o n m a y b e r e p r o d u c e d i n a n y f o r m w i t h o u t w r i t t e n p e r m i s s i o n f r o m S e a g a t e T e c h n o l o g y , I n c . P /N 21200028-001, R e v . C , A p r i l 1996I M P O R T A N T P R E C A U T I O N S•A l w a y s h a n d l e t h e d i s c d r i v e c a r e f u l l y , h o l d i n g i t s e d g e s o r f r a m e . D o n o t t o u c h t h e c o n n e c t o r s o r a n y p a r t o f t h ep r i n t e d c i r c u i t b o a r d .•K e e p t h e d r i v e i n i t s a n t i s t a t i c b a g u n t i l y o u a r e r e a d y t oi n s t a l l i t .•S e t t h e d r i v e d o w n o n l y o n a f l a t , p a d d e d , n o n -s t a t i cs u r f a c e .•T h i s d r i v e i s s u s c e p t i b l e t o d a m a g e f r o m e l e c t r o s t a t i c d i s c h a r g e . B e f o r e h a n d l i n g t h e d r i v e , g r o u n d y o u r s e l f b y t o u c h i n g t h e g r o u n d e d c h a s s i s o f y o u r c o m p u t e r . F o r o p t i m u m p r o t e c t i o n , w e a r a g r o u n d e d a n t i s t a t i c w r i s ts t r a p .•M a k e s u r e y o u r c o m p u t e r i s t u r n e d o f f b e f o r e o p e n i n g t h e c a s e . D o n o t u n p l u g y o u r c o m p u t e r i f y o u w i l l b e u s i n g i tf o r a n t i s t a t i cg r o u n d i n g .•D o n o t r e m o v e t h e d r i v e c o v e r . T h e d r i v e c o n t a i n s n ou s e r -s e r v i c e a b l e c o m p o n e n t s .•S a v e y o u r S e a g a t e p a c k i n g m a t e r i a l s f o r f u t u r e u s e .U s i n g a n y o t h e r c o n t a i n e r o r p a c k i n g m a t e r i a l v o i d s y o u rd r i ve w a r r a n t y a n d m a y d a m a g e y o u r d r i v e .Q UICK I NSTNSTALLA ALLA ALLATION TION G UIDE CFS270ACFS425ACable SelectMaster or SlaveCSC/DINSTALLATIONSteps:1.Turn off the computer and all attached peripheral equipment, such as printers and monitors.2.Remove the screws attaching the computer’s cover, and remove the cover from the system.3.Remove the drive from the ESD (Electro Static Discharge) bag, carefully placing the drive on your work surface.4.Configure the disk drive jumpers as necessary. Refer to master/slave jumper table below for more details.5.Connect the cables; align the colored striped edge of the interface cable to pin 1 of the drive interface connector.6.Partially insert the drive into the drive bay. Select an unused power connector from the power supply and connect it to the drive. If there are no unusedpower connections on the power supply, you can purchase a “Y” cable adapter from your dealer. This connector will allow you to add another power connection for your new drive.7.Now that the drives are jumpered, connected, and have power cables attached, secure the drive or the mounting frame with four 6-32x.25 screws. CAUTION:Do not use screws of excess length when attaching the drive. Damage to the drive’s circuit board could result. The maximum inser tion in bottom holes is .25”, the maximum insertion for side holes is .125”.JUMPER TABLESMaster/Slave (C/D) Jumper TableOnly drive in single drive system*=Jumper pins 1 & 2Master (C:) drive in a dual drive system*=Jumper pins 1 & 2Slave (D:) drive in a dual drive system=Remove jumper pins 1 & 2Cable Select (CS)(Refer to your system owner's manual for use of this function)Disabled*=Remove jumper pins 5 & 6Enabled=Jumper pins 5 & 6* Default settingNote: Pins 3, 4 and 7-18 are reserved and should not be used8.All Seagate ATA disk drives are low level formatted at the factory.It is only necessary to run SETUP, FDISK and DOS FORMAT.9.AT BIOS (CMOS) setup ( refer to your system owners manual):a)Many newer computers will automatically install your Seagatedisk drive. Insure that your Master/Slave (C/D) jumper is properly configured.b)If the AT BIOS supports a user definable drive type, program the BIOSto the parameters in the table below. NOTE: Precomp should be set to zero (0)for all drives and the Landing Zone should be set to the number of cylinders.c)If the AT BIOS does not support user definable drive type select a drive type that isclose to the drives parameters, but do not exceed the drives formatted capacity.d)You may use the EZ-Drive® installation utility supplied with your Seagate disk driveto do the configuration. Insert the EZ-Drive diskette into drive A:> and type EZ <ENTER>and it will automatically configure the drive.Model Heads Cylinders Sectors Capacity *CFS270A1460063270MBCFS425A1683962426MBST3541A14119863540MBST3635A16123863638MBST3851A16165263852MBST3851A116165163852MBST31081A162097631,082MBST31275A162477631,278MBST31621A163146631,623MB* 1MB = 1,000,000 Bytes10.The drive is now ready for partioning and high-level formatting with the operating system.If you did not use EZ-Drive (EZ-Drive performs these functions), 1.) partition the drive firstusing the FDISK command from MS-DOS version 3.3 or higher and 2.) high-level format thedrive using the FORMAT command from MS-DOS.EZ-Drive is the registered trademark of Micro House International, Inc.。
D3Edit HD系统安装手册_2.4
D3-Edit HD系统安装手册2008年5月目录目录 (2)前言 (4)第一部分 拆箱核对配件 (4)1．4U机箱前面板 (4)2．后面板接口图 (4)第二部分 开机检测 (6)第三部分 D3-Edit HD软件安装说明 (8)一．软件安装前的准备工作 (8)二．安装数据库 (8)三．全新安装D3-Edit HD软件 (9)第1步 (10)第2步 (10)第3步 (11)第4步 (11)第5步 (12)第6步 (12)第7步 (12)第8步 (13)第9步 (13)第10步 (13)第11步 (14)第12步 (15)第13步 (16)第14步 (16)第15步 (17)四．D3-Edit HD软件升级安装说明 (18)第1步：升级板卡驱动 (18)第2步：卸载老版本软件 (18)第3步：安装新版本软件 (19)第4步：手动升级数据库 (19)五．首次启动D3-Edit HD软件 (19)第1步：配置系统参数 (19)第2步：启动软件 (20)第3步：选择编辑格式 (21)附录1：D3-Edit HD数据库脚本说明（SQL） (22)第一节 数据库脚本升级通用操作方法 (22)第1步 (22)第2步 (23)第3步 (23)第4步 (23)第5步 (24)第6步 (24)第二节 数据库表格更新通用操作方法 (25)第三节 全新创建完整数据库操作方法 (30)第四节 软件版本对应数据库脚本升级列表 (32)附录2 基础程序的安装 (33)1 DirectX的安装与版本查看 (33)1.1 安装DirectX (33)1.2 DirectX版本查看 (33)2 安装Setup1启动程序 (35)附录3：X.MIO板卡安装说明 (36)1新驱动安装说明 (36)2驱动升级说明 (39)附录4：ATI X1950双屏设置说明 (41)前言本手册作为D3-Edit HD高标清非线性编辑系统的组成部分，所有高清非编整机出货产品均配备此系统安装手册。
SBC DSL自助安装说明书
SBC’s popular DSL self-install solution has become even easier and more convenient to use. Introduced this spring, the new self-install feature cuts the time it takes customers to complete theirinstallation and registration process in half, to about 30 minutes. In fact,the self-install process is so easy that the previous two-disk CD-ROM process has been replaced with a simple, single-disk procedure, and the 30-page instruction manual has been replaced with a single-page,bifold instruction brochure.The single-disk CD-ROM places troubleshooting capabilities directly on customers’ personal computers, ensuring that their PCs are optimized for a broadband connection. Other new features automatically test and upgrade customers’ browsers to the latest editions, configure the e-mail system for the customer, and guide the user through the registrationprocess. Later this year, additional improvem ents to the self-install solution will place diagnostic tools on customers’ PCs, enabling common setup problems to be automatically corrected. Morethan 90 percent of customers choose the self-install option.SBC Introduces Improv edSelf-Install SolutionSBC Communications Inc., the nation’s leading DSL (Digital Subscriber Line) Internet access provider,is committed to broadband and to providing customers with high-quality DSL Internet access service. In the first quarter of 2002, SBC enjoyed its strongest quarterly growth in 12 months, adding 183,000 DSL subscribers and bringing its total DSL Internet subscriber base to more than 1.5 million customers. SBC receives several thousands of orders daily and is well-positioned to accommodate significant subscriber growth, having reached a milestone of providing service from more than 6,000neighborhood broadband gateways in addition to 1,400 central offices. SBC DSL Internet access service is available to 25 million customer locations — more than 60 percent of SBC’s customers.SBC Yahoo! Offers Internet Services to Small-Business CustomersSBC and Yahoo! have expanded their strategic alliance to provide co-branded,customized DSL and dial-up services, premium Yahoo! services and other solutions tailored specifically for small-business customers. The agreementexpands the landmark strategic alliance the two companies formed last November to provide customized services toconsumers. Expected to launch early next year, the co-branded small-business dial and DSL services will include a customized portal, applications and capabilities,including many optimized for broadband.The new agreement is a natural progression of SBC’s partnership with Yahoo! and will strengthen SBC’sleadership position in the small-business market and affirm its position as a world-class voice, data communications and Internet services provider. Additionally,the alliance enhances SBC’s ability to help small businesses improve productivityand competitiveness by providing an array of services including local phone service,long distance, DSL Internet access service,Web hosting, messaging and security.M A Y 2002DSL InternetUpdateDid You Know??Building an expanded fiberoptic network is an integral component of SBC's DSL deployment. Since deployment began, more than 2 million miles of fiber optic strands have been placed across SBC’s 13-state region. If eachstrand were placed end to end, it would circle the earth at the equator more than 85 times.SBC and EchoStar Communications Corp.have announced a strategic marketing alliance that combines EchoStar’s DISH Network digital satellite televisionofferings with SBC’s DSL Internet access service to provide consumers with a convenient and competitively priced alternative to cable. SBC, through this alliance, is one of the few carriers offering full-service communications packages including high-speed DSL Internet access, DISH Network TVprogramming, local phone service, long-distance phone service in the states where it has regulatory relief and, soon, wireless phone services.Later this spring, SBC will begin offering DISH network satellite TV services. Full discounted bundles will be available beginning later in the year. Consumers who take advantage of the SBC/EchoStar bundles willreceive credits of up to $10 on monthly service charges, making SBC product offerings an attractive alternative to cable. Later this month, we anticipate regional offerings will add discounts for SBC customers who subscribe to Cingular wireless service.SBC and EchoStarJoin ForcesBusiness Broadband Watch>More than 90 percent of the small businesses reported that business gains resulting from increased productivity meet or exceed the monthly cost of DSL Internet access service.>Approximately 65 percent of the respondents said that if they were forced to cut costs in a down economy, DSL Internet access would be the last service eliminated.>Research, e-mail, online purchasing and booking travel are key uses of broadband. The fast connection enables businesses to savetime and money, contributing to overall improvements in efficiency.>Almost 50 percent of businesses believe that the Internet gives their business a competitive advantage, and more than one-third say that DSL Internet access service enables them to compete with larger companies.>DSL Internet access service opens the door for small businesses to interface with large corporations that require purchasing, payment and other transactions to be handled online.>The longer a small business has DSL Internet access service, the more it benefits from the service, creating a greater competitive advantage.The Yankee Group conducted a survey of small-business customers who use SBC DSL Internet access service and found that high-speed broadband access providesinvaluable productivity gains. Among the key findings:BroadbandGrowth ContinuesIn January 2002 and for the first time ever, Internet surfers used broadband connections more often than they used narrowband. According to a new report by Nielsen/NetRatings, broadband customers logged 1.19 billion hours,accounting for51 percent ofthe total 2.3 billion hours spentonline during themonth. Total time spent online by broadband surfersskyrocketed 64 percent year over year to 1.19 billion hours, while time spent online by narrowband surfersdecreased 3 percent from 1.18 billion to 1.14 billion hours.In addition, IDC predicts that broadband subscriptions willincrease to 43.4 million by 2005 from 11.5 million in 2001.Additionally, by 2006, 22.9 million U.S. households will have a DSL connection.Source: SBC Communications Inc.EOY2001EOY2000EOY1999EOY1998To date, SBC has made its DSL Internet access service available to nearly 25 million customers. SBC has increased its subscriber base from 3,000 customers in 1998 to more than 1.5 million customers today.3,0001,333,000767,000167,000Q1/20021,515,000SBC DSL Internet Subscriber GrowthPage 2|May 2002|SBC DSL Internet Update49%Narrowband1.14 Billion Hours51% Broadband 1.19 Billion Hours Time Spent Online。
VideoJet X10 X20 X40 服务器通道视频服务器快速安装指南说明书
VideoJet X10/X20/X40 Servidor de canal de vídeoes Guía de instalación rápidaVideoJet X10/X20/X40Información general | es 2Bosch Security Systems Guía de instalación rápida F.01U.033.683 | V3.5 | 2009.011Información generalLas instrucciones de esta "Guía de instalación rápida" hacenreferencia a las unidades VideoJet X10, VideoJet X20 yVideoJet X40. En el título aparece el modelo VideoJet X40. Enlos dibujos se muestra la versión VideoJet X40 como ejemplopara todas las versiones.Encontrará información más detallada en la ayuda en líneacompleta del dispositivo correspondiente.i ¡NOTA!Deberá familiarizarse siempre con las medidas de seguridadnecesarias en el capítulo correspondiente del manual delusuario (consulte el CD-ROM proporcionado). Encontrarátambién detalles importantes sobre la instalación y elfuncionamiento de la unidad en dicho manual. Lasinstrucciones de la "Guía de instalación rápida" sólo muestranla instalación rápida del modelo VideoJet X10, VideoJet X20 oVideoJet X40, pero no sustituyen el manual del usuariocompleto.3es | Contenido entregado VideoJet X10/X20/X402Contenido entregado–Servidor de canal de vídeo VideoJet X10, VideoJet X20 oVideoJet X40–Plantilla de perforación–Cuatro conectores–CD del producto–Guía de instalación rápidaF.01U.033.683 | V3.5 | 2009.01Guía de instalación rápida Bosch Security SystemsVideoJet X10/X20/X40Desembale el equipo | es4 3Desembale el equipo–Compruebe que el contenido del envío está completo yque no hay elementos en mal estado.–Bosch Security Systems comprobará la unidad si detecta algún daño.Bosch Security Systems Guía de instalación rápida F.01U.033.683 | V3.5 | 2009.015es | Conexión VideoJet X10/X20/X40F.01U.033.683 | V3.5 | 2009.01Guía de instalación rápida Bosch Security Systems4Conexión 4.1–VideoJet X10: conecte la cámara al conector Video In .–VideoJet X20: conecte una cámara al conector Video In 1 y la otra al conector Video In 2.–VideoJet X40: conecte una cámara a cada una de lascuatro entradas de vídeo, desde el conector Video In 1 alconector Video In 4.VideoJet X10/X20/X40Conexión | es6 4.2Conexión de los componentes de audio–Utilice las tomas Audio In y Audio Out para realizar lasconexiones de las líneas de audio.Bosch Security Systems Guía de instalación rápida F.01U.033.683 | V3.5 | 2009.017es | Conexión VideoJet X10/X20/X40F.01U.033.683 | V3.5 | 2009.01Guía de instalación rápida Bosch Security Systems4.3Conexión de los conmutadores de alarma y las conexiones con relé–Conecte los conmutadores de alarma a los terminales correspondientes.–Conecte las conexiones con relé a los terminales correspondientes.VideoJet X10/X20/X40Conexión | es 8Bosch Security Systems Guía de instalación rápida F.01U.033.683 | V3.5 | 2009.014.4–Si es necesario, introduzca un módulo SFP en la toma SFP .9es | Conexión VideoJet X10/X20/X40F.01U.033.683 | V3.5 | 2009.01Guía de instalación rápida Bosch Security Systems4.5–Conecte la unidad a la red mediante el conector ETH 1.–Si es necesario, realice una conexión de red redundante oconecte un sistema iSCSI RAID utilizando un conectorETH 2.–Conecte las líneas de alimentación a los terminales + y –.–Conecte la unidad de alimentación a la toma de corriente.Nota:Las unidades de alimentación no se incluyen en el contenido dela entrega. Puede solicitar distintos tipos de unidades dealimentación a Bosch Security Systems.VideoJet X10/X20/X40Configuración | es 10Bosch Security Systems Guía de instalación rápida F.01U.033.683 | V3.5 | 2009.015Configuración 5.1Configure la dirección IP–Instale el programa Configuration Manager desde el CD-ROM proporcionado. Si el CD-ROM no se inicia de formaautomática, haga doble clic en el archivo index.htm .–Inicie Configuration Manager cuando se haya completadola instalación. Se realiza un escaneo de la red paradetectar automáticamente dispositivos compatibles.–Cuando aparezca el dispositivo VideoJet X, haga clic en la entrada y en la ficha Network del marco derecho.–Introduzca la dirección IP que desee (p. ej., 192.168.0.40)en el campo Unit IP address y haga clic en el botón Set enla parte inferior derecha. La nueva dirección IP será válidadespués de reiniciar la unidad.11es | Configuración VideoJet X10/X20/X40F.01U.033.683 | V3.5 | 2009.01Guía de instalación rápida Bosch Security Systems5.2Prueba de la configuración–Inicie el explorador Web e introduzca la dirección IP de launidad (p. ej., http://192.168.0.40) para comprobar que launidad está conectada correctamente a la red.Nota:Establezca la tarjeta gráfica del ordenador en una profundidadde color de 16 o 32 bits. De lo contrario, el ordenador no podrámostrar imágenes de vídeo.–Utilice los enlaces de la parte superior de las páginas Web para desplazarse.Bosch Security SystemsRobert-Koch-Straße 100D-85521 OttobrunnGermanyTelefon089 6290-0Fax089 6290-1020 © Bosch Security Systems, 2009。
云峰V64快速安装指南说明书
V1.0V64Quick Installation GuideFanvil Technology Co.,LtdScreen iconKeysfeaturesDSS Keys,It canbesetaslinekey/functionkey/speed dialkey,etc.SoftkeysMessagewaitingindicatorLeft andright navigation keysUp navigation key,Shortcut to call logDown navigation key,Shortcut to StatusOK key,Shortcut to MenuHome key,go back to HomepageReturn key,go back to the previousdirectoryPhonebook keyVoice message keyIn idle mode or during ringing:increase ordecrease ringer volumeIn communication:increase or decreasehandset,headset or hands-free volumeHeadset key,activate/deactivate headsetIn idle mode:activate/deactivate silentmodeIn communication mode:mute/un-mute acallRedial key,access to redial the last recordHand-free key,activate/deactivate handsfreeHandset Cord Ethernet Cable Quick Installation Guide IP Phone Handset StandPower Adapter(Optional)Wall Stand(Buy separately)In hands-free mode Call forward activated New SMS Dialed call(s)In headset modeDisable do not disturb(Beige)New VM messages Internet connected In handset modeDo not disturbactivated(Red)Voice quality level ofcallInternet isdisconnected Mute activated SIP hotspot activated Keypad locked No IP addressSilent mode VLAN activated Forward call(s)Wireless networkconnected Call is on hold VPN activated Missed call(s)Wireless networkdisconnected Auto-answeringactivatedBluetooth devicepaired connectionReceived call(s)Wireless networkfailurePackaging listPlease follow the instructions in below picture to install the device.●Bracket desktopinstallation●Wall mounting (wall stand need buyseparately)Connecting to the devicePlease connect power adapter,network,PC,handset,and headset to the corresponding ports as described in below picture.①USB port:connect USB device (USB flash drive)②Power port:connect the power adapter.③Network port:connecting local area network or internet.④PC port:the network port connect to the computer.⑤Headset port:connect headset.⑥Handset port:connect IP Phonehandset..Using Ethernet1．The power on the device and connect the WAN port of the phone to the RJ45socket of a hub/switch or a router (LAN side of the router)using the Ethernet cable.2．The default is DHCP ing WiFi1．The power on the device and make sure the phone is idle.2．Press Menu >Basic >WLAN,Enabled the WiFi Feature.3．Press scan to search for currently available wireless network.4．Enter the available network and select the WiFi you want to connect.5．Press connect soft key and enter the appropriate password to connect to the WiFi.The default is DHCP mode.ConfigurationConfiguration via LCD menu of phone1．Press Menu >Advanced (default password 123)2．Select Network:To configure the Network Settings (IPv4/IPv6/IPv4&IPv6,DHCP/Static/PPPoE).3．Select Accounts:To configure enable the account,fill the SIP server address,port,user name,password etc.4．Save the configuration.Configuration via web1.Get the IP address from the phone:Press down navigation key,or Menu >Status >IPv4/IPv6.2.Login:Input the IP address in the web browser.The PC and phone should be in the same IP address segment (The default username and password are both ‘admin’.)3.Configure:Select network/account etc,and fill the relevant content.4.Save the configuration.Language setting1．Press Menu key >Basic >Language.2．Select the desired language and press OK soft key.Making a call1．Pre-dialing:enter the phone number and pick up the handset.2．Direct dialing:lift the handset and enter the phone number.3．Handsfree:enter phone number and press or vice versa.4．Headset:enter phone number and press or vice versa.5．Designated line:press line key,enter phone number and press dial key.Accepting a call1．Using the handset:pick up the handset.2．Using the headset:press .3．Using the handsfree:press .1．Press key,redial a call number.1．Press to Mute the microphone during the call.2．Press again to un-mute the conversation.1．Press Hold soft key,caller is put on hold.2．To retrieve the call press Resume soft key.Note:with more than one active call,select desired call with the navigator key and use the corresponding soft key to hold or resume. Attended transfer:1．Press Xfer soft key during the active conversation,the call is put on hold.2．Dial the second telephone number.3．When the call is answered,then press Xfer soft key to complete the operation.Blind transfer:1．Press Xfer soft key during the active conversation,the call will be on hold.2．Then enter the2nd telephone number and press Xfer soft key. 1．Press Menu>Features>Call Forward.2．Select the line,the type of forward,enter the destination number and status,and press OK soft key.1．Once in line with1st caller,press Conf soft key,1st caller is put on hold.2．Then call the2nd number.3．After,2nd call is established,press Conf soft key to set up the conference.1．You can configure shortcuts for the programmable keys. 2．Press Menu>Basic>Keyboard,select among the configurable items,and select your desired type and value,press OK key. 1．Press DND soft key,and enable the device do not disturb mode. 2．Or press Menu>Features>DND,and select the Mode and Type, and press OK key.1．To access your voice mailbox,press or Menu>Message> Voice Message,number of messages will be indicated if provided by your server or pbx.2．Select the line and press Play to call.1．Press Menu>Basic>Bluetooth.2．Press OK soft key to enter the bluetooth open interface.After opening,press Scan soft key to display the list of bluetooth scanned. Select any device and press connect.1．Press Menu>Basic>WLAN.2．Press OK soft key to enter the WLAN open interface.After opening,press Scan soft key to display the list of Wi-Fi scanned. 3．Press Enter soft key to enter the available Network,select the wireless network,press the Connect soft key and enter the password to connect.1．Press up navigator key or Menu>CallLog>Local Call Logs 2．Scroll through the list using navigator key.3．To dial an entry,press Dial soft key or pickup handset or press or.Access Phonebook:1．Press or Contact soft key or Menu>PhoneBook>Local Contacts.2．Select All Contacts or other group.3．To dial an entry,press Dial soft key or pickup handset or press or.Add new entry:1．Press Contact soft key,Press All Contacts or other group>Press Add.2．Enter name and number and press OK soft key.Regulatory ComplianceFederal Communication Commission(FCC)—USAThis device complies with Part15of FCC Rules.Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and(2)this device must accept any interference received;including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part15of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in residential installation.This equipmentgenerates,uses,and can radiate radio frequency energy,and if it is not installed and used in accordance with the instruction manual,itmay cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning theequipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.Warning:Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void theuser’s authority to operate the equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance of20cm between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment complies with Part68of the FCC rules and the requirements adopted by the ACTA.On the bottom of thisequipment is a label that contains,among other information,a product identifier in the format US:3I1IPNANV64.If requested,this number must be provided to the telephone company.Industry Canada Equipment Standard for Digital Equip-ment(ICES)—CanadaThis Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conformeàla norme NMB-003du Canada.Innovation,Science and Economic Development(ISED)—CanadaThis device contains licence-exempt transmitter(s)/receiver(s)that comply with Innovation,Science and Economic Development Canada’s licence-exempt RSS(s) .Operation is subject to the following two conditions:(1)This device may not cause interference.(2)This device must accept any interference,including interference that may cause undesired operation of the device.L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation,Sciences et Développementéconomique Canada applicables aux appareils radio exempts de licence.L’exploitation est autorisée aux deux conditions suivantes:(1)L’appareil ne doit pas produire de brouillage;(2)L’appareil doit accepter tout brouillage radioélectrique subi,même si le brouillage est susceptible d’en compromettre le fonctionnement.This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance of20cm between the radiator and your body.Cetéquipement est conforme aux limites d’exposition aux rayonnements ISEDétablies pour un environnement non contrôlé.Cetéquipement doitêtre installéet utiliséavec un minimum de20cm de distance entre la source de rayonnement et votre corps.This device and it’s antennas(s)must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with IC multi-tra nsmitter product procedures.Cet appareil et son antenne(s)ne doit pasêtre co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur.This product meets the applicable Innovation,Science and Economic Development Canada technical specifications.Le présent produit est conforme aux spécifications techniques applicables d’Innovation,Sciences et Développementéconomique Canada.Fanvil Technology Co.,LtdWebsite:EMail:**********************************Tel:+86-755-2640-2199Fax:+86-755-2640-2618Add:10/F Block A,Dualshine Global Science Innovation Center,Honglang North2nd Road,Bao'an District,Shenzhen,China。
迅软数据安全(DSE)解决方案new
DSE管理中心 服务器
工作站 (客户端)2
…
公司外部
无法加打密开文或件打外开发为未乱授码权外部计算机
能正常打开加并密可文编件辑外返发回
已授权外部计算机
3.DSE主要功能
主要功能
主要功能类型
说明
透明加密 加密类型 USB控制 业务审批 密文保护 部门隔离 外发控制 离线控制 高级权限 个人模式 文件备份 日志审计
DSE采用了“远程控制、集中
管理、统一配置”的方式，拥有先
进的分布式计算技术，成功的实现
了智能安装、组策略管理、自动升
级、远程设置、统一设置等功能，
为企事业单位的信息安全建设增添
一道有力的屏障。
客户端执行原理图
合法 进程
非法 进程
加载 加密文件
底层 驱动
是合法
否
DSE网络架构图
公司内部网络
工作站 (客户端)1
合法离网正常使用
合法离线脱机
合法 出口
密文外发
非法 出口
乱 竞争对手窃密
员工离职拷贝
内部有意无意
码 泄密
间谍、黑客 窃密
设备丢失
非法脱机
文件透明加密操作界面
安全进程配置模块
鼠标拖动程序 的EXE文件到 “添加加密文 件类型”对话 框
加密的文件类 型可以设置
还可选择“导入 校验值”、“浏览” 或“选择正在进 行的进程”添加
和计算机的文件格式、应用程序，在不知不觉中用户保存的文档，自动加密。软件对于用户而言是透明
的，是不存在的，但实际上为企业修建了一道严密的防御体系，时时刻刻保护着企业宝贵的知识财产。
加密后的文件在企业内部流通一切正常，非法流传到企业外部的加密文件，打开文件看到的只是乱码或
Eaton LifeSense Wired System 快速安装指南说明书
2EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014Table of Contents LifeSense Wired System Quick Setup GuidePart Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 4Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Hose Assembly Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 9Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 - 11Each LifeSense kit contains:IMPORTANT : Before you begin the installation of your LifeSense system read through the safety instructions in this guide. For more detailed instructions on installing your system please refer to the complete LifeSense Assembly, Installation and Service Manual (E-HOOV-TI001-E2) available on Eaton's literature library (/literature/). Hard copies of the catalog are available through Workflow One (WFO), using the Customer Connect portal, Distributor Resources, Literature. If you are unable to access the literature ordering site please contact WFO by calling ******************************************************and WFO will walk you through the process.• LifeSense hose assembly (at least one and up to 11) o Sensor assembly (one per hose assembly) o Protective sleeve (one per hose assembly)• Hose diagnostic unit (1) o Orange wire wedges (2) o Power harness and grey Deutsch connector (1) o Black Deutsch connector (1) o Socket Deutsch connectors (2)• Cable assembly (one per hose assembly)Part Listing8EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 20143Part ListingItem No.Qty. Req'd.Description Part Number Material 16Nut FF91117C-33-01Stainless Steel21Upper Shell Assembly, -08 Size FF91117SU-08-01* Black Nylon 6-61Upper Shell Assembly, -12 Size FF91117SU-12-01* Black Nylon 6-61Upper Shell Assembly, -16 Size FF91117SU-16-01* Black Nylon 6-6/Overmold Gasket 32Gasket, -08 Size FF91117C-36*Black Santoprene 111-45 2Gasket, -12 Size FF91117C-70*Black Santoprene 111-45 41Shell- Lower Half, -08 Size FF91117C-48*Black Nylon 6-61Shell- Lower Half, -12 Size FF91117C-57*Black Nylon 6-61Shell- Lower Half, -16 Size FF91117C-63-01*Black Nylon 6-6/Overmold Gasket 56Panhead Machine Screw, -08 & -12 Size FF91117C-68-01Stainless Steel66Thread Rolling Screw, -16 Size FF91117C-71-01Stainless Steel71Heat-Shrink Tubing For -08FF91117PS-08-01 Polyolefin1Heat-Shrink Tubing For -12FF91117PS-12-01Polyolefin1Heat-Shrink Tubing For -16FF91117PS-16-01Polyolefin 81Cable Assembly (10 Ft.)FF91117CA-010PVC Jacket1Cable Assembly (50 Ft.)FF91117CA-025PVC Jacket1Cable Assembly (25 Ft.)FF91117CA-050PVC Jacket1Cable Assembly (100 Ft.)FF91117CA-100PVC Jacket 91HDU Assembly FF91117-01--101HDU Power Harness FF91117C-19*--1122Sealing Plug FF91117C-31*--121HDU Black Connector FF91117C-29*--132Wedge Lock For 12 Contacts FF91117C-30*--*Part not sold separately.4EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 20145EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014Safety Instructionstings (U.S. Patent No. 7,555,936 and 8,183,872). Only the specified LifeSense hose and fittings can be used in this system. DO NOT use other Eaton hose and hose fittings (e.g., Aeroquip, Weatherhead, or SEL), or hose and hose fittings supplied by another manufacturer with this system. Eaton hereby disclaims any obligation or liability (including incidental and consequential damages) arising from breach of contract, warranty, or tort (under negligence of strict liabil-ity theories) should other Eaton hose and hose fittings, or hose and hose fittings supplied by another manufacturer be used interchangeably with this system, or in the event that production, assembly, or installation instructions for each specified component of Eaton LifeSense are not followed.WARNING Failure to follow process and product instructions and limitations could lead to premature hose assembly failures, resulting in property damage, serious injury or death.WARNING Eaton LifeSense is designed to provide advance warning of impending failures due to fatigue and external abrasion. Eaton LifeSense is not designed toprovide advance warning of impending failure for everyfailure mode . For example, failures due to an improper installation of the terminal end to the application will not be alerted by LifeSense.WARNING Verify that the specified equipment is depressurized before installing a hose assembly.PREVENT UNAUTHORIZED OPERATION. Do not permit anyone to operate the LifeSense system unless they have been properly trained and have read and thoroughly understand this manual.PREVENT UNAUTHORIZED SALES, ASSEMBL Y , INSTALLATION AND SERVICE. Do not permit anyone to sell, assemble, install or service LifeSense hose assemblies and system unless they have been properly trained.WARNING WEAR SAFETY GLASSES 1. Install the hose assembly into the application utilizing standard hose routing practices. 2. All wiring terminals should be properly insulated to prevent short circuits. All terminals should be of insulation grip design to provide a reliable connection and to prevent terminal fatigue.3. T erminals that are connected where moisture may be present should be of a moisture resistant design. Molded insulators for ring terminals should be used. Molded connectors/ insulators are recommended for use with blade or pin type terminals.4. Cable routing should avoid areas where temperatures exceed +105°C (+221°F) and a minimum clearance of 100 mm (4.0”) should be maintained from exhaust system components. Where compliance for this requirement is not possible, heat insulation and heat shields are required.5. The hose diagnostic unit (HDU) shall be mounted in a location that is easily viewable by the equipment operator.6. Routing cable into wheel splash areas should be avoided. When such routing cannot be avoided, adequate clipping or protective shielding is required to protect from stone and ice damage.7. Routing cable under the frame side-members or at points lower than the bottom frame flange should be avoided to prevent damage to the wires in off-road operations.8. Never add another circuit or splice to the LifeSense hose cables or power cable.9. Never puncture cable insulation with a probe to verify voltage or to check continuity.10. Exposed ring terminals for the power supply circuit should be protected from the environment. Dielectric grease is recommended to prevent corrosion.6EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014Step 1: Depressurize Hydraulic SystemWARNING: Before installing any hose assembly first verify the equipment has been properly depressurized.For depressurization instructions please refer to the equipment owner's manual for specific instructions.Step 2: T urn Off Power Supply Be sure power supply to the equipment is turned off. For proper instructions refer to the equipment owner's manual and/or utilize a certified electrician.Step 3: Disconnect Existing Hose Assembly Using the appropriate size wrench disconnect existing hoseassembly from equipment.Step 4: Hose Assembly LifeSense Kit(s) Purchased from Eaton: LifeSense kits supplied by Eaton include complete hose assemblies with the protective sleeve and sensor installed.Certified LifeSense Distributors: Only certified LifeSense Distributors are authorized to make LifeSense hose assemblies. For detailed LifeSense hose assembly instructions refer to the LifeSense Assembly, Installation and Service Manual (E-HOOV-TI001-E2).Before numbering and installing the hose assemblies determine where each hose will be located on the piece of equipment. Verify you have enough cable length to reach the mounting location of the HDU from each sensor once the hose assembly is installed.Step 5: Number Hose Assemblies Using a paint pen or indelible marker, and the labels provided (part number PT2351), number each hose assembly one (1) through eleven (11) depending on the number of hoses beingconnected to the diagnostic unit.Step 6: Number Cable Assemblies Number each cable assembly to its corresponding hose assembly. Step 7: Connect Cable to Sensor Pig T ail Take cable and connect it to sensor pigtail until tab snaps intoplace. Repeat for all hose assemblies. As hose assemblies and sensors are mated, record on a piece of paper, or in an electronic spreadsheet, each hose assembly’s location on the equipment, its function, and corresponding hose/sensor number. This will aid in future hose replacement and service support. Step 8: Install LifeSense Hose Assembly Note: Utilize standard hose routing and plumbing practices.Starting at one end of the LifeSense hose assembly attach hose to equipment. T orque terminal end nut to the required torque specifications.Refer to Eaton Aeroquip or Weatherhead master catalogs forproper torque specifications by terminal type and size.Step 9: Secure Cable to Hose or Equipment Each cable should be positioned, routed, and restrained in such a manner to protect it from being damaged by an external force or caught by, or entangled in, movable parts.Repeat steps 8 and 9 for all hose assemblies.Step 10: Install Hose Diagnostic Unit (HDU) Mount the HDU in a location that is easily visible to the equipment operator using adhesive Velcro strips or mountingscrews.WARNING: The HDU must be installed inside a vehicle cab or other protective area that shields if from the effects of an external environment.Hose Assembly Installation7EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-EAugust 2014Step 11: Coiling or T rimming Excess CableGather all routed cables together. Excess cable can be either coiled and zip tied or can be cut to length.If cutting to length, two (2) additional Deutsch connectors are provided with each cable assembly and must be attached to the trimmed cable wires utilizing a Deutsch crimp tool.Cutting Cable to Length -- if coiling extra cable is undesirable; determine how much extra cable can be trimmed while still maintaining enough length to connect to the diagnostic unit. A minimum length of 15.2 to 30.4 cm (6 to 12 in) is recommended.Mark each cable where it can be trimmed. If the cable identification number falls within the trim portion remark the cable with its identification number at a location prior to the trim mark. Using side cuts cut excess cable length at trim mark. Discard excess cable.Stripping Cable -- beginning at the end of the trimmed cable measure down 5.1 cm (2 in) and place a mark on the outer cable cover with an indelible marker. Using a utility knife make a 5.1 cm (2 in) vertical cut through the outer grey protective cable cover between the black and white wires.At the base of the vertical cut just made, make a horizontal cut circumferentially through the outer protective cable cover taking care not to cut into the protective black or white wirecover. Discard piece of grey cable cover. Measuring from the tip of the exposed wires, strip away between 3.96 to 5.54 mm (0.156 to 0.218 in) of the black and white protective coating using a wire stripping tool. Repeat foreach cable in the systemInstalling Deutsch Connectors -- Starting with either the black or white wire, slide one of the two (2) provided Deutsch connectors over the exposed copper wire. Verify wire is visible in the inspection hole and the maximum exposed wire between the contact and wire jacket is between 0.63 to 2.54 mm (0.025 to 0.100). While holding the Deutsch connector in place crimp connector to copper wire. Repeat step forremaining wire.Step 12: Connect Cables (“Hoses”) to Hose DiagnosticUnit (HDU)Beginning with the grey connector - grey connector connects hoses one through five -- remove connector from the top of the HDU. Using a pair of needle nose pliers remove theorange wedge from the opposite end of the connector.Next remove the appropriate number of red seal inserts fromthe top of the connector. Discard seal inserts.Hose Assembly Installation8EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014Hose Assembly InstallationInsert both wires from cable number one (i.e., hose assembly one) into the first wire port of the grey wedge connector at the position illustrated (see figure below), by pushing the metal Deutsch pin into the pin port until it tangibly snaps into place. Continue connecting cable wires into the wedge connector(s), in numerical order, until all cables (i.e., hose assemblies) have been connected.If more than five hose assemblies are being connected to thediagnostic unit repeat these steps for the black connector.Record the channel location for each cable/hose on the samehose record created in step seven (7).After all cables are inserted into the Deutsch connectorsinsert the orange wedge back into the opposite end of theconnector.Step 13: Insert Connectors into Hose Diagnostic Unit(HDU)After all cables are inserted into the grey and/or blackconnector(s), insert the grey wedge into the correspondinggrey port on the top of the diagnostic unit until tabs on side ofconnector click into place. Insert the black wedge into the corresponding black wedgeport on the top of the diagnostic unit until tabs on side of thewedge snap into place.Step 14: Connect Hose Diagnostic Unit (HDU) to Power Source WARNING: The power cable must be connected to a 12- or 24-volt DC power source. Before proceeding ensure the power source is turned off. Connecting to a power source should only be performed by someone with knowledge and training in electrical systems and principles.Connect the red and black power cable to a 12- or 24-volt DC power source.T urn on power supply to equipment, as a described in theequipment owner's manual.Step 15: Hose Diagnostic Unit (HDU) Cycle CheckThe power light on the diagnostic unit will illuminate green when power is supplied to the unit. Upon startup all 11 hose lights will flash sequentially.9EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014Hose Assembly InstallationThe hose diagnostic unit is shipped from the factory in “installation mode” and on initial power up will detect which hoses are connected. These hoses will then illuminate for five (5) seconds to verify they are installed.If the HDU is powered before all hoses are installed it will need to be put back into install mode to identify the hoses.T o put the HDU back into install mode press the reset button until all LEDs start flashing, then power down the unit. The HDU is now in install mode and will detectwhich hoses are connected on its next power up.If the green power light on the diagnostic unit does notilluminate, the hose lights do not successfully go through theinitial sequence as previously described, or if the hoses arenot detected, please refer to the troubleshooting guide, page#10 - #11 for further instructions.Step 16: Re-pressurize the Hydraulic SystemFor system pressurizing instructions please refer to yourequipment owner's manual for specific instructions.TroubleshootingIssue StepsGreen LED light on diagnostic unit is not illumi-nated.Check fuse on the diagnostic unitpower harness.If the fuse is bad replace it with a two (2) ampmini fuse only.If the fuse is good proceed to next step. Measure the voltage between pins six(6) and seven (7) on the grey powerharness connector.NOTE: Pin six (6) is ground. Pin seven(7) is power.Voltage should read the same as the input volt-age (between 9-32V). The reading should bepositive.If a negative voltage reading results the connect-ing wires are reversed.If the voltage is within the correct range the diag-nostic unit needs to be replaced.If there is no voltage reading proceed to nextstep.Follow the wiring harness and connec-tions to the power supply.Determine where the loss of power originates.Green LED power light is on but no LED test cycle is performed.Disconnect the diagnostic unit frompower. Wait 15 seconds and recon-nect.If the LED test is still not initiated the diagnosticunit needs to be replaced.Flashing red LED light indicating a sensor is losing connection.Check connection of the sensor to thehose fitting.Rotate the sensor housing around the fitting toverify contact.Push the reset button on the diagnostic unit forone (1) second. Wait two (2) minutes and verifythe flashing red light does not return.If red LED light continues to flash,disconnect sensor, and remove fromhose fitting.Check for any contamination or damage to theribbon contacts.If contamination is present, remove contamina-tion and connect the sensor back to the hosefitting. Push the reset button on the HDU for one(1) second. Wait for two (2) minutes and verifythe flashing red light does not return.If the ribbon contacts are damaged replace thesensor.Check Deutsch connectors on thediagnostic unit for a loose or not fullyseated connection.Push the reset button on the HDU for one (1)second. Wait for two (2) minutes and verify theflashing red light does not return.Check the cable routed from the HDUto the sensor.Look for any damage to the cable. Replace cableif damage is present.A red LED light indicates a failed hose error immediately after install.Verify the white wire is connectedinto the positive or top input of theDeutsch connector and the black wireis connected to the ground or bottominput of the Deutsch connector.Push the reset button on the HDU for one (1)second. Wait for two (2) minutes and verify thered light does not return.Connect the cable into a differentinput on the HDU.Push the reset button on the HDU for one (1)second. Wait for two (2) minutes and verify thered light does not return.Check the cable routed from the HDUto the sensor. Look for any damage tothe cable.Replace cable if damage is present.10EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014TroubleshootingDisconnect the cable assembly from the HDU and the sensor, measure the resistance between the black and white cables on the cable assembly.If the resistance is less than 100 ohms, replace cable assemblyRemove the sensor from the hose assembly and measure the resistance between the fitting socket and the fit-ting terminal end. If the measurement is less than 100 ohms, replace hose assembly.Red LED light for installed hose does not stay lit for five (5) seconds at start up.Put the HDU in install mode to detectthe hose by pressing the reset buttonuntil all hose LEDs are flashing, thendisconnect the unit from power, wait15 seconds and then reconnect.Verify the hose shows up during the five (5)seconds at startup.Check connection of the sensor to thehose fitting.Rotate the sensor housing around the fitting toverify contact. Run install mode on the HDU todetect the hose and verify it lights up during thefive (5) seconds at startup.If the HDU continues to not displaythe hose at startup disconnect sen-sor and remove from the hose fitting.Check for any contamination or dam-age to the ribbon contacts.If contamination is present, remove contamina-tion and connect the sensor back to the hosefitting. Run install mode on the HDU to detectthe hose and verify it lights up during the five (5)seconds at startup.Check the Deutsch connectors on theHDU for a loose or not fully seatedconnection.Run install mode on the HDU to detect the hoseand verify it lights up during the five (5) secondsat startup.Check the cable routed from the HDUto the sensor. Look for any damage tothe cable.Replace cable if damage is present.Issue Steps11EATON LifeSense Wired System Quick Setup Guide E-HOOV-II001-E August 2014EatonHydraulics Group USA 14615 Lone Oak Road Eden Prairie, MN 55344 USATel: 952-937-9800 Fax: 952-294-7722EatonHydraulics Group EuropeRoute de la Longeraie 71110 MorgesSwitzerlandTel: +41 (0) 21 811 4600Fax: +41 (0) 21 811 4601EatonHydraulics Group Asia PacificEaton BuildingNo.7 Lane 280 Linhong RoadChangning District,Shanghai 200335ChinaTel: (+86 21) 5200 0099Fax: (+86 21) 2230 7240© 2014 EatonAll Rights ReservedPrinted in USADocument No. E-HOOV-II001-E August 2014。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
数据安全专家(DSE)企业版快速安装手册
1.数据库
DSE系统为C/S架构，由三大网络元素构成：客户端（client），服务器端（Server）和控制台（console）组成，基于数据库为微软SQL Server 2005及以上。
下面以SQL Server 2005 express为例介绍详细的部署操作。
1.1.数据库安装
运行数据库安装程序SQLEXPR_CHS.EXE，如下图：
勾选“我接受许可条款和条件”，点击“下一步”：
点击“下一步”：
点击“下一步”“下一步”直到出现如下界面：
请注意下面的选择，将“隐藏高级配置选项”取消勾选，如上图所示，然后点击“下一步”：
点击“浏览”可以选择安装路径，然后点击“下一步”：
记下上面的实例名称，默认是“SQLExpress”，该名称将会在服务器配置中使用。
点击“下一步”：
勾选上面的SQL Server和SQL Browser两个服务，点击“下一步”：
这里需要特别注意，请选中“混合模式（Windows 身份验证和SQL Server身份验证）。
并且输入sa的密码，建议输入一个比较复杂的密码，建议不要将密码设为123456，记下该密码。
然后点击“下一步”“下一步”：
点击“安装”：
点击“下一步”：
点击“完成”即完成数据库的安装。
1.2数据库配置
a)数据库安装好后需要进行配置，因为安装后默认没有将TCP/IP打开，将导致
DSE服务器不能进行连接。
b)配置步骤：
点击开始->所有程序->Microsoft SQL Server 2005-> SQL Server 配置服务器：
选择SQL Server 2005网络配置下的“SQLEXPRESS的协议”，双击“TCP/IP”：
运行后将已启用改成“是”，点击“确定”，接下来重启数据库的服务，让数据库运行。
点击SQL Server管理器的“SQL Server 2005 服务”：
点击“重新启动”，启动完毕后，点击SQL Server 2005网络配置下的“SQLEXPRESS 的协议”，双击“TCP/IP或右键点击“属性”：
在属性框上，点击“IP地址”：
记下IPAll下的TCP动态端口号，这一端口号在配置服务器时需要用到。
例如上图IPAll下的TCP动态端口为：1110，这就是数据库服务器的端口，即以后服务器连接的端口。
2. DSE Server安装
双击DSE安装包中的“Server_Setup.exe”：
选择安装语言后，点击“OK”：
点击“下一步”：
点击“我接受”：
其中有一个选项“安装成服务”，这个选项默认选中，表示将服务器安装到系统服务中，并且随着Windows自动启动。
勾选完，点击“下一步”：
点击“浏览”选择安装目录，单击“下一步”，选择“开始菜单”文件夹（下图为默认文件夹）：
点击“安装”：
弹出机器码
将机器码拷贝下来发给销售做授权文件，点关闭，接下来弹出配置界面
在这里您可以配置服务器端口（客户端连接服务器的端口）和Web服务器端口（客户端升级的端口）以及设定客户端状态检测时间。
需要注意的是：默认服务器端口号：5558，Web服务器端口号：5580，这两个端口若未被占用，则无需修改。
如果您修改了端口配置，那么客户端也应该修改成相应的配置，否则客户端将不能连接到服务器。
客户端状态检测间隔时间可以设置30秒以上，默认为600秒。
数据库服务器：填写格式为：“数据库服务器IP地址，端口号”。
这里的端口号是数据库SQLEXPRESS中TCP/IP的端口号，在配置数据库1.1.2中有说明。
数据库名：默认为DSEDB，也可以自行修改。
用户名和密码:为安装数据库时，采用混合模式（Windows 身份验证和SQL Server
身份验证）的用户名为“sa”，密码为您自行修改的密码。
例如安装过数据库机器的IP地址是：192.168.1.112，TCP的动态端口号为：1110。
那么在“数据库服务器”中应该填写：“192.168.1.112,1110”如下图：
输入“sa”的密码，点击“测试连接”：
“测试连接成功”（若测试连接失败请检查“数据库服务器”以及“sa”的密码等输入是否正确）。
“测试连接成功”之后点击“确定”：
这里将提示您是否保存服务器的配置设置，请点击“是”：
若是第一次配置，则会提示“创建数据库成功”
：
这里将提示您刚才设置的配置重新启动服务器后生效。
点击“确定”：
到此server已经安装成功，安装成功以后需要导入授权文件，server才能启动。
从计算机的开始所有程序，找到DSE Server菜单项，点开“配置服务器”切换到导入授权页面：
Import lic File，授权导入成功，再找到所有程序中的DSE Server菜单项，启动服务器，DSE 服务器即可正常启动。
3.控制台安装
运行Admin_Setup.exe：
选择安装语言后，点击“OK”：
点击“下一步”：
点击“我接受”：
这里如果您勾选“帮助”，那么在控制台上您可以打开帮助文档。
点击“下一步”：
这里选择好“目标文件夹”后，点击“下一步”：
点击“安装”：
点击“完成”。
至此，控制台已经安装完毕。
4. DSE客户端安装
运行DSE安装包中的ClientCustomPackage.exe：
主服务器地址：DSE主服务器IP地址或主机名。
备服务器地址：备服务器IP地址或主机名（可以为空）。
连接端口和升级端口：与服务器配置一致
静默安装：勾选此项，双击生成的客户端安装程序即可安装完成，所有安装操作后台运行，安装很简便；不勾选此项，则双击安装程序需要分步安装。
创建快捷方式：勾选此项，生成的客户端安装程序，安装后在开始菜单中将创建客户端快捷方式，包括“卸载”选项以及“DSE客户端认证”和“DSE高级客户端”快捷方式。
取消勾选，则反之。
文件存放路径：选择生成的客户端安装文件的存放路径。
配置好各项后，点击“生成”：
提示您如果需要通过web方式安装，则需要将生成的安装文件client_Setup_repack.exe复制到服务器的安装目录的web文件夹下，例如默认的复制到C:\Program Files\DSE\Server\web下。
点击“确定”：
点击“完成”，在上面设置的“文件存放路径”中就可以找到存放的“客户端安装文件”，其名称为client_Setup_repack.exe。
在客户端机器上打开浏览器，输入服务器IP地址和端口号，即可web下载安装，例如：http://192.168.1.10:5580.
4.1直接到客户端机器安装
双击安装文件client_Setup_repack.exe：
选择安装语言后，点击“OK”：
点击“下一步”：
点击“下一步”：
点击“安装”：
详细的安装说明请参考《DSE安装部署指南》。
