META_SLS激光传感器操作说明
动态激光散射仪操作规程
动态激光散射仪操作规程（Wyatt GPC/SEC - MALS）一试验前准备1溶剂准备水相体系准备：超纯水或配制其它盐溶液〜1L,并使用0.22um滤膜过滤（必须含0.02%NaN3抑菌剂）。
有机相体系准备：HPLC级溶剂；建议使用0.22um滤膜过滤（进口试剂视具体情况而定）。
2样品准备浓度配制（定量环lOOuL）:分子量〜lOOOkda ： 0.5 - lmg mL ；分子量〜lOOkda : 1 - 2mg/mL ；分子量〜lOkda : 3・5mg/niL ；分子量〜5kda : 5・lOmg/mL。
3检查仪器电路连接检查仪器电源线是否连接，电源开关、交换机（适用于信号连接通过网线的情形）是否打开。
二仪器系统开机及平衡操作1分别依次打开泵、柱温箱（设定温度）、进样系统（手动/自动进样器）、示差或紫外检测器、粘度检测器、多角度激光光散射检测器电源及计算机。
待仪器正常开机后，打开工作站Astra软件。
2开启泵使用超纯水purge泵〜5min ；关闭purge阀。
冲洗系统。
待系统平衡完毕，使用最新配制的流动相冲洗系统。
（注：有机体系：直接使用流动相冲洗系统）3将其流速调至O.linL/miii （若接入粘度检测器，必须待粘度检测器进入工作界面才能开启泵的流速，且IP&DP处于purgeon）；若系统中未接入GPC/SEC柱，可直接将流速调至0.1- l.OmL/min冲洗系统（无粘度检测器）,示差检测器purge阀必须处于“Purge On"状态。
若系统中已接入GPC/SEC柱，则必须以O.lmVmiii的起始流速.每1-2分钟提高0.1ml 的速度将流速调整至0.4 - 0.5 mL/min,充分平衡系统；（注：为了使系统充分平衡，建议提前一天冲洗和平衡系统；第二天开始试验（水相系统）。
对于有机相体系，一般平衡时间在3 -12h）。
三试验操作及数据采集与处理1待系统充分平衡。
反射式激光对射使用说明书

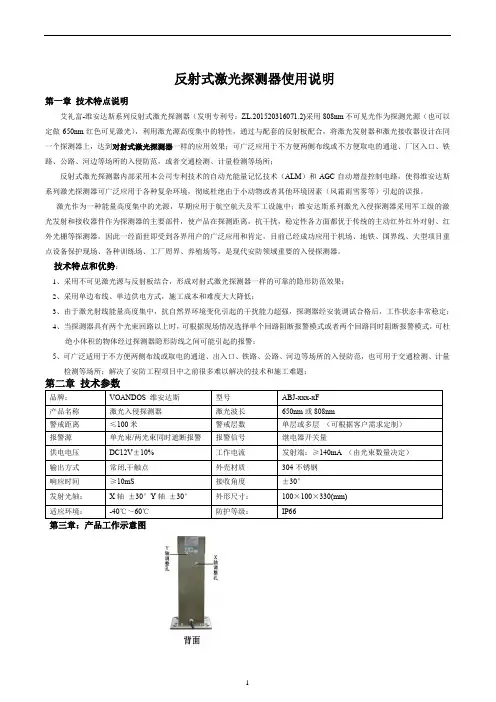

反射式激光探测器使用说明第一章技术特点说明艾礼富-维安达斯系列反射式激光探测器（发明专利号：ZL.201520316071.2)采用808nm不可见光作为探测光源（也可以定做650nm红色可见激光），利用激光源高度集中的特性，通过与配套的反射板配合，将激光发射器和激光接收器设计在同一个探测器上，达到对射式激光探测器一样的应用效果；可广泛应用于不方便两侧布线或不方便取电的通道、厂区入口、铁路、公路、河边等场所的入侵防范，或者交通检测、计量检测等场所；反射式激光探测器内部采用本公司专利技术的自动光能量记忆技术（ALM）和AGC自动增益控制电路，使得维安达斯系列激光探测器可广泛应用于各种复杂环境，彻底杜绝由于小动物或者其他环境因素（风霜雨雪雾等）引起的误报。
激光作为一种能量高度集中的光源，早期应用于航空航天及军工设施中；维安达斯系列激光入侵探测器采用军工级的激光发射和接收器件作为探测器的主要部件，使产品在探测距离，抗干扰，稳定性各方面都优于传统的主动红外红外对射、红外光栅等探测器，因此一经面世即受到各界用户的广泛应用和肯定，目前已经成功应用于机场、地铁、国界线、大型项目重点设备保护现场、各种训练场、工厂周界、养殖场等，是现代安防领域重要的入侵探测器。
技术特点和优势：1、采用不可见激光源与反射板结合，形成对射式激光探测器一样的可靠的隐形防范效果；2、采用单边布线、单边供电方式，施工成本和难度大大降低；3、由于激光射线能量高度集中，抗自然界环境变化引起的干扰能力超强，探测器经安装调试合格后，工作状态非常稳定；4、当探测器具有两个光束回路以上时，可根据现场情况选择单个回路阻断报警模式或者两个回路同时阻断报警模式，可杜绝小体积的物体经过探测器隐形防线之间可能引起的报警；5、可广泛适用于不方便两侧布线或取电的通道、出入口、铁路、公路、河边等场所的入侵防范，也可用于交通检测、计量检测等场所；解决了安防工程项目中之前很多难以解决的技术和施工难题；第二章技术参数品牌：VOANDOS 维安达斯型号ABJ-xxx-xF产品名称激光入侵探测器激光波长650nm或808nm警戒距离≤100米警戒层数单层或多层（可根据客户需求定制）报警源单光束/两光束同时遮断报警报警信号继电器开关量供电电压DC12V±10% 工作电流发射端：≥140mA （由光束数量决定）输出方式常闭,干触点外壳材质304不锈钢响应时间≥10mS 接收角度±30°发射光轴：X轴±30°Y轴±30°外形尺寸：100×100×330(mm)适应环境：-40℃～60℃防护等级：IP66第三章：产品工作示意图说明：需要进行发射机光束角度调整时，请先用螺丝刀拧开X/Y轴调整孔防水螺丝，然后用3mm一字螺丝刀伸入调整孔内进行调节第三章：安装调试1、根据需要防范的区域选好设备安装点；2、用自攻螺钉将反射板固定在和激光探测器的对面预定安装位置，反射板尽量保持垂直；将激光探测器在预定的安装位置上简单固定；连接好电源线和信号线（红色接DC 12V 正极，黑色接DC12V 负极，绿色、黄色为常闭信号输出，接报警主机或者其他控制设备）；3、由于反射式激光探测器采用的是808nm不可见激光作为探测器光源，为了提高调试效率，建议用户在傍晚或者晚上光线暗淡的时候进行调试，调试前请准备好一张A4大小白色纸板，小一字螺丝刀，十字螺丝刀，活动扳手等工具；4、对激光探测器通电（电源电压DC12V ),在探测器侧面可见探测器发射窗内有淡红色的激光；观察激光探测器蓝色的信号指示窗，如果信号指示窗内蓝色指示灯点亮，表示探测器接收窗没有收到反射回来的激光信号；5、拿一张A4大小的白色纸板以直立方式在探测器前方2米左右上下左右移动，纸板上是否有红色条状激光斑，当纸张上出现条状红色光斑，表示激光探测器发出的激光射线与纸板位置在一条直线上；测试者保持纸板直立，边往后退，边观察纸板上的光斑；在15米左右处，观察探测器---纸板----反射板是否在一条直线上，如果不是在一条直线上，请拔出探测器背面的X轴、Y轴调整螺丝孔的胶塞，用一字螺丝刀伸入调整孔内，调整X轴或者Y轴的调整螺丝，探测器的激光射线会随着手动调整，左右或者上下移动；边调整边观察，如果观察到激光射线与反射板在一条直线上，就暂停调整；6、测试者继续拿纸板往后退，保持激光射线光斑在纸板上可见，一直退到反射板附近，如果此时白纸板上的激光射线光斑位置与反射板位置明显不符，继续调整探测器X轴或Y轴的调整螺丝，直至激光射线光斑刚好投射在反射板上；只要激光射线投射到反射板上，激光射线就会被反射板反射回到激光探测器端，此时激光探测器上的蓝色指示灯就会熄灭，表示激光探测器已经收到反射回来的激光信号。
【精品】激光对准仪使用说明书
激光对准仪使用说明书TMEA1、TMEA1P、TMEA1PEX系列金风科技股份有限公司2003年9月目录1安全要求2介绍3工具4使用说明5结果输出6高级用法7维护1安全要求1.1TMEA1、TMEA1P系列的要求开始工作前务必关闭驱动仪器的电源开关勿将仪器暴露在有尖锐手柄和重型冲击的环境中通读操作说明并严格遵守本仪器使用两个输出功率在一毫瓦以下的激光二极管，切勿直接凝视激光发射器。
经常性地校准仪器勿将激光束对准人的眼睛打开测量单元的外壳可能导致有害光线外泄，将使保证书失效在有爆炸危险的场合不应使用本仪器勿将仪器暴露在高湿度的环境下，仪器勿直接接触水1.2所有的维修工作都应由SKF维修店来操作1.3TMEA1PEX系列的要求开始工作前务必关闭驱动仪器的电源开关勿将仪器暴露在有尖锐手柄和重型冲击的环境中通读操作说明并严格遵守本仪器使用两个输出功率在一毫瓦以下的激光二极管，切勿直接凝视激光发射器。
经常性地校准仪器勿将激光束对准人的眼睛打开测量单元的外壳可能导致有害光线外泄，将使EX比率和保证书失效打开显示单元将使EX比率和保证书失效勿将仪器暴露在高湿度的环境下，仪器勿直接接触水仪器只能在经过证明的固有安全区内使用勿将打印机带入固有安全区在固有安全区内勿拆卸和更换显示单元的电池勿将手提箱带入固有安全区只能使用指定类型的电池，详见第三章所有的维修工作都应由SKF维修店来操作2介绍机器轴类零件的精确对准极其重要，它避免了轴承的过早失效、轴的疲劳、密封和震动等问题的发生，并且减少了过热和额外的能量损耗问题的发生。
SKF激光对准仪为机器的两个旋转单位的调整提供了一种既方便又精确的办法，可使设备的主轴在一条直线上。
SKF激光对准仪是TMEA1P系列的牌号，它支持打印端口和打印机，可获得测量结果的文档输出。
另外，TMEA1P系列有一个固有的安全版本，它被指定为TMEA1PEX系列，归为EExibIICT4级别。
2.1操作原则TMEA1系统使用两个测量单元，其均提供一个激光二极管和一个位置检测器。
(整理)激光对准仪使用说明书
激光对准仪使用说明书TMEA 1、TMEA 1P、TMEA 1PEX系列金风科技股份有限公司2003年9月目录1安全要求2 介绍3工具4 使用说明5 结果输出6 高级用法7 维护1 安全要求1.1 TMEA 1、TMEA 1P系列的要求●开始工作前务必关闭驱动仪器的电源开关●勿将仪器暴露在有尖锐手柄和重型冲击的环境中●通读操作说明并严格遵守●本仪器使用两个输出功率在一毫瓦以下的激光二极管，切勿直接凝视激光发射器。
●经常性地校准仪器●勿将激光束对准人的眼睛●打开测量单元的外壳可能导致有害光线外泄，将使保证书失效●在有爆炸危险的场合不应使用本仪器●勿将仪器暴露在高湿度的环境下，仪器勿直接接触水●所有的维修工作都应由SKF维修店来操作1.2TMEA 1PEX系列的要求●开始工作前务必关闭驱动仪器的电源开关●勿将仪器暴露在有尖锐手柄和重型冲击的环境中●通读操作说明并严格遵守●本仪器使用两个输出功率在一毫瓦以下的激光二极管，切勿直接凝视激光发射器。
●经常性地校准仪器●勿将激光束对准人的眼睛●打开测量单元的外壳可能导致有害光线外泄，将使EX比率和保证书失效●打开显示单元将使EX比率和保证书失效●勿将仪器暴露在高湿度的环境下，仪器勿直接接触水●仪器只能在经过证明的固有安全区内使用●勿将打印机带入固有安全区●在固有安全区内勿拆卸和更换显示单元的电池●勿将手提箱带入固有安全区●只能使用指定类型的电池，详见第三章●所有的维修工作都应由SKF维修店来操作2 介绍机器轴类零件的精确对准极其重要，它避免了轴承的过早失效、轴的疲劳、密封和震动等问题的发生，并且减少了过热和额外的能量损耗问题的发生。
SKF激光对准仪为机器的两个旋转单位的调整提供了一种既方便又精确的办法，可使设备的主轴在一条直线上。
SKF激光对准仪是TMEA 1P系列的牌号，它支持打印端口和打印机，可获得测量结果的文档输出。
另外，TMEA 1P系列有一个固有的安全版本，它被指定为TMEA 1PEX系列，归为EEx ib IIC T4级别。
激光粒度仪操作规程

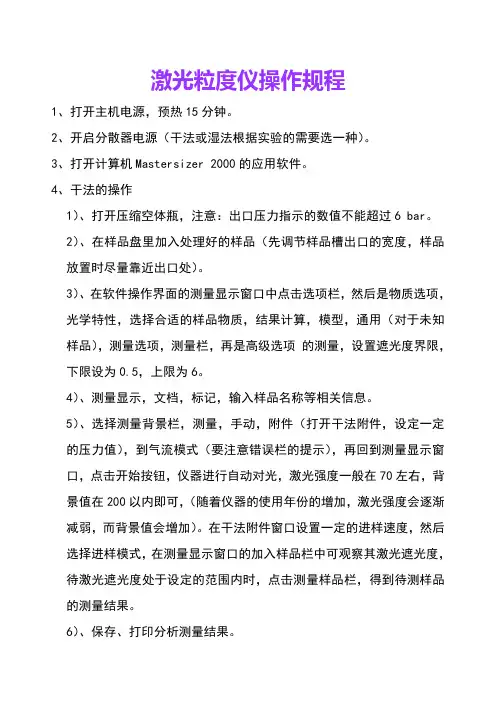

激光粒度仪操作规程1、打开主机电源，预热15分钟。
2、开启分散器电源（干法或湿法根据实验的需要选一种）。
3、打开计算机Mastersizer 2000的应用软件。
4、干法的操作1）、打开压缩空体瓶，注意：出口压力指示的数值不能超过6 bar。
2）、在样品盘里加入处理好的样品（先调节样品槽出口的宽度，样品放置时尽量靠近出口处）。
3）、在软件操作界面的测量显示窗口中点击选项栏，然后是物质选项，光学特性，选择合适的样品物质，结果计算，模型，通用（对于未知样品），测量选项，测量栏，再是高级选项的测量，设置遮光度界限，下限设为0.5，上限为6。
4）、测量显示，文档，标记，输入样品名称等相关信息。
5）、选择测量背景栏，测量，手动，附件（打开干法附件，设定一定的压力值），到气流模式（要注意错误栏的提示），再回到测量显示窗口，点击开始按钮，仪器进行自动对光，激光强度一般在70左右，背景值在200以内即可，（随着仪器的使用年份的增加，激光强度会逐渐减弱，而背景值会增加）。
在干法附件窗口设置一定的进样速度，然后选择进样模式，在测量显示窗口的加入样品栏中可观察其激光遮光度，待激光遮光度处于设定的范围内时，点击测量样品栏，得到待测样品的测量结果。
6）、保存、打印分析测量结果。
7）、测量结束，清洁样品槽，并运行一次清洁SOP。
8）、分别关闭主机、分散器、真空设备的电源，气瓶的总阀门。
9）、5、湿法的操作1）、开启湿法进样器的电源。
再打开操作软件。
2）、设定泵的转速，如有必要则设定超声的强度和时间，在烧杯中加入800毫升左右的分散介质（通常是蒸馏水），然后打开泵，测量栏，手动，测量显示窗口，选项栏，测量选项窗口，物质栏，设定光学特性，选择正确的样品物质名称以及分散剂的名称，结果计算，模型，通用，确定，测量栏，高级选项的测量，设定激光遮光度界限。
下限为10，上限为20，确定，点击测量显示窗口的开始，加入样品，待激光遮光度处于设定的范围内时，即可“开始”测量样品。
Banner Engineering Q4X 激光传感器快速入门指南说明书
Quick Start GuideClass 1 laser CMOS sensor with a bipolar (1 PNP & 1 NPN) output. Patent pending.This guide is designed to help you set up and install the Q4X Sensor. For complete information on programming, performance, troubleshooting, dimensions, and accessories, please refer to the Instruction Manual at BannerEngineering website. Search for p/n 181483 to view the manual. Use of this document assumes familiarity with pertinentindustry standards and practices.WARNING: Not To Be Used for Personnel ProtectionNever use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death. This device does not include the self-checking redundant circuitry necessary to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition.FeaturesFigure 1. Sensor Features1.Output Indicator (Amber)2.Display3.Buttons2The display is a 4-digit, 7-segment LED. The main screen is the Run Mode screen, which shows the current distance to the target in millimeters.1.Stability Indicator (STB = Green)2.Active TEACH Indicators•DYN = Dynamic (Amber)•FGS = Foreground Suppression (Amber)•BGS = Background Suppression (Amber)••Off—Outputs not conducting (open)Stability Indicator (STB)•On—Stable signal within the specified sensing range•Flashing—Marginal signal, the target is outside the limits of the specified sensing range, or a multiple peak condition exists•Off—No target detected within the specified sensing rangeQ4X Stainless Steel Laser SensorActive TEACH Indicators (DYN, FGS, and BGS)•DYN, FGS, and BGS all off = Two-point TEACH mode selected (default)•DYN on = Dynamic TEACH mode selected•FGS on = Foreground suppression TEACH mode selected •BGS on = Background suppression TEACH mode selectedButtonsUse the sensor buttons (SELECT)(TEACH), (+)(LO/DO), and (-)(MODE)to program the sensor.(SELECT)(TEACH)•Press to select menu items in Setup mode•Press and hold for longer than 2 seconds to start the currently selected TEACH mode (the default is two-pointTEACH)(+)(LO/DO)•Press to navigate the sensor menu in Setup mode•Press to change setting values; press and hold to increase numeric values•Press and hold for longer than 2 seconds to switch between light operate (LO) and dark operate (DO)(-)(MODE)•Press to navigate the sensor menu in Setup mode•Press to change setting values; press and hold to decrease numeric values •Press and hold for longer than 2 seconds to enter Setup modeNOTE: When navigating the menu, the menu items loop.Laser Description and Safety InformationCAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not attempt to disassemble this sensor for repair. A defective unit must be returned to the manufacturer.Class 1 LasersClass 1 lasers are lasers that are safe under reasonably foreseeable conditions of operation, including the use of opticalinstruments for intrabeam viewing.Laser wavelength: 655 nm Output: < 0.20 mWPulse Duration: 7 µs to 2 msQ4X Stainless Steel Laser SensorInstallationInstall the Safety LabelThe safety label must be installed on Q4X sensors that are used in theUnited States.NOTE: Position the label on the cable in a location that has minimal chemical exposure.1.Remove the protective cover from the adhesive on the label.2.Wrap the label around the Q4X cable, as shown.3.Press the two halves of the label together.Figure 3. Safety Label InstallationSensor OrientationOptimize detection reliability and minimum object separation performance with correct sensor-to-target orientation. Toensure reliable detection, orient the sensor as shown in relation to the target to be detected.Figure 4. Optimal Orientation of Target to SensorSee the following figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose problems for sensing some targets. The Q4X can be used in the less preferred orientation and provide reliable detection performance; see Figure 10 on page 8 for the minimum object separation distance required for each case.Figure 5. Orientation by a wallFigure 6. Orientation for a turning objectIncorrectCorrect Figure 7. Orientation for a height difference HorizontalOrientation Vertical OrientationFigure 8. Orientation for a color or luster differenceQ4X Stainless Steel Laser SensorSensor Mounting1.If a bracket is needed, mount the sensor onto the bracket.2.Mount the sensor (or the sensor and the bracket) to the machine or equipment at the desired location. Do nottighten at this time.3.Check the sensor alignment.4.Tighten the screws to secure the sensor (or the sensor and the bracket) in the aligned position.Wiring Diagram+–NOTE:Open lead wires must be connected to a terminal block.5Key1 = Brown2 = White3 = Blue4 = Black5 = GrayNOTE: The input wire function is user-selectable; see the Instruction Manual for details. The default for the input wire function is off (disabled).Cleaning and MaintenanceHandle the sensor with care during installation and operation. Sensor windows soiled by fingerprints, dust, water, oil, etc.may create stray light that may degrade the peak performance of the sensor. Blow the window clear using filtered,compressed air, then clean as necessary using water and a lint-free cloth.Sensor ProgrammingProgram the sensor using the buttons on the sensor or the remote input (limited programming options).In addition to programming the sensor, use the remote input to disable the buttons for security, preventing unauthorized or accidental programming changes. See the Instruction Manual for more information.Setup ModeMODE SELECT SELECT to select a submenu option and return to the top menu, or press SELECT for longer than 2 seconds to select a submenu option and return immediately to Run mode.To exit Setup mode and return to Run mode, navigate toand press SELECT .Q4X Stainless Steel Laser Sensortwo-point static BGS dynamic BGSone-point BGSone-point Window (FGS)set Response Speed to 1.5 ms set Response Speed to 3 ms set Response Speed to 10 ms set Response Speed to 50 msset Response Speed to 25 ms off: no delays enabledenable on and/or off delay (set value in Delay Timer menu)1 Shot, fixed output pulse durationLO = On pulse when a target is detected inside of the switch point(s)DO = On pulse when a target is detected outside of the switch point(s)near: set zero displayed value to end of 18 mm barrel far: set zero displayed value to maximum detection rangesec range, set Delay Timer value (seconds have decimal)Gain menu is available when Response Speed is set to 10, 25 or 50 mslaser off when pulled low set: Remote Teach input off: remote teach input is not active master slavedisplay ondisplay on, inverteddisplay off (enters sleep mode after 60 seconds)display off, inverted (enters sleep mode after 60 seconds)end: select to exit setupno: do not reset to factory defaults yes: reset to factory defaultson: move the zero point after each teach off: zero point is either at end of barrel or maximum detection range to( default setting)high excess gain modestandard excess gain with increased noise immunitywhen is selected,1 to 9 ms is range available when Response Speed is Figure 9. Sensor Menu MapQ4X Stainless Steel Laser SensorBasic TEACH InstructionsUse the following instructions to teach the Q4X sensor. The instructions provided on the sensor display vary depending on the type of TEACH mode selected. Two-point TEACH is the default TEACH mode.1.Press and hold TEACH for longer than 2 seconds to start the selected TEACH mode.2.Present the target.3.Press TEACH to teach the target. The target is taught and the sensor waits for the second target, if required by theselected TEACH mode, or returns to Run plete steps 4 and 5 only if required for the selected TEACH mode:4.Present the second target.5.Press TEACH to teach the target. The target is taught and the sensor returns to Run mode.See the Instruction Manual for detailed instructions and other available TEACH modes. The TEACH modes include:•Two-point static background suppression —Two-point TEACH sets a single switch point. The sensor sets the switch point between two taught target distances, relative to the shifted origin location.•Dynamic background suppression—Dynamic TEACH sets a single switch point during machine run conditions. The sensor takes multiple samples and the switch point is set between the minimum and the maximum sampled distances.•One-point window (foreground suppression)—One-point window sets a window (two switch points) centeredaround the taught target distance.•One-point background suppression—One-point background suppression sets a single switch point in front of the taught target distance. Objects beyond the taught switch point are ignored.Manual Adjustments1.or2.PressNOTE: When FGS mode is selected (the FGS indicator is on), manual adjustment moves both sides of the symmetrical threshold window simultaneously, expanding and collapsing the window size. Manual adjustment does not move the center point of the window.Light Operate/Dark OperateThe default output configuration is light operate. To switch between light operate and dark operate, use the following instructions:1.Press and hold LO/DO for longer than 2 seconds. The current selection displays.2.Press LO/DO again. The new selection flashes slowly.3.Press SELECT to change the output configuration and return to Run mode.NOTE: If neither SELECT nor LO/DO are pressed after step 2, the new selection flashes slowly for a few seconds, then flashes quickly and the sensor automatically changes the output configuration and returns to Run mode.Locking and Unlocking the Sensor ButtonsUse the lock and unlock feature to prevent unauthorized or accidental programming changes. When locked,displays when the (SELECT)(TEACH) button is pressed. The switch point displays when (+)(LO/DO) or (-)(MODE) arepressed, butdisplays if the buttons are pressed and held.To lock or unlock the sensor using the buttons, press and hold orflashes,depending on the previous status.Q4X Stainless Steel Laser SensorSpecificationsSensing BeamVisible red Class 1 laser, 655 nmSupply Voltage (Vcc)10 to 30 V dcPower and Current Consumption, exclusive of load < 675 mWSensing Range25 mm (0.98 in) to 300 mm (11.81 in)Output ConfigurationBipolar (1 PNP & 1 NPN) outputOutput RatingOff-state leakage current: < 5 µA at 30 V dcPNP On-state saturation voltage: < 1.5 V dc at 100 mA load NPN On-state saturation voltage: < 1.0 V dc at 100 mA load Remote InputAllowable Input Voltage Range: 0 to VccActive Low (internal weak pullup—sinking current): Low State < 2.0 V at 1 mA max.Supply Protection CircuitryProtected against reverse polarity and transient over-voltages Beam Spot SizeTable 1: Beam Spot SizeTemperature Effect0.05 mm/°C at 125 mm0.35 mm/°C at 300 mmExcess GainTable 2: Excess Gain ( Excess Gain1)Connector5-pin Euro M12 Integral ConnectorConstructionHousing: 316 L stainless steelLens cover: PMMA acrylicLightpipe and display window: polysulfone Response SpeedUser selectable:•—1.5 milliseconds•—3 milliseconds•—10 milliseconds•—25 milliseconds•—50 millisecondsDelay at Power Up< 750 msAmbient Light Immunity> 5,000 luxMaximum TorqueSide mounting: 1 N·m (9 in·lbs)Nose mounting: 20 N·m (177 in·lbs)VibrationMIL-STD-202G, Method 201A (10 to 60 Hz, 0.06 in (1.52 mm) double amplitude, 2 hours each along X, Y and Z axes), with sensor operatingShockMIL-STD-202G, Method 213B, Condition I (100G 6x along X,Y and Z axes, 18 total shocks), with sensor operatingEnvironmental RatingIEC IP67 per IEC60529IEC IP68 per IEC60529IEC IP69K per DIN40050-9Chemical CompatibilityCompatible with commonly used acidic or caustic cleaningand disinfecting chemicals used in equipment cleaning andsanitation.Compatible with typical cutting fluids and lubricating fluidsused in machining centersOperating Conditions−10 °C to +50 °C (+14 °F to +122 °F)35% to 95% relative humidityStorage Temperature–25 °C to +75 °C (−13 °F to +167 °F)Application NoteFor optimum performance, allow 10 minutes for the sensorto warm upCertificationsClass 2 powerInd. Cont. Eq.3TJJUL Environmental Rating: Type 1Class 2 Power supply/source to beprovided with 1A overcurrentprotection device. Power supply couldbe current limiting or an 1A externalfuse is required on the power output.ECOLAB® chemical compatibility pending on somemodels; contact Banner Engineering for details.• excess gain provides increased noise immunityQ4X Stainless Steel Laser SensorPerformance CurvesMinimum Separation Distance Between Target and Background for: Uniform and Non-Uniform TargetsM i n i m u m S e p a r a t i o n T a r g e t c k g r o u n d (m m )D i m e n s i oTarget Switch Point DistanceBackground246810121416182022Figure 10. Minimum Object Separation Distance (90% to 6% reflectance)Banner Engineering Corp. Limited WarrantyBanner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp.will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION,ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL,CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp.Q4X Stainless Steel Laser Sensor。
科学实验室用的激光反射传感器说明书
3B SCIENTIFIC ® PHYSICS1Istruzioni per l'uso05/18 TLE/UD1 Cavo di collegamento miniDIN2 Pulsante per settore a di-stanza3 Trasmettitore e ricevitoreluminosi4 Pulsante per settore vicinoIl sensore di riflesso laser risponde alle dis-posizioni di sicurezza per i laser di classe 2. Emette luce in uno spettro visibile (400 – 700 nm), la potenza irradiata è <1mW.Un utilizzo conforme garantisce il funziona-mento sicuro dell’apparecchio.Negli istituti scolastici e nelle strutture per la for mazione l’uso dell’apparecchio deve essere monitorato in modo responsabile da personale istruito.Evitare di guardare direttamente il raggio, ai fini del funzionamento del sensore non è necessario.∙ In caso di danni visibi li all’alloggiamentodell’apparecchio metterlo immediatamente fuori servizio. ∙ Non utilizzare apparecchi ottici che restrin-gono il percorso dei raggi. ∙Non aprire l’apparecchio.L’apparecchio un raggio laser con una lung-hezza d’onda di 630 n m e calcola la luce rif-lessa. Due aree di sensibilità (settore vicino e settore a distanza) adeguano i parametri di funzionamento alle diverse condizioni di funzionamento.Il settore vicino ottimizza i parametri di funzionamento per le distanze da 5 a 50 mm. Occorre mirare ad ottenere un rapporto di ri-flessione elevato (tacche nere opache su su-perficie bianca o a riflessione diffusa). Da fogli riflettenti o specchi a microprismi si riflette una maggiore percentuale di luce nella direzione di incidenza, consentendo di realizzare barriere di raggi fino a 5 m senza regolazione degli specchi. Il settore a distanza deve essere im-postato in questo modo.Le proprietà di movimento dei corpi, quali nu-mero di giri, angolo di rotazione, accelerazione angolare, percorso, velocità e accelerazione3B Scientific GmbH ▪ Rudorffweg 8 ▪ 21031 Hamburgo ▪ Germania ▪ Con riserva di modifiche tecniche © Copyright 2018 3B Scientific GmbHsono rilevabili in combinazione con altre tec-niche periferiche.Il sensore è compatibile con gli apparecchi Vin-ciLab (1021477), €Lab (1021478) e il contatore digitale (1001032 o 1001033). Per l'esecuzione deg li esperimenti con VinciLab e €Lab è neces-sario anche il cavo di collegamento MiniDIN8-BT (1021688). Il funzionamento con qualsiasi tecnica strumentale è possibile per mezzo della scatola di connessione (1009954 o 1009955) con prese da 4 mm.Un magnete di arresto nella superficie di base del sensore consente un fissaggio confortevo-le.1 sensore di riflesso laser1 cavo di collegamento mini DIN 1 ritaglio di foglio riflettenteSorgente luminosa:modulo laser da 630 nm di lunghezza d'ondaDivergenza: ca. 1 mrad Max. flusso luminoso: 500 µW Classe laser: II Dimensioni: 40 x 25 x 90 mm³ Peso: ca. 0,05 kgNon richiede particolari interventi di manuten-zione. ∙ Non impiegare detergenti o soluzioni ag-gressive per la pulizia.∙ Per la pulizia utilizzare un panno morbido e umido.∙ Smaltire l'imballo presso i centri di raccolta e riciclaggio locali. ∙Non gettare l'apparecchio nei rifiuti domestici. Gli utenti privati possonosmaltire l’apparecchio come disposto dal locale gestore dello smaltimento dei rifiuti urbani.∙Rispettare le disposizioni vigenti per lo smaltimento delle apparecchiature elettriche.。
激光仪表使用
激光仪使用说明
旋转粗调
莱卡使用须知
调水平
1.用三脚架粗调仪器水平
2.打开机器后,先按Shift键再按(1=健,当屏幕中的水泡出现时调整仪器下的三个旋
钮,使水泡至水平,再按continue键继续.
定文件名
3.按continue键后出现主菜单,共有6个分项:1)为测量工作管理;2)数据工作管理等
等
4.通过上下键将光标指示1,按下回车键,再按NEW(底脚功能键)编辑文件名,其中右
下角键0:NUM键为字母和数字的切换
5.输入文件名后按回车键确认再按继续键continue可见主菜单.按上下键将光标定
于2数据管理后再安回车键,找着文件名后按回车键确认.
定坐标
在主菜单下按
得出矢量角后按FNC见菜单后再按F4取消棱镜.
再按三次ESC返回主菜单
再按设置键SET UP
到界面后再按F1,再按F4(SET,HZ)见角度转动机身用前角度加减90度,再按F4(HZ=0) 定好坐标.按continue,按FNC,用棱镜自动跟踪测量.。
激光机标准操作规程
激光机标准操作规程一、引言激光机是一种高能量、高密度的光源设备，广泛应用于医疗、创造、通信等领域。
为了保障操作人员的安全和设备的正常运行，制定本操作规程。
二、适合范围本操作规程适合于所有使用激光机的操作人员。
三、术语和定义1. 激光机：产生和放大激光光束的设备。
2. 激光：具有高能量、高单色性和高直行性的光束。
3. 激光器：产生激光的装置。
4. 激光束：激光器发出的光束。
5. 激光辐射：激光束对人体或者物体产生的辐射。
6. 安全屏障：用于防止激光辐射向操作人员和周围环境传播的屏障。
四、操作前准备1. 操作人员应接受相关培训，了解激光机的基本原理、操作流程和安全注意事项。
2. 检查激光机设备的运行状态，确保各部件正常工作。
3. 确保操作区域的安全，清除杂物和易燃物。
4. 穿戴个人防护装备，包括激光防护眼镜、防护手套等。
五、操作流程1. 打开激光机电源，按照设备说明书操作，确保设备处于正常工作状态。
2. 设置激光器的参数，包括激光功率、脉冲频率等，根据具体需求进行调整。
3. 将待加工物件放置在操作台上，并进行固定。
4. 根据加工要求，调整激光束的位置和大小，确保激光束准确照射到待加工物件上。
5. 启动激光机，观察激光束的工作状态，确保激光束的稳定性和一致性。
6. 进行加工操作，根据需要调整激光功率和加工速度。
7. 在加工过程中，密切观察激光机的运行情况，如有异常情况应即将住手操作并报告相关人员。
8. 加工完成后，关闭激光机电源，清理加工区域，确保无激光辐射和安全隐患。
六、安全注意事项1. 操作人员应佩戴激光防护眼镜，确保眼睛免受激光辐射伤害。
2. 禁止直接用手触摸激光束，以免造成灼伤。
3. 操作人员应保持警觉，避免激光束照射到其他人员或者不相关的物体上。
4. 在操作过程中，严禁将激光束照射到易燃物上，以防发生火灾。
5. 操作人员应定期检查激光机设备的运行状态，如发现异常应及时报告并住手使用。
6. 不得私自更改激光机的参数和设备结构，必须由专业人员进行维修和调整。
微型柱式传感器安全操作及保养规程
微型柱式传感器安全操作及保养规程微型柱式传感器是一种用于测量物理量的装置，常用于工业自动化、医疗设备、智能家居等领域。
本文将介绍微型柱式传感器的安全操作及保养规程，以确保传感器的正常运作和延长使用寿命。
安全操作规程1. 了解传感器技术参数在操作传感器前，需要确保全面了解传感器的技术参数，包括测量范围、精度、工作电压和工作温度等。
同时，需要确认传感器是否为自主研发并合法生产的产品，并保证产品质量过关。
2. 确保传感器正确连接在安装传感器时，需要按照说明书中的操作要求进行接线，确认传感器与其他设备连接正确。
如果传感器设计为带电面向外，需要确认连接件牢固可靠。
3. 执行正确的测量过程传感器在测量时，应按照技术参数的要求进行，避免超出范围进行不合理测量。
同时，需要保证传感器处于稳定状态，避免传感器的固定处于摇晃、磨损和影响测量精度的状态。
4. 正确存储和维护传感器在不使用或运输时，需要进行正确的存储以避免受潮、受热、进入水体和其他破坏的情况。
同时，传感器在每次使用前应进行检查并及时发现问题修理；无需使用时应及时拆卸，维护并保存好传感器的相关文件和资料。
5. 避免过载传感器在使用的过程中，应避免过载。
如果临时需要进行过载操作，需要使用专门的保护措施并进行详细的记录。
保养规程1. 定期检查传感器的状态传感器在使用中需要定期检查，记录发现的问题，并及时处理。
定期清洁传感器表面和内部组件，避免灰尘和杂质等污染传感器，影响其测量精度。
2. 避免遇到液体和异物传感器在使用时需要避免接触任何类型的刺激物质，尤其是液体和异物。
定期检查传感器的外壳、接口和内部元件，防止液体的腐蚀和内部物质的摩擦。
3. 长时间不用时进行储存如果传感器长时间不用，应进行适当的存储。
存储的环境应干燥、阴凉，避免日晒和高温，存储温度应低于45℃。
4. 维持合适的工作电压传感器在使用过程中应保持稳定的工作电压，避免电压不足或过压引起的损坏。
如果遇到长时间停电等情况，需要及时关机、断电，并避免电压反转。
施莱宾格薄层收缩激光测量系统说明书
The Schleibinger Thin Layer Shrinkage Laser Measurement SystemSome building materials like self-levelingflooring compounds ore plasters areapplied in thin layers.These fast settingmortars set and harden within a couple ofhours and subsequent drying of such a thinlayer is generally terminated after the firstday. In order to investigate the dynamics ofearly shrinkage and expansion wedeveloped a special set-up of two laserunits which are horizontally aligned. Thisset-up allows to investigate the differentformulation parameters and theirinfluences onto the different stages ofshrinkage and expansion,namely theplastic shrinkage,setting expansion anddrying shrinkage.The shrinkage orexpansion behavior is strongly related toboth,external(climate)and internal(formulation) factors. With respect to the latter, begin, intensity and duration of setting are key to the overall shrinkage or expansion behavior.With building materials applied in thin layers shrinkage is one of the major issues because of two reasons: The high surface-volume ratio causes evaporation to be a dominant mechanism for strong and fast physical shrinkage, and the intense hydration reactions can cause a pronounced chemical shrinkage, or in case of ettringite formation a strong expansion.MethodTo investigate early shrinkage/expansionmechanisms in fast setting thin mortar layers aspecial set-up was developed which consists oftwo laser units. The two lasers are directedhorizontally onto a pair of light-weightreflectors, which are placed on top of the fresh mortar. The change in distance between the reflectors isµthen registered with an accuracy of 0.1 m. The non-contact laser device allows to start measurement right after emplacement of the fresh mortar.A data-logger supplied with the system records the data and store it in the logger as standard ASCII files. Optional a synchronous registration of temperature and humidity ore of a balance (Mettler) is possible. Two temperature channels and a mixed temperature /humidity channel are available. For measuring the vertical shrinkage the Laser sensors may be turned in the vertical direction. You may the measure directly on a mortar surface, or you may use the Schleibinger Shrinkage Cone vessel.The logger has a network interface (Ethernet). So you can easily integrate it into local intranet. With a standard web-browser software you can readout the data, and visualize it. For further data handling we recommend Microsoft Excel ® ore any similar visualisation program. The data are visualized online graphical and numerical on the screen. No special PC software is necessary. You need only your browser-software like Mozilla ore Internet-Explorer ® .An example measurementThe picture below shows astrong plastic shrinkage(shrinkage before setting) in thefirst hour. Close to the begin ofsetting,plastic shrinkage canturn suddenly into expansion.The current working hypothesisis that this is a pure structuraleffect related to a criticalconcentration of hydrates, whichcause the mineral grains(cement,sand and fine-grainedfillers) to become supported bya matrix of hydrates. From thismoment on any further hydrationcauses the mineral grains to be pushed apart (expansion). The ongoing chemical shrinkage (caused by continued hydration), which contributed to plastic shrinkage before, is now producing porosity. As the hydration rate decelerates, evaporation becomes the dominant mechanism and forces the mortar layer to shrink again. In most cases, this drying shrinkage levels out during the first day and the mortar layer becomes stable in volume . Picture with courtesy of Bühler and Zurbriggen, elotex AG, Switzerland Technical Data :Order Infoincl. Boom stand, 2 Laser sensors, laser electronic, data logger software user manualS0060 Thin-Layer-Shrinkage-Laser-Measurement-SystemS0030Interface for Mettler-Toledo BalanceS0013Temperature Measurement ChannelS0016Temperature and Humidity Measurement。
激光仪器的使用方法
激光仪器的使用方法
激光仪器使用方法需要根据不同的激光仪器类型进行具体操作。
下面是一个常见的激光仪器使用方法的一般步骤：
1. 准备工作：确保工作区域整洁，并着装合适的个人防护装备，如护目镜和手套。
检查仪器是否正常工作、电源接通，并根据需要调整激光参数。
2. 对齐操作：将激光束调整为平直和准确的路径。
这通常涉及调整透镜、反射镜和衰减器等部件，以使光束达到所需的尺寸、形状和位置。
3. 安全措施：在操作过程中，务必遵守激光安全操作规程，包括限制激光辐射范围、避免直接暴露于激光束、保持工作区域干净整洁等。
4. 数据记录：根据实验需要，准备记录仪器输出的数据，如位置、光强、频率等。
5. 实验操作：根据实验或使用目的，进行具体的操作，如激光打标、切割、焊接等。
在此过程中，可以调整激光仪器的参数，以获得所需的效果。
6. 数据分析：对实验得到的数据进行分析，评估实验的准确性和有效性。
7. 故障排除：如果在使用过程中遇到问题或仪器出现故障，应停止操作，检查
并排除故障，确保仪器正常工作。
总之，在使用激光仪器时始终要注意安全操作，熟悉仪器的操作手册，并遵循厂商的指示和建议。
另外，根据具体情况，激光仪器的使用方法可能会有所不同，因此在使用新型激光仪器之前，应仔细阅读并遵守相应的使用手册。
2024年激光粒度分析仪安全操作程序(2篇)
2024年激光粒度分析仪安全操作程序一.操作程序1.确认供电各连接处是否正常，如果正常打开电源插座的电源开关进行下面操作。
2.打开仪器测量单元的电源开关，一般要等半小时以后，激光功率才能稳定，如果环境温度较低，等待时间还要延长。
半小时后进行下面各步骤。
3.打开循环进样器开关。
4.依次打开打印机、显示器、计算机主机，打开OMEC图标。
至此，开机完成。
5.系统对中。
旋转上下两个对中旋钮，使背景光能分布中零环最高，而其他环相对低。
6.根据不同样品通过参数设定选择适当的折射率、累积方向、分析模式、进样器、采样持续时间、采样开始时间、测试次数等，单击确认，系统参数设置完毕。
7.样品准备1）在50ml左右烧杯内盛25ml左右的悬浮液。
2）用取样勺有代表性地取适量的待测样品，投入烧杯中3）根据样品种类加分散剂。
4）将烧杯置入超声波清洗机中，分散样品，注意观察分散情况适当调整液面和机器。
5）关闭电源，取出烧杯。
8.背景测量。
9.样品测量。
10.关机过程1）关闭计算机主机2）依次关掉计算机显示器、激光粒度分析仪主机和打印机的电源开关。
3）将循环进样器清洗干净，将循环介质排光，关闭循环进样器电源。
4）关闭电源插座电源5）全套仪器罩上防尘罩。
二.安全事项1.激光安全注意事项1）激光是高强度、高相干性光源，因此严禁直接或间接去看激光束，以免伤害眼睛。
2）尽量避免打开仪器测量单元的外罩。
3）使用者应注意激光辐射，避免长时间呆在激光束经过的地方。
4）同激光有关的所有修理和维护工作必须由厂家人员进行。
2.电气安全注意事项1）仪器插电源线，或在仪器的各单元之间作电气或信号连接时，必须确保电源开关是关着的，否则有可能造成人体触电或仪器损坏。
2）必须保证电力供应与仪器电力要求的电压和频率一致。
3）换保险管时须保证其额定电流与标签一致。
4）仪器正在测量时不作电气连接，以免产生火花而爆炸。
5）可靠接地。
3.安全防护其他注意事项1）仪器的全套设备无论是否处于工作状态，都应放置在清洁干燥的环境中。
【精品】激光传感器说明书
【关键字】精品激光传感器说明书篇一：激光测距仪使用说明激光测距仪使用说明一、使用前的准备（一）电池的装入/更换打开仪器尾部的固定挡板。
向前推卡钮，向下将底座取下。
按住红色的卡钮推开电池盒盖。
安装或更换电池。
关闭电池盒盖，安装底座和卡扣。
当电池的电压过低时，显示屏上将持续闪烁显示电池的标志{B，21}。
此时应及时更换电池。
1、按照极性正确装入电池。
2、使用碱性电池（建议不要使用充电电池）。
3、当长时间不使用仪器时，请取出电池，以避免电池的腐蚀。
更换电池后，设置和储存的值都保持不变。
（二）多功能底底座固定挡板可以在下面的测量情况下使用：1、从边缘测量，将固定挡板拉出，直到听到卡入的声音。
2、从角落测量，将固定挡板拉出，直到听到卡入的声音，轻轻将固定挡板向右推，此时固定挡板完全展开。
仪器自带的传感器将辨认出固定挡板的位置，并将自动设置测量其准点。
（三）内置的望远镜瞄准器在仪器的右部有一个内置的望远镜瞄准器。
此望远镜瞄准器为远距离测量起到辅助的作用。
通过瞄准器上的十字丝可以精确地观察到测量目标。
在30米以上的测量距离，激光点会显示在十字线的正中。
而在30米以下的测量距离，激光点不在十字线中间。
（四）气泡一体化的水泡使仪器更容易调平。
（五）键盘1、开/测量键2、第二级菜单功能3、加+键4、计时（延迟测量）键5、等于[=]键6、面积/体积键7、储存键8、测量基准边键9、清除/关键10、菜单键11、照明键12、间接测量（勾股定律）键13、减-键14、BLUETOOTH（六）显示屏1、关于错误测量的信息2、激光启动3、周长4、最大跟踪测量值5、最小跟踪测量值6、测量基准边7、调出储存值8、储存常数9、主显示10、单位，包括乘方立方（2/3）11、顶的面积12、墙面积13、3个额外显示（如：测量中间值）14、BLUETOOTH蓝牙开/关15、第二级菜单功能开16、硬件故障17、间接测量-利用勾股定律18、间接测量-利用勾股定律-部分高度19、面积/体积20、带常数的测量21、电池充电量显示二、菜单功能（一）设置在菜单中可以改变设置，并将其长久保存，并在关机和更换电池后不改变。
SLS使用说明书
28
installation methods for pump
29
Erection of the pump start and stop of the pump
30
Maintenance of the pump
Failures causes and troubleshooting
30-33
34
Reference table for pipeline loss
PRODUCT FEATURES 1
2
3
4
5
6
,
pact structure, small volume, beautiful outlook. The lower barycenter of the vertical structure which coincides with the center of the pump feet s trengthens the stability of running and the duration.
lps国产激光测距传感器说明书(RS232)
激光测距传感使用手册前言尊敬的客户：衷心的感谢您选择了深圳市南方测控技术有限公司的激光测距传感器！为了让您更好的使用本激光测距传感器与防止意外事故的发生，请您在使用本激光测距传感器前仔细的阅读本说明书。
本说明书的版权归属深圳市南方测控技术有限公司所有，如在不影响本激光测距传感器整体性能的前提下所作的修改或更新，恕不另行通知。
激光测距传感器系统说明术语解释激光测距：利用激光对目标的距离进行准确测定。
激光测距一般采用两种方式来测量距离：脉冲法和相位法。
脉冲激光测距：基于激光脉冲反射时差法原理，测距仪器发射出的激光经被测量目标反射后，激光束被测距仪器接收，测距仪器记录激光往返的时间。
光速和往返时间的乘积的一半，就是测距仪器和被测量物体之间的距离。
激光测距传感器：为工业测量之产品，采用工业标准设计、生产和检测，可在线24小时连续实施测量，有的可以多台组网测试。
激光安全等级：国际上对激光有统一的分类，激光器分为四类（Class1、Class2、Class3 Class4）。
Class1激光器对人是安全的，Class2激光器对人有较轻的伤害，Class3以上的激光器对人有严重伤害，使用时需特别注意，避免对人眼直射。
Class2激光器：指激光器的出口光功率小于1mw，一般认为对人的眼睛是安全的，正常暴露在这种激光器的光束下不会对眼睛的视网膜造成永久性的伤害。
尽管此种激光器是安全的，但也不能长时间的直视激光光束。
如偶尔照射到人眼还不至于引起伤害，但连续观察激光束时能损伤眼睛。
此是对第二级激光器的最重要控制措施。
系统概述LPS系列激光测距传感器是一种功能强大的测量精确、无接触式的工业用距离测量设备，它可广泛地被集成用于各种工业用途的控制和监测系统上。
使用图例如下：目标LPS系列激光测距传感器是一款使用方便的工业应用激光测距仪表，特别为交通、炼钢、仓储、建筑、码头等需要自动进行距离和位置控制的应用而设计研发，具有很高地实用性。
激光传感器设备安全操作规定
激光传感器附件设备安全操作规定为了保障激光传感器及其附件设备的安全，避免潜在安全风险和相关隐患，制定了以下操作规定，希望所有使用者严格遵守：一、前言激光传感器及其附件设备是一种高科技仪器，在工业、环境等领域有广泛应用。
然而，激光传感器及其附件设备也存在一定的安全隐患。
在操作时，需注意其特性，采取适当的措施加以控制和防护。
二、激光传感器附件设备的操作安全规范2.1、设备开启和关闭在开启或关闭设备时，应按照正确操作步骤进行，并遵守以下操作规范：1.确认设备处于待机模式。
2.仔细检查传感器和其附件的连接。
3.确认设备上的所有螺钉、紧固件和安全性器件已完好可靠，确保设备稳定且不会发生松动或倾倒。
4.使用正确的开关打开或关闭设备，确保设备在开启时是安全的，不会发生突然启动，同时在关闭时设备也能正常停止工作。
5.确保设备处于安全位置，并不会对人身造成伤害或对设备造成损伤。
2.2、设备的运行与操作在设备运行和操作时，应注意以下规定：1.熟练掌握设备的相关操作和设置方法，确保正确操作。
2.在操作设备时，应始终保持冷静和警觉，严格按照安全操作规程进行操作。
3.只有经过训练和授权的人员可以操纵设备，未经训练和授权的人员不得擅自操作设备。
4.只有在必要的情况下，才能操作设备，操作前需要进行检查和保养等工作，确保设备没有异常状况。
5.操作人员应当确保设备周围区域干净整洁，减少杂物和障碍物。
2.3、设备的维护与保养设备的保养和维护是设备正常运作的重要保障，应根据设备使用频率和使用情况，制定维护保养计划，包括以下内容：1.定期对设备的每个组件进行检查和测试，发现异常及时处理。
2.定期对设备进行清洁，清除多余灰尘和杂物，并保持清洁卫生。
3.定期对设备进行润滑，同时更换相关润滑油和材料。
4.定期检修设备，维护设备的可靠性和安全性，以确保其在工作过程中能够正常工作，提高设备的使用寿命。
三、后记上述操作规范仅为基本要求，实际操作中，还要根据设备的具体情况制定相应的安全规定，确保设备的安全性和可靠性。
VMT SLS导向系统精度描述
类型 TCA1201(+) TCA1202(+) TCA1203(+) 测角精度 1″ 2″ 3″ 测距精度(标准测距模式) 2mm + 2ppm 2mm + 2ppm 2mm + 2ppm
激光靶 激光靶激光点坐标测量精度 角度测量精度 + 1.0mm + 1.0mrad(=+1.0mm/m)
在全站仪和激光靶相距 150m 时，由以上产品精度产生的误差如下： TCA 全站仪
类型 TCA1201(+) TCA1202(+) TCA1203(+) 测角误差 测距误差(标准测距模式)
+0.8mm +1.6mm +2.4mm
+2.3mm +2.3mm +2.3mm
激光靶 激光靶激光点坐标测量误差 激光靶角度测量误差 (盾构机前后参考点之间相距 10m) +10.0mm +1.0mm
)2
)2
+ (± 1 . 0 cm
+ (± 1 . 0 cm
)2
)2
= ± 1 . 03 cm
= ± 1 . 04 cm
(±
0 . 23 cm
)2
+ (± 0 . 24 cm
)2
+ (± 0 . 1 cm
)2
+ (± 1 . 0 cm
)2
= ± 1 . 05 cm
以 TCA1203 为例，图示说明测角和测距精度（均以水平距离 150m 为基准）Biblioteka SLS 导向系统的最大中误差：
类型 TCA1201(+) TCA1202(+) TCA1203(+) 在全站仪和激光靶相距 150m 时
