美国omega修订版T型热电偶参考表℃
美国Omega对焊细裸线热电偶
A-19
重要订购说明
基本金属热电偶
报价为300 mm (12")长度的价格。
您可以通过专门订购来获得其他尺寸和长度。
300 mm (12")的长度对应于600 mm (24")总长度的每一段。
如欲为基本金属 校准订购更长的导线长度，需对每包 300 mm (12")支付额外费用。
请访问 ，了解完整价格和详情。
铂/铑热电偶
报价为150 mm (6")长度的价格。
您可以通过专门订购来获得其他尺寸和长度。
如欲为铂/铑校准订购更长的导线长度，请参见下表。
OMEGA 提供一系列的对焊裸线热电偶，相比标准串珠线热电偶，可提供更快速的响应时间，并可用在更狭小的空间。
基本金属*校准：
铂/铑校准：150 mm (6")注：负极导线以红点标识。
热电偶绝缘体型号SH 、DH 、FS 和OV 也是此† 最大长度300 mm (12")订购示例：CHAL-010-BW , K 型CHROMEGA ®-ALOMEGA ®对焊无护套细线热电偶，5件装。
®
对焊细裸线热电偶
随时因贵金属市场波动而变化。
图片小于实际尺寸。
方便的 5件装
请访问o m e g a .c o
m /
t h e r m o c o
u p l e s ，
了解价
格和详情。
美国Omega热电偶线型号判断
• TT-K-30-SLE
• • • • TT:表示绝缘层为：特富龙 耐温260摄氏度 K：表示是K型分度号 30：表示热偶丝(金属丝)直径为0.254mm SLE：表示为”特别限制误差“，精度为 0.4%
一：绝缘层
• 美国Omega热电偶线常用的绝缘层有三种 • 1：特富龙(awg30或36小线规用,耐温260度)
美国Omega热电偶线常用型号
• 3：高温玻璃纤维(耐温704度)
• HH-K-24-SLE高温玻璃纤维外皮，K分度号，耐温704度2*0.511mm ，1000英尺/305 米
谢谢观看
• 谢谢观看，希望对您有帮助。
• 赵先华-深圳市鑫博恒业科技有限公司 ****************************************** 地址：深圳市华强北都会大厦B座27S TEL:0755-82736276 839872767 • FAX:0755-83041664 珠三角 长三角 E-mail:info@
三：热偶丝线径• 3Fra bibliotek24awg（0.511mm）
四：SLE与非SLE
• 这个是美国Omega热电偶线精度的标示， 通过外观及一般的设备就很难判断了 • 但是我们提供的均是SLE(0.4%)精度的热电 偶线。
美国Omega热电偶线常用型号
• 1：玻璃纤维绝缘层（耐温482度）
• • • GG-K-36-SLE玻璃纤维外皮,K分度号，耐温482度,2*0.127mm ,1000英尺/305米 GG-K-30-SLE玻璃纤维外皮,K分度号，耐温482度,2*0.255mm ,1000英尺/305米 GG-K-24-SLE玻璃纤维外皮,K分度号，耐温482度,2*0.511mm ,1000英尺/305米
热电偶电阻值与温度对照表
热电偶电阻值与温度对照表
热电偶电阻值与温度之间的对照表取决于所使用的热电偶类型。
以下是一些常用热电偶类型的电阻值和温度之间的对照表示例：
1. K型热电偶的电阻值与温度对照表：
温度（摄氏度）电阻值（欧姆）
-200 0.645
-100 2.480
0 5.891
100 10.616
200 16.327
300 22.719
2. J型热电偶的电阻值与温度对照表：
温度（摄氏度）电阻值（欧姆）
-200 0.185
-100 1.055
0 5.035
100 10.023
200 18.313
300 28.916
这只是两种热电偶类型的示例，其他类型的热电偶也有类似的对照表。
值得注意的是，不同厂家生产的热电偶可能会略有差异，因此使用时最好参考具体的产品规格表。

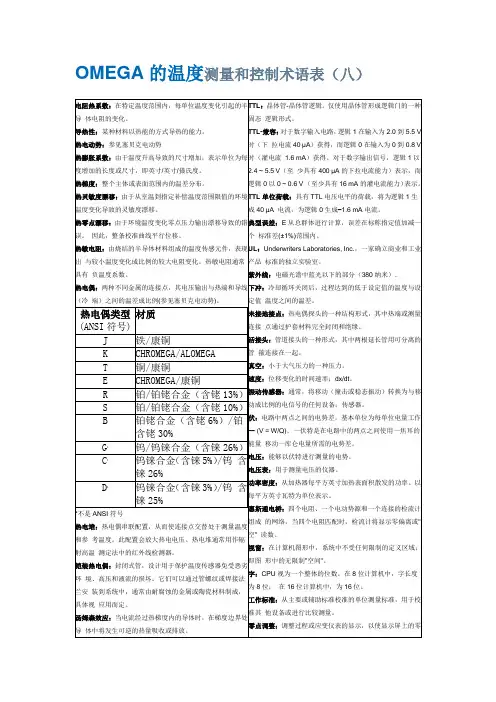

美国OMEGA的温度测量和控制术语表(八)
