1、线性系统— 系统中各组成部分或元件特性可以用线性微分方程式 来描述的系统。 特点： （1）满足叠加原理。（对线性系统，初始条件为零时，几 个输入信号同时作用在系统上所产生的输出信号，等 于各输入信号单独作用时产生的输出信号的和。） （2）系统的运动方程式可以用线性微分方程式来描述，暂 态特性与初始条件无关。 （3）系统为线性定常系统。 2、非线性系统 —当系统中存在非线性元件或具有非线性特性，其运 动方程用非线性微分方程式来描述。 特点： 不满足叠加原理；暂态特性与初始条件有关。
第四章
4.1 4.2 4.3
根轨迹法的基本概念 根轨迹的绘制法则 用根轨迹法分析系统的暂态特性
( 2) (4) (2)
第五章 5.1 5.2 5.3 5.4 5.5 5.6
频率法 12学时 频率特性的基本概念 频率特性的基本方法 典型环节的频率特性 系统开环频率特性的绘制 用频率法分析控制系统的稳定性 系统暂态特性和开环闭环特性的关系 6学时
3、典型的非线性环节特性
4、两者的关系（参考教材Page6)
二、 连续数据系统和离散数据系统
1 、连续数据系统—— 信号为模拟的连续函数。 2、离散数据系统 —— 系统中一处或多处，信号以序列 或数码形式传递。 3、两者研究方法比较 连续：微分方程 — 拉氏变换 — 传递函数和频率特性 分析 离散：差分方程 — Z变换 —— 脉冲传递函数和频率 特性分析
自动控制原理教学大纲
自动控制原理Automatic Control Principle一、课程基本信息二、课程简介自动控制原理是一门专业基础必修课，属于经典控制理论，主要处理单输入单输出定常反馈控制系统。
通过对本课程的学习，使学生掌握系统数学模型的建立方法，学会经典控制理论的三种分析方法，即时域法，根轨迹法和频域法，围绕三个性能指标，对控制系统进行分析，并在此基础上，学会控制系统的设计与综合，继而培养学生在实际中分析问题和解决问题的能力。
该课程为现代控制理论及智能控制理论等后继课程打下了必要的理论基础。
English Course IntroductionAutomatic Control Principle is a compulsory course in basic professional studies, which belongs to classical control theory. It mainly deals with the single input and single output steady feedback control system. Through the study of this course, the students can master the method of establishing the mathematical model of the system and learn the three analysis methods of the classical control theory, namely, the time domain method, the root locus method and the frequency domain method, and analyze the control system around three performance indexes, on this basis, learn the design and synthesis of the control system, and then train students in the actual analysis of problems and problem-solving ability. This course lays a necessary theoretical foundation for the following courses such as Modern Control Principle and Intelligent Control Principle.三、教学目的通过本课程的学习，使学生了解和掌握自动控制理论的基本概念、主要原理和分析方法，了解自动控制技术发展的概况，为学习后继课程以及从事与本专业有关的自动控制技术工作打下一定的基础。
自动控制原理（中英文）

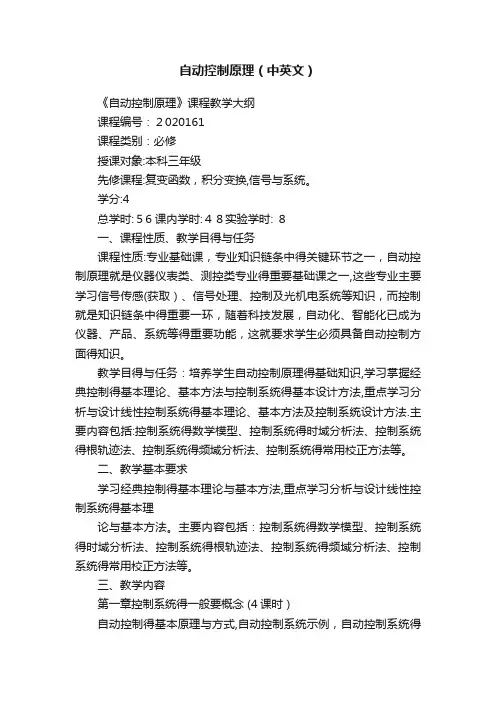

自动控制原理（中英文）《自动控制原理》课程教学大纲课程编号：２020161课程类别：必修授课对象:本科三年级先修课程:复变函数，积分变换,信号与系统。
学分:4总学时:５6 课内学时:４８实验学时: ８一、课程性质、教学目得与任务课程性质:专业基础课，专业知识链条中得关键环节之一，自动控制原理就是仪器仪表类、测控类专业得重要基础课之一,这些专业主要学习信号传感(获取）、信号处理、控制及光机电系统等知识，而控制就是知识链条中得重要一环，随着科技发展，自动化、智能化已成为仪器、产品、系统等得重要功能，这就要求学生必须具备自动控制方面得知识。
教学目得与任务：培养学生自动控制原理得基础知识,学习掌握经典控制得基本理论、基本方法与控制系统得基本设计方法,重点学习分析与设计线性控制系统得基本理论、基本方法及控制系统设计方法.主要内容包括:控制系统得数学模型、控制系统得时域分析法、控制系统得根轨迹法、控制系统得频域分析法、控制系统得常用校正方法等。
二、教学基本要求学习经典控制得基本理论与基本方法,重点学习分析与设计线性控制系统得基本理论与基本方法。
主要内容包括：控制系统得数学模型、控制系统得时域分析法、控制系统得根轨迹法、控制系统得频域分析法、控制系统得常用校正方法等。
三、教学内容第一章控制系统得一般要概念 (4课时）自动控制得基本原理与方式,自动控制系统示例，自动控制系统得分类，对自动控制系统得基本要求1、基本概念;2、反馈系统基本组成；3、基本控制方式；4、控制系统分类:开环、闭环、复合控制;第二章控制系统得数学模型 (8课时）控制系统得时域数学模型,拉普拉斯变换，控制系统得复域数学模型，控制系统得状态空间模型,控制系统得结构图与信号流图２－１时域模型、微分方程表示方法;2－2 复域模型1、传递函数得定义与性质;2、传递函数得零、极点表示，开环增益、根轨迹增益等;3、典型环节得传递函数（比例、惯性、微分、积分、振荡）；2－3 控制系统得结构图与信号流图1、结构图得等效变换与化简2、信号流图组成与性质A．性质、术语（理解）B。
自动控制原理英文版课后全部_答案

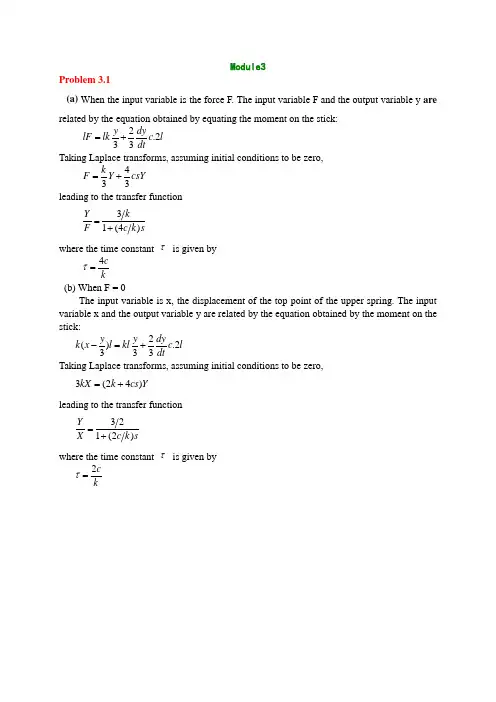

Module3Problem 3.1(a) When the input variable is the force F. The input variable F and the output variable y are related by the equation obtained by equating the moment on the stick:2.233y dylF lk c l dt=+Taking Laplace transforms, assuming initial conditions to be zero,433k F Y csY =+leading to the transfer function31(4)Y k F c k s=+ where the time constant τ is given by4c kτ=(b) When F = 0The input variable is x, the displacement of the top point of the upper spring. The input variable x and the output variable y are related by the equation obtained by the moment on the stick:2().2333y y dy k x l kl c l dt-=+Taking Laplace transforms, assuming initial conditions to be zero,3(24)kX k cs Y =+leading to the transfer function321(2)Y X c k s=+ where the time constant τ is given by2c kτ=Problem 3.2 P 54Determine the output of the open-loop systemG(s) = 1asT+to the inputr(t) = tSketch both input and output as functions of time, and determine the steady-state error between the input and output. Compare the result with that given by Fig3.7 . Solution ：While the input r(t) = t , use Laplace transforms, Input r(s)=21sOutput c(s) = r(s) G(s) = 2(1)aTs s ⋅+ = 211T T a s s Ts ⎛⎫ ⎪-+ ⎪ ⎪+⎝⎭the time-domain response becomes c(t) = ()1t Tat aT e ---Problem 3.33.3 The massless bar shown in Fig.P3.3 has been displaced a distance 0x and is subjected to a unit impulse δ in the direction shown. Find the response of the system for t>0 and sketch the result as a function of time. Confirm the steady-state response using the final-value theorem. Solution ：The equation obtained by equating the force:00()kx cxt δ+=Taking Laplace transforms, assuming initial condition to be zero,K 0X +Cs 0X =1leading to the transfer function()XF s =1K Cs +=1C1K s C+The time-domain response becomesx(t)=1CC tK e -The steady-state response using the final-value theorem:lim ()t x t →∞=0lim s →s 1K Cs +1s =1K00000()()()1;11111()K t CK x x Cx t Kx X K Cs Kx Kx X C Cs K K s KKx x t eCδ-++=⇒++=--∴==⋅++-=⋅According to the final-value theorem:0001lim ()lim lim 01t s s Kx sx t s X C K s K→∞→→-=⋅=⋅=+ Problem 3.4 Solution:1.If the input is a unit step, then1()R s s=()()11R s C s sτ−−−→−−−→+ leading to,1()(1)C s s sτ=+taking the inverse Laplace transform gives,()1tc t e τ-=-as the steady-state output is said to have been achieved once it is within 1% of the final value, we can solute ―t‖ like this,()199%1tc t e τ-=-=⨯ (the final value is 1) hence,0.014.60546.05te t sττ-==⨯=(the time constant τ=10s)2.the numerical value of the numerator of the transfer function doesn’t affect the answer. See this equation, If ()()()1C s AG s R s sτ==+ then()(1)A C s s sτ=+giving the time-domain response()(1)tc t A e τ-=-as the final value is A, the steady-state output is achieved when,()(1)99%tc t A e A τ-=-=⨯solute the equation, t=4.605τ=46.05sthe result make no different from that above, so we said that the numerical value of the numerator of the transfer function doesn’t affect the answer.If a<1, as the time increase, the two lines won`t cross. In the steady state the output lags the input by a time by more than the time constant T. The steady error will be negative infinite.R(t)C(t)Fig 3.7 tR(t)C(t)tIf a=1, as the time increase, the two lines will be parallel. It is as same as Fig 3.7.R(t)C(t)tIf a>1, as the time increase, the two lines will cross. In the steady state the output lags the input by a time by less than the time constant T.The steady error will be positive infinite.Problem 3.5 Solution: R(s)=261s s+, Y(s)=26(51)s s s +⋅+=229614551s s s -+++ /5()62929t y t t e -∴=-+so the steady-state error is 29(-30). To conform the result:5lim ()lim(62929);tt t y t t -→∞→∞=-+=∞6lim ()lim ()lim ()lim(51)t s s s s y t y s Y s s s →∞→→→+====∞+.20lim ()lim ()lim [()()]161lim [()1]()lim (1)()5130ss t s s s s e e t S E S S Y S R S S G S R S S S S S→∞→→→→==⋅=⋅-=⋅-=⋅-⋅++=- Therefore, the solution is basically correct.Problem 3.623yy x += since input is of constant amplitude and variable frequency , it can be represented as:j tX eA ω=as we know ,the output should be a sinusoidal signal with the same frequency of the input ,it can also be represented as:R(t)C(t)t0j t y y e ω=hence23j tj tj tj yyeeeA ωωωω+=00132j y Aω=+ 0294Ayω=+ 2tan3w ϕ=- Its DC(w→0) value is 003Ay ω==Requirement 01122w yy==21123294AA ω=⨯+ →32w = while phase lag of the input:1tan 14πϕ-=-=-Problem 3.7One definition of the bandwidth of a system is the frequency range over which the amplitude of the output signal is greater than 70% of the input signal amplitude when a system is subjected to a harmonic input. Find a relationship between the bandwidth and the time constant of a first-order system. What is the phase angle at the bandwidth frequency ？ Solution ：From the equation 3.41000.71r A r ωτ22=≥+ (1)and ω≥0 (2) so 1.020ωτ≤≤so the bandwidth 1.02B ωτ=from the equation 3.43the phase angle 110tan tan 1.024c πωτ--∠=-=-=Problem 3.8 3.8 SolutionAccording to generalized transfer function of First-Order Feedback Systems11C KG K RKGHK sτ==+++the steady state of the output of this system is 2.5V .∴if s →0, 2.51104C R→=. From this ,we can get the value of K, that is 13K =.Since we know that the step input is 10V , taking Laplace transforms,the input is 10S.Then the output is followed1103()113C s S s τ=⨯++Taking reverse Laplace transforms,4/4332.5 2.5 2.5(1)t t C e eττ--=-=-From the figure, we can see that when the time reached 3s,the value of output is 86% of the steady state. So we can know34823(2)*4393τττ-=-⇒-=-⇒=, 4/3310.8642t t e ττ-=-=⇒=The transfer function is3128s +146s+Let 12+8s=0, we can get the pole, that is 1.5s =-2/3- Problem 3.9 Page 55 Solution:The transfer function can be represented,()()()()()()()o o m i m i v s v s v s G s v s v s v s ==⋅While,()1()111//()()11//o m m i v s v s sRCR v s sC sC v s R R sC sC =+⎛⎫+ ⎪⎝⎭=⎡⎤⎛⎫++ ⎪⎢⎥⎝⎭⎣⎦Leading to the final transfer function,21()13()G s sRC sRC =++ And the reason:the second simple lag compensation network can be regarded as the load of the first one, and according to Load Effect , the load affects the primary relationship; so the transfer function of the comb ination doesn’t equal the product of the two individual lag transfer functio nModule4Problem4.14.1The closed-loop transfer function is10(6)102(6)101610S S S S C RS s +++++==Comparing with the generalized second-order system,we getProblem4.34.3Considering the spring rise x and the mass rise y. Using Newton ’s second law of motion..()()d x y m y K x y c dt-=-+Taking Laplace transforms, assuming zero initial conditions2mYs KX KY csX csY =-+-resulting in the transfer funcition where2Y cs K X ms cs K +=++ And521.26*10cmkc ζ== Problem4.4 Solution:The closed-loop transfer function is210263101011n n d n W EW E W W E ====-=2121212K C K S S K R S S K S S ∙+==+++∙+Comparing the closed-loop transfer function with the generalized form,2222n n nCR s s ωξωω=++ it is seen that2n K ω= And that22n ξω= ; 1Kξ=The percentage overshoot is therefore21100PO eξπξ--=11100k keπ-∙-=Where 10%PO ≤When solved, gives 1.2K ≤（2.86）When K takes the value 1.2, the poles of the system are given by22 1.20s s ++=Which gives10.45s j =-±±s=-1 1.36jProblem4.5ReIm0.45-0.45-14.5 A unity-feedback control system has the forward-path transfer functionG (s) =10)S(s K+Find the closed-loop transfer function, and develop expressions for the damping ratio And damped natural frequency in term of K Plot the closed-loop poles on the complex Plane for K = 0,10,25,50,100.For each value of K calculate the corresponding damping ratio and damped natural frequency. What conclusions can you draw from the plot?Solution: Substitute G(s)=(10)K s s + into the feedback formula : Φ(s)=()1()G S HG S +.And in unitfeedback system H=1. Result in: Φ(s)=210Ks s K++ So the damped natural frequencyn ω=K ,damping ratio ζ=102k =5k.The characteristic equation is 2s +10S+K=0. When K ≤25,s=525K -±-; While K>25,s=525i K -±-; The value ofn ω and ζ corresponding to K are listed as follows.K 0 10 25 50 100 Pole 1 1S 0 515-+ -5 -5+5i 553i -+Pole 2 2S -10 515-- -5 -5-5i553i --n ω 010 5 52 10 ζ ∞2.51 0.5 0.5Plot the complex plane for each value of K:We can conclude from the plot.When k ≤25,poles distribute on the real axis. The smaller value of K is, the farther poles is away from point –5. The larger value of K is, the nearer poles is away from point –5.When k>25,poles distribute away from the real axis. The smaller value of K is, the further (nearer) poles is away from point –5. The larger value of K is, the nearer (farther) poles is away from point –5.And all the poles distribute on a line parallels imaginary axis, intersect real axis on the pole –5.Problem4.61tb b R L C b o v dv i i i i v dt C R L dt=++=++⎰Taking Laplace transforms, assuming zero initial conditions, reduces this equation to011b I Cs V R Ls ⎛⎫=++ ⎪⎝⎭20b V RLs I Ls R RLCs =++ Since the input is a constant current i 0, so01I s=then,()2b RLC s V Ls R RLCs==++ Applying the final-value theorem yields ()()0lim lim 0t s c t sC s →∞→==indicating that the steady-state voltage across the capacitor C eventually reaches the zero ,resulting in full error.Problem4.74.7 Prove that for an underdamped second-order system subject to a step input, thepercentage overshoot above the steady-state output is a function only of the damping ratio .Fig .4.7SolutionThe output can be given by222222()(2)21()(1)n n n n n n C s s s s s s s ωζωωζωζωωζ=+++=-++- (1)the damped natural frequencyd ω can be defined asd ω=21n ωζ- (2)substituting above results in22221()()()n n n d n d s C s s s s ζωζωζωωζωω+=--++++ (3) taking the inverse transform yields22()1sin()11tan n t d e c t t where ζωωφζζφζ-=-+--=(4)the maximum output is22()1sin()11n t p d p p d n e c t t t ζωωφζππωωζ-=-+-==-(5)so the maximum is2/1()1p c t eπζζ--=+the percentage overshoot is therefore2/1100PO eπζζ--=Problem4.8 Solution to 4.8:Considering the mass m displaced a distance x from its equilibrium position, the free-body diagram of the mass will be as shown as follows.aP cdx kxkxmUsing Newton ’s second law of motion,22p k x c x mx m x c x k x p--=++=Taking Laplace transforms, assuming zero initial conditions,2(2)X ms cs k P ++= results in the transfer function2/(1/)/((/)2/)X P m s c m s k m =++ 2(2/)(2/)((/)2/)k k m s c m s k m =++As we see2(2)X m s c s k P++= As P is constantSo X ∝212ms cs k ++ . When 56.25102cs m-=-=-⨯ ()25min210mscs k ++=4max5100.110X == This is a second-order transfer function where 22/n k m ω= and/2/22n c w m c k m ζ== The damped natural frequency is given by 2212/1/8d n k m c km ωωζ=-=-22/(/2)k m c m =- Using the given data,462510/2100.050.2236n ω=⨯⨯⨯== 462502.79501022100.05ζ-==⨯⨯⨯⨯ ()240.22361 2.7950100.2236d ω-=⨯-⨯= With these data we can draw a picture14.0501160004.673600p de s e T T πωτζωτ======222222112/1222()22,,,428sin (sin cos )0tan 7.030.02n n pp dd n dd n ntd d t t t n d p d d p ddd p p p nX k m c k P ms cs k k m s s s m m k c k c cm m m m km p x e tm p xe t t m t t x m ζωζωωωζωωωωζζωωωζωωωωωωωζω--===⋅=⋅++++++=-===∴==-+=∴=⇒=⇒= 其中Problem4.10 4.10 solution:The system is similar to the one in the book on PAGE 58 to PAGE 63. The difference is the connection of the spring. So the transfer function is2222l n d n n w s w s w θθζ=++222(),;p a m ld a m p m l m l l m mm l lk k k N RJs RCs R k k N k J N J J C N c c N N N θθωθωθ=+++=+=+===p a mn K K K w NJ R='damping ratio 2p a m c NRK K K J ζ='But the value of J is different, because there is a spring connected.122s m J J J J N N '=++Because of final-value theorem,2l nd w θθζ=Module5Problem5.45．4 The closed-loop transfer function of the system may be written as2221010(1)610101*********CR K K K S S K K S S K S S +++==+++++++ The closed-loop poles are the solutions of the characteristic equation6364(1010)3110210(1)n K S K JW K -±-+==-±+=+ 210(1)6310(1)E K E K +==+In order to study the stability of the system, the behavior of the closed-loop poles when the gain K increases from zero to infinte will be observed. So when12K = 3010E =321S J =-± 210K = 3110110E =3101S J =-± 320K = 21070E =3201S J =-±双击下面可以看到原图ReProblem5.5SolutionThe closed-loop transfer function is2222(1)1(1)KC K KsKR s K as s aKs Kass===+++++∙+Comparing the closed-loop transfer function with the generalized form, 2222nn nCR s sωξωω=++Leading to2nKa Kωξ==The percentage overshoot is therefore2110040%PO eξπξ--==Producing the result0.869ξ=（0.28）And the peak time241PnT sπωξ==-Leading to1.586nω=（0.82）Problem5.75.7 Prove that the rise time T r of a second-order system with a unit step input is given byT r = d ω1 tan -1n dζωω = d ω1 tan -1d ωζ21--Plot the rise against the damping ratio.Solution:According to (4.33):c(t)=1-2(cos sin )1n t d d e t t ζωζωωζ-+-. 4.33When t=r T ,c(t)=1.substitue c(t)= 1 into (4.33) Producing the resultr T =d ω1 tan -1n dζωω = d ω1 tan -112ζζ--Plot the rise time against the damping ratio:Problem5.9Solution to 5.9:As we know that the system is the open-loop transfer function of a unity-feedback control system.So ()()GH S G S = Given as()()()425KGH s s s =-+The close-loop transfer function of the system may be written as()()()()()41254G s C Ks R GH s s s K ==+-++ The characteristic equation is()()2254034100s s K s s K -++=⇒++-=According to the Routh ’s method, the Routh ’s array must be formed as follow20141030410s K s s K -- For there is no closed-loop poles to the right of the imaginary axis4100 2.5K K -≥⇒≥ Given that 0.5ζ=4103 4.752410n K K K ωζ=-=⇒=- When K=0, the root are s=+2,-5According to the characteristic equation, the solutions are349424s K =-±-while 3.0625K ≤, we have one or two solutions, all are integral number.Or we will have solutions with imaginary number. So we can drawK=102 -5 K=0K=3.0625K=2.5 K=10Open-loop polesClosed-loop polesProblem5.10 5.10 solution:0.62/n w rad sζ==according to()211sin()21n w t d e c w t ζφζ-=-+=- 1.2sin(1.6)0.4t e t φ-⋅+= 4t a n3φ= finally, t is delay time:1.23t s ≈(0.67)Module6Problem 6.3First we assume the disturbance D to be zero:e R C =-1011C K e s s =⋅⋅⋅+Hence:(1)10(1)e s s R K s s +=++ Then we set the input R to be zero:10()(1)C K e D e s s =⋅+⋅=-+ ⇒ 1010(1)e D K s s =-++Adding these two results together:(1)1010(1)10(1)s s e R D K s s K s s +=⋅-⋅++++21()R s s =; 1()D s s= ∴222110910(1)10(1)100(1)s s e Ks s s Ks s s s s s +-=-=++++++ the steady-state error:232200099lim lim lim 0.09100100ss s s s s s s e s e s s s s s →→→--=⋅===-++++Problem 6.4Determine the disturbance rejection ratio(DRR) for the system shown in Fig P.6.4+fig.P.6.4 solution ：from the diagram we can know :0.210.05mv K RK c === so we can get that()0.21115()0.05v m m OL n CL K K DRR cR ωω∆⨯==+=+=∆210.10.050.050.025s s =++, so c=0.025, DRR=9Problem 6.5 6.5 SolutionFor the purposes of determining the steady-state error of the system, we should get to know the effect of the input and the disturbance along when the other will be assumed to be zero.First to simplify the block diagram to the following patter:110s +2021Js Tddθoθ0.220.10.05s ++__+d T—Allowing the transfer function from the input to the output position to be written as01220220d Js s θθ=++ 012222020240*220220(220)dJs s Js s s Js s sθθ===++++++ According to the equation E=R-C:022*******(2)()lim[()()]lim[(1)]lim 0.2220220ssr d s s s Js e s s s s Js s Js s δδδθθ→→→+=-=-==++++问题;1. 系统型为2，对于阶跃输入，稳态误差为0.2. 终值定理写的不对。
自动控制原理重点英文单词+汉语翻译
Closed-loop control systems 闭环控制系统Open-loop control systems开环控制系统Process 过程Linear system线性系统Nonlinear system非线性系统Continuous system 连续系统Discrete system离散系统Stability 稳定性Steady-state performance 稳态性能Transient performance 暂态特性mathematical model 数学模型differential equations 微分方程Transfer function传递函数zeros and poles of transfer function传递函数的零极点Inverse proportion part 比例环节Inertia part惯性环节Integral part 积分环节Derivative part 微分环节Vibrate part震荡环节Delay part 滞后环节Block diagram (Equivalent transformation)方框图(Unit) negative (positive) feedback loop 负（正）反馈回路Mason formula 梅逊公式disturbance 干扰Step signal 阶跃信号Ramp signal(speed function signal) 斜波信号Parabola signal(acceleration signal) 加速度信号pulse signal脉冲信号Sinusoidal signal 正弦信号Delay time延迟时间Rise time 上升时间Peak time峰值时间Settling time 稳定时间Percent overshoot超调量Steady-state error稳态误差position error coefficient Kp speed error coefficient Kv acceleration error coefficient Kafirst-order system一阶系统S econd-order system 二阶系统high-order system 高阶系统Dominant pole主导极点Underdamped欠阻尼Critically Damped临界阻尼Overdamped 过阻尼Undamped无阻尼的Routh-Hurwitz stability criterion劳斯稳定性判据R outh array 劳斯表Character equation 特征方程root locus 根轨迹open-loop zeros and poles 开环零极点Magnitude and angle requirements of root locus幅值与相角frequency character 频率特征(inverse) Laplace transformation 拉普拉斯（反）变换Nyquist plot奈奎斯特图Bode diagram波德图Logarithmic magnitude frequency character对数幅值频率特性Logarithmic phase frequency character对数相频特征Nyquist stability criterion奈奎斯特稳定判据cutoff frequency 剪切频率Phase margin 相位裕量Gain margin 增益裕量Cutoff frequencyCascade phase-lead compensation串联超前矫正Cascade phase-lag compensation 串联滞后校正Cascade phase-lag and -lead compensation串联滞后-超前矫正sample control system 采样控制系统digital control system 数控系统discrete control system离散控制系统Shannon sampling theorem 香农采样定理Zero-order hold 零阶保持sampling period 采样周期Sampling frequency 采样频率Z-transform z变换Z-inverse transform z逆变换pulse transfer function脉冲传递函数bilinear transform双线性变换。
《自动控制原理》部分中英文词汇对照表(英文解释)
《自动控制原理》部分中英文词汇对照表AAcceleration 加速度Angle of departure分离角Asymptotic stability渐近稳定性Automation自动化Auxiliary equation辅助方程BBacklash间隙Bandwidth带宽Block diagram方框图Bode diagram波特图CCauchy’s theorem高斯定理Characteristic equation特征方程Closed-loop control system闭环控制系统Constant常数Control system控制系统Controllability可控性Critical damping临界阻尼DDamping constant阻尼常数Damping ratio阻尼比DC control system直流控制系统Dead zone死区Delay time延迟时间Derivative control 微分控制Differential equations微分方程Digital computer compensator数字补偿器Dominant poles主导极点Dynamic equations动态方程EError coefficients误差系数Error transfer function误差传递函数FFeedback反馈Feedback compensation反馈补偿Feedback control systems反馈控制系统Feedback signal反馈信号Final-value theorem终值定理Frequency-domain analysis频域分析Frequency-domain design频域设计Friction摩擦GGain增益Generalized error coefficients广义误差系数IImpulse response脉冲响应Initial state初始状态Initial-value theorem初值定理Input vector输入向量Integral control积分控制Inverse z-transformation反Z变换JJordan block约当块Jordan canonical form约当标准形LLag-lead controller滞后-超前控制器Lag-lead network 滞后-超前网络Laplace transform拉氏变换Lead-lag controller超前-滞后控制器Linearization线性化Linear systems线性系统MMass质量Mathematical models数学模型Matrix矩阵Mechanical systems机械系统NNatural undamped frequency自然无阻尼频率Negative feedback负反馈Nichols chart尼科尔斯图Nonlinear control systems非线性控制系统Nyquist criterion柰奎斯特判据OObservability可观性Observer观测器Open-loop control system开环控制系统Output equations输出方程Output vector输出向量PParabolic input抛物线输入Partial fraction expansion部分分式展开PD controller比例微分控制器Peak time峰值时间Phase-lag controller相位滞后控制器Phase-lead controller相位超前控制器Phase margin相角裕度PID controller比例、积分微分控制器Polar plot极坐标图Poles definition极点定义Positive feedback正反馈Prefilter 前置滤波器Principle of the argument幅角原理RRamp error constant斜坡误差常数Ramp input斜坡输入Relative stability相对稳定性Resonant frequency共振频率Rise time上升时间调节时间 accommodation timeRobust system鲁棒系统Root loci根轨迹Routh tabulation（array）劳斯表SSampling frequency采样频率Sampling period采样周期Second-order system二阶系统Sensitivity灵敏度Series compensation串联补偿Settling time调节时间Signal flow graphs信号流图Similarity transformation相似变换Singularity奇点Spring弹簧Stability稳定性State diagram状态图State equations状态方程State feedback状态反馈State space状态空间State transition equation状态转移方程State transition matrix状态转移矩阵State variables状态变量State vector状态向量Steady-state error稳态误差Steady-state response稳态响应Step error constant阶跃误差常数Step input阶跃输入TTime delay时间延迟Time-domain analysis时域分析Time-domain design时域设计Time-invariant systems时不变系统Time-varying systems时变系统Type number型数Torque constant扭矩常数Transfer function转换方程Transient response暂态响应Transition matrix转移矩阵UUnit step response单位阶跃响应VVandermonde matrix范德蒙矩阵Velocity control system速度控制系统Velocity error constant速度误差常数ZZero-order hold零阶保持z-transfer function Z变换函数z-transform Z变换。
自动控制原理第八版英文版教学设计 (2)
Teaching Design for Automatic Control Principles 8thEdition (English Version)1. IntroductionAutomatic control principles are the foundation of modern control engineering. With the rising demand for control engineering talents, it is essential to design a suitable teaching plan for students who are interested in this field. This teaching design is med at providing an understanding of the basic concepts of automatic control principles and their applications.2. ObjectivesThe primary objectives of the teaching design are:•To equip students with knowledge, concepts, and analytical skills required in the automatic control principles field.•To facilitate students with the application of control theory methods to the design and analysis of control systems.•To establish a foundation for further study in advanced control techniques.3. Teaching MethodologyThe teaching of automatic control principles will use the flipped classroom approach. This approach will enable students to engage in a more interactive and practical learning experience where they can applythe theoretical principles they have learned in class to real-world applications.3.1 Pre-class LearningBefore class, students are expected to study the related learning materials, which includes studying the assigned chapters from the textbook – Automatic Control Principles, 8th edition, written by the renowned author, G. Franklin, J. Da Powell, and A. Emami-Naeini.3.2 In-class LearningClassroom lectures will not be used to cover the fundamental concepts of automatic control principles. Rather, the students will participate in interactive sessions, where they will have a chance to engage in problem-based learning activities.3.3 After-class LearningAfter class, students will have access to online resources such as recorded classroom sessions, tutorials, and online assessments. The materials will be made avlable to students via the school’s online learning management system.4. Course OutlineThe course outline will cover the following key topics:•Introduction to automatic control principles and its applications.•Mathematical modeling of dynamic systems.•Time-domn analysis of control systems.•Root-locus analysis of control systems.•Frequency-domn analysis of control systems.•Design of classical control systems.•Introduction to modern control principles.•Digital control systems.5. Teaching Plan•Week 1: Introduction to Automatic Control Principles•Week 2-3: Mathematical Modeling of Dynamic Systems•Week 4-5: Time-domn Analysis of Control Systems•Week 6-7: Root-locus Analysis of Control Systems•Week 8-9: Frequency-domn Analysis of Control Systems•Week 10-11: Design of Classical Control Systems•Week 12-13: Introduction to Modern Control Principles•Week 14-15: Digital Control Systems6. Course AssessmentCourse assessment will be divided into formative and summative assessments. The formative assessments will include online quizzes, homework assignments, and problem-solving in the classroom activities, while the summative assessment will include a final examination.7. ConclusionIn conclusion, this teaching design is med at equipping studentswith theoretical concepts and analytical skills required in the automatic control principles field. The teaching will be organized using the flipped classroom approach, which will be more interactive and practical for students to participate in problem-based learningactivities. With this approach, students will have an opportunity to apply the theoretical principles they have learned in class to real-life problems. The course ms to establish a strong foundation for further study in advanced control techniques.。
