海康威视IP网络摄像机使用手册(V1.0)
海康威视网络硬盘录像机操作说明

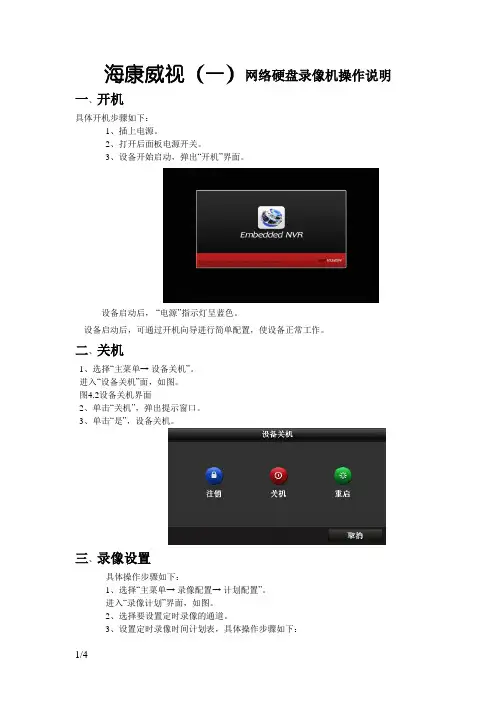

海康威视（一）网络硬盘录像机操作说明一、开机具体开机步骤如下：1、插上电源。
2、打开后面板电源开关。
3、设备开始启动，弹出“开机”界面。
设备启动后，“电源”指示灯呈蓝色。
设备启动后，可通过开机向导进行简单配置，使设备正常工作。
二、关机1、选择“主菜单→ 设备关机”。
进入“设备关机”面，如图。
图4.2设备关机界面2、单击“关机”，弹出提示窗口。
3、单击“是”，设备关机。
三、录像设置具体操作步骤如下：1、选择“主菜单→ 录像配置→ 计划配置”。
进入“录像计划”界面，如图。
2、选择要设置定时录像的通道。
3、设置定时录像时间计划表，具体操作步骤如下：选择“启用录像计划”。
说明设置完成后，该通道录像呈现7×24小时普通录像状态，如图。
若其他通道与该通道录像计划设置相同，单击“复制”，勾选上其他通道或IP通道，将该通道的设置复制给其他通道。
图定时录像完成界面4、单击“应用”，保存设置。
四、回放：常规回放即按通道和日期检索相应的录像文件，从生成的符合条件的播放条中，依次播放录像文件。
具体回放操作步骤如下：1、选择“主菜单→ 回放”。
进入“常规回放”界面，如图。
进入常规回放界面2、选择录像回放的通道，日历自动显示当前月份的录像情况。
录像信息显示界面，如图。
录像信息显示界面3、鼠标双击需要回放的日期，进入录像回放界面。
录像回放界面，如图说明最大支持16路同步回放，根据设备型号与路数的不同，回放性能不同。
可参见6技术参数。
支持多路4倍速回放五、备份：快速备份可快速将录像文件备份到存储设备上。
具体操作步骤如下：1、选择“主菜单→ 备份→ 常规备份”。
进入“录像备份”界面，如图。
图录像备份界面2、选择需要备份的通道，单击“快速备份”。
进入“备份”界面，如图。
海康威视存储设备快速使用手册(Ver1.0)
IP SAN/NAS 存储产品快速使用手册（Version 1.0）杭州海康威视数字技术有限公司地址：浙江省杭州市马塍路36号电话：86(571)-88075998传真：86(571)-88805843网址：目录一. 硬件安装 (1)1. 硬件子系统 (1)2. 开机和关机 (2)二. 设定海康威视IP SAN/NAS的访问IP (3)三. DVR存储空间使用说明 (3)四. 建立对海康威视IP SAN/NAS存储系统iSCSI的连接 (11)五. 建立对海康威视IP SAN/NAS 的NAS连接 (16)六. 常见疑问解答 (18)七. 备注 (19)一. 硬件安装1.硬件子系统海康威视网络存储设备包括硬件子系统和软件子系统两部分，它们的安装可以独立进行，不需要按照固定的顺序去实施。
软件子系统是海康威视公司为网络存储设备而开发出来的网络存储管理系统，在网络环境中部署海康威视网络存储设备就可以正常地完成对存储的管理功能。
硬件子系统主要采用机架式机箱，以DS-A1008R为例,它内含8个硬盘槽位，通过状态指示灯可以很直观的查看系统电源，网络和磁盘等状态。
详见下图：DS-A1008R前面板图安装准备：在开始安装前，请检查以下物品是否齐全：1. 海康威视网络存储设备2. 电源线3. 千兆（百兆）网线（网线推荐用超五类(CAT 5e)线）4. 产品合格证5. 产品保修卡6. 快速使用手册以下物品需自备或选配：1. 千兆交换机（用户自备，普通的二层交换机即可）2. 机架导轨（选配件，标配不含）磁盘安装：为了保证运输安全，建议您将磁盘和海康威视网络存储设备分开包装。
请按照以下步骤安装磁盘：1. 向左按压磁盘固定弹簧扣，打开拉杆，将磁盘架沿导轨从机箱中拔出来；2. 用4个螺丝把硬盘固定到硬盘架上；3. 将硬盘架插入机箱，沿导轨推到底，并按压拉杆，以确保硬盘放到位并锁好；4. 重复以上操作，直到所有的硬盘安装完成。
海康威视网络摄像机操作手册
“增益”数值调节用于调节增益上限，选项只有在日夜转换模式为非自动的情况下可调，日夜自动时增益上限最大。
“聚焦模式”自带电动镜头的部分机型支持该功能，当设置“自动"模式后，自动聚焦模块自动实时聚焦画面清晰度;
当设置“手动”模式后用户可以通过云台控制界面控制变焦、聚焦、镜头初始化和辅助聚焦来调整电动镜头。
“白平衡"可选择“手动白平衡”“自动白平衡1”、“自动白平衡2”、“锁定白平衡”、“日光灯"、“白炽灯”、“暖光灯"
和“自然光”。自动白平衡2比自动白平衡1具有更大的白平衡范围，都为自动模式,“手动白平衡"支持R、B增益可调，“锁
定白平衡”锁定当前色彩校正矩阵，如果实际使用场景为固定灯光类型，可根据实际选择后四种选项，“日光灯”适用于6500K
“电子防抖”可选择“开启”和“关闭”，开启该功能后可以一定程度上提升摄像机抖动时画面中物体的稳定性。
“灰度范围”可选择“[0-255］”和“[16-235]”用户可根据实际需要来选择视频编码的灰度范围。
“强光抑制"可选择为“开启"和“关闭”，开启该功能后对强光或电光源有一定抑制效果。
“镜像"可对称方向的“左右”、“上下”和“中心"视频调节选项,用于切换视频画面的对称显示方向。
用户也可以选择自定义区域.
“宽动态”选项适用于具有宽动态功能的机型，数字宽动态机型有“关闭"和“开启”可选，硬件宽动态机型有“关闭”、
“开启”可选，部分机型支持自动模式，自动模式在光线不足时自动关闭宽动态,选择开启摄像机将持续工作在宽动态模式
下；部分机型支持宽动态等级调节,用户可根据实际需要来调节等级数值来改变宽动态强度。
海康威视 IP摄像头系列商品指南说明书
Residential, SMB, F&B/Retail, Commercial Facilities Casinos, Commercial Buildings,Campuses, Hotels, FactoriesCommand & Control Centers,Casinos, City Surveillance, BorderControl, AirportsReliability, Cost Reliability, Data Loss Protection,Scalability Reliability, Data Loss/Integrity, Data Security, Scalability24×7, Low Power, Sustain Heat & High Temperature, Optimized for Video Streaming 24×7, High Write Optimized, DataIntegrity, Support Multiple HD/MPStreams24×7, Mixed Workloads Optimized,Data Disposal, Power Saving,Optimizedfor >5HDDs• DVR With ≤16 Channels • DVR With 4CIF, 2CIF Res • DVR With <4 HD Streams • Up to 20 HD Video Recordings• Uses RAID as Redundancy• DVR ≥16 Channels• VirtualizedServer Appliance• IP Storage (NAS, SAN)• Backup Appliance(JBOD, DAS)Surveillance HDD1SurveillanceHDD EnterpriseCapacity HDDSurveillance Enterprise1 Surveillance HDDs with RV sensors (4-6TB) support systems with 8+ drive bays. Models without RV not recommended for systems with over 8 HDDs.AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICASeagate Technology SAS 16–18, rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00© 2015 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. PowerChoice is either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners. When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit ), and controlled for import and useoutside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications. SC553.4-1509US, September 20151 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one thousand billion bytes when referring to drive capacity.Surveillance-Optimized Drives。
网络摄像头操作手册说明书
网络摄像机快速指南前言本节内容的目的是确保用户通过本手册能够正确使用产品，以避免操作中的危险或财产损失。
在使用此产品之前，请认真阅读产品手册并妥善保存以备日后参考。
使用前说明●访问本公司官网（）获取说明书、应用工具和开发资料。
●使用前请先对设备进行校时，校时的具体配置方法请参见《网络摄像机操作手册》。
符号约定对于文档中出现的符号，说明如下所示。
安全使用注意事项●产品安装使用过程中，必须严格遵守国家和使用地区的各项电气安全规定。
●请使用正规厂家提供的电源适配器，电源适配器具体要求参见产品参数表，建议为每台设备配备独立的适配器。
●根据国家相关标准，对弱电设备供电时，要求供电电流不超过8A并且功率不超过100W，防止发生安全事故。
●为减少火灾或电击危险，请勿让产品受到雨淋或受潮。
●应该在建筑物安装配线中组入易于使用的断电设备。
●在设备安装时，请确保产品固定牢固。
●如果产品工作不正常，请联系购买产品的商店或最近的服务中心，不要以任何方式拆卸或修改产品。
（对未经认可的修改或维修导致的问题，本公司不承担任何责任）。
●避免将产品安装到振动或冲击环境，并使产品远离电磁干扰的地点。
（忽视此项可能会损坏产品）。
●请勿直接触碰产品散热部件，以免烫伤。
●室内产品请勿安装在可能淋到水或其他液体的环境。
●请勿在极热、极冷、多尘、有腐蚀性、高盐碱或者高湿度的环境下使用产品，具体温、湿度要求参见产品的参数表。
●设备需存放于干燥无腐蚀性气体环境，避免阳光直射。
●避免将镜头对准强光（如灯光照明、太阳光或激光束等），否则会损坏图像传感器。
●避免热量积蓄，保持产品周边通风流畅。
●请勿直接触碰到图像传感器，若有必要清洁，请将柔软的干净布用酒精稍微湿润，轻轻拭去尘污；当产品不使用时，请将防尘盖加上，以保护图像传感器。
●设备接入互联网可能面临网络安全问题，请您加强个人信息及数据安全的保护。
当您发现设备可能存在网络安全隐患时，请及时与我们联系。
海康威视网络摄像机用户手册格式说明书
网络摄像机操作手册V2.0.0杭州海康威视数字技术股份有限公司技术热线：400-700-59982011-3安全须知此内容的目的是确保用户正确使用本产品，以避免危险或财产损失。
在使用此产品之前，请认真阅读此说明手册并妥善保存以备日后参考。
如下所示，预防措施分为“警告”和“注意”两部分：警告：无视警告事项，可能会导致死亡或严重伤害。
注意：无视注意事项，可能会导致伤害或财产损失。
警告事项提醒用户防范潜在的死亡或严重伤害危险。
注意事项提醒用户防范潜在的伤害或财产损失危险。
警告：1.请使用满足SELV（安全超低电压）要求的电源，并按照IEC60950－1符合Limited Power Source(有限电源)的额定电压为12V直流或24V交流电源（根据具体型号而定）供应。
2.如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方式拆卸或修改设备（未经许可的修改或维修所导致的问题，责任自负）。
3.为减少火灾或电击危险，请勿让本产品受到雨淋或受潮。
4.本安装应该由专业的服务人员进行，并符合当地法规规定。
5.应该在建筑物安装配线中组入易于使用的断电设备。
有关在天花板上安装设备的指示：安装后，请确保该连接至少可承受向下50牛顿（N）的拉力。
注意：1.在让摄像机运行之前，请检查供电电源是否正确。
2.请勿将此产品摔落地下或受强烈敲击。
3.请勿直接碰触到图像传感器光学元件，若有必要清洁，请将干净布用酒精稍微湿润，轻轻拭去尘污；当摄像机不使用时，请将防尘盖加上，以保护图像传感器。
4.避免对准强光（如灯光照明、太阳光等处）聚焦，否则容易引起过亮或拉光现象（这并非摄像机故障），也将影响图像传感其寿命。
5.激光束可能烧毁图像传感器，在激光装置被使用的情况下，请您一定注意不要让图像传感器的表面暴露于激光束之下。
6.避免置于潮湿，多尘，极热，极冷（正常工作温度：－10℃～＋60℃），强电磁辐射等场所。
7.避免热量积蓄，请不要阻挡摄像机附近的通风。
海康威视网络摄像机用户手册格式说明书
网络摄像机操作手册V2.0.0杭州海康威视数字技术股份有限公司技术热线：400-700-59982011-3安全须知此内容的目的是确保用户正确使用本产品，以避免危险或财产损失。
在使用此产品之前，请认真阅读此说明手册并妥善保存以备日后参考。
如下所示，预防措施分为“警告”和“注意”两部分：警告：无视警告事项，可能会导致死亡或严重伤害。
注意：无视注意事项，可能会导致伤害或财产损失。
警告事项提醒用户防范潜在的死亡或严重伤害危险。
注意事项提醒用户防范潜在的伤害或财产损失危险。
警告：1.请使用满足SELV（安全超低电压）要求的电源，并按照IEC60950－1符合Limited Power Source(有限电源)的额定电压为12V直流或24V交流电源（根据具体型号而定）供应。
2.如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方式拆卸或修改设备（未经许可的修改或维修所导致的问题，责任自负）。
3.为减少火灾或电击危险，请勿让本产品受到雨淋或受潮。
4.本安装应该由专业的服务人员进行，并符合当地法规规定。
5.应该在建筑物安装配线中组入易于使用的断电设备。
有关在天花板上安装设备的指示：安装后，请确保该连接至少可承受向下50牛顿（N）的拉力。
注意：1.在让摄像机运行之前，请检查供电电源是否正确。
2.请勿将此产品摔落地下或受强烈敲击。
3.请勿直接碰触到图像传感器光学元件，若有必要清洁，请将干净布用酒精稍微湿润，轻轻拭去尘污；当摄像机不使用时，请将防尘盖加上，以保护图像传感器。
4.避免对准强光（如灯光照明、太阳光等处）聚焦，否则容易引起过亮或拉光现象（这并非摄像机故障），也将影响图像传感其寿命。
5.激光束可能烧毁图像传感器，在激光装置被使用的情况下，请您一定注意不要让图像传感器的表面暴露于激光束之下。
6.避免置于潮湿，多尘，极热，极冷（正常工作温度：－10℃～＋60℃），强电磁辐射等场所。
7.避免热量积蓄，请不要阻挡摄像机附近的通风。
海康威视全高清IP摄像头手册说明书
1920 × 1200 @ 30fps 2 mm fixed lens1/2.8" Progressive Scan CMOS IP66, IK08Full HD Video (up to 4K)24/7 Operation Built-in WiFi Longer service lifePortrait and landscape modes Built-in 32 GB SD cardPeople Counting CameraDS-2CD6825G0/C-I(V)(S)DS-D60C-BDigital Signage BoxMultiple alarm rules can be configured, helping to save on manpowerProvides alarm notification for operators in order to improve efficiencySaves time wasted on handling false alarms Pop-up video on control client, video wall, and mobile app, email and siren alerts, etc.Displays alarm list, alarm linkage video and alarm location together in a windowHikCentral Professional PlatformLive View: Max. 256 channels’ live view per Control Client. Auto-adaptive window-split overlay for easy operation.Playback: Thumbnail and smooth drag for easy video history skimming.Video Search: VCA search enables the efficient retrieval of desired video footage.E-Map: Locates the cameras on the E-Map for intuitive position demonstration.System Access: Desktop client, web client and mobile client for convenient system access.Video Management SoftwareAccess controller100,000 cards and 300,000 events storageCommunication via TCP/TP, ehome5.0 and RS-485ISAPI, OSDP supportedModular door station main unit, requires mounting bracket 2MP HD camera, fish-eye, IR supplement1 call physical button,2 lock relays, 4-ch alarm inputPro Series Access ControllerDS-K2600TDS-KD8003-IME1/SKD8 Series Pro Stainless SteelModular Door StationHigh quality imaging at 4 MP resolutionExcellent low-light performance via DarkFighter technology180° splicing image: the image presented includes the full panoramic view covered by the cameraPanoramic camera linked to a PTZ: capturing 180° images with the panoramic camera, as well as close-up images with the PTZ cameraDarkfighter PTZPanoramic & PTZ CameraDS-2DF8425IX-AELWDS-2DP0818ZIXS-DE/440/T2High quality imaging with 2 MP resolutionExcellent low-light performance via DarkFighter technologyUp to 4-ch, including people gathering detection, people running detection, violent motion and false alarm redaction detection and trip & fall detection.2 MP ANPR CameraDeepinMind NVRDS-2CD7A26G0/P-IZ(H)SDS-MDH005-BiDS-9632NXI-I8/BA10.1-inch screen showing temperature, mask reminder, etc.Built-in 1/2.7" CMOS cameraBuilt-in thermographic camera with a fixed focal-lens of 3 mm Temperature measuring distance: from 0.3 m to 2 m Temperature measurement range: 30 °C to 45 °COnboard Temperature ScreeningTerminalTemperature Screening & Auto Wi-Fi Record BackupControl RoomCentral ManagementCentral Video MonitoringHikCentral is completely centralised to achieve vast integration capabilities and deliver more powerful solutions.Business IntelligenceThe BI dashboard provides a flexible, customised tabular view interface to provide decision makers with actionable analysis reports.Business IntelligenceWhen someone has an elevated temperature or is not wearing a mask, event & alarm management can guide you to the related video, picture and its location via map, allowing appropriate responses to be initiated.Temperature AnalysisVehicle AnalysisTeaching BuildingBehaviour AnalysisThermographic Handheld Camera Touchless skin-surface temperature and mask detection with LibraryPeople CountingHaving staff management issues?People counting can help optimise staffing schedules and operations, using the generated insights to precisely increase the number of staff during busy times to improve People Counting CameraDocumenting visitor TrafficVisitor flow control is based on the real-time number of people inside, ensuring social distance is maintainedDaily, weekly, and monthly visitor flow reports contribute to improved personnel scheduling and effectively enhance resource utilisationSudden change of sound intensity detectedTrip and fall Congestion FightingPerimeterFalse Alarm ReductionDeepinMind NVRReceives intrusion and line crossing detection information from cameras, and identifies humans and vehicles in the video to reduce false alarms Saves on costs and time compared with conventional CCTV systemsDeepinMind NVRANPR CameraControls vehicle entrance and exit via number plate recognitionNumber plate recognition and recording Automatically releases employee vehiclesWarning on blacklist vehicles (barrier kept closed)Provides reports on passing vehiclesStainless Steel Door StationMake contact with the Control Room Noise suppression and echo cancellation Low illuminationHello?Come on throughSolution IntroductionGateVehicle Entrance & Exit Control + IntercomHikvision’s School Security Applications are designed to increase safety and ensure that your Schoolcan make the students in comfort, with confidence and peace of mind.School BusOnboard Temperature Screening & Mask DetectionApplicationsDormitoryAccess Control Digital DisplayTeaching BuildingsBehaviour Analysis Server Temperature ScreeningControl RoomCentral Monitoring & ManagementGateVehicle Entrance & Exit Control IntercomSports GroundPanoramic ViewLibraryPeople CountingCar ParkPTZ MonitoringPerimeterFalse Alarm Reduction。
海康威视网络硬盘录像机使用手册
海康威视网络硬盘录像机设备操作手册上海三盾智能系统有限公司1. 遥控器说明17 镜头控制调整光圈、焦距、变倍18 F2 同前面板【F2】键在使用遥控器时，请把遥控器的红外发射端对准硬盘录像机的红外接收口，然后在遥控器上按【设备】键，接着输入要操作的那台硬盘录像机的设备号（默认的设备号为“88”，可在“本地设置”进行修改），再按遥控器上的【确认】键。
正确使用遥控器方法为：使用遥控器之前，请确认已经正确安装了电池。
在使用遥控器时，请把遥控器的红外发射端对准硬盘录像机的红外接收口，然后在遥控器上按【设备/DEV】键，接着输入要操作的那台硬盘录像机的设备号（默认的设备号为“88”，可在“本地设置”进行修改），再按遥控器上的【】键，这时，如果硬盘录像机完全接收到遥控器命令，则可以使用遥控器对该硬盘录像机进行操作了。
在整个操作过程中，硬盘录像机面板及监视器上不会有任何提示信息。
设备共有16路通道可供切换，需要切换时可用遥控器直接输入通道号。
例：在遥控器上按【0】【1】键可将画面切换至1号通道；在遥控器上按【0】【2】键可将画面切换至2号通道。
2. 输入法规则说明在菜单操作界面中，如进入编辑框（如“图像设置”内“名称”的编辑框）的编辑状态，则屏幕下方会出现如图所示的状态，按前面板的【数字键】可以在编辑框内输入数字。
如果要输入英文（大写），将输入法切换到“大写字符”，即按前面板的【输入法】键，直到变成如下图所示的状态，这时按前面板的【数字键】就可以在编辑框内输入大写英文字母（与在手机中输入英文字母的方法相同）。
另外还支持以下几种输入法：小写字符、符号、区位。
符号共有24个，分4页显示，用前面板的数字【0】键可以进行翻页；使用“区位”可以输入中文，《汉字区位简明对照表》参见随机光盘。
说明：本用户手册中，硬盘录像机前面板（或遥控器）的各种“按键”表示为【按键名称】，如回放键表示为【放像】，确认键表示为【确认】。
菜单界面中的参数设置项表示为“设置名称”，如通道名称编辑框表示为“名称”。
海康威视网络硬盘录像机操作说明
海康威视网络硬盘录像机操作说明一、开箱及安装1.打开包装箱，将海康威视网络硬盘录像机取出。
2.检查包装是否完好无损，并核对配件是否齐全，包括硬盘录像机、电源适配器、鼠标、网络连接线等。
3.将硬盘录像机放置在水平稳定的台面上，并确保通风良好，避免过暖或过热的环境。
二、连接设备1.将网络硬盘录像机的电源适配器插入电源插座，并将其它设备如显示器、摄像头等连接到硬盘录像机对应的接口上。
2.使用网络线连接硬盘录像机和路由器，确保网络连接正常。
3.将鼠标连接到硬盘录像机的USB接口上。
三、启动和登录1.打开电源开关，硬盘录像机开始启动。
2.等待片刻，系统加载完成后，会出现登录界面。
3.使用鼠标点击登录界面上的“用户名”和“密码”输入框，输入正确的用户名和密码，并点击登录按钮。
四、主界面1.登录成功后，进入主界面，可以看到监控画面和相关的功能按钮。
2.主界面上方有一排功能按钮，包括“监控画面”、“录像回放”、“报警信息”等。
3.左侧是监控画面，可以显示多个摄像头的实时图像。
五、基本设置1.点击主界面上方的“设置”按钮，进入基本设置菜单。
2.在基本设置菜单中，可以进行系统设置、网络设置、存储设置等。
3.修改完设置后，点击保存按钮，系统会自动保存设置并生效。
六、监控画面1.点击主界面上方的“监控画面”功能按钮，可以查看所有已经安装的摄像头实时画面。
2.若需要单独查看一些摄像头的画面，可以点击左侧监控画面中对应的通道，即可单独查看该通道的实时画面。
3.可以通过相关按钮控制画面的放大、缩小，调整亮度、对比度等。
七、录像回放1.点击主界面上方的“录像回放”功能按钮，进入录像回放界面。
2.在录像回放界面，可以选择回放的时间段和通道，查看录像文件。
3.可以通过相关按钮控制录像的播放、暂停、快进、慢放等。
八、报警信息1.点击主界面上方的“报警信息”功能按钮，可以查看设备的报警信息。
2.报警信息会记录设备发生的报警事件，如移动侦测、遮挡报警等。
海康威视威视IP网络摄像头用户手册说明书
Pneumatics Fluid & Gas Handling Hydraulics Process Control Sealing & Shielding Key Products Accumulators Cartridge valves Electrohydraulic actuators Human machine interfaces Hybrid drives Hydraulic cylindersHydraulic motors & pumps Hydraulic systems Hydraulic valves & controls Hydrostatic steering Integrated hydraulic circuits Power take-offs Power units Key Markets Aerospace Conveyor & material handling Factory automation Life science & medical Machine tools Packaging machinery T ransportation & automotive Key Products Air preparation Brass fittings & valves Manifolds Pneumatic accessories Pneumatic actuators & grippers Pneumatic valves & controls Quick disconnects Rotary actuators Rubber & thermoplastic hose & couplings Structural extrusions Thermoplastic tubing & fittings Vacuum generators,cups & sensors Key Markets Aerial lift Agriculture Bulk chemical handling Construction machinery Food & beverage Fuel & gas delivery Industrial machinery Life sciences Marine Mining Mobile Oil & gas Renewable energy T ransportation Key Products Check valves Connectors for low pressure fluid conveyance Deep sea umbilicals Diagnostic equipment Hose couplings Industrial hose Mooring systems &power cables PTFE hose & tubing Quick couplings Rubber & thermoplastic hose T ube fittings & adapters Key Markets Aerial lift Agriculture Alternative energy Construction machinery Forestry Industrial machinery Machine tools Marine Material handling Mining Oil & gas Power generation Refuse vehicles Renewable energy T ruck hydraulics T urf equipmentKey Markets Alternative fuels Biopharmaceuticals Chemical & refining Food & beverage Marine & shipbuilding Medical & dental Microelectronics Nuclear Power Offshore oil exploration Oil & gas Pharmaceuticals Power generation Pulp & paper Steel Water/wastewater Key Products Analytical Instruments Analytical sample conditioning products & systems Chemical injection fittings & valves Fluoropolymer chemical delivery fittings,valves & pumps High purity gas delivery fittings,valves,regulators & digital flow controllers Industrial mass flow meters/controllers Permanent no-weld tube fittings Precision industrial regulators Key Markets Aerospace Chemical processing Consumer Fluid power General industrial Information technology Life sciences Microelectronics Military Oil & gas Power generation Renewable energy T elecommunications T ransportation Key Products Dynamic seals Elastomeric o-rings Electro-medical instrument design & assembly EMI shielding Extruded & precision-cut,fabricated elastomeric seals High temperature metal seals Homogeneous & inserted elastomeric shapes Medical device fabrication & assembly Metal & plastic retainedAerospace Key Markets Aftermarket services Commercial transports Engines General & business aviation Helicopters Launch vehicles Military aircraft Missiles Power generation Regional transports Unmanned aerial vehicles Key Products Control systems & actuation products Engine systems & components Fluid conveyance systems & components Fluid metering, delivery & atomization devices Fuel systems & components Fuel tank inserting systems Hydraulic systems & components Thermal management Wheels & brakes Electromechanical Key Markets Aerospace Factory automation Life science & medical Machine tools Packaging machinery Paper machinery Plastics machinery & converting Primary metals Semiconductor & electronics T extile Wire & cable Key Products AC/DC drives & systems Electric actuators, gantry robots & slides Electrohydrostatic actuation systems Electromechanical actuation systems Human machine interface Linear motors Stepper motors,servo motors,drives & controlsStructural extrusions Parker’s Motion & Control TechnologiesAt Parker, we’re guidedby a relentless drive tohelp our customersbecome moreproductive and achievehigher levels ofprofitability byengineering thebest systems for theirrequirements. It meanslooking at customerapplications frommany angles to findnew ways to createvalue. What ever themotion and controltechnology need,Parker has theexperience, breadthof product and global reach to consistentlydeliver. No companyknows more about motionand control technologythan Parker. For further infocall 1 800 C-Parker(180****7537)Climate Control Key Markets Agriculture Air conditioning Construction Machinery Food & beverage Industrial machinery Life sciences Oil & gas Precision cooling Process Refrigeration T ransportation Key Products Accumulators Advanced actuators Co controls Electronic controllers Filter driers Hand shut-off valves Heat exchangers Hose & fittings Pressure regulating valves Refrigerant distributors Safety relief valves Smart pumps Solenoid valves Thermostatic expansion valves Filtration Key Markets Aerospace Food & beverage Industrial plant & equipment Life sciences Marine Mobile equipment Oil & gas Power generation & renewable energy Process T ransportation Water Purification Key Products Analytical gas generators Compressed air filters & dryers Engine air, coollant, fuel & oil filtration system Fluid condition monitoring systems Hydraulic & lubrication filters Hydrogen,nitrogen & zero air generators Instrumentation filters Membrane & fiber filters Micro filtration Sterile air filtration Water desalination & purification filters & systemsViking LiteDirectional control valves The Viking Lite valve range is robust, versatile and combines high performance with compact installation dimensions. Large flow capacity, short change-over times and low change-over pressure are important characteristics of this valve range.Designed to operate with pressures up to 10 bar intemperatures -10C to + 50C.Zinc plated Viking Lite ...cover screwsrobust, versatile high performance with long service lifeViking Lite rangeP2LAZ, G1/8 - Cv = 0,6P2LBZ, G1/4 - Cv = 1,5P2LCZ, G3/8 - Cv = 2,5Solenoid operatedWear compensating systemThe Viking Lite valve range is robust, versatile and combines high performance with compact installation dimensions. The choice of G1/8, G14 or G3/8 port sizes provide large flow capacity, short change-over times. Low change-over pressure is also an important characteristic of this valve range.Viking Lite valves are fitted with dynamic bi-directional spool seals suitable for pressures up to 10 bar, inO O ambient temperatures -10C to + 50C. Under pressure radial expansion of the seal occurs to maintain sealing contact with the valve bore.This sealing method reduces friction gives lower pilotpressures, providing fast response and less wear. Valves do not require lubrication in operation but they can also be installed in systems that are lubricated.IP65 and RoHSPort sizes & port types (BSP , NPT , 1/8, 1/4, 3/8)Directional control valvesSolenoid operated directional control valvesInternal supply to solenoid valve(s) via port 1.5/2 valves, internal air, standard temperature3/2 valves, internal air, standard temperature(bar) actua./return 5/3 valves, internal air, standard temperatureSymb ol Size ActuationMinChangeover Weight Order code Order code Operating time (ms) Kg Without coil With 24V DC Pressure at 6 bar @20C (22mm coil)Symb olSizeActuationReturnMinChangeover Weight Order code Order code Operating time (ms) Kg Without coil With 24V DC Pressure at 6 bar @20C (22mm coil)(bar) actua./returnSymb ol Size ActuationReturnMinChangeover Weight Order code Order codeOperating time (ms) Kg Without coil With 24V DC Pressure at 6 bar @20C (22mm coil)(bar) actua./return Viking LiteMPS-V32N-PGMPS-V32N-PCCatalog 0802-5FeaturesMounting Bracket MPS-ACCK1 Included withSensors.Pressure SensorsMPS-322-Color Panel MountMPS-32RedFeaturesVacuum Pressure...............0to -30inHg Positive Pressure.................0to 145PSI2 NPNor PNP Open CollectorTransistor Output, 30VDC, 125mA Optional Analog Output, 4 to 20mA Optional Analog Output, 1 to5VDCMode(mmHg, -bar, -kPa, inHg)(kgf/cm 2,PSI,bar,kPa)MillisecondsOrdering Information,SpecificationsPressure SensorsMPS-322-Color Panel Mount SpecificationsPressure RangeVacuum(V)Positive(P)Units of Measure Display Resolution (with unit-switching function)bar:kPa:mmHg:inHg:0.0010.110.1bar:MPa:kgf/cm 2:PSI:0.010.0010.011ProofPressure-101 to 0kPa0 to 1MPaMediaAir & Non-Corrosive Gases PressurePort (N) 1/8" NPSF OperatingTemperature 32 to 122°F (0 to 50°C)StorageTemperature 14 to140°F (-10 to60°C)Humidity35 to 85% RHElectrical Connection (C) 4-Pin, M8 Connector, (G) Grommet Open LeadPowerSupply12 to 24VDC +10% or less, Ripple(Vp-p) 10% orless Display 3 + 1/2 Digit, 2 Color, 7-SegmentLED DisplayRefresh.1 to3.0 Seconds, Variable (Factoryset at0.1)Control Output NPN (Sinking), PNP (Sourcing),OpenCollector, max 125mA, 2Output Switch OutputOutput Signal, NPN or PNP , NormallyOpen orClosed,LEDIndicatorOutput Modes Hysteresis or WindowComparator Response Time2ms or less,(Variable 32, 128, 1024ms)Repeatability± 0.2% of F .S.± 1digit or less± 03% of F .S. ± 1 digit or lessAnalogOutputVoltageOutput 1 to 5VDC (1 + 0.04V , 5 + 0.04V); Outout Impedance 1kΩ; Linearity 0.5% of F .S.;Response Time 2ms or lessCurrent Output4 to 20mA; Linearity ±0.5% of F .S. or less; Maximum Load Impedance 300Ωwith Power Supply Voltage of 12V; 600Ω with Power Supply Voltage of 12V;Minimum Load Impedance50ΩThermal Error32 to 122°F (0 to 50°C) 25°C (77°C) + 2% of F .S. or less at range of 32 to 122°F (0 to50°C)GeneralProtection IP50, CE Marked, EMC-EN61000-6-2: 2001CurrentConsumption <80mA Vibration Resistance 10to 150Hz,Double Amplitude 1.5mm,XYZ,2hrs.Shock Resistance 10G,XYZMaterialHousing:ABS (gray),Pressure Port:Zinc Die-cast,Diaphragm:Silicone Mass1.7oz.(45g)(Not including cable)MPS-32Ordering NumbersPressure RangePort SizeOutputCircuit Electrical ConnectorPartNumber 0to -30inHg1/8 NPSF*PNPSourcing4 Pin,M8MPS-V32N-PC 2M LeadWire MPS-V32N-PG NPN Sinking4Pin, M8MPS-V32N-NC 2MLead Wire MPS-V32N-NG 0to 145PSI1/8NPSF*PNPSourcing4 Pin, M8MPS-P32N-PC 2M Lead Wire MPS-P32N-PG NPNSinking4Pin, M8MPS-P32N-NC 2MLeadWire MPS-P32N-NG PNP Sourcing with4-20ma4 Pin,M8MPS-P32N-PCI*Mounting BracketIncluded(Bold Items are Most Popular)Products for Automotive IndustryNBH/PBH/LE2 - Introduction• N BH allows for increased power similar to that achieved using hydraulics • Convert air pressure to high oil pressure using a booster• Patent Pending• High output from 0.15 4.5tons• Adjust air pressure using air regulator• Accurate force using oil pressure• Typical flow – manual ~ pneumatic ~ hydraulic or electric• NBH – Uses direct air pressure – high output and speed, uses consitent air pressure, used for short stroke.• PBH – Uses an accumulator – for long strokeHigh Power SystemsPneumerlock Clamping Element• P ressure booster combined with clamp cylindersenables high output of 1.5 to 44.1kN.• E ither direct-pressure or preload-pressureboosters can be selected to provide a wide range ofmotions of actuator from short to long.SpecificationOutput oil pressure : 10.8~17.5 MPaOperating air pressure: 0.2~1 MPaOutput oil capacity : 77~304 cm3Direct Pressure Type BoosterNBH seriesDirect pressure type booster configurationSuitable for operations requiring highoutput throughout the stroke.SpecificationPre-Pressure Type Booster PBH, PBE SeriesExample of circuit for referenceSuitable for operations requiring highoutput throughout the stroke.Locating pin cylinderRigid mounting blocks and tight rod tolerance give the accurate position of locating pins on welding jigs.Wide variety of actuator shapes on customer’srequests.Pin clamp cylinderLocating pins are equipped to cylinders.Both vertical and horizontal shape with many different diameters/ shapes of locating pins oncustomer’s requests. Clamp UnclampVertical typeHorizontal typeJig lifting cylinderRigid lift cylinder which gives theaccurate clamping positions to the clamp units.On lift & carry conveyance or multi product lines, usuallyinstalled on the base welding machines.10F-1/2Flat shape cylinder with thin width bodies 20mm for bore 25mm 25mm for bore 32mm 39mm for bore 50mmNon rotating with oval pistonSpecificationPressure: 0.1 to 1MPa O Temperature: -10 to +60 C Bore: 25/ 32/ 50mm Standard stroke: 50-200mm 10F-1 5-50mm 10F-2FlangeDescription Type Order code P1C-4NMBFlangeMF1/MF2Water retract actuator (WRA-series)Note: For reliable operation of WRA, air pressure has to exceed water pressure, pressure difference recommended 1 barFoot bracketDescription Type Order code P1C-4NMFFoot bracketMS1Water retract actuator (WRA-series)Water retract actuator designed to reduce water pressure during automatic tip change operation• Based on standard components, utilizing Parker P1P global actuator series, VikingLite valve technology, sealing, hose and fitting technologies • Reduces downtime• Protection of expensive weld equipment, automatic tip changer • Easy installation, easily integrated into existing water system • Corrosive protection against cooling water medium • Cost effective design• Optimized design to fit car manufacturer specifications,new program or retooling programWater retract actuator (Order code)Pneumatic Actuator Air Motor- TAM4 : Compact, economical air motor with grease mounted system <Specifications>Nominal output : 9.81-19.6 kNOperating pressure range : 0.15-0.7MPaRadial Piston Type Air MotorTAM4 seriesPneumatic ActuatorHigh-Power System- All in one construction combining pressure booster and clamp cylinder - Compact, Lightweight design<Specifications>Port size : G1/8, G1/4Operating air pressure range : 0.15-0.9MPa at air pressure as 0.6 MPaClamping Element LE2 seriesPneumatic Actuator High-Power System- Space-saving pneumatic press- 1/10 The volume of conventional presses<Specifications>Rated pressure : 0.5MPaMaximum output : 73.5-228W Torque : 0.64-2.91 NmPneumatic Toggle PressTPH series。
网络摄像机 快速入门指南说明书
网络摄像机快速入门指南版权所有©杭州海康威视数字技术股份有限公司2020。
保留一切权利。
本手册的任何部分，包括文字、图片、图形等均归属于杭州海康威视数字技术股份有限公司或其关联公司（以下简称“海康威视”）。
未经书面许可，任何单位或个人不得以任何方式摘录、复制、翻译、修改本手册的全部或部分。
除非另有约定，海康威视不对本手册提供任何明示或默示的声明或保证。
关于本产品本手册描述的产品仅供中国大陆地区销售和使用。
本产品只能在购买地所在国家或地区享受售后服务及维保方案。
关于本手册本手册仅作为相关产品的指导说明，可能与实际产品存在差异，请以实物为准。
因产品版本升级或其他需要，海康威视可能对本手册进行更新，如您需要最新版手册，请您登录海康威视官网查阅（）。
海康威视建议您在专业人员的指导下使用本手册。
商标声明●为海康威视的注册商标。
●本手册涉及的其他商标由其所有人各自拥有。
责任声明●在法律允许的最大范围内，本手册以及所描述的产品（包含其硬件、软件、固件等）均“按照现状”提供，可能存在瑕疵或错误。
海康威视不提供任何形式的明示或默示保证，包括但不限于适销性、质量满意度、适合特定目的等保证；亦不对使用本手册或使用海康威视产品导致的任何特殊、附带、偶然或间接的损害进行赔偿，包括但不限于商业利润损失、系统故障、数据或文档丢失产生的损失。
●您知悉互联网的开放性特点，您将产品接入互联网可能存在网络攻击、黑客攻击、病毒感染等风险，海康威视不对因此造成的产品工作异常、信息泄露等问题承担责任，但海康威视将及时为您提供产品相关技术支持。
●使用本产品时，请您严格遵循适用的法律法规，避免侵犯第三方权利，包括但不限于公开权、知识产权、数据权利或其他隐私权。
您亦不得将本产品用于大规模杀伤性武器、生化武器、核爆炸或任何不安全的核能利用或侵犯人权的用途。
●如本手册内容与适用的法律相冲突，则以法律规定为准。
前言本节内容的目的是确保用户通过本手册能够正确使用产品，以避免操作中的危险或财产损失。
海康威视 网络视频录像机 用户手册说明书
网络视频录像机用户手册V3.01目录关于本文档 (1)1 操作必读 (2)1.1 本地操作必读 (2)1.2 本地界面操作方法 (2)2 初始配置 (5)2.1 开机准备 (5)2.2 自动添加 (5)2.3 设备登录 (6)2.4 开机向导 (9)3 预览 (11)3.1 预览界面状态 (12)3.2 窗格工具栏 (12)3.3 底部工具栏 (13)3.4 右键菜单栏 (17)4 通道配置 (20)4.1 通道管理 (20)4.1.1 IPC配置 (20)4.1.2 鱼眼配置 (27)4.1.3 高级配置 (29)4.2 编码参数 (30)4.3 音频配置 (32)4.4 抓图参数 (33)4.5 OSD配置 (34)4.6 图像参数 (35)4.7 隐私遮盖 (39)4.8 云台配置 (41)5 智能分析 (46)5.1 智能功能配置 (46)5.1.1 联动方式 (47)5.1.2 布防计划 (54)5.1.3 人脸检测 (55)5.1.4 人脸比对 (57)5.1.5 越界检测 (60)5.1.6 区域入侵 (63)5.1.7 进入区域 (65)5.1.8 离开区域 (67)5.1.9 智能运动检测 (69)5.1.11 高空抛物 (71)5.1.12 虚焦检测 (73)5.1.13 场景变更 (73)5.1.14 物品搬移 (74)5.1.15 物品遗留 (75)5.1.16 自动跟踪 (76)5.1.17 人流量统计 (77)5.1.18 人员密度检测 (78)5.2 分析器配置 (80)5.3 名单库管理 (80)5.3.1 人脸名单 (80)5.4 车辆管控 (83)5.4.1 车牌名单 (83)5.4.2 车辆报警布控 (85)5.5 智能检索 (86)5.5.1 人脸抓拍检索 (86)5.5.2 人脸比对检索 (87)5.5.3 以图搜图 (90)5.5.4 车辆检索 (93)5.5.5 行为检索 (95)5.5.6 人数统计报表 (98)5.6 智能预览 (99)6 网络配置 (104)6.1 常规配置 (104)6.1.1 网络配置 (104)6.1.2 宇视云 (105)6.1.3 DDNS (109)6.1.4 邮件 (110)6.2 平台配置 (111)6.2.1 国标服务器配置 (111)6.2.2 国标本地配置 (114)6.2.3 UNP (114)6.2.4 监管平台 (116)6.2.5 SNMP (117)6.2.6 报警上报 (119)6.2.7 视图库GA/T1400本地配置 (120)6.2.8 视图库GA/T1400服务器配置 (121)6.2.9 CDN（流分发）管理 (122)6.2.10 TMS配置 (123)6.3 高级配置 (124)6.3.1 拨号上网 (124)6.3.2 端口 (125)6.3.3 端口映射 (126)6.3.4 组播 (127)6.3.5 FTP (128)6.4 无线局域网 (130)7 系统配置 (130)7.1 基本配置 (130)7.2 预览配置 (131)7.2.1 预览配置 (131)7.2.2 高级配置 (134)7.3 时间配置 (134)7.3.1 时间配置 (134)7.3.2 时间同步 (135)7.3.3 假日配置 (135)7.4 POS配置 (137)7.4.1 POS显示配置 (137)7.4.2 POS配置 (138)7.5 串口配置 (140)7.6 用户配置 (141)7.7 安全配置 (142)7.7.1 IP地址过滤 (142)7.7.2 ONVIF认证 (143)7.7.3 802.1x (143)7.7.4 ARP防攻击 (144)7.7.5 视频水印 (144)7.7.6 安全密码 (144)7.8 热备配置 (145)8 备份 (147)8.1 录像备份 (147)8.2 图片备份 (150)9 存储配置 (153)9.1 录像计划 (153)9.2 抓图计划 (156)9.3 阵列配置 (157)9.4 硬盘管理 (161)9.5 盘组配置 (163)9.6 容量配置 (164)9.7 高级配置 (165)10 报警配置 (166)10.1 运动检测 (166)10.2 遮挡检测 (167)10.3 人形检测 (167)10.4 视频丢失 (168)10.5 输入输出 (169)10.5.1 报警输入 (169)10.5.2 报警输出 (171)10.6 热成像检测 (173)10.7 温度异常 (175)10.8 异常配置 (176)10.9 声音检测 (177)10.10 蜂鸣器 (178)10.11 门铃呼叫 (179)10.12 滞留人数告警 (179)10.13 一键撤防 (181)10.14 手动报警 (183)11 系统维护 (184)11.1 系统信息 (184)11.1.1 基本信息 (184)11.1.2 通道状态 (184)11.1.3 录像状态 (185)11.1.4 在线用户 (185)11.1.5 硬盘状态 (186)11.1.6 解码卡状态 (186)11.2 网络信息 (187)11.2.1 网络流量 (187)11.2.2 网络抓包 (187)11.2.3 网络检测 (189)11.2.4 网络状态 (191)11.2.5 网络资源统计 (191)11.2.6 PoE/交换网口状态 (192)11.3 日志查询 (192)11.4 系统备份 (194)11.4.1 系统备份 (194)11.4.2 诊断信息 (194)11.5 系统恢复 (196)11.6 自动维护 (196)11.7 系统升级 (196)11.7.1 NVR升级 (197)11.7.2 IPC升级 (198)11.8 硬盘检测 (199)11.8.1 S.M.A.R.T.检测 (199)11.8.2 磁盘检测 (200)11.9 关于我们 (200)11.10 一键收集 (201)12 回放 (201)12.1 即时回放 (202)12.2 普通回放 (202)12.3 智能回放 (204)12.4 走廊回放 (206)12.5 外部文件回放 (206)12.6 标签回放 (206)12.7 检索回放 (208)12.8 文件管理 (209)13 关机 (210)14 Web操作 (210)14.1 登录前准备 (210)14.2 登录 (211)14.3 实况 (211)14.4 回放 (212)14.5 配置 (213)14.6 智能 (214)15 附录：常见问题解答 (214)关于本文档版权声明©2022浙江宇视科技有限公司。
海康威视网络摄像机用户手册_WORD格式(说明书)解析
网络摄像机操作手册V2.0.0杭州海康威视数字技术股份有限公司技术热线：400-700-59982011-3安全须知此内容的目的是确保用户正确使用本产品，以避免危险或财产损失。
在使用此产品之前，请认真阅读此说明手册并妥善保存以备日后参考。
如下所示，预防措施分为“警告”和“注意”两部分：警告：无视警告事项，可能会导致死亡或严重伤害。
注意：无视注意事项，可能会导致伤害或财产损失。
警告：1.请使用满足SELV（安全超低电压）要求的电源，并按照IEC60950－1符合Limited Power Source(有限电源)的额定电压为12V直流或24V交流电源（根据具体型号而定）供应。
2.如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方式拆卸或修改设备（未经许可的修改或维修所导致的问题，责任自负）。
3.为减少火灾或电击危险，请勿让本产品受到雨淋或受潮。
4.本安装应该由专业的服务人员进行，并符合当地法规规定。
5.应该在建筑物安装配线中组入易于使用的断电设备。
有关在天花板上安装设备的指示：安装后，请确保该连接至少可承受向下50牛顿（N）的拉力。
注意：1.在让摄像机运行之前，请检查供电电源是否正确。
2.请勿将此产品摔落地下或受强烈敲击。
3.请勿直接碰触到图像传感器光学元件，若有必要清洁，请将干净布用酒精稍微湿润，轻轻拭去尘污；当摄像机不使用时，请将防尘盖加上，以保护图像传感器。
4.避免对准强光（如灯光照明、太阳光等处）聚焦，否则容易引起过亮或拉光现象（这并非摄像机故障），也将影响图像传感其寿命。
5.激光束可能烧毁图像传感器，在激光装置被使用的情况下，请您一定注意不要让图像传感器的表面暴露于激光束之下。
6.避免置于潮湿，多尘，极热，极冷（正常工作温度：－10℃～＋60℃），强电磁辐射等场所。
7.避免热量积蓄，请不要阻挡摄像机附近的通风。
8.使用时不可让水及任何液体流入摄像机。
9.当运送摄像机时，重新以出厂时的包装进行包装，或用同等品质的材质包装。
海康威视网络摄像机快速指南说明书
版权所有©杭州海康威视数字技术股份有限公司2019。
保留一切权利。
本手册的任何部分，包括文字、图片、图形等均归属于杭州海康威视数字技术股份有限公司或其子公司（以下简称“本公司”或“海康威视”）。
未经书面许可，任何单位和个人不得以任何方式摘录、复制、翻译、修改本手册的全部或部分。
除非另有约定，本公司不对本手册提供任何明示或默示的声明或保证。
关于本手册本手册描述的产品仅供中国大陆地区销售和使用。
本手册作为指导使用。
手册中所提供照片、图形、图表和插图等，仅用于解释和说明目的，与具体产品可能存在差异，请以实物为准。
因产品版本升级或其他需要，本公司可能对本手册进行更新，如您需要最新版手册，请您登录公司官网查阅（）。
海康威视建议您在专业人员的指导下使用本手册。
访问本公司官网（）获取说明书、应用工具和开发资料。
商标声明为海康威视的商标。
本手册涉及的其他商标由其所有人各自拥有。
免责声明·在法律允许的最大范围内，本手册所描述的产品（含其硬件、软件、固件等）均 “按照现状”提供，可能存在瑕疵、错误或故障，本公司不提供任何形式的明示或 默示保证，包括但不限于适销性、质量满意度、适合特定目的、不侵犯第三方权 利等保证；亦不对使用本手册或使用本公司产品导致的任何特殊、附带、偶然或 间接的损害进行赔偿，包括但不限于商业利润损失、数据或文档丢失产生的损失。
·若您将产品接入互联网需自担风险，包括但不限于产品可能遭受网络攻击、黑客 攻击、病毒感染等，本公司不对因此造成的产品工作异常、信息泄露等问题承担 责任，但本公司将及时为您提供产品相关技术支持。
·使用本产品时，请您严格遵循适用的法律。
若本产品被用于侵犯第三方权利或其 他不当用途，本公司概不承担任何责任。
·如上述内容与适用的法律相冲突，则以法律规定为准。
. 3456外观介绍描述说明2安装 micro SD卡设备底部有micro SD卡槽，拧松卡盖螺丝，按照标识插入micro SD卡，拧紧卡盖螺丝，完成micro SD卡安装。
海康威视网络录像机快速入门指南说明书
Network Video RecorderQuick Start GuideTABLE OF CONTENTSChapter1 Panels Description (8)1.1 Front Panel (8)1.2 Rear Panel (9)NVR-100H-D and NVR-100MH-D Series (9)NVR-100H-D/P and NVR-100MH-D/P Series (10)Chapter 2 Installation and Connections (11)2.1 NVR Installation (11)2.2 Hard Disk Installation (11)2.3 HDD Storage Calculation Chart (13)Chapter 3 Menu Operation (14)3.1 Startup and Shutdown (14)3.2 Activate Your Device (14)3.3 Set the Unlock Pattern for Login (15)3.4 User Login (16)3.5 Network Settings (16)3.6 Add IP Cameras (17)3.7 Live View (18)3.8 Recording Settings (18)3.9 Playback (19)Chapter 4 Accessing by Web Browser (21)Quick Start GuideCOPYRIGHT ©2019 Hangzhou Hikvision Digital Technology Co., Ltd.ALL RIGHTS RESERVED.Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.About this ManualThis Manual is applicable to Network Video Recorder (NVR).The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (/en/).Please use this user manual under the guidance of professionals.Trademarks Acknowledgementand other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logoare trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.Legal DisclaimerTO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMSTHE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.Regulatory InformationFCC InformationPlease take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.FCC ConditionsThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference.2. This device must accept any interference received, including interference that may cause undesired operation.EU Conformity StatementThis product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: Industry Canada ICES-003 ComplianceThis device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.Applicable ModelsThis manual is applicable to the models listed in the following table.Series ModelNVR-100H-D NVR-104H-D NVR-108H-DNVR-100H-D/P NVR-104H-D/4P NVR-108H-D/8PNVR-100MH-D NVR-104MH-D NVR-108MH-DNVR-100MH-D/P NVR-104MH-D/4P NVR-108MH-D/8PSymbol ConventionsThe symbols that may be found in this document are defined as follows.Symbol DescriptionProvides additional information to emphasize or supplementimportant points of the main text.Indicates a potentially hazardous situation, which if not avoided,could result in equipment damage, data loss, performancedegradation, or unexpected results.Indicates a hazard with a high level of risk, which if not avoided, willresult in death or serious injury.Safety Instructions●Proper configuration of all passwords and other security settings is the responsibility of theinstaller and/or end-user.●In the use of the product, you must be in strict compliance with the electrical safetyregulations of the nation and region. Please refer to technical specifications for detailedinformation.●Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited PowerSource with 100~240 VAC, 48 VDC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.●Do not connect several devices to one power adapter as adapter overload may causeover-heating or a fire hazard.●Please make sure that the plug is firmly connected to the power socket.●If smoke, odor or noise rise from the device, turn off the power at once and unplug the powercable, and then please contact the service center.●If the POE ports of device do not comply with Limited Power Source, the additional equipmentconnected to POE ports shall have fire enclosure.●The USB interface of the /P devices can be connected with the mouse and U-flash disk storagedevice only.Preventive and Cautionary TipsBefore connecting and operating your device, please be advised of the following tips:●Ensure unit is installed in a well-ventilated, dust-free environment.●Unit is designed for indoor use only.●Keep all liquids away from the device.●Ensure environmental conditions meet factory specifications.●Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result ofdropping it may cause damage to the sensitive electronics within the unit.●Use the device in conjunction with an UPS if possible.●Power down the unit before connecting and disconnecting accessories and peripherals.● A factory recommended HDD should be used for this device.●Improper use or replacement of the battery may result in hazard of explosion. Replace withthe same or equivalent type only. Dispose of used batteries according to the instructionsprovided by the battery manufacturer.Power Supply InstructionsUse only power supplies listed in the user instructions.NVR Models Standard Power Supply Models ManufacturerNVR-104H-D NVR-108H-D NVR-104MH-D NVR-108MH-D EuropeanMSA-C1500IC12.0-18P-DE MOSO Power Supply Technology Co., LtdADS-26FSG-12 12018EPG Shenzhen HONOR Electronic Co., LtdKL-AD3060VA Xiamen Keli Electronics Co., LtdKPD-018-VI Channel Well Technology Co., Ltd BritishADS-25FSG-12 12018GPB Shenzhen HONOR Electronic Co., LtdMSA-C1500IC12.0-18P-GB MOSO Power Supply Technology Co., LtdADS-26FSG-12 12018EPB Shenzhen HONOR Electronic Co., LtdNVR-104H-D/4PNVR-108H-D/8P NVR-104MH-D/4P NVR-108MH-D/8P UniversalMSP-Z1360IC48.0-65W MOSO Power Supply Technology Co., LtdMSA-Z1040IS48.0-65W-Q MOSO Power Supply Technology Co., LtdMSA-Z1360IS48.0-65W-QMOSO Power Supply Technology Co., Ltd●The power supplies list above is for EU countries only.●The power supplies list is subject to change without prior notice.Chapter1 Panels Description 1.1 Front PanelFigure 1-1NVR-100H-D (/P) SeriesFigure 1-2NVR-100MH-D (/P) SeriesTable 1-1Description of Front Panel No. Icon Description1 Indicator turns red when NVR is powered up.2 Indicator lights in red when data is being read from or written to HDD.3 Indicator blinks blue when network connection is functioning properly.1.2 Rear PanelNVR-100H-D and NVR-100MH-D SeriesFigure 1-3NVR-100H-D Rear PanelFigure 1-4NVR-100MH-D Rear PanelNo. Item Description1 Power Supply 12 VDC power supply.2 VGA Interface DB9 connector for VGA output. Display local videooutput and menu.3 HDMI Interface HDMI video output connector.4 USB Interface Universal Serial Bus (USB) ports for additional devicessuch as USB mouse and USB Hard Disk Drive (HDD).5 LAN Network Interface 10/100 Mbps self-adaptive Ethernet interface.6 Ground Ground (needs to be connected when NVR starts up).NVR-100H-D/P and NVR-100MH-D/P SeriesFigure 1-5NVR-100H-D/P Rear PanelFigure 1-6NVR-100MH-D/P Rear PanelTable 1-3Description of Rear Panel No. Item Description1 Power Supply 12 VDC power supply.2 VGA Interface DB9 connector for VGA output. Display local videooutput and menu.3 HDMI Interface HDMI video output connector.4 USB Interface Universal Serial Bus (USB) ports for additional devicessuch as USB mouse and USB Hard Disk Drive (HDD).5 LAN Network Interface 10/100 Mbps self-adaptive Ethernet interface.6 Ground Ground (needs to be connected when NVR starts up).7 Network Interfaces withPoE functionNetwork interfaces for the cameras and to providepower over Ethernet.4 interfaces for /4P models and 8 interfaces for /8Pmodels.Chapter 2 Installation and Connections2.1 NVR InstallationDuring installation of the NVR:●Use brackets for rack mounting.●Ensure ample room for audio and video cables.●When routing cables, ensure that the bend radius of the cables are no less than five times thanits diameter.●Connect the alarm cable.●Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.●Ensure the NVR is grounded.●Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.●Environmental humidity should be within the range of 10% to 90%.2.2 Hard Disk InstallationBefore you start:Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD should be used for this installation.Tools Required: Screwdriver.Step 1Remove the cover from the device by unfastening the screws on the bottom.Figure 2-1Remove the CoverStep 2Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.Figure 2-2Fix the HDDStep 3Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.Step 4Connect the power cable to the HDD.Figure 2-3Connect CablesStep 5Re-install the cover of the NVR and fasten screws.2.3 HDD Storage Calculation ChartThe following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate.Bit Rate Storage Used96K42M128K56M160K70M192K84M224K98M256K112M320K140M384K168M448K196M512K225M640K281M768K337M896K393M1024K450M1280K562M1536K675M1792K787M2048K900M4096K 1.8G8192K 3.6G16384K 7.2GPlease note that supplied values for storage space used is just for reference. The storage values in the chart are estimated by formulas and may have some deviation from actual value.Chapter 3 Menu Operation3.1 Startup and ShutdownProper startup and shutdown procedures are crucial to expanding the life of the NVR.To start your NVR:Step 1Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Powerbutton) on the front panel should be red, indicating the device is receiving the power.Step 2Press the power switch on the panel. The Power LED should turn blue. The unit will begin to start.After the device starts up, the wizard will guide you through the initial settings, including modifying password, date and time settings, network settings, HDD initializing, and recording.To shut down the NVR:Step 1Go to Menu > Shutdown.Figure 3-1ShutdownStep 2Select Shutdown.Step 3Click Yes.3.2 Activate Your DevicePurpose:For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. You can also activate the device via Web Browser, SADP or client software.Step 1Input the same password in Create New Password and Confirm New Password.Step 2(Optional) Use customized password to activate and add network camera(s) connected to the device.1)Uncheck Use Channel Default Password.2)Enter a password in IP Camera Activation.Figure 3-2Set Admin PasswordSTRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.Step 3Click OK.3.3 Set the Unlock Pattern for LoginAdmin can use the unlock pattern for device login.For devices with PoE function, you can draw the device unlock pattern after activation. For other devices, the unlock pattern interface will show after the first-time login.Step 1Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when the pattern is done.Figure 3-3Draw the Pattern●Connect at least 4 dots to draw the pattern.●Each dot can be connected for once only.Step 2Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured successfully.3.4 User LoginPurpose:If NVR has logged out, you must login the device before operating the menu and other functions. Step 1Select the User Name in the dropdown list.Figure 3-4LoginStep 2Input Password.Step 3Click OK.In the Login dialog box, if you enter the wrong password 7 times, the current user account will be locked for 60 seconds.3.5 Network SettingsPurpose:Network settings must be properly configured before you operate NVR over network.Step 1Enter the general network settings interface.Menu > Configuration > Network > GeneralFigure 3-5Network SettingsStep 2Configure the following settings: NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server.Step 3If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP address and other network settings from that server.Step 4Click Apply.3.6 Add IP CamerasPurpose:Before you can get live video or record the video files, you should add the network cameras to the connection list of the device.Before you start:Ensure the network connection is valid and correct, and the IP camera to add has already been activated. Please refer to the User Manual for activating the inactive IP camera.You can select one of the following three options to add the IP camera.OPTION 1:Step 1Click to select an idle window in the live view mode.Step 2Click in the center of the window to pop up the Add IP Camera interface.Figure 3-6Add IP CameraStep 3Select the detected IP camera and click Add to add it directly, and you can click Search to refresh the online IP camera manually.Or you can choose to custom add the IP camera by editing the parameters in thecorresponding text field and then click Add to add it.3.7 Live ViewIcons are provided on screen in Live View mode to indicate camera status. These icons include: Live View IconsIn the live view mode, there are icons at the upper-right corner of the screen for each channel, showing the status of the record and alarm in the channel for quick reference.Alarm (video loss, tampering, motion detection, VCA or sensor alarm)Record (manual record, continuous record, motion detection, VCA or alarm triggered record)Alarm and RecordEvent/Exception (event and exception information, appears at the lower-left corner of the screen.)3.8 Recording SettingsBefore you start:Make sure that the disk has already been installed. If not, please install a disk and initialize it. You may refer to the user manual for detailed information.Purpose:Two kinds of record types are introduced in the following section, including Instant Record andAll-day Record. And for other record types, you may refer to the user manual for detailed information.After rebooting all the manual records enabled are canceled.Step 1On the live view window, right lick the window and move the cursor to the Start Recording option, and select Continuous Record or Motion Detection Record on your demand.Figure 3-7Start Recording from Right-click MenuStep 2Click Yes in the pop-up Attention message box to confirm the settings. All the channels will start to record in the selected mode.3.9 PlaybackThe recorded video files on the hard disk can be played back in the following modes: instant playback, all-day playback for the specified channel, and playback bynormal/event/smart/tag/sub-periods/external file search.Step 1Enter playback interface.Click Menu > Playback or from the right-click menuStep 2Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.Step 3You can use the toolbar in the bottom part of Playback interface to control playing progress.Figure 3-8 Playback InterfaceStep 4 Select the channel(s) to or execute simultaneous playback of multiple channels.Chapter 4 Accessing by Web BrowserYou shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.Purpose:You can get access to the device via web browser. You may use one of the following listed web browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Internet Explorer 11.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024*768 and above.Step 1Open web browser, input the IP address of the device and then press Enter.Step 2Login to the device.If the device has not been activated, you need to activate the device first before login.Figure 4-1Set Admin Password1)Set the password for the admin user account.2)Click OK.STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.If the device is already activated, enter the user name and password in the login interface, and click Login.Figure 4-2LoginStep 3Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in.You may have to close the web browser to finish the installation of the plug-in.After login, you can perform the operation and configuration of the device, including the live view, playback, log search, configuration, etc.03041041090702。
海康威视IP网络摄像机使用手册(V1.0)
网络摄像机（Network Camera）用户使用手册版本1.0非常感谢您购买我公司的产品，如果您有什么疑问或需要请随时联系我们。
本手册可能包含技术上不准确的地方、或与产品功能及操作不相符的地方、或印刷错误。
本手册的内容将根据产品功能的增强而更新，并将定期改进或更新本手册中描述的产品，更新的内容将会在本手册的新版本中加入，恕不另行通知。
目录第一章：产品简介 ---------------------------------------------------------------------------------------------------- 21.1主要功能及特点 -------------------------------------------------------------------------------------------------- 21.2主要应用----------------------------------------------------------------------------------------------------------- 2第二章安装------------------------------------------------------------------------------------------------------------ 32.1注意事项----------------------------------------------------------------------------------------------------------- 32.2面板及说明-------------------------------------------------------------------------------------------------------- 32.2.1侧面图----------------------------------------------------------------------------------------------------- 32.2.2后面板图及说明 ----------------------------------------------------------------------------------------- 32.3硬件安装----------------------------------------------------------------------------------------------------------- 42.3.1 网络拓扑图 ---------------------------------------------------------------------------------------------- 42.3.2 报警输出连接说明 ------------------------------------------------------------------------------------- 52.3.3 网线的制作 ---------------------------------------------------------------------------------------------- 52.4客户端软件4.0的安装----------------------------------------------------------------------------------------- 6第三章参数配置---------------------------------------------------------------------------------------------------- 103.1通过IE浏览器进行参数配置-------------------------------------------------------------------------------- 103.2通过客户端软件进行参数配置 ------------------------------------------------------------------------------ 12第四章广域网接入------------------------------------------------------------------------------------------------- 174.1使用PPP O E接入------------------------------------------------------------------------------------------------- 174.2广域网访问------------------------------------------------------------------------------------------------------- 17常见问题解答 -------------------------------------------------------------------------------------------------------- 19附录技术规格表 -------------------------------------------------------------------------------------------------- 20第一章：产品简介网络摄像机是集传统的模拟摄像机和网络视频服务器于一体的嵌入式数字监控产品。
海康威视录像机操作手册
1.1 面板按键及指示灯说明前面板：1.3摇控器操作说明正确使用遥控器方法为：使用遥控器之前，请确认已经正确安装了电池。
在使用遥控器时，请把遥控器的红外发射端对准硬盘录像机的红外接收口，然后进行操作。
若无法操作，请进入“配置管理”→“通用配置”→“更多配置”查看该设备的设备编号（默认为255，若设备编号非255，请继续下面操作），然后在遥控器上按【设备】键，接着输入要操作的该硬盘录像机的设备编号，再按遥控器上的【确认】键，这时，如果硬盘录像机完全接收到遥控器命令，状态灯变为绿色（若设备号为255，则状态灯呈不亮状态），则可以使用遥控器对该硬盘录像机进行操作了。
在整个操作过程中，硬盘录像机面板及监视器上不会有任何提示信息。
若遥控器无法控制，请再次尝试：按【设备】键→输入设备编号→按【确认】键，若尝试多次还无法控制，请检查是否如下原因：1、检查电池的正负极性；2、检查电池电量是否用完；3、检查遥控传感器是否被遮挡；4、附近是否有荧光灯在使用。
排除以上情况后若不能正常工作，请更换遥控器；若还是不能正常工作，请联系供货商。
1.4 输入法说明1.5 菜单说明说明：在菜单中有4 个常用功能按钮，定义如下：1.6 开机和关机说明开机提醒：请确认接入的电压与硬盘录像机的要求相匹配，并保证硬盘录像机接地端接地良好。
在开机前请确保有一台显示器与后面板上的VGA 接口相连接，或在不连接VGA 接口的情况下有一台监视器与后面板上的VIDEO OUT 接口相连接，否则开机后将无法看到人机交互的任何提示，也无法操作菜单。
若前面板电源【开关键】指示灯不亮，请插上电源，打开电源开关，设备开始启动。
若前面板电源【开关键】指示灯呈红色，请轻按前面板电源【开关键】，设备开始启动。
设备启动后，电源【开关键】指示灯呈绿色。
监视器或显示器屏幕上将会出现开机画面。
关机正常关机通过菜单步骤：进入设备关机界面路径：主菜单→设备关机选择[设备关机]，弹出提示框。
海康威视网络摄像机用户手册_WORD格式(说明书)
网络摄像机操作手册V2.0.0杭州海康威视数字技术股份有限公司技术热线：400-700-59982011-3安全须知此内容的目的是确保用户正确使用本产品，以避免危险或财产损失。
在使用此产品之前，请认真阅读此说明手册并妥善保存以备日后参考。
如下所示，预防措施分为“警告”和“注意”两部分：警告：无视警告事项，可能会导致死亡或严重伤害。
注意：无视注意事项，可能会导致伤害或财产损失。
警告事项提醒用户防范潜在的死亡或严重伤害危险。
注意事项提醒用户防范潜在的伤害或财产损失危险。
警告：1.请使用满足SELV（安全超低电压）要求的电源，并按照IEC60950－1符合Limited Power Source(有限电源)的额定电压为12V直流或24V交流电源（根据具体型号而定）供应。
2.如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方式拆卸或修改设备（未经许可的修改或维修所导致的问题，责任自负）。
3.为减少火灾或电击危险，请勿让本产品受到雨淋或受潮。
4.本安装应该由专业的服务人员进行，并符合当地法规规定。
5.应该在建筑物安装配线中组入易于使用的断电设备。
有关在天花板上安装设备的指示：安装后，请确保该连接至少可承受向下50牛顿（N）的拉力。
注意：1.在让摄像机运行之前，请检查供电电源是否正确。
2.请勿将此产品摔落地下或受强烈敲击。
3.请勿直接碰触到图像传感器光学元件，若有必要清洁，请将干净布用酒精稍微湿润，轻轻拭去尘污；当摄像机不使用时，请将防尘盖加上，以保护图像传感器。
4.避免对准强光（如灯光照明、太阳光等处）聚焦，否则容易引起过亮或拉光现象（这并非摄像机故障），也将影响图像传感其寿命。
5.激光束可能烧毁图像传感器，在激光装置被使用的情况下，请您一定注意不要让图像传感器的表面暴露于激光束之下。
6.避免置于潮湿，多尘，极热，极冷（正常工作温度：－10℃～＋60℃），强电磁辐射等场所。
7.避免热量积蓄，请不要阻挡摄像机附近的通风。
海康威视网络摄像机用户手册格式说明书完整版
海康威视网络摄像机用户手册格式说明书HUA system office room 【HUA16H-TTMS2A-HUAS8Q8-HUAH1688】网络摄像机操作手册V2.0.0杭州海康威视数字技术股份有限公司技术热线：400-700-59982011-3安全须知此内容的目的是确保用户正确使用本产品，以避免危险或财产损失。
在使用此产品之前，请认真阅读此说明手册并妥善保存以备日后参考。
如下所示，预防措施分为“警告”和“注意”两部分：警告：无视警告事项，可能会导致死亡或严重伤害。
注意：无视注意事项，可能会导致伤害或财产损失。
警告事项提醒用户防范潜在的死亡或严重伤害危险。
注意事项提醒用户防范潜在的伤害或财产损失危险。
警告：1.请使用满足SELV（安全超低电压）要求的电源，并按照IEC60950－1符合Limited Power Source(有限电源)的额定电压为12V直流或24V交流电源（根据具体型号而定）供应。
2.如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方式拆卸或修改设备（未经许可的修改或维修所导致的问题，责任自负）。
3.为减少火灾或电击危险，请勿让本产品受到雨淋或受潮。
4.本安装应该由专业的服务人员进行，并符合当地法规规定。
5.应该在建筑物安装配线中组入易于使用的断电设备。
有关在天花板上安装设备的指示：安装后，请确保该连接至少可承受向下50牛顿（N）的拉力。
注意：1.在让摄像机运行之前，请检查供电电源是否正确。
2.请勿将此产品摔落地下或受强烈敲击。
3.请勿直接碰触到图像传感器光学元件，若有必要清洁，请将干净布用酒精稍微湿润，轻轻拭去尘污；当摄像机不使用时，请将防尘盖加上，以保护图像传感器。
4.避免对准强光（如灯光照明、太阳光等处）聚焦，否则容易引起过亮或拉光现象（这并非摄像机故障），也将影响图像传感其寿命。
5.激光束可能烧毁图像传感器，在激光装置被使用的情况下，请您一定注意不要让图像传感器的表面暴露于激光束之下。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
网络摄像机（Network Camera）用户使用手册版本1.0非常感谢您购买我公司的产品，如果您有什么疑问或需要请随时联系我们。
本手册可能包含技术上不准确的地方、或与产品功能及操作不相符的地方、或印刷错误。
本手册的内容将根据产品功能的增强而更新，并将定期改进或更新本手册中描述的产品，更新的内容将会在本手册的新版本中加入，恕不另行通知。
目录第一章：产品简介 ---------------------------------------------------------------------------------------------------- 21.1主要功能及特点 -------------------------------------------------------------------------------------------------- 21.2主要应用----------------------------------------------------------------------------------------------------------- 2第二章安装------------------------------------------------------------------------------------------------------------ 32.1注意事项----------------------------------------------------------------------------------------------------------- 32.2面板及说明-------------------------------------------------------------------------------------------------------- 32.2.1侧面图----------------------------------------------------------------------------------------------------- 32.2.2后面板图及说明 ----------------------------------------------------------------------------------------- 32.3硬件安装----------------------------------------------------------------------------------------------------------- 42.3.1 网络拓扑图 ---------------------------------------------------------------------------------------------- 42.3.2 报警输出连接说明 ------------------------------------------------------------------------------------- 52.3.3 网线的制作 ---------------------------------------------------------------------------------------------- 52.4客户端软件4.0的安装----------------------------------------------------------------------------------------- 6第三章参数配置---------------------------------------------------------------------------------------------------- 103.1通过IE浏览器进行参数配置-------------------------------------------------------------------------------- 103.2通过客户端软件进行参数配置 ------------------------------------------------------------------------------ 12第四章广域网接入------------------------------------------------------------------------------------------------- 174.1使用PPP O E接入------------------------------------------------------------------------------------------------- 174.2广域网访问------------------------------------------------------------------------------------------------------- 17常见问题解答 -------------------------------------------------------------------------------------------------------- 19附录技术规格表 -------------------------------------------------------------------------------------------------- 20第一章：产品简介网络摄像机是集传统的模拟摄像机和网络视频服务器于一体的嵌入式数字监控产品。
采用嵌入式Linux 操作系统和TI公司最新的Davinci硬件平台，系统调度效率高，代码固化在Flash中，体积小，具有较高稳定性和可靠性。
1.1主要功能及特点基本功能◆视频压缩技术：采用H.264视频压缩技术，压缩比高，且处理非常灵活。
◆网络功能：支持完整的TCP/IP协议簇，支持视频、报警、语音数据，内置WEB浏览器，支持IE访问。
◆心跳功能：通过心跳机制，管理主机可实时了解前端网络摄像机的运行状态。
◆PTZ控制功能：云台的控制，支持众多解码器协议及球机类型。
◆报警功能：1路报警输入（信号量），1路报警输出（开关量）。
移动侦测、视频丢失、遮挡报警，报警联动输出。
◆语音对讲：双向语音对讲，单向语音广播。
◆用户管理：多级用户权限管理方式。
高级管理员可以创建15个操作员，每个操作员的权限可以设定，系统安全性更好。
压缩处理功能◆支持1路视频信号，可实时每秒25帧独立硬件压缩，视频压缩采用H.264压缩标准，不仅支持变码率，而且支持变帧率，在设定视频图像质量的同时，也可限定视频图像的压缩码流。
◆支持 4CIF（PAL：704*576，NTSC：704*480）、 DCIF (PAL：528*384，NTSC：528*320)、 2CIF（PAL：704*288，NTSC：704*240）、 CIF（PAL：352*288，NTSC：352*240）、 QCIF（PAL：176*144，NTSC：176*120）分辨率。
◆支持OSD，日期和时间可以设置。
◆支持数字水印（WATERMARK）技术。
远程访问、传输功能◆标配一个10M/100M自适应以太网口。
◆支持PPPoE、DHCP协议。
◆可通过应用软件或IE浏览器设置参数、实时浏览视频、查看网络摄像机状态，可以通过网络实现报警联动，可以通过网络存储压缩码流。
◆可通过网络远程升级，实现远程维护。
◆RS-485支持单向网络透明通道连接，客户端可以通过网络摄像机的透明通道控制串行设备。
1.2 主要应用适合需要网络远程监控的各种场合，如：➢取款机、银行柜员、超市、工厂等的网络监控。
➢看护所、幼儿园、学校提供远程监控服务。
➢智能化门禁系统。
➢智能化大厦、智能小区管理系统。
➢电力电站、电信基站的无人值守系统。
➢户外设备监控管理桥梁、隧道、路口交通状况监控系统。
➢流水线监控，仓库监管。
➢对道路交通24小时监察。
➢森林、水源、河流资源的远程监控。
第二章安装2.1 注意事项1.拆开包装盒时请仔细检查，确认其中的物品与清单一致。
2.安装前请仔细阅读本章内容。
3.安装时，请务必关闭所有相关设备电源。
4.检查电源电压，防止出现电压不配导致器件损坏。
5.安装环境：请勿在超标的潮湿或高温环境下使用，请保持通风良好，注意防雨淋；避免安装在剧烈震动的环境下。
6.如果设备工作不正常，请联系购买设备的商店或最近的服务中心，请不要以任何方式拆卸或修改设备。
未经许可的修改或维修所导致的问题，责任自负。
【说明】网络摄像机出厂时电源、镜头和SD卡可选。
2.2 面板及说明2.2.1侧面图图2.2.1侧面图2.2.2后面板图及说明图2.2.2后面板图后面板接口说明（依次从左至右，从上至下）：1.标准以太网（UTP）RJ45插座（10M/100M自适应）。
2.1路语音对讲输入（AIN），3.5mm音频接口，线性电平：2.0～2.4Vp-p，阻抗：1kΩ。
3.1路语音对讲输出（AOUT），3.5mm音频接口，线性电平、阻抗：600Ω。
4.电源指示灯（PWR）。
5.电源插座（DC12V），电源具体型号请参考“附录”相应机型的参数表，请使用匹配的稳压器电源。
6.1路报警输出（1A 1B），开关量（外串接电源必须在DC12V电压、30mA电流范围内），具体接线方式见2.3.2节。
7.1路报警输入（IN G），信号量（0～DC12V）。
8.RS-485总线接口（T＋ T-）。
9.背光补偿开关（BLC）：当功能开启时能自动调节曝光值，并用于逆光补偿。
自动光圈开关（AI）：当使用自动光圈时请将开关拨至AI模式。
电子快门开关（AES）：当使用非自动光圈时请将开关拨至AES模式。
10.自动光圈选择开关（VD DD）：当使用视频驱动光圈镜头时请将开关拨至VD模式；当使用直流驱动光圈镜头时请将开关拨至DD模式。
11.SD卡插槽（SD）。
12.1路视频输出（VOUT），标准BNC接口。
【说明】型号为DS-2CD832F、DS-2CD852F的网络摄像机没有以上的第9、10、12项功能。
2.3 硬件安装2.3.1 网络拓扑图图2.3.1网络拓扑图物理接口连接说明UTP网络接口连接以太网络设备，如以太网交换机、以太网集线器（HUB）等。
