无线遥控电子密码锁
基于Atmel单片机的无线遥控密码锁设计

3 软 件 设 计
电子密码锁软件设计 由主程序 、初始化程序 、
LCD显示 程序 、键 盘扫 描 程序 、键 功 能 程 序 、密 码设 置程 序 、EPROM 读 写程 序和延 时程 序等组 成 。主程
序设 计 流程 图如 图 4所 示 。
4 结 束 语
本文 提 出了一 种新 型遥控 电子 密码锁 的设 计方
中图分 类号 :TP368.1 文献标识码 :A 文章编 号 :1009—2552(20H )09—0089—03
2011年第9期

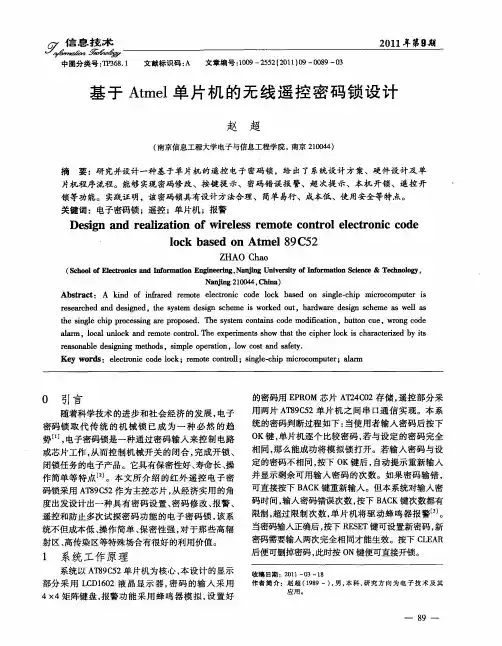

基 于 Atmel单 片 机 的 无 线 遥 控 密 码 锁 设 计
赵 超
(南京信息工程大学 电子与信息工程学 院 ,南京 210044)
摘 要 :研 究 并设计 一种 基 于单 片 机 的遥 控 电子 密码 锁 ,给 出 了 系统设 计 方 案 、硬 件设 计 及 单 片机 程序 流程 。能 够 实现 密码修 改 、按 键 提 示 、 密码 错 误 报 警 、超 次提 示、本 机 开锁 、遥 控 开 锁 等 功 能。 实践 证 明 ,该 密码锁 具 有设 计方 法合 理 、简单 易行 、成 本低 、使 用安全 等特 点 。 关键 词 :电子 密码锁 ;遥控 ;单 片机 ;报警
图 1 硬件 系统 原理
图 2 系统电源原理
2.3 键盘 扫描 电路 密码 锁 的密码输 入 与修 改等 功能 由矩 阵键盘 完
成 。矩 阵键盘部分 由单片机程序扫描键盘 ,确定被 按 按键 的具 体 位置 ,并 具 有 消 抖 和 判 断 闭合 的键 是 否释放 等 功 能 。 2.4 液 晶显 示 电路
系统 的显 示 部 分 由液 晶显 示 器 LCD1602来 完 成 ]。,从经 济节 能 的角 度 考 虑 ,密 码锁 没有 进 行 操 作 时液晶显示器始终处于关闭状态。当密码锁有操 作 时液 晶显示 器才 开启 。 2.5 密码 存储 电路
遥控锁使用说明范文

遥控锁使用说明范文遥控锁是一种通过遥控器或手机APP来控制开关锁的智能安全设备,它具有方便快捷、安全可靠的特点。
根据不同的产品品牌和型号,操作方式和使用说明可能有所不同,下面是一般情况下遥控锁的使用说明:1.开箱验货:购买遥控锁后,首先需要仔细检查商品包装和配件,确保配件齐全,没有损坏或者划痕。
2.安装:根据配件和说明书上的图示和文字说明,安装遥控锁。
通常情况下,遥控锁可以安装在门上的合页边缘或者门框上,安装时需要确保锁体和门框有适当的间隙,以保证正常使用。
3.电源:遥控锁通常使用电池或者电池组作为电源。
在安装时,需要打开遥控锁的电池盖,将电池正确安装,并且确保电池的极性正确。
4.配对:将遥控器或者手机APP与遥控锁进行配对。
具体操作方式可能因产品品牌和型号而有所不同,一般情况下,需要按下遥控器上的配对按钮,并且在一定时间内按下遥控锁上的配对按钮,两者成功配对后,遥控器或者手机APP就可以正常使用了。
5.开锁:使用遥控器或者手机APP来开锁。
一般情况下,遥控器上有一个开锁按钮,按下按钮后,遥控锁可以自动解锁。
手机APP则需要在登录账号后,选择相应的门锁,并点击开锁按钮即可。
6.修改密码:遥控锁通常具有密码开锁功能,用户可以自行设置密码。
操作方法可能因产品品牌和型号而有所不同,在遥控锁的说明书上会有详细的说明。
7.钥匙备用:为了应对特殊情况,使用遥控锁前最好备用几把钥匙。
需要注意的是,备用钥匙应妥善保管,避免丢失或者被他人盗取。
8.维护保养:一般情况下,遥控锁不需要太多的维护保养。
定期检查电池的电量,并根据需要更换电池。
遥控锁需要避免暴露在长时间的高温、潮湿或者寒冷环境中,以免影响其正常使用寿命。
9.注意事项:使用遥控锁时,需要注意以下事项:-遥控器或者手机APP不应与其他电器设备存放在一起,以免相互干扰。
-遥控锁的电池盒应经常保持清洁,以免影响导电性能。
-遥控锁不宜频繁开启和关闭,以免影响其使用寿命。
无线路由器与智能门锁的配对步骤(七)

无线路由器与智能门锁的配对步骤创新科技的快速发展使得智能家居成为了现代生活中的一部分。
无线路由器和智能门锁作为智能家居的重要组成部分,它们的配对步骤变得非常关键。
本文将以详细的方式,介绍无线路由器与智能门锁的配对步骤。
1. 确保设备准备就绪在配对之前,首先要确保无线路由器和智能门锁都已经准备就绪。
检查无线路由器是否已经连接到电源,并且无线网络设置正确。
同时,确保智能门锁的电池电量足够,门锁已经安装在门上并且处于未配对状态。
2. 连接无线网络智能门锁是通过无线网络与手机或电脑进行连接和控制的。
首先,在手机或电脑上打开设置界面,进入无线网络设置。
选择无线网络,根据无线路由器的设置找到对应的网络名称(SSID),并输入密码进行连接。
确保手机或电脑与无线路由器处于同一局域网中。
3. 下载并安装智能门锁的配对应用程序大多数智能门锁厂家都会提供专门的配对应用程序,用于与智能门锁进行配对和管理。
打开应用商店,搜索并下载适用于您智能门锁品牌的配对应用程序。
4. 打开配对应用程序下载完毕后,打开配对应用程序。
根据应用程序的提示,进行注册账户和登录。
注册账户时,建议使用您常用的电子邮箱和密码,以方便后续登录和管理。
5. 连接智能门锁连接智能门锁的步骤可能会因厂家而异。
但一般情况下,打开应用程序后,在设置中找到“添加门锁”或类似的选项。
接下来,根据应用程序的指引,执行配对门锁的操作。
6. 开始配对应用程序会要求您按下智能门锁的特定按钮或完成一系列特定动作,以确保门锁与应用程序成功配对。
此步骤的目标是使门锁进入配对模式,并与应用程序建立通信。
7. 等待配对成功配对过程可能需要一些时间,请耐心等待。
一旦门锁成功被应用程序识别并与其配对成功,应用程序会显示配对成功的提示。
此时,您可以开始使用应用程序来控制智能门锁,例如远程开锁、设置密码、查看开锁记录等功能。
总结:无线路由器与智能门锁的配对步骤并不复杂,但是需要遵循一些基本原则。

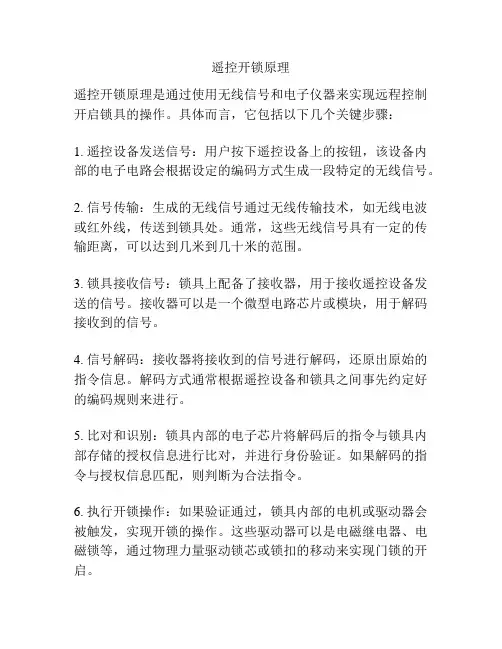

遥控开锁原理

遥控开锁原理
遥控开锁原理是通过使用无线信号和电子仪器来实现远程控制开启锁具的操作。
具体而言,它包括以下几个关键步骤:
1. 遥控设备发送信号:用户按下遥控设备上的按钮,该设备内部的电子电路会根据设定的编码方式生成一段特定的无线信号。
2. 信号传输:生成的无线信号通过无线传输技术,如无线电波或红外线,传送到锁具处。
通常,这些无线信号具有一定的传输距离,可以达到几米到几十米的范围。
3. 锁具接收信号:锁具上配备了接收器,用于接收遥控设备发送的信号。
接收器可以是一个微型电路芯片或模块,用于解码接收到的信号。
4. 信号解码:接收器将接收到的信号进行解码,还原出原始的指令信息。
解码方式通常根据遥控设备和锁具之间事先约定好的编码规则来进行。
5. 比对和识别:锁具内部的电子芯片将解码后的指令与锁具内部存储的授权信息进行比对,并进行身份验证。
如果解码的指令与授权信息匹配,则判断为合法指令。
6. 执行开锁操作:如果验证通过,锁具内部的电机或驱动器会被触发,实现开锁的操作。
这些驱动器可以是电磁继电器、电磁锁等,通过物理力量驱动锁芯或锁扣的移动来实现门锁的开启。
总结而言,遥控开锁原理通过利用无线信号和电子仪器的相互作用,实现了远程控制开启锁具的功能。
它广泛应用于汽车门锁、家庭门锁、安防门禁系统等领域,方便了人们的生活和工作。
无线门锁方案

无线门锁方案1. 引言无线门锁方案是指利用无线技术实现门锁的自动解锁和锁定的一种安全解决方案。
传统的门锁需要使用钥匙进行解锁和锁定,但这种方式存在钥匙丢失、被盗等问题。
而无线门锁方案通过使用密码、无线身份验证等方式,提高了门锁的安全性和便利性。
本文将介绍无线门锁方案的工作原理、优势和实施方式。
2. 工作原理无线门锁方案通过利用无线技术实现门锁的远程控制和监控。
其工作原理如下:1.钥匙管理系统:无线门锁方案通常配备一个钥匙管理系统,用于管理门锁的钥匙或密码。
用户可以通过手机应用或者电脑登录钥匙管理系统,添加、删除和修改钥匙信息。
2.通讯模块:无线门锁配备了无线通讯模块,可与钥匙管理系统进行通信。
通讯模块可以是蓝牙、Wi-Fi、Zigbee等无线通信技术。
3.身份验证:用户需要提供身份验证信息来解锁门锁。
身份验证方式可以是密码、指纹识别、面部识别等。
4.解锁和锁定:用户在经过身份验证后,可以通过手机应用或钥匙管理系统发送解锁或锁定命令到门锁。
门锁接收到命令后,会自动解锁或锁定。
3. 优势相比传统的门锁解锁方式,无线门锁方案具有以下几个优势:•安全性高:无线门锁方案采用密码、指纹识别、面部识别等身份验证方式,提高了门锁的安全性,防止钥匙丢失或被盗的风险。
•便利性:无线门锁方案可以远程控制和监控门锁,在不同场景下提供快速、便捷的解锁方式。
用户可以在手机应用上一键解锁,避免了携带钥匙的烦恼。
•可追踪性:无线门锁方案可以记录门锁的开锁和锁定历史,让用户能够随时查看。
这在需要追踪门锁使用情况或者管理多个门锁时非常有用。
•灵活性:用户可以通过手机应用或者电脑进行钥匙管理,随时添加、删除和修改钥匙信息,非常灵活方便。
4. 实施方式无线门锁方案可以采用多种不同的实施方式,具体取决于用户的需要和场景。
以下是几种常见的实施方式:1.蓝牙门锁:这种方式适用于小范围内的门锁控制,需要用户手机具备蓝牙功能。
用户可以通过蓝牙连接门锁并发送解锁或锁定命令。
门锁遥控的原理是什么

门锁遥控的原理是什么门锁遥控的原理是通过无线通信技术实现门锁的开关控制。
具体来说,门锁遥控的原理可以分为以下几个方面:首先,门锁遥控的基本原理是利用无线遥控器发送信号给门锁控制器,门锁控制器接收到信号后解码,确定信号的有效性,并根据信号指令执行相应的操作。
其次,门锁遥控利用的无线通信技术主要有射频(Radio Frequency, RF)和红外(Infrared, IR)两种方式。
射频遥控器通过以无线电波的形式传输信号,在射频通信频段进行工作,使用较为广泛;而红外遥控器则是通过红外线传输信号,一般用于短距离通信,比如电视遥控器。
无线遥控器是门锁遥控系统的核心,它与门锁控制器之间的通信过程主要包括信号编码、传输和解码三个步骤。
首先是信号编码,遥控器将按键的信息转化为二进制码,并添加其他必要的控制信息,形成完整的指令码;接下来,编码后的指令码通过无线信号的形式传输给门锁控制器,无线信号可以是射频信号或者红外信号;最后,门锁控制器接收到信号后,进行解码操作,将二进制码转换为可理解的控制指令。
解码后的指令被执行,门锁控制器通过电磁锁或电动机等机械装置,实现门锁的开关控制。
除了基本的信号传输和控制操作,现代门锁遥控系统还会增加一些安全性方面的设计。
比如,采用信号加密技术,对指令码进行加密处理,保护传输过程中的数据安全性;另外,也可以采用滚动码技术,不断改变编码模式,增强系统的防护能力,防止被非法复制遥控信号。
门锁遥控系统在实际应用中,除了实现基本的开关控制,还可以配合其他智能设备,如智能家居中的中央控制系统,实现远程控制、定时控制、密码控制等高级功能。
通过互联网的连接,用户可以通过手机、电脑等终端设备,实现对门锁的远程控制,提高便捷性和安全性。
总结起来,门锁遥控的原理就是利用无线通信技术,通过遥控器发送信号指令给门锁控制器,控制门锁的开关。
这个过程包括信号编码、传输和解码等步骤,同时也包含一些安全性方面的设计。
