同步器设计手册
同步器设计实例
已知条件：离合器从动片结构尺寸。
变速器档位数、档位排列及各档速比。
变速器各档位齿轮的结构尺寸。
变速器中心距。
匹配发动机最大功率时转速。

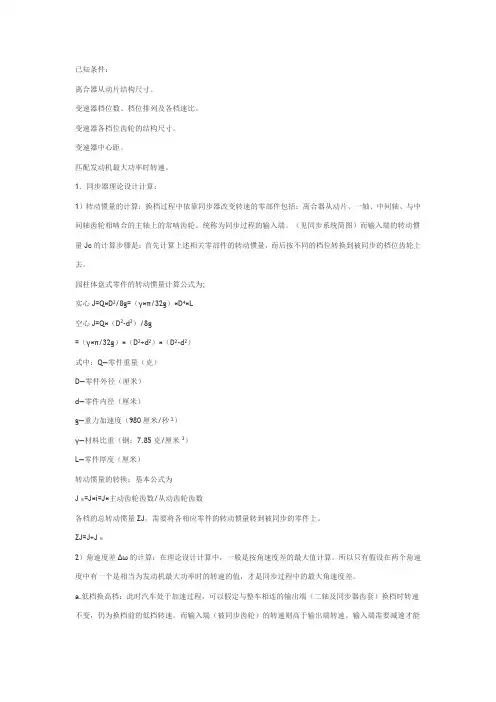

1．同步器理论设计计算：1）转动惯量的计算：换档过程中依靠同步器改变转速的零部件包括：离合器从动片、一轴、中间轴、与中间轴齿轮相啮合的主轴上的常啮齿轮。
统称为同步过程的输入端。
（见同步系统简图）而输入端的转动惯量Jc的计算步骤是：首先计算上述相关零部件的转动惯量，而后按不同的档位转换到被同步的档位齿轮上去。
园柱体盘式零件的转动惯量计算公式为;实心J=Q×D2/8g=（γ×π/32g）×D4×L空心J=Q×（D2-d2）/8g=（γ×π/32g）×（D2+d2）×（D2-d2）式中：Q—零件重量（克）D—零件外径（厘米）d—零件内径（厘米）g—重力加速度（980厘米/秒2）γ—材料比重（钢：7.85克/厘米3）L—零件厚度（厘米）转动惯量的转换：基本公式为J换=J×i=J×主动齿轮齿数/从动齿轮齿数各档的总转动惯量ΣJ，需要将各相应零件的转动惯量转到被同步的零件上。
ΣJ=J+J换2）角速度差Δω的计算：在理论设计计算中，一般是按角速度差的最大值计算。
所以只有假设在两个角速度中有一个是相当为发动机最大功率时的转速的值，才是同步过程中的最大角速度差。
a.低档换高档：此时汽车处于加速过程，可以假定与整车相连的输出端（二轴及同步器齿套）换档时转速不变，仍为换档前的低档转速。
而输入端（被同步齿轮）的转速则高于输出端转速。
输入端需要减速才能同步。
只有假定换档前输入端的转速是相应于发动机最大功率的转速n N，才能得到角速度差的最大值Δωmax。
所以：ω出=（2×π×n N/60）/i低ω入=（2×π×n N/60）/i高Δωmax=ω入-ω出= 2×π×n N/60×（1/i高-1/i低）b）高档换低档：此时汽车处于减速过程，亦可以假定与整车相连的输出端（二轴及同步器齿套）换档时转速不变，仍为换档前的高档转速。
