omega最常用的标准连接器玻璃纤维填充尼龙
美国Omega感温线型号判断
三：热偶丝线径
• 3：24awg（0.511mm）
四：SLE与非SLE
• 这个是美国Omega感温线精度的标示，通 过外观及一般的设备就很难判断了 • 但是我们提供的均是SLE(0.4%)精度的感温 线。
美国Omega感温线常用型号
• 1：玻璃纤维绝缘层（耐温482度）
• • • • • • • • • GG-K-36-SLE玻璃纤维外皮,K分度号，耐温482度,2*0.127mm ,1000英尺/305米 GG-K-30-SLE玻璃纤维外皮,K分度号，耐温482度,2*0.255mm ,1000英尺/305米 GG-K-24-SLE玻璃纤维外皮,K分度号，耐温482度,2*0.511mm ,1000英尺/305米 GG-J-36-SLE玻璃纤维外皮，J分度号，耐温482度,2*0.127mm ,1000英尺/305米 GG-J-30-SLE玻璃纤维外皮，J分度号，耐温482度,2*0.255mm ，1000英尺/305米 GG-J-24-SLE玻璃纤维外皮，J分度号，耐温482度,2*0.511mm ，1000英尺/305米 GG-T-36-SLE玻璃纤维外皮，T分度号，耐温482度,2*0.127mm ,1000英尺/305米 GG-T-30-SLE玻璃纤维外皮，T分度号，耐温482度2*0.255mm ，1000英尺/305米 GG-T-24-SLE玻璃纤维外皮，T分度号，耐温482度2*0.511mm ，1000英尺/305米
二：分度号
• 1： K型： 一红一黄色
二：分度号
• 2： T型： 一红一蓝色
二：分度号
• 3： J型： 一红一白色
三：热偶丝线径
美国Omega感温线-热偶丝线径是通用AWG线规标示，通用的有三种： 热偶丝是指:除开绝缘层之后的裸丝 1：36awg(0.127mm)

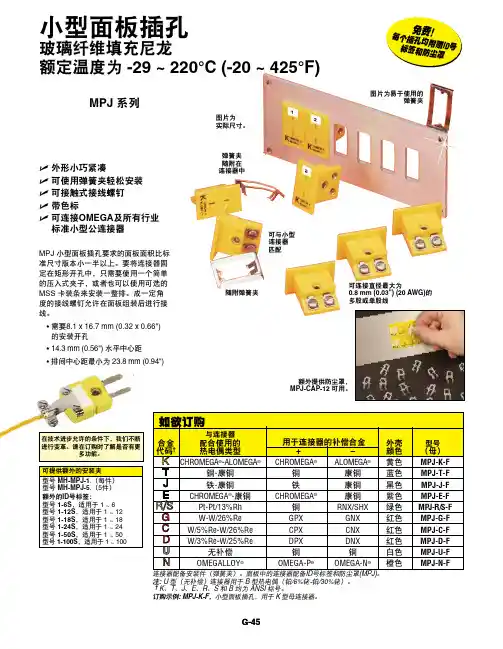

MPJ 热电偶面板连接器
小型面板插孔
玻璃纤维填充尼龙
额定温度为 -29 ~ 220°C (-20 ~ 425°F)
U 外形小巧紧凑
U 可使用弹簧夹轻松安装U 可接触式接线螺钉U 带色标U 可连接OMEGA 及所有行业 标准小型公连接器
K 型母连接器。
MPJ 小型面板插孔要求的面板面积比标准尺寸版本小一半以上。
要将连接器固定在矩形开孔中，只需要使用一个简单的压入式夹子，或者也可以使用可选的MSS 卡装条来安装一整排。
成一定角度的接线螺钉允许在面板组装后进行接G-45
免
费！ 每个插孔均附
赠I D 号
标签和防尘罩
在技术进步允许的条件下，我们不断MPJ 系列
可与小型 连接器 匹配
图片为 实际尺寸。
随附弹簧夹
图片为易于使用的
弹簧夹
弹簧夹
随附在 连接器中
可连接直径最大为
0.8 mm (0.03") (20 AWG)的 多股或单股线。
OmniSeal 圣戈班弹簧蓄能密封圈二世界说明书
OmniSeal®圣戈班能密封圈弹簧蓄圣戈班集团总部，法国Les Miroirs美国加利福尼亚州GardenGrove比利时Kontich中国上海闵行波兰Kolo日本Suwa德国Willich巴西Vinhedo过去的可靠证明...弹簧蓄能系统压力弹簧蓄能工作条件下的OmniSeal®400A密封圈密封圈夹套材料用在密封夹套上圣戈班F l u o r o l o y®复合材料由高性能聚合物树脂制成，此类树脂经过复合加工之后可在各种密封环境中获得最佳性能。
以下为我们最常推荐使用的合成物，并适用于大多数情况。
多年来，圣戈班密封圈已经开发了500多种用于各种独特密封应用的密封材料，我们仍将继续不断配置和开发新型材料。
材料代码颜色说明及推荐用途温度范围摩擦系数磨损系数*拉伸强度(psi/MPa)延伸率(%)硬度（邵氏D）°F°CA01白色纯P TF E。
特别适合用于轻型到中等动态服务以及静态应用。
有限的耐磨损和耐热性。
低气体渗透率。
良好的低温特性。
中等到极端的真空应用。
符合FDA标准要求。
-346 至+500-210 至+2600.097,5004,000(27.6)30058A02白色改性P TF E。
特别适合用于轻型到中等动态和静态应用。
有限的耐磨损和耐热性。
低气体渗透率。
良好的低温特性。
中等到极端的真空应用。
符合FDA标准要求较高的抗蠕变和抗咬合性能。
-346 至+572-210 至+3000.096,0004,800(33.1)45058A05黑色聚合物填充P TF E。
在高温高压和高转速下具有卓越的耐磨性。
特别适合用于水和水基溶液。
在干燥或恶劣润滑条件下表现较好。
对软金属有研磨作用。
-346 至+572-210 至+3000.0912,000(13.8)17064A08棕褐色聚合物填充P TF E。
卓越的耐热性和耐磨性。
无研磨性。
建议用于软金属上的中速到高速动态应用。
Omega CN100 产品说明书
OCW-3，OMEGACARESM可将标准的2年保修期延长至5年。
CN102J-1000F，下限报警监测器，J型热电偶输入，量程0 ～ 1000°F。
CN102K-2000F，下限报警监测器，K型热电偶输入，量程0 ～ 2000°F。
M-71
CN102RTD-1000F
0 ～ 1000°F
CN101R-1650C
N/A
0 ～ 1650°C
CN101R-3000F
N/A
0 ～ 3000°F
配备操作手册。
* 填入后缀，“C”代表°C量程，“F”代表°F量程。
订购示例：CN101J-250F，上限报警监测器，J型热电偶输入，量程0 ～ 250°F。
警。每个输入通道都是独立的，具有各 自的设定值。CN100扫描每个通道，如
CN100系列
果出现报警，扫描将停止并且单个SPDT
继电器将改变状态；在按下手动复位按 钮后，扫描将恢复，该继电器恢复常 态。CN102下限报警型号还具有内置冷
CN100可接受6个热电偶或RTD输入。 探头单独销售。KQSS-14G-12。请访问
6通道监测器
经济实惠，1⁄8 DIN，上限或下限报警
CN101J-250F， 图片小于实际 尺寸。
U 持续扫描多个输入，确 定是否存在报警条件
U 多达6个单独输入
U 每个输入通道都有单独 设定值
U 需手动复位的单锁定继 电器，可限制应用
CN100温度监测器让操作人员能够持续
监测6个热电偶输入，提供上限或下限报
CN102J-1000F
0 ～ 1000°F
(24 Vdc)、3A @ 240 Vac
CN101K-500C
CN102K-500C
热电偶插头介绍
OMEGA 表面插座，连接器 ►持久耐用 ►固体表面,快速接线帽(标准型) ►坚固,玻璃纤维尼龙凹槽为安全设计孔 方便挂载 ►热电偶校准,颜色编码机构匹配 ►分度号: K, T, J, E, R/S, G, C, D, U, N OMEGA3 线连接器 ►为 3 线热敏电阻设计的无补偿 U 型 ►热电偶标准接地 ►热电偶校准,颜色编码机构匹配 ►分度号: K, T, J, E, U, N
低噪声 OMEGA 插座 OMEGA 插头，连 接器 ►尼龙或耐高温液晶聚合物 ►带接地线的接地带可以屏蔽线、探针或 连接器 ►接地带加强了连接器之间的连接 ►接地带加强了连接器之间的连接 ►分度号: K, T, J, E, R/S, C, U, N
omega 插座：铁芯连接器 ►内置噪声抑制元件 ►持久耐用 ►具有可拆卸/反转的书写窗口 ►分度号: K, T, J, E, R/S, U, N
配件型号
SMP-SC SWHCL
应用组件
SMPW,HMPW SMPW,HMPW
JP ►便于安装，装饰性强 ►自我保护设计
SPJ ►接受所有标准型的插头 ►接受接受 OTP 系列 3 重连接器
TPJ ►无需特殊硬件安装工具
RSJ ►接受所有标准型的插头 RMJ ►接受所有微型的插头 ►紧凑尺寸 MPJ ►接受所有微型的插头
HMPW-K-M 高温热电偶插头： HMPW-K-M 表示为 HMPW 系列,K 型分度号,M 代表为插头,适用于 K 型 OMEGA 热电偶测温线或者其他品牌热电偶 测温线之间的
HMPW-K 液晶聚合物建造以适于更高温度 260 度并有记录窗 口 按照 ANSI 和 IEC 标准上色为黄色 专有外覆螺旋 可接受最大 20AWG 的绞线或实心线 快速安装和拆除 HMP & HMPW 系列耐温摄氏 260 度,拥有对环境无害的无镉 外壳 OMEGA 小型连接器非常适于哪怕是需求最大的测温应用。
欧米茄omega热电偶接线端子
热电偶接线盒可安装于DIN 导轨并且可进行检查图示接线盒连接了RECK1-10电缆和HH506RA 数据记录器／温度计（配备RS232C 接口）。
DRTB 系列全新DRTB 系列热电偶接线盒采用热电偶级合金加工而成，保证可提供精确读数。
内置SMP 兼容母插座可插接小型热电偶连接器。
母连接器让用户可以连接到手持式仪表，用于数据采集、质保合规、功能研究以及故障排除安装或维修等应用。
塑料外壳采用灰色聚酰胺6.6热塑性树脂加工而成，达到UL 94 V0等级(85°C)。
这些热电偶接线端为全封闭式，无需使用任何端板。
螺钉和夹子都经过镀锌，它们配合使用可提供一种无振动、免维护、抗腐蚀的连接。
规格接线端宽度：10.7 mm (0.422")接线端长度／高度：51 mm (2.008")／42.3 mm (1.666")安装到35 x 7.5 mm ／35 x 15 mm DIN 导轨中的高度： 43.5 mm (1.713")／51 mm (2.009")导线最大尺寸：12 AWG ／2.5 mm 2裸线长度：8 mm (0.31")扭矩（Nm (in-lb)）：0.4 (3.54) ±10%额定温度：-40 ~ 85°C (-40 ~ 185°F)DRTB-K ， 热电偶接线盒。
DRTB-RAIL-3575，单独销售。
受美国和国际专利及待批专利申请保护专利申请中DRTB 接线盒可安装在标准35 mm DIN 导轨或32 mm G 型导轨中，可用分度号类型以及正极(+)和负极(-)连接标识它们。
导线入口为漏斗形，即便是标准导线，也能实现导线快速插接。
W i r e C o n n e c t i o nL-Xl 螺丝接线端可提供安全 且免维护的连接lT K 、J 、T 、E 、N 、R/S 和 U 型分度号l 内置小型热电偶母连接器，可进行检查和故障排除l 全封闭式——无需使用端板l可进行DIN 导轨安装—— 宽度小，仅10.7 mm l可通过分度号与“+，-” 连接标识l 内含书写窗SMPW-K-M, 单独出售.2配件订购示例：DDRTB-K ，K 型热电偶接线盒，可安装于DIN 导轨，配备RECK1-10，K 型0.3 m (1')可伸缩延长电缆。
美国OMEGA公司测温线各种规格型号
美国OMEGA公司测温线各种规格型号OMEGA感温线：TT-K-30-SLE （K型）绝缘层耐最高温度：260℃线芯直径：2×φ0.255mmTT-T-30-SLE （T型）绝缘层耐最高温度：260℃线芯直径：2×φ0.255mmTT-K-36-SLE （K型）绝缘层耐最高温度：260℃线芯直径：2×φ0.127mmTT-J-30-SLE （J型）绝缘层耐最高温度：260℃线芯直径：2×φ0.255mmGG-K-36-SLE （K型）绝缘层耐最高温度：482℃线芯直径：2×φ0.127mmGG-K-30-SLE （K型）绝缘层耐最高温度：482℃线芯直径：2×φ0.255mmGG-K-24-SLE （K型）绝缘层耐最高温度：482℃线芯直径：2×φ0.5mmTT-K-36-SLE感温线|TT-K-36-SLE美国omega感温线外覆绝缘层材质:聚四氟乙烯铁氟龙PFA,绝缘层耐温-200℃-260℃,线芯直径:2X0.127mm。
TT-K-36-SLE感温线|TT-K-36-SLE美国omega感温线图片仅供参考,以实物为准外覆绝缘层分析:种类适用温度不燃性耐磨性耐油性耐酸性耐湿性可绕性PFA铁氟龙-267至260度良优优优优良TT-K-36-SLE感温线|TT-K-36-SLE美国omega感温线详细参数分度号K型外覆绝缘层材质聚四氟乙烯铁氟龙PFA外敷绝缘层耐温-200℃-260℃线芯材质镍-铬合金/镍铝合金线芯直径2X0.127m线芯绝缘层标记红为负极/黄为正极线长度每卷1000英尺/305米。
可按客户需要剪断,焊接,加插头或绕线轴零售用途此TT-K-36-SLE感温线可适合任何K型进口及国产的温度记录仪表使用另有更多OMEGA感温线的型号：TT-K-24SLE、TT-K-30SLE、TT-K-36SLE、GG-K-24SLE、GG-K-30SLE-GG-K-36SLE、HH-K-24SLE、GG-J-30SLE、TT-J-30SLE、TT-T-30SLE、SMPW-K-F、SMPW-J-F、SMPW-T-F等等。
连接器常用材料
PA6:弹性好，冲击强度，吸水较大 PA66:性能优于尼龙6，强度高，耐磨性好
• 高级工程塑料 (长期使用温度大于150℃) PA6T﹑PA9T﹑PA46
用于:电子连接器、汽车零部件、 耐高温容器。
PA(Polyamide 聚酰胺俗称尼龙 Nylon）
PA66 (聚己二酰己二胺)
❖ 连接器弹性件设计基本原则﹕
1.在弹性件设计中,选择材料的程序通常是先按环境可 能的最高温度来确定所用弹性材料类别,再按机 械和电气性能的要求择优选出合适的品种,然后 从中选出工艺性好的材料。最后根据材料的价格 情况确定最佳选用的材料。
2.根据环境温度选择材料类别,在考滤弹性件的环境温 度时,要考滤电流温升的影响。连接器的环境温 度加上接触点温升是弹性件可能发生的最高温度 ,它不能超过选用材料所允许的最高温度，连接 器通常所遇到的低温对弹性材料影响不大。
❖ 金属材料塑性变形﹕
✓ 大多数金属及合金都具有良好的塑性。通过锻造﹑轧制﹑拉拔﹑挤压和冲压 等塑性成形的压力加工﹐不但可以获得人们所需要的各种形状和尺寸的坯料 或零件﹐而且也可以改变金属的内部组织结构和性能。
❖ 塑性变形对金属组织与性能的影响﹕
▪ 金属经过塑性变形(冷加工)﹐其组织和性能会发生一系列重大变化。这些变化大致表现在金属组织 和结构的变化﹑加工硬化及残余内应力等三个方面。塑性变形还会使金属的某些物理性能﹑化学性 能发生变化﹐例如﹐使金属的电阻增大﹐耐蚀性降低等。
▪ 残余内应力﹕ 当作用于金属材料的外力去除后﹐仍残留在金属内部﹐且平衡于金属内部的应力﹐称为残余内应力。 残余内应力是由于金属材料在外力作用下﹐各部分变形不均匀造成。按照其作用可分为以下三类﹕
▪ 残余内应力﹕ 1.金属的表面层和心部变形不均匀﹐或金属的这一部分和另一部分变形不均匀﹐会造成平衡于它
