ciscomeraki产品介绍与技术原理资料
Meraki MS390 交换机数据手册说明书

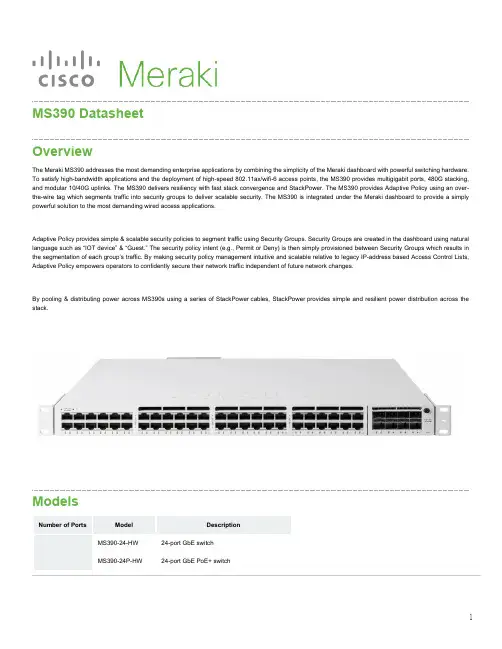

MS390 DatasheetOverviewThe Meraki MS390addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed802.11ax/wifi-6access points,the MS390provides multigigabit ports,480G stacking, and modular10/40G uplinks.The MS390delivers resiliency with fast stack convergence and StackPower.The MS390provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security.The MS390is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.Adaptive Policy provides simple&scalable security policies to segment traffic using Security Groups.Security Groups are created in the dashboard using natural language such as“IOT device”&“Guest.”The security policy intent(e.g.,Permit or Deny)is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic.By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.By pooling&distributing power across MS390s using a series of StackPower cables,StackPower provides simple and resilient power distribution across the stack.ModelsNumber of Ports Model DescriptionMS390-24-HW24-port GbE switchMS390-24P-HW24-port GbE PoE+ switch24 Ports MS390-24U-HW24-port GbE UPoE switch MS390-24UX-HW24-port mGbE UPoE switch48 Ports MS390-48-HW48-port GbE switchMS390-48P-HW48-port GbE PoE+ switchMS390-48U-HW48-port GbE UPoE switchMS390-48UX-HW36-port 2.5GbE+ 12-port mGbE UPoE switch MS390-48UX2-HW48-port 5GbE UPOE switchFeaturesCategory FeaturesHighlights •Layer-3•40G or 10G modular uplink options on all models •mGig support•Dual Dedicated 120G Hardware Stacking Ports•PoE+ and UPoE Support•StackPower in a ring topology supporting upto 4 switchesManagement •Managed via Cisco Meraki Dashboard•Zero-touch remote provisioning (no staging needed)•Basic configuration capability via local management page•Detailed historical per-port and per-client usage statistics•Operating System, device, and hostname fingerprinting•Automatic firmware upgrades with scheduling control•SNMP and SYSLOG support for integration with other network management solutions*Remote Diagnostics •Email, SMS and Mobile push notification alerts1•Ping, traceroute, cable testing, and link failure detection with alerting •Remote packet capture•Dynamic and interactive network discovery and topology •Combined event and configuration change logs with instant searchStacking •Physically stack up to 8 switches with 480 Gbps of stacking bandwidth on all models•Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration•Faster convergence•StackPower in a ring topology supporting upto 4 switchesEthernet Switching Capabilities •802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)•802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled)•Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST)•STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD•Broadcast storm control•802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)•802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches •Port mirroring•IGMP snooping for multicast filtering•MAC Forwarding Entries: 32KLayer 3•Static routing, OSPFv2•Multicast routing (PIM-ASM)•Warm Spare (VRRP) *•DHCP Server, DHCP RelaySecurity •Integrated multi-factor authentication for Dashboard management•Role-based access control (RBAC) with granular device and configuration control •Corporate wide password policy enforcement•IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing •Single-Host/Multi-Domain/Multi-Host/Multi Authentication•Port security: Sticky MAC, MAC whitelisting *•DHCP snooping, detection and blocking, Dynamic ARP Inspection•IPv4 and IPv6 ACLs•Secure Connect *•Adaptive Policy *MS390 LicensingMS390license structure includes two feature tiers:Enterprise and Advanced. The MS390 also introduces a new and simpler license to hardware mapping, specifically 24-port or 48-port licenses. As with all MS, every MS390 license is available in 1, 3, 5, 7, and 10 year terms.MS390 License Structure24-Port Model48-port ModelAdvanced Features LIC-MS390-24A LIC-MS390-48A* Available in a future software releaseEnterprise Features LIC-MS390-24E LIC-MS390-48EThe features available with advanced licensing are:•Adaptive policy *•Greater than 1,000 routes for OSPFContext and Comparisons24 Port Models48 Port ModelsDescriptionMS350-24XMS355-24X2MS390-24UXMS350-48FPMS355-48X2MS390-48UX21GbE RJ4516--4824-mGbE RJ4582424-244810GbE SFP+44Modular 44Modular 40GbE QSFP+n/a 2Modular -2Modular Hardware Stack Port 2x 40G 2x 100G2x 120G2x 40G 2x 100G2x 120GManagement Interface 111111Hot Swap PS Yes, Dual Yes, Dual Yes, Dual Yes, Dual Yes, Dual Yes, Dual Hot Swap Fans Yes, 2x Yes, 3x Yes, 3x Yes, 2x Yes, 3x Yes, 3x Layer 3 Routing Yes Yes Yes YesYes Yes UPoE CapableYes, 740W Yes, 740W Yes, 560W No, 740W(only PoE/PoE+)Yes, 740W Yes, 645W Max Switching Capacity 176 Gbps 640 Gbps 640 Gbps 176 Gbps 688 Gbps 640 Gbp Max Stacking Bandwidth160 Gbps400 Gbps480 Gbps160 Gbps400 Gbps480 Gbps* Available in a future software releaseIn the Co-term licensing model (most existing Organizations), an Organization must either have all MS390 Enterprise or all MS390 Advanced licenses - they cannot be mixed. In the Per-device licensing model, a mix of Enterprise and Advanced can be added to a single Organization, but certain features may require all devices in a Network to have Advanced licenses, e.g. Adaptive Policy.For more information on licensing, refer to Meraki Licensing Models article .Technical Breakdown Interfaces SpecificationsModel InterfacesUplink10/40GbE(SFP+, QSFP+)120G HardwareStack PortDedicatedManagementInterfacePoE/UPoECapabilitiesMS390-24-HW24 x1GbE RJ45Modular21n/a MS390-24P-HW24 x1GbE RJ45Modular21PoE MS390-24U-HW24 x1GbE RJ45Modular21UPoEMS390-24UX-HW 24 x 100M/1G/2.5G/5G/10G RJ45Modular21UPoEMS390-48-HW48 x1GbE RJ45Modular21n/a MS390-48P-HW48 x1GbE RJ45Modular21PoE MS390-48U-HW48 x1GbE RJ45Modular21UPoEMS390-48UX-HW36 x100M/1G/2.5G +12 x100M/1G/2.5G/5G/10GModular21UPoEMS390-48UX2-HW48 x100M/1G/2.5G/5G Modular21UPoE Physical SpecificationsModelDimensions(h x w x d)Weight Mount Type Hot Swap Fans Operating Temperature HumidityAll models are available with modular uplinks that have been listed under the Accessories list. For supported SFP modules please refer the SFP Datasheet.Cabling Best Practices for Multi-Gigabit operations:While Category-5e cables can support multigigabit data rates upto 2.5/5 Gbps, external factors such as noise, alien crosstalk coupled with longer cable/cable bundle lengths can impede reliable link operation. Noise can originate from cable bundling, RFI, cable movement, lightning, power surges and other transient event. It is recommended to use Category-6a cabling for reliable multigigabit operations as it mitigates alien crosstalk by design.W/ Default Power Supply1.73” x 17.5” x17.7”MS390-24-HW16.03 lb (7.27 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 44.9cm)1.73” x 17.5” x17.7”16.33 lb (7.4 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-24P-HW(4.4 x 44.5 x 44.9cm)1.73” x 17.5” x 19.2”16.63 lb (7.54 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-24U-HW(4.4 x 44.5 x 44.8cm)1.73” x 17.5” x 20.2”MS390-24UX-HW18.18 lb (8.25 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 51.3cm)1.73” x 17.5” x17.7”16.43 lb (7.45 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-48-HW(4.4 x 44.5 x 44.9cm)1.73” x 17.5” x17.7”16.73 lb (7.59 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-48P-HW(4.4 x 44.5 x 44.9cm)1.73” x 17.5” x 19.2”MS390-48U-HW17.03 lb (7.72 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 48.8cm)1.73” x 17.5” x 22.2”20.50 lb (9.34 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-48UX-HW(4.4 x 44.5 x 56.4cm)1.73” x 17.5” x 22.2”20.05 lb (9.09 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-48UX2-HW(4.4 x 44.5 x 56.4cm)PerformanceSwitching Capacity Stacking Bandwidth Forwarding rateModelMS390-24-HW208 Gbps480 Gbps154.76 MppsMS390-24P-HW208 Gbps480 Gbps154.76 Mpps MS390-24U-HW208 Gbps480 Gbps154.76 Mpps MS390-24UX-HW640 Gbps480 Gbps476.19 Mpps MS390-48-HW256 Gbps480 Gbps190.48 Mpps MS390-48P-HW256 Gbps480 Gbps190.48 Mpps MS390-48U-HW256 Gbps480 Gbps190.48 Mpps MS390-48UX-HW580 Gbps480 Gbps431.54 Mpps MS390-48UX2-HW640 Gbps480 Gbps476.19 MppsPower Options and SpecificationsModel Default PowerSupplyHot Swap PowerSupplyAvailable PoE W/Primary PSAvailable PoE W/ SecondaryPS***Power Load(idle/max)MS390-24-HWMA-PWR-350WAC**Yes, Dual n/a n/a79.2 / 99 WMS390-24P-HWMA-PWR-715WAC**Yes, Dual445W720W84.1 / 554.4WMS390-24U-HWMA-PWR-1100WACYes, Dual830W1440W85.4 / 990.3WMS390-24UX-HWMA-PWR-1100WACYes, Dual560W1440W162.7 / 809.9WMS390-48-HWMA-PWR-350WAC**Yes, Dual n/a n/a83.9 / 109.9WMS390-48P-HWMA-PWR-715WAC**Yes, Dual437W1152W92.6 / 555 WMS390-48U-HWMA-PWR-1100WACYes, Dual822W1800W145 / 844.9WMS390-48UX-HWMA-PWR-1100WACYes, Dual490W1590W218.5 / 785.5WMS390-48UX2-HWMA-PWR-1100WACYes, Dual645W1745W157.9 / 843.8W** Upgrade options to715W and 1100W PSU are available.*** The PoE values are provided considering the secondary PS to be the default power supply of the respective model.What's includedModel Package ContentsMS390-24-HW 1 x Power Supply (MA-PWR-350WAC), Rack mount brackets and screw kit,3 x Pre-Installed Fans, Cable guide MS390-24P-HW 1 x Power Supply (MA-PWR-715WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-24U-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-24UX-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-48-HW 1 x Power Supply (MA-PWR-350WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-48P-HW 1 x Power Supply (MA-PWR-715WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-48U-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-48UX-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide MS390-48UX2-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideOptional AccessoriesAccessory Description Supported ModelsMA-PWR-350WAC350W AC Power Supply MS390-24-HW, MS390-48-HWMA-PWR-715WAC715W AC Power Supply All ModelsMA-PWR-1100WAC1100W AC Power Supply All ModelsMA-MOD-2X40G 2 x 40G Uplink Module All ModelsMA-MOD-4X10G 4 x 10G Uplink Module All ModelsMA-MOD-8X10G8 x 10G Uplink Module All ModelsMA-CBL-120G-50CM Meraki 120G Stacking Cable, 0.5Meter All ModelsMA-CBL-120G-1M Meraki 120G Stacking Cable, 1Meter All ModelsMA-CBL-120G-3M Meraki 120G Stacking Cable, 3Meter All ModelsMA-CBL-SPWR-30CM Meraki MS390 30CM StackPower Cable All ModelsMA-CBL-SPWR-150CM Meraki MS390 150CM StackPower Cable All Models MA-FAN-16K2System Fan All Models MA-RCKMNT Meraki MS390 Rack Mount Kit All ModelsRegulations and ComplianceElectromagnetic CompatibilityCertifications FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A,CNS13438, EN 300 386 V1.6.1,EN 55022 Class A, EN 61000-3-2,EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317SafetyCAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 Environmental Reduction of Hazardous Substances (RoHS)Warranty Full lifetime hardware warranty with next-day advanced replacement included MTBF RatingModelMTBF at 25°CMS390-24-HW314,790MS390-24P-HW299,000MS390-24U-HW238,410MS390-24UX-HW214,760MS390-48-HW305,870MS390-48P-HW277,770MS390-48U-HW227,410MS390-48UX-HW202,160MS390-48UX2-HW198,647Installation GuideFor instructions on how to install and configure the MS390 series switch please refer the MS390 Series Installation Guide。

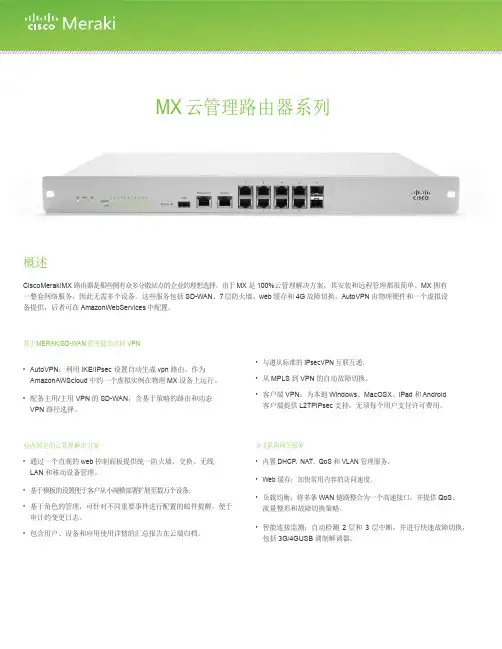

MX云管理路由器系列-Cisco
CiscoMeraki 云管理架构
组织级安全评估
2
自动配置站点间 VPN
段端到端网络可视性和故障排除
基于身份的策略管理
让 SD-WAN 变得简单
传输独立性 具备负载均衡和故障切换功能的双 WAN 端口可让用户使用 MPLS 和/或冗余的商用联网连接，从而获得更大带宽和更高的可靠性。
3G/4G 故障切换 CiscoMerakiMX 支持全球各地的 3G/4G 服务提供商，可实现 WAN 连接的故障切换。Web 缓存功能临时存储视频、媒体和 web 文档，从 而降低带宽使用量，加快互联网内容的下载速度。
3
内置 802.11ac 无线技术
MX64W 和 MX65W 紧密集成了 CiscoMeraki 屡获大奖的无线技术和 强大的 MX 网络安全特性，是分支机构或小型企业的理想选择。 • 双频段 802.11n/ac，包含 2 个空间串流的 2x2MIMO • 统一管理网络安全和无线技术 • 内置企业安全性和访客访问
90WDC（含）
6W/72（MX65） 9W/79W（MX65W
32°F － 104°F （0°C － 40°C）
5%－95%
6.46” x 4.55” x 1.14”(164 mm x 116
mm x29 mm)
0.9lbs（0.408kg）
12V/1.5A 电源（含）
N/A
32°F － 104°F （0°C － 40°C）
应用优化 7 层流量整形和应用优化优先级划分可为任务关键型应用优化流量和用户体验。
智能路径控制 MX 采用动态 VPN 路径选择技术，根据丢包率、时延和抖动选择最佳 VPN 上行链路。可定义用于通过相应路径发送相应流量的策略（例如， 通过 MPLS 发送语音，通过 VPN 和宽带发送 http）。
思科 Meraki MR70 双频 802.11ac Wave 2 技术规格说明书

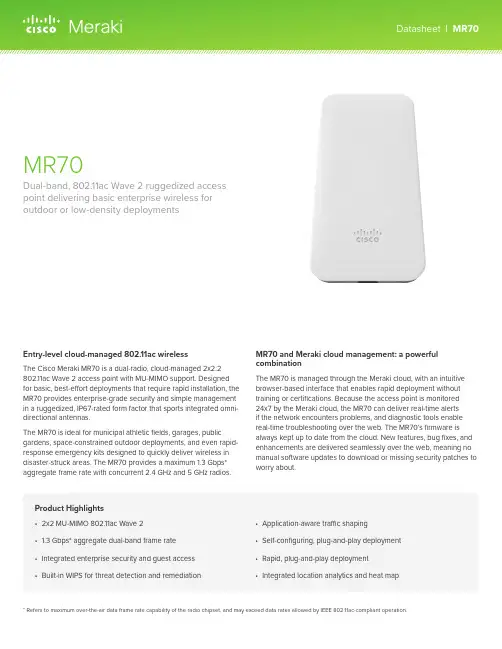

MR70Dual-band, 802.11ac Wave 2 ruggedized access point delivering basic enterprise wireless foroutdoor or low-density deploymentsEntry-level cloud-managed 802.11ac wirelessThe Cisco Meraki MR70 is a dual-radio, cloud-managed 2x2:2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, best-effort deployments that require rapid installation, the MR70 provides enterprise-grade security and simple management in a ruggedized, IP67-rated form factor that sports integrated omni-directional antennas.The MR70 is ideal for municipal athletic fields, garages, public gardens, space-constrained outdoor deployments, and even rapid-response emergency kits designed to quickly deliver wireless in disaster-struck areas. The MR70 provides a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.MR70 and Meraki cloud management: a powerful combinationThe MR70 is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Because the access point is monitored24x7 by the Meraki cloud, the MR70 can deliver real-time alertsif the network encounters problems, and diagnostic tools enable real-time troubleshooting over the web. The MR70’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.Product Highlights• 2x2 MU-MIMO 802.11ac Wave 2• 1.3 Gbps* aggregate dual-band frame rate• Integrated enterprise security and guest access • Built-in WIPS for threat detection and remediation • Application-aware traffic shaping• Self-configuring, plug-and-play deployment • Rapid, plug-and-play deployment• Integrated location analytics and heat mapFeaturesAggregate data rate of up to 1.3 Gbps*A 5 GHz 2x2:2 radio supporting 80 MHz channel widths and a2.4 GHz 2x2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps*, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.Multi User Multiple Input Multiple Output (MU-MIMO)With support for the 802.11ac Wave 2 standard, the MR70 offers MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience.Integrated enterprise security and guest accessThe MR70 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.Secure wireless environments using Air MarshalThe MR70 comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR70 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.Application-aware traffic shapingThe MR70 includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.Self-configuring, self-optimizing, self-healingThe MR70’s advanced mesh technologies like multi-channel routing protocols and multiple gateway support enable scalable coverage of hard-to-wire areas with zero configuration. Mesh also improves network reliability — in the event of a switch or cable failure, the MR70 will automatically revert to mesh mode, providing continued gateway connectivity to clients.Rapid, plug-and-play deploymentWhen plugged in, the MR70 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters.Integrated analyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.SpecificationsRadios2.4 GHz 802.11b/g/n/ac client access radio5 GHz 802.11a/n/ac Wave 2 client access radioSupported frequency bands (country-specific restrictions apply):• 2.412-2.484 GHz• 5.150-5.250 GHz (UNII-1)• 5.250-5.350 GHZ (UNII-2)• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)• 5.725-5.825 GHz (UNII-3)802.11ac and 802.11n Capabilities2 x 2 multiple input, multiple output (MIMO) with two spatial streamsSU-MIMO and MU-MIMO supportMaximal ratio combining (MRC) & Beamforming20 and 40 MHz channels (2.4 GHz), 20, 40, and 80 MHz channels (5 GHz)Up to 256-QAM on both 2.4 GHz and 5 GHz bandsPacket aggregationPowerPower over Ethernet: 37-57 V (802.3af compatible)Power consumption: 11 W max (802.3af)Power over Ethernet injector sold separatelyMountingMounts to walls and vertical polesMounting hardware includedPhysical SecuritySecurity screw includedEnvironmentOperating temperature: -4 °F to 131 °F (-20 °C to 55 °C)IP67 environmental ratingOperating humidity: 5% to 95%Physical Dimensions9.65” x 4.53” x 1.18” (245 mm x 115 mm x 30 mm)Weight: 15.87 oz (0.45 kg)AntennaIntegrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 4.7 dBi gain at 5 GHz)Interfaces1x 100/1000 BASE-T Ethernet (RJ45)SecurityIntegrated Layer 7 firewall with mobile device policy managementReal-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolationVLAN tagging (802.1Q) and tunneling with IPSec VPNPCI compliance reportingWEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1XEAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIMTKIP and AES encryptionEnterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration Quality of ServiceAdvanced Power Save (U-APSD)WMM Access Categories with DSCP and 802.1p supportLayer 7 application traffic identification and shapingMobilityPMK, OKC, and 802.11r for fast Layer 2 roamingDistributed or centralized Layer 3 roamingLED Indicators1 power/booting/firmware upgrade statusRegulatoryRoHSEN50155: 2017 (Railway)For additional country-specific regulatory information, please contact Meraki sales Warranty1 year hardware warranty with advanced replacement includedOrdering InformationMR70-HW: Meraki MR70 Cloud Managed 802.11ac APMA-PWR-30W-XX: Meraki AC Adapter for MR Sseries (XX = US/EU/UK/AU)MA-INJ-4-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) Note: Meraki Enterprise license requiredCompliance and StandardsSafety ApprovalsUL 60950-1CAN/CSA-C22.2 No. 60950-1IEC 60950-1EN 60950-1Radio ApprovalsCanada: FCC Part 15C, 15E, RSS-247Europe: EN 300 328, EN 301 893Australia/NZ: AS/NZS 4268Mexico: NOM-121For additional country-specific regulatory information, please contact Meraki Sales EMI Approvals (Class B)Canada: FCC Part 15B, ICES-003Europe: EN 301 489-1-17, EN 55032, EN 55024Australia/NZ: CISPR 32Exposure ApprovalsCanada: FCC Part 2, RSS-102Europe: EN 50385, EN 62311Australia: AS/NZS 2772。
cisco meraki 产品介绍与技术原理 PPT
目录 CONTENTS
技术原理 与其他AP对比
R2, 2012 Windows Phone 8.1
2、高延展性
云管理平台对所接入AP的数量无限制，每新增一台AP，只需将AP连接至云管理平台， 无需另外配置
3、高可靠性
客户的数据至少在三个数据中心备份 meraki的云管理平台是大规模的分布式架构，提供冗余链路 即便断开与网络的连接，meraki所管理的无线网络仍然能够连接上网
技术原理—CMX（Connected Mobile Experences)
cmx api
利用cmx 位置分析能够为管理者提供wifi用户的实时位置统计信息和报告
技术原理—CMX
1 通过扫描probe request和802.11数据包来检测开启wifi的设备
iphone设备， 没有连接到互 联网
技术原理—应用层的可视化管理
可以看到： 使用者名称 使用的应用类型 使用者的操作系统或者设备 使用者所使用的流量
• meraki根据ip地址，主机名以及端口号范围来确定应用类型 • 对于p2p类型应用流量的分类，采用的方法是：识别到在一系列浮动的ip地址中
的简短的tcp会话（ recognizes short TCP sessions across a fleeting range of IP addresses），就可以识别p2p应用 • 可以使用dscp或者pcp协议给不同应用的流量打标签，从而可以使用qos对用户 使用不同的应用进行限制或者限速 • 用户所使用应用的流量分析和配置信息等将会和网络管理数据一起上传到云管 理中心
技术原理—Air Marshal
2 预防机制：air marshal ap具备识别非授权ap的功能，这样可以使 得网络管理者在客户连接上这些非授权ap前，采用物理措施移除这些非 授权ap。具体实现如下：
Meraki MS 系列交换机
支持所有部署类型的强大的特性集
Meraki交换机包含高端产品所具备的所有传统Ethernet特性， 其中包括： • 用于为语音、视频等任务关键型链路划分优先级的服务质量
（QoS） • 用于实现基于端口的网络访问控制的IEEE 802.1X支持 • 基于MAC的RADIUS认证和MAC白名单 • 用于简化VoIP部署的语音VLAN • 用于以线速监测网络流量的端口镜像 • 用于防止用户在网络上添加非法DHCP服务器的DHCP监听 • 用于优化组播流量的网络性能的IGMP监听 • 用于实现大容量中继、堆叠和更高可用性的链路聚合控制协
3
Meraki 聚合交换产品组合
系列
MS410
部署类型 接口1 上行链路 电源配置 堆叠能力 路由能力
型号
1G光纤聚合
16 / 32 x 1GbE SFP
2 x 10GbE SFP+（MS410-16） 4 x 10GbE SFP+（MS410-32）
模块化 可选冗余PSU（单独出售）
160G物理 + 虚拟
设置一台Meraki交换机只需将其联网，没有必要进行重复、 基于命令的配置。交换机联网后数分钟之内就可以启动和运 行。
一个功能强大的集中管理界面可让管理员深入了解网络及其 使用情况，查看那些交换机接近数百个站点的容量，快速配 置和重配置交换机端口的安全、QoS等策略。Meraki控制面 板提供统一策略、事件日志和监测功能，便于用户管理网络 部署，而且不会对性能产生任何影响。
· 灵活堆叠，可扩展配置和提升高性能。 · 智能管理可降低成本和开销，缩短问题解决时间。 · 行业标准特性使其能够轻松整合到现有和混合基础设
施中。 · 基于角色的管理，通过web实现自动安全的固件设计。
Meraki无线网络身份认证方案
Meraki无线网络身份认证方案一、面临挑战思科Meraki无线云管控，可在云上集中配置管理所有网络设备及移动终端，有效降低无线运维管理成本，以功能丰富且易于使用而受到青睐。
随着无线技术的全面应用及移动终端的普及，无线开放的访问方式和易接入的特性在带来便捷的同时，也带来极大的安全隐患。
无线网络的安全系统要做到有效，必须解决下面这个问题——接入控制，即验证用户并授权他们接入特定的资源，同时拒绝为未经授权的用户提供接入。
大型企业商业通常用户及分支机构众多，跨地域连无线普遍存在的情况下，存在着大量网络安全威胁，实现多分支、多用户、多终端之间的无线统一身份认证及安全访问控制，更有其必要性。
统一的身份鉴别和访问控制应贯穿在Meraki无线云管控的始终，对用户的访问进行身份鉴别，对其访问权限和可操作内容进行有效的管理，实现不同用户角色对应不同的访问权限。
二、解决方案1. 思科Meraki无线网络身份认证解决方案概述宁盾一体化认证平台提供健全的无线身份认证访问控制，通过与Meraki云管控对接，实现多分支统一接入管理，只允许合法授权用户的接入。
联动Meraki 云端控制器，对合法接入的用户基于其身份做访问权限控制，实现所有类型无线用户集中化认证及管理。
还可结合上网行为管理设备，提供上网行为实名审计，及基于用户身份的流量控制。
2. 宁盾一体化无线认证方式①短信认证，可设定短信内容模版、短信验证码有效期及长度等；②微信认证，通过关注微信公众号进行认证连接上网；③用户名密码认证，用户名密码可以创建，也可以与AD或者LDAP同步帐号信息；④支持二次无感知认证，可设定有效期，超过有效期须通过其他认证方式登录；⑤支持协助扫码认证，快速授权上网，实现访客与被访人之间可追溯；⑥支持访客自助申请认证，由指定人员审批申请信息，加强内外网访问安全控制。
三、方案价值①统一认证：宁盾结合Meraki实现多分支无线用户的统一接入，所有用户通过一套账号体系集中认证及管理；②认证方式：提供短信、微信、用户名密码、协助扫描、邮件审批、二次无感知等多种认证方式；③访问策略：动态授权机制，根据用户的不同身份来确定其网络接入权限，在网络资源、带宽、时长、位置、终端数量等权限上作区分，并支持黑白名单；④Portal页广告：支持Portal页个性化定制，可基于不同的站点推送不同的认证方式不同的广告信息，优化无线上网体验，提升客户形象；⑤账号保护：结合宁盾双因素认证方案加强用户账号安全，支持AD/LDAP对接认证，还可从OA、ERP、CRM等客户自有系统中同步用户数据；⑥实名审计：提供清晰的用户信息及完整的上网统计报告，与行为管理设备对接，实现无线认证可实名追溯，提升网络信息安全。
cisco-meraki-产品介绍与技术原理资料
—by 梁晓宇
目录 CONTENTS
技术原理 与其他AP对比
meraki架构
ap自动从云管理 中心下载配置文 件
产品特点
1、配置简单
管理者只需登录meraki的管理界面，即可在云端配置AP，可以在多种平台管理无线 网络，目前支持的平台有： Apple iPad, iPod Touch, and iPhone (iOS 5 or higher) Android (2.2 or higher), including Amazon’s Kindle Fire Mac OS X (10.5 or higher) Windows Pro 7, 8, 8.1, 10, Vista, XP (Service Pack 3 or higher), Server 2008,
技术原理—Air Marshal
2 预防机制：air marshal ap具备识别非授权ap的功能，这样可以使 得网络管理者在客户连接上这些非授权ap前，采用物理措施移除这些非 授权ap。具体实现如下：
产生大量这 三种类型的 数据包，用 来冒充非授 权ap,从而 迫使已经连 接上非授权 ap的客户 断开与其连 接
技术原理—应用层的可视化管理
可以看到： 使用者名称 使用的应用类型 使用者的操作系统或者设备 使用者所使用的流量
• meraki根据ip地址，主机名以及端口号范围来确定应用类型 • 对于p2p类型应用流量的分类，采用的方法是：识别到在一系列浮动的ip地址中
的简短的tcp会话（ recognizes short TCP sessions across a fleeting range of IP addresses），就可以识别p2p应用 • 可以使用dscp或者pcp协议给不同应用的流量打标签，从而可以使用qos对用户 使用不同的应用进行限制或者限速 • 用户所使用应用的流量分析和配置信息等将会和网络管理数据一起上传到云管理 中心
思科Meraki MC74 VoIP电话说明书
OVERVIEWThe Cisco Meraki MC74 is a premium VoIP phone with an elegant design, featuring a 7” touchscreen display. Representing a fresh approach to the notoriously complex and disjointed world of telephony, it leverages the power of the cloud to eliminate the traditional PBX. MC74 provides simple, intuitive management and the ability to integrate with business applications.MERAKI COMMUNICATIONSMeraki Communications phones benefit from zero-touch deployment. With only a serial number the network admin can remotely configure the phone for a user or meeting room. Once online it will connect to the cloud, pull down its configuration and within seconds be ready to make calls.Using the Meraki dashboard, the network admin is able to manage all the essentials: review call stats, configure alerts, setup conference rooms, manage a contacts directory and set up Interactive Voice Response menus. For connection to the rest of the world via the public switched telephone network (PSTN), there are configuration options for a SIP service provider, and Meraki partners will be able to guide customers on this essential component.INTRODUCING MC74With a beautiful, carefully crafted design and superb sound quality, MC74 is designed to delight the user, featuring easy and intuitive access to the most commonly used features—and the minimum of distractions.A large, high resolution color display is the center of the phone experience, and this blank canvas allows Meraki engineers and designers to evolve and refine the user experience over time. The display and speaker provide intuitive visual and audible cues to communicate status, without requiring the user to navigate through deep, complicated menus.Wideband audio enhances the calling experience, allowing crystal clear speech. Calls can be placed or received using the handset, USB, Bluetooth or even regular cellphone headsets.* A sensitive mi-crophone and full range speaker are also included for an exceptional hands–free experience during meetings.MC74 aims to be nothing less than the best possible communica-tions experience.MC74 Cloud Managed PhoneDatasheet |MC74SpecificationsHardwareHigh definition color 7” IPS backlit touchscreen display (1280x800) Integrated GbE switch with passthrough portIntegrated desktop stand with adjustable hingeOptional wall mount adapter with levelerDedicated volume buttonMute button with status LEDHandset with on-hook proximity sensorMagnetic cable guideRear and side USB headset ports3.5mm audio headset jackSpeakerphone/MicAmbient light sensorMulticolor notification LEDIn the boxMC74 phone + handset and cordWall mounting kit + hardwareMicrofiber screen clothDesign matched ethernet cableVoIPFully encrypted voice and SIP signaling (TLS/SRTP)E911 support for accurate location in emergenciesE164 international dialling formatWideband audio G.722 internal calling (G.711 for PSTN calling)Power802.3af PoE (Class 3)Universal power adapter (optional accessory)EnvironmentOperating temp: 0o C to 40o C (32 to 104F)Humidity 5 – 95% non condensingPhysical dimensionsSize including handset 272 x 186 x 94mm (10.7 x 7.3 x 3.7in) Weight 1.1Kg (2.4lbs)Warranty2 Y ears Licensing1, 3, 5, 7 or 10 year licensing optionsSafetyUL / IEC / EN 60950-1CAN/CSA-C22.2 No. 60950-1Radio ApprovalsFCC Part 15C, 15EEN 300 328, EN 301 893For additional country-specific regulatory information, please contact Meraki salesSupported frequency bands (country-specific restrictions apply)2.412-2.484 GHz5.150-5.250 GHz (UNII-1)5.250-5.350 GHZ (UNII-2)5.470-5.600, 5.660-5.725 GHz (UNII-2e)5.725-5.825 GHz (UNII-3)EMI Approvals (Class B)FCC Part 15BEN 301 489-1-17, EN 55032, EN 55024Exposure ApprovalsFCC Part 2EN 62311, EN 62479Telecom ApprovalsFCC Part 68* A list of tested headsets can be found at CiscoSystems,Inc.|500TerryA.FrancoisBlvd,SanFrancisco,CA94158|(415)432-1000|**************** 2。
MX 智能管理路由器系列
分支机构网关服务
• 内置DHCP、NAT、QoS和VLAN管理服务。 • Web缓存：加快常用内容的访问速度。 • 负载均衡：将多条WAN链路整合为一个高速接口，并提供 QoS、流量整形和故障切换策略。 • 智能连接监测：自动检测2层和3层中断，并进行快速故障 切换，包括3G/4G USB调制解调器。
Z1 Telecommuter Gateway
Z1 Telecommuter Gateway（远程办公网关）将Cisco Meraki控 制面板和基于远端的集中管理延伸至在家办公的IT员工和管 理人员。 借助Cisco Meraki Auto VPN专利技术，管理员可一键将VoIP、 远程桌面（RDP）等网络服务延伸至远端员工，提供有线和 无线访问，并通过 7层流量整形和优先级划分提高最终用户 的生产力。
Z1TelecommuterGateway
• 1x802.11b/g/n射频， 1x802.11a/n射频， 2x2双重空间串流 MIMO • 使用Cisco Meraki Auto VPN的站点间（IPsec）VPN • 7层应用可视性和流量整形
4
机架式型号
M X84 MX100 MX400 M X 6 00
MX智能管理路由器系列
概述
Cisco Meraki MX 路由器是那些拥有众多分散站点的企业的理想选择。由于MX是100%智能管理解决方案，其安装和远程管理都很 简单。MX拥有一整套网络服务，因此无需多个设备。这些服务包括SD-WAN、7层防火墙、web缓存、4G故障切换和Auto VPN。
基于MERAKI SD-WAN的智能站点间VPN
小型零售分支机构， 小型诊所 50 250 Mbps 25 12 x GbE（2PoE+） N/A N/A 是 桌面/壁挂 10.0” x 5.2” x1”(256mm x 132mm x25mm) 3.37 lb（1.53kg） 90W DC（含） 6W /72 W（MX65） 9W / 79W（MX65W） 32°F － 104°F （0°C － 40°C） 5%－95%
ciscomeraki产品设备介绍与技术基本知识
Tankertanker Design
技术原理—Air Marshal
Tankertanker Design
2 预防机制：air Tankertanker Design marshal ap具备识别非授权ap的功能，这样可以使 得网络管理者在客户连接上这些非授权ap前，采用物理措施移除这些非 授权ap。具体实现如下：
Tankeesign
技术原理—CMX（Connected Mobile Experences)
Tankertanker Design
cmx api
利用cmx 位置分析能够为管理者提供wifi用户的实时位置统计信息和报告
Tankertanker Design
技术原理—CMX
Tankertanker Design
Tankertanker Design
1 通过扫描probe request和802.11数据包来检测开启wifi的设备
iphone设备， 没有连接到互 联网
802.11数据包， 类型为probe request
包含信号 强度和信 道信息
Tankertanker Design
•
meraki设备与云管理中心是通过ssl隧道 连接，利用一个专有协议来管理AP等 meraki设备 将meraki设备部署在网络的边缘是为了 使得用户在上网时产生的数据流量不会 经过云管理中心，从而保证用户数据安 全 meraki将网络管理数据（例如配置，镜 像等）和用户在上网时所产生的数据分 离，仅在ssl隧道上传递网络管理数据， 且传递速度不超过1kb/s，这样保证了 即便在断开与meraki云管理中心的连接 的情况下，只要连接到网络，用户仍然 可以上网。
MR33
MR33
带有专用安全能力和射频管理并集成低功耗蓝牙 信标和扫描无线电的双频 802.11ac Wave 2 2x2:2 MU-MIMO接入点
入门级智能管理802.11ac无线网络
Cisco Meraki MR33是一款支持MU-MIMO的智能管理2x2:2 802.11ac Wave 2接入点。这款产品专门用于办公室、学校、医 院、商店和酒店的下一代部署，具有高性能的企业级安全能 力以及简便的管理。
MCS0/0 MCS1/1 MCS2/2 MCS3/3 MCS4/4 MCS5/5 MCS6/6 MCS7/7 MCS8/8
MCS0/8 MCS1/9 MCS2/10 MCS3/11 MCS4/12 MCS5/13 MCS6/14 MCS7/15
发射功率
21dBm 21dBm 20dBm 20dBm 20dBm 20dBm 20dBm 20dBm
多用户多输入多输出（MU-MIMO） 由于支持802.11ac Wave 2标准，MR33为多客户端提供MUMIMO以实现更高效的传输。MU-MIMO尤其适合多移动设备 环境， 使多个客户端能够同时收到数据。 这提高了总网络性能并且改进最终用户体验。
专用的第三无线电提供24x7无线安全和射频分析 MR33精密的专用双频第三无线电可以连续扫描环境、确认 射频干扰的特性并且包含未授权接入点等无线威胁。无需在 无线安全能力、高级射频分析和服务客户数据之间选择：专 用的第三无线电可以实时提供全部三项能力，并且不会对客 户流量或AP吞吐量产生任何影响。
应用层流量整形 MR33包含集成第七层数据包检查、分类和控制引擎，使您 能够基于流量类型制定服务质量策略。对您的任务核心应用 进行优先性排序，同时设置娱乐流量限制，比如P2P网络和 视频流。
Cisco Meraki MV摄像头系列介绍说明书
INTRODUCING MVWith an unobtrusive industrial design suitable for any setting—and available in indoor (MV21) and outdoor (MV71) models—the MV family simplifies and streamlines the unnecessarily complex world of secu-rity cameras. By eliminating servers and video recorders, MV frees administrators to spend less time on deployment and maintenance, and more time on meeting business needs.High-endurance solid state on-camera storage eliminates the concern of excessive upload bandwidth use and provides robust failoverprotection. As long as the camera has power it will continue to record, even without network connectivity. Historical video can be quicklyOVERVIEWCisco Meraki’s MV family of security cameras are exceptionally simple to deploy and configure. Their integration into the Meraki dashboard, ease of deployment, and use of cloud-augmented edge storage, eliminate the cost and complexity required by traditional security camera solutions.Like all Meraki products, MV cameras provide zero-touch deployment. Using just serial numbers, an administrator can add devices to the Meraki dashboard and begin configuration before the hardware even arrives on site. In the Meraki dashboard, users can easily streamvideo and create video walls for monitoring key areas across multiple locations without ever configuring an IP or installing a plugin.searched and viewed using motion-based indexing, and advanced export tools allow evidence to be shared with security staff or law enforcement easily.Because the cameras are connected to Meraki’s cloud infrastructure, security updates and new software are pushed to customers auto-matically. This system provides administrators with the peace of mind that the infrastructure is not only secure, but that it will continue to meet future needs.Simply put, the MV brings Meraki magic to the security camera world.Product Highlights• Meraki dashboard simplifies operation• Cloud-augmented edge storage eliminates infrastructure • Suitable for deployments of all sizes: 1 camera or 1000+• Intelligent motion indexing with search engine• Built-in video analytics tools• Secure encrypted control architecture• No special software or browser plugins required • Granular user access controlsMV21 & MV71Cloud Managed Security CamerasDatasheet | MV SeriesCUTTING EDGE ARCHITECTUREMeraki's expertise in distributed computing has come to the security camera world. With cloud-augmented edge storage, MV cameras provide ground breaking ease of deployment, configuration, and operation. Completely eliminating the Network Video Recorder (NVR) not only reduces equipment CAPEX, but the simplified architecture also decreases OPEX costs. Each MV camera comes with integrated, ultra reliable, industrial-grade storage. This cutting edge technology allows the system to efficiently scale to any size because the storage expands with the addition of each camera. Plus, administrators can rest easyknowing that even if the network connection cuts out, the cameras will continue to record footage.SCENE BEING RECORDEDON-DEVICE STORAGELOCAL VIDEO ACCESS MERAKIREMOTE VIDEOACCESSOPTIMIZED RETENTIONMV takes a unique approach to handling motion data by analyzing video on the camera itself, but indexing motion in the cloud. This hybrid motion-based retention strategy plus scheduled recording give users the ability to define the video retention method that works best for every deployment.The motion-based retention tool allows users to pick the video bit rate and frame rate to find the perfect balance betweenstorage length and image quality. All cameras retain continuous footage as a safety net for the last 72 hours before intelligently trimming stored video that contains no motion, adding one more layer of security.Determine when cameras are recording, and when they’re not, with scheduled recording. Create schedule templates for groups of cameras and store only what’s needed, nothing more. Turn off recording altogether and only view live footage for selective privacy.Best of all, the dashboard provides a real-time retention estimate for each camera, removing the guesswork.10:00:3010:00:2010:00:25EASY TO ACCESS, EASY TO CONTROLThere is often a need to allow different users access but with tailored controls appropriate for their particular roles. For example, a receptionist needing to see who is at the front door probably does not need full camera configuration privileges.The Meraki dashboard has a set of granular controls for defining what a user can or cannot do. Prevent security staff from changing network settings, limit views to only selected cameras, or restrict the export of video: you decide what is possible.With the Meraki cloud authentication architecture, these controls scale for any organization and support Security Assertion Markup Language (SAML) integration.CONFIGURE VIEW-ONLYISOLATE EVENTS, INTELLIGENTLYMeraki MV cameras use intelligent motion search to quickly find important segments of video amongst hours of recordings. Optimized to eliminate noise and false positives, this allows users to retrospectively zero-in on relevant events with minimal effort.MV's motion indexing offers an intuitive search interface. Select the elements of the scene that are of interest and dashboard will retrieve all of the activity that occurred in that area. Laptop go missing? Drag the mouse over where it was last seen and quickly find out when it happened and who was responsible.8:009:00ANALYTICS, BUILT RIGHT INMV's built-in analytics take the average deployment far beyond just security. Make the most of an MVcamera by utilizing it as a sensor to optimize business performance, enhance public safety, or streamline operational objectives.Use motion heat maps to analyze customer behavior patterns or identify where students are congregating during class breaks. Hourly or daily levels ofgranularity allow users to quickly tailor the tool to specific use cases.All of MV's video analytics tools are built right into the dashboard for quick access. Plus, the standard MV license covers all of these tools, with no additionallicensing or costs required.SIMPLY CLOUD-MANAGEDMeraki's innovative GUI-based dashboardmanagement tool has revolutionized networks aroundthe world, and brings the same benefits to networkedvideo surveillance. Zero-touch configuration, remotetroubleshooting, and the ability to manage distributedsites through a single pane of glass eliminate manyof the headaches security administrators have dealtwith for decades. Best of all, dashboard functionalityis built into every Meraki product, meaning additionalvideo management software (VMS) is now a thing ofthe past.Additionally, features like the powerful drag-and-drop video wall help to streamline remote devicemanagement and monitoring — whether cameras aredeployed at one site, or across the globe.SECURE AND ALWAYS UP-TO-DATECentralized cloud management offers one of the mostsecure platforms available for camera operation. Allaccess to the camera is encrypted with a public keyinfrastructure (PKI) that includes individual cameracertificates. Integrated two-factor authenticationprovides strong access controls. Local video is alsoencrypted by default and adds a final layer of securitythat can't be turned off.All software updates are managed automaticallyfor the delivery of new features and to enable rapidsecurity updates. Scheduled maintenance windowsensure the MV family continues to address users'needs with the delivery of new features as part of theall-inclusive licensed service.Camera SpecificationsCamera1/3.2” 5MP (2560x1920) progressive CMOS image sensor128GB high endurance solid state storageFull disk encryption3 - 10mm vari-focal lens with variable aperture f/1.3 - f/2.5Variable field of view:28° - 82° (Horizontal)21° - 61° (Vertical)37° - 107° (Diagonal)Automatic iris control with P-iris for optimal image quality1/5 sec. to 1/32,000 sec. shutter speed*******************************(color)*************(B&W)S/N Ratio exceeding 62dB - Dynamic Range 69dBHardware based light meter for smart scene detectionBuilt-in IR illuminators, effective up to 30 meters (98 feet)Integrated heating elements for low temperature outdoor operation (MV71 only)Video720p HD video recording (1280x720) with H.264 encodingCloud augmented edge storage (video at the edge, metadata in the cloud)Up to 20 days of video storage per camera*Direct live streaming with no client software (native browser playback)**Stream video anywhere with autotmatic cloud proxyNetworking1x 10/100 Base-T Ethernet (RJ45)Compatible with Meraki wireless mesh backhaul (separate WLAN AP required) DSCP traffic markingFeaturesCloud managed with complete integration into the Meraki dashboardPlug and play deployment with self-configurationRemote adjustment of focus, zoom, and apertureDynamic day-to-night transition with IR illuminationNoise optimized motion indexing engine with historical searchShared video wall with individual layouts supporting multiple camerasSelective export capability with cloud proxyHighly granular view, review, and export user permissions with SAML integration Motion heat maps for relative hourly or day-by-day motion overviewMotion alertsPowerPower consumption (MV21) 10.94W maximum via 802.3af PoE Power consumption (MV71) 21.95W maximum via 802.3at PoE+EnvironmentStarting temperature (MV21): -10°C - 40°C (14°F - 104°F)Starting temperature (MV71): -40°C - 40°C (-40°F - 104°F)Working temperature (MV21): -20°C - 40°C (-4°F - 104°F)Working temperature (MV71): -50°C - 40°C (-58°F - 104°F)In the boxQuick start & installation guideMV camera hardwareWall mounting kit, drop ceiling T-rail mounting hardwarePhysical characterisitcsDimensions (MV21) 166mm x 116.5mm (diameter x height)Dimensions (MV71) 173.3mm x 115mm (diameter x height)Weather-proof IP66-rated housing (MV71 only)Vandal-proof IK10-rated housing (MV71 only)Lens adjustment range:65° Tilt350° Rotation350° PanWeight (MV21) 1.028kg (including mounting plate)Weight (MV71) 1.482kg (including mounting plate)Female RJ45 Ethernet connectorSupports Ethernet cable diameters between 5-8mm in diameterStatus LEDReset buttonWarrantyWarranty (MV21) 3 year hardware warranty with advanced replacementWarranty (MV71) 3 year hardware warranty with advanced replacementOrdering InformationMV21-HW: Meraki MV21 Cloud Managed Indoor CameraMV71-HW: Meraki MV71 Cloud Managed Outdoor CameraLIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)MA-INJ-4-XX: Meraki 802.3at Power over Ethernet injector (XX = US, EU, UK, or AU) Note: Each Meraki camera requires a license to operate* Storage duration dependent on encoding settings.** Browser support for H.264 decoding required.Mounting Accessories Specifications Meraki Wall Mount ArmWall mount for attaching camera perpendicular to mounting surfaceIncludes pendant capSupported Models: MV21, MV71Dimensions (Wall Arm) 140mm x 244mm x 225.4mmDimensions (Pendant Cap) 179.9mm x 49.9mm (Diameter x Height)Combined Weight 1.64kgMeraki Pole MountPole mount for poles with diameter between 40mm - 145mm (1.57in - 5.71in)Can be combined with MA-MNT-MV-1: Meraki Wall Mount ArmSupported Models: MV71Dimensions 156.7mm x 240mm x 68.9mmWeight 1.106kgMeraki L-Shape Wall Mount BracketCompact wall mount for attaching camera perpendicular to mounting surfaceSupported Models: MV21, MV71Dimensions 206mm x 182mm x 110mmWeight 0.917kgOrdering InformationMA-MNT-MV-1: Meraki Wall Mount Arm for MV21 and MV71MA-MNT-MV-2: Meraki Pole Mount for MV71MA-MNT-MV-3: Meraki L-Shape Wall Mount Bracket for MV21 and MV71。
cisco meraki 产品介绍与技术原理
目录 CONTENTS
技术原理 与其他AP对比
与普通AP/AC区别
meraki
其他AP
控制器位置
云端
实体位置
断开与控制器 连接是否可以
使用
管理、部署方 法
是否具有第七 层应用可视化
管理功能
是
否
meraki设备插上电源， 联网，即可在web端 需要实地部署，通过中 通过云端控制器管理、 央控制器管理网络 部署
R2, 2012 Windows Phone 8.1
2、高延展性
云管理平台对所接入AP的数量无限制，每新增一台AP，只需将AP连接至云管理平台， 无需另外配置
3、高可靠性
客户的数据至少在三个数据中心备份 meraki的云管理平台是大规模的分布式架构，提供冗余链路 即便断开与网络的连接，meraki所管理的无线网络仍然能够连接上网
技术原理—应用层的可视化管理
可以看到： 使用者名称 使用的应用类型 使用者的操作系统或者设备 使用者所使用的流量
• meraki根据ip地址，主机名以及端口号范围来确定应用类型 • 对于p2p类型应用流量的分类，采用的方法是：识别到在一系列浮动的ip地址中
的简短的tcp会话（ recognizes short TCP sessions across a fleeting range of IP addresses），就可以识别p2p应用 • 可以使用dscp或者pcp协议给不同应用的流量打标签，从而可以使用qos对用户 使用不同的应用进行限制或者限速 • 用户所使用应用的流量分析和配置信息等将会和网络管理数据一起上传到云管 理中心
技术原理—CMX（Connected Mobile Experences)
cmx api
Meraki MS 系列交换机
3
Meraki 聚合交换产品组合
系列
MS410
部署类型 接口1 上行链路 电源配置 堆叠能力 路由能力
型号
1G光纤聚合
16 / 32 x 1GbE SFP
2 x 10GbE SFP+（MS410-16） 4 x 10GbE SFP+（MS410-32）
模块化 可选冗余PSU（单独出售）
160G物理 + 虚拟
· 灵活堆叠，可扩展配置和提升高性能。 · 智能管理可降低成本和开销，缩短问题解决时间。 · 行业标准特性使其能够轻松整合到现有和混合基础设
施中。 · 基于角色的管理，通过web实现自动安全的固件设计。
Meraki MS的内部
图中显示的是MERAKI MS350-48FP，功能随型号而异。
配备变速风扇的高能效双电源
产品手册 MS 系列交换机
Meraki MS系列交换机
产品手册
概述
Cisco Meraki提供一系列广泛的交换机，这些交换机采用全新 设计，易于管理，而且丝毫不影响我们在传统企业级交换机 上看到的强大性能和灵活性。
管理员通过一个简洁、直观的集中式界面管理Meraki接入与 汇聚交换机，因此减少了花在配置上的时间，增加了用于满 足业务需求的时间。
7
更多资源
Meraki MS220-8 紧凑型系列产品手册 https:///lib/pdf/meraki_datasheet_ms220_compact.pdf Meraki MS225系列产品手册 https:///lib/pdf/meraki_datasheet_ms_225.pdf Meraki MS250系列产品手册 https:///lib/pdf/meraki_datasheet_ms_250.pdf Meraki MS400系列产品手册 https:///lib/pdf/meraki_datasheet_ms400-series.pdf Meraki SFP和堆叠配件手册 https:///lib/pdf/meraki_datasheet_sfp.pdf 成本计算器 https:///buy/cost-calculator
Cisco Meraki MR46 产品说明说明书
MR46 DatasheetHigh-Performance 802.11ax WirelessThe Cisco Meraki MR46 is a cloud-managed 4x4:4802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR46 offers high throughput, enterprise-grade security, and simple management.The MR46 provides a maximum of 3.5Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/ WIPS, with automated RF optimization.A fourth integrated radio delivers Bluetooth scanning and beaconing.With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the MR46 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.MR46 and Meraki Cloud ManagementManagement of the MR46 is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Because the MR46 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting overthe web so that distributed networks can be managed with a minimum of hassle.The MR46’s firmware is automatically kept up-to-date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.Product Highlights•4x4:4MU-MIMO 802.11ax• 3.5* Gbps dual-radio aggregate frame rate•24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio•Integrated Bluetooth Low Energy beacon•Integrated scanning radio•Enhanced transmit power and receive sensitivity •Integrated enterprise security and guest access •Application-aware traffic shaping•Optimized for voice and video•Self-configuring, plug-and-play deployment•Sleek design blends into office environments•Full-time Wi-Fi location tracking via dedicated third radioFeaturesDual–radio aggregate frame rate of up to 3.5Gbps*The 5 GHz 4x4:4radio and the 2.4 GHz 4x4:4radio offer a combined dual-radio aggregate frame rate of 3.5Gbps*, with up to 2,402Mbps in the 5 GHz band and 1,147Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR46 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients from each AP.Multi-user multiple input multiple output (MU-MIMO)With support for features of 802.11ax, the MR46 offers MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience.Dedicated third radio delivers 24x7 wireless security and RF analyticsThe MR46’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data. A dedicated third radio means that all functions occur in real time without any impact to client traffic or AP throughput.Bluetooth Low Energy beacon and scanning radioAn integrated fourth Bluetooth® radio provides seamless deployment of Bluetooth Low Energy beacon functionality and effortless visibility of Bluetooth®devices. The MR46 enables the next generation of location-aware applications while future-proofing deployments, ensuring it’s ready for new customer engagement strategies.Automatic cloud-based RF optimizationThe MR46’s sophisticated and automated RF optimization means there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.Integrated enterprise security and guest access* Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ax operation.The MR46 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests. Advanced security features, such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration, provide wired-like security while still being easy to configure. One-click guest isolation provides secure, internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.Enterprise mobility management (EMM) and mobile device management (MDM) integrationMeraki Systems Manager natively integrates with the MR46 to offer automatic, context-aware security. Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic-shaping policies to client posture.Application-aware traffic shapingThe MR46 includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control.Voice and video optimizationsIndustry-standard QoS features are built-in and easy to configure. Wireless multimedia (WMM) access categories, 802.1p, and DSCP standards supportand ensure important applications get prioritized correctly, not only on the MR46, but on other devices in the network. Unscheduled automatic power save delivery (U-APSD) and new target wait time features in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.Self-configuring, self-maintaining, always up-to-dateWhen plugged in, the MR46 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, this is retrieved by the AP and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.Advanced analyticsDrilling down into the details of network usage provides highly granular traffic analytics. Visibility into the physical world can be enhanced with journey tracking through location analytics. Visitor numbers, dwell time, repeat visit rates, and track trends can all be easily monitored in the dashboard and deeper analysis is enabled with raw data available via simple APIs.SpecificationsCategory SpecificationsRadios • 2.4 GHz 802.11b/g/n/ax client access radio• 5 GHz 802.11a/n/ac/ax client access radio• 2.4 GHz and5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio • 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support •Concurrent operation of all four radios•Supported frequency bands (country-specific restrictions apply)•Supported frequency bands (country-specific restrictions apply):◦ 2.412-2.484 GHz◦ 5.150-5.250 GHz (UNII-1)◦ 5.250-5.350 GHZ (UNII-2)◦ 5.470-5.600, 5.660-5.725 GHz (UNII-2e)◦ 5.725 -5.825 GHz (UNII-3)Antenna•Internal antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz) 802.11ax, 802.11ac Wave 2 and 802.11nCapabilities•DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring**• 4 x 4multiple input, multiple output (MIMO) with four spatial streams•SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support•Maximal ratio combining (MRC) & beamforming•20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)•Up to 1024-QAM on both 2.4 GHz and5 GHz bands•Packet aggregationPower •Power over Ethernet: 42.5- 57 V (802.3at compliant)•Alternative: 12 V DC input•Power consumption: 30W max (802.3at required)•Power over Ethernet injector and DC adapter sold separatelyInterfaces •1x 100/1,000/2.5G BASE-T Ethernet (RJ45)•1x DC power connector (5.5 mm x 2.5 mm, center positive)Mounting •All standard mounting hardware included•Desktop, ceiling, and wall mount capable•Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes •Bubble level on mounting cradle for accurate horizontal wall mountingPhysical Security •Two security screw options (included) (13.5mm long, 2.5 mm diameter, 5mm head)•Kensington lock hard point•Concealed mount plate with anti-tamper cable bayEnvironment •Operating altitude:Up to40,000 feet (12,192 meters)•Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)•Humidity: 5% to 95% non-condensingReliability•Mean time between failure (MTBF): 1,406,652 hrs at +25°C operating temperaturePhysical Dimensions •12.05” x 5.06” x 1.74” (30.6cm x 12.84 cm x 4.43cm), not including desk mount feet or mount plate •Weight: 28.22 oz (800g)** Feature is automatically enabled via firmware update to MR 27+Note:Actual power consumption may vary depending on the AP usage.Security •Integrated layer 7 firewall with mobile device policy management•Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal •Flexible guest access with device isolation•VLAN tagging (802.1q) and tunneling with IPsec VPN•PCI compliance reporting•WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)***•EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM•TKIP and AES encryption•Enterprise mobility management (EMM) and Mobile device management (MDM) integration •Cisco ISE integration for guest access and BYOD posturingQuality of Service •Advanced power save (U-APSD)•WMM access categories with DSCP and 802.1p support •Layer 7 application traffic identification and shapingMobility •PMK, OKC, and802.11r for fast layer 2 roaming •Distributed or centralized layer 3 roamingAnalytics •Embedded location analytics reporting and device tracking•Global layer 7 traffic analytics reporting per network, per device, and per applicationLED Indicators• 1 power/booting/firmware upgrade statusRegulatory •RoHS•For additional country-specific regulatory information, please contact Meraki salesWarranty•Lifetime hardware warranty with advanced replacement includedOrdering Information •MR46-HW: Meraki MR46cloud managed 802.11ax AP•MA-PWR-30W-XX: Meraki AC adapter for MR series (XX = US/EU/UK/AU)•MA-INJ-4-XX: Meraki gigabit 802.3at power over Ethernet injector (XX = US/EU/UK/AU)•MA-INJ-5-XX: Meraki multigigabit 802.3at power over Ethernet injector (XX = US/EU/UK/AU)•Note: Meraki access point license required*Feature can be enabled by contacting support**Feature supported on firmware MR 27+ and can be made available on MR 26; seethe WPA3article for more information*** Feature will be made available via a future software updateCompliance and Standards*Feature can be enabled by contacting support; see the Hotspot 2.0article for more informationContext and Comparisons802.11ax, 802.11ac Wave 2, and 802.11n CapabilitiesMR36MR44MR46MR56DL-OFDMA, UL-OFDMA, TWT DL-OFDMA, UL-OFDMA, TWT DL-OFDMA, UL-OFDMA, TWT DL-OFDMA, UL-OFDMA, TWTsupport, BSS coloring support, BSS coloring support, BSS coloring support, BSS coloring2 x 2 multiple input, multiple output (MIMO) with two spatial streams 2.4 GHz: 2 x 2 multiple input,multiple output (MIMO) with twospatial streams5 GHz: 4 x 4 multiple input, multipleoutput (MIMO) with four spatialstreams4 x 4 multiple input, multiple output(MIMO) with four spatial streams8 x 8 multiple input, multiple output(MIMO) with eight spatial streamson 5 GHz4 x 4 multiple input, multiple output(MIMO) with four spatial streams on2.4 GHzMaximal ratio combining (MRC) and beamforming Maximal ratio combining (MRC)and beamformingMaximal ratio combining (MRC)and beamformingMaximal ratio combining (MRC)and beamformingSU-MIMO, UL MU-MIMO,and DL MU-MIMO support SU-MIMO, UL MU-MIMO,and DLMU-MIMO supportSU-MIMO, UL MU-MIMO,and DLMU-MIMO supportSU-MIMO, UL MU-MIMO,and DLMU-MIMO support20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac wave 2); 20, 40 and 80 MHz channels (802.11ax)20 and 40 MHz channels (802.11n);20, 40, and 80 MHz channels(802.11ac wave 2); 20, 40 and 80MHz channels (802.11ax)20 and 40 MHz channels (802.11n);20, 40, and 80 MHz channels(802.11ac wave 2); 20, 40 and 80MHz channels (802.11ax)20 and 40 MHz channels(802.11n); 20, 40, and 80 MHzchannels (802.11ac wave 2); 20, 40and 80MHz channels (802.11ax)Up to 1024-QAM on both 2.4 GHz and 5 GHz bands Up to 1024-QAM on both 2.4 GHzand 5 GHz bandsUp to 1024-QAM on both 2.4 GHzand 5 GHz bandsUp to 1024-QAM on both 2.4 GHzand 5 GHz bandsPacket aggregation Packet aggregation Packet aggregation Packet aggregation PowerMR36MR44MR46MR56Power over Ethernet: 37 - 57 V (802.af compliant)Power over Ethernet: 42.5 - 57 V (802.3at)or37 - 57 V (802.3af)- low power mode **Power over Ethernet: 42.5 - 57V (802.3at compliant)Power over Ethernet: 42.5 - 57V (802.3at compliant)Alternative: 12 V DC input Alternative: 12 V DC input Alternative: 12 V DC input Alternative: 12 V DC inputPower consumption: 15W max (802.3af)Power consumption: 30W max (802.3at)or15W max (802.3af) - low power mode **Power consumption: 30W max(802.3at required)Power consumption: 30W max(802.3at required)Power over Ethernet injector and DC adapter sold separately Power over Ethernet injector and DC adaptersold separatelyPower over Ethernet injectorand DC adapter sold separatelyPower over Ethernet injectorand DC adapter sold separatelyInterfacesMR36MR44MR46MR561x 10/100/1000 BASE-T Ethernet (RJ45)1x 100/1000/2.5G BASE-T Ethernet (RJ45)1x 100/1000/2.5G BASE-T Ethernet (RJ45)1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45)1x DC power connector (5.5 mm x 2.5 mm, center positive)1x DC power connector (5.5 mm x 2.5 mm, center positive)1x DC power connector (5.5 mm x 2.5 mm, center positive)1x DC power connector (5.5 mm x 2.5 mm, center positive)Physical DimensionsMR36MR44MR46MR569.84” x 4.72” x 1.42” (25 cm x 12cm x 3.6 cm), not including desk mount feet or mount plate 12.05" × 5.06" × 1.74" (30.6 cm ×12.84 cm × 4.43 cm), not including desk mount feet or mount plate 12.05” x 5.06” x 1.74” (30.6cm x 12.84 cm x 4.43cm), not including desk mount feet or mount plate 12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x 4.47 cm), not including desk mount feet or mount plateWeight: 17.35 oz (492 g)Weight: 26.07 oz (739 g)Weight: 28.22 oz (800 g)Weight: 35.27 oz (1 kg)RF Performance Table2.4 GHzOperating Band Operating Mode Data Rate TX Power (conducted)2.4 GHz 802.11b 1 Mb/s 26.02 Mb/s 26.0Note:Actual power consumption may vary depending on the AP usage.** Feature available via firmware update to MR 27.6+. Please see our Low Power Mode article for more information.5.5 Mb/s26.011 Mb/s26.0 2.4 GHz802.11g 6 Mb/s26.09 Mb/s26.012 Mb/s24.018 Mb/s24.024 Mb/s23.036 Mb/s23.048 Mb/s22.054 Mb/s22.0 2.4 GHz802.11n (HT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS721.0 2.4 GHz802.11ac (VHT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS721.0MCS820.0 2.4 GHz802.11ax (HE20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS721.0MCS820.0MCS920.0MCS1019.0MCS1119.0 2.4 GHz802.11ac (VHT40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0MCS820.5MCS920.0 2.4 GHz802.11ax (HE40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS721.5MCS820.5MCS920.0MCS1018.5MCS1118.5 5 GHzOperating Band Operating Mode Data Rate TX Power 5 GHz802.11a 6 Mb/s26.09 Mb/s26.012 Mb/s24.018 Mb/s24.024 Mb/s23.036 Mb/s23.048 Mb/s22.054 Mb/s22.05 GHz802.11n (HT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS523.0MCS622.0MCS722.0 5 GHz802.11n (HT40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0 5 GHz802.11ac (VHT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS821.0 5 GHz802.11ac (VHT40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0MCS820.5MCS920.0 5 GHz802.11ac (VHT80)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS819.0MCS919.0 5 GHz802.11ax (HE20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0MCS821.0MCS921.0MCS1019.0MCS1119.0 5 GHz802.11ax (HE40)MCS024.0MCS124.0MCS224.0MCS324.0MCS523.0MCS622.0MCS721.5MCS820.5MCS920.0MCS1018.5MCS1118.5 5 GHz802.11ax (HE80)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS720.0MCS819.0MCS919.0MCS1017.0MCS1117.0 Signal Coverage Patterns5 GHz - Wireless2.4 GHz - Wireless2.4 GHz - Bluetooth®2.4 GHz - Scanning5 GHz - ScanningInstallation GuideFor instructions on how to install and configure MR46 access points,please refer to the MR46 Installation Guide.。
Meraki MS390数据手册说明书
MS390 DatasheetOverviewThe Meraki MS390addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed802.11ax/wifi-6access points,the MS390provides multigigabit ports,480G stacking, and modular10/40G uplinks.The MS390delivers resiliency with fast stack convergence and StackPower.The MS390provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security.The MS390is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.Adaptive Policy provides simple&scalable security policies to segment traffic using Security Groups.Security Groups are created in the dashboard using natural language such as“IOT device”&“Guest.”The security policy intent(e.g.,Permit or Deny)is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic.By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.By pooling&distributing power across MS390s using a series of StackPower cables,StackPower provides simple and resilient power distribution across the stack.ModelsNumber of Ports Model DescriptionMS390-24-HW24-port Gbe switchMS390-24P-HW24-port Gbe PoE+ switch24 Ports MS390-24U-HW24-port Gbe UPoE switch MS390-24UX-HW24-port mGbe UPoE switch48 Ports MS390-48-HW48-port Gbe switchMS390-48P-HW48-port Gbe PoE+ switchMS390-48U-HW48-port Gbe UPoE switchMS390-48UX-HW36-port 2.5Gbe + 12-port mGbe UPoE switch MS390-48UX2-HW48-port 5Gbe UPOE switchFeaturesCategory FeaturesHighlights •Layer-3•40G or 10G modular uplink options on all models •mGig support•Dual Dedicated 120G Hardware Stacking Ports •PoE+ and UPoE Support•StackPowerManagement •Managed via Cisco Meraki Dashboard•Zero-touch remote provisioning (no staging needed)•Basic configuration capability via local management page•Detailed historical per-port and per-client usage statistics•Operating System, device, and hostname fingerprinting•Automatic firmware upgrades with scheduling control•SNMP and SYSLOG support for integration with other network management solutions*Remote Diagnostics •Email, SMS and Mobile push notification alerts1•Ping, traceroute, cable testing, and link failure detection with alerting •Remote packet capture•Dynamic and interactive network discovery and topology •Combined event and configuration change logs with instant searchStacking •Physically stack up to 8 switches with 480 Gbps of stacking bandwidth on all models•Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration•Faster convergence•StackPowerEthernet Switching Capabilities •802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)•802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled)•Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST)•STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD•Broadcast storm control•802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)•802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches •Port mirroring•IGMP snooping for multicast filtering•MAC Forwarding Entries: 32KLayer 3•Static routing, OSFPv2•Multicast routing (PIM-ASM)•Warm Spare (VRRP)•DHCP Server, DHCP RelaySecurity •Integrated multi-factor authentication for Dashboard management•Role-based access control (RBAC) with granular device and configuration control •Corporate wide password policy enforcement•IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing •Single-Host/Multi-Domain/Multi-Host/Multi Authentication•Port security: Sticky MAC, MAC whitelisting•DHCP snooping, detection and blocking, Dynamic ARP Inspection•IPv4 and IPv6 ACLs•Secure Connect *•Adaptive Policy *MS390 LicensingMS390license structure includes two feature tiers:Enterprise and Advanced. The MS390 also introduces a new and simpler license to hardware mapping, specifically 24-port or 48-port licenses. As with all MS, every MS390 license is available in 1, 3, 5, 7, and 10 year terms.MS390 License Structure24-Port Model48-port ModelAdvanced Features LIC-MS390-24A LIC-MS390-48A* Available in a future software releaseEnterprise Features LIC-MS390-24E LIC-MS390-48EThe features available with advanced licensing are:•Adaptive policy *•Greater than 1,000 routes for OSPF* Available in a future software releaseContext and Comparisons24 Port Models48 Port ModelsDescription MS350-24X MS355-24X2MS390-24UX MS350-48FP MS355-48X2MS390-48UX2 1GbE RJ4516--4824-mGbE RJ4582424-244810GbE SFP+44Modular44Modular40GbE QSFP+n/a2Modular-2Modular Hardware Stack Port2x 40G2x 100G2x 120G2x 40G2x 100G2x 120G Management Interface111111Hot Swap PS Yes, Dual Yes, Dual Yes, Dual Yes, Dual Yes, Dual Yes, Dual Hot Swap Fans Yes, 2x Yes, 3x Yes, 3x Yes, 2x Yes, 3x Yes, 3x Layer 3 Routing Yes Yes Yes Yes Yes Yes UPoE Capable Yes, 740W Yes, 740W Yes, 560W Yes, 740W Yes, 740W Yes, 645W Max Switching Capacity176 Gbps640 Gbps640 Gbps176 Gbps688 Gbps640 Gbp Max Stacking Bandwidth160 Gbps400 Gbps480 Gbps160 Gbps400 Gbps480 GbpsTechnical BreakdownInterfaces SpecificationsModel InterfacesUplink10/40GbE(SFP+, QSFP+)120G Hardware Stack PortDedicated ManagementInterfacePoE/UPoECapabilitiesMS390-24-HW24 x1GbE RJ45Modular21n/aMS390-24P-HW24 x1GbE RJ45Modular21PoEMS390-24U-HW24 x1GbE RJ45Modular21UPoEMS390-24UX-HW24 x mGbE RJ45Modular21UPoEMS390-48-HW48 x1GbE RJ45Modular21n/aMS390-48P-HW48 x1GbE RJ45Modular21PoEMS390-48U-HW48 x1GbE RJ45Modular21UPoEMS390-48UX-HW36 x100M/1G/2.5G +12 x100M/1G/2.5G/5G/10GModular21UPoEMS390-48UX2-HW48 x100M/1G/2.5G/5G Modular21UPoEPhysical SpecificationsModelDimensions(h x w x d)W/ Default Power SupplyWeight Mount Type Hot Swap Fans Operating Temperature Humidity MS390-24-HW1.73” x 17.5” x17.7”(4.4 x 44.5 x 44.9cm)16.03 lb (7.27 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%MS390-24P-HW1.73” x 17.5” x17.7”(4.4 x 44.5 x 44.9cm)16.33 lb (7.4 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%All models are available with modular uplinks that have been listed under the Accessories list. For supported SFP modules please refer the SFP Datasheet.1.73” x 17.5” x 19.2”MS390-24U-HW16.63 lb (7.54 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 44.8cm)1.73” x 17.5” x 20.2”18.18 lb (8.25 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-24UX-HW(4.4 x 44.5 x 51.3cm)1.73” x 17.5” x17.7”16.43 lb (7.45 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-48-HW(4.4 x 44.5 x 44.9cm)1.73” x 17.5” x17.7”MS390-48P-HW16.73 lb (7.59 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 44.9cm)1.73” x 17.5” x 19.2”17.03 lb (7.72 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90% MS390-48U-HW(4.4 x 44.5 x 48.8cm)1.73” x 17.5” x 22.2”MS390-48UX-HW20.50 lb (9.34 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 56.4cm)1.73” x 17.5” x 22.2”MS390-48UX2-HW20.05 lb (9.09 kg)1U Rack Mount Yes, 3x-5°C to 45°C 5 to 90%(4.4 x 44.5 x 56.4cm)PerformanceSwitching Capacity Stacking Bandwidth Forwarding rateModelMS390-24-HW208 Gbps480 Gbps154.76 MppsMS390-24P-HW208 Gbps480 Gbps154.76 MppsMS390-24U-HW208 Gbps480 Gbps154.76 MppsMS390-24UX-HW640 Gbps480 Gbps476.19 MppsMS390-48-HW256 Gbps480 Gbps190.48 MppsMS390-48P-HW256 Gbps480 Gbps190.48 MppsMS390-48U-HW256 Gbps480 Gbps190.48 MppsMS390-48UX-HW580 Gbps480 Gbps431.54 MppsMS390-48UX2-HW 640 Gbps 480 Gbps 476.19 MppsPower Options and SpecificationsModelDefault PowerSupplyHot Swap PowerSupplyAvailable PoE W/Primary PSAvailable PoE W/ SecondaryPS***Power Load (idle/max)MS390-24-HW MA-PWR-350WAC**Yes, Dual n/a n/a 79.2 / 99 WMS390-24P-HW MA-PWR-715WAC**Yes, Dual 445W 720W84.1 / 554.4W MS390-24U-HW MA-PWR-1100WAC Yes, Dual 830W 1440W85.4 / 990.3W MS390-24UX-HW MA-PWR-1100WAC Yes, Dual 560W 1440W162.7 / 809.9W MS390-48-HW MA-PWR-350WAC**Yes, Dual n/a n/a83.9 / 109.9WMS390-48P-HW MA-PWR-715WAC**Yes, Dual 437W 1152W 92.6 / 555 WMS390-48U-HW MA-PWR-1100WAC Yes, Dual 822W 1800W145 / 844.9W MS390-48UX-HW MA-PWR-1100WAC Yes, Dual 490W 1590W218.5 / 785.5W MS390-48UX2-HW MA-PWR-1100WACYes, Dual 645W 1745W157.9 / 843.8WWhat's includedModel Package ContentsMS390-24-HW 1 x Power Supply (MA-PWR-350WAC), Rack mount brackets and screw kit,3 x Pre-Installed Fans, Cable guide MS390-24P-HW1 x Power Supply (MA-PWR-715WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide** Upgrade options to 715W and 1100W PSU are available.*** The PoE values are provided considering the secondary PS to be the default power supply of the respective model.MS390-24U-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideMS390-24UX-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideMS390-48-HW 1 x Power Supply (MA-PWR-350WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideMS390-48P-HW 1 x Power Supply (MA-PWR-715WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideMS390-48U-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideMS390-48UX-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideMS390-48UX2-HW 1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guideOptional AccessoriesAccessory Description Supported ModelsMA-PWR-350WAC350W AC Power Supply MS390-24-HW, MS390-48-HWMA-PWR-715WAC715W AC Power Supply All ModelsMA-PWR-1100WAC1100W AC Power Supply All ModelsMA-MOD-2X40G 2 x 40G Uplink Module All ModelsMA-MOD-4X10G 4 x 10G Uplink Module All ModelsMA-MOD-8X10G8 x 10G Uplink Module All ModelsMA-CBL-120G-50CM Meraki 120G Stacking Cable, 0.5Meter All ModelsMA-CBL-120G-1M Meraki 120G Stacking Cable, 1Meter All ModelsMA-CBL-120G-3M Meraki 120G Stacking Cable, 3Meter All ModelsMA-CBL-SPWR-30CM Meraki MS390 30CM Power-Stack Cable All ModelsMA-CBL-SPWR-150CM Meraki MS390 150CM Power-Stack Cable All ModelsMA-FAN-16K2System Fan All ModelsMA-RCKMNT Meraki MS390 Rack Mount Kit All ModelsRegulations and ComplianceElectromagnetic FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A,CNS13438, EN 300 386 V1.6.1,EN 55022 Class A, ENCompatibility Certifications 61000-3-2,EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317SafetyCAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 Environmental Reduction of Hazardous Substances (RoHS)Warranty Full lifetime hardware warranty with next-day advanced replacement includedMTBF RatingModelMTBF at 25°CMS390-24-HW314,790MS390-24P-HW299,000MS390-24U-HW238,410MS390-24UX-HW214,760MS390-48-HW305,870MS390-48P-HW277,770MS390-48U-HW227,410MS390-48UX-HW202,160MS390-48UX2-HW198,647Installation GuideFor instructions on how to install and configure the MS390 series switch please refer the MS390 Series Installation Guide。
Cisco Meraki MR74产品说明说明书
General purpose industrial / outdoor 802.11ac Wave 2 wirelessThe Cisco Meraki MR74 is a four-radio, cloud-managed 2x2 MIMO 802.11ac Wave 2access point. Designed for general purpose, next-generation deployments in harshoutdoor locations and industrial indoor conditions, the MR74 offers performance,enterprise-grade security, and intuitive management.The MR74 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS withautomated RF optimization. A fourth radio delivers seamless Bluetooth Low Energy(BLE) scanning and Beaconing.The combination of cloud management, 802.11ac, full-time RF environmentscanning, and an integrated Bluetooth Low Energy radio delivers the highthroughput, reliability, and flexibility required by the most demanding businessapplications like voice and high-definition streaming video, even in the most harshoutdoor environments.MR74 and Meraki Cloud Management: A Powerful CombinationThe MR74 is managed through the Meraki cloud, an intuitive browser-basedinterface that enables rapid deployment across multiple sites without the need fortime-consuming training or costly certifications. Since the MR74 is self-configuringand managed over the web, it can be deployed at a remote location in a matter ofminutes, even without on-site IT staff.24x7 monitoring via the Meraki cloud delivers real-time alerts if the networkencounters problems. Remote diagnostics tools enable immediate troubleshootingso that distributed networks can be managed with a minimum of hassle.The MR74’s firmware is always kept up to date from the cloud. New features, bugfixes, and enhancements are delivered seamlessly over the web, meaning nomanual software updates to download or missing security patches to worry about. Product Highlights• Ideal for outdoor and industrial indoor environments• 2x2:2 802.11ac, 1.3 Gbps aggregate dual-band data rate• 24x7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio• Integrated Bluetooth Low Energy (BLE) Beaconing and scanning radio • Forms point-to-point links with optional sector antennas • Self-healing, zero-configuration mesh• Integrated enterprise security and guest access• Application-aware traffic shaping• Self-configuring, plug-and-play deploymentMR74Dual-band 2x2 MIMO 802.11ac Wave 2 access point with separateradios dedicated to security, RF Management, and Bluetooth*Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE Std 802.11ac-compliant operation.FeaturesDual-radio aggregate data rate of up to 1.3 Gbps*An 867 Gbps 5 GHz 2x2:2 802.11ac radio and a 400 Mbps 2.4 GHz radio offer a combined aggregate dual-band throughput of 1.3 Gbps. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR74 to support a higher client density than typical enterprise-class outdoor access points, resulting in fewer required APs for a given deployment. Band steering further enhances overall throughput, moving 5 GHz-capable clients to the 5 GHz radio and maximizing capacity in the 2.4 GHz range for older 802.11b/g clients.Rugged industrial designThe MR74 is designed and tested for salt spray, vibration, extreme thermal conditions, shock and dust and is IP67-rated, making it ideal for extreme environments. Despite its rugged design, MR74 has a low profile and is easy to deploy.Multi User Multiple Input Multiple Output (MU-MIMO)The MR74 offers MU-MIMO (an 802.11ac Wave 2 standard) for efficient transmission to multiple clients. Especially suited for environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience. Bluetooth Low Energy Beaconing and scanningAn integrated fourth radio for Bluetooth Low Energy (BLE) provides seamless deployment of BLE Beaconing functionality and effortless visibility of BLE client devices within range of the network. The MR74 enables the next generation of location-aware applications while future-proofing your deployment for new user engagement strategies.24x7 wireless security and RF analyticsThe MR74’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and automatically containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or AP throughput. Integrated enterprise security and guest accessThe MR74 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors.Application-aware traffic shapingThe MR74 includes an integrated layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming. Importantly, controls can be implemented per network, per SSID, per user group, or per individual user. Advanced AnalyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world: View visitor numbers, dwell times, repeat visit rates, and compare trends. Fully customize your analysis with simple APIs. High performance meshThe MR74’s advanced mesh technologies, like multi-channel routing protocols and multiple gateway support, make it possible to cover hard-to-wire areas and improve network resilience. In the event of a switch or cable failure, the MR74 will automatically revert to mesh mode.Self-configuring, self-optimizing, self-healingWhen plugged in, the MR74 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new rmware is required, it is retreived by the AP and updated automatically. This ensures the network is maintained with bug fixes, security updates, and new features managed for you.Recommended Use CasesOutdoor coverage for corporate campuses, educational institutions, metro Wi-Fi, and parks• Weather-resistant Wi-Fi delivery in open spaces• Monetizeable hotspots with built-in splash pages Indoor coverage for industrial areas (e.g.,warehouses, manufacturing facilities)• Reliable coverage for scanner guns,security cameras, and POS devices• High speed-access for iPads, tabletsand laptopsZero-touch point-to-point links• Build a long-distance bridge betweentwo networks• Two MR74s can establish a long rangelink using high-gain antennas*Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE Std 802.11ac-compliant operation.MR74 Tx / Rx Tables 2.4 GHzMR74 Tx / Rx Tables5 GHzSpecificationsRadios2.4 GHz 802.11b/g/n client access radio5 GHz 802.11a/n/ac client access radio2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operations of all four radiosSupported frequency bands (country-specific restrictions apply):2.412-2.484 GHz5.150-5.250 GHz (UNII-1)5.250-5.350 GHZ (UNII-2)5.470-5.600, 5.660-5.725 GHz (UNII-2e)5.725 -5.825 GHz (UNII-3)802.11ac and 802.11n Capabilities2 x 2 multiple input, multiple output (MIMO) with two spatial streamsSU-MIMO and MU-MIMO supportMaximal ratio combining (MRC) & Beamforming20 and 40 MHz channels (2.4Ghz), 20, 40, and 80 MHz channels (5Ghz)Up to 256 QAM on both 2.4 GHz and 5 GHz bandsPacket aggregationPowerPower over Ethernet: 37 - 57 V (802.3af compatible)Power consumption: 11 W max (802.3af)Power over Ethernet injector sold separatelyMountingMounts to walls and vertical poles.Mounting hardware includedPhysical SecuritySecurity screw includedEnvironmentOperating temperature: -40 °F to 131 °F (-40 °C to 55 °C)Humidity: 5 to 95% non-condensingIP67 environmental ratingPhysical Dimensions10” x 6.2” x 2.6” (256 mm x 158 mm x 65 mm)Weight: 2.4 lbs. (1.09 kg)Interfaces1x 100/1000Base-T Ethernet (RJ45)Four external N-type female antenna connectors SecurityIIntegrated layer 7 firewall with mobile device policy managementReal-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolationVLAN tagging (802.1Q) and tunneling with IPSec VPNPCI compliance reportingWEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1XEAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIMTKIP and AES encryptionEnterprise Mobility Management (EMM) & Mobile Device Management (MDM) integra-tion)Quality of ServiceAdvanced Power Save (U-APSD)WMM Access Categories with DSCP and 802.1p supportLayer 7 application traffic identification and shapingMobilityPMK, OKC, and 802.11r for fast Layer 2 roamingDistributed or centralized layer 3 roamingLED Indicators1 power/booting/firmware upgrade statusRegulatoryRoHSFor additional country-specific regulatory information, please contact Meraki salesWarranty1 year hardware warranty with advanced replacement includedOrdering InformationMR74-HW Meraki MR74 Cloud Managed 802.11ac APMA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU) MA-ANT-20 Meraki Dual-Band Omni AntennasMA-ANT-21 Meraki 5 GHz Sector AntennaMA-ANT-23 Meraki 2.4 GHz Sector AntennaMA-ANT-27 Meraki Dual-Band Sector AntennaMA-ANT-25 Meraki Dual-Band Patch AntennaNote: Meraki Enterprise license required.。
Cisco Meraki MS420云管理10G聚合交换机概述说明书
OverviewThe Cisco Meraki MS420 is the world’s first cloud-managed 10 Gigabit Ethernet aggregation switch bringing the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments. Expanding Cloud Management to the CampusCisco Meraki aggregation switches extend Meraki’s cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files — or pre-staging. Industry-Leading Cloud ManagementCloud management has a number of benefits that make it easier to build campus networks:• Centralized management that allows you to manage your entire Meraki network stack from campus aggregation to your access layer (wireless APs, switches, firewalls).• Virtual stacking: manage up to tens of thousands of ports from a single pane of glass.• Layer 7 OS, client, and hostname fingerprinting.• E-mail and SMS (text) alerts upon power loss, downtime, or configurationchanges.• Role-based administration and automatic, scheduled firmware upgrades over the web.• Regular feature updates and enhancements delivered on demand from the Meraki cloud.• No staging deploymentsCisco Meraki MS Cloud Managed 10 Gigabit Ethernet Aggregation SwitchMeraki switches feature high-end hardware features, including:• Compact, 1RU design for space-constrained environments • Up to 960 Gbps of non-blocking switching capacity• Field-replaceable, hot-swappable power supplies• Field-replaceable, hot-swappable fans• Front-to-back cooling• 10/100/1000 RJ-45 management port• Low power consumption and shallow rack depth, which enable flexible deployment Full Enterprise Feature SetMeraki switches include all of the traditional Ethernet features found on the highest end products, including:• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video• IEEE 802.1X support for port based network access control• MAC-based RADIUS auth and MAC whitelisting• Voice VLAN support for simplified VoIP deployments• Port Mirroring to monitor network traffic• DHCP snooping to prevent users from adding unauthorized DHCP servers on the network• IGMP Snooping to optimize network performance with multicast traffic• Link Aggregation Control Protocol (LACP) for high-capacity trunking, stacking, and increased availability• Broadcast storm protection, spanning tree, BPDU guard, root guard, and other safeguards to guard against misconfigurations and reduce convergence time• Per port VLAN configuration• Multiple administrative roles with sophisticated security policy managementDesigned for a Complete Cloud-Managed Switch NetworkLifetime Warranty with Next-day Advanced ReplacementCisco Meraki MS switches include a limited lifetime hardware warranty that provides next-day advance hardware switch replacement as long as the original purchaser owns the product. Meraki’s simplified software and support licensing model also combines all software upgrades, centralized systems management and phone support under a single, easy-to-understand model.For complete details, please visit /supportAccessories / OpticsThe Meraki MS support pluggable optics for high-speed connectivity. Meraki offers severalstandards-based Gigabit and 10 Gigabit pluggable modules.Supported Meraki accessory modules for MS Switches (no lock-out of third-party optics):Note: Meraki SFPs use LC connectors. Meraki does not guarantee third-party optic and support.Product OptionsSwitch models available (see Specifications for additional details):SpecificationsManagementManaged via the Web via the Meraki cloud management platformIntegrated with Meraki wireless, security appliance, and device management No-touch remote deployment (no staging needed)Detailed historical per-port and per-client usage statisticsDHCP, client, and hostname fingerprintingSNMP and trapsSeamless firmware upgradesRemote DiagnosticsEmail and SMS (text) alerts 1Live remote packet captureAggregated event and configuration change logs with instant searchScalable StackingUnified configuration and monitoring of all switches from the aggregation layer to access layerVirtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configurationEthernet Switching Capabilities802.1p Quality of Service prioritization802.1Q VLAN tagging for up to 4095 VLANs802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregateIGMP snooping for multicast filteringCisco Discovery Protocol (CDP)128K MAC Forwarding Table CapacityLayer 3 capabilitiesStatic routingDHCP helperDHCP serverOpen shortest path first (OSPF v2)Warm spare for L3 gateway redundancyAutomatic DHCP failover in warm spare mode PerformanceNon-blocking fabric960 Gbps switching capacity on the MS420-48480 Gbps switching capacity on the MS420-241.2 microsecond latencyInterfaces on MS420-24-HW24x 1000/10GbE SFP/SFP+1x 10/100/1000 RJ45 Management portInterfaces on MS420-48-HW48x 10GbE SFP+/SFP1x 10/100/1000 RJ45 Management portPowerPower input: 100 - 240 VAC, 47-63 Hz (2 x 400WAC PSU)Power consumption at idle: 45W / Full load: 175WEnvironmentOperating temp: 0C to 40CMountingRack-mountable with included rack mount hardwareFront-to-back airflowPhysical dimensionsWeight: 18.1 lb. (8.18kg) for MS420-48)Size: 17.3” (w) x 18.6” (d) x 1.8” (h) (44x 47.3x4.5 cm)RegulatoryCSA (US)IC (Canada)CE (Europe)C-Tick (Australia/New Zealand)RoHSWarrantyFull lifetime hardware warranty with next-day advanced replacement included1 Requires carrier-supported email to SMS gateway.Model MTBF MS420-24225,540 MS420-48203,102。
meraki_offer_description_cn说明书
产品说明产品说明：Meraki 云网络本产品说明（“产品说明”）介绍了上列出的思科 Meraki 云网络产品。
您的订用受本产品说明和/go/eula上列出的思科《最终用户许可协议》（或您和思科之间存在的类似条款）（以下称为“协议”）的约束。
本产品说明中使用但未另行定义的术语具有协议中赋予它们的含义。
1.说明思科 Meraki 云网络产品套件包括网络硬件设备（无线接入点、交换机和安全设备/防火墙）、监控摄像头、传感器、终端管理软件以及网络应用和 WAN 性能软件。
所有思科 Meraki 产品都通过一个云托管软件平台进行管理，该平台被称为 Meraki “控制板”。
控制板允许客户通过单个面板来配置、管理和监控部署在其全球网络中的 Meraki 设备。
2.补充条款和条件2.1.许可证和使用权条件要为您购买的每项硬件获得软件许可证，您需要购买和维持相关的 Meraki 云服务，否则硬件将无法运行。
您使用 Meraki 云服务的软件许可证和权利不可转让。
2.2.期限和许可模式2.2.1.在共同终止许可模式下，思科技术使用期限的开始日期是相关思科技术交付给您的日期，结束日期为以下两个日期中的较早者：(a) 共同终止日期或 (b) 使用权终止日期。
2.2.2.在按设备许可模式下，思科技术使用期限的开始日期为以下两个日期中的较早者：(a) 您通过Meraki 云服务分配相关硬件的日期或 (b) 相关思科技术交付给您之日后的第 91 天。
此类使用期限的结束日期为以下两个日期中的较早者：(1) 开始日期加上相应采购订单中规定的 Meraki云服务使用期限或 (2) 使用权终止日期。
2.3.其他使用条件您同意仅根据思科 Meraki 网站上提供的规范使用硬件和思科技术，并且您（而不是思科 Meraki）全权负责对您的 Meraki 云服务帐户实施管理控制。
2.4.遵守法律如果思科 Meraki 检测到您以违反法律的方式使用硬件或思科技术，在通过电子邮件向您发出书面通知后，该硬件和/或思科技术可能会从您的 Meraki 云服务帐户中删除。
