12-100曲线锯说明书
曲线锯的使用方法
曲线锯的使用方法曲线锯是一种用于切割曲线形状的电动工具，通常用于木材、塑料、金属等制品的切割。
在使用曲线锯之前，需要正确了解和掌握操作步骤和注意事项，以确保操作安全，提高工作效率。
以下是曲线锯的使用方法及注意事项。
1.准备工作（1）选购适合需要的锯片。
锯片的选择应该符合切割材料的要求，如木材用木工锯片、金属用金属锯片等。
（2）根据要切割的材料，设定锯片的切割深度，避免过浅或过深引起材料裂开或损坏。
（3）选定适合的位置进行工作，确保锯床平稳、稳固可靠。
（4）穿戴好安全装备，如护目镜、手套、耳塞等，以保护自己的安全。
2.操作步骤（1）将要切割的材料固定好，避免材料移动。
（2）打开电源，启动曲线锯，将锯片慢慢向下降低接触材料表面，逐渐加速。
（3）在完成切割后，需要停止电机，等待锯片停转后再拔出锯片。
（4）清理锯床内外的积尘和残渣，以确保下次使用时可靠运转。
3.注意事项（1）操作前，必须仔细阅读说明书，了解使用方法和安全指导。
（3）使用时应保持手持平稳，避免手部震动或冲击造成伤害。
（4）切割时，要注意锯片和材料表面之间的距离，保持适当的切割角度。
（6）使用曲线锯时，应避免将手指伸入锯床内，以免危及手部安全。
（7）如发现锯片出现裂纹或变形，应立即停止使用并更换新的锯片。
（8）在日常维护过程中，应及时清理、检查机器的电源线路、安全保护装置及机身各部分的松动情况。
综上所述，使用曲线锯需要掌握正确的操作步骤和注意事项，以确保工作效率和安全。
使用前，必须仔细阅读说明书，熟悉设备结构和技术参数，才能更好地利用这种工具完成工作任务。
线材弯折试验机说明书
线材弯折试验机使用说明书产品目录一、安装及方法 (3)一、产品简介 (4)二、产品参数 (5)三、使用说明 (5)四、出厂检测报告 (7)五、保修卡 (8)八、设备清单 (9)【前言】感谢贵公司选择了本公司的产品，本公司给贵公司提供品质优良的产品，而且将提供可靠的售后服务。
为使用确保使用人员之人身安全及仪器的完好性，在使用仪器前请充分阅读此操作手册，确实留意其使用上的注意事项。
本操作手册详细介绍此仪器之设计原理、依据标准，构造，操作规范，保养。
可能故障的情形及排除方法，电气图等内容。
在本手册中如有提及之各种“试验规定”，“标准”时均只作参考用。
如贵司觉得有异议请自行检阅相关标准或资料。
【特别说明】·本操作手册不能作为向本公司提出任何要求依据·本操作手册的解释权在本公司一、安装及方法1.1主测试界面按钮“测试”：执行测试；按钮“停止”：停止测试；按钮“报警记录”：进入报警记录查看界面；按钮“时间设定”：设置系统时间。
1.2报警记录警报日期：警报的日期，格式为年/月/日；警报时间：警报的时间，格式为时:分:秒；警报信息：出线警报的原因；按钮“返回”：返回主界面；1.3角度调节二、产品简介内六角打松大螺母以及侧面基米螺丝，通过调节旋钮扭动调节角度线材弯折试验机适用于插头引出线、电源线、USB线、耳机线、音频线、耳机连接线等成品线材的弯折测试或摇摆测试。
本机是将试料固定在夹具上，并加一定荷重，试验时左右摆动，经一定数次后，检测其断线率，查看其总摆动次数，能自动计数，试料弯折至断线无法通电时，并能自动停止操作。
本机符合UL817等有关标准“软线组件和电源软线通用安全要求”的规定及《头戴耳机通用技术标准GB/T14471-93》线材弯折测试。
三、产品参数1、试验工位：6组（同时测试）2、弯折角度：0-±180°（刻度表盘加指示针指示，手动可调）3、弯折角度显示及调节：指示针指示刻度表盘，手动调节偏心轴4、试验速度：10-60次/分（旋钮调速，LCD显示）5、摇摆次数总计数器：0-999999次（可预置，达到次数自动停止）6、摇摆导通计数器：0-999999次（导通分别自动计数，其中一组断开，自动停止计数）7、带钩砝码：50、100、200、300、500g各六个8、手柄试验夹具：六组防滑、不易损坏试料特制夹具9、试验固定杆：可上下调整，固定产品下端，试验更符合标准10、机台尺寸（L×W×H）：860×620×800mm11、工作电源：AC220V、50HZ四、使用说明1、四首先取合适长度的试品将其一端分别固定于相应六组夹具内，另一端分别置于导杆中间，在试品的下端的合适位置分别打上交叉结，根据要求分别挂上标配的砝码，再一一将试品下端用导杆固定轮固定，并且将试品与对应组的接线柱夹子串接起（切记试品要与夹子夹紧）。
曲线锯安全操作规程标准范本
操作规程编号：LX-FS-A17608 曲线锯安全操作规程标准范本In The Daily Work Environment, The Operation Standards Are Restricted, And Relevant Personnel Are Required To Abide By The Corresponding Procedures And Codes Of Conduct, So That The Overall BehaviorCan Reach The Specified Standards编写：_________________________审批：_________________________时间：________年_____月_____日A4打印/ 新修订/ 完整/ 内容可编辑曲线锯安全操作规程标准范本使用说明：本操作规程资料适用于日常工作环境中对既定操作标准、规范进行约束，并要求相关人员共同遵守对应的办事规程与行动准则，使整体行为或活动达到或超越规定的标准。
资料内容可按真实状况进行条款调整，套用时请仔细阅读。
1、操作前应检查电源线及插头是否完好，并检查锯条是否在正确的位置上被紧固。
2、不要在工具放下后还使其继续运转，必须在用手握住时方可进行操作。
3、不得用手去触摸正在运行的锯条。
也不要在工作结束后马上触摸锯条，以免烫伤。
4、不得损伤工具的电缆线，不可拖着电缆线移动工具或拉电源线拔出插头。
5、当工具发生故障时，应由专业人员进行修理，不得擅自进行修理和更换零件。
6、工具电源线的插头不得任意拆除或调换。
7、在必要时操作者应戴绝缘手套，穿绝缘鞋。
8、曲线锯应定期校验，并粘贴合格证，超过有效期禁止使用请在该处输入组织/单位名称Please Enter The Name Of Organization / Organization Here。
电动工具常规知识介绍(曲线锯)
2012-2-24
13
电动工具常规知识介绍
关于曲线锯
2012-2-24
1
介绍
往复锯定义：以锯片作往复运动或 来回摆动来锯割各种材料的工具。 曲线锯定义：配有可作倾斜度调整 的导向板的往复锯。
2012-2-24
2
曲线锯外形主要部件介绍
锯片底板扳手 开关锁定钮
开关 电缆护套 进风口 透明护罩 出尘口 抬刀钮
出风口
金属冲压底板
2012-2-24
VDE电源线插头
电源线
3
曲线锯外形主要部件介绍：
外壳包胶软皮Hale Waihona Puke 可调速旋钮2012-2-24
4
曲线锯外形主要部件介绍：
导尺固定螺丝
导尺
2012-2-24
5
曲线锯外形主要部件介绍：
底板
滚轮 底板固定螺丝
固定锯片的夹头
2012-2-24
6
曲线锯外形主要部件介绍：
被固定的导尺
切割用锯片
夹头固定螺丝
2012-2-24
7
曲线锯内部结构和部件介绍
电缆压线板 电缆护套 开关 调速器
齿轮
转子
往复杆 平衡块
碳刷盒
中心支架
定子
2012-2-24 8
曲线锯内部结构和部件介绍
碳刷 碳刷盒
转子换向器 转子轴承
2012-2-24 9
曲线锯内部结构和部件介绍
定子引出线，输出 定子矽钢片
漆包线、定子绕组
定子引出线，输入
10
2012-2-24
曲线锯内部结构和部件介绍
换向器 转子矽钢片 漆包线 转子风叶
2012-2-24
11
12-100曲线锯说明书
JIG SAW 600W 曲线锯 600W1. Blade holder(装刀处)2. Adjustable foot (0-45 o)（底板）3. Initial cutting switch（抬刀调节旋钮）4. Guide speed control（调速开关）5. Switch lock（开关锁钮）6. Switch（开关按钮）7. Cutting line laser indicator（激光口）Before you start using the tool please read thoroughly this operation manual.Keep this manual for future reference.当您在开始使用机器前请先阅读说明书，请保留说明书以备随时查阅。
General safety precautions for using power tools.使用电动工具的安全规范NOTE. To reduce the risk of fire, electric shock or injury when using power tools, it is necessary to follow all applicable safety precautions particularly the ones listed below:1.Keep work area clean and tidy.保持工作环境的整洁。
2.Do not use electric power tools in the environment exposed to humidity, steam orrain. Work place should be properly lit.请不要在潮湿的环境中或是雨天，阴暗的地方使用电动工具。
3.Guard against electric shock. Prevent body contact with energized or groundedsurfaces (pipes, radiators etc.). While operating the power tool always hold it byinsulated parts (handles) to protect yourself against electric shock and protect drill,cutting wheel or milling cutter against contact with an energized conductor.避免触电，防止身体接触机器导电部件，机器操作过程中请一直保持接触绝缘部件，当机器运行时，请不要接触导轮，和锯条部分。

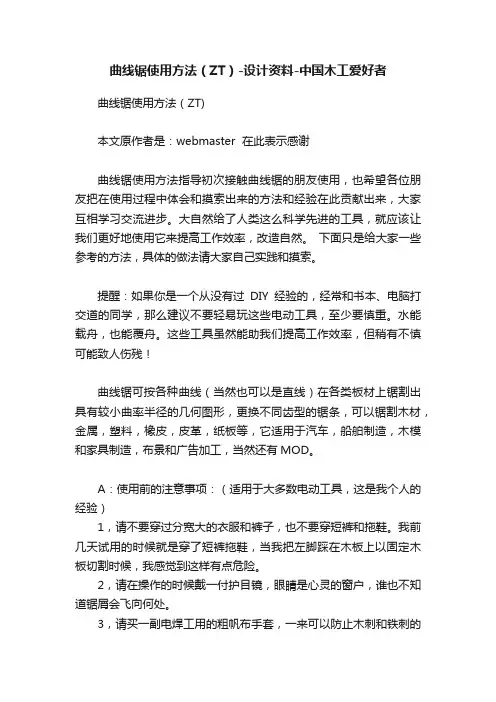

曲线锯使用方法（ZT）-设计资料-中国木工爱好者
曲线锯使用方法（ZT）-设计资料-中国木工爱好者曲线锯使用方法（ZT)本文原作者是：webmaster 在此表示感谢曲线锯使用方法指导初次接触曲线锯的朋友使用，也希望各位朋友把在使用过程中体会和摸索出来的方法和经验在此贡献出来，大家互相学习交流进步。
大自然给了人类这么科学先进的工具，就应该让我们更好地使用它来提高工作效率，改造自然。
下面只是给大家一些参考的方法，具体的做法请大家自己实践和摸索。
提醒：如果你是一个从没有过DIY经验的，经常和书本、电脑打交道的同学，那么建议不要轻易玩这些电动工具，至少要慎重。
水能载舟，也能覆舟。
这些工具虽然能助我们提高工作效率，但稍有不慎可能致人伤残！曲线锯可按各种曲线（当然也可以是直线）在各类板材上锯割出具有较小曲率半径的几何图形，更换不同齿型的锯条，可以锯割木材，金属，塑料，橡皮，皮革，纸板等，它适用于汽车，船舶制造，木模和家具制造，布景和广告加工，当然还有MOD。
A：使用前的注意事项：（适用于大多数电动工具，这是我个人的经验）1，请不要穿过分宽大的衣服和裤子，也不要穿短裤和拖鞋。
我前几天试用的时候就是穿了短裤拖鞋，当我把左脚踩在木板上以固定木板切割时候，我感觉到这样有点危险。
2，请在操作的时候戴一付护目镜，眼睛是心灵的窗户，谁也不知道锯屑会飞向何处。
3，请买一副电焊工用的粗帆布手套，一来可以防止木刺和铁刺的扎伤手，二来，如果不小心手碰到了转动部分，可以在你的手受伤之前有足够的反应时间动作。
但是请不要用普通的纺织棉手套，尤其是使用电钻时，宁愿不带手套。
因为据说手套上的细小纤维会缠进转动着的钻头刀刃，后果自己去想吧！4，不要让你的未成年孩子在你操作工具的时候在边上。
小孩子都是有好奇心的，当他的小手伸过来时，即使你及时切断电源，高速旋转下的电机在惯性作用下还会工作很久。
同时，小孩在旁边时你也会分心照顾他，对操作者也不利。
另外存放时请把工具锁在工具柜中。
不是为了防盗，而是不要让你的小孩偷偷拿来玩。
电动曲线锯安全操作培训教程
电动曲线锯安全操作培训课程一、基本知识：一种电动往复锯，可以根据曲线在板材上锯切。
配用曲线锯条，对木材、金属、塑料、橡胶、皮革等板材进行直线和曲线锯割，还可安装锋利的刀片，裁切橡胶、皮革、纤维织物、泡沫塑料、纸板等。
广泛应用于汽车、船舶、家具、皮革等行业，在木模、工艺品、布景、广告制作、修理业中也有较多应用。
1947年, 德国博世公司(Bosch)发明了世界上第一台曲线锯。
二、操作说明：1、操作员或旁观者应按照规定正确着装，穿、戴好必要的劳动保护用品。
曲线锯加工时会产生铁屑残渣、噪音，必须配戴好保护眼镜、耳塞。
2、严禁在带电状态下装卸锯条，装卸时，必须拔出电源插头，并使用配套螺丝刀。
3、待加工零件必须稳定，无抖动。
4、操作力度需均匀，禁止使用过大的力使曲线锯和锯片损坏，因为它们不能承受太大的阻力。
5、曲线锯在运转时，禁止擦拭、清洁工件和其他无关操作。
6、严禁两人以上同时操作。
7、作业过程中全神贯注，严禁一边作业一边聊天、嬉闹和其他与当前工作无关的行为。
8、操作后不要徒手触摸加工零件，防止烫伤。
9、停电、休息、工作完毕、离开工作场地时，必须立即关闭研磨机开关，并拔下电源插头。
三、操作教程：1、在断电状态下，用与曲线锯匹配的螺丝刀安装锯片。
2、工件加工前必须用夹具加紧，禁止在松散和摇晃的物体上工作。
根据实际情况可以先画好线，防止锯斜。
3、插上电源插头，操作前，再次确认操作员和其他助手已佩戴防护眼镜、耳塞。
4、用一只手握住曲线锯手柄后，打开电源开关，适度均匀用力向前推进。
5、使用后关闭曲线锯开关，只有在旋转停止后才松开，然后拔下电源插头，做好曲线锯及周边的4S。
