SP706看门狗芯片SP706应用电路图
SP706R中文资料
®
SP706P/R/S/T, SP708R/S/T
+3.0V/+3.3V Low Power Microprocessor Supervisory Circuits
s Precision Low Voltage Monitor:
SP706P/R and SP708R at +2.63V
SPECIFICATIONS
Vcc = 2.7V to 5.5V for SP70_P/R, VCC = 3.0 to 5.5V for SP70_S, VCC = 3.15V to 5.5V for SP70_T, TA= TMIN to TMAX to TMAX, unless otherwise noted, typical at 25°C.
Input Current: VCC.....................................................................20mA GND...................................................................20mA Output Current (all outputs)...............................20mA ESD Rating...........................................................2kV
PARAMETER
MIN. TYP. MAX. UNITS CONDITIONS
Operating Voltage Range, V
1.0
CC
5.5
V
Supply Current, ISUPPLY Reset Threshold

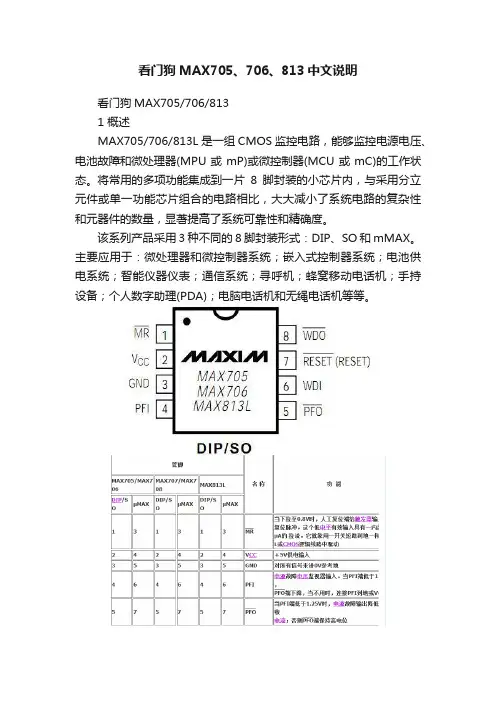

看门狗MAX705、706、813中文说明
看门狗MAX705、706、813中文说明看门狗MAX705/706/8131 概述MAX705/706/813L是一组CMOS监控电路，能够监控电源电压、电池故障和微处理器(MPU或mP)或微控制器(MCU或mC)的工作状态。
将常用的多项功能集成到一片8脚封装的小芯片内，与采用分立元件或单一功能芯片组合的电路相比，大大减小了系统电路的复杂性和元器件的数量，显著提高了系统可靠性和精确度。
该系列产品采用3种不同的8脚封装形式：DIP、SO和mMAX。
主要应用于：微处理器和微控制器系统；嵌入式控制器系统；电池供电系统；智能仪器仪表；通信系统；寻呼机；蜂窝移动电话机；手持设备；个人数字助理(PDA)；电脑电话机和无绳电话机等等。
2 功能说明2.1 RESET/RESET操作复位信号用于启动或者重新启动MPU/MCU，令其进入或者返回到预知的循环程序并顺序执行。
一旦MPU/MCU处于未知状态，比如程序“跑飞”或进入死循环，就需要将系统复位。
对于MAX705和MAX706而言，在上电期间只要Vcc大于1.0V，就能保证输出电压不高于0.4V的低电平。
在Vcc上升期间RESET维持低电平直到电源电压升至复位门限(4.65V或4.40V)以上。
在超过此门限后，内部定时器大约再维持200ms后释放RESET，使其返回高电平。
无论何时只要电源电压降低到复位门限以下(即电源跌落)，RESET 引脚就会变低。
如果在已经开始的复位脉冲期间出现电源跌落，复位脉冲至少再维持140ms。
在掉电期间，一旦电源电压Vcc降到复位门限以下，只要Vcc不比1.0V还低，就能使RESET维持电压不高于0.4V 的低电平。
MAX705和MAX706提供的复位信号为低电平RESET，而MAX813L提供的复位信号为高电平RESET，三者其它功能完全相同。
有些单片机，如INTEL的80C51系列，需要高电平有效的复位信号。
2.2 看门狗定时器MAX705/706/813L片内看门狗定时器用于监控MPU/MCU的活动。

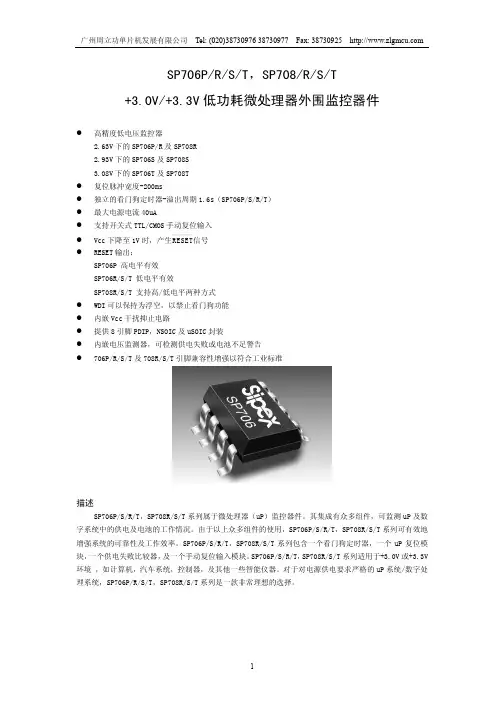

SP706电源监控
SP706P/R/S/T，SP708/R/S/T+3.0V/+3.3V低功耗微处理器外围监控器件高精度低电压监控器2.63V下的SP706P/R及SP708R2.93V下的SP706S及SP708S3.08V下的SP706T及SP708T复位脉冲宽度-200ms独立的看门狗定时器-溢出周期1.6s（SP706P/S/R/T）最大电源电流40uA支持开关式TTL/CMOS手动复位输入Vcc下降至1V时，产生R—E—S—E—T—信号RESET输出：SP706P 高电平有效SP706R/S/T 低电平有效SP708R/S/T 支持高/低电平两种方式WDI可以保持为浮空，以禁止看门狗功能内嵌Vcc干扰抑止电路提供8引脚PDIP，NSOIC及uSOIC封装内嵌电压监测器，可检测供电失败或电池不足警告706P/R/S/T及708R/S/T引脚兼容性增强以符合工业标准描述SP706P/S/R/T，SP708R/S/T系列属于微处理器（uP）监控器件。
其集成有众多组件，可监测uP及数字系统中的供电及电池的工作情况。
由于以上众多组件的使用，SP706P/S/R/T，SP708R/S/T系列可有效地增强系统的可靠性及工作效率。
SP706P/S/R/T，SP708R/S/T系列包含一个看门狗定时器，一个uP复位模块，一个供电失败比较器，及一个手动复位输入模块。
SP706P/S/R/T，SP708R/S/T系列适用于+3.0V或+3.3V 环境 ，如计算机，汽车系统，控制器，及其他一些智能仪器。
对于对电源供电要求严格的uP系统/数字处理系统，SP706P/R/S/T，SP708R/S/T系列是一款非常理想的选择。
型号 RESET 有效态 RESET 阈值 手动复位 PFI 准确率 看门狗输入 SP706P 高 2.63V YES 4% YES SP706R 低 2.63V YES 4% YES SP706S 低 2.93V YES 4% YES SP706T 低 3.08V YES 4% YES SP708R 低/高 2.63V YES 4% NO SP708S 低/高 2.93V TES 4% NO SP708T 低/高3.08VYES4%NO极限参数终端电压（以GND 为基准）： Vcc……………… -0.3V 到+6.0V所有其他输入（注解1） ……………… -0.3V 到（Vcc+3.0V） 输入电流： Vcc ……………… 20mA GND……………… 20mA 输出电流（所有输出） ……………… 20mA ESD 额定值……………… 2kV电源持续功耗：Plastic DIP（70℃以上时，9.09mW/℃递减） ………………………………… 727mW SO（70℃以上时，5.88mW/℃递减） ………………………………… 471mW Mini SO（70℃以上时，4.10mW/℃递减） ………………………………… 330mW 正常工作温度范围………………………………… -65℃到160℃ 焊接温度（焊接10秒） (300)这里仅对部分参数进行描述，器件在以上状态的工作性能，及下面规范中的相关操作，没有在这里说明。
一个外置看门狗的反复复位问题的解决
一个外置看门狗的不断复位问题的解决最近，研发产品运行中的遇到一个异常，表现为：上电后反复重启（时间间隔大概7秒），不能正常启动，断开外置看门狗复位信号后就正常了。
看门狗部分图纸如下：启动过程如下：初始化cpu及部分硬件-》启动ucos-》创建2个任务，1个可以复位看门狗，1个完成系统的初始化。
因为是3.3V系统，使用的外置看门狗型号为SP706TE，特征如下：经过仔细测试，cpu是输出的WDI信号是正常的，250ms间隔的脉冲，没有问题。
测量SP706的供电等，也都是正常的。
但是WDO上每隔6.18s会有一个20uS的低电平脉冲。
经测试，在C32上并一个47uF的电容，效果会好一些。
由此，怀疑是3.3V上的干扰在某个瞬时会低于3.08V的RESET阀值。
将SP706T改为SP706RE后，问题解决；总结：1）外置看门狗检测电压VCC，灵敏度很高。
如果vcc上纹波大，建议使用低阀值的芯片，或者使用PFI功能来检测电压，当然也可以采用更优质的电源方案；2）产品上电后，尽早启动看门狗，系统的可靠性会高一些，可以避免系统启动过程中发生的异常；3）喂狗避免放到中断中，也尽量不要放到优先级高的任务中；20140909网友allen_zhan提到电源可靠性的问题，又做了3.3V的纹波测试，如下：可见3.3V的电压跌落有700mV之高。
原因是以下电路：系统启动后，延时打开通讯电源（时间延迟和上文提到的6-7s一致），这样可以降低启动冲击电流，避免供电电源保护。
在PWR输入为低电平时，F0505D工作，包括前面的C33充电，造成5V的电源跌落，同时3.3V也收到了影响。
将C33和C47由10uF改为1uF后，电源跌落下降到370mV。
重新将看门狗改为SP706SE后，也可以正常启动了。
看门狗芯片中文说明
看门狗MAX705/706/813中文说明1 概述MAX705/706/813L是一组CMOS监控电路，能够监控电源电压、电池故障和微处理器(MPU或mP)或微控制器(MCU或mC)的工作状态。
将常用的多项功能集成到一片8脚封装的小芯片内，与采用分立元件或单一功能芯片组合的电路相比，大大减小了系统电路的复杂性和元器件的数量，显著提高了系统可靠性和精确度。
该系列产品采用3种不同的8脚封装形式：DIP、SO和mMAX。
主要应用于：微处理器和微控制器系统；嵌入式控制器系统；电池供电系统；智能仪器仪表；通信系统；寻呼机；蜂窝移动电话机；手持设备；个人数字助理(PDA)；电脑电话机和无绳电话机等等。
2 功能说明2.1 RESET/RESET操作复位信号用于启动或者重新启动MPU/MCU，令其进入或者返回到预知的循环程序并顺序执行。
一旦MPU/MCU处于未知状态，比如程序“跑飞”或进入死循环，就需要将系统复位。
对于MAX705和MAX706而言，在上电期间只要Vcc大于1.0V，就能保证输出电压不高于0.4V的低电平。
在Vcc上升期间RESET维持低电平直到电源电压升至复位门限(4.65V或4.40V)以上。
在超过此门限后，内部定时器大约再维持200ms后释放RESET，使其返回高电平。
无论何时只要电源电压降低到复位门限以下(即电源跌落)，RESET引脚就会变低。
如果在已经开始的复位脉冲期间出现电源跌落，复位脉冲至少再维持140ms。
在掉电期间，一旦电源电压Vcc降到复位门限以下，只要Vcc不比1.0V还低，就能使RESET维持电压不高于0.4V的低电平。
MAX705和MAX706提供的复位信号为低电平RESET，而MAX813L提供的复位信号为高电平RESET，三者其它功能完全相同。
有些单片机，如INTEL的80C51系列，需要高电平有效的复位信号。
2.2 看门狗定时器MAX705/706/813L片内看门狗定时器用于监控MPU/MCU的活动。

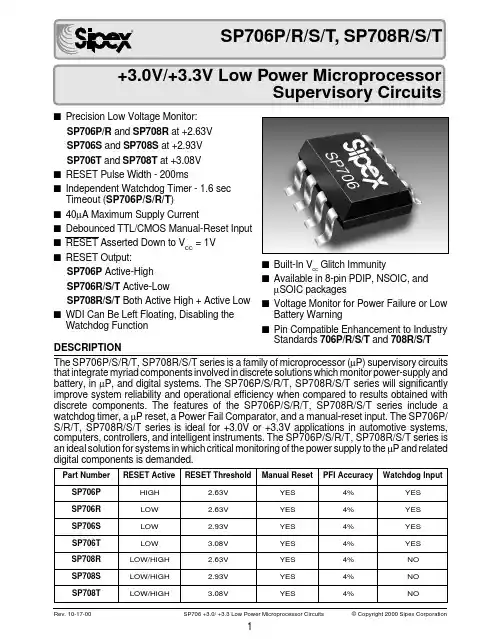

SP706T中文资料
VOH VOL VOH VOL RESET Output Voltage
VOH VOL VOH VOL Watchdog Timeout Period, tWD WDI Pulse Width, tWP WDI Input Threshold, VIL VIH VIL VIH WDI Input Current
Terminal Voltage (with respect to GND): VCC........................................................-0.3V to +6.0V All Other Inputs (Note 1)..............-0.3V to (VCC +3.0V)
discrete components. The features of the SP706P/S/R/T, SP708R/S/T series include a watchdog timer, a µP reset, a Power Fail Comparator, and a manual-reset input. The SP706P/ S/R/T, SP708R/S/T series is ideal for +3.0V or +3.3V applications in automotive systems,
看门狗的实现
标题：单片机看门狗电路2009-04-22 10:50:3651单片机看门狗电路采用89C51单片机和X25045组成的看门狗电路,X25045硬件连接图如图2所示。
X25045芯片内包含有一个看门狗定时器，可通过软件预置系统的监控时间。
在看门狗定时器预置的时间内若没有总线活动，则X25045将从RESET输出一个高电平信号，经过微分电路C2、R3输出一个正脉冲，使CPU复位。
图2电路中，CPU的复位信号共有3个：上电复位(C1、R2)，人工复位(S、R1、R2)和Watchdog复位(C2、R3)，通过或门综合后加到RESET端。
C2、R3的时间常数不必太大，有数百微秒即可，因为这时CPU的振荡器已经在工作。
图2 X25045看门狗电路硬件连接图看门狗定时器的预置时间是通过X25045的状态寄存器的相应位来设定的。
如表2所示，X25045状态寄存器共有6位有含义，其中WD1、WD0和看门狗电路有关，其余位和EEPROM的工作设置有关。
表2 X25045状态寄存器WD1＝0，WD0=0，预置时间为1.4s。
WD1＝0，WD0=1，预置时间为0.6s。
WD1＝1，WD0=0，预置时间为0.2s。
WD1＝1，WD0=1，禁止看门狗工作。
看门狗电路的定时时间长短可由具体应用程序的循环周期决定，通常比系统正常工作时最大循环周期的时间略长即可。
编程时，可在软件的合适地方加一条喂狗指令，使看门狗的定时时间永远达不到预置时间，系统就不会复位而正常工作。
当系统跑飞，用软件陷阱等别的方法无法捕捉回程序时，则看门狗定时时间很快增长到预置时间，迫使系统复位。
以下是C语言编写的看门狗程序部分。
#include reg51.hsbit cs=P1^2;/*片选信号由P1.2产生*/sbit sck=P1^3; /*时钟信号由P1.3 产生*/sbit si=P1^0; /*SI由P1.0产生*/sbit so=P1^1; /*SO由P1.1产生*/sbit c=ACC^7; /*定义位变量*/bdata unsigned char com;void tran() /*发送一字节数据子函数*/{unsigned char i;for(i=0; i<8; i++){ ACC=com; /*将数据放入a中*/si=c;sck=0; /*sck产生一个上跳变*/sck=1;com=com<<1; /*左移一位*/}return;}main(){com=0x06; /*发写读使能命令*/cs=0;tran();cs=1;com=0x01; /*发写状态字命令*/cs=0;tran();com=0x00; /*定时1.4s*/tran();cs=1;...;系统正常运行的程序部分}需要注意的是，在程序正常运行的时候，应该在适当的地方加一条喂狗指令，使系统正常运行时的定时时间达不到预置时间。
