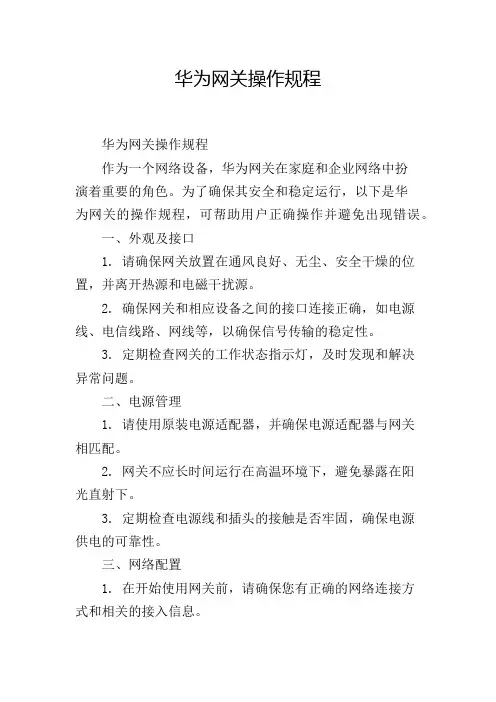

华为网关操作规程华为网关操作规程作为一个网络设备，华为网关在家庭和企业网络中扮演着重要的角色。

为了确保其安全和稳定运行，以下是华为网关的操作规程，可帮助用户正确操作并避免出现错误。

一、外观及接口1. 请确保网关放置在通风良好、无尘、安全干燥的位置，并离开热源和电磁干扰源。

2. 确保网关和相应设备之间的接口连接正确，如电源线、电信线路、网线等，以确保信号传输的稳定性。

3. 定期检查网关的工作状态指示灯，及时发现和解决异常问题。

二、电源管理1. 请使用原装电源适配器，并确保电源适配器与网关相匹配。

2. 网关不应长时间运行在高温环境下，避免暴露在阳光直射下。

3. 定期检查电源线和插头的接触是否牢固，确保电源供电的可靠性。

三、网络配置1. 在开始使用网关前，请确保您有正确的网络连接方式和相关的接入信息。

2. 根据实际需求，正确配置网关的网络参数，包括IP地址、DNS等，确保网络连接的稳定性和安全性。

3. 需要注意的是，设置密码时，请选择复杂度较高的密码，并定期更换密码。

四、安全设置1. 启用防火墙功能，防止未经授权的程序和恶意攻击。

2. 禁止外部访问，在有必要时能够设置访问控制列表，并仅允许特定的IP地址访问网关。

3. 定期更新网关的固件和软件版本，以确保系统的安全性和最佳性能。

五、用户管理1. 为了保证安全性，建议使用不同的管理员账号和密码进行登录。

2. 限制用户访问权限，根据实际需要设置访问控制列表。

3. 管理员应该保管好账号和密码，避免泄露。

六、故障处理1. 当网关出现异常时，先尝试重启网关，若问题仍然存在，可尝试更新固件和软件版本。

2. 如果问题无法解决，请联系华为客服支持，提供详细的故障信息以便更快地解决问题。

七、定期维护1. 定期检查网关的工作状态，如指示灯是否正常、温度是否适宜等。

2. 清理网关周围的灰尘，避免灰尘影响网关的散热效果。

3. 定期备份网关的配置文件和重要数据，以防止数据丢失。

智能设备开发有限公司的专用四口千兆以太网开关说明书

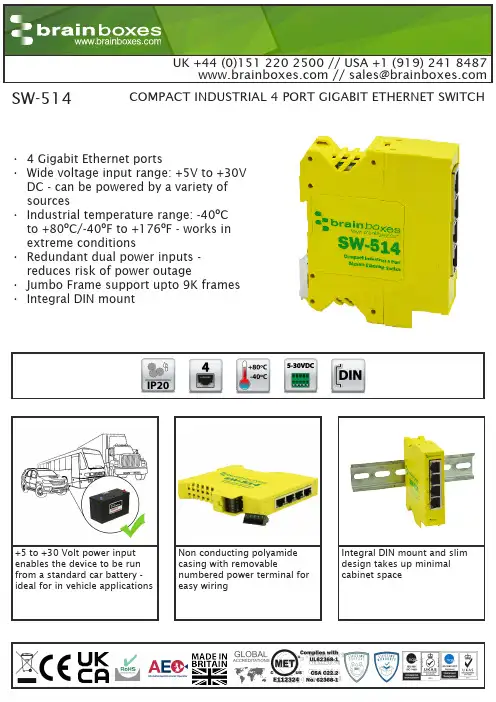

• 4 Gigabit Ethernet ports• Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources• Industrial temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions• Redundant dual power inputs - reduces risk of power outage• Jumbo Frame support upto 9K frames • Integral DIN mountIntegral DIN mount and slim design takes up minimal cabinet spaceNon conducting polyamide casing with removablenumbered power terminal for easy wiring+5 to +30 Volt power input enables the device to be runfrom a standard car battery -ideal for in vehicle applications COMPACT INDUSTRIAL 4 PORT GIGABIT ETHERNET SWITCHSW-514Easy Wire Removable screw terminal blockJumbo Frame support up to 9K framesDual redundant power input: +5VDC to +30VDCPower consumption is optimised based on the status of the link deviceAll Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cablesCOMPACT INDUSTRIAL 4 PORT GIGABIT ETHERNET SWITCHSW-514Automatic detection of data transmission speed: 10 or 100 or 1000 MbpsIntegral DIN mount with groundNon-conducting polyamide case -40ºC to +80ºC/-40ºF to +176ºF temperature rangeConnectorsScrew Terminals 3.5mm pitch, #22 - #14, 0.5mm 2-2.5mm 2 pin power supplyWire Thickness0.150 inch, 3.81mm, 20 pins, 12+8 screw terminals, #26 - #16 AWG, 0.14mm 2-1.3mm 2Power SupplyPower Consumption 3.6W Max: 550mA@+5VDC/90mA@+30VDCPower Supply input Unregulated +5V to +30Volts DC, reverse polarity protection Isolation1500V RMS Magnetic isolation from Ethernet EnvironmentalOperating Temperature -40ºC to +80ºC/-40ºF to +176ºF Storage Temperature-40ºC to +80ºC/-40ºF to +176ºF Ambient Relative Humidity 5 to 95% (non-condensing)Magjack LED Information Link/ActivitySolid Connection established Flashing Data communication SpeedYellow 1000Mbps Green100MbpsEthernetEthernet Port 4 x RJ45 jack, 10/100/1000Mbs autosensing, crossover auto sensing (Auto MDIX)Protection 1,500 Volts magnetic isolation between ports HousingIP-20 rated non-conducting polyamide caseCompact case - all round smallprofileCOMPACT INDUSTRIAL 4 PORT GIGABIT ETHERNET SWITCHSW-514Lifetime Warranty and Support:We can help with every aspect of your project, from getting you up and running to custom application.Power Terminal Pin OutsPIN FUNCTION 1-V 2+VA 3+VB 4-V5Functional EarthEthernet Ports x4 Pin OutsPIN FUNCTION 1TxRxA+2TxRxA-3TxRxB+4TxRxC+5TxRxC-6TxRxB-7TxRxD+8TxRxD-© Brainboxes 2020BBSW260220COMPACT INDUSTRIAL 4 PORT GIGABIT ETHERNET SWITCHSW-514SW RangeSwitch products available in a range of formats and specifications.PW-650Power supply with USBconnector and prewired screw terminal block. Suitable for use with 5V USB ports.PW-600Power supply with connectors for UK, USA, EU and AUS mains socket. ‘Tails’ are suitable for connecting to screw terminal blocks.Packaging Information Packaging Quick Start Guide DeviceEthernet Switch 4 port Packaged Weight 0.19 kg, 5.64 ouncesPackaged Dims 160x135x49 mm, 6.3x5.3x1.9 inches GTIN Universal Code 837324004854ApprovalsIndustry Approvals Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, UKCA, METL Complies with UL62368-1Product Support Warranty Lifetime - online registration requiredSupportLifetime web, email and phone support from fully qualified, friendly staff who work in and alongside the Product Development TeamAdditional Information OEM option Available for bulk buy OEMMade In Manufactured in Great Britain (GB) by Brainboxes - Winner 2005 European Electronics Industry Awards ‘Manufacturer of the Year’CustomisableBrainboxes operate a ‘Perfect Fit Custom Design’ policy for volume users. Moreinfo:********************。

M400-C 4G路由器模块说明书

M400-C4G路由器模块说明书V1.0深圳市力必拓科技有限公司M400-C模组简易说明书目录第1章概述 (4)第2章WEBUI管理系统 (5)2.1登录 (5)2.2主页 (6)2.3网络 (8)2.4防火墙 (11)2.4.1WIFI MAC过滤 (11)2.4.2端口转发 (12)2.4.3DMZ (12)2.5应用设置 (13)2.5.1PING检测网络 (13)2.5.2串口透传 (14)2.5.3自动重启设置 (14)2.6管理设置 (15)2.6.1账号管理 (15)2.6.2时间设置 (15)2.6.3Telnet服务 (16)2.6.4固件更新 (17)2.6.5重启设备 (21)第1章概述CLP500是一款可自由搭载高通MDM9x07及ASR平台4G无线通信模组的4G路由终端设备。

支持三网口，支持双WIFI天线、支持串口透传功能。

WAN网口可配置为LAN口或WAN口，默认自动分配IP地址，插入网线后PC 就可以使用此设备带来4G网络功能。

设备提供了Wi-Fi AP功能。

Wi-Fi SSID默认名字为4G_AP_MAC地址后四位，默认密码为12345678。

设备默认地址为192.168.1.1，登录http://192.168.1.1WEBUI管理页面，可以进行各项设置，登录账号为admin:admin。

以下为设备图：注意：1.DC电源电压范围6V到25V，推荐使用配套电源适配器。

2.支持LTE网络指示灯，无卡或未注册时常亮，正常注册时闪烁。

3.支持WAN/LAN网口指示灯和WiFi指示灯。

4.支持恢复出厂设置按键和RESET按键。

5.使用WEBUI管理功能之前请先清除浏览器的浏览记录。

第2章WEBUI管理系统设备默认设置即可工作，也可以通过WEBUI管理页面修改各项默认设置。

WEBUI 管理页面支持Internet Explorer11及更高版本，Firefox，Chrome，Safari等主流浏览器。

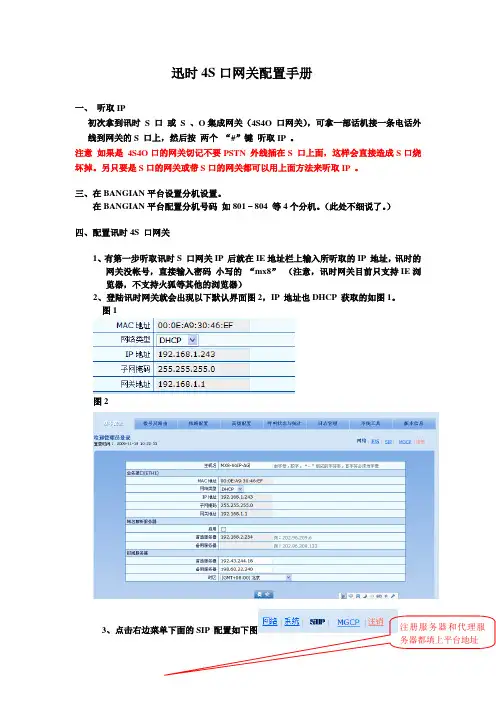

迅时S口网关配置手册

迅时4S口网关配置手册一、听取IP初次拿到讯时S 口或S 、O集成网关（4S4O 口网关），可拿一部话机接一条电话外线到网关的S 口上，然后按两个“#”键听取IP 。

注意如果是4S4O口的网关切记不要PSTN 外线插在S 口上面，这样会直接造成S口烧坏掉。

另只要是S口的网关或带S口的网关都可以用上面方法来听取IP 。

三、在BANGIAN平台设置分机设置。

在BANGIAN平台配置分机号码如801 – 804 等4个分机。

（此处不细说了。

）四、配置讯时4S 口网关1、有第一步听取讯时S 口网关IP 后就在IE地址栏上输入所听取的IP 地址，讯时的网关没帐号，直接输入密码小写的“mx8”（注意，讯时网关目前只支持IE浏览器，不支持火狐等其他的浏览器）2、登陆讯时网关就会出现以下默认界面图2，IP 地址也DHCP 获取的如图1。

图1图23、点击右边菜单下面的SIP 配置如下图注册服务器和代理服务器都填上平台地址在注册服务器和代理服务器上填上我们BANGIAN平台地址，后面带上5060端口后注意：在注册方式上选择按线路注册，注册时间默认是180秒4、在高级配置下媒体流配置如图，RTP 端口配置最小是10000 最大是20000 迅时默认值是100010- 1000205、在基本配置中DTMF 传输模式要选择RFC2833注意：凡是带O 口的网关，或O 口网关，在这里必需选贼RFC 2833,如果用其他的传输模式那么就导致系统无法转接。

2833 负责类型默认值是100，但对我们系统支持比较好的值是101 。

首位不拨号时间：摘机后过了多久没有拨号网关就发出忙音提示已放弃本次拨号。

位间不拨号时间：摘机后拨前一个号和后一个号之间的间隔时间，默认时间是两个拨号的时间12秒拨号结束: 号码拨完了后过多久没拨号网关就会认为此次拨号已结束，会把号码送出编解码：网关默认有以上这么多编码，根据以上编码来匹配我们系统的编码只到找到匹配何时的编码位置6、在高级配置中若在挂机后容易出现回铃音，经分析日志是由于开启了线路配置——>用户线功能，的呼叫等待或呼叫保持引起了可以调大摘机放抖动值和最短闪断值。

Cisco工业以太网4000系列开关说明书

Data SheetCisco Industrial Ethernet 4000 Series Switches Developed specifically to withstand the harshest industrial environments, these switches offer the most flexible and resilient industrial Ethernet products with secure connectivity, simple management and edge application execution.Product overviewThe Cisco® Industrial Ethernet (IE) 4000 Series delivers Gigabit connectivity to Cisco ruggedized switching portfolio with superior high-bandwidth switching capacity and proven Cisco IOS®Software. The IE 4000 Series provides highly secure access and industry-leading convergence ring protocols to support resilient and scalable networks while adhering to industry compliance requirements.The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.The IE 4000 Series can be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways, etc., using powerful enterprise-grade intent-based network management platform such as Cisco DNA Center.The Cisco IE 4000 can easily be installed. with a GUI based Device Manager, it also offers out-of-the-box industrial usage configuration and simplified manageability to deliver advanced security, data, video, and voice services over industrial networks.The IE 4000 executes edge applications using Cisco IOx to transform sensor data into insight and action. With Cisco IOx for customers take advantage of consistent, distributed computing across Cisco IoT network infrastructure. For more information on Cisco IOx, please see the Cisco IOx data sheet.Features and benefitsTable 1 lists the features and benefits of Cisco IE 4000 Series Switches.Table 1. Features and benefits of Cisco IE 4000 switchesYour ruggedized choice for industrial environmentsThe Cisco Industrial Ethernet (IE) 4000 Series offers:●Bandwidth and capacity to grow with your networking needs: 20-Gbps nonblocking switching capacity withup to 20 Gigabit Ethernet ports per switch●High-density industrial PoE/PoE+ support providing in-line power to up to 8 power devices, including IPcameras and phones, badge readers, wireless access points, etc.●Cisco IOS Software features for smooth IT integration and policy consistency●Robust resiliency enabled by dual ring design via 4x Gigabit Ethernet uplink ports, Resilient EthernetProtocol (REP), Parallel Redundancy Protocol (PRP), PROFINET– Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel and Flex Links support, redundant power input, dying gasp, etc.●True zero-touch replacement for middle-of-the-night or middle-of-nowhere failure●Line-rate, low-latency forwarding with advanced hardware assist features (such as NAT, IEEE1588)●Simplified software upgrade path with universal images●Support of Industrial automation protocols EtherNet/IP (CIP), PROFINET, and Modbus TCPCisco ONE SoftwareCisco ONE Software offers a simplified consumption model, centered on common customer scenarios in the industrial automation and extended enterprise environments. Cisco ONE Software and services provide customers with four primary benefits:●Software suites that address typical customer use scenarios at an attractive price●Investment protection for their software purchase through software services-enabled license portability●Access to ongoing innovation and new technology with Cisco Software Support Service (SWSS)●Flexible licensing models to smoothly distribute customers' software spending over timeFigure 1 shows the switch models, Table 2 lists all the available Cisco IE 4000 Series models, Table 3 lists the power supplies for Cisco IE 4000 Series Switches.Figure 1. IE 4000 modelsTable 2. Cisco IE 4000 Series Switches1 Combo ports provide one copper and one fiber physical port and only one can be activated at a time.2 Can be upgraded to IP Services at a fee.All copper Gigabit Ethernet interfaces support speed negotiation to 10/100/1000 mbps and duplex negotiation. All copper Fast Ethernet interfaces support speed negotiation to 10/100 mbps and duplex negotiation.Table 3. Power supplies for Cisco IE 4000 Series Switches1 The entire power budget for the switch and PoE ports needs to stay within the power supply.2 The power supplies are not certified for smart grid and hazardous locations. These power supplies are IP20 rated.3 Power Supplies Datasheet Link: https:///c/en/us/products/collateral/switches/industrial-ethernet-switches/datasheet-c78-742180.htmlThe diagram in Figure 2 can help you select a Cisco IE 4000 model.Figure 2. Cisco IE 4000 model selection guideProduct specificationsTable 4 lists specifications, Table 5 gives information about switch performance and scalability, Tables 6 and 7 list important software features. Table 8 provides information on software licenses and accessory PIDs.Tables 9–12 provide information about Cisco ONE™ licenses, Cisco DNA features and PIDs available for order, and Table 13 lists compliance specifications. Table 14 gives information about management and standards of the Cisco IE 4000 Series Switches, and Table 15 shows the list of supported SFPs.Table 4. Product specificationsTable 5. Switch performance and scalability1 Support after product general availability.2 Full flexible NetFlow is included on all IE-4000 Switches and requires either one of the following licenses per switch:∙Cisco ONE™ Foundation Perpetual license∙Cisco DNA Essentials license∙Cisco IP Services licenseTable 7. Cisco IE 4000 IP Services: Key software featuresTable 8. Cisco IE 4000 software licenses and accessories PIDsTable 9. Cisco ONE™ LicensesTable 10. Cisco IE 4000 DNA Essentials licensesTable 11. Cisco IE 4000 DNA Advantage licensesTable 12. Cisco IE 4000 DNA license PIDsTable 13. Compliance SpecificationsIndustry standards EN 61000-6-1 Light Industrial EN 61000-6-2 IndustrialEN 61000-6-4 IndustrialEN 61326 Industrial ControlEN 61131-2 Programmable ControllersSubstation KEMA (IEEE 1613, IEC 61850-3)Marine DNVNEMA TS-2 (EMC, environmental, mechanical)IEEE 1613 Electric Power Stations Communications NetworkingIEC 61850-3 Electric Substations Communications NetworkingEN50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech)EN50121-4 Railway - Signaling and Telecommunications ApparatusEN50121-3-2 Railway - Apparatus for Rolling Stock ODVA Industrial EtherNet/IPPROFINET conformance BIP30 (per EN60529)Safety standards and certifications Information Technology Equipment:UL/CSA 60950-1EN 60950-1CB to IEC 60950-1 with all country deviationsNOM to NOM-019-SCFI (through partners and distributor)Industrial Floor (Control Equipment):UL 508CSA C22.2, No 142Hazardous Locations:ANSI/ISA 12.12.01 CSA C22.2 No 213IEC 60079-0, -15 IECEx test reportEN 60079-0, -15 ATEX certification (Class I Zone 2) Cabinet enclosure requiredOperating environment Operating Temperature: -40C to +75C●-40C to +70C (Vented Enclosure Operating)●-40C to +60C (Sealed Enclosure Operating)●-34C to +75C (Fan or Blower equipped Enclosure Operating)EN 60068-2-1EN 60068-2-2EN 61163Altitude: up to 15,000 feetStorage environment Temperature: -40 to +85 degrees CAltitude: 15,000 feetIEC 60068-2-14Humidity Relative humidity of 5% to 95% non-condensingIEC 60068-2-3IEC 60068-2-30Shock and vibration IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine)IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal)IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration)IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) Corrosion ISO 9223: Corrosionclass C3-Mediumclass C4-HighEN 60068-2-52 (Salt Fog)EN 60068-2-60 (Flowing Mixed Gas)Others RoHS ComplianceChina RoHS ComplianceTAA (Government)CE (Europe)Table 14. Management and standards Description SpecificationIEEE standards ●IEEE 802.1D MAC Bridges, STP●IEEE 802.1p Layer2 COS prioritization●IEEE 802.1q VLAN●IEEE 802.1s Multiple Spanning-Trees●IEEE 802.1w Rapid Spanning-Tree●IEEE 802.1x Port Access Authentication●IEEE 802.1AB LLDP●IEEE 802.3ad Link Aggregation (LACP)●IEEE 802.3af Power over Ethernet provides up to15.4W DC power to each end device●IEEE 802.3at Power over Ethernet provides up to25.5W DC power to each end device ●IEEE 802.3af Power over Ethernet●IEEE 802.3at Power over Ethernet Plus●IEEE 802.3ah 100BASE-X SMF/MMF only ●IEEE 802.3x full duplex on 10BASE-T●IEEE 802.3 10BASE-T specification●IEEE 802.3u 100BASE-TX specification●IEEE 802.3ab 1000BASE-T specification ●IEEE 802.3z 1000BASE-X specification●IEEE 1588v2 PTP Precision Time Protocol ●IEEE 802.1AS PTP●IEEE 802.1Qbv TSNRFC compliance ●RFC 768: UDP●RFC 783: TFTP●RFC 791: IPv4 protocol●RFC 792: ICMP●RFC 793: TCP●RFC 826: ARP●RFC 854: Telnet●RFC 951: BOOTP●RFC 959: FTP●RFC 1157: SNMPv1●RFC 1901,1902-1907 SNMPv2●RFC 2273-2275: SNMPv3●RFC 2571: SNMP Management●RFC 1166: IP Addresses●RFC 1256: ICMP Router Discovery ●RFC 1305: NTP●RFC 1492: TACACS+●RFC 1493: Bridge MIB Objects●RFC 1534: DHCP and BOOTP interoperation●RFC 1542: Bootstrap Protocol●RFC 1643: Ethernet Interface MIB●RFC 1757: RMON●RFC 2068: HTTP●RFC 2131, 2132: DHCP●RFC 2236: IGMP v2●RFC 3376: IGMP v3●RFC 2474: DiffServ Precedence●RFC 3046: DHCP Relay Agent Information Option ●RFC 3580: 802.1x RADIUS●RFC 4250-4252 SSH ProtocolSNMP MIB objects ●BRIDGE-MIB●CALISTA-DPA-MIB●CISCO-ACCESS-ENVMON-MIB●CISCO-ADMISSION-POLICY-MIB●CISCO-AUTH-FRAMEWORK-MIB●CISCO-BRIDGE-EXT-MIB●CISCO-BULK-FILE-MIB●CISCO-CABLE-DIAG-MIB●CISCO-CALLHOME-MIB●CISCO-CAR-MIB●CISCO-CDP-MIB ●CISCO RTTMON-RTP-MIB●CISCO-SNMP-TARGET-EXT-MIB●CISCO-STACK-MIB●CISCO-STACKMAKER-MIB●CISCO-STP-EXTENSIONS-MIB●CISCO-SYSLOG-MIB●CISCO-TCP-MIB●CISCO-UDLDP-MIB●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB●CISCO-VTP-MIB●CISCO-CIRCUIT-INTERFACE-MIB●CISCO-CLUSTER-MIB●CISCO-CONFIG-COPY-MIB●CISCO-CONFIG-MAN-MIB●CISCO-DATA-COLLECTION-MIB●CISCO-DHCP-SNOOPING-MIB●CISCO-EMBEDDED-EVENT-MGR-MIB●CISCO-ENTITY-ALARM-MIB●CISCO-ENTITY-SENSOR-MIB●CISCO-ENTITY-VENDORTYPE-OID-MIB●CISCO-ENVMON-MIB●CISCO-ERR-DISABLE-MIB●CISCO-FLASH-MIB●CISCO-FTP-CLIENT-MIB●CISCO-IF-EXTENSION-MIB●CISCO-IGMP-FILTER-MIB●CISCO-IMAGE-MIB●CISCO-IP-STAT-MIB●CISCO-LAG-MIB●CISCO-LICENSE-MGMT-MIB●CISCO-MAC-AUTH-BYPASS-MIB●CISCO-MAC-NOTIFICATION-MIB●CISCO-MEMORY-POOL-MIB●CISCO-PAE-MIB●CISCO-PAGP-MIB●CISCO-PING-MIB●CISCO-PORT-QOS-MIB●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB●CISCO-PRIVATE-VLAN-MIB●CISCO-PROCESS-MIB●CISCO-PRODUCTS-MIB●CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB ●CISCO-RTTMON-ICMP-MIB●CISCO-RTTMON-IP-EXT-MIB●CISCO-RTTMON-MIB●CISCO RTTMON-RTP-MIB ●ENTITY-MIB●ETHERLIKE-MIB●HC-RMON-MIB●IEEE8021-PAE-MIB●IEEE8023-LAG-MIB●IF-MIB●IP-FORWARD-MIB●LLDP-EXT-MED-MIB●LLDP-EXT-PNO-MIB●LLDP-MIB●NETRANGER●NOTIFICATION-LOG-MIB●OLD-CISCO-CHASSIS-MIB●OLD-CISCO-CPU-MIB●OLD-CISCO-FLASH-MIB●OLD-CISCO-INTERFACES-MIB ●OLD-CISCO-IP-MIB●OLD-CISCO-MEMORY-MIB●OLD-CISCO-SYS-MIB<●OLD-CISCO-SYSTEM-MIB●OLD-CISCO-TCP-MIB●OLD-CISCO-TS-MIB●RMON-MIB●RMON2-MIB●SMON-MIB●SNMP-COMMUNITY-MIB●SNMP-FRAMEWORK-MIB●SNMP-MPD-MIB●SNMP-NOTIFICATION-MIB●SNMP-PROXY-MIB●SNMP-TARGET-MIB●SNMP-USM-MIB●SNMP-VIEW-BASED-ACM-MIB ●SNMPv2-MIB●TCP-MIB●UDP-MIBTable 15. SFP supportNote: Not all SFPs are supported in all software versions. For first software release supporting SFP, refer to https:///en/US/products/hw/modules/ps5455/products_device_support_tables_list.html.Not all SFPs are supported in PROFINET GSD, SIMATIC STEP7/TIA Portal. Please visithttps:///c/en/us/td/docs/switches/lan/industrial/software/configuration/guide/b_sfp_TIA.html. * If nonindustrial (EXT, COM) SFPs are used, the switch operating temperature must be derated.MMF = multimode fiberSMF = single-mode fiberFigure 3 shows the IE4000 mechanical dimensions.Figure 3. IE-4000 dimensionsWarranty informationWarranty information for the IE 4000 is available onhttps:///connectdots/serviceWarrantyFinderRequest?fl=sf#Cisco CapitalFlexible payment solutions to help you achieve your objectives.Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformationand help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, andaccelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware,software, services and complementary third-party equipment in easy, predictable payments. Learn more.Printed in USA C78-733058-16 06/19。

曙光天阔A440-G用户手册V1.0

曙光天阔 A440 服务器用手册阔 0-G 服用户手使用前，请仔使仔细阅读本说说明书并妥善善保管，以备备将来使用声明本手册的用途在于帮助您正确地使用曙光服务器产品(以下称“本产品”)，在安装和第一次使用本产品前，请您务必先仔细阅读随机配送的所有资料，特别是本手册中所提及的注意事项。

这会有助于您更好和安全地使用本产品。

请妥善保管本手册，以便日后参阅。

本手册的描述并不代表对本产品规格和软、硬件配置的任何说明。

有关本产品的实际规格和配置，请查阅相关协议、装箱单、产品规格配置描述文件，或向产品的销售商咨询。

如您不正确地或未按本手册的指示和要求安装、使用或保管本产品，或让非曙光授权的技术人员修理、变更本产品，曙光将不对由此导致的损害承担任何责任。

本手册中所提供照片、图形、图表和插图，仅用于解释和说明目的，可能与实际产品有些差别，另外，产品实际规格和配置可能会根据需要不时变更，因此与本手册内容有所不同。

请以实际产品为准。

本手册中所提及的非曙光网站信息，是为了方便起见而提供，此类网站中的信息不是曙光产品资料的一部分，也不是曙光服务的一部分，曙光对这些网站及信息的准确性和可用性不做任何保证。

使用此类网站带来的风险将由您自行承担。

本手册不用于表明曙光对其产品和服务做了任何保证，无论是明示的还是默示的，包括(但不限于)本手册中推荐使用产品的适用性、安全性、适销性和适合某特定用途的保证。

对本产品及相关服务的保证和保修承诺，应按可适用的协议或产品标准保修服务条款和条件执行。

在法律法规的最大允许范围内，曙光对于您的使用或不能使用本产品而发生的任何损害(包括，但不限于直接或间接的个人损害、商业利润的损失、业务中断、商业信息的遗失或任何其他损失)，不负任何赔偿责任。

对于您在本产品之外使用本产品随机提供的软件，或在本产品上使用非随机软件或经曙光认证推荐使用的专用软件之外的其他软件，曙光对其可靠性不做任何保证。

IADFXSFXO混合语音网关用户手册范本

IADFXS/FXO混合语音网关用户手册修正记录目录第一章产品介绍11.1概述11.2产品外观11.3安装方式11.4组网应用11.5功能和特点1第二章基本操作32.1 话机操作32.1.1 拨打号码或分机号32.1.2 直接拨打IP地址32.2 呼叫保持42.3 呼叫等待42.4 呼叫转移4盲转〔Blind42.4.2 询问转移〔Attend42.5 三方通话52.6 功能52.7 发送和接收62.7.1 IAD〔FXS支持四种模式：62.7.2 T. 38 和Pass-Through的区别6第三章本地IVR操作73.1 本地设备IP地址查询73.2 恢复出厂设置73.3设置IP地址7第四章WEB配置84.1 WEB登陆84.1.1 登陆准备84.1.2 登陆WEB84.2 导航树目录84.3状态和统计8系统信息84.3.2 注册信息94.3.3 TCP/UDP统计94.3.4 RTP统计94.4网络配置104.4.1 本地网络104.4.2 VLAN参数104.4.3 MAC克隆<路由模式下可选配置>114.4.4 DHCP服务<路由模式下可选配置>114.4.5 DMZ主机<路由模式下可选配置>124.4.6 转发规则<路由模式下可选配置>124.4.7 静态路由124.4.8 ARP134.5 SIP服务器134.6 端口配置144.7 高级选项配置154.7.1 FXS参数154.7.2 媒体参数错误!未定义书签。

4.7.3 SIP参数184.7.4 参数204.7.5 拨号规则204.7.6 功能键214.7.7 系统参数224.8 呼叫和路由配置244.8.1 端口组244.8.2 IAD路由功能介绍244.8.3 路由参数254.8.4 IP-Tel254.8.4 Tel-IP路由264.9 号码变换264.9.1 IP-Tel 被叫号码264.9.2 Tel-IP 改变主叫号码274.9.3 Tel-IP 改变被叫号码284.10 维护284.10.1 syslog参数284.10.2 固件升级294.10.3 数据备份错误!未定义书签。

迅时4 O 4S口网关配置手册

迅时4 O 4S口网关配置手册一、听取IP初次拿到讯时S 口或S 、O集成网关（4S4O 口网关），可拿一部话机接一条电话外线到网关的S 口上，然后按两个“#”键听取IP 。

注意如果是4S4O口的网关切记不要PSTN 外线插在S 口上面，这样会直接造成S口烧坏掉。

另只要是S口的网关或带S口的网关都可以用上面方法来听取IP 。

二、服务器SIP外线设置在JUST平台外线设置添加一条SIP 外线，如下图：其他的设置都不用填，只需要在添加上面的信息即可。

若是有两个O口网关，就需要添加两条SIP 外线：三、在JUST平台设置分机设置。

在JUST平台配置分机号码如801 – 804 等4个分机。

（此处不细说了。

）四、配置讯时4O4S 口网关1、有第一步听取讯时S 口网关IP 后就在IE地址栏上输入所听取的IP 地址，讯时的网关没帐号，直接输入密码小写的“mx8”（注意，讯时网关目前只支持IE浏览器，不支持火狐等其他的浏览器）2、登陆讯时网关就会出现以下默认界面图2，IP 地址也DHCP 获取的如图1。

图1图23、点击右边菜单下面的SIP 配置如下图在注册服务器和代理服务器上填上我们JUST 平台地址，后面带上5060端口后注意：在注册方式上选择按线路注册，注册时间默认是180秒4、在高级配置下媒体流配置如图，RTP 端口配置最小是10000 最大是20000 迅时默认值是100010- 100020注册服务器和代理服务器都填上平台地址5、在基本配置中DTMF 传输模式要选择RFC2833注意：凡是带O 口的网关，或O 口网关，在这里必需选贼RFC 2833,如果用其他的传输模式那么就导致系统无法转接。

2833 负责类型默认值是100，但对我们系统支持比较好的值是101 。

首位不拨号时间：摘机后过了多久没有拨号网关就发出忙音提示已放弃本次拨号。

N900 (WNCE4004) 4门网络适配器指南说明书

Guida all'installazioneAdattatore WiFi 4 porte per video e gioco N900(WNCE4004)AlimentatoreCavo EthernetWNCE4004LED di link WPS LED Tasto WPSPorte EthernetPresa dialimentazioneInstallazione con WPSFase 2:attendere che il LED di link sulWNCE4004 lampeggi di colore verde. Premere il tasto WPS sul WNCE4004. Il LED WPS lampeggia di colore blu per indicare l'esecuzione di WPS.Fase 3:premere il tasto WPS sul router. Quando la connessionewireless è stata stabilita, il LED di link cambia colore per indicare la qualità della connessione: verde senza intermittenza, giallo senza intermittenza o rosso senza intermittenza. Vedere Attività del LED di link su lato opposto di questo documento per ulteriori informazioni sul significato di questi colori.Fase 1:Collegare WNCE4004 alla TV , XBoxo al lettore Blu-ray utilizzando il cavo Ethernet (fornito in dotazione) e l'alimentatore.Fase 4:complimenti! L'installazione è stata completata consuccesso.Cosa significa WPS?Se si è in possesso di un router NETGEAR, questa funzionalità è nota come Push ‘N’ Connect. Cercare i simboli o sul router per assicurarsi che il router NETGEAR supporti la funzionalità WPS. In caso di router non NETGEAR, consultare il manuale utente per sapere se la funzionalità WPS è supportata.Una volta accertato se il router supporta o meno la funzionalità WPS, scegliere il metodo di installazione più indicato.WPS significa "WiFi Protected Setup" ed è una procedura che consente di collegare un dispositivo a una rete esistente in maniera semplice e sicura.Installazione senza WPSTasto WPSTasto WPSFase 1: Installare WNCE4004 sul computer, scollegare la relativa connessionewireless al router e/o rimuovere l'eventuale cavo Ethernet collegato al computer. È possibile ripristinare la connessione dopo aver completato l'installazione di WNCE4004.Fase 2:Collegare WNCE4004 al computer utilizzando il cavo Ethernet (fornito in dotazione) e poi l'alimentatore.Fase 3: Attendere che il LED di link lampeggi di colore verde. Verificare checomputer disponga dell'indirizzo IP. Quindi aprire il browser Internet, il quale aprirà automaticamente la pagina di configurazione (se questo non succede, digitare manualmente nel browser l'indirizzo.) Il nome utente predefinito è admin e la password predefinita è password . Attenersi alle istruzioni contenute nella pagina per la configurazione, quindi tornare al manuale e continuare dalla Fase 4.Fase 4:Scollegare i cavi Ethernet e USB dal computer.Fase 5:Collegare WNCE4004 alla TV , XBox o al lettore Blu-ray.Fase 6:Complimenti! L'installazione è stata completata con successo.NOTA : accertarsi di verificare le impostazioni di connessione di TV , XBox o lettore Blu-ray dopo aver configurato e connesso WNCE4004. Se richiesto per il tipo di connessione, accertarsi di aver selezionato Wired (cablata).Luglio 2012Questo simbolo indica la conformità alla direttiva dell'Unione Europea 2002/96 sullo smaltimentodegli apparecchi elettrici ed elettronici (direttiva RAEE). In caso di smaltimento in Paesidell'Unione Europea, questo prodotto deve essere smaltito e riciclato nel rispetto delle leggi localiche applicano la direttiva RAEE.NETGEAR, il logo NETGEAR e Connect with Innovation sono marchi commerciali e/o marchi registrati di NETGEAR, Inc. e/o delle sue consociate negli Stati Uniti e/o in altri Paesi. Le informazioni sono soggette a modifica senza preavviso. Altri nomi di prodotti e marche sono marchi registrati o marchi commerciali dei rispettivi proprietari. © NETGEAR, Inc. Tutti i diritti riservati.Solo per utilizzo all''interno in tutti i paesi dell'UE e in Svizzera.Procedura WPSQuando si preme il pulsante WPS per stabilire una connessione wireless, si verifica la sequenza di eventi seguente:1. Quando la procedura WPS è in corso, il LED WPS lampeggia di colore blu per 0,5secondi e quindi si spegne per 0,5 secondi, continuamente.2. Quando viene correttamente effettuata un'associazione di sicurezza in un AP (accesspoint) radice, il LED WPS si accende di colore blu. Se viene effettuataun'associazione senza sicurezza, il LED WPS si spegne.3. Una volta completata la procedura WPS, sul LED del link viene visualizzatal'informazione relativa alla qualità della velocità di connessione: verde senzaintermittenza, giallo senza intermittenza o rosso senza intermittenza.Nota: Se c'è un errore di WPS, il LED WPS lampeggia continuativamente nella seguente modalità: tre lampeggiamenti lenti e interruzione del lampeggiamento per un tempo che va da 1 a 1,5 secondi.Domande frequenti1. Durante la configurazione di WNCE4004 senza WPS, è necessario che il computersia impostato su DHCP per la buona riuscita dell'installazione?Sì.2. Perché viene visualizzato l'errore “Connection was not established to the selectednetwork” ("La connessione alla rete selezionata non è stata stabilita.")?Le ragioni di un errore di connessione possono essere molteplici. Prima di tutto, èpossibile che siano stati inseriti un nome o una chiave di rete incorretti. Assicurarsi diaver inserito i dati in maniera corretta facendo clic su Cancel (Annulla) e digitandonuovamente nome e chiave di rete. In secondo luogo, è possibile che il router abbiainterrotto la trasmissione del segnale wireless. Assicurarsi che il router sia acceso eche ci sia una chiara linea di visione tra WNCE4004 e il router. Se possibile,avvicinare WNCE4004 al router e fare clic su Try Again (Riprova). Se il messaggiodi errore continua ad apparire anche dopo diversi tentativi di riconnessione, potrebbeessere necessario aggiornare il router oppure acquistare un Range Extender peraumentare la copertura del segnale.3. Ho cercato di installare il prodotto senza WPS ma, al lancio del browser, è apparso unerrore. Come risolvere il problema?Assicurarsi che il cavo Ethernet sia ben collegato a WNCE4004 e al computer e che ilLED di link sul dispositivo a cui è collegato il WNCE4004 sia acceso. Se il LEd dilink non è acceso, ricollegare il cavo Ethernet e avviare di nuovo il browser Internet.4. Di che colore si illumina il LED di link per indicare la corretta configurazione diWNCE4004?Il LED di link sul WNCE4004 lampeggia di colore verde quando non è connesso adalcun access point. Una volta stabilita la connessione wireless, il LED di linkdovrebbe restare verde senza intermittenza, giallo senza intermittenza o rosso senzaintermittenza in base alla qualità del collegamento wireless.5. Cosa fare nel caso in cui il LED di link sia rosso?La migliore connessione si stabilisce quando è presente una linea di visione chiara traWNCE4004 e il router a cui ci si connette. Assicurarsi che non ci siano ostacoli fisicitra WNCE4004 e il router. Si consiglia inoltre di avvicinare WNCE4004 quanto piùpossibile al router.6. Come posso cambiare le impostazioni dopo aver configurato WNCE4004 la primavolta?Seguire le istruzioni riportate nella sezione Installazione senza WPS. Collegarsi allapagina per configurare le impostazioni avanzate.Attività del LED di linkPer la documentazione completa, visitare il sito Web relativo alla Dichiarazione diconformità EU di NETGEAR all'indirizzo:/app/answers/detail/a_id/11621Una volta completata l'installazione, registrare il dispositivo all'indirizzo:/register per poter utilizzare il servizio di assistenza telefonica.Visitare anche il sito Web per ottenere aggiornamenti sulprodotto, ulteriore documentazione e assistenza.Scaricare il manuale utente all'indirizzo o attraverso illink presente nell'interfaccia utente del prodotto.Attività del LEDSpento L'unità non è alimentata.Rosso fisso La qualità del collegamento è scarsa, in base alla velocità diconnessione.RossolampeggianteSe il LED lampeggia di rosso con intervalli acceso/spentociascuno di 0,5 secondi, il firmware è corrotto. Per leistruzioni, fare riferimento al manuale utente.Giallo fisso La qualità del collegamento è sufficiente, in base alla velocitàdi connessione.RossolampeggianteÈ in corso il riavvio del sistema o il sistema è stato ripristinato.Dopo aver premuto il pulsante di ripristino per più di cinquesecondi, il LED è rosso lampeggiante. Il LED lampeggia dicolore rosso anche durante l'aggiornamento di un firmware.Verde fisso L'unità è accesa e la qualità del collegamento è buona, inbase alla velocità di connessione.VerdelampeggianteL'avvio è terminato, ma non è stata stabilita alcunaconnessione wireless, pertanto l'indirizzo IP non è disponibile.。

ETC Response Mk2 四线端口网关说明书

G E N E R A L I N F O R M A T I O NETC’s Response Mk2 Four-Port Gateway provides data distribution using the quality and reliability of ETC’s network technology. Built for Net3 using industry-standard sACN, DMX and RDM, the Response Gateway unlocks the power of your networked system. APPLICATIONS• Road houses• Touring• University/professional theaters• Convention halls• Tech tables• Stage manager panels• System integrationFEATURES• D istributes DMX and RDM data to any input/output deviceover Ethernet• Available in three different port counts• Supports Net3 protocol powered by ACN• Configurable DMX/RDM Output or Input• Simple configuration and service of each port• O nboard screen and buttons for labeling, status andconfiguration• Power, network and port direction status indicators• Touch to Wake Sensor• P ower over Ethernet (PoE) or external DC power supply• C onfigurable using Concert Software O R D E R I N G I N F O R M A T I O NDIN Rail GatewaysMODEL DESCRIPTIONRSN-DMX1-DIN Response MK2 1-port Gateway - DIN Rail RSN-DMX2-DIN Response MK2 2-port Gateway - DIN Rail RSN-DMX4-DIN Response MK2 4-port Gateway - DIN RailMounting AccessoriesMODEL DESCRIPTIONDIN-RM DIN rail Rack Mount KitDIN14Small DIN rail Enclosure - VerticalDIN14-H Small DIN rail Enclosure - Horizontal DIN28Large DIN rail EnclosureS P E C I F I C A T I O N SFUNCTIONAL• Supports Net3/ACN (ANSI E1.31 and E1.17)• Supports RDM (ANSI E1.20)• Supports USITT DMX512-A (ANSI E1.11)• USITT DMX512 and ANSI E1.11 DMX512-A compliant• F lexible Output Patch allows a 512-address universe to beginat any output address• Advanced Input Patch• Support for per-address- or per-universe-level priority• M aximum delay time from input to output not greater thanone packet time• S electable DMX refresh rate with a maximum at least 40Hz• Supports up to 256 total RDM devicesMECHANICAL• I ntuitive four-button interface• O nboard display for identification, status and configuration• Molded plastic enclosure• Mounting complies with DIN43880 (35/7.5 rail)• DIN installation enclosure available• Network, power and data activity LED indicators-Blue power indicator, green network activity indicator-Bi-color DMX activity indicator• RJ45 for connection to lighting network• Reset button for hard reset or forced rebootE NVIRONMENTAL• Ambient operating temperature: 0° to 40°C (32° to 104°F)• Operating humidity: 5% - 95% non-condensing• Storage temperature: -40° to 70°C (-40° to 158°F) ELECTRICAL• C ompliant with IEEE 802.3i for 10BASE-T, 802.3u for100BASE-TX and 802.3af for Power over Ethernet• 12-24VDC power input for use with non-PoE systems• Maximum seven watt current drawCONFIGURATION• Local configuration options• Remote configuration provided by Net3 Concert-Supports up to 512 DMX addresses per port-Supports up to 63,999 Streaming ACN universes• D MX data input or output configurable by user• M ultiple sources may be combined to the network with eachsource or address allowed an independent priority• Individual port start address and offset• User-configurable labelingREGULATORY AND COMPLIANCE• cETLus Listed• CE compliant• EAC certified• RoHS compliant• WEEE A D D I T I O N A L I N F O R M A T I O NDMX512Often shortened to DMX (Digital Multiplex), this communication protocol is used mainly to control dimmers and multi-parameter fixtures. A universe of DMX is defined as 512 channels. DMX sends a nearly continuous stream of level information for each control channel. It is a form of RS-485 digital serial communication.RDMRemote Device Management (ANSI E1.20) is a protocol enhancement to DMX512 that allows low-speed bidirectional communication between a system controller and attached RDM devices over a standard DMX line. This protocol will allow remote configuration, status monitoring, and management of devices.sACNStreaming ACN (ANSI E1.31), sends DMX-style control over TCP/IP networks. It provides a fast and efficient mechanism to transport the well-understood DMX protocol over Ethernet using an industry-standard protocol.ACNArchitecture for Control Networks (ANSI E1.17) is a standard for high-speed bidirectional communication over TCP/IP on Ethernet network infrastructure. ACN is an open suite of protocols used between network devices for the purposes of greater and more adaptive control.NET3ETC’s enhanced implementation of the standard ACN Protocol Suite (ANSI E1.17 and E1.31) including additional communication protocols for specialized applications and support of legacy systems.T Y P I C A L S Y S T E M R I S E RP H Y S I C A LResponse DIN Rail Gateway DimensionsMODEL HEIGHT WIDTH DEPTHin mm in mm in mm RSN-DMX-DIN 3.5390 6.36162 2.3961Response DIN Rail Gateways WeightsMODEL WEIGHT SHIPPING WEIGHTlb kg lb kg RSN-DMX*-DIN0.560.25 2.000.91Corporate Headquarters Middleton, WI USAGlobal Offices London, UK Rome, IT Holzkirchen, DE Paris, FR Hong Kong Singapore New York, NY Orlando, FL Los Angeles, CA Copyright©2019 ETC. All Rights Reserved. All product information and specifications subject to change. Rev A 10/19Trademark and patent info: /IP。

TSIM-04 USB网关 V1.00 用户手册(中文)

TSIM-04USB网关 V1。

1目的11.2背景12外形与接线图22。

1外形结构22.2接线图22.3注意事项22。

3.1编程配置23技术参数33.1额定参数33.2技术指标33。

2.1具体指标33。

2.2机械性能43。

2。

3电磁兼容44使用说明44。

1ETS3中的使用步骤41 引言1。

1目的本文档是对TSIM-04 USB网关的技术说明书，描述了USB网关的功能及技术参数.本文档面向的读者是USB网关的开发人员及工程部相关人员.1.2背景项目名称：TSIM-04 USB网关根据TSIM-04 USB网关的开发需求，主要完成功能为实现PC和KNX/EIB 总线之间建立双向连接.2 外形与接线图2.1外形结构图2—1 TSIM-04外形结构图尺寸：90×36×64mm(H×W×D）2.2接线图图2-2 TSIM-04应用接线图2。

3注意事项2。

3.1编程配置须在一台PC机上安装已授权的ETS3或其以上版本的配置软件系统,使用该网关可以给应用模块编程。

一些可视化版本软件也可以使用该网关。

3 技术参数3。

1额定参数表3－1 额定参数3.2技术指标3。

2.1具体指标表3－2 具体指标3.2。

2机械性能表3－3 机械性能3。

2.3电磁兼容表3－4 电磁兼容4 使用说明4.1 ETS3中的使用步骤1、打开ETS3软件。

2、点击主菜单“Extras”中的“Options…”选项，出现如下对话框。

图5—1 Options 对话框3、选择“Communication”选项卡,出现如下对话框.图5-2 Communication 对话框4、点击“Configure Interfaces…”选项，出现如下对话框。

图5-3 ETS Connection Manager窗口5、点击“New"选项，在“Name”栏中编辑该网关的名字，在“Type”栏中选择网关的类型（USB）后，点击OK后，回到“Options"对话框中，点击“应用”后再点击“确定”即可。

零海拔 LTE-X4 4G 全网通网关用户手册说明书

GoIP 4G全网通系列（LTE-X4）用户手册v1.011综述1.1简介GoIP/LTE-X4是LTE网关（LTE即俗称的4G网络）。

本设备支持FDD-LTE、TDD-LTE、WCDMA、TD-SCDMA、GSM、CDMA等多种网络制式。

在中国大陆，三大运营商的2/3/4G 全部兼容。

在5G网到来之前，可当之无愧的称之为“全网通”。

X4是指：每一个线路，对应四个SIM卡槽。

可在1:1~1:4之间自由配比，实现全自动智能切换，大大降低单张SIM卡的使用率。

很大程度可避免SIM卡遭到封杀。

1.2 协议✔TCP/IP V4（IPV6 自动适应）✔ITU-T H.323 V4 标准✔H.2250 V4 标准✔H.245 V7 标准✔H.235 标准（MD5，HMAC-SHA1）✔ITU-T G.711 Alaw/ULaw, G.729A, G.729AB, G.723.1语音编码✔RFC1889 实时数字传输协议✔防火墙穿透技术✔SIP V2.0 标准✔STUN✔以太网拨号标准(PPPoE)✔因特网信息控制协议(ICMP)✔超文本传送协议(HTTP)✔动态主机配置协议(DHCP)✔域名系统(DNS)✔专有relay协议（加密VoIP信令和媒体流）1.2硬件特性✔支持热拔插✔ ARM高速处理器✔ IEEE 802.3 标准、连接LAN 和PC 两个10/100 兆以太网口✔频段支持，见下表：/wiki/LTE_frequency_bands查询频段的覆盖范围：https://1.4 包装内容小心避免损坏设备或包装盒，请尽量保留包装盒以免日后设备出现问题需要寄回维修时可以使用。

收货时请检查外包装和设备，如有损坏请联系卖家。

包装内的物品清单如下：1.主机一部2.电源适配器一个3.CAT5网线一根4.天线若干2安装2.1 安装天线将天线螺母依次安装至主机天线接口。

如果使用的是短天线，下侧安装直头天线，上侧安装弯头天线。

广州智远 ZWG-40COM 4G无线数据传输终端设备说明书

ZWG-40COM 提供2路232和1路485接口，让您的设备轻松实现与Internet 的无线连接。

ZWG-40COM 具有网络覆盖范围广（移动网络覆盖范围，能使用移动电话的地方就可以使用）、组网灵活快捷（安装即可使用）、运行成本低（按流量或时长计费）等诸多优点。

可应用于电力系统、工业监控、交通管理、气象、水处理、环境监控、金融证券、煤矿和石油等行业。

—————————————— 产品特性 ◆工业级设计，同时支持2路RS-232，1路RS-485接口数据传输◆通信端口隔离耐压2000Vrms ，支持电力DC 协议，适合电力行业应用◆使用工业级Cat.1 4G 模块，成本低廉◆均值上行速率高达35kB/s ；均值下行速率高达61kB/s◆内嵌完备可靠的协议栈，支持TCP/IP 和PPP 等协议，数据全透明传输◆可稳定支持4路网络连接◆支持数据中心动态域名或IP 地址访问◆支持断线自动重连功能◆支持本地和远程图形化配置与维护◆支持短信命令或透传工作模式◆支持Modbus 短信工作模式，最多可预定义20条短信◆支持连接HTTP 服务器◆支持链接阿里云IoT 平台◆支持连接标准MQTT 服务器◆支持数据中心虚拟串口功能，无缝衔接现有上位机软件◆复合式看门狗技术，使设备可靠运行◆+6.8V ～+28V 宽范围供电◆操作温度范围-35℃~+85℃———————————— 产品应用 ◆电力系统◆工业监控◆交通管理◆气象◆水处理◆环境监控◆金融证券◆石油修订历史目录1. 产品简介 (1)1.1产品简介 (1)1.2产品命名规则 (1)1.3产品选型 (2)1.4主要参数 (2)2. 尺寸图 (3)3. 接口说明 (4)3.1接口排列 (4)3.2接口说明 (4)4. 电气参数 (5)4.1工作电压 (5)4.2产品功耗 (5)4.3工作环境 (5)4.4电磁兼容 (6)4.5安规 (7)5. 射频参数 (8)5.1发射功率 (8)5.2接收灵敏度 (8)6. RF指导 (9)6.1工作频段 (9)7. DTU性能测试 (10)7.1多个TCP连接，数据双向收发 (10)7.2单个TCP连接，上行传输 (10)7.3单个TCP连接，下行传输 (11)8. 免责声明 (12)1. 产品简介1.1 产品简介ZWG-40COM 支持移动2G 、移动4G 、联通2G 、联通4G 和电信4G 网络。

网关设备安装调试说明

网关设备安装调试说明
网关设备安装调试说明
一、硬件安装
1. 识别」RU指示灯状态
（1）网关设备前“RUN指示灯，0.1秒亮、灭，快闪（系统正常，与呼叫控制中心之间
的网络连接也正常）
⑵网关设备前“RUN指示灯，1.5秒亮、灭，慢闪係统正常，但与呼叫控制中心之间的网络连接中断）
2. 设别10/100M Base-T即网关后接网线的端口）灯状态
（1）LINK灯灭（以太链路故障）（即网线未扌插好、或网线本身故障）
⑵LINK灯绿（以太链路正常）（即网线连接正常）
3. 网络连接相关知识
（1）当用户处于个人ADSJL无路由装置时
以四口网关为例，MODE线接入设备WA口，LANH线接入电脑，然后将电脑IP地址设
为设备IP同一网段即可进入设备WE界面,网络参数一选择路由模式--WA口设置--PPPOE 拨号处输入宽带帐号及密码—保存—重启设备即可
（2）当用户处于局域网环境，拥有路由装置时
以四口网关为例，路由线接入设备LANq,将设备IP设置（具体设备方法在一下内容将会详细介绍）为路由同一网段即可让设备接入网络，如需设备启用路由模式，只需进入设备WE 管理界面启用，设置好相应的LAW IP即可。

、话机配置网关操作说明。

ETC 4260M2201 四端口网关设置指南说明书

Four-Port Gateway Setup GuideCorporate Headquarters 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel +608 831 4116 Fax +608 836 1736London, UK Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel +44 (0)20 8896 1000 Fax +44 (0)20 8896 2000Rome, IT Via Pieve Torina, 48, 00156 Rome, Italy Tel +39 (06) 32 111 683 Fax +44 (0) 20 8752 8486Holzkirchen, DE Ohmstrasse 3, 83607 Holzkirchen, Germany Tel +49 (80 24) 47 00-0 Fax +49 (80 24) 47 00-3 00Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325Service: (Americas)********************** (UK)********************* (DE)**************************** (Asia)*******************Web: Copyright © 2012 ETC. All Rights Reserved. Product information and specifications subject to change.4260M2201 Revision B 2012-05Page 1 of 2ETC intends this document to be provided in its entirety.Four Module Bays• use any combination of modules including the blank plate, DMX Out (XLR Female), DMX In (XLR Male), RJ45 and terminal strip modules.OverviewThis Setup Guide will guide you through the setup of the Net3 Four-Port DMX/RDM gateway (version 5.x software and later) including hardware, electrical and data connections. Software configuration of your gateway is covered separately and relates specifically to the software versions that may be running in the gateways.• For Net3 configuration, please refer to the Gateway Configuration Editor (GCE) Online Help System.DMX Gateway ModulesThere are four different modules available for use in the Four-Port gateway: DMX Out (5-pin female), DMX In (5-pin male),RJ45 (8-pin female for input or output) and DMX Terminal Strip (8-pin Weidmuller for input or output).• The terminal strip module comes with ETC’s standard DMX termination preparation kit (part number 4100A012) which includes instructions and all parts required for installation. If you are connecting to Category 5 wire for DMX, request the DMX termination preparation kit with IDC connectors from ETC (part number 4100A1013).• The DMX RJ45 module can use a standard Category 5 cable to transmit DMX512 to other devices utilizing the same connector.NOTE:T he DMX RJ45 module will not function as an Ethernet network port.Any of these modules may be configured as DMX input or DMX output using configuration software. Additionally, there is a blanking plate for any unused module bay.WARNING:Rservice the unit.With power removed from the Gateway, you can move and swap DMX modules as needed for required configuration or replacement.Help from ETC Technical ServicesIf you experience difficulty during setup or installation of the Net3 gateway, additional information is available from , or by contacting ETC Technical Services at your local office listed on the bottom left side of this document.DMX Basics and Pin-OutsThe Net3 Four-Port gateway sends and receives DMX512 control signals. This unit can contain up to four DMX ports in any combination using 5-pin DMX input connectors, 5-pin DMX output connectors, RJ45 connectors, or terminal strip connectors. DMX cables must be acceptable for DMX data transmission (not microphone cable) and connections should follow the standard pinouts per the charts below. The optional secondary data pair is not used by the Net3 Four-Port gateway.Ethernet Connection• PoE (IEEE 802.3af)• 10/100Mbps data speeds • Auto-sensing Reset ButtonMenu Button• Activates the LCD backlight LCD• Displays gateway statusand configuration dataPower IndicatorPower Indicator• Solid blue LED indicates powersecures the module in the gatewayPull Tab• for easy module removalProtective Cover• protects delicate electronicsDMX Termination• switch directly behind the DMX Out Module(XLR 5-pin female)DMX In Module(XLR 5-pin male)DMX RJ45 Module(RJ45 8-pin female)DMX Terminal Strip Module(8-pin male)Page 2 of 2DMX TerminationThe DMX network supports up to 32 devices connected to each DMX line. Termination is required for all DMXnetworks and belongs at the source (beginning) of a DMX network line and at the last device physically connected in the line. A termination switch is located on each DMX module (yellow switch labeled Termination S1) to enable or disable DMX termination. This switch is factory defaulted to “On” for every module. The most common reason todisable termination is to support “touch and go” connections. “Touch and go” implies that you land DMX wiring on the input connector for the gateway and continue to another DMX device (daisy-chain). This practice is uncommon when using DMX gateways.Replacing the DMX Transceiver ChipOccasionally a DMX device can encounter an electrical surge that causes the DMX transceiver chip to fail. This DMX chip (mfg# 75LBC182 / ETC# Z1458-F) is located under the cover next to the termination switch. As needed, you can replace this DMX chip with another. It is best to remove this chip with an IC puller, if the tool is available to you.Net3 v5.1.x Menu• displays the port priority mode (either “Output”, “Input Pri ***”, where *** indicates the port is set with per-address priority,or “Input Pri 100” (where 100 is the priority value for that port). Displays either “Input” or “Output”.• displays the patch information formatted as “universe”, “universe/address”, “universe/address:length”, “universe:length”or “Custom (AIP)”.• displays the port RDM status (either “Enabled”, “Disabled”, or “Standby”). Can be enabled or disabled at thegateway only if the port is set to “Output” mode by holding the [Menu] button for 5 seconds.• displays discovery status (either “Fast”, “On”, or “Off”).• displays either “Static” or “Dynamic” IP Address. • displays the current IP address of the gateway.• displays the current Subnet Mask of the gateway.• displays the current IP address for a network router (or the gateway’s own IP address).• displays the current Trivial File Transfer Protocol (TFTP) server IP address for the gateway. The TFTP server istypically an ETC console or computer running Gateway Configuration Editor (GCE) software.• displays the version number of the software currently running on this device.• if the IP mode is set in Gateway Configuration Editor (GCE) to Static, “Switch to Dynamic IP” displays. If the IPmode is Dynamic, “Reset Dynamic IP” displays. Resetting the Dynamic IP erases the current IP from memory and requests an IP from the DHCP address service after reboot.• software is retrieved from the current TFTP update server .• restoring defaults will cause the gateway to reset all settings to the factory defaults.• DMX universe numbers up to 999 are displayed on the front panel. Universes that are higher than 999, or flexibly patchedoutputs, are indicated by “...” (you must go to the port screen to see full details).• The unit displays either the “gateway name” or the “IP Address” as well as each port and its port status.• Port Status includes: -- arrow directed toward the number indicates an input (999 ) -- arrow directed away from the number indicates an output (999 ) -- an X indicates the universe port is disabled, no universe number is shown (X) -- a dimmer doubled port displays only “DD” (you must go to the port screen to see full details) -- when a port is set to download mode, “DNLD” displays. -- AIP inputs are indicated as “AIP” -- a port will blink on the display when it does not have DMX connected (input) or has no valid source data (outputs).S 175L B C 182RDM BasicsNet3 gateway software supports Remote Device Management (RDM) protocol. By default, RDM discovery is not enabled on Net3gateways. To enable RDM on the Net3 Four-Port gateway, use ETC’s Net3 Gateway Configuration Editor (GCE) software. Please see the GCE online help files for more information on activating RDM on your Net3 gateways.About RDMRemote Device Management (RDM) is a protocol enhancement to DMX512 that allows bidirectional communication between a lighting system controller and attached RDM-compliant responder devices over a standard DMX line. This protocol allows configuration, status monitoring, and management of these devices.An RDM Controller is the device that initiates communication with one or more RDM Responder devices. Examples of responders are RDM-enabled edge devices such as color scrollers, dimmers, moving lights, and LED fixtures. RDM supports 32 RDM devices per-port, just like DMX. Compliant DMX512 and DMX512-A devices (non-RDM devices) are fully functional when RDM is present. RDM was developed by ESTA Technical Standards and can also be referenced as ANSI E1.20.DMX Front Panel Kits4260K1002 - DMX out / 4260K1003 - 2 DMX in / 2 DMX outThese kits provides front panel access to the DMX connectors on a Net3 Four-Port Gateway when installed in an equipment rack. You must use these kits in combination with one Net3 Four-Port gateway and a Rack Mount Kit (4260K1001), not included.A connector blanking plate (4260A3013) is required to cover an unused connector opening when fewer than four DMX connectors are required on the front panel.The front panel connector bracket replaces the rack mount kit blanking plate.Power Up Using DC PowerWhen using an external power supply, the gateway must be connected to a network before being powered. Using PoE and dc power simultanously is not supported.Menu StructureThe Net3 Four-Port gateway has only a one button interface. Pressing the [Menu] button repeatedly cycles through the menu, displaying mostly informational data. On certain menu items you are prompted to press and hold the [Menu] button for a period of five seconds to change a state or switch between operating modes. The Net3 menu structure is displayed below for your convenience.。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

迅时4 O 口网关配置手册
重点注意：配置纯O 口网关时，一定能要配置好固定IP 地址，并做好标签贴在网关上面，以防忘记IP 。

（目前迅时未解决纯O 网关的IP 获取请同志们务必按照上面要求来做）
一、听取IP
初次拿到讯时4 O 或8 O 口网关，可用普通电话外线插在FXO 口的任意一口上，然后用另外一部话机或手机拨打插在FXO 口上外线号码，拨通后在按两个“#”键，讯时O 口网关就会播报IP 地址。

二、服务器SIP外线设置
在JUST平台外线设置添加一条SIP 外线，如下图：
其他的设置都不用填，只需要在添加上面的信息即可。

若是有两个O 口网关，就需要添加两条SIP 外线：
三、配置讯时O 口网关
1、有第一步听取讯时O 口网关IP 后就在IE地址栏上输入所听取的IP 地址，讯时的网
关没帐号，直接输入密码小写的“mx8”（注意，讯时网关目前只支持IE浏览器，不支持火狐等其他的浏览器）
2、登陆讯时网关就会出现以下默认界面图2，IP 地址也DHCP 获取的如图1。

图1
图
2
3
、点击右边菜单下面的SIP
配置如下图
在注册服务器和代理服务器上填上我们JUST 平台地址，后面带上5060端口
注意：在注册方式上选择按线路注册，注册时间默认是180秒
4、在高级配置下媒体流配置如图，
注册服务器和代理服
务器都填上平台地址
RTP 端口配置最小是10000 最大是20000 迅时默认值是100010- 100020
5、在基本设置下面系统配置
注意：凡是带O 口的网关，或O 口网关，在这里必需选择RFC 2833,如果用其他的传输模式那么就导致无法转接。

RFC2833 负责类型默认值是100，但对我们系统支持比较好的值是101 。

首位不拨号时间：摘机后过了多久没有拨号网关就发出忙音提示已放弃本次拨号。

位间不拨号时间：摘机后拨前一个号和后一个号之间的间隔时间，默认时间是两个拨号的时间12秒
拨号结束: 号码拨完了后过多久没拨号网关就会认为此次拨号已结束，会把号码送出
编解码：网关默认有以上这么多编码，根据以上编码来匹配我们系统的编码只到找到匹配何时的编码位置
6、在页面顶部菜单上点击
（1）、直接呼入模式配置绑定号码_x.
线路配置，在下步菜单选择中继线功能如图
*在外线号码上填上现在在JUST平台配置JCC 线路注册密码也是JCC ，就可与平台的帐号密码都对应，FXO-1 到FXO-4 外线号和注册密码都用同一个帐号和密码（JCC）
*注意接入方式要选择绑定，绑定号码填_x.
这种模式是客户打电话进来直接送到我们系统中来匹配任何呼入规则。

（2）、模拟DID呼入方式（自己起的名字暂且这么叫吧）
用途: 若客户需要每条外线指定不同分机或队列来接听的设置。

配置如下：
①在4O 口网关上，每条外线配置一个SIP帐号(SIP帐号不能查过3位数)。

②在JUST平台呼入规则配置一条模拟DID的呼入规则，DID项填101（可随便填）设
定接听对象根据要求来设定好。

③在4O 口网关配置外线，绑定号码填上JUST平台的配置模拟DID号码如上面所说。

（3）然后在系统内的呼入规则里面按照设置数字线的DID设置就可以，也就是在DID里面输入上面的绑定号码，然后下面设定接听对象，这样就可以实现单独的通道控制。

7、在菜单中点击
在选择中继线特性默认设置如图2
注意网关设置可按上面参数进行默认设置。

常用参数说明
往 IP 增益：设置向IP侧发送的信号增益（如果觉得自己听到客户的声音小就可以上调几个分贝，设置范围为-3 ~ +9分贝）
往PSTN增益：设置向PSTN侧发送的信号增益（如果客户说听到声音小的话就可以上调几个分贝）来显和振铃检测模式：检测模式一：振铃前检测来显off，整形后检测振铃on
检测模式二：振铃前检测来显on，整形后检测振铃on
检测模式三：振铃前检测来显on，整形后检测振铃off
检测模式四：振铃前检测来显off，整形后检测振铃off
和迅时确认后对来显检测模式做如下补充说明:
1、来显的四种模式都是同时支持FSK和DTMF的制式的
2、关于整形后检测振铃的补充说明：整形后检测振铃对于我们老的O口硬件来说，是不可
调的，默认都是off，这样就发现，O口有时候会有莫明其妙的检测到ring，所以新的O
口硬件，为了解决这个问题，将这个变成可选项，一般情况下，我们都会选择整形后检测
振铃为on，主要是针对ring的。

但是发现把整形后检测振铃设置为on以后，特别是O口
线路是振铃前送来显时，会因为ring的关系而检测不到CID，所以这个时候就会考虑把整
形后检测振铃off掉
3、一般建议使用检测模式一和模式二，主要是因为把整形后检测振铃打开了以后，可以杜
绝因为O口因为一些干扰问题导致的O口会莫明其妙的检测到ring，但是有时候特别是
CID是振铃前送的时候，可能会由于把整形后检测振铃打开了，而导致网关检测不到CID，
这个时候就要考虑把整形后检测振铃关闭掉测试
8、去掉网关设置的功能键，用我们系统设置的功能键，要不然会有冲突
高级配置-----功能键
将里面有的功能键全部删掉。

9、拨号几路由设置
在菜单栏中点击拨号及路由，选路由表。

选
因为是4 O 口网关，可在路由表填入以下路由规则。

如果是8O口，则路由表配置IP X ROUTE FXO 1-8
IP：这里是这我们的呼叫系统，IP X ROUTE FXO 1-8
这条路由的含义是：从我们的呼叫系统过来的任何号码都从FX0 1 到8 口呼出的。

需注意的是，迅时网关目前不支持一条外线注册一个SIP外线，然后通过呼出规则来按照要求实现从FXO的那个口呼出，以上结论是测试得出的。

这点还需要迅时做开发。

四、在JUST平台上设置呼出规则。

在配置好了其他的规则后，在JUST平台上配置呼出规则呼出通道就选择送JCC 呼出。

如图
若有多个O 口网关，多个SIP 外线，可按顺序来排列SIP 外线。
