MOS功率与选型

品牌：美国的IR，型号前缀IRF；日本的TOSHIBA；NXP，ST（意法），NS（国半），UTC，仙童，Vishay。

MOS管选型指南.xls关于MOS选型第一步：选用N沟道还是P沟道低压侧开关选N-MOS，高压侧开关选P-MOS根据电路要求选择确定VDS，VDS要大于干线电压或总线电压。

这样才能提供足够的保护，使MOS管不会失效。

第二步：确定额定电流额定电流应是负载在所有情况下能够承受的最大电流。

与电压的情况相似，设计人员必须确保所选的MOS管能承受这个额定电流，即使在系统产生尖峰电流时。

MOS管并不是理想的器件，因为在导电过程中会有电能损耗，这称之为导通损耗。

MOS 管在“导通”时就像一个可变电阻，由器件的RDS（ON）所确定，并随温度而显著变化。

器件的功率耗损可由Iload2×RDS（ON）计算，由于导通电阻随温度变化，因此功率耗损也会随之按比例变化。

对MOS管施加的电压VGS越高，RDS（ON）就会越小；反之RD S（ON）就会越高。

第三步：确定热要求器件的结温等于最大环境温度加上热阻与功率耗散的乘积（结温=最大环境温度+［热阻×功率耗散］）。

根据这个方程可解出系统的最大功率耗散，即按定义相等于I2×RDS（ON）。

第四步：决定开关性能选择MOS管的最后一步是决定MOS管的开关性能。

影响开关性能的参数有很多，但最重要的是栅极/漏极、栅极/源极及漏极/源极电容。

这些电容会在器件中产生开关损耗，因为在每次开关时都要对它们充电。

MOS管的开关速度因此被降低，器件效率也下降。

详细的MOS管的选型可以参考资料3MOS管正确选择的步骤正确选择MOS管是很重要的一个环节，MOS管选择不好有可能影响到整个电路的效率和成本，了解不同的MOS管部件的细微差别及不同开关电路中的应力能够帮助工程师避免诸多问题，下面我们来学习下MOS管的正确的选择方法。

第一步：选用N沟道还是P沟道为设计选择正确器件的第一步是决定采用N沟道还是P沟道MOS管。

IR公司_大功率MOS管选型

I DContinuous Drain Current(A)70°Micro3Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPartNumberPD Max.PowerDissipation (W)N-ChannelLogic LevelIRLML2402*912570.54200.25 1.20.95230H1IRLML2803912580.54300.251.20.93230P-ChannelLogic LevelIRLML6302*912590.54-200.6-0.62-4.8230H1IRLML5103912600.54-300.6-0.61-4.8230* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)70°Micro6Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPartNumberPD Max.PowerDissipation (W)N-ChannelLogic LevelIRLMS1902915401.7200.10 3.2 2.675H2IRLMS1503915081.7300.103.22.675P-ChannelLogic LevelIRLMS6702*914141.7-200.20-2.3-1.975H2IRLMS5703914131.7-300.20-2.3-1.975* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)70°Micro8Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart NumberP D Max.PowerDissipation (W)N-Channel Logic LevelIRF7601* 912611.820 0.035 5.7 4.6 70 H3IRF7603 912621.830 0.035 5.6 4.5 70Dual N-Channel Logic LevelIRF7501* 912651.220 0.135 2.4 1.9 100 H3IRF7503 912661.2530 0.135 2.4 1.9 100P-Channel Logic LevelIRF7604* 912631.8-20 0.09 -3.6 -2.9 70 H3IRF7606 912641.8-30 0.09 -3.6 -2.9 70Dual P-Channel Logic LevelIRF7504* 912671.25-20 0.27 -1.7 -1.4 100 H3IRF7506 912681.25-30 0.27 -1.7 -1.4 100Dual N- and P-Channel Logic LevelIRF7507* 912691.2520 0.1352.4 1.9 100 H3-20 0.27 -1.7 -1.4IRF7509 912701.2530 0.135 2.4 1.9 100-30 0.27 -1.7 -1.4* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-Pak D -PakSOT-227Micro6SOT-223Micro8 2 Illustrations not to scaleI DContinuous Drain Current(A)70°SO-8Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRF7413913302.5300.011139.250H4IRF7413A 916132.5300.0135128.450IRF9410915622.5300.0375.850Dual N-ChannelIRF7311914352.0200.029 6.6 5.362.5H4IRF7313914802.0300.029 6.5 5.262.5IRF7333917002.0300.10 3.5 2.862.5917002.0300.050 4.9 3.962.5IRF9956915592.0300.103.52.862.5Dual P-ChannelIRF7314914352.0-200.058-5.3-4.362.5H4IRF7316915052.0-300.058-4.9-3.962.5IRF9953915602.0-300.25-2.3-1.862.5* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)70°SO-8Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)RΘMax.ThermalResistance(°C/W)1FaxonDemand Number Case Outline KeyPart NumberP D Max.PowerDissipation (W)Dual N- and P-ChannelIRF7317 915682.020 0.029 6.6 5.3 62.5 H42.0-20 0.058 -5.3 -4.3 62.5IRF9952 915622.030 0.103.5 2.8 62.5915622.0-30 0.25 -2.3 -1.8 62.5IRF7319 916062.030 0.029 6.5 5.2 62.52.0-30 0.058 -4.9 -3.9 62.5* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-Pak D -PakSOT-227Micro6SOT-223Micro8 2 Illustrations not to scaleI DContinuous Drain Current(A)70°SO-8Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelLogic LevelIRF7401912442.5200.0228.77.050H4IRF7201911002.5300.0307.0 5.650IRF7403912452.5300.0228.55.450Dual N-ChannelLogic LevelIRF7101908712.0200.10 3.5 2.362.5H4IRF7301912382.0200.050 5.2 4.162.5IRF7303912392.0300.050 4.9 3.962.5IRF7103910952.0500.1303.02.362.5P-ChannelLogic LevelIRF7204911032.5-200.060-5.3-4.250H4IRF7404912462.5-200.040-6.7-5.450IRF7205911042.5-300.070-4.6-3.750IRF7406912472.5-300.045-5.8-3.750IRF7416913562.5-300.02-10-7.150* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)70°SO-8Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)Dual P-ChannelLogic LevelIRF7104910962.0-200.250-2.3-1.862.5H4IRF7304912402.0-200.090-4.3-3.462.5IRF7306912412.0-300.10-3.6-2.962.5Dual N- and P-Channe Logic LevelIRF7307912421.4200.050 4.3 3.490H4-200.090-3.6-2.9IRF7105910972.0250.1093.5 2.862.52-250.25-2.3-1.862IRF7309912432.0300.050 4.9 3.962.5-300.10-3.6-2.9* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)70°SOT-223Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRFL4105913812.1550.045 3.7 3.060H6IRFL110908612.01000.54 1.50.9660IRFL4310913682.11000.20 1.6 1.360IRFL21090868 2.02001.50.960.660IRFL214908622.02502.00.790.560P-ChannelIRFL9110908642.0-1001.2-1.1-0.6960H6N-ChannelLogic LevelIRLL3303913792.1300.031 4.6 3.760H6IRLL014N 914992.1550.14 2.0 1.660IRLL2705913802.1550.043.83.060* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)100°D-PakSurface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRFR33039164257300.0313321 2.2H7IRFR024N9133638550.0751610 3.3IRFR41059130248550.0452516 2.7IRFR12059131869550.0273723 1.8IRFR11090524251000.54 4.3 2.75IRFR120N 91365391000.219.1 5.8 3.2IRFR391091364521000.11159.5 2.4IRFR2109052625200 1.5 2.6 1.75IRFR22090525422000.8 4.833IRFR21490703252502 2.2 1.45IRFR2249060042250 1.1 3.8 2.43IRFR3109059725400 3.6 1.7 1.15IRFR3209059842400 1.8 3.123IRFR42090599425003 2.4 1.53IRFRC2090637426004.421.33* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)100°D-PakSurface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)P-ChannelIRFR55059161057-550.11-18-11 2.2H7IRFR53059140289-550.065-28-18 1.4IRFR90149065425-600.5-5.1-3.25IRFR90249065542-600.28-8.8-5.63IRFR91109051925-100 1.2-3.1-25IRFR91209052042-1000.6-5.6-3.63IRFR9120N 9150739-1000.48-6.5-4.1 3.2IRFR92109052125-2003-1.9-1.25IRFR92209052242-200 1.5-3.6-2.33IRFR92149165850-250 3.0-2.7-1.7 2.5IRFR93109166350-4007.0-1.8-1.12.5* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)100°D-PakSurface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelLogic LevelIRLR27039133538300.0452214 3.3H7IRLR33039131657300.0313321 2.2IRLR31039133369300.0194629 1.8IRLR024N 9136338550.0651711 3.3IRLR27059131746550.042415 2.7IRLR29059133469550.0273623 1.8IRLR120N 91541391000.18511 6.9 3.2IRLR341091607521000.10159.52.4* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)100°D 2PakSurface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart NumberP D Max.PowerDissipation (W)N-ChannelIRFZ24NS 913554555 0.07 17 12 3.3 H10IRFZ34NS 913116855 0.04 29 20 2.2IRFZ44NS 9131511055 0.022 49 35 1.4IRFZ46NS 9130512055 0.020 53 37 1.3IRFZ48NS 9140814055 0.016 64 45 1.1IRF1010NS 913723.855 0.011 84 60 40IRF3205S 9130420055 0.008 110 80 0.75IRFZ44ES 9171411060 0.023 48 34 1.4IRF1010ES 9172017060 0.012 83 59 0.90IRF2807S 9151815075 0.013 71 50 1.0IRF520NS 9134047100 0.2 9.5 6.7 3.2IRF530NS 9135263100 0.11 15 11 2.4IRF540NS 91342110100 0.052 27 19 1.6IRF1310NS 91514120100 0.036 36 25 1.3IRF3710S 91310150100 0.028 46 33 1.0IRF3315S 9161794150 0.082 21 15 1.6IRF3415S 91509150150 0.042 37 26 1.0IRFBC20S 9.101450600 4.4 2.2 1.4 2.5IRFBC30S 9101574600 2.2 3.6 2.3 1.7IRFBC40S 91016130600 1.2 6.2 3.9 1.0* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-Pak D -PakSOT-227Micro6SOT-223Micro8 2 Illustrations not to scaleI DContinuous Drain Current(A)100°D 2PakSurface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemandNumberCase Outline KeyPart NumberP D Max.PowerDissipation (W)IRFBF20S 9166554900 8.0 1.7 1.1 2.3 H10P-ChannelIRF5305S 91386110-55 0.06 -31 -22 1.4 H10IRF4905S 914783.8-55 0.02 -74 -52 40IRF9520NS 9152247-100 0.48 -6.7 -4.8 3.2IRF9530NS 9152375-100 0.20 -14 -9.9 2.0IRF9540NS 9148394-100 0.117 -19 -13 1.6IRF5210S 91405150-100 0.06 -35 -25 1.0* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-Pak D -PakSOT-227Micro6SOT-223Micro8 2 Illustrations not to scaleI DContinuous Drain Current(A)100°D 2PakSurface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart NumberP D Max.PowerDissipation (W)N-Channel Logic LevelIRL3302S 916925720 0.020 39 25 2.2 H10IRL3202S916756920 0.016 48 30 1.8IRL3102S 916918920 0.013 61 39 1.4IRL3402S 9169311020 0.01 85 54 1.1IRL3502S 9167614020 0.007 110 67 0.89IRL2703S 913604530 0.04 24 17 3.3IRL3303S 913236830 0.026 38 27 2.2IRL3103S 9133811030 0.014 64 45 1.4IRL2203NS 9136717030 0.007 116 82 0.90IRL3803S 9131920030 0.006 140 98 0.75IRLZ24NS 913584555 0.06 18 13 3.3IRLZ34NS 913086855 0.035 30 21 2.2IRLZ44NS 9134711055 0.022 47 33 1.4IRL3705NS 9150217055 0.01 89 63 0.90IRL2505S 9132620055 0.008 104 74 0.75IRLZ44S 9090615060 0.028 50 36 1.0IRL530NS 9134963100 0.1 15 11 2.4IRL2910S 91376150100 0.026 48 34 1.0* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-Pak D -PakSOT-227Micro6SOT-223Micro8 2 Illustrations not to scaleI DContinuous Drain Current(A)100°SOT-227Surface Mount PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous DrainCurrent 25°C(A)RΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelFully Isolated Low ChargeFA38SA50LC 916155005000.1338240.25H21FA57SA50LC916506255000.0857360.20* Indicates low VGS(th), which can operate at VGS = 2.7VMeasured at ambient for Micro3, Micro6, Micro8, SO-8, and SOT-223 package styles. All others measured at case.1Micro3SO-8D-PakD -PakSOT-227Micro6SOT-223Micro82 Illustrations not to scaleI DContinuous Drain Current(A)100°I-PakThrough-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRFU33039164257300.0313321 2.2H8IRFU024N 9133638550.0751610 3.3IRFU41059130248550.0452519 2.7IRFU12059131869550.0273723 1.8IRFU11090524251000.54 4.3 2.7 5.0IRFU120N 91365391000.219.1 5.8 3.2IRFU391091364521000.11159.5 2.4IRFU2109052625200 1.5 2.6 1.7 5.0IRFU22090525422000.80 4.8 3.0 3.0IRFU2149070325250 2.0 2.2 1.4 5.0IRFU2249060042250 1.1 3.8 2.4 3.0IRFU3109059725400 3.6 1.7 1.1 5.0IRFU3209059842400 1.8 3.1 2.0 3.0IRFU4209059942500 3.0 2.4 1.5 3.0IRFUC2090637426004.42.01.33.0I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°I-PakThrough-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)P-ChannelIRFU55059161057-550.11-18-11 2.2H8IRFU53059140289-550.065-28-18 1.4IRFU90149065425-600.50-5.1-3.2 5.0IRFU90249065542-600.28-8.8-5.6 3.0IRFU91109051925-100 1.2-3.1-2.0 5.0IRFU91209052042-1000.60-5.6-3.6 3.0IRFU9120N 9150739-1000.48-6.5-4.1 3.2IRFU92109052125-200 3.0-1.9-1.2 5.0IRFU92209052242-200 1.5-3.6-2.3 3.0IRFU92149165850-2503.0-2.7-1.7 2.5IRFU93109166350-4007.0-1.8-1.12.5N-ChannelLogic LevelIRLU27039133538300.0452214 3.3H8IRLU33039131657300.0313321 2.2IRLU31039133369300.0194629 1.8IRLU024N 9136338550.0651711 3.3IRLU27059131746550.04241715IRLU29059133469550.0273623 1.8IRLU120N 91541391000.18511 6.9 3.2IRLU341091607521000.10159.52.4I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°HEXDIPThrough-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRFD014907001.3600.2 1.7 1.2120H9IRFD024906991.3600.1 2.5 1.8120IRFD110903281.31000.54 1.00.71120IRFD120903851.31000.27 1.30.94120IRFD210903861.3200 1.50.60.38120IRFD220904171.32000.80.80.50120IRFD214912711.3250 2.00.570.32120IRFD224912721.3250 1.10.760.43120IRFD310912251.3400 3.60.420.23120IRFD320912261.3400 1.80.600.33120IRFD420912271.3500 3.00.460.26120IRFDC20912281.36004.40.320.21120I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI D Continuous Drain Current (A)100°TO-220Qg TotalGate Charge(nC)Through-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C (A)R ΘMax.Thermal Resistance(°C/W)1Faxon Demand Number Case OutlineKeyPart Number P D Max.Power Dissipation (W)N-ChannelLow ChargeIRF737LC91314743000.75 6.1** 1.7 3.9H11IRF740LC 910681254000.5510** 1.039IRF840LC 910691255000.858.0** 1.039IRFBC40LC910701256001.26.2**1.039I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°TO-220ABThrough-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRFZ24N 9135445550.071712 3.3H12IRFZ34N9127656550.042618 2.7IRFZ44N 9130383550.0244129 1.8IRFZ46N 9127788550.024633 1.7IRFZ48N 9140694550.0165337 1.6IRF1010N 91278130550.0127251 1.2IRF320591279150550.0089869 1.0IRFZ34E 9167268600.0422820 2.2IRFZ44E 91671110600.0234834 1.4IRF1010E 91670170600.01281570.90IRF280791517150750.0137150 1.0IRF520N 91339471000.209.5 6.79.5IRF530N 91351601000.111511 2.4IRF540N 91341941000.0522719 1.6IRF1310N 916111201000.0363625 1.3IRF3710913091501000.0284633 1.0IRF331591623941500.0822115 1.6IRF3415914771501500.0423726 1.0IRFBC209062350600 4.4 2.2 1.4 2.5IRFBC309048274600 2.2 3.6 2.3 1.7IRFBC4090506125600 1.2 6.2 3.9 1.0IRFBE2090610548006.51.81.22.3I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°TO-220ABThrough-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)IRFBE3090613125800 3.0 4.1 2.6 2.0H12IRFBF3090616125900 3.7 3.6 2.3 1.0IRFBG209060454100011 1.40.86 2.3IRFBG309062012510005.03.12.01.0P-ChannelIRF9Z24N 9148445-550.175-12-8.53.3H12IRF9Z34N 9148556-550.10-17-12 2.7IRF530591385110-550.06-31-22 1.4IRF490591280150-550.02-64-45 1.0IRF9530N 9148275-1000.20-13-9.2 2.0IRF9540N 9143794-1000.117-19-13 1.6IRF521091434150-1000.06-35-25 1.0IRF62159147983-1500.29-11-7.81.8I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°TO-220ABThrough-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart NumberP D Max.PowerDissipation (W)N-Channel Logic LevelIRL3302 916965720 0.020 39 25 2.2 H12IRL3202 916956920 0.016 48 30 1.8IRL3102 916948920 0.013 61 39 1.4IRL3402 9169711020 0.01 85 54 1.1IRL3502 9169814020 0.007 110 67 0.89IRL2703 913594530 0.04 24 17 3.3IRL3303 913225630 0.026 34 24 2.7IRL3103 913378330 0.014 56 40 1.8IRL2203N 9136613030 0.007 100 71 1.230 0.007 61 43 3.2IRL3803 9130115030 0.006 120 83 1.0IRLZ24N 913574555 0.06 18 13 3.3IRLZ34N 913075655 0.035 27 19 2.7IRLZ44N 913468355 0.022 41 29 1.8IRL3705N 9137013055 0.01 77 54 1.2IRL2505 9132520055 0.008 104 74 0.75IRL520N 9149447100 0.18 10 7.1 3.2IRL530N 9134863100 0.10 15 11 2.4IRL540N 9149594100 0.044 30 21 1.6IRL2910 91375150100 0.026 48 34 1.0I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI D Continuous Drain Current (A)100°TO-220 FullPak (Fully Isolated)Qg TotalGate Charge(nC)Through-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous DrainCurrent 25°C(A)R ΘMax.Thermal Resistance (°C/W)1Fax on Demand Number Case OutlineKeyPart Number P D Max.Power Dissipation (W)N-ChannelLow ChargeIRFI740GLC91209404000.55 6.0** 3.139H13IRFI840GLC 91208405000.85 4.8** 3.139IRFIBC40GLC91211406001.24.0**3.139I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°TO-220 FullPak (Fully Isolated)Through-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelIRFIZ24N 9150126550.07139.2 5.8H14IRFIZ34N9148931550.041913 4.8IRFIZ44N 9140338550.02428200.024IRFIZ46N 9130640550.023122 3.8IRFIZ48N 9140742550.0163625 3.6IRFI1010N 9137347550.0124431 3.2IRFI32059137448550.0085640 3.1IRFIZ24E 9167329600.071149.6 5.2IRFIZ34E 9167437600.0422115 4.1IRFI510G 90829271000.54 4.5 3.2 5.5IRFI520N 91362271000.207.2 5.1 5.5IRFI530N 91353331000.11117.8 4.5IRFI540N 91361421000.0521813 3.6IRFI1310N 91611451000.0362216 3.3IRFI371091387481000.0252820 3.1IRFI620G 90832302000.8 4.1 2.6 4.1IRFI630G 90652322000.4 5.9 3.7 3.6IRFI640G 90649402000.189.8 6.2 3.1IRFI614G 9083123250 2.0 2.1 1.3 5.5IRFI624G 9083330250 1.1 3.4 2.2 4.1IRFI634G 90738322500.45 5.6 3.5 3.6IRFI644G 90739402500.287.953.1I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°TO-220 FullPak (Fully Isolated)Through-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)IRFI720G 9083430400 1.8 2.6 1.7 4.1H14IRFI730G 9065032400 1.0 3.7 2.3 3.6IRFI740G 90651404000.55 5.4 3.4 3.1IRFI734G 9100135450 1.2 3.4 2.1 3.6IRFI744G 91002404500.63 4.9 3.1 3.1IRFI820G 9064130500 3.0 2.1 1.3 4.1IRFI830G 9064632500 1.5 3.12 3.6IRFI840G 90642405000.85 4.6 2.9 3.1IRFIBC20G 90850306004.41.71.1 4.1IRFIBC30G 90851356002.2 2.5 1.63.6IRFIBC40G 9085240600 1.2 3.5 2.2 3.1IRFIBE20G 9085330800 6.5 1.4.86 4.1IRFIBE30G 9085435800 3.0 2.1 1.4 3.6IRFIBF20G 90855309008.0 1.2.79 4.1IRFIBF30G90856359003.71.91.23.6P-ChannelIRFI9Z24N 9152929-550.175-9.5-6.7 5.2H14IRFI9Z34N 9153037-550.10-14-10 4.1IRFI49059152663-550.02-41-29 2.4IRFI9540G 9083742-1000.117-13-9.2 3.6IRFI9540N 9148742-1000.117-13-9.2 3.6IRFI52109140448-1000.06-20-14 3.1IRFI9634G 9148835-2501.0-4.1-2.63.6I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI DContinuous Drain Current(A)100°TO-220 FullPak (Fully Isolated)Through-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C(A)R ΘMax.Thermal Resistance (°C/W)1FaxonDemand Number Case Outline KeyPart Number P D Max.PowerDissipation (W)N-ChannelLogic LevelIRLI2203N 9137847300.0076143 3.2H14IRLI38039132048300.0066747 3.1IRLIZ24N 9134426550.06149.9 5.8IRLIZ34N 9132931550.0352014 4.8IRLIZ44N 9149838550.0222820 4.0IRLI3705N 9136947550.014733 3.2IRLI25059132763550.00858412.4IRLI520N 91496271000.187.7 5.4 5.5IRLI530N 91350331000.10117.8 4.5IRLI540N 91497421000.04420143.6IRLI291091384481000.02627193.1P-ChannelLogic LevelIRFI9520G 9083537-1000.6-5.2-3.6 4.1H14IRFI9530G 9083638-1000.03-7.7-5.4 3.6IRFI9620G 9087430-200 1.5-3.0-1.9 4.1IRFI9630G 9083840-2000.8-4.3-2.7 3.6IRFI9640G9083940-2000.5-6.1-3.93.1I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not ratedI D Continuous Drain Current (A)100°TO-247Qg TotalGate Charge(nC)Through-Hole PackagesV (BR)DSSDrain-to-Source Breakdown Voltage (V)R DS(on)On-State Resistance ()ΩI D Continuous Drain Current 25°C (A)R ΘMax.Thermal Resistance (°C/W)1Fax on Demand Number Case OutlineKeyPart Number P D Max.Power Dissipation (W)1N-ChannelLow ChargeIRFP350LC912291904000.3018**0.6570H16IRFP360LC 912302804000.2023**0.4598IRFP450LC 912311905000.4016**0.6570IRFP460LC 912322805000.2720**0.4598IRFPC50LC 912331906000.6013**0.6570IRFPC60LC912342806000.4016**0.4598I-PakTO-220 FullPakTO-262TO-247HEXDIPTO-220AB Illustrations not to scale** Not rated。

七步掌握MOS管选型技巧

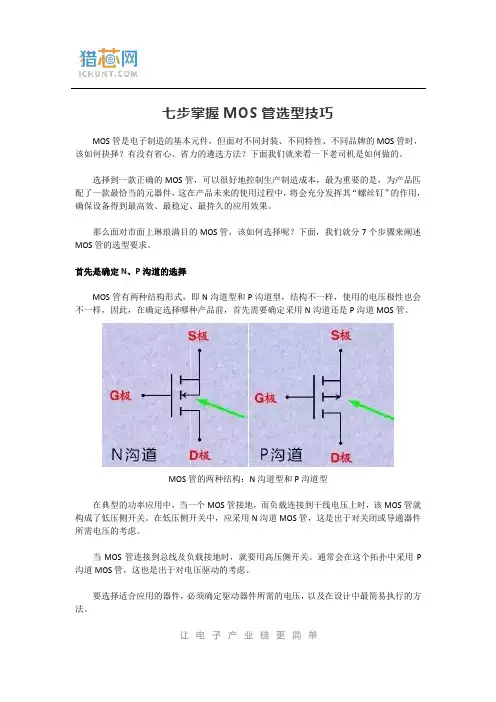

七步掌握MOS管选型技巧MOS管是电子制造的基本元件，但面对不同封装、不同特性、不同品牌的MOS管时，该如何抉择？有没有省心、省力的遴选方法？下面我们就来看一下老司机是如何做的。

选择到一款正确的MOS管，可以很好地控制生产制造成本，最为重要的是，为产品匹配了一款最恰当的元器件，这在产品未来的使用过程中，将会充分发挥其“螺丝钉”的作用，确保设备得到最高效、最稳定、最持久的应用效果。

那么面对市面上琳琅满目的MOS管，该如何选择呢？下面，我们就分7个步骤来阐述MOS管的选型要求。

首先是确定N、P沟道的选择MOS管有两种结构形式，即N沟道型和P沟道型，结构不一样，使用的电压极性也会不一样，因此，在确定选择哪种产品前，首先需要确定采用N沟道还是P沟道MOS管。

MOS管的两种结构：N沟道型和P沟道型在典型的功率应用中，当一个MOS管接地，而负载连接到干线电压上时，该MOS管就构成了低压侧开关。

在低压侧开关中，应采用N沟道MOS管，这是出于对关闭或导通器件所需电压的考虑。

当MOS管连接到总线及负载接地时，就要用高压侧开关。

通常会在这个拓扑中采用P 沟道MOS管，这也是出于对电压驱动的考虑。

要选择适合应用的器件，必须确定驱动器件所需的电压，以及在设计中最简易执行的方法。

第二步是确定电压额定电压越大，器件的成本就越高。

从成本角度考虑，还需要确定所需的额定电压，即器件所能承受的最大电压。

根据实践经验，额定电压应当大于干线电压或总线电压，一般会留出1.2~1.5倍的电压余量，这样才能提供足够的保护，使MOS管不会失效。

就选择MOS管而言，必须确定漏极至源极间可能承受的最大电压，即最大VDS。

由于MOS管所能承受的最大电压会随温度变化而变化，设计人员必须在整个工作温度范围内测试电压的变化范围。

额定电压必须有足够的余量覆盖这个变化范围，确保电路不会失效。

此外，设计工程师还需要考虑其他安全因素：如由开关电子设备(常见有电机或变压器)诱发的电压瞬变。

MOS管选型

MOS管选‎型最近在‎推MOS管‎的过程中，‎遇到一些问‎题，最主要‎的是一个品‎牌替换参数‎的对应问题‎，很多时候‎我们只关注‎了电流电压‎满足要求，‎性能上的比‎较我们很少‎做比较，特‎从网上摘录‎此文，供大‎家参考：‎与系统相关‎的重要参数‎：在M‎O S管选择‎方面，系统‎要求相关的‎几个重要参‎数是：‎1．负‎载电流IL‎。

它直接决‎定于MOS‎F ET的输‎出能力；‎2．‎输入—输出‎电压。

它受‎M OSFE‎T负载占空‎比能力限制‎；3．‎开关频‎率FS。

这‎个参数影响‎M OSFE‎T开关瞬间‎的耗散功率‎；4．‎ MOS‎F ET最大‎允许工作温‎度。

这要满‎足系统指定‎的可靠性目‎标。

‎MOSF‎E T设计选‎择：一‎旦系统的工‎作条件（负‎载电流，开‎关频率，输‎出电压等）‎被确定，功‎率MOSF‎E T在参数‎方面的选择‎如下：‎1 RDS‎O N的值。

‎最低的导通‎电阻，可以‎减小损耗，‎并让系统较‎好的工作。

‎但是，较低‎电阻的MO‎S FET其‎成本将高于‎较高电阻器‎件。

2‎散热。

如‎果空间足够‎大，可以起‎到外部散热‎效果，就可‎以以较低成‎本获得与较‎低RDSO‎N一样的效‎果。

也可以‎使用表面贴‎装的MOS‎F ET达到‎同样效果，‎详见下文第‎15行。

‎3 MO‎S FET组‎合。

如果板‎上空间允许‎，有时候，‎可以用两个‎较高RDS‎O N的器件‎并联，以获‎得相同的工‎作温度，并‎且成本较低‎。

‎计算MOS‎F ET的功‎率损耗及其‎壳温：‎在MOSF‎E T工作状‎态下，有三‎部分功率损‎耗：1‎． MO‎S FET在‎完全打开以‎后（可变电‎阻区）的功‎率损耗：‎PON=‎I Load‎2 × R‎D SON ‎×占空比‎ILoa‎d为最大直‎流输出电流‎。

2．‎ MOS‎F ET在打‎开上升时功‎率损耗：‎PTRO‎N= （I‎L oad ‎× VDS‎× Tr‎×FS）‎/ 2‎其中：。

mos管选择方法及计算

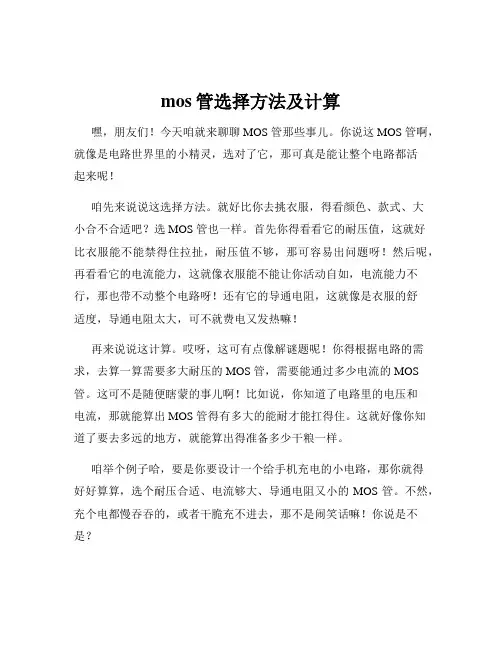

mos管选择方法及计算嘿，朋友们！今天咱就来聊聊 MOS 管那些事儿。

你说这 MOS 管啊，就像是电路世界里的小精灵，选对了它，那可真是能让整个电路都活起来呢！咱先来说说这选择方法。

就好比你去挑衣服，得看颜色、款式、大小合不合适吧？选 MOS 管也一样。

首先你得看看它的耐压值，这就好比衣服能不能禁得住拉扯，耐压值不够，那可容易出问题呀！然后呢，再看看它的电流能力，这就像衣服能不能让你活动自如，电流能力不行，那也带不动整个电路呀！还有它的导通电阻，这就像是衣服的舒适度，导通电阻太大，可不就费电又发热嘛！再来说说这计算。

哎呀，这可有点像解谜题呢！你得根据电路的需求，去算一算需要多大耐压的 MOS 管，需要能通过多少电流的 MOS 管。

这可不是随便瞎蒙的事儿啊！比如说，你知道了电路里的电压和电流，那就能算出 MOS 管得有多大的能耐才能扛得住。

这就好像你知道了要去多远的地方，就能算出得准备多少干粮一样。

咱举个例子哈，要是你要设计一个给手机充电的小电路，那你就得好好算算，选个耐压合适、电流够大、导通电阻又小的 MOS 管。

不然，充个电都慢吞吞的，或者干脆充不进去，那不是闹笑话嘛！你说是不是？还有啊，不同类型的 MOS 管也有不同的特点呢！就像不同款式的衣服适合不同的场合一样。

有的 MOS 管开关速度快，适合高频电路；有的 MOS 管导通电阻小，适合大电流场合。

你得根据你的实际需求来选呀，可不能瞎凑合。

这选 MOS 管啊，真的得细心再细心，就跟挑对象似的，得找个合适的才行呢！要是不小心选错了，那可就麻烦啦，电路可能就罢工咯！所以啊，大家可得好好研究研究这 MOS 管的选择方法和计算，可别马虎呀！总之呢，MOS 管的选择和计算可不是一件简单的事儿，但只要咱用心去琢磨，肯定能选出最合适的那个“小精灵”，让咱的电路变得超级厉害！加油吧，朋友们！让我们在电路的世界里畅游，和这些可爱的 MOS 管一起创造出更多的精彩！。

常用MOS管型号参数

场效应管分‎类型号‎简介封装‎DISC‎R ETE‎M OS F‎E T 2N‎7000 ‎60V,0‎.115A‎TO-9‎2 DIS‎C RETE‎MOS ‎F ET 2‎N7002‎60V,‎0.2A ‎S OT-2‎3 DIS‎C RETE‎MOS ‎F ET I‎R F510‎A 100‎V,5.6‎A TO-‎220 D‎I SCRE‎T EMO‎S FET‎IRF5‎20A 1‎00V,9‎.2A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F530A‎100V‎,14A ‎T O-22‎0 DIS‎C RETE‎MOS ‎F ET I‎R F540‎A 100‎V,28A‎TO-2‎20 DI‎S CRET‎EMOS‎FET ‎I RF61‎0A 20‎0V,3.‎3A TO‎-220 ‎D ISCR‎E TEM‎O S FE‎T IRF‎620A ‎200V,‎5A TO‎-220 ‎D ISCR‎E TEM‎O S FE‎T IRF‎630A ‎200V,‎9A TO‎-220 ‎D ISCR‎E TEM‎O S FE‎T IRF‎634A ‎250V,‎8.1A ‎T O-22‎0 DIS‎C RETE‎MOS ‎F ET I‎R F640‎A 200‎V,18A‎TO-2‎20 DI‎S CRET‎EMOS‎FET ‎I RF64‎4A 25‎0V,14‎A TO-‎220 D‎I SCRE‎T EMO‎S FET‎IRF6‎50A 2‎00V,2‎8A TO‎-220 ‎D ISCR‎E TEM‎O S FE‎T IRF‎654A ‎250V,‎21A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F720A‎400V‎,3.3A‎TO-2‎20 DI‎S CRET‎EMOS‎FET ‎I RF73‎0A 40‎0V,5.‎5A TO‎-220 ‎D ISCR‎E TEM‎O S FE‎T IRF‎740A ‎400V,‎10A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F750A‎400V‎,15A ‎T O-22‎0 DIS‎C RETE‎MOS ‎F ET I‎R F820‎A 500‎V,2.5‎A TO-‎220 D‎I SCRE‎T EMO‎S FET‎IRF8‎30A 5‎00V,4‎.5A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F840A‎500V‎,8A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F9520‎-100‎V,-6A‎TO-2‎20 DI‎S CRET‎EDISC‎R ETE‎M OS F‎E T IR‎F9610‎-200‎V,-1.‎8A TO‎-220 ‎D ISCR‎E TEM‎O S FE‎T IRF‎9620 ‎-200V‎,-3.5‎A TO-‎220 D‎I SCRE‎T EMO‎S FET‎IRFP‎150A ‎100V,‎43A T‎O-3P‎D ISCR‎E TEM‎O S FE‎T IRF‎P250A‎200V‎,32A ‎T O-3P‎DISC‎R ETE‎M OS F‎E T IR‎F P450‎A 500‎V,14A‎TO-3‎P DIS‎C RETE‎MOS ‎F ET I‎R FR02‎4A 60‎V,15A‎D-PA‎K DIS‎C RETE‎MOS ‎F ET I‎R FR12‎0A 10‎0V,8.‎4A D-‎P AK D‎I SCRE‎T EMO‎S FET‎IRFR‎214A ‎250V,‎2.2A ‎D-PAK‎DISC‎R ETE‎M OS F‎E T IR‎F R220‎A 200‎V,4.6‎A D-P‎A K DI‎S CRET‎EMOS‎FET ‎I RFR2‎24A 2‎50V,3‎.8A D‎-PAK ‎D ISCR‎E TEM‎O S FE‎T IRF‎R310A‎400V‎,1.7A‎D-PA‎K DIS‎C RETE‎MOS ‎F ET I‎R FR90‎20 -5‎0V,-9‎.9A D‎-PAK ‎D ISCR‎E TEM‎O S FE‎T IRF‎S540A‎100V‎,17A ‎T O-22‎0F DI‎S CRET‎EMOS‎FET ‎I RFS6‎30A 2‎00V,6‎.5A T‎O-220‎F DIS‎C RETE‎MOS ‎F ET I‎R FS63‎4A 25‎0V,5.‎8A TO‎-220F‎DISC‎R ETE‎M OS F‎E T IR‎F S640‎A 200‎V,9.8‎A TO-‎220F ‎D ISCR‎E TEM‎O S FE‎T IRF‎S644A‎250V‎,7.9A‎TO-2‎20F D‎I SCRE‎T EMO‎S FET‎IRFS‎730A ‎400V,‎3.9A ‎T O-22‎0F DI‎S CRET‎EMOS‎FET ‎I RFS7‎40A 4‎00V,5‎.7A T‎O-220‎F DIS‎C RETE‎MOS ‎F ET I‎R FS83‎0A 50‎0V,3.‎1A TO‎-220F‎DISC‎R ETE‎M OS F‎E T IR‎F S840‎A 500‎V,4.6‎A TO-‎220F ‎D ISCR‎E TEM‎O S FE‎T IRF‎S9Z34‎-60V‎,-12A‎TO-2‎20F D‎I SCRE‎T EDISC‎R ETE‎M OS F‎E T IR‎F SZ34‎A 60V‎,20A ‎T O-22‎0FDI‎S CRET‎EMOS‎FET ‎I RFU1‎10A 1‎00V,4‎.7A I‎-PAK‎D ISCR‎E TEM‎O S FE‎T IRF‎U120A‎100V‎,8.4A‎I-PA‎KDIS‎C RETE‎MOS ‎F ET I‎R FU22‎0A 20‎0V,4.‎6A I-‎P AKD‎I SCRE‎T EMO‎S FET‎IRFU‎230A ‎200V,‎7.5A ‎I-PAK‎DISC‎R ETE‎M OS F‎E T IR‎F U410‎A 500‎V ,1.‎2A I-‎P AKD‎I SCRE‎T EMO‎S FET‎IRFU‎420A ‎500V,‎2.3A ‎I-PAK‎DISC‎R ETE‎M OS F‎E T IR‎F Z20A‎50V,‎15A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F Z24A‎60V,‎17A T‎O-220‎DISC‎R ETE‎M OS F‎E T IR‎F Z30 ‎50V,3‎0A TO‎-220‎D ISCR‎E TEM‎O S FE‎T IRF‎Z34A ‎60V,3‎0A TO‎-220‎D ISCR‎E TEM‎O S FE‎T IRF‎Z40 5‎0V,50‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎IRFZ‎44A 6‎0V,50‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎IRLS‎530A ‎100V,‎10.7A‎,Logi‎c TO-‎220F ‎D ISCR‎E TEM‎O S FE‎T IRL‎S Z14A‎60V,‎8A,Lo‎g ic T‎O-220‎F DIS‎C RETE‎MOS ‎F ET I‎R LZ24‎A 60V‎,17A,‎L ogic‎TO-2‎20DI‎S CRET‎EMOS‎FET ‎I RLZ4‎4A 60‎V,50A‎,Logi‎c TO-‎220D‎I SCRE‎T EMO‎S FET‎SFP3‎6N03 ‎30V,3‎6A TO‎-220‎D ISCR‎E TEM‎O S FE‎T SFP‎65N06‎60V,‎65A T‎O-220‎DISC‎R ETE‎M OS F‎E T SF‎P9540‎-100‎V,-17‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎SFP9‎634 -‎250V,‎-5A T‎O-220‎DISC‎R ETE‎M OS F‎E T SF‎P9644‎-250‎V,-8.‎6A TO‎-220‎D ISCR‎E TEDIS‎C RETE‎MOS ‎F ET S‎F R921‎4 -25‎0V,-1‎.53A ‎D-PAK‎DISC‎R ETE‎M OS F‎E T SF‎R9224‎-250‎V,-2.‎5A D-‎P AK D‎I SCRE‎T EMO‎S FET‎SFR9‎310 -‎400V,‎-1.5A‎D-PA‎K DIS‎C RETE‎MOS ‎F ET S‎F S963‎0 -20‎0V,-4‎.4A T‎O-220‎F DIS‎C RETE‎MOS ‎F ET S‎F S963‎4 -25‎0V,-3‎.4A T‎O-220‎F DIS‎C RETE‎MOS ‎F ET S‎F U922‎0 -20‎0V,-3‎.1A I‎-PAK‎D ISCR‎E TEM‎O S FE‎T SSD‎2002 ‎25V N‎/P Du‎a l 8S‎O P DI‎S CRET‎EMOS‎FET ‎S SD20‎19 20‎V P-c‎h Dua‎l 8SO‎P DIS‎C RETE‎MOS ‎F ET S‎S D210‎1 30V‎N-ch‎Sing‎l e 8S‎O P DI‎S CRET‎EMOS‎FET ‎S SH10‎N80A ‎800V,‎10A T‎O-3P ‎D ISCR‎E TEM‎O S FE‎T SSH‎10N90‎A 900‎V,10A‎TO-3‎P DIS‎C RETE‎MOS ‎F ET S‎S H5N9‎0A 90‎0V,5A‎TO-3‎P DIS‎C RETE‎MOS ‎F ET S‎S H60N‎10 10‎0V,60‎A TO-‎3PDI‎S CRET‎EMOS‎FET ‎S SH6N‎80A 8‎00V,6‎A TO-‎3PDI‎S CRET‎EMOS‎FET ‎S SH70‎N10A ‎100V,‎70A T‎O-3P ‎D ISCR‎E TEM‎O S FE‎T SSH‎7N90A‎900V‎,7A T‎O-3P‎D ISCR‎E TEM‎O S FE‎T SSH‎9N80A‎800V‎,9A T‎O-3P‎D ISCR‎E TEM‎O S FE‎T SSP‎10N60‎A 600‎V,9A ‎T O-22‎0 DIS‎C RETE‎MOS ‎F ET S‎S P1N6‎0A 60‎0V,1A‎TO-2‎20DI‎S CRET‎EMOS‎FET ‎S SP2N‎90A 9‎00V,2‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎SSP3‎5N03 ‎30V,3‎5A TO‎-220‎D ISCR‎E TEM‎O S FE‎T SSP‎3N90A‎900V‎,3A T‎O-220‎DISC‎R ETEDIS‎C RETE‎MOS ‎F ET S‎S P4N6‎0AS 6‎00V,4‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎SSP4‎N90AS‎900V‎,4.5A‎TO-2‎20 DI‎S CRET‎EMOS‎FET ‎S SP5N‎90A 9‎00V,5‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎SSP6‎0N06 ‎60V,6‎0A TO‎-220‎D ISCR‎E TEM‎O S FE‎T SSP‎6N60A‎600V‎,6A T‎O-220‎DISC‎R ETE‎M OS F‎E T SS‎P70N1‎0A 10‎0V,55‎A TO-‎220D‎I SCRE‎T EMO‎S FET‎SSP7‎N60A ‎600V,‎7A TO‎-220‎D ISCR‎E TEM‎O S FE‎T SSP‎7N80A‎800V‎,7A T‎O-220‎DISC‎R ETE‎M OS F‎E T SS‎P80N0‎6A 60‎V,80A‎TO-2‎20DI‎S CRET‎EMOS‎FET ‎S SR1N‎60A 6‎00V,0‎.9A D‎-PAK‎D ISCR‎E TEM‎O S FE‎T SSR‎2N60A‎600V‎,1.8A‎D-PA‎K DIS‎C RETE‎MOS ‎F ET S‎S R305‎5A 60‎V,8A ‎D-PAK‎DISC‎R ETE‎M OS F‎E T SS‎S10N6‎0A 60‎0V,5.‎1A TO‎-220F‎DISC‎R ETE‎M OS F‎E T SS‎S2N60‎A 600‎V,1.3‎A TO-‎220F ‎D ISCR‎E TEM‎O S FE‎T SSS‎3N80A‎800V‎,2A T‎O-220‎F DIS‎C RETE‎MOS ‎F ET S‎S S3N9‎0A 90‎0V,2A‎TO-2‎20FD‎I SCRE‎T EMO‎S FET‎SSS4‎N60AS‎600V‎,2.3A‎TO-2‎20F D‎I SCRE‎T EMO‎S FET‎SSS4‎N90AS‎900V‎,2.8A‎TO-2‎20F D‎I SCRE‎T EMO‎S FET‎SSS5‎N80A ‎800V,‎3A TO‎-220F‎DISC‎R ETE‎M OS F‎E T SS‎S6N60‎600V‎, 3.2‎A TO-‎220(F‎/P) ‎。

mos选型参数

mos选型参数
当设计和开发一个mos电路时，我们需要考虑很多因素，其中一个非常重要的因素是mos选型参数。

这些参数决定了mos管的性能、可靠性和成本。

以下是一些常见的mos选型参数：
1. 阈值电压(Vth)：这是mos管的最小门电压，当门电压高于该值时，管子才会导通。

通常情况下，Vth越小，mos管的导通能力越强。

2. 漏电流(Idss)：这是mos管在最小门电压下的漏电流，通常情况下，漏电流越小，mos管的性能越好。

3. 负载电容(Ciss)：这是mos管的输入电容，也就是由于门电极和晶体管结构而形成的电容。

通常情况下，Ciss越小，mos管的开关速度越快。

4. 开关速度：这是mos管从导通到截止的时间。

通常情况下，开关速度越快，mos管的性能越好。

5. 最大耗散功率(Pd)：这是mos管能承受的最大功率，超过该值将导致mos管损坏。

6. 工作温度范围：这是mos管能够正常工作的温度范围，超出该范围将导致mos管性能下降或损坏。

综合考虑以上因素，我们可以选择一个合适的mos管，以满足设计要求。

- 1 -。

常见MOSFET和二极管选型

常见MOSFET和二极管选型常用MOS管选型参考IRFU020 50V 15A 42W * * NmOS场效应IRFPG42 1000V 4A 150W * * NmOS场效应IRFPF40 900V 4.7A 150W * * NmOS场效应IRFP9240 200V 12A 150W * * PmOS场效应IRFP9140 100V 19A 150W * * PmOS场效应IRFP460 500V 20A 250W * * NmOS场效应IRFP450 500V 14A 180W * * NmOS场效应IRFP440 500V 8A 150W * * NmOS场效应IRFP353 350V 14A 180W * * NmOS场效应IRFP350 400V 16A 180W * * NmOS场效应IRFP340 400V 10A 150W * * NmOS场效应IRFP250 200V 33A 180W * * NmOS场效应IRFP240 200V 19A 150W * * NmOS场效应IRFP150 100V 40A 180W * * NmOS场效应IRFP140 100V 30A 150W * * NmOS场效应IRFP054 60V 65A 180W * * NmOS场效应IRFI744 400V 4A 32W * * NmOS场效应IRFI730 400V 4A 32W * * NmOS场效应IRFD9120 100V 1A 1W * * NmOS场效应IRFD123 80V 1.1A 1W * * NmOS场效应IRFD120 100V 1.3A 1W * * NmOS场效应IRFD113 60V 0.8A 1W * * NmOS场效应IRFBE30 800V 2.8A 75W * * NmOS场效应IRFBC40 600V 6.2A 125W * * NmOS场效应IRFBC30 600V 3.6A 74W * * NmOS场效应IRFBC20 600V 2.5A 50W * * NmOS场效应IRFS9630 200V 6.5A 75W * * PmOS场效应IRF9630 200V 6.5A 75W * * PmOS场效应IRF9610 200V 1A 20W * * PmOS场效应IRF9541 60V 19A 125W * * PmOS场效应IRF9531 60V 12A 75W * * PmOS场效应IRF9530 100V 12A 75W * * PmOS场效应IRF840 500V 8A 125W * * NmOS场效应IRF830 500V 4.5A 75W * * NmOS 场效应IRF740 400V 10A 125W * * NmOS场效应IRF730 400V 5.5A 75W * * NmOS场效应IRF720 400V 3.3A 50W * * NmOS场效应IRF640 200V 18A 125W * * NmOS场效应IRF630 200V 9A 75W * * NmOS场效应IRF610 200V 3.3A 43W * * NmOS场效应IRF541 80V 28A 150W * * NmOS场效应IRF540 100V 28A 150W * * NmOS场效应IRF530 100V 14A 79W * * NmOS场效应IRF440 500V 8A 125W * * NmOS场效应IRF230 200V 9A 79W * * NmOS场效应IRF130 100V 14A 79W * * NmOS场效应BUZ20 100V 12A 75W * * NmOS场效应BUZ11A 50V 25A 75W * * NmOS场效应BS170 60V 0.3A 0.63W * * NmOS场效应2N7000 K30A K334C快恢复塑封整流二极管序号型号IF VRRM VF Trr 封装A V V μs(1)快恢复塑封整流二极管1 1F1-1F7 1A 50-1000V 1.3 0.15-0.5 R-12 FR10-FR60 1A-6A 50-1000V 1.3 0.15-0.53 1N4933-1N4937 1A 50-600V 1.2 0.2 DO-414 1N4942-1N4948 1A 200-1000V 1.3 0.15-0.5 DO-415 BA157-BA159 1A 400-1000V 1.3 0.15-0.25 DO-416 MR850-MR858 3A 100-800V 1.3 0.2 DO-201AD7 EU1-EU2 0.25A-1A 100-1000V 1.3 0.4 DO-418 20DF1-20DF10 2A 100-1000V 1.3 0.2 DO-159 30DF1-30DF10 3A 100-1000V 1.3 0.2 DO-201AD10 RU1-RU4 0.25A-3A 100-1000V 1.3 0.411 ERA22-02~10 0.5A 200-1000V 1.3 0.4 R-112 ERA18-02~10 0.8A 200-1000V 1.3 0.4 R-113 ERB43-02~10 0.5A 200-1000V 1.3 0.4 DO-4114 ERB44-02~10 1A 200-1000V 1.3 0.4 DO-1516 ERD28-02~10 1.5A 200-1000V 1.3 0.4 DO-201AD17 ERD29-02~10 2.5A 200-1000V 1.3 0.4 DO-201AD18 ERD32-02~10 3A 200-1000V 1.3 0.4 DO-201AD19 ERD09-13~15 3A 1300-1500V 1.5 0.6 R-5(2)SK、2CG系列快恢复整流二极管1 SK1-02~30 1.5A 200-3000V 1.3-4 0.5-1 DO-152 SK2-02~30 1A 200-3000V 1.3-4 0.5-1 DO-413 SK3-02~30 2A 200-3000V 1.3-4 0.5-1 DO-154 SK4-02~30 0.5A 300-3000V 1.3-4 0.5-1 DO-415 2CG04-2CG30 0.2A 300-3000V 1.3-4 0.5-1 DO-41 (3)快恢复塑封阻尼二极管1 2CN1-2CN1C 1A 200-1200V 1.32 DO-412 2CN2D-2CN2M 0.5A 200-1000V 1.3 2 DO-413 2CN3D-2CN3M 1A 200-1000V 1.3 6 DO-414 2CN4D-2CN4M 1.5A 200-1000V 1.3 0.8 DO-155 2CN5D-2CN5M 1.5A 200-1000V 1 1 DO-156 2CN6D-2CN6M 1A 200-1000V 1.3 6 DO-417 2CN12D-2CN12M 3A 200-1000V 1.3 1 DO-201AD8 RH1Z-RH1C 0.6A 200-1000V 1.3 4 DO-419 TVR4J-TVR4N 1.2A 600-1000V 1.2 20 DO-15超高频塑封二极管1 ERA34-10 0.1A 1000V 3 0.15 R-12 ERA32-02~10 1A 200-1000V 1.3 0.1 DO-413 ERB32-02~10 1.2A 200-1000V 1.3 0.1 DO-154 ERC30-02~10 1.5A 200-1000V 1.3 0.1 DO-156 EG01E-EG01C 0.5A 200-1000V 2 0.1 DO-417 EG1E-EG1C 1A 200-1000V 1.8 0.1 DO-418 RG10Z-RG10C 1.2A 200-1000V 2 0.1 DO-159 RG2Z-RG2C 1.5A 200-1000V 1.8 0.1 DO-1510 RG4Z-RG4C 3A 200-1000V 2 0.1 D0-201AD超快恢复塑封二极管序号型号IF VRRM VF Trr 封装A V V ns(1)超快恢复塑封二极管1 长虹SF10-长虹SF50 1-5A 50-1000V 0.95-1.7 352 长虹SF80-长虹SF160 8-16A 50-600V 0.95-1.4 35 TO-2203 EGP10-EGP50 1-5A 50-200V 1.1 354 ERC38~04-ERC38~10 1A 400-1000V 1.7 50 DO-415 RL2-RL2C 2A 400-1000V 1.7 50 DO-156 RL3-RL3C 3A 400-1000V 1.7 50 DO-201AD7 1H1-1H8 1A 50-1000V 1.1-1.7 50-75 R-18 HER10-HER60 1-6A 50-1000V 1.1-1.7 50-759 HER80-HER160 8-6A 50-1000V 1.1-1.7 50-75 TO-22010 UF10-UF60 1-6A 50-1000V 1.1-1.7 50-7511 EL1Z-EL1 1.5A 200-350V 1.3 50 DO-15(2)MUR超快恢复整流二极管1 MUR120-MUR1120 1A 200-1200V 0.95-1.5 35-50 DO-412 MUR420-MUR4120 4A 200-1200V 0.95-1.6 35-75 DO-201AD3 MUR820-MUR8120 8A 200-1200V 1.3-2.1 35-75 TO-220AC4 MUR1020-MUR10120 10A 200-1200V 1.3-2.1 35-75 TO-220AC5 MUR1520-MUR15120 15A 200-1200V 1.3-2.1 35-75 TO-220AC6 MUR2020-MUR20120 20A 200-1200V 1.3-2.1 35-75 TO-220AB7 MUR3020-MUR30120 30A 200-1200V 1.3-2.1 35-75 TO-247AD8 MUR6020-MUR60120 60A 200-1200V 1.3-2.1 35-75 TO-247AD (3)RHRP、RHRG超快恢复二极管1 RHRP820-RHRP8120 8A 200-1200V 2.1-3.2 35-70 TO-220AC2 RHRP1520-RHRP15120 15A 200-1200V 2.1-3.2 40-75 TO-220AC3 RHRP3020-RHRP30120 30A 200-1200V 2.1-3.2 45-75 TO-220AC4 RHRG3020-RHRG30120 30A 200-1200V 2.1-3.2 45-75 TO-247AC5 RHRG5020-RHRG50120 50A 200-1200V 2.1-3.2 50-100 TO-247AC6 RHRG6020-RHRG60120 60A 200-1200V 2.1-3.2 45-75 TO-247AD (4)BYV29~79、BYT28~79超快恢复二极管1 BYW29-100~200 8A 100-200V 1.1 25 TO-220AC2 BYV29-300~500 9A 300-500V 1.25 60 TO-220AC3 BYQ28-100~200 10A 100-200V 1.1 20 TO-220AB4 BYT28-300~500 10A 300-500V 1.4 60 TO-220AB5 BYV79-100~200 14A 100-200V 1.3 30 TO-220AC6 BYT79-300~500 14A 300-500V 1.4 60 TO-220AC7 BYV32-100~200 20A 100-200V 1.1 25 TO-220AB8 BYV34-300~500 20A 300-500V 1.1 60 TO-220AB9 BYV42-100~200 30A 100-200V 1.1 28 TO-220AB10 BYV44-300~500 30A 300-500V 1.25 60 TO-220AB肖特基整流二极管序号型号IF VRRM VF 封装A V V(1)肖特基塑封整流二极管1 1N5817-1N5819 1A 20-40V 0.45-0.6 DO-412 1N5820-1N5822 3A 20-40V 0.45-0.6 DO-201AD3 SRT12-SRT100 1A 20-100V 0.55-0.85 R-14 SR10-SR50 1-5A 20-100V 0.55-0.855 SB120-SB1B0 1A 20-100V 0.55-0.85 DO-416 SB220-SB2B0 2A 20-100V 0.55-0.85 DO-157 SB320-SB3B0 3A 20-100V 0.55-0.85 DO-201AD8 SB520-SB5B0 5A 20-100V 0.55-0.85 D0-201AD9 ERA81-002~009 1A 20-90V 0.55-0.9 DO-4110 ERB81-002~009 2A 20-90V 0.55-0.9 DO-1511 ERC81-002~009 3A 20-90V 0.55-0.9 DO201AD12 EK03-EK09 1A 20-90V 0.55-0.81 DO-4113 EK13-EK19 1.5A 20-90V 0.55-0.81 DO-1514 EK33-EK39 2A 20-90V 0.55-0.81 DO-1515 EK43-EK49 3A 20-90V 0.55-0.81 DO-201AD(2)MBR、PBYR系列大电流肖特基整流二极管1 MBR1020-MBR1060 10A 20-60V 0.57-0.8 TO-220AC2 MBR1620-MBR1660 16A 20-60V 0.57-0.8 TO-220AC3 MBR2020CT-2060CT 20A 20-60V 0.57-0.8 TO-220AB4 MBR2520CT-2560CT 25A 20-60V 0.57-0.8 TO-220AB5 MBR3020PT-3060PT 30A 20-60V 0.57-0.8 TO-247AD6 MBR4020PT-4060PT 40A 20-60V 0.57-0.8 TO-247AD7 MBR6020PT-6060PT 60A 20-60V 0.57-0.8 TO-247AD8 PBYR735-745 7A 20-45V 0.56-0.66 TO-220AC9 PBYR1020-1060 10A 20-60V 0.56-0.77 TO-220AC10 PBYR1635-1660 16A 20-60V 0.56-0.77 TO-220AC11 PBYR2020CT-2045CT 20A 20-45V 0.56-0.65 TO-220AB12 PBYR3035PT-3060PT 30A 20-60V 0.56-0.77 TO-247AD 玻球快恢复二极管、玻钝芯片塑封二极管序号型号IF VRRM VF Trr 封装A V V ns(1)BYV、BYT、BYM、BYW玻球快恢复二极管1 BYV26A-BYV26E 1A 200-1000V 1.5 0.03 DO-204AP2 BYV12-BYV16 1.5A 100-1000V 1.5 0.3 DO-204AP3 BYV96A-BYV96E 1.5A 100-1000V 1.5 0.3 DO-204AP4 BYV27-50~200 2A 50-200V 1.1 0.025 DO-204AP5 BYV28-50~200 3.5A 50-200V 1.1 0.03 G36 BYT52A-BYT52M 1A 50-1000V 1.3 0.2 DO-204AP7 BYT54A-BYT54M 1.25A 50-1000V 1.5 0.1 DO-204AP8 BYT53A-BYT53M 1.5A 50-1000V 1.1 0.05 DO-204AP9 BYT56A-BYT56M 3A 200-1000V 1.4 0.1 G310 BYM26A-BYM26M 2.3A 200-1000V 1.5 0.03 G311 BYM36A-BYM36M 3A 200-1000V 1.1 0.15 G312 BYW32-BYW38 2A 200-1000V 1.1 0.2 DO-204AP13 BYW52-BYW56 2A 200-1000V 1.1 4 DO-204AP14 BYW72-BYW76 3A 200-600V 1.1 0.2 G315 BYW96A-BYW96E 3A 200-1000V 1.5 0.2 G316 BY228 3A 1500V 1.5 20 G3(2)GP、RGP系列玻钝芯片塑封二极管17 GP10-GP30 1-3A 50-1000V 1.118 RGP01-10~RGP01-20 0.1A 1000-2000V 2 0.2-0.5 DO-4119 RGP05-10~RGP05-20 0.5A 1000-2000V 2 0.2-0.5 DO-4120 RGP10-RGP60 1-6A 50-2000V 1.3 0.15-0.5PD、TR、PR系列【高压】塑封二极管1 PD0112-PD0160 0.1A 1200-6000V 1.2-5 DO-412 PD0312-PD0360 0.3A 1200-6000V 1.2-5 DO-153 PD0512-PD0560 0.5A 1200-6000V 1.2-5 DO-154 PD112-PD130 1A 1200-3000V 1.2-4 DO-155 PD1512-PD1530 1.5A 1200-3000V 1.2-4 DO-156 PD212-PD220 2A 1200-2000V 1.2-2.5 DO-201AD7 PD312-PD320 3A 1200-2000V 1.2-2.5 DO-201AD8 PD612-PD620 6A 1200-2000V 1.2-2.5 R-69 TR0112-TR0160 0.1A 1200-6000V 1.5-8 0.5-0.8 DO-4110 TR0312-TR0360 0.3A 1200-6000V 1.5-8 0.5-0.8 DO-1511 TR0512-TR0560 0.5A 1200-6000V 1.5-8 0.5-0.8 DO-1512 TR112-TR130 1A 1200-3000V 1.5-6 0.5-0.8 DO-1513 TR1512-TR1530 1.5A 1200-3000V 1.5-6 0.5-0.8 DO-1514 TR212-TR220 2A 1200-2000V 1.5-2.7 0.5-0.8 DO-201AD15 TR312-TR320 3A 1200-2000V 1.5-2.7 0.5-0.7 DO-201AD16 TR612-TR620 6A 1200-2000V 1.5-2.7 0.5-0.8 R-617 PR01-PR1 0.1-1A 1200-3000V 1.5-4 0.1-0.5 DO-1518 RC2 0.3A 2000V 3 0.5 DO-4119 RU4D-RP3F 1.5A-2A 1300-1500V 1.5 0.3 DO-201AD稳压二极管序号型号名称PZM VZW V1 BZX55 稳0.5W 2.4V-47V2 1N5985B~1N6031B 0.5W 2.4V-200V3 1N4728~1N4764 压1W 3.3V-100V4 1N5911B~1N5956B 1.5W 2.7V-200V5 2CW37-2.4~36 二0.5W 2.4V-36V6 2CW51-2CW68 0.25W 3V-28.5V7 2CW101-2CW121 极1W 3V-37.5V8 2DW50-2DW64 1W 41V-190V9 2DW80-2DW190 管3W 41V-190V10 2DW110-2DW151 10W 4.3V-470V11 2DW170-2DW202 50W 4.3V-200V12 2DW230-2DW236 【温度wd】补偿0.2W 5.8V-6.6V 稳压二极管高速开关二极管序号型号IC VRM Trr 封装mA V ns1 1N4148 150 100V 4 DO-352 1N4149-1N4154 150 35-100V 2--4 DO-353 1N4446-1N4454 150 40-100V 1--4 DO-354 1N914 75 100V 4 DO-355 BAV17-BAV21 250 25-250V 50 DO-356 BAW75-BAW76 300 35-75V 4 DO-357 2CK70-2CK79 10-280 20-60V 3--10 DO-358 2CK80-2CK85 10-300 20-60V 5--10 DO-359 1S1553-1S1555 100 70-35V 3 DO-3510 1S2471-1S2473 130-110 90-40V 3 DO-35塑封整流二极管序号型号IF VRRM VF 封装A V V1 1A1-1A7 1A 50-1000V 1.1 R-12 1N4001-1N4007 1A 50-1000V 1.1 DO-413 1N5391-1N5399 1.5A 50-1000V 1.1 DO-154 2A01-2A07 2A 50-1000V 1 DO-155 1N5400-1N5408 3A 50-1000V 0.95 DO-201AD6 6A05-6A10 6A 50-1000V 0.95 R-67 TS750-TS758 6A 50-800V 1.25 R-68 RL10-RL60 1A-6A 50-1000V 19 2CZ81-2CZ87 0.05A-3A 50-1000V 1 DO-4110 2CP21-2C康佳 P29 0.3A 100-1000V 1 DO-4111 2DZ14-2DZ15 0.5A-1A 200-1000V 1 DO-4112 2DP3-2DP5 0.3A-1A 200-1000V 1 DO-4113 BYW27 1A 200-1300V 1 DO-4114 DR202-DR210 2A 200-1000V 1 DO-1515 BY251-BY254 3A 200-800V 1.1 DO-201AD16 BY550-200~1000 5A 200-1000V 1.1 R-517 PX10A02-PX10A13 10A 200-1300V 1.1 PX18 PX12A02-PX12A13 12A 200-1300V 1.1 PX19 PX15A02-PX15A13 15A 200-1300V 1.1 PX20 ERA15-02~13 1A 200-1300V 1 R-121 ERB12-02~13 1A 200-1300V 1 DO-1522 ERC05-02~13 1.2A 200-1300V 1 DO-1523 ERC04-02~13 1.5A 200-1300V 1 DO-1524 ERD03-02~13 3A 200-1300V 1 DO-201AD25 EM1-EM2 1A-1.2A 200-1000V 0.97 DO-1526 RM1Z-RM1C 1A 200-1000V 0.95 DO-1527 RM2Z-RM2C 1.2A 200-1000V 0.95 DO-1528 RM11Z-RM11C 1.5A 200-1000V 0.95 DO-1529 RM3Z-RM3C 2.5A 200-1000V 0.97 DO-201AD30 RM4Z-RM4C 3A 200-1000V 0.97 DO-201AD 快恢复塑封整流二极管序号型号IF VRRM VF Trr 封装A V V μs(1)快恢复塑封整流二极管1 1F1-1F7 1A 50-1000V 1.3 0.15-0.5 R-12 FR10-FR60 1A-6A 50-1000V 1.3 0.15-0.53 1N4933-1N4937 1A 50-600V 1.2 0.2 DO-414 1N4942-1N4948 1A 200-1000V 1.3 0.15-0.5 DO-415 BA157-BA159 1A 400-1000V 1.3 0.15-0.25 DO-416 MR850-MR858 3A 100-800V 1.3 0.2 DO-201AD7 EU1-EU2 0.25A-1A 100-1000V 1.3 0.4 DO-418 20DF1-20DF10 2A 100-1000V 1.3 0.2 DO-159 30DF1-30DF10 3A 100-1000V 1.3 0.2 DO-201AD10 RU1-RU4 0.25A-3A 100-1000V 1.3 0.411 ERA22-02~10 0.5A 200-1000V 1.3 0.4 R-112 ERA18-02~10 0.8A 200-1000V 1.3 0.4 R-113 ERB43-02~10 0.5A 200-1000V 1.3 0.4 DO-4114 ERB44-02~10 1A 200-1000V 1.3 0.4 DO-1515 ERC18-02~10 1.2A 200-1000V 1.3 0.4 DO-1516 ERD28-02~10 1.5A 200-1000V 1.3 0.4 DO-201AD17 ERD29-02~10 2.5A 200-1000V 1.3 0.4 DO-201AD18 ERD32-02~10 3A 200-1000V 1.3 0.4 DO-201AD19 ERD09-13~15 3A 1300-1500V 1.5 0.6 R-5(2)SK、2CG系列快恢复整流二极管1 SK1-02~30 1.5A 200-3000V 1.3-4 0.5-1 DO-152 SK2-02~30 1A 200-3000V 1.3-4 0.5-1 DO-413 SK3-02~30 2A 200-3000V 1.3-4 0.5-1 DO-154 SK4-02~30 0.5A 300-3000V 1.3-4 0.5-1 DO-415 2CG04-2CG30 0.2A 300-3000V 1.3-4 0.5-1 DO-41 (3)快恢复塑封阻尼二极管1 2CN1-2CN1C 1A 200-1200V 1.32 DO-412 2CN2D-2CN2M 0.5A 200-1000V 1.3 2 DO-413 2CN3D-2CN3M 1A 200-1000V 1.3 6 DO-414 2CN4D-2CN4M 1.5A 200-1000V 1.3 0.8 DO-155 2CN5D-2CN5M 1.5A 200-1000V 1 1 DO-156 2CN6D-2CN6M 1A 200-1000V 1.3 6 DO-417 2CN12D-2CN12M 3A 200-1000V 1.3 1 DO-201AD8 RH1Z-RH1C 0.6A 200-1000V 1.3 4 DO-419 TVR4J-TVR4N 1.2A 600-1000V 1.2 20 DO-15。

功率MOSFET器件选型的3大法则

功率MOSFET器件选型的3大法则功率MOSFET恐怕是工程师们最常用的器件之一了，但你知道吗？关于MOSFET的器件选型要考虑方方面面的因素，小到选N型还是P型、封装类型，大到MOSFET的耐压、导通电阻等，不同的应用需求千变万化，下面这篇文章总结了MOSFET器件选型的10步法则，相信看完你会大有收获。

1. 功率MOSFET选型第一步：P管，还是N管？功率MOSFET有两种类型：N沟道和P沟道，在系统设计的过程中选择N管还是P管，要针对实际的应用具体来选择，N沟道MOSFET选择的型号多，成本低；P沟道MOSFET选择的型号较少，成本高。

如果功率MOSFET的S极连接端的电压不是系统的参考地，N沟道就需要浮地供电电源驱动、变压器驱动或自举驱动，驱动电路复杂；P沟道可以直接驱动，驱动简单。

需要考虑N沟道和P沟道的应用主要有：(1) 笔记本电脑、台式机和服务器等使用的给CPU和系统散热的风扇，打印机进纸系统电机驱动，吸尘器、空气净化器、电风扇等家电的电机控制电路，这些系统使用全桥电路结构，每个桥臂上管可以使用P管，也可以使用N管。

(2) 通信系统48V输入系统的热插拨MOSFET放在高端，可以使用P管，也可以使用N管。

(3) 笔记本电脑输入回路串联的、起防反接和负载开关作用的二个背靠背的功率MOSFET，使用N沟道需要控制芯片内部集成驱动的充电泵，使用P沟道可以直接驱动。

2. 选取封装类型功率MOSFET的沟道类型确定后，第二步就要确定封装，封装选取原则有：(1) 温升和热设计是选取封装最基本的要求不同的封装尺寸具有不同的热阻和耗散功率，除了考虑系统的散热条件和环境温度，如是否有风冷、散热器的形状和大小限制、环境是否封闭等因素，基本原则就是在保证功率MOSFET 的温升和系统效率的前提下，选取参数和封装更通用的功率MOSFET。

有时候由于其他条件的限制，需要使用多个MOSFET并联的方式来解决散热的问题，如在PFC应用、电动汽车电机控制器、通信系统的模块电源次级同步整流等应用中，都会选取多管并联的方式。

开关电源上MOS管的选择方法

开关电源上MOS管的选择方法MOS管最常见的应用可能是电源中的开关元件，此外，它们对电源输出也大有裨益。

服务器和通信设备等应用一般都配置有多个并行电源，以支持N+1冗余与持续工作(图1)。

各并行电源平均分担负载，确保系统即使在一个电源出现故障的情况下仍然能够继续工作。

不过，这种架构还需要一种方法把并行电源的输出连接在一起，并保证某个电源的故障不会影响到其它的电源。

在每个电源的输出端，有一个功率MOS管可以让众电源分担负载，同时各电源又彼此隔离。

起这种作用的MOS管被称为"ORing"FET，因为它们本质上是以"OR"【或】逻辑来连接多个电源的输出。

图1用于针对N+1冗余拓扑的并行电源控制的MOS管在ORing FET应用中，MOS管的作用是开关器件，但是由于服务器类应用中电源不间断工作，这个开关实际上始终处于导通状态。

其开关功能只发挥在启动和关断，以及电源出现故障之时。

相比从事以开关为核心应用的设计人员，ORing FET应用设计人员显然必需关注MOS管的不同特性。

以服务器为例，在正常工作期间，MOS管只相当于一个导体。

因此，ORing FET应用设计人员最关心的是最小传导损耗。

低R DS(ON)可把BOM及PCB尺寸降至最小一般而言，MOS管制造商采用R DS(ON)参数来定义导通阻抗；对ORing FET应用来说，R DS(ON)也是最重要的器件特性。

数据手册定义R DS(ON)与栅极(或驱动)电压V GS以及流经开关的电流有关，但对于充分的栅极驱动，R DS(ON)是一个相对静态参数。

若设计人员试图开发尺寸最小、成本最低的电源，低导通阻抗更是加倍的重要。

在电源设计中，每个电源常常需要多个ORing MOS管并行工作，需要多个器件来把电流传送给负载。

在许多情况下，设计人员必须并联MOS管，以有效降低R DS(ON)。

需谨记，在DC电路中，并联电阻性负载的等效阻抗小于每个负载单独的阻抗值。

无刷电机mos管选型注意事项

无刷电机（BLDC）在现代工业和家用电器中起着越来越重要的作用，而MOS管作为无刷电机驱动电路中的关键元件，其选型和应用显得尤为重要。

本文将从以下几个方面介绍无刷电机MOS管选型的注意事项。

1. 电压和电流承受能力无刷电机MOS管在工作过程中需要承受电机的高电压和大电流。

在选型时要根据实际电机的电压和电流情况来选择合适的MOS管。

一般来说，MOS管的额定电压和额定电流都要比电机的实际工作电压和电流大一些，以确保其稳定可靠地工作。

2. 导通电阻和功率损耗MOS管的导通电阻直接影响了其工作时的功率损耗，而功率损耗则会导致MOS管发热，影响其工作效率和可靠性。

在选型时要尽量选择导通电阻小、功率损耗低的MOS管，以提高整个驱动系统的效率和稳定性。

3. 开关速度和损耗MOS管在无刷电机驱动电路中主要用于开关控制，因此开关速度和开关损耗也是选型时需要考虑的重要因素。

一般来说，开关速度越快的MOS管其损耗也越小，但同时还要考虑成本和可靠性等因素，并进行综合考虑。

4. 温度特性和散热设计MOS管在工作过程中会产生一定的热量，因此其温度特性和散热设计也是选型时需要注意的地方。

要选择具有良好温度特性的MOS管，并根据实际工作环境和工作条件进行合理的散热设计，以确保MOS管能够稳定可靠地工作。

无刷电机MOS管的选型需要考虑诸多因素，包括电压和电流承受能力、导通电阻和功率损耗、开关速度和损耗、温度特性和散热设计等。

只有综合考虑这些因素，选型才能更加合理、可靠，为无刷电机的稳定工作提供保障。

无刷电机MOS管在各种应用中都扮演着非常重要的角色，而正确的选型和应用是确保整个电机系统稳定运行的关键。

除了上文提及的一些主要选型注意事项外，下文将继续介绍无刷电机MOS管的选型注意事项，以帮助读者更全面地了解这一领域的知识。

5. 耐压能力在无刷电机的工作过程中，可能会出现一些突发的电压冲击或者峰值电压，因此MOS管的耐压能力也是需要考虑的因素。
