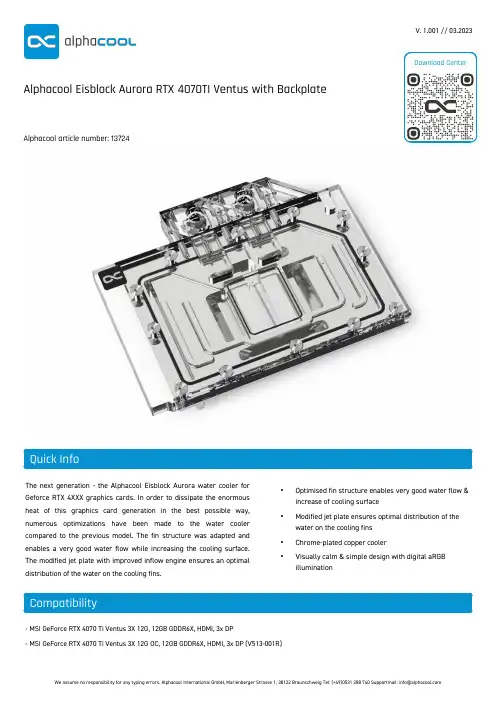

阿尔法霓虹系列水冷器用于NVIDIA GeForce RTX 40系列图形卡说明书

The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 4XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way,numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface.The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.•Optimised fin structure enables very good water flow &increase of cooling surface•Modified jet plate ensures optimal distribution of the water on the cooling fins •Chrome-plated copper cooler•Visually calm & simple design with digital aRGB illumination- MSI GeForce RTX 4070 Ti Ventus 3X 12G, 12GB GDDR6X, HDMI, 3x DP- MSI GeForce RTX 4070 Ti Ventus 3X 12G OC, 12GB GDDR6X, HDMI, 3x DP (V513-001R)V. 1.001 // 03.2023Alphacool Eisblock Aurora RTX 4070TI Ventus with BackplateAlphacool article number: 137241x Eisblock Aurora RTX 4070TI Ventus 1x Backplate1x 25x15x1mm Pad2x 42x15x1mm Pad3x 8x8x1mm Pad1x 85x8x1mm Pad1x 15x8x1mm Pad1x Thermal Grease1x Putty tool4x EVA Washer 4x M2x5mm Screw1x 45x45x3mm GPU-Pad 3x 40x8x3mm Pad1x 15x8x3mm Pad1x 85x8x3mm Pad4x M2x11mm Screw1x ARGB Adapter1x Plug tool2x G1/4 PlugThe next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 40XX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.Technical HighlightsThe fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.Chrome-plated copperThe cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.DesignThe Aurora design of the Geforce RTX 40XX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.Thermal paste & thermal padsThe included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850.000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.Drawing。

水冷机操作说明书

水冷机操作规程1、接通机组电源，温度表显示当前水温（设定水温16。

5ºС）。

STOP的红色指示灯亮，说明电源正常，机组处于待启动状态。

按下启动开关后，P。

RUN，绿灯亮，机组即进入工作状态。

2、机组工作后，当水箱的水温高于设定温度1ºС，而且室外压缩机预热完毕（即黄灯不亮时），压缩机启动，C。

RUN绿灯亮。

3、在冬季，如果室外温度低于5ºС时，黄色加热指示灯亮时，压缩机不工作，但水泵处于工作状态，待加热灯灭后，压缩机开始运行。

若黄色加热指示灯长时间不灭（超过30MIN），按强制按钮（FDRCE）启动压缩机。

4、水箱中装有两个水位控制器，在机组工作时，如室内的蜂鸣器鸣叫，说明水位偏低，应向水箱中补水。

补水量由蜂鸣器的鸣叫停止为准。

5、当工作水箱的水位降低至极低水位时（如系统跑水等情况）水泵将停止工作，这时需及时补水。

6、需要改变2水温时，按O键，温控表上部显示S，此时按▲▼键，调整温控表下部显示至需要设定水温，按O键确认。

温控表返回上部，显示实际水温，下部显示至需要设定水温的工作状态。

7、循环水室内机组，位置确定后严禁来回推动机组，以免制冷管路损坏。

8、温控表除温度外的其他技术参数严禁随意改动。

9、蒸馏水三个月更换一次，室外机的冷凝器三个月用水或高压气体冲洗一次。

10、如遇紧急停电时，需立即关闭水冷机电源，待来电稳定后再打开水冷机组。

振动磨操作规程1、将搅拌均匀的生料试样称30克，放入磨具内，加入12——15滴酒精，盖好磨盘盖子，将磨具放到卡具台面正中，压紧磨盘。

2、开关在中间位置电源打开，指示灯亮，开关在两边位置电源切断，指示灯不亮。

3、在时间继电器上设置粉磨时间为90秒。

4、按绿色启动钮。

振动磨运行，经过设定的时间后自动停止。

5、振动磨磨盘采用碳化钨合金，质脆，操作时注意不能振打、碰撞，以免打碎。

6、放好样品，固定好磨盘后，一定要关闭好密封盖，打开行程开关，方能启动磨机。

水冷半封闭螺杆型冷水机组使用说明书

水冷半封闭螺杆型冷水机组使用说明书一、概述：水冷半封闭螺杆型冷水机组是一种以水为冷却介质的中央空调产品，与相同冷量的风冷机组相比，由于其冷凝器和蒸发器均采用特制高效传热管制作，因此结构紧凑，体积小，效率高；又由于没有冷凝风机，因而噪声也低。

该机组在工厂内完全组装，已完成所有的部件和制冷管路及内部接线的连接，满足现场安装要求，并已完成压力试验，真空试验，制冷剂和润滑油的充注。

本公司在水冷半封螺杆型机组制造方面有着成熟的技术，完善的工艺和先进的检测设备，再加上精选的国际一流配件，保证了机组的稳定、高效运行。

出厂以前，机组严格按国家规定的检测项目完成全部性能测试，合格以后准予出厂。

目前，公司已拥有环保型风冷涡旋式冷水（热泵）机组、风冷螺杆式冷水（热泵）机组、环保型风冷螺杆式冷水（热泵）机组、水冷涡旋型冷水机组、水冷半封螺杆型冷水机组、环保型螺杆冷水机组、热回收型螺杆冷水机组、满液式螺杆冷水机组、水源热泵机组、满液式水（地）源热泵机组、工业冷水机组、冰蓄冷中央空调设备、屋顶式空调机组、全热回收新风机组、模块化精密型恒温恒湿机、水冷柜式空调机组、风冷柜式空调机组、户用中央空调机组、风管送风式分体空调机组、风机盘管机组、柜式空调机组、顶装式空气处理机组、组合式空调机组、净化型组合式空气处理机组等二十四大系列上千种规格的产品，并全面开发和应用了智能控制、节能、环保、网络远程控制功能等高新技术。

1.应用范围冷水机组既能为宾馆、医院、药厂、影剧院、体育馆、娱乐中心、商业大厦、写字楼、工矿企业等场所的中央空调系统提供冷水，也可为纺织、化工、食品、电子、科研等部门提供工艺冷冻水。

2.使用条件★注意：上述参数超出使用范围，将会对机组的使用造成不良影响。

二、工作原理与结构：（一）工作原理机组工作原理是利用氟利昂工质在不同压力和不同温度条件下的状态变化来实现其吸热和放热过程。

具体流程如下：排气冷凝压缩机冷凝器角阀干燥过滤器视镜热力膨胀阀节流蒸发蒸发器压缩机经压缩机压缩后的高温高压制冷剂气体，进入冷凝器与冷却水换热后被冷凝成中温高压液体，经干燥过滤后流经热力膨胀阀，被节流降压成低温低压的液体进入蒸发器，吸收水的热量后蒸发成低温低压的气体被压缩机吸入，再经压缩后进入下一次制冷循环。

水水冷却器使用说明

装箱单型号：LSS- -D 编号：下列产品、备件全部装箱无误装箱检验员: 年月日纯水冷却器型号LSS- -D出厂编号本机经试验合格，准予出厂检验部门：检验人员：检验日期：生产单位：西安海德信电气有限公司纯水冷却器使用说明书西安海德信电气有限公司目录一、概述 (2)二、型号说明 (2)三、结构 (3)四、技术参数 (5)五、使用 (6)六、维修保养…………………………………7－8一、概述LSS系列纯水冷却装置，主要应用于冷却式大功率硅整流和感应炉及中频炉等大电气设备配套作为冷却保护副机。

本装置采用纯水（去离子水）作为主冷却介质，主冷却水循环回路和副冷却管路，设有水流量、水温、水压可控。

当装置在恶劣条件下运行时，能稳定地向主机输出额定温度、压力、流量的纯水。

为了防止纯水受容器管道污染而导致水压下降，本机循环冷却系统采用ICr18Ni9Ti不锈钢及工程塑料制造。

二、型号说明`L S S □ D三、结构本装置由换热器组、泵组、管路、大水箱及电气控制等五部分组成。

结构原理图1所示。

纯水从负载吸热后进入大水箱，经工作水泵加压后，通过自动换向阀F2进入换热器中以间壁传热方式将所载热量传给副冷却水，冷却后的纯水经本机出水口和连接管道，输入主机冷却水道吸热后又进入大水箱，重新进入水泵加压，形成周而复始循环回路，从换热器吸热后的副冷却水泄出机外。

本机动力采用双泵组合设计，两泵互为工作或备用。

设计中采用自动切换电路和自动换向阀门单路输出。

工作泵万一发生故障，另一水泵自动起动工作，换向阀自动换向并发出信号，且能不停机对故障进线检修。

换向器组为单独的不锈钢板式换热器。

采用2台或3台换热器组一般为并联安装，可不停机对其中一台进行清洗或检修。

四、技术参数LSS－系列纯水冷却装置五、使用1、根据底脚安装尺寸的要求，将整机安装在预制的混你土基础上。

2、用经清洗洁净的耐腐蚀管道安装好主副机连续管道。

本机纯水进出口处出厂时各装上一只不锈钢法兰接管，安装时只需要将相同口径的不锈钢管焊接上就可，同时安装主机进出口阀门（可在主机调压和维修），安装好副冷却水外接管道并试压检漏，在副水进口处保证压力以及水质必须达到（技术参数表）范围之内。

水冷式冷水机说明书1

b)设备上方可以架设吊轨和横梁以方便维修。
4
上海哈驰机械设备有限公司
HACHI
风冷式冷水机组使用说明
二、操作说明
2.1 起动预备 4.1.1 检查机器处于正常状态, 管路连接正确, 电线连接正确, 电源符合规定。 4.1.2 所有调节阀门处于正确位置。
2.2 机器运行 2.2.1 在电线和管路安装检测完毕后, 打开总电源开关，设备首先检测电源相序，如显示电源逆相故障，请任意对调两相电源顺序重新开电即可。 2.2.2 注意设定的温度值不要低于 5℃，以防止冻结。
1）膨胀阀感温包内充灌剂泄漏，使阀针关闭 2）膨胀阀被堵塞
1）修复或更换膨胀阀 2）拆卸后清洗
3）过滤器网孔被堵塞
3）拆卸后清洗
4）电磁阀被损坏不能开启 4）修复或更换电磁阀
5）冷凝器或贮液器的出液阀未开启 6）阀板上部或气缸套下部的纸垫被击穿或破裂 7）压缩机吸，排气阀片破碎
5）开启出液阀 6）检查后更换纸垫片 7）拆开气缸盖，更换阀片
4）电动机超载，使热继电器动作或保险丝烧断 5）阀片泄漏严重，或油分离器自动回油阀泄漏 6）热力膨胀阀冰堵
4）排除超载故障 5）根据故障原因，拆检修复 6）把系统中水分除去
1）房间或箱体不密闭或隔热性 1）检修或更换隔热材料
能变差
2）蒸发器结霜太厚
2）定期融霜
3）压缩机效率变差 4）膨胀阀开得过大或过小
性能。 4.5 对于风冷式机器，请确保机器通风良好，并对冷凝器定期保养。 4.6 如果长时间没有使用，有时水泵叶轮会被沉淀物堵塞，故机器使用前先用手转动
水泵散热风扇。 4.7 机组在运行过程中，应及时、正确地做好参数的记录工作。 4.8 机组运行中如出现报警停机，应及时通知相关人员对机组进行检查，如无法排除

海洛斯操作手册(说明书)

HIROSS恒温恒湿机房精密空调操作手册HIMOD系列北京****科技有限公司技术部2009年01月01日目录第一章HIMOD系列海洛斯空调概述 (2)型号多 (3)控制技术先进 (3)制冷系统 (3)送风系统 (3)加湿系统 (3)加热系统 (4)1．7其它 (4)第二章HIMOD系列海洛斯空调型号含义 (4)第三章有关空调的一些资料 (5)气流组织方式（详见下图） (5)盖板纽开启方式（详见下图） (5)空调重量（单位：Kg） (5)机组尺寸及维护空间 (6)第四章制冷循环管路示意图 (7)风冷却（A型） (7)水冷却（W型） (8)双冷源（D型） (9)单系统（C型） (10)双系统（C型） (10)第五章调速风机调速接线示意图 (11)第六章MICROF ACE概述 (12)概述 (12)面板简介液晶显示屏 (13)液晶显示屏介绍 (13)第七章MICROF ACE面板的操作 (13)第八章控制器的使用 (14)控制器（HIROMATIC）概述 (14)控制器的操作 (15)菜单结构 (17)第九章日常维护及特殊维护 (18)日常维护 (18)特殊维护 (19)第十章常见报警及处理 (20)低压报警 (20)高压报警 (21)加湿报警 (21)失风报警 (21)电加热过热报警 (22)显示器发黑 (22)空调不制冷 (22)附录1：参数列表 (22)附录2：报警内容列表 (26)附录3：各菜单项含义： (28)第一章HIMOD系列海洛斯空调概述HIMOD系列海洛斯空调(HIMOD空调)是当今世界上最先进的机房专用恒温恒湿机房专用精密空调。

随着IT业的突飞猛进的发展，各种布局、面积差别很大的机房如雨后春笋般纷纷出现了，使用环境也不一而同。

为适应各种不同要求的机房，新开发的海洛斯HIMOD系列空调应运而生。

她是在保留她的前一代产品HIRANGE系列机房空调的优点,又应用了当今世界上提高了的制冷技术及制冷部件制造工艺，使用当今最先进的模块化设计理念生产出来的高科技机房空调产品。

水冷机和风冷机使用说明

水冷机电源主要由整流滤波电路，全桥变换电路，ＰＷＭ控制电路，稳压、限压电路，稳流、限流电路，保护电路，以及辅助电源电路等组成。

三相（或单相）电网电压经电源开关后，进行整流滤波，得到的520VDC(单相为300VDC)的平滑直流电压供给逆变电路。

三相电压取一路380V AC（或单相220V AC）经变压器降压整流后，再通过三端稳压器稳压得到±12V电压供给各部分控制电路。

逆变电路主要由大功率ＩＧＢＴ模块（或场效应ＭＯＳＦＥＴ模块）组成全桥变换电路。

当ＰＷＭ输出控制信号通过隔离驱动器分别驱动功率模块，两组对角管分别交替导通，在高频变压器初级产生高频脉冲电压，次级电压由高频变压器变压后整流向负载提供能量。

输出端分别接有稳压、限流和稳流、限压等的反馈环路，当面板开关置于稳压状态时，稳压和限流电路起作用，当输出电压升高或下降时，取样电压通过稳压电路内部电压比较器跟基准电压比较，其误差信号电压加到ＰＷＭ控制电路，使ＰＷＭ输出脉宽作相应变化，从而稳定输出电压，如负载电流过高时，限流电路工作，使输出电流限制在限流设定值内。

同样，在稳流状态下，稳流电路作用，使输出电流稳定在设定值内，而当过压时，限压电路使输出电压钳压在限压值。

当有异常情况(如输入过压或欠压,过流或过热等)产生保护信号加到保护控制电路时，保护电路输出一个电压加到ＰＷＭ电路，使ＰＷＭ电路停止输出，从而达到保护目的。

技术参数:输出电压：0-12V （0－额定值连续可调）输出电流：0-10000A（0-额定值连续可调）电压电流精度1%设备电源连接：电源电压要求为三相380V，允许网压波动－10%——＋10%，即电压范围为350V—430V，超过此范围，可能会造成设备损坏，请用户注意。

由于该设备功率大，接电连接时，应保证连接牢固，尽量减少电连接处接触电阻，以免工作时电压下降严重，影响设备正常工作，用户尤其应避免将电源线简单地挂在电网上的做法。

对于2000A/16V电源建议用户采用16平方毫米以上的电缆供电。

水冷式冷水机组说明书

水冷式冷水机组简介一、简介水冷式冷水机组是本公司综合国内外同类产品的优点而设计开发的新一代产品。

该产品把高可靠性、高效率、高度自动化等优点完美地结合在一起，是一种使用更方便、运行更可靠的空调主机。

该产品广泛适用于商场、宾馆、演剧院、医院、大型厂房及高层搂宇等需要空调的场所。

二、机组主要特点1. 机组的分类根据选用压缩机的不同分为二类：水冷式螺杆型冷水机组水冷式往复型冷水机组2. 机组规格齐全，用户选择余地大螺杆型：制冷量范围：174kW〜3960kW往复型：制冷量范围：166kW〜2105kW3 、微电脑自动控制系统采用先进的控制技术控制机组全天候自动运行，使机组始终运行在最佳工况点以获得高能效比，机组各项保护功能齐全，可进行远距离控制，控制器采用西门子原装PLC。

4、能量调节压缩机的能量调节阀与PLC 控制器的良好配合，实现了机组根据负荷的变化自动进行0〜100%的能量调节，具有显著的节能效果。

5、制冷系统多机头机组均采用独立的冷媒回路系统，使机组的运行更趋于稳定、可靠。

6 、噪音低、振动小压缩机底部的避震垫，降低机组的噪音和振动。

7 、机组检验、安装机组出厂均经严格检测，所有保护参数均已设定，电源、供水管安装完毕后加入适量的制冷剂即可。

三、机组的组成与主要部件简介水冷式冷水机组主要由压缩机、干式壳管式蒸发器、壳管式冷凝器、节流机构、辅助制冷配件以及电控系统等所组成。

1 、压缩机水冷式螺杆型冷水机组采用国际著名的压缩机，性能优越，运行可靠，使用寿命长，其中：——采用双轴旋转排气，提高压缩比和效率，冷媒直接冷却电机，提高电机效率，节能达10%以上；——压缩过程自动Vi （内容积比）控制，避免了过压缩而引起的能量损失，实现了在较宽应用范围内的高效率；——精巧的设计，使其体积小，重量轻；——双螺杆表面紧密配合，降低了轴承和护架上的设计应力，保证了压缩机运行平稳，降低了噪音和振动。

水冷式往复型冷水机组采用国际著名的活塞半封闭式压缩机，性能优越，运行可靠，使用寿命长，其中：——活塞半封闭式压缩机具有高性能系数；——高品质及高度精密阀门设计，以低容积余隙达成高效率运转；——最佳马达绝缘，适合与各种不同功能用途；——构造精密，体积小；——运动部件的平衡经过完美的设计，最大幅度地减少振动，降低了噪音。

MCW 系列水冷却机用户使用说明书

MCW系列水冷却机用户使用说明书前言感谢您使用本公司的产品，请在使用前仔细阅读使用说明书，并妥善保管。

本使用说明书并非质量保证书，对印刷错误的更正，所述信息的修改，以及产品的改进，均由本公司随时做出解释，恕不预先通知，修改内容将编入再版使用说明书中。

目录警告提示 .............................................................. - 2 -1概述 .............................................................. - 6 -2使用条件 .......................................................... - 7 -2.1环境要求 (7)2.2介质要求 (7)2.2.1允许使用介质 .............................................. - 7 -2.2.2禁止使用介质 .............................................. - 7 -3型号说明 .......................................................... - 7 -4安装、调试 ........................................................ - 8 -4.1设备安装条件及要求 (8)4.2管路连接 (9)4.3电气连接 (10)4.4加水排气 (11)4.4.1加水 ..................................................... - 11 -4.4.2排气 ..................................................... - 12 -4.4.3特别提示 ................................................. - 12 -4.5试运转前检查 (12)4.6电脑板设置与操作 (13)4.6.1面板特征及按键说明 ....................................... - 13 -4.6.2制冷机设置流程图 ......................................... - 14 -4.6.3操作 ..................................................... - 15 -5维护保养 ......................................................... - 15 -5.1每周巡检 (15)5.2每月巡检 (16)5.3每半年巡检 (16)5.4每年巡检 (16)6故障分析与排除 ................................................... - 17 -7运输要求 ......................................................... - 21 -8贮存要求 ......................................................... - 22 -8.1操作步骤 (22)8.2贮存 (22)9报废 ............................................................. - 22 -10其他 ........................................................... - 22 -10.1服务支持 (22)10.2其他事项 (23)10.3特别提示 (23)- 1 -- 2 -不能让设备淋水、浸水，否则可能会发生短路和触电的危险。

水冷冷水机组安装使用说明书

目录警告------------------------------------------------1机组季节性使用-------------------------------------14前言------------------------------------------------1机组停机-----------------------------------------------15潜在危险-----------------------------------------1机组运行管理-----------------------------------------15手册更新-----------------------------------------1第四部份机组维护保养安全警示-----------------------------------------1日常维护-----------------------------------------------16第一部份机组介绍定期维护-----------------------------------------------16产品简介-------------------------------------------3故障处理-----------------------------------------------18 型号命名方法-------------------------------------3机组外形图----------------------------------------4机组结构图----------------------------------------4主要技术参数-------------------------------------6第二部份机组安装机组验货-------------------------------------------7机组存放-------------------------------------------7机组搬运、吊装----------------------------------7机组定位-------------------------------------------8安装空间-------------------------------------------8管路连接------------------------------------------9循环水注意事项---------------------------------10电源接线------------------------------------------11控制器---------------------------------------------12第二部份机组运行工具准备------------------------------------------13运行检查------------------------------------------13机组启动------------------------------------------14机组调试------------------------------------------14警告所有的机组维护工作必须按本公司的安装使用说明书进行操作。

主变冷却水说明书

水冷却器控制柜使用说明书1、概述水冷控制柜是新疆特变（集团）有限公司衡阳电气分公司研制的一种电力变压器水冷控制装置，是一种以PLC控制取代传统电磁式继电器控制的高可靠性水冷控制装置。

适用范围：用于变压器水冷却器控制，可接入双路电源，正常情况下，一路工作，另一路备用（在一路电源出故障时投入使用），两路电源可以自动互投。

该控制拒能根据变压器油温度情况或变压器的负荷电流情况自动或者手动控制冷却器投入或退出运行.控制柜内具有温度及防凝露自动加热控制。

使用条件与变压器的使用条件相同。

2、控制柜结构及工作原理简述水冷控制柜结构采用组合式结构，用2.0不锈钢弯制而成，在控制柜底部设有电缆进出线孔，电缆通过走线槽与端子排联接，同时，控制柜的顶部有通风孔。

冷却器起动控制系统的控制逻辑几f全部由PLC内部的程序完成，在制造和运行当中+可以随时根据需要修改程序，使系统的使用和维护变f卡分方便。

a)、工作回路电源频率为50HZ，电压为380V的双回路三相四线制交流电源。

b)、控制回路电源DC220V直流电源。

c)，控制室电源由用户自己确定d),电源控制合上低压断路器QF1、QF2,接入两路电源通电，继电器KA1、KA2及KV1、KV；得电g动合触点闭合，动断触点断开。

(1） I路电源手动工作转动SA1转换开关，选择“电源1”，接触器KM1的线圈通电，从而接通I电源当I 电源出现断电或断相时，KA1或KV1失电，其动合触点断开，便接触器KM1线圈失电，切断I电源，同时其动断触点闭合，自动接通n电源。

(2)、II路电源手动工作转动SA1转换开关，选择“电源II”，工作情况与第1条相同。

e)、冷却器控制(1)、自动控制合上低压断路器QF3-QF5,电路通电，将需要转成自动状态的每组冷却器的转换开关SA3-SA5置于“自动”位置。

(2)、根据变压器顶层油温控制先设定温度值ST45—般为45度）、温度值ST60 (—般为60度）、温度值ST75_ (一般为75度），此时PLC设定第一组冷却器处于工作状态，此工作冷却器组位置(按设定的时间进行轮换)不受油温和负荷信号控制而正常运转，设一组冷却器为辅助状态（按设定的时间进行轮换)，受油温和负荷信号控制启停，另设一组冷却器为备用，当处于运行的冷却器出故障时，备用冷却器投入运行。

水冷却器操作说明书_1

变压器油水冷却器相关产品操作维护说明1 综述变压器油是由变压器热量损失的热量来加热的。

变压器油直接进入冷却器外部的管束。

阻碍器是用来指引变压器油在交叉管中的流向的。

管子的冷却面被分为两部分甚至更多。

多数管路使用双回路水。

单管冷却器的特征非常必要使用单管冷却器使油压始终超过运转过程中的水压。

这样就防止了了水穿透油发生渗漏。

双管冷却器的特征不像变压器油水冷却器单管设计那样，管路为双管和双向管板。

这种特殊的安全设计能够在运转过程中避免冷却水压不再受油压的限制（通常小于2BAR）。

双管路冷凝器的标准设计适合水压在10BAR。

万一发生水或油的泄漏，他们将直接进入位于双管之间的小细管中，进入两管板中间的空间。

因此，双管系统的设计就避免了油水或水油的混合。

这种设计是对变压器和冷却水的保护。

发现泄漏后，冷却器的泄漏通路将和一个小的收集盒连接，以来控制泄漏，―这就是泄漏控制器。

在泄漏控制器部，有一个磁控浮动转换装置与收集传导器连接，即便发生几个立方厘米的泄漏也会及时报警。

2型号变压器油水冷却器的型号标注为字母WK例如：W K D H 250 DIN ZD---代表冷却器制造方式D-双管路设计E-单管路设计H---装配方向H-挂式L-卧式S-立式250－功率水平：40，63， 100，160， 250， 315，400， 500， 630…)DIN---型号系列比如DIN或EX, NR…Z---选择，与标准设计不同的设计3，安装变压器油水冷却器的输出是由密封油－油面的入出口有珐琅。

油仓充满含水量小于10％的氮气且压力为0.45BAR以便防止冷却器受侵蚀及受污。

在装卸时，封闭板必须拆除。

水冷却器必须安装在干燥的房间，且该房间不会受震动或相关干扰。

！！！注意：在启动热交换器前必须要经过检查确认。

3，1安装地点变压器油水冷却器必须安装在足够的空间里以便其能安全的工作运转。

变压器油水冷却器通常是由可抽取式的管束装配成的，因此，在交换器前的必要的清除是允许的。
