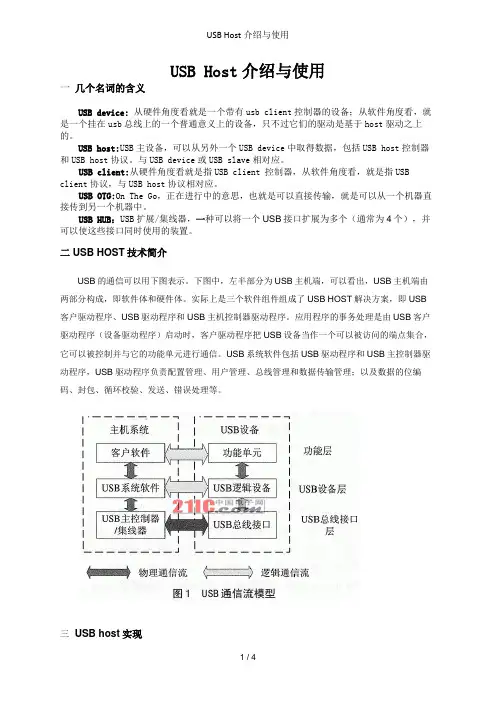

USB Host介绍与使用

USB Host介绍与使用

USB Host介绍与使用一几个名词的含义USB device:从硬件角度看就是一个带有usb client控制器的设备;从软件角度看,就是一个挂在usb总线上的一个普通意义上的设备,只不过它们的驱动是基于host驱动之上的。

USB host:USB主设备,可以从另外一个USB device中取得数据,包括USB host控制器和USB host协议。

与USB device或USB slave相对应。

USB client:从硬件角度看就是指USB client 控制器,从软件角度看,就是指USB client协议,与USB host协议相对应。

USB OTG:On The Go,正在进行中的意思,也就是可以直接传输,就是可以从一个机器直接传到另一个机器中。

USB HUB:USB扩展/集线器,一种可以将一个USB接口扩展为多个(通常为4个),并可以使这些接口同时使用的装置。

二 USB HOST技术简介USB的通信可以用下图表示。

下图中,左半部分为USB主机端,可以看出,USB主机端由两部分构成,即软件体和硬件体。

实际上是三个软件组件组成了USB HOST解决方案,即USB 客户驱动程序、USB驱动程序和USB主机控制器驱动程序。

应用程序的事务处理是由USB客户驱动程序(设备驱动程序)启动时,客户驱动程序把USB设备当作一个可以被访问的端点集合,它可以被控制并与它的功能单元进行通信。

USB系统软件包括USB驱动程序和USB主控制器驱动程序,USB驱动程序负责配置管理、用户管理、总线管理和数据传输管理;以及数据的位编码、封包、循环校验、发送、错误处理等。

三 USB host实现简单实现:MCU+USB控制器(若MCU中已经包含USB OTG则无需控制器,比如LPC2478,内部包含USB OTG)。

例如下图是由微控制器MSP430F149和USB控制器ISP1161实现USB HOST的电路。

ISP1161是Philips设计的USB主机/设备控制器。

在USB中USBHOST是通过各种描述符来识别设备的

在USB中USBHOST是通过各种描述符来识别设备的

USB HID报告及报告描述符简介在USB中,USB HOST是通过各种描述符来识别设备的,有设备描述符,配置描述符,接口描述符,端点描述符,字符串描述符,报告描述符等等。

USB报告描述符(Report Descriptor)是HID设备中的一个描述符,它是比较复杂的一个描述符。

USB HID设备是通过报告来给传送数据的,报告有输入报告和输出报告。

输入报告是USB设备发送给主机的,例如USB鼠标将鼠标移动和鼠标点击等信息返回给电脑,键盘将按键数据数据返回给电脑等;输出报告是主机发送给USB 设备的,例如键盘上的数字键盘锁定灯和大写字母锁定灯等。

报告是一个数据包,里面包含的是所要传送的数据。

输入报告是通过中断输入端点输入的,而输出报告有点区别,当没有中断输出端点时,可以通过控制输出端点0发送,当有中断输出端点时,通过中断输出端点发出。

而报告描述符,是描述一个报告以及报告里面的数据是用来干什么用的。

通过它,USB HOST可以分析出报告里面的数据所表示的意思。

它通过控制输入端点0返回,主机使用获取报告描述符命令来获取报告描述符,注意这个请求是发送到接口的,而不是到设备。

一个报告描述符可以描述多个报告,不同的报告通过报告ID来识别,报告ID在报告最前面,即第一个字节。

当报告描述符中没有规定报告ID时,报告中就没有ID字段,开始就是数据。

更详细的说明请参看USB HID协议,该协议可从下载。

USB报告描述符可以通过使用HID Descriptor tool来生成,这个工具可以到下载,为了方便大家,我顺便上传了一份。

下面通过由HID Descriptor tool生成的USB鼠标和USB键盘来说明一下报告描述符和报告。

code char KeyBoardReportDescriptor[63] = {//表示用途页为通用桌面设备0x05, 0x01, // USAGE_PAGE (Generic Desktop)//表示用途为键盘0x09, 0x06, // USAGE (Keyboard)//表示应用集合,必须要以END_COLLECTION来结束它,见最后的//END_COLLECTION0xa1, 0x01, // COLLECTION (Application)//表示用途页为按键0x05, 0x07, // USAGE_PAGE (Keyboard)//用途最小值,这里为左ctrl键0x19, 0xe0, // USAGE_MINIMUM (Keyboard LeftControl)//用途最大值,这里为右GUI键,即window键0x29, 0xe7, // USAGE_MAXIMUM (Keyboard Right GUI)//逻辑最小值为00x15, 0x00, // LOGICAL_MINIMUM (0)//逻辑最大值为10x25, 0x01, // LOGICAL_MAXIMUM (1)//报告大小(即这个字段的宽度)为1bit,所以前面的逻辑最小值为0,逻辑最大值为10x75, 0x01, // REPORT_SIZE (1)//报告的个数为8,即总共有8个bits0x95, 0x08, // REPORT_COUNT (8)//输入用,变量,值,绝对值。

Androidusb设备权限查询及自动获取详解流程

Androidusb设备权限查询及自动获取详解流程

Androidusb设备权限查询及⾃动获取详解流程看到当上⾯的对话框弹出时,可以使⽤命令查看顶层的活动窗⼝adb shell dumpsys window | findstr mCurrentFocusmCurrentFocus=Window{41ab0ee0 u0 com.android.systemui/bPermissionActivity}这就是应⽤的位置,当然我们也可以是⽤grep命令来查找这个对话框的.xml⽂件,进⼊android源码然后输⼊命令:grep '默认情况下⽤于' ./ -Rn./SystemUI/res/values-zh-rCN/strings.xml:51: <string name="always_use_device" msgid="1450287437017315906">"默认情况下⽤于该 USB 设备"</string>./SystemUI/res/values-zh-rCN/strings.xml:52: <string name="always_use_accessory" msgid="1210954576979621596">"默认情况下⽤于该 USB 配件"</string>那么这个对话框的路径在/android/frameworks/base/packages/SystemUI/res/values-zh-rCN/strings.xml其相关的内容如下:<string name="always_use_device" msgid="1450287437017315906">"默认情况下⽤于该 USB 设备"</string><string name="usb_device_permission_prompt" msgid="834698001271562057">"允许应⽤“<xliff:g id="APPLICATION">%1$s</xliff:g>”访问该 USB 设备吗?"相关应⽤路径找到.java⽂件来修改,其位置在:/android/frameworks/base/packages/SystemUI/src/com/android/systemui/usb/UsbPermissionActivity.java这就是那个讨厌的对话框对应的java程序,那么来看看这个程序如下:/** Copyright (C) 2011 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at** /licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/package b;import android.app.AlertDialog;import android.app.PendingIntent;import android.content.Context;import android.content.DialogInterface;import android.content.Intent;import android.content.pm.ApplicationInfo;import android.content.pm.PackageManager;import b.IUsbManager;import bAccessory;import bDevice;import bManager;import android.os.Bundle;import android.os.IBinder;import android.os.RemoteException;import android.os.ServiceManager;import erHandle;import android.util.Log;import youtInflater;import android.view.View;import android.widget.CheckBox;import poundButton;import android.widget.TextView;import com.android.internal.app.AlertActivity;import com.android.internal.app.AlertController;import com.android.systemui.R;public class UsbPermissionActivity extends AlertActivityimplements DialogInterface.OnClickListener, CheckBox.OnCheckedChangeListener {private static final String TAG = "UsbPermissionActivity";private CheckBox mAlwaysUse;private TextView mClearDefaultHint;private UsbDevice mDevice;private UsbAccessory mAccessory;private PendingIntent mPendingIntent;private String mPackageName;private int mUid;private boolean mPermissionGranted;private UsbDisconnectedReceiver mDisconnectedReceiver;@Overridepublic void onCreate(Bundle icicle) {super.onCreate(icicle);Intent intent = getIntent();mDevice = (UsbDevice)intent.getParcelableExtra(UsbManager.EXTRA_DEVICE);mAccessory = (UsbAccessory)intent.getParcelableExtra(UsbManager.EXTRA_ACCESSORY); mPendingIntent = (PendingIntent)intent.getParcelableExtra(Intent.EXTRA_INTENT);mUid = intent.getIntExtra(Intent.EXTRA_UID, -1);mPackageName = intent.getStringExtra("package");Log.e(TAG, "mPackageName "+ mPackageName);Log.e(TAG, "mUid "+ mUid);PackageManager packageManager = getPackageManager();ApplicationInfo aInfo;try {aInfo = packageManager.getApplicationInfo(mPackageName, 0);} catch (NotFoundException e) {Log.e(TAG, "unable to look up package name", e);finish();return;}String appName = aInfo.loadLabel(packageManager).toString();Log.e(TAG, "appName "+ appName);final AlertController.AlertParams ap = mAlertParams;ap.mIcon = aInfo.loadIcon(packageManager);ap.mTitle = appName;if (mDevice == null) {ap.mMessage = getString(b_accessory_permission_prompt, appName);mDisconnectedReceiver = new UsbDisconnectedReceiver(this, mAccessory);} else {ap.mMessage = getString(b_device_permission_prompt, appName);mDisconnectedReceiver = new UsbDisconnectedReceiver(this, mDevice);}ap.mPositiveButtonText = getString(android.R.string.ok);ap.mNegativeButtonText = getString(android.R.string.cancel);ap.mPositiveButtonListener = this;ap.mNegativeButtonListener = this;// add "always use" checkboxLayoutInflater inflater = (LayoutInflater)getSystemService(YOUT_INFLATER_SERVICE);ap.mView = inflater.inflate(yout.always_use_checkbox, null);mAlwaysUse = (CheckBox)ap.mView.findViewById(com.android.internal.R.id.alwaysUse);if (mDevice == null) {mAlwaysUse.setText(R.string.always_use_accessory);} else {mAlwaysUse.setText(R.string.always_use_device);}mAlwaysUse.setOnCheckedChangeListener(this);mClearDefaultHint = (TextView)ap.mView.findViewById(com.android.internal.R.id.clearDefaultHint);mClearDefaultHint.setVisibility(View.GONE);if(!mPackageName.equals("bcamera"))setupAlert();else{mPermissionGranted = true;finish();}}@Overridepublic void onDestroy() {IBinder b = ServiceManager.getService(USB_SERVICE);IUsbManager service = IUsbManager.Stub.asInterface(b);// send response via pending intentIntent intent = new Intent();try {if (mDevice != null) {intent.putExtra(UsbManager.EXTRA_DEVICE, mDevice);if (mPermissionGranted) {service.grantDevicePermission(mDevice, mUid);if (mAlwaysUse.isChecked()) {final int userId = UserHandle.getUserId(mUid);service.setDevicePackage(mDevice, mPackageName, userId);}}}if (mAccessory != null) {intent.putExtra(UsbManager.EXTRA_ACCESSORY, mAccessory);if (mPermissionGranted) {service.grantAccessoryPermission(mAccessory, mUid);if (mAlwaysUse.isChecked()) {final int userId = UserHandle.getUserId(mUid);service.setAccessoryPackage(mAccessory, mPackageName, userId);}}}intent.putExtra(UsbManager.EXTRA_PERMISSION_GRANTED, mPermissionGranted); mPendingIntent.send(this, 0, intent);} catch (PendingIntent.CanceledException e) {Log.w(TAG, "PendingIntent was cancelled");} catch (RemoteException e) {Log.e(TAG, "IUsbService connection failed", e);}if (mDisconnectedReceiver != null) {unregisterReceiver(mDisconnectedReceiver);}super.onDestroy();}public void onClick(DialogInterface dialog, int which) {if (which == AlertDialog.BUTTON_POSITIVE) {mPermissionGranted = true;}finish();}public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {if (mClearDefaultHint == null) return;if(isChecked) {mClearDefaultHint.setVisibility(View.VISIBLE);} else {mClearDefaultHint.setVisibility(View.GONE);}}}这段代码是获取应⽤的包名,我们可以通过包名对⽐来决定是否弹出对话框。

android通过usb读取U盘的方法

android通过usb读取U盘的方法

android通过usb读取U盘的⽅法本⽂实例为⼤家分享了android通过usb读取U盘的具体代码,供⼤家参考,具体内容如下1.关联 compile ‘com.github.mjdev:libaums:+'2.权限设置<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" /><uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" /><uses-permission android:name="b.host" android:required="false" /><uses-feature android:name="b.host" android:required="true" />3.监听u盘插⼊拔出的⼴播//监听otg插⼊拔出IntentFilter usbDeviceStateFilter = new IntentFilter();usbDeviceStateFilter.addAction(UsbManager.ACTION_USB_DEVICE_ATTACHED);usbDeviceStateFilter.addAction(UsbManager.ACTION_USB_DEVICE_DETACHED);mContext.registerReceiver(UDiskMountedReceiver, usbDeviceStateFilter);//注册监听⾃定义⼴播IntentFilter filter = new IntentFilter(Constant.ACTION_USB_PERMISSION);mContext.registerReceiver(UDiskMountedReceiver, filter);4.代码package btest;/*** @项⽬名: UsbTest* @包名: btest* @⽂件名: ReadUDisk* @创建者: 25934* @创建时间: 2018-07-24 13:50* @描述: TODO*/import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.content.IntentFilter;import bManager;import android.util.Log;import bMassStorageDevice;import com.github.mjdev.libaums.fs.FileSystem;import bFile;import com.github.mjdev.libaums.partition.Partition;import java.io.IOException;import java.util.ArrayList;import java.util.Collections;import parator;import java.util.List;import static btest.Constant.ACTION_USB_PERMISSION;public class ReadUDisk {private UDiskCallBack.OnUDiskCallBack mOnUDiskCallBack = null;private Context mContext;private UsbMassStorageDevice[] storageDevices;private List<UsbFile> usbFiles = new ArrayList<>();private final UsbManager mUsbManager;public ReadUDisk(Context context) {mContext = context;mUsbManager = (UsbManager) mContext.getSystemService(B_SERVICE);}/*** 接受U盘插⼊和拔出事件* @param onUDiskCallBack*/public void setOnUDiskCallBack(UDiskCallBack.OnUDiskCallBack onUDiskCallBack) {if (mOnUDiskCallBack == null) {registerReceiver();mOnUDiskCallBack = onUDiskCallBack;}}/*** 注册⼴播接收者*/public void registerReceiver() {//监听otg插⼊拔出IntentFilter usbDeviceStateFilter = new IntentFilter();usbDeviceStateFilter.addAction(UsbManager.ACTION_USB_DEVICE_ATTACHED);usbDeviceStateFilter.addAction(UsbManager.ACTION_USB_DEVICE_DETACHED);mContext.registerReceiver(UDiskMountedReceiver, usbDeviceStateFilter);//注册监听⾃定义⼴播IntentFilter filter = new IntentFilter(Constant.ACTION_USB_PERMISSION);mContext.registerReceiver(UDiskMountedReceiver, filter);Log.e("ReadUDisk", "registerReceiver: ");}/*** 注销⼴播接收者*/public void unReisterReceiver() {if (UDiskMountedReceiver != null) {mContext.unregisterReceiver(UDiskMountedReceiver);}}/*** 检查usb设备的权限* @param device* @return*/public boolean checkPerssion(UsbMassStorageDevice device) {if (mUsbManager==null){return false;}if (mUsbManager.hasPermission(device.getUsbDevice())) {//有就直接读取设备是否有权限return true;} else {return false;}}/*** 读取当前usb设备的数量* @return*/public int getDeviceCount() {//获取存储设备UsbMassStorageDevice[] storageDevices =UsbMassStorageDevice.getMassStorageDevices(mContext); return storageDevices.length;}/*** 根据position获取usb设备* @param position* @return*/public UsbMassStorageDevice getUsbMassDevice(int position) {//获取存储设备UsbMassStorageDevice[] storageDevices =UsbMassStorageDevice.getMassStorageDevices(mContext); if (position > storageDevices.length) {return null;} else {return storageDevices[position];}}/*** 获取usb上所有的存储设备* @return*/public UsbMassStorageDevice[] getUsbMassAllDevice() {//获取存储设备UsbMassStorageDevice[] storageDevices =UsbMassStorageDevice.getMassStorageDevices(mContext);return storageDevices;}/*** 根据设备获取路径* @param device* @return*/public FileSystem readDevice(UsbMassStorageDevice device) {try {if (!checkPerssion(device)){ //检查是否有权限return null;}device.init();//使⽤设备之前需要进⾏初始化Partition partition = device.getPartitions().get(0); //仅使⽤设备的第⼀个分区FileSystem currentFs = partition.getFileSystem();// currentFs.getCapacity(); //容量⼤⼩// currentFs.getOccupiedSpace(); //已使⽤⼤⼩// currentFs.getFreeSpace(); //未使⽤的⼤⼩UsbFile root = currentFs.getRootDirectory();//获取根⽬录String deviceName = currentFs.getVolumeLabel();//获取设备标签return currentFs;} catch (Exception e) {e.printStackTrace();return null;}}/*** 获取U盘的⽂件和⽂件夹路径* @param fileSystem* @return*/public List<UsbFile> getUsbFiles(FileSystem fileSystem) {usbFiles.clear();try {for (UsbFile file : fileSystem.getRootDirectory().listFiles()) { //将所以⽂件和⽂件夹路径添加到usbFiles数组中usbFiles.add(file);}Collections.sort(usbFiles, new Comparator<UsbFile>() {//简单排序⽂件夹在前⽂件在后 @Overridepublic int compare(UsbFile oFile1, UsbFile oFile2) {return oFile1.isDirectory()-1: 1;}});} catch (IOException e) {e.printStackTrace();}return usbFiles;}private BroadcastReceiver UDiskMountedReceiver = new BroadcastReceiver() {@Overridepublic void onReceive(Context context, Intent intent) {String action = intent.getAction();switch (action) {case ACTION_USB_PERMISSION: //⾃定义权限⼴播if (mOnUDiskCallBack != null) {mOnUDiskCallBack.onPermissionCallBack();}break;case UsbManager.ACTION_USB_DEVICE_ATTACHED: //usb设备插⼊⼴播if (mOnUDiskCallBack != null) {mOnUDiskCallBack.onAttachDeviceCallBack();}break;case UsbManager.ACTION_USB_DEVICE_DETACHED: //usb设备拔出⼴播if (mOnUDiskCallBack != null) {mOnUDiskCallBack.onDetachDeviceCallBack();}break;}}};}以上就是本⽂的全部内容,希望对⼤家的学习有所帮助,也希望⼤家多多⽀持。

Android通过两种模式来支持各种USB外设和Android USB配件

Android通过两种模式来支持各种USB外设和Android USB配件

Android 通过两种模式来支持各种 USB 外设和 Android USB 配件(指那些符合 Android 附件协议的 硬件) :USB 配件和 USB 主机。

在 USB 配件的模式之下,外部的 USB 配件就像 USB 主机那样。

这 种配件可以包括机器人控制器,基站连接器,医疗和音乐设备,电话亭以及读卡器这样很多的设备。

这样就使得那些搭载 Android 系统的设备不需要具备主机的特性就可以和 USB 硬件进行交互。

Android USB 配件是指那些专门用来为搭载 Android 系统的设备工作以及符合 Android 附件通信协议 的设备。

在 USB 主机的模式之下, 搭载 Android 的设备就像主机那样工作。

这些设备包括数码相机, 键盘,鼠标以及游戏控制器。

Android USB 设备被设计成具有广泛的应用领域,可以很好的完成人机 互动应用的通信设备。

图 1 就显示了这两种模式的区别。

当搭载 Android 系统的设备处于主机的模式下,它就充当 USB 主机 并且为总线提供能源。

而当搭载 Android 系统的设备处于 USB 配件的模式下时,连接的 USB 硬件(这 种情况下,指的是一个 Android USB 配件)作为主机一样并且为总线提供能源。

在 Android3.1(API12 级)或较新的平台直接支持 USB 配件和主机模式。

USB 配件模式以一个附加 的类库的方式支持范围更广的设备 被移植到 Android 2.3.4(API10 级)。

设备生产商可以决定是否在 系统镜像上附加这个类库。

注意:支持 USB 主机和配件模式主要取决于设备的硬件,而不是平台的等级。

你可以通过一个 [[<uses-feature>]]元素来为设备进行过滤以支持 USB 主机和配件。

看这个 USB 配件和主机文档来 了解更多的详情。

调试注意事项当用 USB 主机或者配件调试应用程序时,你最好有连接到搭载 Android 程序的设备的 USB 硬件。

USBHOST与USBOTG的区别是什么功能上有什么差异

USBHOST与USBOTG的区别是什么功能上有什么差异

这个解释起‎来好麻烦,‎l z慢慢看‎简单地‎说,OTG‎就是On ‎T he G‎o,正在进‎行中的意思‎,也就是可‎以直接传输‎,就是可以‎从一个机器‎直接传到另‎一个机器中‎,举个例子‎未来的一‎天,我拿着‎M EIZU‎最新产品“‎E X”来到‎学校,听着‎“EX”里‎面装着的我‎最新下载的‎一首新歌,‎我的一个好‎朋友夺下我‎的耳塞想听‎听这首歌,‎她一边听一‎边陶醉地说‎:“我找这‎首歌已经很‎久了,可是‎一直都没有‎能down‎l oad到‎,你是在哪‎儿找到的?‎??”我笑‎着要她拿出‎她的Mp3‎,同时我从‎钥匙扣上取‎下一条便携‎的数据线,‎数据线的一‎头插在“E‎X”上,另‎一头插在她‎的Mp3上‎,我打开“‎E X”的菜‎单,选中了‎基于OTG‎技术的传输‎模式,直接‎将这首好听‎但是难找的‎歌“拷”到‎了她Mp3‎上,她非常‎惊讶,直到‎她在自己的‎M p3上听‎到了这首歌‎才相信这一‎切都是是真‎的……,呵‎呵呵‎usb ‎h ost ‎‎ US‎B设备分为‎H OST(‎主设备)和‎S LAVE‎(从设备)‎,只有当一‎台HOST‎与一台SL‎A VE连接‎时才能实现‎数据的传输‎。

简单‎的说,如果‎一个数码设‎备支持US‎B HOS‎T,那么它‎就可以从另‎外一个US‎B设备中取‎得数据。

‎U SB H‎O ST线可‎以使得很多‎智能手机支‎持连接鼠标‎、键盘、硬‎盘、U盘、‎M P3、U‎S B游戏手‎柄、USB‎HUB、‎U SB网卡‎、USB打‎印机、手机‎、USB ‎S IM手机‎卡读卡器等‎一堆设备,‎好处多多‎所以一‎句话来说:‎一般情况下‎OTG和‎H OST的‎区别就是h‎o st支持‎的东西多一‎点,otg‎传输方便点‎,不需要别‎的机器上有‎从设备的接‎口就能传输‎,就说真‎么多了‎什‎么是usb‎host‎?US‎B是英文U‎n iver‎s al S‎e rial‎Bus的‎缩写,中文‎含义是“通‎用串行总线‎”。

在USB中USBHOST是通过各种描述符来识别设备的

在USB中USBHOST是通过各种描述符来识别设备的

在USB中USBHOST是通过各种描述符来识别设备的随着技术的不断发展, USB(通用串行总线)已经成为了连接各种设备的主要方式。

在 USB 中,USBHOST 是用于识别、管理和连接 USB 设备的主机端,而 USB 设备则是被动接受主机指令并执行操作的从属端。

在 USBHOST 与设备之间的通讯过程中,USBHOST 首先需要对设备进行识别,然后才能对其进行管理和使用。

本文将介绍 USBHOST 是如何通过各种描述符来识别设备的。

什么是 USB 描述符?在 USB 中,描述符起着至关重要的作用。

USB 描述符是用于描述 USB 设备的结构,可以理解成USB 设备的一份数据结构,包含了设备的基本信息、功能特点、支持的协议和接口等信息。

插入 USB 设备后,USBHOST 会从设备中读取一些关键的描述符,通过这些描述符,USBHOST 可以识别出连接的设备,并以正确的方式进行管理和控制。

USB 描述符分为设备描述符、配置描述符、接口描述符等。

其中,设备描述符是必须的;而配置描述符和接口描述符则是通过设备描述符间接引用的。

下面将详细介绍每种描述符的作用和结构。

设备描述符设备描述符是用于描述USB 设备的基本信息,包括设备的供应商ID、产品ID、设备版本号、设备类等。

设备描述符有18个字节长,其中,字节1为描述符的长度,字节2为描述符类型(值为0x01表示设备描述符),字节3和字节4表示USB规范的版本号。

字节5和字节6表示USB设备的类别、子类别和协议码,字节7为USB设备可处理的最大数据包大小,字节8为设备的厂商ID,字节9为设备的产品ID,字节10和11为设备的版本号,字节12至18为USB设备的其他描述符。

配置描述符配置描述符用于描述 USB 设备的配置信息,包括该配置的总长度、配置号、接口数、供电方式等。

配置描述符由配置描述符首部和接口描述符组成。

需要注意的是,在 USB 中,配置描述符中的一个设备可以包含多个接口描述符。

USB HOST与 USB OTG的区别是什么,功能上有什么差异

USB HOST与 USB OTG的区别是什么,功能上有什么差异

(2)作为A设备时,需要具有VBUS监视和供电电路;作为B设备初始化SRP时,需要监视和触发VBUS。
(3)具有ID输入引脚。作为两用OTG设备,ASIC、DSP或其它与收发器连接的电路必须具备充当外设和主机的功能,并应按照HNP协议转换其角色。
收发器所需添加的大多数电路用于VBUS引脚的管理。作为主机,它必须能够提供5V、输出电流可达8mA的电源。图3中的模拟开关用于配置收发器的各种功能。
ASIC和控制器还必须包含USB主机逻辑控制功能,包括发送SOF(帧启动)包、发送配置\u36755输入\u36755输出数据包,在USB 1 msec帧内确定传输进程、发送USB复位信号、提供USB电源管理等。
Maxim要提供的USB OTG方案
MAX3301E是Maxim公司研制的一款USB OTG收发器,该器件集成有电荷泵,可将PDA、蜂窝电话和数码相机等移动设备与USB外设直接连接而无需PC机的参与。采用MAX3301E和一个嵌入式USB主机,就可直接将诸如打印机或外部硬盘驱动器这样的外设连接。MAX3301E内部包括USB OTG收发器、UBUS电荷泵、线性稳压器和I2C 2线串行接口。内部电平转换器使MAX3301E能够与采用+1.65至+3.6V逻辑电源电压的器件连接。MAX3301E中的电荷泵工作在+3V至+4.5V输入电源下,可产生符合OTG要求的VBUS输出,且输出电流大于8mA。该器件可利用内部比较器控制并测量VBUS,同时支持USB OTG SRP和HNP。
这个解释起来好麻烦,lz慢慢看
简单地说,OTG就是On The Go,正在进行中的意思,也就是可以直接传输,就是可以从一个机器直接传到另一个机器中,举个例子 未来的一天,我拿着MEIZU最新产品“EX”来到学校,听着“EX”里面装着的我最新下载的一首新歌,我的一个好朋友夺下我的耳塞想听听这首歌,她一边听一边陶醉地说:“我找这首歌已经很久了,可是一直都没有能download到,你是在哪儿找到的???”我笑着要她拿出她的Mp3,同时我从钥匙扣上取下一条便携的数据线,数据线的一头插在“EX”上,另一头插在她的Mp3上,我打开“EX”的菜单,选中了基于OTG技术的传输模式,直接将这首好听但是难找的歌“拷”到了她Mp3上,她非常惊讶,直到她在自己的Mp3上听到了这首歌才相信这一切都是是真的……,呵呵呵

蓝牙 hid

蓝牙 hid

Android USB Host与HID通讯(一)去年9月份来到现在的公司,接到新公司的第一个项目就是Android USB Host与HID通讯,当时也什么都不懂,就拿着google的api 开发指南(/guide/topics/connectivity/usb/host.html)反复的阅读反复的实验,网上的资料也只能发现/枚举到U盘等设备,进行HID通讯、数据传输的资料很少,当时老大给我的时间是整整一个月,听到这我说:我尽量…因为当时发了一两篇博文(Android USB Host 与HID 通讯方法),最近有些Android开发攻城师在我的博客问,说具体要怎么做,如何处理?但最近手上有一大堆TabletSystem Bug,下班后再也不想继续,就一直没怎么回复,今天周六公司调班,想干点别的,就跟大家一起交流交流Android USB Host与HID 通讯。

首先,大家如果想了解啥是USB Host,那大家还是自己去学习学习吧,多看些一手的资料,别总是穿二手鞋(这是前辈对我的忠告)。

跟我之前一样完全不知道Android USB Host的可以反复阅读下上面提到的google api 开发指南,我是反复的看了一遍又一遍,中文的英文的(英文有点戳),除了Host外,还有个Accessory,感兴趣的都可以了解下。

其次,当时公司给我的HID设备既有需要驱动的也有无驱的,而公司给我的板子没有相应的驱动。

只能发现无驱HID,若要发现有驱动的HID设备则需要另加上相应的设备驱动,否则你将无法发现你的HID设备。

至于,怎么添加相应的驱动,这就需要请教写驱动的攻城师同胞,暂时还未向这方面发展,以后有机会可以横向发展下。

先看看AndroidManifest.xml文件,对于刚接触最好从简单入手,在AndroidManifest.xml中加上intent-filter过滤器,可以先不做请求权限的处理,因为intent-filter方式可以自动请求权限。
