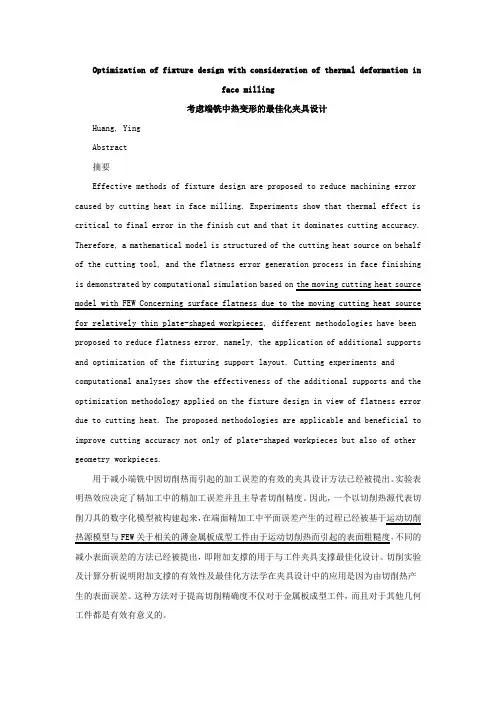

Optimization of fixture design with consideration of thermal deformation inface milling考虑端铣中热变形的最佳化夹具设计Huang, YingAbstract摘要Effective methods of fixture design are proposed to reduce machining error caused by cutting heat in face milling. Experiments show that thermal effect is critical to final error in the finish cut and that it dominates cutting accuracy. Therefore, a mathematical model is structured of the cutting heat source on behalf of the cutting tool, and the flatness error generation process in face finishing is demonstrated by computational simulation based on the moving cutting heat source model with FEW Concerning surface flatness due to the moving cutting heat source for relatively thin plate-shaped workpieces, different methodologies have been proposed to reduce flatness error, namely, the application of additional supports and optimization of the fixturing support layout. Cutting experiments and computational analyses show the effectiveness of the additional supports and the optimization methodology applied on the fixture design in view of flatness error due to cutting heat. The proposed methodologies are applicable and beneficial to improve cutting accuracy not only of plate-shaped workpieces but also of other geometry workpieces.用于减小端铣中因切削热而引起的加工误差的有效的夹具设计方法已经被提出。
专业夹具设计全英文介绍
21
Fixture design
CLAMPING FORCES Mechanical
low cost, relatively low forces Pneumatic
higher cost, relatively low forces, large components
Hydraulic higher initial cost, high forces, reliable, small components
28
50 MPa Threaded Cylinder 42-0010-06 (page F-4)
3.4 kN 30 MPa 5.7 kN 50 MPa
Force diagram
50 MPa 30 MPa
29
Workpieces Sequence valve opens
Oil pressure
Movement of cylinder
the coefficient of
friction (µ) is
normally calculated at 0.1
18
Clamping force F
Total clamping force =Fxµ
Reaction force
Reaction force
TotaPlrcelfaemrapbilneg force =F
24
Force comparison
Standard clamping strap M20 thread
Max. recommended torque 223Nm Max. clamping force 28kN
Hydraulic swing clamp 6951F-11-21 (page 63, metric catalogue) Ø 22 rod, clamping strap Max. oil pressure 35 MPa Clamping force 13.7kN
夹治具设计概论
夹治具设计概论1.1夹治具(Fixture Jig)的定义一般而言，凡是在机械制造过程中，使任何加工程序能加速、方便或安全的辅助装置工具，均可称为夹具（Fixture）。
广义的夹具可包括机器夹具(Machine Fixture)，冲压夹具（press Fixture)，热处理夹具（Heat Treatment Fixture)，焊接夹具（Welding Fixture)，装配夹具（Assembling Fixture）等等。
狭义的夹具，一般即指机器夹具，可简称为夹具，它主要用于机器加工，也是机器与工件、刀具之间的桥梁，目前较统称的定义为“用以装夹工件的装置工具“为夹具。
“用以装夹工件并配合引导刀具的装置工具”称为治具或钻模（Jig）。
1.2夹治具的功能夹具的功能：在加工过程中，将工件维持在一安定的位置上，并吸收切削过程中产生的推力与变形力。
－让工件能得到定位，维持较安定的加工精度。
由于夹具的制作成本与所要达到的精度成正比，因此，选择适当的精度，才能达到降低成本的要求。
由于高精度的夹具一定贵，因此，我们往往必须在成本与效率做一选择。
1.3夹具的分类一般可按夹具的通用性和使用特点，所使用的机器类型，以及所用动力源进行分类，如表1所示。
4-2 夹具规划2.1 夹治具规划要点图（一）夹具规划要点2.2 夹具设计流程图图（二）夹具设计流程图4-3 夹具设计考虑因素设计重点：(1) 构思:－必须暸解加工方法与切削过程。
－不要仅依靠自己的知识来判断，必须保持有别的看法之柔软性。
(2) 对下一工程的考虑点：一要站在使用者的立场设计。
一优良的夹具设计是要考虑到价格、精度、安装容易与耐用。
(3) 设计上的重点项目：一单纯。
一多使用标准品(市售品、标准规格品等)，尽量避免使用特殊品。
－夹持必须配合加工物且要保持充份的刚性。
－考虑充份的调配性(标准品)。
－考虑到安全第－。
－要注意基准面、基准点的设定，要统一前后工程，不可相互矛盾。
