ArcGis在林业制图中基本操作步骤及应用

ArcGis在林业制图中基本操作步骤及应用

A r c G i s在林业制图中基本操作步骤及应用1、启动程序。

翻开“开始”→“程序”→ ArcGis → ArcMap10.02、新建面文件。

在菜单栏中选择“黄箱子”(目录窗口)→“目录”→“+连结到文件夹”→选择“我的电脑”→选择保留地点。

(成立盘下目录文件夹,如: E 盘→〔新建文件夹〕),→重命名:XXXX ,→“确立”,→右键单击上步新建的文件夹名字→点击“新建”→单击“面文件shapefile”,→在“创立新面文件shapefile”对话框中:名称:输入XXX 小班,因素种类:选择“面”→“编写”→“空间参照属性”→“选择”→单击选中“ Projection .图标”→“增添”→单击选中“ GAUSS-Kruger 图标”→“增添”→单击“ xian1980 图标”→“增添”→单击“ xian1980-36 °图标”→“增添”→“确立”→确立。

即达成面文件的创立任务。

(此步新建面文件“名称”将自动移到左侧“图层”列框下方。

)3、新建线文件:翻开“红箱子”( ArcToolbox 窗口)(地理办理)→双击“数据管理工具” →双击“因素” →双击“因素转线”→出现“因素转到线”对话框→输入因素→单击上一步才建的小班面文件名称→“确立”。

即生成小班界。

4、( 1 )翻开底图:“文件”→“翻开”→在“查找范围”中查找底图寄存的地点(如:我的电脑→ E 盘→地图→XXX.mxd文件)。

(2 )增添图层:(翻开所建的面文件)。

在菜单栏中的“文件”→“增添数据”→“+”增添数据→“查找范围”(选择寄存的地点并翻开)→选中图框中的全部 XXX.shp 格式文件→“增添”。

或右键单击左侧“图层”→“增添数据” →查找范围中:查找已建好的面文件、选中 XXX.shp 格式文件→“增添”。

即达成增添。

也可采纳先翻开底图,再从“文件”→“添虽数据”→在所保留文件盘中选择翻开 XXX.shp 格式文件→“增添” →“封闭”→再封闭原底图全部数据→在右侧操作框中单击右键→“全图”→放大所新增添的图层→再加载底图5、依据需要达成所要属性表内容(小班因子)。

arcgistab格式转shapefile

arcgistab格式转shapefile

arcgistab格式转shapefile1. 什么是arcgistab格式和shapefile格式?arcgistab格式是一种用于存储地理空间数据的文件格式,它是ArcGIS软件中常用的数据格式之一。

arcgistab格式是一种基于文本的格式,可以存储点、线、面等地理要素的几何信息,同时还可以存储属性数据。

shapefile格式是一种用于存储地理空间数据的文件格式,它也是ArcGIS软件中常用的数据格式之一。

shapefile格式由一组文件组成,包括.shp、.shx、.dbf等多个文件,其中.shp文件存储几何信息,.shx文件存储空间索引,.dbf文件存储属性数据。

2. arcgistab格式转shapefile的步骤arcgistab格式转shapefile的过程可以分为以下几个步骤:步骤一:准备arcgistab格式数据首先,我们需要准备arcgistab格式的数据文件。

通常,arcgistab格式的数据文件是以.tab为后缀名的文件,它是一个文本文件,可以使用文本编辑器打开。

步骤二:创建shapefile文件在ArcGIS软件中,打开ArcCatalog工具,选择一个合适的文件夹,右键点击该文件夹,选择“新建”->“Shapefile”,然后按照提示设置shapefile的名称和存储位置。

步骤三:导入arcgistab数据在ArcCatalog工具中,找到刚刚创建的shapefile文件,右键点击该文件,选择“导入”->“arcgistab表格”,然后选择要导入的arcgistab格式数据文件,点击“确定”按钮。

步骤四:设置导入参数在导入arcgistab数据的过程中,需要设置一些导入参数,以确保数据能够正确导入。

在导入向导对话框中,根据数据的实际情况,设置好几何类型、坐标系、字段映射等参数,然后点击“下一步”按钮。

步骤五:完成导入在导入arcgistab数据的最后一步,可以预览导入结果,并进行一些后续操作,比如设置属性字段的类型、长度等。

ArcGISshape文件要素类包括点,面,折线,多点,多面数据表字段以及数据的查看,添加。。。

ArcGISshape文件要素类包括点,面,折线,多点,多面数据表字段以及数据的查看,添加。。。

ArcGISshape⽂件要素类包括点,⾯,折线,多点,多⾯数据表字段以及数据的查看,添加。

⾸先shape⽂件是怎么建⽴的呢?======================打开ArcGIS Desktop中的Catalog,在⽬录树列表中,选择⼀个⽂件夹(如果有ArcSDE GeoDatabase则省去这步),在⽂件夹点击右键,新建ShapeFile⽂件,或者在空间数据库中New -》要素类FeatureClass(两者其实⼀样⼀样的),输⼊名称,和选择要素类型(有五种点线⾯多点多⾯||),坐标系也选择⼀个,⼀般要和其他要素⼀样,⽐如都是China的那个某年的坐标系,点击确定就创建了shape⽂件(在地理空间数据库中就是建⽴了⼀个表,⼀个要素类⽽已,下⾯全部按照shape单独的⽂件来说,地理空间数据库其实⼀样。

)。

Shape⽂件添加删除字段,暂时⽆法修改字段============================在shape⽂件上点击右键,打开【属性】,选择字段,默认有FID、Shape和id三个字段,FID就是⾃动增长的⼀个id,Shape是类型,这俩必须有,还必须有第三个字段,ArcGIS10好像不能修改id字段,但是可以先添加⼀个字段,然后再id这⼀⾏最左边,点击选择整⾏进⾏删除。

这样就可以查看,添加或删除字段了,⾄于修改,和更改顺序(其实更改顺序只是给⼈看的,没啥⽤),我暂时不知道如何操作。

Shape⽂件中对表进⾏数据的添加删除修改操作============================在有了字段后,表还是空的,这⾥的表其实和数据库⾥的表table的概念是⼀模⼀样的。

有了表结构,下⾯就是对表内容进⾏进⾏添加删除修改了。

这个操作需要使⽤ArcGIS Desktop⾥的 ArcMap软件。

打开ArcMap之后,⾸先把编辑器和绘图⼯具条调⽤出来。

在【⾃定义】【⾃定义模式】中可以操作,简单的也可以在⼯具栏空⽩处点击右键直接打开这些⼯具条。

ArcGIS制作shapefile文件及属性表设置

ArcGIS制作shapefile文件及属性表设置

Shapefile文件转换方式:1.cad文件的准备将点、线、面文件在cad中画好,并进行分层,如道路,可按照道路性质划分为主干道、次干道、支路等;如土地利用规划中的地块,可按照用地性质划分。

同时注意,对于控规,地块界线最好选用地块“建筑后退红线”形成的面作为地块面,以便拉升时使用。

若选用“地块边界”即道路红线边界围成的面,则在ArcGIS拉升中地块与地块之间没有分隔开,表达上不好看,而且也不符合实际地块建筑体所在的可能建筑区域。

将做好的cad文件中需要的层保留,删除其他层后,保存为一个.dwg文件待用。

2.ArcGIS中导入及转换打开ArcMap软件,将.dwg文件加载入ArcMap界面,加载时需要对cad文件进行选择,点为Point,线为Polyline,线为Polygon。

如图为Polyline(线)导入后的显示。

右键点击该导入的图层,选择Date\Export Date命令,在弹出的对话框中设置:1)Export中选择默认的All features2)Use the same coordinate system as中点选this layer’s source data3)Output shapefile or feature class中输入保存转换后的shapefile文件的保存位置前地图中。

我们在这里选择“是”。

转换后的shapefile文件中,点击右键选择Open Attribute Table,可以看到,属性表中罗列了导入数据的各种信息(CAD中的各种信息,这些信息可以作为建立属性表属性值的依据和参考),这些信息与未转换前的.dwg文件导入后的属性表完全相同。

3.转换保存后的文件可只保留.dbf、.shp、.shx文件即可。

ArcGIS的shapefile文件由这三个基本文件组成。

4.转换为shapefile文件的属性表中,保留了与.dwg格式导入时同样的属性表的项目,有些是我们不需要的,需要删除。

ArcGIS制作shapefile文件及属性表设置

ArcGIS制作shapefile文件及属性表设置

Shapefile文件转换方式:1.cad文件的准备将点、线、面文件在cad中画好,并进行分层,如道路,可按照道路性质划分为主干道、次干道、支路等;如土地利用规划中的地块,可按照用地性质划分。

同时注意,对于控规,地块界线最好选用地块“建筑后退红线”形成的面作为地块面,以便拉升时使用。

若选用“地块边界”即道路红线边界围成的面,则在ArcGIS拉升中地块与地块之间没有分隔开,表达上不好看,而且也不符合实际地块建筑体所在的可能建筑区域。

将做好的cad文件中需要的层保留,删除其他层后,保存为一个.dwg文件待用。

2.ArcGIS中导入及转换打开ArcMap软件,将.dwg文件加载入ArcMap界面,加载时需要对cad文件进行选择,点为Point,线为Polyline,线为Polygon。

如图为Polyline(线)导入后的显示。

右键点击该导入的图层,选择Date\Export Date命令,在弹出的对话框中设置:1)Export中选择默认的All features2)Use the same coordinate system as中点选this layer’s source data3)Output shapefile or feature class中输入保存转换后的shapefile文件的保存位置前地图中。

我们在这里选择“是”。

转换后的shapefile文件中,点击右键选择Open Attribute Table,可以看到,属性表中罗列了导入数据的各种信息(CAD中的各种信息,这些信息可以作为建立属性表属性值的依据和参考),这些信息与未转换前的.dwg文件导入后的属性表完全相同。

3.转换保存后的文件可只保留.dbf、.shp、.shx文件即可。

ArcGIS的shapefile文件由这三个基本文件组成。

4.转换为shapefile文件的属性表中,保留了与.dwg格式导入时同样的属性表的项目,有些是我们不需要的,需要删除。

shapefile包的用法

shapefile包的用法

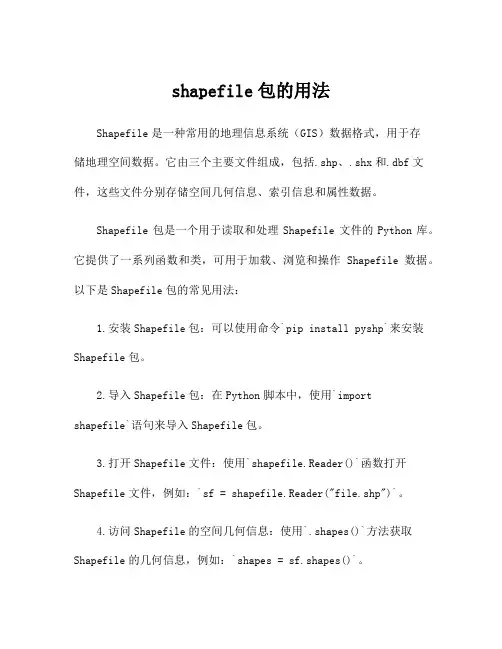

shapefile包的用法Shapefile是一种常用的地理信息系统(GIS)数据格式,用于存储地理空间数据。

它由三个主要文件组成,包括.shp、.shx和.dbf文件,这些文件分别存储空间几何信息、索引信息和属性数据。

Shapefile包是一个用于读取和处理Shapefile文件的Python库。

它提供了一系列函数和类,可用于加载、浏览和操作Shapefile数据。

以下是Shapefile包的常见用法:1.安装Shapefile包:可以使用命令`pip install pyshp`来安装Shapefile包。

2.导入Shapefile包:在Python脚本中,使用`importshapefile`语句来导入Shapefile包。

3.打开Shapefile文件:使用`shapefile.Reader()`函数打开Shapefile文件,例如:`sf = shapefile.Reader("file.shp")`。

4.访问Shapefile的空间几何信息:使用`.shapes()`方法获取Shapefile的几何信息,例如:`shapes = sf.shapes()`。

5.访问Shapefile的属性数据:使用`.records()`方法获取Shapefile的属性数据,例如:`records = sf.records()`。

6.遍历Shapefile的空间几何信息和属性数据:可以使用循环来遍历Shapefile的空间几何信息和属性数据,例如:```pythonfor shape in shapes:#处理空间几何信息# ...for record in records:#处理属性数据# ...```7.获取Shapefile的字段信息:使用`.fields`属性获取Shapefile的字段信息,例如:`fields = sf.fields`。

8.获取Shapefile的坐标系:使用`.crs`属性获取Shapefile的坐标系信息,例如:`crs = sf.crs`。

ArcGIS10.2地形分析详细步骤

ArcGIS10.2地形分析详细步骤

基于ArcGIS下的地形分析报告—以寨场山森林公园的地形为例摘要:ArcGIS是处理空间数据的特殊信息系统,能进行高级空间分析,进行数据发布和输出。

具有易于修改、更新、查询、分析和表达地理数据等优点。

本文以惠东县寨场山森林公园的地形为例,阐述了如何用ArcGIS这个软件从自然和环境等生态因素的角度对地形的高程、坡度、坡向进行详细的说明,并对正射模型、鸟瞰图以及立面图的生成过程作出具体分析。

图文并茂,简单易懂,直观地表现了ArcGIS的强大的矢量化数据处理能力以及空间分析能力。

关键字:空间分析; 坡向图;坡度图;鸟瞰图;Terrain analysis report based on ArcGIS -Take the terrain of Zhai Changshan Forest Park for exampleAbstract:ArcGIS is a special information system which can process spatial data , it can analyze advanced space , publish and output data . It is easy to modify, update, query, analysis and presentation of geographic data,etc. In this paper,taking the terrain of Huidong County Zhai Changshan Forest Park for example, describes the detailed steps on how to use this software for elevation, slope, aspect and environmental factors , and to make a detailed analysis on orthophoto generation process model , aerial view of the terrian and elevations.It is illustrated and easy to understand, it also has a powerful vector data processing capability and spatial analysis capabilities of ArcGIS.Key words:Spatial Analysis; Aspect Map;Slope Map; Aerial View;1.整理CAD根据要求,只要对寨场山森林公园整个地形中的红线范围里面的部分进行分析,为了保持红线内的内容清晰、完整,同时节约内存和空间,因此要删除红线外的部分,隐藏或者删除不必要的其他图层。

简述创建shapefile的流程

简述创建shapefile的流程

简述创建shapefile的流程
创建 shapefile 文件需要以下步骤:
1. 准备数据:shapefile 文件可以存储点、线、面三种几何类型的数据,需要准备相应格式的数据。

例如,如果要创建一个包含多边形的 shapefile,则需要准备一个包含多边形坐标的表格数据。

2. 选择工具:有多种工具可以创建 shapefile 文件,如 ArcGIS、QGIS 等 GIS 软件,也可以使用 Python 中的`shapely`库或`ogr`库。

3. 打开创建工具并导入数据:根据所选工具的不同,可以通过文件菜单、工具按钮或命令行等方式打开创建 shapefile 的工具,并导入准备好的数据。

4. 设置坐标系:在导入数据之前,需要设置正确的坐标系。

坐标系是用于定义地理空间数据位置的参考系统,如果坐标系不正确,可能会导致数据位置偏差。

5. 定义几何类型:根据导入的数据类型,选择要创建的几何类型(点、线、面)。

6. 保存 shapefile:完成上述步骤后,就可以将数据保存为 shapefile 文件了。

在保存时,需要指定文件名、保存路径和文件格式(.shp、.dbf、.shx、.prj 等)。

需要注意的是,在创建 shapefile 文件时,需要确保数据的准确性和完整性,否则可能会导致数据无法正常显示或分析。

另外,如果需要在不同的 GIS 软件中使用 shapefile 文件,需要注意坐标系的一致性。

shapefile创建流程

shapefile创建流程

shapefile创建流程下载温馨提示:该文档是我店铺精心编制而成,希望大家下载以后,能够帮助大家解决实际的问题。

文档下载后可定制随意修改,请根据实际需要进行相应的调整和使用,谢谢!并且,本店铺为大家提供各种各样类型的实用资料,如教育随笔、日记赏析、句子摘抄、古诗大全、经典美文、话题作文、工作总结、词语解析、文案摘录、其他资料等等,如想了解不同资料格式和写法,敬请关注!Download tips: This document is carefully compiled by theeditor. I hope that after you download them,they can help yousolve practical problems. The document can be customized andmodified after downloading,please adjust and use it according toactual needs, thank you!In addition, our shop provides you with various types ofpractical materials,such as educational essays, diaryappreciation,sentence excerpts,ancient poems,classic articles,topic composition,work summary,word parsing,copy excerpts,other materials and so on,want to know different data formats andwriting methods,please pay attention!1. 打开 ArcGIS 软件,选择“Catalog”窗口。

使用PythonShapefileLibrary创建和编辑Shapefile文件

使用PythonShapefileLibrary创建和编辑Shapefile文件

使用PythonShapefileLibrary创建和编辑Shapefile文件使用Python Shapefile Library创建和编辑Shapefile文件shapefile是GIS中非常重要的一种数据类型,在ArcGIS中被称为要素类(Feature Classes),主要包括点(point)、线(polyline)和多边形(polygon)。

Python脚本是ArcGIS官方推荐的脚本语言,通过Python脚本能够很方便的调用ArcGIS中的各种工具和函数批量完成所需操作。

本文所介绍的这个库(Python Shapefile Library)是一个Python库,用于在Python脚本中对ArcGIS中的Shapefile 文件(.shp,.shx,.dbf等格式)进行读写操作。

1、Python Shapefile Library的下载与安装:Python Shapefile Library下载地址:https:///doc/803661574.html,/p/pyshp/ Python Shapefile Library使用时无需安装,只需在Python程序中导入该模块文件即可(import shapefile,具体导入方法参考Python 教程中模块的导入部分)2、Shapefile文件的读操作2.1 Python Shapefile Library提供了Reader类,通过创建Reader类的对象(如下面的sf)进行shapefile文件的读操作:sf = shapefile . Reader ('shapefile name')2.2 使用Python Shapefile Library读取shapefile文件的"几何数据"(Geometry)和"属性数据"(Attribute Record)"几何数据"一般有多个几何对象组成,比如一个"点文件",每个点就是一个对象;对于一个多边形文件,每个对象可能包含有多个多边形,每个多边形又称为"块(parts)",每个"块"由多个点组成。

OATools 指南(适用于 ArcGIS 版本 10.2 和 10.3)说明书

OATools 指南(适用于 ArcGIS 版本 10.2 和 10.3)说明书

OATools Guid e (for ArcGIS version 10.2 and 10.3)OATools Guide (for ArcGIS version 10.2 and 10.3) _____________ 11. Why to use Orientation Analysis Tools (OATools) in ArcGIS? __ 22. Data format ___________________________________________ 22.1 Coordinate Systems (2)3. How to get the tools into my computer? _____________________ 24. Attention! ____________________________________________ 25. Individual tools’ guide __________________________________ 3 5.0 New Projection (3)5.1 Plot in Azimuthal Projection tool (3)5.1.1 Additional functions (4)5.2 Link Map and Projection tool (5)5.3 Density distribution diagram (5)5.4 Spatial Averaging tool and Map of Fold Axes tool (6)5.6 Rose histogram (6)5.7 CSProfile tool (7)1. Why to use Orientation Analysis Tools (OATools) in ArcGIS?Orientation Analysis Tools described here offer practical method of processing tectonic data in relation to their location and attributes. Use them in combination with GIS tools to work and understand your set of tectonic data. In ArcGIS, Selection Tools are available, which you can use to select tectonic orientations in the map according to their location or attributes, such as type of structure, orientation or relation to geological units.These tools enable to plot orientations into diagram (azimuthal projection–equal-area net) as points or great circles, count the density distribution diagrams, map of spatial averages, map of fold axes or a rose histogram). Link Tool connects data in the diagram and the map. Profile Tool was added to create profile line of cross section from DEM. Several additional functions are available (eigenvectors, vector calculator).As a result you can get an overview of main structures in the map, to accompany your map with diagrams and enjoy working in a single environment with no need of data transfer.2. Data formatShapefile as a layer in the ArcMap is an input for the tools. Tools dialog boxes offer layers from an Active Data Frame as an input. Table: attribute table should contain fields for dip direction and dip (double or integer type of field). The fields’ order or names do not matter. Additional fields - station ID and type of structure - can be also useful.2.1 Coordinate Systems!!Your data should be in the projected coordinate system in linear units (not geographic coordinate system in angular units).How to project your shapefile in WGS 1985 (degrees) to Projected Coordinate System? Use Project Tool located in ArcToolbox (in ArcMap or ArcCatalog). Open ArcToolbox window, click on Data Management Tools – Projections and Transformations – Feature. Here is the Project Tool. Double click, fill parameters, new shapefile with desired coordinate system is created.3. How to get the tools into my computer?Installation is easy; double click at Esri Add-In File. Confirm installation. In ArcMap display the toolbar “Orientation Analysis Tools for ArcGIS 10_2 or 10_3”. For detailed guide see the “OATools_for_10_2_and_10_3_installation.pdf”.4. Attention!Please, if ever happen to stop working with some error message, give me a notice! I would be grateful to you.If you have any idea what to improve or what is missing tell me about it!Recommendation: files and folders names should not contain any spaces or marks like %ˇ´?! etc. Use underscore instead of spaces.5. Individual tools’ guide5.0 New ProjectionThis button should be used before the orientations of geological structures are plotted. New Data Frame is added. Navigate to diagram_outline.shp to add to the projection. Diagram outline is a shapefile delivered with this add-in.Outputs of Plot in Azimuthal Projection tool, Density Distribution Diagram and Rose Histogram tools are to be observed in this projection. It is azimuthal lower hemisphere equal-area projection as indicated in the new Data Frame name.The Data Frame does not have coordinate system as well as the diagram outline. Radius of the diagram is 200 units and the tools calculate with this number.Drag the layer with structural data to this Data Frame and make sure it is active before you use the Plot in Azimuthal Projection, Density Distribution Diagram, or Rose Histogram tools. You can switch to Layout view to see both the projection and the map.5.1 Plot in Azimuthal Projection toolThis tool plots selected orientations from the input layer to azimuthal equal-area projection (lower hemisphere). Create New Projection by the “New Projection” button first. Make it active and drag the layer with structural data here.✓In the dialog box, choose the input layer in the first box. Only layers from the active Data Frame are in the menu.✓Then choose field for the control point ID and field for the type of planar structure.These fields are optional.✓If you want to plot planes, select fields for dip direction and dip. (Convert strikes to dip directions first, if your data contain that). Planes can be plotted as normals toplanes or as great circles. Great circles are convenient for small datasets - a feworientations, otherwise the diagram is unclear and the tool takes too much time toexecute.✓If you want to plot lines, select fields for trend and plunge, optionally for type of L structure.Selected fields are present in the output shapefile.Plotting options include graphical points or plot in a shapefile. The shapefile can be used by the “Link Map and Projection” tool to link selected data in the map and the projection. Great circles cannot be plotted as graphics; new shapefile must be created.5.1.1 Additional functionsThe Tool offers calculation of the fold axis, the averaged orientation, and the shape and strength parameters, which are parameters useful in discriminating girdle-type distributions from clustered distributions (Fisher et al., 1987). These statistical functions use the orientation matrix, whose components are the sums of the direction cosines of selected orientations. Computed eigenvalues and eigenvectors are used. The maximum eigenvector corresponds to the mean axis of the data; the minimum eigenvector i s the direction of the fold axis, the π-pole. The calculated orientation of the fold axis can be plotted in the projection.There is also “Euler/Vector calculator” to convert angles to vector components and vice versa, compute pole to plane, cross product and dot product of two lines.Tip: Any orientation written manually into the text boxes of eigenvectors can be plotted into the projection by the Plot Eigenvector button.Every time you plot the orientations in a new shapefile, n ew field …N“ is added into the output shapefile table. This field contains FIDs of the original data, which is the way, how the orientations in the new shapefile can be linked to the original data.Fisher, N. I. – Lewis, T. – Embleton, B. J. J. (1987): Statistical Analysis of Spherical Data. –Cambridge University Press, Cambridge, 329pp.5.2 Link Map and Projection toolThis tool links data in the projection with corresponding orientations in the map, and vice versa.Select points in the diagram or in the map by Selection tool first. These points will be linked. The result of the Link tool is selection in the layer that is linked to. Both layers must be in the active Data Frame.✓Use the “Link Map and Projection” button and in the first box of the dialog box choose the layer with selected points (FROM layer).✓In the second box choose the layer, you want to link to (TO layer).✓Click on the button re presenting the link direction (“diagram to map” or “map to diagram”). Equivalent points are selected in the “TO layer”.5.3 Density distribution diagramThis tool calculates the density di stribution diagram. Create the new projection by the “New Projection” button first. Make it active and drag the layer with structural data here.Use the “Density Distribution Diagram” button.✓In the dialog box, choose the input layer in the first box. Only layers from the active Data Frame are in the menu.✓You can change the workspace.✓Untick the option “Plot only selected features” if you want to work with all (not only selected) features.✓Select fields for dip direction and dip.✓Type a name for the output raster and select colour of the output raster.✓Smoothing parameter: for less data, smaller number is adequate, produces more smoothed diagrams. Smoothing parameter is set in default, but try to change, higher number produces more detailed diagrams. Maximum is 100.✓Watson density is calculated.5.4 Spatial Averaging tool and Map of Fold Axes toolThis tool calculates spatial averages (resp. fold axes) in a net of stations. The interval is set by user as well as the radius of influence (this radius determines the space around the station within the tectonic orientations have influence on the calculation). Orientation matrix is used. Influence of each orientation is determined by the distance from the averaging station. Eigenvalues and eigenvectors are computed. The highest eigenvalue is used to compute the spatial average and the lowest to compute the fold axis.If there is a selection in the input layer, the tool works with this selection. If no selection, the tool works with all features.✓Choose the input layer in the first box, then fields for dip and dip direction.✓Type the interval of the net of stations and radius of influence.✓Type the name of the output. You can change the workspace.✓There are informative values in the text boxes below: numbers of stations in X and Y directions and the extent of the data in meters.✓Use “Calculate” button.✓Text file with x, y and computed orientation (dip direction and dip, resp. trend and plunge) is generated in the selected workspace and shapefile is created from that. This shapefile is added to the active Data Frame of the ArcMap and rotated symbols are set.5.6 Rose histogramThe “Rose Histogram” tool creates diagram that represents the frequency of orientations of geological structures.Orientations are read from the point geometry data (orientations are in the attribute table) or are calculated from the geometry of polylines.Orientations are matched to one of the 10 degrees classes. The class with the highest frequency is 100% of the diagram radius; other classes are relative to it.Point Input: Dip directions from the attribute table of the point shapefile are converted to strikes. Select the field containing the dip directions.Line Input: Orientation for each line is calculated. Options are: mean vector of the polyline segments or orientation of the straight line connecting the start and the end point of the polyline.Optionally use the button “Line Azimuths” and calculate orientations of the input polyline data. Orientations are added to the attribute table. Both methods of calculation are used (mean vector of segments and start-end point orientation).Optionally the length of the polyline can be considered, when you tick the option “Weight the line influence by the line length”. The influence of the line is multiplied by its length. (Short lines will have less influence than the long lines).Fields in the output polygon shapefile: “class_no”: class number (1-18), “count”: number of orientations that fal l in this class, “tot_length”: total length of lines in this class in kilometres (when weighted by length), “rel_length”: relative length of classes (from 0 to 1)Using tool - steps✓Use the …Rose histogram“ buttonDialog box appears.✓In the first box …Input Feature layer“, choose the input layer- line or point shapefile.✓Number of selected features is displayed, if there is any selection. The tool works with selection. If there is no selection, the tool works with all features.✓Lines input: Optionally use the “Line Azimuths” button to add line orientations in the input attribute table.✓Points input: Select the dip direction field.✓You can change the workspace. Type a name of the output polygon shapefile.✓Lines input: Tick “Weigh the line influence by the line length” if you want to weigh by the lines lengths.✓Select the option how the line orientation is calculated.✓Click on …Calculate histogram from Lines“ or ”..from points”.5.7 CSProfile toolThis tool creates profile line of cross section from Digital Elevation Model (DEM).✓Input is the line shapefile with one line selected (line of cross section in the map).✓Input is DEM, pixel value=elevation.✓Both inputs must be in the projected coordinate system.✓Optional input is a point shapefile with intersections of line of cross section with water lines or other points that you want to have on the profile line.✓Optionally you can tick the option “Create txt file with Map points (points along the line of cross section in the map with elevations), Profile points (points that form the profile line) and Beziers points (approximation calculated from profile points).✓Output is a line shapefile with profile line and a point shapefile with intersections.。

ArcGIS遥感解译

ArcGIS遥感解译

目视解译流程一、解译工具界面概览二、创建文件夹ArcGis_Labels三、导入图像四、创建ShapeFile图层五、图层编辑六、裁剪栅格七、导出裁剪结果一、影像解译工具概览本次影像解译工具为ArcMap10.2,主界面如下:1、主菜单栏;2、工具栏;3、内容列表区;4、图层显示区;5、目录文件连接区二、创建文件夹ArcGis_Labels创建ArcGis_Labels文件夹,将需要处理的文件拷贝到该文件夹下,此为自定义文件夹,后续处理都在改文件夹下进行。

三、导入图层在工具栏中点击+—添加数据选项,导航至ArcGis_Labels(自定义文件夹),选中需要解译的影像,点击添加,完成原始影像导入。

四、创建ShapeFile文件点击右侧目录,在ArcGis_Labels文件上右键选择新建—ShapeFile(s)在弹出的创建新ShapeFile对话框中输入ShapeFile名称,要素类型选择“面”,点击确定,完成ShapeFile图层创建。

五、目标解译在工具栏中点击编辑,在下拉菜单中点击开始编辑点击创建要素,在创建要素内容列表中选择所要解译的图层在构造工具中选择面在图层显示区中缩放至合适比例尺开始解译图层解译完成后,点击编辑器—保存编辑内容—停止编辑,至此完成一个图层的解译注意:在解译过程中,每解译一部分时都应点击编辑器—保存编辑内容,以防误操作导致解译结果未保存!六、裁剪栅格在工具栏中点击ArcToolBox工具箱,在弹出的工具箱内容列表中选择数据管理工具在数据管理工具下拉菜单中依次选择栅格—栅格处理—裁剪,打开裁剪对话框在裁剪对话框中,输入栅格选择原始遥感影像,输出范围为第五步目视解译的ShapeFile文件,勾选使用输入要素裁剪几何(可选),点击确定在内容列表中可以查看裁剪结果,在图层显示区中可以查看解译的图斑。

七、导出裁剪结果在裁剪结果图层上右键选择数据—导出数据在弹出导出栅格数据对话框中勾选使用渲染器,像元大小根据需要确定,其他保持默认,点击保存。

python创建ArcGISshape文件的实现

python创建ArcGISshape文件的实现

python创建ArcGISshape⽂件的实现⼯作中遇到了⼀个需求,需要把⼀段json⽂本转化成ArcGIS shape⽂件,想来想去,还是考虑⽤python来实现。

直接上代码import shapefileimport jsonimport os#shapefile="polygon.shp";#jsonfile="社区⽹格.json";def run():data=readJSON()datalist=data["list"]file=shapefile.Writer(target="社区⽹格.shp",shapeType=shapefile.POLYGON,autoBalance=True);#设置属性信息file.field('nere', 'C', '40') #'SECOND_FLD'为字段名称,C代表数据类型为字符串,长度为40file.field('fileName', 'C', '40')file.field('url', 'C', '40')file.field('photo', 'C', '40')file.field('netGrnereNum', 'C', '40')file.field('color', 'C', '40')file.field('num', 'C', '40')file.field('lat', 'C', '40')file.field('lon', 'C', '40')file.field('togriga', 'C', '40')file.field('gudumji', 'C', '40')file.field('memo', 'C', '40')#写⼊数据for item in datalist:nere=item["nere"]fileName = item["fileName"]url = item["url"]photo = item["photo"]netGrnereNum = item["netGrnereNum"]color = item["color"]num = item["num"]lat = item["lat"]lon = item["lon"]togriga = item["togriga"]gudumji = item["gudumji"]memo = item["memo"]polysStr = item["hotinfo"]polys=parsing(polysStr);#写⼊file.poly(polys=polys)file.record(nere,fileName,url,photo,netGrnereNum,color,num,lat,lon,togriga,gudumji,memo)print("-------写⼊成功---------")#保存⽂件file.save("社区⽹格.shp")#读取json⽂件def readJSON():f = open("社区⽹格.json", "r",encoding="utf-8") # 设置⽂件对象_str = f.read() # 将txt⽂件的所有内容读⼊到字符串str中f.close() # 关闭⽂件print("读取json完成")if _str.startswith(u'\ufeff'):_str = _str.encode('utf8')[3:].decode('utf8')data = json.loads(_str,encoding='utf8')return data;#print(data)#数据解析def parsing(text):data=[]strs=text.split(",");for line in strs:xy=line.split(" ");x_y=[float(xy[0]),float(xy[1])]data.append(x_y)_data=[];_data.append(data)return _data;if __name__=="__main__":print("执⾏程序");run();print("程序结束");以上这篇python创建ArcGIS shape⽂件的实现就是⼩编分享给⼤家的全部内容了,希望能给⼤家⼀个参考,也希望⼤家多多⽀持。

第一讲 如何在arcgis中创建文件-推荐下载

第一讲 如何在arcgis中创建文件-推荐下载

建立数据文件的方法根据excell表格文件结构建立arcgis图形文件。

下图为调查上报小班表excell格式在ARCGIS软件建立新的文件(如“**县**年采伐及占用小班”,“**县**年度造林小班”等)均用如下方法1.在windows“”菜单内找到安装的“ARCGIS”组,运行其中的“arccatalog 10.1)这里2.在要建立文件的目录下选择或建立一个存放文件的文件夹。

如果需要新建,在相应盘符下单击右键,在弹出菜单内选“新建”---“文件夹”3.4.如图我先建立了“**县数据”文件夹,又在其下建立了“年度造林”与“年度采伐与征占”两个文件夹。

注:新建文件夹不是必须的,但可以使数据存放变得有条理。

5.下面以根据“年度造林小班调查表”建立“**县年度造林小班图”为例演示建立新文件。

6.选择想要存放“**县年度造林小班图”文件的文件夹,然后点“新建(N )”———“shapefile(s)…”这里新建(N )”———“shapefile(s)…”或这里会弹出下面窗口改为下面这样,然后导入坐标系:点“编辑...”弹出下面窗口按照下图操作选择坐标系1.选择投影坐标系步骤依次为:“投影坐标系”-→“Gauss Kruger”—>“Xian 1980”→“Xian1980 GK Zone 20”下面为文件建立数据结构,以“**县年度造林为例”。

根据统一要求,“**县年度造林小班图”文件字段名与字段类型要求如下字段名数据类型长度小数位县字符型20 乡字符型20 村字符型20 小班字符型20 小班面积双精度203造林树种字符型10 造林方式字符型10 造林年度短整型 造林季节字符型6 造林方法字符型8 造林密度短整型 苗木种类字符型6 平均基径短整型 平均苗高短整型4 成活率短整型 第一步:选择“县年度造林小班图”文件,右键点击文件再选“属性”如下右击文件名—>”属性”弹出下面窗口再按照“文件字段名与字段类型要求字段名数据类型长度(精度)小数位数县字符型20乡字符型20村字符型20小班字符型20小班面积双精度203造林年度短整型造林类型字符型8造林季节字符型2造林树种字符型5造林方式字符型2造林密度短整型苗木种类字符型2平均基径短整型平均苗高短整型平均造林成活率短整型4确定后文件建立完成。

Shapefile文件详解

Shapefile文件详解

Shapefile文件详解Shapefile文件是美国环境系统研究所(ESRI)所研制的GIS文件系统格式文件,是工业标准的矢量数据文件。

Shapefile将空间特征表中的非拓扑几何对象和属性信息存储在数据集中,特征表中的几何对象存为以坐标点集表示的图形文件—SHP文件,Shapefile文件并不含拓扑(Topological)数据结构。

一个Shape文件包括三个文件:一个主文件(*.shp),一个索引文件(*.shx),和一个dBASE(*.dbf)表。

主文件是一个直接存取,变长度记录的文件,其中每个记录描述构成一个地理特征(Feature)的所有vertices坐标值。

在索引文件中,每条记录包含对应主文件记录距离主文件头开始的偏移量,dBASE表包含SHP文件中每一个Feature的特征属性,表中几何记录和属性数据之间的一一对应关系是基于记录数目的ID。

在dBASE文件中的属性记录必须和主文件中的记录顺序是相同的。

图形数据和属性数据通过索引号建立一一对应的关系。

Shapefile中坐标文件(.shp)由固定长度的文件头和接着的变长度空间数据记录组成。

文件头由100字节的说明信息组成的(附表1),主要说明文件的长度、Shape类型、整个Shape 图层的范围等等,这些信息构成了空间数据的元数据。

在导入空间数据时首先要读入文件头获取Shape文件的基本信息,并以此信息为基础建立相应的元数据表。

而变长度空间数据记录是由固定长度的记录头和变长度记录内容组成,其记录结构基本类似,每条记录都有记录头和记录内容组成(空间坐标对)。

记录头的内容包括记录号(Record Number)和坐标记录长度(Content Length)两个记录项,Shapefile文件中的记录号都是从1开始的,坐标记录长度是按16位字来衡量的。

记录内容包括目标的几何类型(ShapeType)和具体的坐标记录(X,Y),记录内容因要素几何类型的不同,其具体的内容和格式都有所不同。

第3章 空间数据Shapefile文件创建

第3章  空间数据Shapefile文件创建

3.3.2
删除属性项
当数据的属性项出错、重复多余或没有实质作用时,就需 要将其删除。在ArcCatalog中,删除Shapefile文件属性项非常简 单,方法如下。 (1)在ArcCatalog目录树中,右击需要删除的属性项,选 择“属性”命令,弹出 “Shapefile属性”对话框。 (2)选择“字段”选项卡,选择需要删除的属性项,按下 Delete键,即可删除。 (3)单击“确定”按钮,关闭“Shapefile 属性”对话框 。 在ArcCatalog中,删除dBase表属性项的方法和上述方法一 样,此处不再赘述。
3.4 Shapefile文件的坐标定义
GIS中的坐标系定义是GIS系统的基础。正确定义GIS 系统的坐标系非常重要。关于坐标在后面的章节中再进行详 细地介绍。 在新建一个Shapefile文件时,应同时给其指定坐标投 影信息。如果在建立Shapefile文件时,没有同时建立其坐标 系统,而是选择以后定义Shapefile文件的坐标系统的话,那 么直到被定义前,它的坐标系统都将被定义为“未知”。
3.3
Shapefile文件的属性维护与修改
在ArcCatalog中,可通过添加、删除属性项来修改 Shapefile和dBASE的结构。如果想要进一步在这些结构基础 之上,编辑定义这些要素或表格属性项的内容,就必须启动 ArcMap的编辑功能。
3.3.1
添加属性项
GIS数据集中存储的不仅仅是数据的空间特征,其还包 括数据各种属性信息。其中,在Shapefile文件中可以通过添 加属性项的方法来增加数据的各种属性信息的载体。所谓的 属性项可以简单地理解为数据库中二维表的表头。 文件中记载的数据如果发生属性改变,又或者原有的 属性信息不足以表达被描述的对象时,就需要给文件添加属 性项。
