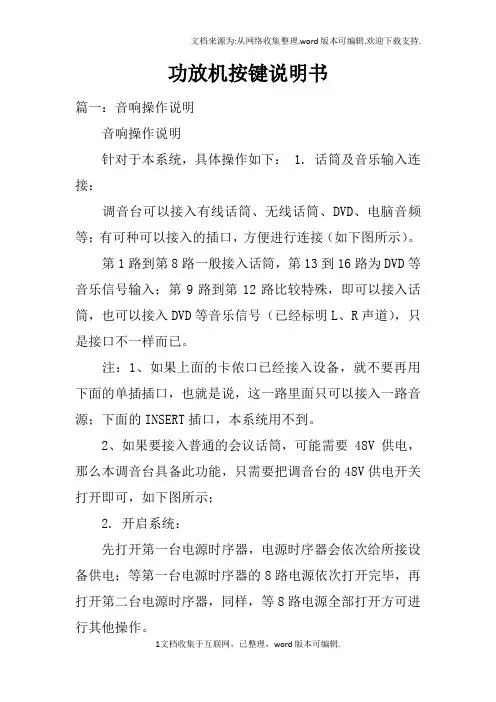

功放机按键说明书篇一：音响操作说明音响操作说明针对于本系统，具体操作如下： 1. 话筒及音乐输入连接：调音台可以接入有线话筒、无线话筒、DVD、电脑音频等；有可种可以接入的插口，方便进行连接（如下图所示）。
第1路到第8路一般接入话筒，第13到16路为DVD等音乐信号输入；第9路到第12路比较特殊，即可以接入话筒，也可以接入DVD等音乐信号（已经标明L、R声道），只是接口不一样而已。
注：1、如果上面的卡侬口已经接入设备，就不要再用下面的单插插口，也就是说，这一路里面只可以接入一路音源；下面的INSERT插口，本系统用不到。
2、如果要接入普通的会议话筒，可能需要48V供电，那么本调音台具备此功能，只需要把调音台的48V供电开关打开即可，如下图所示；2. 开启系统：先打开第一台电源时序器，电源时序器会依次给所接设备供电；等第一台电源时序器的8路电源依次打开完毕，再打开第二台电源时序器，同样，等8路电源全部打开方可进行其他操作。
注：专业音响设备具有开关顺序，开启时顺序为：音源设备（如DVD、话筒接收机等）、周边设备（如调音台、均衡器、效果器等）、功放。
否则的话，可能会产生“嘭”的声响，以至于损坏设备。
3. 播放音频、视频：首先把调音台右下角总音量的推子调整到合适的位置（如图一所示），高度最好不要超过0刻度；然后打开DVD 机，把光盘放入，让DVD处于读碟播放状态；找到调音台对应DVD接入的那一路，把方块透明的开关按钮按下，使其处于点亮状态，再按下下方的红色ST按钮；然后轻轻从下方往上推长方形的音量推子，直到音量足够为止（如图二所示）。
高中低音调整：正常情况下，无需调整音乐音频，因为DVD或电脑放出来的都是原始音频，如果想调整音乐的高中低音，可以通过调音台自带的简单均衡器进行调整（如图三所示），上面的为高音旋钮，中间的为中高频旋钮，下面的为低音旋钮。
音视频矩阵切换：如把第1路音频、视频切换到第2路输出，那么操作方法是：按AV键然后从右侧上边的一排（输入键）按下1键，然后再从下面一排（输出键）按下2键，最后再按下ENTER 键即可。
功放机说明书

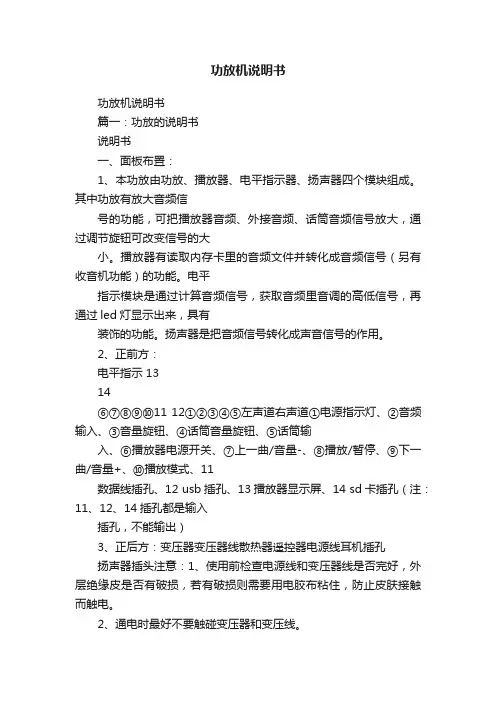

功放机说明书篇一：功放的说明书说明书一、面板布置：1、本功放由功放、播放器、电平指示器、扬声器四个模块组成。
其中功放有放大音频信号的功能，可把播放器音频、外接音频、话筒音频信号放大，通过调节旋钮可改变信号的大小。
播放器有读取内存卡里的音频文件并转化成音频信号（另有收音机功能）的功能。
电平指示模块是通过计算音频信号，获取音频里音调的高低信号，再通过led灯显示出来，具有装饰的功能。
扬声器是把音频信号转化成声音信号的作用。
2、正前方：电平指示 1314⑥⑦⑧⑨⑩11 12①②③④⑤左声道右声道①电源指示灯、②音频输入、③音量旋钮、④话筒音量旋钮、⑤话筒输入、⑥播放器电源开关、⑦上一曲/音量-、⑧播放/暂停、⑨下一曲/音量+、⑩播放模式、11数据线插孔、12 usb插孔、13播放器显示屏、14 sd卡插孔（注：11、12、14插孔都是输入插孔，不能输出）3、正后方：变压器变压器线散热器遥控器电源线耳机插孔扬声器插头注意：1、使用前检查电源线和变压器线是否完好，外层绝缘皮是否有破损，若有破损则需要用电胶布粘住，防止皮肤接触而触电。
2、通电时最好不要触碰变压器和变压线。
3、使用时禁止触碰散热器、变压器，防止因温度过高而烫伤。
4、当使用耳机听音频时，只需把耳机插入耳机插孔，但要注意，在使用耳机之前要控制好音量，防止音量过大而损坏耳机。
一般操作是先把音量调为最小，插入耳机后再慢慢增大。
二、使用步骤：1、打开电源：在打开电源前先把音乐音量，话筒音量④调为最小，并确定自带播放器开关⑥处于关闭状态。
然后把电源线接电，则电源指示灯会亮①。
2、接音频：音频有两种，一种是外接音频输入②，另外一种是自带播放器输入，其优先级是外接音频输入高于自带播放器音频输入。
（1）外接音频输入需用一根3.5mm音频线与外界播放器连接，另外一端必须接到功放的外接“音频输入”②插孔，注意播放器的音量③应适当,否则将会烧坏功放芯片和损坏喇叭。
（2）自带播放器输入：首先把优盘或sd卡插入相应位置11、12、13，然后把播放器开关打开⑥，启动自带播放器。
3G-SYS BA1602广播功率放大器用户使用手册说明书
Beta threeRBA1602User ＇s M anual 用户使用手册ED-B3-MA-050701-001音乐广播功率放大器当您使用本公司的音乐广播功率放大器BA1602之前，请认真阅读本手册，严格按本手册的使用方法进行操作；如有疑问,请向当地特约代理商咨询或登陆本公司网站: 查询。
尊敬的用户:目 录注意事项1、功能特点2、性能参数安装示意图3、4、面板介绍面板指示灯概述5、6、背板介绍7、8、功能设置与信号线连接9、操作步骤10、保护功能概述11、常见故障与排除方法P3P3P4P5P5P6P7P10P10P10P11一、注意事项标识解释：等边三角形内带有箭头的闪电标识，用于警告用户箱体内有可能给人带来电击危险的“危险电压”;等边三角形内的惊叹号代表产品宣传页上的重要操作步骤。
机内有高压，请不要打开外壳，维修请向专业人员咨询;请不要将本设备暴露在雨中或置于潮湿的地方;请不要将本设备置于阳光直射、环境温度高接近热源的地方；请注意通风良好，切勿堵住产品的通风口;请注意当地电网电压是否与产品电压相符;当长时间不使用本产品时，请将整机电源插头拔下;请配接适当负载,不要使机器长时间超负荷运行;请不要让其它物品掉入机内，让本机与其它杂物隔开；电源线如有破损，应停止使用并请专业人员更换同等规格的电源线后，方可使用。
BA1602是一台性能优良的双通道纯后级定压广播功率放大器，适用于公共消防广播、会议广播、分区广播等，主要用于播放高品质双通道背景音乐广播、语言节目或用于会议系统； 它具备以下特点: 1〉 平衡输入2〉 双通道定压输出100V 、70V 、50V ，单通道桥接定压输出200V 、140V 、100V ；3〉 采用了优化的散热结构和高品质的散热风扇，为长时间大功率输出提供保证；4〉 “负载阻抗－温度－功率－工作电压”交互控制功能，风扇随机内温度变化而自动变速，当配接的负载阻抗过低或温度过高时，机器会自动调整供电，降低电源内阻，可改善音质并有效 地保护了机器，使机器的可靠性大大地提高。
操作说明书PA放大器A-1706A-1712A-1724
19．辅助输入端子[AUX 3，4] -20dB,10kΩ,非平衡式。非立体声 RCA 接触 插孔。连接外围设备的信号输出。
此图示为 A-1724。
20．话筒/辅助输入端子
6．低音音质调节器 调节广播音质的低音。以中央位置为基准， 顺时针旋转，低音增强；反时针旋转，低音 衰减。
7．高音音质调节器 调节广播音质的高音。以中央位置为基准， 顺时针旋转，高音增强；反时针旋转，高音 衰减。
8．分区指示灯 指示灯亮表示用分区选择器开关选择的广播 分区（分区 1，2）。
9．分区选择器开关 选择所需广播区域。 按下 ZONE 1 和 2 开关，ZONE 1 和 2 输出终 端（14）分别输出信号。
PA 放大器
操作说明书
A-1706 A-1712 A-1724
此次承蒙您选购 TOA PA 放大器，谨致谢意。 为了使您有正确的使用方式，请务必详读此操作说明书，并长期使用我们的产品。
目录
安全须知 .................................................... 3 概要 ......................................................... 4 特点 ......................................................... 4 各部名称及功能
附件 ...................................................... 11 选购产品 .................................................. 11
Atlona AT-PA100-G2 低抗性双通道 单通道音频放大器说明书
IntroductionThe Atlona AT-PA100-G2 is a compact power amplifier designed for low impedance applications. A mode selector switch allows the PA100-G2 to deliver two channels of 20 watts each into 4 ohms, or a single, bridged channelof 40 watts at 8 ohms. This Class D amplifier is energy efficient and convection cooled. The PA100-G2 features a balanced mic/line level audio input with selectable 48 volt phantom power, as well as unbalanced stereo audio input through RCA or 3.5 mm connections. It can deliver stereo or mono output, and provides mixing for the balanced and unbalanced audio inputs, each with independent gain and mute control. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system.The PA100-G2 is controllable via RS-232, or through IR with the optional AT-PA1-IR-G2 remote control kit. Applications• Meeting rooms, huddle rooms, and classroomsThe PA100-G2 can receive audio from an AV switcher or DSP, and then feed the audio to program speakers.• Residential and light commercial installationsThis amplifier can receive the audio output from an HDBaseT or AV over IP endpoint, delivering audio tospeakers in a room or any other designated listening zone.1 A T-P A100-G2Key Features• Selectable stereo, dual mono, and bridged output modes.• 2 x 20 watts @ 4 ohms (stereo or dual L+R mono).• 1 x 40 watts @ 8 ohms (bridged L+R mono).• Balanced mic/line level input with selectable 48 phantom power.• Unbalanced stereo line level input available through RCA or 3.5 mm connectors.• Microphone and line level audio mixing.• Unbalanced line level output for pass-through to an additional amplifier or audio system.• Class D efficient amplifier design.• Convection cooled – no need for fans.• Automatic standby mode to minimize power consumption.• Bass and treble tone controls.• Independent gain and mute control for balanced and unbalanced inputs.• RS-232 and IR control of volume level, muting, input selection, and tone controls.• IR control available with optional AT-PA1-IR-G2 remote control kit.• Top panel button controls for input selection, mute, mic and line volume, and tone controls.• Front panel signal status LEDs for input selection, mute, and user controls.• Compact, surface-mountable enclosure.• Includes user manual and external universal power supply.• Award-winning 10 year limited product warranty.2Specifications3 A T-P A100-G2 • 408.962.0515 • 877.536.3976AccessoriesCopyright, T rademark, and Registration© 2021 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).20215-R25。
PA-920 93511 电源音频放大器操作手册说明书
OPERATING MANUALPA-920/935Although it is neither complicated to install nor difficult to operate your amplifier, a few minutes of your time is required to read this manual for properly wired installation and becoming familiar with its many features and how to use them.Please take a great care in unpacking your set and do not discard the carton and other packing materials. They may be needed when moving your set and are required if it ever becomes necessary to return your set for services. Never place the unit near radiator, in front of heating vents, to direct sun light, inexcessive humid or dusty location to avoid early damage and for your years of quality use. Connect your complementary components as illustrated in the following page.•VERSATILE AND CONVENIENT3 channels of input signals from MIC1, MIC2/AUX1 and MIC3/AUX2 are provided, and Bass and T reble are incorporated for versatile and convenient use. MIC, AUX input have PL55 phone jack and T elephone IN input have screw terminal.1.POWER SWITCHPressing this switch to ON will make the power indication LED ON and supply the power to this unit.2.POWER LEDPressing power switch to ON will make the power indication LED ON.3.TREBLEThis control is used for modifying the high frequency sound.4.BASSThis control is used for modifying the low frequency sound.5.MIC VOLUMEY ou can adjust the volume level of Mic 1, Mic 2, and Mic 3.6.AUX VOLUMEY ou can adjust the volume level of Aux 1 and Aux 2.7.MASTER VOLUMEThis control is used for adjusting the volume of finally mixed sound.1.AC CORDPlug this AC input cord into AC outlet.2.FUSE HOLDER (AC)This fuse holder contain AC fuse, replace only with same type fuse when it is blown out. If it continuously blow, stop replacing fuse and refer servicing to qualified personnel.Voltage AC 220V/240VPA-920 Fuse Rating0.5A/250VPA-935 Fuse Rating1A/250V3.SPEAKER OUTPUT TERMINALThis terminal is for speaker wire connection. Y ou can select one of 4 ohms, 8 ohms, 70 volts and 100 volts.Be sure not to make the total impedance less than rated impedance.4.GND TERMINALThis is ground terminal to be connected with chassis of the turntable etc, to reduce hum to minimum. T o further minimize hum, it may be necessary to connect this terminal with a wire to the nearest water pipe which goes directly to real ground.5.MIC 1, 2, 3 INPUT (PHONE JACK)These phone jacks are for the Mic 1 and Mic 2 input. Input sensitivity and impedance in PHONE JACK 2mV/600Ω.6.MUTE CONTROLWhen the other signal is muted by Mic 1 and T elephone paging, this control is used for adjusting the muting level.7.MIC 2/AUX 1 SELECTOR SWITCHThis switch is used to select MIC 2 or AUX 1.8.MIC 3/AUX 2 SELECTOR SWITCHThis switch is used to select MIC 3 or AUX 2.9.TELEPHONE IN TERMINALThese terminals are to be connected to telephone exchange system for paging.NOTE: When there are paging signal through this terminals, the other input signals are muted.10.AUX INPUT (PHONE JACK)Y ou can connect the sound source of tuner, deck, CD, video, etc to this input.When you connect the speaker, remove the power cord from AC outlet. And use the suitable terminals connecting way as belows. Be sure that total impedance is not less than rated impedance.• AC VOLTAGE: 220V–240V ONL YVOL T AGE P A-9208.9V12.65V70V100V P A-93511.8V16.73V70V100VIMPEDANCE P A-920 4 OHMS8 OHMS245 OHMS500 OHMS P A-935 4 OHMS8 OHMS140 OHMS285 OHMSELECTRICAL• Rated Output Power (at THD: 10%)................................................................................................20W (RMS)4Ω/8.9V, 8Ω/12.8V, 245Ω/70V, 500Ω/100V • Frequency Response...............................................................................................................150Hz to 15KHz •T otal Harmonic Distortion..........................................................................................................Less than 0.5%• T one Control Effect...................................................................................................................................±10dB •Signal to Noise Ratio..............................................................................................................Better than 60dB •Input Sensitivity/Impedance..............................................................................................Mic Input 2mV/600ΩAux Input 150mV/1KΩT elephone Input 0.775V/600ΩGENERAL• Power Source............................................................................................................................AC 220V–240V • Weight......................................................................................................................................................3.5 Kg • Dimensions..........................................................................................................290(W)76(H)196(D) mmPA-920ELECTRICAL• Rated Output Power (at THD: 5%)..................................................................................................35W (RMS)4Ω/11.8V, 8Ω/16.7V, 140Ω/70V, 285Ω/100V • Frequency Response...............................................................................................................150Hz to 15KHz •T otal Harmonic Distortion..........................................................................................................Less than 0.5%• T one Control Effect...................................................................................................................................±10dB •Signal to Noise Ratio..............................................................................................................Better than 60dB •Input Sensitivity/Impedance..............................................................................................Mic Input 2mV/600ΩAux Input 150mV/1KΩT elephone Input 0.775V/600ΩGENERAL• Power Source............................................................................................................................AC 220V–240V • Weight......................................................................................................................................................4.4 Kg • Dimensions..........................................................................................................290(W)76(H)196(D) mm *Specifications and design subject to change without notice for improvements.PA-935MADE IN KOREA NO: 9007931102A。
奥拉斯声商业扬声器放大器PA40G PA60G说明书
Specifications are subject to change without notice.PA40G / PA60GCommercial AmplifiersPA40G / PA60G Commercial AmplifiersPA40G Front Silkscreen Artwork Left InRight In1601 Jack McKay Blvd Ennis, TX 75119800.876.333360 Watts 70.7V/100V Speaker OutPA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Table of ContentsImportant Safety Instructions (3)Introduction (5)Key Features (5)Applications ............................................................................................................................................ 5 Front Panel Description ...........................................................................................................................6 Rear Panel Description ............................................................................................................................7 Wiring the PA40G / PA60G ......................................................................................................................7 Optional Level Control Security Cover ....................................................................................................8 Optional Rack Mount Kit . (8)Limit LED & Load Considerations (8)Specifications ........................................................................................................................................10 Warranty (12)– 3 –Specifications are subject to change without notice.PA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Important Safety Instructions1.Read these instructions.2. Keep these instructions.3.Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use attachments/accessories specified by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.16. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle.17. The mains plug of the power supply cord shall remain readily operable.The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in theliterature accompanying the product.– 4 –PA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435When The Device Is In Use• To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer all servicing to Atlas Sound.• Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fire or electric shock: • Smoke or strange smell coming from the unit. • If the product falls or the case is damaged.• If water or any metallic objects falls into the product. • If the power supply cord is damaged in any way. • If the unit is malfunctioning.• Do not insert or drop metallic objects or flammable materials into the ventilation holes of the product's cover, as this may result in electric shock or fire.• Do not place any containers with liquid or metallic objects on the top of the product. If any liquid spills into the unit, fire or electric shock may result.• Never operate this product or touch the power supply cord during an electrical storm, electric shock may result.• Never exceed the power rating on the product when connecting equipment. Fire and/or property damage may result.• Operate the product only with the voltage specified on the unit. Fire and/or electric shock may result if a higher voltage is used.• Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and do not place heavy objects on the power cord, including the product itself, doing so may result in fire or electrical shock.• Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas pipe as a catastrophic disaster may result.• Be sure the installation of the product is stable, avoid slanted surfaces as the product may fall and causeinjury or property damage.When Installing The Product• Plugging in or unplugging the power cord with wet hands may result in electric shock.• Never move the unit with the power cord plugged into the wall, as damage to the power cord may result. • When unplugging the cord from the wall, grasp the plug, NOT the cord.• Never install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas where sooty smoke or steam are present. Fire and electric shock may result.• Keep all sides of the unit at least 31⁄2" away from objects that may obstruct air flow to prevent the unit's internal temperature rise.When The Product Is In Use• Never place heavy objects on the product, causing it to fall and/or break, resulting in personal injury and property damage. In addition, the product itself may fall and cause injury and property damage.• Contact Atlas Sound for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fire.• Ensure that the power supply plug is securely plugged into the wall outlet. Never allow dust to accumulate on the power plug or inside the wall outlet.•When cleaning the unit or the unit is not to be operated for an extended period, unplug the power cord from the wall.CAUTION WARNING CAUTIONSpecifications are subject to change without notice.PA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435IntroductionCongratulations and thank you for purchasing the Atlas Sound PA40G/PA60G commercial amplifier. This new and innovativeprofessional grade product has been designed from the ground up to include the important features that professional installationpersonnel require to meet or exceed their customer’s expectations. Small and compact, and engineered for reliability, the Atlas Sound PA40G/PA60G will provide years of service and flexibility in today’s background music and paging applications.Key Features• PA40G - 40W into 70.7V/100V • PA60G - 60W into 70.7V/100V • 1 Balanced Line Input• 1 Unbalanced, Summing Line Level Input • Global Power Supply, 100VAC-240VAC ~ 50/60Hz • Optional Level Control Security Cover• Optional Rack Mount KitApplicationsThe Atlas Sound PA40G and PA60G are the perfect choice for distributed business paging, background music (BGM) systems, and small to medium speech privacy systems.– 6 –PA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Front PanelThis LED illuminates when the AC Mains is plugged in.2. Limit IndicatorThe LIMIT LED will illuminate when the PA40G/PA60G is in a clipping condition, caused by excessively high input levels or a GAIN control is turned up too high. An occasional flash is OK. Check that the proper signal level is being fed into the inputs and/or turn the input gain down until the LED is no longer illuminated. Refer to Limit LED & Load Conditions for more information.3. Signal IndicatorWhen the signal LED illuminates, this indicates that input signals connected to the amplifier are capable of driving the PA40G/PA60G to full power.4. Input 1 GainInput 1 level control potentiometer varies the amplitude of the signal fed into the amplifier. Turn clockwise to increase and counter-clockwise to decrease the signal level.Right In100V - 240V 50Hz/60Hz 1ABalanced InputSummed InputsPA60G Front Silkscreen ArtworkSpeaker Out– 7 –Specifications are subject to change without notice.1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Rear Panel1. Balanced Line InputBalanced line level signals connect to the (+), (–), and (G) terminals. If you are connecting an unbalanced line level input, tie (short) the (G) and (–) terminals together. If transformer isolation is required for Input 1, contact Atlas Sound for details. Note: The Balanced Line Input and the Unbalanced RCA Inputs are electrically isolated from each other and can be used at the same time.2. Unbalanced Stereo RCA InputInput 2 consists of stereo summing inputs, suitable for connection to the output of CD/DVD players, etc. Note: The Balanced Line Input and the Unbalanced RCA Inputs are electrically isolated from each other and can be used at the same time.3. 70.7V / 100V Speaker OutputFor loudspeaker connections, follow the labeling paying special attention to the polarity or proceed to the Limit LED & Load Considerations section. Note: Do not short the terminals together or damage may occur. It is recommended to use class 3 rated, 16-gauge wire or higher for speaker wiring.4. Global IEC AC Mains Power ReceptacleThe PA Models support global power sources from 100V-240V 50/60Hz. The package contains a cord that has an international IED connector to a 120V USA type plug. It may be necessary to replace the removable power cord to meet your AC Mains plug type used in your country. Note: It is not required to change the fuse for the different AC Mains voltages.Wiring the PA40G / PA60GSpeaker Outputs - Use 2 conductor unshielded wire of the appropriate gauge. If you are unsure about this, contact Atlas Sound Tech Support at 1-800-876-3333. Make sure you know how many speakers you need and what tap value you intend to use.It is recommended to use class 3 rated, 16-gauge wire or higher for speaker wiring.Balanced Line Input - 2 conductor with shield for low level signals of 20 - 22-gauge is best. Maintain the proper polarity, + to +, – to – , and shield to ground.Unbalanced Input - Pre-made RCA cables can be purchased from vendors to simplify interconnection to external devices.4123In order to prevent unauthorized operation of the PA40G & PA60G, optional security covers are available which take the place of the front panel knobs. After the PA amplifier has been installed and is operating as desired, grasp the front panel knobs and pull straight out from the front panel. Replace the knobs with security covers, Atlas Sound part number MPVCC-5, available in quantities of 5.Rack Mount Kit OptionsThe PA40G & PA60G can be rack mounted as a single unit or with two units together. To do so a PA702RMK Rack Mount Kit needs to be purchased from Atlas Sound.Limit LED and Load ConsiderationIf the Red Limit LED illuminates, the amplifier has sensed an improper load or the input signal is too high, triggering the protection circuitry. When the load sense Limit circuitry is engaged the amp will operate but at a lower power output. It is highly recommended to discontinue use immediately and correct the fault condition. If you continue to operate with the RED Limit LED on, the second stage of the current sense circuit may engage causing the amp not to pass any signal. To reset the amp turn down the Level controls and turn the power off for 10 seconds.In most situations when the Limit LED is in the illuminated steady state it means the speaker system load to the amp is lower than what the amp is rated. This usually is detected when the system is first set up. Below are a few load conditions to check for if the Limit LED is on.1. Connected to the wrong speaker terminal. Always check the speaker terminal to the type of load you are using. Example: If you are installing a 70V or 100V system make sure the wires are connected to the 70V/100V and common (COM) terminals.2. Too many speakers connected to the amp. This is a very common mistake. If you are using a 60W amp and using the 70V speaker terminals, add up the number of speakers and their wattage selections at the speaker. If they exceed 60W you must retap the speakers or remove the correct amount speaker wattage until the wattage is 60W or less. Example: If you are using a 30W tap you can only connect 2 speakers to the amp. If you are using the 7.5W tap, you can connect 8 speakers. If you have too many speakers on the amp it will load the amp down, causing excessive current demand and will trigger the Limit & Protect circuit.3. Wrong speaker tap selection. It is also common in a 70V or 100V system that one of the speakers are set too low of animpedance (8 ohm) and not a 70V or 100V tap. Note: It only takes one speaker to load the amp down incorrectly.4. Short in system. This is common if the wire is run in metal conduit and the wire got nicked during the wire pull.5. Speaker Level Controls. If an L-pad or stepped attenuator is wired wrong it can also load a system down.Front Panel KnobSecurity CoverFront Panel Knob Security Coveror– 9 –Specifications are subject to change without notice.PA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Measuring Speaker LoadsBelow is an Impedance load chart for the PA40G and PA60G. Measure the load impedance prior to connecting the load to theamplifier. The enclosed load chart will provide the information to determine if the load or speaker system impedance is too low for the amplifier’s rating. In every install it is always recommended to measure the load prior to turning the system on to be sure the system is installed correctly.Measuring a Speaker System’s ImpedanceNote: It is important to only use an Audio Impedance Meter and not a conventional Volt/Ohm meter. A true audio frequency impedance meter is essential for reliable installation of background music and paging systems in residences, office buildings and public areas. Avoid costly service calls and amplifier damage by verifying actual speaker system impedance prior to operation. Unlike conventional volt/ohm meters, which measure DC resistance, an Audio Impedance Meter unit utilizes an internal frequency oscillator to measure true impedance. It may also be utilized with 70.7V and 100V speaker line transformers, L-pads and matching impedance volume controls. There are several Audio Impedance meters on the market, if you need to buy one we suggest going to MCM Electronics, Parts Express or search the internet for “Audio Impedance Meter”.Measuring 70.7V or 100V Distributed Speaker SystemsLarge distributed systems typically utilize 70.7V (North America) or 100V (Europe) type system to greatly ease the connection of multiple speakers and facilitate long cable runs. Shown below are speakers connected in parallel with wattage ratings to calculate the overall load of the system. Connecting an Audio Impedance Meter to a speaker arrangement such as this will provide the overall impedance of the system.Using the following formula you can calculate the load impedance from the speaker selected wattage. The accumulative wattage of the speaker system must not exceed the maximum wattage output rating of the amplifier or damage may occur. In this example the measurement for a 70.7V design with three speakers of 15W each. The system impedance would measure close to 111Ω. Formula 70.7V x 70.7V = 4998, 4998 / 45W = 111Ω. The amplifier power requirements would be at least 60W for the system to operate properly. Note: It is always recommended to use a larger amp than needed with power headroom of at least 25%. Calculate the load impedance and compare it to the meter’s audio impedance reading. Note: They will never be the same due to the additional wire impedance, but if they are within 10% of the maximum impedance rating or if the impedance is higher than the maximum rating, proceed connecting the load to the amplifier. If they are not recheck your speaker taps or check for shorts.PA40G & PA60G Max Load ChartSpeaker Selection PA40G PA60G70.7V 125 Ohms 83 Ohms 100V 250 Ohms 166 OhmsPA40G / PA60GCommercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435SpecificationsTypeC ommercial AmplifierSafety Listings TUV UL60065 Standard, CE, Class 3 RatedElectrical SpecificationsPower Output PA40G: *********(125Ω), 40W @100V (250Ω) PA60G: *********(83Ω), 60W @ 100V (166Ω)Front Panel Indicators Power, Limit, Signal Controls Input 1 GainTechnical Data Frequency Response 50Hz - 20kHzThd+N .5% or Less @ 1kHz, Rated Output Sensitivity Line Input 500mv (600Ω)Inputs 2 / 3 RCA 500mv (10k Ω)Output Regulation Less Than 2dB, No Load To Full Load Signal To Noise Ratio Balanced Input = >55dBUnbalanced RCA Summed = >55dBPower Requirements Power Consumption PA40G: Idle: 0.075A, 8W, 27 BTU Average: 0.26A, 24W, 81 BTU Max: 0.8A, 71W, 242 BTU PA60G: Idle: 0.075A, 8W, 27 BTUAverage: 0.41A, 34W, 116 BTUMax: 1.25A, 102W, 348 BTUFuse PA40G: T630mA PA60G: T1AMechanical Dimensions 8.5" x 1.75" x 7.81" (216mm x 45mm x 198mm)Weight PA40G: Net Weight = 2.9lbs. (1.32kg), Shipping Weight = 3.1lbs. (1.4kg)PA60G: Net Weight = 2.9lbs. (1.32kg), Shipping Weight = 3.1lbs. (1.4kg)Note: Average power consumption is based on one third (1/3) of the maximum power rating, 50% duty cycle.PA40G / PA60GCommercial Amplifiers Notes:1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Specifications are subject to change without notice.PA40G / PA60G Commercial Amplifiers1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.Telephone: 800.876.3333 • Fax: 800.765.3435Limited WarrantyAll products manufactured by Atlas Sound are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all Atlas Sound products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year onMusician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions. We will not be responsible for defects caused by improper storage, misuse (including failure to provide reasonable and necessary maintenance), accident, abnormal atmospheres, water immersion, lightning discharge, or malfunctions when products have been modified or operated in excess of rated power, altered, serviced or installed in other than a workman like manner. The original sales invoice should be retained as evidence of purchase under the terms of this warranty. All warranty returns must comply with our returns policy set forth below. When products returned to Atlas Sound do not qualify for repair or replacement under our warranty, repairs may be performed at prevailing costs for material and labor unless there is included with the returned product(s) a written request for an estimate of repair costs before any nonwarranty work is performed. In the event of replacement or upon completion of repairs, return shipment will be made with the transportation charges collect.EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY , ATLAS SOUND SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTALLOSS OR DAMAGE ARISING OUT OF THE INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FORA PARTICULAR PURPOSE.Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.ServiceShould your PA Series amplifier require service, please contact the Atlas Sound warranty department at1-877-689-8055, ext. 277 or to obtain an RA number.Atlas Sound Tech Support can be reached at 1-800-876-3333 or .Visit our website at to see other Atlas products.©2015 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P.All other trademarks are the property of their respective owners. ATS003582 RevE 2/15。
迪士普 PA2190S 序列功放控制器说明书
OWNER’S MANUALFEATURES●Sequentially switching power supply for 16 channels;●Auto controlled by a timer or manual operates;● 4.5kVA of capacity available.Left blank for memoFRONT PANEL1 Power Switch (1 is power on and the “power LED” is on )2 Power LED indicator3 Timer control Indicator4 Output IndicatorsREAR PANELCONNECTIONSEXAMPLE 1: Switching ON or OFF sequentially for an electrical audio system.1 2 3 4 1 Power supply outlet2 Timer link3 Timer Input4 Fuse5 Mains CableEXAMPLE2: For Sequentially switching a series of power amplifiers.OPERATION1．Make connections correctly. Notice: The power cable must be connected to the main power directly.2．Switch ON the “power” switch on front panel, the devices under controlled will be switched one by one. Note: In this case, the timer should be disabled.3．By a timer control, the devices under control will be switched one by one automatically in time.Note: In this case, must set the “power” switch off.SPECIFICATIONSCapacity Total 4.5kVA, 16 channels,220V, 10A / channelTimer In signal 0V (short circuit)Step time 0.4s-0.5sPower Requirement AC 220–240V/50-60Hz/20ADimensions 485×378×88mmGross weight 6.5kgNet weight 5.2kgSpecifications are subject to be changed without notice.CAUTION●Do not put the vase full of water and similar things on the machine. Please pull out the plug fromthe outlet when the machine is OFF state.●To reduce the risk of electric shock, do not remove the unit’ s cover.●No user parts are inside. For services, refer to a qualified service person.Guangzhou DSPPA Audio Co., Ltd.使用说明性能特点●按顺序开启或关闭16路受控设备的电源●可以通过定时器自动控制或人工控制●插座总容量达4.5kVA页留空供用户记事。
广播系统-PA
一键 取消 功能
外部 音源 接入
可接入外部 音源设备， 在其它音源 播出时，背 景音乐自动 停止
在车站广播控制终端失效时， 利用广播控制台可以进行广 播操作，实现上述各种广播 功能
后备 模式
紧急 广播 功能
当车站广播控制单元内选区广播模 块发生故障时，按下紧急广播按键， 将车站广播控制台的音频通过应急 通道直接送与功放，此时打开全部 广播区，进行全区广播
控制功能一键取消功能编组功能监听功能背景音乐功能话筒广播功能故障显示功能2020513分区管理功能显示占用功能监听功能显示功能功能图标显示人员操作指示选区选择图标广播区分布电子地图各级广播占用指示选区占用的指示权限内管辖广播选区进行选择监听监听音量可调202051310广播分区占用显示功能广播分区管理监听功能外部音源接入紧急广播功能后备模式一键取消功能led显示灯显广播区选择在车站广播控制终端失效时利用广播控制台可以进行广播操作实现上述各种广播功能当车站广播控制单元内选区广播模块发生故障时按下紧急广播按键将车站广播控制台的音频通过应急通道直接送与功放此时打开全部广播区进行全区广播可接入外部音源设备在其它音源播出时背景音乐自动停止权限内管辖广播选区进行选择监听监听音量可广播区占用指示当车站广播控制台误播一键取消键可立即切断正在进行的广播202051311广播控制台操作功能广播分区管理占用显示显示功能广播选区管理后备模式显示功能广播选区占用背景音乐功能202051312tg200a功放车站控制单元tg200az功放噪声输入单元qh112切换分tg200a功放工控机电源时序控制202051313tg200a前面板图tg200a后面板图202051314tg200a功率放大器的功能
2019/4/8
24
栅格吊顶扬声器
PA-12MD 专业线阵式音箱用户手册说明书
\ •PA SERIES------------i\ / ...<:<: ��__ l _c _o _N _T _Ro _L __________________________ •@ @)® @) (J) @) 3 (2)-(D-@--@--(@(@@ @ @(j])@@)®@STEP TWO: CONTROL G) Please check the correct using voltage before using the product (2) POWER: turn on and turn off the speaker @ Put the power cord into this socket @ Replace a blown fuse @ MIX OUTPUT: use XLR line to send the copy signal source to the other speaker @ MIC INPUT: connect a microphone (do not connect Line Level signal)(/) INPUT 1 and INPUT 2: adjust the input sensitivity (gain)@ LINE: connect "Line Level " signals (i.e. from Mixing Desk)® MP3 and LINE switch: press down is external signal source, press up is USB signal source @) When the input signal begins to overload, CLIP LED is on. @ Turn on POWER , POWER LED is on. @ When the main input signal begins to overload, CLIP LED is on. @) LOW EQUALIZER: reduce or increase bass frequencies +/- 15dB @ HIGH EQUALIZER: reduce or increase the treble frequency +/- 15dB @) LEVEL: control the MP3 player and the volume of the LINE external signal source @ LCD window display: show the status of playing MP3 @ USB: support standard USB flash drive @) USB/BLUETOOTH/FM RADIO mode selector ® �Repeat ALL&STOP PLAY ---It stop playing when all the song is finished ALL REPEAT ---It repeat playing when all the song is finished FOL REPEAT---It repeat playing in a single folder TUN REPEAT ---Single loop playback ALL RANDOM ---All songs played randomly FOL RANDOM ---The songs were played randomly in a single folder @ � EQ demonstration EQ OFF P+B BOOST1 POPS JAZZ ROCK J+B BOOST1 R+B BOOST1 C+B BOOST1 CLASSIC R&B+B BOOST1 R&B BASS BOOST2 BASS BOOST1 (POPS+BASS BOOST1) (JAZZ+BASS BOOST1) (ROCK+BASS BOOST1) (CLASSIC+BASS BOOST1) (R&B+BASS BOOST1) @ m P ress the button to play last song, hold it on to turn down the volume @ m P ut the button to play next song, hold it on to turn up the volume @ � Press the button to Play/Pause the song 4。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
OWNER’S MANUAL
Before operating, please read this manual completely.
PA3002
PA4002
PA5002
Public Address Amplifiers
FEATURES
●Transformer isolated 100V, 70V and 4 Ohms speaker outputs.
● 5 LED indicator for status display.
●XLR socket and mm jack for link convenient.
●Output circuit shorting protection & display.
●Series amplifiers of high output power available.
AMPLIFIER FRONT VIEW
1. AC power switch (1 is power on and the
“power LED ” is on ) 2. POWER LED indicator
3. CLIP LED indicator (Please reduce
4. the gain to prevent severely clipped waveforms reaching the loudspeakers)
5. SIGNAL LED indicator (Output level)
6. PROT LED indicator (DC or output circuit shorted indicator)
7. TEMP LED indicator (high temperature indicator)
8. Volume (input attenuator)
9. Unit’s fan exhaust window
AMPLIFIER REAR VIEW and CONNECTIONS
1. fan intake window
2. COM. output
3. 4～16 output
4. 70V output
5. 100V output
6.
220V AC fuse
7. XLR input 8. socket input 9. socket link 10. XLR link
11.
220VAC power cord
1 2 3 4 5 6 7 8
1
OPERATING PRECAUTIONS
Make sure the AC main voltage is correct and is the same as that printed on the rear of the amplifier. Damage caused by connecting the amplifier to improper AC voltage is not covered by the three-year US warranty.
Make sure the power switch is off before making any input or output connections.
It is always a good idea to have the gain controls turned down during power-up to prevent speaker damage if there is a high signal level at the inputs.
CONNECTING INPUTS
Input connections are made via either the 3-pin XLR -type connectors (Figure 1) or mm sockets on the rear side of the amplifier.
CONNECTING OUTPUTS
Load can be connected using banana plugs or spade lugs. A black binding post is considered “COM”, while the three red binding posts are considered “hot”, and the voltage is 38V （different from the model ）, 70V , and 100V .
Note:
Never connect the “hot ”terminals together.
When connecting load （speakers ）, it is better to use one pair of output terminals only. If the PROT Led goes on steadily while power has been turned on and signal has been fed, there must be a trouble of output shorted. Please turn the unit off and correct the trouble then turn it on again.
Figure 1 3-pin XLR-type connectors
SPECIFICATIONS
HTTP:/DSPPA ACOUSTIC TECHNOLOGY CO., LTD.使用
说明
欢迎惠顾。
使用前请认真阅读本说明书。
PA3002
PA4002
PA5002
公共广播系列
纯后级广播功放
性能特点
●100V, 70V 定压输出和4 Ohms 定阻输出（平衡，不接地）。
● 5 单位LED 显示器，作状态显示。
●RCA 插口和XLR 插口供方便地实现环接。
●输出短路保护并示警。
●成系列大功率纯后级可供选择。
1 2 3 4 5 6 7 8
前面板
1. 交流电源开关（按下1为电源接通状态且
电源指示灯亮） 2. 电源指示灯
3. 削顶指示灯 (为避免严重削顶 请适当降低增益)
4. 信号指示灯 (输出电平)
5. 保护指示灯 (直流或短路保护 )
6. 温度指示灯(超温指示)
7. 音量控制旋钮
8.
通风散热窗
后面板及连接
1．风扇风口 2．输出公共端 3．4～16 输出 4．70V 输出 5．100V 输出
6．220V 交流保险丝
7． 卡隆输入口 8． 输入插口 9． 环接插口
10．卡隆环接插口 11．220V 交流电源线
1
操作注意事项
电源电压应确实与本机相符,由电压不符造成的损坏不在保修之列。
所有输入输出连接好以前,不要通电；通电前最好把音量调至最小以防损坏扬声器。
当通电并输入信号後,如果保护指示灯(PROT)点亮,即说明有输出短路故障.应即切断电源,排除故障後重新加电.
输入之连接
所有输入均应连接於机器後面板之卡隆插口（图1）或 mm 插口。
输出之连接
输出端子在後面板，可用香蕉插或铲形插连接。
黑色乃公共端，红色乃热端。
通常应使用“定压”端子输出，此 时各个扬声器应带线间变压器，扬声器的总功率应与功放的额定输出功率相当。
扬声器在近距离配置时也可用“定阻”（4～16Ω）端子输出，相应地此时扬声器的总阻抗应为4～16Ω。
注意：
宜只选用一对输出端子；
任何时候都不应把两个“热端”连接在一起。
图 1 三线卡隆插
性能规格
性能规格如有改变，恕不另行通知。
