ATV61变频器调试手册

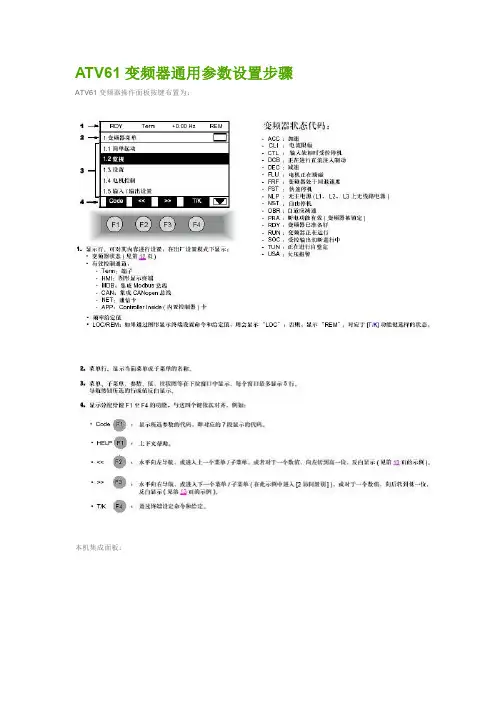

ATV61变频器通用参数设置步骤ATV61变频器操作面板按键布置为：本机集成面板：通过按键操作可以设置、调整并保存参数，下面举例说明：假设需要设置SET菜单中的ACC参数，在rdY状态（显示rdY）下，按“上（下）箭头”按键找到SET菜单（显示SEt）；按“ENT”按键进入，按“上（下）箭头”按键找到ACC参数（显示ACC）；按“ENT”按键进入ACC参数的设置，显示“15.0”（出厂设置或之前被设置过的值）；按“上（下）箭头”按键修改数值，将其改为想要设置的值（比如需要改为26.0）；按“ENT”按键，保存修改过的参数值，屏幕闪烁一次表示保存成功；按“ESC”按键退回到ACC参数（显示ACC）；按“ESC”按键退回到SET菜单（显示SEt）；按“ESC”按键退回到准备状态（显示rdY）。
参数设置完毕，如下流程图所示。
其他参数的设置可参照这个流程。
具体可设置的参数内容和设置方法请参阅产品ATV61用户手册。
对于常规应用，变频器设置步骤一般为：1、宏配置2、设置电机铭牌数据3、电机自整定（自学习）4、设置保护类参数5、根据控制要求定义逻辑端子6、根据工艺或负载要求设置通用参数7、试运行，根据运行情况调整变频器控制参数下面对上述步骤进行详细讲解。
1、宏配置：针对不同负载的控制要求，施耐德变频器预先定义了宏配置，定义了I/O端子的初始功能。
ATV61出厂宏配置为“泵和风机”，I/O配置如下：更改宏配置，可在“1.1简单启动菜单”下修改。
如有需要，也可以单独重新配置端子定义，此时的宏配置为用户定制宏。
2、设置电机铭牌数据在“1.1简单设置”或“1.4电机控制”菜单中设置有关电机的名牌数据：额定电压、额定频率、额定电流、额定转速、功率因数等。
3、电机自整定（自学习）设置好电机铭牌数据后，可以对电机进行自整定（自学习）。
具体操作为：进入“1.1简单设置” 或“1.4电机控制”菜单，进入自整定（tUn）参数，选中“请求自整定（YES）”，按“ENT”按键，变频器自动对电机进行自整定。
ATV61变频器_ATV61HU15M3施耐德变频器说明书

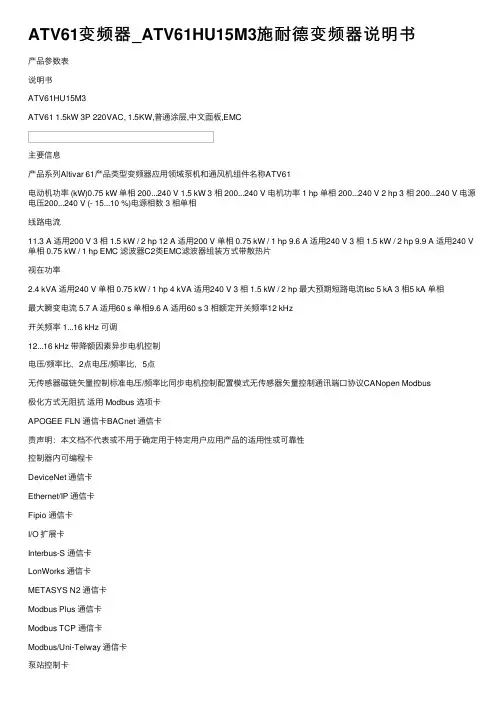

ATV61变频器_ATV61HU15M3施耐德变频器说明书产品参数表说明书ATV61HU15M3ATV61 1.5kW 3P 220VAC, 1.5KW,普通涂层,中⽂⾯板,EMC主要信息产品系列Altivar 61产品类型变频器应⽤领域泵机和通风机组件名称ATV61电动机功率 (kW)0.75 kW 单相 200...240 V 1.5 kW 3 相 200...240 V 电机功率 1 hp 单相 200...240 V 2 hp 3 相 200...240 V 电源电压200...240 V (- 15...10 %)电源相数 3 相单相线路电流11.3 A 适⽤200 V 3 相 1.5 kW / 2 hp 12 A 适⽤200 V 单相 0.75 kW / 1 hp 9.6 A 适⽤240 V 3 相 1.5 kW / 2 hp 9.9 A 适⽤240 V 单相 0.75 kW / 1 hp EMC 滤波器C2类EMC滤波器组装⽅式带散热⽚视在功率2.4 kVA 适⽤240 V 单相 0.75 kW / 1 hp 4 kVA 适⽤240 V 3 相 1.5 kW / 2 hp 最⼤预期短路电流Isc 5 kA 3 相5 kA 单相最⼤瞬变电流 5.7 A 适⽤60 s 单相9.6 A 适⽤60 s 3 相额定开关频率12 kHz开关频率 1...16 kHz 可调12...16 kHz 带降额因素异步电机控制电压/频率⽐，2点电压/频率⽐，5点⽆传感器磁链⽮量控制标准电压/频率⽐同步电机控制配置模式⽆传感器⽮量控制通讯端⼝协议CANopen Modbus极化⽅式⽆阻抗适⽤ Modbus 选项卡APOGEE FLN 通信卡BACnet 通信卡责声明：本⽂档不代表或不⽤于确定⽤于特定⽤户应⽤产品的适⽤性或可靠性控制器内可编程卡DeviceNet 通信卡Ethernet/IP 通信卡Fipio 通信卡I/O 扩展卡Interbus-S 通信卡LonWorks 通信卡METASYS N2 通信卡Modbus Plus 通信卡Modbus TCP 通信卡Modbus/Uni-Telway 通信卡泵站控制卡Profibus DP 通信卡Profibus DP V1 通信卡补充信息产品功能异步电机同步电机电源电压上限170...264 V供电电源频率50...60 Hz (- 5...5 %)电源频率限制47.5...63 Hz连续输出电流8 A 12 kHz, 230 V 3 相4.8 A 12 kHz, 230 V 单相最⼤输出频率0.1...599 Hz速度范围 1...100 处于开环模式下, ⽆速度反馈速度精度+/- 10 % 标称滑距适⽤ 0.2 Tn ⾄ Tn 转矩变化不带速度反馈扭矩精度+/- 15 % 处于开环模式下, ⽆速度反馈瞬时过转矩130 % 标称电机转矩, +/- 10 % 适⽤ 60 秒制动⼒矩30 % 不带制动电阻器<= 125 % 带有制动电阻器调节回路频率 PI 调节器电机滑差补偿可调⾃动⽆论负载情况可以抑制不可⽤电压/频率⽐（2 或 5 点）诊断 1 个LED 红⾊状态设备电压输出电压<= 电源电压电⽓隔离电源与控制端⼦之间安装在外壳中的电缆的类型带有⼀个 IP21 或 IP31 套件 : 3-绞股 IEC 电缆在…上 40 °C, 铜 70 °C PVC 不带安装套件 : 1-绞股 IEC 电缆在…上 45 °C, 铜 70 °C PVC不带安装套件 : 1-绞股 IEC 电缆在…上 45 °C, 铜 90 °C XLPE/EPR带有UL 1类套件 : 3-绞股 UL 508 电缆在…上 40 °C, 铜 75 °C PVC电⽓连接AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 端⼦ 2.5 mm2 / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 端⼦ 6 mm2 / AWG 8紧固扭矩AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 0.6 N.mL1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 1.4 N.m / 12.3 lb.内部电源内部电源⽤于参考电位计 (1 ⾄ 10 kOhm) 10.5 V 直流 +/- 5 %, <= 10 mA 适⽤过载和短路保护内部电源 24 V 直流 (21...27 V), <= 200 mA 适⽤过载和短路保护来⾃外部供电 24 V 直流 (19...30 V)模拟量输⼊数量2模拟量输⼊类型AI1-/Al1+ 双极差分电压 +/- 10 V 直流, 输⼊电压 24 V 最⼤, 分辨率 11位+符号位AI2 软件-可配置电流 0...20 mA, 阻抗 242 ?, 分辨率 11 位AI2 软件-可配置电压 0...10 V 直流, 输⼊电压 24 V 最⼤, 阻抗 30000 ?, 分辨率 11 位采样时间离散量输⼊ LI6 (如果配置为逻辑输⼊的话) 2 ms, +/- 0.5 ms模拟量输⼊ AI1-/Al1+ 2 ms, +/- 0.5 ms模拟量输⼊ Al2 2 ms, +/- 0.5 ms模拟量输出 AO1 2 ms, +/- 0.5 ms离散量输⼊ LI1...LI5 2 ms, +/- 0.5 ms绝对精度AI1-/Al1+ +/- 0.6 % ⽤于60 °C的温度变动AI2 +/- 0.6 % ⽤于60 °C的温度变动AO1 +/- 1 % ⽤于60 °C的温度变动线性度误差AI1-/Al1+ 最⼤值 +/- 0.15 %AI2 最⼤值 +/- 0.15 %模拟量输出数量1模拟量输出型号AO1 软件-可配置电流, 模拟量输出范围 0...20 mA, 阻抗 500 ?, 分辨率 10 bits AO1 软件-可配置逻辑输出 10 V, <= 20 mAAO1 软件-可配置电压, 模拟量输出范围 0...10 V DC, 阻抗 470 ?, 分辨率 10 bits 离散量输出数量2指⽰装置类型(R1A, R1B, R1C) 可配置的继电器逻辑 NO/NC, 电⽓寿命 100000 次(R2A, R2B) 可配置的继电器逻辑 NO, 电⽓寿命 100000 次最⼤响应时间<= 100 ms 在 STO (安全转矩关闭) 内R1A, R1B, R1C <= 7 ms, 公差 +/- 0.5 msR2A, R2B <= 7 ms, 公差 +/- 0.5 ms最⼩开关电流 [Imin]可配置的继电器逻辑 3 mA 在…上 24 V DC最⼤开关电流R1, R2 在…上阻性（负载）负载, 5 A 30 V DC, cos phi = 1, 0 msR1, R2 在…上感性负载负载, 2 A 30 V DC, cos phi = 0.4, 7 msR1, R2 在…上阻性（负载）负载, 5 A 250 V AC, cos phi = 1, 0 msR1, R2 在…上感性负载负载, 2 A 250 V AC, cos phi = 0.4, 7 ms离散量输⼊数量7数字量输⼊类型(LI1...LI5) 可编程, 24 V 直流, 电压限制 <= 30 V, 有 1 级 PLC, 阻抗 3500 ?(LI6) 开关-可配置, 24 V 直流, 电压限制 <= 30 V, 有 1 级 PLC, 阻抗 3500 ?(LI6) 开关可配置 PTC 探头, 0...6, 阻抗 1500 ?(PWR) 安全输⼊, 24 V 直流, 电压限制 <= 30 V, 阻抗 1500 ?离散量输⼊逻辑LI1...LI5 负逻辑 (漏), < 5 V (状态 0), > 11 V (状态 1)LI1...LI5 负逻辑 (漏), > 16 V (状态 0), < 10 V (状态 1)LI6 (如果配置为逻辑输⼊的话) 负逻辑 (漏), > 16 V (状态 0), < 10 V (状态 1)LI6 (如果配置为逻辑输⼊的话) 负逻辑 (漏), < 5 V (状态 0), > 11 V (状态 1)加速和减速倾斜超出刹车能⼒时的坡道⾃适应，采⽤电阻从 0.01 ⾄ 9000 s 独⽴线性可调S, U 或⾃定义制动⾄停⽌采⽤直流注⼊保护类型驱动防⽌超出限制速度驱动防⽌输⼊相位丢失驱动控制电路上制动驱动输⼊断相驱动线路电源过压驱动总线供电⽋压驱动输出相线和接地之间的过流驱动过热保护驱动直流总线过压驱动拆卸电源驱动电机各相线之间短路驱动热保护马达电机断相马达拆卸电源马达热保护绝缘电阻> 1 m? 在…上接地 1 分钟 500 V 直流频率分辨率模拟量输⼊ 0.024/50 Hz显⽰单元 0.1 Hz端⼝类型 1 RJ45 适⽤ Modbus 前⾯板1 RJ45 适⽤ Modbus 接线端RJ45的针型SUB-D 9 适⽤ CANopen物理接⼝2线制RS485 适⽤ Modbus传输帧RTU 适⽤ Modbus传输率20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps 适⽤ CANopen 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps 适⽤ Modbus 接线端9600 bps, 19200 bps 适⽤ Modbus 前⾯板数据格式8 位, 1 停⽌, 偶校验适⽤ Modbus 前⾯板8 位, 奇偶或⽆可配置的校验适⽤ Modbus 接线端地址数 1...247 适⽤ Modbus1...127 适⽤ CANopen访问⽅法从（站）适⽤ CANopen标识CE操作位置垂直⽅向 +/- 10°产品重量 3 kg宽度130 mm⾼度230 mm深度175 mm环境噪⾳等级43 dB 符合 86/188/EEC绝缘性能2830 V DC 接地和电源接线端之间4230 V DC 控制和电源接线端之间电磁兼容性符合 IEC 61000-4-2 级别 3符合 IEC 61000-4-11符合 IEC 61000-4-6 级别 3符合 IEC 61000-4-3 级别 3符合 IEC 61000-4-4 级别 4符合标准EN 55011 A 类第 1 组EN 61800-3 环境 1 级别 C2EN 61800-3 环境 2 级别 C2EN/IEC 61800-3EN/IEC 61800-5-1IEC 60721-3-3 第 3C1 类IEC 60721-3-3 第 3S2 类UL 类型 1产品认证CSAC-TickDNVGOSTNOM 117UL污染等级 2 符合 EN/IEC 61800-5-1保护程度IP20 在上⽅部件封盖上不带盲板符合 EN/IEC 60529 IP20 在上⽅部件封盖上不带盲板符合 EN/IEC 61800-5-1IP21 符合 EN/IEC 60529IP21 符合 EN/IEC 61800-5-1IP41 在上⽅部件符合 EN/IEC 60529IP41 在上⽅部件符合 EN/IEC 61800-5-1IP54 对下⾯的部件符合 EN/IEC 60529IP54 对下⾯的部件符合 EN/IEC 61800-5-1抗振动波峰⾄波峰 1.5 mm (f = 3...13 Hz) 符合 EN/IEC 60068-2-6 1 gn (f = 13...200 Hz) 符合 EN/IEC 60068-2-6抗冲击15 gn 适⽤ 11 ms 符合 EN/IEC 60068-2-27相对湿度 5...95 % ⽆冷凝符合 IEC 60068-2-35...95 % ⽆滴⽔符合 IEC 60068-2-3环境温度-10...50 °C ⽆降容50...60 °C 带降额因素贮存环境温度-25...70 °C⼯作海拔<= 1000 m ⽆降容1000...3000 m 电流降额 1%/100m合同保修阶段18 个⽉。

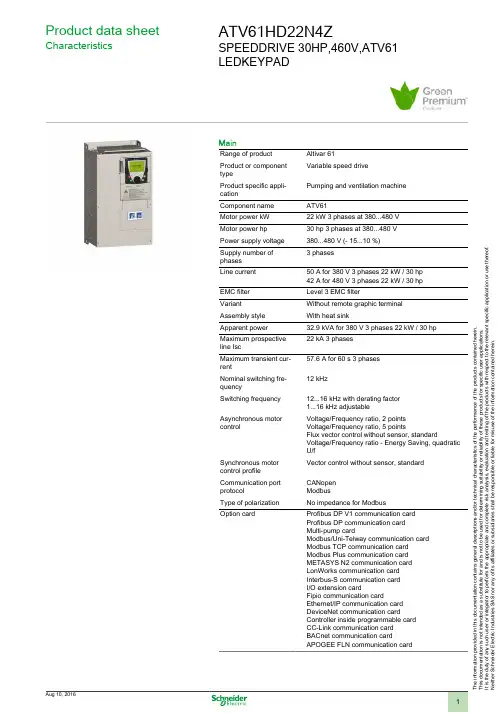

Schneider Electric ATV61 22kW 三相变速器产品说明书
T h e i n f o r m a t i o n p r o v i d e d i n t h i s d o c u m e n t a t i o n c o n t a i n s g e n e r a l d e s c r i p t i o n s a n d /o r t e c h n i c a l c h a r a c t e r i s t i c s o f t h e p e r f o r m a n c e o f t h e p r o d u c t s c o n t a i n e d h e r e i n .T h i s d o c u m e n t a t i o n i s n o t i n t e n d e d a s a s u b s t i t u t e f o r a n d i s n o t t o b e u s e d f o r d e t e r m i n i n g s u i t a b i l i t y o r r e l i a b i l i t y o f t h e s e p r o d u c t s f o r s p e c i f i c u s e r a p p l i c a t i o n s .I t i s t h e d u t y o f a n y s u c h u s e r o r i n t e g r a t o r t o p e r f o r m t h e a p p r o p r i a t e a n d c o m p l e t e r i s k a n a l y s i s , e v a l u a t i o n a n d t e s t i n g o f t h e p r o d u c t s w i t h r e s p e c t t o t h e r e l e v a n t s p e c i f i c a p p l i c a t i o n o r u s e t h e r e o f .N e i t h e r S c h n e i d e r E l e c t r i c I n d u s t r i e s S A S n o r a n y o f i t s a f f i l i a t e s o r s u b s i d i a r i e s s h a l l b e r e s p o n s i b l e o r l i a b l e f o r m i s u s e o f t h e i n f o r m a t i o n c o n t a i n e d h e r e i n .Product data sheetCharacteristicsATV61HD22N4ZSPEEDDRIVE 30HP,460V,ATV61LEDKEYPADMainRange of product Altivar 61Product or component typeVariable speed driveProduct specific appli-cationPumping and ventilation machine Component name ATV61Motor power kW 22 kW 3 phases at 380...480 V Motor power hp 30 hp 3 phases at 380...480 V Power supply voltage 380...480 V (- 15...10 %)Supply number of phases 3 phasesLine current 50 A for 380 V 3 phases 22 kW / 30 hp 42 A for 480 V 3 phases 22 kW / 30 hp EMC filter Level 3 EMC filterVariant Without remote graphic terminal Assembly style With heat sinkApparent power 32.9 kVA for 380 V 3 phases 22 kW / 30 hp Maximum prospective line Isc22 kA 3 phases Maximum transient cur-rent57.6 A for 60 s 3 phases Nominal switching fre-quency12 kHzSwitching frequency 12...16 kHz with derating factor 1...16 kHz adjustableAsynchronous motor controlVoltage/Frequency ratio, 2 points Voltage/Frequency ratio, 5 pointsFlux vector control without sensor, standardVoltage/Frequency ratio - Energy Saving, quadratic U/fSynchronous motor control profile Vector control without sensor, standard Communication port protocolCANopen ModbusType of polarization No impedance for ModbusOption cardProfibus DP V1 communication card Profibus DP communication card Multi-pump cardModbus/Uni-Telway communication card Modbus TCP communication card Modbus Plus communication card METASYS N2 communication card LonWorks communication card Interbus-S communication card I/O extension cardFipio communication cardEthernet/IP communication card DeviceNet communication cardController inside programmable card CC-Link communication card BACnet communication cardAPOGEE FLN communication cardComplementaryProduct destination Asynchronous motorsSynchronous motorsPower supply voltage limits323...528 VPower supply frequency50...60 Hz (- 5...5 %)Power supply frequency limits47.5...63 HzContinuous output current48 A at 12 kHz, 380 V 3 phases40 A at 12 kHz, 460 V 3 phasesSpeed drive output frequency0.1...599 HzSpeed range 1...100 in open-loop mode, without speed feedbackSpeed accuracy+/- 10 % of nominal slip for 0.2 Tn to Tn torque variation without speed feedback Torque accuracy+/- 15 % in open-loop mode, without speed feedbackTransient overtorque130 % of nominal motor torque, +/- 10 % for 60 sBraking torque30 % without braking resistor<= 125 % with braking resistorRegulation loop Frequency PI regulatorMotor slip compensation AdjustableAutomatic whatever the loadCan be suppressedNot available in voltage/frequency ratio (2 or 5 points)Diagnostic 1 LED red presence of drive voltageOutput voltage<= power supply voltageElectrical isolation Between power and control terminalsType of cable for mounting in an enclosure Without mounting kit : 1-strand IEC cable at 45 °C, copper 90 °C XLPE/EPRWithout mounting kit : 1-strand IEC cable at 45 °C, copper 70 °C PVCWith UL Type 1 kit : 3-strand UL 508 cable at 40 °C, copper 75 °C PVCWith an IP21 or an IP31 kit : 3-strand IEC cable at 40 °C, copper 70 °C PVC Electrical connection L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 50 mm² /AWG 1/0AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5mm² / AWG 14Tightening torque L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 12 N.m / 106.2 lb.inAI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 0.6 N.m Supply Internal supply 24 V DC (21...27 V), <= 200 mA for overload and short-circuit pro-tectionInternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <=10 mA for overload and short-circuit protectionExternal supply 24 V DC (19...30 V), 30 WAnalogue input number2Analogue input type AI2 software-configurable voltage 0...10 V DC, input voltage 24 V max,impedance 30000 Ohm, resolution 11 bitsAI2 software-configurable current 0...20 mA, impedance 242 Ohm, resolution 11bitsAI1-/Al1+ bipolar differential voltage +/- 10 V DC, input voltage 24 V max, resolu-tion 11 bits + signSampling time Discrete input LI6 (if configured as logic input) 2 ms, +/- 0.5 msDiscrete input LI1...LI5 2 ms, +/- 0.5 msAnalog output AO1 2 ms, +/- 0.5 msAnalog input Al2 2 ms, +/- 0.5 msAnalog input AI1-/Al1+ 2 ms, +/- 0.5 msAbsolute accuracy precision AO1 +/- 1 % for a temperature variation 60 °CAI2 +/- 0.6 % for a temperature variation 60 °CAI1-/Al1+ +/- 0.6 % for a temperature variation 60 °CLinearity error AO1 +/- 0.2 %AI2 +/- 0.15 % of maximum valueAI1-/Al1+ +/- 0.15 % of maximum valueAnalogue output number1Analogue output type AO1 software-configurable logic output 10 V, <= 20 mAAO1 software-configurable voltage, analogue output range 0...10 V DC,impedance 470 Ohm, resolution 10 bitsAO1 software-configurable current, analogue output range 0...20 mA, impedance500 Ohm, resolution 10 bitsDiscrete output number2Discrete output type(R2A, R2B) configurable relay logic NO, electrical durability 100000 cycles(R1A, R1B, R1C) configurable relay logic NO/NC, electrical durability 100000 cy-clesMaximum response time R2A, R2B <= 7 ms, tolerance +/- 0.5 msR1A, R1B, R1C <= 7 ms, tolerance +/- 0.5 ms<= 100 ms in STO (Safe Torque Off)Minimum switching current Configurable relay logic 3 mA at 24 V DCMaximum switching current R1, R2 on resistive load, 5 A at 30 V DC, cos phi = 1, L/R = 0 msR1, R2 on resistive load, 5 A at 250 V AC, cos phi = 1, L/R = 0 msR1, R2 on inductive load, 2 A at 30 V DC, cos phi = 0.4, L/R = 7 msR1, R2 on inductive load, 2 A at 250 V AC, cos phi = 0.4, L/R = 7 ms Discrete input number7Discrete input type(PWR) safety input, 24 V DC, voltage limits <= 30 V, impedance 1500 Ohm(LI6) switch-configurable PTC probe, 0...6, impedance 1500 Ohm(LI6) switch-configurable, 24 V DC, voltage limits <= 30 V, with level 1 PLC,impedance 3500 Ohm(LI1...LI5) programmable, 24 V DC, voltage limits <= 30 V, with level 1 PLC,impedance 3500 OhmDiscrete input logic LI6 (if configured as logic input) positive logic (source), < 5 V (state 0), > 11 V(state 1)LI6 (if configured as logic input) negative logic (sink), > 16 V (state 0), < 10 V(state 1)LI1...LI5 positive logic (source), < 5 V (state 0), > 11 V (state 1)LI1...LI5 negative logic (sink), > 16 V (state 0), < 10 V (state 1) Acceleration and deceleration ramps Automatic adaptation of ramp if braking capacity exceeded, by using resistorLinear adjustable separately from 0.01 to 9000 sS, U or customizedBraking to standstill By DC injectionProtection type Motor thermal protectionMotor power removalMotor motor phase breakDrive thermal protectionDrive short-circuit between motor phasesDrive power removalDrive overvoltages on the DC busDrive overheating protectionDrive overcurrent between output phases and earthDrive line supply undervoltageDrive line supply overvoltageDrive input phase breaksDrive break on the control circuitDrive against input phase lossDrive against exceeding limit speedInsulation resistance> 1 mOhm at 500 V DC for 1 minute to earthFrequency resolution Display unit 0.1 HzAnalog input 0.024/50 HzType of connector Male SUB-D 9 on RJ45 for CANopen1 RJ45 for Modbus on terminal1 RJ45 for Modbus on front facePhysical interface2-wire RS 485 for ModbusTransmission frame RTU for ModbusTransmission rate20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen9600 bps, 19200 bps for Modbus on front face4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminalData format8 bits, odd even or no configurable parity for Modbus on terminal8 bits, 1 stop, even parity for Modbus on front faceNumber of addresses 1...247 for Modbus1...127 for CANopenMethod of access Slave for CANopenMarking CEOperating position Vertical +/- 10 degreeProduct weight30 kgWidth240 mmHeight420 mmDepth236 mmEnvironmentNoise level59.9 dB conforming to 86/188/EECDielectric strength5092 V DC between control and power terminals3535 V DC between earth and power terminalsElectromagnetic compatibility Voltage dips and interruptions immunity test conforming to IEC 61000-4-11Radiated radio-frequency electromagnetic field immunity test conforming to IEC61000-4-3 level 3Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3 Standards EN 55011 class A group 2EN 61800-3 environments 1 category C3EN 61800-3 environments 2 category C3EN/IEC 61800-3EN/IEC 61800-5-1IEC 60721-3-3 class 3C1IEC 60721-3-3 class 3S2UL Type 1Product certifications CSAC-TickDNVGOSTNOM 117ULPollution degree 3 conforming to UL 8403 conforming to EN/IEC 61800-5-1Degree of proctection IP54 on lower part conforming to EN/IEC 61800-5-1IP54 on lower part conforming to EN/IEC 60529IP41 on upper part conforming to EN/IEC 61800-5-1IP41 on upper part conforming to EN/IEC 60529IP21 conforming to EN/IEC 61800-5-1IP21 conforming to EN/IEC 60529IP20 on upper part without blanking plate on cover conforming to EN/IEC61800-5-1IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529 Vibration resistance 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-61 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6Shock resistance15 gn for 11 ms conforming to EN/IEC 60068-2-27Relative humidity 5...95 % without dripping water conforming to IEC 60068-2-35...95 % without condensation conforming to IEC 60068-2-3Ambient air temperature for operation50...60 °C with derating factor-10...50 °C without deratingAmbient air temperature for storage-25...70 °COperating altitude1000...3000 m with current derating 1 % per 100 m<= 1000 m without deratingOffer SustainabilitySustainable offer status Green Premium productRoHS (date code: YYWW)Compliant - since 0946 -Schneider Electric declaration of conformity REACh Reference contains SVHC above the threshold -go to CaP for more details Product environmental profile Available Download Product EnvironmentalProduct end of life instructions Available Download End Of Life ManualProduct data sheetATV61HD22N4Z Dimensions DrawingsVariable Speed Drives without Graphic Display TerminalDimensions without Option CardDimensions in mmDimensions in in.Dimensions with 1 Option Card (1)Dimensions in mmDimensions in in.(1) Option cards: I/O extension cards, communication cards or "Controller Inside” programmable card.Dimensions with 2 Option Cards (1)Dimensions in mmDimensions in in.(1) Option cards: I/O extension cards, communication cards or "Controller Inside” programmable card.Product data sheetATV61HD22N4ZMounting and ClearanceMounting RecommendationsDepending on the conditions in which the drive is to be used, its installation will require certain precautions and the use of appropriate accessories.Install the unit vertically:●Avoid placing it close to heating elements●Leave sufficient free space to ensure that the air required for cooling purposes can circulate from the bottom to the top of the unit. ClearanceMounting TypesType A MountingType B MountingType C MountingBy removing the protective blanking cover from the top of the drive, the degree of protection for the drive becomes IP 20.The protective blanking cover may vary according to the drive model (refer to the user guide).Specific Recommendations for Mounting the Drive in an EnclosureVentilationTo ensure proper air circulation in the drive:●Fit ventilation grilles.●Ensure that there is sufficient ventilation. If there is not, install a forced ventilation unit with a filter. The openings and/or fans must providea flow rate at least equal to that of the drive fans (refer to the product characteristics).●Use special filters with IP 54 protection.●Remove the blanking cover from the top of the drive.Dust and Damp Proof Metal Enclosure (IP 54)The drive must be mounted in a dust and damp proof enclosure in certain environmental conditions: dust, corrosive gases, high humidity with risk of condensation and dripping water, splashing liquid, etc.This enables the drive to be used in an enclosure where the maximum internal temperature reaches 50°C.Product data sheetATV61HD22N4ZConnections and SchemaWiring Diagram Conforming to Standards EN 954-1 Category 1, IEC/EN 61508 Capacity SIL1, in Stopping Category 0 According to IEC/EN 60204-1Three-Phase Power Supply with Upstream Breaking via ContactorA1ATV61 driveKM1ContactorL1DC chokeQ1Circuit-breakerQ2GV2 L rated at twice the nominal primary current of T1Q3GB2CB05XB4 B or XB5 A pushbuttonsS1,S2T1100 VA transformer 220 V secondary(1)Line choke (three-phase); mandatory for ATV61HC11Y…HC80Y drives (except when a special transformer is used (12-pulse)).(2)For ATV61HC50N4, ATV61HC63N4 and ATV61HC50Y…HC80Y drives, refer to the power terminal connections diagram.(3)Fault relay contacts. Used for remote signalling of the drive status.(4)Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internalpower supply switched to the “source” position (for other connection types, refer to the user guide).(5)There is no PO terminal on ATV61HC11Y…HC80Y drives.(6)Optional DC choke for ATV61H•••M3, ATV61HD11M3X…HD45M3X and ATV61H075N4…HD75N4 drives. Connected in place of thestrap between the PO and PA/+ terminals. For ATV61HD55M3X…HD90M3X, ATV61HD90N4…HC63N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it. For ATV61W•••N4 and ATV61W•••N4C drives, the DC choke is integrated.(7)Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.(8)Reference potentiometer.NOTE: All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.Wiring Diagram Conforming to Standards EN 954-1 Category 1, IEC/EN 61508 Capacity SIL1, in Stopping Category 0 According to IEC/EN 60204-1Three-Phase Power Supply with Downstream Breaking via Switch DisconnectorA1ATV61 driveL1DC chokeQ1Circuit-breakerQ2Switch disconnector (Vario)(1)Line choke (three-phase), mandatory for ATV61HC11Y…HC80Y drives (except when a special transformer is used (12-pulse)).(2)For ATV61HC50N4, ATV61HC63N4 and ATV61HC50Y…HC80Y drives, refer to the power terminal connections diagram.(3)Fault relay contacts. Used for remote signalling of the drive status.(4)Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internalpower supply switched to the “source” position (for other connection types, refer to the user guide).(5)There is no PO terminal on ATV61HC11Y…HC80Y drives.(6)Optional DC choke for ATV61H•••M3, ATV61HD11M3X…HD45M3X and ATV61H075N4…HD75N4 drives. Connected in place of thestrap between the PO and PA/+ terminals. For ATV61HD55M3X…HD90M3X, ATV61HD90N4…HC63N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it. For ATV61W•••N4 and ATV61W•••N4C drives, the DC choke is integrated.(7)Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.(8)Reference potentiometer.NOTE: All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.Wiring Diagram Conforming to Standards EN 954-1 Category 3, IEC/EN 61508 Capacity SIL2, in Stopping Category 0 According to IEC/EN 60204-1Three-Phase Power Supply, Low Inertia Machine, Vertical MovementA1ATV61 drive A2Preventa XPS AC safety module for monitoring emergency stops and switches. One safety module can manage the “Power Removal”function for several drives on the same machine. In this case, each drive must connect its PWR terminal to its + 24 V via the safety contacts on the XPS AC module. These contacts are independent for each drive.F1Fuse L1DC choke Q1Circuit-breaker S1Emergency stop button with 2 contacts S2XB4 B or XB5 A pushbutton (1)Power supply: 24 Vdc or Vac, 115 Vac, 230 Vac.(2)S2: resets XPS AC module on power-up or after an emergency stop. ESC can be used to set external starting conditions.(3)Requests freewheel stopping of the movement and activates the “Power Removal” safety function.(4)Line choke (three-phase), mandatory for and ATV61HC11Y…HC80Y drives (except when a special transformer is used (12-pulse)).(5)The logic output can be used to signal that the machine is in a safe stop state.(6)For ATV61HC50N4, ATV61HC63N4 and ATV61HC50Y…HC80Y drives, refer to the power terminal connections diagram.(7)Fault relay contacts. Used for remote signalling of the drive status.(8)Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internal power supply switched to the “source” position (for other connection types, refer to the user guide).(9)Standardized coaxial cable, type RG174/U according to MIL-C17 or KX3B according to NF C 93-550, external diameter 2.54 mm /0.09 in., maximum length 15 m / 49.21 ft. The cable shielding must be earthed.(10)There is no PO terminal on ATV61HC11Y…HC80Y drives.(11)Optional DC choke for ATV61H•••M3, ATV61HD11M3X…HD45M3X and ATV61H075N4…HD75N4 drives. Connected in place of the strap between the PO and PA/+ terminals. For ATV61HD55M3X…HD90M3X, ATV61HD90N4…HC63N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it. For ATV61W•••N4 and ATV61W•••N4C drives, the DC choke is integrated.(12)Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.(13)Reference potentiometer.NOTE: All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.Wiring Diagram Conforming to Standards EN 954-1 Category 3, IEC/EN 61508 Capacity SIL2, in Stopping Category 1 According to IEC/EN 60204-1Three-Phase Power Supply, High Inertia MachineA1ATV61 drive A2(5)Preventa XPS ATE safety module for monitoring emergency stops and switches. One safety module can manage the "Power Removal”safety function for several drives on the same machine. In this case the time delay must be adjusted on the drive controlling the motor that requires the longest stopping time. In addition, each drive must connect its PWR terminal to its + 24 V via the safety contacts on the XPS ATE module. These contacts are independent for each drive.F1Fuse L1DC choke Q1Circuit-breaker S1Emergency stop button with 2 contacts S2XB4 B or XB5 A pushbutton (1)Power supply: 24 Vdc or Vac, 115 Vac, 230 Vac.(2)Requests controlled stopping of the movement and activates the “Power Removal” safety function.(3)Line choke (three-phase), mandatory for ATV61HC11Y…HC80Y drives (except when a special transformer is used (12-pulse)).(4)S2: resets XPS ATE module on power-up or after an emergency stop. ESC can be used to set external starting conditions.(5)The logic output can be used to signal that the machine is in a safe state.(6)For stopping times requiring more than 30 seconds in category 1, use a Preventa XPS AV safety module which can provide a maximum time delay of 300 seconds.(7)For ATV61HC50N4, ATV61HC63N4 and ATV61HC50Y…HC80Y drives, refer to the power terminal connections diagram.(8)Fault relay contacts. Used for remote signalling of the drive status.(9)Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internal power supply switched to the “source” position (for other connection types, refer to the user guide).(10)Standardized coaxial cable, type RG174/U according to MIL-C17 or KX3B according to NF C 93-550, external diameter 2.54 mm/0.09 in., maximum length 15 m/49.21 ft. The cable shielding must be earthed.(11)Logic inputs LI1 and LI2 must be assigned to the direction of rotation: LI1 in the forward direction and LI2 in the reverse direction.(12)There is no PO terminal on ATV61HC11Y…HC80Y drives.(13)Optional DC choke for ATV61H•••M3, ATV61HD11M3X…HD45M3X and ATV61H075N4…HD75N4 drives. Connected in place of the strap between the PO and PA/+ terminals. For ATV61HD55M3X…HD90M3X, ATV61HD90N4…HC63N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it. For ATV61W•••N4 and ATV61W•••N4C drives, the DC choke is integrated.(14)Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.(15)Reference potentiometer.NOTE: All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.Product data sheet Performance Curves ATV61HD22N4ZDerating CurvesThe derating curves for the drive nominal current (In) depend on the temperature, the switching frequency and the mounting type (A, B or C).For intermediate temperatures (e.g. 55°C), interpolate between 2 curves.X Switching frequencyNOTE: Above 50ºC, the drive should be fitted with a control card fan kit.。
ATV61变频器调试手册
ATV61变频器通用参数设置步骤ATV61变频器操作面板按键布置为：本机集成面板：通过按键操作可以设置、调整并保存参数，下面举例说明：假设需要设置SET菜单中的ACC参数，在rdY状态（显示rdY）下，按“上（下）箭头”按键找到SET菜单（显示SEt）；按“ENT”按键进入，按“上（下）箭头”按键找到ACC参数（显示ACC）；按“ENT”按键进入ACC参数的设置，显示“15.0”（出厂设置或之前被设置过的值）；按“上（下）箭头”按键修改数值，将其改为想要设置的值（比如需要改为26.0）；按“ENT”按键，保存修改过的参数值，屏幕闪烁一次表示保存成功；按“ESC”按键退回到ACC参数（显示ACC）；按“ESC”按键退回到SET菜单（显示SEt）；按“ESC”按键退回到准备状态（显示rdY）。
参数设置完毕，如下流程图所示。
其他参数的设置可参照这个流程。
具体可设置的参数内容和设置方法请参阅产品ATV61用户手册。
对于常规应用，变频器设置步骤一般为：1、宏配置2、设置电机铭牌数据3、电机自整定（自学习）4、设置保护类参数5、根据控制要求定义逻辑端子6、根据工艺或负载要求设置通用参数7、试运行，根据运行情况调整变频器控制参数下面对上述步骤进行详细讲解。
1、宏配置：针对不同负载的控制要求，施耐德变频器预先定义了宏配置，定义了I/O端子的初始功能。
ATV61出厂宏配置为“泵和风机”，I/O配置如下：更改宏配置，可在“1.1简单启动菜单”下修改。
如有需要，也可以单独重新配置端子定义，此时的宏配置为用户定制宏。
2、设置电机铭牌数据在“1.1简单设置”或“1.4电机控制”菜单中设置有关电机的名牌数据：额定电压、额定频率、额定电流、额定转速、功率因数等。
3、电机自整定（自学习）设置好电机铭牌数据后，可以对电机进行自整定（自学习）。
具体操作为：进入“1.1简单设置” 或“1.4电机控制”菜单，进入自整定（tUn）参数，选中“请求自整定（YES）”，按“ENT”按键，变频器自动对电机进行自整定。
