电伴热系统组成及日常维护

03
尾端接线盒:尾端接线盒是用来密封电伴热带的尾端,从而使电伴热带不至于受潮发生短路现象的一种装置。
04
电伴热系统介绍-电伴热敷设
冬季电伴热的日常维护
进入冬季生产以后,电伴热系统对整个平台生产设施及工艺流程起着至关重要的保温作用,保证电伴热系统安全稳定无故障运行是保证安全生产的重要前提
每日检查各回路开关是否正常,是否有跳闸回路。如出现故障回路,及时汇报并及时检查处理故障回路,尽快恢复故障回路运行,并做好完整的维修记录。
电伴热系统介绍-电伴热带的工作原理
(*)
电伴热系统介绍-电伴热带结构
镍铜芯导线。 发热材料,(低、中、高温含氟PTC材料,材料为不燃) 乙烯、阻燃聚乙烯、氟塑料绝缘护层和加强护层。 丝、镀镍铜丝、铝合金丝、不锈钢编织屏蔽层
常用的电伴热带有如下几种型号 QTVR2-CT型自控电件热线专用于工艺管线或容器储罐的防冻和保温、最高维持温度为110℃。伴热线适用于普通区,危险区或腐蚀区。产品型号如下:10QTVR2-CT、15QTVR2-CT、20QTVR2-CT BTV2-CT型自控电件热线专用于工艺管线或容器储罐的防冻和保温、最高维持温度为65℃。伴热线适用于普通区,危险区或腐蚀区。产品型号如下: 3BTV2-CT、5BTV2-CT、8BTV2-CT XTV2-CT型自控电伴热线专用于耐间歇性高温蒸汽吹扫、工艺管线或容器储罐的防冻和保温、最高维持温度为121℃。伴热线适用于普通区,危险区或腐蚀区。 10XTV2-CT、15XTV2-CT、20XTV2-CT
电伴热具有热效率高,节约能源,设计简单,施工安装方便,无污染,使用寿命长等特点
电伴热是电热的能量来补充被伴热体在工艺流程中所散失的热量,以维持流动介质最合理的工艺温度,它是一种高新技术产品。
电伴热作业指导书

一.概述 (2)二.施工规范及依据 ......................... (4)三.施工方法及程序 (5)四.质量验收评定标准及验收方法 (9)五.HSE管理措施............................. .10概述温控伴热电缆(简称电缆)又称自调控电伴热线或自限温电热带。
它是一种电热功率随系统温度自调的带状限温伴热器。
即电缆本身具有自动限温,并随着被加热体系的温度变化能自动调整发热功率的功能,以保证工作体系始终稳定在设定的最佳操作温区正常运行。
1.1 工作原理温控伴热电缆的电热元件,是在两根平行金属母线之间均匀的挤包一层PTC材料(半晶高聚物与炭黑的共混物)制成的芯带。
PTC 材料经熔融挤出、冷却定型之后,分散其中的炭微粒形成无数纤细的导电炭网络。
当它们跨接在两根平行母线上时,就构成芯带的PTC 并联回路。
电缆一端的两根母线与电源接通时,电流从一根母线横向流过PTC材料层到达另一根母线形成并联回路。
PTC层就是连续并联在母线之间的电阻发热体,将电能转化成热能,对操作系统进行伴热保温。
当芯带温度升到相应的高阻区时,电阻大到几乎阻断电流的程度,芯带的温度将达到高限不再升高(即自动限温)。
与此同时,芯带通过护套向温度较低的被加热体系传热,达到稳态时单位时间传递的热量等于电缆的电功率。
电缆的输出功率主要受控于传热过程以及被加热体系的温度。
1.2 主要技术参数低温系列性能参数—标准颜色:黑色—温度范围:最高维持温度65C最高曝露温度85 C最高表面温度85C—施工温度:最低-60 C—热稳定性:由10C至99C间来回循环300次后,电缆发热量维持在90% 以上。
—弯曲半径:20C室温时,为25.4mm -30C低温时,为35mm—绝缘电阻:伴热电缆长度100m环境温度75C时,绝缘电阻最小值为20M D。
中温系列性能参数—标准颜色:褐色—温度范围:最高维持温度105C最高曝露温度135C最高表面温度135C—施工温度:最低-30 C—热稳定性:由10C至149C间来回循环300次后,电缆发热量维持在90%以上—弯曲半径:20C室温时,为25.4mm -30C低温时为35mm—绝缘电阻:伴热电缆长度100m,环境温度75C时,绝缘电阻最小值为20 M Q。

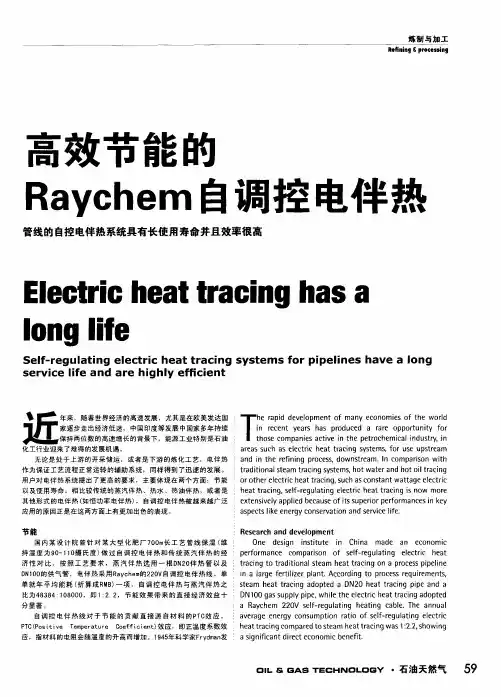

高效节能的Raychem自调控电伴热

a e s s c s ee t i e t t a i g s s e . O s p te m r a u h a l c r h a r cn y t ms f r u e u s r a c a d i h e n n r c s . o s r a n n t e r f i q p o e s d wn te m.I o p r o t i n c m a i n wih s ta i o a se m r e n y t ms h t t r n o i ta ig r d t n I t a t a i g s se . o i wa e d h t I r c n a o o t e lc r e tta i g s c sc n t n ta e ee t i r h r e t i h a rc n . u h a o s a twa t g lc r o e c c h a r c n . ef r g l tn lc r e tta i g i n w mo e e tt a i g s l—e u a i g ee t i h a r cn S o r c e t n iey a p id b t u e o s U e i rp ro ma e si e x e s l p I e a s fi p r e f r n e n k y v e tS o a p c sI e e e q o s r a i n a d s r ie I e s e t k n r y c n e v to n e v c i . i f
nVent Raychem HWAT热水温度维护系统说明书

INTRODUCTIONThe HWAT system is a hot water temperature maintenance system that utilizes an electronic controller, self-regulating electric heating cables, and an easy-to-install set of connection kits to provide commercial buildings with immediate hot water at the tap without the use of a water recirculation system.Recirculation systems require the water heater temperature to be at least five degrees above the maintain temperature to compensate for the heat that is lost in the recirculation loop. With HWAT systems, the water in the supply pipe is maintained at a constant temperature along the entire length of the supply pipe so heating the water above the maintain temperature is not required. Recirculation systems also require return lines, pumps, and balancing valves, all of which are all unnecessary with HWAT.A key component of the HWAT system is the HWAT controller. In addition to providing flexible temperature control, the controllers provide energy savings; a heat-up cycle that increases the water temperature in stagnant pipes; Building Management System (BMS) interface; alarm relay to signal power, temperature, or communication problems; a water heater sensor function; and nine predefined programs that can be customized by the user.This step-by-step design guide provides the tools necessary to design a nVent RAYCHEM Hot Water Temperature Maintenance System (HWAT). For additional information, contact your nVent representative or call (800) 545-6258. Also, visit our website at /RAYCHEM .Table of ContentsINTRODUCTION .................................................................................... 1Typical Applications ............................................................................................................. 2Approvals and Code Compliance ..................................................................................... 2Safety Guidelines .................................................................................................................. 2Ground Fault Protection ...................................................................................................... 3Scald Protection ................................................................................................................... 3Design Requirements .......................................................................................................... 3SYSTEM OVERVIEW .............................................................................. 3HWAT Electronic Controllers ............................................................................................. 4HWAT Heating Cables ......................................................................................................... 4RayClic, FTC and HWT Connection Kits ......................................................................... 5DESIGN GUIDELINES ............................................................................ 5Before You Begin (6)Hot Water Temperature Maintenance –HWAT SystemTypical ApplicationsThe HWAT system is designed to be installed and operated in commercialbuildings. Table 1 shows typical HWAT applications, desired maintain temperatureswhen nVent RAYCHEM HWAT-P1 heating cable is used in conjunction with thenVent RAYCHEM HWAT-ECO-GF, or when nVent RAYCHEM HWAT-R2 heatingcable is used in conjunction with the nVent RAYCHEM HWAT-ECO-GF orACS-30 controllers.Table 1 Typical HWAT Applications* with HWAT-R2 only.This design guide covers standard HWAT applications which must meetthe following conditions:• Installed on copper or rigid plastic pipes• Insulated in accordance with the insulation schedule shown in Table 6• Powered at 120 V using HWAT-ECO-GF or at 208 - 277 V using the ACS-30 orHWAT-ECO-GF controller• Operated indoors where the ambient temperature is relatively constant andbetween 60°F (15°C) and 80°F (27°C)If your application does not meet the above conditions, contact yournVent representative for custom design assistance.Approvals and Code ComplianceThe HWAT system components are c-UL-us Listed, CSA Certified, and/orFM Approved in nonhazardous locations.HWAT-P1 and HWAT-R2 heating cables, RayClic and HWT connection kits are UL Listed, CSA certified andFM approved for use in non-hazardous locations. The FTC-HST-PLUS connection kit and the HWAT-ECO-GF controller are c-UL-us Listed and the ACS-CRM and the ACS-CRMS controllers are c-UL-us certified(ACS-UIT3) to US and Canadian standards for us in non-hazardous locations. Refer to the specific productdata sheets for details.The HWAT system is designed in accordance with the following international andnational codes:• International Plumbing Code• International Building Code• International Energy Conservation Code• National Standard Plumbing Code• National Electrical Code• Canadian Electrical Code• ANSI/ASHRAE Standard 188-2018 - Legionellosis: Risk Management for BuildingWater Systems• CIBSE TM13-2013 Minimising the Risk of Legionnaires DiseaseAdditionally, our HWAT solution has numerous state and local code approvals.Contact your nVent representative for further information. Due to its potentialto reduce energy usage and greenhouse gas emissions, HWAT solutions areeligible for LEED points.Safety GuidelinesThe safety and reliability of any heat-tracing system depends on the quality of theproducts selected and on proper design, installation, and maintenance. Incorrectdesign, handling, installation, or maintenance of any of the system componentscan cause underheating or overheating of the pipe or damage to the heating cablesystem and may result in system failure, electric shock, or fire. The guidelinesand instructions contained in this guide are important. Follow them carefully tominimize these risks and to ensure that the HWAT system performs reliably.Pay special attention to safety warnings identified as WARNING.Ground Fault ProtectionTo minimize the danger of fire from sustained electrical arcing if the heatingcable is damaged or improperly installed, and to comply with nVent requirements,agency certifications, and national electrical codes, ground fault equipmentprotection must be used on each heating cable branch circuit. Arcing may notbe stopped by conventional circuit breakers. The HWAT-ECO-GF and ACS-30controllers meet the electrical code requirements for ground fault equipmentprotection.Scald ProtectionHWAT systems present an increased risk of scalding due to the high water Array temperature. Pay special attention to the scald warning to the left.Design RequirementsTo comply with warranty requirements, the design and installation of the HWATsystem must be in accordance with this guide and the additional documentslisted below:• HWAT-ECO-GF Installation and Operations Manual (H60223)• HWAT System Installation and Operations Manual (H57548)• Rayclic Connection Kit Installation Instructions (H55388 and H55092)Installation documents are shipped with the respective products and are alsoavailable on our website at /RAYCHEM.SYSTEM OVERVIEWA complete HWAT system includes one or more HWAT-ECO-GF or ACS-30electronic controllers, HWAT-P1 or HWAT-R2 heating cable and nVent RAYCHEMRayClic connection kits. Fig. 1 illustrates a typical HWAT system. The keycomponents of the system will be described in this section.Fig. 1 Typical HWAT heating cable systemHWAT Electronic ControllersThe HWAT-ECO-GF electronic controller is designed for use with a single circuit ofHWAT-P1 or HWAT-R2 self-regulating heating cable. For large hot water systemsthe ACS-30 distributed controller is available, refer to the ACS-30 data sheet(H58261) for more information. The HWAT-ECO-GF provides a variety of featuresand control options, listed below, for your hot water temperature maintenancesystem.Fig. 2 HWAT-ECO-GF controller• Equipment rated ground fault protection built-in• Intuitive set-up and programming, includes a 5" inch color touch screen• Flexible temperature control of hot water temperature maintenance systems• Energy savings through an integrated function that lowers the maintaintemperature during hours of low water consumption• Heat-up cycle function that increases the water temperature of the hot waterin the pipes• Alarm relay to signal power, temperature or communication problems• Hot water storage and pipe temperature monitoring with high and lowtemperature alarms and automatic system shut down• Seven pre-defined building timer programs that can be customized by the user• Program in advance in power-off mode by using external power bank/chargerand USB connectionHWAT Heating CablesHWAT-P1 or HWAT-R2 self-regulating heating cables are installed on hot watersupply pipes underneath standard pipe insulation. The heating cable adjusts itsFig. 3 HWAT heating cableHWAT heating cables provide the following features:• Adjust power output to reduce the variations in water temperature • Can be cut to length, spliced, teed, and terminated in the field • Designed for use with the HWAT-ECO-GF or ACS-30 controllerrRayClic, FTC and HWT Connection KitsThe RayClic connection system is a simple, fast, and reliable set of connection kits developed for use with HWAT self-regulating heating cables. RayClic connection kits reduce installation time, lowering the total installed cost of the HWAT system. nVent RAYCHEM HWT-P and FTC-HST-PLUS heat shrink kits may also be used.RayClic-PCAlternate lighted end sealFig. 4 RayClic connection kitsDESIGN GUIDELINESThis section describes the seven steps necessary to design an HWAT system:1 Select the heating cable 2 Lay out the heating cable3 Select connection kits and accessories4 Finalize circuit length5 Select control configurations6 Select thermal insulation7 Complete Bill of MaterialsTo assist you with the design, we will carry two design examples through this process. The example details are listed below each step in red.Example 1Example 2An elementary school where 115°F (46°C) is the desired maintain temperature and no heat-up cycle is required. Piping layout showsapproximately 300 ft of pipe with two branches at the same location.A medium security prison where 115°F (46°C) is the desired maintain temperature and a 140°F (60°C) heat-up cycle is required. Pipinglayout shows approximately 700 ft of pipe with two branches at different locations.Before You BeginBefore you begin designing your HWAT system, gather this necessary information:• Desired maintain temperature • Indoor ambient temperature • Supply voltage • Piping layout • Total pipe length • Pipe diametersStep 1 Select heating cableUse Table 2 to select the appropriate system temperature setting. For more information on heat-up cycles, refer to the HWAT-ECO-GF Installation and Operations Manual (H 60223) or ACS-30 Programming Guide (H 58692). Heating Cable Catalog NumberBefore beginning, take a moment to understand the structure underlying heating cable catalog numbers. You will refer to this numbering convention throughout the product selection process. Your goal is to determine the catalog number for the product that best suits your needs.Catalog number: HWAT -P 1 or R 2Voltage P 1 = 120 VR 2 = 208, 240, 277 VFig. 5 Heating cable catalog numberRecord the following information: • Desired maintain temperature (°F/°C) _____________• Indoor ambient temperature (°F/°C) _____________• Supply voltage (V) _____________• Heat-up cycle (Yes/No) _____________• Temperature (°F/°C)_____________Example: Heating Cable Selection Example 1 Example 2Desired maintain temperature 115°F (46°C) 115°F (46°C)Ambient temperature 70°F (21°C) 70°F (21°C)Supply voltage208 Vac208 VacHeat-up cycle required No Yes Heat-up cycle temperature n/a 140°F (60°C)Table 2 HWAT System Temperature Range* For additional information on heat-up cycles, refer to the “Expanded HWAT-ECO-GFElectronic Controller Capabilities” section of the HWAT-ECO-GF Installation and Operations Manual (H 60223).Heating Cable Selection ExampleHeating cable selected HWAT-R 2Step 2 Lay out the heating cableThe piping layout of your building may require more than one HWAT circuit. To determine the number of circuits, group your piping by maintain temperature and location, a step that may require you to consult the plumbing and/or electricalengineer. Calculate the total length of pipe in each group, allowing one foot of heating cable for each foot of pipe. The length of heating cable in each group must not exceed the circuit lengths listed in Table 3.In Step 4, you will calculate the additional cable required to install the connection kits. This will increase the total length of heating cable and may require the needfor additional circuits.Table 3 Maximum Circuit LengthNote: Assumes a minimum water temperature of 50°F (10°C) at startupExample: Lay out circuits Example HWAT heating cable selected HWAT-R 2Length of pipe 700 ft Number of circuits 2Circuit breaker size30 AmpStep 3 Select connection kits and accessoriesHWAT systems are approved and warranted only as a complete system. The appropriate RayClic, FTC or HWT connection kits must be used. Use Table 4 to select the connection kits and accessories necessary for your HWAT system. Refer to the RayClic Connection System data sheet (H 57545) and the FTC Heat Shrinkable Connection Kits Datasheet (H 58159) in the Technical Data section for more information on the products.The appropriate numbers of end seals are included with each connection kit.Table 4 Connection Kits and Accessories* To minimize cable waste, nVent recommends that one RayClic-S be ordered for every 500 feet of cable.Example: Select connection kits and accessories Example Piping layout determined that the following 2 RayClic-PC connection kits and accessories are required. 2 RayClic-T 14 GT-6670 ETLStep 4 Finalize circuit lengthAdditional cable is required for future access at each connection kit. Add the additional cable, as detailed in Table 5, to the estimated circuit lengths from Step 2. Confirm that the maximum lengths shown in Table 3 have not been exceeded. If your circuit lengths are greater than those shown, reconfigureyour heating cable layout to allow for additional circuits.Table 5 Additional Cable Required for Each Connection KitExample: Finalize circuit length ExampleCircuit 1* Circuit 2*Length of heating cable per circuit 350 ft 350 ft Additional cable required RayClic-PC 2 ft 2 ft RayClic-T3 ft 3 ft RayClic-X n/a n/aTotal length of heating cable required355 ft355 ft* In this example, the circuits were evenly divided. Equal circuit lengths are notrequired.Step 5 Select control configurationFor single circuit applications, choose the HWAT-ECO-GF controller. For multi-circuit applications, choose the ACS-30 controller.Example: Select control method Example 1 Example 2TypeIndividual circuit Multi-circuit Number of circuits 1up to 260ControllerHWAT-ECO-GF ACS-30Step 6 Select insulationSelect the size of thermal insulation from Table 6. You will need to know the length and diameter of each pipe used in your application.For pipes 1 1/4 inches and smaller, use insulation that is oversized by 1/4 inch to allow room for insulating over the heating cables. Table 6 specifies IPS (Iron Pipe Size) insulation, which has a greater inner diameter than CTS (Copper Tube Size) insulation.For pipes 3 inches and larger, the thickness of insulation can either be equal to the pipe diameter with a single heating cable or 1/3 the pipe diameter with two heating cables. For example, a 6 inch pipe with 6 inches of insulation and one run of heating cable is equivalent to a 6 inch pipe with 2 inches of insulation and tworuns of heating cable.Table 6 Fiberglass Insulation Selectionpipe diameter with one run of heating cable or 1/3 the pipe diameter with two runs of heating cable.Example: Select InsulationCopper pipe size (in)IPS insulation size (in)Insulation thickness (in)Example 13/41111 1/411 1/21 1/21 1/2Example 211 1/412222 1/22 1/22 1/2Step 7 Complete Bill of MaterialsYou are now ready to compile a Bill of Materials. Using the design results, detail each item as shown in Table 7 below. Fig. 5 illustrates a complete typical HWAT system./RAYCHEM | 11RAYCHEM-DG-H57510-HWATHotWaterTempMaint-EN-2210Fig. 7 Typical configuration for the ACS-30 system Table 7 Bill of Materials (Example)North AmericaTel +1.800.545.6258Fax +1.800.527.5703**********************©2022 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.nVent reserves the right to change specifications without notice./RAYCHEM | 12。

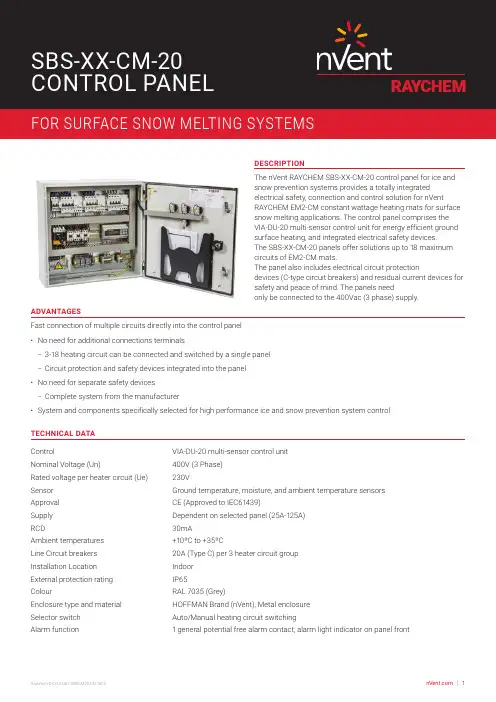

nVent Raychem SBS-XX-CM-20 表面雪融系统控制面板说明书
