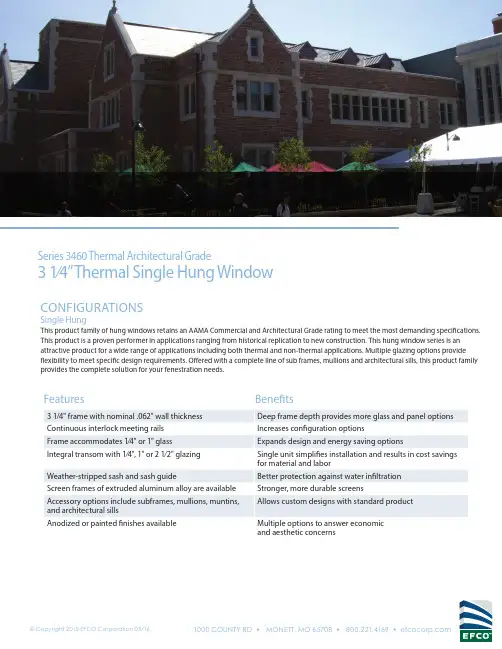

Configurationssingle Hungthis product family of hung windows retains an aaMa Commercial and architectural grade rating to meet the most demanding specifications. this product is a proven performer in applications ranging from historical replication to new construction. this hung window series is an attractive product for a wide range of applications including both thermal and non-thermal applications. Multiple glazing options provide flexibility to meet specific design requirements. offered with a complete line of sub frames, mullions and architectural sills, this product family provides the complete solution for your fenestration needs.Series 3460 Thermal Architectural Grade3 1⁄4” Thermal Single Hung WindowFeaturesBenefits* obscure glass thickness ** laminated glass thickness A - Available glazing option i - internal blinds can be used with this type of dual glazing Blank - n/A* Based on NFRC 100**NFRC Gateway sizeFrame ConstructionThe frames have a depth of 3 1/4” and are constructed of 6063-T6aluminum alloy. Nominal material wall thickness for the frame is .062”, and the sill has a nominal wall thickness of .070”. Corners are of screw spline construction and sealed with small-joint sealant. Frame members telescope together. See Illustration 1.Sash Frame ConstructionThe sash consists of aluminum members with .062” nominal material wall thickness of 6063-T6 alloy. Corners are of screw spline construction and sealed with small-joint sealant. Dual weather-stripped, continuous interlock at the sash meeting rail(s) offers superior weathering and structural performance. See Illustration 2.Weather StrippingAll sash are dual weather-stripped with FIN-SEAL® or equal.ScreensHalf screens are available. Screen frames are extruded 6063-T6aluminum alloy frames. 18 x 16 mesh screens are available in fiberglass and .011” diameter aluminum. 18 x 18 mesh screens are available in .009” diameter stainless steel.Thermal BarrierAll frames and vents are thermally improved using the latest technology in two-part, high density polyurethane.HardwareSweep locks, mortised into the sash top rail are standard. The sweep will be painted white, black, or beige. Automatic sill locks are fabricated of aluminum alloy and finished to match the window as an option. Two types of balance systems are available. A spring loaded block and tackle balance rated Class 1 with a .70 MAF* is standard. A high performance torsion spring and extension spring balance rated Class 5 with a .30 MAF* ratio is optional. EFCO reserves the right to substitute a higher performance balance as project conditions dictate, i.e., large, heavy sash requiring minimum operating force. See the Hardware Chart for available hardware types.GlazingWindows are inside glazed with an extruded aluminum drive-in glazing bead. Glazing of 1/4” and 1” can be accommodated.Series 3460 Thermal Architectural Grade3 1⁄4” Thermal Single Hung WindowIllustration 1Illustration 2Sweep LockPole Ring Sweep Lock Allen Keyed Sweep LockHUNG WINDOW HARDWARE CHARTPole Socket Auto LockThumb Lock(HX32 Only)Internal Tilt Lock(Tilt Sash Only)Sweep LockPole Ring Sweep Lock Allen Keyed Sweep LockPole Socket Auto LockInternal Tilt Lock(Tilt Sash Only)Pull Handle。
嘉寓公司铝门窗产品使用说明书
嘉寓公司铝门窗产品使用说明书嘉寓铝合金门窗产品定位我公司生产的铝门窗为中高档铝门窗,执行国家标准。
常用型材有旭格铝型材、法罗内铝型材、西飞铝型材、源泰铝型材、东亚铝型材等;包括隔热铝型材和非隔热铝型材。
平开门窗、推拉门窗的系列为以上型材能达到的各种系列,以满足不同客户的各种需求。
铝合金门窗的性能、特点、应用范围物理性能:铝合金门窗的气密性、水密性、抗风压、保温及隔声效果都非常好。
特别是铝合金门窗强度高,以平开窗为例,其物理性能经国家建筑工程质量监督检测中心建筑门窗监督检测所检测。
铝合金门窗所能达到的各项物理性能指标可保证其应用于高层建筑,阵风较大的地区,广泛适用于工业与民用建筑等。
美观兼具防火、防盗等多功能:铝合金门窗外形美观、强度高,更适合设计制作城大落地窗,以及外观要求较高的装饰窗,耐久使用的特性配以合适的色彩,更是建筑物不可缺少的组成部分。
因此,铝合金门窗也广铝合金门窗产品保管及运输要求(1)塑钢门窗产品和拼条出厂前,应用包装胶带进行包装,门窗型材表面贴的保护膜待竣工后揭去。
(2)装运门窗的运输工具应有防雨措施,并保持清洁。
(3)门窗成品应存放在通风、干燥、清洁的地方,按品种、规格放在专用架子或垫木上;室外存放时必须有防雨措施;禁与酸、碱、盐等有腐蚀性的物质接触。
(4)门窗的樘与樘间应用非金属软质材料隔开,防止相互摩擦。
(5)搬运、装卸门窗应轻拿轻放。
铝合金门窗维护保养(用户须知)(1)开启门窗时要用力适当,不得使劲摆荡门窗。
(2)用户长时间不在室内时应关闭门窗,以避免雨水或沙尘进入室内。
(3)定期用中性清洁剂擦洗门窗(内陆1次/2个月)(4)不得用酸、碱、盐溶液擦拭门窗;不得在塑钢门窗附近放置腐蚀物等化学物品。
嘉寓公司塑料门窗产品安装及验收说明书嘉寓塑料门窗产品的安装嘉寓塑料门窗产品执行行业标准。
安装塑料门窗应避免在低温下进行。
1.施工前装备1.1机具、材料准备包括电钻、冲击钻、射钉枪等机具;经纬仪、墨斗线、卷尺等放样工具;泡沫棒等填充材料;安全带等。
肯卓铝合金门窗说明书
ALUMINIUM WINDOWS AND DOORSKENZO windows and doors are made of strong,lightweight aluminium-alloy frames.They require limited maintenance and never need to be painted – the perfect combination of durability, energy-efficiency and affordability.Selected products are SANS 613 certified and compliant.ABOUT KENZONATIONAL AVAILABILITYLarge stockholding, combined with Swartland’s national distribution footprint means our aluminium products are available for any size project, anywhere in South Africa –on time, every time.STANDARD COLOURSAll products are available in standard colours.Made to the same superior standards as our hardwood windows and doors, this exciting new range not only offers homeowners greater choice, but also Swartland’s renowned manufacturing excellence, lasting quality and great value.CONTENTS KENZO RANGETOP HUNG WINDOWS SIDE HUNG WINDOWS GLIDING WINDOWS SLIDING DOORS CONTENTS261013KENZO ALUMINIUM RANGETOP HUNG RANGEKenzo windows are available in STANDARD 30,5mm casement sections or SUPERIOR 38mm sections – eitherdouble- or single-glazed. All windows are SANS 613 compliant THE KENZO WINDOW RANGEThese windows are perfect for commercial or residential environments as they allow ventilation and unrestricted airflow even during rainy weather.All sizes shown are cavity opening sizes.STANDARD SUPERIORAll sizes shown are cavity opening sizes.Obscure glass available on request.Safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.The opening sash on a side hung window can be opened to direct the airflow, exactly where you want it, for maximum ventilation. When ordering please specify whether the window is left-hand or right-hand opening as viewed from the outside.Features• Ergonomic midnight-black cast aluminium handles.• Durable stainless-steel window hinges.• Can be fitted with burglar bars on request.SIDE HUNG RANGESIDE HUNG WINDOWS SIDE HUNG WINDOWSAll sizes shown are cavity opening sizes.Obscure glass available on request.Safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Obscure glass available on request.Safety glass is fitted to selected windows where required.STANDARD SUPERIORAll sizes shown are cavity opening sizes.Obscure glass available on request.Safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Obscure glass available on request.Safety glass is fitted to selected windows where required.Obscure glass available on request.Obscure glass available on request.HORIZONTAL GLIDING RANGEHorizontal windows provide effective ventilation where external space is limited. Design simplicity and few moving parts make these windows more durable than conventional windows. Ideal for wide openings, the advanced gliding mechanism requires very little effort to open or close.• Available in standard sizes, but non-standardsizes can be ordered at an additional cost.• High security locking mechanism included.• Recessed finger-latches also included.HS96HS126HS156HS186HS2162100600HS99HS129HS159HS189HS219900HS912HS1212HS1512HS1812HS21121200150012009001800All doors are supplied with secure, lockablehandlesTHE KENZO DOOR RANGEKENZO offers a wide range of door types, styles and sizes to meet your needs. This exquisitely made range is readily available through all leading hardware retailers.Selected products are SANS 613 compliant.SLIDING DOOR RANGEKENZO sliding doors are constructed with long-life rollers to ensure a smooth gliding action, and are pre-glazed with toughened safety glass. Our sliding doors are designed to be weather- and dust-proof. Available in SUPERIOR (60mm stile) orSTANDARD range (28mm stile).• All doors are supplied with secure and lockable handles. • Night latch for extra security supplied with standard range.• Night latches can be fitted on superior ranges.Available in four standard coloursPre-glazed for easy installationDoors are pre-hung ina frame 2100m mKENZO DOOR RANGE SLIDING DOOR RANGESUPERIORSTANDARDSOX2121SOX2421SOX3021OXXO3621OXXO4221SOX2721Door Type Actual size Opening size to fitWidthHeightOpening Width Opening HeightOX15211,4902,0901,5002,100OX18211,7901,800OX21212,0902,100OX24212,3902,400OX27212,6902,700OX30212,9903,000OXXO30212,9903,000OXXO36213,5903,600OXXO42214,1904,200• All doors are supplied with secure, lockable handles. O – Indicates the fixed panel . X – Indicates the sliding panel SIDELIGHTS• Pre-glazed sidelights can be fitted to the left, right or on both sides of the doors.• Adapter jamb and sill sold separately.Toughened safety glass fitted to all sidelights.All Standard Sliding doors can be coupled with sidelights,either fixed or projecting-out vents.SLIDING DOOR RANGESL621SL321SL921900mm2100m mSLIDING DOORS SLIDING DOORSSUPERIORSTANDARD If used next to an entrance door or a fold-a-side door, please order the following part number: SLADAPTORB (where B indicates colour – bronze in this case) to ensure easy installation.FOLD-A-SIDE DOOR RANGEWhen opened, these doors create the maximum possible opening you can get. It’s the perfect way to extend your kitchen, sun room, lounge or bedroom. The doors are divided into sections, with choices ranging from a three-panelled door to a much wider six-panelled door.• When ordering please specify whether the door must stack to the left or right when viewed from the outside.• All doors open outwards.• It is not necessary to open the entire spanfor access. The first leaf functions as a single (traffic) door and opens independently.4-door 5-door3-door FOLD-A-SIDE DOORS FOLD-A-SIDE DOORSAs of the 1st March 2022, all Fold-A-Side doors will be supplied with 4mm toughened safety glass.3, 4, 5, and 6 door configurations are available in either left-hand or right-hand opening.3, 4, 5, and 6-door configurations are available in either left-hand or right-hand opening.SFD5FG6L/RSFD6FG6L/R600 SERIESSFD4FG7L/R2100m m700 SERIES4200mmSFD6FG7L/R 2100m mSFD3FG7L/R 2100m mFOLD-A-SIDE DOOR RANGEFold-A-Side doors are available in 700mm or 600mmdoor widths. All doors are 2100mm in height; you canhave a maximum 4200mm span in our standard range.This door range has been carefully developed to replace old sliding doors.SFD3FG6L/RSFD4FG6L/R2100m mENTRANCE DOOR RANGEThe KENZO range of entrance doors can be used in awide range of applications, such as front doors, balconydoors, office doors and even internal doors.• Open-in doors supplied with weather bar to minimizewater leakage.ENTRANCE DOORS ENTRANCEDOORSDIFDGLG(Horizontal boarding)DIFDFGBDIFDGLH(Horizontal boarding)DGLH(Horizontal boarding)DGLG(Horizontal boarding)DFGBAvailable in Bronze/Brownand WhiteAvailable in Bronze/Brownand WhiteAvailable in Bronze/Brown and White1200mm 1200mm 1200mm 900mm900mm900mm2100m m2100m m2100m m2100m m2100m m2100m mDGLB(Horizontal boarding)DGLD(Horizontal boarding)DGLE(Horizontal boarding)DGLF(Horizontal boarding)DPC/S(Horizontal boarding)StableDHGA/S(Horizontal boarding)StableDHGA(Horizontal boarding)DGLC DGLKDGLADHGC/S(Horizontal boarding)StableDFGADHGC(Horizontal boarding)DFGAvailable in double doors900 x 2100WS (0I/00)DHGAvailable in double doors900 x 2100WS (0I/00)900mm900mm900mm900mmSTANDARD COLOURSAll products are availablein standard colours.Silver/GreyCharcoalBronze/BrownWhiteColour samples are a guide only andmay not match actual product.21mm21mm21mm21mm21mm21mm21mm21mm21mm21mm21mm21mm21mm21mm21mmSHOWER DOOR RANGEKenzo offers a range of clear glass shower doors to suit any size bathroom.From our closed and corner units to full glass panels, this range is popular not only for its aesthetic appeal, but for its exceptional quality and longevity.DSCR/CLR/WCORNER WHITE SHOWER ENCLOSURE900X900X1850DSCR/CLR/BCORNER BLACK SHOWER ENCLOSURE900X900X1850DSQR/CLR/WQUARTER ROUNDWHITE SHOWER ENCLOSURE900X900X1850DSQR/CLR/CHQUARTER ROUNDCHROME SHOWER ENCLOSURE900X900X1850DSTS/CLR/W TRIPLE SLIDER SHOWER DOOR WHITE900X1850DSPD/CLR/W PIVOT PANEL WHITE800-900X1850DSPN/CLR/W RETURN PANEL WHITE800-900X1850DSPD/CLR/B PIVOT PANEL BLACK800-900X1850DSPN/CLR/CH RETURN PANEL CHROME800-900X1850DSPD/CLR/CHPIVOT PANEL CHROME 800-900X1850DSSC/CLR/CHSHOWER SCREEN CHROMEDSCR/CLR/CHCORNER CHROME SHOWER ENCLOSURE900X900X1850DSPN/CLR/B RETURN PANEL BLACK800-900X1850Namibia: 00 264 612 49558THE SWARTLAND FAMIL Y OF BRANDSMay 2023 The information contained in this catalogue was accurate at the time of going to print. All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement. Swartland Investments (Pty) Ltd reserves the right to change product designs and specifications in line with our continuous development programme.。
门窗使用说明书
门窗使用说明书
门窗使用说明书
注意事项:

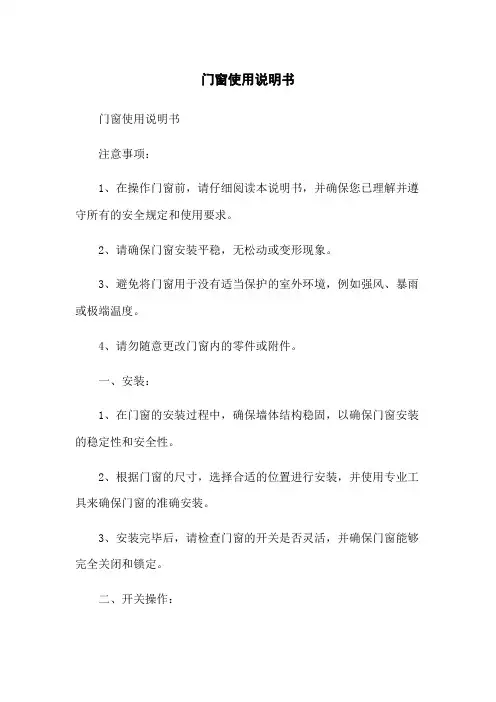

1、在操作门窗前,请仔细阅读本说明书,并确保您已理解并遵守所有的安全规定和使用要求。
2、请确保门窗安装平稳,无松动或变形现象。
3、避免将门窗用于没有适当保护的室外环境,例如强风、暴雨或极端温度。
4、请勿随意更改门窗内的零件或附件。
一、安装:
1、在门窗的安装过程中,确保墙体结构稳固,以确保门窗安装的稳定性和安全性。
2、根据门窗的尺寸,选择合适的位置进行安装,并使用专业工具来确保门窗的准确安装。
3、安装完毕后,请检查门窗的开关是否灵活,并确保门窗能够完全关闭和锁定。
二、开关操作:
1、打开门窗时,请推开或拉动门窗手柄,确保门窗能够顺利打开。
2、关闭门窗时,请将门窗手柄转动到关闭位置,并确保门窗完全关闭并锁定。
三、清洁与保养:
1、请定期清洁门窗的表面和玻璃,使用柔软的布或海绵沾湿水清洁。
2、避免使用任何有刺激性化学物质或研磨剂清洁门窗,以免损坏表面。
3、定期清理门窗轨道和滑轮,确保畅通无阻,以保证门窗的正常开关。
4、当发现门窗出现任何异常或损坏时,请及时联系专业维修人员进行修复。
附件:
1、本文档不附带任何附件,请根据具体门窗型号和品牌,查找对应的附件使用说明书。
法律名词及注释:
1、安全规定:指相关法律法规或标准中对门窗安全使用的要求和规范。
2、尺寸:指门窗的长、宽、高等尺寸参数。
3、专业工具:指安装门窗所需的专用工具,例如螺丝刀、尺子等。
4、玻璃:指门窗上的透明材料,用于透视和遮挡。
5、表面:指门窗的外部表面,例如门窗框架或门扇。
内外装使用说明书20181202

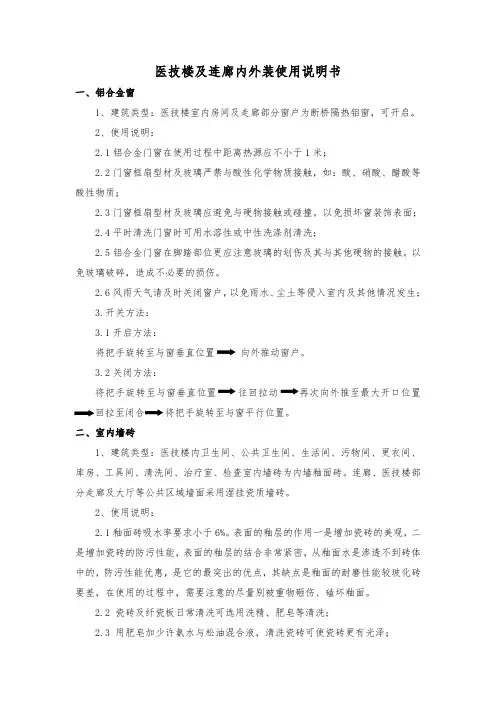

医技楼及连廊内外装使用说明书一、铝合金窗1、建筑类型:医技楼室内房间及走廊部分窗户为断桥隔热铝窗,可开启。
2、使用说明:2.1铝合金门窗在使用过程中距离热源应不小于1米;2.2门窗框扇型材及玻璃严禁与酸性化学物质接触,如:酸、硝酸、醋酸等酸性物质;2.3门窗框扇型材及玻璃应避免与硬物接触或碰撞。
以免损坏窗装饰表面;2.4平时清洗门窗时可用水溶性或中性洗涤剂清洗;2.5铝合金门窗在脚踏部位更应注意玻璃的划伤及其与其他硬物的接触。
以免玻璃破碎,造成不必要的损伤。
2.6风雨天气请及时关闭窗户,以免雨水、尘土等侵入室内及其他情况发生;3.开关方法:3.1开启方法:将把手旋转至与窗垂直位置向外推动窗户。
3.2关闭方法:往回拉动将把手旋转至与窗平行位置。
二、室内墙砖1、建筑类型:医技楼内卫生间、公共卫生间、生活间、污物间、更衣间、库房、工具间、清洗间、治疗室、检查室内墙砖为内墙釉面砖。
连廊、医技楼部分走廊及大厅等公共区域墙面采用湿挂瓷质墙砖。
2、使用说明:2.1釉面砖吸水率要求小于6%。
表面的釉层的作用一是增加瓷砖的美观,二是增加瓷砖的防污性能,表面的釉层的结合非常紧密,从釉面水是渗透不到砖体中的,防污性能优惠,是它的最突出的优点,其缺点是釉面的耐磨性能较玻化砖要差,在使用的过程中,需要注意的尽量别被重物砸伤、磕坏釉面。
2.2 瓷砖及纤瓷板日常清洗可选用洗精、肥皂等清洗;2.3 用肥皂加少许氨水与松油混合液,清洗瓷砖可使瓷砖更有光泽;2.4 生活中,如有茶水或其他日常生活用品附着在瓷砖及纤瓷板上面,即时擦洗干净,必要时应用相关清洁用品清洗;2.5 砖面及纤瓷板如出现划痕,可在划痕处涂抹牙膏,用干布擦拭可修复;2.6 砖与砖缝处可不定期用去污膏去污垢,再在缝隙刷一层防水剂,可防霉菌生长。
三、地面石材、地面砖1、建筑类型:连廊及医技楼楼梯、坡道镶贴地面大理石,连廊及医技楼走廊、办公室地面等镶贴瓷质地面砖。
2、使用说明:2.1不可以使用含有强酸、强碱的保洁材料、清洗剂进行清洗。
门窗使用说明书
门窗使用说明书【铝合金平开窗使用说明】铝合金平开窗,顶端根据窗的大小采用2-3个铝合金合页,窗上下端采用两个不锈钢限位撑杆(开启后自动定位),开启和关闭必须按照图示要求进行正确操作使用。
如遇开启不灵活,首先检查不锈钢伸缩臂的支撑点有无问题,开启扇是否有下沉问题,不得强行开启或关闭。
如有需要请及时通知物业公司进行修理,不允许自行拆卸修理。
55系列隔热铝合金平开窗示意图【使用说明】(1)图中位置(1)为窗关闭状态(2)图中位置(2)为窗开启状态(3)从开启状态到关闭,应先将窗向内拉把手后旋转90度即可关闭72系列隔热铝合金推拉窗示意图使用说明书【使用说明】(1)图中位置(1)窗关闭状态(2)图中位置(2)窗开启状态(3)内/外拉把手后旋转45度即可开启。
(4)从开启状态到关闭,应先将窗向内拉把手后旋转45度即可关闭【铝合金门窗的使用与维护】(1)铝合金门窗在使用过程中,要轻开轻关,不要用力过大过猛,更不能生拉硬拽,以免损坏玻璃或门窗框扇而给使用带来不必要的麻烦。
(2)铝合金门窗在使用中,应经常用软质纱布或棉丝擦洗干净,保持铝合金门窗表面的清洁,不受污染。
(3)推拉门窗在使用中,应经常检查零配件是否受损,发现有损坏现象应及时修理或更换,以免影响门窗的使用性能。
(4)严禁酸性,碱性化学物品接触铝合金门窗表面,以免受到腐蚀。
(5)铝合金门窗固定玻璃的橡胶嵌条由于老化收缩容易变短、变细后松脱,应及时镶嵌或更换,否则玻璃易松动,产生缝隙,容易渗漏风雨。
(6)铝合金门窗玻璃应选择蓝色玻璃。
(7)在重新粉刷房间时,要把铝合金门窗用布包上。
(8)风雨天气,请及时关闭门窗,以免雨水,尘土等侵入室内及其他情况发生。
(9)平时清洗门窗时可用水溶性或中性洗涤剂清洗。
(10)门窗应远离热源,因为过高的温度会使门窗变形及损坏。
(11)外墙装修粉刷勿堵塞门窗下水孔,以免渗水。
(12)轨、滑轮忌粘水泥、杂物,以免受破坏,造成推拉不畅顺。
铝材门窗设备的操作规程(3篇)
第1篇一、概述铝材门窗设备是现代建筑中常用的一种建筑材料,具有轻便、耐用、美观等优点。
为了确保操作人员的人身安全和设备的安全运行,特制定本操作规程。
二、操作前的准备工作1. 操作人员应经过专业培训,熟悉设备结构、性能及操作方法。
2. 操作前,应穿戴好劳保用品,如工作服、安全帽、防护眼镜、手套等。
3. 检查设备各部位是否完好,如有损坏、松动等情况,应及时报修。
4. 检查电源是否正常,确保电源线、插头等无损坏。
5. 检查工件是否固定牢固,确保操作过程中工件不会移动。
三、操作步骤1. 启动设备:打开设备电源开关,启动电机,观察设备是否正常运行。
2. 调整设备:根据加工要求,调整设备参数,如锯片角度、速度等。
3. 加工工件:将工件放置在设备上,确保工件与锯片保持一定距离,避免碰撞。
4. 操作锯片:缓慢启动锯片,观察锯片是否平稳运行,如有异常,立即停止操作,查找原因。
5. 加工过程中,密切观察设备运行情况,发现异常及时处理。
6. 加工完成后,关闭设备,拔掉电源插头。
四、操作注意事项1. 操作过程中,严禁戴手套、饰品等,以防夹伤。
2. 操作过程中,严禁将头部、手等部位伸入设备内部,以防夹伤。
3. 操作过程中,严禁在设备运行时进行调试或调整,以免发生意外。
4. 操作过程中,严禁将工件随意放置,确保工件与设备保持一定距离。
5. 操作过程中,严禁在设备附近堆放杂物,以免影响设备运行。
6. 操作完成后,应及时清理设备周围杂物,保持工作环境整洁。
五、维护保养1. 定期检查设备各部位,确保设备完好。
2. 定期润滑设备运动部件,减少磨损。
3. 定期检查电源线路,确保线路安全可靠。
4. 定期清理设备内部杂物,保持设备清洁。
5. 发现设备故障,应及时报修,不得擅自处理。
六、安全操作规程1. 操作人员必须遵守国家有关安全生产的法律、法规和标准。
2. 操作人员应熟知本规程,并严格按照规程操作。
3. 操作人员应积极参加安全教育培训,提高安全意识。
肯卓铝合金门窗说明书
ALUMINIUM WINDOWS AND DOORSKENZOALUMINIUM RANGEKENZO windows and doors are made of strong,lightweight aluminium-alloy frames.They require limited maintenance and never need to be painted – the perfect combination of durability, energy-efficiency and affordability.Selected products are SANS 613 certified and compliant.ABOUT KENZONATIONAL AVAILABILITYLarge stockholding, combined with Swartland’s national distribution footprint means our aluminium products are available for any size project, anywhere in South Africa –on time, every time.STANDARD COLOURSAll products are available in standard colours.Made to the same superior standards as our hardwood windows and doors, this exciting new range not only offers homeowners greater choice, but also Swartland’s renowned manufacturing excellence, lasting quality and great value.CONTENTS KENZO RANGETOP HUNG WINDOWS SIDE HUNG WINDOWS GLIDING WINDOWS SLIDING DOORS CONTENTS261013TOP HUNG RANGEKenzo windows are available in STANDARD 30,5mm casement sections or SUPERIOR 38mm sections – eitherdouble- or single-glazed. All windows are SANS 613 compliant THE KENZO WINDOW RANGEThese windows are perfect for commercial or residential environments as they allow ventilation and unrestricted airflow even during rainy weather.STANDARD SUPERIORAll sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available on request.Safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.The opening sash on a side hung window can be opened to direct the airflow, exactly where you want it, for maximum ventilation. When ordering please specify whether the window is left-hand or right-hand opening as viewed from the outside.Features• Ergonomic midnight-black cast aluminium handles.• Durable stainless-steel window hinges.• Can be fitted with burglar bars on request.SIDE HUNG RANGESIDE HUNG WINDOWS SIDE HUNG WINDOWSAll sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available on request.Safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available on request.Safety glass is fitted to selected windows where required.STANDARD SUPERIORAll sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available on request.Safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available on request.Safety glass is fitted to selected windows where required.Obscure glass available on request.Obscure glass available on request.HORIZONTAL GLIDING RANGEHorizontal windows provide effective ventilation where external space is limited. Design simplicity and few moving parts make these windows more durable than conventional windows. Ideal for wide openings, the advanced gliding mechanism requires very little effort to open or close.• Available in standard sizes, but non-standardsizes can be ordered at an additional cost.• High security locking mechanism included.• Recessed finger-latches also included.HS96HS126HS156HS186HS2162100600HS99HS129HS159HS189HS219900HS912HS1212HS1512HS1812HS21121200150012009001800All doors are supplied with secure, lockablehandlesTHE KENZO DOOR RANGEKENZO offers a wide range of door types, styles and sizes to meet your needs. This exquisitely made range is readily available through all leading hardware retailers.Selected products are SANS 613 compliant.SLIDING DOOR RANGEKENZO sliding doors are constructed with long-life rollers to ensure a smooth gliding action, and are pre-glazed with toughened safety glass. Our sliding doors are designed to be weather- and dust-proof. Available in SUPERIOR (60mm stile) orSTANDARD range (28mm stile).• All doors are supplied with secure and lockable handles. • Night latch for extra security supplied with standard range.• Night latches can be fitted on superior ranges.Available in four standard coloursPre-glazed for easy installationDoors are pre-hung ina frame 2100m mKENZO DOOR RANGE SLIDING DOOR RANGESUPERIORSTANDARDSOX2121SOX2421SOX3021SOX2721Door Type Actual size Opening size to fitWidthHeightOpening Width Opening HeightOX15211,4902,0901,5002,100OX18211,7901,800OX21212,0902,100OX24212,3902,400OX27212,6902,700OX30212,9903,000OXXO30212,9903,000OXXO36213,5903,600OXXO42214,1904,200SOXXO3621OXXO4221SOXXO4221• All doors are supplied with secure, lockable handles. O – Indicates the fixed panel . X – Indicates the sliding panel SIDELIGHTS• Pre-glazed sidelights can be fitted to the left, rightor on both sides of the doors.• Adapter jamb and sill sold separately.Toughened safety glass fitted to all sidelights.All Sliding doors can be coupled with sidelights,either fixed or projecting-out vents.SLIDING DOOR RANGE900mm2100m mSLIDING DOORS SLIDING DOORSSUPERIORSTANDARD If used next to an entrance door or a fold-a-side door, please order the following part number: SLADAPTORB (where B indicates colour – bronze in this case) to ensure easy installation.FOLD-A-SIDE DOOR RANGEWhen opened, these doors create the maximum possible opening you can get. It’s the perfect way to extend your kitchen, sun room, lounge or bedroom. The doors are divided into sections, with choices ranging from a three-panelled door to a much wider six-panelled door.• When ordering please specify whether the door must stack to the left or right when viewed from the outside.• All doors open outwards.• It is not necessary to open the entire spanfor access. The first leaf functions as a single (traffic) door and opens independently.2400w x 2100h3000w x 2100h3600w x 2100h1800w x 2100h All doors are available with 4mm toughened safety glass. Glass to be order separately.3, 4, 5, and 6 door configurations are available in either left-hand or right-hand opening.3, 4, 5, and 6-door configurations are available in either left-hand or right-hand opening.SFD5FG6L/RSFD6FG6L/R600 SERIES2100m m700 SERIES4200mmSFD6FG7L/R 2100m m2100m mFOLD-A-SIDE DOOR RANGEFold-A-Side doors are available in 700mm or 600mm door widths. All doors are 2100mm in height; you canhave a maximum 4200mm span in our standard range.This door range has been carefully developed to replace old sliding doors.SFD4FG6L/R2100m mENTRANCE DOOR RANGEThe KENZO range of entrance doors can be used in a wide range of applications, such as front doors, balconydoors, office doors and even internal doors.• Open-in doors supplied with weather bar to minimizewater leakage.ENTRANCE DOORS ENTRANCEDOORSDIFDGLG(Horizontal boarding)DIFDFGBDIFDGLH(Horizontal boarding)DGLH(Horizontal boarding)DGLG(Horizontal boarding)DFGBAvailable in Bronze/Brownand WhiteAvailable in Bronze/Brownand WhiteAvailable in Bronze/Brown and White1200mm 1200mm 1200mm 900mm900mm900mm 2100m m2100m m2100m m2100m m2100m m2100m mDGLB(Horizontal boarding)DGLD(Horizontal boarding)DGLE(Horizontal boarding)DGLF(Horizontal boarding)DPC/S(Horizontal boarding)StableDHGA/S(Horizontal boarding)StableDHGA(Horizontal boarding)DGLCDGLADHGC/S(Horizontal boarding)StableDFGADHGC(Horizontal boarding)DFGAvailable in double doors1800 x 1200NS/WS (0I/00)DHGAvailable in double doors1800 x 1200NS/WS (0I/00)900mm900mm900mm900mmSTANDARD COLOURSAll products are available in standard colours.Silver/GreyCharcoalBronze/Brown WhiteColour samples are a guide only and may not match actual product.2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m m2100m mSHOWER DOOR RANGEKenzo offers a range of clear glass shower doors to suit any size bathroom.From our closed and corner units to full glass panels, this range is popular not only for its aesthetic appeal, but for its exceptional quality and longevity.DSCR/CLR/W 5mm CLEAR GLASS900x900x1850mmDSCR/CLR/B 5mm CLEAR GLASS900x900x1850mmDSQR/CLR/W 5mm CLEAR GLASS900x900x1850mmDSQR/CLR/CH 5mm CLEAR GLASS900x900x1850mmDSTS/CLR/W 5mm CLEAR GLASS900 x 1850mmDSPD/CLR/W 5mm CLEAR GLASS800x900x1850mmDSPN/CLR/W 5mm CLEAR GLASS 800x900x1850mmDSPD/CLR/B 5mm CLEAR GLASS800x900x1850mmDSPN/CLR/CH 5mm CLEAR GLASS800x900x1850mmDSPD/CLR/CH 5mm CLEAR GLASS800x900x1850mmDSSC/CLR/CH 8mm CLEAR GLASS1200x1900mmDSCR/CLR/CH 5mm CLEAR GLASS900x900x1850mmDSPN/CLR/B 5mm CLEAR GLASS 800 x 900 x 1850mmTHE SWARTLAND FAMILY OF BRANDS。
铝合金门窗操作规程
铝合金门窗操作规程
《铝合金门窗操作规程》
一、开启门窗前,需先检查门窗是否有损坏或松动,如有问题应及时报修。
二、操作门窗时,需轻力推拉,不可用力过猛,以免损坏门窗。
三、使用门窗时,需先将门窗完全打开或关闭,不可半开半关或斜着使用。
四、清洁门窗时,应使用软布擦拭,不能使用带有腐蚀性的清洁剂。
五、使用门窗时,不得将门窗用于其他用途,不得站在门窗上。
六、风大或天气恶劣时,不可打开门窗过大角度,以免引起门窗变形或损坏。
七、长时间不使用的门窗应及时进行清洁和保养,以确保门窗的正常使用。
八、门窗使用时如有异常情况,应及时报修,不可私自擅自处理。
九、禁止随意更换门窗配件或进行不当维修,必须由专业人员进行操作。
十、禁止将门窗拍打、碰撞或使用尖锐物体划伤门窗表面。
以上即为《铝合金门窗操作规程》,希望大家严格遵守,保护好门窗,延长使用寿命。
铝合金门窗使用说明
铝合金门窗使用说明书
该工程铝合金门窗的特点及在使用过程中的注意事项:
一、特点:
1、型材表明处理:静电粉末喷涂氟碳喷涂,质地均匀,装饰效果
极佳;
2、其主五金选用优质五金件,其配合该隔热型材使用使其具有良
好的密封性能(防雨水渗透性能,空气渗透性能)及抗风压性
能;
3、中空玻璃部分:经中空玻璃生产线合片成中空玻璃;在国家规
范规定的范围内采用的是双片钢化安全中空玻璃;
二、注意事项:
1、铝合金门窗在使用过程中距离热源应不小于1米;
2、门窗框扇型材及玻璃严禁与下列化学物质接触,如:发烟硫酸、硝酸、醋酸等酸性物质;
3、门窗框扇型材及玻璃应避免与硬物接触,以免损伤门窗装饰表面;
4、平时清洗门窗时可用水溶性或中性洗涤剂清洗;
5、铝合金门窗在下亮子采用安全玻璃处更应注意玻璃的划伤及与其它硬物接触,以免玻璃破碎,造成不必要的损失;
6、平开门部分的门槛应避免被较重的物体砸、压,以免引起其变形,导致门扇的启闭不灵活;
7、风雨天气,请及时关闭门窗,以免雨水、尘土等侵入室内及其它
情况发生;
8、在窗扇开启后采用风撑上的定位螺帽固定,以免随便摆动,因玻璃破碎,造成不必要的损失;(见附图)
9、关闭窗扇前先松开定位螺帽再关闭窗扇,以免合页螺丝松动、定位螺帽损坏、开启窗扇时不方便。
(见附图)
2、窗扇关闭前请先松解风撑的定位螺帽;
秦皇岛开发区秦渤装饰工程有限公司。
铝合金耐火节能门窗应用技术规程(3篇)
第1篇一、前言随着我国经济的快速发展,建筑行业对门窗产品的需求日益增长。
铝合金耐火节能门窗作为一种新型的建筑门窗产品,具有优异的隔热、隔音、防火性能,是现代建筑节能的重要材料。
为了规范铝合金耐火节能门窗的应用技术,提高工程质量,保障人民群众的生命财产安全,特制定本规程。
二、适用范围本规程适用于新建、改建、扩建工程中,采用铝合金耐火节能门窗的设计、施工、验收及维护。
三、术语和定义1. 铝合金耐火节能门窗:指采用铝合金型材和防火玻璃等材料制成的,具有隔热、隔音、防火性能的门窗产品。
2. 耐火等级:指门窗在火灾条件下能够保持一定时间不燃、不变形、不脱落的能力。
3. 节能性能:指门窗在保证室内外环境舒适的前提下,降低能源消耗的能力。
四、设计要求1. 设计应符合国家现行相关标准、规范的要求。
2. 铝合金耐火节能门窗的设计应充分考虑建筑物的使用功能、结构形式、气候条件等因素。
3. 门窗的耐火等级应根据建筑物的火灾危险性、使用功能、防火分区等要求确定。
4. 门窗的节能性能应符合国家现行节能标准的要求。
5. 门窗的尺寸、型材、玻璃、五金配件等应符合设计要求。
五、施工要求1. 施工单位应具备相应的资质,并严格按照设计图纸和本规程进行施工。
2. 施工前,应进行技术交底,确保施工人员掌握施工工艺和质量要求。
3. 施工现场应保持整洁,防止污染。
4. 铝合金型材、玻璃、五金配件等材料进场前,应进行检验,确保符合设计要求。
5. 门窗安装应牢固,缝隙应均匀,不得有裂缝、翘曲等现象。
6. 防火玻璃应采用符合耐火等级要求的玻璃,安装时应注意密封。
7. 门窗的节能性能应符合设计要求,安装过程中不得破坏保温层。
六、验收要求1. 验收前,应进行施工质量自检,确保符合设计要求。
2. 验收时应检查门窗的安装质量、耐火等级、节能性能等。
3. 验收合格后,应填写验收记录,并由建设单位、施工单位、监理单位共同签字。
七、维护要求1. 定期对门窗进行检查,发现损坏应及时修复。
铝合金门窗技术指导
铝合金门窗常用技术第一章材料的选用一、铝型材及五金的选用铝型材的选用主要包含:门窗常用加工组装方法, 铝门窗常用结构, 铝合金门窗常用系列,铝合金门窗五金配置四个方面的内容。
(一)门窗常用加工组装方法:1、平开门窗加工组装方法:①先铣全榫,再铆拼接(框与框、框与中工);②先铣半榫,再用螺钉拼接(框与框、框与中工);③切45°角,再撞角拼接或用铝角码通过螺丝拼接(框与框)。
④用铝角码通过螺丝拼接(中工与中工)。
注意:不需要专门的加工模具,仅用锣榫机设备,45°双头下料机。
2、推拉门窗加工组装方法:①外框与外框:用模具压口让位,再通过螺丝拼接;②扇料需用模具压口或孔,再通过螺丝拼接;③外框与外框、扇框与扇框切45°角,再撞角拼接。
注意:需要专门的加工模具。
(二)铝门窗常用结构1、平开门窗基本结构:(1)非欧式槽(无槽口)欧标C槽口(20槽口)单边欧标C槽口(20槽口)欧标U槽(16槽口)2、推拉门窗基本结构:单轨:宽轨(高低差),窄轨(高低差),双轨:宽轨,窄轨,宽面平轨,窄面平轨,宽面高低轨,窄面高低轨多轨:宽轨,窄轨,宽面平轨,窄面平轨防水型推拉门窗:单轨+宽轨(高低差)+档板下方+下轨档水毛条(三)铝合金门窗常用系列:1.平开窗:最小系列为38系列(平开百叶及格栅选用)。
玻璃窗常用50系列,也有大于50系列,但一般不能超过80系列。
因为型材断面加厚,会缩短扇料在开启运动时与框料上的锁座的间隙。
为了避免碰撞,可采用阶梯型断面设计(如图)。
2.平开门:玻璃门一般选用50系列,也有大于50系列,但一般不能超过80系列。
因为型材断面加厚,会缩短扇料在开启运动时与框料上的锁座的间隙。
为了避免碰撞,可采用阶梯型断面设计(如上图)3.推拉门窗:窗常用80系列,可用75系列,门常用80、85或90系列。
常用、现有加工模具的推拉门窗系列如下:广亚:2081(80),Y2K(90,100);豪美:809/808(75),880(85),883(85);凤铝:888(80),987(90);银一百:80B(80),2003(85)南华:898(80、85); 亚洲:TLC19(90)(详见附表)说明:主受力杆件强度计算值在85.5与150 N/mm^2之间可选用。
铝合金门窗安装操作规程
铝合金门窗安装操作规程
《铝合金门窗安装操作规程》
一、安装前准备
1. 确认门窗尺寸和安装位置,确保与设计图纸一致。
2. 确认安装所需的材料和工具齐全,并做好预备工作。
3. 检查安装现场,清理干净,确保安装环境整洁。
二、安装步骤
1. 定位
根据设计图纸将门窗定位放置在安装位置,并用水平尺进行调整,确保门窗水平垂直。
2. 固定
利用螺丝钉或膨胀螺丝将门窗固定在墙体上,确保门窗牢固稳定。
3. 密封
用密封条将门窗与墙体之间进行密封处理,以防止水汽渗透和风化。
4. 玻璃安装
将玻璃安装在门窗框架内,并用密封胶进行固定封缝。
5. 调试
经过以上步骤安装完成后,对门窗进行检查和调试,确保开启和关闭顺畅,密封性良好。
三、安装注意事项
1. 在安装门窗时,要注意保护好门窗的表面,以免刮伤和损坏。
2. 安装门窗时要保持整洁,避免杂物掉落在门窗里面,影响使用。
3. 安装门窗时要严格按照设计图纸和规程进行操作,不得擅自修改或调整。
四、安装验收
安装完成后,由专业人员对门窗进行验收,并填写安装验收报告,确保门窗安装符合要求。
以上就是关于铝合金门窗安装操作规程的详细步骤,希望能够对相关人员在实际安装操作中有所帮助。
铝合金门窗说明书
断桥隔热铝合金门窗说明书(平开窗、内悬窗)一、产品配置1、型材配置:鸿铭55断桥隔热铝合金型材(内外灰色)。
2、玻璃配置:金晶5low-e+12A+5中空钢化玻璃(双钢化)。
3、排气扇位置铝板配置:2+20岩棉+2(双面铝板)。
4、五金配置:立兴杨氏(平开五金、内旋五金)。
5、胶条配置:玻璃内外胶条密封,均采用江西奋发品牌,三元乙丙材质。
6、纱窗配置:固定纱窗,铝合金外框,金属纱网。
7、辅材均为国产优质材料。
二、搬运、贮存、安装须知事项断桥隔热铝合金门窗是表面平整、光洁、色彩和谐、造型美观、装饰效果好,但遇硬物易划伤,型材容易腐蚀、沾污变色,一旦划伤会造成永久性伤痕,碰撞和挤压容易造成局部开裂和损伤,因此要求:1、断桥隔热铝合金门窗窗框、窗扇的贮存①铝合金门窗应放在通风、防雨、干燥、清洗、平整的地方,严禁与腐蚀物质接触,防止型材变形。
②贮存环境温度应低于50°C远离火源,以防受热变形。
③铝合金门窗不应直接接触地面,底面垫高不应低于10cm,产品应立放,立放角度不小于70°,并有防倾倒措施。
2、包装及运输①应用无腐蚀作用的材料包装,包装应牢固可靠,每批产品包装后,应附有产品清单及产品质量合格证。
②装运门窗和运输工具,应有防雨措施,并保持清洁,在运输装卸时,应保证产品不变形、不损伤、表面完好。
③运输、安装过程要做好防护,带有玻璃门窗扇应轻放,小心移动,以防玻璃破损伤及人体;安装前后要检查产品外漏装饰面防护胶纸是否有效;与水泥砂浆等接触时要及时清洁。
安装完毕后,应加上小心防损警示标志。
三、五金使用说明1、五金使用(内平开窗)在窗扇确认锁闭的情况下转动窗执手90°(至水平位置)可平开窗扇,关闭窗扇时旋转执手至向下的位置。
2、在窗扇确认锁闭的情况下转动窗执手90°(至垂直位置)可打开窗扇,关闭窗扇时旋转执手至水平位置。
开关窗扇和旋动执手时不宜用力过猛,同时需使窗扇与窗框紧密接触,以免损坏五金件。
门窗用户安装说明
铝合金门窗用户安装说明一、三线定位1、水平标高线:控制水平位置2、垂直控制线:控制窗的垂直位置,一般在外墙上拉通先,以窗框洞口的中线作为控制钱。
3、进出位控制线:控制窗的进出位,可以直接以抹灰控制线为基准控制,也可以将抹灰控制线抄到墙面上,在窗洞四角打出抹灰灰饼进而控制窗框的进出位置。
图1三线定位二、安装钢副框(推荐用户使用):1、定位:将钢副框嵌入洞口内,并用木楔临时固定,然后根据三线位置调整副框位置直至符合图纸要求,可用靠尺加卷尺直接拉出尺寸来定位,也可以用激光扫平仪抄线至洞内侧。
2、固定:先在洞口两侧面弹出控制副框中间控制线,根据副框上地脚的孔位用冲击钻在墙体上打出膨胀螺栓孔再将钢副框通过膨胀螺栓锁紧在墙体上,如图23、塞缝:用干硬性水泥砂浆填补副框与墙体间缝隙并收平整,砂浆需要全部覆盖地脚螺栓。
4、收口:在窗台处先将内侧砂浆面收平至和钢副框面平齐,再做装饰面,外侧装饰面收平至和副框平齐并向外放坡,这样使窗台的内侧面比外墙面高,不使雨水内灌。
5、防水:待防水砂浆干燥后,在洞口外侧四周多遍涂刷防水漆。
6、特点:装修前后均可安装铝窗,不受铝窗制作周期影响装修。
三、安装窗框(有钢副框的情况)1、定位:将窗框扣在钢副框上,利用垂直和水平控制线调整好窗框在洞口中的位置,并用木楔做临时固定。
2、固定:用户先在窗框上标出打孔位置,孔的尺寸距框边角的距离≤180mm,孔间距≤500mm,窗边框小于1米时,每边至少需要用两个自攻螺钉来进行和副框固定。
将窗框预装到副框上,根据垂直控制线和水平标高线调整好位置并用木楔临时固定,用电批在窗框需要打孔的标记上将燕尾自攻螺钉打进窗框直至将窗框固定在副框上,如图23、填缝:窗框固定好后与副框之间一般留有5mm的缝隙,从窗框内两侧分别打入发泡剂填充,等待10分钟待发泡剂固化后将溢出的部分压入缝内并预留5mm的槽深用于填充密封胶,保证填充密实,严禁将溢出部分切割掉,如图24、涂密封胶:在窗框和副框之间用耐候密封胶填充抹平,正常推荐用户使用耐候密封胶,如用户要求用其他密封胶,可由用户自主选择。
铝合金门窗技术手册
工程师手册——铝合金门窗部分铝合金门窗部分工程师手册将向大家简要介绍铝合金门窗的组成、生产加工过程、安装过程,以及对主要材料、加工安装过程的控制要点和方法,详细的材料、加工、安装规范要求请参照相应国家规范标准及合同技术要求附件。
第一部分 主要材料铝合金门窗主要由铝合金型材、玻璃、五金配件、辅副材这四大类材料组成。
在第一部分中,我们将着重介绍这四大类材料的各项性能特征。
以平开窗为例一、材料清单 1、 铝合金型材型材是铝合金门窗的主要材料之一,是门窗的主要的组装、受力构件。
按铝合金型材安装位置可分为框料、扇料、中挺料(横档料)、门窗压线及其它铝料这四类,这四类型材的具体区别可参照下表:平开系列型材玻璃五金配件辅材推拉系列平开系列常用门窗拼装节点示意: 2050平开窗QD76推拉窗铝合金型材按照其本身特性,可分为普通铝合金型材、断桥隔热型材。
表面处理方式中,我们常用的是粉末喷涂、电泳。
四种表面处理方式比较铝合金型材是铝合金门窗最主要的组成部分,在市场上较为知名的品牌有兴发、凤铝、亚铝、广亚、华加日等多个型材品牌。
目前,我们常用的品牌为佛山南海广亚型材,其综合实力较符合万科要求。
优质铝型材有如下几个特点:●优质铝型材表面平整,手感光滑平整。
●所购同一根或同一批型材,表面处理颜色均匀一致,无明显色差。
●铝合金型材表面,应无凹陷或鼓出。
●铝合金型材表面无开口气泡(白点)和灰渣(黑点),以及裂纹、毛刺、起皮等明显缺陷。
2、五金配件五金配件是铝合金门窗完成开启、关闭、固定的主要部件,不同类型的窗可以配置不同的五金配件,下表即为目前各种窗型我们常用的五金配件:常用五金配件列表目前,国产五金配件品牌较为知名的有立兴、合和兴、坚朗等,进口品牌有诺托、萨维奥、斯吉利亚、吉盛等。
目前,我们国产五金配件主要选用香港杨氏立兴的五金配件。
3、玻璃铝合金门窗面积最大的部分即为玻璃,由于保温节能要求,上海地区住宅铝合金门窗均已要求使用双层中空玻璃,最低中空玻璃配置要求为5+6A+5。
铝合金门窗使用说明
最新铝合金门窗使用说明-CAL-FENGHAI.-(YICAI)-Company One1铝合金门窗使用说明书xxxxxxxx201 年月铝合金门窗使用说明书一、门窗简介:我公司生产的55系列铝合金门窗是采用目前先进的工艺生产的断桥隔热门窗。
门窗型材隔热材料的隔热性能及机械强度均满足现行的国家相关规范要求。
具体为:1、铝合金型材:采用北京和平铝业有限公司生产的优质铝合金型材,型材表面具备较强的抗老化性能,颜色为咖啡色,美观环保耐用。
2、门窗玻璃:采用汽车级优质浮法玻璃制成的中空玻璃(6+12A+6),中隔条采用符合国家有关门窗规范、标准的中空热压胶条,隔热保温性能优越。
3、门窗的密封:采用符合国家有关标准的硅硐密封胶及三元乙丙密封胶条。
4、五金件:采用德国诺托高档门窗五金,均符合国家标准。
5、纱窗及纱门:窗户的纱窗采用卷帘式隐形纱窗,内开窗为外装式,外开窗为内装式;纱门采用折叠式隐形纱门,均为内装式。
该纱窗、纱门能有效地防止蚊虫进入室内,纱窗的纱网采用玻璃纤维纱,纱门的纱网采用的胶织纱,均具有良好的耐冲击性和使用寿命长等优点。
二、门窗使用说明1、内开内倒窗的使用说明:1)、内开:在窗扇确认锁闭的情况下转动窗执手90°(至水平位置)可平开窗扇,关闭窗扇时旋转执手至向下的位置。
2)、内倒:在窗扇确认锁闭的情况下转动窗执手180°(至向上垂直位置)可内倒窗扇,关闭窗扇时旋转执手至向下垂直的位置。
开关窗扇和旋动执手时不宜用力过猛,同时需使窗扇与窗框紧密接触,以免损坏五金件。
内开内倒窗限位可限制窗的最大开启角度,避免磕碰(此配件为选购配件,本项目配备),其开启状态如下图示意:2、外上悬窗的使用说明:1)、外悬:在窗扇确认锁闭的情况下转动窗执手90°(至垂直位置)可打开窗扇,关闭窗扇时旋转执手至向下的位置。
外悬窗开启只需把执手转动到开启位置,慢慢向外推即可。
关闭需要先向外推一下再往回拉,才能完成窗扇的关闭。
斯瓦特兰肯卓铝合金门窗 说明书
ALUMINIUM WINDOWSAND DOORSA PROUD MEMBER OF THE SWARTLAND FAMILYCERTIFIEDT H E P O P U L A R C H O I C EKENZO ALUMINIUM RANGEKENZO windows and doors are made of strong,lightweight aluminium-alloy frames.They require limited maintenance and never need to be painted – the perfect combination of durability, energy-efficiency and affordability.All products are SANS 613 certified and compliant.ABOUT KENZONATIONAL AVAILABILITYLarge stockholding, combined with Swartland’s national distribution footprint means our aluminium products are available for any size project, anywhere in South Africa –on time, every time.STANDARD COLOURSAll products are available in standard colours.Made to the same superior standards as our hardwood windows and doors, this exciting new range not only offers homeowners greater choice, but also Swartland’s renowned manufacturing excellence, lasting quality and great value.CONTENTS KENZO RANGETOP HUNG WINDOWS SIDE HUNG WINDOWS GLIDING WINDOWSSLIDING DOORSCONTENTS261013TOP HUNG RANGEKenzo windows are available in STANDARD 30,5mm casement sections or SUPERIOR 38mm sections – either double- orsingle-glazed. All windows are SANS 613 compliantTHE KENZO WINDOW RANGEThese windows are perfect for commercial or residential environments as they allow ventilation and unrestricted airflow even during rainy weather.All sizes shown are cavity opening sizes.STANDARD SUPERIORAll sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available in all windows.Toughened safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available in all windows.Toughened safety glass is fitted to selected windows where required.The opening sash on a side hung window can be opened to direct the airflow, exactly where you want it, for maximum ventilation. When ordering please specify whether the window is left-hand or right-hand opening as viewed from the outside.Features• Ergonomic midnight-black cast steel handles.• Durable stainless-steel window hinges.• Can be fitted with burglar bars on request.SIDE HUNG RANGESIDE HUNG WINDOWS SIDE HUNG WINDOWSAll sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available in all windows.Toughened safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available in all windows.Toughened safety glass is fitted to selected windows where required.STANDARD SUPERIORAll sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available in all windows.Toughened safety glass is fitted to selected windows where required.All sizes shown are cavity opening sizes.Products are 10mm smaller in width and height than indicated.Obscure glass available in all windows.Toughened safety glass is fitted to selected windows where required.Obscure glass available in all windows.Obscure glass available in all windows.HORIZONTAL GLIDING RANGEHorizontal windows provide effective ventilation where external space is limited. Design simplicity and few moving parts make these windows more durable than conventional windows. Ideal for wide openings, the advanced gliding mechanism requires very little effort to open or close.• Available in standard sizes, but non-standardsizes can be ordered at an additional cost.• High security locking mechanism included.• Recessed finger-latches also included.HS96HS126HS156HS186HS2162100600HS99HS129HS159HS189HS219900HS912HS1212HS1512HS1812HS21121200150012009001800All doors are supplied with secure, lockablehandlesTHE KENZO DOOR RANGEKENZO offers a wide range of door types, styles and sizes to meet your needs. This exquisitely made range is readily available through all leading hardware retailers.Selected products are SANS 613 compliant.SLIDING DOOR RANGEKENZO sliding doors are constructed with long-life rollers to ensure a smooth gliding action, and are pre-glazed with toughened safety glass. Our sliding doors are designed to be weather- and dust-proof. Available in SUPERIOR (60mm stile) orSTANDARD size (28mm stile).• All doors are supplied with secure and lockable handles. • Night latches can be fitted for extra security.Available in four standard coloursPre-glazed for easy installationDoors are pre-hung ina frame2100m mKENZO DOOR RANGE SLIDING DOOR RANGESUPERIORSTANDARDSOX2121SOX2421SOX3021SOX2721Door Type Actual size Opening size to fitWidthHeightOpening Width Opening HeightOX15211,4902,0901,5002,100OX18211,7901,800OX21212,0902,100OX24212,3902,400OX27212,6902,700OX30212,9903,000OXXO36213,5903,600OXXO42214,1904,200OXXO3621SOXXO3621OXXO4221SOXXO4221• All doors are supplied with secure, lockable handles. O – Indicates the fixed panel X – Indicates the sliding panel SIDELIGHTS• Pre-glazed sidelights can be fitted to the left, rightor on both sides of the doors.• Adapter jamb and sill sold separately.4mm toughened safety glass fitted to all sidelights.All Sliding doors can be coupled with sidelights,either fixed or projecting-out vents.SLIDING DOOR RANGE2100m mSL621600mm SL921900mmSLIDING DOORS SLIDING DOORSSUPERIORSTANDARD If used next to an Entrance door or a Fold-a-side door, please order part number: SLADAPTORB (where B indicates colour) from our estimation department, to ensure ease of installation.FOLD-A-SIDE DOOR RANGEWhen opened, these doors create the maximum possible opening you can get. It’s the perfect way to extend your kitchen, sun room, lounge or bedroom. The doors are divided into sections, with choices ranging from a three-panelled door to a much wider six-panelled door.• When ordering please specify whether the door must stack to the left or right when viewed from the outside.•All doors open outwards.• It is not necessary to open the entire spanfor access. The first leaf functions as a single(traffic) door and opens independently.3600w x 2100h3600w x2100 2400w x 2100h3000w x 2100h3-door1800w x 2100hFOLD-A-SIDE DOORS FOLD-A-SIDE DOORSAll doors are available with 5mm toughened safety glass.Glass to be order separately.3, 4, 5, and 6 door configurations are available in either left-hand or right-hand opening.3, 4, 5, and 6-door configurations are available in either left-hand or right-hand opening.SFD5FG6L/RSFD6FG6L/R600 SERIESSFD4FG7L/R2100m m700 SERIES4200mmSFD6FG7L/R 2100m mSFD3FG7L/R2100m mFOLD-A-SIDE DOOR RANGEFold-A-Side doors are available in 700mm or 600mm door widths. All doors are 2100mm in height; you can have amaximum 4200mm span in our standard range.This door range has been carefully developed to replace old sliding doors.SFD3FG6L/RSFD4FG6L/R2100m mENTRANCE DOOR RANGEThe KENZO range of entrance doors can be used in a wide range of applications, such as front doors, balcony doors, office doors and even internal doors.• Open-out doors have a bottom weatherproofsill fitted in the frame.• Open-in doors require the builder to weatherproof below the door.900mm21mmDHGC(Horizontal panels)900mm21mmDHGB(Vertical panels)DGLC900mm21mm900mm21mmDGLA900mm21mmDFGA900mm21mmDHGA(Horizontal panels) 900mm21mmDHGD(Vertical panels)2100m mDFGDHG2100m mDDFGDDHGENTRANCE DOOR RANGEThe KENZO range of entrance doors can be used in a wide range of applications, such as front doors, balcony doors, office doors and even internal doors.• Open-out doors have a bottom weatherproof sillfitted in the frame• Open-in doors require the builder to weatherproofbelow the door.DSQR/CLR/W 5mm CLEAR GLASS900x900x1850mmDSQR/CLR/CH 5mm CLEAR GLASS900x900x1850mmDSCR/CLR/W 5mm CLEAR GLASS900x900x1850mmDSCR/CLR/CH 5mm CLEAR GLASS900x900x1850mmDSSC/CLR/CH 8mm CLEAR GLASS1200x1900mmDSPD/CLR/W 5mm CLEAR GLASS800x900x1850mmDSPD/CLR/CH 5mm CLEAR GLASS 800x900x1850mmSHOWER DOOR RANGEKenzo offers a range of clear glass shower doors to suit any size bathroom.From our closed and corner units to full glass panels,this range is popular not only for its aesthetic appeal,but for its exceptional quality and longevity.SHOWER DOORS SHOWER DOORSTHE SWARTLAND FAMILY OF BRANDS CAPECULTURE。
铝合金窗安装安全操作规程
铝合金窗安装安全操作规程1. 引言铝合金窗是一种常见的建筑门窗材料,具有轻质、耐腐蚀和耐久性强等优点。
为了确保铝合金窗的正确安装和使用,减少安装过程中的风险,特制定了本安全操作规程。
2. 安全操作准备在进行铝合金窗安装之前,需要做好以下准备工作: - 检查施工现场是否具备安全条件,包括平稳的施工地面、清理施工现场的杂物和障碍物等。
- 检查使用的工具和设备是否完好,并进行必要的维护和保养。
- 确保所有安装人员穿着合适的安全装备,如安全帽、手套、防滑鞋等。
- 进行相关安全培训,了解安全操作规程和应急预案。
3. 安装过程中的安全操作措施3.1. 使用安全设备在进行高空作业时,必须使用安全设备,如安全带、绳索等,确保安装人员的人身安全。
安全带应正确佩戴在身上,并正确地连接到安全绳上,确保安装人员始终保持连接状态。
3.2. 防止坠落风险•在高处作业时,应设置防护栏杆或固定绳,防止从高处坠落。
•使用合适的梯子或脚手架,确保安装人员稳定的站立和操作。
•禁止安装人员站在窗框上,以免发生摔落事故。
3.3. 护理好自己和他人•注意施工现场的安全标识和警示标志,遵守相关安全规定。
•确保周围人员的安全,避免窗框或其他材料的掉落,采取必要的防护措施。
•在安装过程中,严禁吸烟或使用明火,防止引发火灾事故。
4. 窗框安装注意事项4.1. 窗框尺寸测量在安装铝合金窗前,应使用专业工具准确测量窗洞的尺寸,确保窗框与洞口的匹配度。
测量时需注意以下事项: - 测量窗洞的高度、宽度和深度,确保准确度。
- 窗框与洞口的垂直度和水平度应符合相关标准。
4.2. 检查窗框和配件•检查窗框表面是否有损伤,如变形、划痕等,确保窗框的质量。
•检查窗框的角度、连接件和密封条等配件的完整性和质量。
4.3. 窗框安装和固定•在安装窗框前,确保洞口已经清理干净,并且没有阻碍安装的障碍物。
•使用合适的工具和固定件,将窗框固定在洞口上,确保稳定和牢固。
•检查窗框的开闭功能,确保窗户的正常使用。
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
铝合金门窗使用说明书
xxxxxxxx
201 年月
铝合金门窗使用说明书
一、门窗简介:
我公司生产的55系列铝合金门窗是采用目前先进的工艺生产的断桥隔热门窗。
门窗型材隔热材料的隔热性能及机械强度均满足现行的国家相关规范要求。
具体为:
1、铝合金型材:采用北京和平铝业有限公司生产的优质铝合金型材,型材表面具备较强的抗老化性能,颜色为咖啡色,美观环保耐用。
2、门窗玻璃:采用汽车级优质浮法玻璃制成的中空玻璃(6+12A+6),中隔条采用符合国家有关门窗规范、标准的中空热压胶条,隔热保温性能优越。
3、门窗的密封:采用符合国家有关标准的硅硐密封胶及三元乙丙密封胶条。
4、五金件:采用德国诺托高档门窗五金,均符合国家标准。
5、纱窗及纱门:窗户的纱窗采用卷帘式隐形纱窗,内开窗为外装式,外开窗为内装式;纱门采用折叠式隐形纱门,均为内装式。
该纱窗、纱门能有效地防止蚊虫进入室内,纱窗的纱网采用玻璃纤维纱,纱门的纱网采用的胶织纱,均具有良好的耐冲击性和使用寿命长等优点。
二、门窗使用说明
1、内开内倒窗的使用说明:
1)、内开:在窗扇确认锁闭的情况下转动窗执手90°(至水平位置)可平开窗扇,关闭窗扇时旋转执手至向下的位置。
2)、内倒:在窗扇确认锁闭的情况下转动窗执手180°(至向上垂直位置)可内倒窗扇,关闭窗扇时旋转执手至向下垂直的位置。
开关窗扇和旋动执手时不宜用力过猛,同时需使窗扇与窗框紧密接触,以免损坏五金件。
内开内倒窗限位可限制窗的最大开启角度,避免磕碰(此配件为选购配件,本项目配备),其开启状态如下图示意:
2、外上悬窗的使用说明:
1)、外悬:在窗扇确认锁闭的情况下转动窗执手90°(至垂直
位置)可打开窗扇,关闭窗扇时旋转执手至向下的位置。
外悬窗开启只需把执手转动到开启位置,慢慢向外推即可。
关闭需要先向外推一下再往回拉,才能完成窗扇的关闭。
其开启状态如下图示意: (当往上时,
为开启状态)
(当水平时,
为关闭状态)外上悬状态外上悬铰链
室内
3、铝合金外开门的使用说明:
1)、外开:在门扇确认锁闭的情况下转动窗执手90°(至垂直位置)可打开窗扇,关闭门扇时旋转执手至向下的位置。
每扇配3个合页保证承重,其开启状态如下图示意:
4、纱窗及纱门的使用说明:
1)、室内纱窗: 手按下纱窗把手往里拉即可开启;关闭时手拉拉绳到底部,另一手抓把手按下轻轻外推即可挂住纱窗。
2)、室外纱窗: 手按下纱窗拉梁往外推即可开启;关闭时手拉拉绳到底部,另一手扣住拉梁按下轻轻向里拉即可挂住纱窗。
3)、单开纱门:手拉拉梁向左右可开启关闭。
4)、双开纱门:左右拉梁向中间即可开启关闭。
注;纱门关闭后一定要让拉梁回到原位,保护纱网使用寿命。
三、门窗的日常维护保养
1、门窗应轻关轻开,不准大力开关门窗扇,以免损坏五金和玻璃;
2、避免用硬物冲击门窗表面;
3、在四级或四级以上大风天气不要开启门窗,防止门窗扇被大风甩坏;
4、在沙尘天气下不要开启门窗扇,防止过多的尘土和砂粒进入五金件的传动槽内影响五金件的正常使用;
5、经常清理开启部位框的排水槽,保证排水孔通畅,以免在大雨时排水孔堵塞造成室内进雨水;
6、门窗的清洁可用1:100的洗涤灵水溶液擦拭,去污后用洁净水擦拭后再用干布擦干门窗表面的水迹即可;
7、经常用皮老虎、毛刷、棉布清理五金件内的沙尘和杂物,并在五金件传动部位滴少量15#机油润滑;
8、遇到门窗使用功能失效,请与专业厂家联系,以便及时准确的恢复门窗的正常使用功能;
四、室内装修时需要注意的问题
1、在装修过程中不应破坏门窗框与墙体之间的固定连接钉,门窗框不应晃动;
2、装修过程不应破坏室外面的防水密封胶,以免造成门窗漏水;
3、装修过程中应做好成品保护措施,不应污染门窗框、玻璃和五金件;
4、在门窗口部位包木门窗套和做窗帘盒时应保证门窗套的外装饰面不影响门窗合页和窗扇的正常开启;
五、联系我们
xxxxxxxxx
地址:xxxxxxxx
联系人:xxx
联系电话:010-xxxxxxxxx。
