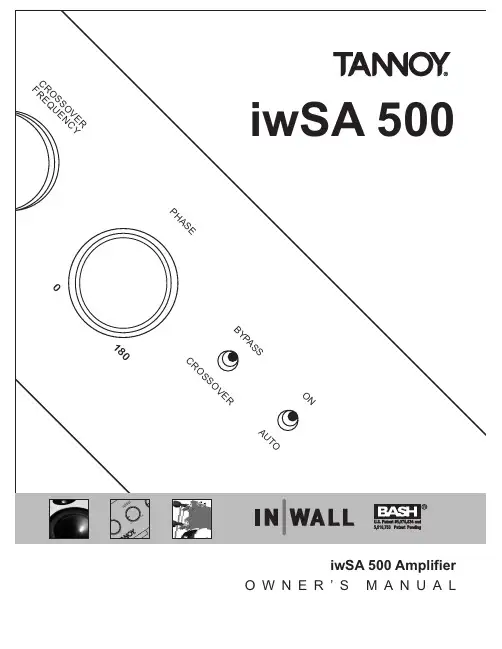

Tannoy iwSA 500 音频放大器说明书

2TANNOY iwSA 5002.0 WARNINGSBefore using your amplifier, be sure to carefully read the applicable items of these operating instructions and the safety suggestions.• Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Do not use this apparatus near water.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturers instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.• Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider thanthe other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are providedfor your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories specified by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/ apparatus combination to avoid injury from tip-over.• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way suchas Power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• To completely disconnect this equipment from the mains, disconnect the power supply cord from the receptacle.• The mains plug of the power supply cord shall remain readily operable.• Do not remove top or bottom covers. Removal of the cover will expose hazardous voltages. There are no serviceable parts inside and removal may void the warranty.2.1 Important Safety Instructions2.2 WARNINGThe lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.2.3 CAUTIONThe exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.2.2 WARNINGTo reduce the risk of fire and electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on the apparatus.3Thank you for selecting Tannoy developed by our dedicated team of design engineers, they are the choice of discriminating music and movie lovers the world over. Excellence is designed into our loudspeakers and electronics from the start. Careful selection of the very best components combined with strict quality control procedures during the production process ensures this level of excellence is maintained. We feel confident that you will enjoy your new Tannoy loudspeakers/electronics for many years to come.Please take time to read the rest of this owner’s guide before using your loudspeakers/electronics to gain maximum effect from their use. Once you have installed your new loudspeakers/electronics please complete and return the registration document – this does not limit your legal rights.CONTENTSINTRODUCTION3.0 APPROVALS2.0 WARNINGS2.1 Important Safety Instructions 2.2 WARNING 2.3 CAUTION7O W N E R ’S M A N U A LINTRODUCTIONMany in-wall and ceiling loudspeaker are designed simply to reproduce sound without any consideration for ultimate audio quality and vocal articulation. Not so with Tannoy installation products. Tannoy in-wall speaker systems are monitor quality speaker systems based on the company’s expertise in the manufacture of premium quality cabinet loudspeakers and studio monitors.The iwSA 500 amplifier was created specifically to maximize the inherent performance of your T annoy inwall subwoofer. By carefully matching the amplifier’s capabilities and performance criteria to the inwall subwoofer, Tannoy has enabled installers and end users to carefully tailor the performance to the job at hand.iwSA 50023446756.0 CONNECTIONS6.1 Input Connections 6.2 Connecting the Speaker 6.3 Cable Choice7.0 OPERATION7.1 Operation Precautions8.0 PROTECTION FEATURES8.1 Limiter Function9.0 MAINTENANCE 10.0 TROUBLESHOOTING 11.0 WARRANTY12.0 Technical Specifications iwSA 5008978882.4 User Responsibility 2.4.1 Speaker Damage 2.4.2 Radio Interference4.0 INTRODUCING THE iWSA 5004.1 Unpacking 4.2 Front Panel 4.3 Rear Panel5.0 INSTALLATION5.1 Mounting5.2 Operating Voltage43.0 APPROVALSThis equipment is tested and approved according to the Canadian Standards Association (CSA/C/US) and Federal Communications Commission (FCC).2.4 USER RESPONSIBILITY 2.4.1 Speaker DamageYour amplifier is very powerful and can be potentially dangerous to both, loudspeakers and humans alike. Many loudspeakers can be easily damaged or destroyed by overpowering, especially with the high power available. Always check the speakers’ continuous and peak power capabilities.Even is the amplifier’s front panel attenuators can be used to reduce the gain, it is still possible to reach full output power if the input signal level is high enough.TANNOY iwSA 5002.4.2 Radio InterferenceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference from electrical equipment. This product uses radio frequency energy and if not used or installed in accordance with these operating instructions, may cause interference `in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off,the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.TANNOY iwSA 500iwSA 5007TANNOY iwSA 5006.3 Cable ChoiceAlways use the best quality of cable available within your budget. High quality audio signals passing from the amplifier to the loudspeaker are unusual in their demands on the cable. Wide dynamic range and frequency bandwidth information has to coexist with the ability to transmit peak currents of at least 10 Amps, without incurring any loss or signal impairment. This explains why the sound quality of the information reproduced by the loudspeakers is so dependant on the physical properties of the cables connecting them to the amplifier.Technically, we recommend two-core cable with cross section area not less than 1.5mm 2 (14 gauge) for cable runs of up to 3 metres. For longer lengths we would suggest that you use cable with a minimum cross sectional area of 2.5mm 2 (12 gauge).Keep the speaker cable leads as short as possible. Do not use shielded leads, such as microphone or guitar cable. Remember that the speaker cable robs the power of the amplifiers in two ways: by increasing the load impedance and by introducing resistive power losses.iwSA 5005.0 INSTALLATION The amplifier is two rack units high (2U) and will fit into a standard EIA 19” rack. Amplifiers should not be stacked directly on top of each other,we recommend a space at least 3” for the top and sides with 5” on the back . When shelf mounted the height of the supplied feet is adequate.5.1 MountingWARNING!A label just above the mains cable connector on the rear of the amplifier indicates the AC mains voltage for which the amplifier is wired. Connect the power cable only to the AC source referred to on the label. The warranty will not cover damage caused by connecting to the wrong type of AC mains.5.2 Operating Voltage6.0 CONNECTIONS From an unbalanced source the hot (+) center conductor connects to the center pin of the RCA connector. The (-) shield connects to the chassis of the RCA connector.From a balanced source the hot (+) conductor connects to the center pin of the RCA connector. The cold (-) and the shield connect to the chassis of the RCA connector.6.1 Input ConnectionsSpeaker connections are made via 4 gold plated binding posts. When connecting 1 subwoofer to the amplifier the (+) wire connects to the RED (+) binding post of output #1. The (-) wire connects to the BLACK (-) binding post of output #2.When connecting 2 Tannoy subwoofers one will connect to output #1. Negative (-) wire to BLACK binding post and positive (+) wire to RED binding post. The second will connect to output #2. Negative (-) wire to BLACK binding post and positive (+) wire to RED binding post.Never connect either output terminal to ground or to some other output or input terminal. Pay attention to speaker polarity; loudspeakers connected out of polarity degrade sound quality, and may be damaged as a consequence.6.2 Connecting The Speaker7.0 OPERATION• Make sure that the power switch is set to “off” before connecting any input or output, or operating the switch on the rear panel.• Make sure that the AC mains voltage is correct, and the same as the one printed on the rear panel of the amplifier.• Make sure that the switch on the rear panel for limiter function is in the correct position.7.1 Operation PrecautionsTANNOY iwSA 5008.0 PROTECTION FEATURES8.1 Limiter FunctionThe limiter function is included to prevent dangerous clipped signals reaching the speaker and damaging it. If an amplifier is severely overdriven, its output waveform is clipped (its peaks are squared off) - reducing the crest factor. In extreme cases the waveform can approach that of a square wave. An amplifier is normally capable of producing far more power under these conditions than its normal undistorted rated output power.The Tannoy iwSA 500 Amplifier has two modes of thermal protection and an auto shut down when an internal fault is detected.It is important to have the limiter function switch in the correct position for the number of subs connected, as it sets the amount of output power before limiting occurs.9.0 MAINTENANCEUnder normal use the amplifier should provide years of trouble-free service, with no maintenance required.10.0 TROUBLESHOOTINGThese are typical things to check if you think your amplifier is faulty:FAULT: No power indicator light• Check for proper voltage at receptacle.• Make sure power cord is properly seated in connector on the rear of the amplifier.• Check power switch on back of amplifier.• Check fuse located in holder/drawer below power input connector on back of amp.FAULT: No output• If the power indicator light is on, verify that there is a usable signal on the input.• Check position of level control knob on the front of the amplifier.• Check speaker cable connections on the output binding posts for bad connections.• Check speaker cables for possible short circuits.FAULT: The amplifier does not respond even after having checked the above items.In the unlikely event of a non-user rectifiable fault return the amplifier to your supplier, or an approved service center.Tannoy cannot be held responsible for damage or injury as a result of the top or bottom cover being removed.11.0 WARRANTYNo maintenance of Tannoy products is necessary.All of our products have been produced and tested with care and precision to give first-class service.All passive components are guaranteed for a period of five years from the date of purchase from an authorized Tannoy dealer subject to the absence of evidence of misuse, overload or accidental damage.All active and electronic components are guaranteed for a period of one year from the date of purchase from an authorized Tannoy dealer subject to the absence of, or evidence of, misuse, overload or accidental damage.If at any time during this warranty period the equipment proves to be defective for any reason other than accident, misuse, neglect, unauthorized modification or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for labour, parts or return carriage.If you suspect a problem with a Tannoy product then, in the first instance, discuss it with your Tannoy dealer. If you require further assistance then we ask that you deal directly with your local Tannoy distributor.For spares and service in NORTH AMERICA only:Contact: Customer Service Manager**********************Telephone: 519.745.1158DO NOT SHIP ANY PRODUCT TO TANNOY WITHOUT PREVIOUS AUTHORIZATION812.0 TECHNICAL SPECIFICATIONS AND DRAWINGSPERFORMANCEMaximum Output Power (1) (2)Minimum Nominal Load Impedance DistortionMinimum Frequency Bandwidth Input Impedance Current Draw at 4 ΩFRONT PANEL Level ControlCrossover Frequency Adjustment Phase ControlCrossover/Bypass Switch On/Auto Switch Power On Indicator REAR PANEL Input Connectors Link Connectors Output Connectors Mains Voltage Connector Mains Voltage Fuse Holder REAR PANEL SWITCHES Power Switch Limiter Function DIMENSIONSNet Dimensions (HxWxD)Shipping Dimensions (HxWxD)WEIGHTNet Weight (each) - kgs (lbs)Shipping Weight (each) - kgs (lbs)APPROVALS CSA C/US & FCCiwSA 500 SUBWOOFER AMPLIFIER500 Watts Continuous into 4 Ω250 Watts Continuous into 8 Ω4 Ω<1% @ Maximum Rated Output 20Hz - 500Hz (no filters or EQ)>20 kΩ5 AmpsAdjusts Input Signal Level 50Hz - 150Hz 0° - 180° Continuously Variable Engages or Disengages Low Pass Filter On Continuous / Sleep Mode Blue LED2 x RCA 2 x RCA4 x Gold Plated Binding Postings 120 Volt IEC - 2 Conductor T5AL, 250 VoltSwitchable 1 Sub or 2 Sub (See Page 9.)99 x 483 x 372 (37/8 x 19 x 145/8)208 x 538 x 445 (83/16 x 213/16 x 171/2)6.8 (15)8.6 (19)iwSA 500incl. Feet & Rack EarsNOTES(1) Thermal protection may occur at high continuous power.(2) Depending on configuration, output power may be lower due to limiting circuit.Tannoy United Kingdom T: +44 (0) 1236 420199F: +44 (0) 1236 428230E:********************Tannoy North AmericaT: (519) 745 1158F: (519) 745 2364E:**********************iwSA 500。

Soundstream RUBICON 音频放大器说明书

T E C H N O L O G I E SOwner’s Manual andInstallation GuideRUB1.1000DRUB1.1600DRUB1.2500DCONGRATULATIONS!You now own a Limited Edition RUBICON Amplifier, the product of an uncompromising design and engineering philosophy.T o maximize the performance of your system, we recommend that you thoroughly acquaint yourself with its capabilities and features. Please retain this manual and you sales receipt for future reference.Soundstream amplifiers are the result of American innovation and the highest quality control standards. When properly installed, they will provide you with many years of listening pleasure. Should your amplifier ever need service or replacement due to theft, please record the following information which will help protect your investment.FEATURESTotal Harmonic Distortion:0.5%Frequency Response: 15-150HzSignal to Noise Ratio: 105dBDamping Factor: >250Input Sensitivity 100mV - 8V50-150Hz,12dB Low Pass Fiter45Hz, 0-18dB Bass Boost10-40Hz, 12dB Subsonic Filter180° Phase SwitchMidnight Blue Finish w/ Brushed Accents Remote Gain ControlMaster/Slave OperationPre-amp OutputsSPECIFICATIONSPOWER RATINGS & FUSE MODEL 4 ohm 2 ohm 1 ohm FUSERUB1.1000D RUB1.1600D RUB1.2500D600W700W1000W800W1100W1700W1000W1600W2500W35A X 340A X 4250ADIMENSIONSMODEL Length Width Height390mm 450mm 580mm 205mm205mm205mm60mm60mm60mmRUB1.1000D RUB1.1600D RUB1.2500DTOOLS/PARTS FOR INSTALLATIONNOTE: TOOLS ARE NOT SUPPLIEDSmall flat blade screwdriver phillips screwdriver (#2 or medium sized),Wire cutters, Wire strippers, - #6 round head screws, and 1 - #8 sheet metalscrew (or nut, bolt flat washer, start washer) (see detail) 2 Ring connectors(large enough to accommodate your method of grounding) In-line fuse or Grommets (Sized to work with the power wire you plan to use in your installation) Tube of silicone seal.Protection CircuitryThe amplifier protection circuitry will disable the amplifier if the inputs are overloaded, short-circuited or extremely high temperature conditions are detected. When the protection mode is in operation, the LED indicator on the front panel will be illuminated , indicating the amplifier has gone into a self-preservation mode.If you observe that the protection LED is lit, please check the system carefully to determine what has caused the protection circuit to engage. The amplifier can be reset by turning the remote power off and then on again. If the amplifier shuts down due to a thermal overload condition, please allow it to cool down before powering up. If the amplifier shuts down because of an input overload or short circuit, be sure to repair these conditions before attempting to power up the amplifier again.Electrical WiringAll RUBICON Amplifiers are equipped with easy top access screw terminals .These terminals are nickel-plated in order to ensure excellent electrical contactand to resist corrosion.When making electrical connections to the amplifier, please observe the following :Use at least 4 gauge or heavier wire for power and ground connections.Wire the amplifier directly to the car battery. Make sure there is circuit protection(Such as a fuse) on the positive power lead, within 18 inches of the battery.For the ground connection, use the shortest possible wire to a good chassis ground point.Wire the Remote connection to the remote turn-on lead of your equalizer or head unit. In some cases this may be the power antenna lead of the head unit.Remote Subwoofer Level ControlThe RUBICON Amplifiers are equipped with a dashboard mount remote subwoofer level control. Run the supplied dashboard remote control from thefront panel of your amplifier. By turning the level knob clockwise, you will increase the output of low frequencies.FusesFuses protect both the amplifier and the electrical system of your vehicle from faulty conditions . If you must replace the fuse in your RUBICON Amplifier, use a fuse of exactly the same type and rating. A different type or rating may resuit in damage or cause a fire.Mounting the AmplifierMark the location for the mounting screw holes by positioning the amplifier where you wish to install it and use a scribe (or one of the mounting screws) inserted in each mounting hole to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen.Drill pilot holes in the mounting surface for the mounting screws and insert the mounting screws into these holes. Tighten them securely.Note: Before beginning your installation, be sure to take note of any wires, lines or other devices in your vehicle which may be located behind any mounting surface.PANEL LAYOUT RUB1.1000DRUB1.1600DPANEL LAYOUTRUB1.2500DClass D Monoblock Amplifier Installation Wiring RUB1.1000D/RUB1.1600D/RUB1.2500D Low Level InputsClass D Monoblock Amplifier Installation Wiring RUB1.1000D/RUB1.1600DClass D Monoblock Amplifier Installation Wiring RUB1.2500DBridging Two RUB1.1000D/RUB1.1600D/RUB1.2500D AmplifiersBridging Two RUB1.1000D/RUB1.1600D AmplifiersTROUBLE SHOOTINGNO SOUND Is the LED lit? YES NO Check Power and Remote turn-onwire for voltage. Make sure Ground wire is secure.STILL NO SOUNDSee your Authorize Sound Stream Dealer.SOUND IN ONE CHANNEL ONLYReverse left and right speakers by unplugging the speaker connector. turning it over and plugging it back in.SOUND IS NOW IN SOUND IS NOW IN OPPOSITE CHANNEL SAME CHANNEL SAME CHANNEL SAME CHANNEL Reverse RCA inputs Problem is in the speaker ofspeaker wire of the silent channel SOUND IS NOW IN OPPOSITE CHANNEL Reverse RCAs at head unit Problem is in the Amplifier, See your local Authorized Dealer OPPOSITE CHANNELProblem is in the head unit or before the amplifier Problem is in the RCA cables RPOTECTION CIRCUITShort Circuit Protection engaged: The amplifier will turn off and try to come back on immediately. The amplifier will cycle like this indefinitely, with “blips” of sound each time If this is the case, check your speakers and wiring for low impedance and short circuits.Thermal Protection engaged: The amplifier will turn off and several minutes later will come back on. In this case, ensure that there is nothing blocking the normal convective airflow of the amplifier. No obstruction n should be within 2.4” of the amplifier on all sides.NOTE: Low battery voltage will cause the amplifier to run warmer and possibly damage the amplifier.Caution: Please do not plug in or unplug RCAPlugs to the amplifier inputs whilethe amplifier is turned on. Doingso is potentially harmful to the amplifier by allowing RF(radio frequencies)into the amplifier, causing instability, during the brief period while the RCA shield is not connected, and the hot is connected. Only plug in or unplug RCA plugs with the amplifier off as。

奇声AV2400功放故障检修分析

奇声AV2400功放故障检修分析
一台奇声AV2400功放，R右声道放音声音很弱；左右声道平衡旋钮不起作用；C中置音箱无声；L左声道有时声音忽大忽小。

R右声道声小：该机整机结构见图1。

分别从R、L声道的各个输人端注入信号，通过对比检测发现R声道三级管Q1（编号为笔者所加）的b－c与L正常声道对应放大管信号明显不同，将其换新后R声道声音恢复正常。

C声道中置音箱全无声：用指针式万用表R×1挡两表笔触及音箱连接信号端有噪声，再按图3保护电路检查该路输出的控制环节，检查Jl等保护电路无异常。

进一步检查功放部分，采用人体感应信号的方法，用金属小改锥分别触及各级放大管的基极，当检查到0CL功放末级时突然发出“啪啪”的一声响，C音箱声音恢复正常。

怀疑电路中有虚焊。

因功放末级功耗大，特别是大功放管附近受热较大的元件焊点，因热胀冷缩易产生裂缝。

随即将功放末级部分可疑元件的焊点重新补焊一遍，再输入信号试放，轻轻敲击有关部位，没有发现断音现象，证实虚焊故障彻底排除。

L声道忽大忽小断音：明显是音量电位器内部接触电阻所引起的故障。

因该总音量控制电位器是六路信号同时控制多联组合在—起的，因无同型号规格的电位器更换，没法修复。

使用注射器吸人无水酒精。

从电位器外部孔缝。

奇声功放说明书 (2)

奇声功放说明书1. 产品概述奇声功放是一种专业音频设备，用于放大音频信号，并将其输出到扬声器或音响系统中。

该功放器提供了高保真度、低失真度和高输出功率，是音乐爱好者和专业音频工程师的理想选择。

2. 功能特性•低失真度：奇声功放采用先进的数字信号处理技术，能够保持音频信号的纯净度，提供出色的音质效果。

•高输出功率：该功放器具备高功率输出能力，可以满足大型演唱会、音乐会等活动的需求。

•多功能接口：奇声功放具备多种输入和输出接口，包括用于连接各种音频设备的模拟输入和数字输入接口。

•蓝牙无线连接：用户可以通过蓝牙无线连接与功放器进行配对，方便实现音频源的无线传输。

•可调节音效：用户可以根据自己的喜好和需求，通过控制面板调节低音、中音和高音效果。

•保护系统：设计有过载保护和短路保护系统，以保护功放器免受不正确使用或外部故障的损坏。

3. 功放器连接奇声功放器提供了多种连接选项，以满足不同用户的需求。

以下是常见的连接方法：3.1 模拟输入连接功放器的模拟输入接口一般为RCA插孔或XLR插孔。

用户可以使用音频线将音频设备（如CD播放器、电脑、音乐播放器等）的输出连接到功放器的相应接口上。

3.2 数字输入连接功放器的数字输入接口一般为光纤接口或同轴接口。

用户可以使用光纤或同轴数字音频线将数字音频设备（如蓝光播放器、DVD播放器等）的输出连接到功放器的相应接口上。

3.3 扬声器连接功放器的扬声器输出接口一般为扬声器螺钉接口或扬声器插孔。

用户可以使用扬声器线将扬声器连接到功放器的相应接口上。

请确认连接正确，以免损坏扬声器或功放器。

4. 控制面板奇声功放器的控制面板位于机身正面，提供了各种控制功能。

控制面板包括以下部分：4.1 电源开关用于打开或关闭功放器的电源。

4.2 音量控制用于调节输出音量的旋钮。

请注意在使用时适当调节音量，以免损害听力或设备。

4.3 音效调节用于控制低音、中音和高音效果的旋钮。

用户可以根据需求进行调节，以获得最佳音质。

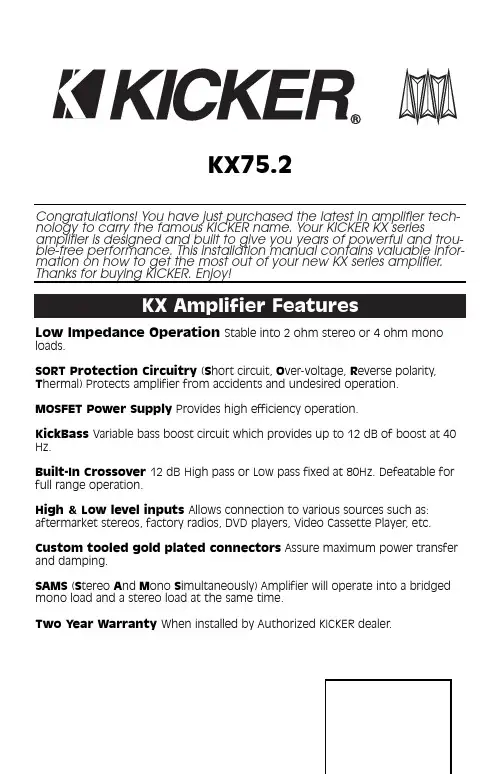

KICKER KX系列音频放大器使用指南说明书
