SCC550C三一55t履带吊
GTC-550 55吨筒架式拖钩吊车巧克力数据说明书

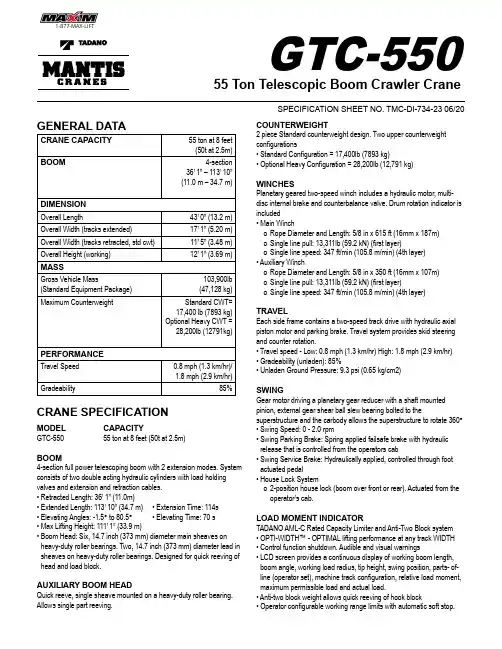

GTC-55055 Ton Telescopic Boom Crawler CraneGENERAL DATACRANE CAPACITY55 ton at 8 feet(50t at 2.5m)BOOM4-section36’ 1” – 113’ 10”(11.0 m – 34.7 m)DIMENSIONOverall Length43’ 0” (13.2 m)Overall Width (tracks extended)17’ 1” (5.20 m)Overall Width (tracks retracted, std cwt)11’ 5” (3.48 m)Overall Height (working)12’ 1” (3.69 m)MASSGross Vehicle Mass (Standard Equipment Package)103,900lb (47,128 kg)Maximum Counterweight Standard CWT=17,400 lb (7893 kg)Optional Heavy CWT =28,200lb (12791kg) PERFORMANCETravel Speed0.8 mph (1.3 km/hr)/1.8 mph (2.9 km/hr) Gradeability85%CRANE SPECIFICATIONMODEL CAPACITYGTC-550 55 ton at 8 feet (50t at 2.5m)BOOM4-section full power telescoping boom with 2 extension modes. System consists of two double acting hydraulic cylinders with load holding valves and extension and retraction cables.•R etracted Length: 36’ 1” (11.0m)•E xtended Length: 113’ 10” (34.7 m) • Extension Time: 114s•E levating Angles: -1.5° to 80.5°•Elevating Time: 70 s•M ax Lifting Height: 111’ 1” (33.9 m)•B oom Head: Six, 14.7 inch (373 mm) diameter main sheaves on heavy-duty roller bearings. Two, 14.7 inch (373 mm) diameter lead in sheaves on heavy-duty roller bearings. Designed for quick reeving of head and load block.AUXILIARY BOOM HEAD COUNTERWEIGHT2 piece Standard counterweight design. Two upper counterweight configurations•S tandard Configuration = 17,400lb (7893 kg)•O ptional Heavy Configuration = 28,200lb (12,791 kg) WINCHESPlanetary geared two-speed winch includes a hydraulic motor, multi- disc internal brake and counterbalance valve. Drum rotation indicator is included•M ain Wincho Rope Diameter and Length: 5/8 in x 615 ft (16mm x 187m)o Single line pull: 13,311lb (59.2 kN) (first layer)o Single line speed: 347 ft/min (105.8 m/min) (4th layer)• A uxiliary Wincho Rope Diameter and Length: 5/8 in x 350 ft (16mm x 107m)o Single line pull: 13,311lb (59.2 kN) (first layer)o Single line speed: 347 ft/min (105.8 m/min) (4th layer) TRAVELEach side frame contains a two-speed track drive with hydraulic axial piston motor and parking brake. Travel system provides skid steering and counter rotation.•T ravel speed - Low: 0.8 mph (1.3 km/hr) High: 1.8 mph (2.9 km/hr)•G radeability (unladen): 85%•U nladen Ground Pressure: 9.3 psi (0.65 kg/cm2)SWINGGear motor driving a planetary gear reducer with a shaft mounted pinion, external gear shear ball slew bearing bolted to the superstructure and the carbody allows the superstructure to rotate 360°•S wing Speed: 0 - 2.0 rpm•S wing Parking Brake: Spring applied failsafe brake with hydraulic release that is controlled from the operators cab•S wing Service Brake: Hydraulically applied, controlled through foot actuated pedal•H ouse Lock Systemo2-position house lock (boom over front or rear). Actuated from the operator’s cab.LOAD MOMENT INDICATORTADANO AML-C Rated Capacity Limiter and Anti-Two Block system •O PTI-WIDTH™ - OPTIMAL lifting performance at any track WIDTH •C ontrol function shutdown. Audible and visual warnings•L CD screen provides a continuous display of working boom length, boom angle, working load radius, tip height, swing position, parts- of-line (operator set), machine track configuration, relative load moment, maximum permissible load and actual load.SPECIFICATION SHEET NO. TMC-DI-734-23 06/20FRAMEThe frame is an all-steel, welded structure, precision machined to accept attachment of the boom and swing components. OPERATORS CABFully-enclosed, air conditioned all-steel modular cab with lockable sliding door, acoustical lining, anti-slip floor and tinted safety glass.• C ab tilts 20°.• R ear view, winch view and right side view video cameras• T hree remote control work lights.• V ent window in the rear of the cab.• G rab bars and steps are located for easy access to the cab.• D efroster, heater, circulating fan• 2-speed windshield wiper, top glass wiper• S ix-way adjustable fabric seat with headrest, seat belt• D ome light• D ry-chemical fire extinguisher• F our-way electronic armrest mounted joysticks control swing, main winch, auxiliary winch, boom hoist and boom extend. Foot pedals control the travel and swing service brake functions. Swing brake pedal is hydraulic.• S electable modes for Fine Control and Travel. Travel function can be operated by foot pedals or joystick.• S eat termination switch immediately disable all hydraulic functions as the operator rises from the seat. Functions can also be disabled by switch on console.• D ash instrumentation: tachometer, hour meter, fuel gauge, and DEF level gauge. Indicators are provided for crane level, swing position, load moment, drum rotation, air filter restriction, engine oil temperature and pressure, hydraulic oil temperature and level, and hydraulic and air filter restriction, and low voltage.ENGINE• M ake/ Model: Cummins QSB6.7• T ype: 6 Cylinder, Water cooled, 4 Cycle• A spiration: Turbocharged and Aftercooled• M ax.Output: 260 hp (194 kW) @ 2200 RPM• M ax Torque: 730 Lb-ft (990 Nm) @ 1500 RPM• P iston Disp: 6.7 L• E mission Cert: U.S. EPA Tier 4f, Euromot Stage IV• A lternator: 70 ampELECTRICAL SYSTEM24 VDCFUEL SYSTEM• C apacity: 85 gallon (321 liter)• F iltration: Inline fuel/water separator and engine mounted fuel filter SIDE FRAMESTwo welded steel side frames are paired with a track group. The side frames extend and retract hydraulically and are controlled from the cab.• T rack Rollers: Three top and twelve bottom sealed rollers on each track frame Idler: Oil filled, self lubricating with spring type tensioner HYDRAULIC SYSTEM• H ydraulic Pumps: Two high pressure, variable axial piston pumps with load sense and power limiting control for crane functions. One gear pump for cooling loop.• D irectional Valves: Multiple pressure and flow compensated valves with integrated relief valves controlled by electrical signals.• P ump output: 154 gpm (582 l/min) @ 2200 RPM engine speed. 5,000 psi (345 bar) maximum pressure• R eservoir: 185 gallon (700 liter) capacity, filler/ breather, sight gauge, cleanout, and sump drain.• F iltration: Three 5 micron, full flow tank mounted return filters with electrical clogging indicator. Two 2 micron pilot oil in-line pressure filters• D iagnostic Ports: Provided for system, load sense, and pilot pressure BI-FOLD JIB• M ain jibo Total Length: 28.9 ft (8.8m) o Offset Angles: 5°, 25° & 45°o Max. Lifting Height: 140.7 ft (42.9 m)• F ly jibo Total Length: 49.9 ft (15.2m) o Offset Angles: 5°, 25° & 45°o Max. Lifting Height: 161.0 ft (49.1m)OPTIONAL EQUIPMENT• H ook blockso 55 ton (50t) quick reeve hook block – Six, 16.1 in (410mm) steelsheaves, swivel hook and safety latcho 33 ton (30t) – Three, 16.1 in (410mm) steel sheaves, swivel hook and safety latch• O verhaul ball – 7.7 ton (7t) with swivel hook & safety latch• 360 degree house lock. Actuated from the operator’s cab.• T rack Shoes: 35.4 inch (900 mm) 3-bar semi grouser• A uger: Hydraulic auger boom package includes auger motor, hoses, fasteners, and stowage bracket assembly mounted to the 2nd stage section of boom for variable radius drilling.• T ool Circuit: Provides 5 gpm (23 l/min) and 10 gpm (45 l/min) at 2,500 PSI (176 bar) through a 50 foot (15.2m) twin hose reel with quick disconnect fittings to operate open center tools.• H igh Flow Tool Circuit: Provides 45 gpm (170 l/min) at 4800 PSI • (330 bar)• C ontrolled Free Fall Hoists: Winches are available in controlled free fall configurations.• C old Weather Packages: Cold weather options are available for operation to -40°C (Consult factory for application support)• W ork Platform: Model WP750 – 36 in x 72 in (0.9m x 1.8m) , all steel, welded, two person platform with maximum capacity of 750 lbs (340 kg).• F ull function Radio remote control package.• B oom mounted anemometer with cab display• A utomatic Central lubrication system.WINCH PERFORMANCE AND MACHINE WEIGHTSOVERALL CRANE DIMENSIONSTRANSPORT DIMENSIONS, JIB AND CWT DIMENSIONSWORKING RANGE DIAGRAMLOAD CHARTS36.149.062.075.087.9100.9113.88110.2101.582.8810101.497.182.840.0101291.487.378.740.036.6121579.475.869.040.036.536.1152053.050.949.640.036.434.631.7202536.837.938.335.335.933.627.4253028.428.928.426.827.224.1303522.322.823.120.921.321.4354018.118.518.916.817.717.4404515.415.714.215.114.4455013.113.412.912.712.0505511.511.610.810.155609.910.19.38.460658.78.87.97.165707.7 6.7 5.97075 6.7 5.8 5.07580 6.04.9 4.18085 4.2 3.48590 3.62.89095 2.295100 1.7100105*105110110Parts of Line121086444Parts of LineALL LOADS IN lb x 1000MAIN BOOM with TRACKS FULLY EXTENDED ‐ 360°UP to 0.5° SLOPE17,400 lb COUNTERWEIGHTRadius (ft)MAIN BOOM LENGTH (ft)Radius (ft)LOAD CHARTS36.149.062.075.087.9100.9113.88110.2101.582.8810101.497.182.840.0101291.487.378.740.036.6121579.475.869.040.036.536.1152063.861.956.640.036.434.631.7202545.644.143.040.036.433.627.4253035.335.732.931.628.924.1303528.028.425.826.525.321.5354022.923.323.021.521.819.3404519.619.917.918.217.5455016.717.015.115.415.6505514.712.813.313.4556012.911.012.211.6606511.49.810.810.165709.19.58.970758.48.47.775807.97.5 6.78085 6.6 5.88590 5.85.09095 4.395100 3.7100105 3.2105110110Parts of Line121086444Parts of LineRadius (ft)MAIN BOOM LENGTH (ft)Radius (ft)ALL LOADS IN lb x 1000MAIN BOOM with TRACKS FULLY EXTENDED ‐ 360°UP to 0.5° SLOPE28,200 lb COUNTERWEIGHTLOAD CHARTS36.149.062.075.087.9100.9113.88110.2101.552.7810101.497.152.740.7101288.877.152.740.032.6121565.157.551.840.032.628.7152043.840.338.834.632.624.820.9202532.331.029.828.725.224.020.9253024.323.522.919.919.418.9303519.719.218.716.016.815.5354016.616.015.714.414.012.9404513.613.413.011.910.8455011.811.611.310.19.0505510.19.98.67.655608.88.67.4 6.460657.87.6 6.3 5.36570 6.7 5.4 4.57075 5.9 4.7 3.77580 5.44.0 3.08085 3.5 2.58590 3.02.09095 1.595100*100105*105110110Parts of Line121086444Parts of LineRadius (ft)MAIN BOOM LENGTH (ft)Radius (ft)ALL LOADS IN lb x 1000MAIN BOOM with TRACKS FULLY EXTENDED ‐ 360°UP to 4° SLOPE17,400 lb COUNTERWEIGHTLOAD CHARTS36.149.062.075.087.9100.9113.88110.2101.582.8810101.497.182.840.0101291.487.378.740.036.6121579.475.869.040.036.536.1152054.953.051.740.036.434.631.7202537.738.838.836.236.433.627.4253029.129.628.427.527.824.1303522.923.323.721.521.821.5354018.619.019.317.317.717.9404515.816.114.215.514.7455013.413.712.913.112.4505511.811.711.110.5556010.210.49.69.060659.09.18.37.765708.07.2 6.670757.1 6.3 5.77580 6.35.5 4.98085 4.9 4.38590 4.33.79095 3.195100 2.6100105 2.1105110110Parts of Line121086444Parts of LineRadius (ft)MAIN BOOM LENGTH (ft)Radius (ft)ALL LOADS IN lb x 1000MAIN BOOM with TRACKS RETRACTED ‐ OVER FRONTUP to 0.5° SLOPE17,400 lb COUNTERWEIGHTLOAD CHARTS36.149.062.075.087.9100.9113.88110.2101.582.8810101.493.082.155.1101271.866.061.440.040.0121548.344.641.840.036.536.5152029.530.430.530.426.527.224.2202520.121.221.521.621.520.017.9253015.616.016.216.214.913.6303511.812.212.612.611.410.435409.19.69.910.08.97.940457.67.98.0 6.9 6.04550 6.06.3 6.5 5.4 4.65055 5.1 5.2 4.2 3.45560 4.1 4.2 3.2 2.46065 3.33.4 2.4 1.66570 2.7 1.7*7075 2.1**7580 1.7**8085**8590**9095*95100*100105*105110110Parts of Line121086444Parts of LineALL LOADS IN lb x 1000MAIN BOOM with TRACKS FULLY EXTENDED ‐ 360°UP to 1.5° SLOPE0 lb COUNTERWEIGHTRadius (ft)MAIN BOOM LENGTH (ft)Radius (ft)LOAD CHARTS36.149.062.075.087.9100.9113.88110.2**81086.379.871.3*101264.360.056.440.034.7121545.843.040.840.036.535.7152029.930.330.129.926.926.824.2202521.522.122.222.222.020.518.5253016.917.117.217.216.114.6303513.413.613.813.812.811.7354010.911.111.311.310.49.540459.29.49.48.67.745507.77.97.97.1 6.35055 6.7 6.7 6.0 5.25560 5.7 5.8 5.0 4.36065 4.94.9 4.2 3.56570 4.3 3.5 2.87075 3.7 2.9 2.17580 3.22.2*8085 1.7*8590**9095*95100*100105*105110110Parts of Line121086444Parts of LineALL LOADS IN lb x 1000MAIN BOOM with TRACKS FULLY RETRACTED ‐ OVER SIDEUP to 1.5° SLOPE17,400 lb COUNTERWEIGHTRadius (ft)MAIN BOOM LENGTH (ft)Radius (ft)LOAD CHARTS5°25°45°5°25°45°5°25°45°5°25°45°5°25°45°1010.9101210.9121510.910.9152010.97.910.910.920259.67.210.97.910.910.925308.4 6.4 5.110.77.3 5.510.97.810.910.930357.5 5.8 4.89.6 6.8 5.210.97.310.97.510.93540 6.5 5.2 4.58.8 6.3 4.910.37.0 5.210.97.2 5.210.97.34045 5.8 4.9 4.38.0 5.9 4.79.5 6.6 5.010.1 6.8 5.110.37.0 5.14550 5.2 4.5 4.37.4 5.5 4.68.6 6.2 4.89.1 6.5 4.99.4 6.7 5.05055 4.74.36.7 5.2 4.47.8 5.8 4.78.3 6.1 4.88.7 6.3 4.95560 6.1 4.9 4.37.1 5.6 4.57.6 5.8 4.78.0 6.1 4.76065 5.6 4.7 4.36.5 5.3 4.47.0 5.6 4.57.3 5.8 4.66570 5.2 4.5 5.9 5.1 4.3 6.5 5.4 4.5 6.1 5.6 4.57075 4.9 4.4 5.4 4.9 4.3 5.8 5.1 4.4 5.0 5.4 4.47580 4.64.35.0 4.7 4.2 4.9 5.0 4.3 4.1 4.9 4.48085 4.6 4.6 4.24.1 4.7 4.3 3.4 4.0 4.38590 4.3 4.3 3.4 3.9 4.2 2.7 3.2 3.69095 3.7 4.0 2.8 3.2 3.42.1 2.6 2.9951003.2 3.4 2.3 2.6 1.5 2.0 2.2100105 2.7 2.81.82.1 1.0 1.4 1.6105110 2.21.3 1.50.60.91101150.9 1.1*0.51151200.6**120125**125130*130135*135140140Parts of Line111111111111111Parts of Line100.9113.8Radius (ft)MAIN BOOM LENGTH (ft)Radius (ft)36.162.087.9ALL LOADS IN lb x 100028.9 ft Jib with TRACKS FULLY EXTENDED ‐ 360°UP to 0.5° SLOPE17,400 lb COUNTERWEIGHTLOAD CHARTS5°25°45°5°25°45°5°25°45°5°25°45°5°25°45°10101212158.715208.27.920257.07.92530 5.87.37.27.03035 5.0 3.7 6.47.27.0 6.73540 4.3 3.3 5.6 3.7 6.77.0 6.74045 3.8 3.0 2.5 5.0 3.4 6.0 3.6 6.4 3.7 6.74550 3.4 2.8 2.3 4.5 3.2 2.5 5.4 3.4 5.8 3.5 6.2 3.65055 3.1 2.6 2.2 4.1 3.0 2.4 4.9 3.2 2.4 5.3 3.3 5.6 3.45560 2.8 2.4 2.1 3.7 2.8 2.2 4.5 3.0 2.3 4.9 3.2 2.4 5.2 3.26065 2.5 2.2 2.0 3.4 2.6 2.2 4.1 2.9 2.3 4.5 3.0 2.3 4.8 3.1 2.36570 2.3 2.1 2.03.1 2.5 2.1 3.8 2.7 2.24.1 2.9 2.2 4.5 3.0 2.27075 2.2 2.02.9 2.3 2.03.5 2.6 2.1 3.9 2.7 2.24.2 2.8 2.27580 2.02.7 2.2 2.03.3 2.5 2.1 3.6 2.6 2.1 3.9 2.7 2.18085 2.5 2.1 1.9 3.1 2.4 2.0 3.4 2.5 2.1 3.7 2.6 2.18590 2.4 2.1 1.92.9 2.3 2.03.2 2.4 2.0 3.5 2.5 2.19095 2.2 2.0 2.8 2.2 2.0 3.0 2.3 2.0 3.0 2.4 2.095100 2.1 2.02.6 2.1 1.9 2.9 2.2 2.0 2.4 2.4 2.0100105 2.02.5 2.1 1.9 2.6 2.2 1.9 1.9 2.3 2.0105110 2.4 2.0 1.92.2 2.1 1.9 1.5 2.2 1.9110115 2.2 2.0 1.8 2.1 1.9 1.1 1.7 1.9115120 2.2 2.0 1.4 1.8 1.90.7 1.2 1.5120125 1.9 2.01.1 1.40.30.8 1.1125130 1.60.7 1.0*0.40.61301350.40.6**135140***140145**145150**150155*155Parts of Line111111111111111Parts of Line100.9113.8Radius (ft)MAIN BOOM LENGTH (ft)Radius (ft)36.162.087.9ALL LOADS IN lb x 100049.9 ft Jib with TRACKS FULLY EXTENDED ‐ 360°UP to 0.5° SLOPE17,400 lb COUNTERWEIGHTWP750 WORK PLATFORM ON MAIN BOOM RANGE CHARTFOR MANTIS MODEL GTC-550as originally manufactured and equipped by Tadano Mantis CorporationShaded Area is Allowable Operating RangeLimits of operation:Maximum load capacity = 750 lbMaximum radius when mounted on main boom = 60 ftMaximum occupancy = 2 personsWARNING: Lifting a load during Work Platform operation is not allowed.Notes:1. I t is permissible to leave the jibs stowed on the boom while operating with Work Platform mounted to the main boom.2. The hook block(s) must be removed when using the Work PlatformWP750 WORK PLATFORM ON MAIN JIB RANGE CHARTFOR MANTIS MODEL GTC-550as originally manufactured and equipped by Tadano Mantis CorporationShaded Area is Allowable Operating RangeLimits of operation:Maximum load capacity = 750 lb Maximum jib offset = 5 degreesMaximum radius when mounted on jib boom = 70 ftMaximum occupancy = 2 personsWARNING: Lifting a load during Work Platform operation is not allowed.Notes:1. I t is permissible to leave the jibs stowed on the boom while operating with Work Platform mounted to the main boom.2. The hook block(s) must be removed when using the Work PlatformPLEASE READ, UNDERSTAND, AND FOLLOW THE MANUALS FURNISHED WITH THE CRANE AS WELL AS THE CAPACITY LIMITATIONS AND GENERAL CONDITIONS LISTED BELOW PRIOR TO OPERATI ON OF THE CRANE. FAILURE TO DO SO MAY RESULT IN AN ACCIDENT.Performance of this TADANO MANTIS crane as manufactured by Tadano Mantis Corporation applies only to machines as originally equipped by the manufacturer and in a properly maintained condition. Capacities given are maximum covered by the manufacturer’s warranty and are based on a freely suspended load with NO allowance for factors as out-of-level operation (beyond the limits specified on the charts), supporting surface conditions, hazardous surroundings, experience of personnel, etc. The operator shall establish practical working loads based on prevailing operating conditions, such as, but not limited to the above.The crane meets the requirements of ASME B30.5. Structure and Stability have been tested in accordance with SAE J1063 and SAE J765, respectively.Maximum admissible wind velocity for working with telescopic boom and jibs is 20 mph. Consult TADANO MANTIS for ratings athigher wind speeds.Side pull on boom is extremely dangerous and must be avoided.DO NOT exceed manufacturers maximum specified reeving.Boom angle/boom length relationships given are an approximation of the resulted load radius, which should be an accurate measurement. Boom height dimensions are measured from ground to center of lower boom head sheave.It is permissible to attempt to telescope boom with a load within the limits of rated capacities. However, boom angle system hydraulic pressure, and/or boom lubrication may affect operation.It is permissible to travel with loads within the rated capacity of the crane. Travel speeds should be greatly reduced to reflect terrain limitations and minimize dynamic loads applied to the crane structure.Lifting capacities are shown in lbs x 1000.The weight of load handling devices such as hook blocks, slings, etc., must be considered as part of the load and must be deducted from the lifting capacities.The lifting capacities for the telescopic boom apply to a crane with no jibs or other optional equipment stowed or mounted on the crane.The working radius is the horizontal distance from the center of rotation to the center of the freely suspended, non-oscillating load.Lifting capacities are for reference only. Load charts supplied with the crane should be used for lift planning.The above remarks are for basic information only and the operator’s manual must be consulted before operating this crane. All data and performances refer to the standard crane. The addition of optional and other non-standard equipment may affect the performance of the crane. Load moment indicating and anti-two block systems are operator aids and must never be used in lieu of job site lift planning calculations by the operator which must take into account ground conditions, weather and all other environmental factors prevailing at the time of the lift. Specifications are subject to change at any time without prior notice. Illustrations and photographs may show optional equipment. Supersedes all previous issues.NOTESNOTEST A D A N O M A N T I S C O R P O R A T I O N1705 C o l u m b i a A v e n u e • F r a n k l i n , T N 37064 U S A • T o l l -F r e e : 1-800-272-3325 • F a x : 615-790-6803 • m a n t i s c r a n e s .c o mTADANO Ltd.,International Division 4-12, Kamezawa 2-chome,Sumida-Ku, Tokyo 130-0014, Japan Tel: +81 3 3621 7750Fax: +81 3 3621 7785。
三一250吨履带吊说明书SCC2500C
CONTENT
整机基本尺寸 ········································································································2 主要技术特点 ········································································································3 主要性能参数 ········································································································4 运输尺寸 ················································································································5 拆装示意图 ··········································································································10 详细介绍 ··············································································································12 工况组合 ··············································································································16 主臂 H 工况 ·········································································································19 H 工况主臂组合 ··································································································19 H 工况作业范围图·······························································································20 H 工况主臂载荷表·······························································································21 固定副臂 FJ 工况 ································································································25 FJ 工况臂架组合 ·································································································25 FJ 工况作业范围图 ·····························································································26 FJ 工况固定副臂载荷表 ·····················································································27 变幅副臂 LJ 工况 ································································································31 LJ 工况臂架组合 ·································································································31 LJ 工况变幅副臂作业范围图 ·············································································32 LJ 工况变幅副臂载荷表 ·····················································································33 重型固定短副臂 SFH 工况···················································································89 SFH 工况作业范围图 ···························································································89 SFH 工况载荷表 ···································································································90
中联牌ZCC550履带起重机
51
49
4.5
42
42
40
5
37
36
35
33
5.5
33
31
31
30
29
6
28
28
27
27
26
25
7
23
23
22
22
22
21
21
8
19
19
19
18
18
18
18
17
17
9
16
16
16
16
16
15
15
15
14
14
13
10
14
14
14
14
14
14
13
13
13
12
12
12
11
11.2
12
11
11
11
11
11
28
副臂长度(m )
6
9
12
15
副臂幅度(m )
10°
30°
10°
30°
10°
30°
10°
30°
12
5.5
5.5
5.5
5.5
4.8
14
5.5
5.5
5.5
5.5
4.8
4
4
16
5.5
5.5
5.5
5.5
4.8
4
4
18
5.5
5.2
5.5
5.2
4.7
4
4
3.5
20
5.1
4.9
5.1
Ⅹ、三一科技SCC9000履带起重机推介书
连接采用快速接头，以方便拆卸及运输。
¾ 控制操作
力矩限制器的显示器、闭路监视器、监控显示 器及仪表在操作者的直接视野内；力限器显示 器主要监测起重机的力矩情况及其它参数；监 控显示器主要显示起重机的操作状况、各监测 点的控制参数及报警；左、右扶手箱共有三个 操作手柄，手柄动作通过监控显示器按键进行 切换；单独动作及允许的复合动作以文字和图 形的形式显示。
¾ 主、副提升装置
博世力士乐变量液压马达驱动行星齿轮减速 机，来控制主副卷扬的起升降落。卷扬速度可
根据用户需要无级调速，最大速度在 0-130/115
m/min 的范围内由用户自行设定，最大速度为
130/115 m/min；具有优良的微速性能；最快档
可以实现快速动力提升；吊重 450 吨以下可用 一个卷扬，450 吨以上必须用双卷扬同时工作；
¾ 横梁
先做人后做事，品质改变世界
2
SCC9000 液压履带起重机
高强度焊接框架结构；与履带架及底座采用液 压油缸驱动动力销连接，易于安装和拆卸。
¾ 底座
高强度焊接框架结构；与横梁采用液压油缸驱 动动力销连接，易于安装和拆卸。
¾ 行走速度
变量马达可以实现两档速度，在每档内可实现 无级变速，高速：0～1.0 千米/小时，低速 0～ 0.4 千米/小时，保证设备的运行平稳，并可实现 快速行走。
¾ 变幅装置
包括：主变幅装置、副变幅装置、超起变幅装 置。 采用 LEBUS 卷筒、减速机内藏、法尔福钢丝绳， 闭式回路，由换向阀进行切换提供动力；可实 现多种复合动作。无级调速，具有良好的微速 性能。
先做人后做事，品质改变世界
1
SCC9000 液压履带起重机
卷筒直径 主
变 最外工作层绳速 幅 装 钢丝绳直径 置 主变幅钢丝绳长度
三一履带吊培训资料
18%
27.5 Volt
123 bar
56.6 ℃
Y:1.0? X:1.0?
123456.5
12.3
h
℃
M
Aux
12.3
12.3
Kpa
m/s
BOOM
JIB
系统 设定
状态 查询
故障 查询
时间 设置
故障
系统
确认
信息
F1
F2
F3
F4
F5
F6
一览无余的整机状态诊断
运输
二、SCC1000C履带起重机卖点分析
6160 7760 6760 1200 910 26/275/13 26/*/1 20/*/* 11 三菱6D22-T 184/2000 400 10280×3400×3190 34 113.9 40.5 30 0.085 11、30、50、65、100
7280 7798 6770 1200 1015 26/285/12 26/210/1 20/230/14 9 康明斯QSL9 209/2000 286 9020×3300×3020
二、SCC1000C履带起重机卖点分析 8、已通过通过欧盟CE认证及北美认证。
整机结构
二、SCC1000C履带起重机卖点分析
二、SCC1000C履带起重机卖点分析
整机结构 1、可配快速锁节式德国进口钢丝绳，安装方便，寿命更长； 2、履带架、配重具有自装卸功能； 3、折线卷筒设计能保证多层缠绕不乱绳； 4、非大圆弧司机室，视野更加开阔真实，操作更加人性化设计。
SCC1000C履带起重机
上海三一科技有限公司
二、SCC1000C履带起重机卖点分析
总体介绍
主要参数
55吨履带吊说明书参数表

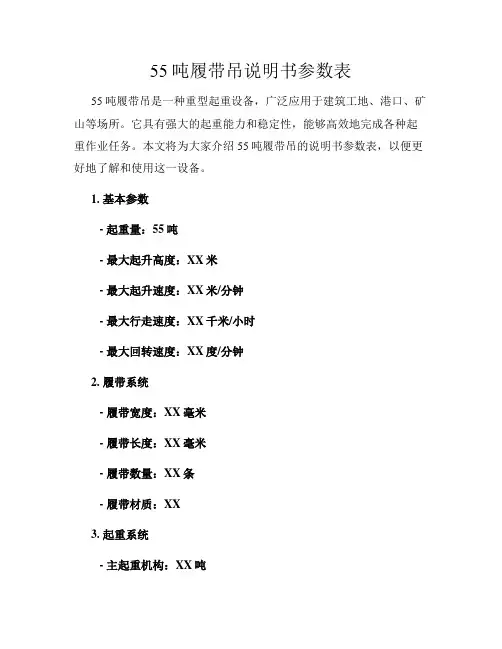

55吨履带吊说明书参数表55吨履带吊是一种重型起重设备，广泛应用于建筑工地、港口、矿山等场所。
它具有强大的起重能力和稳定性，能够高效地完成各种起重作业任务。
本文将为大家介绍55吨履带吊的说明书参数表，以便更好地了解和使用这一设备。
1. 基本参数- 起重量：55吨- 最大起升高度：XX米- 最大起升速度：XX米/分钟- 最大行走速度：XX千米/小时- 最大回转速度：XX度/分钟2. 履带系统- 履带宽度：XX毫米- 履带长度：XX毫米- 履带数量：XX条- 履带材质：XX3. 起重系统- 主起重机构：XX吨- 辅助起重机构：XX吨- 起重机构数量：XX个- 起重机构工作范围：XX米4. 动力系统- 发动机型号：XX- 发动机功率：XX千瓦- 燃油类型：XX- 燃油消耗率：XX升/小时5. 控制系统- 控制方式：手动/遥控- 控制台位置：驾驶室/地面- 控制系统品牌：XX- 控制系统功能：起升、行走、回转等6. 安全系统- 重载保护装置：有- 高度限位装置：有- 倾覆保护装置：有- 紧急停机装置：有7. 其他参数- 总重量：XX吨- 外形尺寸：长×宽×高（单位：米）- 工作温度范围：XX摄氏度- 防护等级：IPXX以上是55吨履带吊的说明书参数表，这些参数可以帮助用户更好地了解设备的性能和特点。
在使用履带吊时，需要根据具体的工作需求和环境条件进行合理的选择和操作。
55吨履带吊具有较大的起重能力，可以应对各种复杂的起重任务。
在建筑工地上，它可以用于吊装大型构件、安装钢结构、拆除建筑物等工作；在港口，它可以用于装卸货物、修理船舶等；在矿山，它可以用于采矿、运输矿石等。
无论是在哪个行业，55吨履带吊都能够发挥重要的作用。
为了确保55吨履带吊的安全运行，用户在使用前应仔细阅读说明书，并按照操作规程进行操作。
在起重过程中，要注意保持吊车的稳定，避免超载和倾覆等危险情况的发生。
同时，定期对设备进行维护保养，保证其良好的工作状态。
55吨履带拆装方案
项目装置55T履带吊组装方案编制：审核：批准：公司2018年11月目录一、XGC55履带起重机简述 (3)二、主臂作业工况的组装 (3)三、临时组装场地 (4)四、安全保证措施 (5)五、JSA工作危险性分析 (6)一、XGC55履带起重机简述履带起重机型号XGC55；最大额定起重量：55t；履带起重机外形图如下：二、主臂作业工况的组装55吨履带吊现场组装臂杆长31米，现场需组装4节臂杆（包括基础杆），其中基础杆跟主机及履带一起整车装运到现场，基础杆6.5米，中间臂杆3米、6米及9米，臂杆头6.5米。
臂杆边长1.4米*1.4m,故在组装臂杆时，只需用25吨汽车吊辅助吊装臂杆，臂杆吊装到指定位置后，将臂杆轴销插入组装孔内。
三、临时组装场地55吨履带吊组装场地在气体分馏装置管廊的东南侧，靠近马路，组装时25吨吊车站在马路上，需占半侧马路；组装场地如下示意图：四.安全保证措施4.1进入生产区的施工人员，严格遵守现场的一切安全规章制度。
4.2吊车组装施工前，必须办理生产区施工许可证。
4.3进入施工现场，戴好安全帽和防护眼镜，穿好安全鞋。
4.4施工高度超过2米时，必须正确系好安全带。
4.5高空作业时不得随意向下或向上抛东西。
4.6超过6级大风，停止安装作业。
4.7雨雾天气，停止吊装作业。
应急救援预案1.1、高处坠落、物体打击、机械伤害等事故1.1.1、一旦发生高处坠落、物体打击、机械伤害等事故后，项目部应立即组织人员进行抢救，并电话通知公司应急反应组织机构，同时迅速呼叫医务人员前来现场进行抢救。
1.1.2、迅速排除致命和致伤因素：如搬开压在身上的重物；清除伤病员口鼻内的泥砂、呕吐物、血块或其他异物，保持呼吸道通畅等。
1.1.3、检查伤员的生命体征：检查伤病员呼吸、心跳、脉搏情况。
如有呼吸心跳停止，应就地立刻进行心脏按摩和人工呼吸。
1.1.4、止血：有创伤出血者，应迅速包扎止血，可用加压包扎、上止血带或指压止血等。
SCC550C推介书
目录‹整机基本尺寸 ... ................................................................... (2)‹主要技术特点 ... ................................................................... (1)‹主要性能参数表 ... .................................................................... . 2 ‹运输尺寸 ... ............................................................................... . 3 ‹变幅副臂运输尺寸 ... .............................................................. .. 6 ‹设备简介 ... ............................................................................... . 8 ‹工况组合 ... . (13)‹主臂 H 工况 ... ........................................................................ . 15 ‹ H 工况主臂组合 ... .. (16)‹ H 工况作业范围图 ... .............................................................. . 17 ‹ H 工况主臂载荷表 ... .............................................................. . 18 ‹固定副臂 FJ 工况 ... ............................................................. .. 19 ‹ FJ 工况作业范围图 ... (20)‹ FJ 工况副臂载荷表 ... (22)‹变幅副臂 LJ 工况 ... .............................................................. .. 26 ‹ LJ 工况作业范围图 ... (27)‹ LJ 工况载荷表 ... .................................................................... . 28‹整机基本尺寸‹主要技术特点1.安全的控制系统：工作和安装两种操作模式方便可靠；离机停止动作、紧急电气控制等功能，安全及监控装置齐全。
中联QUY550履带起重机技术规格书
中联牌QUY550履带起重机技术规格书长沙中联重科工程起重机分公司2011年8月目录1.产品主要特点2.外形尺寸和主要参数1）风电鹅头臂工况外形尺寸2）主要性能参数3）主要运输部件外形尺寸及重量3.技术说明1）机构2）系统3）安全装置4）操纵室5）吊钩4.臂架系统5.起重特性1.产品主要特点●高端配置，确保设备安全可靠1）、采用BENZ或VOLVO原装进口大功率电喷发动机，动力强劲，喷油量可以根据转速自动调节，更节能，更环保；2）、回转支承为高精度三排滚柱式外啮合支承，强度高，韧性好，使得回转平稳，可靠性高，使用寿命更长；3）、臂架采用进口高强度管材，拉板采用瑞典进口960高强板，主要结构件材料均采用高强度钢材，保证整车强劲的起重性能和安全可靠性；4）、采用进口钢绳，LEBUS 卷筒多层缠绕不乱绳，减速机内藏，噪音低、高效率、长寿命、换油方便；5）、无渗漏的卡套接头：整个液压系统管路联接均采用国际知名品牌的卡套接头，能够更广泛的适应高温、高寒环境而无渗漏。
6）、完善的应急操作系统：当PLC控制系统失效的情况下，可以启用应急操作系统完成作业；7）、多选择的发动机油门转速控制，系统设有脚踏油门、手动油门、自动油门等，用户根据实际情况随时可以任意选择；8）、所有卷扬工作振动提示。
操作手柄上均带有振动器，根据相应卷扬动作的速度快慢，振动频率相应改变，让操作者得到最直观的感受；9）、具有专利保护的重心实时检测系统，实时检测重心位置和计算履带接地比压；10）、低温冷启动装置及液压油加热装置的配置，使寒冷地区的作业不再困难。
12）、机电液多重防后倾装置防止臂架后翻，确保安全保护有效；5）、液压系统的自动调温功能：当系统的油温超过45℃时，系统自动散热，确保系统的正常运行；13）、可选配的防雷击装置，在多雨雷电区域对设备形成有效保护。
●优良的作业特性1）、起重能力高，安全储备大；2）、100％额定载荷带载直线行走；3）、电液比例控制系统：系统实现了发动机功率、扭矩与液压系统的功率、扭矩、速度的全程自动匹配，为最优化控制；4）、高效节能：系统中采用了变量柱塞泵与变量马达的匹配形式。
SRC550H越野起重机-三一重工
轴载荷
前轴
后轴
22500 22200
kg
kg
总重
44700 kg
SRC550H 越野起重机/55公吨起重量
SRC550H• ROUGH-TERRAIN• CRANE 55• METRIC• TONS• CAPACITY
PAGE
02
技术参数 尺寸 技术参数
技术描述 底盘 上车
主臂 工作范围 起重能力
副臂 工作范围 起重能力
PAGE
08
SRC550H越野轮胎起重机主要技术参数
类别 项目
参数
单位
整机全长 尺
整机全宽 寸
整机全高
参 轴距
数 轮距
14000 mm
3300
mm
3760
mm
4000
mm
2502
mm
最高行驶速度
40
km/h
最小转弯半径(2轮/4轮)
12.3/6.7 m
最小离地间隙 行
接近角 驶 离去角 参 制动距离（20km/h） 数 最大爬坡度
最长主臂 数
支腿跨距（横向×纵向）
987/1500 N.m/rpm
Tier 3
55
t
3
m
1789
kN.m
841
kN.m
7.2×7.2 m
基本臂
13.3
m
起升高度
最长主臂
43.8
m
最长主臂+副臂 60.1
m
基本臂
11.5
m
起重臂长度
最长主臂
42.5
m
最长主臂+副臂 58.5
m
副臂安装角
0\15\30 °
55吨履带拆装方案
项目装置55T履带吊组装方案编制：审核：批准：公司2018年11月目录一、XGC55履带起重机简述 (3)二、主臂作业工况的组装 (3)三、临时组装场地 (4)四、安全保证措施 (5)五、JSA工作危险性分析 (6)一、XGC55履带起重机简述履带起重机型号XGC55；最大额定起重量：55t；履带起重机外形图如下：二、主臂作业工况的组装55吨履带吊现场组装臂杆长31米，现场需组装4节臂杆（包括基础杆），其中基础杆跟主机及履带一起整车装运到现场，基础杆6.5米，中间臂杆3米、6米及9米，臂杆头6.5米。
臂杆边长1.4米*1.4m,故在组装臂杆时，只需用25吨汽车吊辅助吊装臂杆，臂杆吊装到指定位置后，将臂杆轴销插入组装孔内。
三、临时组装场地55吨履带吊组装场地在气体分馏装置管廊的东南侧，靠近马路，组装时25吨吊车站在马路上，需占半侧马路；组装场地如下示意图：四.安全保证措施4.1进入生产区的施工人员，严格遵守现场的一切安全规章制度。
4.2吊车组装施工前，必须办理生产区施工许可证。
4.3进入施工现场，戴好安全帽和防护眼镜，穿好安全鞋。
4.4施工高度超过2米时，必须正确系好安全带。
4.5高空作业时不得随意向下或向上抛东西。
4.6超过6级大风，停止安装作业。
4.7雨雾天气，停止吊装作业。
应急救援预案1.1、高处坠落、物体打击、机械伤害等事故1.1.1、一旦发生高处坠落、物体打击、机械伤害等事故后，项目部应立即组织人员进行抢救，并电话通知公司应急反应组织机构，同时迅速呼叫医务人员前来现场进行抢救。
1.1.2、迅速排除致命和致伤因素：如搬开压在身上的重物；清除伤病员口鼻内的泥砂、呕吐物、血块或其他异物，保持呼吸道通畅等。
1.1.3、检查伤员的生命体征：检查伤病员呼吸、心跳、脉搏情况。
如有呼吸心跳停止，应就地立刻进行心脏按摩和人工呼吸。
1.1.4、止血：有创伤出血者，应迅速包扎止血，可用加压包扎、上止血带或指压止血等。
三一50吨(SCC500C)载荷表
第三篇载荷表目录1.概述 (3)1.1 载荷表计算条件 (3)1.2 载荷计算 (3)1.3 倍率选配表 (4)1.4 工作半径 (4)1.5 作业条件 (4)2.载荷表 (5)2.1 主臂工况(H) (5)2.2 安装加长臂时的主臂载荷表（HHC） (7)2.3 安装副臂时的主臂载荷表（HFJ） (9)2.4 固定副臂工况（FJ） (12)2.5 加长臂载荷表（HC） (14)3.操作范围示意图 (15)4.行走说明 (15)4.1起重机带负荷在水平或有坡度路面上行走 (15)4.2起重机无负荷在水平或有坡度的路面上行走 (15)稳定性的确定》。
SCC500C图表中所示额定载荷是在水平坚硬土壤地面、重物被缓慢平稳吊起、非行走吊重工作时的值，而额定载荷总是在倾翻载荷的75%以内。
1.2 载荷计算额定载荷包括起重钩、吊具及缠绕在吊钩到臂头上的钢丝绳的重量。
对于载荷表，实际起重量必须扣除吊钩、吊具及缠绕在主钩到臂头上的钢丝绳的重量(按2kg/m计算）。
吊钩重量表：吊钩5t 15t 30t 50t重量(t) 0.2 0.4 0.5 0.61.3 倍率选配表额定起重量的最大值（t）吊钩吨位1倍率2倍率3倍率4倍率5倍率6倍率7倍率8倍率9倍率5t 515t 5.7 11.4 15.030t 5.7 11.4 17.1 22.8 28.5 3050t 5.7 11.4 17.1 22.8 28.5 34.2 39.9 44.8 50 1.4 工作半径工作半径是指从吊车的回转中心到自由悬挂的载荷钢丝绳或载荷滑轮组的中心的水平距离。
吊臂角度是指吊臂中心线与水平线之间的角度。
在任何情况下操作半径决定起重能力。
1.5 作业条件起重机作业时,与其接触的地面不平度应控制在2°范围内，如果地面不平度超标,必须降负荷使用。
另外,在风速13.8m/s范围内允许操作起重机，场地要有足够的承压能力，在必要的工作范围内无障碍物。
55T履带吊拆卸、安装方案
55T履带吊安拆方案编制：审核：中国能源建设集团浙江火电建设有限公司二0一七年十二月二十日目录一、编制依据......................................................................... 错误!未定义书签。
二、编制说明......................................................................... 错误!未定义书签。
三、工程概况......................................................................... 错误!未定义书签。
四、工程特点分析................................................................. 错误!未定义书签。
五、总体施工安排................................................................. 错误!未定义书签。
六、施工方法......................................................................... 错误!未定义书签。
七、安全生产措施................................................................. 错误!未定义书签。
八、文明施工及环境保护措施............................................. 错误!未定义书签。
一、编制依据、履带式起重机随机资料；、《25T汽车吊使用说明书》；、GB6067-85《起重机械安全规程》、GB5972-86《起重机械用钢丝绳检验和报废实用规范》；、GB50278-98《起重设备安装工程施工及验收规范》；、JZJ33-2001《建筑机械使用安全技术规程》二、编制说明为了指导55T履带式吊机安装及拆卸工作，预防出现各种因不了解各工序施工方法而影响施工进程，特制定本方案。
徐工集团QUY55型液压履带起重机
徐工QUY55型液压履带式起重机一、制造厂徐工集团二、主要技术参数表2-1 徐工QUY55型液压履带式起重机主要技术参数项 目 单 位 数 值基本型主臂 t 55 最大额定起重量固定副臂 t 5 最大起重力矩 t.m 203．5主臂长度 m 13～52主臂变幅角度 ° 30～80固定副臂长度 m 9.15～15.25起升机构最大单绳速度m/min 121 （空载、第五层）主臂变幅机构最大单绳速度m/min 63 （第一层）最大回转速度 r/min 1.5最高行驶速度 km/h 1.35爬坡度 40%平均接地比压 MPa 0.069发动机功率 kW 125/158整机质量(主吊钩，13米臂) t 51运输状态单件最大质量 t 31运输状态单件最大尺寸m 11.5×3.47×3.4 （长×宽×高）三、外形尺寸徐工QUY55型液压履带式起重机外形尺寸图四、起重性能表2-2 主臂起重性能表单位：t说明：1、表中所示起重量的单位为吨； 2、起重作业前必须扩张履带、履带起重机应在平坦坚实的地面上作业； 3、表中所示起重量包括吊具和附件的重量； 4、表中所示起重量均不超过倾翻载荷的75%； 5、头部装有副臂时，起重量应减去2.5吨；主臂头部装有臂端单滑轮时，主臂长度不得大于49m，起重量应减去0.4吨，臂端单滑轮的起重量不得大于5吨。
单位：t单位：t单位：t单位：t1、表中所示的额定起重量，是在坚硬，平坦的地面上吊载工作的值、该值在倾翻载荷78%以内。
2、实际可以吊升载荷、是由上表起重量扣除（主钩+副钩）等一切吊具重量后的值。
3、平衡重为16.1吨，5吨钩重0.115吨。
4、工作时必须扩张履带。
5、工作幅度是吊重以后的实际工作幅度。
对表2-2、2-3中起重量的说明：1)表中额定起重量所表示的数值，指在给定的臂架长度、幅度条件下，在坚实、平坦（作业过程中不得下陷）、坡度不得大于1%的地面上本机所能保证的最大起重量，严禁超过该起重量作业，另外作业者须视各种不良条件（例如地面松软或不平、各种水平条件、风力、侧面负荷、摆动作用、多台起重机合力起吊）限制或降低起重机的起重量；2)表中所列额定起重量包括吊钩和吊具的重量；3)表中的工作幅度是指吊重后吊钩铅垂线到回转中心的水平距离，包括吊臂的变形量在内的实际值；4)表中没有列出额定值的空白区，表示不准将起重机用于该区所对应的条件；5)使用主臂时可以配置臂端单滑轮机构；6)臂端单滑轮机构的最大起重量（包括吊钩、吊具和起升钢丝绳）不准超过5t，性能表中的额定起重量小于5t时按性能表起吊；7)臂端单滑轮的最大幅度，不允许超过所对应的起重机主臂的最大幅度。
