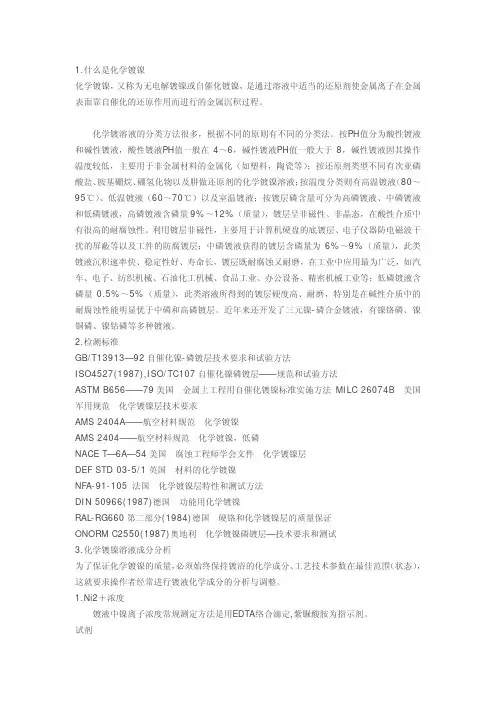

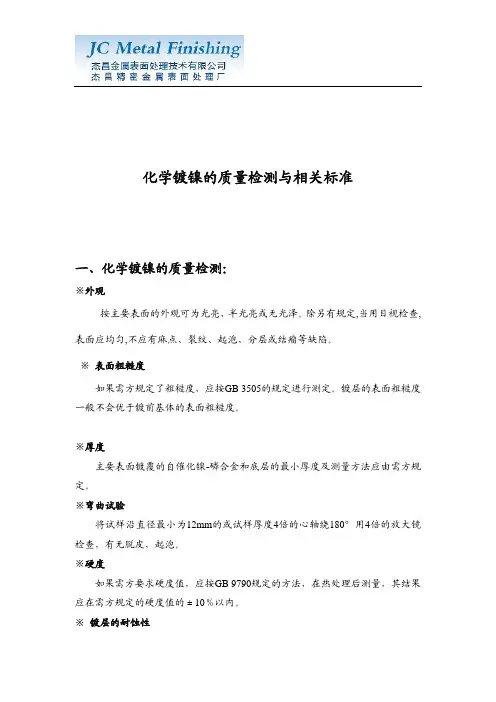

化学镀镍的质量检测与相关标准一、化学镀镍的质量检测：※外观按主要表面的外观可为光亮、半光亮或无光泽。
除另有规定,当用目视检查,表面应均匀,不应有麻点、裂纹、起泡、分层或结瘤等缺陷。
※表面粗糙度如果需方规定了粗糙度，应按GB 3505的规定进行测定。
镀层的表面粗糙度一般不会优于镀前基体的表面粗糙度。
※厚度主要表面镀覆的自催化镍-磷合金和底层的最小厚度及测量方法应由需方规定。
※弯曲试验将试样沿直径最小为12mm的或试样厚度4倍的心轴绕180°用4倍的放大镜检查，有无脱皮，起泡。
※硬度如果需方要求硬度值，应按GB 9790规定的方法，在热处理后测量，其结果应在需方规定的硬度值的±10％以内。
※镀层的耐蚀性参照ASTM-B-117进行， 如果需要，需方应规定镀层的耐蚀性及其试验和评价方法。
二. 化学镀镍的相关标准： 序号 标准号 标准名1 GB/T13913—92 自催化镍-磷镀层技术要求和试验方法2 ISO 4527—1987 自催化镍磷镀层——规范和试验方法3 ASTM B656—79 金属上工程用自催化镀镍标准实施方法4 MIL-C -26074—B 美国 军用规范 化学镀镍层技术要求5 AMS- 2404—A航空材料规范 化学镀镍7 NACE T—6A—54美国 腐蚀工程师学会文件 化学镀镍层8 DEF STD 03-5/1 英国 材料的化学镀镍9 NFA-91—105 法国 化学镀镍层特性和测试方法10 DIN50966—1987 德国 功能用化学镀镍11 RAL-RG660 德国 硬铬和化学镀镍层的质量保证12 ONORMC2550—1987 化学镀镍磷镀层—技术要求杰昌金属表面处理技术有限公司提供。
化学镀镍的一般操作规范
化学镀镍的一般操作规范简介成形的化学镀镍工艺是在1946年被发现及发展的，1955年美国通用运输公司（GA TC）建成了第一条化学镀镍生产线和第一个商品化学镀镍溶液。
20世纪80年代，化学镀镍工艺有了巨大的发展，研究和应用达到一个新的水平。
按照合金成分分类，化学镀镍可以分为镍-磷合金和镍-硼合金两大类。
从应用领域来讲，镍-磷合金使用更为普遍。
化学镀镍-磷合金按照溶液的pH可以分为碱性和酸性化学镀镍，碱性化学镀镍主要用于预镀的打底层，以提高电镀层与基体的结合力，在铝轮毂的电镀中有较成功的应用。
酸性化学镀镍工艺是目前化学镀镍中应用最为广泛的工艺，按镀层中的磷含量又可分为低磷（2%~5%）、中磷（6%~9%）和高磷（10%以上）。
化学镀镍工艺因为镀层均匀，亮度好，耐蚀性及耐磨性优良而被广泛应用于多个领域。
1. 化学镀镍的周期定义化学镀镍溶液在使用中的管理与维护非常重要，它与电镀液的管理与维护不同，化学镀镍液中的镍离子等多种成分时刻在不断变化，均需要外加补充，否则溶液不能正常进行。
化学镀镍溶液的好坏一般通过能够获得质量稳定镀层的周期（循环系数MTO）来评判。
目前市场销售的化学镀镍溶液多数分为A、B、C三种组份，周期数可以做到6~8，对镀层质量要求不严格的可以做到12个周期甚至以上。
1个周期的定义是，当溶液中主盐的添加量达到了开缸剂量时为一个周期，以1L溶液为例，开缸量一般为60毫升/升，在使用过程中，当A剂的补充量达到了60毫升时，该化学镀镍溶液就已使用一个周期。
2. 化学镀镍溶液的过程控制2.1应准确计算槽体容积和零件的表面积看似再简单不过的问题，但很多时候都难以做到。
化学镀镍溶液的消耗及补充与装载量有直接的关系，因此，溶液的装载量应得到重视。
装载量就是所要施镀零件的表面积与溶液体积之比值。
一般控制在1~1.5 dm2/L为最佳，过大（>2.5 dm2/L）或过小（<0.5 dm2/L）对溶液的稳定性都不好。
