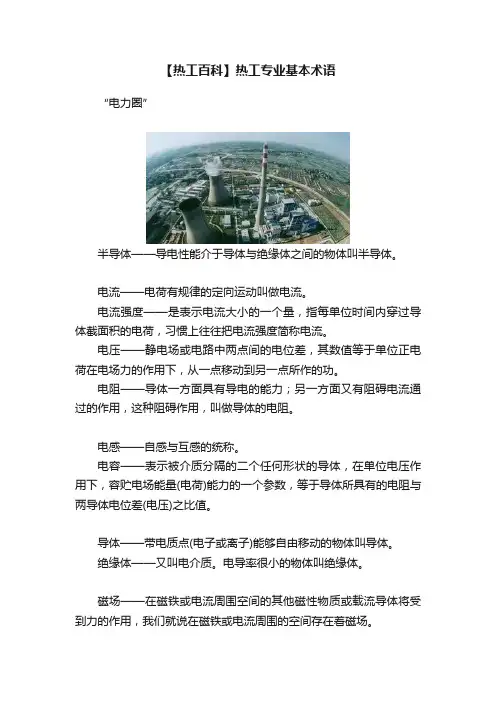

【热工百科】热工专业基本术语“电力圈”半导体——导电性能介于导体与绝缘体之间的物体叫半导体。

电流——电荷有规律的定向运动叫做电流。

电流强度——是表示电流大小的一个量，指每单位时间内穿过导体截面积的电荷，习惯上往往把电流强度简称电流。

电压——静电场或电路中两点间的电位差，其数值等于单位正电荷在电场力的作用下，从一点移动到另一点所作的功。

电阻——导体一方面具有导电的能力；另一方面又有阻碍电流通过的作用，这种阻碍作用，叫做导体的电阻。

电感——自感与互感的统称。

电容——表示被介质分隔的二个任何形状的导体，在单位电压作用下，容贮电场能量(电荷)能力的一个参数，等于导体所具有的电阻与两导体电位差(电压)之比值。

导体——带电质点(电子或离子)能够自由移动的物体叫导体。

绝缘体——又叫电介质。

电导率很小的物体叫绝缘体。

磁场——在磁铁或电流周围空间的其他磁性物质或载流导体将受到力的作用，我们就说在磁铁或电流周围的空间存在着磁场。

频率——每秒钟内电流(或电压)方向改变的次数叫做交流电的频率。

周期——交流电每变化一周所需要的时间叫周期。

感抗——交流电流过具有电感的电路时，电感有阻碍交流电流过的作用，这种作用叫做感抗。

容抗——交流电流过具有电容的电路时，电容有阻碍交流电流过的作用，这种作用叫做容抗。

效率——器件或机械，在传递能量过程中总要消耗一部分能量，这样输出的能量将小于输入的能量，输出能量(或功率)与输入能量(或功率)的比值，叫做效率。

退火——是将钢件加热到一定温度(稍高于临界温度)，在此温度停留一定时间，然后缓慢冷却(一般随炉冷却)，称退火。

正火——将钢件加热到临界温度以上，保温一段时间，然后用空气冷却，冷却速度比退火快。

回火——将淬硬的钢件加热到临界点温度以下，保温一段时间，然后在空气中或油中冷却下来。

淬火——将钢件加热到临界点温度以上，保温一段时间，然后在水、盐或油中（个别材料在空气中）急冷下来，使其得到高硬度。

火力发电厂热工自动化常用术语

1 自动化水平automatic level是指对一个电厂生产过程实现自动控制所达到的程度。

其中包括参数检测、数据处理、自动控制、顺序控制、报警和联锁保护及其系统设计的完善程度，最终体现在值班员的数量和所能完成的功能上。

火力发电厂的自动化水平是主辅机创造质量及可控性；仪表及控制设备质量；自动化系统设计的完善程度；施工安装质量；电厂运行维护水平及人员素质的综合体现。

2 热工自动化设计design ofthermal power plant automation根据所设计对象的条件和要求，配置一套具有对参数检测(monitor)、报警(alarm)、控制(control) (摹拟量控制、顺序控制或者开一关控制)和联锁保护(protection)功能在内的自动化系统。

即对锅炉、汽轮发机电组及其热力系统、燃烧及煤粉制备系统，除灰、除渣、脱硫、供水、补给水处理、燃油供油系统和环境保护所需的仪表和控制设备作统一的系统设计和安装布置设计。

2 ．1 控制方式control mode指值班员监视和控制机组或者其他热力设备的运行所采取的形式，主要内容是决定控制盘(台) 的位置和所能完成的监控任务。

普通分为就地控制和集中控制两类。

2 ．2 就地控制local control控制盘(台)布置在主辅设备(如锅炉、汽轮机)或者辅助系统(如除氧给水系统、热力网系统)附近，或者置于辅助车间(如补给水处理车间、供油泵房)内，值班员通过控制盘上设备，分别对被控对象的运行进行就地监视和控制。

2 ．3 集中控制centralized control将在生产上有密切联系的设备和相关系统的控制盘(台)集中布置在控制室内，值班员对配套运行的机组进行整体的监视和控制。

2 ．4 机炉集中控制boiler—turbine centralized control将锅炉、汽轮机的控制盘(台)集中布置在控制室内。

主要合用于主蒸汽系统为母管制的机组。

2 ．5 单元集中控制unit centralized control将单元机组(锅炉、汽轮机及发机电)的控制盘(台)(BTG 盘)集中布置在控制室内，值班员把单元机组作为一个整体进行监视和控制。

热工术语英文对照

热工术语英文对照3 热工术语英文3．1 自动化automation采用检测与控制系统，对生产过程进行生产作业，以代替人工直接操作的措施。

对火力发电厂而言，是热力生产过程与电力发供电过程控制的总称。

在一些国家中称“仪表与控制”3．1．1 热工自动化thermopower automation采用检测与控制系统对火力发电厂的热力生产过程进行生产作业，以代替人工直接操作的措施.3．1．2 电气自动化electric automation采用检测与控制系统对火力发电厂的发供电过程进行生产作业，以代替人工操作的措施二次回路(secondarycircuit)。

3．1．3 过程自动化process automation采用检测与控制系统对生产过程进行生产作业，以代替人工直接操作的措施。

3．1．4 全过程自动化whole process automation整个生产过程包括启动、调整、停机与故障处理及其后的重新启动等操作都能自动实现3．1．5 监视monitoring观察工艺系统及设备的运行参数及状态，以确认正确参数和状态，检出不正确参数和状态。

主要是通过测量系统的一个或多个变量并将被测值与规定值比较来完成的。

3．1．6 监控supervision对生产过程的监视和控制。

需要时，还包括保证可靠生产的安全保护操作。

3．1．7 集中监视系统centralized monitoring system集中监视系统由传感器、变送器及计算机与必要的外部设备组成，是把一个车间或整个工厂的所有必要的参数集中到控制盘(台)上的仪表或CRT(参见3．4．4．7)上进行集中显示，以便于值班员进行分析处理或对生产过程进行控制。

3．1．8 系统工程system engineering系统工程是为了最好地实现系统的目的，而对系统对象及其构成要素、组织结构、信息流、控制机构等进行分析和设计的技术。

一般常把极其复杂的研制对象称为系统，它是由相互作用并相互依赖的许多组成部分结合而成的具有特定功能的有机整体。

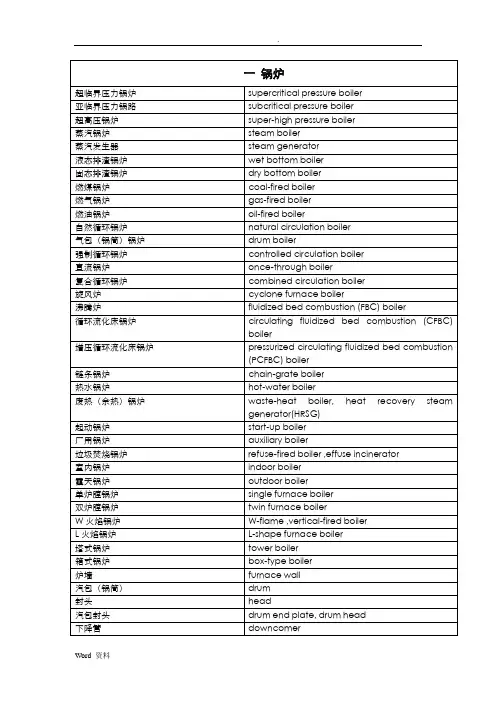

火力发电厂常用词汇汇总
