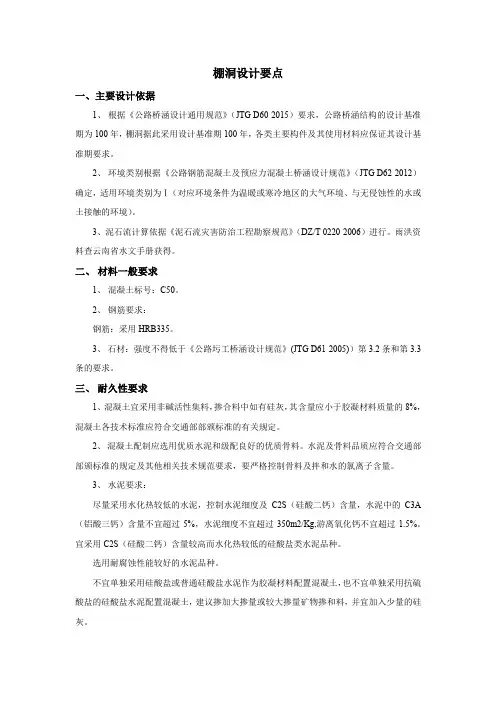

棚洞设计要点一、主要设计依据1、根据《公路桥涵设计通用规范》（JTG D60-2015）要求，公路桥涵结构的设计基准期为100年，棚洞据此采用设计基准期100年，各类主要构件及其使用材料应保证其设计基准期要求。
2、环境类别根据《公路钢筋混凝土及预应力混凝土桥涵设计规范》（JTG D62-2012）确定，适用环境类别为Ⅰ（对应环境条件为温暖或寒冷地区的大气环境、与无侵蚀性的水或土接触的环境）。
3、泥石流计算依据《泥石流灾害防治工程勘察规范》（DZ/T 0220-2006）进行。
雨洪资料查云南省水文手册获得。
二、材料一般要求1、混凝土标号：C50。
2、钢筋要求：钢筋：采用HRB335。
3、石材：强度不得低于《公路圬工桥涵设计规范》(JTG D61-2005)）第3.2条和第3.3条的要求。
三、耐久性要求1、混凝土宜采用非碱活性集料，掺合料中如有硅灰，其含量应小于胶凝材料质量的8%，混凝土各技术标准应符合交通部部颁标准的有关规定。
2、混凝土配制应选用优质水泥和级配良好的优质骨料。
水泥及骨料品质应符合交通部部颁标准的规定及其他相关技术规范要求，要严格控制骨料及拌和水的氯离子含量。
3、水泥要求：尽量采用水化热较低的水泥，控制水泥细度及C2S（硅酸二钙）含量，水泥中的C3A （铝酸三钙）含量不宜超过5%，水泥细度不宜超过350m2/Kg,游离氧化钙不宜超过1.5%。
宜采用C2S（硅酸二钙）含量较高而水化热较低的硅酸盐类水泥品种。
选用耐腐蚀性能较好的水泥品种。
不宜单独采用硅酸盐或普通硅酸盐水泥作为胶凝材料配置混凝土，也不宜单独采用抗硫酸盐的硅酸盐水泥配置混凝土，建议掺加大掺量或较大掺量矿物掺和料，并宜加入少量的硅灰。
4、骨料要求：骨料应洁净、质地坚硬（压碎指标不大于14%，吸水率不大于2%）、级配合格（针片状颗粒含量小于7%）、粒径形状好。
粗骨料堆积密度大于1450Kg/m3，即孔隙率不超过43%，混凝土所选粗骨料压碎值不大于10%，吸水率不大于2%，不宜采用有潜在碱活性物质的粗骨料。
圬工结构
三、砂浆
砂浆按其所用的胶结料的不同分为以下几种。
（1）水泥砂浆：胶结料为纯水泥（不加掺和 （2）混合砂浆：是用几种胶结料组成的砂浆。 （3）石灰砂浆：胶结料为石灰砂浆，强度较 低。
子学习情境二 砌体的强度与变形
一、砌体的抗压强度
1 砌体在受压破坏时，一个重要的特征是单块块材先开裂， 且砌体的抗压强度总是低于它所用的块件的抗压强度，致 使砌体的抗压强度不能充分发挥。这是由于砌体虽然承受 轴向均匀压力，但砌体中块材并不是均匀受压，而是处于
用于砌石的脚手架应环绕墩台搭设，用以堆放材料，并 支持施工人员砌筑镶面定位行列及勾缝。脚手架一般常 用固定式轻型脚手架（适用于6 m以下的墩台）、简易活 动脚手架（能用在25 m以下的墩台）以及悬吊式脚手架
二、墩台砌筑要点
1、墩台砌筑的一般要求 （1）砌块在使用前必须浇水湿润，表面如有泥土、水锈，应
要求外形方正成六面体表面凹陷深度不大于正成六面体表面凹陷深度不大于10mm10mm其厚度为其厚度为200200300mm300mm宽度为厚度的宽度为厚度的倍长度为厚度的倍长度为厚度的半细料石砌体半细料石砌体半细料石砌体同细料石砌体但砌缝宽度不大于半细料石砌体同细料石砌体但砌缝宽度不大于15mm15mm粗料石砌体粗料石砌体粗料石砌体同半细料石砌体但粗料石凹陷深度不大于粗料石砌体同半细料石砌体但粗料石凹陷深度不大于2020mmmm
三、砌体变形
1、砌体的弹性模量
由砌体的应力— 是一个变量，因而砌体的受压变形模量也有三种表示方法， 即初始弹性模量、割线弹性模量以及切线弹性模量。
由于在工程实际中，砌体的实际压力不超过（0.3-0.4
fcd ,而在此范围内，应力—应变曲线与割线较接近，
因此《桥规》
公路圬工桥涵设计规范

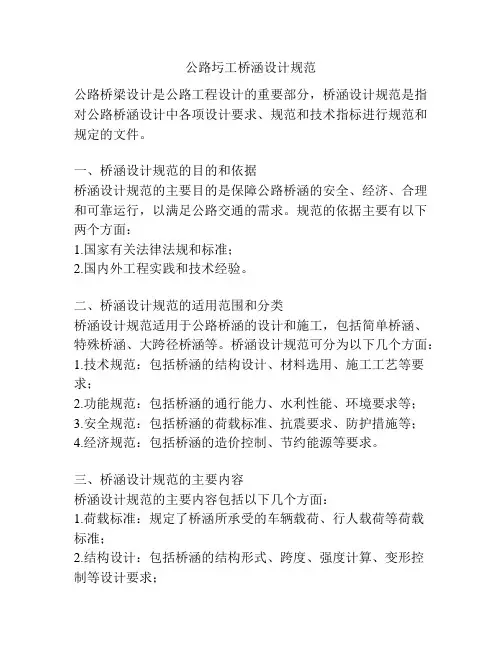

公路圬工桥涵设计规范公路桥梁设计是公路工程设计的重要部分，桥涵设计规范是指对公路桥涵设计中各项设计要求、规范和技术指标进行规范和规定的文件。
一、桥涵设计规范的目的和依据桥涵设计规范的主要目的是保障公路桥涵的安全、经济、合理和可靠运行，以满足公路交通的需求。
规范的依据主要有以下两个方面：1.国家有关法律法规和标准；2.国内外工程实践和技术经验。
二、桥涵设计规范的适用范围和分类桥涵设计规范适用于公路桥涵的设计和施工，包括简单桥涵、特殊桥涵、大跨径桥涵等。
桥涵设计规范可分为以下几个方面：1.技术规范：包括桥涵的结构设计、材料选用、施工工艺等要求；2.功能规范：包括桥涵的通行能力、水利性能、环境要求等；3.安全规范：包括桥涵的荷载标准、抗震要求、防护措施等；4.经济规范：包括桥涵的造价控制、节约能源等要求。
三、桥涵设计规范的主要内容桥涵设计规范的主要内容包括以下几个方面：1.荷载标准：规定了桥涵所承受的车辆载荷、行人载荷等荷载标准；2.结构设计：包括桥涵的结构形式、跨度、强度计算、变形控制等设计要求；3.施工工艺：规定了桥涵的施工过程、施工顺序、施工方法等；4.水利性能：包括桥涵的过水能力、抗洪能力、防渗措施等；5.环境要求：包括桥涵的噪音控制、颜色、景观设计等；6.抗震要求：规定了桥涵在地震作用下的抗震能力；7.安全措施：包括桥涵的防护设施、照明设施等安全要求。
四、桥涵设计规范应遵守的原则桥涵设计规范应遵守以下几个原则：1.科学合理原则：设计要符合工程力学原理和工程经济原则，既满足功能要求，又要充分考虑经济性；2.安全可靠原则：设计要保证桥涵的安全和可靠性，能够承受设计荷载和各种外力的作用；3.环境友好原则：设计要符合环境保护要求，包括噪音、颜色、景观等方面；4.便捷实用原则：设计要考虑桥涵的使用者和维护者的实际需求，便于施工和维修；5.审查遵从原则：设计要符合国家有关法律法规和标准，经过审查后方可施工。
盖板涵通用计算
一.盖板计算1.设计资料适用涵洞桩号:BK1+746；公路-Ⅰ级； 安全结构重要性系数γ0：0.93m；Ⅱ类环境；3.2m；0.2m；26cm； 1.992m；0.99m；3cm；C30；13.8Mpa； 1.39Mpa；12根直径为228cm；0.0045616m²；280Mpa； 26kN/m³；20kN/m³根据《公路圬工桥涵设计规范》(JTG D61-2005)中7.0.6关于涵洞结构的计算假定： 盖板按两端简支的板计算，可不考虑涵台传来的水平力.钢筋间距:1-3.0m×1.6m盖板涵洞身断面路面结构层和填土平均容重γ2=盖板涵计算书盖板宽b=净保护层厚度c=砼强度等级：砼轴心抗压强度fcd=环境类别： 汽车荷载等级： 盖板厚d= 净跨径：L 0= 计算跨径：L= 填土高：H=单侧搁置长度：钢筋总面积As= 盖板容重γ1=砼轴心抗拉强度ftd=mm的HRB335钢筋,受力主筋：钢筋轴心抗压强度fsd=2.外力计算1) 永久作用 (1) 竖向土压力46.43kN/m(2) 盖板自重6.69kN/m 2) 由车辆荷载引起的垂直压力（可变作用）根据《公路桥涵设计通用规范》(JTG D60-2015)中4.3.4的规定：计算涵洞顶上车辆荷载引起的竖向土压力时，车轮按其着地面积的边缘向下做30°角分布。
当几个车轮的压力扩散线相重叠时，扩散面积以最外面的扩散线为准。
根据《公路桥涵设计通用规范》(JTG D60-2015)中4.3.1关于车辆荷载的规定： 车辆荷载顺板跨长3.90m车辆荷载垂直板跨长7.30m 车轮重 PP=560kN车轮重压强L19.68kN/m²3.内力计算及荷载组合1) 由永久作用引起的内力 跨中弯矩67.99kN.m边墙内侧边缘处剪力79.68kN 2) 由车辆荷载引起的内力 跨中弯矩边墙内侧边缘处剪力跨中弯矩γ0q=K·γ2·H·b= p=P/La/Lb= V1=(q+g)·L 0/2= M1=(q+g)·L²/8= g=γ1·d·b/100= La=1.6+2·H·tan30°= Lb=5+2·H·tan30°= M2=p·L²·b/8= V2=p·L 0·b/2=γ01) 砼受压区高度0.093m根据《公路钢筋混凝土及预应力混凝土桥涵设计规范》(JTG D62-2004)中5.2.1关于 相对界限受压区高度ξb的规定:HRB335钢筋的相对界限受压区高度ξb=0.56。
公路桥涵施工技术规范
桥墩、台施工
施工方法：根据具体情况选择合适的施工方法，如浇筑、预制拼装等 施工流程：按照施工顺序进行，包括基础处理、模板安装、混凝土浇筑等步骤 施工要点：控制好桥墩、台的垂直度和位置，确保符合设计要求 质量检测：对施工完成的桥墩、台进行质量检测，确保符合规范要求
桥跨施工
施工流程：先进行基础施工， 再进行桥跨施工，最后进行桥 面铺装
添加标题
施工控制网的建立：根据地形和施 工要求，建立施工控制网
施工过程中的测量：在施工过程中， 对桥涵的各个部分进行测量和监控， 确保施工精度和质量
施工临时设施
施工便道：确 保施工机械和 材料运输畅通
施工用电：提 供施工所需电
力
施工用水：满 足施工和生活
用水需求
施工场地布置： 合理规划施工 场地，确保安 全和高效施工
桥涵施工过程中的质量检 测标准
质量检验的方法和手段
质量检测与检验的程序和 步骤
质量检验合格的标准和要 求
安全生产管理
定期开展安全教育培训，提 高员工安全意识和技能
建立安全检查制度，定期对 施工现场进行检查和评估
制定安全生产规章制度，明 确各级管理人员职责
实施危险源辨识和风险评估， 采取有效措施控制风险
质量标准
桥涵施工材料质量符合要求 施工工艺符合规范要求 桥涵结构稳定性符合设计要求 桥涵施工验收合格
质量控制要点
施工材料：符合设计要求，确保质量合格 施工工艺：按照规范要求，确保施工质量稳定可靠 施工监控：加强施工过程监控，及时发现并处理质量隐患 验收检测：严格执行验收检测标准，确保工程合格
质量检测与检验
建筑材料：调查当地建筑材料的供应情况，包括砂石、水泥、钢材等材料的来源和 质量
公路圬工桥涵设计规范

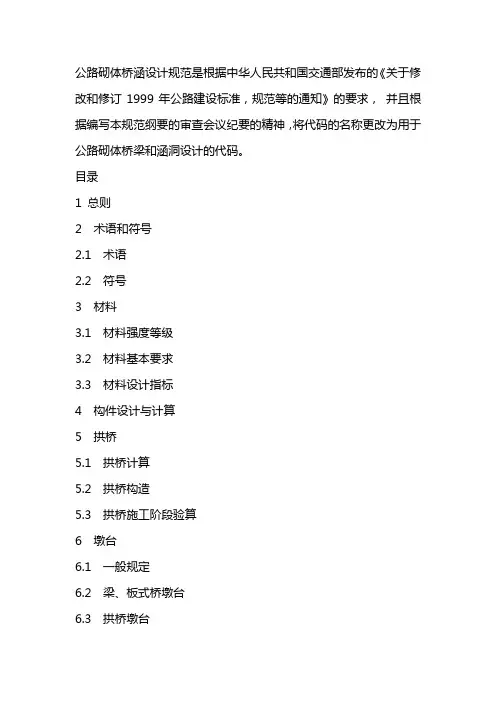

公路砌体桥涵设计规范是根据中华人民共和国交通部发布的《关于修改和修订1999年公路建设标准，规范等的通知》的要求，并且根据编写本规范纲要的审查会议纪要的精神，将代码的名称更改为用于公路砌体桥梁和涵洞设计的代码。
