5W 单声道高保真 D 类音频功率放大器 PA8157 产品手册说明书

PA8157是一款高保真、高效率、低EMI、免滤波、5W单声道D类音频功率放大器。

PA8157内部集成智能增益控制（AGC）功能，通过检测输出信号的大小智能调整系统的增益，避免了过载对于扬声器的损害，防止了音量过大时破音，提高了听觉体验。

PA8157采用了全差分免滤波PWM调制的系统架构，具有较好的抗干扰能力。

其内部集成的过温保护、欠压保护、过流保护、“咔哒”杂音抑制等功能模块，给PA8157提供了更强壮的鲁棒性，使其拥有了更好的适应能力。

PA8157采用了典型的SOP_8封装。

图1.典型应用图应用蓝牙音箱便携式音响设备玩具特点免滤波D类集成（自动增益控制）AGC功能输出功率5W@2Ω（THD+N=10%，5.3V）工作电压域：2.5V～5.5V低失真THD+N=0.04%@1W，5VPOP声抑制效率最高达88%高PSRR=75dB@217Hz过流、过温、欠压保护全差分/单端输入低噪声70μVrms（GAIN=10V/V）失调电压<20mV静态电流6mA@5V关断电流<0.1μASOP_8封装图2.PA8157封装图管脚定义极限参数注1注1：超出以上所列极限参数，可能造成器件的永久损坏。

以上给出的仅是极限范围，在这样的极限条件下工作，器件的技术指标不予保证。

长期在极限条件下工作，会影响器件可靠性。

R IN=10KΩ，C IN=100nF，T A=25℃，VDD=3.8V，除非有特殊说明图3.谐波失真+噪声 Vs. 输出功率图4.谐波失真+噪声 Vs. 频率图5. 输出功率 Vs. 输入幅度图6. 增益 Vs. 频率图7. 效率 Vs. 输出功率图8. AGC触发时间图9. AGC释放时间图10. PA8157测试原理图PA8157为脉冲输出方式，如图9所示，需要在两个输出各接一个低通滤波器将开关调制频率滤除，然后测量滤波器的差分输出即可得到模拟输出信号，VOP和VON被低通过滤后的差分输出波形和相减后的波形如下图所示。

PA中文说明书

ALLEN&HEATH PA系列使用手册PA系列混音器可提供一个标准的PA系统需要的所有音频信号处理工具，并使您的操控能够做到“随心所欲”。

您不仅很快就会熟悉并得心应手的操控他们，而且您还会发现他们所具备的许多创新的性能充分融合了设计师多年的现场调音经验。

如果您再仔细地检查一下他们的质量，您就更会欣赏他们标准化的结构：与我们的旗舰产品ML系列调音台有同样的单独的垂直型电路板，同样的电位器帽，同样的铜质内部耦合界面。

下面的几款PA调音台是带有双功率放大器的型号。

PA12-CP有8路单声道和2路立体声通道输入。

PA20-CP有16路单声道和两路立体声输入。

这两款在侧面均有保护装饰，在前面有便携手提把手。

双功放的配置可以根据现场扩音情况的不同来自由的使用。

例如，您可以用其来做没有返送系统的立体声主扩系统，或是有返送和单声道的系统，再或是与外部功放相连，用这台设备做两个独立的返送系统。

同时也可使用额外的单声道输出用于超低音的信号通道等等。

PA-CP系列的功率放大器是第三代的设计，其在出场之前都是已经做了严格的可靠性和声音质量的测试，其输出功率采用4Ω和8Ωohms可切换式恒定功率设计，功率均为2x500W/8Ω。

精准的均衡调节为音乐的创作和有效的抑制房间声反馈提供很大的方便。

所有输出通道都有四段的参量均衡，每个频段均设置有扫频旋钮，我们是通过理论的分析和实际存在的声染色等问题研究和测试以后，决定设置参量均衡，而不用图示均衡的。

并且我们的“EQ Visualiser”软件将会告诉您参量均衡对频率产生的作用，并可以通过此软件与调音台的MIDI口连接来自定义您所需要的效果。

快速启动1.确保安全:首先要确认设备的工作电压与您当地的供电电压是否一致，检查后面板的ON/OFF是否置于off的状态。

用随机配送的电源线将调音台与电源插座相连接。

在没有检查好所有的连线和控制设置之前不要打开任何开关。

并且要确保在前面和侧面机身的通风口处不要有东西挡住。

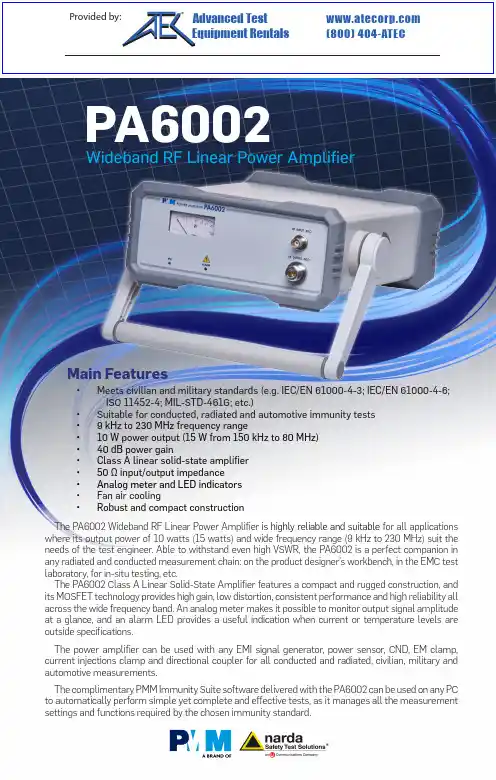

PA6002广带RF线性功率放大器用户说明书
