工艺管道常用中英文对照
管工中英文对照手册
1、管线号注示LS 1300 ---- 1” -– 1S1 -— HC (50)2、介质代号一览表3、管道绝热类型注示：绝热类型/厚度（50）管材等级管径管线号介质代号4管道空视图中英文对照表5、管道空视图材料表描述例句：PIPE，CS，SMLS，ASTM，A53-B，TYPE，S，S-140壁厚系列材质：碳钢无缝ASTM A53-B S型分项代码：管道，1500#，，CS BODY W/BCRIHF API TRIM 8.G.O,6、常用略语F-法兰G-垫片B-螺栓PIPE-管道REDUCTING TEE-异径三通TEE-三通90(45)ELL-90(45)弯头SWAGE-异径管CONC-同心ECC-偏心PLUG-管堵FIGURE 8-8字盲板GASKET-垫片STUD BOLT-螺栓BLIND-盲板CAP-管帽NIPPLE-短管THREADOLET-螺纹管座SOCKLET-承插管座SLIP-ON-平焊BALL VALVE-球阀GATE VALVE-闸阀CHECK(GLOBE) VLLVE-止回阀(截止阀)BUTTERFLY VALVE-蝶阀1500LB阀体及阀芯材质连接形式：对焊压力等级：1500LB7、合成氨装置分区一览表:8、管道材料材质色别码9、管道焊缝检验等级一览表ⅡⅢ比例为：100%10、管道材料规定英文缩写与中文对照表11、管道材料汇总表英文缩写与中文对照表12、阀门代码13、焊接材料选用一览表14、管道焊前预热及焊后热处理要求15、垫片代号：4 D F 1 垫片结构类型填充材料垫片厚度面性垫片基本材料常用垫片选号如下表：16、螺栓选型螺栓型式见注见表1注1：A为双头螺栓，B为单头螺栓，C为圆头螺栓20、管道常用数据表（直径、壁厚）简明管工手册海洋石油化肥项目合成氨装置目 录1. 管线号注示·· 1-A2. 介质代号一览表·· 1-A3. 管道绝热类型注示·· 1-B4. 管道空视图中英文对照·· 2-A5. 管道空视图材料表描述·· 2-A6. 常用略语··3-B 7. 合成氨装置分区一览表·· 4-A 8. 管道材料材质色别码·· 4-A 9.管道焊缝检验等级一览表··4-B 10. 管道材料规定英文缩写与中文对照·· 5-A 11. 管道材料汇总表英文缩写与中文对照·· 6-B 12. 阀门代码··7-A 13. 焊接材料选用一览表·· 15-B 14. 管道焊前预热及焊后热处理·· 15-B 15. 管道垫片选用·· 16A 16. 管道螺栓选用·· 16B 17. 管道支架·· 17A 18 管道坡口型式·· 17A 19 支管连接型式图·· 18 20管道常用数据表··19。
化工管道工程使用技术词汇中英文对照
化工管道工程使用技术词汇中英文对照化工管道工程是指针对化工领域的管道系统设计、施工、维护、管理和安全监控等的技术应用。
在化工管道工程中，有着大量的技术术语需要使用，下面将为大家介绍一些常见的化工管道工程技术词汇的中英文对照。
1. 阀门valve/gate valve2. 泵pump3. 压力pressure4. 流量flow rate5. 温度temperature6. 热传导thermal conductivity7. 尺寸dimensions8. 焊接welding9. 管道材料pipe material10. 耐蚀性corrosion resistance11. 管道尺寸diameter12. 压力等级pressure rating13. 压力容器pressure vessel14. 管件fittings15. 泄压valve relief valve16. 自动控制automatic control17. 管路输送pipeline transportation18. 管线管道pipeline19. 管路变化pipeline change20. 隔膜式阀门diaphragm valve21. 球阀ball valve22. 聚乙烯管道PVC pipe23. 聚氯乙烯管道PE pipe24. 钢管道steel pipe25. 抗震性seismic resistance26. 减震降噪shock absorption and noise reduction27. 绝缘insulation28. 推力补偿器thrust compensator29. 弹性支座elastic support30. 固定支座fixed support31. 密封seal32. 活塞泵piston pump33. 电导率conductivity34. 温度控制temperature control35. 动态平衡dynamic balance36. 冷却器cooler37. 管线附属设备pipeline ancillary equipment38. 流量计flow meter39. 泄漏检测器leak detector40. 自动取样器automatic sampler以上就是一些常见的化工管道工程技术词汇的中英文对照。
管道专业常用英文对照
管道专业常用英文对照一、PIPE （管道/管子）二、FITTING （管件/连接件）3、 FTE ——内螺纹 MTE 外螺纹 TOE 一端螺纹 TBE 两端螺纹4、 EQ TEE ——等径三通5、 RED TEE ——异径三通6、 CONC.RED ——同心大小头7、 ECC.RED ——偏心大小头8、 RED.CPLG ——异径管接头9、 H.CPLG ——半管接头 F.CPLG ——管接头10、 HOSE CONNECTOR,FTE/FEMALE HOSE END ——软管接头 11、 NIPPLE TOE （NPT ）——螺纹管段 12、 CAP FTE(NPT)——螺纹管帽 三、FLANGE （法兰）1、 BLIND ——盲板2、 RF/FF ——凸面/平面3、 SO/WN/LJ ——带颈平焊/带颈对焊/活套4、 STUB END ——翻边5、 MHRF/MH/MHRN ——需二次加工（详见相应图集） 四、V ALES （阀门）1、 GA TE VL ——闸阀2、 GLOBE V ALVE ——截止阀3、 BALL V ALVE ——球阀4、 DIAPHRAGM V ALVE ——隔膜阀5、 PRESS SAFETY V ALVE ——安全阀6、 JACKETED V ALVE ——夹套阀7、 BUTTERFLY V ALVE ——蝶阀8、 JACKETED FLUSH BOTTOM V ALVE ——夹套底部冲洗阀 9、 其它详见PID 图例 五、GASKETS （垫片） 六、BOLTS （螺栓） 七、其它：1、 JACKET SPACER （固定板）2、 JACKET BARRIER （隔板）3、 FLOW CIRCULA TOR （导流板）4、 PR GAGE （压力表）5、 TEMP GAGE （TEMP SCAN ELEMENT/TEMP ELEMENT ）测温元件管外径表。
工艺管道施工各专业名词缩写中英文对照表
工艺管道施工各专业名词缩写中英文对照表P 管子PipeEL 弯头ElbowELL 长半径弯头Long radius elbowELS 短半径弯头Short radius elbowMEL 斜接弯头（虾米腰弯头）Mitre elbowREL 异径弯头Reducing elbowT 三通TeeLT 斜三通Lateral teeRT 异径三通Reducing teeR 异径管接头（大小头）ReducerCR 同心异径管接头（同心大小头）Concentric reducerER 偏心异径管接头（偏心大小头）Eccentric reducerCPL 管箍CouplingFCPL 双头管箍Full couplingHCPL 单头管箍Half couplingRCPL 异径管箍Reducing couplingBU 内外螺纹接头BushingUN 活接头UnionHC 软管接头Hose couplerSE 翻边短节Stub endNIP 短节Pipe nipple or straight nippleSNIP 异径短节Swaged nippleCP 管帽（封头）CapPL 管堵（丝堵）PlugBLK 盲板BlankSB 8字盲板Spectacle blind （blank）RP 补强板Reinforcing pad法兰缩写中文名称英文名称PLG 法兰FlangeWNF 对焊法兰Welding neck flangeSOF 平焊法兰Slip-on flangeSWF 承插焊法兰Socket-welding flangeT 螺纹法兰Threaded flangeLJ 松套法兰Lapped joint flangeREDF 异径法兰Reducing flangeBF 法兰盖（日法兰）Blind flangeFSF 法兰密封面Flange scaling faceFF 全平面Flat faceRF 凸台面Raised faceMFF 凹凸面Male ａnd female faceLF 凹面Female faceLM 凸面Male faceRJ 环连接面Ring joint faceTG 榫槽面Tongue ａnd groove faceTF 榫面Tongue faceGF 槽面Groove face垫片缩写中文名称英文名称G 垫片GasketNMG 非金属垫片Non-metallic gasketAG 石棉垫片Asbestos gasketRG 橡胶垫片Rubber gasketTEG 聚四氟乙烯包复垫片PTFE envelope gasket SMG 半金属垫片Semimetallic gasketMJG 金属包垫片Meta-jacket gasketSWG 缠绕式垫片Spiral wound gasketMG 金属垫片Metallic gasketFMG 金属平垫片Flat metallic gasketSMSG 齿形金属垫片Solid metal serrated gasket LER 透镜式金属环垫Lens ring gasketOCR 八角形金属环垫Octagonal ring gasket OVR 椭圆形金属环垫Oval ring gasketIR/OR 内外定位环Inner ring ａnd outer ring IR 内定位环Inner ringOR 外定位环Outer ring坚固件缩写中文名称英文名称B 螺栓BoltSB 螺柱Stud boltNU 螺母NutTB 花蓝螺母TurnbuckleWSR 垫圈WasherSWSR 弹簧垫圈Spring washer阀门缩写中文名称英文名称GV 闸阀Gate valveGLV 截止阀Globe valveCHV 止回阀Check valveBUV 蝶阀Butterfly valveBAV 球阀Ball valvePV 旋塞阀Plug valve （cock）CV 调节阀Control valveSV 安全阀Safety valveRV 减压阀Pressure reducing valveST 蒸汽疏水阀Steam trapPRV 泄压阀Pressure relief valveBV 呼吸阀Breather valveNV 针形阀Needle valveAV 角阀DV 隔膜阀TWV 三通阀SGV 插板阀管道上用的小型设备缩写中文名称英文名称SPR 气液分离器SeparatorFA 阻火器Flame arresterSR 过滤器StrainerSRY Y型过滤器Y-type strainerSRT T型过滤器T-type strainerSRB 桶式过滤器Bucket type strainerTSR 临时过滤器Temporary strainerSIL 消声器SilencerSG 视镜Slight glassSC 取样冷却器Sample coolerDF 排液漏斗Drain funnelLM 管道混合器Line mixerRO 限流孔板Restriction orificeMO 混合孔板Mixing orificeRD 爆破片（爆破膜）Rupture diskEJ 补偿器Expansion joint隔热、伴热中文名称英文名称INS 隔热Thermal insulationH 保温Hot insulationC 保冷Cold insulationP 防烫伤隔热Personnel protection insulation T&I 伴热Tracing ａnd insulation管道伴热（冷）TracingEST 蒸汽外伴热External steam tracingIST 蒸汽内伴热Internal steam tracingSJT 蒸汽夹套伴热Steam-jacket tracingET 电伴热Electric tracing配管材料和等级缩写中文名称英文名称M 金属材料Metallic materialCS 碳钢Carbon steelCAS 铸钢Cast steelFS 锻钢Forged steelAS 合金钢Alloy steelSS 不锈钢Stainless steelAUSTSS 奥氏体不锈钢Austenitic stainless-steelCI 铸铁Cast ironMI 可锻铸铁Malleable ironDI 球墨铸铁Ductile ironAL 铝AluminumBRS 黄铜BrassBRZ 青铜BronzeCU 紫铜CopperLAS 低合金钢Low alloy steelFLAS 低合金锻钢Forged low alloy steelCLAS 低合金铸钢Cast low alloy steelTHK 壁厚ThicknessSCH 表号Schedule numberSTD 标准StandardXS 加强Extra strongXXS 特强Double extra strong装置布置缩写中文名称英文名称CN 建北Construction northE 东EastW 西WestS 南SouthN 北NorthH 水平HorizontalV 竖直、铅直、直立VerticalGRD 地坪GroundUG 地下UndergroundBL 装置边界线Battery limit lineESEW 事故沐浴洗眼器Emergency shower ａnd eye washer HS 软管站Hose stationML 接续分界线Match linePS 管道支架（管架）Piping supportPR 管桥Pipe rackSTRU 构架（构筑物）StructureBLDG 建筑物BuildingPD 清扫设施Purge devicePT 池PitSHLT 棚ShelterCOFF 围堰CofferdamFL 楼板FloorPF 平台Platform尺寸标注缩写中文名称英文名称EL 标高ElevationBOP 管底Bottom of pipeCOP 管中心Center of pipeTOP 管顶Top of pipeFOB 底平Flat on bottomFOT 顶平Flat on topCL（屯）中心线Center lineTL 切线Tangent lineSYM 对称的SymmetricalBOS 支架底Bottom of supportTOS 支架顶Top of supportCL 净距（净空）ClearanceCTC 中心至中心Center to centerCTF 中心至面Center to faceCTE 中心至端部Center to endETE 端到端End to endFEF 法兰端面Flange and faceFTF 面到面Face to faceD 直径DiameterDN 公称直径Nominal diameterID 内径Inside diameterOD 外径Outside diameterDIM 尺寸DimensionMAX 最大MaximumMIN 最小MinimumAVG 平均AverageAPP 约、近似ApproximatePT.EL 点标高Point elevation图表缩写中文名称英文名称PFD 工艺流程图Process flow diagramPID 管道和仪表流程图Piping & instrument diagram COD 接续图Continued on drawingDTL 详图DetailSPDWG（ISODWG）管段图Spool drawing （each line isometric drawing）DWGNO 图号Drawing numberDWGI 所在图号Drawing identificationLOW 材料表List of materialMTO 汇料Material take-offAPPX 附录AppendixJOB. No. 工号Job NumberBEDD 基础工程设计数据Basic engineering design dataDEDD 详细工程设计数据Detail engineering design dataREV. No. 修改号Revision numberREFDWG 参考图Reference drawingSC 采样接口Sample connection操作方式及工作参数缩写中文名称英文名称AUT 自动AutomaticML 手动Manual controlCHOP 链条操作Chain operatedCSC 铅封关Car seal closeCSO 铅封开Car seal openLC 锁闭Lock closedLO 锁开Lock openNC 正常关Normally closeNO 正常开Normally openATM 大气压AtmospherePN 公称压力Nominal pressureA 绝压G 表压（T）温度Temperature（P）压力Pressure施工缩写中文名称英文名称W 焊接WeldingAW 电弧焊Arc weldingGSAW 气体保护电弧焊Gas shielded-acre weldingEFW 电熔焊Electric fusion weldingERW 电阻焊Electric Resistance weldingGW 气焊Gas weldingLW 搭接焊Lap weldingBW 对焊Butt weldingTW 定位焊Tack weldingSW 承插焊Socket weldingCW 连续焊Continuous weldingSEW 密封焊Seal weldingSFG 堆焊SurfacingFW 现场焊接Field weldingHT 热处理Heat treatmentPH 预热PreheatingSR 应力消除Stress reliefPWHT 焊后热处理Post weld heat treatmentEIT 检查、探伤和实验Examination, inspection & testingVE 外观检查Visual examinationUI （UT）超声探伤Ultrasonic inspection （test）RI （RT）射线探伤Radiographic inspection （test）MPI （MT）磁粉探伤Magnetic particle inspection （test）LPI （PT）液体渗透检验Liquid penetration inspection （test）HADT 硬度实验Hardness testingHYDT 水压实验Hydraulic testingPNET 气压实验Pneumatic testing焊条Covered electrodeWW 焊丝Welding wireASSY 装配、组合AssemblyF 现场FieldF/F 现场制造Field fabricatedSF 现场决定Suit in fieldCSP 冷紧Cold springBCT 螺栓冷紧Bolt cold tighteningBHY 螺栓热紧Bolt hot tighteningCO 清洗口Clean outANNY 退火AnnealedPE 平端面Plain endBE 坡口端Beveled endTHR 螺纹ThreadHB 布氏硬度Brinell hardnessRC 洛氏硬度其他缩写中文名称英文名称FDN 基础FoundationINF 信息（资料）InformationREF 参考ReferenceREV 修改RevisionSEQ 序号（顺序）SequenceW/E 设备带来With equipmentW/I 仪表带来With instrumentCM 色标Color markCA 腐蚀裕度Corrosion allowanceUTL 公用系统UtilityUC 公用工程接头Utility connectionQTY 数量QuantityWT 重量WeightMHR 工时Man hourBC 螺栓分布圆Bolt circleHP 高点High pointLP 低点Low pointSUC 吸入（口）SuctionDIS 排出（口）DischargeSO 蒸气吹扫（口）Steam outNPT 美国标准锥管螺纹National standard taper pipe thread NPS 美国标准直管螺纹National standard straight pipe thread DR 排液DrainVT 放气VentRTG （压力）等级RatingCL 等级ClassSMLS 无缝Seamless。
(整理)化工管道工程使用技术词汇中英文对照
化工管道工程使用技术词汇中英文对照1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve 气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe2 管道用紧固件及螺纹2.1 紧固件螺栓bolt六角头螺栓hexagonal head bolt方头螺栓square head bolt螺柱，双头螺栓stud bolt环头螺检eye bolt沉头螺栓countersunk (head) screw地脚螺栓anchor bolt; foundation bolt松紧螺旋扣（花篮螺丝）turnbuckleU形螺栓U-boltT形螺栓T-bolt圆头螺钉round head bolt机螺栓，机螺钉maehine bolt顶开螺栓，顶起螺栓Jack screw自攻螺钉self tapping screw膨胀螺栓expansion bolt粗制的coarse精制的finished, fine螺母nut六角螺母hexagonal nut方螺母square nut蝶形螺母wing nut扁螺母flat nut锁紧螺母lock nut垫圈washer平垫圈plain washer球面垫圈spherical washer弹簧垫圈spring washer方垫圈square washer斜垫圈slant washer销轴pinned shan销pin开口销cotter pin定位销dowel pin带孔销pin with hole圆锥销taper pin铆钉rivet键key2.2 螺纹左螺纹left hand thread右螺纹right hand thread管螺纹pipe thread锥管螺纹taper pipe thread直管螺纹straight pipe thread梯形螺纹trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹metric ibread美国标准锥管螺纹American standard taper pipe thread (NPT) 螺孔tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属Ferrous Metal碳素钢carbon steel (CS)低碳钢low-carbon steel中碳钢medium-carbon steel高碳钢high-carbon steel普通碳素钢general carbon steel优质碳素钢high-quality carbon steel普通低合金结构钢general structure low-alloy steel合金结构钢structural alloy steel合金钢alloy steel低合金钢low alloy steel中合金钢medium alloy steel高合金钢high alloy steel耐热钢heat resisting steel高强度钢high strength steel复合钢clad steel工具钢tool steel弹簧钢spring steel钼钢molybdenum steel镍钢nickel steel铬钢chromium steel铬钼钢chrome-molybdenum steel铬镍钢chromium-nickel steel,chrome-nickel steel 不锈钢stainless steel (S.S.)奥氏体不锈钢Austenitic stainless steel马氏体不锈钢Martensitic stainless steel司特来合金（钨铬钴台金）Stellite耐蚀耐热镍基合金Hastelloy铬镍铁合金inconel耐热铬镍铁合金incoloy20合金20 alloy平炉钢（马丁钢）Martin steel镇静钢killed steel半镇静钢semi-killed steel沸腾钢rimmed steel; rimming steel; open-steel锻钢forged steel铸钢cast steel铸铁cast iron (C.I.)灰铸铁grey cast iron可锻铸铁malleable iron (MI)球墨铸铁nodular cast iron; nodular graphite iron 生铁pig iron熟铁，锻铁wrought iron铸件casting高硅铸铁high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢chromized steel镀铬的chromium-plated, chrome-plated镀层plating锻造，型钢swage锻造的，锻造forging轧制rolling热轧hot rolling冷轧cold rolling挤压extruding冷加工cold working热加工hot working拔制drawing3.1.3 有色金属Non-ferrous Metal铝aluminum铜，紫铜copper黄铜brass青铜bronze铝青铜aluminum bronze磷青铜phosphor bronze铝镁合金aluminum magnesium锰青铜manganese bronze蒙乃尔（注：镍及铜合金）Monel镍铜台金nickel copper alloy非铁合金nonferrous alloy钛titanium铅lead硬铅hard lead3.1.4 材料性能极限强度ultimate strength抗拉强度tensile strength屈服极限yield limit屈服点yield point延伸率percentage elongation抗压强度compressive strength抗弯强度bending strength弹性极限elastic limit冲击值impact value疲劳极限fatigue limit蠕变极限creep limit持久极限endurance limit布氏硬度Brinell hardness洛氏硬度Rockwell hardness维氏硬度Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度creep rupture strength断面收缩率reduction of area韧性toughess脆性brittleness延性ductility冷脆cold shortness冷流cold flow3.2 非金属材料Non-metallic Material塑料plastic丙烯腈—丁二烯—苯乙烯acrylonitrile-butadiene-styrene (ABS) 聚乙烯polyethylene (PE)聚氯乙烯polyvinyl chloride (PVC)苯乙烯橡胶styrene-rubber (SR)聚丁烯polybutylene (PB)聚丙烯polypropylene (PP)聚苯乙烯polystyrene (PS)氯化聚醚chlorinated polyether (CPE)聚酰胺polyamide (PA)聚碳酸酯polycarbonate (PC)聚甲基丙烯酸甲酯polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯polyvinylidene fluoride (PVDF)缩醛塑料acetal plastic尼龙塑料nylon plastic聚烯烃polyolefin (PO)石墨酚醛塑料graphite phenolic plastics聚四氟乙烯polytetrafluoroethylene (PTFE)纤维增强热塑性塑料fiber reinforced thermoplastics热塑性塑料thermoplastic热固性塑料thermosetting plastics胶粘剂adhesive溶剂胶接剂solvent cement树脂resin环氧树脂epoxy, epoxy resin聚酯树脂polyester resin聚酯纤维polyester fibers氟塑料fluoroplastics聚氨基甲酸酯polyurethane丙烯酸树脂acrylic resin脲醛树脂urea resin呋哺树脂furan resin乙烯丙烯二烃单体ethylene propylene diene monomer (EPDM) 合成橡胶synthetic rubber橡胶rubber丁腈橡胶nitrile butadiene rubber氯丁橡胶neoprene天然橡胶natural rubber乙丙橡胶ethylene propylene rubber (EPR)玻璃glass硼硅玻璃borosilicate glass耐火砖fire brick陶瓷ceramic搪瓷porcelain enamel木材wood3.3 型材型钢shaped steel, section steel, swage角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beamT型钢T-bar方钢square bar扁钢flat bar角钢hexagonal steel bar圆钢round steel; rod钢带strap steel钢板plate网纹钢板checkered plate腹板（指型钢的立板）web翼缘（指型钢的缘）wing3.4 填料及填料函填料packing石棉绳asbestos rope, asbestos cord．O形环O-ring自密封self-sealing四氟带Teflon tap带铬镍合金丝的石棉绳asbestos rope with inconel wire, inconel wire asbestos 浸聚四氟乙烯的石棉填料Teflon impregnated asbestos packing金属填料metallic stuffing填料箱，填料函packing box, stuffing box填料函压盖stuffing box gland4 管道等级及材料统计4.1 管道材料规定Piping Material Specification管道等级piping class; piping classification管道等级号class designation公称直径nominal diameter (DN); nominal (pipe) size公称压力nominal pressure (PN)压力级，等级，类别class (CL)低压low pressure (L.P.)中压medium pressure (M.P.)高压high pressure (H.P.)大气压atmosphere (ATM)真空vacuum工作压力operating pressure; working pressure设计压力design pressure工作温度operating temperature设计温度design temperature环境温度ambient temperature腐蚀裕量corrosion allowance管道附件piping attachment管道元件piping element壁厚wall thickness (WT)壁厚系列号schedule number (SCH. No.)加厚的，加强的extra heavy, extra strong双倍加厚的，双倍加强的double extra heavy, double extra strong通用连接组typieal installation分组（类）形式（如管道等级表）block form数据库data base文件file4.2 材料统计Material Take-off (MTO)汇总表summary sheet材料表bill of material (BM)综合管道材料表consolidated piping material summary sheet (CPMSS) 统计材料准确度accuracy of take-off材料情况报告material status report (MSR)散装材料bulk material编位号的itemized代码code number短代码short code数量quantity (QTY)重力weight净重net weight毛重gross weight5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement5.1 设备名称Equipment Name5.1.1 容器Vessel(1) 塔tower, column洗涤塔scrubber吸收塔absorber冷却塔cooling tower精馏塔fractionating tower蒸馏塔distillation tower再生塔regenering tower造粒塔prflling tower汽提塔stripper脱气塔degasifier合成塔synthesis tower(2) 反应器reactor聚台釜polymerizer转化器，变换器converter脱硫反应器desulphurization reactor甲烷化器methanator(3) 气柜gas-holder螺旋式气柜helical gas-holder湿式气柜wet gas-holder干式气柜dry gas-holder(4) 槽罐贮罐tank; storage tank缓冲罐knock out drum球罐spheroid, spherical tank罐drum接受槽receiver计量槽measuring tank加料槽feed tank排污罐blow down tank闪蒸罐flash drum汽包steam drum溶液贮槽solution storage tank地下槽sloptank(5) 其它设备分离器separator旋风分离器cyclone分子筛molecular sieve脱氧器deaerator搅拌器agitator干燥器dryer混合器mixer萃取器extractor结晶器crystallizer澄清器gravity settler净化器purifier气化器vaporizer吸附器adsorber融解槽melter减温器desuperheater升压器booster喷射器ejector喷头sprayer火炬flare消声器silencer(6) 换热器、加热器、冷却器换热器heat exchanger空冷器air cooler水冷却器water cooler冷凝器condenser螺旋板式换热器spiral plate heat exchanger蒸发器evaporator再沸器reboiler急冷器quencher深冷器chiller预热器preheater再热器reheater加热器heater电加热器electric heater过热器super heater给水加热器feed water heater中间冷却器inter cooler后冷却器after cooler5.1.2 工业炉及锅炉炉子furnace烧嘴burner锅炉boiler烟囱stack废热锅炉waste heat boiler辅助锅炉auxiliary boiler省煤器economizer回热炉direct-fired heater辐射段radiant section对流段convection section裂化炉reformer焚烧炉incinerator回转窑rotary kiln炉管furnace tube吹灰器soot blower观察孔observation door, peep door防爆门explosion door5.2 辅助用房名称5.2.1 生产用房分析室analyzer room变压器室transformer room配电室，变电所substation, switch room 蓄电池室battery room控制室control room通风室ventilating room贮藏室storage room维修间maintenance room办公室office5.2.2 生活用房更农室locker room盥洗室，厕所closet, lavatory, toilet5.3 图名管道布置平面piping arrangement plan (PAP)管道布置piping layout轴测图isometric drawing分区索引图key plan初版设备布置图（“A”版）preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版）inrernal approval plot plan ( “B” issue)用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版）confirm plot plan ( “D” issue)研究版设备布置图（“e”版）planning plot plan ( “E” issue)设计版设备布置图（“F”）designing plot plan ( “F” issue)施工版设备布置图（“G”版）construction plot plan ( “G” issue)5.4 厂房、站、单元压缩机房compressor house (room)泵房pump house (room)洗眼站eye washer station泡沫站foam station软管站，公用工程站hose station (HS), utility station成套设备package unit设施facilities罐区tank yard空分装置air separation facility5.5 设备布置设备位号equipment item number工厂plant工厂区界plant limit项目区界内侧inside battery limit (I.S.B.L.)项目区界batterylimit (BL)区界area limit区域边界zone iimit界外off site东east (E)西west (W)南south (S)北north (N)上up下down工厂北向plant north真实北向true north道路road小过道cat walk, cat way走道，过道walk way, gangway, access way污水坑（井）sump pit集水池catch basin沟槽through预留区trough场地future area铺砌区paving area非铺砌区unpaved area碎石铺面gravel paving橡皮铺面rubber paving面积，区域area体积，容积volume (VOL)5.6 管道布置管道设计piping design管道研究piping study走向研究routing study重要管道critical piping地上管道above ground piping地下管道under ground piping管网network of pipes管廊pipe rack管沟piping trench管间距line spacing管道跨距line span总管header, manifold旁路by pass排液drain放空vent上升管，垂直管riser导管canduit裸管bare iine管件直接fitting to fitting (FTF)管段，接口spool piece, spool取样接口sampling connection集液包drip leg伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line, jacketed piping 全夹套的full jacketed平面plan详图detail“ ”视图X view “X”“ ”剖视A-A section “A-A”连接图hook up drawing接续图continue on drawing (COD)接续线match line (M.L.)比例scale图例legend符号symbol管口表list of nozzles方位orientation管口方位nozzle orientation定位location相交intersection水平的horizontal垂直的，立式的vertical垂直，正交，垂直的perpendicular平行，平行的parallel水平安装horizontal installation垂直安装vertical installafion对称的symmetric相反（的），对面（的）opposite顺时针方向clock wise逆时针方向counter clock wise计算机辅助设计computer aided design (CAD)5.7 图面标注绝对标高abselute elevation海平面标高over-sea mean level (OSL)标高，立面elevation (EL)混凝土顶面top of concrete架顶面top of support (TOS)钢结构顶面top of steel梁项面top of beam (TOB)支撑点point of suppon (POS)管顶top of pipe (TOP)管底bouom of pipe (BOP)沟底boaom of trench管子内底invert (inside bottom of pipe)底平flat on bottom (FOB)顶平flat on top (FOT)工作点working point (W.P.)面至面face to face (F-F)中心至端面center to end (C-E)中心至面center to face (C-F)中心至中心，中至中center to center (C-C)坐标coordinate坐标原点origin of coordinate出口中心线center line of discharge入口中心线center line of suction中心线centerline (CL)入口inlet, suction出口outlet, discharge排出口exhaust距离distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图flow diagram工艺流程图process flow diagram (PFD)管道及仪表流程图piping and instrument flow diagram (PID)公用工程流程图utility flow diagram (UFD) 管线表line list; line schedule命名表；管道表nomenclature设备表equipment list (schedule)(2) 流体fluid空气air仪表空气instrument air工艺空气process air低压蒸汽low pressure steam中压蒸汽medium pressure steam高压蒸汽high pressure steam伴热蒸汽tracing steam饱和蒸汽saturated steam过热蒸汽superheated steam氧气oxygen氢气hydrogen氮气nitrogen燃料气fuel gas天然气natural gas火炬气flare gas酸性气sour gas液化石油气liquefired petroleum gas (LPG) 氨气ammonia gas冷却水cooling循环水circulating water锅炉给水boiler feed water热水hot water蒸汽冷凝水steam condensate盐水brine工艺水process water化学污水chemical sewage防腐剂corrosion inhibitor重油heavy oil石脑油naphtha燃料油fuel oil润滑油lubricating oil密封油sealing oil冷冻剂refrigerant载热体heating medium溶剂solvent溶液solution母液mother liquor单体monomer聚合物polymer均聚物homopolymer共聚物copolymer工艺液体process liquid工艺气体process gas硫酸sulphuric acid盐酸chlorhydric acid硝酸nitric acid烧碱caustic soda(3) 流体特性fluid characteristics 蒸汽压vapor pressure临界温度critical temperature临界点critical point临界压力critical pressure比热specific heat湿度humidity密度density比重specific gravity粘度viscosity闪点flash point融点melting point凝固点freezing point浓度concentration爆炸极限limit of explosion有毒的toxic可燃的；易燃的flammable (4) 其它回收recovery再生regeneration循环cireulatlon再循环；再生recycle补充make-up制备preparation蒸汽吹扫steaming out吹扫purge抽空；排空evacuation吹出blow-off排污blow down破真空vacuum breaker大气腿barometric leg备用stand-by化学清洗chemical cleaning净正吸入压头net positive suction head (NPSH) 进料feed成品product污染contamination大气污染atmospheric pollution环境温度ambient temperature5.8.2 建筑、结构建筑物building钢结构steel structure已有钢结构existing steel structure钢筋混凝土结构reinforced concrete construction 楼面floor平台platform (PF)地面ground level栏杆handrail楼梯stair; stair way直梯ladder柱column; post; stanchion基础foundation; footing粱beam斜撑；支撑bracing桁架；主粱girder构件member隔墙partition wall墙wall篦子板grate; grating吊装孔erection opening吊梁hoisting beam棚shelter窗window天窗skylight门door防火门fire door地漏floor drain防火层fire-proofing总图general plot plan路肩shoulder桩pile灌浆grouting风荷载wind load雪荷载snow load动力荷载dynamic load静荷载dead load活荷载live load风速wind velocity主导风向most frequent wind direction5.8.3 仪表盘（操作盘）panel就地盘local panel仪表盘instrument panel常开normally open常闭normally closed电缆槽（架）cable tray (channel); cable rack 仪表电缆槽（架）instrument cable tray (duct) 压力计manometer; pressure gauge热电偶thermocouple温度计thermometer液位计level gauge玻璃液位计gage glass温度计保护管thermowell流量计flow meter孔板orifice变送器transmitter联锁interlock仪器；设备apparatus仪器分析instrumental analysis自动分析automatic analysis气体分析gas analysis化学分析chemical analysis气相色谱仪gas chromatograph液相色谱仪liquid chromatograph质谱分析mass spectrometric analysis5.8.4 电气危险区划分hazardous area classification危险区平面图hazardous area plan电气盘electrical panel配电盘switch board电缆沟cable trench电流current直流direct current交流alternating current频率frequency相位phase功率因数power factor电压voltage电阻resistance电容capacitance静电static electricity接地grounding; easthing照明lighting; illumination避雷针lightning preventer电话telephone电线wire接线箱（盒）junction box导线管conduit tube5.8.5 设备固定鞍座fixed saddle滑动鞍座sliding saddle管口nozzle人孔manhole (MH)手孔handhole (HH)检查孔inspection hole吊柱davit切线tangent line焊接线weldingiine件号part humbet椭圆形封头ellipsoidal head加强圈reinforcing ring接地板earth lug吊耳lifting lug气缸cylinder轴shaft轴承bearing附件，附属设备accessory编位号设备itemized equipment无位号设备non-itemized equipment 5.8.6 水道(1) 流体原水raw water硬水hard water软水soft water饮用水potable water循环冷却水给水cooling water supply循环冷却水回水cooling water return脱盐水demineralized water苦咸水（碱性水）brackish water生活污水sanitary sewer工业废水industrial waste water雨水rain water污染雨水contaminated rain water消防水fire water(2) 装置、设施软化装置softener沉淀器settler沉淀池clarifier脱盐装置demineralizer水处理water traatment冷却塔cooling tower中和池neutralization tank化粪池septic tank渗滤井soak-away pit井well阀井valve pit清扫口clean out（3）消防消火栓hydrant水炮water monitor洒水器sprinkler水喷淋watering灭火器fire extinguisher消防水泵fire pump消防车fire fighting truck泡沫消防foam fire-fighting泡沫栓foam hydrant泡沫炮foam monitor消防软管接头fire hose connection6 管道支吊架Pipe Supports and Hangers 6.1 管架零部件Attachment of Support 管托shoe管卡clampU形夹（卡）clevis锻制U形夹forged steel clevis支耳；吊耳lug; ear耳轴trunnion。

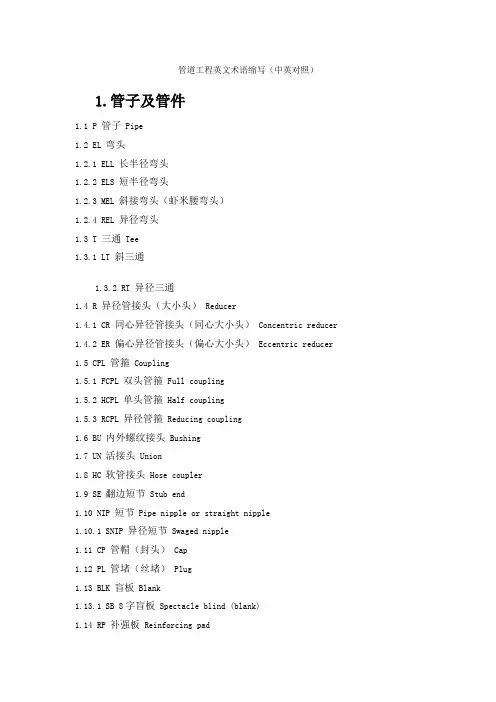

管道工程英文术语缩写
管道工程英文术语缩写（中英对照）1.管子及管件1.1 P 管子 Pipe1.2 EL 弯头1.2.1 ELL 长半径弯头1.2.2 ELS 短半径弯头1.2.3 MEL 斜接弯头（虾米腰弯头）1.2.4 REL 异径弯头1.3 T 三通 Tee1.3.1 LT 斜三通1.3.2 RT 异径三通1.4 R 异径管接头（大小头） Reducer1.4.1 CR 同心异径管接头（同心大小头） Concentric reducer 1.4.2 ER 偏心异径管接头（偏心大小头） Eccentric reducer 1.5 CPL 管箍 Coupling1.5.1 FCPL 双头管箍 Full coupling1.5.2 HCPL 单头管箍 Half coupling1.5.3 RCPL 异径管箍 Reducing coupling1.6 BU 内外螺纹接头 Bushing1.7 UN 活接头 Union1.8 HC 软管接头 Hose coupler1.9 SE 翻边短节 Stub end1.10 NIP 短节 Pipe nipple or straight nipple1.10.1 SNIP 异径短节 Swaged nipple1.11 CP 管帽（封头） Cap1.12 PL 管堵（丝堵） Plug1.13 BLK 盲板 Blank1.13.1 SB 8字盲板 Spectacle blind (blank)1.14 RP 补强板 Reinforcing pad2.法兰2.1 FLG 法兰 Flange2.1.1 WNF 对焊法兰 Welding neck flange2.1.2 SOF 平焊法兰 Slip-on flange2.1.3 SWF 承插焊法兰 Socket-welding flange2.1.4 T 螺纹法兰 Threaded flange2.1.5 LJ 松套法兰 Lapped joint flange2.1.6 REDF 异径法兰 Reducing flange2.1.7 BF 法兰盖（日法兰） Blind flange2.2 FSF 法兰密封面 Flange scaling face2.2.1 FF 全平面 Flat face 2.2.2 RF 凸台面 Raised face2.2.3 MFF 凹凸面 Male and female face2.2.4 LF 凹面 Female face2.2.5 LM 凸面 Male face2.2.6 RJ 环连接面 Ring joint face2.2.7 TG 榫槽面 Tongue and groove face2.2.8 TF 榫面 Tongue face2.2.9 GF 槽面 Groove face3.垫片3.1 G 垫片 Gasket3.1.1 NMG 非金属垫片 Non-metallic gasket3.1.1.1 AG 石棉垫片 Asbestos gasket3.1.1.2 RG 橡胶垫片 Rubber gasket3.1.1.3 TEG 聚四氟乙烯包复垫片 PTFE envelope gasket3.1.2 SMG 半金属垫片 Semimetallic gasket3.1.2.1 MJG 金属包垫片 Meta-jacket gasket3.1.2.2 SWG 缠绕式垫片 Spiral wound gasket3.1.3 MG 金属垫片 Metallic gasket3.1.3.1 FMG 金属平垫片 Flat metallic gasket3.1.3.2 SMSG 齿形金属垫片 Solid metal serrated gasket3.1.3.3 LER 透镜式金属环垫 Lens ring gasket3.1.3.4 OCR 八角形金属环垫 Octagonal ring gasket3.1.3.5 OVR 椭圆形金属环垫 Oval ring gakset3.1.3.6 IR/OR 内外定位环 Inner ring and outer ring3.1.3.7 IR 内定位环 Inner ring3.1.3.8 OR 外定位环 Outer ring4.坚固件4.1 B 螺栓 Bolt4.1.1 SB 螺柱 Stud bolt4.2 NU 螺母 Nut4.3 TB 花蓝螺母 Turnbuckle4.4 WSR 垫圈 Washer4.4.1 SWSR 弹簧垫圈 Spring washer5.阀门5.1 GV 闸阀 Gate valve5.2 GLV 截止阀 Globe valve5.3 CHV 止回阀 Check valve5.4 BUV 蝶阀 Butterfly valve5.5 BAV 球阀 Ball valve5.6 PV 旋塞阀 Plug valve (cock)5.7 CV 调节阀 Control valve5.8 SV 安全阀 Safety valve5.9 RV 减压阀 Pressure reducing valve5.10 ST 蒸汽疏水阀 Steam trap5.11 PRV 泄压阀 Pressur relief valve5.12 BV 呼吸阀 Breather valve5.13 NV 针形阀 Needle valve5.14 AV 角阀5.15 DV 隔膜阀5.16 TWV 三通阀5.17 SGV 插板阀6.管道上用的小型设备6.1 SPR 气液分离器 Separator 6.2 FA 阻火器 Flame arrester6.3 SR 过滤器 Strainer6.3.1 SRY Y型过滤器 Y-type strainer6.3.2 SRT T型过滤器 T-type strainer6.3.3 SRB 桶式过滤器 Bucket type strainer6.3.4 TSR 临时过滤器 Temporary strainer6.4 SIL 消声器 Silencer6.5 SG 视镜 Slight glass6.6 SC 取样冷却器 Sample cooler6.7 DF 排液漏斗 Drain funnel6.8 LM 管道混合器 Line mixer6.9 RO 限流孔板 Restriction orifice6.9.1 MO 混合孔板 Mixing orifice6.1 RD 爆破片（爆破膜） Rupture disk6.11 EJ 补偿器 Expansion joint7.隔热、伴热7.1 INS 隔热 Thermal insulation7.1.1 H 保温 Hot insulation7.1.2 C 保冷 Cold insulation7.1.3 P 防烫伤隔热 Personnel protection insulation7.2 T&I 伴热 Tracing and insulation7.3 T 管道伴热（冷） Tracing7.3.1 EST 蒸汽外伴热 External steam tracing7.3.2 IST 蒸汽内伴热 Internal steam tracing7.3.3 SJT 蒸汽夹套伴热 Steam-jacket tracing7.3.4 ET 电伴热 Electric tracing8.配管材料和等级8.1 M 金属材料 Metallic material 8.1.1 CS 碳钢 Carbon steel8.1.2 CAS 铸钢 Cast steel8.1.3 FS 锻钢 Forged steel8.1.4 AS 合金钢 Alloy steel8.1.5 SS 不锈钢 Stainless steel8.1.6 AUSTSS 奥氏体不锈钢 Austenitic stainless-steel8.1.7 CI 铸铁 Cast iron8.1.8 MI 可锻铸铁 Malleable iron8.1.9 DI 球墨铸铁 Ductile iron8.1.10 AL 铝 Aluminum8.1.11 BRS 黄铜 Brass8.1.12 BRZ 青铜 Bronze8.1.13 CU 紫铜 Copper8.1.14 LAS 低合金钢 Low alloy steel8.1.15 FLAS 低合金锻钢 Forged low alloy steel8.1.16 CLAS 低合金铸钢 Cast low alloy steel8.2 THK 壁厚 Thickness8.2.1 SCH 表号 Schedule number8.2.2 STD 标准 Standard8.2.3 XS 加强 Extra strong8.2.4 XXS 特强 Double extra strong9.装置布置9.1 CN 建北 Construction north9.2 E 东 East9.3 W 西 West9.4 S 南 South9.5 N 北 North9.6 H 水平 Horizontal9.7 V 竖直、铅直、直立 Vertical9.8 GRD 地坪 Ground9.9 UG 地下 Underground9.10 BL 装置边界线 Battery limit line9.11 ESEW 事故沐浴洗眼器 Emergency shower and eye washer 9.12 HS 软管站 Hose station9.13 ML 接续分界线 Match line9.14 PS 管道支架（管架） Piping support9.15 PR 管桥 Pipe rack9.16 STRU 构架（构筑物） Structure9.17 BLDG 建筑物 Building9.18 PD 清扫设施 Purge device9.19 PT 池 Pit9.20 SHLT 棚 Shelter9.21 COFF 围堰 Cofferdam9.22 FL 楼板 Floor9.23 PF 平台 Plateform10.尺寸标注10.1 EL 标高 Elevation 10.2 BOP 管底 Bottom of pipe10.3 COP 管中心Center of pipe10.4 TOP 管顶 Top of pipe10.5 FOB 底平 Flat on bottom10.6 FOT 顶平 Flat on top10.7 CL(屯) 中心线 Center line10.8 TL 切线 Tangent line10.9 SYM 对称的 Symmetrical10.10 BOS 支架底 Bottom of support10.11 TOS 支架顶 Top of support10.12 CL 净距（净空） Clearance10.13 CTC 中心至中心 Center to center 10.14 CTF 中心至面 Center to face10.15 CTE 中心至端部 Center to end10.16 ETE 端到端 End to end10.17 FEF 法兰端面 Flange and face10.18 FTF 面到面 Face to face10.19 D 直径 Diameter10.20 DN 公称直径 Nominal diameter10.21 ID 内径 Inside diameter10.22 OD 外径 Outside diameter10.23 DIM 尺寸 Dimension10.24 MAX 最大 Maximum10.25 MIN 最小 Minimum10.26 AVG 平均 Average10.27 APP 约、近似 Approximate10.28 PT.EL 点标高 Point elevation11.图表11.1 PFD 工艺流程图 Process flow diagram11.2 PID 管道和仪表流程图 Piping & instrument diagram11.3 COD 接续图 Continued on drawing11.4 DTL 详图 Datail11.5 SPDWG(ISODWG) 管段图 Spool drawing (each line isometric drawing) 11.6 DWGNO 图号 Drawing number11.7 DWGI 所在图号 Drawing identification11.8 LOW 材料表 List of material11.9 MTO 汇料 Material take-off11.10 APPX 附录 Appendix11.11 JOB. No. 工号 Job Number11.12 BEDD 基础工程设计数据 Basic engineering design data 11.13 DEDD 详细工程设计数据 Detail engineering design data 11.14 REV. No. 修改号 Recision number11.15 REFDWG 参考图 Reference drawing11.16 SC 采样接口 Sample connection12.操作方式及工作参数12.1 AUT 自动 Automatic 12.2 ML 手动 Manual control12.3 CHOP 链条操作 Chain operated12.4 CSC 铅封关 Car seal close12.5 CSO 铅封开 Car seal open12.6 LC 锁闭 Lock closed12.7 LO 锁开 Lock open12.8 NC 正常关 Normally close12.9 NO 正常开 Normally open12.10 ATM 大气压 Atmosphere12.11 PN 公称压力 Nominal pressure12.12 A 绝压12.13 G 表压12.14 (T) 温度 Temperature12.15 (P) 压力 Pressure13.施工13.1 W 焊接 Welding13.1.1 AW 电弧焊 Arc welding13.1.2 GSAW 气体保护电弧焊 Gas shielded-acr welding 13.1.3 EFW 电熔焊 Elecric fusion welding13.1.4 ERW 电阻焊 Electric Resistance welding13.1.5 GW 气焊 Gas welding13.1.6 LW 搭接焊 Lap welding13.1.7 BW 对焊 Butt welding13.4.8 TW 定位焊 Tack welding13.1.9 SW 承插焊 Socket welding13.1.10 CW 连续焊 Continuous welding13.1.11 SEW 密封焊 Seal welding13.1.12 SFG 堆焊 Surfacing13.1.13 FW 现场焊接 Field welding13.2 HT 热处理 Heat treatment13.2.1 PH 预热 Preheating13.2.2 SR 应力消除 Stress relief13.2.3 PWHT 焊后热处理 Post weld heat treatment13.3 EIT 检查、探伤和实验 Examination, inspection & testing 13.3.1 VE 外观检查 Visual examination13.3.2 UI (UT) 超声探伤 Ultrasonic inspection (test)13.3.3 RI (RT) 射线探伤 Radiographic inspection (test)13.3.4 MPI (MT) 磁粉探伤 Magnetic particle inspection (test) 13.3.5 LPI (PT) 液体渗透检验 Liquid penterant inspection (test) 13.3.6 HADT 硬度实验 Hardness testing13.3.7 HYDT 水压实验 Hydraulic testing13.3.8 PNET 气压实验 Pneumatic testing13.3.9 CE 焊条 Covered electrode13.3.10 WW 焊丝 Welding wire13.3.11 ASSY 装配、组合 Assembly13.3.12 F 现场 Field13.3.13 F/F 现场制造 Field faricated13.3.14 SF 现场决定 Suit in field13.3.15 CSP 冷紧 Cold spring13.3.16 BCT 螺栓冷紧 Bolt cold tightening13.3.17 BHY 螺栓热紧 Bolt hot tightening13.3.18 CO 清洗口 Clean out13.3.19 ANNY 退火 Annealed13.4 PE 平端面 Plain end13.5 BE 坡口端 Belelled end13.6 THR 螺纹 Thread13.7 HB 布氏硬度 Brinnel hardness13.8 RC 洛氏硬度14.其他14.1 FDN 基础 Foundation14.2 INF 信息（资料） Information14.3 REF 参考 Reference14.4 REV 修改 Revision14.5 SEQ 序号（顺序） Sequence14.6 W/E 设备带来 With equipment14.7 W/I 仪表带来 With instrument14.8 CM 色标 Colour mark14.9 CA 腐蚀裕度 Corrosion allowance14.10 UTL 公用系统 Utility14.11 UC 公用工程接头 Utility connection14.12 QTY 数量 Quantity14.13 WT 重量 Weight14.14 MHR 工时 Man hour14.15 BC 螺栓分布圆 Bolt circle14.16 HP 高点 High point14.17 LP 低点Low point14.18 SUC 吸入（口） Suction14.19 DIS 排出（口） Discharge14.20 SO 蒸气吹扫（口） Steam out14.21 NPT 美国标准锥管螺纹 National standard taper pipe thread 14.22 NPS 美国标准直管螺纹 National standard straight pipe thread 14.23 DR 排液 Drain14.24 VT 放气 Vent14.25 RTG （压力）等级 Rating14.26 CL 等级 Class14.27 SMLS 无缝 Seamless14.28 螺旋缝。
工业管道设计技术词汇(汉英)
Ⅰ. 按汉语分类编排1. 管道组成件piping component1.1 管子管子（按照配管标准规格制造的）pipe管子（不安配管标准规格制造的其他用管）Tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢管stainless steel pipe奥氏体不锈钢管Austenitic stainless steel pipe铁合金钢管Ferritic alloy steel pipe轧制钢管Wrought-steel pipe锻铁管Wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管Electric-resistance welded steel pipe电熔（弧）焊钢板卷管Electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管Spiral welded steel pipe镀锌钢管Galvanized steel pipe热轧无缝钢管Hot-rolling seamless pipe冷拔无缝钢管Cold-drawing seamless pipe水煤气钢管Water-gas steel pipe塑料管Plastic pipe玻璃管Glass tube橡胶管Rubber tube直管Run pipe; straight pipe1.2 管件Fitting弯头Elbow异径弯头Reducing elbow带支座弯头base elbow长半径弯头Long radius elbow短半径弯头short radius elbow长半径180℃弯头long radius return短半径180℃弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头double branch elbow三通Tee异径三通Reducing tee等径三通straight tee带侧向口的三通（右向或左向）Side outlet tee (right hand or left hand)异径三通（分支口为异径）Reducing tee (reducing on outlet)异径三通（一个直通口为异径）Reducing tee (reducing on one run)带支座三通Base tee异径三通（一个直通口及分支口为异径）Reducing tee (reducing on one runand outlet异径三通（两个直通口为异径）（双头式）reducing tee (reducing on both runs)(bull head)45℃斜三通45℃lateral45℃斜三通（支管为异径）45℃lateral (reducing on branch)45℃斜三通（一个直通口为异径）45℃lateral (reducing on one run)45℃斜三通（一个直通口及支管为异径）45℃lateral (reducing on one run andbranch)Y型三通（裤衩）Tube Y四通Cross等径四通Straight cross异径四通Reducing cross异径四通(一个分支口为异径) Reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）Reducing cross (reducing on one runand one outlet)异径四通（两个分支口为异径）Reducing cross (reducing on both outlets)异径四通（一个直通口及两个分支口为异径）Reducing cross (reducing on onerun and both outlets)异径管Reducer同心异径管Concentric reducer偏心异径管Eccentric reducer锻制异径管Reducing swage螺纹支管台Threadolet焊接支管台Weldolet承插支管台Sockolet弯头支管台Elbolet斜接支管台Latrolet镶入式支管嘴Sweepolet短管支管台Nipolet支管台，插入式支管台Boss管接头Coupling; full coupling半管接头Half coupling异径管接头Reducing coupling活接头Union内外螺纹缩接（俗称补芯）Bushing管帽Cap [C]堵头Plug短节Nipple异径短节Reducing nipple; swage nipple1.3 弯管预制弯管Fabricated pipe bend跨越弯管Cross-over bend偏置弯管Offset bend90℃弯管Quarter bend环形弯管Circle bend单侧偏置90℃弯管Single offset quarter bendS型弯管S bend单侧偏置U形膨胀弯管single offset U bendU形弯管U bend双偏置U膨胀弯管Double offset expansion U bend斜接弯管Mitre bend三节斜接弯管3-piece mitre bend折皱弯管Corrugated bend圆度Roundness1.4 法兰Flange [FLG]整体管法兰Integral pipe flange钢管法兰Steel pipe flange螺纹法兰Threaded flange滑套法兰（包括平焊法兰）Slip-on flange [SO]; Slip-on welding flange承插焊法兰Socket welding flange松套法兰Lap joint flange [LJF]对焊法兰Weld neck flange [WNF]法兰盖Blind flange; Blind孔板法兰Orifice flange异径法兰Reducing flange盘座式法兰Pad type flange松套带颈法兰Loose hubbed flange焊接板式法兰Welding plate flange对焊环Welding neck collar (similar to stub end)平焊环Welding-on collar突缘短节Stub end; Lap翻边端Lapped pipe end松套板式法兰Loose plate flange压力级Pressure rating; Pressure rating class压力-温度等级Pressure-temperature rating法兰密封面：法兰面Flange facing突面Raised face [RF]凸面Male face [MF]凹面Female face [FMF]榫面Tongue face槽面Groove face环连接面Ring joint face全平面；满平面Flat face; Full face光滑突面Smooth raised face [SRF]法兰面加工Facing finish粗糙度Roughness光滑的Smooth齿形有Serrated均方根Root mean square [RMS]算术平均粗糙高度Arithmetical average roughness height [AARH]配对法兰Companion flange螺栓圆Bolt circle1.5 垫片Gasket [GSKT]垫片的型式type of gasket平垫片Flat gasket环形平垫片Flat ring gasket平金属垫片Flat metal gasket夹棉织物的橡胶Elastomer with cotton fabric insertion夹石棉织物的橡胶Elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶Elastomer with asbestos fabric insertion andwith wire reinforcement无石墨压缩白石棉垫片Non-graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片Compressed asbestos gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环Inner ring外环；外定位环Outer ring波纹金属垫片Corrugated metal gasket波纹金属包嵌石棉垫片Corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片Corrugated metal double jacketed asbestos filledgasket双夹套垫片Double jacketed gasket金属包石棉平垫片Flat metal jacketed asbestos filled gasket整体金属齿形垫片Solid metal serrated gasket槽形金属垫片Grooved metal gasket环形连接金属垫片Ring joint metal gasket八角环形垫片Octagonal ring gasket椭圆环形垫片Oval ring gasket透镜式垫片Lens gasket非金属垫片Non-metallic gasket1.6 阀门1.6.1 阀门结构，零件阀轭Yoke外螺纹阀杆及阀轭outside screw & yoke [OS&Y]阀杆Stem内螺纹Inside screw [IS]阀轭套Yoke sleeve阀杆环Stem ring阀座Valve seat (body seat)阀座环，密封圈Seat ring整体（阀）座Integral seat堆焊（阀）座Deposited seat阀芯（包括密封圈，杆等内件）Trim阀盘Disc阀盘密封圈Disc seat阀体Body阀盖Bonnet阀盖衬套Bonnet bush螺纹阀帽Screw cap螺纹阀盖Screw bonnet螺栓连接的阀盖Bolted bonnet [BB]活接阀盖（帽）Union bonnet [cap]螺栓连接的阀帽bolted cap [BC]焊接阀盖Welded bonnet [WB]本体阀杆密封Body stem seal石棉安全密封asbestos emergency seal倒密封Back seal压力密封的阀盖pressure seal bonnet动力操纵器Powered operator电动操纵器Electric motor operator气动操纵器pneumatic operator液压操纵器Hydraulic operator快速操纵器Quick-acting operator滑动阀杆Sliding stem正齿轮传动Spur gear operated伞齿轮传动Bevel gear operated扳手操作Wrench operated链轮Chain wheel手轮Hand wheel手柄Hand lever (handle)气缸（或液压缸）操纵的Cylinder operated链条操纵的Chain operated等径孔道Full bore; full port异径孔道Reducing bore; reduced port; Venturi port 短型short pattern紧凑型（小型）compact type笼式环(套环) lantern ring压盖Gland阀杆填料Stem packing阀盖垫片Bonnet gasket升杆式（明杆）Rising stem [RS]非升杆式（暗杆）Non-rising stem [NRS]指示器/限位器Indicator/stopper注油器Grease injector可更换的阀座环Renewable seat ring1.6.2 常用阀（1）闸阀Gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸板Flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀Through conduit gate valve（2）截止阀Globe valve球心型阀盘Globe type disc塞型阀盘Plug type disc可转动的阀盘Swivel disc（3）节流闪阀Throttle valve针阀needle valve（4）角阀Angle valve（5）Y型阀（Y型阀体截止阀）Y-valve (Y-body globe valve)（6）球阀ball valve三通球阀3-way ball valve装有地轴的Trunnion mounted耐火型Fire safe type浮动球阀Floating ball type防脱出阀杆blowout proof stem（7）蝶阀butterfly valve对夹式（薄片型）Wafer type凸耳式Lug type偏心阀板蝶阀Offset disc butterfly valve; Eccentric butterfly valve斜阀盘蝶阀Canted disc butterfly valve连杆式蝶阀Link butterfly valve（8）柱塞阀Piston type valve（9）旋塞阀Plug valve三通旋塞阀3-way plug valve四通旋塞阀Four-way plug valve旋塞Cock衬套旋塞Sleeve cock（10）隔膜阀Diaphragm valve橡胶衬里隔膜阀Rubber lined diaphragm valve直通式隔膜阀Straight-way diaphragm valve堰式隔膜阀Weir diaphragm valve（11）夹紧式胶管阀Pinch valve (用于泥浆，粉尘等)（12）止回阀Check valve升降式止回阀Lift check valve旋启式止回阀Swing check valve; flap check valve落球式止回阀Ball check valve弹簧球式止回阀Spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀Non-slam check valve底阀Foot valve切断式止回阀Stop check valve, Non-return valve活塞式止回阀Piston check valve斜翻盘止回阀Tilting disc check valve蝶式止回阀Butterfly check valve1.6.3 其它用途的阀安全泄气阀Safety valve [SV]安全泄液阀Relief valve [RV]安全泄压阀Safety relief valve杠杆重锤式Lever and weight type引导阀操纵的安全泄气阀Pilot operated safety valve复式安全泄气阀Twin type safety valve罐底排污阀Flush-bottom tank valve波纹管密封阀Bellow sealed valve电磁阀Solenoid valve; Solenoid operated valve电动阀Electrically operated valve, electric-motor operated valve气动阀Pneumatic operated valve低温用阀Cryogenic service valve蒸汽疏水阀Steam trap机械式疏水阀Mechanical trap浮筒式疏水阀Open bucket trap; open top bucket trap浮球式疏水阀Float trap倒吊桶式疏水阀Inverted bucket trap自由浮球式疏水阀Loose float trap恒温式疏水阀Thermostatic trap金属膨胀式蒸汽疏水阀Metal expansion steam trap液体膨胀式蒸汽疏水阀Liquid expansion steam trap双金属膨胀式蒸汽疏水阀Bi-metallic expansion steam trap压力平衡式恒温疏水阀Balanced pressure thermostatic trap热动力式疏水阀Thermodynamic trap脉冲式蒸汽疏水阀Impulse steam trap放气阀(自动放气阀) Air vent valve (automatic air vent valve)平板式滑动闸阀Slab type sliding gate valve盖阀Flat valve换向阀Diverting valve; Reversing valve热膨胀阀Thermo expansion valve自动关闭阀Self-closing gate valve自动排液阀Self-draining valve管道盲板阀Line-blind valve挤压阀Squeeze valve (用于泥浆及粉尘等)呼吸阀Breather valve风门，挡板Damper减压阀Pressure reducing valve; Reducing valve控制阀Control valve膜式控制阀Diaphragm operated control valve执行机构Actuator背压调节阀Back pressure regulating valve差压调节阀Differential pressure regulating valve压力比例调节阀Pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀Block valve; Shut-off valve; Stop valve调节阀Regulating valve快开阀Quick opening valve快闭阀Quick closing valve隔断阀isolating valve三通阀Three-way valve夹套阀Jacketed valve非旋转式阀Non-rotary valve排污阀Blowdown valve集液排放阀Drip valve排液阀Drain valve放空阀Vent valve卸载阀Unloading valve排出阀Discharge valve吸入阀Suction valve多通路阀Multiport valve取样阀Sampling valve手动阀Hand-operated valve; Manually operated valve锻造阀Forged valve铸造阀Cast valve（水）龙头Bibb; Bid; Faucet抽出液阀（小阀—）Bleed valve旁路阀By-pass valve软管阀Hose valve混合阀Mixing valve破真空阀Vacuum breaker冲洗阀Flush valve第一道阀；根部阀Primary valve根部阀Root valve总管阀Header valve事故切断阀Emergency valve1.7 管道特殊件1.7.1 管道特殊件（组件）粗滤器Strainer过滤器Filter临时粗滤器（锥形）Temporary strainer (cone type)Y型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器Permanent filter丝网粗滤器Gauze strainer洗眼器及淋浴器Eye washer and shower视镜Sight glass阻火器Flame arrester喷嘴，喷头Spray nozzle取样冷却器Sample cooler消声器Silencer膨胀节Expansion joint波纹膨胀节Bellow expansion joint单波Single bellow双波Double bellow多波Multiple bellow压力平衡式膨胀节Pressure balanced expansion带铰链膨胀节Hinged expansion joint轴向位移型膨胀节Axial movement type expansion joint自均衡膨胀节（带外加强环）Self-equalizing expansion joint带接杆膨胀节Tied expansion joint万向型膨胀节Universal type expansion joint球形补偿器Ball type expansion joint; Flexible ball joint填函式补偿器Slip type (packed type) expansion joint单向滑动填料函补偿器Single action packed slip joint1.7.2 管道特殊原件Piping special element软管接头Hose connection [HC]快速接头Quick coupling金属软管Metal hose橡胶管Rubber hose挠性管Flexible tube鞍形补强板Reinforcing saddles补强板Reinforcement pad特殊法兰Special flange漏斗Funnel排液环Drip ring排液漏斗Drain funnel插板Blank垫环Spacer8字盲板Spectacle blind; Figure 8 blind限流孔板Restriction orifice爆破片Rupture disk法兰盖贴面Protective disc费托立克接头Victaulic coupling1.8 端部连接End connection法兰端Flanged end坡口端Beveled end[BE]对焊端Butt welded end平端Plain end [PE]承插焊端Socket welding end螺纹端Threaded end[TE]承口Bell end焊接端Welding end法兰连接（接头）Flanged joint对焊连接（接头）Butt welded joint螺纹连接；管螺纹连接Threaded joint; Pipe threaded joint锥管螺纹密封焊连接Seal-welded taper pipe threaded joint承插焊连接（接头）Socket welded joint承插连接（接头）Bell and spigot joint焊接接头Welded joint; Welding joint环垫接头Ring joint [RJ]万向接头Universal joint软钎焊连接（接头）Soldered joint搭接接头；松套连接Lapped joint外侧厚度切斜角Bevel for outside thickness内侧厚度切斜角Bevel for inside thickness内外侧厚度切斜角Bevel for combined thickness法兰式的Flanged [FLGD]对焊的Butt welded[BW]螺纹的Threaded [THD]承插焊的Socket welded [SW]小端为平的Small end plain [SEP]大端为平的Large end plain[LEP]两端平Both ends plain[BEP]小端带螺纹Small end thread [SET]大端带螺纹large end thread [LET]两端带螺纹Both end thread [BET]一端带螺纹One end thread [OET]支管连接Branch connection焊接支管Branch pipe welded directly to the run pipe 2. 管道用紧固件及螺纹2.1 紧固件螺栓Bolt六角头螺栓Hexagonal head bolt方头螺栓Square head bolt螺柱，双头螺柱Stud bolt环头螺栓Eye bolt沉头螺栓Countersunk (head) screw地脚螺栓Anchor bolt; Foundation bolt松紧螺旋扣（花兰螺丝）TurnbuckleU形螺栓U-boltT形螺栓T-bolt圆头螺钉Round head bolt机螺栓，机螺钉Machine bolt顶开螺栓，顶起螺栓Jack screw自攻螺钉Self-tapping screw膨胀螺栓Expansion bolt粗制的Coarse精制的Finished; fine螺母Nut六角螺母Hexagonal nut方螺母Square nut蝶形螺母Wing nut扁螺母Flat num锁紧螺母Lock num垫圈Washer平垫圈Plain washer球面垫圈Spherical washer弹簧垫圈Spring washer方垫圈Square washer斜垫圈Slant washer销轴Pined shaft销Pin开口销Cotter pin定位销Dowel pin带孔销Pin with hole圆锥销Taper pin铆钉Rivet键Key2.2 螺纹左螺纹Left hand thread右螺纹Right hand thread管螺纹Pipe thread锥管螺纹Taper pipe thread直管螺纹Straight pipe thread梯形螺纹Trapezoid thread螺距Pitch of thread粗牙螺纹Coarse thread细牙螺纹Fine thread特细牙螺纹Extra fine thread通长螺纹Full thread惠氏螺纹Whitworth thread公制螺纹Metric thread美国标准锥管螺纹American standard taper pipe thread [NPT]螺孔Tap3. 材料、型钢及填料3.1 金属材料3.1.1 黑色金属Ferrous metal碳素钢Carbon steel [C.S.]低碳钢Low-carbon steel中碳钢Medium-carbon steel高碳钢High-carbon steel普通碳素钢General carbon steel优质碳素钢High-quality carbon steel普通低合金结构钢General structure low-alloy steel合金结构钢Structural alloy steel合金钢Alloy steel低合金钢Low alloy steel中合金钢Medium alloy steel高合金钢High alloy steel耐热钢Heat resisting steel高强度钢High strength steel复合钢Clad steel工具钢Tool steel弹簧钢Spring steel钼钢Molybdenum steel镍钢Nickel steel铬钢Chromium steel铬钼钢Chromium-nickel steel不锈钢Stainless steel奥氏体不锈钢Austenitic stainless steel马氏体不锈钢martensitic stainless steel司特来合金（钨铬钴合金）Stellite耐蚀耐热镍基合金(哈氏合金) Hastelloy铬镍铁合金Inconel耐热铬镍铁合金Incoloy20合金20 alloy平炉钢（马丁钢）Martin steel镇静钢Killed steel半镇静钢Semi-killed steel沸腾钢Rimmed steel, rimming steel; open-steel锻钢Forged steel铸钢Cast steel铸铁Cast iron [C.I.]灰铸铁Grey cast iron可锻铸铁Malleable iron [MI]球墨铸铁Nodular cast iron; Nodular graphite iron生铁Pig iron熟铁，锻铁Wrought Iron铸件Casting高硅铸铁High silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢Chromized steel镀铬的Chromium-plated; chrome-plated镀层Plating锻造、型钢Swage锻造的，锻造Forging轧制Rolling热轧Hot rolling冷轧Cold rolling挤压Extruding冷加工Cold working热加工Hot working拔制Drawing3.1.3 有色金属铝Aluminum铜,紫铜Copper黄铜Brass青铜Bronze铝青铜Aluminum bronze磷青铜Phosphor bronze铝镁合金Aluminum magnesium锰青铜Manganese bronze蒙乃尔（注：镍及铜合金）Monel镍铜合金Nickel copper alloy非铁合金Nonferrous alloy钛Titanium铅Lead硬铅Hard lead3.1.4 材料性能极限强度Ultimate strength抗拉强度Tensile strength屈服极限Yield limit屈服点Yield point延伸率Percentage elongation抗压强度Compressive strength抗弯强度Bending strength弹性极限Elastic limit冲击值Impact value疲劳极限Fatigue limit蠕变极限Creep limit持久极限Endurance limit布氏硬度Brinell hardness洛氏硬度Rockwell hardness维氏硬度Vickers diamond hardness; Diamond penetrator hardness蠕变断裂强度Creep rupture strength断面收缩率Reduction of area韧性Toughness脆性Brittleness延性Ductility冷脆Cold shortness冷流Cold flow3.2 非金属材料塑料Plastic丙烯腈-丁二烯-苯乙烯Acrylonitrile-butadiene-styrene[ABS]聚乙烯Polyethylene [PE]聚氯乙烯Polyvinyl chloride [PVC]苯乙烯橡胶Styrene-rubber [SR]聚丁烯Polybutylene[PB]聚丙烯Polypropylene [PP]聚苯乙烯Polystyrene [PS]氯化聚醚Chlorinated polyether [CPE]聚酰胺Polyamide[PA]聚碳酸酯Polycarbonate [PC]聚甲基丙烯酸甲酯Polymethyl methacrylate [PMMA]醋酸丁酸纤维素Cellulose acetate butyrate [CAB]氯化聚氯乙烯Chlorinated polyvinyl chloride [CPVC]聚偏二氟乙烯Polyvinylidene fluoride [PVDF]缩醛塑料Acetal plastic尼龙塑料Nylon plastic聚烯烃Polyolefin [PO]石墨酚醛塑料Graphite phenolic plastics聚四氟乙烯Polytetrafluoroethylene [PTFE]纤维增强热塑性塑料Fiber reinforced thermoplastics热塑性塑料Thermoplastic热固性塑料Thermosetting plastics胶粘剂Adhesive溶剂胶接剂Solvent cement树脂Resin环氧树脂Epoxy resin聚酯树脂Polyester resin聚酯纤维Polyester fibers氟塑料Fluoroplastics聚氨基甲酸酯Polyurethane丙烯酸树脂Acrylic resin脲醛树脂Urea resin呋喃树脂Furan resin乙稀丙烯二烃单体Ethylene propylene diene monomer [EPDM]合成橡胶Synthetic rubber橡胶Rubber丁腈橡胶Nitrile butadiene rubber氯丁橡胶Neoprene天然橡胶Natural rubber乙丙橡胶Ethylene propylene rubber [EPR]玻璃Glass硼硅玻璃Borosilicate glass耐火砖Fire brick陶瓷Ceramic搪瓷Porcelain enamel木材Wood3.3 型材型钢Shaped steel; Section steel; Swage角钢Angle steel槽钢Channel工字钢I-beam宽缘工字钢或H钢Wide flanged beamT型钢T-bar方钢Square bar扁钢Flat bar六角钢Hexagonal steel bar圆钢Round steel; Rod钢带Strap steel钢板Plate网纹钢板Checkered plate腹板（制定钢的立板）Web翼缘Wing3.4 填料及填料函填料Packing石棉绳Asbestos rope; Asbestos cordO形环O-ring自密封Self-sealing四氟带Teflon tap带铬镍合金丝的石棉绳Asbestos rope with inconel wire; Inconel wireasbestos浸聚四氟乙烯的石棉填料Teflon impregnated asbestos packing金属填料Metallic stuffing填料箱，填料函Packing box; Stuffing box填料函压盖Stuffing box gland4. 管道等级及材料统计4.1 管道材料规定Piping material specification管道等级Piping class; Piping classification管道等级号Class designation公称直径Nominal diameter[DN]; Nominal (pipe) size公称压力Nominal pressure[PN]压力级；等级；类别Class [CL]低压Low pressure[L.P.]中压Medium pressure [M.P.]高压High pressure [H.P.]大气压Atmosphere [ATM]真空Vacuum工作压力Operating pressure; Working pressure设计压力Design pressure工作温度Operating temperature设计温度Design temperature环境温度Ambient temperature腐蚀裕量Corrosion allowance管道附件Piping attachment管道元件Piping element壁厚Wall thickness[WT]壁厚系列号Schedule number [SCH.No]加厚的，加强的Extra heavy; Extra strong双倍加厚的，双倍加强的Double extra heavy; Double extra strong通用连接组Typical installation分组（类）形式（如管道等级表）Block form数据库Data base文件File4.2 材料统计Material take-off [MTO]汇总表Summary sheet材料表Bill of material[BM]综合管道材料表Consolidated piping material summary sheet [CPMSS]统计材料准确度Accuracy of take-off材料情况报告Material status report散装材料Bulk material编位号的Itemized代码Code number短代码Short code数量Quantity [QTY]重力Weight净重Net weight毛重Cross weight5．设备布置及管道布置Plot plan and piping layout; Equipment and piping arrangement5.1 设备名称Equipment name5.1.1 容器Vessel（1）塔Tower; Column洗涤塔Scrubber吸收塔Absorber冷却塔Cooling tower精馏塔Fractionating tower蒸馏塔Distillation tower再生塔Regenerating tower造粒塔Prilling tower汽提塔Stripper脱气塔Degasifier合成塔Synthesis tower（2）反应器Reactor聚合釜Polymerizer转化器；变换器Converter脱硫反应器Desulphurization reactor甲烷化器Methanator（3）气柜Gas-holder螺旋式气柜helical gas-holder湿式气柜Wet gas-holder干式气柜Dry gas-holder（4）槽罐储罐Tank; Storage tank缓冲罐Knock out drum球罐Spheroid; Spherical tank罐Drum接受槽Receiver计量槽Measuring tank加料槽Feed tank排污罐Blow down tank闪蒸罐Flash drum汽包Steam drum溶液贮槽solution storage tank地下槽Slop tank（5）其他设备分离器Separator旋风分离器Cyclone分子筛Molecular sieve脱氧器Deaerator搅拌器Agitator干燥器Dryer混合器Mixer萃取器Extractor结晶器Crystallizer澄清器Gravity settler净化器Purifier气化器Vaporizer吸附器Adsorber融解槽Melter减温器Desuperheater升压器Booster喷射器Ejector喷头Sprayer火炬Flare消声器Silencer（6）换热器、加热器、冷却器换热器Heat exchanger空冷器Air cooler水冷却器Water cooler冷凝器Condenser螺旋板式换热器Spiral plate heat exchanger蒸发器Evaporator再沸器Reboiler急冷器Quencher深冷器Chiller预热器Preheater再热器Reheater加热器Heater电加热器Electric heater过热器Super heater给水加热器Feed water heater中间冷却器Inter cooler后冷却器After cooler5.1.2 工业炉及锅炉炉子Furnace烧咀Burner锅炉Boiler烟囱Stack废热锅炉Wasteheat boiler辅助锅炉Auxiliary boiler省煤器Economizer回热炉Direct-fired heater辐射段Radiant section对流段Convection section裂化炉Reformer焚烧炉Incinerator回转窑Rotary kiln炉管Furnace tube吹灰器Soot blower观察孔Observation door; Peep door防爆门Explosion door5.1.3 转动机器（1）泵Pump涡轮泵Turbine pump涡流泵Vortex pump离心泵Centrifugal pump喷射泵Jet pump转子泵；旋转泵Rotary pump管道泵Inline pump真空泵Vacuum pump柱塞泵Plunger pump往复泵Reciprocating pump计量泵Metering pump深井泵Deep well pump齿轮泵Gear pump手摇泵Hand-pump; Wobble pump锅炉给水泵Boiler feed water pump轴流泵Axial pump（2）压缩机Compressor往复式压缩机Reciprocating compressor多级压缩机Multiple stages compressor螺杆压缩机Helical screw compressor离心式压缩机Centrifugal compressor循环压缩机Circulating compressor涡轮压缩机Turbo compressor冷冻机Refrigerator（3）驱动机、发电机汽轮机、蒸汽透平Steam turbine燃气轮机Gas turbine电动机Motor发电机Generator（4）风扇、鼓风机风机Fan鼓风机Blower罗茨鼓风机Roots blower（5）其他机器挤压机Extruder造粒机Pelletizer离心机Centrifuger离心分离机Centrifugal separator离心过滤机Centrifugal filter压滤机pressure filter5.1.4 储运、装卸及起重机械起重机Crane桥式起重机Bridge crane电动葫芦Motor hoist手动葫芦；倒链Chain block装卸臂Loading arm,料仓Silo; Bin料斗Hopper输送机Conveyor皮带输送机Belt conveyor5.2 辅助用房名称5.2.1 生产用房分析室Analyzer room变压器室Transformer room配电室；变电所Substation; Switch room蓄电池室Battery room控制室Control room通风室Ventilating room贮藏室Storage room维修间Maintenance room办公室Office5.2.2 生活用房更衣室Locker room盥洗室；厕所Closet; Lavatory; Toilet5.3 图名管道布置平面Piping arrangement plan[PAP]管道布置Piping layout轴测图Isometric drawing分区索引图Key plan初版设备布置图（“A”版）Preliminary plot plan (“A” Issue)内部审查版设备布置图（“B”版）Internal approval plot plan (“B” Issue)用户审查版设备布置图（“C”版）Owner approval plot plan (“C” Issue)确认版设备布置图（“D”版）Confirm plot plan (“D” Issue)研究版设备布置图（“E”版）Planning plot plan (“E” Issue)设计版设备布置图（“F”版）Designing plot plan (“F” Issue)施工版设备布置图（“G”版）Construction plot plan (“G” Issue)5.4 厂房、站、单元压缩机房Compressor house (room)泵房Pump house (room)洗眼站Eye washer station泡沫站Foam station软管站；公用工程站Hose station; Utility station成套设备Package unit设施Facilities罐区Tank yard空分装置Air separation facility5.5 设备布置设备位号Equipment item number工厂Plant工厂区界Plant limit项目区界内侧Inside battery limit [ISBL]项目区界Battery limit [BL]区界Area limit区域边界Zone limit界外Offsite东East [E]西West[W]南South[S]北North[N]上Up下Down工厂北向Plant north真实北向True north道路Road小过道Cat walk; Cat way走道；过道Walk way; Gangway; Access way污水坑（井）Sump pit集水池Catch basin沟槽Trough预留区Future area场地Yard铺砌区Paving area非铺砌区Unpaved area碎石铺面Gravel paving橡皮铺面Rubber paving面积；区域Area体积；容积Volume [VOL]5.6 管道布置管道设计Piping design管道研究Piping design走向研究Routing study重要管道Critical piping地上管道Above ground piping地下管道Under ground piping管网Network of pipes管廊Pipe rack管沟Piping trench管间距Line spacing管道跨距Line span总管Header; Manifold旁路By pass排液Drain放空Vent上升管；垂直管Riser导管Conduit裸管Bare line管件直接Fitting to fitting[FTF]管段；接口Spool piece; Spool取样接口Sampling connection集液包Drip leg伴热管Tracing pipe蒸汽伴热Steam tracing热水伴热Hot-water tracing电伴热Electrical tracing夹套管Jacketed line; Jacketed piping 全夹套的Full Jacketed平面Plan详图Detail“X”视图View “X”“A-A”剖视Section “A-A”连接图Hook up drawing接续图Continue on drawing [COD] 接续线Match line[M.L.]比例Scale图例Legend符号Symbol管口表List of nozzles方位Orientation管口方位Nozzle orientation定位Location相交Intersection水平的Horizontal垂直的，立式的Vertical垂直；正交；垂直的Perpendicular平行；平行的Parallel水平安装Horizontal installation垂直安装Vertical installation对称的Symmetric相反（的）；对面（的）Opposite顺时针方向Clockwise逆时针方向Counter-clock wise计算机辅助设计Computer aided design [CAD] 5.7 图面标注绝对标高Absolute elevation海平面标高Over-sea mean level[OSL]标高；立面Elevation [EL]混凝土顶面Top of concrete架顶面Top of support [TOS]钢结构顶面Top of steel梁顶面Top of beam[TOB]支撑点Point of support [POS]管顶Top of pipe [TOP]管底Bottom of pipe[BOP]沟底Bottom of trench管子内底Invert (Inside bottom of pipe)底平Flat on bottom [FOB]顶平Flat on top [FOT]工作点Working point [W.P.]面至面Face to face[F-F]中心至端面Center to end [C-E]中心至面Center to face [C-F}中心至中心；中至中Center to Center [C-C]坐标Coordinate坐标原点Origin of coordinate出口中心线Center line of discharge入口中心线Center line of suction中心线Center line[CL]入口Inlet; Suction出口Outlet; Discharge排出口Exhaust距离Distance直径Diameter[D]; [DIA]半径Radius [R]外径Outside diameter [OD]内径Inside diameter[ID]净空Head room间隙Clearance尺寸Dimension高度Height高度；海拔Altitude厚度Thickness[THK]长度Length宽度Width深度Depth坡度Slope相当的；当量的Equivalent最大Maximum [Max.]最小Minimum [Min.]大约Approximate [APPROX]管线号Line number等级分界Material specification break隔热分界Insulation break未经允许不得开启Car seal close [C.S.C.]未经允许不得关闭Car seal open [C.S.O.]在关闭状态下锁定Locked closed [LC]在开启状态下锁定Locked opened [LO]由买方供货By buyer [BB]由卖方供货By seller [BS]由制造厂供货By vendor [BV]标记号Tag number公差Tolerance允差Allowance误差Error直度Straightness5.8 相关专业的专业词汇5.8.1 工艺（1）图及表流程图Flow diagram工艺流程图Process flow diagram [PFD]管道及仪表流程图Piping and instrument flow diagram [PID]公用工程流程图Utility flow diagram [UFD]管线表Line list; Line schedule命名表；管道表Nomenclature设备表Equipment list (Schedule)（2）流体Fluid空气Air仪表空气Instrument air工艺空气Process air低压蒸汽Low pressure steam中压蒸汽Medium pressure steam高压蒸汽High pressure steam伴热蒸汽Tracing steam饱和蒸汽Saturated steam过热蒸汽Superheated steam氧气Oxygen氢气Hydrogen氮气Nitrogen燃料气Fuel gas天然气Natural gas火炬气Flare gas酸性气Sour gas液化石油气Liquefied petroleum gas [LPG]氨气Ammonia gas冷却水Cooling循环水Circulating water锅炉给水Boiler feed water热水Hot water蒸汽冷凝水Steam condensate盐水Brine工艺水Process water化学污水Chemical sewage防腐剂Corrosion inhibitor重油Heavy oil石脑油Naphtha燃料油Fuel oil润滑油Lubricating oil密封油Sealing oil冷冻剂Refrigerant载热体Heating medium溶剂Solvent溶液Solution母液Mother liquor单体Monomer聚合物Polymer均聚物Homopolymer共聚物Copolymer工艺液体Process liquid工艺气体Process gas硫酸Sulfuric acid盐酸Hydrochloric acid硝酸Nitric acid烧碱Caustic soda（3）流体特性Fluid characteristics蒸汽压Vapor pressure临界温度Critical temperature临界点Critical point临界压力Critical pressure比热Specific heat湿度humidity密度Density比重Specific gravity粘度Viscosity闪点Flash point融点Melting point凝固点Freezing point浓度Concentration爆炸极限Limit of explosion有毒的Toxic可燃的，易燃的Flammable（4）其它回收Recovery再生Regeneration循环Circulation再循环；再生Recycle补充Make-up制备Preparation蒸汽吹扫Steaming out吹扫Purge抽空；排空Evacuation吹出Blow-off排污Blow down破真空Vacuum breaker大气腿Barometric leg备用Stand-by化学清洗Chemical cleaning净正吸入压头Net positive suction head [NPSH]进料Feed成品Product污染Contamination大气污染Atmospheric pollution环境温度Ambient temperature5.8.2 建筑、结构建筑物Building钢结构Steel structure已有钢结构Existing steel structure钢筋混凝土结构Reinforced concrete construction楼面Floor平台Platform [PF]地面Ground level栏杆Handrail楼梯Stair; Stair way直梯Ladder柱Column; Post; Stanchion基础Foundation; Footing梁Beam斜撑;支撑Bracing桁架；主梁Girder构件Member隔墙Partition wall墙Wall篦子板Grate; Grating吊装孔Erection opening吊梁Hoisting beam棚Shelter窗Window天窗Skylight门Door防火门Fire door地漏Floor drain防火层Fire-proofing总图General plot plan路肩Shoulder桩Pile灌浆Grouting风荷载Wind load雪荷载Snow load动力荷载Dynamic load静荷载Dead load活荷载Live load风速Wind Velocity主导风向Most frequent wind direction5.8.3 仪表盘（操作盘）Panel就地盘Local panel仪表盘Instrument panel常开Normally open常闭Normally closed电缆槽（架）Cable tray (Channel); Cable rack仪表电缆槽（架）Instrument cable tray (Duct)压力计Manometer; Pressure gauge热电偶Thermocouple温度计Thermometer液位计Level gauge玻璃液位计Ga(u)ge glass温度计保护管Thermowell流量计Flow meter孔板Orifice变送器Transmitter联锁Interlock。
工艺管道中英文对照
CON SWAGE：
同心承插大小头
7
6×2.1/2
1
CON REDUCER25.8×14.02mmBWA234-WP22 CL1-SSMLSASME-B16.9
偏心大小头壁厚端部材质无缝标准号
ECC REDUCEห้องสมุดไป่ตู้：
偏心大小头
8
6×3/4
1
SOCKLETCL6000SWA182-F22 CL3FORGEMSS-SP-97
VJF
31
承插式截止阀
VJS
32
承插式闸阀
VZS
33
承插式止回阀
VHS
34
螺母/螺栓
STUD BOLT/NUT
35
外环(垫片)
OUTER RING
36
内环(垫片)
INNER RING
37
突面法兰
RF
38
凹面法兰
FM
39
环面法兰
RJ
40
平面法兰
SO
Welcome To
Download !!!
欢迎您的下载，资料仅供参考！
三、阀门
11
2
1
BALL VALVE LEVERA216 WCB/316 RTFERFCL150ASME-B16.1
球阀阀体/阀芯密封面压力等级标准号
GATE VALVE：闸阀
GLOBE VALVE：截止阀
CHECK VALVE：止回阀
PLUG VALVE：旋塞阀
四、法兰
12
4
1
FLANGECL150RFA105S0ASME-B16.5
3
STR TEECL3000SWA105FORGEASME-B16.11
化工管道工程使用技术词汇中英文对照
化工管道工程使用技术词汇中英文对照1 管道组成件Piping ponent1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube 钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe 铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand) 异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）tr ue “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet) 异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bend U形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH) 配对法兰panion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited pressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片pressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler 内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted 双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB) 活接阀盖（帽）union bonnet (cap) 螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal 倒密封back seal压力密封的阀盖pressure-tight bonnet 动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port 短型short pattern紧凑型（小型）pact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve 气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve 控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve 压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type) y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for bined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe2 管道用紧固件及螺纹2.1 紧固件螺栓bolt六角头螺栓hexagonal head bolt方头螺栓square head bolt螺柱，双头螺栓stud bolt环头螺检eye bolt沉头螺栓countersunk (head) screw 地脚螺栓anchor bolt; foundation bolt 松紧螺旋扣（花篮螺丝）turnbuckle U形螺栓U-boltT形螺栓T-bolt圆头螺钉round head bolt机螺栓，机螺钉maehine bolt顶开螺栓，顶起螺栓Jack screw自攻螺钉self tapping screw膨胀螺栓expansion bolt粗制的coarse精制的finished, fine螺母nut六角螺母hexagonal nut方螺母square nut蝶形螺母wing nut扁螺母flat nut锁紧螺母lock nut垫圈washer平垫圈plain washer球面垫圈spherical washer 弹簧垫圈spring washer方垫圈square washer斜垫圈slant washer销轴pinned shan销pin开口销cotter pin定位销dowel pin带孔销pin with hole圆锥销taper pin铆钉rivet键key2.2 螺纹左螺纹left hand thread右螺纹right hand thread 管螺纹pipe thread锥管螺纹taper pipe thread直管螺纹straight pipe thread梯形螺纹trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹metric ibread美国标准锥管螺纹American standard taper pipe thread (NPT) 螺孔tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属Ferrous Metal碳素钢carbon steel (CS)低碳钢low-carbon steel中碳钢medium-carbon steel高碳钢high-carbon steel普通碳素钢general carbon steel优质碳素钢high-quality carbon steel普通低合金结构钢general structure low-alloy steel合金结构钢structural alloy steel合金钢alloy steel低合金钢low alloy steel中合金钢medium alloy steel高合金钢high alloy steel耐热钢heat resisting steel高强度钢high strength steel复合钢clad steel工具钢tool steel弹簧钢spring steel钼钢molybdenum steel镍钢nickel steel铬钢chromium steel铬钼钢chrome-molybdenum steel铬镍钢chromium-nickel steel,chrome-nickel steel 不锈钢stainless steel (S.S.)奥氏体不锈钢Austenitic stainless steel马氏体不锈钢Martensitic stainless steel司特来合金（钨铬钴台金）Stellite耐蚀耐热镍基合金Hastelloy铬镍铁合金inconel耐热铬镍铁合金incoloy20合金20 alloy平炉钢（马丁钢）Martin steel镇静钢killed steel半镇静钢semi-killed steel沸腾钢rimmed steel; rimming steel; open-steel 锻钢forged steel铸钢cast steel铸铁cast iron (C.I.)灰铸铁grey cast iron可锻铸铁malleable iron (MI)球墨铸铁nodular cast iron; nodular graphite iron 生铁pig iron熟铁，锻铁wrought iron铸件casting高硅铸铁high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢chromized steel镀铬的chromium-plated, chrome-plated镀层plating锻造，型钢swage锻造的，锻造forging轧制rolling热轧hot rolling冷轧cold rolling挤压extruding冷加工cold working热加工hot working拔制drawing3.1.3 有色金属Non-ferrous Metal 铝aluminum铜，紫铜copper黄铜brass青铜bronze铝青铜aluminum bronze磷青铜phosphor bronze铝镁合金aluminum magnesium锰青铜manganese bronze蒙乃尔（注：镍及铜合金）Monel 镍铜台金nickel copper alloy非铁合金nonferrous alloy钛titanium铅lead硬铅hard lead3.1.4 材料性能极限强度ultimate strength抗拉强度tensile strength屈服极限yield limit屈服点yield point延伸率percentage elongation抗压强度pressive strength抗弯强度bending strength弹性极限elastic limit冲击值impact value疲劳极限fatigue limit蠕变极限creep limit持久极限endurance limit布氏硬度Brinell hardness洛氏硬度Rockwell hardness维氏硬度Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度creep rupture strength断面收缩率reduction of area韧性toughess脆性brittleness延性ductility冷脆cold shortness冷流cold flow3.2 非金属材料Non-metallic Material塑料plastic丙烯腈—丁二烯—苯乙烯acrylonitrile-butadiene-styrene (ABS) 聚乙烯polyethylene (PE)聚氯乙烯polyvinyl chloride (PVC)苯乙烯橡胶styrene-rubber (SR)聚丁烯polybutylene (PB)聚丙烯polypropylene (PP)聚苯乙烯polystyrene (PS)氯化聚醚chlorinated polyether (CPE)聚酰胺polyamide (PA)聚碳酸酯polycarbonate (PC)聚甲基丙烯酸甲酯polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯polyvinylidene fluoride (PVDF)缩醛塑料acetal plastic尼龙塑料nylon plastic聚烯烃polyolefin (PO)石墨酚醛塑料graphite phenolic plastics聚四氟乙烯polytetrafluoroethylene (PTFE)纤维增强热塑性塑料fiber reinforced thermoplastics热塑性塑料thermoplastic热固性塑料thermosetting plastics胶粘剂adhesive溶剂胶接剂solvent cement树脂resin环氧树脂epoxy, epoxy resin聚酯树脂polyester resin聚酯纤维polyester fibers氟塑料fluoroplastics聚氨基甲酸酯polyurethane丙烯酸树脂acrylic resin脲醛树脂urea resin呋哺树脂furan resin乙烯丙烯二烃单体ethylene propylene diene monomer (EPDM) 合成橡胶synthetic rubber橡胶rubber丁腈橡胶nitrile butadiene rubber氯丁橡胶neoprene天然橡胶natural rubber乙丙橡胶ethylene propylene rubber (EPR)玻璃glass硼硅玻璃borosilicate glass耐火砖fire brick陶瓷ceramic搪瓷porcelain enamel木材wood3.3 型材型钢shaped steel, section steel, swage 角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beam T型钢T-bar方钢square bar扁钢flat bar角钢hexagonal steel bar圆钢round steel; rod钢带strap steel钢板plate网纹钢板checkered plate腹板（指型钢的立板）web翼缘（指型钢的缘）wing3.4 填料及填料函填料packing石棉绳asbestos rope, asbestos cord．O形环O-ring自密封self-sealing四氟带Teflon tap带铬镍合金丝的石棉绳asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料Teflon impregnated asbestos packing金属填料metallic stuffing填料箱，填料函packing box, stuffing box填料函压盖stuffing box gland4 管道等级及材料统计4.1 管道材料规定Piping Material Specification管道等级piping class; piping classification管道等级号class designation公称直径nominal diameter (DN); nominal (pipe) size公称压力nominal pressure (PN)压力级，等级，类别class (CL)低压low pressure (L.P.)中压medium pressure (M.P.)高压high pressure (H.P.)大气压atmosphere (ATM)真空vacuum工作压力operating pressure; working pressure设计压力design pressure工作温度operating temperature设计温度design temperature环境温度ambient temperature腐蚀裕量corrosion allowance管道附件piping attachment管道元件piping element壁厚wall thickness (WT)壁厚系列号schedule number (SCH. No.)加厚的，加强的extra heavy, extra strong双倍加厚的，双倍加强的double extra heavy, double extra strong通用连接组typieal installation分组（类）形式（如管道等级表）block form数据库data base文件file4.2 材料统计Material Take-off (MTO)汇总表summary sheet材料表bill of material (BM)综合管道材料表consolidated piping material summary sheet (CPMSS) 统计材料准确度accuracy of take-off材料情况报告material status report (MSR)散装材料bulk material编位号的itemized代码code number短代码short code数量quantity (QTY)重力weight净重net weight毛重gross weight5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement 5.1 设备名称Equipment Name5.1.1 容器Vessel(1) 塔tower, column洗涤塔scrubber吸收塔absorber冷却塔cooling tower精馏塔fractionating tower蒸馏塔distillation tower再生塔regenering tower造粒塔prflling tower汽提塔stripper脱气塔degasifier合成塔synthesis tower(2) 反应器reactor聚台釜polymerizer转化器，变换器converter脱硫反应器desulphurization reactor 甲烷化器methanator(3) 气柜gas-holder螺旋式气柜helical gas-holder湿式气柜wet gas-holder干式气柜dry gas-holder(4) 槽罐贮罐tank; storage tank缓冲罐knock out drum球罐spheroid, spherical tank罐drum接受槽receiver计量槽measuring tank加料槽feed tank排污罐blow down tank闪蒸罐flash drum汽包steam drum溶液贮槽solution storage tank 地下槽sloptank(5) 其它设备分离器separator旋风分离器cyclone分子筛molecular sieve脱氧器deaerator搅拌器agitator干燥器dryer混合器mixer萃取器extractor结晶器crystallizer澄清器gravity settler净化器purifier气化器vaporizer吸附器adsorber融解槽melter减温器desuperheater升压器booster喷射器ejector喷头sprayer火炬flare消声器silencer(6) 换热器、加热器、冷却器换热器heat exchanger空冷器air cooler水冷却器water cooler冷凝器condenser螺旋板式换热器spiral plate heat exchanger 蒸发器evaporator再沸器reboiler急冷器quencher深冷器chiller预热器preheater再热器reheater加热器heater电加热器electric heater过热器super heater给水加热器feed water heater中间冷却器inter cooler后冷却器after cooler5.1.2 工业炉及锅炉炉子furnace烧嘴burner锅炉boiler烟囱stack废热锅炉waste heat boiler辅助锅炉auxiliary boiler省煤器economizer回热炉direct-fired heater辐射段radiant section对流段convection section裂化炉reformer焚烧炉incinerator回转窑rotary kiln炉管furnace tube吹灰器soot blower观察孔observation door, peep door防爆门explosion door5.2 辅助用房名称5.2.1 生产用房分析室analyzer room变压器室transformer room配电室，变电所substation, switch room 蓄电池室battery room控制室control room通风室ventilating room贮藏室storage room维修间maintenance room办公室office5.2.2 生活用房更农室locker room盥洗室，厕所closet, lavatory, toilet5.3 图名管道布置平面piping arrangement plan (PAP)管道布置piping layout轴测图isometric drawing分区索引图key plan初版设备布置图（“A”版）preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版）inrernal approval plot plan ( “B” issu e) 用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版）confirm plot plan ( “D” issue)研究版设备布置图（“e”版）planning plot plan ( “E” issue)设计版设备布置图（“F”）designing plot plan ( “F” issue)施工版设备布置图（“G”版）construction plot plan ( “G” issue)5.4 厂房、站、单元压缩机房pressor house (room)泵房pump house (room)洗眼站eye washer station泡沫站foam station软管站，公用工程站hose station (HS), utility station 成套设备package unit设施facilities罐区tank yard空分装置air separation facility5.5 设备布置设备位号equipment item number工厂plant工厂区界plant limit项目区界内侧inside battery limit (I.S.B.L.)项目区界batterylimit (BL)区界area limit区域边界zone iimit界外off site东east (E)西west (W)南south (S)北north (N)上up下down工厂北向plant north真实北向true north道路road小过道cat walk, cat way走道，过道walk way, gangway, access way 污水坑（井）sump pit集水池catch basin沟槽through预留区trough场地future area铺砌区paving area非铺砌区unpaved area碎石铺面gravel paving橡皮铺面rubber paving面积，区域area体积，容积volume (VOL)5.6 管道布置管道设计piping design管道研究piping study走向研究routing study重要管道critical piping地上管道above ground piping 地下管道under ground piping 管网network of pipes管廊pipe rack管沟piping trench管间距line spacing管道跨距line span总管header, manifold旁路by pass排液drain放空vent上升管，垂直管riser导管canduit裸管bare iine管件直接fitting to fitting (FTF) 管段，接口spool piece, spool 取样接口sampling connection 集液包drip leg伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line, jacketed piping 全夹套的full jacketed平面plan详图detail“ ”视图X view “X”“ ”剖视A-A section “A-A”连接图hook up drawing接续图continue on drawing (COD) 接续线match line (M.L.)比例scale图例legend符号symbol管口表list of nozzles方位orientation管口方位nozzle orientation定位location相交intersection水平的horizontal垂直的，立式的vertical垂直，正交，垂直的perpendicular 平行，平行的parallel水平安装horizontal installation垂直安装vertical installafion对称的symmetric相反（的），对面（的）opposite顺时针方向clock wise逆时针方向counter clock wise计算机辅助设计puter aided design (CAD)5.7 图面标注绝对标高abselute elevation海平面标高over-sea mean level (OSL)标高，立面elevation (EL)混凝土顶面top of concrete架顶面top of support (TOS)钢结构顶面top of steel梁项面top of beam (TOB)支撑点point of suppon (POS)管顶top of pipe (TOP)管底bouom of pipe (BOP)沟底boaom of trench管子内底invert (inside bottom of pipe)底平flat on bottom (FOB)顶平flat on top (FOT)工作点working point (W.P.)面至面face to face (F-F)中心至端面center to end (C-E)中心至面center to face (C-F)中心至中心，中至中center to center (C-C) 坐标coordinate坐标原点origin of coordinate出口中心线center line of discharge入口中心线center line of suction中心线centerline (CL)入口inlet, suction出口outlet, discharge排出口exhaust距离distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图flow diagram工艺流程图process flow diagram (PFD)管道及仪表流程图piping and instrument flow diagram (PID)公用工程流程图utility flow diagram (UFD) 管线表line list; line schedule命名表；管道表nomenclature设备表equipment list (schedule)(2) 流体fluid空气air仪表空气instrument air工艺空气process air低压蒸汽low pressure steam中压蒸汽medium pressure steam高压蒸汽high pressure steam伴热蒸汽tracing steam饱和蒸汽saturated steam过热蒸汽superheated steam氧气oxygen氢气hydrogen氮气nitrogen燃料气fuel gas天然气natural gas火炬气flare gas酸性气sour gas液化石油气liquefired petroleum gas (LPG)氨气ammonia gas冷却水cooling循环水circulating water锅炉给水boiler feed water热水hot water蒸汽冷凝水steam condensate 盐水brine工艺水process water化学污水chemical sewage防腐剂corrosion inhibitor重油heavy oil石脑油naphtha燃料油fuel oil润滑油lubricating oil密封油sealing oil冷冻剂refrigerant载热体heating medium溶剂solvent溶液solution母液mother liquor单体monomer聚合物polymer均聚物homopolymer共聚物copolymer工艺液体process liquid工艺气体process gas硫酸sulphuric acid盐酸chlorhydric acid硝酸nitric acid烧碱caustic soda(3) 流体特性fluid characteristics 蒸汽压vapor pressure临界温度critical temperature临界点critical point临界压力critical pressure比热specific heat湿度humidity密度density比重specific gravity粘度viscosity闪点flash point融点melting point凝固点freezing point浓度concentration爆炸极限limit of explosion有毒的toxic可燃的；易燃的flammable(4) 其它回收recovery再生regeneration循环cireulatlon再循环；再生recycle补充make-up制备preparation蒸汽吹扫steaming out吹扫purge抽空；排空evacuation吹出blow-off排污blow down破真空vacuum breaker大气腿barometric leg备用stand-by化学清洗chemical cleaning净正吸入压头net positive suction head (NPSH) 进料feed成品product污染contamination大气污染atmospheric pollution环境温度ambient temperature5.8.2 建筑、结构建筑物building钢结构steel structure已有钢结构existing steel structure钢筋混凝土结构reinforced concrete construction 楼面floor平台platform (PF)地面ground level栏杆handrail楼梯stair; stair way直梯ladder柱column; post; stanchion基础foundation; footing粱beam斜撑；支撑bracing桁架；主粱girder构件member隔墙partition wall墙wall。
专业名词中英文对照(管道、钢结构、通风空调).
综合access road检修通道atmosphere 大气压bag-shape pipe袋型管branch(branch pipe支管 (分管buried piping埋地管道by-pass pipe旁通管 (旁路coil 盘管composition of factory water -supply system厂区给水系统组成 composition of indoor hot-water supply system 室内热水供应系统组成 composition of indoor sewerage system 室内排水系统的组成 composition of indoor water-supply system 室内给水系统的组成 composition of rain-water sewerage system雨水排水系统组成 composition of waster water sewerage system污水排水系统组成 compression test of work load工作载荷压缩试验 concentrated load集中载荷 condensational pot凝水罐cross-over piping跨越管道cut-across piping穿越管道dead load静载荷deformation test of full compression全压缩变形试验 design pressure设计压力design temperature设计温度distribution pipe 分配管distribution system pipe syetem配水管网drain 排液管dynamic load动力载荷English 中文fixtua drain卫生器具排水管 flare 火炬gas pipe煤气管道heat supply network热网heating pipeline采暖管道heating space heating采暖heating system采暖系统high pressure piping高压管道hung-over piping挂越管道indoor sewerage pipe室内排水管道inverted siphon pipe倒虹管jacket piping夹套管道joint pipe连络管jump-over connection跨线load 荷载low pressure piping低压管道main pipe干管medium pressure piping中压管道nominal pressure公称压力overhead piping架空管道pipe rack管桥 (管廊pipe trench管沟pipe way (pipe group管带pipeing deflection管道挠度piping installed along ground沿地管道piping passing through wall (floor穿墙 (板管道piping span管道跨度process equipment工艺设备process piping工业管道 (工艺管道 riser pipe立管river crossing pipe过河管run pipe(header总管 (主管samping pipe取样管seal test pressure严密性试验压力 service inlet pipe引入管serving piping entry热力入口sewerage system排水系统sewerage wasterwater engineering排水工程strength test pressure强度试验压力 structure of heating pipeline供热管线构造structure of jacket piping夹套管道结构 structure of tracing piping伴热管线结构suitable medium适用介质suitable temperature适用温度surging 喘振tracing piping伴热管道trench piping管沟管道uniform load均布载荷utility piping公用系统管道 vacuum piping真空管道vent 放气管water hammer水锤water supply engineering 给水工程water supply system给水系统water-supply pipe of pluming fixture卫生器具给水管 without compensator pipeline of direct buried heating直埋供热无补偿管道 working pressure工作压力working temperature工作温度管道识图tracing 伴热tracing pipe伴热管tracing steam supply piping伴热蒸汽供汽管 tracing steam condensate piping伴热蒸汽冷凝水管 noeth 北elevation 标高reference 参考dimension 尺寸guide support导向支架low point底点flat on bottom底平ground 地坪underground 地下electric tracing电伴热ear (lug吊耳hanger rod吊杆adjustment pipe调整半管flat on top顶平fixation plate定位板 (支承块 \固定板 east 东end to end端到端symmertrical 对称的flange end face法兰端面corrosion allowance腐蚀裕度rigid support刚性支架external tracing with spacer隔离外伴热man hour工时process flow diagram工艺流程图nominal diameter公称直径utility 公用系统fixed support固定支架piping hanger管道吊架piping and instrument diagram管道和仪表流程图 buttress anchorage管道支墩piping lug管道支耳piping support 管道支架piping setting管道支座bottom of pipe管底top of pipe管顶spool drawing管段图pipe clamp管卡pipe shoe管托center of pipe管中心rolling support滚动支架constant spring support 恒力弹簧支架sliding support滑动支架foundation 基础reinforced 加强的dummy support假管支架indirect method electric tracing间接法电伴热cushion 减振器construction north建北hinge support铰接支架match line接续分界线continued on drawing接续图clearance 净距variable spring support可变弹簧支架 adjustable support可调支架bolt circle螺栓分布圆national standard straight pipe thread美国标准直管螺纹 national standard taper pipe thread美国标准锥管螺纹 face to face面到面inside diameter内径south 南discharge 排出counterweight support平衡锤支架average 平均vertical 铅垂tangent line切线hot fluid tracing热流体伴热 (热载体伴热 flexible support柔性支架hose station软管站colour mark色标with equipment设备带来quantity 数量horizontal 水平drawing indentification所在图号drawing number图号outside diameter外径west 西suction 吸入detail 详图sway brace斜拉架information 信息(资料revision 修改sequence 序号hydraulic support液压支架with instrument仪表带来 approximate 约,近似steam tracing蒸汽伴热steam tracing length蒸汽伴热长度 steam-jacket tracing蒸汽夹套伴热 internal steam tracing蒸汽内伴热 external steam tracing蒸汽外伴热 bottom of support支架底top of support支架顶support spacing支架间距direct method electric tracing直接法电伴热 diameter 直径stop support止推支架 intermediate method electric tracing中间法电伴热 English 中文center line中心线center to end中心至端面center to face中心至面center to center中心至中心weight 重量battery limit line装置边界线plant coordinate装置坐标 maximum 最大minimum 最小材料pipe 管子pipe schedule number 管子表号piping component管道组成件steel pipe钢管seamless steel pipe无缝钢管seamed steel pipe有缝钢管double submerged-arc welded steel pipe双面埋弧焊接钢管 spiral welded steel pipe螺旋焊缝钢管 non-ferrous metal pipe有色金属管non-metallic pipe非金属管lined pipe衬里管carbon steel碳钢cast steel铸钢forged steel锻钢galvanized steel镀锌钢galvanized welded steel pipe镀锌焊接钢管auminium-impregnated steel渗铝钢alloy steel合金钢stainless steel不锈钢austenitic stainless奥氏体不锈钢 cast iron铸铁malleable iron可锻铸铁 aluminum 铝brass 黄铜bronze 青铜copper 紫铜metallic hose金属软管 thickness 壁厚schedule number表号standard 标准extra strong加强double extra strong特强pipe fittings管件welded pipe fitting焊接管件screw pipe fittings螺纹管件internal joint内螺纹管接头 coulping 外接头 (管箍 full coupling双头管箍half coupling单头管箍full bell coupling双承口管箍 half bell coupling单承口管箍 reducing coupling异径管箍union 活接头bushing 内外螺纹 (补芯 tight screw锁紧螺母 screwed plug(plug外方管堵 (丝堵blank 盲板spectacle blind(blank8字盲板cap 管帽dish cap碟形管帽 ellipsoid cap椭圆形管帽 welded cap焊接管帽thread cap螺纹管帽socket-welded cap承插焊管帽 ellipsoid cap椭圆形封头 close nipple长丝insert pipe fitting承插管件cast iron reducing pipe铸铁承插渐缩管 female end pipe承盘短管 (短管甲male end pipe插盘短管 (短管乙cast iron jacket pipe铸铁套管 (套袖pipe offset乙字管trap(water-sealed joint水封 (存水弯checkhole (check pipe检查口cleanout 清扫口earth leakage地漏elbow 弯头long radius elbow长半径弯头short radius elbow短半径弯头mitre elbow斜接弯头180elbow (return bend180弯头 (回弯头bend 弯管reducing elbow异径弯头tee 三通straight tee等径三通reducing tee异径三通lateral tee斜三通cross 四通reducer 异径接头 (大小头 \异径管 concentric reducer同心大小头eccentric reducer偏心大小头pipeline accessory管道 (管路附件flange 法兰blank flange法兰盖welding neck flange对焊法兰slip-on flange平焊法兰socket-welding flange承插焊法兰threaded flange螺纹法兰lapped joint flange松套法兰reducing flange大小法兰special flange特殊法兰flange sealing face法兰密封面flat face平面raised face凸台面male and female face凹凸面ring joint face环连接面tongue and groove face榫槽面washer 垫圈spring washer弹簧垫圈gasket 垫片non-metallic gasket非金属垫片asbestos gasket石棉垫片rubber gasket 橡胶垫片PTFE envelope gasket聚四氟乙烯包垫片 semimetallic gasket半金属垫片mata-jacket gasket金属包垫片spiral wound gasket缠绕垫片metallic gasket金属垫片flat metallic gasket金属平垫片solid metal serrated gasket 齿形金属垫片 lens ring gasket透镜式金属环垫片octagonal ring gasket八角形金属连接垫片 oval ring gasket椭圆形金属垫片 inner ring 内环outer ring外环fastener 紧固件bolt 螺栓stud bolt螺柱nut 螺母turnbuckle 花篮螺母quick joint快速接头stub end翻边短节O-let 加强管接头 thredolet 螺纹加强管接头 weldolet 焊接加强管接头 socket weldolet承插焊加强管接头 elbolet 弯头加强管接头 latrolet 斜接加强管接头sweepolet 鞍形加强管接头 nipple 螺纹短节full nipple双头螺纹短节 half nipple单头螺纹短节 swaged nipple型锻螺纹短节stuff 填料valve 阀门gate valve闸阀globe valve截止阀cock(plug valve旋塞阀butterfly valve蝶阀ball valve球阀diaphragm valve隔膜阀check valve止回阀reducing valve(pressure reducing valve减压阀control valve调节阀safety valve(pressure relief valve安全阀throttle valve节流阀 electromagnetic valve (solenoid valve电磁阀electric valve电动阀pneumatic valve气动阀ball float valve浮球阀change direction valve换向阀expansion valve膨胀阀lined valve衬里阀spring valve弹簧箱阀valve with extended spindle沿伸杆阀valve with chain wheel链轮阀valve with gear齿轮阀valve with blowing hole带吹扫孔阀 valve with jacket夹套阀foot valve底阀breather valve呼吸阀needle valve针形阀angle valve角阀three-way valve三通阀socket gate valve插板阀hydrant 消火栓by-pass valve旁通器air relief valve排气阀plumbing fixture卫生器具water-supply matching parts of fixture卫生器具给水配件 drinking fountain饮水器sparger 洒水栓heating equipment (heating apparatus采暖设备 expansion tan膨胀水箱radiator(heat emitter(heat emitting apparatus散热器strainer 除污器steam manifold(steam header分汽缸water collecting header集水器air collector集气罐separator 气液分离器 strainer 管道过滤器 permanent strainer固定过滤器 Y-type strainerY 型过滤器T-type strainerT 型过滤器 temporary strainer临时过滤器 sample cooler取样冷凝器 drain funnel排液漏斗silencer 消声器flame arrester (flame trap阻火器sight flow indicator (sight glass视镜floating ball sight flow indicator浮球式视镜 full view sight flow indicator全视视镜rupture disk 爆破片restriction orifice限流孔板mixing orifice混合孔板oil distributor油分离器oil collector集油器 compensator 补偿器 (伸缩器 list of material材料表 emergercy shower eye shower事故沐浴洗眼器工种、机具foreman 领工piping fitter 管工welder 焊工rigger 起重工NDT worker探伤工iron worker铆工millwright 车工locksmith 钳工TIG welding machine氩弧焊机DC welding machine直流焊机engine welding machine自动焊机 hydrotest pump液压泵 radiography equipment 射线探伤仪 stress relieving equipment热处理机air compressor空压机piping cutter管道切割机 air plasma cutter空气等离子切割机 air dehumidifier空气除湿机 electrode oven焊条烘干箱 hardness tester硬度测试仪 heater control box加热器控制箱 movable chamfering machine移动式坡口机 hoist 卷扬机bench drill 台式钻床plate shear剪板机optic theodolite光学经纬仪 pressure gauge压力表weld inspection rule焊缝检查尺angle grinding machine角向磨光机 reamer 铰刀torque spanner扭矩扳手钢结构installment 安装fold plate板叠elevation 标高standard deviation标准偏差 operation platform操作平台 layer 层sample test抽样检验 first screwing torque初拧扭矩 big sexangular caput大六角头 single layer plate单层板single-layer column单层柱bevel edge倒角backing iron垫铁backing plate preparation垫铁准备 pin 钉,销roof 顶muti-layer plate多层板knotty post多节柱lofting 放样upset metal飞边spatter 飞溅steel structure钢结构high strength bolt高强螺栓 set of high strength bolt高强螺栓连接副 suppling code 供货编号 component 构件solder 焊材welding deformation焊接变形 weld procedure焊接工艺 core wire焊芯sizing 号料crater 弧坑buffer platform缓冲平台 location of foundation bolt基础螺栓位置 geometry size 几何尺寸 shear 剪切fillet welds角焊缝reamer 铰刀node plate节点emplacement 就位matrix 矩形slip coefficent of faying surface抗滑移系数 space rigid unit空间刚度单元 hole 孔洞frame 框架frame 框架expand assembled rigid unit扩大拼装单元 link 连接beam 梁broadside flexural height of beam梁的侧弯高度 vertical flexural height of beam梁的竖向弯曲高度 measuring gauge量规fin 毛刺quincuncial end梅花头frication type摩擦型crook shear type扭剪型torque spanner扭矩扳手torque coefficient扭矩系数making the lay排料platform 平台section 区at random section任意节melted slag熔渣weaker zone弱区flabellate platform扇形平台drawing review审图rope 绳索double nuts双头螺栓de-levelness 水平ladder 梯子stability 稳定性the smallest assembled rigid unit 小拼单元pair slope backing iron斜垫铁slope ladder斜梯 performance class性能等级test model样杆shelter 隐蔽performed pocket预留孔fabrication 预制fabricated element预制构件 roundness 圆度allowed deviation允许偏差corbel 枕梁support 支承bearing surface支承面straight ladder直梯straight ladder直梯quality certificate质量证明书 intermediate assembled structure中拼单元final screwing torque终拧扭矩axial span轴向跨度column 柱welding at random自由施焊assemble 组对、装配part 零件component 部件test assembling预拼装ambient temperature 环境温度通风、空调coreless rivet 抽芯铆钉abio-glass-steel 无机玻璃钢acid mist filtrate set酸雾过滤装置 air channel风道air cleaning system净化空调系统 air cleanliness class空气洁净度等级 air conditioning storing jar储冷罐air conditioning works空调工程air duct 风管air leak check 漏光检测air leakage rate漏风量air system leakage ratio漏风率air system permissible leakage rate系统风管允许漏风量 air-conditioning water system空调水系统airproof glue密封胶aluminum foil铝箔as-built 空态assembling refrigerating unit组装式制冷设备 at-rest 静态auxiliary series辅助系列basic series基本系列become warped翘角butt weld seam对接焊缝cold bridge冷桥collecting water crock 集水缸concave pit凹穴constant temperature and constant humidity恒温恒湿contain dirt concentration含尘浓度cooling tower冷却塔corner pieces角件curvature radius曲率半径defend and eject smoke system防、排烟系统 design working pressure风管系统的工作压力 distort 扭曲double side welding双面焊duct accessory风管部件duct fittings风管配件dust catcher除尘器dust disposing system除尘系统effictive section有效截面eject ash valve排灰阀eject dirt equipment排污设备eject mud valve排泥阀eject smoke valve 排烟阀elastic duct弹性接管expand anchor胀锚expand bolt膨胀螺栓fan filter (module unit风机过滤器单元 fanner 通风机fiberglass cloth玻璃纤维布fillet weld seam对角焊缝fillet weld seam填角焊缝fireproof grade耐火等级fixed weld seam固定焊口flaping hammer振打锤flashboard 插板风阀flexible duct柔性短管floating dust浮尘foil-insulant composite duct复合材料风管 fold corner折角froth 起泡galvanized steel plate镀锌钢板heating period采暖期impeller 叶轮impluse bag type脉冲袋式joint weld seam搭接焊缝locksmith 钳工lustration grade洁净度lustration room洁净室material unload valve 卸料阀 maximum concentration最大浓度值 mensurate of comprehensive efficiency 综合效能的测定 noise elimination equipment消声设备noncumbustible material不燃材料 nonmetallic duct非金属材料风管 oil dust油污operational 动态organic glass-steel有机玻璃钢 packaged refrigerating unit整体式制冷设备perforation rate穿孔率plus pressure draught ora closed ordinary常闭正压风口 rate of pipe thickness declining管壁减薄率 rectangle 矩形refractory duct防火风管 refrigeration material制冷剂relative humidity相对湿度 remaining pressure valve余压阀rigidity PVC duct硬聚氯乙烯风管 seam 咬口send-off and eject wind system送、排风系统 sleeve 套管spiral duct unit盘管机组 standing by旁站static dust catcher静电除尘器 static pressure case静压箱strap wheel皮带轮suck dirt system吸尘系统 transfering window传递窗 unstable hydronium悬浮离子 ventilation works通风工程 water tank水箱yawp 噪声施工、检验、焊接field 现场piping fabrication管道加工 tolerance 允许偏差 pipe cold bending管子冷弯 pipe hot bending管子热弯 branch reinforcement支管补强 car seal close铅封关car seal open铅封开 concealed work隐蔽工程weld groove base metal (parent metal covered electrode welding wire weld toe of weld leg weld length manual welding automatic welding semi-automatic welding arc weld gas shielded-arc weld electric fushon weld electric resistance weld gas weld butt weld tack welding socket welding continuous welding intermittent welding seal welding surfacing fillet welding lap weld repair welding welding stress welding residual stress weldment welding by one side welding by both side brazing shielded gas thermal cutting gas cutting weld defects incomplete penetration (lack of penetration incomplete fusion (lack of fusion slag inclusion inclusion tungsten inclusion blowhole 焊接坡口母材焊条焊丝焊缝焊趾焊脚焊缝长度手工焊自动焊半自动焊电弧焊气体保护电弧焊电熔焊电阻焊气焊对焊定位焊承插焊连续焊断续焊密封焊堆焊角焊搭接焊补焊焊接应力焊接残余应力焊件单面焊双面焊钎焊保护气体热切割气割焊接缺陷未焊透未熔合夹渣夹杂物夹钨气孔undercut overlap fish eye melt-thru (burn-through pit incompletely filled groove excessive penetration weld crack field welding heat treatment preheating stress relief post weld heat treatment examination,inspection & testing visual examination uitrasonic inspection radiographic inspection magnetic particle inspection liquid penetrant inspection destructive test hardness testing hydraulic testing pneumatic testing service testing assembly field fabricated suit in field bolt cold tightening bolt hot tightening clean out steam out spatter 咬边焊瘤白点烧穿凹坑未焊满塌陷焊接裂纹工地焊接热处理预热应力消除焊后热处理检查、探伤和试验外观检查超声探伤射线探伤磁粉探伤液体渗透探伤破坏试验硬度试验水压试验气压试验使用试验装配、组合现场制造现场决定螺栓冷紧螺栓热紧清洗蒸汽吹扫飞溅。
化工管道工程使用技术词汇中英文对照综述详解
1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (righthand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45°lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45°lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducingon one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bend S形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bend U形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend 斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion 夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filledgasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal 倒密封back seal压力密封的阀盖pressure-tight bonnet 动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port 短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve 复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve 控制阀control valve膜式控制阀diaphragm operated control valve 执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve 压力比例调节阀pressure ratio regulating valve 1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint自均衡膨胀节（外加强环）self-equalizing expansionjoint带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint 单向滑动填料函补偿器single actionpacked slip joint 1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint锥管螺纹密封焊连接seal-welded taper pipe threaded joint承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe 2 管道用紧固件及螺纹2.1 紧固件螺栓bolt六角头螺栓hexagonal head bolt方头螺栓square head bolt螺柱，双头螺栓stud bolt环头螺检eye bolt沉头螺栓countersunk (head) screw 地脚螺栓anchor bolt; foundation bolt 松紧螺旋扣（花篮螺丝）turnbuckle U形螺栓U-boltT形螺栓T-bolt圆头螺钉round head bolt机螺栓，机螺钉maehine bolt顶开螺栓，顶起螺栓Jack screw自攻螺钉self tapping screw膨胀螺栓expansion bolt粗制的coarse精制的finished, fine螺母nut六角螺母hexagonal nut方螺母square nut蝶形螺母wing nut扁螺母flat nut锁紧螺母lock nut垫圈washer平垫圈plain washer球面垫圈spherical washer 弹簧垫圈spring washer方垫圈square washer斜垫圈slant washer销轴pinned shan销pin开口销cotter pin定位销dowel pin带孔销pin with hole圆锥销taper pin铆钉rivet键key2.2 螺纹左螺纹left hand thread右螺纹right hand thread管螺纹pipe thread锥管螺纹taper pipe thread 直管螺纹straight pipe thread 梯形螺纹trapezoid thread 螺距pitch of thread粗牙螺纹coarse thread细牙螺纹fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹metric ibread美国标准锥管螺纹American standard taper pipe thread (NPT)螺孔tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属Ferrous Metal碳素钢carbon steel (CS)低碳钢low-carbon steel中碳钢medium-carbon steel高碳钢high-carbon steel普通碳素钢general carbon steel优质碳素钢high-quality carbon steel普通低合金结构钢general structure low-alloy steel合金结构钢structural alloy steel合金钢alloy steel低合金钢low alloy steel中合金钢medium alloy steel高合金钢high alloy steel耐热钢heat resisting steel高强度钢high strength steel复合钢clad steel工具钢tool steel弹簧钢spring steel钼钢molybdenum steel镍钢nickel steel铬钢chromium steel铬钼钢chrome-molybdenum steel铬镍钢chromium-nickel steel,chrome-nickel steel 不锈钢stainless steel (S.S.)奥氏体不锈钢Austenitic stainless steel马氏体不锈钢Martensitic stainless steel司特来合金（钨铬钴台金）Stellite耐蚀耐热镍基合金Hastelloy铬镍铁合金inconel耐热铬镍铁合金incoloy20合金20 alloy平炉钢（马丁钢）Martin steel镇静钢killed steel半镇静钢semi-killed steel沸腾钢rimmed steel; rimming steel; open-steel 锻钢forged steel铸钢cast steel铸铁cast iron (C.I.)灰铸铁grey cast iron可锻铸铁malleable iron (MI)球墨铸铁nodular cast iron; nodular graphite iron 生铁pig iron熟铁，锻铁wrought iron铸件casting高硅铸铁high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢chromized steel镀铬的chromium-plated, chrome-plated镀层plating锻造，型钢swage锻造的，锻造forging轧制rolling热轧hot rolling冷轧cold rolling挤压extruding冷加工cold working热加工hot working拔制drawing3.1.3 有色金属Non-ferrous Metal 铝aluminum铜，紫铜copper黄铜brass青铜bronze铝青铜aluminum bronze磷青铜phosphor bronze铝镁合金aluminum magnesium锰青铜manganese bronze蒙乃尔（注：镍及铜合金）Monel 镍铜台金nickel copper alloy非铁合金nonferrous alloy钛titanium铅lead硬铅hard lead3.1.4 材料性能极限强度ultimate strength抗拉强度tensile strength屈服极限yield limit屈服点yield point延伸率percentage elongation抗压强度compressive strength抗弯强度bending strength弹性极限elastic limit冲击值impact value疲劳极限fatigue limit蠕变极限creep limit持久极限endurance limit布氏硬度Brinell hardness洛氏硬度Rockwell hardness维氏硬度Vickers diamond hardness, diamond penetrator hardness蠕变断裂强度creep rupture strength断面收缩率reduction of area韧性toughess脆性brittleness延性ductility冷脆cold shortness冷流cold flow3.2 非金属材料Non-metallic Material塑料plastic丙烯腈—丁二烯—苯乙烯acrylonitrile-butadiene-styrene (ABS)聚乙烯polyethylene (PE)聚氯乙烯polyvinyl chloride (PVC)苯乙烯橡胶styrene-rubber (SR)聚丁烯polybutylene (PB)聚丙烯polypropylene (PP)聚苯乙烯polystyrene (PS)氯化聚醚chlorinated polyether (CPE)聚酰胺polyamide (PA)聚碳酸酯polycarbonate (PC)聚甲基丙烯酸甲酯polymethyl methacrylate (PMMA) 醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯chlorinated polyvinyl chloride (CPVC) 聚偏二氟乙烯polyvinylidene fluoride (PVDF)缩醛塑料acetal plastic尼龙塑料nylon plastic聚烯烃polyolefin (PO)石墨酚醛塑料graphite phenolic plastics聚四氟乙烯polytetrafluoroethylene (PTFE)纤维增强热塑性塑料fiber reinforced thermoplastics 热塑性塑料thermoplastic热固性塑料thermosetting plastics胶粘剂adhesive溶剂胶接剂solvent cement树脂resin环氧树脂epoxy, epoxy resin聚酯树脂polyester resin聚酯纤维polyester fibers氟塑料fluoroplastics聚氨基甲酸酯polyurethane丙烯酸树脂acrylic resin脲醛树脂urea resin呋哺树脂furan resin乙烯丙烯二烃单体ethylene propylene diene monomer (EPDM)合成橡胶synthetic rubber橡胶rubber丁腈橡胶nitrile butadiene rubber氯丁橡胶neoprene天然橡胶natural rubber乙丙橡胶ethylene propylene rubber (EPR)玻璃glass硼硅玻璃borosilicate glass耐火砖fire brick陶瓷ceramic搪瓷porcelain enamel木材wood3.3 型材型钢shaped steel, section steel, swage 角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beam T型钢T-bar方钢square bar扁钢flat bar角钢hexagonal steel bar圆钢round steel; rod钢带strap steel钢板plate网纹钢板checkered plate腹板（指型钢的立板）web翼缘（指型钢的缘）wing3.4 填料及填料函填料packing石棉绳asbestos rope, asbestos cord．O形环O-ring自密封self-sealing四氟带Teflon tap带铬镍合金丝的石棉绳asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料Teflon impregnated asbestos packing金属填料metallic stuffing填料箱，填料函packing box, stuffing box填料函压盖stuffing box gland4 管道等级及材料统计4.1 管道材料规定Piping Material Specification管道等级piping class; piping classification管道等级号class designation公称直径nominal diameter (DN); nominal (pipe) size 公称压力nominal pressure (PN)压力级，等级，类别class (CL)低压low pressure (L.P.)中压medium pressure (M.P.)高压high pressure (H.P.)大气压atmosphere (ATM)真空vacuum工作压力operating pressure; working pressure设计压力design pressure工作温度operating temperature设计温度design temperature环境温度ambient temperature腐蚀裕量corrosion allowance管道附件piping attachment管道元件piping element壁厚wall thickness (WT)壁厚系列号schedule number (SCH. No.)加厚的，加强的extra heavy, extra strong双倍加厚的，双倍加强的double extra heavy, double extra strong通用连接组typieal installation分组（类）形式（如管道等级表）block form数据库data base文件file4.2 材料统计Material Take-off (MTO)汇总表summary sheet材料表bill of material (BM)综合管道材料表consolidated piping material summary sheet (CPMSS)统计材料准确度accuracy of take-off材料情况报告material status report (MSR)散装材料bulk material编位号的itemized代码code number短代码short code数量quantity (QTY)重力weight净重net weight毛重gross weight5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement5.1 设备名称Equipment Name5.1.1 容器Vessel(1) 塔tower, column洗涤塔scrubber吸收塔absorber冷却塔cooling tower精馏塔fractionating tower蒸馏塔distillation tower再生塔regenering tower造粒塔prflling tower汽提塔stripper脱气塔degasifier合成塔synthesis tower(2) 反应器reactor聚台釜polymerizer转化器，变换器converter脱硫反应器desulphurization reactor 甲烷化器methanator(3) 气柜gas-holder螺旋式气柜helical gas-holder湿式气柜wet gas-holder干式气柜dry gas-holder(4) 槽罐贮罐tank; storage tank缓冲罐knock out drum球罐spheroid, spherical tank罐drum接受槽receiver计量槽measuring tank加料槽feed tank排污罐blow down tank闪蒸罐flash drum汽包steam drum溶液贮槽solution storage tank 地下槽sloptank(5) 其它设备分离器separator旋风分离器cyclone分子筛molecular sieve脱氧器deaerator搅拌器agitator干燥器dryer混合器mixer萃取器extractor结晶器crystallizer澄清器gravity settler净化器purifier气化器vaporizer吸附器adsorber融解槽melter减温器desuperheater升压器booster喷射器ejector喷头sprayer火炬flare消声器silencer(6) 换热器、加热器、冷却器换热器heat exchanger空冷器air cooler水冷却器water cooler冷凝器condenser螺旋板式换热器spiral plate heat exchanger 蒸发器evaporator再沸器reboiler急冷器quencher深冷器chiller预热器preheater再热器reheater加热器heater电加热器electric heater过热器super heater给水加热器feed water heater中间冷却器inter cooler后冷却器after cooler5.1.2 工业炉及锅炉炉子furnace烧嘴burner锅炉boiler烟囱stack废热锅炉waste heat boiler辅助锅炉auxiliary boiler省煤器economizer回热炉direct-fired heater辐射段radiant section对流段convection section裂化炉reformer焚烧炉incinerator回转窑rotary kiln炉管furnace tube吹灰器soot blower观察孔observation door, peep door防爆门explosion door5.2 辅助用房名称5.2.1 生产用房分析室analyzer room变压器室transformer room配电室，变电所substation, switch room蓄电池室battery room控制室control room通风室ventilating room贮藏室storage room维修间maintenance room办公室office5.2.2 生活用房更农室locker room盥洗室，厕所closet, lavatory, toilet5.3 图名管道布置平面piping arrangement plan (PAP)管道布置piping layout轴测图isometric drawing分区索引图key plan初版设备布置图（“A”版）preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版）inrernal approval plot plan ( “B” issue)用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版）confirm plot plan ( “D” issue)研究版设备布置图（“e”版）planning plot plan ( “E” issue)设计版设备布置图（“F”）designing plot plan ( “F” issue)施工版设备布置图（“G”版）construction plot plan ( “G” issue)5.4 厂房、站、单元压缩机房compressor house (room)泵房pump house (room)洗眼站eye washer station泡沫站foam station软管站，公用工程站hose station (HS), utility station 成套设备package unit设施facilities罐区tank yard空分装置air separation facility5.5 设备布置设备位号equipment item number工厂plant工厂区界plant limit项目区界内侧inside battery limit (I.S.B.L.)项目区界batterylimit (BL)区界area limit区域边界zone iimit界外off site东east (E)西west (W)南south (S)北north (N)上up下down工厂北向plant north真实北向true north道路road小过道cat walk, cat way走道，过道walk way, gangway, access way 污水坑（井）sump pit集水池catch basin沟槽through预留区trough场地future area铺砌区paving area非铺砌区unpaved area碎石铺面gravel paving橡皮铺面rubber paving面积，区域area体积，容积volume (VOL) 5.6 管道布置管道设计piping design管道研究piping study走向研究routing study重要管道critical piping地上管道above ground piping 地下管道under ground piping 管网network of pipes管廊pipe rack管沟piping trench管间距line spacing管道跨距line span总管header, manifold旁路by pass排液drain放空vent上升管，垂直管riser导管canduit裸管bare iine管件直接fitting to fitting (FTF)管段，接口spool piece, spool取样接口sampling connection集液包drip leg伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line, jacketed piping 全夹套的full jacketed平面plan详图detail“ ”视图X view “X”“ ”剖视A-A section “A-A”连接图hook up drawing接续图continue on drawing (COD) 接续线match line (M.L.)比例scale图例legend符号symbol管口表list of nozzles方位orientation管口方位nozzle orientation定位location相交intersection水平的horizontal垂直的，立式的vertical垂直，正交，垂直的perpendicular平行，平行的parallel水平安装horizontal installation垂直安装vertical installafion对称的symmetric相反（的），对面（的）opposite顺时针方向clock wise逆时针方向counter clock wise计算机辅助设计computer aided design (CAD) 5.7 图面标注绝对标高abselute elevation海平面标高over-sea mean level (OSL)标高，立面elevation (EL)混凝土顶面top of concrete架顶面top of support (TOS)钢结构顶面top of steel梁项面top of beam (TOB)支撑点point of suppon (POS)管顶top of pipe (TOP)管底bouom of pipe (BOP)沟底boaom of trench管子内底invert (inside bottom of pipe)底平flat on bottom (FOB)顶平flat on top (FOT)工作点working point (W.P.)面至面face to face (F-F)中心至端面center to end (C-E)中心至面center to face (C-F)中心至中心，中至中center to center (C-C) 坐标coordinate坐标原点origin of coordinate出口中心线center line of discharge入口中心线center line of suction中心线centerline (CL)入口inlet, suction出口outlet, discharge排出口exhaust距离distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图flow diagram工艺流程图process flow diagram (PFD)管道及仪表流程图piping and instrument flow diagram (PID)公用工程流程图utility flow diagram (UFD) 管线表line list; line schedule命名表；管道表nomenclature设备表equipment list (schedule)(2) 流体fluid空气air仪表空气instrument air工艺空气process air低压蒸汽low pressure steam中压蒸汽medium pressure steam高压蒸汽high pressure steam伴热蒸汽tracing steam饱和蒸汽saturated steam过热蒸汽superheated steam氧气oxygen氢气hydrogen氮气nitrogen燃料气fuel gas天然气natural gas火炬气flare gas酸性气sour gas液化石油气liquefired petroleum gas (LPG) 氨气ammonia gas冷却水cooling循环水circulating water锅炉给水boiler feed water热水hot water蒸汽冷凝水steam condensate盐水brine工艺水process water化学污水chemical sewage防腐剂corrosion inhibitor重油heavy oil石脑油naphtha燃料油fuel oil润滑油lubricating oil密封油sealing oil冷冻剂refrigerant载热体heating medium溶剂solvent溶液solution母液mother liquor单体monomer聚合物polymer均聚物homopolymer共聚物copolymer工艺液体process liquid工艺气体process gas硫酸sulphuric acid盐酸chlorhydric acid硝酸nitric acid烧碱caustic soda(3) 流体特性fluid characteristics 蒸汽压vapor pressure临界温度critical temperature临界点critical point临界压力critical pressure比热specific heat湿度humidity密度density比重specific gravity粘度viscosity闪点flash point融点melting point凝固点freezing point浓度concentration爆炸极限limit of explosion 有毒的toxic可燃的；易燃的flammable (4) 其它回收recovery再生regeneration循环cireulatlon再循环；再生recycle补充make-up制备preparation蒸汽吹扫steaming out吹扫purge抽空；排空evacuation吹出blow-off排污blow down破真空vacuum breaker大气腿barometric leg备用stand-by化学清洗chemical cleaning净正吸入压头net positive suction head (NPSH) 进料feed成品product污染contamination大气污染atmospheric pollution环境温度ambient temperature5.8.2 建筑、结构建筑物building钢结构steel structure已有钢结构existing steel structure钢筋混凝土结构reinforced concrete construction 楼面floor平台platform (PF)地面ground level栏杆handrail楼梯stair; stair way直梯ladder柱column; post; stanchion基础foundation; footing粱beam。
管道及配件中英文对照
管道及配件中英文对照化工管道词汇翻译1 管道组成件Piping component1。
1 管子Pipe管子（按照配管标准规格制造的) pipe管子（不按配管标准规格制造的其他用管）tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless （SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric—resistance welded steel pipe电熔（弧）焊钢板卷管electric—fusion （arc）-welded steel-plate pipe 螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot—rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water—gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1。
2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbow长半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向) side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通(右向或左向）side outlet tee （right hand or 1eft hand）异径三通（分支口为异径）reducing tee （reducing on outlet)异径三通（一个直通口为异径）reducing tee （reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee （reducing on one run and outlet）异径三通（两个直通口为异径，双头式) reducing tee (reducing on both runs，bull head）45°斜三通45°lateral管道及配件中英文对照245°斜三通（支管为异径）45°lateral (reducing on branch）45°斜三通(一个直通口为异径）45°lateral (reducing on one run)45°斜三通(一个直通口及支管为异径）45°lateral (reducing on one run and branch)Y型三通(俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径) reducing cross （reducing on one run and outlet）异径四通（两个分支口为异径）reducing cross （reducing on both outlet）异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet）异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台,插入式支管台boss（以上带红线的单词已经查过，应该是行业很组合的名词，可以查得到）。
管道中英文对照表最全的
管底标高
ELL
弯头
BBP EL***
机泵底板底面标高
ELBOW
弯头
POS EL***
设备支撑点标高
ELL SR
弯头 1.0D（短径） GR
地面
ELL LR
弯头 1.5D
DISCH
泵出口
TEE
三通
SUC
泵进口
TEE SC(NPT)
丝扣三通
DRAIN
导淋
TEE SW
套焊三通
V
放空
TEE BW
对焊三通
***－H
WELDOLET BW
对焊管座
RIPPLE
牙接头
THREADOLET
螺纹管座
RIPPLE TOE
单头E TBE
双接头
HALF COUPLING
半接头
LATROLET
斜接支管台
FULL COUPLING
全接头、管箍
THREDOLET CL3000 FNPT
内螺纹支管台
减压阀、泄压阀、溢流阀
V#7596.7591.6596.6590.8592 金属缠绕垫
PRESSURE-GAUGE-VALVE
泄压阀
V#N510.520
金属类垫
DIAPHRAGM-VALVE (DV)
隔膜阀
3-WAY VALVE
三通阀
BOLT
螺栓
FLOWMETER/FT
流量计，流量阀
STUD BOLT
套焊大小头
TRACING
管道伴热
ELBOLET
弯头支管台
STEAM-JACKET TRACING
蒸汽夹套伴热
PLUG
堵头
化工管道工程使用技术词汇中英文对照.
化工管道工程使用技术词汇中英文对照 1 管道组成件 Piping component 1.1 管子 Pipe管子 (按照配管标准规格制造的 pipe管子 (不按配管标准规格制造的其他用管 tube钢管 steel pipe铸铁管 cast iron pipe衬里管 lined pipe复合管 clad pipe碳钢管 carbon steel pipe合金钢管 alloy steel pipe不锈钢 stainless steel pipe奥氏体不锈钢管 austenitic stainless steel pipe铁合金钢管 ferritic alloy steel pipe轧制钢管 wrought-steel pipe锻铁管 wrought-iron pipe无缝钢管 seamless (SMLS steel pipe焊接钢管 welded steel pipe电阻焊钢管 electric-resistance welded steel pipe电熔(弧焊钢板卷管 electric-fusion (arc-welded steel-plate pipe螺旋焊接钢管 spiral welded steel pipe镀锌钢管 galvanized steel pipe热轧无缝钢管 hot-rolling seamless pipe冷拔无缝钢管 cold-drawing seamless pipe水煤气钢管 water-gas steel pipe塑料管 plastic pipe玻璃管 glass tube橡胶管 rubber tube直管 run pipe; straight pipe1.2 管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk 半径弯头 long radius elbow短半径弯头 short radius elbow长半径 180°弯头 long radius return短半径 180°弯头 short radius return带侧向口的弯头(右向或左向 side outlet elbow (right hand or left hand 双支管弯头(形 double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通(右向或左向 side outlet tee (right hand or 1eft hand异径三通(分支口为异径 reducing tee (reducing on outlet异径三通(一个直通口为异径 reducing tee (reducing on one run带支座三通 base tee异径三通(一个直通口及分支口为异径 reducing tee (reducing on one run and outlet 异径三通(两个直通口为异径,双头式 reducing tee (reducing on both runs, bull head 45°斜三通 45° lateral45°斜三通(支管为异径 45° lateral (reducing on branch45°斜三通 (一个直通口为异径 45° lateral (reducing on one run45°斜三通 (一个直通口及支管为异径 45° lateral (reducing on one run and branchY 型三通(俗称裤衩true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通(一个分支口为异径 reducing cross (reducing on one outlet异径四通(一个直通口及分支口为异径 reducing cross (reducing on one run and outlet 异径四通(两个分支口为异径 reducing cross (reducing on both outlet异径四通(一个直通口及两个分支口为异径 reducing cross (reducing on one run and both outlet异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台,插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union内外螺纹缩接(俗称补芯 bushing管帽 cap (C堵头 plug短节 nipple异径短节 reducing nipple; swage nipple1.3 弯管 Bend预制弯管 fabricated pipe bend跨越弯管(^ 形 cross-over bend偏置弯管(~ 形 offset bend90°弯管 quarter bend环形弯管 cirele bend单侧偏置 90°弯管(? 形 single offset quarter bendS 形弯管“S” bend单侧偏置 U 形膨胀弯管(| ?形single offset “U” bend U 形弯管“U” bend双偏置 U 膨胀弯管double offset expansion “U” bend 斜接弯管 mitre bend三节斜接弯管 3-piece mitre bend折皱弯管 corrugated bend圆度 roundness1.4 法兰 Flange (FLG整体管法兰 integral pipe flange钢管法兰 steel pipe flange螺纹法兰 threaded flange滑套法兰(包括平焊法兰 slip-on flange (SO; slip-on welding flange 承插焊法兰socket welding flange松套法兰 lap joint flange (LJF对焊法兰 welding neckflange (WNF法兰盖 blind flange, blind孔板法兰 orifice flange异径法兰 reducing flange盘座式法兰 pad type flange松套带颈法兰 loose hubbed flange焊接板式法兰 welding plate flange对焊环 welding neck collar (与 stub end相似平焊环 welding-on collar突缘短节 stub end, lap翻边端 lapped pipe end松套板式法兰 loose plate flange压力级 pressure rating, pressure rating class压力—温度等级 pressure-temperature rating法兰密封面,法兰面 flange facing突面 raised face (RF凸面 male face (MF凹面 female face (FMF榫面 tongue face槽面 groove face环连接面 ring joint face全平面;满平面 flat face; full face (FF光滑突面 smooth raised face (SRF法兰面加工 facing finish粗糙度 roughness光滑的 smooth齿形 serrated均方根 root mean square (RMS算术平均粗糙高度 arithmetical average roughness height (AARH 配对法兰 companion-flange螺栓圆 bolt circle (B.C.1.5 垫片 Gasket (GSKT垫片的型式 type of gasket平垫片 flat gasket环形平垫片 flat ring gasket平金属垫片 flat metal gasket夹棉织物的橡胶 elastomer with cotton fabric insertion夹石棉织物的橡胶 elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶 elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片 non graphited compressed white asbestos gasket天然白橡胶垫片 natural white rubber gasket压缩石棉垫片 compressed asbestos class gasket浸聚四氟乙烯的石棉垫片 PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片 spiral-wound metal gasket with asbestos filler内环 inner ring外环,外定位环 outer ring波纹金属垫片 corrugated metal gasket波纹金属包嵌石棉垫片 corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片 corrugated metal double jacketed asbestos filled gasket双夹套垫片 double jacketed gasket金属包石棉平垫片 flat metal jacketed asbestos filled gasket整体金属齿形垫片 solid metal serrated gasket槽形金属垫片 grooved metal gasket环形连接金属垫片 ring joint metal gasket八角环形垫片 octagonal ring gasket椭圆环形垫片 oval ring gasket透镜式垫片 lens gasket非金属垫片 non-metallic gasket1.6 阀门 Valve1.6.1 阀门结构、零件阀轭 yoke外螺纹阀杆及阀轭 outside screw and yoke (OS & Y 阀杆 stem内螺纹 inside screw (IS阀轭套 yoke sleeve阀杆环 stem ring阀座 valve seat (body seat阀座环、密封圈 seat ring整体(阀座 integral seat堆焊(阀座 deposited seat阀芯(包括密封圈、杆等内件 trim阀盘 disc阀盘密封圈 disc seat阀体 body阀盖 bonnet阀盖衬套 bonnet bush螺纹阀帽 screw cap螺纹阀盖 screw bonnet螺栓连接的阀盖 bolted bonnet (BB 活接阀盖(帽 union bonnet (cap螺栓连接的阀帽 bolted cap (BC焊接阀盖 welded bonnet (WB本体阀杆密封 body stem seal石棉安全密封 asbestos emenen seal 倒密封 back seal压力密封的阀盖 pressure-tight bonnet动力操纵器 powered operator电动操纵器 electric motor operator气动操纵器 pneumatic operator液压操纵器 hydraulic operator快速操纵器 quick-acting operator滑动阀杆 sliding stem正齿轮传动 spur gear operated伞齿轮传动 bevel gear operated扳手操作 wrench operated链轮 chain wheel手轮 hand wheel手柄 hand lever (handle气缸(或液压缸操纵的 cylinder operated链条操纵的 chain operated等径孔道 full bore; full port异径孔道 reducing bore, reduced port,venturi port 短型 short pattern紧凑型(小型 compact type笼式环 lantern ring压盖 gland阀杆填料 stem packing阀盖垫片 bonnet gasket升杆式(明杆 rising stem (RS非升杆式(暗杆 non-rising stem (NRS 指示器 /限位器 indicator/stopper注油器 grease injector可更换的阀座环 renewable seat ring 1.6.2 常用阀(1闸阀 gate valve平行双闸板 double disc parallel seat开口楔形闸板 split wedge挠性整体楔形闸扳 flexible solid wedge 整体楔形闸板 solid wedge塞型闸阀 plug gate valve直通型闸阀 through conduit gate valve (2 截止阀 globe valve球心型阀盘 globe type disc塞型阀盘 plug type disc可转动的阀盘 swivel disc(3 节流闪阀 throttle valve针阀 needle valve(4 角阀 angle valve(5 Y型阀(Y 型阀体截止阀 Y-valve (Y-body globe valve(6 球阀 ball valve三通球阀 3-way ball valve装有底轴的 trunnion mounted耐火型 fire safe type浮动球型 floating ball type防脱出阀杆 blowout proof stem(7 蝶阀 butterfly valve对夹式(薄片型 wafer type凸耳式 lug type偏心阀板蝶阀 offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀 link butterfly valve8 柱塞阀 piston type valve(9 旋塞阀 plug valve三通旋塞阀 three-way plug valve四通旋塞阀 four-way plug valve旋塞 cock衬套旋塞 sleeve cock(10 隔膜阀 diaphragm valve橡胶衬里隔膜阀 rubber lined diaphragm valve直通式隔膜阀 straight way diaphragm valve堰式隔膜阀 weir diaphragm valve(11 夹紧式胶管阀 pinch valve(用于泥浆、粉尘等(12 止回阀 check valve升降式止回阀 lift check valve旋启式止回阀 swing check valve, flap check valve 落球式止回阀 ball check valve弹簧球式止回阀 spring ball check valve双板对夹式止回阀 dual plate wafer type check valve 无撞击声止回阀 non-slam cheek valve底阀 foot valve切断式止回阀 stop check valve; non-return valve活塞式止回阀 piston check valve斜翻盘止回阀 tilting disc check valve蝶式止回阀 butterfly check valve1.6.3 其它用途的阀安全泄气阀 safety valve (SV安全泄液阀 relief valve (RV安全泄压阀 safety relief valve杠杆重锤式 lever and weight type引导阀操纵的安全泄气阀 pilot operated safety valve复式安全泄气阀 twin type safety valve罐底排污阀 flush-bottom tank valve电磁阀 solenoid valve, solenoid operated valve电动阀 electrically operated valve, electric-motor operated valve 气动阀 pneumatic operated valve低温用阀 cryogenic service valve蒸汽疏水阀 steam trap机械式疏水阎 mechanical trap浮桶式疏水阀 open bucket trap, open top bucket trap浮球式疏水阀 float trap倒吊桶式疏水阀 inverted bucket trap自由浮球式疏水阀 loose float trap恒温式疏水阀 thermostatic trap金属膨胀式蒸汽疏水阀 metal expansion steam trap液体膨胀式蒸汽疏水阀 liquid expansion steam trap双金属膨胀式蒸汽疏水阀 bimetallic expansion steam trap压力平衡式恒温疏水阀 balanced pressure thermostatic trap热动力式疏水阀 thermodynamic trap脉冲式蒸汽疏水阀 impulse steam trap放气阀(自动放气阀 air vent valve (automatic air vent valve (疏水阀用平板式滑动闸阀 slab type sliding gate valve盖阀 flat valve换向阀 diverting valve, reversing valve热膨胀阀 thermo expansion valve自动关闭阀 self-closing gate valve自动排液阀 self-draining valve管道盲板阀 line-blind valve挤压阀 squeeze valve(用于泥浆及粉尘等呼吸阀 breather valve风门、挡板 damper减压阀 pressure reducing valve, reducing valve 控制阀 control valve膜式控制阀 diaphragm operated control valve执行机构 actuator背压调节阀 back pressure regulating valve差压调节阀 differential pressure regulating valve 压力比例调节阀 pressure ratio regulating valve 1.6.4 未指明结构(或阀型的阀切断阀 block valve; shut-off valve; stop valve调节阀 regulating valve快开阀 quick opening valve快闭阀 quick closing valve隔断阀 isolating valve三通阀 three way valve夹套阔 jacketed valve非旋转式阀 non-rotary valve排污阀 blowdown valve集液排放阀 drip valve排液阀 drain valve放空阀 vent valve卸载阀 unloading valve排出阀 discharge valve吸入阀 suction valve多通路阀 multiport valve取样阀 sampling valve手动阀 hand-operated valve; manually operated valve 锻造阀 forged valve铸造阀 cast valve(水龙头 bibb; bib; faucet抽出液阀(小阀 bleed valve旁路阀 by-pass valve软管阀 hose valve混合阀 mixing valve破真空阀 vacuum breaker冲洗阀 flush valve第一道阀;根部阀 primary valve根部阀 root valve总管阀 header valve事故切断阀 emergency valve1.7 管道特殊件 Piping Specialty1.7.1 管道特殊件(组件粗滤器 strainer过滤器 filter临时粗滤器(锥型 temporary strainer (cone type y 型粗滤器 y-type strainer T 型粗滤器 T-type strainer永久过滤器 permanent filter丝网粗滤器 gauze strainer洗眼器及淋浴器 eye washer and shower视镜 sight glass阻火器 flame arrester喷嘴;喷头 spray nozzle取样冷却器 sample cooler消声器 silencer膨胀节 expansion joint波纹膨胀节 bellow expansion joint单波 single bellow双波 double bellow多波 multiple bellow压力平衡式膨胀节 pressure balanced expansion带铰链膨胀节 hinged expansion joint轴向位移型膨胀节 axial movement type expansion joint 自均衡膨胀节(外加强环self-equalizing expansion joint 带接杆膨胀节 tied expansion joint万向型膨胀节 universal type expansion joint球形补偿器 ball type expansion joint填函式补偿器 slip type (packed type expansion joint单向滑动填料函补偿器 single actionpacked slip joint 1.7.2 管道特殊元件 Piping Special Element软管接头 hose connection (HC快速接头 quick coupling金属软管 metal hose橡胶管 rubber hose挠性管 flexible tube鞍形补强板 reinforcing saddles补强板 reinforcement pad特殊法兰 special flange漏斗 funnel排液环 drip ring排液漏斗 drain funnel插板 blank垫环 spacer8字盲板 spectacle blind; figure 8 blind 限流孔板 restriction orifice爆破片 rupture disk法兰盖贴面 protective disc费托立克接头 victaulic coupling1.8 端部连接 End Connection法兰端 flanged end坡口端 beveled end (BE对焊端 butt welded end平端 plain end (PE承插焊端 socket welding end螺纹端 threaded end (TE承口 bell end焊接端 welding end法兰连接(接头 flanged joint对焊连接(接头 butt welded joint螺纹连接,管螺纹连接 threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接(接头 socket welded joint承插连接(接头 bell and spigot joint环垫接头 ring joint (RJ万向接头 universal joint软钎焊连接(接头 soldered joint搭接接头,松套连接 lapped joint外侧厚度切斜角 bevel for outside thickncss内侧厚度切斜角 bevel for inside thickness内外侧厚度切斜角 bevel for combined thickness 法兰式的 flanged (FLGD对焊的 butt welded (BW螺纹的 threaded (THD承插焊的 socket welded (SW小端为平的 small end plain (SEP大端为平的 large end plain (LEP两端平 both ends plain (BEP小端带螺纹 small end thread (SET大端带螺纹 large end thread (LET两端带螺纹 both end thread (BET一端带螺纹 one end thread (OET支管连接 branch connection焊接支管 branch pipe welded directly to the run pipe 2 管道用紧固件及螺纹2.1 紧固件螺栓 bolt六角头螺栓 hexagonal head bolt方头螺栓 square head bolt螺柱,双头螺栓 stud bolt环头螺检 eye bolt沉头螺栓 countersunk (head screw地脚螺栓 anchor bolt; foundation bolt松紧螺旋扣(花篮螺丝 turnbuckleU 形螺栓 U-boltT 形螺栓 T-bolt圆头螺钉 round head bolt机螺栓,机螺钉 maehine bolt顶开螺栓,顶起螺栓 Jack screw自攻螺钉 self tapping screw 膨胀螺栓 expansion bolt粗制的 coarse精制的 finished, fine螺母 nut六角螺母 hexagonal nut方螺母 square nut蝶形螺母 wing nut扁螺母 flat nut锁紧螺母 lock nut垫圈 washer平垫圈 plain washer球面垫圈 spherical washer 弹簧垫圈 spring washer方垫圈 square washer斜垫圈 slant washer销轴 pinned shan销 pin开口销 cotter pin定位销 dowel pin带孔销 pin with hole圆锥销 taper pin铆钉 rivet键 key2.2 螺纹左螺纹 left hand thread右螺纹 right hand thread管螺纹 pipe thread锥管螺纹 taper pipe thread 直管螺纹 straight pipe thread 梯形螺纹 trapezoid thread螺距 pitch of thread粗牙螺纹 coarse thread细牙螺纹 fine thread特细牙螺纹 extra fine thread 通长螺纹 full thread惠氏螺纹 whitworth thread 公制螺纹 metric ibread美国标准锥管螺纹 American standard taper pipe thread (NPT 螺孔 tap 3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属 Ferrous Metal碳素钢 carbon steel (CS低碳钢 low-carbon steel中碳钢 medium-carbon steel高碳钢 high-carbon steel普通碳素钢 general carbon steel优质碳素钢 high-quality carbon steel普通低合金结构钢 general structure low-alloy steel合金结构钢 structural alloy steel合金钢 alloy steel低合金钢 low alloy steel中合金钢 medium alloy steel高合金钢 high alloy steel耐热钢 heat resisting steel高强度钢 high strength steel复合钢 clad steel工具钢 tool steel弹簧钢 spring steel钼钢 molybdenum steel镍钢 nickel steel铬钢 chromium steel铬钼钢 chrome-molybdenum steel铬镍钢 chromium-nickel steel,chrome-nickel steel 不锈钢 stainless steel (S.S. 奥氏体不锈钢 Austenitic stainless steel马氏体不锈钢 Martensitic stainless steel司特来合金(钨铬钴台金 Stellite耐蚀耐热镍基合金 Hastelloy铬镍铁合金 inconel耐热铬镍铁合金 incoloy20合金 20 alloy平炉钢(马丁钢 Martin steel镇静钢 killed steel半镇静钢 semi-killed steel沸腾钢 rimmed steel; rimming steel; open-steel 锻钢 forged steel铸钢 cast steel铸铁 cast iron (C.I.灰铸铁 grey cast iron可锻铸铁 malleable iron (MI球墨铸铁 nodular cast iron; nodular graphite iron 生铁 pig iron 熟铁,锻铁 wrought iron铸件 casting高硅铸铁 high silicon cast iron3.1.2 镀层及制造方法渗铬钢,镀铬钢 chromized steel镀铬的 chromium-plated, chrome-plated镀层 plating锻造,型钢 swage锻造的,锻造 forging轧制 rolling热轧 hot rolling冷轧 cold rolling挤压 extruding冷加工 cold working热加工 hot working拔制 drawing3.1.3 有色金属 Non-ferrous Metal 铝 aluminum铜,紫铜 copper黄铜 brass青铜 bronze铝青铜 aluminum bronze磷青铜 phosphor bronze铝镁合金 aluminum magnesium 锰青铜 manganese bronze蒙乃尔(注:镍及铜合金 Monel镍铜台金 nickel copper alloy非铁合金 nonferrous alloy钛 titanium铅 lead硬铅 hard lead3.1.4 材料性能极限强度 ultimate strength抗拉强度 tensile strength屈服极限 yield limit屈服点 yield point延伸率 percentage elongation抗压强度 compressive strength抗弯强度 bending strength弹性极限 elastic limit冲击值 impact value疲劳极限 fatigue limit蠕变极限 creep limit持久极限 endurance limit布氏硬度 Brinell hardness洛氏硬度 Rockwell hardness维氏硬度 Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度creep rupture strength断面收缩率 reduction of area韧性 toughess脆性 brittleness延性 ductility冷脆 cold shortness冷流 cold flow3.2 非金属材料 Non-metallic Material塑料 plastic丙烯腈—丁二烯—苯乙烯 acrylonitrile-butadiene-styrene (ABS 聚乙烯polyethylene (PE聚氯乙烯 polyvinyl chloride (PVC苯乙烯橡胶 styrene-rubber (SR聚丁烯 polybutylene (PB聚丙烯 polypropylene (PP聚苯乙烯 polystyrene (PS氯化聚醚 chlorinated polyether (CPE聚酰胺 polyamide (PA聚碳酸酯 polycarbonate (PC聚甲基丙烯酸甲酯 polymethyl methacrylate (PMMA醋酸丁酸纤维素 cellulose acetate butyrate (CAB氯化聚氯乙烯 chlorinated polyvinyl chloride (CPVC聚偏二氟乙烯 polyvinylidene fluoride (PVDF缩醛塑料 acetal plastic尼龙塑料 nylon plastic聚烯烃 polyolefin (PO石墨酚醛塑料 graphite phenolic plastics聚四氟乙烯 polytetrafluoroethylene (PTFE纤维增强热塑性塑料 fiber reinforced thermoplastics热塑性塑料 thermoplastic热固性塑料 thermosetting plastics胶粘剂 adhesive溶剂胶接剂 solvent cement树脂 resin环氧树脂 epoxy, epoxy resin聚酯树脂 polyester resin聚酯纤维 polyester fibers氟塑料 fluoroplastics聚氨基甲酸酯 polyurethane丙烯酸树脂 acrylic resin脲醛树脂 urea resin呋哺树脂 furan resin乙烯丙烯二烃单体 ethylene propylene diene monomer (EPDM 合成橡胶 synthetic rubber橡胶 rubber丁腈橡胶 nitrile butadiene rubber氯丁橡胶 neoprene天然橡胶 natural rubber乙丙橡胶 ethylene propylene rubber (EPR 玻璃 glass硼硅玻璃 borosilicate glass耐火砖 fire brick陶瓷 ceramic搪瓷 porcelain enamel木材 wood3.3 型材型钢 shaped steel, section steel, swage角钢 angle steel槽钢 channel工字钢 I-beam宽缘工字钢或 H 钢 wide flanged beamT 型钢 T-bar方钢 square bar扁钢 flat bar角钢 hexagonal steel bar圆钢 round steel; rod钢带 strap steel钢板 plate网纹钢板 checkered plate腹板(指型钢的立板 web翼缘(指型钢的缘 wing3.4 填料及填料函填料 packing石棉绳 asbestos rope, asbestos cord.O 形环 O-ring自密封 self-sealing四氟带 Teflon tap带铬镍合金丝的石棉绳 asbestos rope with inconel wire, inconel wire asbestos 浸聚四氟乙烯的石棉填料 Teflon impregnated asbestos packing金属填料 metallic stuffing填料箱,填料函 packing box, stuffing box填料函压盖 stuffing box gland4 管道等级及材料统计4.1 管道材料规定 Piping Material Specification管道等级 piping class; piping classification管道等级号 class designation公称直径 nominal diameter (DN; nominal (pipe size 公称压力 nominal pressure (PN压力级,等级,类别 class (CL低压 low pressure (L.P.中压 medium pressure (M.P.高压 high pressure (H.P.大气压 atmosphere (ATM真空 vacuum工作压力 operating pressure; working pressure设计压力 design pressure工作温度 operating temperature设计温度 design temperature环境温度 ambient temperature腐蚀裕量 corrosion allowance管道附件 piping attachment管道元件 piping element壁厚 wall thickness (WT壁厚系列号 schedule number (SCH. No.加厚的,加强的 extra heavy, extra strong双倍加厚的,双倍加强的 double extra heavy, double extra strong 通用连接组typieal installation分组(类形式(如管道等级表 block form数据库 data base文件 file4.2 材料统计 Material Take-off (MTO汇总表 summary sheet材料表 bill of material (BM综合管道材料表 consolidated piping material summary sheet (CPMSS 统计材料准确度 accuracy of take-off材料情况报告 material status report (MSR散装材料 bulk material编位号的 itemized代码 code number短代码 short code数量 quantity (QTY重力 weight净重 net weight毛重 gross weight5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement 5.1 设备名称 Equipment Name5.1.1 容器 Vessel(1 塔 tower, column洗涤塔 scrubber吸收塔 absorber冷却塔 cooling tower精馏塔 fractionating tower蒸馏塔 distillation tower再生塔 regenering tower造粒塔 prflling tower汽提塔 stripper脱气塔 degasifier合成塔 synthesis tower(2 反应器 reactor聚台釜 polymerizer转化器,变换器 converter脱硫反应器 desulphurization reactor 甲烷化器 methanator(3 气柜 gas-holder螺旋式气柜 helical gas-holder湿式气柜 wet gas-holder干式气柜 dry gas-holder(4 槽罐贮罐 tank; storage tank缓冲罐 knock out drum球罐 spheroid, spherical tank罐 drum接受槽 receiver计量槽 measuring tank加料槽 feed tank排污罐 blow down tank闪蒸罐 flash drum汽包 steam drum溶液贮槽 solution storage tank 地下槽 sloptank(5 其它设备分离器 separator旋风分离器 cyclone分子筛 molecular sieve脱氧器 deaerator搅拌器 agitator干燥器 dryer混合器 mixer萃取器 extractor结晶器 crystallizer澄清器 gravity settler净化器 purifier气化器 vaporizer吸附器 adsorber融解槽 melter减温器 desuperheater升压器 booster喷射器 ejector喷头 sprayer火炬 flare消声器 silencer(6 换热器、加热器、冷却器换热器 heat exchanger空冷器 air cooler水冷却器 water cooler冷凝器 condenser螺旋板式换热器 spiral plate heat exchanger 蒸发器 evaporator再沸器 reboiler急冷器 quencher深冷器 chiller预热器 preheater再热器 reheater加热器 heater电加热器 electric heater过热器 super heater给水加热器 feed water heater 中间冷却器 inter cooler后冷却器 after cooler5.1.2 工业炉及锅炉炉子 furnace烧嘴 burner锅炉 boiler烟囱 stack废热锅炉 waste heat boiler 辅助锅炉 auxiliary boiler省煤器 economizer回热炉 direct-fired heater辐射段 radiant section对流段 convection section裂化炉 reformer焚烧炉 incinerator回转窑 rotary kiln炉管 furnace tube吹灰器 soot blower观察孔 observation door, peep door 防爆门 explosion door 5.2 辅助用房名称5.2.1 生产用房分析室 analyzer room变压器室 transformer room配电室,变电所 substation, switch room 蓄电池室 battery room 控制室 control room通风室 ventilating room贮藏室 storage room维修间 maintenance room办公室 office5.2.2 生活用房更农室 locker room盥洗室,厕所 closet, lavatory, toilet5.3 图名管道布置平面 piping arrangement plan (PAP管道布置 piping layout轴测图 isometric drawing分区索引图 key plan初版设备布置图(“A” 版 prelimin ary plot plan ( “A” issue内部审查版设备布置图(“B” 版inrernal approval plot plan ( “B” issue用户审查版设备布置图(“C” 版owner approval plot plan ( “C” issue确认版设备布置图(“D” 版confirm plot plan ( “D” issue研究版设备布置图(“e” 版planning plot plan ( “E” issue设计版设备布置图(“F” designing plot plan ( “F” issue施工版设备布置图(“G” 版construction plot plan ( “G” issue5.4 厂房、站、单元压缩机房 compressor house (room泵房 pump house (room洗眼站 eye washer station泡沫站 foam station软管站,公用工程站 hose station (HS, utility station成套设备 package unit设施 facilities罐区 tank yard空分装置 air separation facility5.5 设备布置设备位号 equipment item number工厂 plant工厂区界 plant limit项目区界内侧 inside battery limit (I.S.B.L. 项目区界 batterylimit (BL区界 area limit区域边界 zone iimit界外 off site东 east (E西 west (W南 south (S北 north (N上 up下 down工厂北向 plant north真实北向 true north道路 road小过道 cat walk, cat way走道,过道 walk way, gangway, access way污水坑(井 sump pit集水池 catch basin沟槽 through预留区 trough场地 future area铺砌区 paving area非铺砌区 unpaved area碎石铺面 gravel paving橡皮铺面 rubber paving面积,区域 area体积,容积 volume (VOL5.6 管道布置管道设计 piping design管道研究 piping study走向研究 routing study重要管道 critical piping地上管道 above ground piping 地下管道 under ground piping 管网 network of pipes管廊 pipe rack管沟 piping trench管间距 line spacing管道跨距 line span总管 header, manifold旁路 by pass排液 drain放空 vent上升管,垂直管 riser导管 canduit裸管 bare iine管件直接 fitting to fitting (FTF 管段,接口 spool piece, spool 取样接口 sampling connection 集液包 drip leg伴热管 tracing pipe蒸汽伴热 steam tracing热水伴热 hot-water tracing电伴热 electrical tracing夹套管 jacketed line, jacketed piping 全夹套的 full jacketed平面 plan详图 detail“ ” 视图X view “X”“ ” 剖视 A-A section “A -A”连接图 hook up drawing接续图 continue on drawing (COD 接续线 match line (M.L.比例 scale图例 legend符号 symbol管口表 list of nozzles方位 orientation管口方位 nozzle orientation定位 location相交 intersection水平的 horizontal垂直的,立式的 vertical垂直,正交,垂直的 perpendicular 平行,平行的 parallel水平安装 horizontal installation垂直安装 vertical installafion对称的 symmetric相反(的 ,对面(的 opposite顺时针方向 clock wise逆时针方向 counter clock wise计算机辅助设计 computer aided design (CAD 5.7 图面标注绝对标高 abselute elevation海平面标高 over-sea mean level (OSL标高,立面 elevation (EL混凝土顶面 top of concrete架顶面 top of support (TOS钢结构顶面 top of steel梁项面 top of beam (TOB支撑点 point of suppon (POS管顶 top of pipe (TOP管底 bouom of pipe (BOP沟底 boaom of trench管子内底 invert (inside bottom of pipe底平 flat on bottom (FOB顶平 flat on top (FOT工作点 working point (W.P.面至面 face to face (F-F中心至端面 center to end (C-E中心至面 center to face (C-F中心至中心,中至中 center to center (C-C 坐标 coordinate坐标原点 origin of coordinate出口中心线 center line of discharge入口中心线 center line of suction中心线 centerline (CL入口 inlet, suction出口 outlet, discharge排出口 exhaust距离 distance5.8 相关专业的专业词汇5.8.1 工艺(1 图及表流程图 flow diagram工艺流程图 process flow diagram (PFD 管道及仪表流程图 piping andinstrument flow diagram (PID公用工程流程图 utility flow diagram (UFD 管线表 line list; line schedule 命名表;管道表 nomenclature设备表 equipment list (schedule(2 流体 fluid空气 air仪表空气 instrument air工艺空气 process air低压蒸汽 low pressure steam中压蒸汽 medium pressure steam高压蒸汽 high pressure steam伴热蒸汽 tracing steam饱和蒸汽 saturated steam过热蒸汽 superheated steam氧气 oxygen氢气 hydrogen氮气 nitrogen燃料气 fuel gas天然气 natural gas。
【VIP专享】工艺管道常用中英文对照
这个是用来表达管件连接形式的；给楼主一份中英文对照还有缩写吧缩写中文名称英文名称P 管子PipeEL 弯头ElbowELL 长半径弯头Long radius elbowELS 短半径弯头Short radius elbowMEL 斜接弯头（虾米腰弯头）Mitre elbowREL 异径弯头Reducing elbowT 三通TeeLT 斜三通Lateral teeRT 异径三通Reducing teeR 异径管接头（大小头）ReducerCR 同心异径管接头（同心大小头）Concentric reducerER 偏心异径管接头（偏心大小头）Eccentric reducerCPL 管箍CouplingFCPL 双头管箍Full couplingHCPL 单头管箍Half couplingRCPL 异径管箍Reducing couplingBU 内外螺纹接头BushingUN 活接头UnionHC 软管接头Hose couplerSE 翻边短节Stub endNIP 短节Pipe nipple or straight nipple SNIP 异径短节Swaged nippleCP 管帽（封头）CapPL 管堵（丝堵）PlugBLK 盲板BlankSB 8字盲板Spectacle blind （blank）RP 补强板Reinforcing pad法兰缩写中文名称英文名称PLG 法兰FlangeWNF 对焊法兰Welding neck flange SOF 平焊法兰Slip-on flangeSWF 承插焊法兰Socket-welding flange T 螺纹法兰Threaded flangeLJ 松套法兰Lapped joint flange REDF 异径法兰Reducing flangeBF 法兰盖（日法兰）Blind flange FSF 法兰密封面Flange scaling face FF 全平面Flat faceRF 凸台面Raised faceMFF 凹凸面Male and female faceLF 凹面Female faceLM 凸面Male faceRJ 环连接面Ring joint faceTG 榫槽面Tongue and groove faceTF 榫面Tongue faceGF 槽面Groove face垫片缩写中文名称英文名称G 垫片GasketNMG 非金属垫片Non-metallic gasketAG 石棉垫片Asbestos gasketRG 橡胶垫片Rubber gasketTEG 聚四氟乙烯包复垫片PTFE envelope gasket SMG 半金属垫片Semimetallic gasketMJG 金属包垫片Meta-jacket gasketSWG 缠绕式垫片Spiral wound gasketMG 金属垫片Metallic gasketFMG 金属平垫片Flat metallic gasketSMSG 齿形金属垫片Solid metal serrated gasket LER 透镜式金属环垫Lens ring gasketOCR 八角形金属环垫Octagonal ring gasket OVR 椭圆形金属环垫Oval ring gaksetIR/OR 内外定位环Inner ring and outer ringIR 内定位环Inner ringOR 外定位环Outer ring坚固件缩写中文名称英文名称B 螺栓BoltSB 螺柱Stud boltNU 螺母NutTB 花蓝螺母TurnbuckleWSR 垫圈WasherSWSR 弹簧垫圈Spring washer阀门valve缩写中文名称英文名称GV 闸阀Gate valveGLV 截止阀Globe valveCHV 止回阀Check valveBUV 蝶阀Butterfly valveBAV 球阀Ball valvePV 旋塞阀Plug valve （cock）CV 调节阀Control valveSV 安全阀Safety valveRV 减压阀Pressure reducing valve ST 蒸汽疏水阀Steam trapPRV 泄压阀Pressur relief valveBV 呼吸阀Breather valveNV 针形阀Needle valveAV 角阀DV 隔膜阀TWV 三通阀SGV 插板阀管道上用的小型设备缩写中文名称英文名称SPR 气液分离器SeparatorFA 阻火器Flame arresterSR 过滤器StrainerSRY Y型过滤器Y-type strainer SRT T型过滤器T-type strainer SRB 桶式过滤器Bucket type strainer TSR 临时过滤器Temporary strainer SIL 消声器SilencerSG 视镜Slight glassSC 取样冷却器Sample coolerDF 排液漏斗Drain funnelLM 管道混合器Line mixerRO 限流孔板Restriction orificeMO 混合孔板Mixing orificeRD 爆破片（爆破膜）Rupture diskEJ 补偿器Expansion joint隔热、伴热中文名称英文名称INS 隔热Thermal insulationH 保温Hot insulationC 保冷Cold insulationP 防烫伤隔热Personnel protection insulation T&I 伴热Tracing ａnd insulation管道伴热（冷）TracingEST 蒸汽外伴热External steam tracingIST 蒸汽内伴热Internal steam tracingSJT 蒸汽夹套伴热Steam-jacket tracingET 电伴热Electric tracing配管材料和等级缩写中文名称英文名称M 金属材料Metallic materialCS 碳钢Carbon steelCAS 铸钢Cast steelFS 锻钢Forged steelAS 合金钢Alloy steelSS 不锈钢Stainless steelAUSTSS 奥氏体不锈钢Austenitic stainless-steel CI 铸铁Cast ironMI 可锻铸铁Malleable ironDI 球墨铸铁Ductile ironAL 铝AluminumBRS 黄铜BrassBRZ 青铜BronzeCU 紫铜CopperLAS 低合金钢Low alloy steelFLAS 低合金锻钢Forged low alloy steel CLAS 低合金铸钢Cast low alloy steel THK 壁厚ThicknessSCH 表号Schedule numberSTD 标准StandardXS 加强Extra strongXXS 特强Double extra strong装置布置缩写中文名称英文名称CN 建北Construction northE 东EastW 西WestS 南SouthN 北NorthH 水平HorizontalV 竖直、铅直、直立VerticalGRD 地坪GroundUG 地下UndergroundBL 装置边界线Battery limit lineESEW 事故沐浴洗眼器Emergency shower ａnd eye washer HS 软管站Hose stationML 接续分界线Match linePS 管道支架（管架）Piping supportPR 管桥Pipe rackSTRU 构架（构筑物）StructureBLDG 建筑物BuildingPD 清扫设施Purge devicePT 池PitSHLT 棚ShelterCOFF 围堰CofferdamFL 楼板FloorPF 平台Plateform尺寸标注缩写中文名称英文名称EL 标高ElevationBOP 管底Bottom of pipeCOP 管中心Center of pipe TOP 管顶Top of pipeFOB 底平Flat on bottomFOT 顶平Flat on topCL（屯）中心线Center lineTL 切线Tangent lineSYM 对称的SymmetricalBOS 支架底Bottom of support TOS 支架顶Top of supportCL 净距（净空）Clearance CTC 中心至中心Center to center CTF 中心至面Center to face CTE 中心至端部Center to end ETE 端到端End to endFEF 法兰端面Flange ａnd face FTF 面到面Face to faceD 直径DiameterDN 公称直径Nominal diameter ID 内径Inside diameterOD 外径Outside diameterDIM 尺寸DimensionMAX 最大MaximumMIN 最小MinimumAVG 平均AverageAPP 约、近似ApproximatePT.EL 点标高Point elevation图表缩写中文名称英文名称PFD 工艺流程图Process flow diagramPID 管道和仪表流程图Piping & instrument diagramCOD 接续图Continued on drawingDTL 详图DatailSPDWG（ISODWG）管段图Spool drawing （each line isometric drawing）DWGNO 图号Drawing numberDWGI 所在图号Drawing identificationLOW 材料表List of materialMTO 汇料Material take-offAPPX 附录AppendixJOB. No. 工号Job NumberBEDD 基础工程设计数据Basic engineering design dataDEDD 详细工程设计数据Detail engineering design data REV. No. 修改号Recision numberREFDWG 参考图Reference drawingSC 采样接口Sample connection操作方式及工作参数缩写中文名称英文名称AUT 自动AutomaticML 手动Manual controlCHOP 链条操作Chain operatedCSC 铅封关Car seal closeCSO 铅封开Car seal openLC 锁闭Lock closedLO 锁开Lock openNC 正常关Normally closeNO 正常开Normally openATM 大气压AtmospherePN 公称压力Nominal pressureA 绝压 G 表压 （T）温度Temperature（P）压力Pressure施工缩写中文名称英文名称W 焊接WeldingAW 电弧焊Arc weldingGSAW 气体保护电弧焊Gas shielded-acr weldingEFW 电熔焊Elecric fusion weldingERW 电阻焊Electric Resistance weldingGW 气焊Gas weldingLW 搭接焊Lap weldingBW 对焊Butt weldingTW 定位焊Tack weldingSW 承插焊Socket weldingCW 连续焊Continuous weldingSEW 密封焊Seal weldingSFG 堆焊SurfacingFW 现场焊接Field weldingHT 热处理Heat treatmentPH 预热PreheatingSR 应力消除Stress reliefPWHT 焊后热处理Post weld heat treatmentEIT 检查、探伤和实验Examination, inspection & testing VE 外观检查Visual examinationUI （UT）超声探伤Ultrasonic inspection （test）RI （RT）射线探伤Radiographic inspection （test）MPI （MT）磁粉探伤Magnetic particle inspection （test）LPI （PT）液体渗透检验Liquid penterant inspection （test）HADT 硬度实验Hardness testingHYDT 水压实验Hydraulic testingPNET 气压实验Pneumatic testing焊条Covered electrodeWW 焊丝Welding wireASSY 装配、组合AssemblyF 现场FieldF/F 现场制造Field faricatedSF 现场决定Suit in fieldCSP 冷紧Cold springBCT 螺栓冷紧Bolt cold tighteningBHY 螺栓热紧Bolt hot tighteningCO 清洗口Clean outANNY 退火AnnealedPE 平端面Plain endBE 坡口端Belelled endTHR 螺纹ThreadHB 布氏硬度Brinnel hardnessRC 洛氏硬度其他缩写中文名称英文名称FDN 基础FoundationINF 信息（资料）Information REF 参考ReferenceREV 修改RevisionSEQ 序号（顺序）SequenceW/E 设备带来With equipmentW/I 仪表带来With instrument CM 色标Colour markCA 腐蚀裕度Corrosion allowance UTL 公用系统UtilityUC 公用工程接头Utility connection QTY 数量QuantityWT 重量WeightMHR 工时Man hourBC 螺栓分布圆Bolt circleHP 高点High pointLP 低点Low pointSUC 吸入（口）SuctionDIS 排出（口）DischargeSO 蒸气吹扫（口）Steam outNPT 美国标准锥管螺纹National standard taper pipe thread NPS 美国标准直管螺纹National standard straight pipe thread DR 排液DrainVT 放气VentRTG （压力）等级RatingCL 等级ClassSMLS 无缝Seamless。
(完整word版)工艺管道常用中英文对照
这个是用来表达管件连接形式的；给楼主一份中英文对照还有缩写吧缩写中文名称英文名称P 管子PipeEL 弯头ElbowELL 长半径弯头Long radius elbowELS 短半径弯头Short radius elbowMEL 斜接弯头（虾米腰弯头）Mitre elbowREL 异径弯头Reducing elbowT 三通TeeLT 斜三通Lateral teeRT 异径三通Reducing teeR 异径管接头（大小头）ReducerCR 同心异径管接头（同心大小头）Concentric reducerER 偏心异径管接头（偏心大小头）Eccentric reducerCPL 管箍CouplingFCPL 双头管箍Full couplingHCPL 单头管箍Half couplingRCPL 异径管箍Reducing couplingBU 内外螺纹接头BushingUN 活接头UnionHC 软管接头Hose couplerSE 翻边短节Stub endNIP 短节Pipe nipple or straight nippleSNIP 异径短节Swaged nippleCP 管帽(封头）CapPL 管堵（丝堵）PlugBLK 盲板BlankSB 8字盲板Spectacle blind （blank）RP 补强板Reinforcing pad法兰缩写中文名称英文名称PLG 法兰FlangeWNF 对焊法兰Welding neck flange SOF 平焊法兰Slip—on flangeSWF 承插焊法兰Socket-welding flange T 螺纹法兰Threaded flangeLJ 松套法兰Lapped joint flange REDF 异径法兰Reducing flangeBF 法兰盖（日法兰）Blind flange FSF 法兰密封面Flange scaling face FF 全平面Flat faceRF 凸台面Raised faceMFF 凹凸面Male and female faceLF 凹面Female faceLM 凸面Male faceRJ 环连接面Ring joint faceTG 榫槽面Tongue and groove faceTF 榫面Tongue faceGF 槽面Groove face垫片缩写中文名称英文名称G 垫片GasketNMG 非金属垫片Non-metallic gasketAG 石棉垫片Asbestos gasketRG 橡胶垫片Rubber gasketTEG 聚四氟乙烯包复垫片PTFE envelope gasket SMG 半金属垫片Semimetallic gasketMJG 金属包垫片Meta-jacket gasketSWG 缠绕式垫片Spiral wound gasketMG 金属垫片Metallic gasketFMG 金属平垫片Flat metallic gasketSMSG 齿形金属垫片Solid metal serrated gasket LER 透镜式金属环垫Lens ring gasketOCR 八角形金属环垫Octagonal ring gasket OVR 椭圆形金属环垫Oval ring gaksetIR/OR 内外定位环Inner ring and outer ringIR 内定位环Inner ringOR 外定位环Outer ring坚固件缩写中文名称英文名称B 螺栓BoltSB 螺柱Stud boltNU 螺母NutTB 花蓝螺母TurnbuckleWSR 垫圈WasherSWSR 弹簧垫圈Spring washer阀门valve缩写中文名称英文名称GV 闸阀Gate valveGLV 截止阀Globe valveCHV 止回阀Check valveBUV 蝶阀Butterfly valveBAV 球阀Ball valvePV 旋塞阀Plug valve （cock）CV 调节阀Control valveSV 安全阀Safety valveRV 减压阀Pressure reducing valve ST 蒸汽疏水阀Steam trapPRV 泄压阀Pressur relief valve BV 呼吸阀Breather valveNV 针形阀Needle valveAV 角阀DV 隔膜阀TWV 三通阀SGV 插板阀管道上用的小型设备缩写中文名称英文名称SPR 气液分离器SeparatorFA 阻火器Flame arresterSR 过滤器StrainerSRY Y型过滤器Y—type strainerSRT T型过滤器T—type strainerSRB 桶式过滤器Bucket type strainerTSR 临时过滤器Temporary strainerSIL 消声器SilencerSG 视镜Slight glassSC 取样冷却器Sample coolerDF 排液漏斗Drain funnelLM 管道混合器Line mixerRO 限流孔板Restriction orificeMO 混合孔板Mixing orificeRD 爆破片(爆破膜）Rupture diskEJ 补偿器Expansion joint隔热、伴热中文名称英文名称INS 隔热Thermal insulationH 保温Hot insulationC 保冷Cold insulationP 防烫伤隔热Personnel protection insulation T&I 伴热Tracing ａnd insulation管道伴热(冷）TracingEST 蒸汽外伴热External steam tracing IST 蒸汽内伴热Internal steam tracing SJT 蒸汽夹套伴热Steam—jacket tracing ET 电伴热Electric tracing配管材料和等级缩写中文名称英文名称M 金属材料Metallic materialCS 碳钢Carbon steelCAS 铸钢Cast steelFS 锻钢Forged steelAS 合金钢Alloy steelSS 不锈钢Stainless steelAUSTSS 奥氏体不锈钢Austenitic stainless-steel CI 铸铁Cast ironMI 可锻铸铁Malleable ironDI 球墨铸铁Ductile ironAL 铝AluminumBRS 黄铜BrassBRZ 青铜BronzeCU 紫铜CopperLAS 低合金钢Low alloy steelFLAS 低合金锻钢Forged low alloy steel(完整word版)工艺管道常用中英文对照CLAS 低合金铸钢Cast low alloy steelTHK 壁厚ThicknessSCH 表号Schedule numberSTD 标准StandardXS 加强Extra strongXXS 特强Double extra strong装置布置缩写中文名称英文名称CN 建北Construction northE 东EastW 西WestS 南SouthN 北NorthH 水平HorizontalV 竖直、铅直、直立VerticalGRD 地坪GroundUG 地下UndergroundBL 装置边界线Battery limit lineESEW 事故沐浴洗眼器Emergency shower ａnd eye washerHS 软管站Hose stationML 接续分界线Match linePS 管道支架（管架) Piping supportPR 管桥Pipe rackSTRU 构架（构筑物) StructureBLDG 建筑物BuildingPD 清扫设施Purge devicePT 池PitSHLT 棚ShelterCOFF 围堰CofferdamFL 楼板FloorPF 平台Plateform尺寸标注缩写中文名称英文名称EL 标高ElevationBOP 管底Bottom of pipeCOP 管中心Center of pipe TOP 管顶Top of pipeFOB 底平Flat on bottomFOT 顶平Flat on topCL(屯）中心线Center lineTL 切线Tangent lineSYM 对称的SymmetricalBOS 支架底Bottom of support TOS 支架顶Top of supportCL 净距（净空) ClearanceCTC 中心至中心Center to center CTF 中心至面Center to face CTE 中心至端部Center to endETE 端到端End to endFEF 法兰端面Flange ａnd faceFTF 面到面Face to faceD 直径DiameterDN 公称直径Nominal diameterID 内径Inside diameterOD 外径Outside diameterDIM 尺寸DimensionMAX 最大MaximumMIN 最小MinimumAVG 平均AverageAPP 约、近似ApproximatePT。
管道及配件中英文对照精品
管道及配件中英文对照精品管道及配件中英文对照化工管道词汇翻译1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe 螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbow长半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet) 异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral管道及配件中英文对照245°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run) 45°斜三通(一个直通口及支管为异径) 45° later al (reducing onone run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss(以上带红线的单词已经查过，应该是行业很组合的名词，可以查得到)。
工艺管道常用中英文对照
这个是用来表达管件连接形式的；给楼主一份中英文对照还有缩写吧缩写中文名称英文名称P 管子PipeEL 弯头ElbowELL 长半径弯头Long radius elbowELS 短半径弯头Short radius elbowMEL 斜接弯头（虾米腰弯头）Mitre elbowREL 异径弯头Reducing elbowT 三通TeeLT 斜三通Lateral teeRT 异径三通Reducing teeR 异径管接头（大小头）ReducerCR 同心异径管接头（同心大小头）Concentric reducerER 偏心异径管接头（偏心大小头）Eccentric reducerCPL 管箍CouplingFCPL 双头管箍Full couplingHCPL 单头管箍Half couplingRCPL 异径管箍Reducing couplingBU 内外螺纹接头BushingUN 活接头UnionHC 软管接头Hose couplerSE 翻边短节Stub endNIP 短节Pipe nipple or straight nipple SNIP 异径短节Swaged nippleCP 管帽（封头）CapPL 管堵（丝堵）PlugBLK 盲板BlankSB 8字盲板Spectacle blind （blank）RP 补强板Reinforcing pad法兰缩写中文名称英文名称PLG 法兰FlangeWNF 对焊法兰Welding neck flange SOF 平焊法兰Slip-on flangeSWF 承插焊法兰Socket-welding flange T 螺纹法兰Threaded flangeLJ 松套法兰Lapped joint flange REDF 异径法兰Reducing flangeBF 法兰盖（日法兰）Blind flange FSF 法兰密封面Flange scaling face FF 全平面Flat faceRF 凸台面Raised faceMFF 凹凸面Male and female faceLF 凹面Female faceLM 凸面Male faceRJ 环连接面Ring joint faceTG 榫槽面Tongue and groove faceTF 榫面Tongue faceGF 槽面Groove face垫片缩写中文名称英文名称G 垫片GasketNMG 非金属垫片Non-metallic gasketAG 石棉垫片Asbestos gasketRG 橡胶垫片Rubber gasketTEG 聚四氟乙烯包复垫片PTFE envelope gasket SMG 半金属垫片Semimetallic gasketMJG 金属包垫片Meta-jacket gasketSWG 缠绕式垫片Spiral wound gasketMG 金属垫片Metallic gasketFMG 金属平垫片Flat metallic gasketSMSG 齿形金属垫片Solid metal serrated gasket LER 透镜式金属环垫Lens ring gasketOCR 八角形金属环垫Octagonal ring gasket OVR 椭圆形金属环垫Oval ring gaksetIR/OR 内外定位环Inner ring and outer ringIR 内定位环Inner ringOR 外定位环Outer ring坚固件缩写中文名称英文名称B 螺栓BoltSB 螺柱Stud boltNU 螺母NutTB 花蓝螺母TurnbuckleWSR 垫圈WasherSWSR 弹簧垫圈Spring washer阀门valve缩写中文名称英文名称GV 闸阀Gate valveGLV 截止阀Globe valveCHV 止回阀Check valveBUV 蝶阀Butterfly valveBAV 球阀Ball valvePV 旋塞阀Plug valve （cock）CV 调节阀Control valveSV 安全阀Safety valveRV 减压阀Pressure reducing valve ST 蒸汽疏水阀Steam trapPRV 泄压阀Pressur relief valveBV 呼吸阀Breather valveNV 针形阀Needle valveAV 角阀DV 隔膜阀TWV 三通阀SGV 插板阀管道上用的小型设备缩写中文名称英文名称SPR 气液分离器SeparatorFA 阻火器Flame arresterSR 过滤器StrainerSRY Y型过滤器Y-type strainer SRT T型过滤器T-type strainer SRB 桶式过滤器Bucket type strainer TSR 临时过滤器Temporary strainer SIL 消声器SilencerSG 视镜Slight glassSC 取样冷却器Sample coolerDF 排液漏斗Drain funnelLM 管道混合器Line mixerRO 限流孔板Restriction orificeMO 混合孔板Mixing orificeRD 爆破片（爆破膜）Rupture diskEJ 补偿器Expansion joint隔热、伴热中文名称英文名称INS 隔热Thermal insulationH 保温Hot insulationC 保冷Cold insulationP 防烫伤隔热Personnel protection insulation T&I 伴热Tracing ａnd insulation管道伴热（冷）TracingEST 蒸汽外伴热External steam tracingIST 蒸汽内伴热Internal steam tracingSJT 蒸汽夹套伴热Steam-jacket tracingET 电伴热Electric tracing配管材料和等级缩写中文名称英文名称M 金属材料Metallic materialCS 碳钢Carbon steelCAS 铸钢Cast steelFS 锻钢Forged steelAS 合金钢Alloy steelSS 不锈钢Stainless steelAUSTSS 奥氏体不锈钢Austenitic stainless-steel CI 铸铁Cast ironMI 可锻铸铁Malleable ironDI 球墨铸铁Ductile ironAL 铝AluminumBRS 黄铜BrassBRZ 青铜BronzeCU 紫铜CopperLAS 低合金钢Low alloy steelFLAS 低合金锻钢Forged low alloy steel CLAS 低合金铸钢Cast low alloy steel THK 壁厚ThicknessSCH 表号Schedule numberSTD 标准StandardXS 加强Extra strongXXS 特强Double extra strong装置布置缩写中文名称英文名称CN 建北Construction northE 东EastW 西WestS 南SouthN 北NorthH 水平HorizontalV 竖直、铅直、直立VerticalGRD 地坪GroundUG 地下UndergroundBL 装置边界线Battery limit lineESEW 事故沐浴洗眼器Emergency shower ａnd eye washer HS 软管站Hose stationML 接续分界线Match linePS 管道支架（管架）Piping supportPR 管桥Pipe rackSTRU 构架（构筑物）StructureBLDG 建筑物BuildingPD 清扫设施Purge devicePT 池PitSHLT 棚ShelterCOFF 围堰CofferdamFL 楼板FloorPF 平台Plateform尺寸标注缩写中文名称英文名称EL 标高ElevationBOP 管底Bottom of pipeCOP 管中心Center of pipe TOP 管顶Top of pipeFOB 底平Flat on bottomFOT 顶平Flat on topCL（屯）中心线Center lineTL 切线Tangent lineSYM 对称的SymmetricalBOS 支架底Bottom of support TOS 支架顶Top of supportCL 净距（净空）Clearance CTC 中心至中心Center to center CTF 中心至面Center to face CTE 中心至端部Center to end ETE 端到端End to endFEF 法兰端面Flange ａnd face FTF 面到面Face to faceD 直径DiameterDN 公称直径Nominal diameter ID 内径Inside diameterOD 外径Outside diameterDIM 尺寸DimensionMAX 最大MaximumMIN 最小MinimumAVG 平均AverageAPP 约、近似ApproximatePT.EL 点标高Point elevation图表缩写中文名称英文名称PFD 工艺流程图Process flow diagramPID 管道和仪表流程图Piping & instrument diagramCOD 接续图Continued on drawingDTL 详图DatailSPDWG（ISODWG）管段图Spool drawing （each line isometric drawing）DWGNO 图号Drawing numberDWGI 所在图号Drawing identificationLOW 材料表List of materialMTO 汇料Material take-offAPPX 附录AppendixJOB. No. 工号Job NumberBEDD 基础工程设计数据Basic engineering design dataDEDD 详细工程设计数据Detail engineering design data REV. No. 修改号Recision numberREFDWG 参考图Reference drawingSC 采样接口Sample connection操作方式及工作参数缩写中文名称英文名称AUT 自动AutomaticML 手动Manual controlCHOP 链条操作Chain operatedCSC 铅封关Car seal closeCSO 铅封开Car seal openLC 锁闭Lock closedLO 锁开Lock openNC 正常关Normally closeNO 正常开Normally openATM 大气压AtmospherePN 公称压力Nominal pressureA 绝压G 表压（T）温度Temperature（P）压力Pressure施工缩写中文名称英文名称W 焊接WeldingAW 电弧焊Arc weldingGSAW 气体保护电弧焊Gas shielded-acr weldingEFW 电熔焊Elecric fusion weldingERW 电阻焊Electric Resistance weldingGW 气焊Gas weldingLW 搭接焊Lap weldingBW 对焊Butt weldingTW 定位焊Tack weldingSW 承插焊Socket weldingCW 连续焊Continuous weldingSEW 密封焊Seal weldingSFG 堆焊SurfacingFW 现场焊接Field weldingHT 热处理Heat treatmentPH 预热PreheatingSR 应力消除Stress reliefPWHT 焊后热处理Post weld heat treatmentEIT 检查、探伤和实验Examination, inspection & testing VE 外观检查Visual examinationUI （UT）超声探伤Ultrasonic inspection （test）RI （RT）射线探伤Radiographic inspection （test）MPI （MT）磁粉探伤Magnetic particle inspection （test）LPI （PT）液体渗透检验Liquid penterant inspection （test）HADT 硬度实验Hardness testingHYDT 水压实验Hydraulic testingPNET 气压实验Pneumatic testing焊条Covered electrodeWW 焊丝Welding wireASSY 装配、组合AssemblyF 现场FieldF/F 现场制造Field faricatedSF 现场决定Suit in fieldCSP 冷紧Cold springBCT 螺栓冷紧Bolt cold tighteningBHY 螺栓热紧Bolt hot tighteningCO 清洗口Clean outANNY 退火AnnealedPE 平端面Plain endBE 坡口端Belelled endTHR 螺纹ThreadHB 布氏硬度Brinnel hardnessRC 洛氏硬度其他缩写中文名称英文名称FDN 基础FoundationINF 信息（资料）Information REF 参考ReferenceREV 修改RevisionSEQ 序号（顺序）SequenceW/E 设备带来With equipmentW/I 仪表带来With instrument CM 色标Colour markCA 腐蚀裕度Corrosion allowance UTL 公用系统UtilityUC 公用工程接头Utility connection QTY 数量QuantityWT 重量WeightMHR 工时Man hourBC 螺栓分布圆Bolt circleHP 高点High pointLP 低点Low pointSUC 吸入（口）SuctionDIS 排出（口）DischargeSO 蒸气吹扫（口）Steam outNPT 美国标准锥管螺纹National standard taper pipe thread NPS 美国标准直管螺纹National standard straight pipe thread DR 排液DrainVT 放气VentRTG （压力）等级RatingCL 等级ClassSMLS 无缝Seamless。
