继电器技术规格书

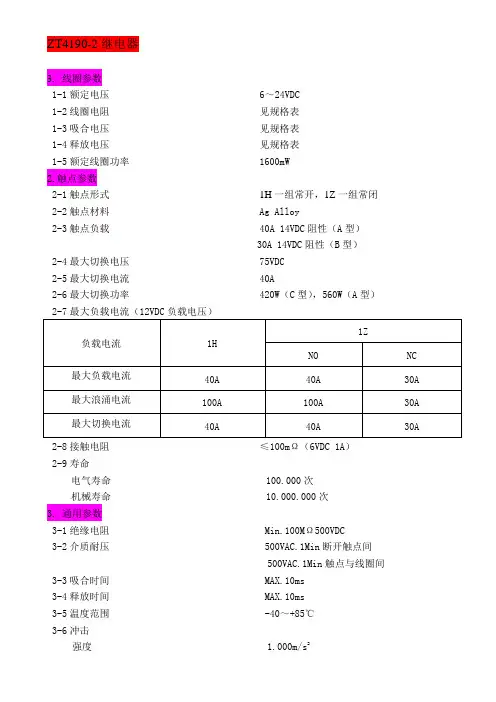

继电器技术说明

ZT4190-2继电器
3.线圈参数
1-1额定电压6～24VDC
1-2线圈电阻见规格表
1-3吸合电压见规格表
1-4释放电压见规格表
1-5额定线圈功率 1600mW
2.触点参数
2-1触点形式1H一组常开，1Z一组常闭2-2触点材料Ag Alloy
2-3触点负载 40A 14VDC阻性（A型）
30A 14VDC阻性（B型）
2-4最大切换电压 75VDC
2-5最大切换电流 40A
2-6最大切换功率 420W（C型），560W（A型）
2-8接触电阻≤100mΩ（6VDC 1A）
2-9寿命
电气寿命 100.000次
机械寿命 10.000.000次
3.通用参数
3-1绝缘电阻 Min.100MΩ500VDC
3-2介质耐压 500VAC.1Min断开触点间
500VAC.1Min触点与线圈间 3-3吸合时间 MAX.10ms
3-4释放时间 MAX.10ms
3-5温度范围 -40～+85℃
3-6冲击
强度 1.000m/s2
稳定性 100m/s2
3-7振动
强度 10-55Hz，双振幅1.5mm 稳定性 10-55Hz，双振幅1.5mm 3-8重量约37.0g（有背）
约32.0g（无背）
4.订货代码
7.ZT4190特性曲线图
最大切换功率
40 20
10
触点电压（V ）
110
100 80 60 40 20 0。

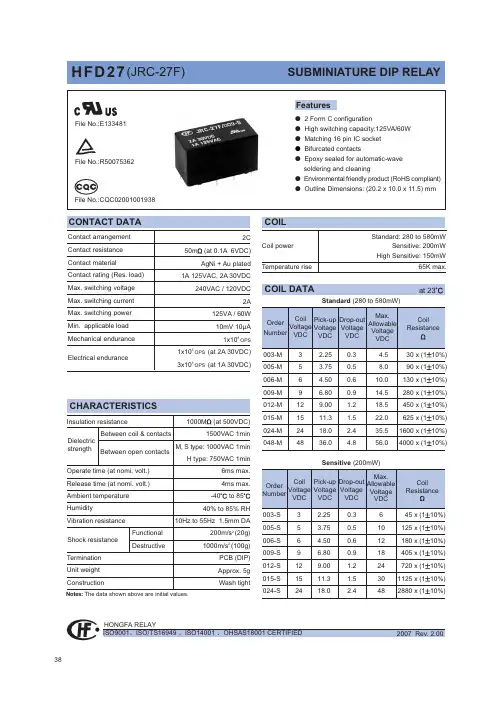

HFD27继电器规格书

<gm g[r4 :gm g[r4 3:6 ni >; :6, ni >;, SI 76It ni ;;It 74;gg EB
Goh]ncih[f E_mnlo]ncp_
866g5m8 /86a0 7666g5m8 /766a0 QDC /EJQ0 Bjjlir4 ;a X[mb ncabn
IPOHGB SFMBZ JTP?667VJTP5UT7<?:? VJTP7:667 VPITBT7>667 DFSUJGJFE
7KODN+ Ub_ ^[n[ mbiqh [\ip_ [l_ chcnc[f p[fo_m4
6783N 67;3N 68:3N 6:>3N
;DJNGOGQD /866gX0 N[r4 Dicf Qc]e3oj Elij3ion Bffiq[\f_ Pl^_l Wifn[a_ Wifn[a_ Wifn[a_ Wifn[a_ Oog\_l WED WED WED WED 6693T 66;3T 66<3T 66?3T 6783T 67;3T 68:3T 9 ; < ? 78 7; 8: 848; 94=; :4;6 <4>6 ?466 7749 7>46 649 64; 64< 64? 748 74; 84: < 76 78 7> 8: 96 :> Dicf S_mcmn[h]_ :; r /7 76,0 78; r /7 76,0 7>6 r /7 76,0 :6; r /7 76,0 =86 r /7 76,0 778; r /7 76,0 8>>6 r /7 76,0
=4<8 ;46> ;46>
=4<8
84;:

继电器规格书 - RJ-SS-112DM1-S - WRG-Wangrong说明书

PS-002-004012016-7-28客户名/CustomerRELAY SPECIFICATION零件编号/Part Number品名/Product Description RJ-SS-112DM1-SDate Version PS No.继电器规格书冯旭强余明亮王凤客户批准/Customer Approval 盖章处/STAMPING AREAR&DSM PD发行批准 / Issued by序号担当00凌剑冰01凌剑冰2016-7-28增加黄山工厂描述变更履历/HISTORY日期变更项目2015-4-13初版1零件清单/PARTS LIST123 4 5 6 7 8 9 10 11 12 13 14 15 16Ver01RG3015010GN6-30 M8XRG301RG301FLAME CLASSUL FILE No.E171666E53664E171666E171666TYPE/TREATMENT型号/处理方式镀镍Vicryst R850Part零件名No.材质MATERIAL镀镍Nickel Plated镀镍Nickel PlatedNickel Plated3UEW 155(F Class)镀锡Base基座骨架Bobbin外壳Case推片CardSolder Coated挂钩Hinge可动弹片C Terminal轭铁Yoke衔铁Armature线材Wire可动接点C ContactM接点M ContactE171666线圈端子Coil Terminal铁芯CoreM端子M TerminalE234867PS-002-004E164502Epoxy胶水UV GlueSealing ResinAg Alloy铜包钢Cu coverd Steel聚氨脂漆包圆铜线Cu Alloy铜合金Polyurethane copper wire环氧树脂Steel铜合金Cu Alloy银合金Ag Alloy银合金Cu Alloy铁LCP铁Steel铁Steel铜合金PBTUV胶PBTPBT2.性能/SPECIFICATIONS2.1驱动部分/COIL SPECIFICATIONS2.1.1额定电压12VDC（在20℃时）Rated Coil Voltage12VDC at 20℃2.1.2额定功率0.45W（在20℃时）Nominal Power0.45W at 20℃2.1.3线圈电阻320Ω±10％（在20℃时）Coil Resistance320Ω±10％（at 20℃）2.1.4额定电流37.5mA±10％（在20℃时）Nominal Current37.5mA±10％（at 20℃）2.1.5吸合电压9VDC以下（在20℃时）Operate Voltage9VDC Max. at 20℃2.1.6释放电压0.6VDC以上（在20℃时）Release Voltage0.6VDC Min. at 20℃2.1.7最大连续施加电压18.6VDC Max. 155％额定电压Max Power18.6VDC Max. 155％of Nominal2.2开关部/CONTACT SPECIFICATION2.2.1开关类型单刀常开型Contact Configuration 1 Form A2.2.2接点规格10 A 250VAC（阻性负载）Contact Rating10 A @250VAC (Resistive)2.2.3接触电阻100mΩ以下， (初期值，DC 24V/1A条件下)Contact Resistance100mΩ Max. @ Initiate, DC 24V/1A500mΩ以下， (寿命试验后，DC 24V/1A条件下)500mΩ Max. @ After Life, DC 24V/1A2.2.4吸合时间20ms 以下（额定电压下）Operate Time20ms Max. @ Rated Voltage2.2.5释放时间10ms 以下（施加额定电压后断开时）Release Time10ms Max. @ Rated Voltage2.2.6最大动作频率300次/分（无负载）Max. Switching Rate300ops./min. (no load).6次/分（额定负载）6ops./min. (Rated load)Ver 01 PS-002-0042.3特性/GENERAL SPECIFICATION2.3.1绝缘电阻1000MΩ以上（500VDC）Insulation Resistance1000MΩ Min@500VDC2.3.2介质耐压1000VAC/分钟(接点间)Dielectric Strength4000VAC/分钟(线圈/接点间)1000VAC@50/60Hz 1 min.(Between Open Contacts)4000VAC@50/60Hz 1 min.(Between Coil and Contacts)2.3.3电气寿命1×105次以上（额定负载,气孔打开）Electrical Life1×105*******************************.2.3.4机械寿命1×106次以上（无负载）Mechanical Life1×106Cycle Min. @no load2.3.5使用环境温度－40～105℃（无凝结时）Temperature－40～105℃ @no condensation2.3.6使用环境湿度20～85%RH（无凝结时）Humidity20～85%RH @no condensation2.3.7抗振动耐久10～55Hz，双振幅 1.5mmVibration Mechanical10 to 55Hz, 1.5mm double amplitude误动作10～55Hz，双振幅2.5mmOperational10 to 55Hz, 2.5mm double amplitude2.3.8抗冲击耐久980m/s2 Min（约100G）Shock Mechanical980m/s2 Min（100G approximately)误动作98m/s2 Min（约10G）Operational98m/s2 Min（10G approximately)2.3.9重量 5.7克Weight 5.7g2.3.10焊锡条件5s@ 260°C (波峰焊)Solder ability5s@ 260°C (wave soldering)2.4端子性能/TERMINAL CHARACTERSITICS2.4.1端子强度5牛/10秒，任意方向静态压力，无异常，但端子弯曲可以Terminals strength5N 10s,Thereshall be no abnormalities.(The curving of the terminal shall be acceptable)2.4.2可焊性260±5℃ 3s，端子头部3mm部分90%以上的面积有锡覆盖Terminal solderbility（无铅焊锡）260±5℃ 3s，In Case of lead lead free solder,90% of the dipped portion shall be solderd.2.4.3耐热性5s @ 260°C,端子头部3mm浸入锡中，无异常发生Soldring Heat Resistance5s @ 260°C,There shall be no abnormalities. (wave soldering)01 Ver PS-002-0042.5安全规格/SAFETY REQUIREMENTS2.5.1UL规格认定（UL & C-UL）档案号：UL（UL & C-UL）File No.:2.5.2CQC标志认证证书编号：CQC Certificate No.:2.5.3TUV规格认定证书号TUV Certificate No.2.5.4产品符合ROHS和REACH要求。

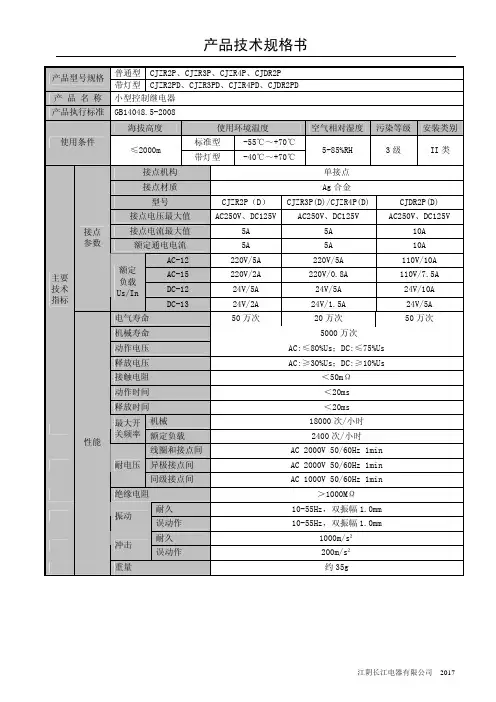

产品技术规格书
继电器尺寸图及内部接线图
C J Z R 2 P （D）
注：带灯型的动作指示灯与线圈并联，无单独接点。
C J Z R 3 P （D）
注：带灯型的动作指示灯与线圈并联，无单独接点。
C J Z R 4 P （D）
注：带灯型的动作指示灯与线圈并联，无单独接点。
C J D R 2 P （D）
注：带灯型的动作指示灯与线圈并联，无单独接点。
-40℃～+70℃
空气相对湿度污染等级安装类别
5-85%RH
3级
II 类
接点机构
单接点
接点材质
Ag 合金
型号
CJZR2P（D） CJZR3P(D)/CJZR4P(D)
CJDR2P(D)
接点电压最大值
AC250V、DC125V AC250V、DC125V
AC250V、DC125V
接点
接点电流最大值
电气寿命
50 万次
20 万次
50 万次
机械寿命
5000 万次
动作电压
AC:≤80%Us；DC:≤75%Us
释放电压
AC:≥30%Us；DC:≥10%Us
接触电阻
＜50mΩ
动作时间
＜20ms
释放时间
＜20ms
性能
最大开机械关频率额定负载
线圈和接点间
18000 次/小时 2400 次/小时 AC 2000V 50/60Hz 1min
耐电压异极接点间
AC 2000V 50/60Hz 1min
同级接点间
AC 1000V 50/60Hz 1min
绝缘电阻
＞1000MΩ
振动
耐久误动作

继电器规格书

TYPE: GH SERIES⏹ MODEL DATETerminal styleContact formUL Insulation System approvalDesignation (provided with)Flux tight Sealed typeSealed typewashable PCB terminalSPDT （1C ）BGH-1C-12LF-C GH-1A-12LF GH-1C-12LF-S FGH-1C-12L-C-FGH-1C-12L-FGH-1C-12L-S-F⏹ CONTACT DATE TypeGH-1A-12LF Resistive load10A 250VACMax. switching current 12A Max. switching voltage 250VAC Max. switching capacity 3,000VA⏹ SAFETY APPROVALCertified CQCTUVUL/CUL File No.CQC14002105590R50158866E321783⏹ SAFETY APPROVAL RATINGCQC TUVUL/CUL10A 250VAC 7A 250VAC7A 250VAC, cos phi=1 10A 250VAC, cos phi=1 12A 250VAC, cos phi=1NO: 12A 125VAC 12A 125VAC NO: 10A 277VAC 10A 277VAC NO: 1/3HP 277VAC 1/3HP 277VAC NO: TV-5 120VAC TV-5 120VAC⏹ ORDERING INFORMATIONContact type：A--normally open；B--normally closed；C--double throwCoil power：L--0.36w；D--0.45w；H--0.8wContact pole：1--1 pole Basic series designationCoil voltage(VDC)：3，4，5，6，9，12，15，18，24，36,48Enclosure：Blank--Sealed type C--Flux tight S--Sealed type washableEnamelled Wire：Blank--130Cused in maximum 85℃ C S.A.T F: 155C used in maximum 105C S.A.TGH - 1 C - 12 L C F XSpecial parameters：Any number or alphanic(not affect the construction and performance )Blank--No feature；G--Big gap ≥1.0mm；T--Glowing filament plastic；TYPE: GH SERIES ⏹COIL DATA (At 20℃)Rated Voltage (VDC)Ratedcurrent±10% (mA)Coilresistance±10%Max.continuousVoltagePick upVoltage(Max)Drop outVoltage(Min)Powerconsumptionat ratedvoltage3 120 25130 % of Rated voltage 75 % ofRatedvoltage5 % ofRatedvoltageApprox.0.36W5 71.42 706 60 100 9 40 225 12 30 400 18 20 900 24 15 1600 48 7.5 64003 150 20130 % of Rated voltage 75 % ofRatedvoltage5 % ofRatedvoltageApprox.0.45W5 90 55.66 75 809 50 18012 37.5 32018 25 72024 18.75 128048 9.4 5120⏹SPECIFICATIONContact material Silver alloyContact resistance( Initial ) 100MΩMax.Operate time 10ec Max.Release time 5msec Max. Insulation system 250mΩMin.(DC500V)Dielectric strength Between open contacts: AC750V, 50/60Hz for 1min. Between coil and contact: AC1500V, 50/60Hz for 1minVibration resistance Functional 10～55Hz at double amplitude of 3.3 Destructive 10～55Hz at double amplitude of 3.3Shock resistance Functional 100m/s²11ms Destructive 100m/s²11msExpectedService Endurance Mechanical Endurance 10,000,000 cycles (10,800 cycles/h) Electrical Endurance 100,000 cycles (1,800 cycles/h)Ambient temperature -40℃～+105℃（No condensation) Weight Approx. 9.5gTYPE: GH SERIESOUTLINE DIMENSIONS×TOLERANCE:LESS THAN:1±0.2 5±0.3 MORE THAN:5±0.4WIRING DIAGRAM1A 1CBOTTOM VIEWPC BOARD LAYOUT12.221264- 1.312.221265- 1.31A 1CTOLERANCE: ±0.1 BOTTOM VIEWITEMGH OUTLINEVERSION UNIT DATE V1.0 mm 2013-8-1 DONGGUAN GOLDEN ELECTRICAL APPLIANCES CO.LTDAPPROVEDCHECKEDDRAWTYPE: GH SERIES⏹ Marking and PrintingNOTE:1 Marking “C1307-C ” is the production date and batchnumber2 The meaning of the marking according to below:3 May have no the marking if customer have no demandEng. Change Initial Issued2013-8-1DONGGUAN GOLDEN ELECTRICAL APPLIANCES CO.LTDUnit mm Version V1.1 ApprovalReviewDrawn byITEM Marking and PrintingModelGHTYPE: GH⏹ PACKING SPECIFICATIONInner Packiage-1Inner Packiage-2100PCS/Tray 100PCS/Tray*10TrayExternal Package2*( 100PCS/Tray*10Tray)DONGGUAN GOLDEN ELECTRICAL APPLIANCES CO.LTD Unit mm Version V1.1 Approval Review Drawn byITEM PACKING SPECIFICATION Model GH。

继电器规格参数(图文借鉴)

继电器的分类介绍继电器其实就是我们日常生活中所用到的控制电流大小的“自动开关”，它是一种电控制器件，是当输入量的变化达到规定要求时，在电气输出电路中使被控量发生预定的阶跃变化的一种电器，继电器具有控制系统和被控制系统之间的互动关系。

因其在电路中起着自动调节、安全保护、转换电路等作用，通常又被应用于自动化的控制电路中。

继电器的种类繁多，以下是按继电器的工作原理或结构特征对继电器进行分类的：(舌簧继电器) (高频继电器) (极化继电器)1、舌簧继电器：利用密封在管内，具有触电簧片和衔铁磁路双重作用的舌簧动作来开，闭或转换线路的继电器2、高频继电器：用于切换高频，射频线路而具有最小损耗的继电器。

3、极化继电器：有极化磁场与控制电流通过控制线圈所产生的磁场综合作用而动作的继电器。

继电器的动作方向取决于控制线圈中流过的的电流方向。

(电磁继电器) (时间继电器) (固体继电器)4、电磁继电器：利用输入电路内电路在电磁铁铁芯与衔铁间产生的吸力作用而工作的一种电气继电器。

5、时间继电器：当加上或除去输入信号时，输出部分需延时或限时到规定时间才闭合或断开其被控线路继电器。

6、固体继电器：指电子元件履行其功能而无机械运动构件的，输入和输出隔离的一种继电器。

7、温度继电器：当外界温度达到给定值时而动作的继电器。

8、其他类型的继电器：如光继电器，声继电器，热继电器，仪表式继电器，霍尔效应继电器，差动继电器等。

继电器主要技术参数•额定工作电压继电器正常工作时线圈所需要的电压，也就是控制电路的控制电压。

根据继电器的型号不同，可以是交流电压，也可以是直流电压。

•直流电阻继电器中线圈的直流电阻，可以通过万能表测量。

•吸合电流继电器能够产生吸合动作的最小电流。

在正常使用时，给定的电流必须略大于吸合电流，这样继电器才能稳定地工作。

而对于线圈所加的工作电压，一般不要超过额定工作电压的1.5倍，否则会产生较大的电流而把线圈烧毁。

•释放电流继电器产生释放动作的最大电流。

继电器规格书

FTR-K1 SERIESn FEATURESl1 pole, 32Al1 form A contactl Wide contact gap: 1.8mmDielectric strength (B/T open contacts) 2.5kVCompliant with European photovoltaic standard (VDE0126) Array and inverter safety standard (IEC62109-2)l High insulation in small package (between coil and contacts)- Dielectric strength: AC 4,000V- Surge strength: 6,000Vl Low coil power consumption: 1,400mWl Coil holding voltage can be reduced up to 35% of nominalcoil voltage (ambient temperature; +20 °C, contact current; 32A)Power consumption at the lowest coil holding voltage; 170mW* Coil holding voltage is the coil voltage after 100ms ofapplied nominal coil voltagel Plastic materials: Flammability; UL94 V-0l Cadmium-free contactsl Flux free, cat. RTII protectionl RoHS compliant.n PARTNUMBER INFORMATIONFTR-K3 A B 012 W - PS[Example] (a) (b) (c) (d) (e) (f)(a) Relay type FTR-K3 : FTR-K3-Series(b) Contact configuration A : 1 form A / PCB type(c) Coil power B : Standard (1,400mW)(d) Coil rated voltage 012 : 5.....48 VDCCoil rating table at page 3(e) Contact material W : Silver alloy(f) Option code PS : High current (32A) / contact gap 1.8mmn SPECIFICATION*1 Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actualload before production since reference values may vary according to switching frequencies, environmental conditionsnCOIL RATINGType Compliance Contact ratingULUL 508Flammability: UL 94 V0 (plastics)32A, 277VAC (General use, at 85 °C)CSA 22.2 No.14 (approved by cULus)VDEIEC61810-132A, 250VAC (cos φ = 0.8, at 85 °C)n SAFETY STANDARDSNote: All values in the table are valid for 20°C and zero contact current.* Specified operate values are valid for pulse wave voltage.n DIMENSIONSl Dimensionsl PC board mounting hole layout(BOTTOM VIEW)lSchematics (BOTTOM VIEW)1. General InformationlAll signal and power relays produced by Fujitsu Components are compliant with RoHS directive 2002/95EC includingamendments.l Cadmium as used in electrical contacts is exempted from the RoHS directives on October 21st, 2005. (Amendment to Directive 2002/95/EC)l All of our signal and power relays are lead-free. Please refer to Lead-Free Status Info for older date codes at: /us/downloads/MICRO/fcai/relays/lead-free-letter.pdfl Lead free solder plating on relay terminals is Sn-3.0Ag-0.5Cu, unless otherwise specified. This material has been verified to be compatible with PbSn assembly process.2. Recommended Lead Free Solder ProfilelRecommended solder Sn-3.0Ag-0.5Cu.RoHS Compliance and Lead Free Information3. Moisture SensitivitylMoisture Sensitivity Level standard is not applicable to electromechanical relays, unless otherwise indicated.4. Tin WhiskerslDipped SnAgCu solder is known as presenting a low risk to tin whisker development. No considerable length whisker was found by our in house test.We highly recommend that you confirm your actual solder conditionsFlow Solder condition:Pre-heating: maximum 120˚CSoldering: dip within 5 sec. at260˚C solder bathSolder by Soldering Iron:Soldering Iron Temperature: maximum 360˚C Duration:maximum 3 sec.Fujitsu Components International Headquarter OfficesJapanFujitsu Component LimitedGotanda-Chuo Building3-5, Higashigotanda 2-chome, Shinagawa-ku Tokyo 141, JapanTel: (81-3) 5449-7010Fax: (81-3) 5449-2626Email: promothq@Web: North and South AmericaFujitsu Components America, Inc.250 E. Caribbean DriveSunnyvale, CA 94089 U.S.A.Tel: (1-408) 745-4900Fax: (1-408) 745-4970Email: components@Web: /components EuropeFujitsu Components Europe B.V.Diamantlaan 252132 WV HoofddorpNetherlandsTel: (31-23) 5560910Fax: (31-23) 5560950Email: info@Web: /components/Asia PacificFujitsu Components Asia Ltd.102E Pasir Panjang Road#01-01 Citilink Warehouse ComplexSingapore 118529Tel: (65) 6375-8560Fax: (65) 6273-3021Email: fcal@Web: /sg/services/micro/components/©2012 Fujitsu Components Europe B.V. All rights reserved. All trademarks or registered trademarks are the property of their respective owners. The contents, data and information in this datasheet are provided by Fujitsu Component Ltd. as a service only to its user and only for general information purposes.The use of the contents, data and information provided in this datasheet is at the users’ own risk.Fujitsu has assembled this datasheet with care and will endeavor to keep the contents, data and information correct, accurate, comprehensive, complete and up to date.Fujitsu Components Europe B.V. and affiliated companies do however not accept any responsibility or liability on their behalf, nor on behalf of its employees, for any loss or damage, direct, indirect or consequential, with respect to this datasheet, its contents, data, and information and related graphics and the correctness, reliability, accuracy, comprehensiveness, usefulness, availability and completeness thereof.Nor do Fujitsu Components Europe B.V. and affiliated companies accept on their behalf, nor on behalf of its employees, any responsibility or liability for any representation or warrant of any kind, express or implied, including warranties of any kind for merchantability or fitness for particular use, with respect to these datasheets, its contents, data, information and related graphics and the correctness, reliability, accuracy, comprehensiveness, usefulness, availability and completeness thereof. Rev. March 15, 2012。

继电器_EVR150CI_150A_800V-产品规格书说明书

EVR150CI继电器规格书1、技术参数注）①.在微小负载水平下能够通断的下限目标值。

该值有时会根据通断频率、环境条件、所期待的可靠水准发生改变，因此在使用时，推荐在实际负载下进行确认②. 寿命测试通断时间：通0.3s,断2.7s，使用二极管时，触点复位时间可能会延迟，电寿命可能会下降，敬请注意。

2、外形尺寸图技术要求：1、未注公差按公差列表。

2、外观无脏污、划伤等不良，标签需正确。

3、安装底部平面度要求：≤0.5mm。

4、出货包装满足功率继电器出货包装标准要求。

※配套连接器信息(选配)母端品牌：矢崎护套：7283-1020金属端子：7116-4020※配套螺丝（选配）规格：GB9074.13十字槽凹穴六角头螺栓组合件_M4×10_8.8级3、标贴信息4、出货检验项目（at 23℃）● 外观检查 ● 尺寸检查 ● 吸合电压 ● 释放电压 ● 额定动作电流 ● 接触电阻 ● 耐电压 ●绝缘电阻5、正确使用注意事项：⏹ 工作电压1) 吸合电压、释放电压会随着环境温度和使用条件而发生变化，因此敬请注意。

2) 施加的电压超过最大施加电压时，线圈中的异常升温会缩短绝缘涂层的寿命而发生线圈烧损和层间短路，因此请务必注意。

另外，使用环境温度的范围也请注意不要超过使用范围。

3) 对于这款继电器，如果额定电压（或电流）长时间施加到线圈和接点上，然后关闭并立即打开，则线圈温度和线圈电阻将比平时高。

这意味着操作电压也比平时高，超过了额定值（“热启动”）。

在这种情况下，应采取适当措施，例如降低负载电流和通电时间或限制使用环境温度，防止施加额定操作电压以上的线圈电压等。

4) 线圈长期连续通电时，受线圈自身发热的影响，会促使线圈的绝缘发生劣化。

5) 额定值中的主触点额定值均为电阻负载时的数值。

使用L/R>1ms 的感性负载（L 负载）的情况下，请与感性负载并行采取浪涌吸收措施。

未采取措施的情况下，可能会造成电气寿命下降、发生切断不良。
