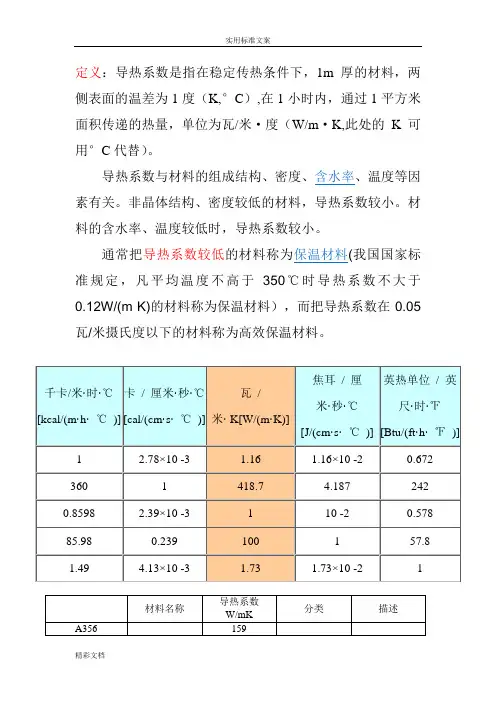

材料导热系数总表(比较齐全)(DOC)

定义：导热系数是指在稳定传热条件下，1m厚的材料，两侧表面的温差为1度（K,°C）,在1小时内，通过1平方米面积传递的热量，单位为瓦/米·度（W/m·K,此处的K可用°C代替）。

导热系数与材料的组成结构、密度、含水率、温度等因素有关。非晶体结构、密度较低的材料，导热系数较小。材料的含水率、温度较低时，导热系数较小。

通常把导热系数较低的材料称为保温材料(我国国家标准规定，凡平均温度不高于350℃时导热系数不大于0.12W/(m·K)的材料称为保温材料），而把导热系数在0.05瓦/米摄氏度以下的材料称为高效保温材料。

常用材料的导热系数表

表2 窗体材料导热系数

窗框材料钢材铝合金PVC PA 松木

导热系数58.2 203 0.16 0.23 0.17

表3 不同玻璃的传热系数

玻璃类型玻璃结构(m) 传热系数

K-w/(m2-k)

单层玻璃

6.2

双层中空玻璃5×9×5 3.26

5×12×5 3.11

一层中空玻璃5×9×5×9×5 2.22

←-- 5×12×5×12×5 2.08

Lhw-E中空玻璃5×12×5 1.71

常用材料导热系数 --深圳智通电子有限公司提供Metal

Material Conductivity Density W/m-C kg/m 3

Aluminum, 2024, Temper-T3 121 2.80E+03 Aluminum, 2024, Temper-T351 143 2.80E+03 Aluminum, 2024, Temper-T4 121 2.80E+03 Aluminum, 5052, Temper-H32 138 2.68E+03 Aluminum, 5052, Temper-O 144 2.69E+03 Aluminum, 6061, Temper-O 180 2.71E+03 Aluminum, 6061, Temper-T4 154 2.71E+03 Aluminum, 6061, Temper-T6 167 2.71E+03 Aluminum, 7075, Temper-O 130 2.80E+03 Aluminum, 7075, Temper-T6 130 2.80E+03 Aluminum, A356, Temper-T6 128 2.76E+03 Aluminum, Al-Cu, Duralumin, 95%Al-5%Cu 164 2.79E+03 Aluminum, Al-Mg-Si, 97%Al-1%Mg-1%Si-1%Mn 177 2.71E+03 Aluminum, Al-Si, Alusil, 80%Al-20%Si 161 2.63E+03 Aluminum, Al-Si, Silumim, 86.5%Al-1%Cu 137 2.66E+03 Aluminum, Pure 220 2.71E+03 Beryllium, Pure 175 1.85E+03 Brass, Red, 85%Cu-15%Zn 151 8.80E+03 Brass, Yellow, 65%Cu-35%Zn 119 8.80E+03 Copper, Alloy, 11000 388 8.93E+03 Copper, Aluminum bronze, 95%Cu-5%Al 83 8.67E+03 Copper, Brass, 70%Cu-30%Zn 111 8.52E+03 Copper, Bronze, 75%Cu-25%Sn 26 8.67E+03 Copper, Constantan, 60%Cu-40%Ni 22.7 8.92E+03 Copper, Drawn Wire 287 8.80E+03 Copper, German silver, 62%Cu-15%Ni-22%Zn 24.9 8.62E+03 Copper, Pure 386 8.95E+03 Copper, Red brass, 85%Cu-9%Sn-6%Zn 61 8.71E+03 Gold, Pure 318 1.89E+04 Invar, 64%Fe-35%Ni 13.8 8.13E+03 Iron, Cast 55 7.92E+03 Iron, Pure 71.8 7.90E+03 Iron, Wrought, 0.5%C 59 7.85E+03 Kovar, 54%Fe-29%Ni-17%Co 16.3 8.36E+03 Lead, Pure 35 1.14E+04 Magnesium, Mg-Al, Electrolytic, 8%Al-2%Zn 66 1.81E+03 Magnesium, Pure 171 1.75E+03 Molybdenum 130 1.02E+04 Nichrome, 80%Ni-20%Cr 12 8.40E+03 Nickel, Ni-Cr, 80%Ni-20%Cr 12.6 8.31E+03 Nickel, Ni-Cr, 90%Ni-10%Cr 17 8.67E+03 Nickel, Pure 99 8.91E+03

Silver, Pure 418 1.05E+04 Solder, Hard, 80%Au-20%Sn 57 1.50E+04 Solder, Hard, 88%Au-12%Ge 88 1.50E+04 Solder, Hard, 95%Au-3%Si 94 1.57E+04 Solder, Soft, 60%Sn-40%Pb 50 9.29E+03 Solder, Soft, 63%Sn-37%Pb 51 9.25E+03 Solder, Soft, 92.5%Pb-2.5%Ag-5%In 39 1.20E+04 Solder, Soft, 95%Pb-5%Sn 32.3 1.10E+04 Steel, Carbon, 0.5%C 54 7.83E+03 Steel, Carbon, 1.0%C 43 7.80E+03 Steel, Carbon, 1.5%C 36 7.75E+03 Steel, Chrome, Cr0% 73 7.90E+03 Steel, Chrome, Cr1% 61 7.87E+03 Steel, Chrome, Cr20% 22 7.69E+03 Steel, Chrome, Cr5% 40 7.83E+03 Steel, Chrome-Nickel, 15%Cr-10%Ni 19 7.87E+03 Steel, Chrome-Nickel, 18%Cr-8%Ni 16.3 7.82E+03 Steel, Chrome-Nickel, 20%Cr-15%Ni 15.1 7.83E+03 Steel, Chrome-Nickel, 25%Cr-20%Ni 12.8 7.87E+03 Steel, Invar, 36%Ni 10.7 8.14E+03 Steel, Nickel, Ni0% 73 7.90E+03 Steel, Nickel, Ni20% 19 7.93E+03 Steel, Nickel, Ni40% 10 8.17E+03 Steel, Nickel, Ni80% 35 8.62E+03 Steel, SAE 1010 59 7.83E+03 Steel, SAE 1010, Sheet 63.9 7.83E+03 Steel, Stainless, 316 16.26 8.03E+03 Steel, Tungsten, W0% 73 7.90E+03 Steel, Tungsten, W1% 66 7.91E+03 Steel, Tungsten, W10% 48 8.31E+03 Steel, Tungsten, W5% 54 8.07E+03 Tin, Cast, Hammered 62.5 7.35E+03 Tin, Pure 64 7.30E+03 Titanium 15.6 4.51E+03 Tungsten 180 1.94E+04 Zinc, Pure 112.2 7.14E+03

Non-Metal

Material Conductivity Density W/m-C kg/m3
