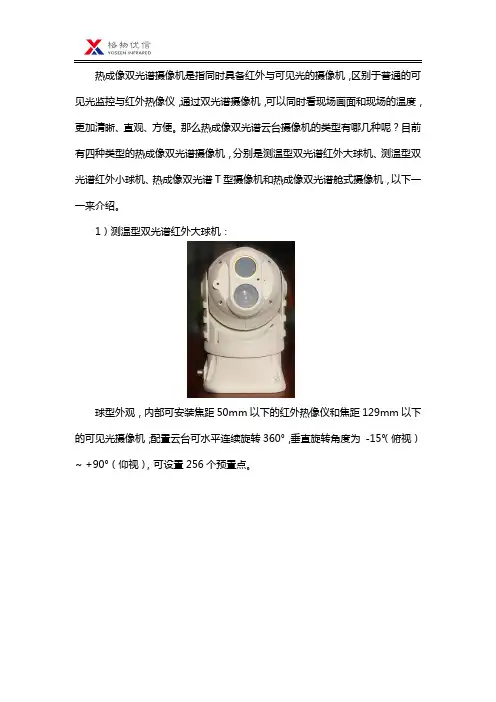

热成像双光谱云台摄像机有哪些类型？
热成像双光谱摄像机是指同时具备红外与可见光的摄像机，区别于普通的可见光监控与红外热像仪，通过双光谱摄像机，可以同时看现场画面和现场的温度，更加清晰、直观、方便。
那么热成像双光谱云台摄像机的类型有哪几种呢？目前有四种类型的热成像双光谱摄像机，分别是测温型双光谱红外大球机、测温型双光谱红外小球机、热成像双光谱T型摄像机和热成像双光谱舱式摄像机，以下一一来介绍。
1）测温型双光谱红外大球机：球型外观，内部可安装焦距50mm以下的红外热像仪和焦距129mm以下的可见光摄像机；配置云台可水平连续旋转360°，垂直旋转角度为-15°（俯视）~ +90°（仰视），可设置256个预置点。
2）测温型双光谱红外小球机球型外观，内部可安装焦距17mm以下的红外热像仪和焦距12mm以下的可见光摄像机；配置云台可水平连续旋转360°，垂直旋转角度为-20°（俯视）~ +90°（仰视），可设置256个预置点。
3）热成像双光谱T型摄像机T型外观，内部可安装焦距100mm以下的红外热像仪和焦距250mm以下的可见光摄像机；配置云台可水平连续旋转360°，垂直旋转角度为-60°（俯视）~ +20°（仰视），可设置200个预置点。
4）热成像双光谱舱式摄像机舱式外观，内部可安装焦距75mm以下的红外热像仪和焦距129mm以下的可见光摄像机；配置云台可水平连续旋转360°，垂直旋转角度为-60°（俯视）~ +10°（仰视），可设置80个预置点。
这四种不同外观的热成像双光谱摄像机的选择取决于客户的镜头要求、使用环境要求和外观要求，根据客户的需求推荐合适的、性能优的摄像机，并提供优质的服务，是我司一贯的宗旨！格物优信拥有优秀的技术研发团队，独立自主研发的手持式红外热像仪、在线式红外热像仪、红外测温模组、双光谱测温型热成像摄像机等明星产品，性能优越、品质优良，产品广泛应用在电力、安防、冶金、轨道交通、机器视觉、科学研究等行业，为用户提供稳定可信赖的非接触式测温解决方案。
酷睿红外体温测量热成像摄像头用户手册说明书
Infrared Body Temperature Screening Thermal CameraUser Manual2020-03Thank you for purchasing our Infrared Body Temperature Screening Thermal Camera. Please read this manual carefully before using. This camera’s technical specifications, operational methods and precautions are all included in this manual.If you need any other information not included in this manual, please feel free to contact us.The company reserves the right to modify this manual without prior notification.Dangers1.Please read this manual carefully before installation.2. Please note the warning notices on the camera and in this manual.3. Please apply exactly the power supply and voltage listed in this manual.4. For safety and camera’s proper functioning, please don’t power on the camera while connecting cables.5. Please ensure the intactness of the power line in case of injury and damage.6. Please install anti-lighting device in case of thunderstruck.7. Please mount this camera on a secure platform or bracket in case of injury.8. Unauthorized dismantling of this camera may incur injury or damage, so please contact us directly for any malfunction matters.9. In order to protect the lens from being stained or scratched, please don’t touch it.Caution1.For ensuring camera’s proper functioning, please don’t cover camera front.2. Protect the camera from direct sunlight to ensure the detector not being damaged.3. In case of water leakage, please don’t use organic solvent to clean camera’s housing.4. Please wait for another 30s before restarting camera.5.For camera with preset function, please pay special attention:It should avoid to patrol for long time, especially when the stay time is short for each preset. The motor of zooming & focusing lens is easy broken parts and can be easily damaged if patrolling for long time. If it is really necessary to use the patrol function, we strongly recommended NOT to use the preset function or extend the stay time for each preset. Please kindly contact us if you would like to know more info.6.The temperature measurement needs to be performed after the thermal imager is powered for 30 minutes to run stably.CATALOGChapter 1 Camera Introduction (5)1. Overview (5)2. Appearance (6)3. Dimension(mm) (7)4. Connector (9)Chapter 2 Operation (10)1. Installation and cable connection (10)2. Recommended installation environment (12)3. Common Faults (14)Chapter 3 Camera debugging instructions (16)Chapter 4 Instructions for software (26)Chapter 5 Warranty and After sales (32)Chapter 1 Camera Introduction1. OverviewInfrared Body Temperature Screening Thermal Camera, It is a non-contact, large-area, accurate, and efficient temperature measurement and screening device specially designed for dense crowds in public places. Based on the accurate temperature measurement technology of thermal imaging, people with abnormal body temperature can be detected and alarmed in time to assist the supervision department to implement rapid intervention methods. And emergency measures to prevent the spread of the virus epidemic in public places from the danger of spreading infected people in a wide range. It can be widely used in airports, railway stations, passenger stations, subway stations and other comprehensive transportation hubs, as well as in crowded areas such as schools and comprehensive parks.The entire system includes a front-end human body temperature measuring camera and temperature management software. Customers can configure and control computers by themselves. The management computer is equipped with temperature management software for managing temperature measurement equipment and temperature alarms.2. AppearanceVisible lensThermal cameraChart 1-1 Front and side viewCable connectionChart 1-2 Lateral and side view3. Dimension (mm)Chart 1-4 Front viewChart1-3 Connecting cables and power adaptersAir plug connector Cable interfaceDC12V connectorChart 1-5 Lateral viewChart 1-6 Mounting holes at the bottom of the camera4. ConnectorCamera output line definitions:Pin No. 1 2 3 4 5 6Pin definition 12V+RedGNDBlackOrangewhite TX+(RJ45-1)OrangeTX-(RJ5-2)Greenwhite RX+(RJ45-3)GreenRX-(RJ45-6)Pin No.7 8 9 10 11 12Pin definition Blue Blue white BrownwhiteBrown NC NCChapter 2 Operation1. Installation and cable connection(1) Installation There are mounting holes on the bottom of the camera, as shown in Figure 1-6. Ordinary photography tripod can be used for quick installation. The installation scheme is shown in the figure below.Quick-install panel:Mounting holes at the bottom of the camera:Remove the panel immediately by pulling the lever slightly backwards. After placing the panel, press it down tosnap the base.Chart 2-1 Tripod quick setup drawing(2)Aviation Plug InstallationChart 2-2 Aviation Plug Hole Chart 2-3 Aviation plug Pin When installing, please insert the head hole into the socket, make sure that the pin is inserted into the socket, then twist the upper fixed ring upward and to the right, and then complete the docking after hearing "Click" . When removing the plug, please twist the plug to the left, the plug will be removed, with the pin plug separation.Remove the panel and install itinto the mounting hole on thebottom of the temperaturemeasuring camera indicated bythe icon above.Chart 2-4 Aviation Plug Finished Installation(3) Cable connectionChart 2-5 connection diagram2. Recommended installation environmentThe temperature measurement principle of the infrared camera is measured by collecting infrared radiation radiated from the surface of the body of the person. The environmental conditions related to infrared transmission will affect the temperature measurement accuracy, especially air flow, air transmission rate, environmental humidity, and environment Temperature and other factors, it is strongly recommended that the camera be installed in an indoor environment. And to choose the appropriate Infrared Body Temperature Screening Thermal CameraCameraconnectionPower supplyNetworkcableComputerAviation plug retaining ringinstallation height and temperature measurement distance, the following diagram shows the installation environment recommendations.Erection height 1.8-2m5m3m2mPeople passing areaChart 2-6 Camera installation recommendationsThe erection height is about 1.8-2 meters, the working distance is generally 2-5 meters, and the best temperature measurement distance is about 2-3 meters.Chart 2-7 Camera installation and display3. Common FaultsThe table below includes the common faults during operation. Whenever these problems occur, you may refer to this table or contact us directly for proper solution.Fault Possible Cause SolutionNo image on Power damage or under Replace the original power.camera after poweronpowerWrong connection ofpower line ReconnectCircuit malfunction Check circuitThe network is notconnectedCheck the network connectioncables to ensure that the wiring iscorrect and in good contact Firewall blocks videotransmissionTurn off the firewall on the clientcomputerUnclear image Lens covered by objects Check if there is any cover Dirty lens Clear lensChapter 3 Blackbody use and installation instructions 1.Product appearanceNote: Please refer to the real object for the appearance of the blackbody. This picture is for reference only.2.Instructions(1)Connect the power supply, the power supply is AC220V.(2)Press the power switch, the indicator light is on to indicate that the power is on.(3)The factory default is 35 ° C, and the temperature will automatically rise to 35 ° C when the machine is turned on. If other temperature points are set during use, it will automatically rise to the temperature set last time when it is turned on next time.(4)Temperature setting:In this interface, , press◀. ▲. ▼ key to adjust the value in the (SV) window, set the required temperature, and after the adjustment, wait for the number to no longer change, and the temperature can be used for measurement after 30 minutes.(5)The blackbody furnace has been tested in operation when it leaves the factory. All parameters of the intelligent temperature controller have been optimized. It is forbidden to modify the parameters by yourself when not necessary.(6)After use, cut off the power.3.Precautions for using blackbodyBefore use, please check if there is enough space around you. The bottom and back of the device is a heat dissipation area. When using it, pay attention to cleaning up foreign objects that are easily sucked in to prevent damage to the device!The black body furnace can be used in a laboratory, a measurement room or a production site, and it should be placed horizontally on a table during use. When setting the instrument to be calibrated, it shall be kept at a specified distance from the bullseye of the black body furnace. At the same time, the instrument calibration system and the black body radiation surface must be on the same axis.In order to ensure the accuracy of temperature measurement, please place the surface temperature calibrator in a stable temperature environment. The ideal environment temperature is 10 ℃～25 ℃.The inspection must start from the low temperature point and then to the high temperature point. In order to prevent the rapid changes in temperature from damaging the components in the furnace, when the temperature rises from low temperature to high temperature or decreases from high temperature, it is necessary tostop the test and wait for the temperature in the furnace to approach room temperature before starting the test.Before installing or moving the instrument, turn off the power to avoid accidents such as electric shock.When used in the field, the power plug must be reliably grounded!Do not disassemble the components yourself. If there is any problem, please contact our company for repair.4. Installation instructions ● Blackbody installation●Installation height of thermal imaging temperature measuring camera: 2 meters; installation height of black body: 1.8 meters. The product installation isshown as follows:Mounting holes at the bottom of the blackbodyRemove the panel andinstall it into themounting hole at thebottom of the black body(choose one), and theninstall the black body as awhole back onto thetripod.The distance between the thermal imagingand the blackbody is 3 meters.Camera height 2m Blackbody height 1.8mThermal camera tripod installation diagramThe thermal imaging camera and the black body are installed on the same side, the pedestrian path is on the other side, and the distance between the camera and the black body is 3 meters, to avoid obstruction between the camera and the black body during temperature measurement.Blackbody installation diagramThe radiating surface of the black body must be facing the camera's irradiation direction, and the black body must be on the left or right of the thermal imaging screen.The following boldface is on the right side of the image:Thermal imager and blackbody on the sameSidewalkBlack body installation diagram● The camera's top-view angle is less than 30 degrees.● It is required that the visible light channel has sufficient illumination, and avoid the effects of backlighting, returning light, strong light change, blocking, and high temperature interference.● The installation area needs to be relatively isolated and stable from theoutside world. Avoid outdoor or outdoor communication scenarios. It is not suitable for environments with airflow or strong electromagnetic interference or vibration.Avoid the installation scene diagram (insufficient light: backlight / outdoor scene)Blackbody facing cameraChapter 3 Camera debugging instructionsThe configuration of temperature measurement monitoring is configured after logging in to the thermal imager through the web.Note: It is recommended to use Internet Explorer for web login. For non-IE browsers, please use the compatibility mode to log in. Do not use the speed mode. When you log in for the first time, you will be prompted to install the plug-in. After downloading and installing the plug-in as prompted, you can log in again to preview the video normally. Do not use Edge browser for Windows 10.Web login parameters:Default IP address for camera: 192.168.1.65User: adminPassword:Abc.12345(1)PreviewAfter logging into the thermal imager web, you will enter the video preview interface by default.(2)Region SettingsSwitch to Settings-Alarm Settings-Analysis-Human Temperature-Region Settings, click "Draw Region" to draw a rectangular temperature measurement area with the left mouse button, click OK to save. Click "Max Rect", use the left mouse button to draw the target maximum size, click "Min Rect", use the left mouse button to draw the target minimum size, click OK to save. The maximum and minimum sizesare used to filter the target size, please follow the face size in the actual scene to draw.Click "Clear All Areas", click OK to save, you can clear all the detection areas drawn.(3)Temperature measurement parametersSwitch to Settings-Alarm Settings- Analysis-Human Temperature-Human Param.Our temperature camera is calibrated when it leaves the factory, but the accuracy of the device's temperature measurement is affected by the environment, so it may need to be debugged according to the use environment. The specific calibration guidelines are as follows:Set "Low Temperature" and "Hight Temperature" to filter false positives. The thermal imager only detects targets within this temperature range. The default values are “Low Temperature” 36 and “Hight Temperature” 40; if the value is not set properly, the temperature may not be detected.(4)Blackbody ParamIf there is a black body with a thermal camera on site, you can choose to configure the black body mode, which can further improve the temperature measurement accuracy and stability. The specific correction guidelines are as follows: Switch to Settings-Alarm Settings- Analysis-Human Temperature-Blackbody Param, put a check mark in front of "Blackbody Correction", use the mouse to draw the detection area, and the frame for blackbody calibration should be drawn in blackbody. Set "Blackbody Temp" to match the actual blackbody temperature. Click OK to save.The radiating surface of the black body must face the camera's irradiation direction, and the black body must be on the left or right of the thermal imagingpicture.(5)Precautions1.Our thermal imaging temperature measurement products can becontinuously operated continuously. If the power is off and restarted, itneeds to warm up for half an hour, and the temperature of the standby can beaccurately measured before the ambient temperature stabilizes.2.The detection area should be drawn to avoid high temperature interferenceto prevent false alarms.3.The installation place of the equipment should avoid the location ofventilation and direct sunlight.4.If it is used in outdoor environment, the outdoor tent should use L-shaped,side door to enter, the main door out, and it is best to have a heater in thetent.Chapter 4 Instructions for software(1)Software InstallationYou can obtain the client-side temperature measurement software through the attached accessories or by contacting technical support or sales personnel.Double-click to run the "HTS2000" software installation package and install the software as prompted. After the installation is complete, an icon will be displayed onthe desktop . Double-click to run the "ODS_setup.exe" software installation package and install the software according to the interface prompts. After installation, open the installation directory. Double-click "AlgorithmServer" to start the face recognition algorithm server. Win10 system please run as administrator.After startup is as follows.(2)Client loginDouble-click the software shortcut to bring up the login interface, and enter your username and password to log in.User Name: adminPassword: Abc.12345Enter the main interface after login(3)Video ManagerEnter the "Video Manager" interface, click the "Add" button, pop up the Add Device Information box, enter the device IP, User, Password, and click Save to complete the device addition. Click the "Delete" button to delete the device.Default IP address for visible camera: 192.168.1.64Default IP address for Thermal camera: 192.168.1.65User: adminPassword:Abc.12345(4)Detection areaClick the "" icon on the right side of the device to pop up the detection area drawing window. After drawing the detection area with the left mouse button, click Save.(5)Body TemperatureEnter the "Body Temperature" interface. After the device is online, it will automatically connect to the video.The temperature detection interface has two parts, the left side displays the real-time video and the right side displays the alarm information. The alarm information includes: alarm time, partial cutout of the alarm, and alarm temperature.(6)Alarm record queryEnter "History",you can search and view the alarm log by time range.(7)Alarm configurationAs shown in the figure, click "Setup" to enter the configuration interface.1)Configure the alarm capture path: Enter the "Base Config" interface, select the appropriate storage path, and click Save.2)Enable alarm sound reminder: Check the box before “Enable Alarm Sound” to enable the alarm sound reminder, configure the alarm duration, and modify the alarm sound duration. The alarm audio can select the system default file or a custom file. When selecting a custom file, you need to put the file in the software installation directory and configure it for selection.3)Configure the partial cutout size of the alarm: Enter the "Advanced Config" interface, modify the "Image Width" and "Image Height", and click Save. It can be adjusted to an appropriate value according to actual needs.4)Configure the alarm temperature threshold: Enter the "Advanced Config" interface and configure the alarm threshold. The default is 37.3 ° C. When the detected temperature is lower than this threshold, it is regarded as normal, and thedetected temperature is marked with green. When it is detected that the human body temperature exceeds the threshold, it is regarded as a fever alarm. The alarm sounds and the temperature is marked with red.Chapter 5 Warranty and After sales1.Customer satisfaction is what we’ve been pursing all along and quality is whatbrought our company prosperity. The night vision cameras manufactured by our company integrates independent technology and unique design.2. If you have any suggestions either for our product or services, contact us. We’ll doour utmost to improve and offer you the customized system you need.3. All of our cameras are packed with detailed user manuals, we may also assist withthe installation and debugging if it is feasible.4. If any problems such as quality, technology and operation occur during operation,our company will give you our quickest response.5. Your suggestions are valuable and your support will be our driving force. Thankyou!。
测温型热成像双光谱网络云台摄像机操作手册
3
测温型热成像双光谱网络云台摄像机操作手册
第2章 操作须知
2.1 通过浏览器访问说明
云台摄像机完成安装后， 需要进行功能的配置及参数的设置， 您可以通过浏览器进行相 关功能的配置。 配置前请确认云台摄像机与电脑已经连接并且能够访问需要设置的云台摄像机。 连接方 式有两种，如图 2-1 所示。
产品功能
可见光机芯功能 − 30 倍光学变倍，16 倍数字变倍 − 支持自动光圈、自动聚焦、自动白平衡、背光补偿、宽动态、3D 数字降噪 − 支持区域曝光、区域聚焦功能 − 支持多边形隐私遮蔽，多区域可设，多颜色、马赛克可选。 红外机芯功能 − 分辨率 324*256，高灵敏度探测器，支持对比度调节 − 支持定时、温差和手动模式下快门校正，AGC 模式可选择 − 支持 3D 降噪功能，14 种伪彩色可调节，图像细节增强功能 − 支持镜像、数字变倍和本地视频输出 − 远距离全天候监控 2
测温型热成像双光谱网络云台摄像机操作手册
测温功能（热成像通道） 云台摄像机通过设定预置点，并通过客户端对预置点进行测温相关配置，调用该 预置点，可在客户端预览画面实时显示当前固定区域温度信息，如最高温，最低温， 平均温度，温差等。 云台功能 − 水平方向 360° 连续旋转，垂直方向-75° -45° ,无监视盲区 − 水平预置点速度最高可达 60° /s,垂直预置点速度最高可达 30° /s − 水平键控速度为 0.01°-60° /s,垂直键控速度为 0.01°-30° /s − 支持 256 个预置位,并具有预置点视频冻结功能 − 支持 8 条巡航扫描,每条可添加 32 个 预置点
iii
测温型热成像双光谱网络云台摄像机 操作手册
目
录
前言 .................................................................................................................................................................................. II 第 1 章 产品简介 .........................................................................................................................................................1 1.1 产品说明............................................................................................................................. 1 1.2 产品外观............................................................................................................................. 1 1.3 产品性能及功能 ................................................................................................................. 1 第 2 章 操作须知 .........................................................................................................................................................4 2.1 上电自检.............................................................................................. 错误!未定义书签。 2.2 通过浏览器访问说明 ......................................................................................................... 4 2.3 登录与退出......................................................................................................................... 4 第 3 章 测温功能操作................................................................................................................................................7 3.1 客户端安装......................................................................................................................... 7 3.2 客户端使用......................................................................................................................... 7 3.2.1 设备添加 .................................................................................................................. 7 3.2.2 测温配置 ................................................................................................................ 11 3.2.3 温度显示及巡航设置 ............................................................................................ 16
海康威视 DS-2TD4237T-10 V2 热成像热与光双谱网络速度云台说明书
Hikvision DS-2TD4237T-10/V2 Thermographic Thermal & Optical Bi-spectrum Network Speed Dome is applied to manufacture process supervision of pyrophoric materials in factories, electric substation, and hydropower station. The accurate temperature measurement system sends you alarms to protect you from property loss.Smart Function (Thermal Imaging)● Image processing technology: Adaptive AGC, DDE, 3D DNR, NETD ≤ 40 mK (25°C), F#=1.0 ● Smart tracking: Event tracking and Multi-scene patrol tracking ● Smart tracking linkage: thermal view and optical view● Behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit ● Temperature alarm for fire prevention ● Fire detection algorithmThermal Imaging Module Function● 384 × 288 (the resolution of output image is 1280 × 720) resolution sensor, high sensitivity sensor, support contrast adjustment●3D DNR, 15 palettes, image detail enhancementSpecificationThermal ModuleImage Sensor Vanadium Oxide Uncooled Focal Plane ArraysMax. Resolution 384 × 288 (the resolution of output image is 1280 × 720)Pixel Interval 17 μmResponse Waveband 8 μm to 14μmNETD ≤ 40 mK (25°C), F# = 1.0Lens (Focal Length) 10 mmIFOV 1.70 mradField of View 37.7° × 28.7° (H × V)Min. Focusing Distance 1.2 mAperture F1.0Optical ModuleImage Sensor 1/2.8" Progressive Scan CMOSMax. Image Resolution 1920 × 1080Min. Illumination Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2, AGC ON) Lens (Focal Length) 4.8-153mmField of View horizontal FOV 58.4° to 2.14°, vertical FOV 33.8° to 1.2°, diagonal FOV 65.6° to 2.46°Aperture Range F1.2-F4.4Focus Mode Auto / Semiautomatic / Manual WDR 120 dBShutter Speed 1s to 1/100,000sDay & Night IR cut filterSmart FunctionVCA (Video Content Analysis) 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules in totalTemperature Measurement 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line). Temperature Range -20°C to 550°C (-4°F to 1,022°F)Temperature Accuracy Max (±2°C, ±2%)Fire detection Indoor dynamic fire point detection, up to 10 fire points detectable.PTZMovement Range Pan: 360° continuous rotate; Tilt: From -5° to + 90° (auto flip)Pan Speed 0.1°/s to 200°/sTilt Speed 0.1°/s to 105°/sProportional Zoom YesPresets 300Patrol Scan 8, up to 32 presets per patrolPattern Scan 4, more than 10 minutes per patternPower Off Memory YesPark Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama ScanPT Status Turn On/Turn OffScheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/ Panorama Scan/Doom Reboot/Doom Adjust/Aux OutputInfraredIR Distance Up to 100 m IR Intensity and Angle Auto Adjust NetworkMain Stream Visible Light: 50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720) Visible Light: 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720) Thermal: 50 fps(1280 × 720), 50 fps(704 × 546), 50 fps(384 × 288), 50 fps(352 × 288)Sub Stream Visible Light: 50 Hz: 25 fps (704 × 576), 25 fps (352 × 288) Visible Light: 60 Hz: 30 fps (704 × 480), 30 fps (352 × 288) Thermal: 50 fps(704 × 546), 50 fps(384 × 288), 50 fps(352 × 288)Video Compression H.265/H.264Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCMProtocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, BonjourSimultaneous Live View Up to 20-chUser/Host level Up to 32 users, 3 levels: Administrator, Operator, UserSecurity Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filteringInterfaceAlarm Input Up to 7-ch inputs (0 to 5 VDC)Alarm Output Up to 2-ch relay outputs, alarm response actions configurableAlarm Action Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkageAudio Input 1 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V[p-p], output impedance:1 KΩ ± 10%Audio Output Linear Level; Impedance: 600 ΩReset 1 Reset ButtonEthernet 1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interfaceSD Memory Card Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recordingAnalog Video Output 1.0 V [p-p]/75 Ω, PAL/NTSC/BNCApplication Programming ISAPI, HIKVISION SDK, third-party management platform, open network video interfaceClient iVMS-4200Web Browser Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +GeneralMenu language 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)Power 24 VAC ± 20%, two-core terminal block 48 VDC ± 20%, two-core terminal blockPower Consumption 24 VAC ± 20%: 0.88 A, max. 30 W 48 VDC ± 20%: 0.625 A, max. 30 WWorkingTemperature/Humidity-40°C to 60°C (-40°F to 140°F), 90% or lessProtection Level IP66 StandardTVS 6000V Lightning protection, surge protection, voltage transient protectionDimensions 305 mm × 185 mm × 163 mm (12.01" × 7.28" × 6.42") Weight 3.9 Kg (8.6 lb)Detection Range Table* The table is only for reference, the performance may vary from camera to camera.Smart functions RangeDifferent targets trigger the VCA events within different range limits.VCA Range (Vehicles: 1.4×4.0m) VCA Range (Humans: 1.8×0.5m) Temperature Measurement (Object:2×2 m) Temperature measurement (Object:1×1 m) Fire Detection (Object:2×2 m) Fire Detection (Object:1×1 m) 206 m74 m 235 m 118 m588 m294 mWide Range CoverageThere is range limit for detecting, recognizing, and identifying human/vehicle targets.Detection Range (Vehicles: 1.4×4.0m) Detection Range (Humans:1.8×0.5m) Recognition Range (Vehicles: 1.4×4.0m) Recognition Range (Humans: 1.8×0.5m) Identification Range (Vehicles: 1.4×4.0m) Identification Range (Humans: 1.8×0.5m) 902 m294 m 225 m 74 m 113 m 37 mAvailable ModelDS-2TD4237T-10/V2DimensionCOMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series productsbetween different countries.。

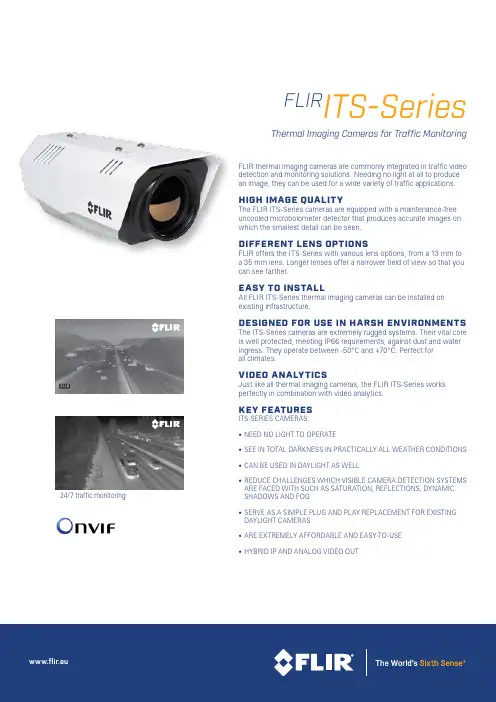

FLIR ITS-Series 热成像摄像头产品说明书
FLIR thermal imaging cameras are commonly integrated in traffic video detection and monitoring solutions. Needing no light at all to produce an image, they can be used for a wide variety of traffic applications.HIGH IMAGE QUALITYThe FLIR ITS-Series cameras are equipped with a maintenance-free uncooled microbolometer detector that produces accurate images on which the smallest detail can be seen.DIFFERENT LENS OPTIONSFLIR offers the ITS-Series with various lens options, from a 13 mm to a 35 mm lens. Longer lenses offer a narrower field of view so that you can see farther.EASY TO INSTALLAll FLIR ITS-Series thermal imaging cameras can be installed on existing infrastructure.DESIGNED FOR USE IN HARSH ENVIRONMENTSThe ITS-Series cameras are extremely rugged systems. Their vital core is well protected, meeting IP66 requirements, against dust and water ingress. They operate between -50°C and +70°C. Perfect for all climates.VIDEO ANALYTICSJust like all thermal imaging cameras, the FLIR ITS-Series works perfectly in combination with video analytics.KEY FEATURESITS-SERIES CAMERAS:• NEED NO LIGHT TO OPERATE• SEE IN TOTAL DARKNESS IN PRACTICALLY ALL WEATHER CONDITIONS • CAN BE USED IN DAYLIGHT AS WELL• REDUCE CHALLENGES WHICH VISIBLE CAMERA DETECTION SYSTEMS ARE FACED WITH SUCH AS SATURATION, REFLECTIONS, DYNAMIC SHADOWS AND FOG• SERVE AS A SIMPLE PLUG AND PLAY REPLACEMENT FOR EXISTING DAYLIGHT CAMERAS• ARE EXTREMELY AFFORDABLE AND EASY-TO-USE• HYBRID IP AND ANALOG VIDEO OUT24/7 traffic monitoringFLIRITS-SeriesThermal Imaging Cameras for Traffic MonitoringSpecifications are subject to change without notice©Copyright 2016, FLIR Systems, Inc. All other brand and product names are trademarks of their respective owners. The images displayed may not be representative of the actual resolution of the camera shown. Images for illustrative purposes only. (Revised 04/17) 17-1346_EMEA NASDAQ: FLIRPORTLANDCorporate Headquarters FLIR Systems, Inc.27700 SW Parkway Ave.Wilsonville, OR 97070USAPH: +1 866.477.3687SANTA BARBARA FLIR Systems, Inc.70 Castilian Drive.Goleta, CA 93117USAPH: +1 866.477.3687BELGIUMFLIR Systems Trading Belgium BVBALuxemburgstraat 22321 Meer BelgiumPH: +32 (0) 3665 5100FLIR ITSHospitaalweg 1B B-8510 Marke BelgiumPH: +32 (0)56 37 22 00UKFLIR Systems UK 2 Kings Hill Avenue Kings HillWest Malling - Kent ME19 4AQUnited KingdomPH: +44 (0)1732 220 011Specifications。
FLIR HDC2远程热成像摄像头产品说明书
Long-range thermal imaging cameras for border and coastal surveillance applicationsThermal imaging inHIgH defInItIonFLIR® HDC2The FLIR® HDC enables users to see more details at long range without losing situational awareness with twice the wide area coverage at any distance compared to 640x480 systems. The FLIR® HDC provides a 16:9, wide screen video to show more of the scene at a glance.Using a cooled detector, the FLIR® HDC provides exceptional long range performance with detection of man-sized targets beyond 16km and vehicles beyond 20km. The system also supports continuous zoom to maintain situational awareness with target focus in both a wide field of view and during zoom for effective target assessment. This capability ensures users always have an optimized field of view for targets at any range.The system also features the new FLIR Image Processing Engine with advanced algorithms developed to generate a perfect picture with minimal adjustment and includes patented features such as FLIR® DDE and CRISP. Auto perfect mode creates a clear image in any circumstance.Developed under the unique FLIR® CDMQ TM process (Commercially Developed, Military Qualified), the FLIR® HDC delivers a military quality system, designed to work 24/7 with unmatched reliability.thermal imaging cameras for ultra long rangesurveillance applications with cooled detectorCooled detectorThe HDC are equipped with a mid-wave, cooled detector. A thermal imaging camera with a cooled detector gives you the advantage that you can see and detect potential threats much farther away than with an uncooleddetector. But there is more. Objects which are at a close distance can be seen with much more detail. You can see what people are carrying. There is no need anymore to send someone out in the field to take a closer look since small details can clearly be seen on the thermal image.The FLIR® HDC is equipped with a cooled Indium Antimonide (InSb) detector.High definition 1280 x 720 detectorSee more details at long range without losing situational awareness. Twice aswide area coverage at any distance compared to 640x480 system.It allows the user to see more detail and detect more and smaller objects froma farther distance. Coupled with high sensitivity, the HDC offer extremely longrange performance and excellent image quality.16:916:9 wide screenProvides a 16:9 wide screen video that shows more of the important part of thescene and fits well on modern screens.22x continuous optical zoom on the thermal imageThe HDC thermal imaging camera is equipped with powerful continuous opticalzoom capability on the thermal image. It offers excellent situational awarenessbut also the possibility to zoom-in, and see more detail, once a target has beendetected. This way operators can see farther recognize more detail and react morequickly to security threats. The advantage of continuously zooming comparedto other systems that are using a rotating lens system is that there is no switchor swapping between the different images. You can gradually zoom in whilekeeping your focus all the time.All systems are also equipped with a 16x continuous digital zoom.Continuous optical zoomon the thermal imageOptimized high definition thermal image Advanced image processing featuresAuto perfect mode creates a perfect image, in any condition.M inimal operator adjustment is needed. Auto perfect modeprovides better contrast scenes. This is possible thanks to FLIR'spatented advanced image processing algorithms like:- A dvanced digital detail enhancement (dde)FLIR Systems has developed a powerful algorithm that helps toovercome the problem of finding low contrast targets in highdynamic range scenes. Advanced Digital Detail Enhancement(DDE) assures clear, properly contrasted thermal images. DDEdelivers a high contrast image even in extremely dynamicthermal scenes. It provides high quality thermal imaging inany night- or daytime environmental conditions.- Clear regional image sharpness (CrIsp)Where DDE is designed for creating a perfect image in highcontrast scenes, CRISP does the same in low contrast scenes.Auto focusThe FLIR® HDC contains an exclusive auto focus feature which delivers crisp, clear images at the press of abutton. Focus is kept while zooming in or out. The system allows you to experience better situational awarenessin the wide field of view, while maintaining detailed recognition capabilities in the narrow field of view.easy and fast to installAll cameras incorporate easily with common power and video interfaces found in existing and new security systems. They can be easily integrated into any existing infrastructure providing early detection and visibility 24/7 all the year round. The images from the 1280 x 720 pixels detector can be displayed as MPEG4-format or high end HD SDI format.portabilityAll systems are configured to be either fixed mounted or field transportable for fast deployment. They can be mounted on a standard tripod. A single operator can set up the system in minutes, making it ideal for mobile operations and quick deployments.designed for use in harsh environmentsAll systems are extremely rugged. Their vital core is well protected against humidity and water. It operates between -32°C to +55°C.Multiple installation optionsThe FLIR® HDC comes with a TCP/IP interface that supports Nexus™ and multiple common standard protocols to provide video over IP. The IRIG B synchronization enables integration into demanding applications where accurate time stamping video is required. The video can be syncronized with external sources.easy upgradableThe HDC can easily be upgraded with new software features and developments in the future. This can be done from the control room, no need to open up the camera. This makes the HDC a state-of-the-art system for many years to come.Standard high definition thermal image9FLIR® HDCEquipment described herein may require authorization for export purposes. ©2013 FLIR Systems, Inc. Specifications are subject to change. The images displayed may not be representative of the actual resolution of the camera shown. Images for illustrative purposes only.FLIR Commercial Systems Luxemburgstraat 22321 Meer - Belgium Tel. : +32 (0) 3665 5100Fax : +32 (0) 3303 5624e-mail :*************FLIR Commercial Systems Madrid-SpainPhone : +34 915 73 48 27e-mail :*************FLIR Systems Ltd.United Kingdom Tel. : +44 (0)1732 220 011e-mail :*************FLIR Systems FrancePhone : +33 (0)1 60 37 01 00e-mail :*************FLIR Systems GmbH Germany Tel. : +49 (0)69 95 00 900e-mail :*************fLIr systems Italy Italy Tel. : +39 (0)2 99 45 10 01e-mail :*************FLIR Systems AB SwedenPhone : +46 (0) 8 753 25 00 e-mail :*************FLIR Systems Middle East, FZE Dubai - United Arab Emirates Phone : +971 4 299 6898e-mail :*************fLIr systems russia Moscow - RussiaTel.: + 7 495 669 70 72e-mail :*************S S _1013_-0030_ENRecognition approx. 8 kmRecognition approx. 10 kmIdentification approx. 4.5 kmIdentification approx. 5.5 kmDetection, Recognition, Identification of a standing human targetHDC800HDC800HDC1200HDC1200Detection approx. 21 kmDetection approx. 21 kmRecognition approx. 14 kmRecognition approx. 15 kmIdentification approx. 9 kmIdentification approx. 11 kmDetection, Recognition, Identification of a vehicle with 2.3m critical dimensionDetection approx. 16 kmDetection approx. 16 kmActual range may vary depending on camera set-up, environmental conditions, user experience and type of monitor or display used. Assumptions: 50 % probability of achieving objective at specified distance given approximately 2°C temperature difference and 0.82 / km atmospheric attenuation factor. DRI according to Johnson Criteria.。
AXIS P12热成像网络摄像头系列用户手册说明书
AXIS P12Thermal Network Camera Series AXIS P1280–E Thermal Network CameraAXIS P1290–E Thermal Network Camera 用户手册目录产品概述AXIS P1280-E (3)产品概述AXIS P1290-E (4)传感器单元 (6)连接传感器单元 (6)在网络上查找设备 (7)访问设备 (7)安全密码 (7)其他设置 (9)网页概览 (9)图像质量 (10)隐私遮罩 (11)叠加 (12)码流传输和存储 (13)事件 (17)应用程序 (18)故障排查 (19)重置为出厂默认设置 (19)检查当前固件 (19)升级固件 (19)技术问题、线索和解决方案 (20)性能考虑 (21)规格 (23)LED指示灯 (23)SD卡插槽 (23)按钮 (23)连接器 (23)产品概述AXIS P1280-E产品概述AXIS P1280-EAXIS P12Mk II Main Unit1LED状态指示灯2控制按钮3RJ12连接器4网络连接器(PoE)5SD卡槽(microSD卡)AXIS FA1080Thermal Sensor unit 1传感器单元2RJ12连接器产品概述AXIS P1290-E产品概述AXIS P1290-EAXIS P12Thermal Main Unit 1LED状态指示灯2控制按钮3RJ12连接器4网络连接器(PoE)5SD卡槽(microSD卡)产品概述AXIS P1290-EAXIS FA4090–E Thermal Sensor unit 1半球罩2锁环3传感器单元4RJ12连接器5硬天花板安装（根据需要使用）传感器单元传感器单元连接传感器单元将传感器单元连接到主机时，我们建议您在为主装置通电之前进行连接。
如果您断开一个传感器单元并连接一个不同的摄像机，您必须重新启动主机。
缩短传感器单元电缆备注该电缆只能被缩短，不能以其他方式进行延长或修改。
热成像人体测温门禁面板机用户手册说明书
热成像人体测温门禁面板机用户手册V1.3.2声明本手册的版权归设备生产公司所有。
非经该公司书面许可，任何单位和个人不得擅自摘抄复制本手册内容的部分或全部，并不得以任何形式传播。
由于产品版本升级或其它原因，本手册内容会不定期进行更改，如有更改，恕不另行通知。
在编写该手册的时候已尽最大努力保证其内容准确可靠，本手册仅作为使用指导，本手册中的所有陈述、信息和建议不构成任何明示或暗示的担保。
特别声明在使用设备时，对于监听接口的使用与维护，请您严格遵守适用的法律、法规要求。
出于非法目地使用设备、探听他人隐私等，均属于非法监听。
符号约定在本文中可能出现下列标志，它们所代表的含义如下。
小心、注意：通用警告标志，提醒操作中应注意的事项说明、提示符号：对正文内容进行必要的补充和说明目录1. Web端操作.......................................................................................................... - 1 -1.1 密码管理..................................................................................................... - 1 -1.2 界面说明..................................................................................................... - 3 -1.2.1 登录界面........................................................................................... - 3 -1.2.2 画面预览........................................................................................... - 4 -1.3 系统............................................................................................................. - 7 -1.4 通信........................................................................................................... - 11 -1.4.1 网络配置......................................................................................... - 12 -1.4.2 高级配置......................................................................................... - 13 -1.5 视音频....................................................................................................... - 13 -1.6 图像........................................................................................................... - 14 -1.7 智能分析................................................................................................... - 14 -1.8 人脸库....................................................................................................... - 24 -1.8.1 添加人脸......................................................................................... - 24 -1.8.2 抓拍记录......................................................................................... - 24 -1.8.3 门禁日志......................................................................................... - 25 -2. 客户端操作........................................................................................................ - 25 -2.1 视频预览................................................................................................... - 25 -2.1.1 实时预览......................................................................................... - 25 -2.2 设备管理................................................................................................... - 26 -2.2.1 搜索及添加相机............................................................................. - 26 -2.2.2 相机设置......................................................................................... - 29 -2.3 人员管理................................................................................................... - 33 -2.3.1 添加单个人员................................................................................. - 33 -2.3.2 批量添加人员................................................................................. - 34 -2.3.3 编辑人员资料................................................................................. - 35 -2.3.4 删除人员......................................................................................... - 36 -2.3.5 人员同步......................................................................................... - 37 -2.3.6 清空设备端用户............................................................................. - 39 -2.3.7 黑白名单设置................................................................................. - 39 -2.3.8 设备门禁参数................................................................................. - 40 -2.3.9 用户门禁信息................................................................................. - 41 -2.3.10添加权限组.................................................................................... - 42 -2.3.11 下发权限组................................................................................... - 45 -3. 数据查询............................................................................................................ - 46 -3.1 更新考勤记录........................................................................................... - 46 -3.2 导出考勤记录........................................................................................... - 47 -3.3 异常记录标记........................................................................................... - 47 -3.4 清空考勤记录........................................................................................... - 48 -1.Web端操作1.1密码管理1. 初始密码设置：相机出厂默认管理员帐户名admin，用户第一次使用相机时，需要按照弹出的页面框进行密码设定后方能访问相机，如下图界面，按照密码提示设置好后点击“确定”即可。
测温型热成像双光谱网络云台摄像机操作手册
iv
测温型热成像双光谱网络云台摄像机操作手册
第1章 产品简介
1.1 产品说明
测温型热成像双光谱网络云台摄像机 （以下简称云台摄像机） 是集网络远程监控功能、 视频服务器功能、热成像摄像机、高清一体化摄像机为一体的新型网络云台摄像机。 云台摄像机安装方便、使用简单，不需要繁琐的综合布线。 您可以通过 IE 浏览器控制云台摄像机并通过 IE 界面设置可见光通道和热成像通道参 数，如系统参数设置、OSD 显示设置、巡航路径设置等参数。 云台摄像机因其特性使之可广泛应用于需要大范围高清监控的场所， 如： 河流、 森林、 公路、铁路、机场、港口、油田、岗哨、广场、公园、景区、街道、车站、大型场馆、 小区外围等场所。
产品安装使用过程中，必须严格遵守国家和使用地区的各项电气安全规定。 请使用正规厂家提供的电源适配器，电源适配器具体要求参见设备参数表。 请不要将多个云台摄像机连接至同一电源适配器（超过适配器负载量，可能会产 生过多热量或导致火灾） 。 在接线、拆装等操作时请一定要将云台摄像机电源断开，切勿带电操作。 在安装本产品时，请将云台固定牢固。 如果云台摄像机出现冒烟现象，产生异味，或发出杂音，请立即关掉电源并且将 电源线拔掉，及时与经销商或服务中心联系。 如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方 式拆卸或修改设备。 （对未经认可的修改或维修导致的问题，本公司不承担任何 责任） 。
1.2 产品外观
该型号云台摄像机为双窗中型云台，对应下图所示外观图。
1.3 产品性能及功能
本章节从性能和功能两方面阐述云台摄像机，让您能够更快地了解及熟悉。
产品性能
内置测温型热成像枪机， 支持 7x24 小时全天候监视能力， 测温范围 0°~150° 之间，测温型热成像枪机长时间运行测温精度控制在±2°或最大值的 2%之间。
IR16DS 双视图热成像仪 用户手册说明书
IR16DSIR16DS 双视图热影像仪IR 16DS 热像/视觉影像仪由 IRISYS 公司荣誉生产,其全面的功能和优惠的价格为广大的工程师造就了理想的维护工具。
电气检查● 过于松/紧的终端● 超负荷电路● 非均衡电压分布●故障/失控元器件机械检查● 过热轴承/支架● 非正常润滑● 未对准轴承能量效率评估● 无效或不存在的隔绝层● 潮湿● 气体泄露检查● HVACIR16DS 的核心特质1. 影像融合该产品可以单独显示热影像，视觉影像或者显示两种影像的结合。
此外，IR16DS 还具备图中图的显示功能。
LED 背景照明功能有助于影像仪在黑暗环境中的正常工作。
2. 语音注解该产品可以为每一幅存储的影像加入语音注解。
通过影像仪的扬声器或者耳机，语音注解可以被重复播放。
如果影像已经被传送至PC（使用附带的软件），语音注解同样可以通过 PC扬声器和耳机播放。
3. 报警影像仪不仅能够探测热点和冷点，而且在温度超出预先设定的范围时，可以发出警报。
影像仪通过扬声器或耳机发出声音警报，也可以通过显示屏发出可视的警报。
4. 时间段设定在无人操作的状态下，影像仪/监视器可以在某一个预设的时间段自行观测设备的运行状况。
此时间段可以被预设为规律性间隔，或者由使用者自行定义温度范围。
5. 单个光标放射率设定四个可移动的光标可以被逐一预设不同的发射/工作设置，此功能保证了更加精准的温度测量。
而且有助于使用者对于测量区域内的不同元器件和物体做出温度对比。
6. 电池寿命长达5小时的连续工作时间，有效完成一个典型的工作班次。
电池可替换可充电。
设置和控制●自动/用户设定的调整范围和级别控制● 读数单位°C, °F ● 四个可移动的温度测量光标且可以自行预设不同的发射设 置；光标可以显示两测量点之间的溫度差异●使用者可以预设每一个温测光标的发射设置● 自动搜寻测量区域内的热点/冷点● 可供使用者选择的反射温度补偿● 区域分析–三种选择● X-Y热轮廓/剖面显示● 显示溫度差异的等温线● 语音和文字注解● 影像采集，时间记录和日期记录● 视觉/听觉警告信息（超出/低于预设温度的状况）● 色盘选择● 可供用户选择的集中/综合功能● 影像综合控制：0至100％整幅图像/图中图状况的调整● 图像电子缩放功能（2倍，4倍）●多语言选择● 电池低电量指示● 具备图像浏览器，多图像显示和语音注解的重播● 时间或告警间隔的重置连接标准所储存的数据可通过SD 卡直接传送或者通过USB 线转接。
ThermoTRACK-IR 10 红外热成像相机说明书
E:******************************:800-778-3428Thermo TRACK-IR 10Infrared Thermal Imaging Camera•Ergonomically designed for extended use •384 x 288 uncooled detector•Super-high thermal sensitivity (0.06℃@30℃)•Pivoting LCD display for improved image display •Alarm in voice & light •40 second voice annotation •SD card storageFeaturesLarge LCD displayA large, bright LCD display screen with a few simple buttons will help you fine-tune / analyze images and perform your inspection easily and quickly.Accurate temperature measurement and high image qualityThermo TRACK-IR offers you unmatched temperature measurement accuracy with thermal sensitivity of 0.1°C as well as clear, noise-free, high resolution images displaying on the camera’s 2.5” color LCD .1981Multi temperature measurement modeThermo TRACK-IR cameras integrate the analysis process with ‘multi-measurement’ mode: movable spot and areas with average/max/min temperature tracing, line profile, isotherms and temperature difference, all of which enable the operator to get clear target temperature information quickly. The function of visible and audible alarms allows the camera to assist operators to observe select area automatically.Built-in flash memoryBuilt in flash memory stores up to 1000 image of JPEG images along with 40 seconds digital voice clip record per image; the extra memory permits the operator to refresh the images as often as he likes or needs.Intelligent power control systemAutomatic shutdown and sleep mode are designed for saving the battery power , which when activated can provide up to 3 hours of continuous operation.ApplicationNon-destructive testing for industrial equipment such as power industry including transmission and distribution systems, railway, petroleum and petrochemical industry, industrial inspection, processing piping, tank farms, manufacturing, as well as the building inspection.*****************************Technical SpecificationItems Thermo TRACK-IR 10Detector characteristicsDetector type uncooled FPA microbolometer Array size/format 384×288Image characteristicsField of view/min focus distance 16°×12°/0.5mSpatial resolution (IFOV）0.88 mradThermal sensitivity 0.06℃@30℃Frame rate 50/60HzFocus ManualElectronic zoom 2xSpectral range 8-14umLCD Built-in high-resolution color 2.8” LCDTemperature ranges -20℃- +500℃Accuracy ± 2 °C or ± 2% of reading, Whichever is greaterMeasurement correction Automatic/manualUp to 4 movable spots. Up to 3 movable areas (maximum, minimum and)fImagecontrolsColor palette 11 palettes changeable (Iron, Rainbow, Grey and Grey inverted, etc.)Image adjustment Auto/manual gain and brightnessSetup functions Date/time, temperature unit, languageEmissivity correction Variable from 0.01 to 1.0Ambient temperature correction Automatic correction according to user input Atmospheric transmissioncorrectionAutomatic correction according to user input object distance, relativehumidity , ambient temperatureImage storage TypeStorage card Built-in flash memory, SD card (2G), Up to 4000 imagesStorage mode Automatic/manual single image saving File format-thermal JPEG, 14 bit thermal image with measurement dataVoice annotationInput via built-in microphone up to 40 seconds of digital voice perimage stored with imageLaser pointer Laser pointer Class 2, 1mw/635nm(red)Power supplyBattery type Li-Ion, rechargeable Battery operating time 3 hours continuous operationPower supply Charging system Intelligent charger or power supply adaptor(optional) online charge Power saving YESExternal power 10-15V DCEnvironment Operating temperature -15℃-+50℃Humidity ≦90％non-condensing Encapsulation IP54Physical characteristicsWeight 0.91Kg Dimensions 303mm×123mm×85mmInterface External DC input YesAudio output YesVideo output PAL/NTSCUSB Image, measurement data and voice transfer to PCCONTACT INFORMATIONCorporate Office Spectrum Instruments Ltd P: 613-438-8767 & International Sales 44 Forest Drive F: 866-782-0106 E:*****************************Brighton, ON K0K 1H0CanadaDomestic Sales Spectrum Instruments Ltd P: 1-800-778-3428 & Warehouse 897 St. Charles St. West F: 866-782-0106 E:*****************************Breslau, ON N0B 1M0CanadaSales Partners Located Around the World:Canada Chile ChinaColumbia Costa Rica EgyptIndia Indonesia IraqIsrael Korea MalaysiaMexico Thailand USA (East)USA (Central) Vietnam44 Forest Drive, Brighton, ON K0K 1H0 P: 613-439-8767 F: 866-782-0106 E: ***************************** 。
Fotric云热像仪说明书
About the manualQ: Why fire lighter does not trigger the fire alarm.A: Long wave thermal camera cannot measure the flame temperature, while around object heated by the flame can trigger alarm.This manual is used as a guide, in which the photos, graphics, icons and illustrations provided in are used for explanation purposes only. Specific products may exist differences, please prevail in kind. Fotric may update this manual without notice due to product upgrades or other requirements.If you need the latest version of the manual, please visit the official website .The marks pictures， etc. used in the manual are only for instructions purpose, copyright belongs to the trademark owner.Disclaimer of liabilityCopyright owned by Fotric Precision Instruments, Inc. All rights reserved.After sales serviceIf you encounter any problems in the course of use, you can log on FOTRIC official website contact online customer service, note FOTRIC facebook or call service hotline.Website: FOTRIC facebook: FotricUSAThe product (hardware, software, etc.) provided by this manual may be defective, error or malfunction. FOTRIC does not provide any form of express or implied, including but not limited to merchantability, satisfactory quality, fitness for a particular purpose, non infringement of third party rights guarantee. FOTRIC does not compensate for anyspecial, incidental, or consequential damages arising from the use of this manual or the company's products, including, but not limited to, loss of commercial profits, loss of data or documentation.Within the maximum permitted scope of the law, the liability of the company shall not exceed the amount you paid for this product.The product access to internet may face including but not limited to the risk of network attacks, hacking, virus infection, the company shall not be liable to the problems caused by the product abnormal work, information disclosure, but will provide timely technical support.The product can sense movement detection and fire events under the correct installation and configuration, but cannot avoid accidents or cause personal injury or property damage.These products are controlled for export under US Department of Commerce (DOC), Export Administration Regulations (EAR), Export Control Classification Number (ECCN) 6A003.b.4.b. These cameras contain a focal plane array controlled to 6A002.a.3.f. This product cannot be used in controlled countries (such as North Korea, Iran, Syria, Cuba, Sultan, etc.), do not bring the product into or used in controlled countries. Any loss or liability arising from such action shall be borne by customer self.When using this product, please follow the applicable law strictly. You agree this product for civilian use only, shall not be used for infringement of third party rights, health / safety equipment or other product fault may cause the application risk of life or personal injury, and mass destruction fog, biological weapons, nuclear explosion or any unsafe use of nuclear power or dangerous or violate humanitarian purposes. Any loss or liability arising from such use shall be borne by customer self.If the above contents conflict with the applicable law, the legal provisions shall prevail.。
AXIS Q2901-E 温度报警摄像机用户手册说明书
数据表AXIS Q2901-E Temperature Alarm Camera用于远程温度监控室外专用的子弹型AXIS Q2901-E提供336x256分辨率的热成像。
AXIS Q2901-E支持多达六个可用于触发警报的测温报警区域。
它提供两类由温度偏差触发的警报：如果温度超出设定限制，或者温度升高太快。
区域测温功能用于查看特定区域的温度。
等温调色板在图像中突出显示温度-范围，让它方便热点可视化以识别过热的设备或区域。
>测温报警>等温调色板>点温度读取>高性能智能视频AXIS Q2901-E Temperature Alarm Camera型号AXIS Q2901Q2901--E9毫米AXIS Q2901Q2901--E19毫米摄像机图像传感器非致冷微测辐射热计336x256像素，像素大小17微米，光谱范围：8-14微米镜头9毫米：F1.25，水平视野：35°，最小焦距：2.1米（78.7英寸）19毫米：F1.25，水平视野：17°视图，最小焦距：9.5米（354.3英寸）侦测范围建议被监视对象的大小至少覆盖10x10像素(336x256)。
灵敏度NETD<50mK热像法目标温度范围-40°C至550°C（-40°F至1022°F）温度精度低于100°C(212°F)：+/-5°C(+/-9°F)精度低于150°C(302°F)：+/-5%精度高于150°C(302°F)：+/-20%精度视频视频压缩H.264(MPEG-4Part10/AVC)Main和Baseline格式Motion JPEG分辨率传感器为336x256。
图像可放大至720x576帧速高达8.3fps视频流3个单独的视频流a H.264和Motion JPEG格式的视频流设置单个调色板：单独配置的同步流，最大分辨率为8.3fps可控制的帧速和带宽VBR/MBR H.264图像设置锐度、自动增益控制、曝光区域、增益、旋转、等温调色板、压缩、成像、文本与图像叠加及隐私遮罩Axis走廊模式音频音频流双向音频编码AAC-LC8/16kHz、G.711PCM8kHz、G.726ADPCM 8kHz、可配置的比特率音频输入/输出外部麦克风输入或线路输入、线路输出网络安全性密码保护、IP地址过滤、HTTPS b加密、IEEE802.1X b网络访问控制、摘要式身份验证、用户访问日志、集中式证书管理支持的协议IPv4、IPv6USGv6、HTTP、HTTPS b、SSL/TLS b、QoS Layer3DiffServ、FTP、CIFS/SMB、SMTP、Bonjour、UPnP TM、SNMP v1/v2c/v3(MIB-II)、DNS、DynDNS、NTP、RTSP、RTP、TCP、UDP、IGMPv1/v2/v3、RTCP、ICMP、DHCP、ARP、SOCKS、SSH系统集成应用编程接口用于进行软件集成的开放API，包括VAPIX®和AXIS Camera Application Platform；规格请参见一键云连接ONVIF Profile S和ONVIF Profile G，规格请参见分析AXIS Video Motion Detection4、主动篡改报警支持AXIS Camera Application Platform，能够安装第三方应用，请参见/acap事件触发器分析、温度侦测（6个报警区域）、硬件温度、前端存储事件、冲击侦测、计划时间、移动侦测、已访问实时流音频侦测事件操作文件上传：FTP、SFTP、HTTP、HTTPS网络共享和电子邮件通知：电子邮件、HTTP、HTTPS和TCP状态LED、文本叠加、SNMP、报警前和报警后视频缓冲、录制视频至前端存储、网络共享内置安装辅助工具像素计算器数据流事件数据一般外壳IP66、IP67和NEMA4X级金属外壳（铝制），带有集成除湿膜和锗窗片颜色：白色NCS S1002-B。
FLIR K2热成像摄像头说明书
FLIR K2Extremely affordable thermal imaging camera for firefightersThe FLIR K2 is a rugged, reliable, and extremely economical thermal imaging camera that is specially designed for firefighting applications and severe conditions. Producing thermal images at 160 x 120 pixel resolution displayed on a bright 3” screen, theK2 helps firefighters find their way through thick smoke, assess situations with confidence, and expedite decisions.A new level of affordabilityThe K2’s economical price makes powerful thermal imaging more accessible to more firefighters – a small investment that canhelp pay big dividends when it comes to safety, saving lives, and protecting property.Compact and easy to useFLIR K2 is a compact, light thermal imaging camera that canbe easily attached to SCBA gear. An intuitive user interface lets firefighters focus on the job at hand. And a single large button makes the camera simple to activate even with heavy gloves on.Rugged & reliableEngineered to survive tough operating conditions, the K2 withstands a 2-meter drop onto concrete, is water resistant (IP67) and is fully operational up to +500°F / +260°C (for up to 3 minutes).Multiple image modesFLIR K2 can be set to one of five different imaging modes depending on the primary use of the unit. Modes can be changed using the FLIR Tools software program that can be downloaded for free from .Multi-spectral dynamic imaging (MSX®)The K2 uses FLIR’s patented MSX technology that etches key details from the built-in visible light camera onto the thermal image, helping firefighters identify structures and surroundings without compromising the thermal image.Multiple firefighting applicationsUse the FLIR K2 for a wide variety of firefighting applications.See through smoke to help guide your team and prioritize theirfire attack efforts. Find stranded victims faster under the murkiest NASDAQ: FLIRSpecifications are subject to change without notice©Copyright 2015, FLIR Systems, In c. All other bran d an d product n ames are trademarks of their respective own ers. The images displayed may n ot be representative of the actual resolution of the camera shown. Images for illustrative purposes only. (Created 11/15)PORTLANDCorporate Headquarters FLIR Systems, Inc.27700 SW Parkway Ave.Wilsonville, OR 97070USAPH: +1 877.759.8164EUROPEFLIR SystemsLuxemburgstraat 22321 Meer BelgiumPH: +32 (0) 3665 5100SwedenFLIR Systems AB Antennvägen 6, PO Box 7376SE-187 66 Täby SwedenPH: +46 (0)8 753 25 00NASHUAFLIR Systems, Inc.9 Townsend West Nashua, NH 06063USAPH: +1 877.759.8164UKAsia Pacific Headquarters HONG KONGFLIR Systems Co. Ltd.Room 1613 -16, Tower 2,Grand Central Plaza,No. 138 Shatin Rural Committee Road,Shatin, New Territories, Hong KongTel : +852 2792 8955Fax : +852 2792 8952E-mail:*************.hkImaging SpecificationsImaging and optical dataIR resolution160 × 120 pixels Thermal sensitivity/NETD < 100 mK @ +30°C (+86°F)Field of view (FOV) / focus 47° × 35°Image frequency9 HzFocal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 µmStart-up time< 30 sec. (IR-image, no GUI)Start-up time from sleep mode < 10 sec. F-number1,1 Visual cameraBuilt-in digital camera 640 × 480 pixelsDigital camera, FOV 73° × 61°, adapts to the IR lensSensitivityMinimum 10 luxImage presentation Display3 in. LCD, 320 × 240 pixels, backlit Image modes – switchable using FLIR Tools softwareTI Basic fire-fighting mode (default) Black-and-white fire-fighting modeFire modeSearch-and-rescue mode Heat detection mode Cold detection mode Building analysis modeAuto-range Auto, non-selectable MeasurementObject temperature range –20°C to +150°C (–4°F to +302°F) 0°C to +500°C (+32°F to +932°F)Accuracy±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F)Measurement analysis Spotmeter 1IsothermYesAutomatic heat detectionHeat detection mode(the hottest 20% of the scene is colorized)Data communication interfaces Interfaces Update from PC and Mac devicesUSBUSB Micro-BPower system BatteryLi Ion, 4 hours operating timeCharging system Outboard single-bay charger included + in-camera charging via USBCharging time 2.5 h to 90% capacity, charging status indicated by LEDsCharging temperature 0 °C to +45 °C / 32 °F to 113 °FEnvironmental dataDesigned to meet NFPA 1801 specificationVibration, impact acceleration resistance, corrosion, viewing surface abrasion, heat resistance, heat and flame,product label durabilityOperating temperature range–20°C to +55°C (–4°F to +131°F) +85°C (+185°F): 15 minutes +150°C (+302°F): 10 minutes +260°C (+500°F): 3 minutes Storage temperature range –40°C to +70°C (–40°F to +158°F)Encapsulation IP 67 (IEC 60529)Drop2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)Physical dataCamera weight, incl. battery 0.7 kg (1.54 lb.)Camera size (L × W × H)250 × 105 × 90 mm (9.8 × 4.1 × 3.5 in.)Tripod mounting UNC ¼”-20Packaging Packaging, contentsInfrared camera, battery (2 ea.), battery charger, lanyard strap, power supply, printed documentation, USB cable, userdocumentation CD-ROM。
网络摄像机用户使用手册说明书
无线网络摄像机用户使用手册｛本类型的摄像头操作功能基本一致，功能或多或少而已. 以下是针对720P摄像头说明书｝本手册可能在某些技术细节方面描述不够准确或存在印刷错误，假如您在使用过程中按照使用手册无法解决问题时，请联系我公司技术部垂询相关操作方法。
我们将根据产品功能的增强而更新本手册的内容，并将定期改进或更新本手册中描述的产品或程序。
更新的内容将会在本手册的新版本中加入，恕不另行通知。
1、安装环境✋ 远离高温的热源和环境；避免阳光直接照射；✋ 注意防水, 有水接触到设备时, 立即断电.✋ 避免在过于潮湿的环境使用, 请在参考的适用湿度范围（85%RH以下）内使用。
✋ 避免在过热或过冷环境使用, 请在参考的适用温度范围（-10℃~ +50 ℃）内使用。
✋ 本机应水平安装或壁挂安装，避免安装在会剧烈震动的场所，勿将其它设备放于本机上。
2、运输与搬运✋ 本机的包装经过抗震设计和实验，确保在运输过程中摄像机不会受到意外损坏，所以在搬运本机时，最好使用原来的包装材料和纸箱；✋ 避免在过冷、过热的场所间相互搬动摄像机，以免机器内部产生结露，影响机器的使用寿命；✋ 严禁带电搬动本机，否则会损坏主板；注意：1. 在让摄像机运行之前，请检查供电电源是否正确。
2. 请勿将此产品摔落地下或受强烈敲击。
3. 请勿直接碰触到图像传感器光学元件，若有必要清洁，请将干净布用酒精稍微湿润，轻轻拭去尘污；当摄像机不使用时，请将防尘盖加上，以保护图像传感器。
4. 避免对准强光（如灯光照明、太阳光等处）聚焦，否则容易引起过亮或拉光现象（这并非摄像机故障），也将影响图像传感其寿命。
5. 激光束可能烧毁图像传感器，在激光装置被使用的情况下，请您一定注意不要让图像传感器的表面暴露于激光束之下。
6. 如果设备工作不正常，请联系购买设备的商店或联系服务中心，不要以任何方式拆卸或修改设备（未经许可的修改或维修所导致的问题，责任自负）。
目录产品介绍---------------------------------------------------------------------------------------------------------21.1(功能概述)---------------------------------------------------------------------------------------------31.2(产品包装)-----------------------------------------------------------------------------------------------31、设备安装------------------------------------------------------------------------------------------------------42、软件下载-------------------------------------------------------------------------------------------------43、PC电脑客户端观看--------------------------------------------------------------------------------------53.1内网观看--------------------------------------------------------------------------------------------53.10 外网观看-------------------------------------------------------------------------------------------84、电脑客户端功能使用介绍·--------------------------------------------------------------------------104.1设置-----------------------------------------------------------------------------------------------104.3 TF卡录像--------------------------------------------------------------------------------- ----114.4 WIFI设置--------------------------------------------------------------------------------------124.5 修改密码---------------------------------------------------------------------------------------124.9 录像计划---------------------------------------------------------------------------------------144.10 录像查看---------------------------------------------------------------------------------------144.12 报警设置---------------------------------------------------------------------------------------155、搜索工具使用--------------------------------------------------------------------------------------------176、手机观看--------------------------------------------------------------------------------------------------21 1.功能概述该型号网络摄像机我公司开发的即插即用网络摄像机产品，采用H.264编码格式，该系列设备接入互联网，不需要进行复杂设置，即可在接入互联网的电脑或者手机上，通过我公司发布的专用软件访问摄像机的音视频。
热成像仪使用手册说明书
®The Universal Thermal Imager IRI1011Features●Low Cost●Temperature Measurement●Multiple Image Storage●One or Two Handed Operation ●Light Weight●Simple Operation●Laser Pointer●PC, ‘Pocket PC’ andPalm OS®5 compatible●Remote Operation Applications●Predictive Maintenance●Energy Conservation●Process Monitoring●Healthcare●Research andDevelopmentIPU40057Issue 2IRI1011The Universal Thermal ImagerElectrical: Terminationproblem on yellow phase®The IRI1011 is a groundbreaking thermal imager productwhich brings the benefits of this versatile technology to theprofessional, the trades person and the non-specialist alike.The flexibility, ease of use and, above all, the low cost of thisproduct extend the normal application areas for thermalimaging from military and professional use, to wider use inindustrial, commercial and domestic applications.Whilst IRISYS endeavour to ensure that all descriptions, weights, temperatures, dimensions and other statistics contained in this product information are correct, theyare intended to give a general idea of the product only and IRISYS do not warrant their accuracy or accept liability for any reliance on them. IRISYS have a policy ofcontinuous product improvement and reserve the right to change the specification of the products and descriptions in this data sheet. Prior to ordering productsplease check with IRISYS for current specification details. This product is protected by patents EP 0 853 237 BI and US 6,239,433 BI. Other patents pending.Energy: Leaking ovendoor seal66.7˚C72.32˚C50.5˚CABDWorld Leaders inArray-Based DetectorsApplications●General Industrial●HVAC●Electrical Installations●Automotive Engineering●Vehicle Maintenance●DomesticUsers●Professionals●Workshop Personnel●Service Technicians●Trades People●Commercial●Home UsersProduct DescriptionThe ergonomically designed imager houses the imaging optics, detector, drive electronics, optical modulator,laser pointer and four standard or rechargeable AA size batteries. The system includes an optional pistol grip handle which holds virtually any ‘Pocket PC’or compatible ‘Palm’device as a combined processing, display unit and image storage device. As an alternative, the output of the imager can be displayed and processed in real time using a PC.OperationThe system is designed for either one or two handed operation. For one handed operation both the imager and the user provided ‘Pocket PC’/ ‘Palm’device can be attached to the handle to form a single integrated lightweight unit. For two handed operation the imager can be quickly detached from the handle leaving the ‘Pocket PC’/ ‘Palm’device attached for ease of operation. This latter configuration enables the imager to be pointed at awkward angles or used in confined places. Alternatively, instead of using a ‘Pocket PC’/ ‘Palm’device the imager can be linked to a PC or laptop computer using the RS232 serial cable supplied.Feb 2004IPU 40055 issue 2IRI 1011Universal Thermal ImagerThe IRI 1011 is a groundbreaking thermal imager product which brings the benefits of this versatile technology to the professional, the trades person and the non-specialist alike.The flexibility, ease of use and above all, the low cost of this product extend the normal application areas for thermal imaging from military and professional use, to wider use in industrial,commercial and domestic applications .Typical applications for the IRI 1011 include:Predictive and Preventative Maintenance Process MonitoringResearch and Development HV AC Troubleshooting Vehicle MaintenanceGeneral Industrial/Domestic......ABDWorld Leaders inArray-Based DetectorsThe IRI 1011 Universal Thermal ImagerPERFORMANCETemperature Measurement range:-10˚C to +300˚C Field of view (FOV):20˚x 20˚Spectral Response:8 to 14 micrometers Sensitivity:0.3K @ 30˚C Displayed Image:96 x 96 pixels Detector:16 x 16 pixel array Frame rate:8HzIMAGE STORAGEUp to 1000 images per MB of SER POINTERA built in Class II laser is supplied to highlight the reference pixel.IMAGER POWER SUPPLYBattery: 4 x AA type removable batteries.Operation time:Up to 8 hours.AC operation:AC adaptor, supplied.MECHANICALHousing: Impact Resistant Plastic.Dimensions: 120mm x 125mm x 80mm.Weight:< 600g not including ‘Pocket PC’/‘Palm’device and handle.Mounting: Handheld & Tripod mounting.IRI 1011 INCLUDESImager, software for ‘Pocket PC’, ‘Palm’& PC,2m RS232 connection cable - imager to PC, user manual, AC power supply, carrying case.OPTIONA pistol grip handle for attaching imager and ‘Pocket PC’/ ‘Palm’Device for single handed operation.SPECIFICATIONABDWorld Leaders inArray-Based DetectorsWhilst IRISYS endeavour to ensure that all descriptions, weights, temperatures, dimensions and other statistics contained in this product information are correct, they are intended to give a general idea of the product only and IRISYS do not warrant their accuracy or accept liability for any reliance on them. IRISYS have a policy of continuous product improvement and reserve the right to change the specification of the products and descriptions in this data sheet. Prior to ordering products please check with IRISYS for current specification details. This product is protected by patents EP 0 853 237 B1 and US 6,239,433 B1. Other patents pending.All brands and product names are acknowledged and may be trademarks or registered trademarks of their respective holders.ENVIRONMENT Temp. operating range:-5˚C to +50˚C Humidity:10% to 90% non condensing Temp. storage range:-20˚C to +80˚CCE Mark (Europe):Complies with EMC directiveSETTINGS AND CONTROLS:User selectable sensitivity er selectable offset control (range).Auto adjust sensitivity/range.Display palettes: red/blue, green/blue and greyscale.‘Pocket PC’/ ‘Palm’device: two moveable temperature measurement cursors.PC: up to ten moveable temperature measurement cursors.User selectable emissivity values.User selectable image integration: 1 to 10 frames.Readout in ˚C, ˚F and K.Image snapshot.Image label.FEATURES - ‘POCKET PC’/ ‘PALM’SOFTWAREReal time image and temperature measurement display Multiple image storage and retrieval.Image browser.Battery Charge indicator‘Pocket PC’/ ‘Palm’device controlled by navigator button and touch sensitive screen controls. Reflected ambient temperature compensation.Temperature difference measurement.FEATURES - PC SOFTWAREMultiple image storage and retrieval.Time / Temperature display for up to ten user defined pixels.Save all 256 temperature values to Microsoft Excel.Cut & Paste images into other Microsoft applications.Reflected ambient temperature compensation.Real time image and temperature measurement display COMPUTER REQUIREMENTSPocket PC: Compatible with most ‘Pocket PC’devices running Microsoft ‘Pocket PC’2000, 2002 and 2003. e.g. HP iPAQ 2210, O2 XDA - contact IRISYS for alternatives. RS 232 to ‘Pocket PC’communication cable or CompactFlash RS 232 adaptor where applicable.Palm :Palm devices conforming to OS5 or higher, double density screen, 320 x 320 display resolution.eg. Palm Zire 71, Palm Tungsten T.PC :IBM compatible PC with a minimum of:32Mb RAM, 300MHz processor, MS Windows (98,NT, ME, 2000 and XP), RS 232 serial port (115k Baud),16 bit colour graphics capability.........................CAUTIONCLASS II LASER PRODUCT635nm 0.9mW。
EPMD4XV2云台摄像机用户手册说明书
Copyright(C)2019(edición V2.0)PrefacioGracias por la compra de nuestros productos.no dude en ponerse en contacto con nosotros si tiene alguna pregunta o necesidades.El propósito de esta sección es asegurar que el usuario puede utilizar correctamente el producto a través de este manual para evitar el peligro durante el funcionamiento o daños materiales.Antes de utilizar este producto,lea el manual del producto con cuidado y guárdelo para futuras consultas.DeclaraciónLas fotografías y descripciones proporcionadas en este manual pueden diferir de su versión actual.Si tiene alguna pregunta al usar este manual, póngase en contacto con nuestro soporte técnico para obtener ayuda.El contenido de este manual se actualizaráde vez en cuando,y las reservas de la compañía el derecho que le mantenga informado.ContenidoCapítulo1.Breve introducción (3)1.1Descripción del producto (3)1.2Características del producto y de la Función (3)Capítulo2.Instalación del dispositivo (3)2.1Montaje de techo (3)2.2Soporte de pared montado (4)2.3Esquema de conexiónde cable (5)2.4Diagrama común topología del sistema (6)Capítulo3.Operación y Control PTZ (6)3.1Configuración por defecto (6)3.3Comandos comunes de operación PTZ (7)Capítulo4.Preguntas y respuestas (8)Capítulo1.Perfil del productoDescripción del producto1.1Esta mini cámara domo PTZ poner la función PTZ de alta resolución,luz de las estrellas y como uno de el más reciente cámara PTZ domo.Fácil de instalar y utilizar,no requiere cableado integrado tedioso.Eso soportes preestablecido,otra función básica.Construido en la plataforma de PTZ y adopta unidad de motor de precisión.Respuesta sensible, operación suavizar y no movimiento de la imagen.Construido en la lente de zoom luz de las estrellas y de4piezas IR luces para asegurarse de que la visión nocturna inteligente.Eso apoya I.CVI y CVBS salida del modelo4 de señal.Puede ser ampliamente utilizado en pequeña controlar la aplicación,tales como almacén,aparcamiento,supermercados,escaleras,centros comerciales y otros lugares al aire libre o en interiores.1.2Características del producto y de la FunciónEsta cámara domo PTZ serie de mini caja de metal usando+PC,transparente a prueba de explosiones y la caja exterior PC anti-arañazos,engranaje helicoidal de motor de precisión,control multifunción.Adoptar sensores megapíxel,la imagen es clara y delicada. salida de video HD de apoyo.Apoyar obturador electrónico,adaptarse a diferentes entornos de monitorización.Soporte IR-corte de infrarrojos conmutación automática del filtro para lograr día y noche de monitorización.Apoyar220x preestablecido y1x AB escanear.Capítulo2.Instalación del producto2.1Montaje de techo2.1.1Fije el soporte a la pared,de acuerdo con la posición del orificio fijo en elsoporte de hacer una marca buena,y pulsa la posición del agujero de montaje(cada lado tiene3agujeros de montaje,que puede bajo el actual situación paraelegir la mejor instalación conveniente perforación de orificios vacía.Instalar untornillo de fijación en cada lado.2.1.2Uso de los tornillos para fijar el soporte de montaje en el techo de acuerdocon la posición del agujero recién mecanografiado(prestar atención a la toma de corriente cuando se instala el no-techo)2.1.3Coloque la base de la cámara con el soporte instalada,gire a la derecha paraapretarlo,y luego solucionarlo.2.2Soporte montaje de pared2.2.1Fije el soporte a la pared,se marca de acuerdo a la posición del orificio fijo enel soporte,y dio en el orificio de montaje asímordió2.2.2Fije la cámara a la paredsoporte,prestar atención a la cola de cable a travésdel soporte y,a continuación,girar en sentido horario de la cámara a la partesuperior de la posición del agujero de tres tornillos,y bloquear los tornillos.2.2.3Coloque el soporte de pared de la cámara de bloqueo en el orificio de montajerecién escrito,apretar los tornillos,y asegurar el soporte de montaje en pared. 2.3Esquema de conexión de cableResistenciafotosensibleLente de la cámaraLámpara de infrarrojosx4Todo cáscara de la aleación de aluminioConmutador DIPInterfaz BNCInterfaz de alimentación de CCInterfaz RS485Conexión eléctricaMarca:por favor revise cuidadosamente el voltaje y la corriente nominal de la siguiente manera: Tensión nominal Rango de tensión nominal Corriente DC12V Más o menos10%2ADip switchMarca:Esto apoya la cámarade salida demodo4de señal(AHD/TVI/CVI/CVBS)que se puedeactivar a través de DIP.CVI Análogo AHD TVIEN12HDEN12EN12EN12HDCámara HD domo analógicasMonitorLínea VGAlínea devídeocoaxial RS485LineDiagrama de topología 2.4Sistema comúnDVR Teclado de control analógicoCapítulo 3.Operación y Control PTZ3.1Configuración de preseta)Máximo de pre ajustes guardados 220.b)Se acciona el botón de dirección del PTZ,ajustar la pantalla de la lente a laposición de donde se desea controlar,a continuación,seleccionar el número predeterminado y,a continuación,haga clic en configuración,el sistemaautomáticamente guardar un ajuste preestablecido.Luego,continúe seleccionando la segunda posición preestablecida para continuar con la configuración.Llamar al número preestablecido para comprobar si el preset guardar o no con éxito después de la configuración se ha completadoc)Ajuste de la cámara domo PTZ ID velocidadCambio de ID para cámara PTZ(modo RS485)Llamar preset97y llamar preset【N】para establecer la ID de la cámara PTZ=N(ID predeterminado#1).Ejemplo:Ajuste la cámara PTZ ID#9---llamar preset97y llamar preset93.3PTZ Común comandos de operaciónCómo encender/apagar las luces de la cámara de infrarrojos(1)Llamar preset90y de después preset2Encendido IR enciende manualmente;(2)Llamar preset90y de después preset3Apague IR enciende manualmente;(3)Llamar preset90y de después preset1Activar/desactivar IR iluminador automáticamente.Establecer la sensibilidad de luz IR de la cámara(1)Llamar preset90y de después preset11Fijar la sensibilidad de la luz ir alta;(2)Llamar preset90y de después preset12Fijar la sensibilidad de la luz ir medio;(3)Llamar preset90y de después preset13Fijar la sensibilidad de la luz ir baja;Establecer la función el corte IR(1)Llamar preset91y de después preset1Encienda la cámara de corte IR manualmente(2)Llamar preset91y de después preset2Apaga la cámara de corte IR manualmente(3)Llamar preset91y de después preset3Encienda la cámara de corte IRautomática(4)Llamar preset91y de después preset4Apaga la cámara de corte IRautomáticamenteCómo establecer exploración de línea AB(1)Llamar preset94y de después preset41Set AB línea del punto de exploración A;(2)Llamar preset94y de después preset42línea AB Conjunto de exploración del punto B.Cómo llamar a exploración de línea AB(1)Llamar preset94y de después preset43Exploración de línea de llamada AB a velocidad alta;(2)Llamar preset94y de después preset44Exploración de línea de llamada AB a velocidad media(3)Llamar preset94y de después preset45Exploración de línea de llamada AB a velocidad bajaCómo reiniciar la cámaraLlamar preset96,luego preset10,luego preset12y por ultimo preset14.Cómo cambiar el modo de señal de la cámara a través preestablecidoLlamar preset96y después llamar I Llamar preset96y después llamar preset2.................................................CVI Llamar preset96y después llamar preset3...............................................AHD Llamar preset96y después llamar preset4..................................................CVBS Llamar preset96y después llamar preset5.........................................Sistema PAL Llamar preset96y después llamar preset6........................................Sistema NTSCCapítulo4.Preguntas y respuestasP:Exigir la parte posterior de la cámara a la posición o estatuas antes de apagado.R:Ajuste de la cámara correspondiófunción parque.P:Cámara sin hacer rotaciones cuando se enciendeR:Compruebe la alimentación normal o no,si la energía OK Mostrar otras causas.P:La cámara tiene imagen,pero no se puede controlarR:Comprobación de si se trata de control de cable coaxial o no en el control de la cámara PTZ ajustes,también comprobar la velocidad de transmisión y el ID de la cámara.Si utiliza el controlador de PTZ,comprobar la cámara y controlador si disfrutar de la misma velocidad en baudios y protocolo.P:No hay imagen después del modo de señal de la cámara de conmutaciónR:Si no hay ninguna imagen cuando se cambia el modo de señal de la cámara a través de conmutador DIP o llamada preestablecido,por favor,compruebe si su apoyo DVR al modo de señal actual de la cámara y el sistema de señal(PAL/NTSC)bien o mal.1.-C-NL HV.。
寻求ShotPRO热成像相机用户指南说明书
Seek ShotPRO is the most advanced thermal imaging camera for building professionals. Snap photo and video and analyze immediately with new on-board thermography tools. Add spot measurements and temperature boxes to create time-saving reports on the spot. Precisely diagnose problems with 16x higher resolution than comparably priced cameras. T ake full control of photos and video by adjusting the blend between visible and thermal images. Share and stream to any smartphone or tablet over WiFi. Mount to a tripod and live stream to colleagues to tackle tougher jobs in the challenging environments. Seek ShotPRO puts durable and sleek thermal imaging expertise in your pocket.Designed and Manufactured in Santa Barbara, California with Global Components.KEY FEATURES320 x 240 Best in Class Thermal ResolutionIdentify, diagnose and report problems faster with high resolution thermal images and videoSeekFusion™ T echnologySee exactly what you’re looking at with combined visible and thermal imagesLarge Color T ouch Screen3.5” color touchscreen with 640x480 resolution so you can see more detailWIFI Live ViewStream a live thermal view onto your smartphone or tablet over WiFiLong-Lasting Battery LifeBest-in-class battery life of up to 4 hours continuous thermal imagingDurable, Pocket-Sized HousingBuilt with a rugged, IP54 ratingEasy-to-Use InterfaceDiagnose problems on-the-spot and analyzes images on your deviceInspect Electrical Panels, Connections, and FusesFind electrical faults faster and with more confidenceCheck Ventilation Systems for Proper InstallationEnsure grilles, registers, and diffusers are sealed for maximum efficiencySpot Duct Leaks Invisible to the Human EyeEasily scan a large ducting network to reveal the air leaksIdentify Inefficient Air HandlersDiagnose faulty equipment and improve energy efficiencyFind Missing InsulationEasily find missing or poor-performing insulation in secondsBENEFITS & USESOn-Device AnalysisCapture, edit and analyze photos in the field – all from your device.SeekFusion™Find problems faster with adjustable blend of visible and thermal images.More Pixels, More PrecisionWiFi StreamingStream live video to any mobile device for collaborationand fixed monitoring.Sixteen times more resolution than the competition. Best in class thermal resolution.Provided by: (800)404-ATECAdvanced Test Equipment Rentals®TECHNICAL SUMMARY OVERVIEWSEEKFUSION™6300 Hollister Ave, Santa Barbara, CA 93117 USASeek Thermal engineers, designs and manufacturers high quality thermal imaging products and core platforms for consumer, commercial, and heat sensing IoT data applications. With headquarters in Santa Barbara, California, the global hub of thermal imaging innovation, the company has developed breakthrough thermal imaging camera cores that will enable a range of affordable products for use at home, work and play. For more information visit and follow #seekthermal on Instagram and @seekthermal on Twitter.Seek more at VISIBLE IMAGE SEEKFUSION™ IMAGE THERMAL IMAGEPOWER ON/OFFPHOTO/VIDEOCAPTURE3.5” TOUCHSCREEN DISPLAYRUGGEDRUBBERIZEDGRIP1/4 INCH 20TRIPOD MOUNTUSB-CCHARGING & FILETRANSFER。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
测温型热成像双光谱网络云台摄像机
操作手册
UD.6L0101C1006A02
测温型热成像双光谱网络云台摄像机 操作手册
非常感谢您购买我司产品，如您有任何疑问或需求请随时联系我们。
本手册适用于双目热成像球机。
申明
本手册可能包含技术上不准确的地方、或与产品功能及操作不相符的地方、或印 刷错误。我司将根据产品功能的增强或变化而更新本手册的内容，并将定期改进 及更新本手册中描述的软硬件产品。更新的内容将会在本手册的新版本中加入， 恕不另行通知。
符号约定
对于文档中出现的符号，说明如下所示。
符号
说明 说明类文字，表示对正文的补充及解释。
注意类文字，表示对用户的提醒，提醒用户防范潜在的伤害或者财 产损失危险。 警告类文字，表示提醒用户防范潜在的死亡或者严重伤害危险。
产品安装使用过程中，必须严格遵守国家和使用地区的各项电气安全规定。 请使用正规厂家提供的电源适配器，电源适配器具体要求参见设备参数表。 请不要将多个云台摄像机连接至同一电源适配器（超过适配器负载量，可能会产
本手册中内容仅为用户提供参考指导作用，不保证与实物完全一致，请以实物为 准。
本手册中提到的部件、组件和附件仅作说明之用，不代表购买机型的配置，详细 配置请以装箱清单为准。
0501081040528
i
测温型热成像双光谱网络云台摄像机 操作手册
前言
本节内容的目的是确保用户通过本手册能够正确使用产品，以避免操作中的危险或财 产损失。在使用此产品之前，请认真阅读产品手册并妥善保存以备日后参考。
测温型热成像双光谱网络云台摄像机 操作手册
目录
前言 .................................................................................................................................................................................. II 第 1 章 产品简介 .........................................................................................................................................................1
测温功能（热成像通道） 云台摄像机通过设定预置点，并通过客户端对预置点进行测温相关配置，调用该
预置点，可在客户端预览画面实时显示当前固定区域温度信息，如最高温，最低温， 平均温度，温差等。 云台功能
− 水平方向 360°连续旋转，垂直方向-75°-45°,无监视盲区 − 水平预置点速度最高可达 /s,垂直预置点速度最高可达 30°/s − 水平键控速度为 0.01°-60°/s,垂直键控速度为 0.01°-30°/s − 支持 256 个预置位,并具有预置点视频冻结功能 − 支持 8 条巡航扫描,每条可添加 32 个 预置点
1.2 产品外观
该型号云台摄像机为双窗中型云台，对应下图所示外观图。
1.3 产品性能及功能
本章节从性能和功能两方面阐述云台摄像机，让您能够更快地了解及熟悉。
产品性能
内置测温型热成像枪机， 支持 7x24 小时全天候监视能力， 测温范围 0°~150° 之间，测温型热成像枪机长时间运行测温精度控制在±2°或最大值的 2%之间。
1.1 产品说明............................................................................................................................. 1 1.2 产品外观............................................................................................................................. 1 1.3 产品性能及功能 ................................................................................................................. 1 第 2 章 操作须知 .........................................................................................................................................................4 2.1 上电自检.............................................................................................. 错误!未定义书签。 2.2 通过浏览器访问说明 ......................................................................................................... 4 2.3 登录与退出......................................................................................................................... 4 第 3 章 测温功能操作................................................................................................................................................7 3.1 客户端安装......................................................................................................................... 7 3.2 客户端使用......................................................................................................................... 7
3.2.1 设备添加.................................................................................................................. 7 3.2.2 测温配置................................................................................................................ 11 3.2.3 温度显示及巡航设置 ............................................................................................ 16
SNMP 等协议；支持 ONVIF、CGI、PSIA 等开放互联协议。 可见光机芯支持三码流传输，可根据不同的应用环境选择使用主码流、子码流或
者第三码流。 支持基于 NAS 的远程集中存储，存储数据安全且存储速度快。
产品功能
可见光机芯功能 − 30 倍光学变倍，16 倍数字变倍 − 支持自动光圈、自动聚焦、自动白平衡、背光补偿、宽动态、3D 数字降噪 − 支持区域曝光、区域聚焦功能 − 支持多边形隐私遮蔽，多区域可设，多颜色、马赛克可选。
（忽视此项可能会导致火灾危险）。 清洁护罩玻璃时，请使用足够柔软的干布或其它替代品擦拭内外表面，切勿使用
碱性清洁剂洗涤。 请妥善保存产品的全部原包装材料，以便出现问题时，使用包装材料将云台摄像
机包装好，寄到代理商或返回厂家处理。非原包装材料导致的运输途中的意外损 坏，本公司不承担任何责任。
iii
式拆卸或修改设备。（对未经认可的修改或维修导致的问题，本公司不承担任何 责任）。
请不要使物体摔落到设备上或大力振动设备，使设备远离存在磁场干扰的地点。 避免将设备安装到表面振动或容易受到冲击的地方（忽视此项可能会损坏设备）。
请不要在高温、低温或者高湿度的环境下使用设备，具体温、湿度要求参加设备 的参数表。
红外机芯功能 − 分辨率 324*256，高灵敏度探测器，支持对比度调节 − 支持定时、温差和手动模式下快门校正，AGC 模式可选择 − 支持 3D 降噪功能，14 种伪彩色可调节，图像细节增强功能 − 支持镜像、数字变倍和本地视频输出 − 远距离全天候监控
2
测温型热成像双光谱网络云台摄像机操作手册
使用高性能处理芯片及平台，性能可靠、稳定。 − 精密步进电机驱动，运转平稳、反应灵敏，定位准确。 − 精巧的机械驱动装置，支持水平 360 度连续旋转，无监视盲区。 − 低速旋转，图像不抖动。 − 预置点精度偏差小于 0.1°。
采用 H.264 压缩算法，压缩比高，更大地节省了网络传输带宽和硬盘存储空间。 支持动态调整编码参数，支持 TCP/IP、PPPoE、DHCP、UDP、MCAST、FTP、
生过多热量或导致火灾）。 在接线、拆装等操作时请一定要将云台摄像机电源断开，切勿带电操作。 在安装本产品时，请将云台固定牢固。 如果云台摄像机出现冒烟现象，产生异味，或发出杂音，请立即关掉电源并且将
电源线拔掉，及时与经销商或服务中心联系。 如果设备工作不正常，请联系购买设备的商店或最近的服务中心，不要以任何方
