挖掘机操作说明书
JCB挖掘机操作手册说明书
挖掘机基本操作方法
挖掘机基本操作方法
挖掘机的基本操作方法如下：
1. 开始前检查：首先，检查挖掘机的油量、液压油、冷却水和电池电量是否充足。
然后，检查机器是否有任何损坏或泄漏。
最后，检查扳机、制动器和方向盘是否正常工作。
2. 上岗准备：穿上适当的防护装备，包括安全帽、安全鞋、耳塞和手套。
将座椅调整到舒适的位置，并系好安全带。
3. 启动挖掘机：打开油门开关，然后转动钥匙启动引擎。
等待引擎升温后，将油门提到适当的转速。
确保液压油压力正常。
4. 挖掘操作：用左手操作液压操纵杆，控制挖斗和臂臂的上下左右移动。
用右手操作转向盘，控制整个车身的转向。
5. 反向操作：在需要向后移动时，用右手将转向盘向右转，然后轻按右脚的刹车踏板。
用左手控制挖斗和臂臂的运动。
6. 提升操作：用左手将液压操纵杆向上推动，使挖斗抬起。
根据需要，调整液压操纵杆的位置来控制挖斗的高度。
7. 转向操作：用右手将转向盘向左或向右转动，控制挖掘机的转向。
根据需要，适时调整挖斗和臂臂的位置。
8. 停车操作：停车时，将油门推至怠速状态，然后拉起手刹。
最后，关闭油门开关和引擎开关，锁好挖掘机。
请注意，以上仅为挖掘机的基本操作方法，具体操作步骤可能因不同品牌和型号的挖掘机而有所区别。
在进行实际操作前，一定要熟悉并遵守使用说明书中的操作指导。
此外，安全意识和操作经验对于安全和高效使用挖掘机也非常重要。
WK-35挖掘机说明书(机械部分)
一、设备用途WK-35挖掘机是我公司新近开发的大型矿用机械正铲式挖掘机。
在露天矿山单斗—汽车开采工艺系统中，它可与载重量为172t～263t的矿用自卸汽车相配套，适用于年产量1500万吨以上的大型露天煤矿、铁矿及有色金属矿山的剥离和物料采装作业。
为了适应国内外露天矿山采装设备大型化发展的趋势，我公司在现有矿用挖掘机系列产品的基础上，总结几十年设计、生产大型矿用挖掘机所积累的成功经验和失败的教训，结合消化、吸收国内外先进的设计和制造技术，采用国际先进的技术手段、技术方法、技术标准、工艺和材料处理方法以及最新发展的、已经被实践证明为成熟的交流变频和PLC控制技术，适时开发出了采用交流变频电机驱动的齿轮-齿条推压式大型矿用挖掘机。
该机从整体上提高了产品的技术水平和可靠性，为国内外广大露天矿山用户提供了综合性价比更高的产品。
二、设备简介WK-35挖掘机推压机构采用齿轮-齿条推压方式，铲斗采用焊接结构，斗体采用高强度钢板与高锰钢铸造斗唇焊接而成。
斗杆采用双梁、变截面和变板厚组合式高强度斗杆，推压齿条采用高锰钢铸造齿条。
起重臂采用单梁箱形焊接结构，根脚与回转平台采用大跨距销轴联接。
推压机构采用硬齿面圆柱齿轮传动，并配有力矩限制装置。
双脚支架前压杆和后拉杆采用板梁焊接结构。
绷绳装置采用四根等长的死绷绳结构。
回转平台采用箱形焊接结构。
提升机构采用硬齿面圆柱齿轮传动装置，提升钢丝绳采用单卷筒双钢丝绳缠绕方式。
回转机构采用立式硬齿面圆柱齿轮传动加一级行星齿轮传动装置，回转立轴采用简支梁支承结构。
辊盘的辊子采用圆锥形结构。
底架和履带架采用焊接结构。
履带行走装置采用多支点支承型式，驱动方式采用左、右履带单独驱动。
行走减速机采用硬齿面圆柱齿轮传动加二级行星齿轮传动，其第一级行星传动可与回转一级行星齿轮传动完全互换。
驱动轮、张紧轮、支重轮等采用合金钢或高锰钢铸件或锻件，履带板采用高锰钢铸件。
主要承载焊接结构件：如铲斗、斗杆、起重臂、双脚支架、回转平台、底架和履带架等均采用焊接性能好，低温冲击韧性高的低合金高强度调质或正火钢板和耐磨钢板。
儿童游乐挖掘机使用说明书

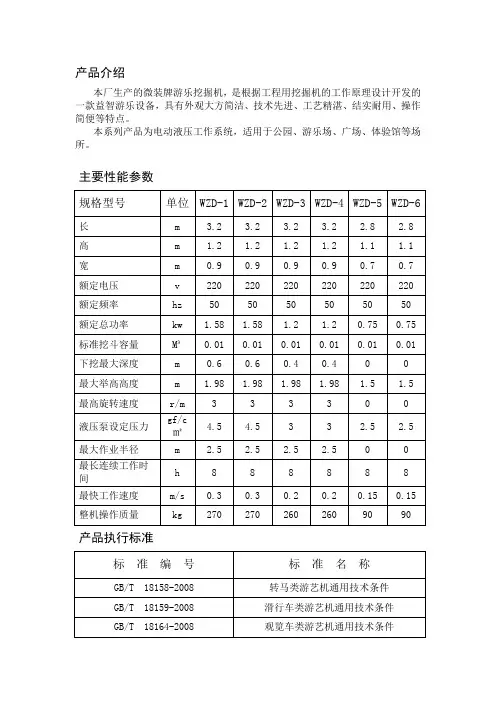

产品介绍本厂生产的微装牌游乐挖掘机，是根据工程用挖掘机的工作原理设计开发的一款益智游乐设备，具有外观大方简洁、技术先进、工艺精湛、结实耐用、操作简便等特点。
本系列产品为电动液压工作系统，适用于公园、游乐场、广场、体验馆等场所。
主要性能参数产品执行标准使用方法一、将本机平稳放置在结实平整的地面使用膨胀螺栓固定，并且加装防护栏，防护栏距本身最近处应大于1.5米。
二、本机使用交流220v电源，请使用带有漏电保护开关和接地线的电源。
三、使用前须加注液压油，建议使用品牌液压油，油量须在液位计80-90中间。
四、工作装置连接部位应加注润滑油。
五、首次开机应连续启动停止三次以上，并空运行5分钟以上，以排除管路中的气体六、机器出场前都已调试正常，速度适中，如须调整速度请参照下方说明：1.调节设备速度，可调节液压阀上方的调压阀，顺时针旋转增大压力，逆时针旋转减小压力（为整机压力）2.调节单个动作的速度，可调节液压阀中间的调速阀，相应的工作指示灯下为每个单个动作，顺时针旋转减小压力，逆时针旋转为增大压力，旋转量因需要而定。
3.设备为360度旋转和静止两种模式，360度旋转速度可调节回转调速控制器上的旋钮，顺时针为加快，逆时针为减慢。
注意事项·请使用带有漏电保护和地线的三线电源。
·本机使用环境温度应在10-38℃，不适于可能有水喷溅的地方使用。
·本机应放置平稳，以防侧翻。
·冬天在室外工作时应空运转10分钟。
·须加装护栏，机器运转时禁止行人在护栏里走动。
·长期停用应切断电源。
·禁止幼儿在无人看护的情况下操作。
·经常检查设备的螺丝是否松动，销子是否脱落，定期给工作装置连接部加注润滑油。
1-2年根据油量性质决定是否更换液压轴。
故障排除星级售后服务本厂对产品负责到底，用户购买日起享受保修一年，对超过保修期或因为其他原因造成产品的损坏，不论时间多久，只要用户需要都给予维修和供应配件，本厂在维修后收取适量的工本费。
WZL-60挖掘机说明书
10、斗齿磨损后要及时更换，以免损坏斗齿座。斗齿座损坏后要及时用气割切除，磨平后用506或507焊条焊上新的斗齿座。
11、刮板链驱动链轮磨损后应更换。更换时应把刮板链调整到最松的位置后拆开链条，先把链轮上的弹性销拆除，再把链轮开口处的焊接部位用火焰割开，链轮即可分成两块敲下来。换上新链轮，新弹性销后把两块链轮按原样焊好。
八、常见故障与排除方法
故障
可能原因
排除方法
电动机起动不了或运转不正常
1、电源缺一相
2、电压不足
3、接触器损坏或电气线路有故障
1、检查电源保证三相正常
2、测量电压，把电压调整正常
3、修理、更换接触器、排除线故障
无动作或动作缓慢无力
1、电动机反转
2、联轴器损坏，抽泵不转
3、油泵损坏
4、液压系统压力偏低
1、把电动机转向纠正
严重发热
1、轴向间隙过大或密封环损坏，引起内泄漏
2、调压太高，转速太快引起密封环、侧板烧坏
3、油箱容量太小散热条件差
4、未进行冷却
1、检查修复或更换损坏件
2、按泵规定条件进行作业，更换损坏件
3、增大油箱容量
4、接通冷却水
故障
可能原因
排除方法
产生外泄漏
1、油液的粘度太低
2、出油口法兰密封不良
2、更换联轴器
3、修理或更换油泵
4、把系统压力调整正确
无动作或动作缓慢无力
5、吸入空气
6、油面太低
7、吸油滤芯堵塞
8、油缸内有空气
9、液压油不合格或粘度太高
5、检查吸油管路，更换密封件，排除渗漏
6、加油至油标中位
沃尔沃挖掘机700说明书
保险丝容量和相关电路的符号
电气系统
编号 F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15
容量 10A 10A 20A 10A
10A 10A 20A 25A 25A 10A 15A 10A 5A 20A
装置/电路 I-ECU（仪表电子控制单元）
工作灯（后） 工作灯（大臂） 刮水器和清洗器
涡轮增压器
检查所有涡轮增压器的进气和排气接接口，以确保它们已 拧紧，并处于正确的位置。
涡轮增压器在极高的温度下运行，因此，在维修时要格外 小心。
涡轮增压器通过发动机润滑系统进行润滑和冷却。
确保涡轮发动机正常工作需要注意以下几个重点：
• 通过以下两种方式确保润滑和冷却：
– 启动发动机后不要立即加速。
– 在关闭发动机前要让其低怠速运转几分钟。
起动——气候炎热和寒冷时
气候寒冷时采取的措施
•确保冷却液的冰点与气候相适应。 •采用推荐的冬季专用润滑油。 •完成一天的工作后，灌满燃油箱，以防燃油箱中形成凝结水。 •发动机起动后，使其低速运转并轻载，直到发动机、液压系统中的油 变热，并有更多的液体进行适当的润滑。
安全锁紧系统
操作机器
操作机器
附加的工作灯开关 静音开关
行驶警示音停止开关 左快换接头开关
过载警示开关 座椅加热开关
发动机速度操纵开关 起动开关
标准 可选件
下部雨刮器开关
右侧仪表盘
工作灯开关 最大功率模式选择器开关
自动怠速选择器开关 行驶速度选择器开关 增压/液压锤/液压剪选择器开关
右快换开关 快速安装发声警告开关
重复循环空气传感器 上部雨刮器开关 喷水器开关
约翰迪尔E230 LC 挖掘机 产品手册说明书
热线电话：400-6576-555/construction扫码约翰迪尔APP,了解更多产品信息欢迎关注约翰迪尔官方微信约翰迪尔E230 LC 挖掘机主要技术参数净额定功率117 kW工作重量23.5-24.0 吨最大挖掘深度6700 mm斗杆挖掘力109 kN铲斗挖掘力151 kN采用固态电子元件，能够最大限度地减少导线、机械式继电器，以及非密封接插件的数量，从而大大提高系统的耐久性和可靠性。
标配的电动燃油输送泵，能够实现自动燃油补给和输送，提高发动机启动可靠性。
设有三道燃油滤清器和两道油水分离器，能够去除泥沙杂质和水分，有效保护燃油系统。
标配的冷起动电热塞，保证柴油机在低温条件下，也能够迅速可靠启动。
还可以选配柴油燃烧式加热器和燃油滤清器加热器, 以确保极端气候条件下的快速启动。
采用密封开关模块（SSM），能够防尘、防潮，并防止异物进入，具有出色的耐久性。
各种细节设计，都旨在提高机器的耐久性。
其中包括：采用斗杆加强筋，使斗杆能够在满载铲斗回收时，得到保护；各黄油加注点部位，设置钢质衬圈，起到保护作用。
4123创造舒适环境，提高工作效率观察一下E230 LC型挖掘机的驾驶室，你就会明白为什么约翰迪尔挖掘机的操作人员更有效率。
宽敞的密封驾驶室，极其安静舒适。
采用机械悬浮式座椅，可以调节自如；宽大的前挡风玻璃，具有全方位视野，易于施工作业。
除此之外，驾驶室还配备有其他便利设施，其中包括：符合人体工程学设计的控制装置；简易直观的多功能LCD监控器；高效的室内空气自动调节系统；以及经久耐用的AM/FM 收音机并带有辅助输入接口—堪称应有尽有，为操作人员提高工作效率，提供了最好的条件。
213密封式增压驾驶室，噪音低，有助于操作人员减轻疲劳。
驾驶室减震装置进一步降低噪音和振动对操作人员的影响。
两片式前挡风玻璃，提供了开阔的视野，并可以打开和关闭，用于改善驾驶室的通风状况。
可以选择配置驾驶室安装的工作灯，以便为夜间作业提供照明。
SY210C8M(三一)挖机电气操作说明书
S Y210C8M挖机电气操作说明书来源：未知发表时间：2010-6-28 12:07:16 SY210C8M挖机电气操作说明书3.1开机3.1.1起动前：柴油机起动前，钥匙开关先打到“运行”档，发动机第一次没有顺利启动，请等15秒钟后再启动，连续三次启动不成功需等待2分钟后再启动。
如每次停机后都存在此故障，请与我们的服务工程师联系。
3.1.2柴油机起动后：柴油机在油门档位对应的转速运转；当第一次操纵启动，直接进入默认值：模式工作为S；以后每次操纵重新启动时，系统模式工作回到S。
若在5秒内工作装置没有动做，则进入怠速转速运行（1400转/分）。
3.1.3在显示屏上通过“模式”按钮切换工作模式，当按住显示屏上的模式选择按钮时，在显示屏上以“S”、“H”、“L”、“B”、“S”的顺序显示，同时进入相应工作模式，最高转速及作业效率上就会有不同。
松开按钮时，显示定格，同时该模式生效。
3.2.1自动怠速自动怠速：显示屏上按键显示“小乌龟”为具有“自动怠速”功能。
当液压操纵杆回中位时间超过3.5秒。
KC-MB-10自动减少发动机油门开度，使发动机在1400转运转，当扳动操纵杆重新作业时，KM-MB-10立即控制发动机，使它迅速恢复到设定的工作速度。
起到节能和降低噪声的作用。
显示器按键显示为“小兔子”。
此时为全速状态，发动机一直工作在油门档位设定的转速上。
3.2.2雨刮器开关1) 按下开关右侧以接通雨刮。
按下开关左侧以断开雨刮器。
2) 如果开关在“接通”位置而雨刮不动，应立即切断开关。
检查原因。
如果开关一直开着，会损坏雨刮电机。
3.2.3喷水器开关⑴按下并压住开关右侧以启动前洗涤器。
按下开关时，洗涤液会从喷嘴喷出。
当放松开关后，洗涤器便会停止。
⑵如果洗涤器连续使用超过20秒，或使用中没有洗涤液喷出时，应立即切断开关，否则会导致电机损坏。
3.2.4工作灯开关按下工作灯开关右侧，则动臂左、右工作灯与旋转台工作灯亮，按下开关左侧以断开工作灯。
卡特305 CR迷你挖掘机说明书
F eatures:The Cat® 305 CR Mini Excavator delivers power and performancein a compact size to help you work in a wide range of applications.ALL DAY COMFORTChoose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.EASY TO OPERATEControls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.STICK STEER TRAVEL MODEMoving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!BIG PERFORMANCE IN A COMPACT DESIGNStrong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.SAFETY ON THE JOB SITEYour safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.SIMPLE SERVICE FOR LESS DOWNTIMEMaintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.LOWER OPERATING COSTSEquipped with features such as auto idle, auto engine shutdown,and efficient hydraulics with a variable displacement pump, theCat mini excavator was designed with reducing your operating costs in mind.UNMATCHED DEALER SUPPORTYour Cat dealer is here to help you reach your business goals.From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help. Cat®305 CRM ini E xcavatorEngineEngine Model C1.7 TurboNet Power @ 2,400 rpmISO 9249, 80/1269/EEC 33.6 kW 45.0 hp Gross Power @ 2,400 rpmSAE J1995:2014 36.1 kW 48.4 hp Bore 84.0 mm 3.3 in Stroke 100.0 mm 3.9 in Displacement 1.662 L 101 in3• Meets U.S. EPA Tier 4 Final emission standards.• N et power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engineis installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.WeightsMinimum Operating Weight with Canopy* 4996 kg 11,016 lb Maximum Operating Weight with Canopy** 5655 kg 12,469 lb Minimum Operating Weight with Cab* 5095 kg 11,234 lb Maximum Operating Weight with Cab** 5754 kg 12,688 lb* M inimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. ** M aximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.Specifications305 CR Mini ExcavatorWeight Increase from Minimum Configuration Counterweight 242 kg 534 lb Long Stick 34 kg 75 lb Steel Tracks with Pads 375 kg 827 lb Angle Blade 102 kg 225 lbTravel SystemTravel Speed – High 5.0 km/h 3.1 mph Travel Speed – Low 2.8 km/h 1.7 mph Maximum Traction Force – High Speed 24.7 kN 5,553 lbf Maximum Traction Force – Low Speed 50.5 kN 11,353 lbf Ground Pressure – Minimum Weight 27.3 kPa 4.0 psi Ground Pressure – Maximum Weight 32.2 kPa 4.7 psi Gradeability (maximum) 30 degreesService Refill CapacitiesCooling System 11.0 L 2.9 gal Engine Oil 6.0 L 1.6 gal Fuel Tank 63.0 L 17.0 gal Hydraulic Tank 60.0 L 16.0 gal Hydraulic System 75.0 L 20.0 galHydraulic SystemLoad Sensing Hydraulics with Variable Displacement Piston Pump Pump Flow @ 2,400 rpm 133 L/min 35 gal/min Operating Pressure – Equipment 265 bar 3,843 psi Operating Pressure – Travel 265 bar 3,843 psi Operating Pressure – Swing 200 bar 2,901 psi Auxiliary Circuit – PrimaryFlow* 80 L/min 21 gal/min Pressure* 265 bar 3,843 psi Auxiliary Circuit – SecondaryFlow* 28 L/min 7.0 gal/min Pressure* 265 bar 3,843 psi Digging Force – Stick (standard) 28.3 kN 6,362 lbf Digging Force – Stick (long) 25.2 kN 5,665 lbf Digging Force – Bucket 49.2 kN 11,061 lbf * F low and pressure are not combinable. Under load, as flow rises pressure goes down.Swing SystemMachine Swing Speed 9.0 rpmBoom Swing – Left 72 DegreesBoom Swing – Right 50 DegreesBladeWidth (Straight) 1980 mm 78.0 in Height (Straight) 390 mm 15.4 in Width (Angle) 1980 mm 78.0 in Height (Angle) 400 mm 15.7 in Angle Blade – Left 25 degreesAngle Blade – Right 25 degreesCertification – Cab and CanopyRoll Over Protective Structure (ROPS) ISO 12117-2:2008Tip Over Protective Structure (TOPS) ISO 12117:1997Top Guard ISO 10262:1998 Level I SoundOperator Sound Pressure Level 76 dB(A)(ISO 6396:2008)Exterior Sound Power Level 97 dB(A)(ISO 6395:2008)• E uropean Union Directive “2000/14/EC”512346789101112131421151617181920DimensionsStandard Stick Long Stick1Dig Depth3420 mm (134.6 in)3670 mm (144.5 in) 2Vertical Wall2335 mm (91.9 in)2560 mm (100.8 in) 3Maximum Reachat Ground Level5590 mm (220.1 in)5835 mm (229.7 in) 4Maximum Reach5755 mm (226.6 in)5990 mm (235.8 in) 5Maximum Dig Height5215 mm (205.3 in)5355 mm (210.8 in) 6Maximum Dump Clearance3700 mm (145.7 in)3845 mm (151.4 in) 7Boom in Reach2570 mm (101.2 in)2580 mm (101.6 in) 8Tail Swingwithout Counterweight1095 mm (43.1 in)1095 mm (43.1 in)with Counterweight1200 mm (47.2 in)1200 mm (47.2 in) 9Maximum Blade Height385 mm (15.2 in)385 mm (15.2 in) 10Maximum Blade Depth595 mm (23.4 in)595 mm (23.4 in) 11Boom Height inShipping Position1820 mm (71.7 in)1895 mm (74.6 in) 12Overall Shipping Height2550 mm (100.4 in)2550 mm (100.4 in) 13Swing Bearing Height619 mm (24.4 in)619 mm (24.4 in) 14Overall Undercarriage Length2580 mm (101.6 in)2580 mm (101.6 in) 15Overall Shipping Length†5305 mm (208.9 in)5340 mm (210.2 in) 16Boom Swing Right865 mm (34.1 in)865 mm (34.1 in) 17Boom Swing Left615 mm (24.2 in)615 mm (24.2 in) 18Track Belt/Shoe Width400 mm (15.7 in)400 mm (15.7 in) 19Track Width1980 mm (78.0 in)1980 mm (78.0 in) 20Ground Clearance335 mm (13.2 in)335 mm (13.2 in) 21Stick Length1351 mm (53.2 in)1601 mm (63.0 in)†O verall Shipping Length depends on blade position during shipment.305 CR Mini Excavator CabCanopy* T he above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart.305 CR Mini ExcavatorStandard and Optional EquipmentStandard and optional equipment may vary. Consult your Cat dealer for details.Standard Optional Canopy or Cab✓Cab with Air Conditioning ✓Cab with Heater✓Top Guard ISO 10262:1998 Level I✓ROPS – ISO 12117-2:2008✓TOPS – ISO 12117:1997✓Stick Steer Mode✓Travel Cruise Control✓Control Pattern Changer (optional in some regions)✓Adjustable Wrist Rests✓Washable Floor Mat✓Travel Pedals and Hand Levers✓No Travel Pedals and Hand Levers (optional in some regions)✓Machine Security✓Standard Key with Pass Code✓Push to Start with Key Fob/Pass Code✓Fabric Suspension Seat (Cab only)✓Vinyl Suspension Seat (Canopy only)✓Hydraulic Lockout – All Controls✓Retractable High Visibility Seat Belt (75 mm/3 in)✓Coat Hook✓Cup Holder✓Storage Pocket✓Skylight✓Mounting Bosses for Front ✓Signaling/Warning Horn✓Interior Light (Cab only)✓Boom Light, Halogen (not available in all regions)✓LED Front Lights✓LED Front and Rear Lights✓LED Boom Light✓Utility Space for Mobile Phone✓Mirrors, Left, Right and Rear✓Camera✓Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)✓Standard OptionalBio Oil Capable✓Eco Drain✓Water Jacket Heater✓Counterweight (242 kg/534 lb)✓AEHQ8376-01 (03-2022)Replaces AEHQ8376Build Number: 07A(North America)For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at © 2022 CaterpillarAll rights reservedMaterials and specifications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “Power Edge”and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, are trademarks of Caterpillar。
挖掘机操作说明书
ALWAYS READ INSTRUCTIONS BEFORE USINGRL4257" Angle Sander34513536373839 4041 42434449 4546477965211615141312101135017181920213332302928292324222548262027Item#1235679 1011 12 13 14 15 16 17 18 19 20 21 22 23 24 25Part #Description Qty.Air InletExhaust BushingMotor HousingHandle CoverLeverThrottle Lever PinThrottle Valve BushingValve StemO-RingSpringAir RegulatorO-RingO-RingValve ScrewGasketBearing CapRetainer RingBall BearingRear End PlateRotor BladeRotorDowel PinCylinder11111111111111111214111Item#26272829303233343536373839404142434445464748495051Part #Description Qty.RS71626RS71627RS71628RS21109RS71630RS71632RS71633RS71634RS71635RS71636RS71637RS71638RS71639RS71640RS71641RS71642RS71643RS71644RS71645RS71646RS71647RS71648RS71649RS71650RS71651RS71601RS71602RS71603RS71605RS71606RS71607RS71609RS71610RS71611RS71612RS71613RS71614RS71615RS71616RS71617RS71618RS71619RS21417RS71621RS71622RS71623RS71624RS71625Front End PlateClamp NutSpacerBall BearingBevel Gear ShaftAllen Cap ScrewDead handleHousing-AngleNeedle BearingRetainer RingWave WasherBevel GearBearing BushingBall BearingWoodruff KeyGear ShaftGasketAngle Housing CoverScrew with Lock WasherSander PadRetaining NutO-RingStop SpannerRubberBearing Plate1112141111111111114111111Tools of this class operate on a wide range of airpressures. It is recommended that air pressure of these tools measure 90 PSI at the tool while running free.Higher pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition.Water in the air line will cause damage to the tool.Drain the air tank daily. Clean the air inlet filterscreen on at least a weekly schedule. The recommended hook-up procedure can be viewed in Figure 2.The air inlet, Figure 1, used for connecting air supply, has standard 1/4" NPT American Thread.Line pressure should be increased to compensate for unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8" I.D. and fittings should have the same inside dimensionsAIR SUPPLYBefore operating this sander, it is important to ensure that the sanding pad is secure. To do this, hold the stop spanner on the gear shaft and turn the pad clockwise until tight.Note: Make sure dead handle is installed on appropriate side of sander for positive grip while operating tool.To change sanding discs: Remove retaining nut , place abrasive disk on sanding pad, then replace retaining nut. Again, make sure pad is tightened securely.Let the sander do the work. The normal weight of the machine is sufficient for efficient sanding. Do not put excessive pressure on the machine. This will only slow down the speed of the pad, reduce sanding efficiency and put an additional burden on the motor. Start the sander off the work, set it down on the work evenly and move it slowly back and forth in wide, overlapping areas. When finished sanding, lift it off the work before stopping the motor.OPERATIONTROUBLESHOOTINGLUBRICATION & MAINTENANCEWARRANTYLubricate the tool daily with a good grade of air tool oil. If no air line oiler is used, run a teaspoon of oil through the tool. The oil can be squirted into the tool air inlet, Figure 1, or into the hose at the nearest connection to the air supply, then run the tool. A rust inhibitive oil is acceptable for air tools.Matco warrants its air tools for a period of 1 year to the consumer. We will repair any air tool covered under this warranty which proves to be defective in material or workmanship during the warranty period.In order to have your tool repaired, return the tool to any Matco Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship,they will be repaired free of charge and the repaired tool will be returned to you freight prepaid.This warranty gives you specific rights. You may also have other rights which vary from state to state.The foregoing obligation is Matco's sole liability under this or any implied warranty and under no circumstances shall Matco be liable for any incidental or consequential damages.Note: Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.Figure 1Figure 2Air Inlet。
CATERPILLAR 306 小型液压挖掘机 说明书
306小型液压挖掘机3简单的操作符合人机工程学的液压先导控制手柄将提供机器的全部控制，包括前端工作装置，行走系统，推土铲和附属液压管路。
最大行走速度可以很容易通过固定在驾驶室底板上的脚踏开关来控制。
仪表盘能够精确的反映出机器的信息。
安静舒适的驾驶室宽大的驾驶室为驾驶员提供一个舒适的工作环境。
驾驶室内外噪音低。
• 驾驶室能够提供高效加热和制冷控制，确保驾驶员• 的舒适性。
带有靠枕和悬浮，可全向调节的座椅可使你在工作• 中 感觉非常舒适。
易清扫的驾驶室地板。
• 驾驶室里安装有天线和两个扬声器，用于客户选装•收音机。
卓越的视野306 拥有优越的可视性使驾驶员能清楚的看到工作装置和机器周边环境。
气动助力使前窗容易开启• 可移动的驾驶室前端下部小窗• 雨刮器安装在驾驶室侧柱上，不阻挡驾驶员视线• 推土铲在上车架旋转到任何一个角度都可以看到，•方便作业4液压系统高效率的液压系统改进了操控性和可靠性，同时降低了使用成本。
该液压系统是一个开式系统，有两个主泵和一个控制回转的独立第三泵。
当工作装置控制手柄和行走控制杆处于中位时，两个变量主泵的流量控制系统可使泵的流量达到最小。
这会减少燃油消耗，降低系统噪音，延长液压元件寿命。
可选配的附属液压管路可使机器安装多种工作装置，如液压破碎锤，螺旋钻，液压剪和破碎器。
动臂和斗杆前端结构件使用了高强度钢板，可以提供最大的挖掘能力。
所有在前端的连接机构中都使用镀铬的销轴，从而可以有效防止生锈和发出噪声，延长了零件使用寿命。
销轴都尽量使用大的直径来适应在高强度挖掘过程中的剪切力和侧面载荷。
这样的销轴和很少需要维护的轴衬减少了销轴的摩擦，延长了润滑的时间间隔。
5底盘下部结构支持高生产率。
钢制履带卡特底盘拥有出众的稳定性和可靠性。
400 mm 宽的三齿履带是机器的标准配置。
稳定的底盘 可以使机器拥有更大的举升重物的能力。
两速行走马达和结实的履带驱动系统使底盘在各种不同工况下都拥有很好的爬坡能力和转弯能力。
三一SY235H挖掘机产品手册说明书
SY235H额定功率：129kW/2100rpm128kW/2000rpm整机重量：23000kg标准斗容：1.35m3新动力新技术新造型配置、2022年12月出版省油质坚 品质卓越更高效率、更低油耗，SY235H国四机是在延续上一代机型优势的同时，围绕“新动力”、“新造型”、“新技术”全面升级，打造的一款全新23T级挖掘机产品，其采用的HOPE全电控技术，提升了整机的挖掘能效和操控性，舒适感提升，轻松胜任土方、石方等工程作业。
造型动力技术0304动力系统液压系统动力主阀主泵道依茨发动机五十铃发动机造型10吋大屏再度升级，更薄、更炫、更清晰；系统集成度更高，车身控制与电源管理多合一集成，零部件更少；支持4G 网络OTA 升级，更快更安全，新增一键召请功能；夜间停机灯具延时熄灭、正反手显示屏一键切换、后置摄像头等配置，保障驾驶安全。
智能化搭载全新空调系统，优化空调风道，制冷效果更强，风量分配更合理。
空调蒸发器实现车内清洗保养，清洗更简单。
全新空调系统三一与知名汽车设计公司合作，将驾驶室从外观到用户体验上进行全面升级，遵循“舒适便捷、自动智能、网联生态”的理念，为客户打造一个“头等舱”般的驾乘环境。
C12驾驶室内饰全面升级，窄扶手箱、极简前控箱，标配水杯座、24V 取电口、USB 接口等，拥有汽车级品质内饰。
配备舒适减震座椅，振动舒适性提升。
全新内饰0708技术全电控液压系统行走踏板电控手柄电信号电信号新控制器全电控主阀主 泵铲斗升级全国代理商及全球五大区域代理商为三一的售后服务提供了强有力的保障，“5231”、“110”、“111”的承诺为全球服务续航。
售后无忧三一挖机配备自主研发的“ 易维讯 ”系统，搭建智能化施工管理体系，管理成本更低。
手机通过易维讯APP可一键控制，查看机器状态，在线预约各种服务。
易维讯保养与服务便捷保养采用大面积覆盖件开启方式，进行日常维护和保养，维修方便、接近性好。
燃油滤、机油滤位置优化调整，触手可及，更加人性化的设计，让保养更加便捷。
煤矿用ZWY-150-55L挖掘装载机使用说明
煤矿用Z W Y-150-55L挖掘装载机使用说明(共32页)-本页仅作为预览文档封面，使用时请删除本页-蓝翔重工ZWY-150/55L型煤矿用挖掘式装载机使用说明书产品执行标准: JB/T5503-2004《立爪挖掘装载机》Q/LXZG02-2013《煤矿用挖掘式装载机》江西萍乡江西蓝翔重工有限公司安全警示·在安装、调试和使用、维修本机之前请详细阅读本使用维护说明书。
·本机操作司机必须经过严格培训，持证上岗。
·使用维护过程中必须严格遵守本使用维护说明书的各项规定。
·属于安全标志控制管理的本机配套产品，必须取得安全标志。
如在使用中更换，亦须如此。
·装载机在安装、调试、使用、维修过程中，大小臂旋转半径内严禁站人。
在维修或加注润滑脂时，油缸受力点必须有保护支撑。
·装载机配套的电气设备应符合GB ～GB 的规定，且应经国家授权的防爆检验机构进行防爆检验，并取得煤矿矿用产品安全标志证书。
·机器启动前必须进行安全警示。
表示如果忽略这些说明，由于不正确的设备操作，可能会造成死亡或严重的设备损坏。
表示如果忽略这些说明，由于不正确的设备操作，可能会造成人身伤害或设备损坏。
表示如果忽略这些说明，由于不正确的设备操作，可能会造成轻微的人身伤害或设备损坏。
只有合格人员才能允许安装和操作这一设备。
在本手册中，合格人员是根据已有的安全条例和标准被授权进行安装、调试、使用和维护的人员。
目录一、用途和特点 1二、主要技术特征 3三、结构与工作原理 4四、安装与调试 13五、使用与操作 15六、维护与保养 19七、常见故障与排除方法 22八、运输与贮存 24九、易损件明细表 25十、安标配套件受控明细表 26十一、随机配件与工具 27十二、塑料盖堵明细表 29十三、装箱单 30一、用途和特点ZWY-150/55L型煤矿用挖掘式装载机（以下简称装载机）, 是一种连续生产的高效率出矿设备。
众友挖掘机操作使用说明书 105页PPT文档
起动发动机前的检查c
• 检查燃油位，加燃油
• 当加燃油时，不要让燃油溢出否则会 造成火灾。如果燃油溢出，要彻底擦 净。由于燃油是非常易燃和危险的， 故燃油附近严禁烟火。
• 1、打开燃油箱上的注油口盖 （F）。 • 2、检查燃油箱是否满，通过往油箱
里看和通过浮尺进 行检查。 • 3、如果油箱不满，通过注油口加油
• 1、打开机器上的发动机罩。 • 2、拔出油尺 （G）并用布把油擦掉。 • 3、将油尺 （G）完全插入油尺管，然后把油尺
拔出。 • 4、油位应在油尺 （G）上的 H 和 L 标记之间。
如果油位低于 L 标记，要通过注油口 （F）加油 。 • 5、如果油位高于 H 线，打开发动机油底壳底 部的排放阀（P），排掉多余的机油，然后再检 查油位。 • 6、如果油位合适，把注油口盖拧紧，关好发动 机罩。 • 发动机运转后检查油位时，应关闭发动机并等 待至少 15 分钟再进行检查。 如果机器是斜的 ，在检查前要使机器保持水平。
起动发动机前的检查g
• 操作前的调整
• 开始操作前或换操作人员以后，要调整座椅位置。使 操作人员在背靠座椅的情况下可以自由方便地操作操 纵杆和开关。
• 调整后视镜的安装，以便可以看到机器后方左、右侧 的人 。
• 在使用安全带前，要检查安全带托架或安全带的安装 有无异常。如果安全带磨损或损坏，要进行更换。
• 3、拆下油水分离器上端的排气螺塞 （5）。 • 4、松开油水分离器底部的排放阀（1），把
水和沉积物排入容 器。 • 5、 松开排气螺塞 （5），往滤芯壳体 （3）
内添加燃油，当燃 油从排气螺塞 （5）流出 时，拧紧排气螺塞 （5）。
起动发动机前的检查e
• 检查液压油箱中的油位，加油
2017新款小型挖掘机225 操作手册说明书
ENGINEModelFPT F5HFL463DEmissions Certification Tier 4 FinalType Diesel 4-stroke, TurbochargedCylinders 4Bore/Stroke 3.90 x 4.33 in (99 x 110 mm)Displacement 207 in 3 (3.4 L)Fuel injection Direct, high pressure common rail – HPCRFuelDieselEngine speeds*RPM Rated speed – full load 2200 Low idle900 – 1000 High idle – no load 2330 – 2430Horsepower @ 2200 RPM: Gross74 hp (55 kW) Net w/ viscous fan** 72 hp (54 kW) Net68 hp (51 kW)Maximum torque @ 1400 RPM: Gross 233 lb·ft (316 N·m) Net w/ viscous fan 228 lb·ft (310 N·m) Net 220 lb·ft (298 N·m)Torque rise at rated speed 35% +/- 5%Radiator: Core typeSquare wave Core size area 486 in 2 (3 145 cm 2)Rows of tubes 539° fan: Style 7 blade suction Diameter 19.65 in (499 mm)Ratio 1.1:1Pump operating angle ratings:Side to side Rated 35° Fore and aft Rated 35° Oil filtration Replaceable, full flow spin onNOTE: *Meets federal emission regulations. **Viscous fan available as DIA w/ High Ambient Kit.DRIVETRAINTransmission – standard:4F-4R Power Shuttle Synchromesh Transmission manual gear shift, fully synchronized Gear ratios Forward/Reverse1st 5.603/4.643 2nd 3.481/2.884 3rd 1.584/1.313 4th0.793/0.657Travel speeds – Standard Power Shuttle Transmission Forward Reverse mph (kph) mph (kph) 1st 3.5 (5.6) 4.2 (6.8) 2nd 5.5 (8.9) 6.6 (10.6) 3rd 11.8 (19.0) 14.1 (22.7) 4th 21.3 (34.3) 25.5 (41.0)Torque converter ratio3.2Differential lock: On-the-go push-button activation Front/Rear axle (w/ 4WD 12x16.5 front tires): Differential ratio 2.2/2.75 Planetary hub ratio 6.0/6.4 Total reduction ratio 13.3/17.6Service brakes:Individually applied, power assisted,hydraulically actuated, maintenance-free, self-adjusting, outboard mounted, wet disc, 2 per side. Total disc area 384 in 2 (0.25 m 2)Parking brakes Trans Mounted spring-applied hydraulic release – SAHRNOTE: T ravel speeds at 2293 engineRPM specified: w/ 19.5 L x 24.0 tires.Speeds decrease w/ 17.5 L x 24.0 rear tires.ELECTRICALVoltage 12 Volts, negative groundAlternator 120 ampBattery850 cold-cranking ampsOptional dual batteries: 850 cold-cranking amps each Power plugs – 230 amps totalOPERATOR ENVIRONMENTROPS/FOPS certified protective canopy; Rear fenders extensions; Coat hook w/garment strap; Interior rearview convex mirror; Non-suspension seat – 180° swivel – Vinyl; 2 in (50 mm) retractable seat belt; Cup holder/ storage tray mounted on left-hand fender; Right-hand storage compartment w/ lid.Gauges:Engine water temperature; Converter oil temperature; Fuel level; Tachometer/ hourmeter; Voltmeter.Warning lights:Air cleaner restriction; Alternator; A/C high pressure; Cold start; Engine oil pressurelow; Hydraulic oil filter bypass; Parking brake engagement; Low fuel; Water in fuel.Audible alarms:Coolant temperature; Engine oil pressure; Parking brake engagement; Shuttle engagement/seat position; Backup alarm; Converter temperature.HornDual switched front and rearOPERATING WEIGHTConfiguration 1 – SAE Transport:GP Loader Bucket, 2WD, Canopy, Boom Guard, Full of Fuel, SAE Carry, Tier 4 Final Engine, Extendahoe ®, 4 Stick Mech BH,Standard Transmission, 17.5 L – 24 Rear Tires, 700 lb Front Counterweight. 15,795 lb (7 164 kg)Configuration 2 – SAE Transport:GP Loader Bucket, 4WD, 2 Door Cab, AC,Boom Guard, Full of Fuel, SAE Carry, 24 in HD BH Bucket, Tier 4 Final Engine, Pilot Controls, Standard Dipper, Manual Transmission, 19.5 – 24 Rear Tires. 15,810 lb (7 171 kg)Add-on weights: Cab-over canopy309 lb (140 kg) Fabricated stabilizer pads 141 lb (64 kg) Counterweights 700 lb (318 kg) Extendahoe ®285 lb (129 kg) 4WD w/ driveshaft guard283 lb (128 kg)580N EPBACKHOE LOADER TIER 4 FINAL CERTIFIEDPump:Parker P330 Single Section Gear PumpMain relief pressure:Standard 3,350 +/- 50 psi(231 +/- 3.5 bar) Filtration:7-micron, return line, full flow, spin on element. Oil cooler Heavy-duty Loader flow @ rated engine RPM:28.5 gpm @ 3,350 psi(108.0 L/min @ 231 bar) Loader control valve:Two or three-spool open center monoblock valve. Two and three-spool valves have a single lever manual control for lift and tilt functions. Three-spool valve uses a proportionalElectro-Hydraulic control for the auxiliary function. The lift lever has a positive hold “Float” position and a “return-to-dig” feature. Loader auxiliary hydraulics w/ proportional thumb switch w/ detent on loader control handle:0 – 28.5 gpm (0 – 108 L/min) Backhoe flow @ rated engine RPM:28.5 gpm @ 3,350 psi(108 L/min @ 231 bar) Manual backhoe control valve:Six-spool monoblock open center control valve w/ seventh and eighth spool bolt-on sections. Basic control valve has an open center parallel circuit for all functions.Pilot backhoe control valve:Six, seven or eight-spool sectional closedcenter control valve. Basic control valve isclosed center, w/ circuits in parallel w/ apost-compensated, flow sharing feature forsimultaneous operation of all circuits.1-way flow auxiliary hydraulics:1-way flow hydraulic valve is equipped w/ anadjustable LS relief valve to control attachmentpressure and a 6 position flow control selectorfor 6 detented, distinct flow settings.Actuation:Manual backhoe controls – cab floor pedalPilot controls – left-hand joystick2-way flow auxiliary hydraulics*:Actuation:Activate the 2-way flow switch located onthe rear consoleManual shift – 2-way flow linkage on far rightof backhoe towerPilot controls – left-hand joystickNOTE: *Available w/ 1-way/2-way Aux. Hyd. option.Fuel tank 30.0 gal (114.0 L)Hydraulic system:Total 106 qt (100.0 L)w/ Extendahoe®112 qt (106.0 L)Reservoir w/ filter 58 qt (55.0 L)Reservoir w/o filter 56 qt (53.0 L)Transmission – total system:2WD Standard 18 qt (17.0 L)2WD Powershift 23 qt (21.7 L)4WD Standard 21 qt (19.4 L)4WD Powershift 22 qt (20.7 L)Front axle:4WD Differential 5.8 qt (5.5 L)4WD Planetaries – each 0.7 qt (0.7 L)Rear axle:Differential and planetaries 14.4 qt (13.6 L)Engine oil w/ filter 8.5 qt (8.0 L)Cooling system:w/ heater 19.0 qt (18.0 L)w/o heater 18.3 qt (17.3 L)Window washer reservoir 3.0 qt (2.8 L)Front tires:2WD 11.0 L x 16.0, 10-ply rating4WD 12.0 L x 16.5, 8-ply ratingRear tires:2/4WD 19.5 L x 24.0, 10-ply rating2/4WD 17.5 L x 24.0, 10-ply ratingTurning radius: Curb to Curb:2WD:Brakes on 10 ft 8 in (3.24 m)Brakes off 12 ft 4 in (3.76 m)4WD – engaged*:Brakes on 11 ft 4 in (3.45 m)Brakes off 13 ft 10 in (4.21 m)4WD – disengaged*:Brakes on 11 ft 0 in (3.36 m)Brakes off 12 ft 3 in (3.72 m)NOTE: *Turning radius dimensions curb to curbw/ 12.0 x 16.5 front tires and 17.5 L x 24.0rear tires.Type Width Weight Struck Heaped Capacity Long Lip Bucket without bolt-on edge 82 in (2.08 m) 683 lb (310 kg) 0.88 yd3 (0.67 m3) 1.03 yd3 (0.79 m3)93 in (2.36 m) 1,188 lb* (539 kg) 1.10 yd3 (0.89 m3) 1.29 yd3 (0.99 m3) 4 IN 1® Bucket with bolt-on edge 82 in (2.08 m) 1,572 lb* (713 kg) 0.85 yd3 (0.65 m3) 1.05 yd3 (0.80 m3) NOTE: * W eight of 4 IN 1® bucket includes edges, cylinders and tube lines.Type Width Weight Heaped Capacity General Purpose Trenching Buckets 18 in (457 mm) 232 lb (105 kg) 4.70 ft3 (0.13 m3)24 in (610 mm) 272 lb (123 kg) 6.26 ft3 (0.18 m3) Universal Buckets 12 in (305 mm) 295 lb (134 kg) 3.40 ft3 (0.10 m3)18 in (457 mm) 356 lb (162 kg) 5.30 ft3 (0.15 m3)24 in (610 mm) 427 lb (194 kg) 7.70 ft3 (0.22 m3)30 in (762 mm) 489 lb (222 kg) 10.20 ft3 (0.29 m3)36 in (914 mm) 552 lb (251 kg) 12.70 ft3 (0.36 m3) High Capacity Buckets 24 in (610 mm) 447 lb (203 kg) 8.50 ft3 (0.24 m3)Long Lip Bucket 4 IN 1® Bucket A. Overall operating height – fully raised 13 ft 9 in (4.17 m) 14 ft 4 in (4.35 m)Height to:B. Bucket hinge pin fully raised 11 ft 3 in (3.41 m) 11 ft 3 in (3.41 m)C. Bucket hinge pin at SAE carry 12.8 in (326 mm)14.6 in (371 mm)D. Dump angle at full height46°46°E. Dump clearance at full height, 45° dump: Bucket 8 ft 8 in (2.63 m)8 ft 11 in (2.71 m) Clam open— 9 ft 8 in (2.93 m)F. Dump reach at full height, 45° dump – from bumper: Bucket 26.7 in (679 mm)26.2 in (666 mm) Clam open—12.6 in (321 mm)Bucket rollback:G. @ Groundline 40° 40° H. @ SAE carry 43°43°J. @ Full heightAdjustable Adjustable K. Digging depth below grade: Bucket flat7.8 in (199 mm)7.1 in (180 mm) Clam open – dozing— 4.4 in (111 mm)L. Reach from front axle centerline – bucket on ground 6 ft 10 in (2.08 m) 6 ft 8 in (2.03 m)Lift capacity to full height 6,503 lb (2 950 kg) 6,537 lb (2 965 kg)Breakout force: Lift cylinders 9,271 lb (4 124 daN) 8,904 lb (3 961 daN) Dump cylinders9,607 lb (4 273 daN)10,302 lb (4 583 daN)Bucket cutting edge width 82.5 in (2.09 m)82.0 in (2.08 m)Maximum grading angle 114° 114°Maximum clam opening — 38.3 in (972 mm)Moldboard height — 36.8 in (934 mm)Raising time to full height 3.3 sec 3.3 sec Bucket dumping time 0.8 sec 0.8 sec Lowering time: Power down 2.4 sec 2.4 sec Return-to-dig 4.4 sec4.4 sec Clam:Open time — 1.3 sec Close time—1.1 secNOTE: L oader dimensions taken with 4WD, 12.0 x 16.5 front tires and 19.5 L x 24.0 rear tires.Line drawings are for illustrative purpose only and may not be exact representation of unit.AB DJEHCNO FLMKG2WD with 19.5 L x 24.0 tires 4WD with 19.5 L x 24.0 tires M.Overall transport length:Long Lip bucket with Universal Coupler 23 ft 1 in (7.02 m) 23 ft 0 in (7.00 m)4 IN 1® bucket with Universal Coupler 22 ft 10 in (6.96 m) 22 ft 9 in (6.93 m)Long Lip bucket with Straight Links 23 ft 2 in (7.04 m) 23 ft 0 in (7.00 m)4 IN 1® bucket with Straight Links 22 ft 11 in (6.98 m) 22 ft 10 in (6.95 m) Overall transport width – rear tires 7 ft 2 in (2.17 m) 7 ft 2 in (2.17 m) Height:To top of canopy 8 ft 9 in (2.66 m) 8 ft 9 in (2.66 m) To top of cab 8 ft 11 in (2.72 m) 8 ft 11 in (2.72 m) To top of exhaust stack 8 ft 7 in (2.62 m) 8 ft 7 in (2.61 m) N.Transport - standard dipper 10 ft 10 in (3.30 m) 11 ft 1 in (3.37 m) Ground clearance at backhoe frame 15.0 in (380 mm) 15.0 in (380 mm) Angle of departure 15.3° 19.0°Front wheel tread:11.0 L x 16.0 67.5 in (1.71 m) 67.5 in (1.71 m)12.0 L x 16.5 67.7 in (1.72 m) 67.7 in (1.72 m) Rear wheel tread:17.5 L x 24.0 63.1 in (1.60 m) 63.1 in (1.60 m) 19.5 L x 24.0 61.2 in (1.55 m) 61.2 in (1.55 m) Width over tires:11.0 L x 16.0 79.3 in (2.01 m) 79.3 in (2.01 m)12.0 L x 16.5 81.1 in (2.06 m) 81.1 in (2.06 m) 17.5 L x 24.0 81.7 in (2.07 m) 81.7 in (2.07 m) 19.5 L x 24.0 81.4 in (2.07 m) 81.4 in (2.07 m) O. Wheelbase 84.0 in (2.13 m) 84.5 in (2.15 m)Bore Diameter Rod Diameter Stroke Closed Length Loader:Lift – 2 3.25 in (82.6 mm) 1.75 in (44.5 mm) 30.2 in (766.0 mm) 40.80 in (1 036.0 mm) Dump – 2 3.00 in (76.2 mm) 1.50 in (38.1 mm) 20.6 in (522.0 mm) 30.70 in (780.5 mm) 4 IN 1® clam – 2 3.00 in (76.2 mm) 1.75 in (44.5 mm) 9.18 in (230.6 mm) 19.69 in (498.3 mm) Backhoe:Boom 4.50 in (114.3 mm) 2.25 in (57.2 mm) 38.25 in (971.6 mm) 52.82 in (1 341.6 mm) Dipperstick 4.25 in (108.0 mm) 2.25 in (57.2 mm) 24.74 in (628.5 mm) 39.65 in (1 007.0 mm) Bucket 3.25 in (82.6 mm) 2.25 in (57.2 mm) 35.35 in (897.9 mm) 48.17 in (1 223.6 mm) Extendahoe® 3.00 in (76.2 mm) 1.75 in (44.5 mm) 42.05 in (1 068.0 mm) 56.22 in (1 428.0 mm) Swing – 2 3.75 in (95.3 mm) 2.00 in (50.8 mm) 11.50 in (292.0 mm) 24.44 in (620.8 mm) Stabilizer – 2 4.00 in (101.6 mm) 2.00 in (50.8 mm) 21.78 in (553.3 mm) 33.80 in (858.5 mm)Front – 2WD Rear Front – 4WD Maximum static 70,821 lb (32 124 kg) 90,145 lb (40 889 kg) 64,613 lb (29 308 kg) Dynamic operating 44,261 lb (20 076 kg) 56,200 lb (25 492 kg) 39,328 lb (17 839 kg) Static operating 17,704 lb (8 030 kg) 22,480 lb (10 197 kg) 15,732 lb (7 136 kg) Oscillation – front axle 22° total – 11° side to side — 22° total – 11° side to sideNOTE: *Dimensions taken with 2WD, 17.5 L x 24 Rear tires, Universal coupler.See page 1FPT F5HFL463D dieselFull flow engine oil filterAspirated air cleaner – replaceable dualelement dry type with radial sealFuel filter with water trapDiesel Oxidation CatalystRadiator with de-aeration bottle Antifreeze to -34° F (-37° C)Throttles, both hand rotary and footSelf adjusting beltHigh Pressure Common RailFront axle, as selected:2WD front axle with 11.0 L x 16.0 tires4WD mechanically driven front axle, with12.0 L x 16.5 tiresRear axle:2/4WD heavy-duty outboard planetarydrive, with 17.5 L x 24.0 tires4F-4R Power ShuttleSynchromesh transmissionTorque converter – 11.8 in (300 mm)On-the-go electric 4WD controlElectric F/R shuttle controlElectric differential lock control,with push-button activation on the loader control leverPark brake, spring-applied, hydraulic release – SAHR Pump:28.5 gal/min @ 3,350 psi(107.9 L/min @ 231 bar)Heavy-duty hydraulic oil cooler7-micron, spin on oil filterBucket position indicator; Lifting lugs onstandard bucket; Single lever controlwith self-leveling and return-to-dig; Handoperated clutch disconnects on loaderand shift levers, single lever 4-functionloader control: lift, dump, clutch cut-out,differential lockOver center design, Fabricated “S” boomForward tilt engine hoodReplaceable, molded front bumpersFront/Rear tie downsReflective logosSignal Lights – cab and canopy:2 rear tail/stop2 front flashers/turn2 rear flashers/turnWorking/Driving Lights – cab only:Adjustable halogen work lights – 55 W:2 front2 side – one left, one right2 rearWorking/Driving Lights – canopy only:Adjustable halogen work lights – 55 W:2 front2 rearMaster disconnect switch and remotejump-start terminalsHydrostatic steeringBackup alarmVertical spin-on engine oil, fuel andhydraulic filtersCASE SiteWatch™ Telematics – includeshardware and a 3-yr Advanceddata subscription1-Year/Unlimited-Hour Full-Coverage BaseLimited Warranty2-Year/2,000-Hour Extended Engine WarrantyAuto Ride Control – 4WD modelsStandard Ride Control – 2WD models Comfort Steering with two-speed steering pump and 3rd/4th gear cutoutROPS/FOFS certified protective cab available in LH Door or 2 door with heat,A/C, defroster, door activated dome light, 2 front, 2 rear and 2 adjustable side lights, floor mat, tinted glass, radio ready, front and rear wiper and fender extensionsTilt steering wheel – cab models Mechanical suspension seat with flip-up armrests, 180° swivel, adjustable seatand weight, backrest angle, lumbar and cushion angle – cab units cloth or vinyl, canopy units vinyl onlyAir suspension cloth seat with flip-up armrests, 180° swivel, electric height adjustment, adjustable backrest and lumbar support – cab units onlyBluetooth Radio – Communication and Media streaming, Sirius XM satellite radio ready – does not include satellite antenna, AM/FM tuner, NOAA weatherband tuner, USB input and audio Aux-in3 in (75 mm) seat belt for mechanical andair-suspension seatAnti-vandalism cover for dash-canopy only Cold Weather Starting Aid:Dual 12 volt batteries, glow plugs, engine block heater and heated CCV hose Severe Cold Weather Starting Aid:Synthetic transmission, hydraulic and engine oil – order with cold weather starting aid Drive shaft guard – 4WD modelsAuxiliary hydraulics for loader-mountedequipment with thumb-operatedproportional controlHydraulic front quick couplerTool portfolio of additional attachmentsBuckets – see page 21-way Auxiliary backhoe hydraulics forhammers, plate compactors or similar1-way flow attachments1-way/2-way Auxiliary backhoe hydraulicsfor hammers, plate compactors or similar1-way flow attachments or switch to 2-wayflow for thumbs, augers or similar 2-wayflow attachmentsExtendahoe®Two-lever controls – backhoe or Extendahoe®Pilot operated control system:Fingertip proportional Electro-Hydraulicstabilizer controlsThumb-operated proportionalElectro-Hydraulic Extendahoe® controlThumb-operated horn buttonThumb-operated auxiliary hydraulic controlInfinitely adjustable towersIn-cab switchable “excavator to backhoe”control pattern changeFlip over stabilizer padsCemetery/Street padsCase mechanical quick couplerUniversal coupler – CAT/Deere compatiblePro Control Swing dampeningBuckets – see page 2Hydraulic thumb – Includes: 2 replaceable,high strength, bolt on tines withtwo positions for Universal or Hi-Capbuckets – meshes with Bucket teeth on18 in & 24 in BucketsFront tires:11.0 L x 16.0 10-ply or 12.0 L x 16.5 10-plyRear tires:17.5 L x 24.0 10-ply or 19.5 L x 24.0 10-plySpecial paintLights:Additional 2 front and 2 rearhalogen lights – 55 WAdjustable side work lights – canopyTool box – bolt-on, step-mountedFront counterweights:440 lb and 900 lb (200 kg and 408 kg)Rotating beaconLED Working/Driving Light Package:4 front4 rear2 sideChaff Screen – Additional fine mesh screen infront of standard grilleFront Fenders©2018 CNH Industrial America LLC. All rights reserved. CASE is a trademark registered in the United States and many other countries, owned by or licensed to CNH Industrial N.V., its subsidiaries or affiliates. CNH Industrial Capital is a trademark in the United States and many other countries, owned by or licensed to CNH Industrial N.V., its subsidiaries or affiliates. Printed in U.S.A. Contains 10% post-consumer fiber.IMPORTANT: CASE Construction Equipment Inc. reserves the rightto change these specifications without notice and without incurringany obligation relating to such change. Availability of some modelsand equipment builds vary according to the country in which theequipment is used. The illustrations and text may include optionalequipment and accessories and may not include all standardequipment. Your CASE dealer/distributor will be able to give youdetails of the products and their specifications available in your area.CASE Construction Equipment is biodiesel-friendly. NOTE: All engines meet current EPAemissions regulations. All specifications arestated in accordance with SAE Standards orRecommended Practices, where applicable.Always read the Operator’s Manual beforeoperating any equipment. Inspect equipmentuse any safety features provided.Form No. CCE201810580NEP Replaces Form No. CCE201710580NEP。
Cat 308E2 CR 微型挖掘机说明书
EngineEngine Model*Cat ®C3.3B Net Power (ISO 9249)48.5 kW65 hp*Engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards.WeightsOperating Weight with Cab 8400 kg 18,519 lb Operating Specifications Maximum Dig Depth4150 mm13'7"308E2 CRMini Hydraulic Excavator2Highperformance in a compact radius and swing boom design for greaterversatility and controllability.ContentsCompact Radius ..................................................4Operator Station ..................................................5COMPASS Control Panel ...................................6Performance and Controllability ......................8Variable Angle Boom ..........................................9Undercarriage ...................................................10Work Tools ..........................................................11Engine and Serviceability ................................12Specifi cations ....................................................14Standard Equipment .........................................17Optional Equipment...........................................18Notes . (19)The Cat 308E2 CR Mini Hydraulic Excavator delivers high performance with the versatility of a swing boomfront linkage in a durable Compact Radius design to help you work in the tightest applications. With the COMPASS display panel, Tier 4 Final/Stage IIIB engine and High Defi nition Hydraulic (HDH) system, the308E2 CR is more productive, versatile and cost effective.3Compact RadiusWork in the tightest spaces.Compact RadiusThe compact radius design gives greater machine versatility and the capability to work within confi ned areas. The radius of the upper body stays within 280 mm (11 in) of the undercarriage providing fl exibility for different work site applications with a reduced risk of damage and less stress for the operator.This allows the operator to concentrate on the work being done without having to worry about damaging the back of the machineor other job site obstacles.45Comfortable Working EnvironmentSpacious and comfortable operator station with excellent visibility and legroom keeps the operator comfortable and helps reduce fatigue. All hydraulic functions are fully pilot operated, lowering owning and operating costs and resulting in less downtime. The operator station also features:• Heated, air suspension seat • COMPASS display panel • Ergonomic joysticks• Dynamic operator sound pressure 70 dB(A) ISO 6396• Average exterior sound pressure 99 dB(A) ISO 6395 – dynamic testOperator StationSuperior comfort to keep you productive throughout the work day.The COMPASS control panel on the Cat E2 Series mini hydraulicexcavators was specifi cally designed by Caterpillar for compactexcavators. It adds several new features to the machines increasingthe amount of customer value. All of the following features arestandard on all E2 Series models.C omplete – All of the control panel features are standard on allE2 Series modelsO peration – Simple operation of the pattern changer, hydraulic quickcoupler and fuel gauge visibility all at the push of a buttonM aintenance – Maintenance intervals, diagnostics and work hoursP erformance – Maintain optimum performance levels with adjustablework tool fl ow featuresA ndS ecurity – Anti theft device with individual user and masterpasswordsS ystem – Ergonomically designed control panelPasscode Protected Security SystemA standard anti-theft device comes on every E2 Series compactexcavator. A fi ve digit alphanumeric password is required to start themachine when the anti-theft feature is enabled. There is a masterpassword and up to fi ve user passwords can be created by theowner if desired.Keep your machine safe on a busy job site by locking it when youare not around.Adjustable Auxiliary Work Tool Flow ControlThe E2 Series machines feature simple adjustability of the fl ow goingdown the boom and stick to the work tool. Both the standard mainline and optional secondary auxiliary hydraulics can be adjustedon a scale of 1–15 through a few buttons on the control panel.Adjust the fl ow to your different tools with a simple push of a button. COMPASS Control PanelComplete, Operational, Maintenance, Performance and Security System.6Rearview CameraIncrease operator productivity and effi ciency with enhanced visibility with the rear view camera.Work more confi dently with greater visibility.Continuous FlowOnce this feature is enabled through a button on the monitor, the E2 Series machines can run in continuous fl ow mode. With the auxiliary hydraulics on the right hand joystick, just hold the roller switch at the desired fl ow rate and direction for 2.5 seconds and the machine will maintain that fl ow rate until it is turned off.Maintain hydraulic fl ow to your tools at any fl ow and in any direction with the simple push of a button.Pattern ChangerChange the operating pattern between excavator and backhoe with a simple press of a button from the comfort of the cab. (Optional in Europe)Exclusive push button pattern changer is safe and easy.Maintenance and Performance InformationEasily keep track of various maintenance and performance parameters of your machine.Reset the maintenance intervals and ensure the machine is receiving proper care maximizing the life of the machine.Site Reference SystemOutput from pitch and roll sensors aid in grading and level trenching for improved effi ciency and job site fi nishing.Finish the job faster with site information.UNLOCK the new features and experience the value of the exclusive COMPASS control panel on the Cat E2 Series compact excavators7High digging forces that provide power through even the most compacted ground, coupled with direct, smooth control through responsive hydraulics, ensure that the Cat 308E2 CR delivers the high productivity that customers demand.ControllabilityThe Cat 308E2 CR front linkage has been perfectly balanced with the hydraulics to deliver the high level of control required for fi ne grading and landscaping applications.• Automatic two speed function improves job site maneuverability by balancing high speed travel requirements and control.• Joystick mounted auxiliary control enhances machine controllability. The intuitive controls give fi ne modulation.• Auxiliary lines including quick connectors are fi tted as standard, meaning the Cat 308E2 CR comes ready to work.• Optional boom and stick lowering check valve includes integral overload warning device.High Definition Hydraulic System• Delivers fuel savings, effi ciency, controllability and precision.• Industry leading variable displacement, load sensing, fl ow sharing system.Lift CapacityTo meet the diverse needs of today’s customer, the 308E2 CR has high level lift capacity and outstanding stability – all in a compact radius design to provide on site versatility to get the job done.CounterweightAn optional rear counterweight can be added to provideadditional lift capacity and stability.Performance and ControllabilityPowerful digging combined with smooth responsive control.8Variable Angle BoomIncreased fl exibility and versatility.Durable Front LinkageUptime and service intervals are increased with durable and reliable booms, sticks and linkage pins. Each boom and stick is builtto provide superior strength to withstand any tough application. The variable angle boom option offers fl exibility and versatilityin the working envelope.With full extension, the working range offers a maximum dig depth extending to 3980 mm (157 in). The maximum reach extends760 mm (30 in) beyond the standard boom and stick confi guration to 7780 mm (306 in). The working height reaches 1360 mm (54 in) beyond the standard boom and stick confi guration to 8000 mm (315 in). When retracted, the Cat 308E2 Variable Angle BoomMini Excavator can work closer to the blade and tracks, providing increased lifting capacity while working productively inconfi ned areas.910Depending on the customers application, the Cat 308E2 CR has three different track options to choose from, allowing the correct machine confi guration to suit the job.Rubber BeltProvides the lowest ground disturbance of all track options with excellent traction in conditions that are soft underfoot. The standard track offering is 450 mm (17.7 in) width.Steel TrackGood for demolition and heavy duty applications. A triple grouser track is available in two width options: 450 mm (17.7 in) and 600 mm (23.6 in).Steel Track with Rubber PadsThe 450 mm (17.7 in) wide shoe has four holes to attach the rubber pads to the steel track shoes. This option prevents damage to paved road surfaces and minimizes noise and vibration during travel while providing maximum stability.UndercarriageExcellent stability.Blade WidthsThe dozer blade is an important and useful tool for the Hydraulic Mini Excavator used for backfi lling trenches,levelling, landscaping and site clean up. There are two blade width options available to accommodate the differences in track widths.The blade comes standard with a replaceable weld-on dozer cutting edge constructed of hardened steel for longer life.Tie Down PointsLarge oval tie down points are located in two positions on the undercarriage for easy and safe machine tie down fortransportation.11Wide Range of Work ToolsA wide range of Cat Work Tools have been designed specifi cally to get the best out of your machine and deliver excellent value through high productivity and long life.Available work tools include:• Buckets (heavy duty and heavy duty capacity)• Tilting and Swing Ditch Cleaning Buckets • Hydraulic Hammers • Augers• Vibratory Compactors • Shears • Rippers• Dual Lock Mechanical Coupler • Dual Lock Hydraulic Coupler • Tilting CouplerTo maximize performance and productivity, Cat mechanical and hydraulic quick couplers are compatible with all standard work tools, enabling the operator to simply release one work tool and pick up another.One-way fl ow (hammer) and two-way fl ow (auger) auxiliary lines with quick connectors are fi tted as standard. This allows the machine to adapt to a wide variety of applications without re-confi guring the auxiliary lines. Versatility is further enhanced with the option of a second auxiliary supply(for a rotating grapple).Work ToolsMatched to meet your application needs.Customer SupportYour Cat dealer is ready to assist you with your purchase decision and everything after.• Financing packages are fl exible to meet your needs • Unmatched parts availability keeps you working• Make comparisons of machines, with estimates of component life, preventative maintenance and cost of production• For more information on Cat products, dealer services and industry solutions, visit 12Engine and ServiceabilitySuperior power with easy access and minimal maintenance requirements keep you working.EngineThe Cat C3.3B electronic engine delivers quiet operation with superior power and fuel effi ciency while meeting Tier 4 Final/Stage IIIB emission standards.Easy ServiceConvenient service features make maintenance easy, reducing your downtime:• Lifting side hood allows access to air fi lter, main implement valve,1-way/2-way auxiliary fl ow selector, accumulator, fuel fi lter and hydraulic tank. This eliminates the need to lift the cab when maintaining and servicing the machine.• Swing open door provides access to major components and service points including engine oil check and fi ll, vertically mounted engine oil fi lter, starter motor and alternator.• S·O·S SM oil sampling valve allows easy sampling of the hydraulic fl uid for preventative maintenance.• The 308E2 CR is Product Link™ ready and the Cat Product Link system simplifi es equipment fl eet tracking. Using satellite or cellular technology, the system automatically reports information such as location, machine hours, active and logged service codes and security alarms.Power on DemandAutomatic system ensures optimal fuel effi ciency through appropriate engine rating to meet all operational requirements as needed.Auto Engine ShutdownEngaging this feature allows the operator to save fuel by powering down the machine after a designated inactive period. The operator can adjust the range from 1-15 minutes to meet their needs. The system will only shut down after the set time, provided the hydraulic lever is up. Electronics will remain powered after shutdown.13308E2 CR Mini Hydraulic Excavator Specifications1415308E2 CR Mini Hydraulic Excavator SpecificationsDimensionsLift Capacities at Ground Level*Lift Point Radius 4000 mm (13'1")6050 mm (19'10")Front Side Front Side Blade Down kg 365017101880920lb 8,0463,7704,1442,028Blade Upkg 18401530970820lb4,0563,3732,1381,808* The above loads are consistent with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.Standard StickLong Stick mm ft/in mm ft/in 1Dig Depth 415013'7"469015'5" 2Vertical Wall29809'9"355011'8" 3Maximum Reach at Ground Level 682022'9"735024'1" 4Maximum Reach702023'0"754024'9" 5Maximum Dig Height664021'9"699022'11" 6Maximum Dump Clearance 467015'4"501016'5" 7Linkage In Minimum Radius 28009'2"328010'9" 8Tail SwingStandard Counterweight 14504'9"14504'9" 9Maximum Blade Height4201'5" 4201'5"10Maximum Blade Depth3201'1" 3201'1"11Boom Height in Shipping Position22807'6"22307'4"12O/A Shipping Height 25508'4"25508'4"13Swing Bearing Height 7352'5" 7352'5"14O/A Undercarriage Length 29039'6"29039'6"15O/A Shipping Length 638020'11"634020'10"16Boom Swing Right 10103'4"10103'4"17Boom Swing Left 6352'1" 6352'1"18Track Belt/Shoe Width 4501'6" 4501'6"19O/A Track Width23207'7"23207'7"1119308E2 CR Mini Hydraulic Excavator Specifications Dimensions with Variable Angle BoomStandard Stick with Angle Boom ExtendedStandard Stick with Angle Boom Retractedmm in mm in1Dig Depth398015737101462Vertical Wall382015036001423Maximum Reach at Ground Level763230063652514Maximum Reach778030665502585Maximum Dig Height800031552002056Maximum Dump Clearance608023933601327Linkage In Minimum Radius292511532351278Tail SwingStandard Counterweight1450 571450 57With Extra Counterweight1565621565629Maximum Blade Height 420 17 420 1710Maximum Blade Depth 320 13 320 1311Boom Height in Shipping Position22809022008712O/A Shipping Height2550100255010013Swing Bearing Height 735 29 735 2914O/A Undercarriage Length2903114290311415O/A Shipping Length7010276579522816Boom Swing Right10104010104017Boom Swing Left 635 25 635 2518Track Belt/Shoe Width 450 18 450 1819O/A Track Width232091232091Lift Capacities at Ground Level with Variable Angle BoomVariable Angle Boom Minimum*Variable Angle Boom Maximum*Lift Point Radius5000 mm (16'5")5500 mm (18'1")5000 mm (16'5")6800 mm (22'4")Front Side Front Side Front Side Front Side Blade Down kg2354107090290224799451451575lb5,1912,3591,9891,9895,4662,0843,1991,268 Blade Up kg129410709029021164945714575lb2,8532,3591,9891,9892,5672,0841,5741,268 * The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.16308E2 CR Standard EquipmentENGINE• Cat C3.3B diesel engine (meets Tier 4 Final/ Stage IIIB emission standards)• Automatic engine idle• Automatic engine shut-off• Automatic two speed travel• Diesel Particulate Filter(North America only)• Diesel Oxidation Catalyst(North America only)• Fuel and water separator• Power on demandHYDRAULIC SYSTEM• 1-way and 2-way (combined function)• Accumulator• Automatic swing parking brake• Auxiliary hydraulic lines• Adjustable auxiliary relief• Auxiliary line quick disconnects• Cat interlock system: hydraulic lockout • Continuous auxiliary fl ow• Ecology drain• Hydraulic oil cooler• High defi nition hydraulics• Load sensing/fl ow sharing OPERATOR ENVIRONMENT• 100% pilot control ergonomic joysticks• Adjustable armrests• Air conditioning/heat• COMPASS: complete, operation,maintenance, performance andsecurity system–Multiple languages• Cup holder• High back suspension seat, heated• Hydraulic neutral lockout bar• Interior light• Literature holder• Pattern changer (optional in Europe)• Radio (optional in Europe)• Site reference system: leveling• Tool storage area• Travel control pedals with hand levers• Washable fl oor mat• Windshield wiperUNDERCARRIAGE• Dozer blade with fl oat function• Track, rubber belt, 450 mm (18 in) width• Tie down eyes on track frame• Towing eye on base frameFRONT LINKAGE• 180 degree bucket rotation• Certifi ed lifting eye on bucket linkage(optional in Europe)• Front shovel capable• Thumb ready stickELECTRICAL• 12 volt electrical system• 60 ampere alternator• 650 CCA maintenance free battery• Fuse box• Ignition key start/stop switch• Slow blow fuse• Warning hornLIGHTS AND MIRRORS• Cab and boom light with time delaycapability• Mirror, rear view, cab leftSAFETY AND SECURITY• Anti-theft system (COMPASS)• Caterpillar Corporate “One Key” System• Door locks• Lockable fuel cap• Rearview camera• Retractable seat belt• Roll Over Protective Structure (ROPS)(ISO 12117-2)• Tip Over Protective Structure (TOPS)(ISO 12117)• Top guard – ISO 10262 (Level II)• Travel alarm (optional in Europe)Standard EquipmentStandard equipment may vary. Consult your Cat dealer for details.17308E2 CR Optional EquipmentENGINE• Engine block heater HYDRAULIC SYSTEM• Quick coupler lines• Boom lowering check valve*• Stick lowering check valve*• Secondary auxiliary hydraulic lines* *Standard on V AB confi guration.UNDERCARRIAGE• Blade, weld on• Track, triple grouser (steel), 450 mm (18 in)• Track, triple grouser (steel) with rubber pad,450 mm (18 in)• Track, triple grouser (steel), 600 mm (24 in)FRONT LINKAGE• Quick coupler: manual or hydraulic• Thumb• Buckets• Full range of performance matchedwork tools–Auger, hammer, shear, ripperLIGHTS AND MIRRORS• Mirror, cab rearSAFETY AND SECURITY• Battery disconnect• Front wire mesh guard• Front steel plate guard• Rain guardTECHNOLOGY• Product LinkOTHER ATTACHMENTS• Counterweight, extra, 1121 kg (2,493 lb)*Optional EquipmentOptional equipment may vary. Consult your Cat dealer for details.18Notes19AEHQ7916 (08-2016) For more complete information on Cat products, dealer services, and industry solutions, visit us on the webat © 2016 CaterpillarAll rights reservedMaterials and specifi cations are subject to change without notice. Featured machines in photos may includeadditional equipment. See your Cat dealer for available options.CAT, CATERPILLAR, , their respective logos, “Caterpillar Yellow” and the “Power Edge”trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and maynot be used without permission.。
Cat 320 挖掘机说明书
Cat® 320Hydraulic ExcavatorThe Cat® 320 excavator brings premium performance with simple-to-use technologies like Cat GRADE with 2D, Grade Assist, and Payload – all standard equipment from the factory to boost your operator efficiencies up to 45 percent. Combine these features with a new cab, longer maintenance intervals that lower your maintenance costs up to 15 percent, and a power system that reduces fuel consumption by up to 25 percent and you have a low-cost-per-unit-of-production excavator that’s perfect for medium- to heavy-duty applications. Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.High Performance with Lower Fuel Consumption• Use up to 2 5 percent less fuel than the Cat 3 20F excavator.• Increase operating ef fi ciency up to 4 5 percent with standardCat Connect technologies that lower operator fatigue and youroperating costs, including fuel consumption and daily maintenance.• The C 4.4 ACER T™ engine can run on biodiesel up to B2 0 and meetsU.S. EPA Tier 4 Final and EU Stage IV emission standards with anaf t er t reatment system that requires no maintenance or downtime.• The advanced hydraulic system provides the optimum balanceof power and ef fi ciency while giving you the control you needfor precise digging requirements.• Match the excavator to the job with power modes; let Smar tmode automatically match engine and hydraulic power to diggingconditions.• Auxiliar y hydraulic options give you the versatilit y to use a widerange of Cat at t achments.• Available Smar t Boom™ lets the boom freely travel up and downwithout using any pump flow so operators can focus on stick andbucket work. The benefits are reduced operator stress and reducedfuel consumption.• Don’t let the temperature stop you from working. The excavatorhas a standard ambient temperature capabilit y of 4 6° C (115° F) andoptional high-ambient capabilit y of 5 2° C (12 5° F ). S t andard coldstar t capabilit y is – 32° C (–2 5° F ).Boost Efficiency and Boost Productivitywith Integrated Cat Connect Technologies• Boos t productivit y up to 4 5 percent versus traditional gradingwith s t andard Cat GR A DE with 2D system – includes indicate-onlyand laser capabilit y.– Dig with guidance to depth, slope, and horizontal distanceto grade.– The 2D system is upgradable to Cat GR A DE with Advanced 2Dor Cat GR A D E with 3D.• S t andard Grade Assist:– S t ay on grade – simply and ef f or t lessly – with single-lever digging.– Set your desired bucket angle and let Bucket Assis t automaticallymaintain the angle in sloping, leveling, fine grading, and trenchingapplications for easy, accurate, and fast jobs.– Keep the tracks on ground in lif t ing and hard digging withBoom Assist .– Automatically s t op excavator swing at operator-defined setpoints in truck loading and trenching applications with SwingAssist , which will help you use less ef f or t and consume less fuel.• S t andard Cat PAYLOAD on-board weighing system:– Achieve precise load targets and increase loading ef fi ciencywith on-the-go weighing and real-time es t imates of your payloadwithout swinging.– Track your daily productivit y such as truck target weights andload/cycle counts.– Calibration can be per f ormed in a mat t er of minutes.– Combine Payload with VisionL i nk® and remotely manage yourproduction targets.• Upgrade to optional Cat GR A DE with Advanced 2D:– Create and edit grade designs with ease on a second high-resolution 2 54 mm (10 in) touchscreen monitor.• Upgrade to optional Cat GR A DE with 3D:– Create and edit designs with ease and see the front linkage’sfull range of motion on a second high-resolution 25 4 mm (10 in)touchscreen monitor.– Know the excavator ’s exact position relative to GPS andGLONASS systems.– The machine automatically compensates for excavator pitchand roll caused by sloping ground conditions.• S t andard Product Link™ provides location, machine hours, fuelusage, productivit y, idle time, diagnostic codes, and other machinedata on demand through V i sionLink online inter f ace, helping youimprove job site ef fi ciency with lower operating cos t s.Cat® 320 Hydraulic ExcavatorWork in Comfort in the All-New Cab• Choose bet w een Comfor t and Deluxe cabs – both with automatic climate control.• Sit in wide seats that adjust for all size operators; s t ay warm with the Deluxe heated seat.• Enjoy wide spacing bet w een consoles for a more comfor t able environment .• Get in and out of the cab easier using the tip-up lef t console (Deluxe cab only).• Advanced viscous mounts reduce cab vibration up to 5 0 percent over previous excavator models.• Control the excavator comfor t ably with easy-to-reach controlsall located in front of you.• S t ow your gear with plent y of in-cab storage beneath and behind the seat , overhead, and in the consoles. A cup holder, document holder, bot t le holder, and coat hook are also provided.• Use the s t andard radio’s USB por t s and Bluetooth® technologyto connect personal devices and make hands-free calls.Simple to Operate• S t ar t the engine with a push but t on; use a Bluetooth key fob, smar t phone app, or the unique Operator ID function.• Program each joystick but t on, including response and pat t ern, using Operator ID; it will also remember climate control fanand radio set t ings.• Navigate quickly on the standard high-resolution 2 03 mm(8 in) touchscreen monitor, or with the optional 2 54 mm (10 in) touchscreen monitor, or with the aid of the jog dial control.• A second 2 54 mm (10 in) monitor is available for the advanced grade control.• Not sure how a function works or how to maintain the excavator? Always have the operator ’s manual at your finger t ips in the touchscreen monitor.Maintenance• E x pect up to 15 percent less maintenance cost than the 3 20E. (Savings calculated over 12 ,0 00 machine hours.)• Do all daily maintenance at ground level.• Check engine oil level quickly and safely with the new ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick. • Track your excavator ’s filter life and maintenance inter v als via the in-cab monitor.• Do no required maintenance on the Cat Clean Emissions Module. • Change all fuel filters at a synchronized 5 00 hours.• E x pect the new air intake filter with precleaner to last up to1, 000 hours – a 10 0 percent increase over the previous filter.• The new hydraulic oil filter provides improved filtration per f ormance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3, 000 hour replacement inter v al – 5 0 percent longer than previous filter designs.• The new high-ef fi ciency electric cooling fans only run when needed and reverse to keep cores free from debris.• S·O·S SM por t s simplif y maintenance and allow for quick , easyex t raction of fluid samples for analysis.Safety• Work safely under structures or near traf fi c with the s t andard 2DE-fence feature integrated right out of the factor y, which prevents any par t of the excavator from moving outside operator-defined set points to avoid hazards and job site accidents.• Access 10 0 percent of daily maintenance points from ground level – no need for you to climb on top of the excavator.• The standard ROPS cab meets ISO 12117-2:2 008 requirements. • Enjoy great visibilit y into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.• The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.• Ground-level shut-of f switch stops all fuel to the engine when activated and shuts down the machine.• A rear v iew camera is s t andard, and a right-side-view camerais optional. Upgrade to 3 60° visibilit y and you’ll easily visualize objects and personnel around the excavator in a single view.• New right-hand ser v ice plat f orm design provides easy, safe, and quick access to upper ser v ice plat f orm; the ser v ice plat f orm steps use anti-skid punch plate to prevent slipping.• Available boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic sys t em unexpectedly lose power.• The handrails comply with ISO 2 867:2011 requirements.• The lower frame meets ISO 15 818:2 017 lif t ing and tie-down requirements.Cat® 320 Hydraulic Excavator Standard and Optional EquipmentStandard and optional equipment may vary. Consult your Cat dealer for details.Standard Optional CABROPS, standard sound suppression 9 Mechanically adjus t able seat 9Air-adjustable seat with heat (Deluxe only) 9 High-resolution 2 03 mm (8 in) 9LCD touchscreen monitorHigh-resolution 2 54 mm (10 in) 9 LCD touchscreen monitorCAT CONNECT TECHNOLOGYCat Product L i nk 9Cat GR A DE with 2D 9Cat GR A DE with Advanced 2D 9 (not available on SL R)Cat GR A DE with 3D (not available on SLR) 9 Cat GR A DE with Assist 9Cat PAY L OA D9ENGINEThree selectable power modes 9Auto engine idle shutdown 94 6° C (115° F ) ambient cooling capacit y952° C (12 5° F ) high-ambient cooling capacit y9– 32° C (–2 5° F ) cold star t capabilit y9Reversing electric cooling fans 9Biodiesel capabilit y up to B2 09 HYDRAULIC SYSTEMBoom and stick regeneration circuits 9Boom and stick lowering check valves 9 Auto hydraulic warm up 9Auto t w o-speed travel 9Boom and stick drif t reduction valve 9Hammer return filter circuit 9 Combined flow/high-pressure 9 auxiliar y circuitMedium-pressure circuit 9 Quick coupler circuit for Cat Pin Grabber 9Standard Optional BOOM AND STICKS5.7 m (18'8 ") reach boom, 2.9 m (9'6") stick 98.8 5 m (29'0 ") SL R boom, 6.2 8 m (20'7 ") 9 SL R s t ickUNDERCARRIAGE AND STRUCTURES6 00 mm (24") triple grouser shoes 970 0 mm (2 8") triple grouser shoes 979 0 mm (31") triple grouser shoes 99 00 mm (3 5") triple grouser shoes 9 Tie-down points on base frame 942 00 kg (9, 300 lb) counter w eight 9for HD boom and stick470 0 kg (10, 400 lb) counter w eight 9for SL R boom and s t ickELECTRICAL SYSTEMTwo 1, 000 CCA maintenance-free bat t eries 9 Programmable time-delay L E D 9working lightsLED chassis light, lef t-hand/right-hand 9boom lights, cab lightsSERVICE AND MAINTENANCESampling por t s for Scheduled Oil Sampling 9 (S·O·S)Ground-level and plat f orm-level engine 9oil dips t icksRemote flash 9SAFETY AND SECURITYRear v iew camera 9Right-hand-side camera 9* 9* Right-hand mirror 93 60° visibilit y9 Ground-level engine shutof f switch 9Right-hand handrail and hand hold 9Signaling /warning horn 9*Europe standard; other regions optional.Cat® 320 Hydraulic Excavator Technical SpecificationsEngine Model Cat C 4.4 ACER T Gross Power – ISO 14 396/SA E J19 95 12 2 kW 16 4 hp Net Power – ISO 924 9/SA E J13 49121 kW 162 hp Engine RPMOperation 1,65 0 rpmTravel 1, 800 rpmBore 10 5 mm 4 in Stroke 127 mm 5 in Displacement 4 .4 L 269 in 3Main System – Maximum Flow (Implement) 42 9 L /min 113 gal /min Maximum Pressure – Equipment – Normal 3 5 0 00 kPa 5,0 75 psi Maximum Pressure – Equipment –Heav y L i f t Mode3 8 0 00 kPa 5, 510 psi Maximum Pressure – Travel 34 3 00 kPa 4, 974 psi Maximum Pressure – Swing 2 6 8 00 kPa 3, 886 psiOperating Weight – Nor t h America 2 2 5 00 kg 4 9,6 00 lb • Reach boom, R2.9 m (9'6 ") stick, HD 1.19 m 3 (1.5 6 yd3) bucket and 79 0 mm (31 in) triple grouser shoes, 4.2 mt (9, 300 lb) counter w eight.Operating Weight – E urope/Australia21 9 00 kg 4 8, 300 lband New Zealand• Reach boom, R2.9 m (9'6 ") stick, HD 1.19 m 3 (1.5 6 yd3) bucket and 6 00 mm (24 in) triple grouser shoes, 4.2 mt (9, 300 lb) counter w eight.Fuel Tank 3 45 L 8 6.6 gal Cooling System 2 5 L 6.6 gal Engine Oil 15 L 4 gal Swing Drive (each) 5 L 1. 3 gal Final Drive (each) 5 L 1. 3 gal Hydraulic System (including tank) 2 34 L 61.8 gal Hydraulic Tank 115 L 3 0.4 gal DEF Tank 3 9 L 10.3 gal Boom Reach 5.7 m (18'8 ") Stick Reach 2.9 m (9'6 ") Bucket 1.19 m3 (1.56 yd3) Shipping Height (top of cab) 2 960 mm 9'9 " Handrail Height 295 0 mm 9'9 " Shipping Length 95 30 mm 31'3 " Tail Swing Radius 2 830 mm 9'3 " Length to Center of Rollers 3 650 mm 12'0 " Ground Clearance 470 mm 1'7 " Track Gauge 2 380 mm 7'9 " Transpor t W i dth – 6 00 mm (24") Shoes 2 980 mm 9'9 " Transpor t W i dth – 79 0 mm (31") Shoes 3170 mm 10'5" Counter w eight Clearance 10 48 mm 3'5"Stick Reach 2.9 m (9'6 ") Bucket 1.19 m3 (1.56 yd3) Maximum Digging Depth 6 72 0 mm 2 2'1" Maximum Reach at Ground Level 9 860 mm 32'4" Maximum Cut t ing Height 9 370 mm 3 0'9 " Maximum L o ading Height 6 490 mm 21'4" Minimum Loading Height 2170 mm 7'1" Maximum Depth Cut for 24 40 mm (8'0 ")Level Bot t om655 0 mm 21'6 " Maximum Ver t ical Wall Digging Depth 519 0 mm 17'0 " Bucket Digging Force (ISO) 15 0 kN 3 8, 811 lbf S t ick Digging Force (ISO) 10 6 kN 2 3, 911 lbf Bucket Digging Force (SA E) 13 4 kN 3 0,10 4 lbf S t ick Digging Force (SAE) 10 3 kN 2 3,212 lbf Boom Reach 5.7 m (18'8 ")F o r more complete infor m ation on Cat product s, dealer ser v i ces, and indus t r y solu t ions, visit us on t h e web at ww © 2 017 CaterpillarAll righ t s reser v edMaterials and speci fi cations are subject to change wi t hout notice. Featured machines in pho t o s may include addit i onal equipment . See your Cat dealer for available options.C A T, CAT E R PIL L A R, S A F E T Y.C A , t h eir respec t i ve logos, “Caterpillar Yellow ” and the “Power Edge” trade dress, as well as corporate and product iden t i t y used herein, are t r ademarks of Caterpillar and may no t be used wi t hout permission.A E X Q 219 0-01 (12-2 017)Replaces AE X Q 2190Build Number: 0 7A (Nor t h America, Europe, A N Z)。
三一重机SY16C挖掘机产品手册说明书
SY16C江苏省昆山市经济技术开发区东城大道三一产业园邮编：215300售后服务热线：4008-28-2318咨询投诉电话：4008-87-9318敬请关注本手册印刷于2021年6月，当您阅读时产品信息可能已经发生变更。
产品（含具体配置、相关细节等）以代理商展示、销售的适用于中国大陆的具体型号及产品为准。
多面能手 掘金利器Product HighlightsSY16C是三一重机微型挖掘机系列的产品，具有“可靠性高、适应性强、安全环保、维护方便”等特点，同时可提供多种特殊配置选配，可适应不同国家及客户的需求。
产品亮点一机多用专业定制SLSS液压系统三一专供原装进口发动机可伸缩行走架液压系统动力系统Hydraulic SystemPower System• 标配4英寸大尺寸、高精度空气滤清器，二级过滤，过滤精度达99.9%以上；配备空滤报警装置，实时提醒；大容量灰量设计，使用寿命长，维护成本低。
• 采用带滤网的高精度油水分离器，分离水的同时能有效过滤燃油中的杂质，提高发动机使用寿命。
• 精滤过滤精度1μm，可过滤燃油肉眼看不见的微小杂质，保证发动机安全使用。
• 采用并联式超大散热系统，散热能力强，保证发动机的使用寿命。
• 采用大功率启动马达与发电机，适应性更强。
• 领先行业的SLSS液压系统：根据负载的变化实现精确的流量控制，出色的微操作性能，犹如人手一般。
• 全液压控制：所有动作都采用先导液压控制，无空行程，微控性好，安全精准，动作更流畅，油耗更低。
三一专供的原装进口洋马发动机，能确保机器在恶劣工况下工作的可靠性。
洋马发动机优点：• 微挖应用广泛、客户认可度高。
• 耐用、省油、配件便宜、维修方便，挖掘机的首选。
• 三一专供的主泵和主阀，回转马达和行走马达，确保液压系统的高可靠性。
• 采用独创的SLSS液压系统，实现了发动机与主泵的完美匹配，能最大程度的利用发动机的输出功率，提升作业效率。
三一专供主泵三一专供主阀回转马达空气滤清器散热器Enhanced Structure动臂斗杆一流的核心配置• 动臂斗杆结实耐用，性能优于行业水平。
挖掘机操作手册说明书
挖掘机操作手册说明书第一章：操作前的准备1.1 前言感谢您选择我们的挖掘机产品，为了确保您的操作安全并正确操作挖掘机，特此提供本操作手册。
请在操作挖掘机之前仔细阅读以下内容并掌握相关知识。
1.2 安全注意事项在操作挖掘机之前，务必遵守以下安全注意事项：1.2.1 必须熟悉并遵守本机型的相关操作规程和安全准则；1.2.2 严禁操作员携带易燃、易爆物品进入挖掘机驾驶室；1.2.3 操作挖掘机时，应保持集中注意力，不得分心或带有饮酒状态；1.2.4 车辆和工具必须符合规定的技术要求，未经许可不得擅自改装或拆卸；1.2.5 必须装备防护设施，如安全帽、防护手套等。
1.3 环境操作要求在特定环境中操作挖掘机时，需要额外注意以下要求：1.3.1 气候条件：在恶劣天气或复杂地形的情况下，必须根据实际情况作出调整；1.3.2 土质条件：操作挖掘机时，需要根据土质的硬度和稳定性来选择适当的操作方式；1.3.3 空气质量：当操作挖掘机处于封闭空间时，确保其内部通风良好，并要定期检查空气质量；1.3.4 其他环境因素：如情况复杂或存在障碍物，需要提前评估风险并采取相应的安全措施。
第二章：操作挖掘机的基本步骤2.1 上车准备操作挖掘机前，需进行上车准备，包括：2.1.1 佩戴个人防护装备；2.1.2 确保挖掘机处于停机状态；2.1.3 检查并调整座椅及其他控制装置的位置。
2.2 启动挖掘机启动挖掘机时，需按照以下步骤进行操作：2.2.1 将电源开关置于ON位置，然后按下启动按钮；2.2.2 检查仪表盘的指示灯，确保各项指示灯正常；2.2.3 按下油门踏板，使发动机转速达到正常工作范围。
2.3 挖掘作业进行挖掘作业时，应注意以下步骤：2.3.1 选择适当的挖掘材料和挖掘位置；2.3.2 操作手柄控制挖掘机的运动方向和挖掘动作；2.3.3 根据需要调整挖掘机的工作状态和挖掘深度。
2.4 安全停车停车时，需按照以下步骤进行操作：2.4.1 将油门踏板恢复到怠速状态，将发动机的转速降至最低；2.4.2 使用制动装置将挖掘机停下，并将控制杆或手柄置于中立位置；2.4.3 进行仔细检查，确保挖掘机处于安全状态。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
挖掘机操作说明书
一、操作前准备
1. 确保挖掘机安全稳定地停在平坦的地面上，并拉起手刹。
2. 检查液位是否在正常范围内，包括发动机机油、水箱、燃油和液压油。
3. 检查润滑油是否充足，并对液压系统进行必要的润滑。
二、启动挖掘机
1. 开启驾驶室门并就坐，系好安全带。
2. 打开挖掘机主电源开关。
3. 打开点火开关，观察仪表盘是否显示正常。
4. 踩下制动踏板，并将从空挡转到启动挡。
5. 操作操纵杆将挖斗抬升到合适高度，以免碰到地面。
三、挖掘操作
1. 左操纵杆控制履带行进，将其向左或向右移动可调整挖掘机的转向。
2. 右操纵杆用于控制挖斗的上下和前后移动。
3. 按下脚下的踏板，控制挖斗的开合程度。
4. 转动驾驶室内的转向盘，改变挖掘机的转向角度。
5. 注意观察挖掘机周围环境，避免与障碍物接触。
四、翻斗操作
1. 将挖斗放在需要倾倒的位置上。
2. 使用右操纵杆将挖斗抬升到合适的高度。
3. 按下脚下的踏板，将挖斗倾倒并倾倒物料。
4. 控制挖斗的开合程度以控制倾倒速度和角度。
五、停机操作
1. 当作业完成或需要停机时，将挖斗挂在地面上。
2. 将驾驶室内的所有杆杠归位，关闭发动机开关。
3. 拔掉点火钥匙并锁好驾驶室门。
六、注意事项
1. 请勿将挖斗用于超出其设计承载力、挖深度以及挖掘范围之外的物料。
2. 在操作时，请时刻保持注意力集中，全神贯注，避免发生事故。
3. 定期检查挖掘机的润滑油和燃油，确保其正常运行。
4. 遵循操作手册中提供的维护程序和维修时间表，保持挖掘机的良好运行状态。
5. 如有故障或异常情况，请立即停机并寻求专业技术人员的帮助。
以上为挖掘机操作说明书，希望能帮助您正确、安全地操作挖掘机。
请务必遵循操作规程，确保工作安全，预防意外事件的发生。
祝您操
作顺利，工作高效！。
