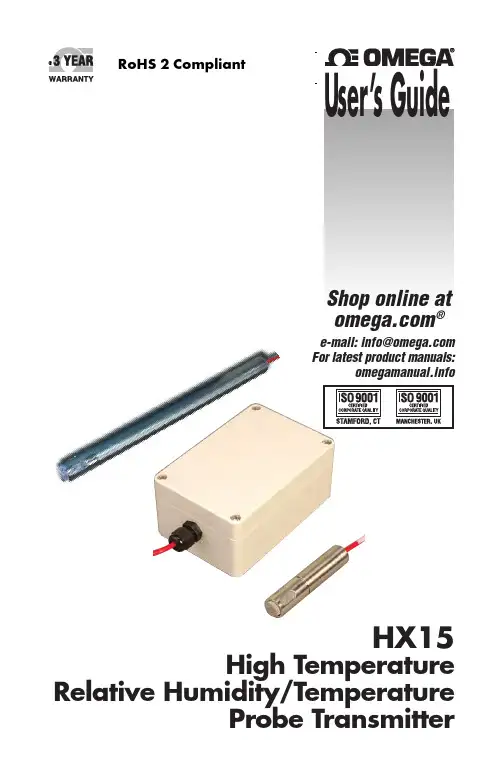

Omega HX15高温相对湿度传感器用户指南说明书
HX15High Temperature Relative Humidity/Temperature®e-mail:**************For latest product manuals:Shop online at®User’sGuideRoHS 2 CompliantIt is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the mark to every appropriate device upon certification.The information contained in this document is believed to be correct, but OMEGA accepts no liability for anyTABLE OF CONTENTSA. General Description 1.B. Unpacking 1.C. Theory of Operation 2.D. Terminal Connections 3.E. Wiring Example 3.F. Mounting 4.G. Calculations 5.H. R H Calibration 6.I. Temp. Calibration 7.J. Maintenance 7.K. Specifications 8.A. GENERAL DESCRIPTIONThe stainless steel probe provides relative humidity as well astemperature out puts. A thin film polymer capacitor senses relative humidity, while temperature is monitored by a 1000 Ohm platinum RTD. The sensors are protected by a stainless steel filter cap easily removed for cleaning. The probe is connected to an electronicsenclosure with a 40 inch (1m) Teflon cable. The enclosure contains the calibration trimmers, signal and power connections via twoterminal blocks. The probe is available in two configurations, as a2.5” (64 mm) probe with a wall mounting clip, and as an 8.5” (216mm) probe with an adjustable duct flange.B. UNPACKINGVerify that the following parts have been received.1.Remove probe with cable and electronics enclosure.2.Instruction manual.3.Wall mounting clip [for 2.5” (64 mm) probe].4. 2 piece duct flange, with o-ring, (3) screws, and a gasket.[for 8.5” (216 mm) probe]C. THEORY OF OPERATIONA 4 to 20 milliamp loop is a series current loop in which atransmitter will vary the current flow depending upon the parameter being measured (Relative Humidity or Temperature). Advantages ofa current output over a voltage output is that is less susceptible tonoise interference and allows the connection of more than one meter or recorder to the loop as long as the maximum resistance is notexceeded.The typical current loop will consist of a power supply, transmitter, and a meter to measure the current flow. The loop resistance is the sum of the impedance of the meter(s) and the lead wire. Themaximum allowable loop impedance of the probe is found by the Formula:Rmax = (power supply voltage-7 volts) /.02 ampsExample: when using a 24 VDC power supply:Rmax= (24-7) /.02=850 ohms (for total wire length to andfrom the transmitter).AWG WIRE SIZE RESISTANCE PER 1000 FEETIf the meter or recorder being used accepts only voltage, convert the current to voltage by installing a 250 ohm resistor across the input terminals of the recorder to obtain a 1 to 5 volts input.D. TERMINAL CONNECTIONS AND TRIM POTSE. WIRING EXAMPLESTYPICAL CURRENT HOOKUP Wires R1 and R2 can be combined into one single wire with a jumper at pins (4) and (2). This will result in 3 wires instead of 4. TRIMPOTS TYPE A. RH GAIN B. RH ZERO C. RH OFFSET D. TEMP GAIN E. TEMP ZEROPROBE INSTALLATIONF. MOUNTINGA.DUCT MOUNTINGSTEPS1.Slide flange holder onto probe with countersinkhole facing front of probe as shown.2.Position o-ring on probe at desired position (for depth intoduct).3.Slide duct flange onto probe as shown.4.Fasten with (3) 6/32 screws and tighten evenly until secure.5.Position gasket between duct flange and duct wall and fastenassembly to duct with (4) #6 sheet metal screws (notincluded).6.Loosening the 6/32 screws allows for repositioning orremoval of the probe without having to remove the ductflange from the wall.The d uct wall requires a 11/16” (.684” or 17.5 mm) hole forprobe, with (4) mounting holes (for #6 sheet metal screws)evenly spaced on a 2.0” (51 mm) circle. Use duct flange astemplate.B.WALL MOUNTING1.Fasten metal clip to wall.2.Snap probe into clip.G. RH AND TEMPERATURE CALCULATIONS1.Maximum current loop impedance for RH or temperature.Rmax = (V supply – 7 volts) /.02 amps2.RH current output (i = current output in milliamperes)3.Temperature current output.oC = (i-4) x 220/16) – 40 iC = (oC + 40) x (16/220) + 4oF = (i-4) x (396/16) – 40 iF = (oF + 40) x (16/396) + 4The upper limit of the humidity measurement range decreases based on temperature. The humidity measurement limit decreases as follows:2.20% per °C from 95 to 120°C (1.11% per °F from 203 to 248°F)1.00% per °C from 120 to 140°C (0.56% per °F from 248 to 284°F) 0.50% per °C from 140 to 160°C (0.28% per °F from 284 to 320°F) 0.25% per °C from 160 to 180°C (0.14% per °F from 320 to 356°F)For example, at 120°C the upper humidity limit decreases to about 45% ((120-95)(2.20%) = 55% decrease which is 45%), at 180°C it is reduced to about 10%.To calculate the RH accuracy, we’ll use the accuracy specs given in the specifications section:+/-2%RH at 25°C and -40° to 150°C at 0.05 % RH/°C.To clarify lets take an example,RH accuracy at 120°C,=+/- (2% + (120-25)0.05%) = +/- (2% + 4.75%)=+/-6.75%So the accuracy at 120°C is +/- 6.75% and the upper humidity measurement limit is 45% RH.H. RH CALIBRATIONRefer to Section D for the location of trim pots A and B.Note: The HX92-CAL Relative Humidity Calibration Kit is for providing the “low” and “high” RH environments for this procedure. The salt solutions in this kit are prepared according to ASTM standard E104-85 to provide 11.3% and 75.3% relative humidity environments. The containers provided in the kit are designed to fit with these instruments.1.Turn the span (trim pot A) all the way up (clockwise).2.Turn the zero (trim pot B) all the way down (counter-clockwise).3.Place the sensor in the low (11.3%) RH environment. Allowat least one hour for stabilization or until the output stopschanging.4.Verify the output is 4 +/-.02 mA. If it is not, return the unitto Omega for evaluation and repair.5.Adjust the zero (trim pot B) to the point where it just starts tocause a change in the output.6.Place the sensor in the high (75.3%) RH environment. Allowat least one hour for stabilization or until the output stopschanging.7.Adjust the span (trim pot A) so the output is equivalent tothe difference between low and high RH environments.Example: 75.3%-11.3% = 64% which is equivalent to 14.24mA.8.Adjust the sensor in the low RH environment and allow atleast one hour for stabilization or until the output stopschanging. Verify the output is equivalent to the low RHenvironment. Example: 11.3% is equivalent to 5.81 mA.I. TEMPERATURE CALIBRATIONTemperature is factory calibrated only, and does not requireany further calibrations.J. MAINTENANCEIf the probe is operated in a dusty environment, theprotective sensor filter, if clogged, may be removed for cleaning.Unscrew filter and gently blow compressed air through screen.If necessary, use a soft brush to remove lint from sensors.If the sensors are subjected to 100% condensation, they must bedried to obtain correct readings. There is no permanentcalibration shift, nor is recalibration necessary if 100%condensation occurs.The instrument should not be exposed to highConcentrations of ammonia or alcohol vapors. However,any environment that is breathable under normal HVACapplications should not affect the sensors. To maintain originalspecifications, it is generally recommended that the RH sensorbe recalibrated on an annual basis depending upon operatingconditions. The temperature sensor does not require calibration.K. SPECIFICATIONS1.Relative Humidity: Thin film polymer capacitor.Input Voltage Range: 7 to 30 VDC (polarity protected).Range, Accuracy: 3% RH to 95% RH (@-40 to 95°C)*, ±2%RH at 25°CTypical Temp. Characteristics: -40°C to 150°C at .05%RH/°COutput: 4 to 20 mA. For 0%RH to 100%RH.Time Constant: Under 30 seconds, 90% response at 25°C in 1M/sec air.* See RH and Temperature Calculations section for full range.2.Temperature: Thin film 1000 ohm platinum RTD.Input Voltage Range: 7 to 30 VDC (polarity protected).Range, Accuracy: -40°C to 180°C (-40°F to 356°F), ±0.5°C (±1°F)Output: 4 to 20 ma. For -40°C to 180°C (-40°F to 356°F)Time Constant: Under 4 seconds, 60% response in 1m/sec air.3.MechanicalStandard Probe: Stainless steel, 2.5” (64 mm) x .625” (16 mm)diameter. 40” (1m) Teflon cable, metal wall mounting clip.Duct Probe: Stainless steel, 8.5” (216 mm) x .625” (16 mm)diameter. 40” (1m) Teflon cable.Duct Flange: 2.75” (70mm) dia., duct hole 11/16 (.684”,17.5 mm) dia. With 4 mounting holes .156(4 mm)diameter (for #6 sheet metal screws), on 2.00”(51mm) circle.Electronics: Operating temp. -20°C to 70°C(-4°F to 158°F)ABS housing 4.72” (120mm) x 3.14” (80 mm) x2.16” (55 mm) H meets NEMA 1,2,3,4,4X,5,12and 13 specifications.Connectors: Liquid-tight with neoprene gland for .09” to .265”diameter cable.4-pin plug in screw terminal block for output connections.5-pin screw terminal block for cable wire inputconnections, accepts #14 to #22 AWG wires.Weight: 2.5” (64 mm) probe with housing 14 oz. (397 grams).8.5” (216 mm) probe with housing and flange 20 oz. (567grams).WARRANTY/DISCLAIMEROMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 37 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal three (3) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty,negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1)as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.RETURN REQUESTS/INQUIRIESDirect all warranty and repair requests/inquiries to the OMEGA Customer Service Department.BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.FOR WARRANTY RETURNS, please havethe following information available BEFOREcontacting OMEGA:1.Purchase Order number under whichthe product was PURCHASED,2.Model and serial number of the productunder warranty, and3.Repair instructions and/or specificproblems relative to the product.FOR NON-WARRANTY REPAIRS,consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:1. Purchase Order number to cover the COST of the repair,2.Model and serial number of theproduct, and 3.Repair instructions and/or specific problemsrelative to the product.OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.OMEGA is a registered trademark of OMEGA ENGINEERING, INC.© Copyright 2013 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, withoutthe prior written consent of OMEGA ENGINEERING, INC.Where Do I Find Everything I Need for Process Measurement and Control?OMEGA…Of Course!Shop online at SMTEMPERATUREⅪߜThermocouple, RTD & Thermistor Probes, Connectors, Panels & AssembliesⅪߜWire: Thermocouple, RTD & ThermistorⅪߜCalibrators & Ice Point ReferencesⅪߜRecorders, Controllers & Process MonitorsⅪߜInfrared PyrometersPRESSURE, STRAIN AND FORCEⅪߜTransducers & Strain GagesⅪߜLoad Cells & Pressure GagesⅪߜDisplacement TransducersⅪߜInstrumentation & AccessoriesFLOW/LEVELⅪߜRotameters, Gas Mass Flowmeters & Flow ComputersⅪߜAir Velocity IndicatorsⅪߜTurbine/Paddlewheel SystemsⅪߜTotalizers & Batch ControllerspH/CONDUCTIVITYⅪߜpH Electrodes, Testers & AccessoriesⅪߜBenchtop/Laboratory MetersⅪߜControllers, Calibrators, Simulators & PumpsⅪߜIndustrial pH & Conductivity EquipmentDATA ACQUISITIONⅪߜData Acquisition & Engineering SoftwareⅪߜCommunications-Based Acquisition SystemsⅪߜPlug-in Cards for Apple, IBM & CompatiblesⅪߜData Logging SystemsⅪߜRecorders, Printers & PlottersHEATERSⅪߜHeating CableⅪߜCartridge & Strip HeatersⅪߜImmersion & Band HeatersⅪߜFlexible HeatersⅪߜLaboratory HeatersENVIRONMENTALMONITORING AND CONTROLⅪߜMetering & Control InstrumentationⅪߜRefractometersⅪߜPumps & TubingⅪߜAir, Soil & Water MonitorsⅪߜIndustrial Water & Wastewater TreatmentⅪߜpH, Conductivity & Dissolved Oxygen Instruments M3199/0313。
Omega 一体化测量与控制手册说明书
Servicing Europe: United Kingdom Sales and Distribution Center
25 Swannington Road, Broughton Astley, Leicestershire LE9 6TU, England
Telephone: 44 (1455) 285520 FAX: 44 (1455) 283912
1
1.3 Fea t u r es ..................................................................................................................
2
1.4 Ava il ab le M ode ls .........................................................................................................
NOTE The carrier will not honor any claims unless all shipping material is saved for inspection. After examining and removing contents, save packing material and carton in the event reshipment is necessary.
General Purpose Solenoid Valve
(1)
Operators’Manual (1)
If you have any questions about the shipment, please call OMEGA Customer Service Department. When you receive the shipment, inspect the container and equipment for signs of damage. Note any evidence of rough handling in transit. Immediately report any damage to the shipping agent.
OmegaT用户手册
II. 如何使用 OmegaT 翻译
这份手册并不优秀，并会随着时间的进程和 OmegaT的演变而不断修改。如果你 发现手册中所描述的内容和 OmegaT 的行为存在差异，请立即联系 Jean-Christophe Helary at brandelune AT users DOT
关于 OmegaT
OmegaT 是一种免费的多平台计算机辅助翻译工具。
b. 逐段翻译
当你定义好项目以及要翻译的文件之后，OmegaT 将会在编辑器中打开第一个源 文件。第一个片段将以绿色高亮度显示，在下方 “目标区域”将会显示一段源文本 的拷贝。（此时，目标区域之外的所有文本都受到保护无法修改）你必须在标记 < segment 0001>和<end segment>之间输入你的翻译，并覆盖源文本。
快速入门指南
（五分钟内学会使用 OmegaT ）
这份快 速入门指 南只覆 盖了非常 基础的 内容。理 论上，所 有的用户 应该这 份用 户手册来熟悉 OmegaT 所能提供的一切。
内容
5. OmegaT 的简要工作机制 6. 如何使用 OmegaT 翻译
o 创建并打开一个新的项目 o 逐段翻译 o 使用翻译记忆和词汇表匹配
翻译过程
假如你不得不对一个充斥着子目录和文件的目录中所有内容进行翻译。而这些文 件又由各种不同的格式组成。你只需告诉 OmegaT 你想翻译哪些文件，它就会 使用文件过滤规则在其中查找所支持的文件，将文本部分识别出来 ，并按照分段 规则对最大的文本组进行分割，最后将片段逐段显示出来以便你进行翻译。
Omega OMA-VM500A-6-LV 电话报警系统用户手册说明书
OMA-VM500A-6-LV, $495,ߜMonitors Up to 8 Inputs and Power ߜPrograms Up to Four, 20-DigitPhone Numbers ߜEasy-to-Follow Menu-Driven ProgrammingߜWorks withTelephone PagersModel OMA-VM500A-6 monitors up to eight switch closures (dry contacts) which allows you to connect a wide variety of sensors such as magnetic door or window switches, thermostats, fluid level switches and motion sensors. The OMA-VM500A-6-LV monitors up to 8 switch closures (drycontacts) or 24 Vac/Vdc inputs. This dialer allows the user to program a “normal” state and a time delay for each input. A 5-second message can be recorded to define each input. An additional local identification message can be recorded to identify the dialer. When an input is different from the programmed “normal” state for longer than the time delay, the unit will dial up to 4 phone or pager numbers. The integrated voice tells the user which zone is in alarm and the current status. Call the unit at any time to hear a status report, including power status. The user can complete all programming over the phone by following simple voice instructions.Starts at$495OMA-VM500A-6, OMA-VM500A-6R, OMA-VM500A-6-LV, OMA-VM500A-6R-LV OMEGAPHONE ®Eight Channel Alarm DialersWhen the dialer goes into an emergency state, it will energize the alarm relay, activate the alarm buzzer, and begin makingemergency calls. When the unit dials a voice number, it will first play the local identification message and the current status of any inputs that caused the emergency state. The unit ceases to be in theemergency state once contact is made with the unit. When the dialer is in alarm condition, it will dial all programmed phone numbers until contact is made. If contact has not been made after dialing all phone numbers, the dialer will wait 20minutes and then begin calling again.This sequence is repeated until contact is made. When the dialer calls a voice phone number, it will play the local identification message and the current state of any input that caused an alarm and power status. The dialer will then prompt the user to enter the PIN. When the correct PIN is entered, contact has been made and the dialer will stop calling. If the dialer calls ananswering machine or voice mail,the dialer will leave the warning message and will continue to call.When the dialer calls a pager number, it will transmit the programmed local ID number, any inputs that have caused an alarm, and the line voltage (power)status.Contact is made when the user enters the 4-digit PIN number, or—if the user is on site—presses the cancel button located on the front of the dialer.If the input(s) return to the programmed “normal” states, the unit will also cease to be in the emergency state.Remotely Controlled Alarm Relay OptionModels with this option contain an alarm relay that may be controlled from a remote location through a standard touch tone telephone.OMEGACARE SM extended warranty program is available for models shown on this page.Ask your sales respresentative for full details when placing an order. OMEGACARE SM covers parts, labor and equivalent loaners.Ordering Example: OMA-VM500A-6-LV, 8-channel automatic alarm dialer with 24 Vac/Vdc or dry contact inputs and 20-hour batterybackup, OMEGACARE SM ,1-year extended warranty for OMA-VM500A-6-LV (adds 1 year to standard 1-year warranty), $495 + 49 = $544.OMA-VM500A-6, $495, shown smaller than actual sizeSpecificationsNumber of Inputs:8Input Type:OMA-VM500A-6-LV:Dry contact (NO or NC), 24 Vac 60Hz (acceptable range 17 to 48 Vac), or 24 Vdc (acceptable range 6 to 48 Vdc). The input types are switch selectable between dry contact and powered.OMA-VM500A-6:Dry contact, NO or NC Telephone:Standard RJ11 phone jack connectionTelephone Numbers: Stores up to 4phone numbers up to 20 digits long Personal IdentificationMessage:Records up to a 5-second message that identifies the dialer Individual ChannelIdentification Messages: Records up to a 5-second identification message for each inputOperation:Operates with answering machine on the same phone line Alarm Notification:Alarm buzzer sounds and alarm relay closes if any input(s) go into an alert condition Alarm Cancellation:Pushbutton on front of the unit silences the alarm and cancels emergency telephone callsAlarm Relay Output: 5 A, 125 VacAlarm Relay Operation:Energized during an emergency state; optional control viatouch-tone phone (models OMA-VM500A-6R-LV and OMA-VM5000A-6R)Power:Powered fromincluded 120 Vac wall mount transformer power supplyBattery Backup: 20-hour rechargeable battery backupOperating Temperature:0 to 52°C (32 to 125°F)Electrical Connections: Plug-in terminal block Dimensions:117 H x 223 W x 57 mm D (4.62 x 8.79 x 2.26")Material:ABS plastic Weight: 0.9 kg (2 lb)MOST POPULAR MODEL HIGHLIGHTED!OMEGACARE SM extended warranty program is available for models shown on this page.Ask your sales respresentative for full details when placing an order. OMEGACARE SM covers parts, labor and equivalent loaners.CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.fr Guyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis HeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。
Omega PHH-925和PHH-950pH电子表用户指南说明书
e-mail:**************PHH-925 and PHH-950pH MetersWARNING: These products are not designed for use in, and should not be used for, patient connected applications.Quick Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page ii IntroductionElectrode Connector Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 LCD Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ElectrodesPreparing pH and Ion Selective Electrodes. . . . . . . . . . . . . . . . 4 Preparing Conductivity Cells. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Connecting Electrodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Using and Storing Electrodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 pH Electrodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Solid-State FET Electrodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Ion Selective Electrodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Conductivity Cells. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Meter OperationSetup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Standardizing and Measuring pHpH StandardizatIon Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Standardizing and Measuring pH. . . . . . . . . . . . . . . . . . . . . . . 10 Clearing Buffers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Standardizing and Measuring mVRelative mV Standardization Menu. . . . . . . . . . . . . . . . . . . . . 12 Clearing Relative mV Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Standardizing and Measuring IonIon Standardization Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Standardizing and Measuring Ion. . . . . . . . . . . . . . . . . . . . . . . 14 Clearing Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Standardizing and Measuring ConductivityConductivity Standardization Menu. . . . . . . . . . . . . . . . . . . . . 15 Standardizing and Measuring Conductivity,Salinity,Resistivity or TDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Clearing Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Temperature Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Determining Temperature Coefficients. . . . . . . . . . . . . . . . . . . 18 Datalogging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Appendix A: Power Station and Docking Station. . . . . . . . . . . . . 20 Appendix B: Error Conditions and Troubleshooting. . . . . . . . . . . 22 Appendix C: Basic pH Theory. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Appendix D: Ion Selective Electrode Theory. . . . . . . . . . . . . . . . 26 Appendix E: Conductivity Theory. . . . . . . . . . . . . . . . . . . . . . . . . 27 Appendix F: Determining Isopotential Point. . . . . . . . . . . . . . . . . 28 Appendix G: Meter Specifications. . . . . . . . . . . . . . . . . . . . . . . . 30 Maintenance and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31The following quickly steps you through meter operation.For detailed instructions on each step,refer to the page(s) indicated.!Warning:Use of this product in a manner not specified by the manufacturer may impair any safety protection provid-ed by the equipment.This manual explains the operation of PHH-925 and PHH-950 meters for obtain-ing pH,mV,ion and conductivity (PHH-950) measurements.Before beginning,we recommend that you become familiar with the various features of your meter:Electrode Connector InputsTwist-Lock:Used for attaching pH/ATC,FET pH/ATC,conductivity/ATC cells or ATC (temperature) electrodes with the waterproof Twist-Lock connector.BNC:Used for attaching pH,ORP,or ISE electrodes with BNC connector. Reference: Used for attaching a sepa-rate reference probe.BatteriesThe meter requires four AA alkaline bat-teries (unless used with the optional Power or Docking Station).To install bat-teries,slide the compartment cover open by pressing in and down where indicat-ed.Position the batteries according to the directional markings and insert.Slide the cover closed.Note:Nickel-cadmium rechargeablebatteries can be used,but theiroperating life is half that of alkalinecells,and they cannot berecharged in the meter.LCD DisplayConnecting ElectrodesNote:If you install an electrode with aTwist-Lock connector,the meter automatically senses it and selects the appropriate mode and stan-dardize menus for that type of electrode.Glass pH/ATC,FET pH/ATC electrode,con-ductivity/ATC cell or ATC Probe (with Twist-Lock connector):Connect the electrode to the Twist-Lock input located at the top of the meter.Line up the white arrow and line on the elec-trode’s Twist-Lock connector and push until it locks in place.To disconnect,twist the connector ring in the arrow direction and pull apart.pH,ORP or ISE electrode (with BNC con-nector):Connect the electrode to the BNC input located at the top of the meter.Push in and rotate the electrode’s BNC connec-tor until it locks in place.To disconnect,twist the BNC connector in the opposite direction and pull.Electrode Pair Using a Reference Electrode (with Reference Pin Plug):Connect the indicating electrode to the BNC input.Connect the reference elec-trode to the Reference input.Push the electrode’s tip pin plug into the input toconnect and pull out to disconnect.BNCInputUsing and Storing ElectrodespH ElectrodesProvide moderate stirring for fasterelectrode response.Rinse the electrode between eachmeasurement with a portion of thenext sample or buffer to be measured, or with deionized or distilled water.Keep glass electrodes wet when notbeing used by moistening the cotton in their end covers with electrode fillingsolution and storing them with endcovers on,or by placing in their stor-age vials.Keeping glass electrodes “wet”willimprove their performance.In the lab,store electrodes in electrode filling solu-tion or storage solution (4M KCl).Forelectrodes used in field applications,occasionally leave them in solutions for several hours.Solid-State FET ElectrodeThe model PHH-925 allows use of both standard glass pH/ATC and Solid-State FET (Field Effect Transistor) pH/ATC elec-trodes.The meter can store a calibra-tion for both types of electrodes.Plugthe FET electrode into the Twist-lockinput.Allow the FET about 2 minutes to warm up and stabilize when first con-nected.The FET electrode can bestored dry or in electrode storage solu-tion.If the FET electrode remains con-nected to the meter (and batteries are in the meter),further warm up is notnecessary.Ion Selective ElectrodesAdd proper amount of Ionic StrengthAdjuster (ISA) to all standards andsamples.Provide moderate stirring for fasterelectrode response.Rinse the electrode(s) between eachmeasurement with a portion of thenext sample or standard to be mea-sured,or with deionized or distilledwater.In the lab,follow the instruction sheets for the individual electrode.Store asrecommended.Conductivity CellsRinse the cell between each measure-ment with a portion of the next sample or standard to be measured.Immerse the cell fully into the standard or sample to be measured,lift the cell to allow the solution inside the cell todrain,and immerse the cell again.Repeat three times.Stir briefly and tap the cell against the container bottom to dislodge airbubbles.Clean any deposits from the cell body by rinsing with deionized water andstore dry.E l e c t r o d e P o t e n t i a l ,m V Titrant Volume,mLRedox TitrationConductivity ConcentrationTC =Conductivity at TConductivity at T ref 100T – T refData toggles between thesescreensCommand FunctionKM ModeKS StandardizeKC ChannelKL SlopeKP PrintKT SetupKA Up ArrowKD DataKB Down ArrowKN EnterKO OffKX ClearKF±KG Decimal PointKE10xK(digit)Enter numeric digitThe complete pin connections for the dig-ital I/O connector to the docking station are below.Note:Some printers and computerserial ports will require only pins1-3 connection.Those requiringmore extensive handshakingmay require the other pin con-nections.Testing the Electrode and Meterin reference electrode.• Loose connector or cable.• Defective meter.The ion standard (mV signal) is too close to another standard.• The standards are made too closetogether (should be 10 fold apart).• Bad standards.• There is no ISA adjuster in the stan-dards.• Defective ISE or reference electrode.• Insufficient or incorrect filling solution inreference electrode.Conductivity out of range.Resistivity out of range.Salinity or TDS out of range.• Sample too high in conductivity formeter range with cell constant used.• Defective probe.• Defective meter.Temperature out of range.• Defective ATC probe.• Temperature manually entered out-side of -5 to 105°C.• Defective meter.The meter has lost calibration coefficients.• Battery backed memory has beencorrupted.(The memory does not usethe AA batteries for backup.There is aseparate lithium battery inside themeter.It is not user serviceable).• Factory service is required to re-cali-brate the meter for accurate mV,tem-perature,or conductivity measure-ments.pH,ion or conductivity mea-surements are still accurate after stan-dardization with buffers or standards. pH Theoryresearch and environmental monitoring.Ion-selective Electrodes (ISE’s) respond,more or less exclusively,to a specific type of ion in solu-tion.The particular ion to which an ISE responds depends on the chemical makeup of its sensing membrane.ISE’s operate accord-ing to a form of the Nerst equation:E = E o+ (2.303 RT/F) log aWhere:E= measured electrode potentialE o= standard potential of the system (con-stant)R = gas constantF = Faraday’s constantT = absolute temperaturea = activity of the ion interest in the solution Conductivity TheoryConductivity =1ResistivityTDS = Conductivity x Solids FactorWhere C = ConductivityT = Temperature °CpHRange:-2.000 to 20.000Resolution:0.1/0.01/0.001Accuracy:±0.002mVRange:±1,200Resolution:1/0.1Accuracy:±0.1mV over ±400mV:±0.2mV over ±1200mVZero temperature coefficient:0.01 mV/°C max.Scale temperature coefficient:85ppm/°C max.IonRange: 1.00E-9 to 9.99E9Resolution:1,2,or 3 significant figures Accuracy:0.17n%; where n equals electronsexchanged in the electrode reaction ConductivityConductivity0.01 – 300,000 µS/cm*Practical Salinity:0 to 42 ppt*NaCl equivalents:0 to 70 ppt*Resistivity:33 to 100 megohms*TDS:0.005 – 300,000 ppt*Resolution:1,2,3 or 4 significant figures Accuracy:±0.5% of reading ±0.01 µS/cm Temperature coefficient:0.001 µS/cm/°Cwith cell constant 1.0 cm-1Range 5:30,000 to 3,000 µS/cmRange 4:3,000 to 300 µS/cmRange 3:300 to 30 µS/cmRange 2:30 to 3 µS/cmRange 1: 3 to 0.3 µS/cmTemperatureRange-5°– 105°CResolution0.1°CAccuracy±0.3°C* dependent on cell constantWARRANTY/DISCLAIMERMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and orkmanship for a period of 37 months from date of purchase. OMEGA Warranty adds an dditional one (1) month grace period to the normal three (3) years product warranty to over handling and shipping time. This ensures that OMEGA’s customers receive maximum overage on each product.the unit should malfunction, it must be returned to the factory for evaluation. OMEGA’s ustomer Service Department will issue an Authorized Return (AR) number immediately upon hone or written request. Upon examination by OMEGA, if the unit is found to be defective it will e repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting om any action of the purchaser, including but not limited to mishandling, improper interfacing,peration outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence f being damaged as a result of excessive corrosion; or current, heat, moisture or vibration;mproper specification; misapplication; misuse or other operating conditions outside of OMEGA’s ontrol. Components which wear are not warranted, including but not limited to ontact points, fuses, and triacs.MEGA is pleased to offer suggestions on the use of its various products. However, MEGA neither assumes responsibility for any omissions or errors nor assumes liability for ny damages that result from the use of its products in accordance with information pro-ided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR MPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WAR-ANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY ISCLAIMED. LIMITATION OF LIABILITY : The remedies of purchaser set forth herein are xclusive and the total liability of OMEGA with respect to this order, whether based on con-ract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed he purchase price of the component upon which liability is based. In no event shall OMEGA e liable for consequential, incidental or special damages.ONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;r (2) in medical applications or used on humans. Should any Product(s) be used in or with any uclear installation or activity, medical application, used on humans, or misused in any way,MEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language,nd additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability r damage whatsoever arising out of the use of the Product(s) in such a manner.RETURN REQUESTS /INQUIRIESirect all warranty and repair requests/inquiries to the OMEGA Customer Service Department.EFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN UTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT N ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.he purchaser is responsible for shipping charges, freight, insurance and proper packaging to revent breakage in transit.OR WARRANTY RETURNS, please havehe following information available BEFOREontacting OMEGA:.P .O. number under which the product wasPURCHASED,.Model and serial number of the productunder warranty, and.Repair instructions and/or specificproblems relative to the product.FOR NON-WARRANTY REPAIRS,consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:1. P .O. number to cover the COST of the repair,2.Model and serial number of product, and 3.Repair instructions and/or specific problemsrelative to the product.MEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. his affords our customers the latest in technology and engineering.MEGA is a registered trademark of OMEGA ENGINEERING, INC.Copyright 1996 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,produced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, withoutior written consent of OMEGA ENGINEERING, INC.Where Do I Find Everything I Need for Process Measurement and Control?OMEGA…Of Course!TEMPERATUREⅪߜThermocouple, RTD & Thermistor Probes, Connectors, Panels & AssembliesⅪߜWire: Thermocouple, RTD & ThermistorⅪߜCalibrators & Ice Point ReferencesⅪߜRecorders, Controllers & Process MonitorsⅪߜInfrared PyrometersPRESSURE, STRAIN AND FORCEⅪߜTransducers & Strain GaugesⅪߜLoad Cells & Pressure GaugesⅪߜDisplacement TransducersⅪߜInstrumentation & AccessoriesFLOW/LEVELⅪߜRotameters, Gas Mass Flowmeters & Flow ComputersⅪߜAir V elocity IndicatorsⅪߜTurbine/Paddlewheel SystemsⅪߜTotalizers & Batch ControllerspH/CONDUCTIVITYⅪߜpH Electrodes, Testers & AccessoriesⅪߜBenchtop/Laboratory MetersⅪߜControllers, Calibrators, Simulators & PumpsⅪߜIndustrial pH & Conductivity EquipmentDATA ACQUISITIONⅪߜData Acquisition & Engineering SoftwareⅪߜCommunications-Based Acquisition SystemsⅪߜPlug-in Cards for Apple, IBM & CompatiblesⅪߜDatalogging SystemsⅪߜRecorders, Printers & PlottersHEATERSⅪߜHeating CableⅪߜCartridge & Strip HeatersⅪߜImmersion & Band HeatersⅪߜFlexible HeatersⅪߜLaboratory HeatersENVIRONMENTALMONITORING AND CONTROLⅪߜMetering & Control InstrumentationⅪߜRefractometersⅪߜPumps & TubingⅪߜAir, Soil & Water MonitorsⅪߜIndustrial Water & Wastewater TreatmentⅪߜpH, Conductivity & Dissolved Oxygen InstrumentsM2831/0298。
Omega智能热电偶连接器系统说明书
全无线热电偶连接器系统The Smart Connector™W-7U 用户可配置J 、K 、T 、E 、R 、S 、B 、 N 、C 型热电偶输入U 免费软件将您的PC 转换成多通道图表记录仪或数据记录器U 符合FCC 规定（所有型号）U 内置冷端补偿和线性化U 接受小型和标准型探头和连接器的专利设计U 一个接收器与多个无线远程连接器配合使用U 低功率运行和休眠模式以实现超长电池寿命U 每个无线连接器都将实时传输热电偶温度、环境温度、信号强度和电池状况U 与型号UWTC-REC1连接以实现多通道PC 图表记录和数据记录，或与型号UWTC-REC2连接（单通道工业收发器，带有模拟信号输出和报警）热电偶输入。
无线连接器。
Bumper Band ®将探头插入智能连接器即可制作智能传感器！有关可用的 接收器，请访问 c n .o me g a .c o mF C C /加拿大工业部，S R R C 认证OMEGA 的新型无线热电偶连接器系列提供独立、紧凑、电池供电的热电偶连接器，可将其读数传回最远距离120 m (400')的主机接收器。
每个装置均可现场编程，作为J 、K 、T 、E 、R 、S 、B 、N 或C 型校准连接器工作。
激活时，连接器将以初始设置期间用户编程的预设时间间隔连续传输读数。
每个装置均使用提供的软件测量和传输：热电偶使用提供的软件输入读数、连接器环境温度、射频信号强度和电池状况到主机并在PC 屏幕中实时显示。
与主机接收器配合使用时，可以接收和显示来自最多48个无线热电偶连接器的UWTC-REC1数据。
每个装置均含有免费软件，该软件可将您的PC 转换成条形图表记录仪或数据记录器，以便保存读数并在稍后打印或将读数导出为电子表格文件。
与主机收发器配合使用时，来自连接器的UWTC-REC2无线数据可以通过有线连接作为与控制器、PLC 或数据采集板接口的模拟电压、电流或热电偶信号重新传出接收器。
Omega 产品说明书
Conductivity Instrumentation, Dissolved Oxygen Instrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis Instrumentation
-29 and 60°C (-20 and 140°F) ߜ Up to 136°C (275°F) ߜ 2 Self-Closing Valves ߜ Heavy-Duty Design
Gauge
Adaptors
15 $
ea
Gauge Adaptor
OMEGA® self-sealing plugs will allow quick pressure and temperature readings and eliminate the need for leaving costly gauges or temperature indicators on the line. The OMEGA® plug is permanently installed in the line at recommended test points. The cap protects the valve and provides an additional positive seal. After the cap has been removed, either a test thermometer or a gauge adaptor with the proper pressure gauge attached can be inserted through the 2 self-closing valves in the plug. Readings are taken, adjustments or tests can be made, and when the probes are withdrawn, the 2 valves close. The protective cap is then reinstalled.
Omega学习手册
Omega学习手册Omega学习手册 0前言 (9)第一章陆地观测系统定义 (10)1.0 技术讨论 (10)1.1 模块简介 (10)1.2 Database and Line Information 观测系统和测线信息 (15)1.3 Geometry Database Creation 观测系统数据库创建 (15)1.4 Primary and Secondary Data Tables (16)1.5 Pattern Specifications (16)1.6 Field Statics Corractions (16)1.7 Trace Editing 道编辑 (19)第二章静校正 (24)第一节2-D 折射静校正（EGRM） (24)1.0 技术讨论 (24)1.1 简介 (24)1.2 第一步——对拾取值进行处理 (25)1.3 第二阶段---建立折射模型 (37)1.4 第3步——计算静校正 (46)1.5 特别选件 (49)1.6 海洋资料处理要考虑的因素 (53)1.7 控制手段 (53)参考文献： (63)3.0 道头总汇： (63)第二节三维折射波静校正 (64)1.0 技术讨论 (64)2.0 二维与三维折射静校正方法 (64)1.2 折射静校正计算原理 (65)1.3 初始值的给定 (67)1.4 最小二乘法延迟时的计算 (67)1.5 iterations (75)1.6 Diving Waves (81)1.7 建立折射模型 (84)1.8 uphole options (86)1.9 water uphole corrections (87)1.10 用井口信息修正风化层速度 (88)1.11 静校正量的计算 (89)1.12 地表基准面和剩余折射静校正 (90)1.13 定义偏移距范围 (91)1.14 定义速度 (91)1.15 延迟时控制 (92)1.16 观测系统、辅助观测系统和一些道头字的输入要求 (92)1.17 输出的库文件和道头字 (96)第三节反射波剩余静校正(miser) (97)2.0 地表一致性剩余静校正 (98)3.0 非地表一致性静校正 (102)第四节反射波最大叠加能量静校正计算 (103)1.0 模块简介： (104)2.0 应用流程： (105)3.0 分子动力模拟法的理论基础： (106)4.0 模块中参数的设计 (106)5.0 应用实例及效果分析 (110)第五节波动方程基准面校正 (113)1.0 技术讨论 (113)1.1 理论基础 (115)1.2 波动方程层替换的应用 (117)1.4 模块算法 (118)1.5 应用的方法 (120)第三章地表一致性振幅补偿 (127)第一节地表一致性振幅补偿–拾取（1） (127)1.0 技术讨论 (127)1.1 概况 (127)1.2 地表一致性振幅补偿流程 (128)1.3 振幅统计 (128)1.4 预处理/道编辑 (129)1.5 自动道删除 (129)1.6 模块输出 (130)1.7 分析时窗 (130)2.0 道头字总结 (131)3.0 参数设置概要 (131)4.0 参数设置 (131)4.3 Amplitude Reject Limits (132)第二节地表一致性振幅补偿–分解（2） (133)目录 (133)一、技术讨论 (134)二、道头字总结 (148)三、参数设置概述 (148)四、参数设置(简) (148)第三节地表一致性振幅补偿–应用（3） (149)目录 (149)一、技术讨论 (150)1.1 背景 (150)1.2 SCAC处理过程的流程图 (150)1.2.1 HIDDEN SPOOLING (151)1.3 模块概论 (152)二、道头字总结 (152)三、参数设置概述 (152)五、参数设置(略) (153)5.1 General (153)5.2 SCAC Term Application (153)5.3 Printout Options (153)第四节剩余振幅分析与补偿 (153)1.0 技术讨论： (153)1.1 背景 (154)1.2 模块的输入和输出 (155)1.3 分析过程概述 (155)1.4 分析参数表 (159)1.5 设置网格范围 (164)1.6 分析用时间门参数设定 (166)1.7 时空域加权 (167)1.8 打印选项参数设置 (168)1 .9 应用过程综述 (168)1.10 应用参数设置 (171)1.11 应用时间门参数设置 (173)1.12 RAC函数的质量控制 (174)1.13 在振幅随偏移距变化（A VO）处理中的注意事项 (175)1.14 背景趋势推算 (176)2.0 道头字总结 (176)3.0 参数设置摘要 (176)4.0 设置参数 (176)4.1 Units (176)4.2 General (176)4.3 Analysis (177)Primary Auto Range： (180)Secondary Auto Range： (180)4.6 Primary Manual Range 用于划分面元的首排序范围确定（手动设置） (180)4.7 Secondary Auto Range：用于划分面元的次排序范围确定（手动设置）1804.8 Analysis Time Gates ：分析时间门参数（可选） (181)4.9 Temporal Smoothing Weights at Top of Data （可选） (181)4.10 Temporal Smoothing Weights at Bottom of Data（可选） (181)4.11 Primary Spatial Smoothing Weights（可选） (182)4.12 Secondary Spatial Smoothing Weights（可选） (182)4.13 Application (182)4.14 Application Time Gates (183)5.0 参考流程 (183)第四章 (185)第一节瞬时增益 (185)1.0 技术讨论 (185)第二节指数函数增益 (188)1.1 背景 (188)1.2 梯度平滑 (189)2.0 道头总结 (191)3.0 参数设置概要 (191)4.0 参数设置 (191)4.1 General (191)5.0 应用实例 (192)第四章反褶积 (195)第一节地震子波处理(SWP)指导 (195)辅导班Tutorial (195)辅导班1 快速漫游（Quick Tour） (195)概要 (195)快速漫游: 基本训练 (195)辅导班2 –a 为信号反褶积准备一个子波 (203)辅导班2 –b 从野外信号中消除原始的仪器响应影响 (204)辅导班２–c 建立新的仪器响应和新的整形算子 (209)辅导班２– d 将滤波器保存到带通滤波作业文件中 (211)辅导班３用尖脉冲的逆做特征信号反褶积 (213)第二节子波转换应用指导 (215)子波训练 (215)第三节地表一致性反褶积分析 (218)地表一致性谱分解 (225)地表一致性反褶积算子设计 (249)反褶积算子的应用 (255)第四节谱分析 (273)第五节地表一致性反褶积分析 (297)第六节地表一致性谱分解 (302)第八节地表一致性反褶积算子设计 (320)第九节反褶积算子的应用 (325)第六章动校正 (345)第一节视各向异性动校正 (345)第七章各种理论方法简介 (355)第一节层速度反演方法简介 (355)1.1 层速度反演的几种方法 (355)1.1.1 相干反演 (356)1.1.2 旅行时反演 (357)1.1.3 叠加速度反演 (358)2.1 二维层速度反演 (359)2.1.1 相干反演计算的偏移距范围 (359)2.1.2 单个CMP位置超道集的选择 (359)2.1.3 相干反演中的互相关 (360)2.1.4 不确定值 (360)2.1.5 速度的横向变化 (360)3.1 三维层速度反演 (361)3.1.1 方位角范围 (361)3.1.2 相干反演 (362)3.1.3 叠加速度反演 (363)3.1.4 方位角 (364)3.1.5 DMO (364)3.1.6 射线追踪 (364)第二节射线偏移方法简介 (365)1.1 射线偏移 (365)1.2 向射线偏移与成像射线偏移 (367)第三节层位正演方法简介 (368)1.1 层位正演 (368)1.2 零偏移距正演 (369)1.3 成像射线追踪－从深度域到时间偏移域的零偏移距正演 (369)1.4 CMP射线追踪 (371)1.5 CRP正演 (371)1.6 3D正演 (372)1.7 速度正演 (372)1.8 浮动基准面与静校正的处理 (372)第四节扩展STOLT--FK 偏移 (373)概述 (373)1.0 技术讨论 (373)1.1 背景 (374)1.2 扩展STOLT算法 (374)1.3 扩展STOLT偏移的推荐参数 (376)1.4 截断速度和W因子 (377)1.5 框架速度（frame velocity） (378)1.6 速度的横向变化 (378)1.7 速度输入 (378)1.8 三维偏移 (379)1.9 反偏移 (379)1.10 反偏移到零偏移距的处理 (379)1.11 充零方式镶边 (380)1.12 边界处理 (380)1.13 频率内插 (381)1.14 随机波前衰减 (381)1.15 三维偏移中少道的情形 (381)1.16 时间内插 (381)第五节DMO 准备模块 (381)概述: (382)1.0 技术讨论： (382)1.1 理论基础 (382)1.2 递进叠加文件 (382)1.3 速度监控和非矩形网格 (383)1.4 倾角加权表 (383)1.5 统计分析 (383)1.6 层位属性分析 (384)1.7 位图化（Bitmapping） (384)1.8 均衡DMO (384)1.9 限定边界DMO (385)1.10 随意边界DMO (386)1.11 3D DMO Monitor (389)DMO 倾角校正 (390)（DMO X-T STACK）（2） (390)概述: (390)1.0 技术讨论 (390)1.1 简介 (390)1.2 递进叠加 (390)1.3 倾角时差校正（Dip Moveout）-DMO (391)1.4 处理类型 (392)1.5 DMO应用模式 (392)1.6 算子设计 (393)1.7 递进叠加文件 (393)1.8 固定边界和随意边界中的分片段叠加 (393)1.9 运行时间 (394)1.10 DMO处理流程 (394)DMO 输出模块 .............................................................................................................. - 396 - （DMO X-T OUT）（3）........................................................................................................ - 396 - 第八章多波多分量................................................................................................................ - 397 - 第一节多分量相互均衡.............................................................................................. - 397 -1.0 技术讨论......................................................................................................... - 397 -1.1 引言................................................................................................................. - 397 -1.2 数据的输入/输出............................................................................................ - 397 -1.3 背景介绍......................................................................................................... - 398 -1.4 原理................................................................................................................. - 398 -1.5 道头字集......................................................................................................... - 400 -1.6 三维实例......................................................................................................... - 401 -1.7 操作指南......................................................................................................... - 404 -第二节S波两分量旋转合成....................................................................................... - 408 -1.1 引言................................................................................................................. - 408 -1.2 背景介绍......................................................................................................... - 409 -1.3 输入数据......................................................................................................... - 410 -1.4 旋转的应用..................................................................................................... - 412 -1.5 测算水平方向................................................................................................. - 416 -第三节转换波速度比（Vp/Vs）计算 ..................................................................... - 417 -1.0 技术讨论......................................................................................................... - 418 -1.1 引言................................................................................................................. - 418 -1.2 输入速度和Vp/Vs文件 ................................................................................ - 418 -1.3 输出速度和Vp/Vs文件 ................................................................................ - 420 -1.4 有效Vp/Vs比值计算 .................................................................................... - 420 -1.5 S波速度计算(Vs) .......................................................................................... - 421 -1.6 平均Vp/Vs比值计算 .................................................................................... - 424 -第四节共转换点计算(CCP_BIN) ............................................................................. - 424 -1.0 技术简介......................................................................................................... - 425 -1.1 基础原理......................................................................................................... - 425 -1.2 更新道头字..................................................................................................... - 427 -1.3 输入速度和Vp/Vs比率文件 ........................................................................ - 427 -1.4 共转换点的计算方法..................................................................................... - 428 -1.5 时窗................................................................................................................. - 430 -1.6 操作指导......................................................................................................... - 431 -1.7 有关提高运行效率的指导............................................................................. - 433 - 第九章模型建立.................................................................................................................. - 435 - 第一节地震岩性模型建立.......................................................................................... - 435 -1.0 技术讨论......................................................................................................... - 435 -SLIM处理 ............................................................................................................... - 435 -1.2 概述................................................................................................................. - 436 -1.3 SLIM模型研究 .............................................................................................. - 437 -1.4 输入层的细分................................................................................................. - 441 -第二节地震岩性模拟属性分析.............................................................................. - 442 -1. 0 技术讨论........................................................................................................ - 442 -1.1 地震模拟模型处理......................................................................................... - 442 -1.2 概要............................................................................................................... - 442 -1.3 地震记录输入................................................................................................. - 443 -1.4 合成地震记录剖面图..................................................................................... - 443 -1.5 地球物理属性................................................................................................. - 444 -1.6 测井记录数据................................................................................................. - 445 -1.7 显示................................................................................................................. - 445 -第三节地震正演模拟模型生成................................................................................ - 445 -1.0 技术讨论......................................................................................................... - 445 -1.1 地震正演模拟模型处理................................................................................. - 446 -1.2 概要................................................................................................................. - 446 -1.3 SLIM模型讨论 .............................................................................................. - 446 -1.4 输入层的细分................................................................................................. - 450 -1.5 井记录............................................................................................................. - 451 -1.6 密度是速度的函数......................................................................................... - 451 - 第四节地震岩性模型优化.......................................................................................... - 453 - 技术讨论.................................................................................................................. - 453 -1.1 地震岩性模拟过程......................................................................................... - 453 -1.2 概要................................................................................................................. - 453 -1.3 问题的公式化................................................................................................. - 453 -1.4 计算方法......................................................................................................... - 455 -1.5 影响区域......................................................................................................... - 462 - 第五节地震岩性模拟控制点定义.............................................................................. - 464 -1.0 技术讨论......................................................................................................... - 464 -1.1 概要................................................................................................................. - 464 -1.2 二维控制点组................................................................................................. - 465 -1.3 三维控制点组................................................................................................. - 467 -前言自西方地球物理公司Omega处理系统引进以来，通过我院处理人员的不断开发，目前已成为西北分院的主力处理系统。
OMEGA用户手册 (5)
Step 30. Select the Deviation Control Type Submenu Press d . If flashing _DEV Deviation is displayed press a ,otherwise press b until flashing _DEV is shown. Now press d to store and go to next menu item.Step 31. Select the Latched Type SubmenuPress d . If flashing UNLT Unlatched is displayed press a ,otherwise press b until UNLT is displayed.Press d to store and advance to next menu item.Step 32. Select the Normally Open Type of Contact Closure SubmenuPress d . If flashing N.o.Normally Open is displayed,press a , otherwise press b until N.o.is displayed. Press d to store and advance to next menu item.Step 33. Select the Above Type of Active Submenu Press d . If flashing ABoV Above is displayed, press a ,otherwise press b until ABoV is displayed. Press d to store and advance to next menu item.Step 34. Enable Alarm 1 at Power On (A.P.oN )Press d . If flashing ENBL is displayed, press a , otherwise press b until ENBL is displayed. Press d to store and advance to next menu item.Step 35. Enter Alarm 1 High SubmenuPress a twice to skip ALR.L Alarm 1 Low value. ALR.L is for below & ALR.H for above.Step 36. Set the Alarm 1 High value (ALR.H )Press d . Press b or c until value to set the display to 002.0. Press d to save.Step 37. Enter the Alarm 2 MenuThe display will show ALR2the top menu for Alarm 2.Repeat steps from 28 to 36 to set for Alarm 2 the same conditions as for Alarm 1.Step 38. Skip the Loop Break Time Menu (LOOP )Press a to go to the OUT1Output 1 Menu item.Step 39. Configuration the Output 1 MenuSet Alarm 1 Disabled (Step 29) to be able to Enable Output 1.Configure Out 1 as CTRL / PID , ACTN / RVRS , AUTO /DSBL , ANTL / ENBL , PRoP / 000.5, REST / 0180, RATE /018.0, CYCL / 0010and DPNG / 0003. Please refer to the operator’s manual if needed. Press d to save and go to the next menu item.Step 40. Configuration of Display Color Selection Press a until the COLR Display Color Selection Menu appears on the Display. Configure COLR as N.CLR / GRN (green), 1.CLR / RED (red), 2.CLR / AMBR (amber). Please refer to the operator’s manual if needed.Step 41. Run a TestPress a until reset the controller and return to RUN Mode to display 075.0(Ambient Temperature). Now you are ready to observe temperature as it rises 10°F higher thandisplayed. Touch the tip of the Thermocouple to raise the temperature above the Alarm 2 High value 082.0, and AL2will turn on, and Display Color will change from Green to Amber. Continue touching the tip to raise the temperature above the Alarm 1 High value 087.0and Display Color will change from Amber to Red. Annunciator “1” is turning on and off displaying output 1.Step 11. Enter to the Thermocouple Type Input Submenu Press d to display flashing, previously selected Thermocouple type.Step 12. Scroll through available selection of TC types Press b to sequence thru flashing Thermocouple types,(select k -for type "K" CHROMEGA ®/ALOMEGA ®)J K T E N DIN J R S B C - TC types J k t E N dN J R S b C - DisplayStep 13. Store TC typeAfter you have selected the Thermocouple type press d to store your selection, the instrument automatically advances to the next menu item.Step 14. Enter to Reading Configuration MenuThe display shows RDG Reading Configuration, which is the top menu for 4 submenus: Decimal Point, Degree Units,Filter Constant and Input/Reading Submenus.Step 15. Enter to Decimal Point submenu Press d to show DEC Decimal Point.Step 16. Display the Decimal Point positionPress d again to display the flashing Decimal Point position.Step 17. Select the Decimal Point position Press b to select FFF.F Decimal Point position.Step 18. Store selected Decimal Point positionBy pressing d momentarily the Decimal Point position will be stored and the instrument will go to the next menu item.Step 19. Enter to Temperature Unit Submenu Display shows TEMP Temperature Unit.Step 20. Display available Temperature Units Press d to display the flashing Degree °F or °C .Step 21. Scroll through Temperature Units selection Press b to select °F Degree.Step 22. Store the Temperature UnitPress d to display momentarily that the Degree Unit has been stored and the instrument will go automatically to the next menu item.Step 23. Enter the Filter Constant Submenu Display shows FLTR Filter Constant Submenu.Step 24. Display the Filter Constant value Submenu Press d to display the flashing, previously selected Filter Constant.Step 25. Scroll through available Filter Constants Press b to sequence thru Filter Constants 0001, 0002,0004, 0008, 0016, 0032, 0064and 0128.Step 26. Store the Filter ConstantPress d momentarily to store 0004Filter Constant and the instrument will automatically go to the next menu item.Step 27. Enter Alarm 1 MenuThe display will show ALR1the top menu for Alarm 1. In the following steps we are going to enable Alarm 1, Deviation,Unlatch, Normally Open, Active Above, Enable at power on and +2°F High Alarm i.e. Process Value > Setpoint 1 Value +2°F will activate Alarm 1.If Analog Output Option is installed and enabled, the controller will skip Alarm 1 Menu item to Analog Output.Step 28. Enter Alarm 1 Enable/Disable Submenu Press d to display flashing DSBL / ENBL .Step 29. Enable Alarm 1 SubmenuIf flashing ENBL is displayed, press a , if DSBL is displayed,press b until ENBL is displayed, then press d to store and go to the next menu item.MQS3353/1204SPECIFICATIONAccuracy:+0.5°C temp;0.03% rdg. process typical Resolution:1°/0.1°; 10 µV process Temperature Stability:0.04°C/°C RTD;0.05°C/°C TC @ 25°C (77°F); 50 ppm/°C process Display:4-digits, 9-segments LED,10.2 mm (0.40") with red, green and amber programmable colors Input Types:Thermocouple, RTD, Analog Voltage and Current TC: (ITS 90)J, K, T, E, R, S, B, C, N, L RTD: (ITS 68)100/500/1000 ohm Pt sensor2-, 3-, or 4-wire; 0.00385 or 0.00392curve Voltage:0 to 100 mV, 0 to 1 V, 0 to 10 Vdc Current:0 to 20 mA (4 to 20 mA)Output 1:Relay 250 Vac @ 3 A Resistive Load,SSR, Pulse, Analog Voltage and Current Output 2:Relay 250 Vac @ 3 A Resistive Load,SSR, PulseOptions:Communication RS-232 / RS-485 orExcitation:24 Vdc @ 25 mAExc. not available for Low Power OptionLine Voltage/Power:90 - 240 Vac ±10%,50 - 400 Hz*, or 110 - 375 Vdc, 4 W* No CE compliance above 60 HzLow Voltage Power Option:12 - 36 Vdc, 3 W****Units can be powered safely with 24 Vac but No Certification for CE/UL are claimed.Dimensions:25.4 H x 48 W x 126.3 D mm (1.0 x 1.89 x 5")Weight:127 g (0.28 lb)Approvals:UL, UL-C, CE per EN61010-1:2001It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.OEMGA is constantly pursuing certification of its products to the European New Approach Directives.OMEGA will add the CE mark to every appropriate device upon certification.The information contained in this document is believed to be correct, but OMEGA Engineering,Inc.accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.TRADEMARK NOTICE:®,®,, and are Trademarks ofOMEGA ENGINEERING, INC.®This Quick Start Reference provides informationon setting up your instrument for basic operation.The latest complete Communication and OperationalManual as well as free Software and ActiveX Controlsare available at /specs/iseries oron the CD-ROM enclosed with your shipment. SAFETY CONSIDERATIONThe instrument is a panel mount device protected in accordance with EN61010-1:2001. Remember that the unit has no power-on switch. Building installation should include a switch or circuit-breaker that must be compliant to IEC 947-1 and 947-3.SAFETY:•Do not exceed voltage rating on the label located onthe top of the instrument housing.•Always disconnect power before changing signal andpower connections.•Do not use this instrument on a work bench withoutits case for safety reason.•Do not operate this instrument in flammable orexplosive atmospheres.•Do not expose this instrument to rain or moisture. EMC:•Whenever EMC is an issue, always use shielded cables.•Never run signal and power wires in the same conduit.•Use signal wire connections with twisted-pair cables.•Install Ferrite Bead(s) on signal wire close to theinstrument if EMC problems persist.Panel Mounting Instruction:ing the dimensions from the panel cutout diagramshown above, cut an opening in the panel.2.Insert the unit into the opening from the front of thepanel, so the gasket seals between the bezel and thefront of the panel.3.Slide the retainer over the rear of the case and tightenagainst the backside of the mounting panel.ST ART HERE。
Omega Universal Gas 99300679 和 99300678 远程控制器用户手册说
COMPATIBILITY• 564 SS* • 864 TRV* • 864 HH • 864 ST* • 21 DV / TRV* • FPX 44 DV XXL • 36 DV XXL **• DVS Insert EFII (‘08 rev 2) • DVL Insert EFII (‘08 rev 2) • Avalon Prairie* • Avalon Cedar* • Avalon Tree of Life*• Lopi Berkshire* • Lopi Heritage • Lopi Sturbridge* • Lopi Sweet Dreams**Requires Optional Blower**Requires an additional heat shield assembly (part # 250-01073)ITEMS NEEDED FOR ASSEMBLY• Two (2) AAA Batteries (sample batteries are included for set-up)PACKING LISTRemote TransmitterMounting BracketModulating Regulator (with screws, gasket)Torx T-20 Ball-End Wrrench(2) Double-Back Tape (2) Nuts(Sturbridge Only)ANTENNA PLACEMENTThe receiver is shipped with the antenna wrapped around the wiring harness. In most installations, the receiver will work properly with the antenna left in this position. However, if you are experiencing inadequate radio range, you may wish to unwrap the antenna and place it in a position closer to the living area (see the illustration to the right).FCC EQUIPMENT REQUIREMENTSharness and unwrap the wire.WARNING : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiver.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.INSTALLATION WARNINGS!Place the remote receiver in the location detailed in these instructions. Placing the receiver in other locations may cause the receiver to become too hot and degrade.!All 110 AC wiring must be done by a qualified electrician and shall be in compliance with local codes and the National Electric Code ANSW/NFPA no. 70 (in the United States).!This kit must be installed by a qualified technician.!Do not connect 110 VAC to the gas control valve or on/off switch.!The remote control is carefully engineered and MUST be installed only as specified. It is tested safe when installed in accordance with this installation manual If you modify it or any of its components, you may possibly cause a fire hazard. It is your responsibility to read all instructions before starting installation and to follow these instructions carefully during installation.!Disconnect the power (turn off the household breaker) and shut off the gas supply to the heater before installing the remote control.Modulating Regulator InstallationHINT : You may wish to loosen the valve mount brackets to allow for better access.Remove the regulator using the included Torx T-20 Ball-End "L" wrench. Make sure to remove and discard the old gasket and spring.Place the modulating regulator (and gasket) on the valve. Insert the three screws included with the regulator into place. Tighten each screw in an alternating pattern to insure the regulator (and gasket) installs flat onto the valve. Fullytighten the screws (25 In.Lb.).NOTE : this illustration shows the gas control valve with the inlet to the left. Certain models may have the valve rotated 180°.Attach the two remote on/off wires (red and brown) from the wiring harness to the top and bottom terminals on the gas control valve (orientation does not matter).Start the main burner and throughly leakcheck the regulator area.Special Instructions for 44 DV, 36 DV, and 864HH (SN 3407-001010 or greater) Installations Without the Power Heat Duct:Remove the two wires currently connected to the snap disk on the fireplace. Attach the two wires labeled "Optional Snap Disk" to the snap disk (orientation does not matter).Installations With the Power Heat Duct:Attach the snap disk included with the power heat duct to the bottom of the firebox. Attach the two wires labeled "Optional Snap Disk" to this snap disk (orientation does not matter).44 DV XXL or 36 DV XL864 HHRemove this cover plate. Usethe screws that held the coverplate in place to secure thesnap disk (included with thepower heat duct) to the fireboxfloor.Receiver Installation – 864 TRV, 864 HH, 864 ST, or 564 SS”.IF NOT USING AN ACCENT LIGHTSecure the two white wires, making sure they do not contact the burner or any moving parts.wish to remove the remote). Attach the molex connector from the receiver to the molex connector on the appliance. Make sure the wires do not contact the burner or any moving parts.Attach the two wires labeled "SOLENOID OPTIONAL" to the modulating regulator (orientation does notmatter).Receiver Installation – 21 DV, 21 TRV, and Sweet Dreams Attach the two wires labeled "SOLENOIDburner or any moving parts (use lock ties if necessary). NOTE: When installing the receiver, make sure to place the receiver with the "Learn" button in a forward position. Before replacing the control cover, make sure to verify the remote works correctly. Once the control cover is installed, the "Learn" button can not be readily accessed.”. IF NOT USING AN ACCENT LIGHT Secure the two white wires, making sure they do not contact the burner or any moving parts.Remove the jumper connector on the wiring harness and place it near the gas control valve (it is required if you wish to remove the remote). Attach the molex connector from the receiver to the molex connector on the appliance.Receiver Installation – 44 DV XXL and 36 DV XLof the fireplace.Receiver Installation – DVS and DVL InsertReceiver Installation –Berkshire, Prairie, and CedarBend the receiver bracket as shown below.Attach the two pieces of double-sided tape to thebracket. Place the receiver as shown on top of the tape.Bend the side tab inwards as shown below.IF NOT USING AN ACCENT LIGHTSecure the two white wires, making sure they do not contact the burner or any moving parts.Bend the receiverbracket as shown below.Attach the two pieces of double-sided tape to thebracket. Place the receiver as shown on top ofthe tape, making sure it is all the way back.Bend the side tab inwardsas shown below.parts).matter).control valve (it is required if you wish to remove the remote). Attach the molexconnector from the receiver to the molex connector on the appliance. Makesure the wires do not contact the burner or any moving parts.Bend the receiverbracket as shown below.Attach the two pieces of double-sided tape to the bracket. Place the receiver as shown on top of the tape.Bend the side tab inwards as shown below.and slide the bracket into place.Accent Light Receiver ConnectionFor those models using the accent light, follow the directions below to connect the accent light to the remote receiver.This will allow you to control the accent light with the remote control.864 TRV, 864 HH, 864 ST, or 564 SSBefore You Begin:Note:The pilot flame must be lit, the gas control valve turned to “ON ” and the on/off switch turned “OFF.”Warning:Read all of the safety precautions in the owner ’s manual included with your heater before using this remote control.Radio Range:Be aware that factors in your home such as florescent lights, microwave ovens, and obstructions can affect radio range. Also, do not place the remote on a metal surface. Before you leave the fireplace unattended while in thermostat mode, test to make sure the fireplace can clearly receive signals from the remote. You can test the remote by turning the fireplace on and off from the location you plan on leaving the remote. See “Antenna Placement ” in the installation instructions for details on improving radio reception.Installing the BatteriesRemove the cover from the back of the transmitter and insert two "AAA" batteries as shown.Insert 2 “AAA ” batteries.Calibrating the Remote to the ReceiverEach remote has a unique identification. To calibrate it to the receiver in the heater, follow the directions below.With the receiver pluggedPress the “MODE ” button on The remote will beep fivetimes to indicate thereceiver is calibrated.Remote Set-Up1Follow step “a” shown below to enter set-up mode.NOTE: At any time you may exit set-upmode by pressing “OK” repeatedly.Use the “UP” and “DOWN”buttons to adjust the settings.“OK” button to 2Press the “UP” or “DOWN” button for each of the settings shown in the table below. When thedesired setting is achieved, press “OK” to accept the setting.Celcius / Fahrenheit Set the remote to display Celcius (“C” will appear next to the temperature) orFahrenheit (“F”).Anticipator The anticipator setting (also called the “lag” or “differential”) is used to keepthe thermostat from turning the heater on and off repeatedly. This setting isset in degrees (S1, S2, S3). It determines at what point above or below thedesired heat setting the thermostat will signal the heater to turn on or off. Thehigher the anticipator setting, the less frequently the heater will turn on andoff. The default setting is S2 (+2° / -2°).NG / LP Change this to the fuel type being used.Clock – Hour Set this to the correct hour (make sure the AM / PM display is correct)Clock- Minute Set this to the correct minute.The Two Modes of OperationThe thermostat can be operated in the following two modes:NOTE: The remote sends a verification signal to the receiver every fifteen minutes. If the transmitter is moved to a location out of range, or the batteries are dead, the heater will shut down after 2 hours unless the remote can re-establish contact with the receiver.Manual (“ON” / “OFF”) Use the remote to turn the heater on and off.HINT: The heater will remain on continuously in manual mode until it is shut off. Use the timerfunction if you wish to have the heater shut off after a certain interval.Press the "MODE" button to turn the heater on and off.NOTE: when the word "THERMO" appears here, the remote is in thermostat mode.Thermostat (“THERMO”) This mode turns the heater on and off automatically to achieve a pre-set temperature. To Start Thermostat Mode:“THERMO” appears.To Adjust the Target Temperature:Use the “UP” and “DOWN” buttons to adjust the targettemperature (“SET”).The heater will turn on and off to keep the roomtemperature near the target temperature.Important Operational Note:The thermostat will turn on and off based upon theAnticipator setting (see “Set-Up” for details).Hint:If your heater turns on and off frequently, adjust the flameheight down slightly for a more consistent heat output.Heater AdjustmentsFlame HeightNOTE: The heater must be onfor this feature to operate.NOTE: The flame adjustmentmay take 5 to 10 seconds for avisible difference in flame size.TO ADJUST FLAME HEIGHT Press the “FLAME”desired setting appears in the display.1 = LOW2 = MEDIUM3 = HIGHFan SpeedNOTE: The fan will not turn onuntil the heater is up totemperature (it will also shutdown once the heater hascooled).NOTE: When the heater is firststarted the default fan speed willbe 1 (“LOW”).NOTE: The fan speed can notbe changed unless the heater ison.TO ADJUST FAN SPEED Press the “FAN” button until the desired setting appears in the display.1 = LOW2 = MEDIUM3 = HIGHOFFAccent LightNOTE: The light will remain onwhether the heater is on or off.Make sure to shut off the accentlight to prevent the light bulbfrom burning out.TO ADJUST ACCENT LIGHTPress the “LIGHT”desired setting appears in thedisplay.1 = LOW2 = MEDIUM3 = HIGHOFFAdditional FeaturesTimedThis feature allows you to set the time you wish the heater to remain on (up to 3 hours).Timed Feature While in Manual Mode: The remote will turn the heater on for the allotted time, after which the heater will shut off.Timed Feature While in Thermostat Mode: If the remote is in thermostat mode, the timer feature will only turn the heater on while the target temperature is higher than room temperature.After the allotted time passes, the remote will turn off and switch to manual mode.NOTE: At any time if you wish to turn off timer, press the “TIMER ” button.Make sure the remote is in the ON positionUse the “UP ” and “DOWN ” buttons to adjust the timer in 10 minute increments. When the desired time is set, do not press any more buttons (or press the “OK ” button) and the timer will automatically start in 5seconds.Child Proof The child proof feature disables the remote transmitter, preventing un-intended operation.WHEN IN CHILD PROOF MODE - No buttons will work, and if you hold down a button for a second, the letters “CP ” will appear.TO TURN OFF CHILD PROOF MODE Press and hold the “FLAME ” andunmarked button for 5 seconds until the letters “CP ” disappear from the display.Additional Features (continued)Power Outages Because the remote utilizes a modulating actuator on the flame height regulator, the flame height will go to 20% during a power outage. To over-ride this, and make the heater burn at 100%,follow the directions below. Use the switch on the heater to turn the heater on and off.the clear plasticregulator coverfragile).Remove the pin heldin this hole.Place the pininto this hole.Low Battery Indicator The remote will display the following indicator when the batteries run low. This indicatesthe batteries have approximately 2 – 4 weeks of operation before the remote will nolonger work.Low Battery IndicatorRemote Failure The remote sends a verification signal to the receiver every fifteen minutes. If thetransmitter is moved to a location out of range, or the batteries are dead, the heater willshut down after 2 hours unless the remote can re-establish contact with the fireplace. Ifusing this remote as a thermostat, remember to check the batteries often.Thermal Safety If the receiver (inside the fireplace or near the stove or insert) reaches a temperature of170° F., it will shut down the heater and start beeping (4 beeps every 2 seconds). It willthen remain off until the temperature lowers to 160° F. At that time the user may turn theheater on again.。
Omega 产品说明书.pdf_1718701770.5974028
Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course!Shop online at SMTEMPERATUREThermocouple, RTD & Thermistor Probes,Connectors, Panels & AssembliesWire: Thermocouple, RTD & ThermistorCalibrators & Ice Point ReferencesRecorders, Controllers & Process MonitorsInfrared PyrometersPRESSURE, STRAIN AND FORCETransducers & Strain GagesLoad Cells & Pressure GagesDisplacement TransducersInstrumentation & AccessoriesFLOW/LEVELRotameters, Gas Mass Flowmeters & Flow Computers Air Velocity IndicatorsTurbine/Paddlewheel SystemsTotalizers & Batch ControllerspH/CONDUCTIVITYpH Electrodes, Testers & AccessoriesBenchtop/Laboratory MetersControllers, Calibrators, Simulators & PumpsIndustrial pH & Conductivity Equipment DATA ACQUISITIONData Acquisition & Engineering SoftwareCommunications-Based Acquisition SystemsPlug-in Cards for Apple, IBM & CompatiblesData Logging SystemsRecorders, Printers & PlottersHEATERSHeating CableCartridge & Strip HeatersImmersion & Band HeatersFlexible HeatersLaboratory HeatersENVIRONMENTAL MONITORINGAND CONTROLMetering & Control InstrumentationRefractometersPumps & TubingAir, Soil & Water MonitorsIndustrial Water & Wastewater TreatmentpH, Conductivity & Dissolved Oxygen InstrumentsM4643/0409e-mail:**************For latest product manuals:MADE IN TAIWANHHB1500Data Logging Video Borescope SystemsServicing North America:U.S.A.:ISO 9001 CertifiedOMEGA Engineering, Inc., One Omega Drive, P.O. Box 4047, Stamford, CT 06907-0047 USA Toll-Free: 1-800-826-6342TEL: (203) 359-1660FAX: (203) 359-7700e-mail:**************Canada:976 BergarLaval (Quebec), Canada H7L 5A1Toll-Free: 1-800-826-6342TEL: (514) 856-6928FAX: (514) 856-6886e-mail:*************For immediate technical orapplication assistance:U.S.A. and Canada:Sales Service: 1-800-826-6342/1-800-TC-OMEGA Customer Service: 1-800-622-2378/1-800-622-BEST Engineering Service: 1-800-872-9436/1-800-USA-WHEN Mexico:En Español: 001 (203) 359-7803FAX: (001) 203-359-7807e-mail:**************.mx*****************OMEGAnet ®l i a m -e t e n r e t n I ec i v r e S e n i L -n O mo c.a g e m o @o f n i m o c .a g e m o It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pur-suing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains,and reserves the right to alter specifications without notice.WARNING: These products are not designed for use in, and should not be used for, human applications.Benelux:Managed by the United Kingdom Office Toll-Free: 0800 099 3344 TEL: +31 20 347 21 21FAX:+31206434643e-mail:**************Czech Republic:Frystatska 184, 733 01 Karviná, Czech Republic Toll-Free: 0800-1-66342 TEL: +420-59-6311899FAX: +420-59-6311114 e-mail:*****************OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.OMEGA is a registered trademark of OMEGA ENGINEERING, INC.© Copyright 2009 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced,translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.RETURN REQUESTS / INQUIRIESDirect all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence. The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit. Servicing Europe:FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:1.Purchase Order number under which the product wasPURCHASED,2.Model and serial number of the product under warranty, and 3.Repair instructions and/or specific problems relative to the product.FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the followinginformation available BEFORE contacting OMEGA:1. Purchase Order number to cover the COST of the repair,2.Model and serial number of the product, and 3.Repair instructions and/or specific problems relative to the product.France:Managed by the United Kingdom Office Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00FAX:+33(0)130575427e-mail:**************Germany/Austria:Daimlerstrasse 26D-75392 Deckenpfronn, GermanyToll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0FAX:+49(0)70569398-29e-mail:*************United Kingdom: ISO 9001 Certified OMEGA Engineering Ltd.One Omega Drive, River Bend Technology Centre, Northbank, Irlam, ManchesterM44 5BD England Toll-Free: 0800-488-488TEL: +44 (0)161 777-6611FAX: +44 (0)161 777-6622e-mail:**************.ukUser Guide1 CONTENTProduct Features------------------------------------ 2 First Time Use---------------------------------------- 4 System Modes---------------------------------------- 4 Multi-function keys---------------------------------- 5 Manual Screen--------------------------------------- 6 Operating Instructions----------------------------- 8 Power On/Off------------------------------------------ 8 Adjust the brightness------------------------------ 8 Taking Photos-----------------------------------------8 Video Recording------------------------------------- 9 Viewing photos/videos-----------------------------9 Setting Time/Date------------------------------------10 Setting Time Display--------------------------------10Viewing on a TV monitor---------------------------------11 Setting video format---------------------------------------11 Deleting a specific photo (Browse mode only)---12 Deleting all photos-----------------------------------------12 Setting auto power off------------------------------------13 Re-charging the battery----------------------------------13 Creation of Memory Card Folder--------------------- 13 Specifications-----------------------------------------------15 Troubleshooting--------------------------------------------16 Insert Tube Maintenance---------------------------------17 Cautions for Use--------------------------------------------18WARRANTY/DISCLAIMEROMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. The OMEGA WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, in cluding but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modi fication. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; or misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, an d triacs. OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages. CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.(Figure.8)2000/01/10 10:22:22DELETE yes no。
Omega 产品参考手册说明书
Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course!Shop online at SMTEMPERATUREThermocouple, RTD & Thermistor Probes,Connectors, Panels & AssembliesWire: Thermocouple, RTD & ThermistorCalibrators & Ice Point ReferencesRecorders, Controllers & Process MonitorsInfrared PyrometersPRESSURE, STRAIN AND FORCETransducers & Strain GagesLoad Cells & Pressure GagesDisplacement TransducersInstrumentation & AccessoriesFLOW/LEVELRotameters, Gas Mass Flowmeters & Flow Computers Air Velocity IndicatorsTurbine/Paddlewheel SystemsTotalizers & Batch ControllerspH/CONDUCTIVITYpH Electrodes, Testers & AccessoriesBenchtop/Laboratory MetersControllers, Calibrators, Simulators & PumpsIndustrial pH & Conductivity Equipment DATA ACQUISITIONData Acquisition & Engineering SoftwareCommunications-Based Acquisition SystemsPlug-in Cards for Apple, IBM & CompatiblesData Logging SystemsRecorders, Printers & PlottersHEATERSHeating CableCartridge & Strip HeatersImmersion & Band HeatersFlexible HeatersLaboratory HeatersENVIRONMENTAL MONITORINGAND CONTROLMetering & Control InstrumentationRefractometersPumps & TubingAir, Soil & Water MonitorsIndustrial Water & Wastewater TreatmentpH, Conductivity & Dissolved Oxygen InstrumentsM4770/0509e-mail:**************For latest product manuals:User’Shop online atMADE IN TAIWANHHB1800Wireless BorescopeServicing North America:U.S.A.:ISO 9001 CertifiedOMEGA Engineering, Inc., One Omega Drive, P.O. Box 4047, Stamford, CT 06907-0047 USA Toll-Free: 1-800-826-6342TEL: (203) 359-1660FAX: (203) 359-7700e-mail:**************Canada:976 BergarLaval (Quebec), Canada H7L 5A1Toll-Free: 1-800-826-6342TEL: (514) 856-6928FAX: (514) 856-6886e-mail:*************For immediate technical orapplication assistance:U.S.A. and Canada:Sales Service: 1-800-826-6342/1-800-TC-OMEGA Customer Service: 1-800-622-2378/1-800-622-BEST Engineering Service: 1-800-872-9436/1-800-USA-WHEN Mexico:En Español: 001 (203) 359-7803FAX: (001) 203-359-7807e-mail:**************.mx*****************OMEGAnet ®l i a m -e t e n r e t n I ec i v r e S e n i L -n O mo c.a g e m o @o f n i m o c .a g e m o It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pur-suing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains,and reserves the right to alter specifications without notice.WARNING: These products are not designed for use in, and should not be used for, human applications.Benelux:Managed by the United Kingdom Office Toll-Free: 0800 099 3344 TEL: +31 20 347 21 21FAX:+31206434643e-mail:**************Czech Republic:Frystatska 184, 733 01 Karviná, Czech Republic Toll-Free: 0800-1-66342 TEL: +420-59-6311899FAX: +420-59-6311114 e-mail:*****************OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.OMEGA is a registered trademark of OMEGA ENGINEERING, INC.© Copyright 2009 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced,translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.RETURN REQUESTS / INQUIRIESDirect all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence. The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit. Servicing Europe:FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:1.Purchase Order number under which the product wasPURCHASED,2.Model and serial number of the product under warranty, and 3.Repair instructions and/or specific problems relative to the product.FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the followinginformation available BEFORE contacting OMEGA:1. Purchase Order number to cover the COST of the repair,2.Model and serial number of the product, and 3.Repair instructions and/or specific problems relative to the product.France:Managed by the United Kingdom Office Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00FAX:+33(0)130575427e-mail:**************Germany/Austria:Daimlerstrasse 26D-75392 Deckenpfronn, GermanyToll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0FAX:+49(0)70569398-29e-mail:*************United Kingdom: ISO 9001 Certified OMEGA Engineering Ltd.One Omega Drive, River Bend Technology Centre, Northbank, Irlam, ManchesterM44 5BD England Toll-Free: 0800-488-488TEL: +44 (0)161 777-6611FAX: +44 (0)161 777-6622e-mail:**************.ukCONTENTSProduct Features-----------------------------------------------2 Before Use--------------------------------------------------------4 System Modes---------------------------------------------------5 Multi-function keys-----------------------------------------6 Manual On Screen----------------------------------------- 7 DELETE ALL--------------------------------------------------7 VIDEO OUTPUT--------------------------------------------- 7 DATE/TIME SETUP-----------------------------------------8 LANGUAGE---------------------------------------------------8 VIDEO FORMAT ---------------------------------------------8 AUTO POWER OFF-----------------------------------------8 Channel Adjusting----------------------------------------------9 Operating Instructions--------------------------------------10 Power On/Off-----------------------------------------------10 Change from Wireless to Direct Mode-----------------10 Control Handle Indicator Lights----------------------11 Taking Photos----------------------------------------------11Video Recording-------------------------------------------11 Viewing photos/videos----------------------------------12 Setting Time/Date-----------------------------------------12 Setting Time Display-------------------------------------13 Viewing on a TV monitor-------------------------------13 Setting video format-------------------------------------14 Deleting a specific photo (Browse mode only)-14 Deleting all photos---------------------------------------15 Setting auto power off-----------------------------------15 Re-charging the battery-------------------------------------16 Creation of Memory Card Folder--------------------17 Specifications--------------------------------------------------18 Troubleshooting-----------------------------------------------20 Insertion Tube Maintenance-------------------------------20 Cautions for Use----------------------------------------------21WARRANTY/DISCLAIMEROMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. The OMEGA WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, in cluding but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modi fication. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; or misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, an d triacs. OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages. CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.Product Features1 – Handle(1) Insert Tube(2) On/Off Switch & Light Source Adjustment (3) Camera Lens (4) Insert Tube Connector2 – Console (2) SNAP (4) PREVIOUS (5)NEXT(6) OK/MENU (7) ESC (8) SD Port (9) Video Output (10) AC Jack(Please read the entire instruction manual before usage)Handle/Controllereh t f ono i t an i mu l l iy bdewo l l o f”k c i l c“ar aehadjacent green light.the console for 3 seconds until the image isdisplayed on the monitor.STEP 4 - Aim the camera lens at the selected object.Press SNAP to capture a .jpg image, orDirect or Wireless transmitting modesYour HHB1800 provides two transmitting modes, “Direct Mode” and “Wireless Mode”.Direct Mode – Simply insert the insertion tube controller into the USB socket located on the back of theconsole. This will automatically activate the Direct Mode transmitting mode. During Direct Mode, allimages are transmitted through the wired socket, not wirelessly. This can be helpful when working in anarea where other high frequency wireless equipment is being used because there will be no interferencewith the video signal.Note: The system returns to Preview Mode automatically after 10 seconds without any response in Manual Model.»Multi-function keysEach console button performs a unique function depending upon the Mode in which the system is being operated.(Figure.5)(Figure.6)Manual On ScreenThe user may press the OK/MENU button in Manual Mode to execute desired commands as indicated below.DELETE ALLVIDEO OUTPUT DATE/TIME SETUP LANGUAGE VIDEO FORMAT AUTO POWER OFFDELETE ALLAfter initiating this command, select “yes” or “no” by pressing up or down arrow buttons. To delete all, select “yes”. Exit by pressing the OK/MENU button.VIDEO OUTPUTThis command will send the video signal out through the AV port. The monitor will turn black until you execute this command again.MANUALTIME SETUPDISPLAY OFF2000/01/101 10:22:22TIME SET (Figure.7)(Figure.8)(Figure.9)MENUPOWER OFFMANUAL MENUMANUAL MENUDATE/TIME SETUPUse the arrow buttons to select Year/Month/Day or number, or pressSNAP to decrease. Select “DisplayON” to print the date on the photo.LANGUAGEUse this command to select the desired language.VIDEO FORMATSet up your video format.AUTO POWER OFFSet the auto power off feature to your desired length of time.Channel AdjustingThe HHB1800’s handle and console must be on the same channel during wireless transmission. Adjustthe channel by using a small slotted screw driver following the direction of the arrow sign as shown below.Users may refer to the following table to choose a suitable channel.Channel Arrow Indication Frequency 19,12414MHz 2A,22432MHz 3C,42450MHz 48,02468MHzOperating Instructions Power On/OffControl Handle Indicator LightsLight Indication Status DescriptionGreen In useWorking under full batteryDark Red Low batteryPlease recharge the battery when the dark red light appears during usage Orange Charging while in use Charging while in use Red Charging while power off Charging while power offNoneFull battery (during power-off)The light dims when the battery is fully chargedTaking PhotosPress button during Preview mode to take the photo.Or, continue pressing the button to show the photo that had just been taken.Image Status: Returns to preview Mode automatically after photo is taken.Video Recording(Figure.13)(Figure.14)5.Press for next adjustment.6.Repeat step 4 and 5 until the correct time/date are set.7.Press OK/MENU to complete the set up.Setting Time Display1.Press OK/MENU2.Press or to move to “Date/Time” command.3.Press OK/MENU4.Press or for “Display” option.5.Press to switch the “Display” function between ON/OFF.6. Press OK/MENU to complete set up.7. Press ESCto return to Preview mode.Viewing on a TV monitor1. Plug the included AV cord into the AV socket located on the right side of the console.Notice: Please plug the other end of the AV cord into the “AV in” socket on the external monitor.Note: User may return to Preview mode anytime by pressing button regardless of working under Browse modeor Manual mode.Viewing photos/videos1. Press or during preview mode.Image Status: Display the latest photo/video.2. Press or again to view the oldest or second to last photo/video.Image Status: All files will be stored according to the time sequence of photo capture/video recording.Note: When viewing videos, the video will be displayed automatically until it ends and then the next photo or videowill be displayed.Setting Time/Date1.Press OK/MENU2.Press or to move to Date/Time command.3.Press OK/MENU to initiate the command.4.Press to increase the number or to decrease./(Figure.15)(Figure.16)MANUALMENU TIME SETTIME SET2000/02/1417:30:51DISPLAYOFFDISPLAYNOT DISPLAY2000/01/10 10:22:22(Figure.17)2.Press OK/MENU3.Press or to move to “Video output” option.4.Press OK/MENUImage Status: image will be transmitted to the external monitor.Setting video format1.Press OK/MENU2.Press or to move to “Video Format” option.3.Press OK/MENU4.Press or to select NTSC/PAL.5.Press OK/MENUDeleting a specific photo (Browse mode only)1. Enter Browse mode, then press or to locate the photo or video you wish to delete.2. Press OK/MENUImage Status: “Delete yes or no” options(Figure.18)DELETEyes no(Figure.19)3. To select your option, press orImage Status: The selected option flashes.4. Press OK/MENU to execute your selected option or press ESC to cancel.Deleting all photos1. Press OK/MENU during Preview mode.Image Status: Showing the Main Menu2. Press or for “Delete All” command.3. Press OK/MENUImage Status: “yes” or “no” option appears4. Use or to select “yes”.5. Press OK/MENU to execute.Setting auto power off1.PressOK/MENU (during Preview mode.)2.Press or for “Auto power off” command.3.Press OK/MENU(Figure.20)(Figure.21)TIME SET POWER OFFMANUAL MENU4.Press or to select desired time length or choose “Disable”.5.Press OK/MENUThe console will automatically turn off if it has not been used for this preset length of time.Re-charging the batteryRe-charging the Console battery onlyPlug the adapter into the outlet and plug the power jack into the socket on the console.Combined Console and Handle re-chargingInsert the handle into the rear slot of the console to re-charge both simultaneously.Re-charging the Handle Controller onlyConnect the handle controller to a PC or Laptop using a standard Mini USB cable for re-charge. Caution: 1. Turn off the console and handle during re-charging.2. Ensure the power of PC/Laptop is turned on during re-charging by USB cable.3. Ignore the “found new hard drive” message during re-charg by USB cable.•••Creation of Memory Card FolderThe following information applies to the included SD card only. All photos and videos are stored in the [100MEDIA] folder under the [DCIM] folder. All files will be named according to the time/date setup.• Users should complete the time/date setup before usage in order to achieve accurate file management. • The time/date is pre-set to 2007/1/1. Users may identify this when the file name begins with the digits 11.• File names are not labeled by serial number. They are labeled according to the current time/date.• Both photos and videos are named in the same way but with different file extensions, .jpg and .asf.SpecificationsCamera System and Insertion TubeInsertion tubes diameter 5.5 mmRescolution325(H)*250(V)Housing SteelLight Source White LEDLength OBEDIENT 3.3', 6.6', 9.8' (1M, 2M, 3M) SOFT METAL3.3', 6.6', 9.8', 16.4', 32.8', 98.4' (1M, 2M, 3M, 5M, 10M,30M)Field of View Horizontal field angle 46 ºVertical field angle 34ºDiagonal field angle 56ºDepth of Field (DOF)0.4” ~ 2.4”Water Resistant Only the Insertion tube is water resistantWorking Temperature 32°F to 131°FConsoleDimension139.3 * 34.9 * 31.8 mmWeight 220gWireless Transceiver Frequency 2.4GHz 4channels (2414MHz 2432 MHz 2450MHz468MHz)Battery Rechargeable Li-Polymer battery 3.7VBrightness Control VariableAudio Integrated microphoneTroubleshooting2. Can turn on the unit but the image does not appear on the monitorPlease check the insertion tube connector or simply re-connect the insertion tube to correct the problem.3.Unable to capture photos/videoPlease check the status of the SD card. Users will not be able to capture photos or video if the SD card is not installed properly or if it is full, write protected or damaged.Insertion Tube Maintenance1.To avoid danger, please do not put the insertion tube into any flammable liquid or gas.2.The insertion tube contains a series of small wires that control the optics and electronics ofthe camera tip. To ensure long-term reliability, do not bend the insertion tube more than 180 degrees, and always bend the insertion tube in as large an arc as possible during usage and storage.3.Camera Lens cleaningUser may clean the camera lens with a cotton swab and small amount of cleaning naphtha Cautions for Usewriting speed SD cards for better video quality.avoid dangers.- Do not use the HHB1800 in a fuel tank or other dangerous environment such as a gasoline or alcohol storage tank.- Do not use any corrosive liquid for cleaning, such as alcohol.- Do not try to disassemble the product. This presents a shock hazard and could damagethe unit.- Do not bend the insertion tube over 180 degrees rigidly during usage or storage.- Please use only recommended components or accessories.Unapproved accessoriesand components may cause damage.- Please do not use the HHB1800 in a medical facility or on an airplane, as the wireless signal may interfere with other critical equipment nearby.- Avoid direct exposure to sunlight for long periods of time.- Store the system in a cool, dry and well-ventilated place.。
Omega 产品说明书.pdf_1719173545.349835
Where Do I Find Everything I Need for Process Measurement and Control?OMEGA…Of Course!Shop online at SMTEMPERATUREThermocouple, RTD & Thermistor Probes, Connectors, Panels &AssembliesWire: Thermocouple, RTD &ThermistorCalibrators & Ice Point References Recorders, Controllers & Process MonitorsInfrared PyrometersPRESSURE, STRAIN AND FORCETransducers & Strain Gages Load Cells & Pressure Gages Displacement Transducers Instrumentation & AccessoriesFLOW/LEVELRotameters, Gas Mass Flowmeters & Flow Computers Air Velocity IndicatorsTurbine/Paddlewheel Systems Totalizers & Batch ControllerspH/CONDUCTIVITYpH Electrodes, Testers &AccessoriesBenchtop/Laboratory MetersControllers, Calibrators, Simulators & PumpsIndustrial pH & Conductivity EquipmentDATA ACQUISITIONData Acquisition & Engineering SoftwareCommunications-Based Acquisition SystemsPlug-in Cards for Apple, IBM &CompatiblesData Logging SystemsRecorders, Printers & PlottersHEATERSHeating CableCartridge & Strip Heaters Immersion & Band Heaters Flexible Heaters Laboratory HeatersENVIRONMENTALMONITORING AND CONTROLMetering & Control Instrumentation Refractometers Pumps & TubingAir, Soil & Water Monitors Industrial Water & Wastewater TreatmentpH, Conductivity & Dissolved Oxygen Instrumentse-mail:**************For latest product manuals:omegamanual.inf oShop online atTemperature/HumidityMQS5052/0812OM-EL-WiFi-THData LoggerYour sensor will arrive partly charged but ideally you should charge it for 24 hours before use for optimum performance.Your sensor is already reading temperature and humidity but it complete the product set-up.Your sensor is set-up using a free software package called WiFi Sensor Software which is available at . Once the software is installed you’re ready to set-up your sensor .Getting StartedThank you for purchasing an OM-EL-WiFi-TH sensor . This device measures the temperature and humidity of the environment in which it’s situated and transmits data to a PC via WiFi. This quick start guide provides basic information to help you use your new product.Getting to know your SensorSet-Up2. Max Recorded Values3. Min Recorded Values4. Signal StrengthOR5. Data Syncing1.Home ScreenChanging Sensor SettingsRechargingWall BracketClick on the WiFi software icon which is now on your desktop to open the package and then click on the ‘Set-Up Sensor’ button. You can now work through the different stages of set-up which include establishing the WiFi connection between your sensor and your PC, naming each sensor , setting alarms, sample rate and temperature scale.Basic data can be viewed on the screen of the OM-EL-WiFi-TH.To view this data press the button to cycle through the different screens.Viewing Sensor DataDetailed information and graphical data needs to be viewed via the WiFi software package already downloaded to your PC. Open the package and click on the ‘View Sensors’ icon.This is done via the WiFi Sensor Software. Open the software package,through on the “View Sensors’ icon, select the sensor you wish to change and click on the ‘Adjust Sensor Settings’ icon. The software will lead you through the options that can be amended.The sensor will automatically start recharging whilst connected to a PC. The battery life of your sensor depends on the regularity of transmissions. Battery life is indicated on the ‘Existing Sensors’ software screen accessed via the ‘View Sensors’ button or on the unit itself. When the low symbol appears on the sensor LCD youshould recharge the unit with the USB cable provided. Whilst recharging the unit accuracy tolerance will be exceeded.Your sensor is a free standing product but it also comes with a click-in bracket so that the product can be clearly displayed and attached ontoWhen placing your sensor consider local heat sources and radio obstructions. For optimum WiFi performance you may need to try positioning your sensor in various different locations/positions. Any physical obstructions between your router and sensor will affect the range of the sensor . WiFi extenders can also be used to gain improvements.The signal strength of the sensor is displayed on the LCD (see .l a n g i s k a e w a s i 1 r e b m u n ,l a n g i s g n o r t s a s i 01 r e b m u N .)e v o b a When on this screen, the user will automatically activate an immediate transmission that will send any stored readings. If the syncing screen is displayed data is being transferred.The signal icon has three states: not displayed – the sensorsolid – successful communication with WiFi software.flashing - not communicating with WiFi software.Sensor PlacementCopyright Omega Engineering, Inc. 2012 Issue 1 08/12LOW。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
To Set the Decimal Point
1.
If it's not already shown, press MENU until the unit displays DEC.P
2.
Press ᮣ/DEV to show the current decimal point location.
3.
Press ᮡ/MAX to move the decimal point to the desired location. The choices are FFFF or FFF.F .
4.
Press MENU to store the value.
5.Press RESET twice to display the current temperature.
To Select Temperature Unit
(Fahrenheit or Celsius):1.
Press MENU until the display shows RD.CF
2.
Press ᮣ/DEV to display the current temperature unit.
3.
Press ᮡ/MAX to select between °F and °C.
4.
Press MENU to store the value.
5.
Press RE SE Ttwice to display the current temperature.
To Enter Setpoints:
1.
Press SETPTS to display the current setpoint. The leftmost digit will flash.
2.
Press ᮣ/DEV to select the digit you want to change.
3.
Press ᮡ/MAX to increase the value of the flashing digit.
4.
Press SETPTS to store the
setpoint.
5.
Repeat steps 1 through 4 to enter the next setpoint.
DP25-TC and DP25B-TC
PROGRAMMABLE DIGITAL
THERMOCOUPLE CONTROLLER
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European
New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct but
OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
TRADEMARK NOTICE:
®
®, and
,
are trademarks of OMEGA Engineering, Inc.
®
WARNING:These products are not designed for use in, and should not be used for, patient connected applications.
MQS3732/1205
5
6
START HERE
Using This Quick Start Manual
Use this Quick Start Manual with your controller to make
changes to the thermocouple type, decimal point, units, and to change the setpoints.
Before You Begin
In addition to the meter and the related parts, you will need the following items to set up your meter:•ac power, as listed on meter’s ID/Power Label •Thermocouple
•
1/8” flat blade screwdriver
Mount the Unit
1.Cut a panel opening using the dimensions shown to the right.
2.Position the unit in the opening, making sure the front bezel is flush with the panel.
3.Install retaining clip on the meter and tighten against the panel.
AC Powered Unit Connections
Time-delay, UL 248-14 listed Time-lag, IEC 127-3 recognized 175 mA (115 Vac line)125 mA (115 Vac line)80 mA (230 Vac line)
63 mA (230 Vac line)
Pollution Degree.
The instrument is a panel mount device protected in
accordance with EN61010-1 (Safety requirements for electrical equipment for measurement, control, and laboratory standard).Remember that the unit has no power-on switch. Building
installation should include a switch or circuit-breaker that must be compliant to IEC 947-1 and 947-3.SAFETY:
•Do not exceed voltage rating on the label located on the top of the instrument housing.
•Always disconnect power before changing signal and power connections.
•Do not use this instrument on a work bench without its case for safety reasons.
•Do not operate this instrument in flammable or explosive atmospheres.
•Do not expose this instrument to rain or moisture.EMC:•Whenever EMC is an issue, always use shielded cables. •Never run signal and power wires in the same conduit.•Use signal wire connections with twisted-pair cables.
•
Install Ferrite Bead(s) on signal wire close to the instrument if EMC problems persist.
DC Powered Unit Connections
Using the Menus
To Change the Thermocouple Type:1.Press MENU until the display
shows INPT
2.
Press ᮣ/DEV to show current thermocouple type:
3.
Press ᮡ/MAX to select the setting from J, K, Tor DJ.T C.
4.Press MENU to store the value.
5.Press RE SE Ttwice to display the current temperature.。
