华为AP4050DN-E接入点详版彩页

合集下载

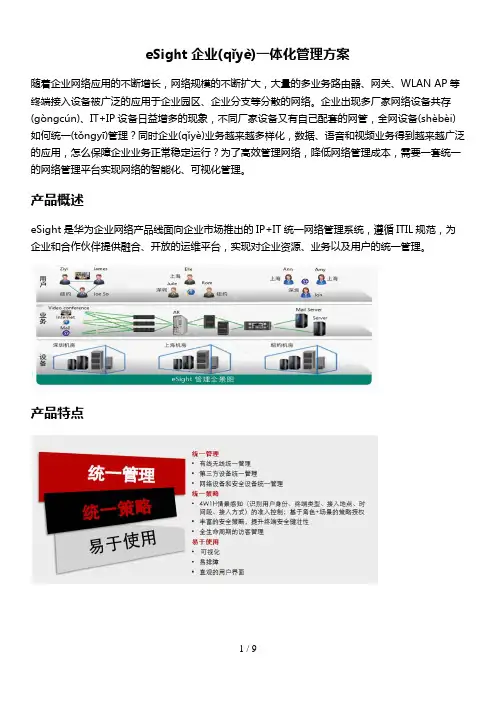

Huawei-eSight-简版彩页

eSight企业一体化管理方案随着企业网络应用的不断增长，网络规模的不断扩大，大量的多业务路由器、网关、WLAN AP等终端接入设备被广泛的应用于企业园区、企业分支等分散的网络。

企业出现多厂家网络设备共存(gòngcún)、IT+IP设备日益增多的现象，不同厂家设备又有自己配套的网管，全网设备如何统一管理？同时企业业务越来越多样化，数据、语音和视频业务得到越来越广泛的应用，怎么保障企业业务正常稳定运行？为了高效管理网络，降低网络管理成本，需要一套统一的网络管理平台实现网络的智能化、可视化管理。

产品概述eSight是华为企业网络产品线面向企业市场推出的IP+IT统一网络管理系统，遵循ITIL规范，为企业和合作伙伴提供融合、开放的运维平台，实现对企业资源、业务以及用户的统一管理。

产品特点产品(chǎnpǐn)亮点B/S架构(jià ɡòu)，支持多操作系统:免客户(kè hù)端安装，支持Windows、SuSE Linux 操作系统(cāo zuò xì tǒnɡ)，支持Oracle 、MySQL、SQL Server数据库。

多版本满足不同企业的需求：提供精简版、标准版、专业版。

多厂商、多类型设备统一管理：IP+IT设备统一管理，虚拟设备和物理设备统一管理，以及第三方设备管理能力和自定义管理能力，有效降低初次投资成本，解决后顾之忧。

统一的运维体验：基于统一的企业管理平台，支持有线无线统一管理并提供完整的解决方案，各功能组件间智能联动，提供相同的运维体验，降低IT人员学习成本。

融入华为最佳实践：以华为多年运维最佳实践为基础，网络质量评估以及快速故障诊断和详细的故障处理建议，可以帮助用户快速定位，降低IT人员的技能要求。

华为敏捷分布式方案详版彩页

华为
敏捷分布式WIFI解决方案详版彩页
产品概述............................................................................................................................................ //信息化已经融入教育、商业、企业等各行各业，Wi-Fi技术也逐渐得到越来越广泛的应用。

但是传统的放装
企业业务产品介绍营销资料
版权所有 © 华为技术有限公司 2016。

保留一切权利。

非经华为技术有限公司书面同意，任何单位和个人不得擅自摘抄、复制本手册内容的部分或全部，并不得以任何形式传播。

商标声明
HUAWEI 华为是华为技术有限公司的商标或者注册商标。

在本手册中以及本手册描述的产品中，出现的其他商标、产品名称、服务名称以及公司名称，由其各自的所有人拥有。

免责声明
本文档可能含有预测信息，包括但不限于有关未来的财务、运营、产品
系列、新技术等信息。

由于实践中存在很多不确定因素，可能导致实际
结果与预测信息有很大的差别。

因此，本文档信息仅供参考，不构成任
何要约或承诺。

华为可能不经通知修改上述信息，恕不另行通知。

华为 AP4050DN-HD 无线访问点数据手册说明书

Huawei Access Point DatasheetMU-MIMOThe AP supports MU-MIMO. MU-MIMO technology allows an AP to send data to multiple STAs at the same time (currently, most802.11n/11ac Wave 1 APs can only send data to one STA simultaneously). The technology marks the start of the 802.11ac Wave 2 era.GE accessThe APs support the 80-MHz bandwidth mode. Frequency bandwidth increase brings extended channels and more sub-carriers for data transmission, and a 2.16-fold rate increase. Support for High Quadrature Amplitude Modulation (HQAM) at 256-QAM increases the 5 GHz radio rate to 867 Mbit/s and the AP rate to 1.267 Gbit/s.Cloud-based managementHuawei Cloud Managed Network (CMN) Solution consists of the cloud management platform and a full range of cloud managed network devices. The cloud management platform provides various functions including management of APs, tenants, applications, and licenses, network planning and optimization, device monitoring, network service configuration, and value-added services.High Density Boost technologyHuawei uses the following technologies to address challenges in high-density scenarios, including access problems, data congestion, and poor roaming experience:•SmartRadio for air interface optimizationˉ Load balancing during smart roaming: The load balancing algorithm can work during smart roaming for load balancing detection among APs on the network after STA roaming to adjust the STA load on each AP, improving network stability.ˉ Intelligent DFA technology: The dynamic frequency assignment (DFA) algorithm is used to automatically detect adjacent-channel and co-channel interference, and identify any 2.4 GHz redundant radio. Through automatic inter-AP negotiation, the redundant radio is automatically switched to another mode (dual-5G AP models support 2.4G-to-5G switchover) or is disabled to reduce 2.4 GHz co-channel interference and increase the system capacity.ˉ Intelligent conflict optimization technology: The dynamic enhanced distributed channel access (EDCA) and airtime scheduling algorithms are used to schedule the channel occupation time and service priority of each user. This ensures that each user isassigned relatively equal time for using channel resources and user services are scheduled in an orderly manner, improving service processing efficiency and user experience.•Air interface performance optimizationˉIn high-density scenarios where many users access the network, increased number of low-rate STAs consumes more resources on the air interface, reduces the AP capacity, and lowers user experience. Therefore, Huawei APs will check the signal strength ofSTAs during access and rejects access from weak-signal STAs. At the same time, the APs monitor the rate of online STAs in real time and forcibly disconnect low-rate STAs so that the STAs can reassociate with APs that have stronger signals. The terminalaccess control technology can increase air interface use efﬁciency and allow access from more users.•5G-prior access (Band steering)ˉThe APs support both 2.4G and 5G frequency bands. The 5G-prior access function enables an AP to steer STAs to the 5 GHz frequency band ﬁrst, which reduces load and interference on the 2.4 GHz frequency band, improving the user experience.Huawei AP4050DN-HDAccess Point Datasheet 03Wired and wireless dual security guaranteeTo ensure data security, Huawei APs integrate wired and wireless security measures and provide comprehensive security protection.•Authentication and encryption for wireless accessˉThe APs support WEP, WPA/WPA2–PSK, WPA/WPA2–PPSK, WPA/WPA2–802.1X, and WAPI authentication/encryption modes to ensure security of the wireless network. The authentication mechanism is used to authenticate user identities so that onlyauthorized users can access network resources. The encryption mechanism is used to encrypt data transmitted over wireless links to ensure that the data can only be received and parsed by expected users.•Analysis on non-Wi-Fi interference sourcesˉHuawei APs can analyze the spectrum of non-Wi-Fi interference sources and identify them, including baby monitors, Bluetooth devices, digital cordless phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4 GHz and 5 GHzfrequency bands), wireless game controllers, and microwave ovens. Coupled with Huawei eSight, the precise locations of theinterference sources can be detected, and the spectrum of them displayed, enabling the administrator to remove the interference in a timely manner.•Rogue device monitoringˉHuawei APs support WIDS/WIPS, and can monitor, identify, defend, counter, and perform reﬁned management on the rogue devices, to provide security guarantees for air interface environment and wireless data transmission.•AP access authentication and encryptionˉThe AP access control ensures validity of APs. The CAPWAP link protection and DTLS encryption provide security assurance, improving data transmission security between the AP and the AC.Automatic radio calibrationAutomatic radio calibration allows an AP to collect signal strength and channel parameters of surrounding APs and generate AP topology according to the collected data. Based on interference from authorized APs, rogue APs, and non-Wi-Fi interference sources, each AP automatically adjusts its transmit power and working channel to make the network operate at the optimal performance. In this way, network reliability and user experience are improved.Automatic application identiﬁcationHuawei APs support smart application control technology and can implement visualized control on Layer 4 to Layer 7 applications.•Trafﬁc identiﬁcatio nˉCoupled with Huawei ACs, the APs can identify over 1600 common applications in various ofﬁce scenarios. Based on the identiﬁcation results, policy control can be implemented on user services, including priority adjustment, scheduling, blocking, and rate limiting to ensure efﬁcient bandwidth resource use and improve quality of key services.•Trafﬁc statistics collectionˉTrafﬁc statistics of each application can be collected globally, by SSID, or by user, enabling the network administrator to know application use status on the network. The network administrator or operator can implement visualized control on service applications on smart terminals to enhance security and ensure effective bandwidth control.Huawei AP4050DN-HDAccess Point Datasheet 04Basic Speciﬁcations......................................................................................................................... //Hardware speciﬁcationsItem DescriptionTechnical speciﬁcationsDimensions (H x W x D) 65 mm x 240 mm x 334 mmWeight 1.5 kgInterface type2 x 10/100/1000M self-adaptive Ethernet interface (RJ45)1 x Management console port (RJ45)LED indicator Indicates the power-on, startup, running, alarm, and fault status of the system.Power speciﬁcations Environmental speciﬁcations Power input 12 V DC ± 10%PoE power supply: in compliance with IEEE 802.3af/atMaximum powerconsumption11.8 W (in 802.3af PoE or DC mode)13.9 W (in 802.3at PoE mode, excluding the output power of the PoE_OUT port)The actual maximum power consumption depends on local laws and regulations. Operating temperature –10°C to +50°CRadio speciﬁcationsStorage temperature–40°C to +70°COperating humidity 5% to 95% (non-condensing)Dustproof andwaterproof grade IP41Altitude –60 m to +5000 mAtmospheric pressure 53 kPa to 106 kPaAntenna type Built-in dual-band directional antenna (beamwidth: 30 degrees) Antenna gain2.4G: 13 dBi5G: 10 dBiMaximum number ofSSIDs for each radio≤16Maximum number ofusers≤ 512The actual number of users varies according to the environment.NOTENOTEItem DescriptionRadio speciﬁcations Maximum transmitpower2.4G: 22 dBm (combined power)5G: 22 dBm (combined power)The actual transmit power depends on local laws and regulations.Power increment 1 dBmreceiver sensitivity2.4 GHz 802.11b：–99dBm @ 1 Mbit/s；–91dBm@ 11 Mbit/s2.4 GHz 802.11g：-92dBm @ 6 Mbit/s； -77dBm @ 54 Mbit/s2.4 GHz 802.11n (HT20)：-92 dBm @ MCS0；-72dBm @ MCS152.4 GHz 802.11n(HT40)：-89 dBm @ MCS0；-70dBm @ MCS155 GHz 802.11a：-92 dBm @6 Mbit/s； -76dBm @ 54 Mbit/s5 GHz 802.11n (HT20)：-92 dBm @ MCS0；-71dBm @ MCS155 GHz 802.11n (HT40)：-88 dBm @ MCS0；-69dBm @ MCS155 GHz 802.11ac (VTH20)：-91 dBm @ MCS0NSS1； -67 dBm @ MCS8NSS25 GHz 802.11ac (VTH40)：-88 dBm @ MCS0NSS1； -63 dBm @ MCS9NSS25 GHz 802.11ac (VTH80)：-85 dBm @ MCS0NSS1； -60 dBm @ MCS9NSS2NOTEBasic Speciﬁcations......................................................................................................................... //Software s peciﬁcationsFat/Fit AP modeItem DescriptionWLAN features Compliance with IEEE 802.11a/b/g/n/ac/ac Wave 2Maximum rate: up to 1.267 Gbit/sMaximum ratio combining (MRC)Space time block code (STBC)Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)BeamformingMU-MIMOLow-density parity-check (LDPC)Maximum-likelihood detection (MLD)Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS)Short guard interval (GI) in 20 MHz, 40 MHz, and 80 MHz modesPriority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwardingAutomatic and manual rate adjustmentWLAN channel management and channel rate adjustmentAutomatic channel scanning and interference avoidanceService set identifier (SSID) hidingSignal sustain technology (SST)Unscheduled automatic power save delivery (U-APSD)Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP modeAutomatic login in Fit AP modeExtended Service Set (ESS) in Fit AP modeWireless distribution system (WDS) in Fit AP modeMesh networking in Fit AP modeMulti-user CACHotspot2.0802.11k and 802.11v smart roaming802.11r fast roaming (≤ 50 ms)WAN authentication escape. In local forwarding mode, this function retains the online state of existing STAs and allows access of new STAs when APs are disconnected from an AC, ensuring service continuityItem DescriptionNetwork features Compliance with IEEE 802.3abAuto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)Compliance with IEEE 802.1qSSID-based VLAN assignmentVLAN trunk on uplink Ethernet portsManagement channel of the AP uplink port in tagged and untagged modeDHCP client, obtaining IP addresses through DHCPTunnel data forwarding and direct data forwardingSTA isolation in the same VLANAccess control lists (ACLs)Link Layer Discovery Protocol (LLDP)Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP modeUnified authentication on the AC in Fit AP modeAC dual-link backup in Fit AP modeNetwork Address Translation (NAT) in Fat AP modeIPv6 in Fit AP modeSoft Generic Routing Encapsulation (GRE)IPv6 Source Address Validation Improvements (SAVI)QoS features Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwardingWMM parameter management for each radioWMM power savingPriority mapping for upstream packets and flow-based mapping for downstream packetsQueue mapping and schedulingUser-based bandwidth limitingAdaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and radio environment) to improve user experienceSmart Application Control (SAC) in Fit AP modeAirtime schedulingSupport for Microsoft Lync APIs and high voice call quality through Lync API identification and schedulingItem DescriptionSecurity features Open system authenticationWEP authentication/encryption using a 64-bit, 128-bit, or 152-bit encryption keyWPA/WPA2-PSK authentication and encryption (WPA/WPA2 personal edition)WPA/WPA2-802.1x authentication and encryption (WPA/WPA2 enterprise edition)WPA-WPA2 hybrid authenticationWPA/WPA2-PPSK authentication and encryption in Fit AP modeWAPI authentication and encryptionWireless intrusion detection system (WIDS) and wireless intrusion prevention system (WIPS), including rogue device detection and countermeasure, attack detection and dynamic blacklist, and STA/AP blacklist and whitelist802.1x authentication, MAC address authentication, and Portal authenticationDHCP snoopingDynamic ARP Inspection (DAI)IP Source Guard (IPSG)802.11w Protected Management Frames (PMFs)Application identificationMaintenance features Unified management and maintenance on the AC in Fit AP modeAutomatic login and configuration loading, and plug-and-play (PnP) in Fit AP mode WDS zero-configuration deployment in Fit AP modeMesh network zero-configuration deployment in Fit AP modeBatch upgrade in Fit AP modeTelnetSTelnet using SSH v2SFTP using SSH v2Local AP management through the serial interfaceWeb local AP management through HTTP or HTTPS in Fat AP modeReal-time configuration monitoring and fast fault location using the NMSSNMP v1/v2/v3 in Fat AP modeSystem status alarmNetwork Time Protocol (NTP) in Fat AP modeBYOD The AP supports bring your own device (BYOD) only in Fit AP mode.Identifies the device type according to the organizationally unique identifier (OUI) in the MAC address. Identifies the device type according to the user agent (UA) information in an HTTP packet. Identifies the device type according to DHCP options.The RADIUS server delivers packet forwarding, security, and QoS policies according to the device type carried in the RADIUS authentication and accounting packets.NOTEItem DescriptionLocation service The AP supports the locating service only in Fit AP mode. Locates tags manufactured by AeroScout or Ekahau. Locates Wi-Fi terminals.Works with eSight to locate rogue devices.Spectrum analysis The AP supports spectrum analysis only in Fit AP mode.Identifies interference sources such as baby monitors, Bluetooth devices, digital cordless phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4 GHz and 5 GHz frequency bands), wireless game controllers, and microwaves.Works with eSight to perform spectrum analysis on interference sources.Cloud-based management modeItem DescriptionWLAN features Compliance with IEEE 802.11a/b/g/n/ac/ac Wave 2Maximum rate: up to 1.267 Gbit/sMaximum ratio combining (MRC)Space time block code (STBC)BeamformingLow-density parity-check (LDPC)Maximum-likelihood detection (MLD)Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS)Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwardingWLAN channel management and channel rate adjustmentFor detailed management channels, see the Country Code & Channel Compliance Table.Automatic channel scanning and interference avoidanceService set identifier (SSID) hidingSignal sustain technology (SST)Unscheduled automatic power save delivery (U-APSD)Automatic loginNOTENOTENOTEItem DescriptionNetwork features Compliance with IEEE 802.3abAuto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)Compliance with IEEE 802.1qSSID-based VLAN assignmentDHCP client, obtaining IP addresses through DHCPSTA isolation in the same VLANAccess control lists (ACLs)Unified authentication on the Agile ControllerNetwork Address Translation (NAT)QoS features Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwardingWMM parameter management for each radioWMM power savingPriority mapping for upstream packets and flow-based mapping for downstream packetsQueue mapping and schedulingUser-based bandwidth limitingAirtime schedulingSecurity features Open system authenticationWEP authentication/encryption using a 64-bit, 128-bit, or 152-bit encryption key WPA/WPA2-PSK authentication and encryption (WPA/WPA2 personal edition) WPA/WPA2-802.1x authentication and encryption (WPA/WPA2 enterprise edition) WPA-WPA2 hybrid authenticationWPA/WPA2-PPSK authentication and encryption802.1x authentication, MAC address authentication, and Portal authentication DHCP snoopingDynamic ARP Inspection (DAI)IP Source Guard (IPSG)Item DescriptionMaintenance features Unified management and maintenance on the Agile Controller Automatic login and configuration loading, and plug-and-play (PnP) Batch upgradeTelnetSTelnet using SSH v2SFTP using SSH v2Local AP management through the serial interfaceWeb local AP management through HTTP or HTTPSReal-time configuration monitoring and fast fault location using the NMS System status alarmNetwork Time Protocol (NTP)Standards complianceItem DescriptionSafety standards UL 60950–1 CAN/CSA 22.2 No.60950-1 IEC 60950–1 EN 60950–1 GB 4943Radio standards ETSI EN 300 328 ETSI EN 301 893 FCC Part 15C： 15.247 FCC Part 15C： 15.407 RSS-210 AS/NZS 4268EMC standards EN 301 489–1 EN 301 489–17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2IEEE standards IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11acIEEE 802.11h IEEE 802.11d IEEE 802.11eIEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11rSecurity standards 802.11i，Wi-Fi Protected Access 2(WPA2)，WPA802.1XAdvanced Encryption Standards(AES)，Temporal Key Integrity Protocol(TKIP) EAP Type(s)EMF CENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDBRoHS Directive 2002/95/EC & 2011/65/EU Reach Regulation 1907/2006/ECWEEE Directive 2002/96/EC & 2012/19/EUAP4050DN-HD Antennas Pattern2.4G (PHI=0)2.4G (PHI=90)5G (PHI=0)5G (PHI=90) Professional Service and SupportCopyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademark Notice, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.Other trademarks, product, service and company names mentioned are the property of their respective owners.General DisclaimerThe information in this document may contain predictive statements including, withoutlimitation, statements regarding the future financial and operating results, future productportfolio, new technology, etc. There are a number of factors that could cause actual resultsand developments to differ materially from those expressed or implied in the predictivestatements. Therefore, such information is provided for reference purpose only andconstitutes neither an offer nor an acceptance. Huawei may change the information at anytime without notice.。

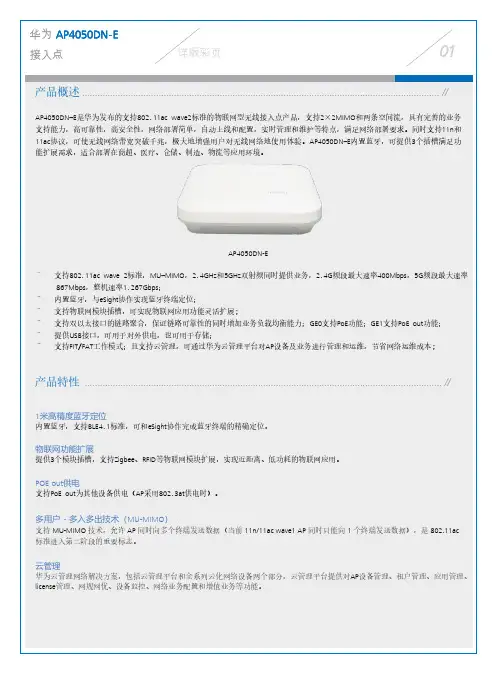

华为AP4050DN-E接入点详版彩页

ˉ 配合AC，AP可识别各种办公场景下1600多种常见应用，基于这些识别结果，对用户业务实施优先级调整、调度、阻断、限速等策略控制，可以更好的利用带宽资源，提高关键业务的服务级别，保证服务质量。
• 流量统计 ˉ 可基于全局、基于SSID或基于用户的三个不同维度对每种应用进行单独的流量统计，向管理员用户呈现各种应用在网络中的使用情况，让网络管理者或运营者对智能终端的业务应用进行可视化管控，增加安全性及有效的带宽控制管理。
自动射频调优 AP通过收集到的周围AP的信号强度，信道参数等，生成AP的拓扑结构，根据合法AP、非法AP以及No-WIFI形成的干扰以及各自的负载，自动调整AP的发射功率和信道，以保证网络处于最佳的性能状态，提升网络的可靠性和用户体验。
自动应用识别采用智能应用控制技术，支持对4~7层应用进行可视化管理和控制。 • 流量识别
射频参数
描述 2.4G: 23dBm（组合功率） 5G: 23dBm（组合功率）说明：实际发射功率遵照不同国家和地区法规而有所不同。 1dBm 2.4 GHz 802.11b：–99dBm @ 1 Mbit/s；–91dBm@ 11 Mbit/s 2.4 GHz 802.11g：-92dBm @ 6 Mbit/s； -77 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20)：-92 dBm @ MCS0；-72 dBm @ MCS15 2.4 GHz 802.11n(HT40)：-89 dBm @ MCS0； -70 dBm @ MCS15 5 GHz 802.11a：-92 dBm @ 6 Mbit/s； -76 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20)：-92 dBm @ MCS0； -71 dBm @ MCS15 5 GHz 802.11n (HT40)：-88 dBm @ MCS0； -69 dBm @ MCS15 5 GHz 802.11ac (VTH20)：-91 dBm @ MCS0NSS1； -67 dBm @ MCS8NSS2 5 GHz 802.11ac (VTH40)：-88 dBm @ MCS0NSS1； -63 dBm @ MCS9NSS2 5 GHz 802.11ac (VTH80)：-85 dBm @ MCS0NSS1； -60 dBm @ MCS9NSS2

华为AP2050DN-E接入点详版彩页

保留一切权利。

非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。

商标声明
和其他华为商标均为华为技术有限公司的商标。

本文档提及的其他所有商标或注册商标，由各自的所有人拥有。

免责声明
本文档可能含有预测信息，包括但不限千有关未来的财务、运营、产品系列、新技术等信息。

由于实践中存在很多不确定因素，可能导致实际结果与预测信患有很大的差别。

因此，本文档信息仅供参考，不构成任何要约或承诺。

华为可能不经通知修改上述信息，恕不另行通知。

华为技术有限公司深圳市龙岗区坂田华为基地
邮编：518129电话： +8675528780808
www.huawei.
com。

华为敏捷分布式方案详版彩页 201509

2.4 GHz 802.11n(HT40)：-93 dBm @ MCS0；-74 dBm @ MCS7
5 GHz 802.11a (non-HT20)：-94 dBm @ 5 GHz 802.11a (non-HT20)：-94 dBm @
物理参数
系统内存
128MB
120mm×86mm×26mm 128MB
电源参数电源输入
PoE供电：满足802.3af/at以太网供电标准
适配器供电：12V±10%, 16V MAX, 2.1mm DC JACK
PoE供电：满足802.3af/at以太网供电标准
工作温度
0℃～+40℃
0℃～+40℃
达300Mbps, 5G频段最大速率可达到867 Mbps, 整机最大速率达到 1.167Gbps • 远端接入单元支持802.3af/at以太网供电标准，简化了设备安装和布线 • R240D提供1个千兆口和4个百兆口用于以太网连接或终端有线设备的连接，1个电话接口用于电话连接；R230D提供1个千兆口 • R240D支持吸顶、挂墙、面板安装;R230D支持吸顶、挂墙安装 • 远端接入单元内置天线 • 支持动态射频优化，高密加速技术，感知随身技术 • 支持频谱分析，监测和分析周边干扰源类型 • 支持WIDS/WIPS，监测和反制假冒终端和AP
华为敏捷分布式方案详版彩页
华为敏捷分布式方案详版彩页
AD9430DN-24
R240D
R230D
华为敏捷分布式方案是华为最新一代分布式Wi-Fi方案，包含AD9430DN-24中心AP 和远端接入单元两个部分；远端接入单元包括两种款型R240D和R230D；一个中心 AP可直连24个远端接入单元，并同时提供POE供电；远端接入单元内置天线，美观大方，支持吸顶、挂墙、面板式多种安装方式。华为敏捷分布式方案，可靠性高，管理便捷，投资回报率高，非常适用于学校、酒店、医院以及办公会议室等房间密度大、墙体环境复杂的场景。

华为AP2051DN-S接入点详版彩页

华为
接入点详版彩页
............................................................................................................................................ //
面板安装方式桌面安装方式
10
服务与支持
华为WLAN规划工具拥有业界最专业的仿真平台，提供专业的网络设计、优化服务，凭借
的网络规划优化经验、专家资源、先进的平台优势，助力您成功地规划、建设、运营无线网络。

合理的部署和优化网络可以提高网络的性能，可用性和安全性，同时降低投资成本和风险。

更多信息
版权所有© 华为技术有限公司2017。

保留一切权利。

非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。

商标声明
和其他华为商标均为华为技术有限公司的商标。

本文档提及的其他所有商标或注册商标，由各自的所有人拥有。

免责声明
本文档可能含有预测信息，包括但不限千有关未来的财务、运营、产品系列、新技术等信息。

由于实践中存在很多不确定因素，可能导致实际结果与预测信患有很大的差别。

因此，本文档信息仅供参考，不构成任何要约或承诺。

华为可能不经通知修改上述信息，恕不另行通知。

华为技术有限公司深圳市龙岗区坂田华为基地
邮编：518129电话： +8675528780808
www.huawei.
com。

华为AP7050DE接入点详版彩页

华为 AP7050DE
接入点
详版彩页
03
• No-WIFI 干扰源分析 ˉ 对No-WIFI干扰源进行频谱分析，可以对婴儿监视器BabyMonitor、蓝牙设备、数字无绳电话(仅支持2.4G)、无线音频发射器(2.4G和5G)、游戏手柄和微波炉等干扰源进行识别，结合华为eSight网管软件，可以对干扰源进行精确定位和频谱显示，及时排除无线网络干扰。
BLE4.1
指示系统上电状态，启动状态，运行状态，以及告警和故障状态 DC：12V± 10% PoE供电：满足802.3at以太网供电标准 24W（不含USB接口输出功耗）说明：实际最大功耗遵照不同国家和地区法规而有所不同。
-10℃ ～+50℃
-40℃ ～+70℃
5%～95%（非凝结）
IP41
–60m～5000m
云管理华为云管理网络解决方案，包括云管理平台和全系列云化网络设备两个部分，云管理平台提供对AP设备管理、租户管理、应用管理、 license管理、网规网优、设备监控、网络业务配置和增值业务等功能。
华为 AP7050DE
接入点
详版彩页
02
千兆接入支持80MHz的频宽，频宽的提升带来了可用数据子载波的增加，扩展了传输通道，带来2.16倍的增速；另外使用256QAM调制、 4×4MIMO等技术使得5G 频段速率可达1.73Gbps，吞吐量是相似环境下802.11n AP的4倍左右。
高密加速技术针对高密场景下用户终端接入困难，数据拥塞、漫游性能差等问题，华为采用了以下技术解决这方面的难题： • SmartRadio空口优化
ˉ 智能漫游负载均衡技术：利用智能漫游负载均衡算法，在用户漫游后对组网内AP进行负载均衡检测，调整各个AP的用户负载，提升网络稳定性。

华为NE40E路由器简版产品彩页

NE40E 全业务路由器产品彩页Huawei Technologies Co., Ltd.NE40E 全业务路由器产品彩页产品概述NetEngine40E 系列全业务路由器（以下简称 NE40E ）是华为公司推出的高端网络产品，主要应用在企业广域网核心节点、大型企业接入节点、园区互联&汇聚节点以及其他各种大型IDC 网络的边缘位置，与NE5000E 骨干路由器、NE20E 汇聚路由器产品配合组网，形成结构完整、层次清晰的IP 网络解决方案。

NE40E 采用华为自研Solar 系列NP 芯片，基于CLOS 分布式多级交换架构，采用分布式的硬件转发和无阻塞交换技术，具有良好的线速转发性能，优异的扩展能力，完善的QoS 机制和强大的业务处理能力。

NE40E 基于最新的可扩展2T 平台，每槽位最大提供1T 路由线卡，兼容现网线卡，最大限度保护客户的投资。

NE40E 具有强大的汇聚接入能力，凭借丰富的特性支持，可以灵活部署L2VPN 、L3VPN 、组播、组播VPN 、MPLS TE 、QoS 等，实现用户业务的可靠承载；支持丰富的增值业务特性，如GRE 隧道、IPSec 安全隧道NetStream 等；同时，NE40E 全面支持IPv6，可以实现IPv4到IPv6的平滑过渡。

因此，NE40E 可以灵活应用在IP/MPLS 网络的边缘、核心，可以简化网络结构，提供丰富的业务类型和可靠的服务质量，是IP/MPLS 承载网向宽带化、安全化、业务化、智能化发展的重要源动力。

外观NE40E 系列主要包括NE40E-X16A/X16, NE40E-X8A/X8,NE40E-X3/X3A 适应不同规模的网络组网需求。

NE40E X16A NE40E-X16NE40E-X8ANE40E-X8NE40E-X3ANE40E-X3产品特点领先的2T 平台NE40E系列节能减排机框基于2T平台，每槽位最大可以平滑扩容到2Tbps带宽，实现大容量业务承载，满足未来带宽增长需求。

华为技术有限公司 ATN 905 产品彩页说明书

ATN 905产品彩页华为技术有限公司ATN 905 是应用于小基站回传和EDD 产品概述任意环境安装： •ATN905室外款支持产品特点网络位置产品规格属性ATN905 (AC/DC)软件特性L2 特性支持 IEEE802.1q、IEEE802.1p、IEEE 802.3ad 及 IEEE 802.1ab •支持 STP/RSTP/MSTP、VLAN Switch•支持 G.8032•CPE ATN 905-C 支持CPE•L3特性支持 IPv4、IPv6、OSPFv2/V3、RIPv2、IS-IS/IS-ISv6、BGPv4/BGPV4+、IPv6 ACL/Telnet •支持动态ARP 和静态ARP表项•支持 VLAN IF 接口•QoS支持WRED、3级H-QoS •支持基于VLL/PWE3 QoS •支持ACL•保护支持 IP FRR、NQA、BFD for IGP、IPv4•支持 IEEE802ag、IEEE802.3AH、ITU-T Y.1731、临终遗言•室外款：属性ATN905A ATN905A-P ATN905A-V 交换容量6Gbps4Gbps4Gbps接口类型2*GE/FE (Combo),2*GE/FE(o)2*GE(o)1*GE/FE (Combo),2*GE/FE(e)1*GE(o),1*VDSL24*GE/FE(e)电源AC：90V ~ 260V AC：90V ~ 260V AC：90V ~ 260VPOE/3路POE1路130W POE；2路共享60W POE典型功耗15W带POE供电最大210W 15W满配重量 2.7kg 2.9kg 2.8kg外形尺寸 (W×D×H)250mm×180mm×52mm250mm×180mm×52mm300mm×135mm×60mm 温度-40°C ~ +65°C-40°C ~ +55°C-40°C ~ +65°C散热自然散热湿度5% RH ~ 95% RH，无凝结。

01-01 接入简介

Quidway NetEngine40E操作手册-接入分册目录目录1 接入简介.......................................................................................................................................1-11.1 简介..............................................................................................................................................................1-21.1.1 接口类型............................................................................................................................................1-21.1.2 链路层协议........................................................................................................................................1-41.2 配置接口基本参数......................................................................................................................................1-51.2.1 建立配置任务.....................................................................................................................................1-51.2.2 进入接口视图.....................................................................................................................................1-51.2.3 配置接口描述.....................................................................................................................................1-61.2.4 配置接口流量统计时间间隔.............................................................................................................1-61.2.5 进一步配置接口.................................................................................................................................1-61.2.6 启动接口............................................................................................................................................1-71.2.7 检查配置结果.....................................................................................................................................1-71.3 维护接口......................................................................................................................................................1-71.3.1 清除接口统计信息.............................................................................................................................1-81.3.2 调试接口............................................................................................................................................1-8表格目录Quidway NetEngine40E 操作手册-接入分册表格目录表1-1 NE40E支持的物理接口命令视图和提示符.........................................................................................1-2表1-2 逻辑接口命令视图和提示符.................................................................................................................1-3Quidway NetEngine40E操作手册-接入分册 1 接入简介1 接入简介关于本章本章描述内容如下表所示。

WA603DN V100R003C01 产品彩页 V1.0

兼容IEEE 802.11a/b/g/n 标准。

支持2.4GHz 和5GHz 双频段，最高速率达600Mbps 。

支持QoS 协议，根据业务类型（语音、视频、数据）进行优先级调度。

支持有线链路的完整性检测。

支持WEP 、WPA/WPA2、WAPI 、802.1X 认证/加密。

自动选择传输速率、信道和发射功率，自适应射频环境，实时回避干扰，增强信噪比，提高吞吐量，加快接入速率。

AP 上线自动发现AC ，自动加载配置，即插即用。

满足用户漫游切换，业务不中断。

网管系统实时监控，实现远程配置和快速故障定位。

WA603DN 是室内放装型AP （Access Point ），支持 2.4GHz 和5GHz 双频段，遵循IEEE 802.11a/b/g/n 标准，是支持Fit 模式的WLAN 接入点设备。

WA603DN 具有高可靠性，高安全性，网络部署简单，自动上线和配置，实时管理和维护等特点，满足室内放装型网络部署要求。

应用于建筑结构简单、信号覆盖面积小、用户相对集中、容量需求较大的开放式无线网络场景。

例如，酒店、机场、学校和中小型企业的无线局域网等。

WA603DN 在WLAN （Wireless Local Area Network ）即无线局域网中具有以下技术特点： ● 高等级的网络安全性WA603DN 支持多种认证和加密方式。

支持WEP （wired equivalent privacy ）即有线等效认证/加密方式。

支持WPA （Wi-Fi protected access ）/WPA2 即Wi-Fi 安全访问协议认证/加密方式。

支持WAPI （WLAN authentication and privacy infrastructure ）即无线局域网鉴别和保密基础结构认证/加密方式，是中国的无线局域网国家标准体系。

支持802.1X 认证/加密方式。

● 便捷的网络部署和配置简单的设备管理和维护便捷的网络部署和配置高可靠性的无线接入服务高等级的网络安全性 WA603DN 室内放装型AP高可靠性的无线接入服务高等级的网络安全性高度的环境自适应能力简单的设备管理和维护支持动态速率调整，可自动匹配最佳的连接速率；设备上线自动发现、自动加载配置；信道、频率自动调整，实现负载均衡；满足用户漫游切换，业务不中断。

华为PON接入产品彩页

MA5683T MA5680T MA5608TRS485集中器电表MA5633MA5631MA5632CMEOC 终端MA5621MA5621AMA5620MA5626MA5669MA5612MA5616· 完备的 Qos 功能，支持流分类管理，优先级控制，带宽控制。

H-QoS 功能满足多样化商业客户的SLA 要求· 端到端高可靠设计，上行支持BFD/Smart Link/LACP 冗余保护，支持EPON TypeB/TypeD 和GPON Type B/Type C 线路保护多场景接入· 多种E1专线接入，支持Native TDM 或CESoP/SAToP 功能· 支持E-LAN 功能，实现基于VLAN 内部流量互通，满足企业及园区组网应用· 支持IPTV 用户无收敛接入，单框支持8000组播用户和4000组播频道平滑演进· EPON/GPON/10G PON/40G PON 共平台，支持平滑演进，满足超宽带接入。

· 支持IPv4/IPv6双栈，支持IPv6组播，实现IPv4向IPv6的平滑演进绿色节能· 独有芯片技术，高密度16端口GPON 单板功耗不超过73瓦· 支持空闲单板自动下电，风扇智能调速，有效降低闲时功耗。

产品外观汇聚接入一体· 超高汇聚交换能力，3.2T 背板容量，1920G 交换容量，512K MAC 地址容量· 超高密度级联能力，最大支持44路10 GE 或 768个GE 接入，无需额外投资汇聚交换机高可靠性· 高可靠组网能力，支持OLT 双机热备份、异地容灾、升级业务不中断关键特点SmartAX MA5680T 系列产品MA5680T MA5683T MA5608T华为MA5680T 系列OLT 基于华为第三代统一平台开发，融合汇聚交换功能，可提供高密度的xPON 、GE/10GE 接口。

华为NE20E-S系列路由器产品彩页

NE20E-S具有强大的业务承载能力，根据组网需求可以同时部署L2VPN、L3VPN、MVPN，支持和TE (Traffic Engineering)同时部署，支持灵活QinQ，支持DHCP，还可提供Netstream等功能，适应传统的接入需求和新兴的业务需求，满足多业务融合丰富的承载需求。

NE20E-S具有强大的可扩展组播能力，支持丰富的IPv4/IPv6组播协议，包括PIM-SM/SSM、MLDv1/v2、IGMPv3、IGMPSnooping等特性，可以灵活承载IPTV等视频业务，可以满足各种规模的组播业务的需求。

全方位的可靠性解决方案NE20E-S系列路由器采用分布式处理架构，主控、交换和转发物理分离，控制平面和业务平面分离，确保业务和控制互不干扰，主备倒换时不影响业务转发。

NE20E-S从多个层面提供可靠性保护，包括设备级、网络级、业务级可靠性，形成了面向整个网络的解决方案，完全满足电信级的可靠性需求，是构筑电信级业务的基石，达到99.999％的系统可用性。

设备级可靠：NE20E-S提供关键部件的冗余备份。

关键组件支持热插拔与热备份、NSR(Non-Stop Routing)、NSF(Non-Stop Forwarding)和ISSU等技术一起保障无中断业务运行。

网络级可靠：NE20E-S提供IP/LDP/VPN/TE快速重路由，Hot-Standby，IGP、BGP以及组播路由快速收敛，虚拟路由冗余协议(VRRP，Virtual Router Redundancy Protocol)，TRUNK链路分担备份，硬件BFD链路3.3ms快速检测，MPLS/Ethernet OAM，保证整网稳定性，可以提供端到端200ms保护倒换，业务无中断。

业务级可靠：NE20E-S提供的VPN FRR和E-VRRP技术，VLL FRR和Ethernet OAM技术以及PW Redundancy，可以应用于L3VPN和L2VPN组网方案中，保证业务层面的冗余备份，使业务稳定可靠不中断。
